1. January 3, 2017Sherwin Williams Development
SHERWIN WILLIAMS
DEVELOPMENT
LAND USE PROGRAMMING

2. Sherwin Williams Development 1January 3, 2017

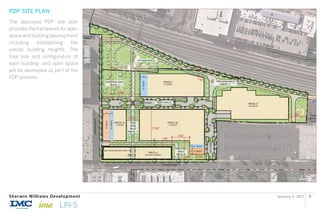

PDP SITE PLAN
The approved PDP site plan
provides the framework for open
spaceandbuildingdevelopment
including establishing the
overall building heights. The
final size and configuration of
each building and open space
will be developed as part of the
FDP process.
320’
190’
30’
25’
40’
98’
195’
60’
85’
90’
+-
+-
+-
+-
+-
+-
+-
+-
+-
+-

3. January 3 2017Sherwin Williams Development 2

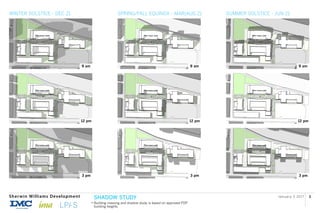

WINTER SOLSTICE - DEC 21 SPRING/FALL EQUINOX - MAR|AUG 21 SUMMER SOLSTICE - JUN 21
9 am 9 am 9 am
12 pm 12 pm 12 pm
3 pm 3 pm 3 pm
SHADOW STUDY
Building massing and shadow study is based on approved PDP
building heights
*

4. January 3, 2017Sherwin Williams Development
LANDUSEPROGRAMMING 3
HORTON STREET
EXISTING
PARKING LOT
SHERWINAVENUE
RAILROAD TRACKS

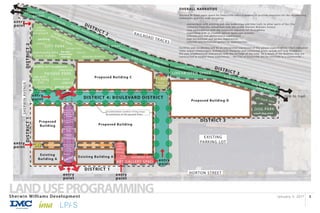

Sherwin Williams open space for Emeryville offers a number of positive amenities for the neighboring
community and City wide including;
· connections with existing and new pedestrian and bike trails to other parts of the City
· influence from the connection with the onsite Sherwin Williams history
· view participation with the extensive adjacent rail throughway
· experience with re-created natural landscape systems
· informal play and performance experiences
· new recreational and garden experiences
· informal and formalized gathering opportunities
Facilities and vocabulary will be an interpreted expression of the unique aspects of the City’s industrial
roots. Urban streetscapes, architectural character and connected green spaces will help to express
the new neighborhood interwoven with the heritage of the area. As a result of the facilities that are
constructed to enable these experiences – the City of Emeryville will be enriched as a community.
DISTRICT2
Existing Building A
entry
point
entry
point
entry
point
entry
point
Proposed Building
Proposed Building C
Proposed Building D
OVERALL NARRATIVE
Existing
Building A
Proposed
Building
DISTRICT1
DISTRICT 1
DISTRICT 3
DISTRICT 3
link to trail
DISTRICT 2
outdoor art
play areas
emeryville greenway
cafe/brewery
seating
adult exercise
bocce
canopy trees
canopy trees
small
children
playground
tennis
parking
large multi-
purpose lawn
berms/
elevation
change
passive use
play area
picnic space
bbq grills/
group eating
areas
public art/sculpture
bike express lane
natural demonstration gardens
history interpretation areas
sitting areas
heritage
tree
seating
community bike
share station movies/events
map kiosk along
bike trail
train viewingplatform
community
garden
portal
chess
table and
seating
history/
interpretation
areas
reflecting &
refracting
sunlight
through
inviting/
interactive
lighting &
design
CONNECTIONPASSIVEservice
area
video
wall
living
wall
coffee
kiosk
DOG PARK
off-leash area
small dog area
CITY PARK
PASSIVE PARK
PASS
THROUGH
LINEAR OPEN SPACE
DISTRICT 4: BOULEVARD DISTRICT
accommodate outdoor living areas
as extension of the ground floor
entry
point
strong
connection
strong
connection
PLAZA
ART GALLERY SPACE
entry
point

5. January 3, 2017Sherwin Williams Development
DISTRICT1:WAREHOUSEDISTRICT 4
Keymap
3
N.T.S
1
2
4

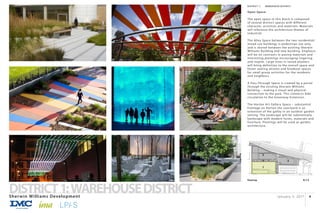

DISTRICT 1: WAREHOUSE DISTRICT
Open Space:
The open space in this block is composed
of several distinct spaces with different
character, activities and materials. Materials
will reference the architecture themes of
industrial.
The Alley Space between the two residential/
mixed use buildings is pedestrian use only
and is shared between the existing Sherwin
Williams Building and new building. Emphasis
will be on contrasts in paving materials and
interesting plantings encouraging lingering
and respite. Large trees in raised planters
will bring definition to the overall space and
foster seating alcoves and breakout spaces
for small group activities for the residents
and neighbors.
A Pass-Through Space is created by a portal
through the existing Sherwin Williams
Building – making a visual and physical
connection to the park. This connects bike
circulation to the Greenway Extension.
The Horton Art Gallery Space – substantial
frontage on Horton the courtyard is an
extension of the galley in an outdoor garden
setting. The landscape will be substantially
hardscape with modern forms, materials and
furniture. Plantings will be used as garden
architecture.

6. January 3, 2017Sherwin Williams Development
DISTRICT 2: PARK DISTRICT
Open Space:
This largest area of open space – Sherwin
Avenue Park - is suitable for various activities
and has approximately 50% streetscape
frontage – making easy accessibility to the
neighborhood. The heart of the development
it offers a convenient connection and
continuation of the Greenway Extension.
The character and materials of the space are
intentionally simple, durable, and open to
encourage programming and impromptu use.
A street tree pattern will continue through
the frontage. Trees at the perimeter will
create skyline and urban green. Potential
uses of the open space include:
• ‘Big Green’ without definition to be
programmable.
• Performance space.
• ‘Big Forest’ edges allowing varied passive
uses under the trees.
• Group bar-be-que and picnic facility.
• Kids creative play area
• Family, kids, and dog friendly.
• Functional and aesthetically interesting
graphics and lighting.
• Access to public restrooms.
DISTRICT2:PARKDISTRICT
Keymap
3
N.T.S
5
2
4
1

7. January 3, 2017Sherwin Williams Development
DISTRICT3:RAILDISTRICT 6
Keymap N.T.S
1
2
4 3

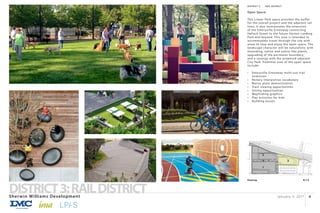

DISTRICT 3: RAIL DISTRICT
Open Space:
This Linear Park space provides the buffer
for the overall project and the adjacent rail
lines. It also incorporates the extension
of the Emeryville Greenway connecting
Halleck Street to the future Horton Landing
Park and beyond. This area is intended to
accommodate travel through the site with
areas to stop and enjoy the open space. The
landscape character will be naturalistic with
mounding, native and native-like plants,
upgrading of the perimeter boundary,
and a synergy with the proposed adjacent
City Park. Potential uses of the open space
include:
• Emeryville Greenway multi-use trail
extension
• History interpretive vocabulary
• Native plant demonstration
• Train viewing opportunities
• Sitting opportunities
• Wayfinding graphics
• Play activities for kids
• Building murals

8. January 3, 2017Sherwin Williams Development
DISTRICT4:BOULEVARDDISTRICT 7
Keymap
3
N.T.S
1
2
4

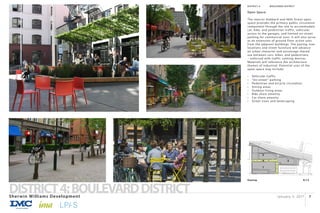

DISTRICT 4: BOULEVARD DISTRICT
Open Space:
The interior Hubbard and 46th Street open
space provides the primary public circulation
component through the site to accommodate
car, bike, and pedestrian traffic, vehicular
access to the garages, and limited on-street
parking for commercial uses. It will also serve
as an extension of ground floor active uses
from the adjacent buildings. The paving, tree
locations and street furniture will advance
an urban character and encourage shared
use between cars, bikes, and pedestrians
– enforced with traffic calming devices.
Materials will reference the architecture
themes of industrial. Potential uses of the
open space may include:
• Vehicular traffic
• “On-street” parking
• Pedestrian and bicycle circulation
• Sitting areas
• Outdoor living areas
• Bike share amenity
• Car share amenity
• Street trees and landscaping
