3. Definitions SOAP Initially: Simple Object Access Protocol It’s about services that exchange messages The messages are formed from XML Each message has headers plus a body WSDL Describes services and their operations Uses XML and schema to describe messages

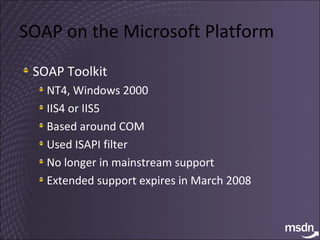

4. SOAP on the Microsoft Platform SOAP Toolkit NT4, Windows 2000 IIS4 or IIS5 Based around COM Used ISAPI filter No longer in mainstream support Extended support expires in March 2008

5. SOAP on the Microsoft Platform SOAP Toolkit NT4, Windows 2000 IIS4 or IIS5 Based around COM Used ISAPI filter No longer in mainstream support Extended support expires in March 2008

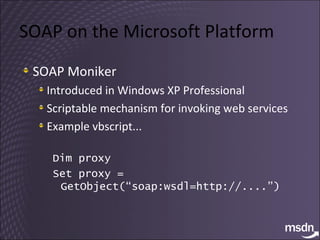

6. SOAP on the Microsoft Platform SOAP Moniker Introduced in Windows XP Professional Scriptable mechanism for invoking web services Example vbscript... Dim proxy Set proxy = GetObject(“soap:wsdl=http://....”)

7. SOAP on the Microsoft Platform .NET Remoting Supports TCP and HTTP transports Can use IIS, or not Supports SOAP formatting, or binary Significant difference: - Distributed Object programming paradigm As opposed to message passing

8. SOAP on the Microsoft Platform ASP.NET .asmx web services “ add web reference” Still relies on IIS Support in v2.0 for WS-I Basic Profile No other “standards” support is built-in

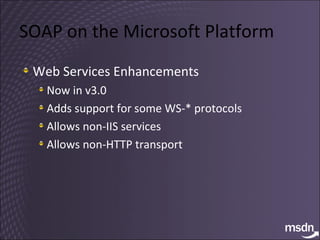

9. SOAP on the Microsoft Platform Web Services Enhancements Now in v3.0 Adds support for some WS-* protocols Allows non-IIS services Allows non-HTTP transport

10. SOAP on the Microsoft Platform Windows Communication Foundation Introduced in .NET FX 3.0 Entirely new communications API Allows for changes in transports and protocols Very extensible Can use IIS, or not Can use HTTP, or not Ships with named pipes, TCP, MSMQ, P2P

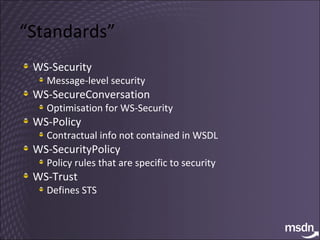

11. “ Standards” WS-Security Message-level security WS-SecureConversation Optimisation for WS-Security WS-Policy Contractual info not contained in WSDL WS-SecurityPolicy Policy rules that are specific to security WS-Trust Defines STS

12. Approaches – Distributed Objects A long history on the Microsoft platform DCOM, .NET Remoting Difficulty in managing object lifetimes Wisdom of making network transparent? Perhaps the developer needs to know? Simple, OO paradigm – easy to code against

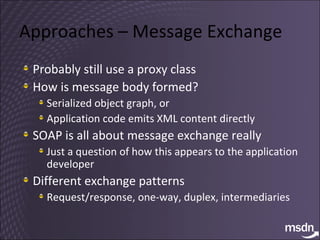

13. Approaches – Message Exchange Probably still use a proxy class How is message body formed? Serialized object graph, or Application code emits XML content directly SOAP is all about message exchange really Just a question of how this appears to the application developer Different exchange patterns Request/response, one-way, duplex, intermediaries

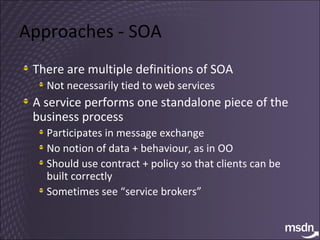

14. Approaches - SOA There are multiple definitions of SOA Not necessarily tied to web services A service performs one standalone piece of the business process Participates in message exchange No notion of data + behaviour, as in OO Should use contract + policy so that clients can be built correctly Sometimes see “service brokers”

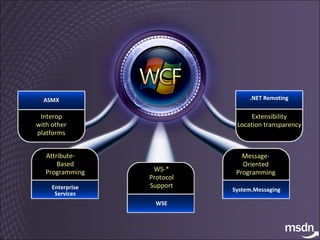

15. Interop with other platforms ASMX Attribute- Based Programming Enterprise Services WS-* Protocol Support WSE Message- Oriented Programming System.Messaging Extensibility Location transparency .NET Remoting

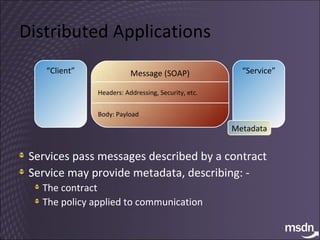

16. Distributed Applications Services pass messages described by a contract Service may provide metadata, describing: - The contract The policy applied to communication “ Client” Message Message “ Service” Metadata Message (SOAP) Headers: Addressing, Security, etc. Body: Payload

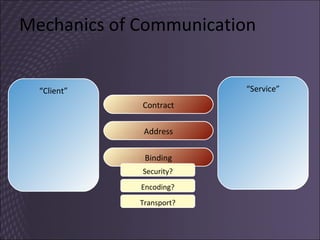

17. Mechanics of Communication What do I send? Where do I send it? How should I send it? Contract Address Binding “ Service” “ Client” Transport? Encoding? Security?

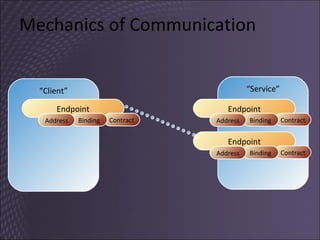

18. Mechanics of Communication “ Service” “ Client” Endpoint Contract Binding Address Endpoint Contract Binding Address Endpoint Contract Binding Address

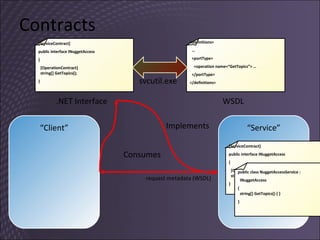

19. Contracts [ServiceContract] public interface INuggetAccess { [OperationContract] string[] GetTopics(); } .NET Interface “ Service” “ Client” <definitions> … <portType> <operation name=“GetTopics”> … </portType> </definitions> WSDL svcutil.exe [ServiceContract] public interface INuggetAccess { [OperationContract] string[] GetTopics(); } public class NuggetAccessService : INuggetAccess { string[] GetTopics() { } } Implements Consumes request metadata (WSDL)

20. Richness of metadata Service can advertise a lot of info to a client WSDL WS-Policy (security etc) Can do so over HTTP WS- MetadataExchange Makes building “clients” a lot simpler Contracts Endpoints Service

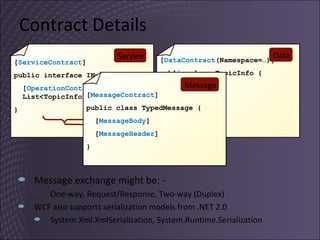

21. Contract Details Message exchange might be: - One-way, Request/Response, Two-way (Duplex) WCF also supports serialization models from .NET 2.0 System.Xml.XmlSerialization, System.Runtime.Serialization [ ServiceContract ] public interface INuggetAccess { [ OperationContract ] List<TopicInfo> GetTopics(); } Service [ DataContract (Namespace=…)] public class TopicInfo { [ DataMember ] public int Id } Data [ MessageContract ] public class TypedMessage { [ MessageBody ] [ MessageHeader ] } Message

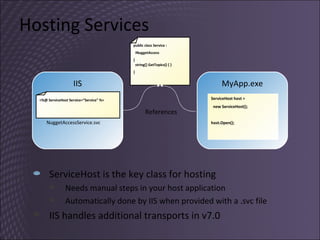

22. Hosting Services public class Service : INuggetAccess { string[] GetTopics() { } } IIS <%@ ServiceHost Service=“Service&quot; %> NuggetAccessService.svc References ServiceHost is the key class for hosting Needs manual steps in your host application Automatically done by IIS when provided with a .svc file IIS handles additional transports in v7.0 MyApp.exe ServiceHost host = new ServiceHost(); host.Open();

23. Windows Communication Foundation

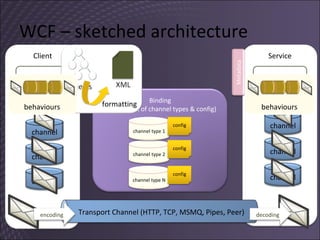

24. WCF – sketched architecture Your code Your code Client Binding (ordered list of channel types & config) channel type N channel type 2 channel type 1 config config config Service Metadata formatting channel channel channel Transport Channel (HTTP, TCP, MSMQ, Pipes, Peer) channel channel channel decoding encoding behaviours behaviours

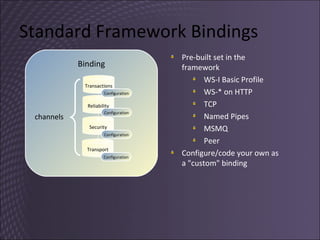

25. Standard Framework Bindings Pre-built set in the framework WS-I Basic Profile WS-* on HTTP TCP Named Pipes MSMQ Peer Configure/code your own as a &quot;custom&quot; binding Binding Transactions Reliability Security channels Configuration Configuration Configuration Transport Configuration

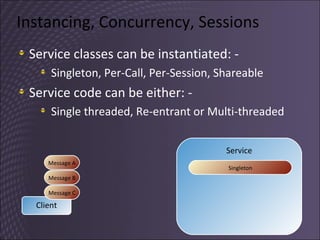

26. Instancing, Concurrency, Sessions Service classes can be instantiated: - Singleton, Per-Call, Per-Session, Shareable Service code can be either: - Single threaded, Re-entrant or Multi-threaded Client Service Singleton Message B Message C Message A

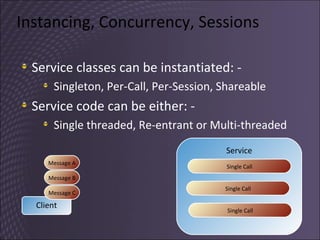

27. Instancing, Concurrency, Sessions Service classes can be instantiated: - Singleton, Per-Call, Per-Session, Shareable Service code can be either: - Single threaded, Re-entrant or Multi-threaded Client Service Single Call Single Call Single Call Message B Message C Message A

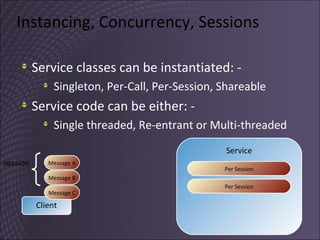

28. Instancing, Concurrency, Sessions Service classes can be instantiated: - Singleton, Per-Call, Per-Session, Shareable Service code can be either: - Single threaded, Re-entrant or Multi-threaded Client Service Per Session Message B Message A session Per Session Message C

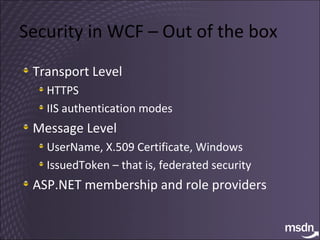

29. Security in WCF – Out of the box Transport Level HTTPS IIS authentication modes Message Level UserName, X.509 Certificate, Windows IssuedToken – that is, federated security ASP.NET membership and role providers

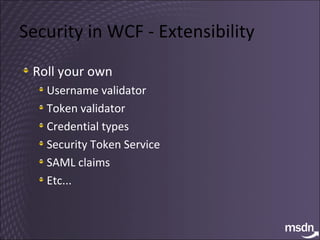

30. Security in WCF - Extensibility Roll your own Username validator Token validator Credential types Security Token Service SAML claims Etc...

31. Federated Security with WCF

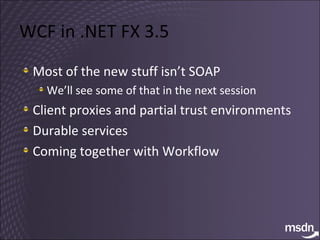

32. WCF in .NET FX 3.5 Most of the new stuff isn’t SOAP We’ll see some of that in the next session Client proxies and partial trust environments Durable services Coming together with Workflow

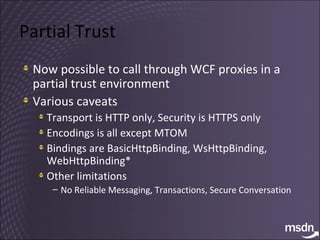

33. Partial Trust Now possible to call through WCF proxies in a partial trust environment Various caveats Transport is HTTP only, Security is HTTPS only Encodings is all except MTOM Bindings are BasicHttpBinding, WsHttpBinding, WebHttpBinding* Other limitations No Reliable Messaging, Transactions, Secure Conversation

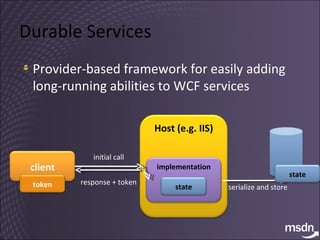

34. Durable Services Provider-based framework for easily adding long-running abilities to WCF services client Host (e.g. IIS) implementation state response + token initial call serialize and store state token

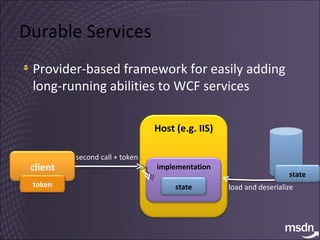

35. Durable Services Provider-based framework for easily adding long-running abilities to WCF services client Host (e.g. IIS) implementation state second call + token load and deserialize state token

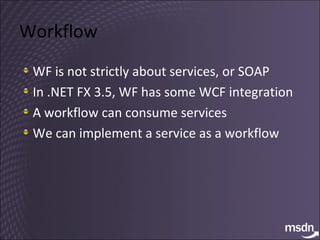

36. Workflow WF is not strictly about services, or SOAP In .NET FX 3.5, WF has some WCF integration A workflow can consume services We can implement a service as a workflow

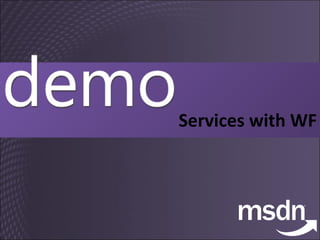

37. Services with WF

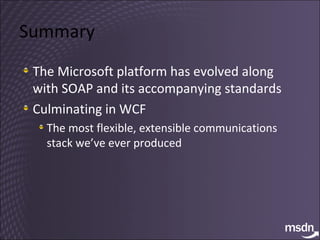

38. Summary The Microsoft platform has evolved along with SOAP and its accompanying standards Culminating in WCF The most flexible, extensible communications stack we’ve ever produced

39. Additional Information MSDN Developer Center for Web Services http://msdn2.microsoft.com/en-gb/webservices/default.aspx “ Standards” http://www.w3.org http://www.ws-i.org http://www.oasis-open.org SOA http://www.opengroup.org/projects/soa http://wiki.oasis-open.org/soa-rm WCF http://netfx3.com/content/WCFHome.aspx WF http://netfx3.com/content/WFHome.aspx
