1. SOA AND WCF
SERVICE ORIENTED ARCHITECTURE & WINDOWS COMMUNICATION FOUNDATION
Dev Raj Gautam
Saturday, 18th may, 2013
Asp.NET Community MeetUp

2. SOA
SERVICE ORIENTED ARCHITECTURE

3. SOA
 SOA or Service oriented architecture is an architecture style for building business applications by means of
services. Application comprises collection of services which communicate through messages.
 Widely used in various programming platforms e.g. Net , Java etc.
 Consists set of components which can be invoked, and whose interface descriptions can be published and
discovered (W3C).
 Services are consumed by software service consumers (also known as clients or service requesters)

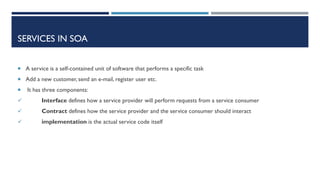

5. SERVICES IN SOA
 A service is a self-contained unit of software that performs a specific task
 Add a new customer, send an e-mail, register user etc.

It has three components:

Interface defines how a service provider will perform requests from a service consumer

Contract defines how the service provider and the service consumer should interact

implementation is the actual service code itself

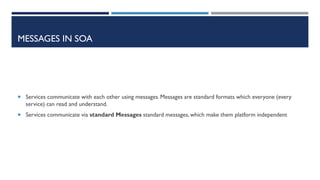

6. MESSAGES IN SOA
 Services communicate with each other using messages. Messages are standard formats which everyone (every
service) can read and understand.
 Services communicate via standard Messages standard messages, which make them platform independent

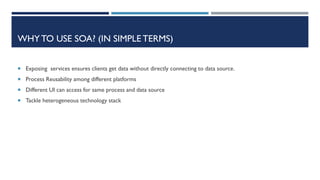

7. WHY TO USE SOA? (IN SIMPLE TERMS)
 Exposing services ensures clients get data without directly connecting to data source.
 Process Reusability among different platforms
 Different UI can access for same process and data source
 Tackle heterogeneous technology stack

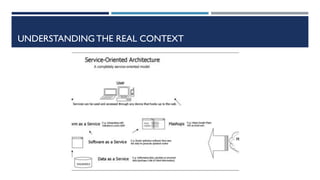

8. UNDERSTANDING THE REAL CONTEXT

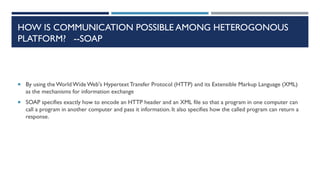

9. HOW IS COMMUNICATION POSSIBLE AMONG HETEROGONOUS
PLATFORM? --SOAP
 By using the World Wide Web's Hypertext Transfer Protocol (HTTP) and its Extensible Markup Language (XML)
as the mechanisms for information exchange
 SOAP specifies exactly how to encode an HTTP header and an XML file so that a program in one computer can
call a program in another computer and pass it information. It also specifies how the called program can return a
response.

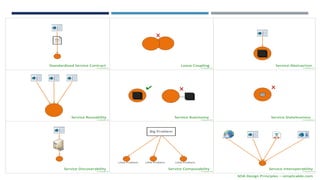

11. WCF
WINDOWS COMMUNICATION FOUNDATION

12. WCF
 The Windows Communication Foundation (or WCF), previously known as "Indigo", is a runtime and a set of APIs
(Application Programming Interface) in the .NET Framework for building connected service-oriented applications
(Wikipedia).
 Using WCF, you can send data as asynchronous messages from one service endpoint to another
 Multiple technologies at one place - WCF unites following four technologies.NET remoting
 MSMQ
 Web Services
 COM+
 .Net Remoting

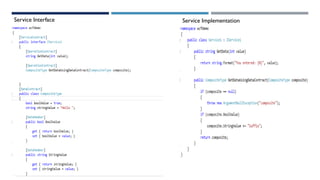

13. Service Interface
Service Implementation

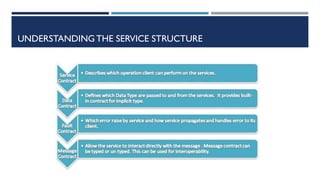

14. UNDERSTANDING THE SERVICE STRUCTURE

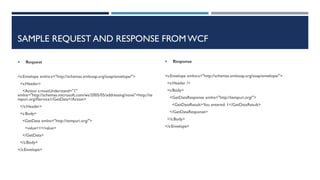

15. SAMPLE REQUEST AND RESPONSE FROM WCF

Request
<s:Envelope xmlns:s="http://schemas.xmlsoap.org/soap/envelope/">
<s:Header>
<Action s:mustUnderstand="1"
xmlns="http://schemas.microsoft.com/ws/2005/05/addressing/none">http://te
mpuri.org/IService1/GetData</Action>
</s:Header>
<s:Body>
<GetData xmlns="http://tempuri.org/">
<value>1</value>
</GetData>
</s:Body>
</s:Envelope>

Response
<s:Envelope xmlns:s="http://schemas.xmlsoap.org/soap/envelope/">
<s:Header />
<s:Body>
<GetDataResponse xmlns="http://tempuri.org/">
<GetDataResult>You entered: 1</GetDataResult>
</GetDataResponse>
</s:Body>
</s:Envelope>

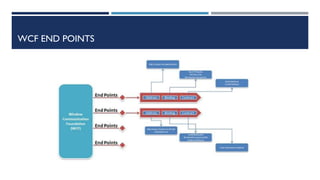

16. WCF END POINTS

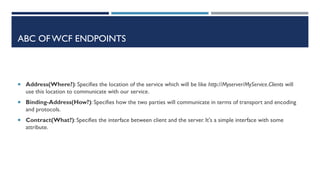

17. ABC OF WCF ENDPOINTS
 Address(Where?): Specifies the location of the service which will be like http://Myserver/MyService.Clients will
use this location to communicate with our service.
 Binding-Address(How?): Specifies how the two parties will communicate in terms of transport and encoding
and protocols.
 Contract(What?): Specifies the interface between client and the server. It's a simple interface with some
attribute.

18. FLEXIBILITY OF HOSTING OPTIONS IN WCF
 Self-Hosting Your Service :A managed .NET application can host the wcf service itself,
 Hosting in Windows Services
 Hosting Using Internet Information Services

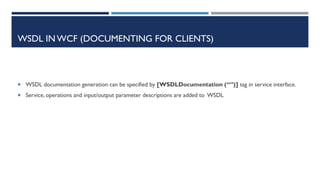

19. WSDL IN WCF (DOCUMENTING FOR CLIENTS)
 WSDL documentation generation can be specified by [WSDLDocumentation (“”)] tag in service interface.
 Service, operations and input/output parameter descriptions are added to WSDL

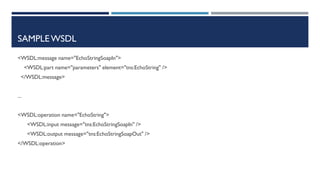

20. SAMPLE WSDL
<WSDL:message name="EchoStringSoapIn">
<WSDL:part name="parameters" element="tns:EchoString" />
</WSDL:message>
...
<WSDL:operation name="EchoString">
<WSDL:input message="tns:EchoStringSoapIn" />
<WSDL:output message="tns:EchoStringSoapOut" />
</WSDL:operation>
