The document discusses the Open Data Protocol (OData), which is an open specification that allows the creation of REST-based data services that support built-in operations like CRUD (Create, Read, Update, Delete) and querying capabilities. OData builds on fundamental web standards like HTTP, URI conventions, and XML or JSON for payloads to define a protocol that can be used for exposing and consuming data across systems via REST. The specification also covers addressing schemes, payloads, metadata, batching requests, and how OData can be implemented using technologies like WCF Data Services.

1. The Open Data Protocol
(OData)
Mike Taulty
Microsoft UK
mtaulty@microsoft.com
mtaulty.com
@mtaulty

2. RESTful services

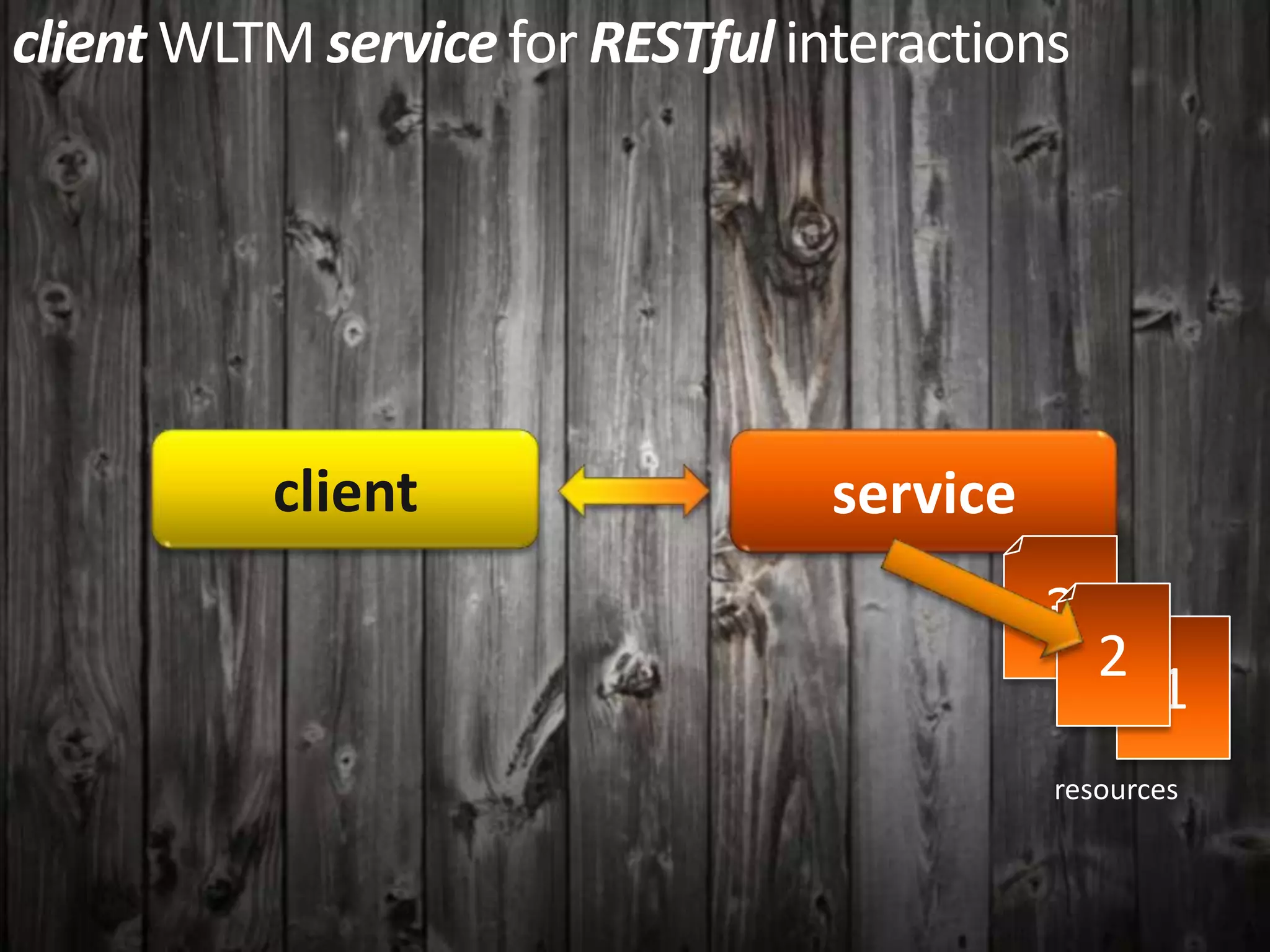

3. client WLTM service for RESTful interactions
client service
3
2
1
resources

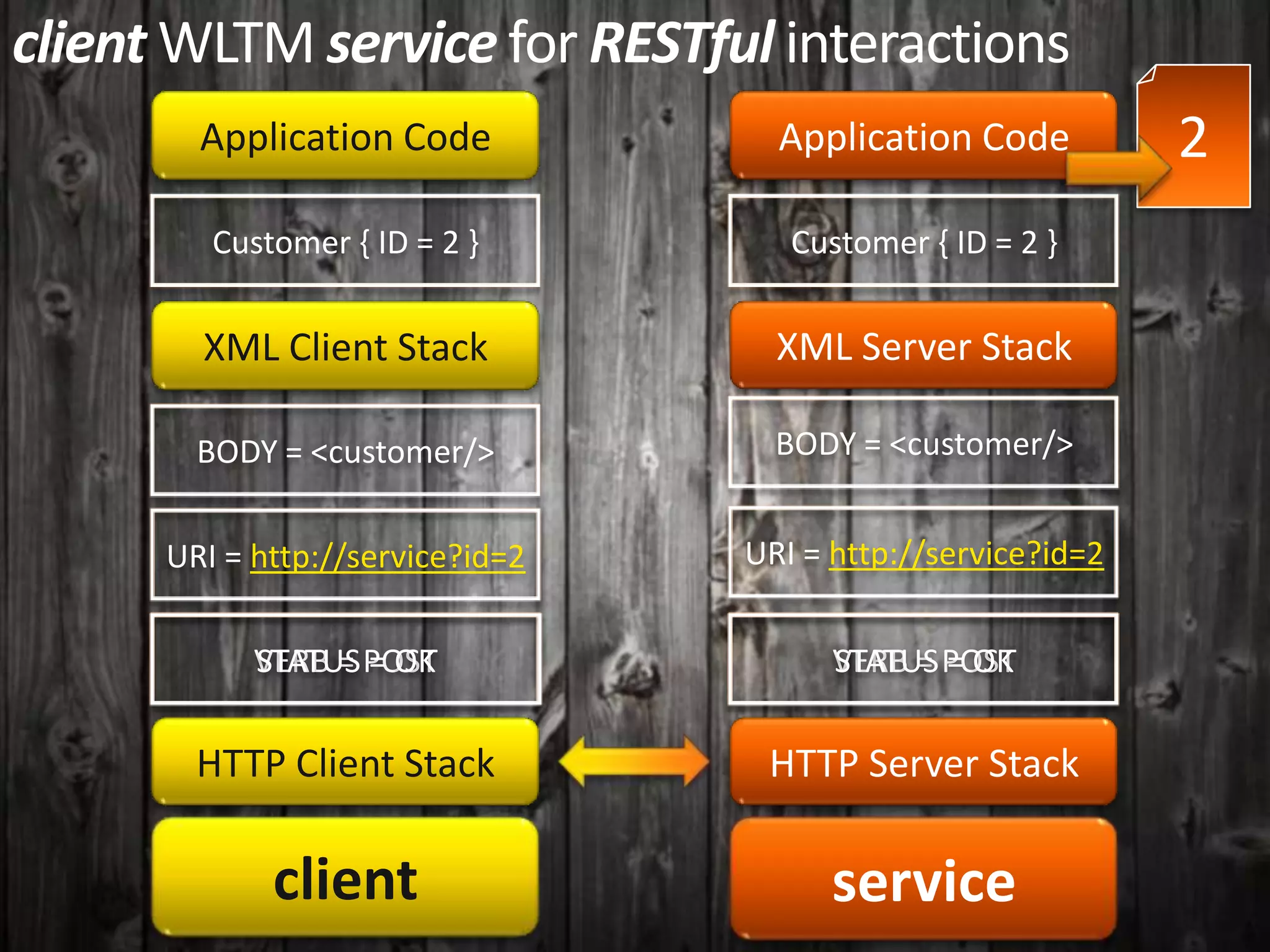

4. client WLTM service for RESTful interactions
Application Code Application Code 2
Customer { ID = 2 } Customer { ID = 2 }
XML Client Stack XML Server Stack
BODY = <customer/> BODY = <customer/>
URI = http://service?id=2 URI = http://service?id=2
VERB = POST
STATUS = OK VERB = POST
STATUS = OK
HTTP Client Stack HTTP Server Stack
client service

5. key points involved here?
1. HTTP as the transport
What’s so great about
2. URI that?indicates
resource 1) Simplicity
3. VERB indicates action
2) Low barrier to entry
4. STATUS CODE3) Standardised
indicates
outcome technologies already
proven on the internet
5. XML as the
payload(s)

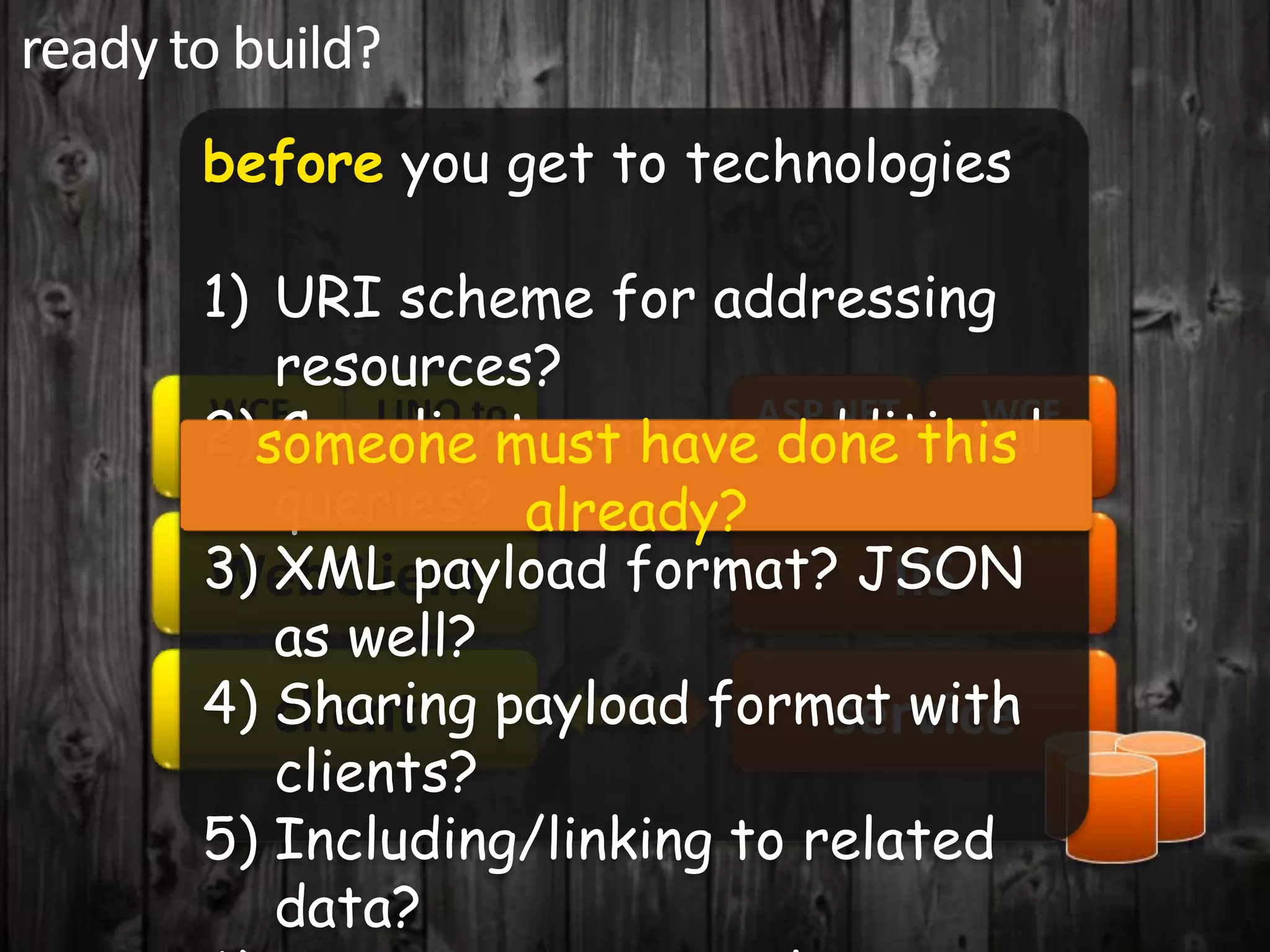

6. ready to build?
before you get to technologies
1) URI scheme for addressing
resources?
2)someone must have (MVC) this
WCF
Can client compose done (REST)
(REST)
LINQ to
XML
additional
ASP.NET WCF
queries? already?
3) XML payload format? JSON
WebClient IIS
as well?
4) client payload format with
Sharing service
clients?
5) Including/linking to related
data?

7. OData is a specification

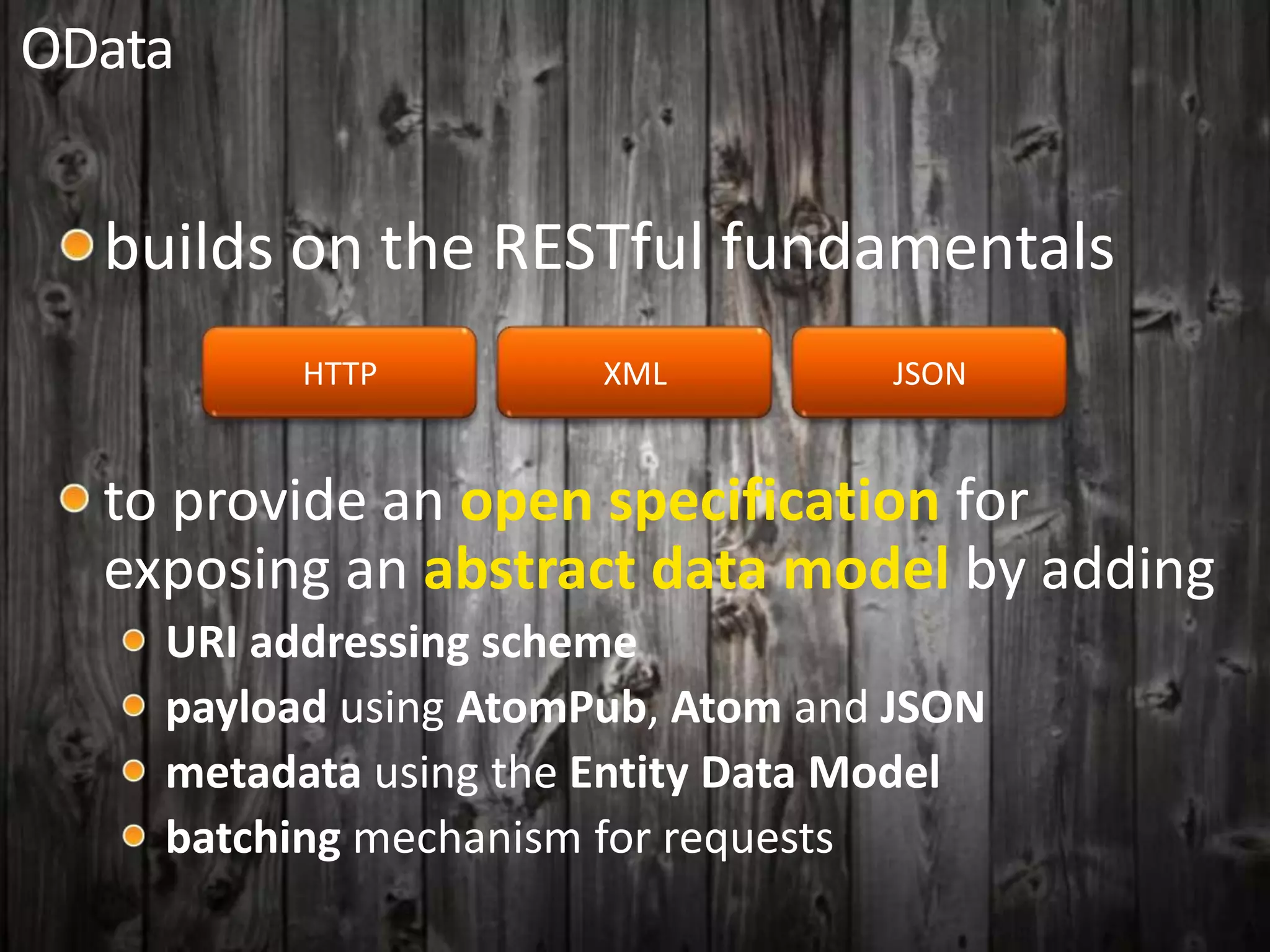

8. OData
builds on the RESTful fundamentals
HTTP XML JSON
to provide an open specification for
exposing an abstract data model by adding
URI addressing scheme
payload using AtomPub, Atom and JSON
metadata using the Entity Data Model
batching mechanism for requests

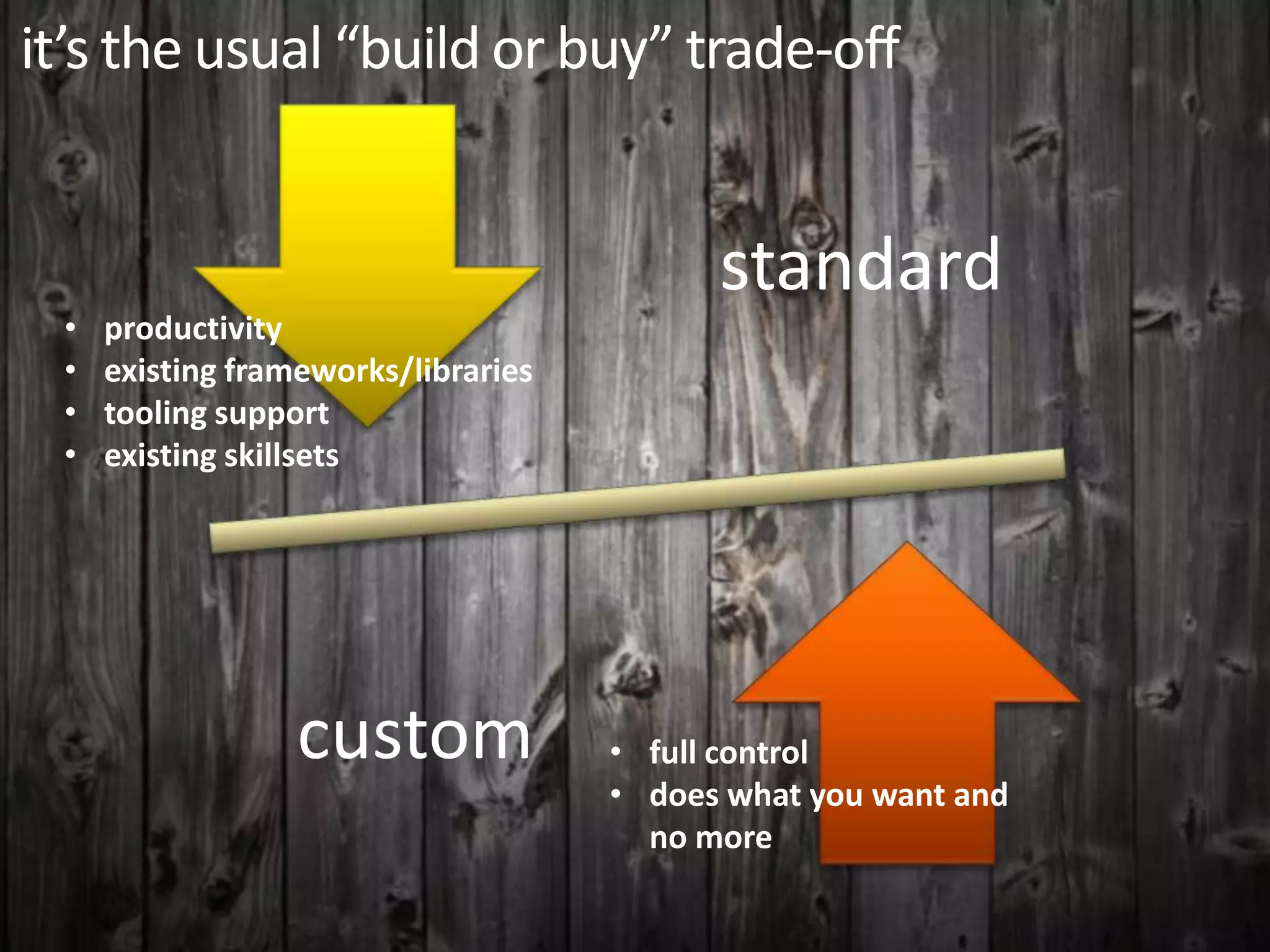

9. it’s the usual “build or buy” trade-off
standard
• productivity
• existing frameworks/libraries
• tooling support
• existing skillsets
custom • full control
• does what you want and
no more

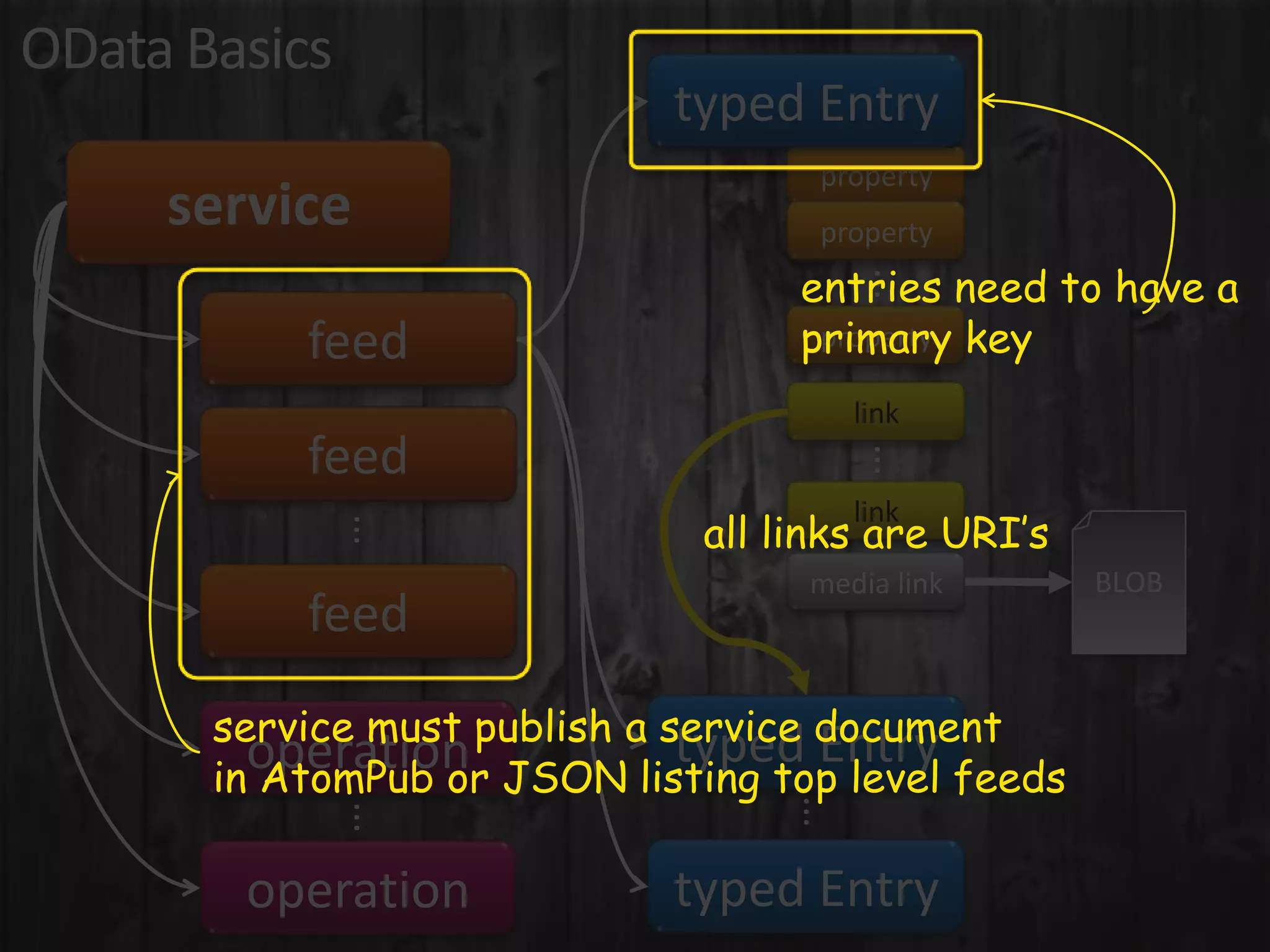

10. OData Basics
typed Entry
property
service property
entries need to have a
...
feed primary key
property
link
feed
...
link
all links are URI’s
...
media link BLOB
feed
service must publish a service document
typed Entry
operation JSON listing top level feeds
in AtomPub or ...
...
operation typed Entry

11. demo
quick exploration of an OData service

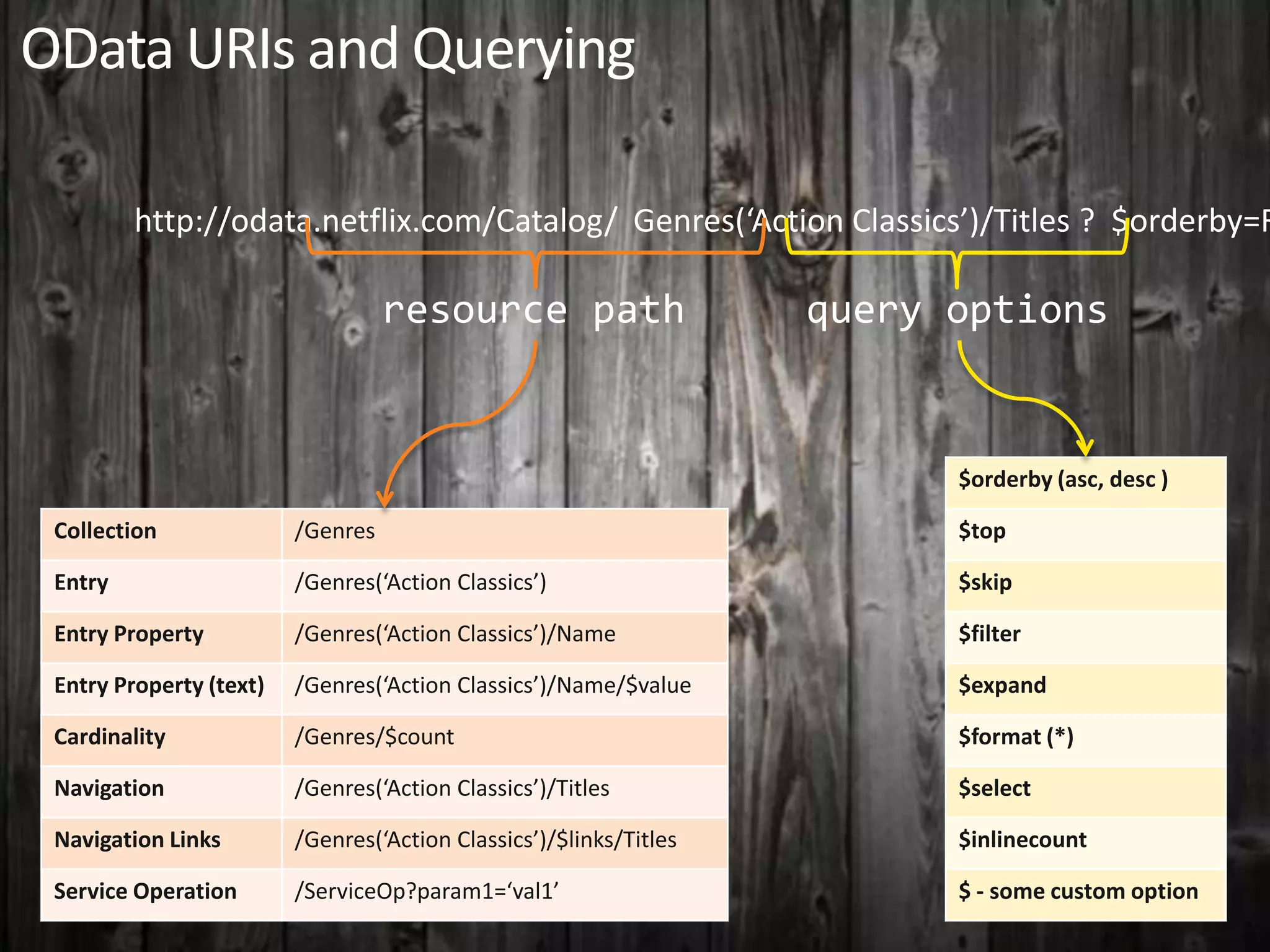

12. OData URIs and Querying
http://odata.netflix.com/Catalog/ Genres(‘Action Classics’)/Titles ? $orderby=R
resource path query options
$orderby (asc, desc )
Collection /Genres $top
Entry /Genres(‘Action Classics’) $skip
Entry Property /Genres(‘Action Classics’)/Name $filter
Entry Property (text) /Genres(‘Action Classics’)/Name/$value $expand
Cardinality /Genres/$count $format (*)
Navigation /Genres(‘Action Classics’)/Titles $select
Navigation Links /Genres(‘Action Classics’)/$links/Titles $inlinecount
Service Operation /ServiceOp?param1=‘val1’ $ - some custom option

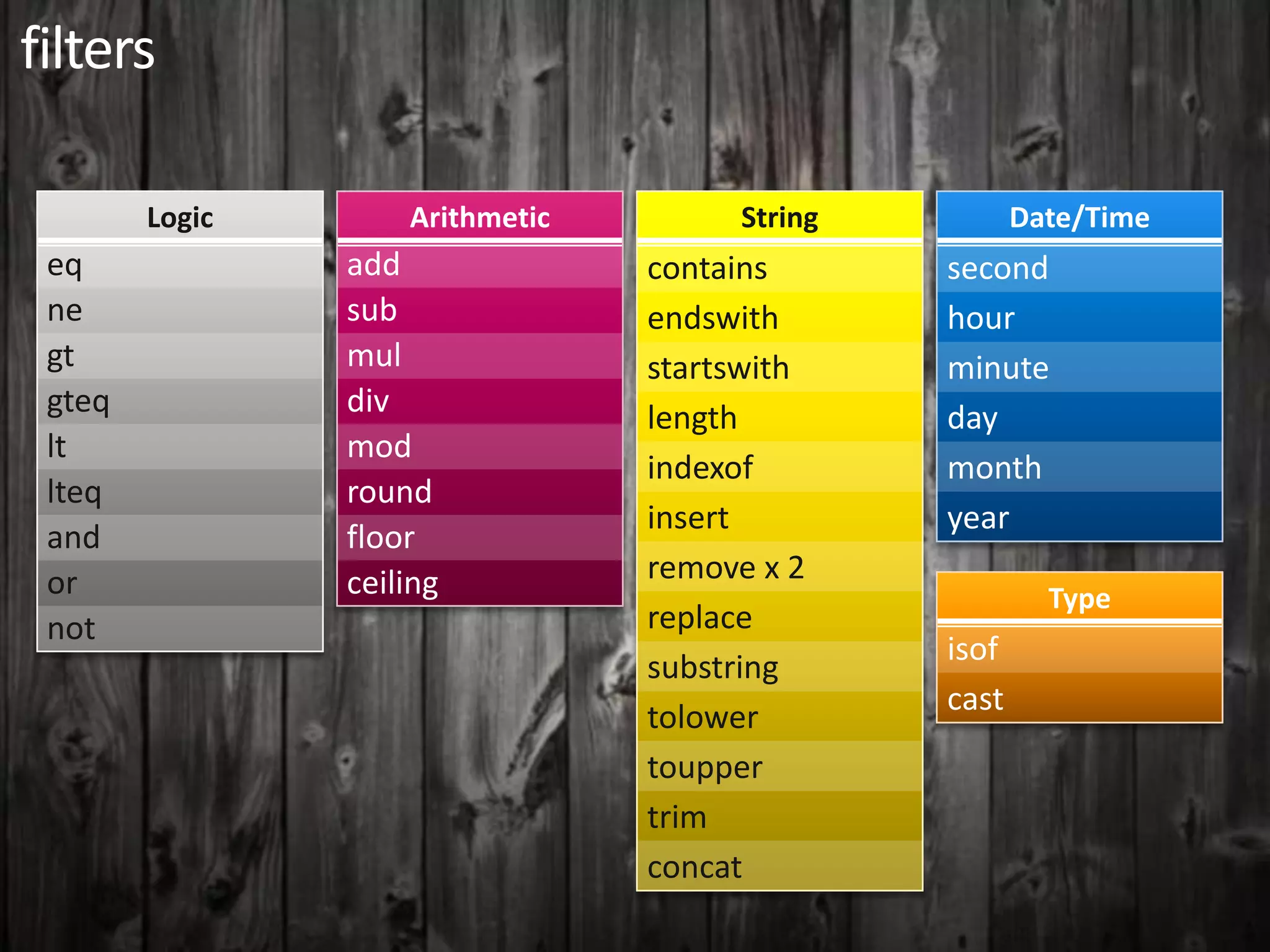

13. filters
Logic Arithmetic String Date/Time
eq add contains second
ne sub endswith hour
gt mul startswith minute
gteq div length day
lt mod
indexof month
lteq round
insert year
and floor
or ceiling remove x 2
Type
not replace
isof
substring
cast
tolower
toupper
trim
concat

14. demo
querying OData services

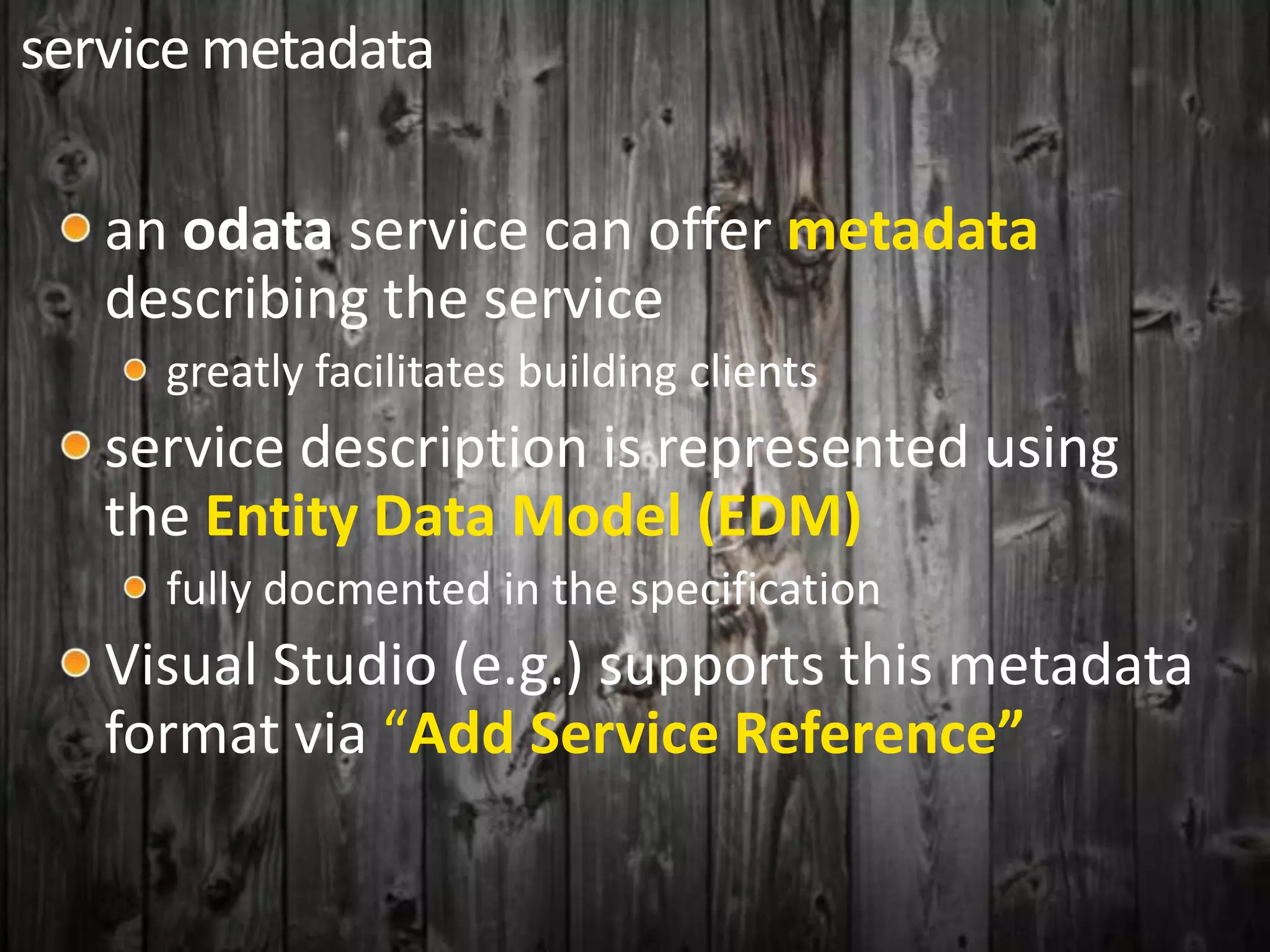

15. service metadata
an odata service can offer metadata
describing the service
greatly facilitates building clients
service description is represented using
the Entity Data Model (EDM)
fully docmented in the specification
Visual Studio (e.g.) supports this metadata
format via “Add Service Reference”

16. demo
accessing service metadata
( including http://bit.ly/odataVisualizer )

17. operations
specification also deals with
INVOKE
GET
DELETE
POST
PUT
client service
client service
maintaining links
including MIME types for ATOM/JSON
maintaining linkshere
including creating links
MERGE also applicable
concurrency checking lists
including partial via ETags
concurrency checkingvia ETags
including protocol versioning
tunnelling over POST
tunnelling over POST

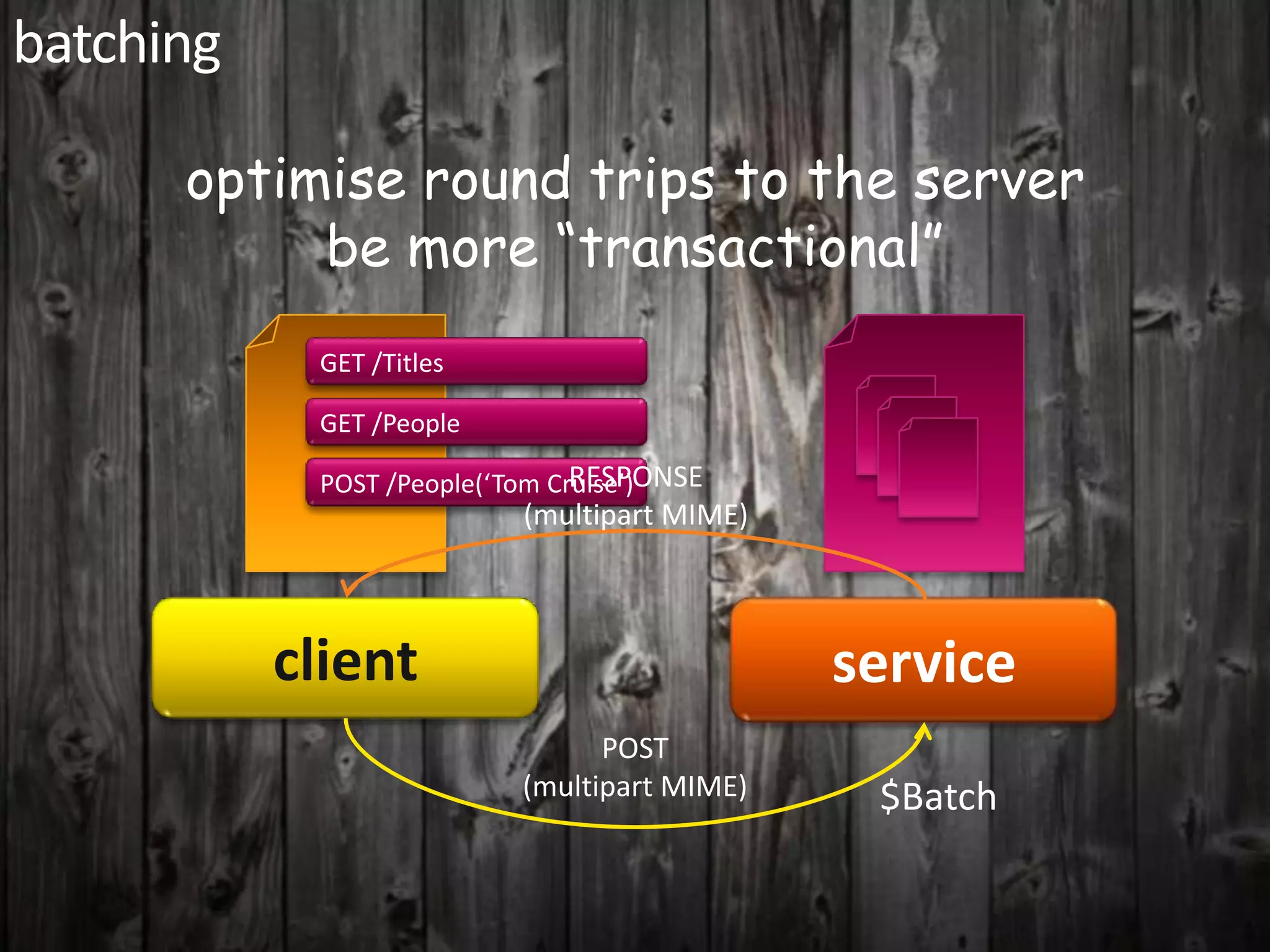

18. batching
optimise round trips to the server
be more “transactional”
GET /Titles
GET /People
RESPONSE
POST /People(‘Tom Cruise’)
(multipart MIME)
client service
POST
(multipart MIME) $Batch

19. specification ->
implementation

20. OData on the server
Custom via WCF Data Services
SharePoint 2010
SQL Azure
Azure Table Storage
SQL Reporting Services
IBM WebSphere

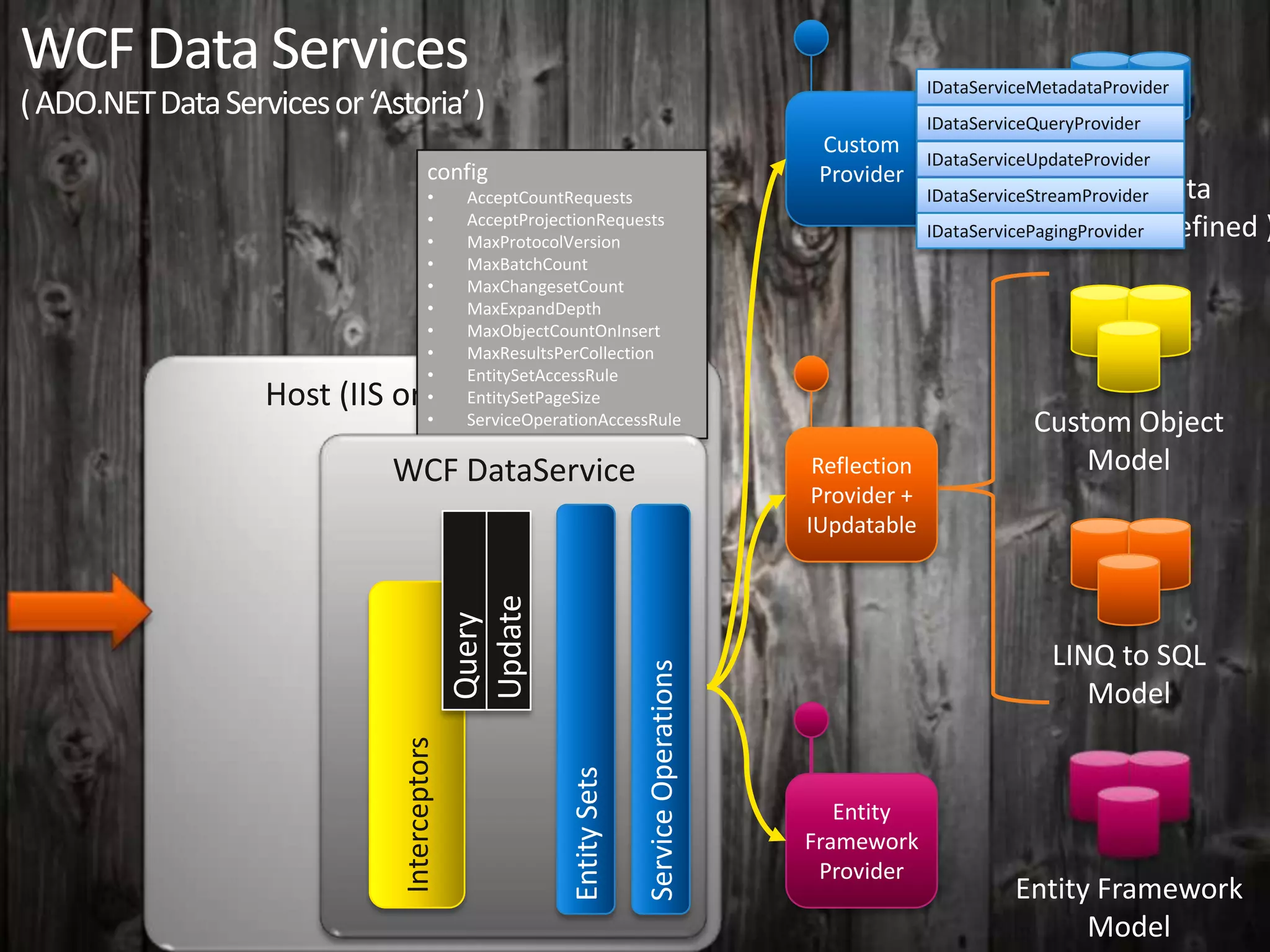

21. WCF Data Services IDataServiceMetadataProvider
( ADO.NET Data Services or ‘Astoria’ ) IDataServiceQueryProvider
Custom
IDataServiceUpdateProvider
config Provider
• AcceptCountRequests Custom Data
IDataServiceStreamProvider
• AcceptProjectionRequests
IDataServicePagingProvider defined )
( dynamically
• MaxProtocolVersion
• MaxBatchCount
• MaxChangesetCount
• MaxExpandDepth
• MaxObjectCountOnInsert
• MaxResultsPerCollection
• EntitySetAccessRule
Host (IIS or self-hosted)
• EntitySetPageSize
• ServiceOperationAccessRule Custom Object
WCF DataService Reflection Model
Provider +
IUpdatable
Update
Query
Service Operations LINQ to SQL
Model
Interceptors
Entity Sets
Entity
Framework
Provider
Entity Framework
Model

22. demo
building an OData service

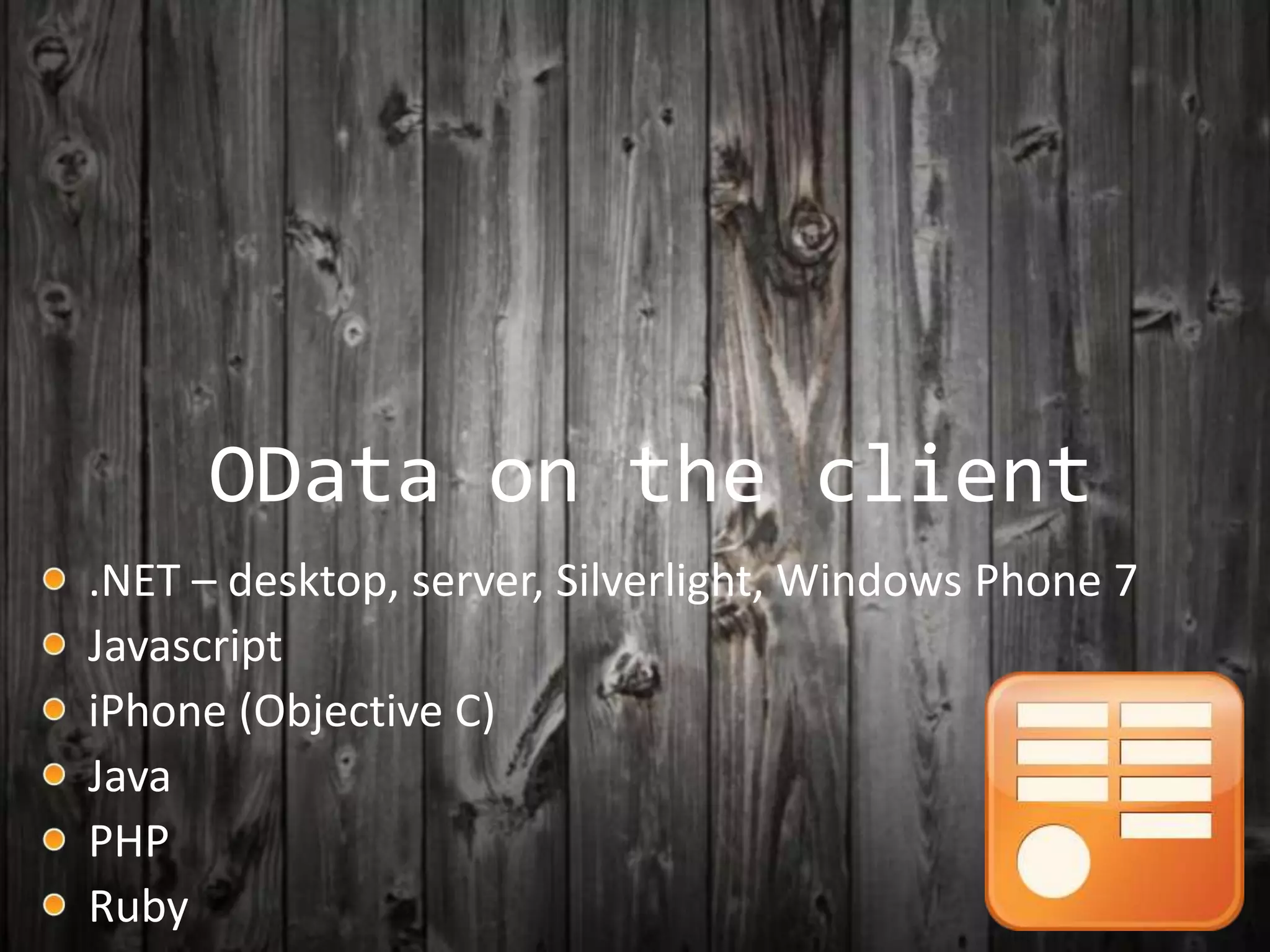

23. OData on the client
.NET – desktop, server, Silverlight, Windows Phone 7
Javascript
iPhone (Objective C)
Java
PHP
Ruby

24. demo
building an OData client

25. more?
www.odata.org
or to see the website in odata
services.odata.org/website/odata.svc
