Serverless for the Enterprise
Rafal Gancarz
Lead Consultant
rafal.gancarz@opencredo.com
@RafalGancarz

2. 2

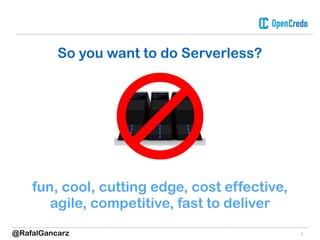

So you want to do Serverless?
fun, cool, cutting edge, cost effective,
agile, competitive, fast to deliver
@RafalGancarz

3. 3
… but you are an Enterprise
security, operability, support, compliance
@RafalGancarz

4. 4

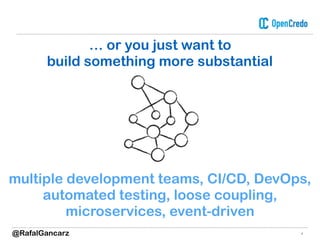

… or you just want to
build something more substantial
multiple development teams, CI/CD, DevOps,
automated testing, loose coupling,
microservices, event-driven
@RafalGancarz

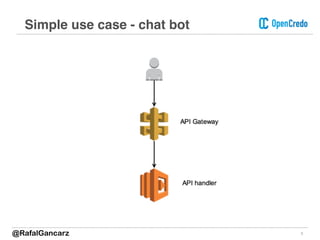

5. Simple use case - chat bot
5@RafalGancarz

6. Simple use case - image resizer
6@RafalGancarz

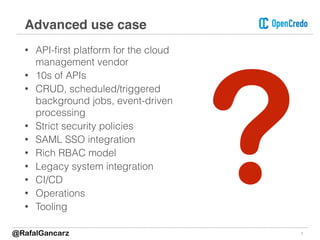

7. • API-first platform for the cloud
management vendor
• 10s of APIs
• CRUD, scheduled/triggered
background jobs, event-driven
processing
• Strict security policies
• SAML SSO integration
• Rich RBAC model
• Legacy system integration
• CI/CD
• Operations
• Tooling
7
Advanced use case
?@RafalGancarz

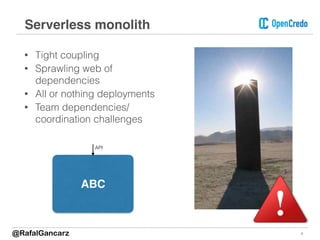

8. • Tight coupling
• Sprawling web of
dependencies
• All or nothing deployments
• Team dependencies/
coordination challenges
8
Serverless monolith
ABC
API
@RafalGancarz

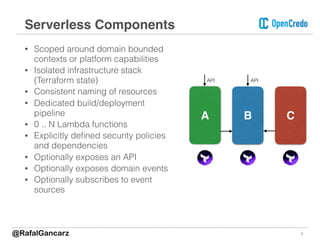

9. • Scoped around domain bounded
contexts or platform capabilities
• Isolated infrastructure stack
(Terraform state)
• Consistent naming of resources
• Dedicated build/deployment
pipeline
• 0 .. N Lambda functions
• Explicitly defined security policies
and dependencies
• Optionally exposes an API
• Optionally exposes domain events
• Optionally subscribes to event
sources
9
Serverless Components
A B C
API API
@RafalGancarz

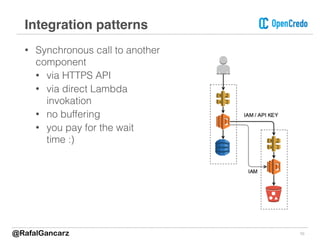

10. • Synchronous call to another
component
• via HTTPS API
• via direct Lambda
invokation
• no buffering
• you pay for the wait
time :)
10
Integration patterns
@RafalGancarz

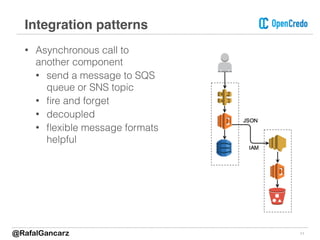

11. • Asynchronous call to
another component
• send a message to SQS
queue or SNS topic
• fire and forget
• decoupled
• flexible message formats
helpful
11
Integration patterns
@RafalGancarz

12. • Asynchronous notifications
• subscribe to SNS topic
• decoupled
• flexible message formats
helpful
12
Integration patterns
@RafalGancarz

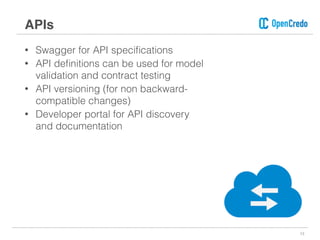

13. • Swagger for API specifications
• API definitions can be used for model
validation and contract testing
• API versioning (for non backward-
compatible changes)
• Developer portal for API discovery
and documentation
13
APIs

14. 14

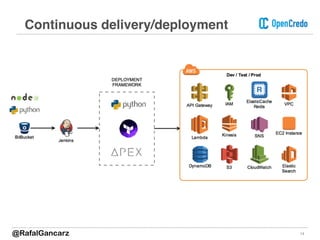

Continuous delivery/deployment
@RafalGancarz

15. 15

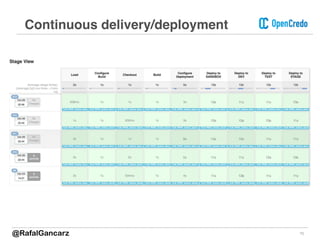

Continuous delivery/deployment
@RafalGancarz

16. 16

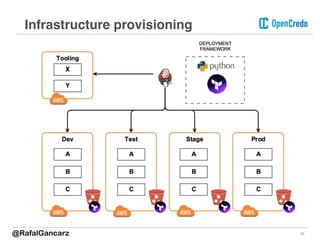

Infrastructure provisioning
@RafalGancarz

17. 17
Code deployments
ES 2015
+
@RafalGancarz
(babeljs.io)(rollupjs.org)
(apex.run)

18. 18

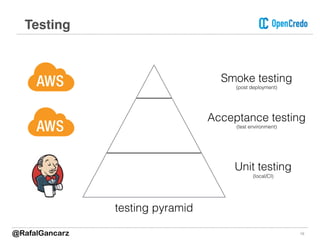

Testing
Unit testing
(local/CI)
Acceptance testing
(test environment)
Smoke testing
(post deployment)
testing pyramid
@RafalGancarz

19. 19

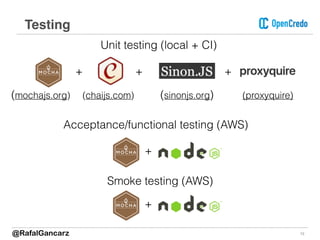

Testing
+ +
Unit testing (local + CI)
+
Acceptance/functional testing (AWS)
+
Smoke testing (AWS)
+
@RafalGancarz
(mochajs.org) (chaijs.com) (sinonjs.org) (proxyquire)

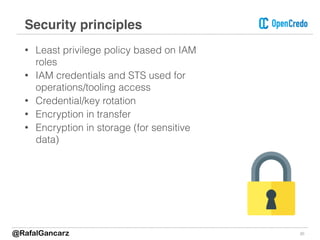

20. • Least privilege policy based on IAM
roles
• IAM credentials and STS used for
operations/tooling access
• Credential/key rotation
• Encryption in transfer
• Encryption in storage (for sensitive
data)
20
Security principles
@RafalGancarz

21. 21

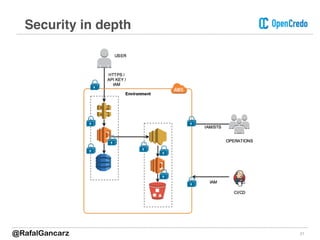

Security in depth
@RafalGancarz

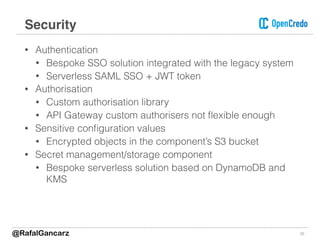

22. • Authentication
• Bespoke SSO solution integrated with the legacy system
• Serverless SAML SSO + JWT token
• Authorisation
• Custom authorisation library
• API Gateway custom authorisers not flexible enough
• Sensitive configuration values
• Encrypted objects in the component’s S3 bucket
• Secret management/storage component
• Bespoke serverless solution based on DynamoDB and
KMS
22
Security
@RafalGancarz

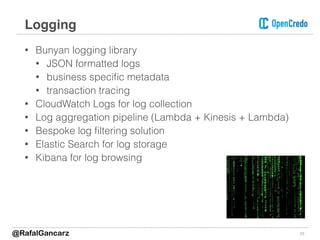

23. • Bunyan logging library
• JSON formatted logs
• business specific metadata
• transaction tracing
• CloudWatch Logs for log collection
• Log aggregation pipeline (Lambda + Kinesis + Lambda)
• Bespoke log filtering solution
• Elastic Search for log storage
• Kibana for log browsing
23
Logging
@RafalGancarz

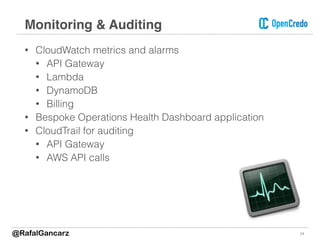

24. • CloudWatch metrics and alarms
• API Gateway
• Lambda
• DynamoDB
• Billing
• Bespoke Operations Health Dashboard application
• CloudTrail for auditing
• API Gateway
• AWS API calls
24
Monitoring & Auditing
@RafalGancarz

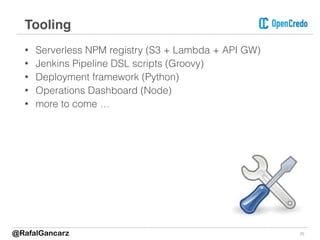

25. • Serverless NPM registry (S3 + Lambda + API GW)
• Jenkins Pipeline DSL scripts (Groovy)
• Deployment framework (Python)
• Operations Dashboard (Node)
• more to come …
25
Tooling
@RafalGancarz

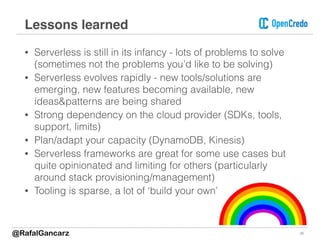

26. • Serverless is still in its infancy - lots of problems to solve
(sometimes not the problems you’d like to be solving)
• Serverless evolves rapidly - new tools/solutions are
emerging, new features becoming available, new
ideas&patterns are being shared
• Strong dependency on the cloud provider (SDKs, tools,
support, limits)
• Plan/adapt your capacity (DynamoDB, Kinesis)
• Serverless frameworks are great for some use cases but
quite opinionated and limiting for others (particularly
around stack provisioning/management)
• Tooling is sparse, a lot of ‘build your own’
Lessons learned
26@RafalGancarz

27. 27
Thank you!
Rafal Gancarz
Lead Consultant
rafal.gancarz@opencredo.com
@RafalGancarz
Questions?
