Icinga @ OSMC 2014

Open Source Monitoring
Conference – 11/19/2014 State of Icinga
WWW.ICINGA.ORG

DEV. WIKI. BLOG. DOC. | WWW.ICINGA.ORG
#osmc
About us - People

#osmc

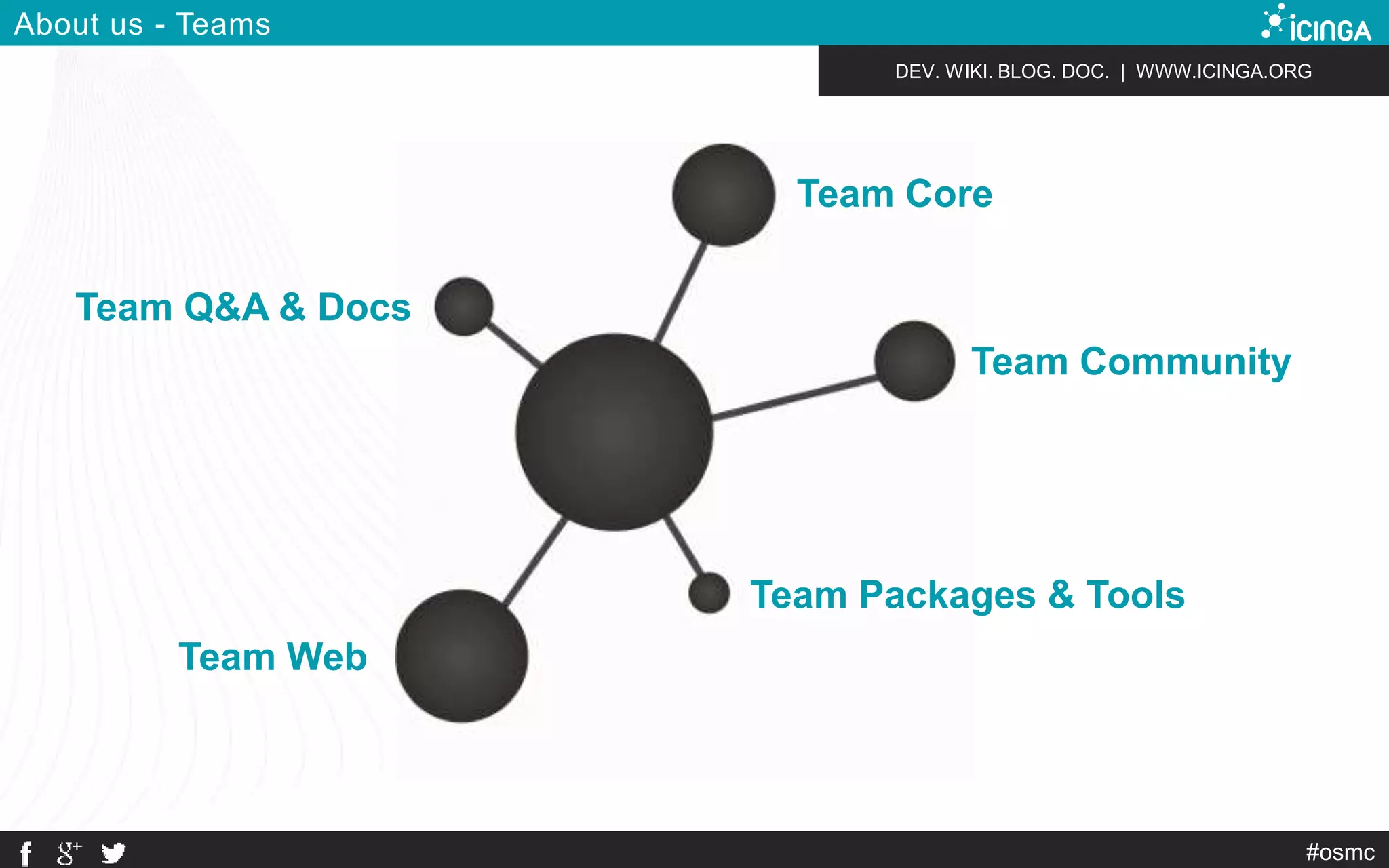

About us - Teams
Team Core
Team Web
Team Community
Team Packages & Tools
Team Q&A & Docs

#osmc

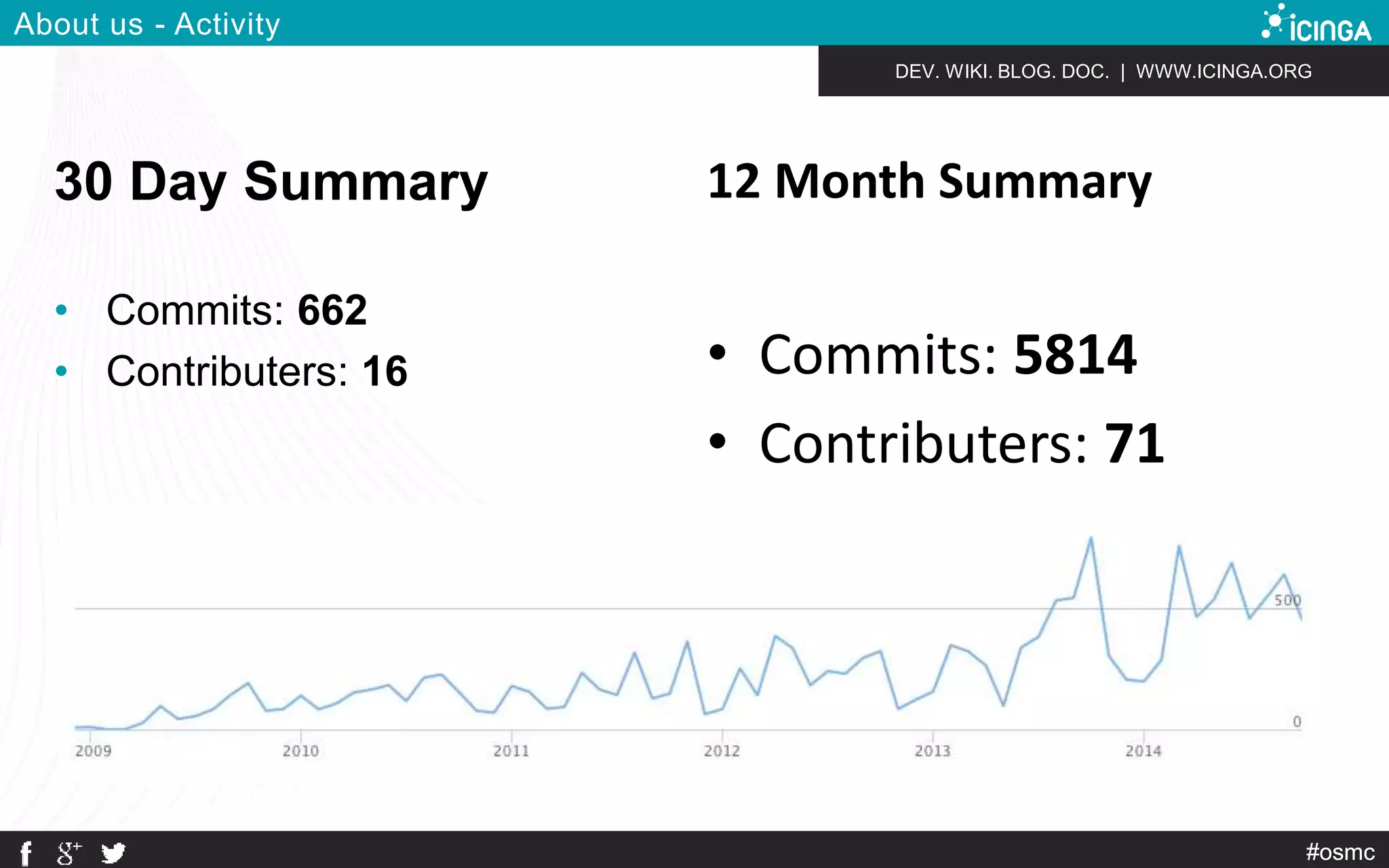

About us - Activity
30 Day Summary
• Commits: 662
• Contributers: 16
12 Month Summary
• Commits: 5814
• Contributers: 71

#osmc
The Community - Users
You?

#osmc

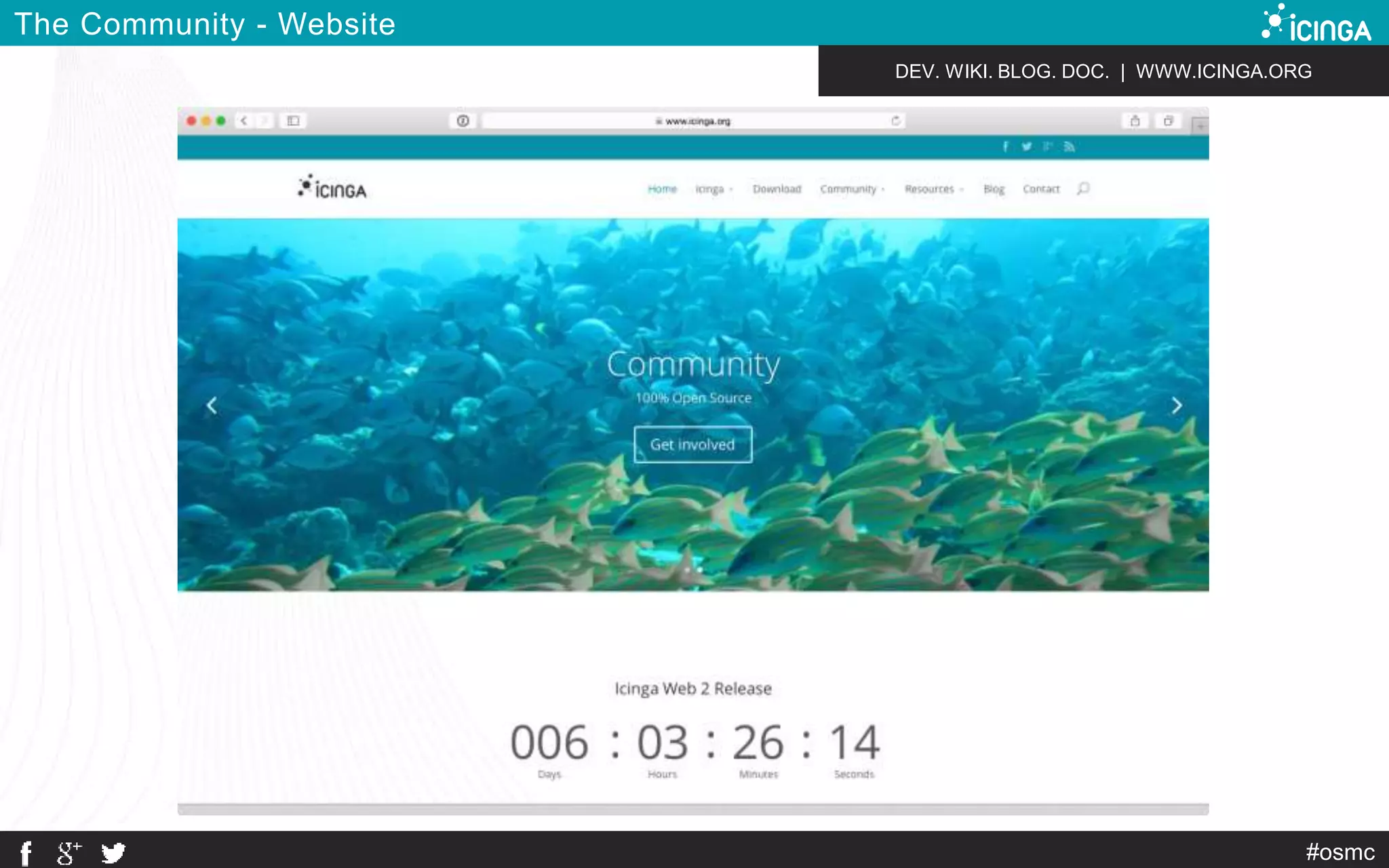

The Community - Website

#osmc

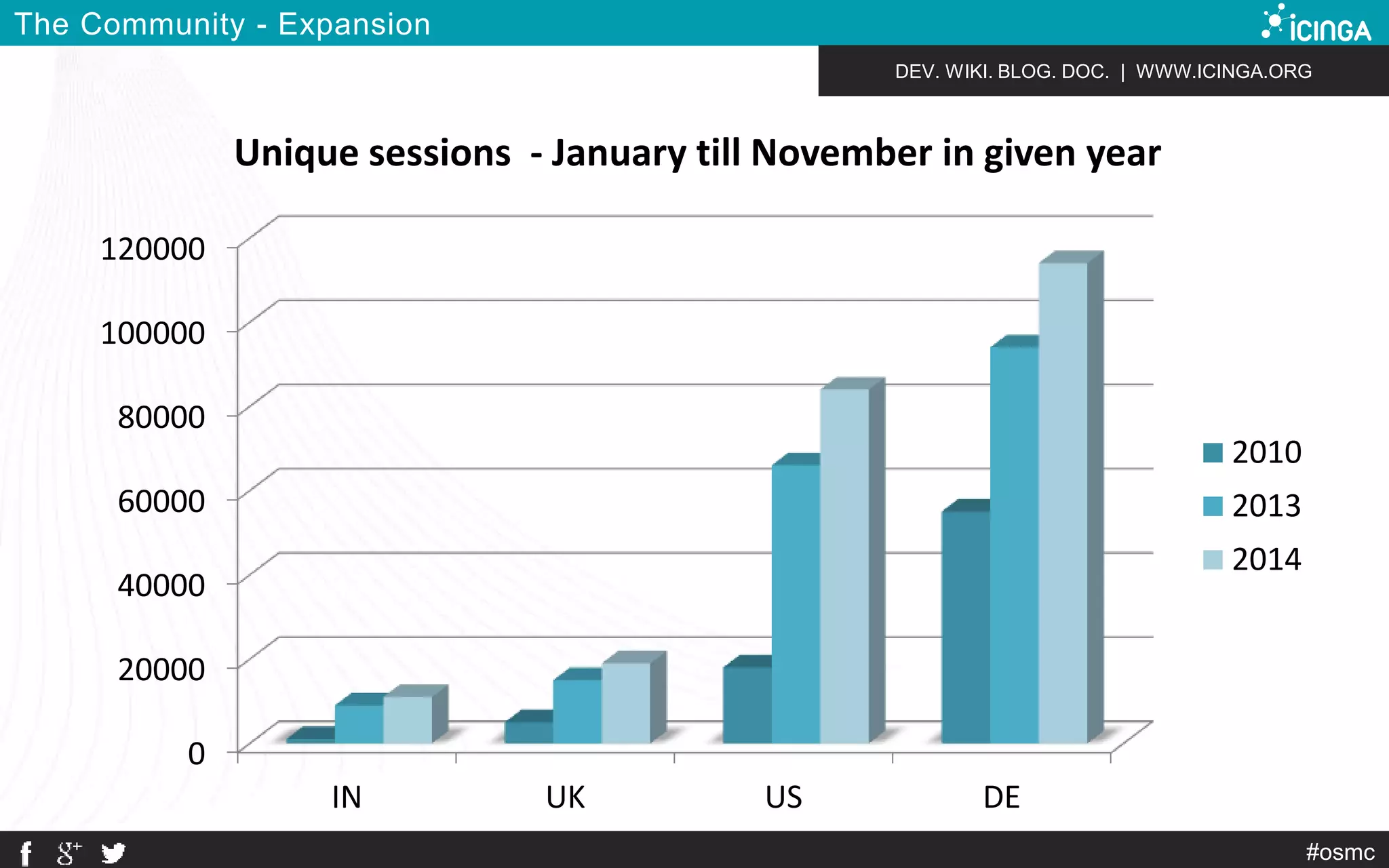

The Community - Expansion
120000
100000
80000
60000
40000
20000
0
Unique sessions - January till November in given year
IN UK US DE
2010
2013
2014

#osmc
The Community - Icinga Camp San Francisco

#osmc

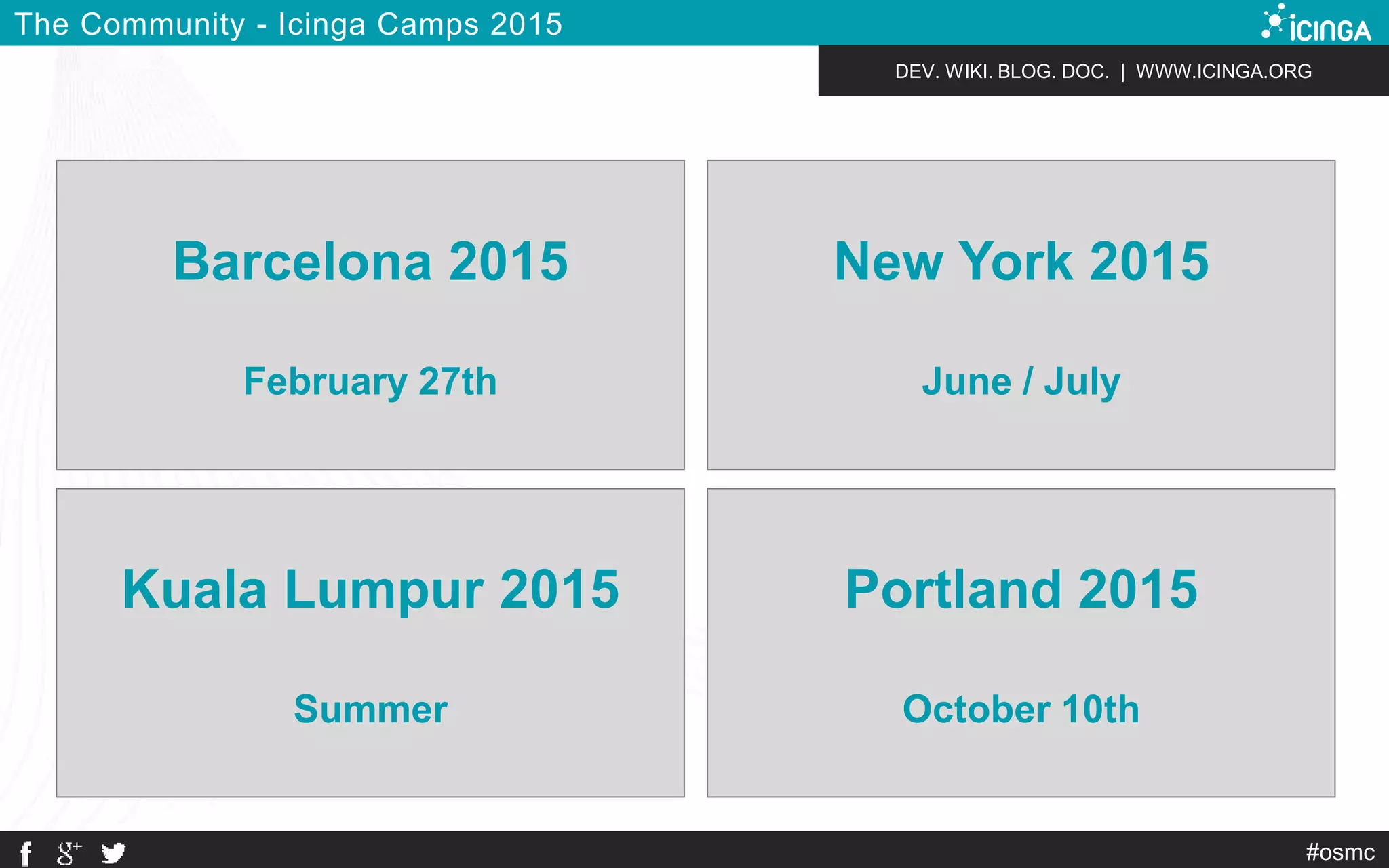

The Community - Icinga Camps 2015
Barcelona 2015
February 27th
New York 2015
June / July
Kuala Lumpur 2015
Summer
Portland 2015
October 10th

#osmc

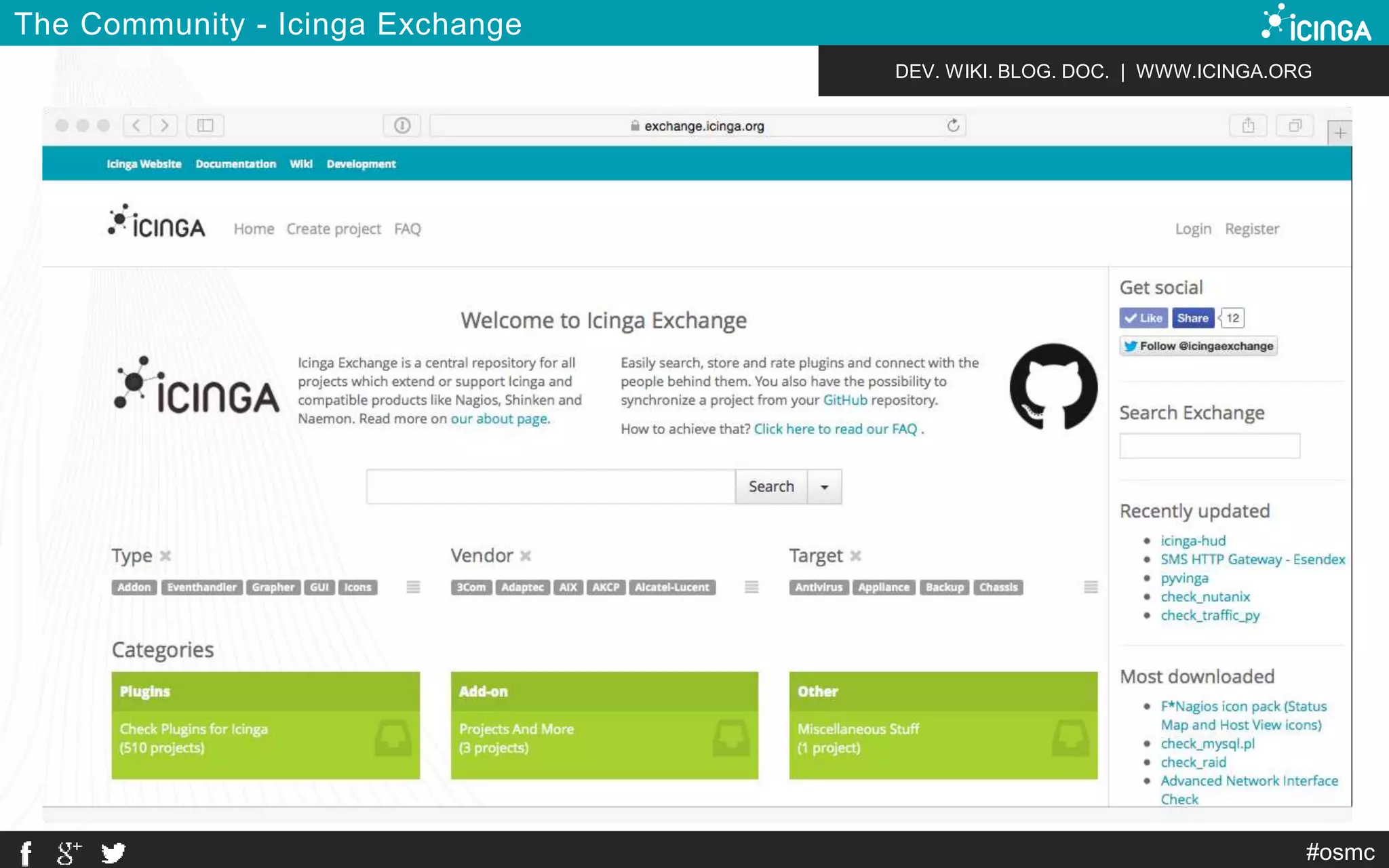

The Community - Icinga Exchange

#osmc

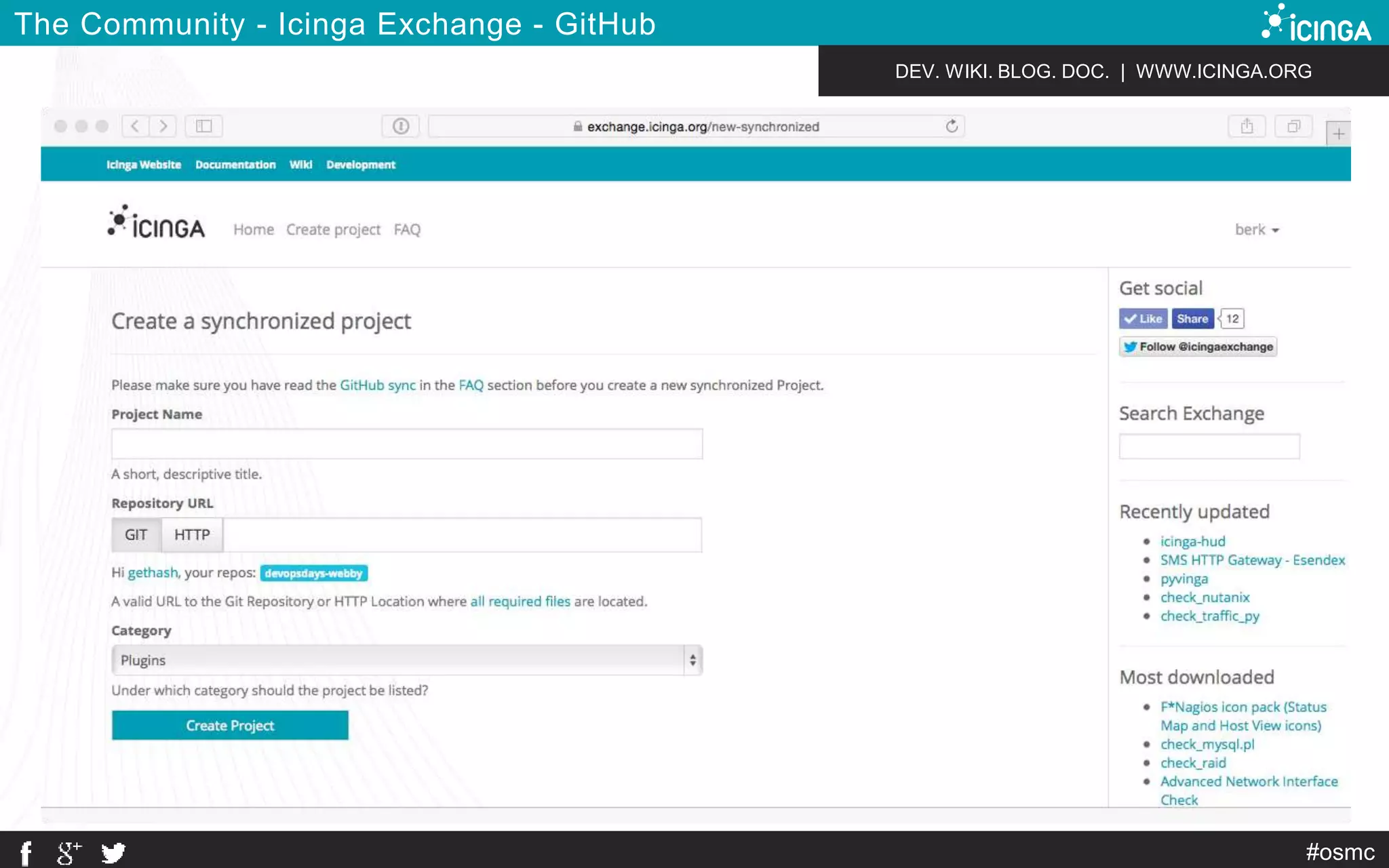

The Community - Icinga Exchange - GitHub

#osmc

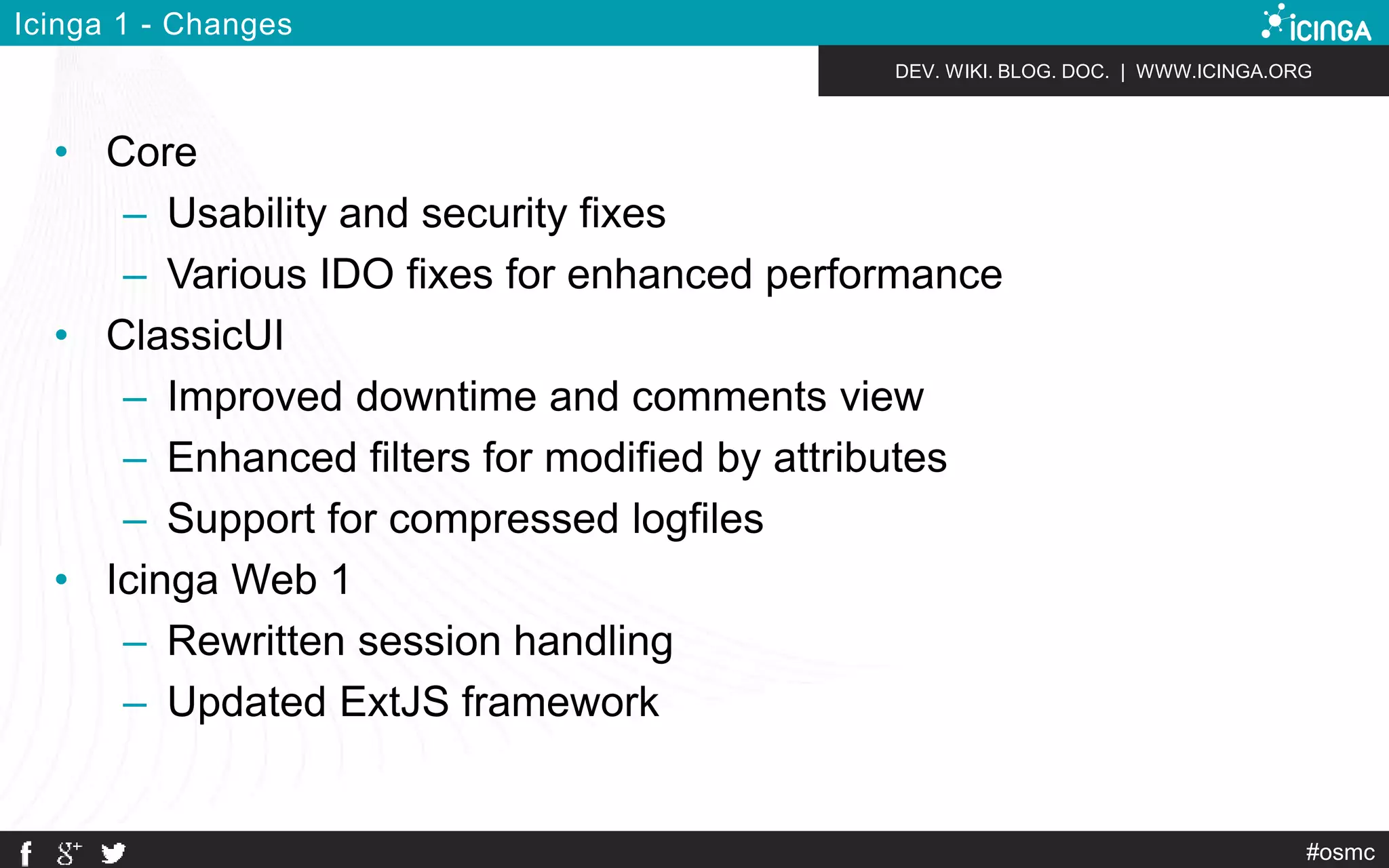

Icinga 1 - Changes
• Core
– Usability and security fixes
– Various IDO fixes for enhanced performance
• ClassicUI
– Improved downtime and comments view
– Enhanced filters for modified by attributes
– Support for compressed logfiles
• Icinga Web 1
– Rewritten session handling
– Updated ExtJS framework

#osmc

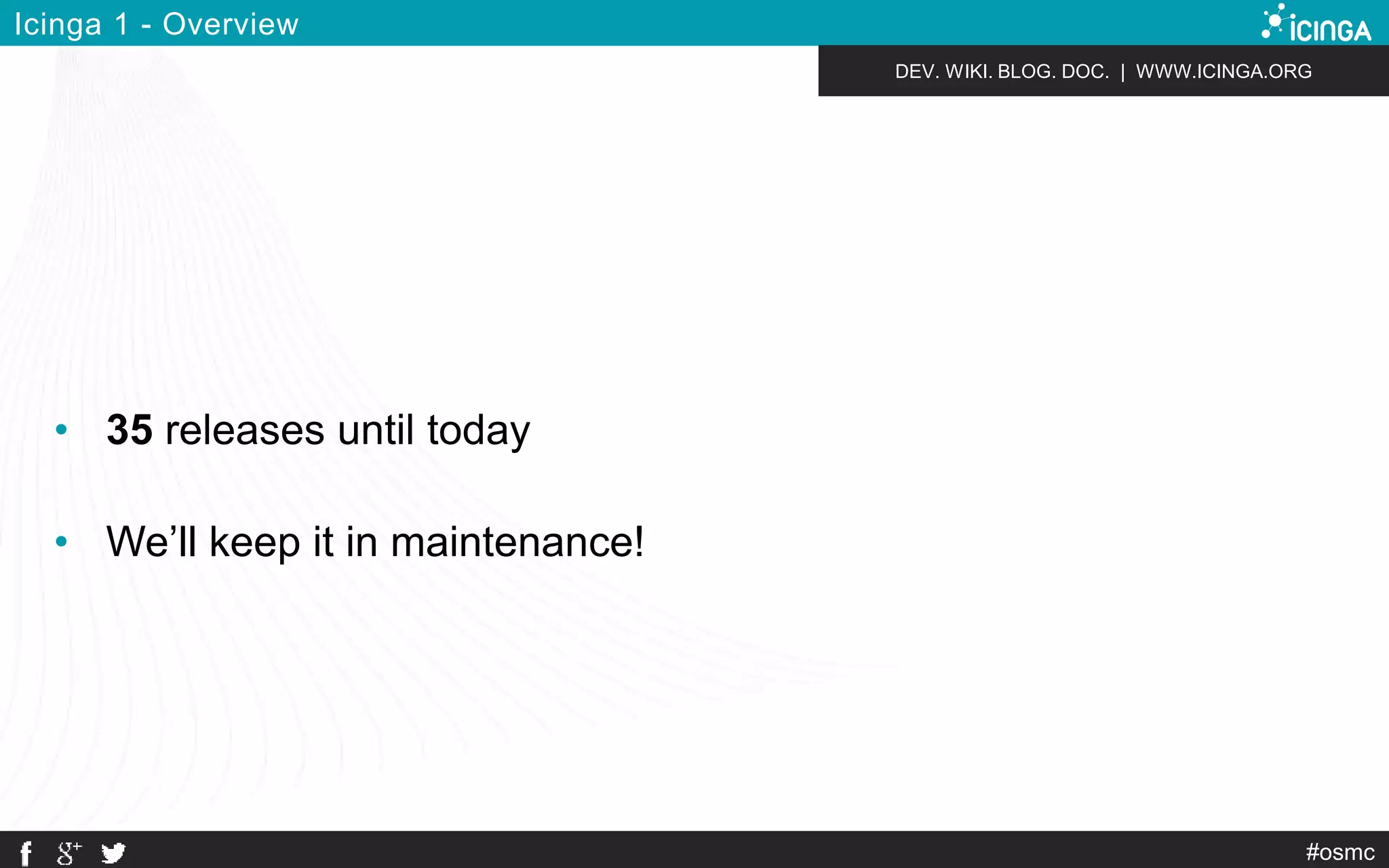

Icinga 1 - Overview
• 35 releases until today
• We’ll keep it in maintenance!

#osmc

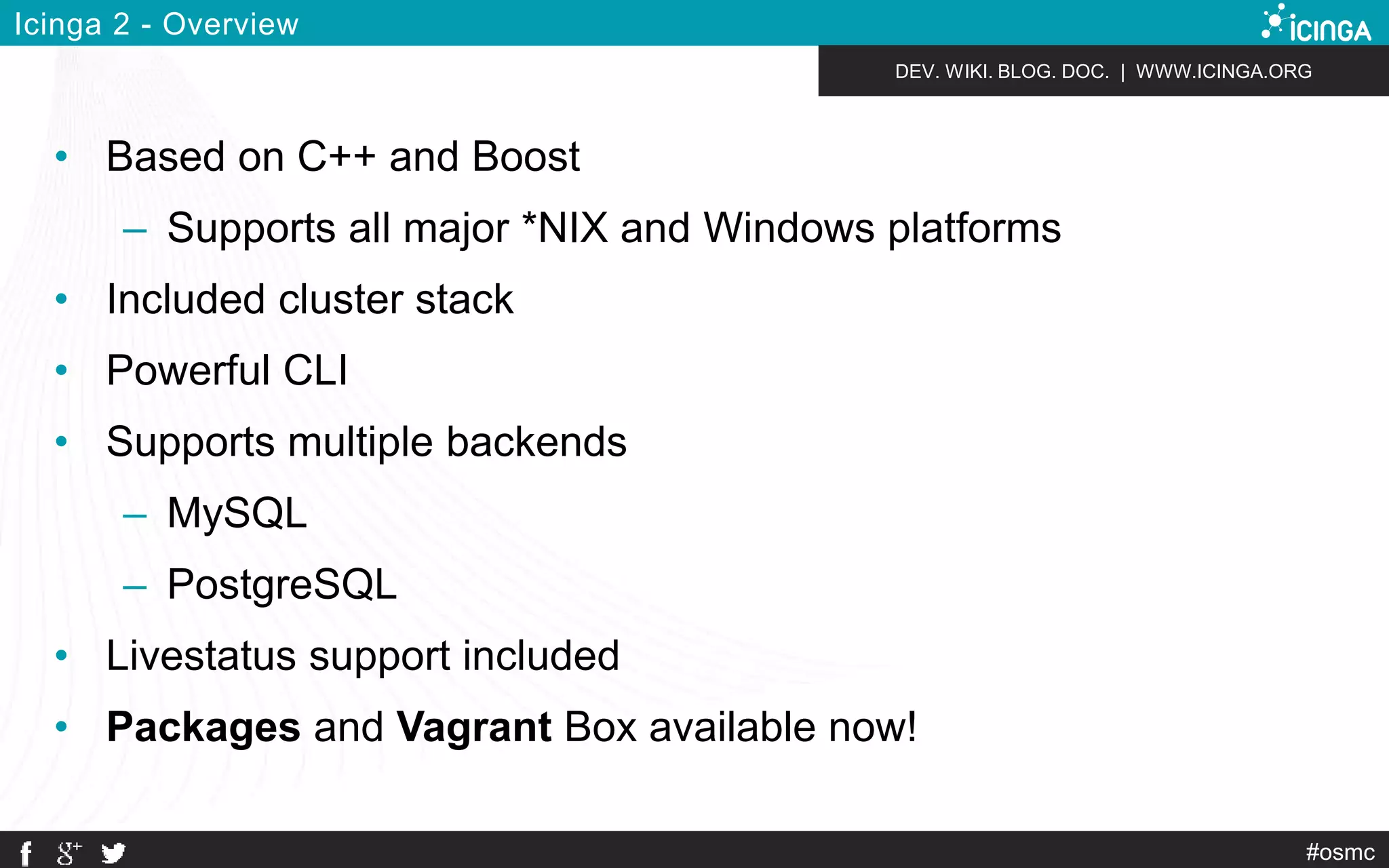

Icinga 2 - Overview
• Based on C++ and Boost
– Supports all major *NIX and Windows platforms
• Included cluster stack
• Powerful CLI
• Supports multiple backends
– MySQL
– PostgreSQL
• Livestatus support included
• Packages and Vagrant Box available now!

#osmc

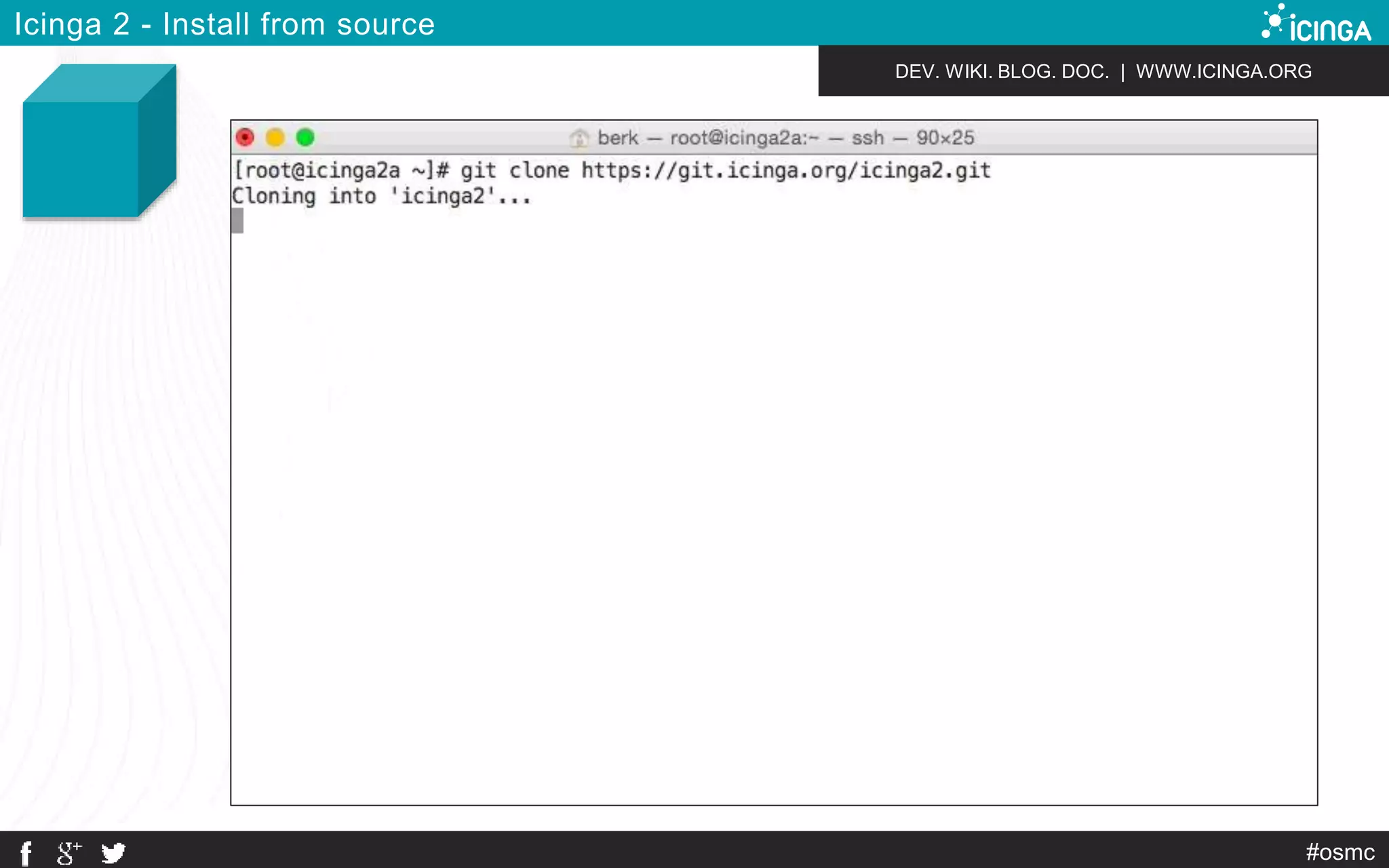

Icinga 2 - Install from source

#osmc

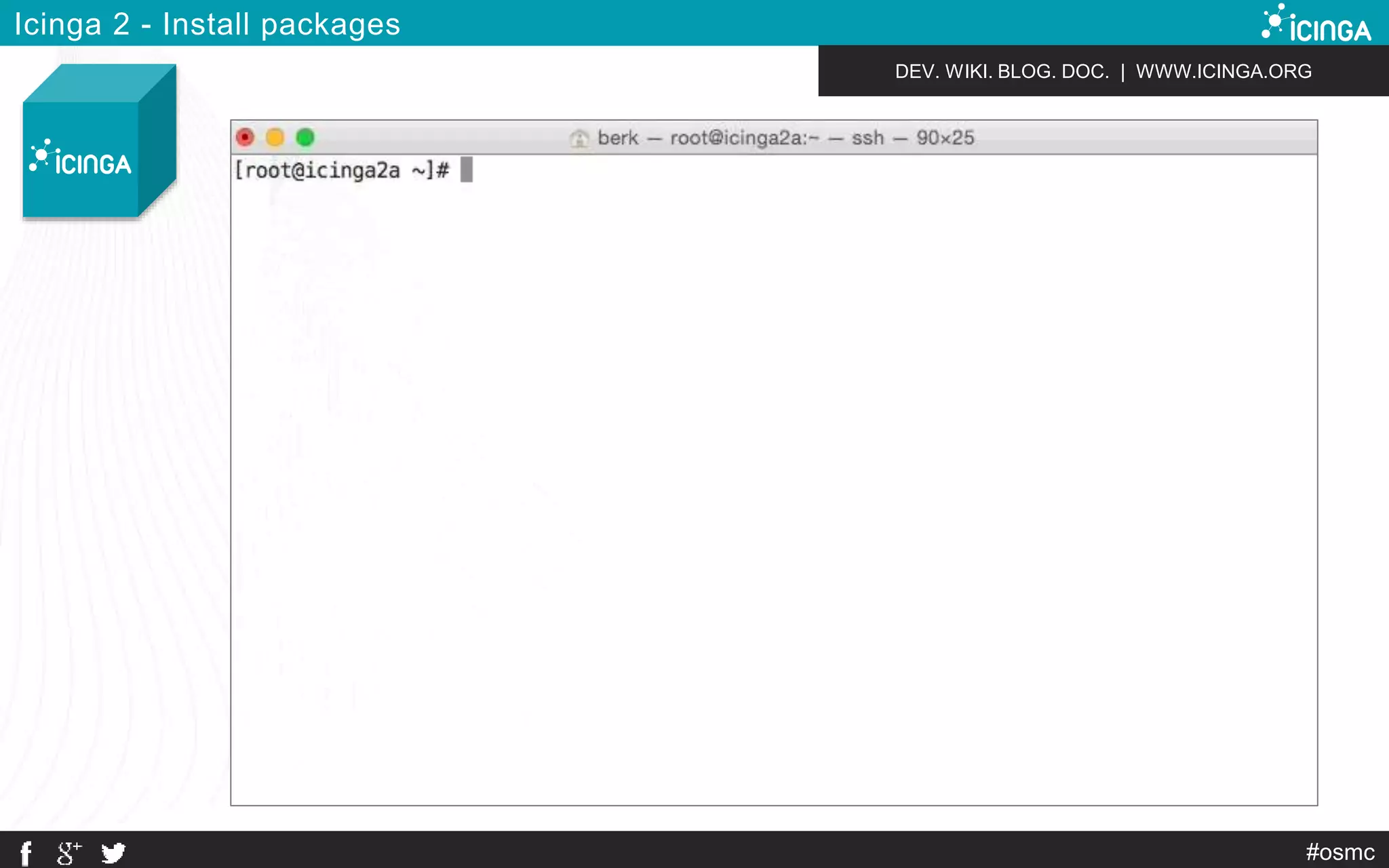

Icinga 2 - Install packages

#osmc

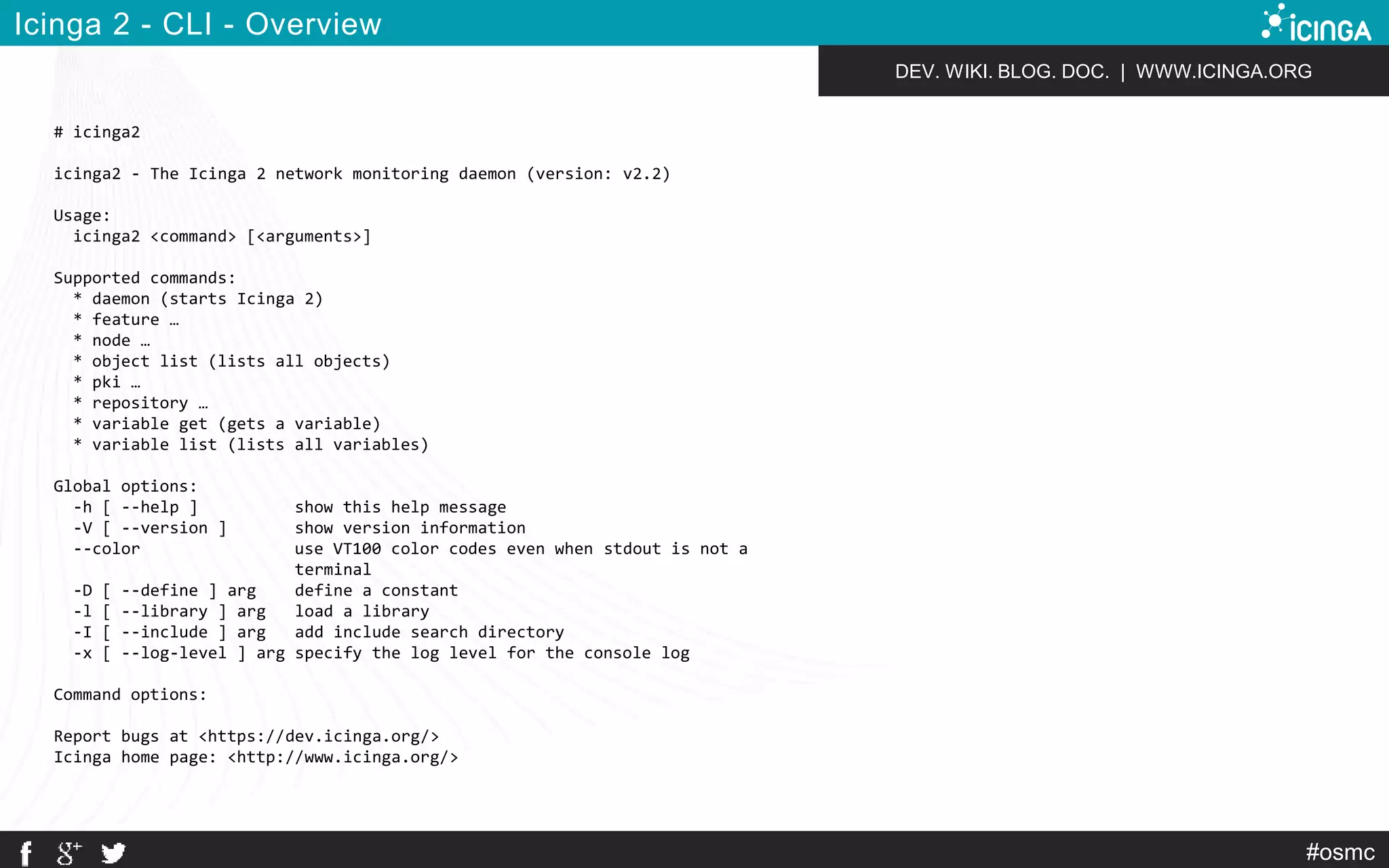

Icinga 2 - CLI - Overview
# icinga2
icinga2 - The Icinga 2 network monitoring daemon (version: v2.2)
Usage:
icinga2 <command> [<arguments>]
Supported commands:
* daemon (starts Icinga 2)
* feature …
* node …
* object list (lists all objects)
* pki …
* repository …
* variable get (gets a variable)
* variable list (lists all variables)
Global options:
-h [ --help ] show this help message
-V [ --version ] show version information
--color use VT100 color codes even when stdout is not a
terminal
-D [ --define ] arg define a constant
-l [ --library ] arg load a library
-I [ --include ] arg add include search directory
-x [ --log-level ] arg specify the log level for the console log
Command options:
Report bugs at <https://dev.icinga.org/>
Icinga home page: <http://www.icinga.org/>

#osmc

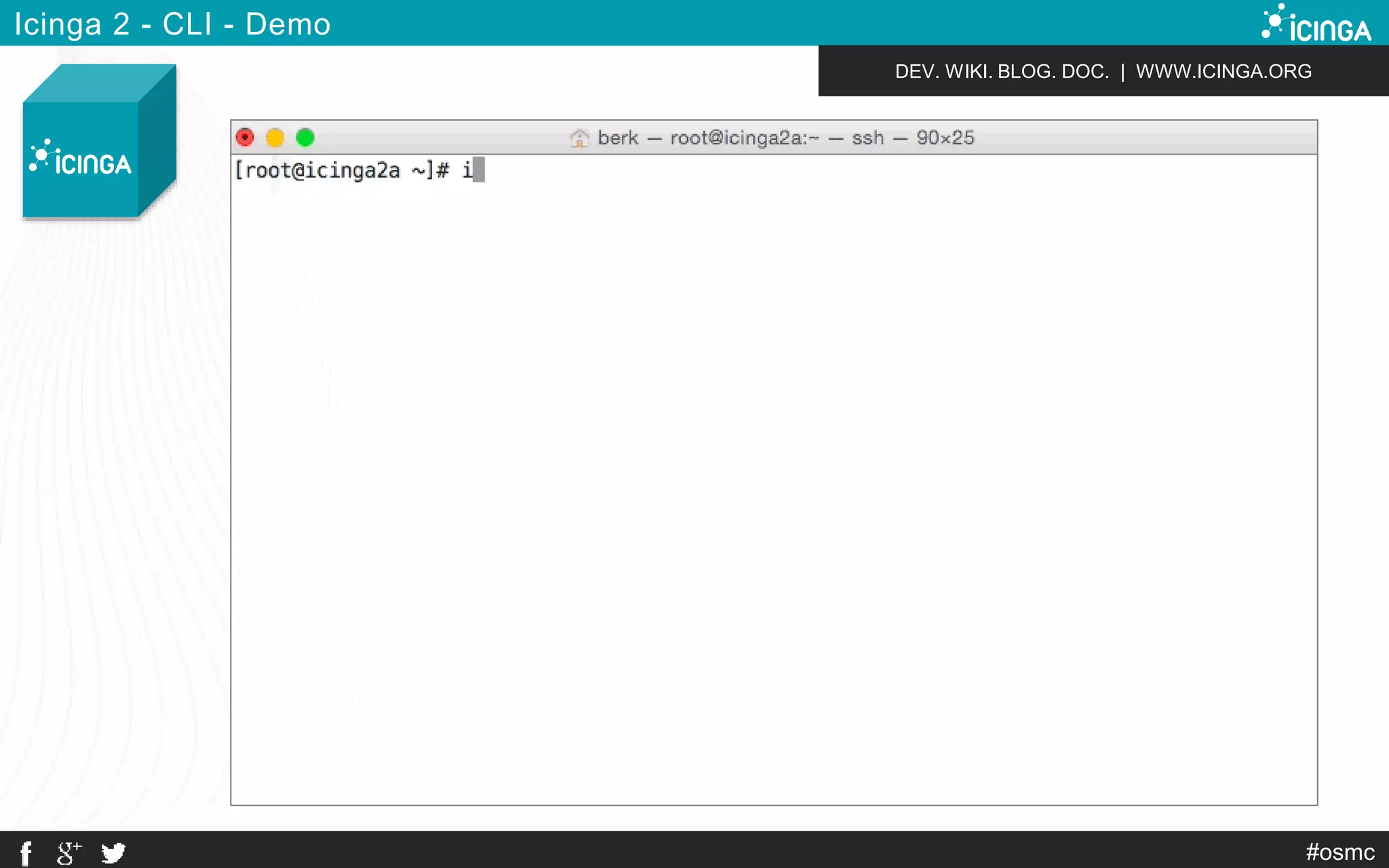

Icinga 2 - CLI - Demo

Perfdata Graphite
Statusdat
Checker
Gelf
Livestatus
Compat
IDO

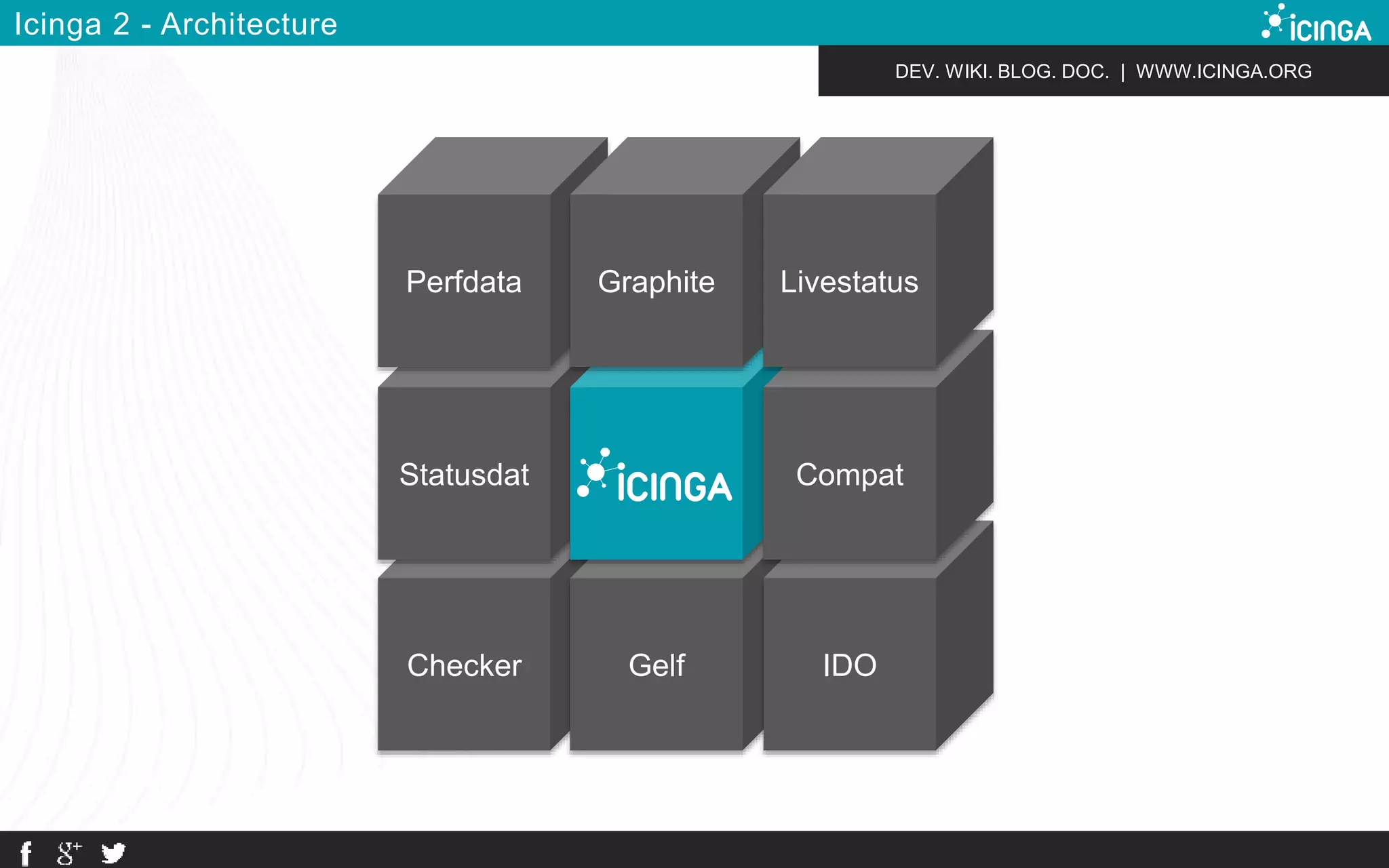

Icinga 2 - Architecture

Livestatus
#osmc

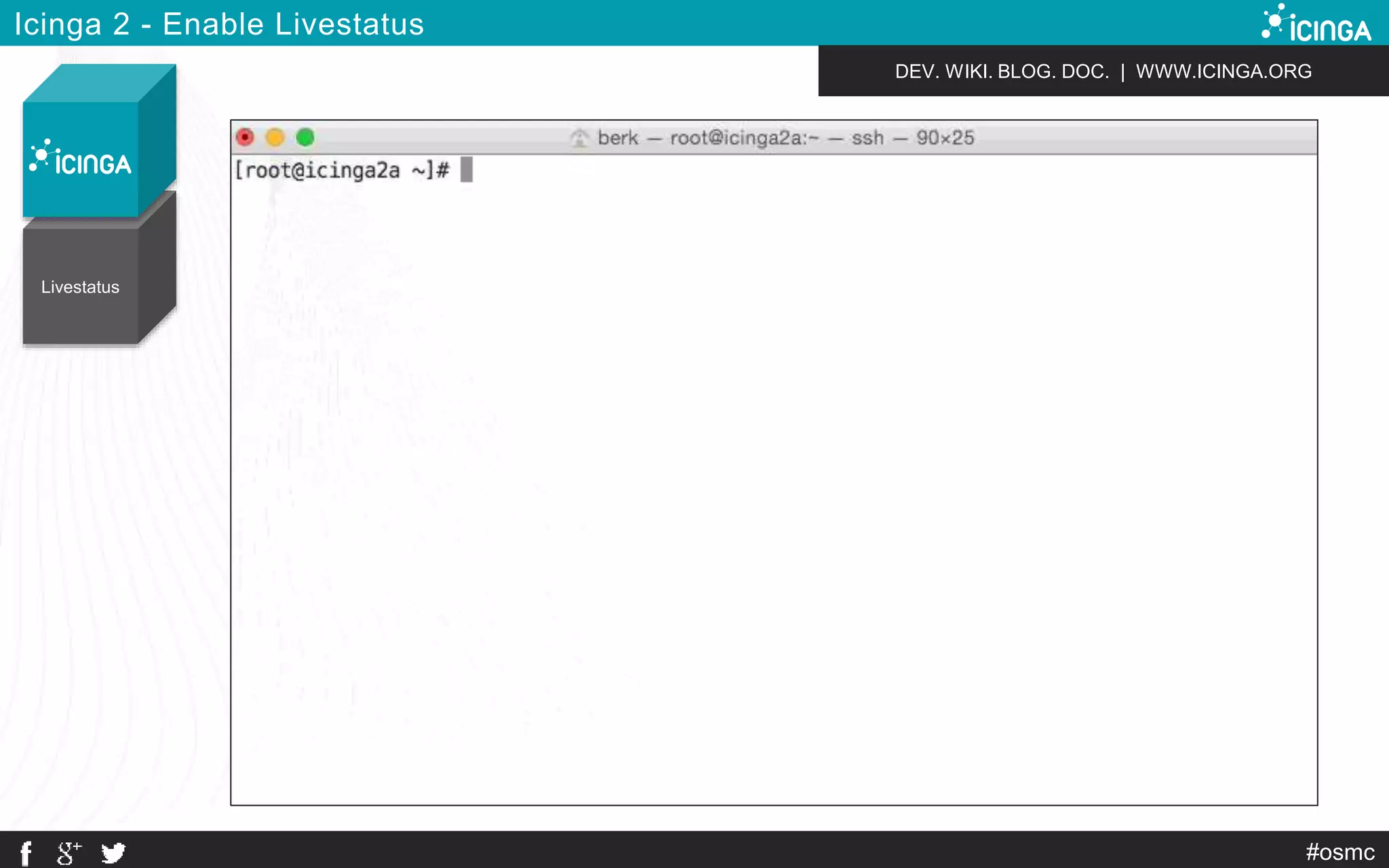

Icinga 2 - Enable Livestatus

#osmc

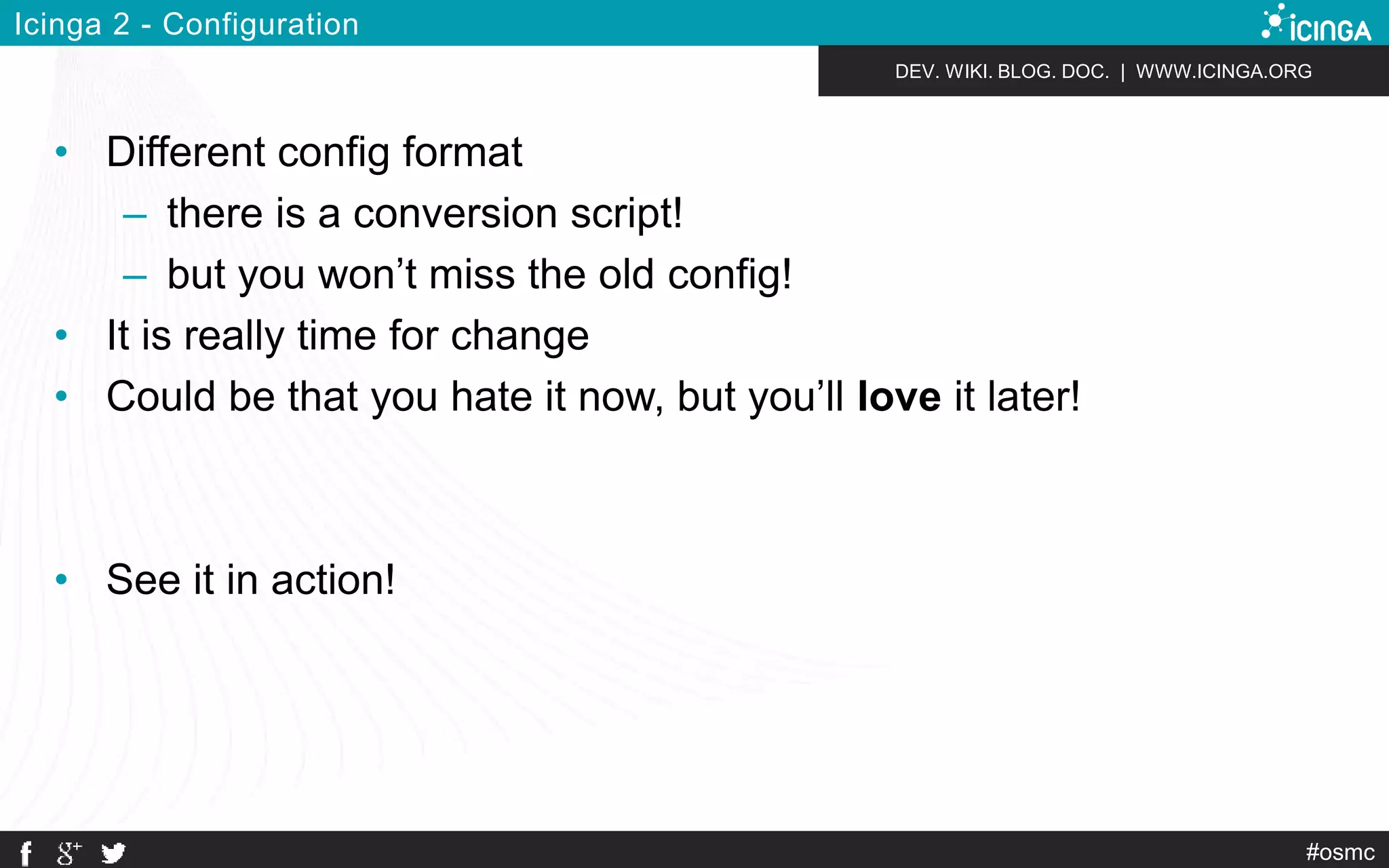

Icinga 2 - Configuration
• Different config format
– there is a conversion script!
– but you won’t miss the old config!
• It is really time for change
• Could be that you hate it now, but you’ll love it later!
• See it in action!

#osmc

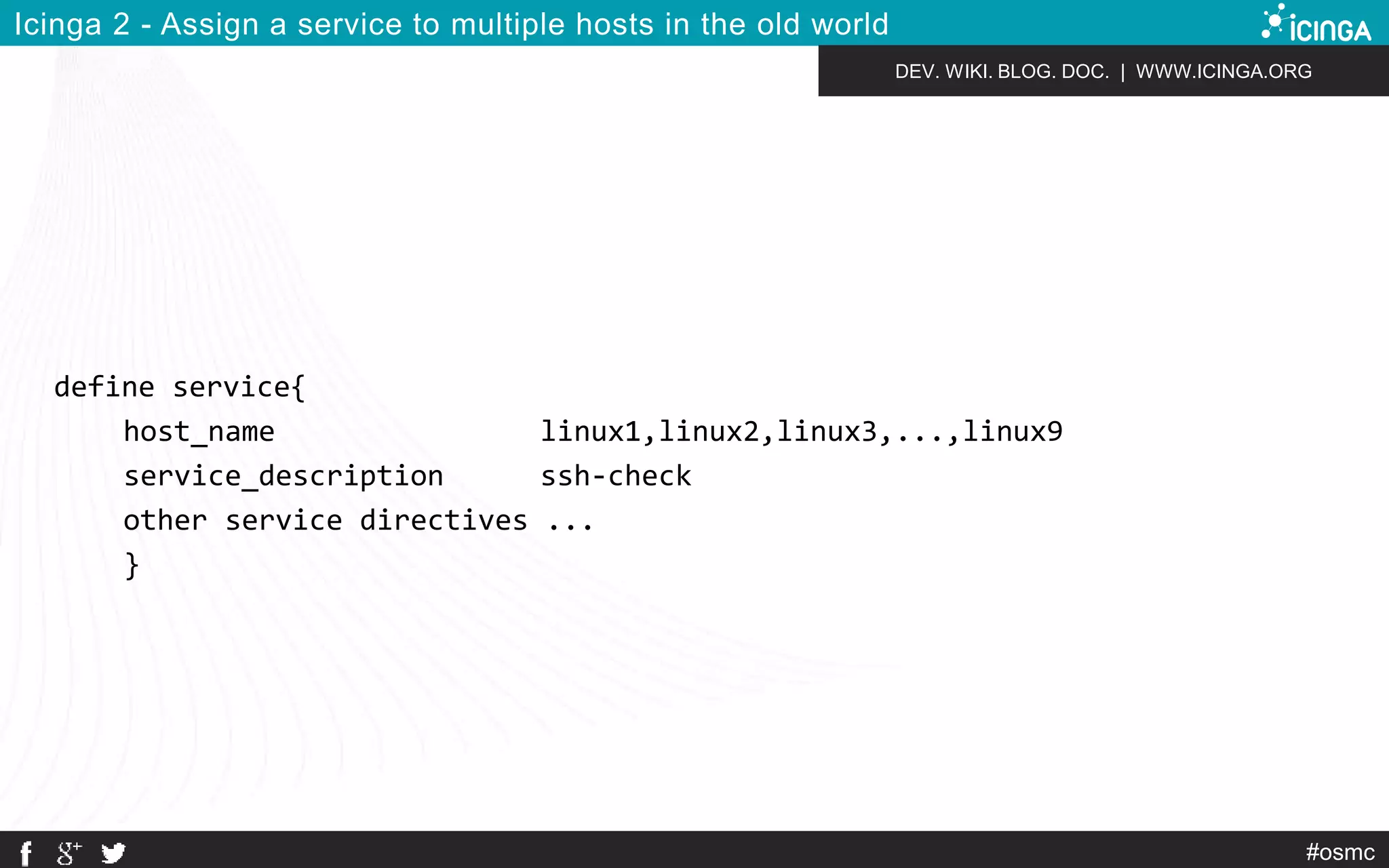

Icinga 2 - Assign a service to multiple hosts in the old world
define service{
host_name linux1,linux2,linux3,...,linux9
service_description ssh-check
other service directives ...
}

#osmc

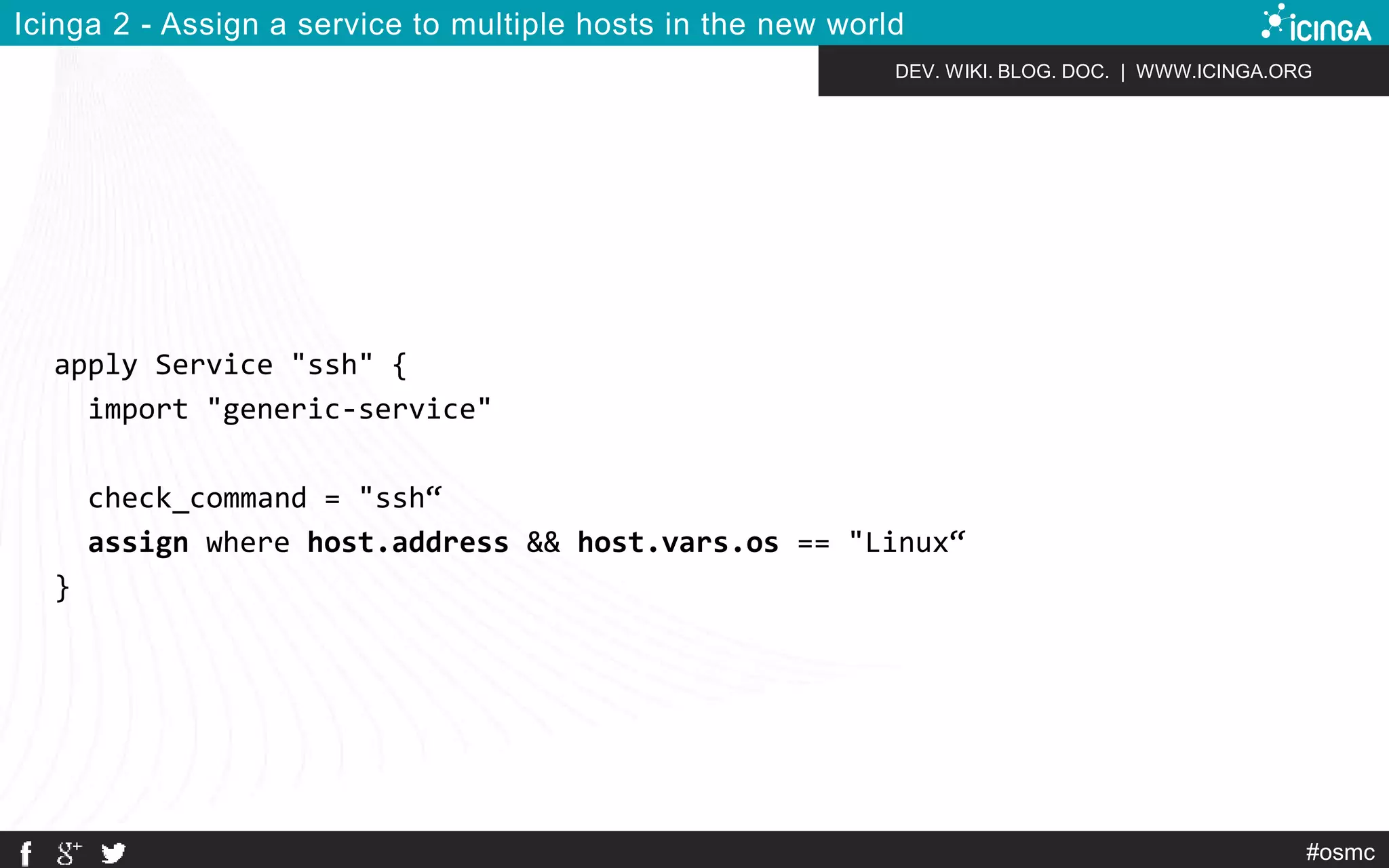

Icinga 2 - Assign a service to multiple hosts in the new world
apply Service "ssh" {
import "generic-service"
check_command = "ssh“
assign where host.address && host.vars.os == "Linux“
}

#osmc

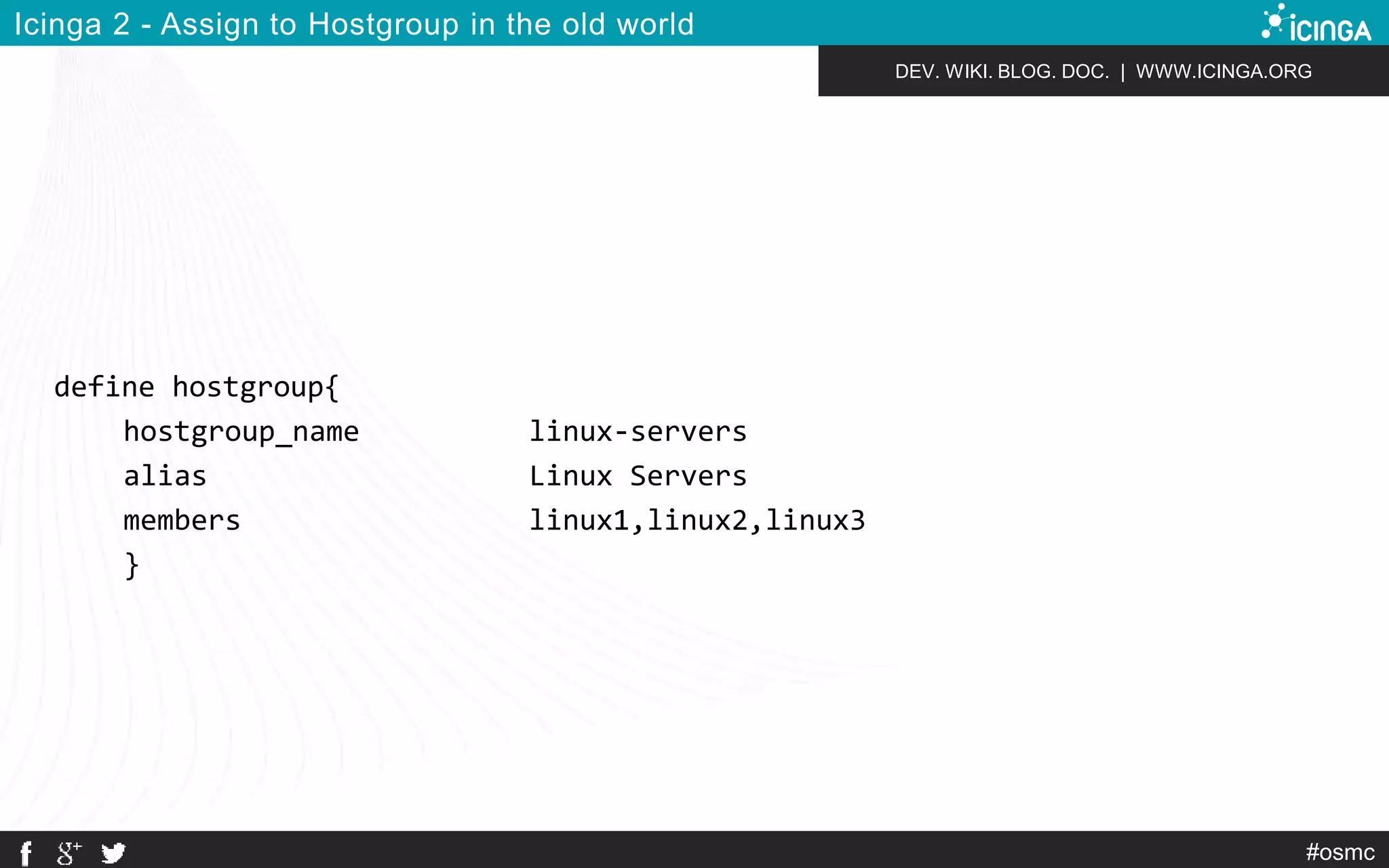

Icinga 2 - Assign to Hostgroup in the old world
define hostgroup{
hostgroup_name linux-servers
alias Linux Servers
members linux1,linux2,linux3
}

#osmc
Icinga 2 - Assign to Hostgroup in the new world
object Host “mysql-server1" {
address = "10.0.0.1“
check_command = "hostalive“
}
object HostGroup "mysql-server" {
display_name = "MySQL Server"
assign where match("*mysql*", host.name)
}

#osmc

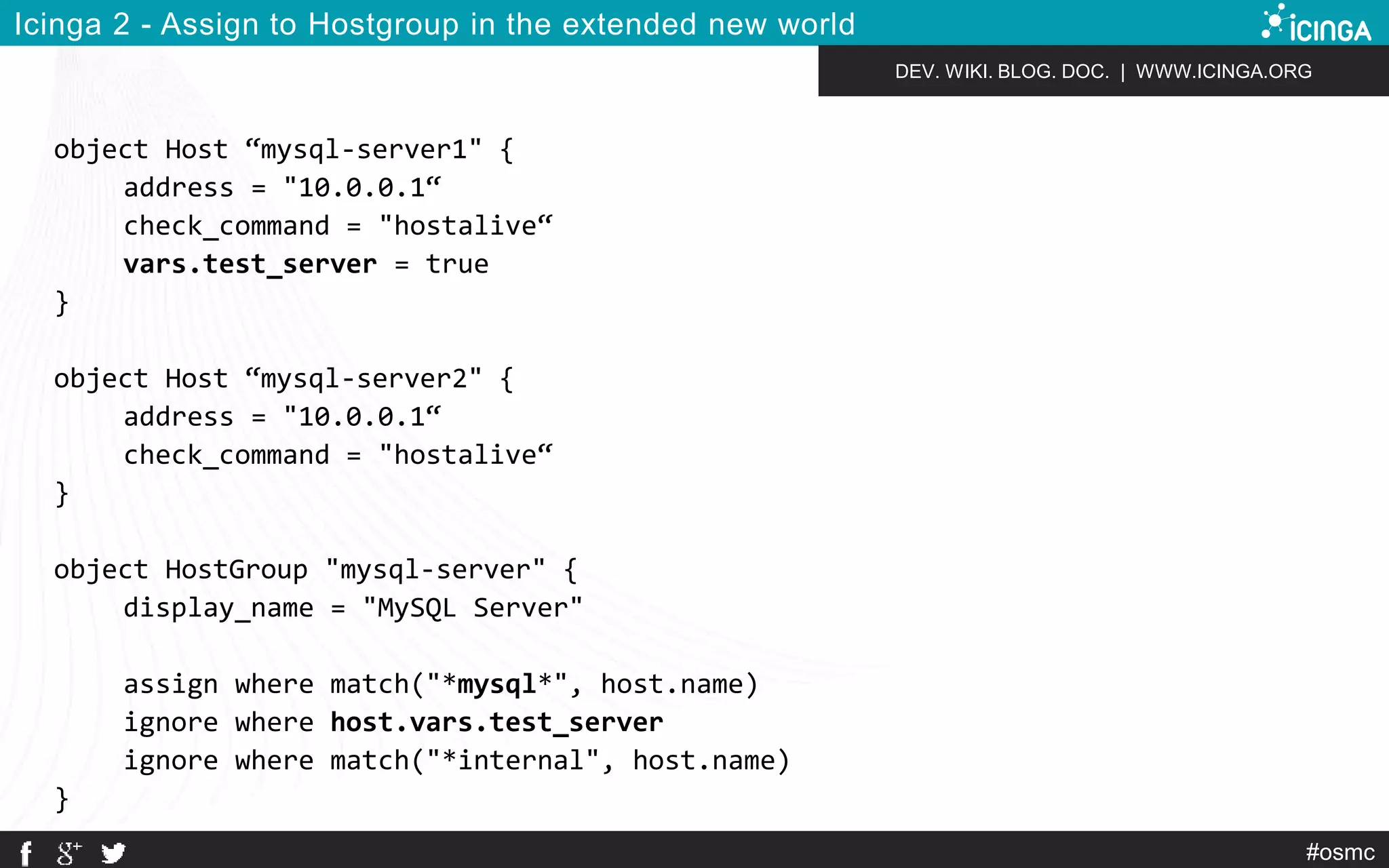

Icinga 2 - Assign to Hostgroup in the extended new world
address = "10.0.0.1“
vars.test_server = true
}
address = "10.0.0.1“
}
object HostGroup "mysql-server" {
display_name = "MySQL Server"
assign where match("*mysql*", host.name)
ignore where host.vars.test_server
ignore where match("*internal", host.name)
}

#osmc
Icinga 2 - One more thing

#osmc

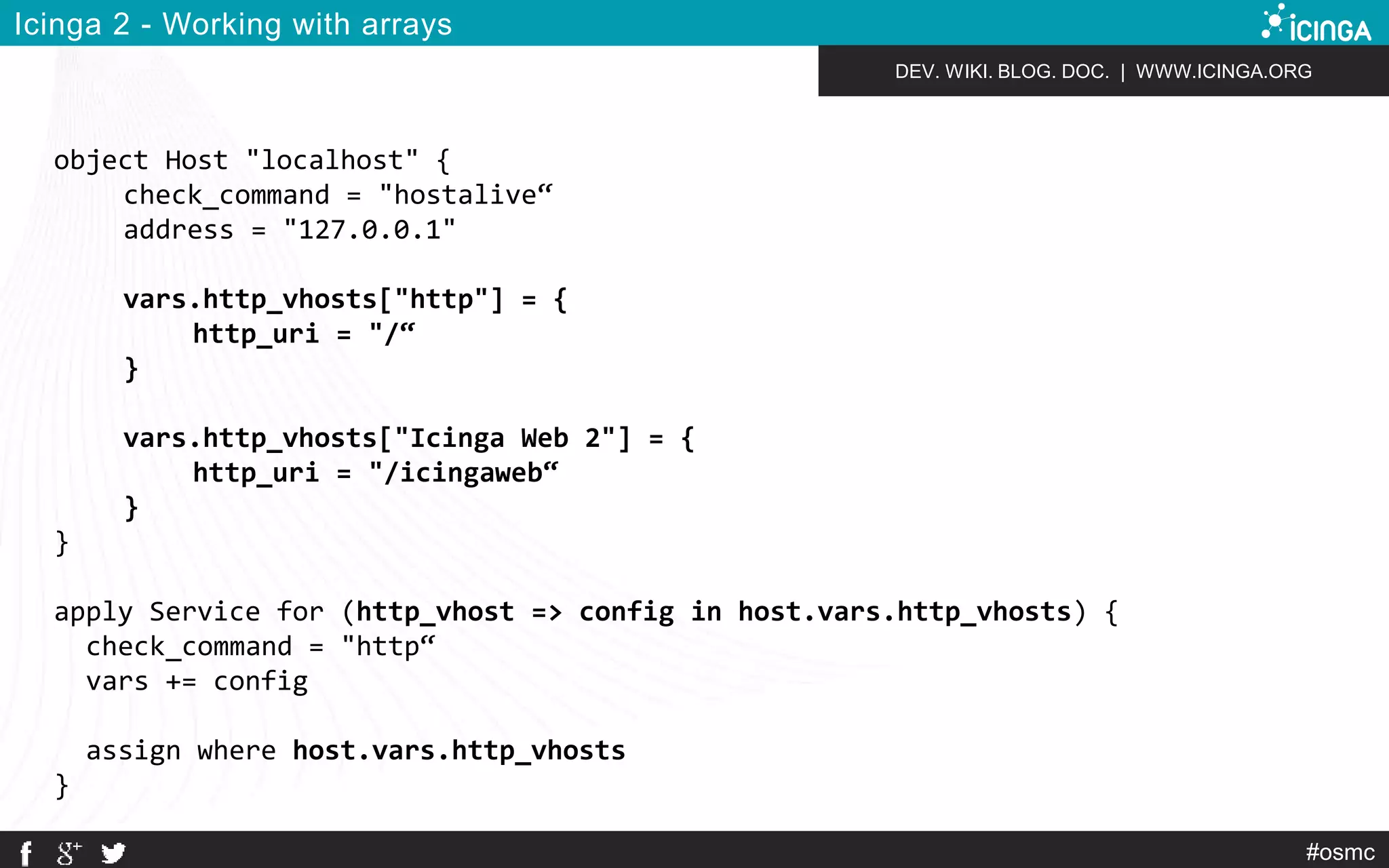

Icinga 2 - Working with arrays
object Host "localhost" {
address = "127.0.0.1"
vars.http_vhosts["http"] = {
http_uri = "/“
}
vars.http_vhosts["Icinga Web 2"] = {
http_uri = "/icingaweb“
}
}
apply Service for (http_vhost => config in host.vars.http_vhosts) {
check_command = "http“
vars += config
assign where host.vars.http_vhosts
}

CA Zones API
#osmc

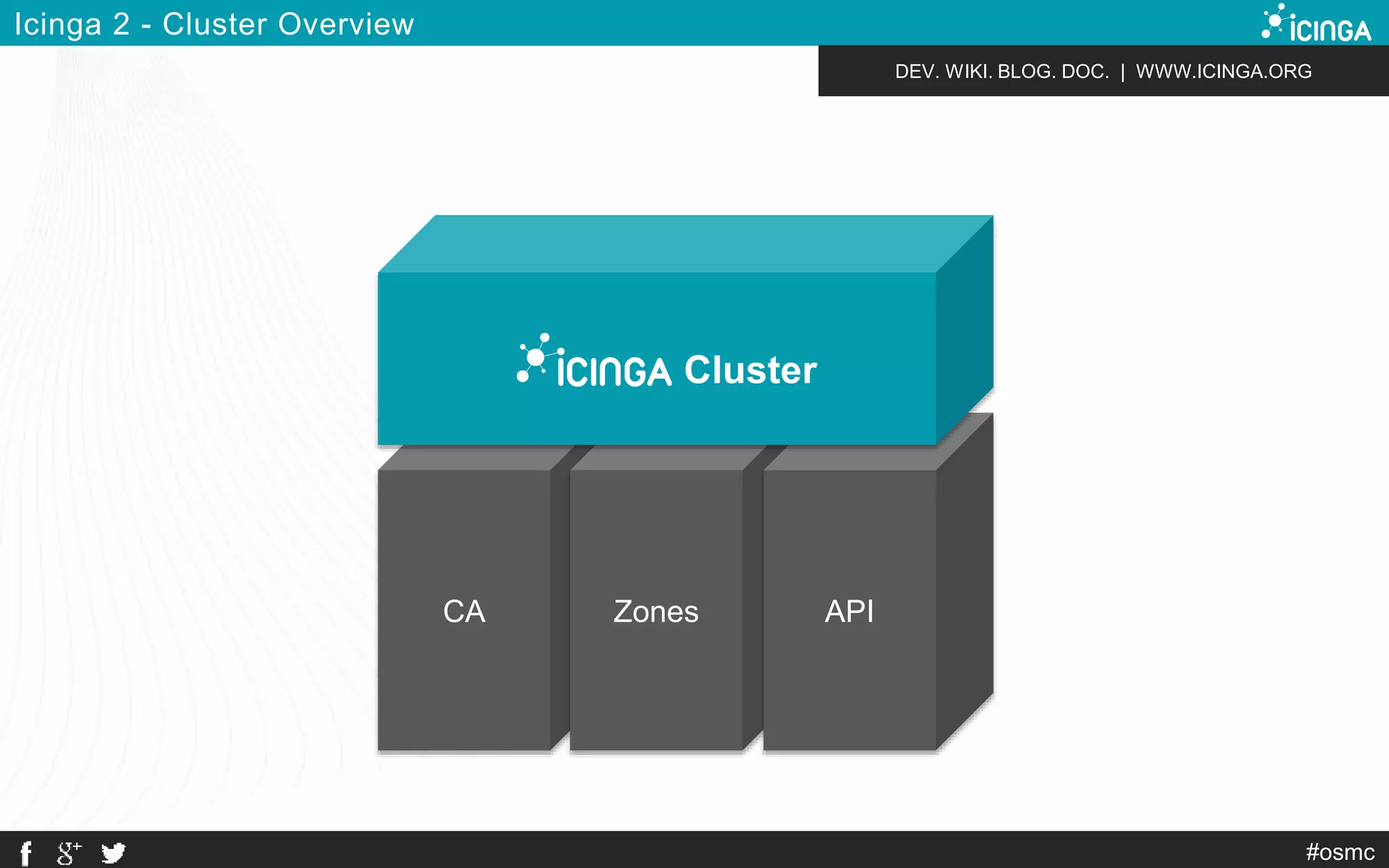

Icinga 2 - Cluster Overview
Cluster

#osmc

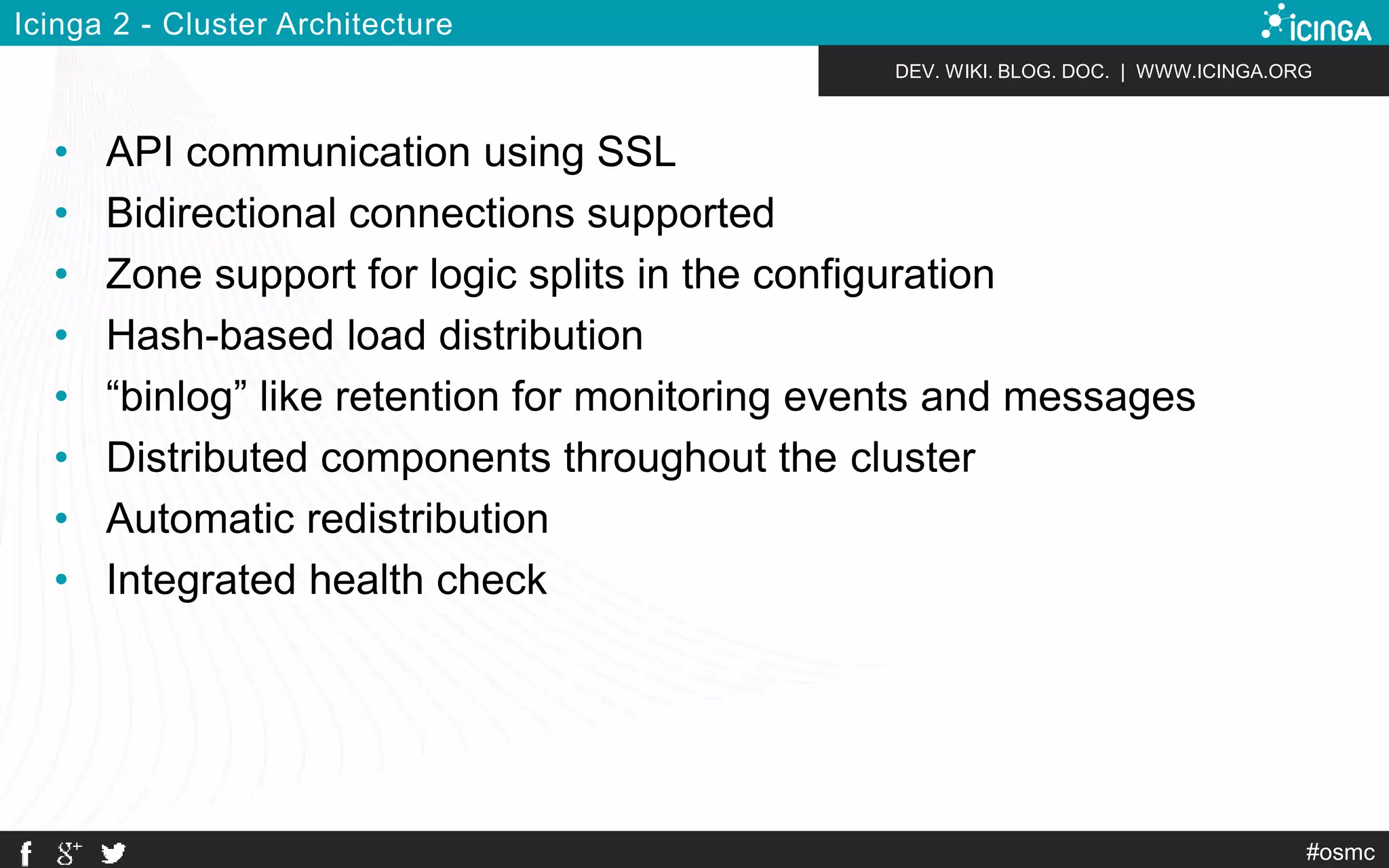

Icinga 2 - Cluster Architecture
• API communication using SSL
• Bidirectional connections supported
• Zone support for logic splits in the configuration
• Hash-based load distribution
• “binlog” like retention for monitoring events and messages
• Distributed components throughout the cluster
• Automatic redistribution
• Integrated health check

#osmc

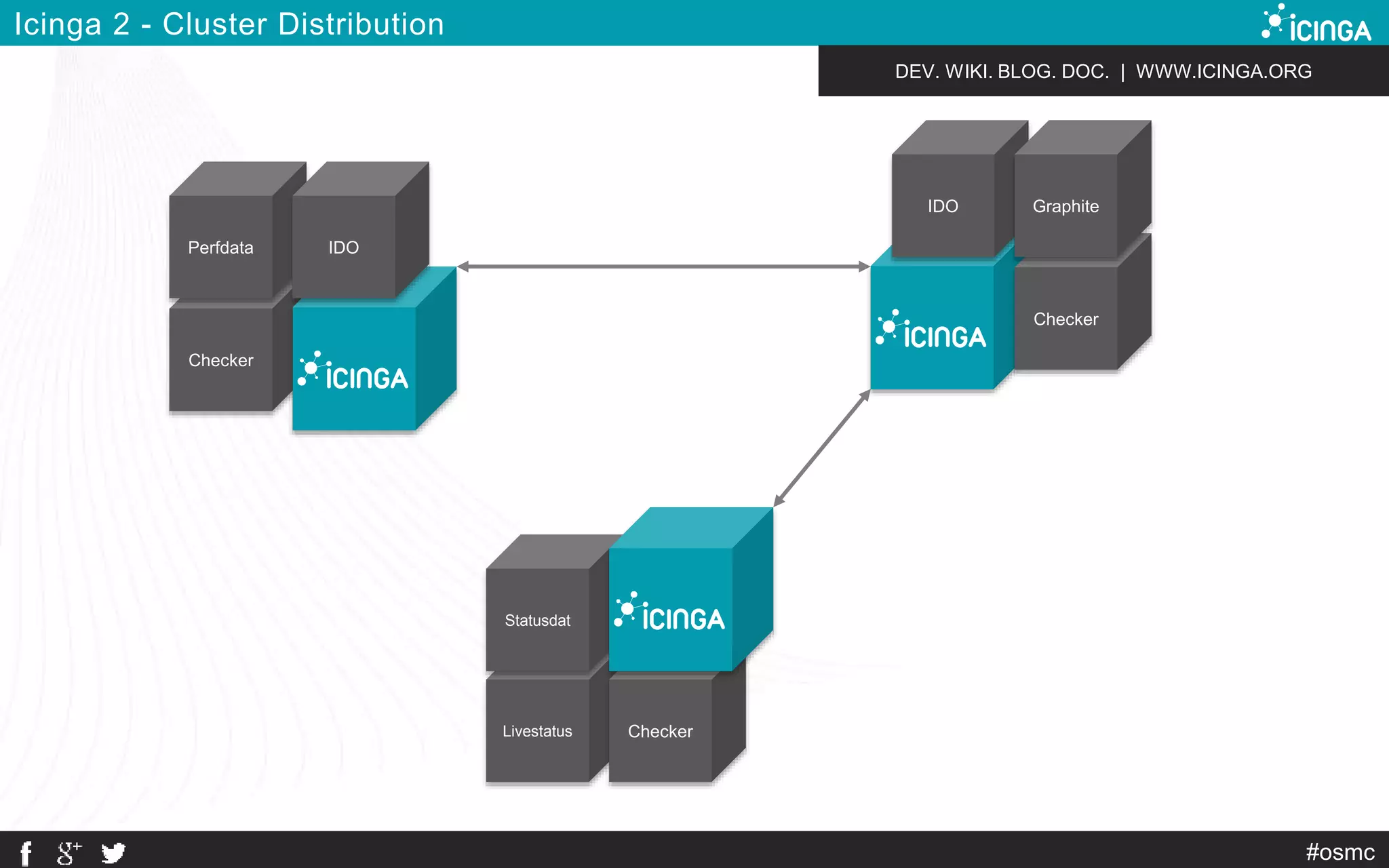

Icinga 2 - Cluster Distribution
Perfdata IDO
Checker
IDO
Graphite
Checker
Statusdat
Livestatus Checker

#osmc

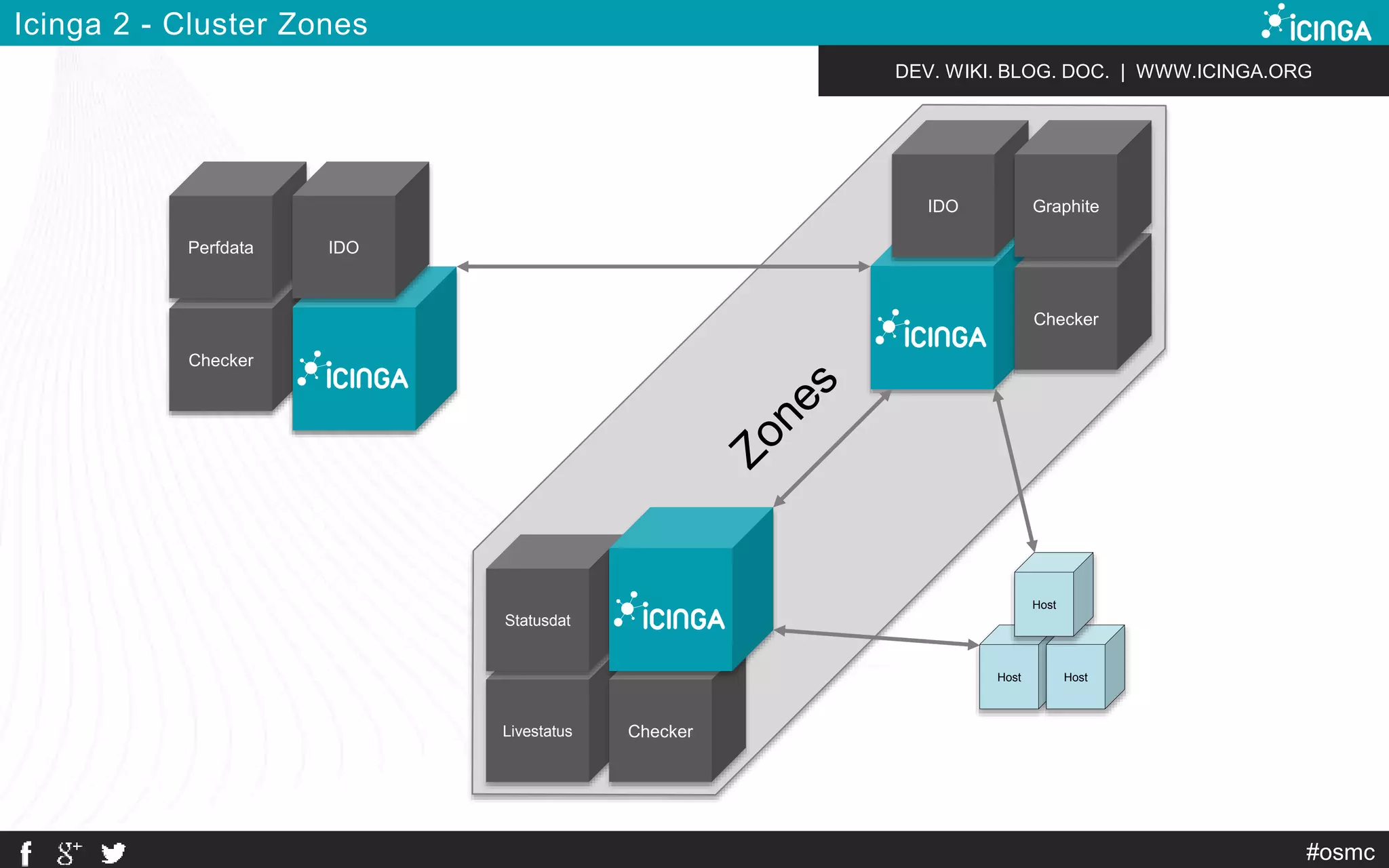

Icinga 2 - Cluster Zones
Perfdata IDO
Checker
IDO
Graphite
Checker
Statusdat
Livestatus Checker
Host
Host Host

#osmc
Icinga 2 - Master setup

#osmc

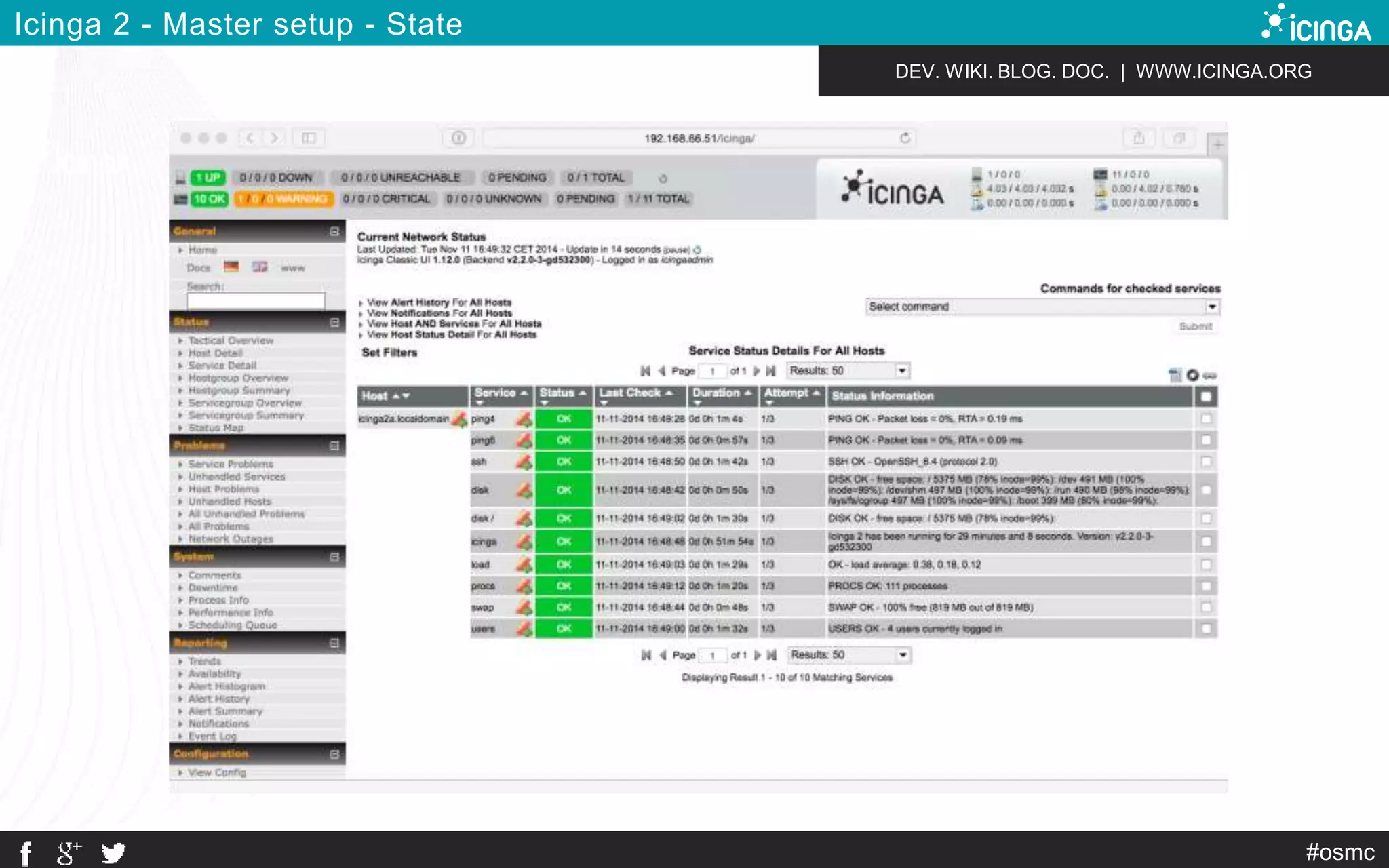

Icinga 2 - Master setup - State

ICINGA 2 – REMOTE MONITORING

#osmc

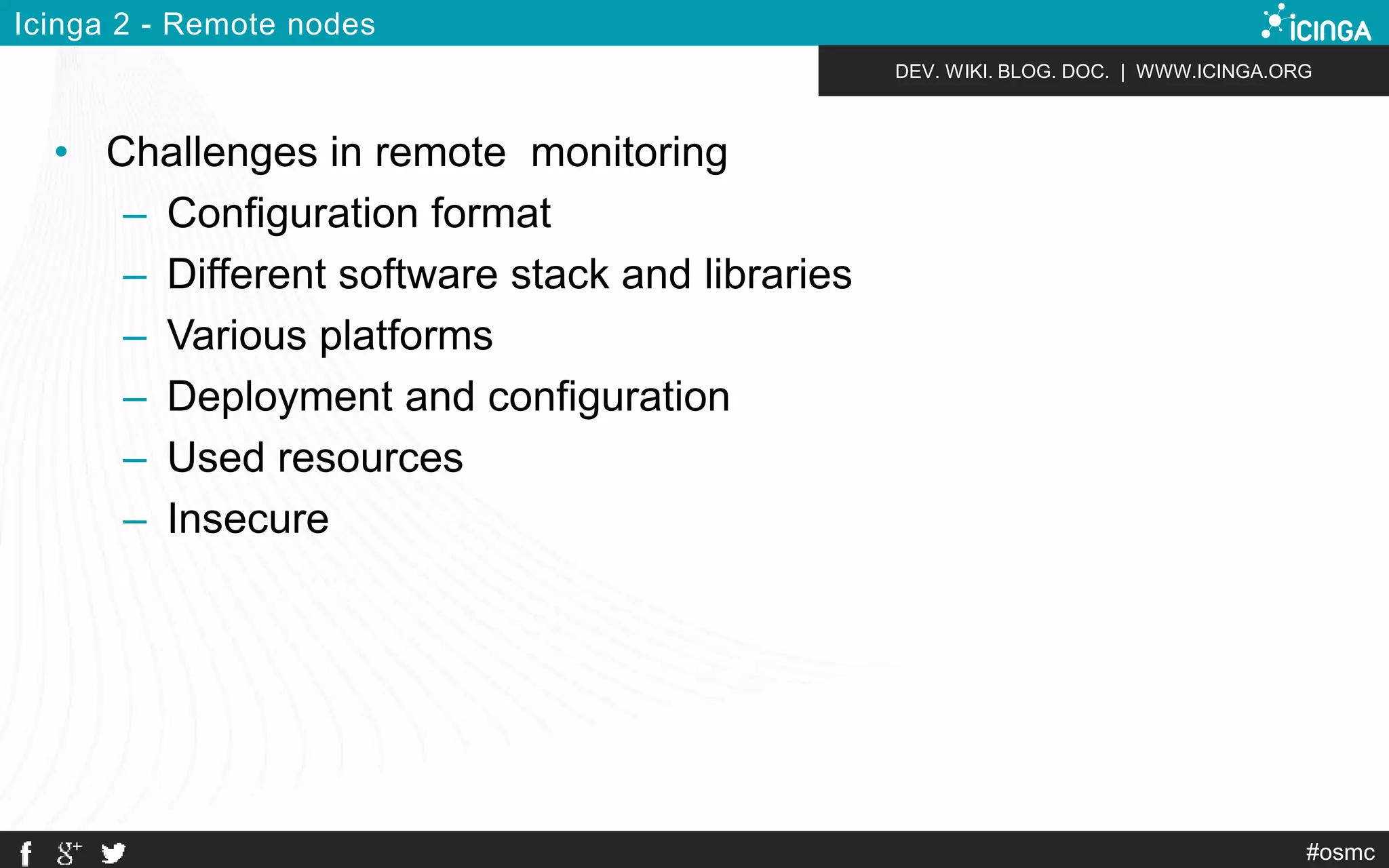

Icinga 2 - Remote nodes
• Challenges in remote monitoring
– Configuration format
– Different software stack and libraries
– Various platforms
– Deployment and configuration
– Used resources
– Insecure

#osmc

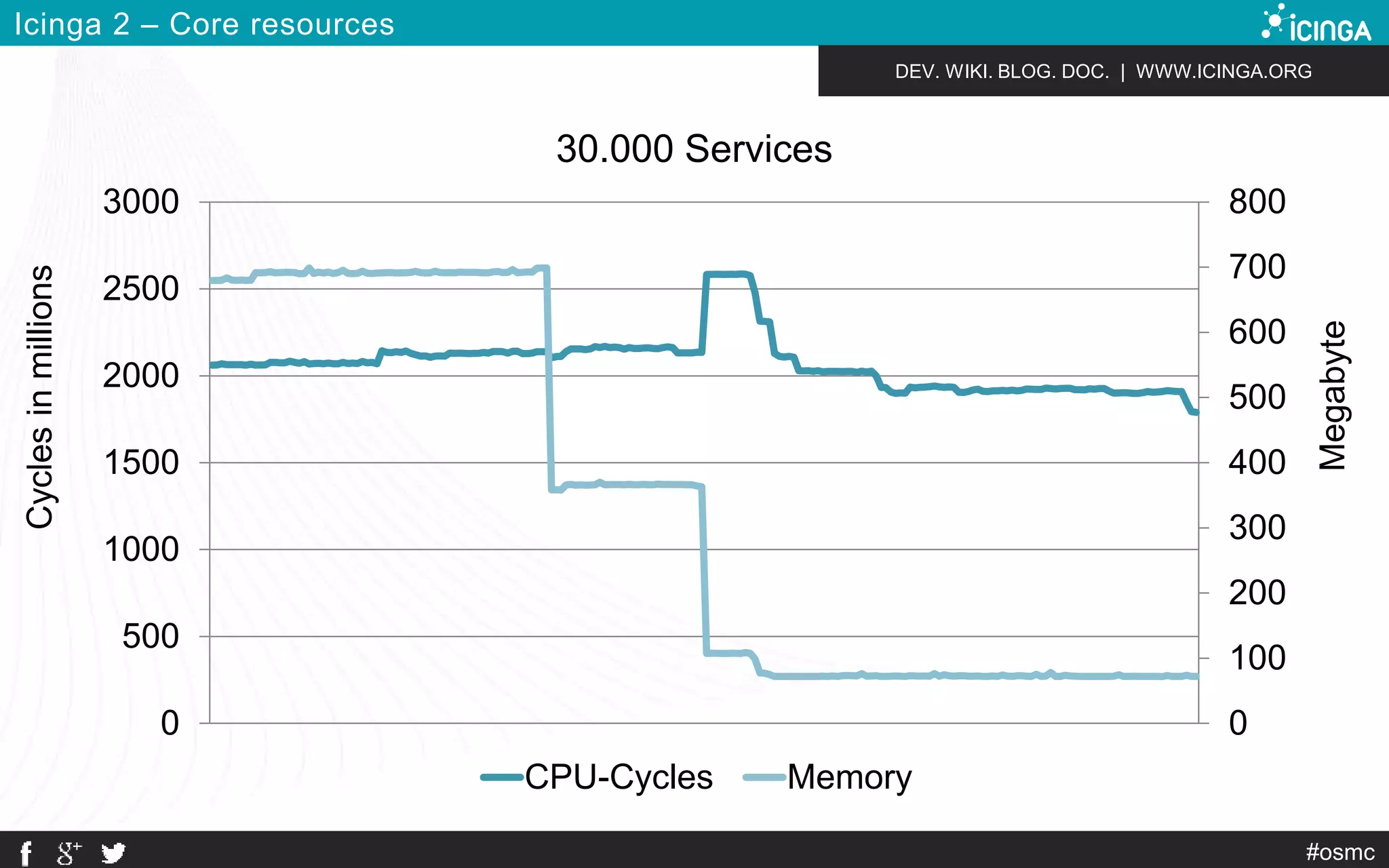

Icinga 2 – Core resources
800
700
600
500
400
300
200
100
0
3000
2500
2000
1500
1000
500
0
30.000 Services
CPU-Cycles Memory
Megabyte
Cycles in millions

#osmc

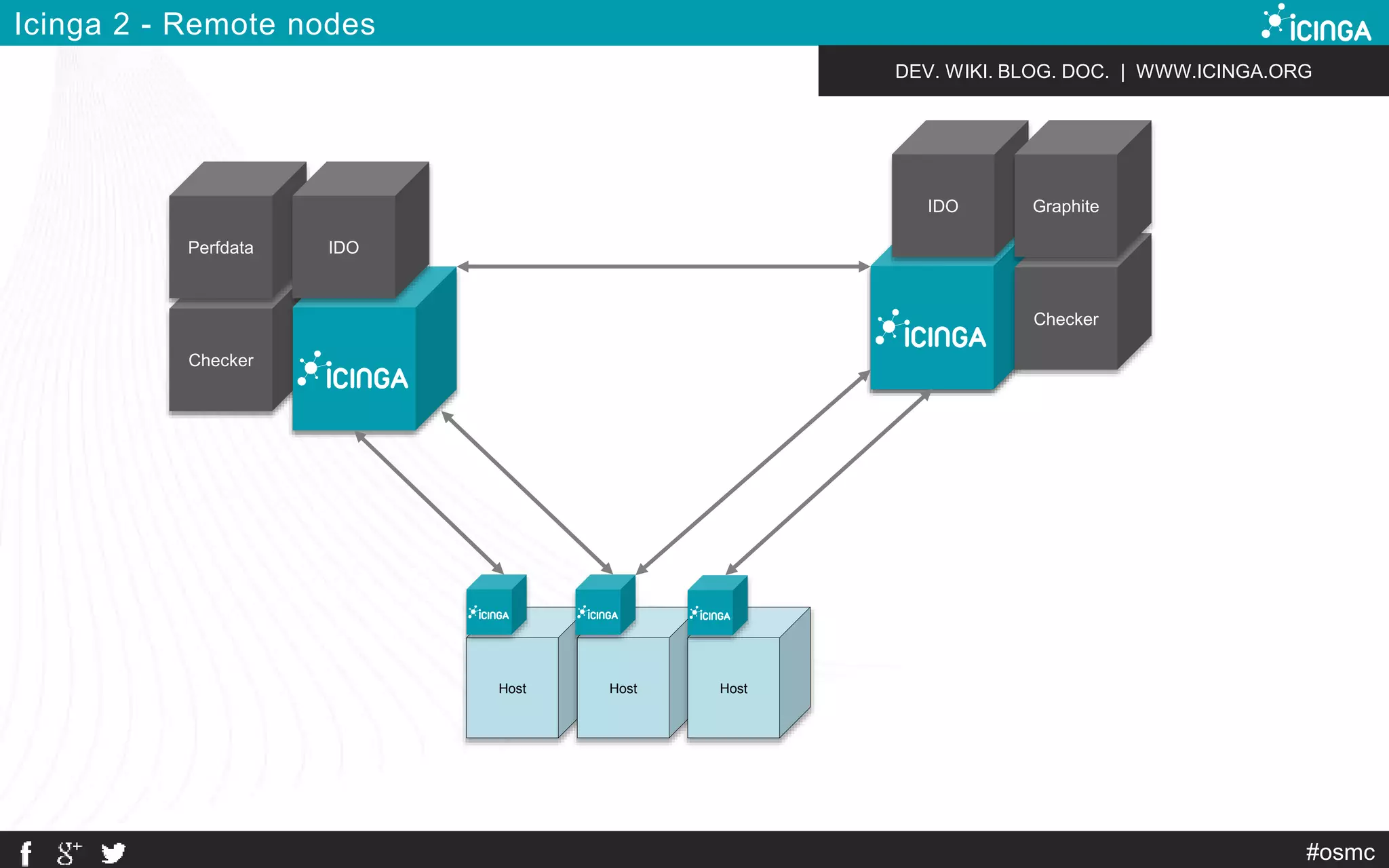

Icinga 2 - Remote nodes
Perfdata IDO
Checker
Host
Host Host
IDO
Graphite
Checker

#osmc

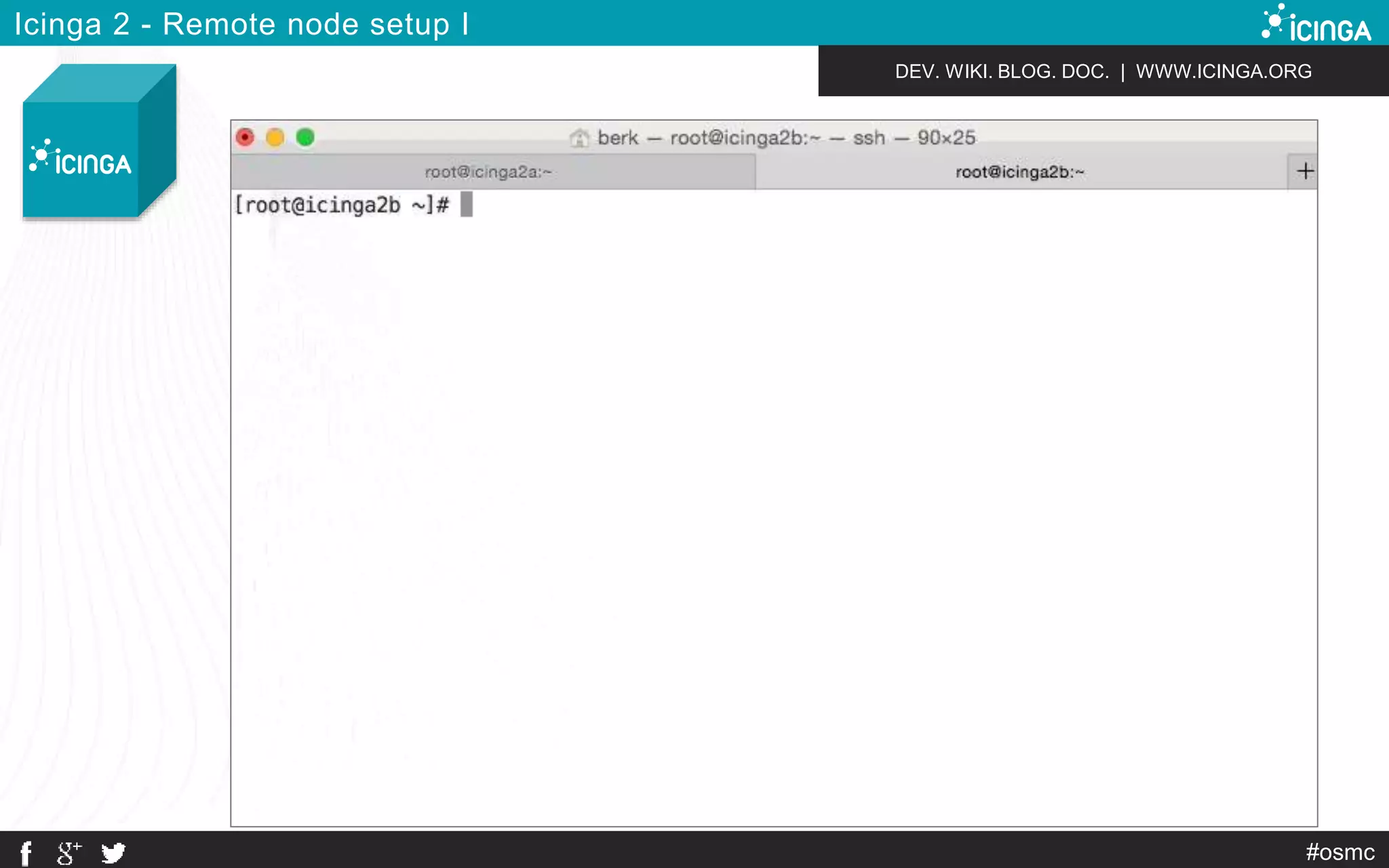

Icinga 2 - Remote node setup I

#osmc
Icinga 2 - Remote node setup II

#osmc

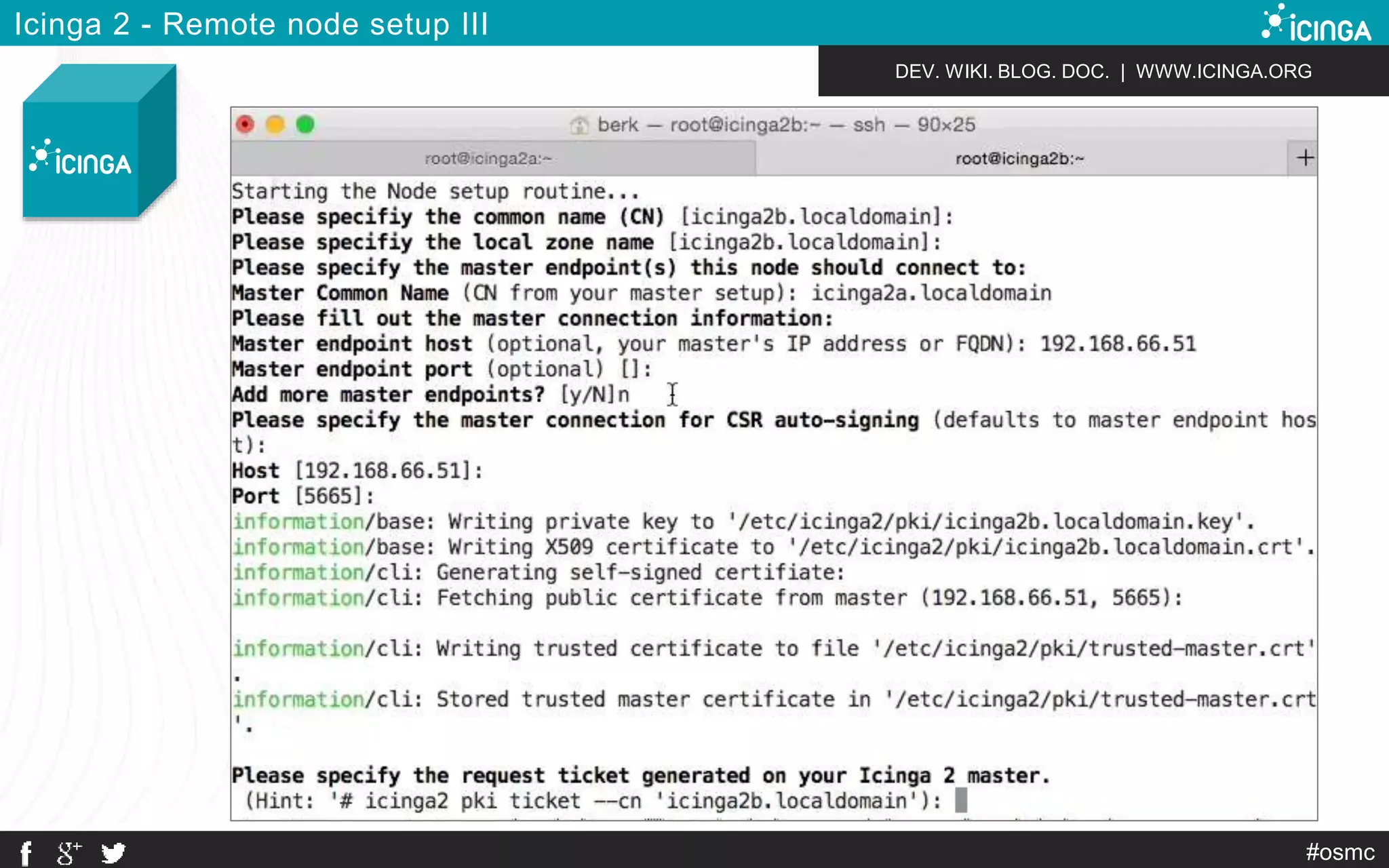

Icinga 2 - Remote node setup III

Demo
#osmc
Icinga 2 - Remote Client

#osmc

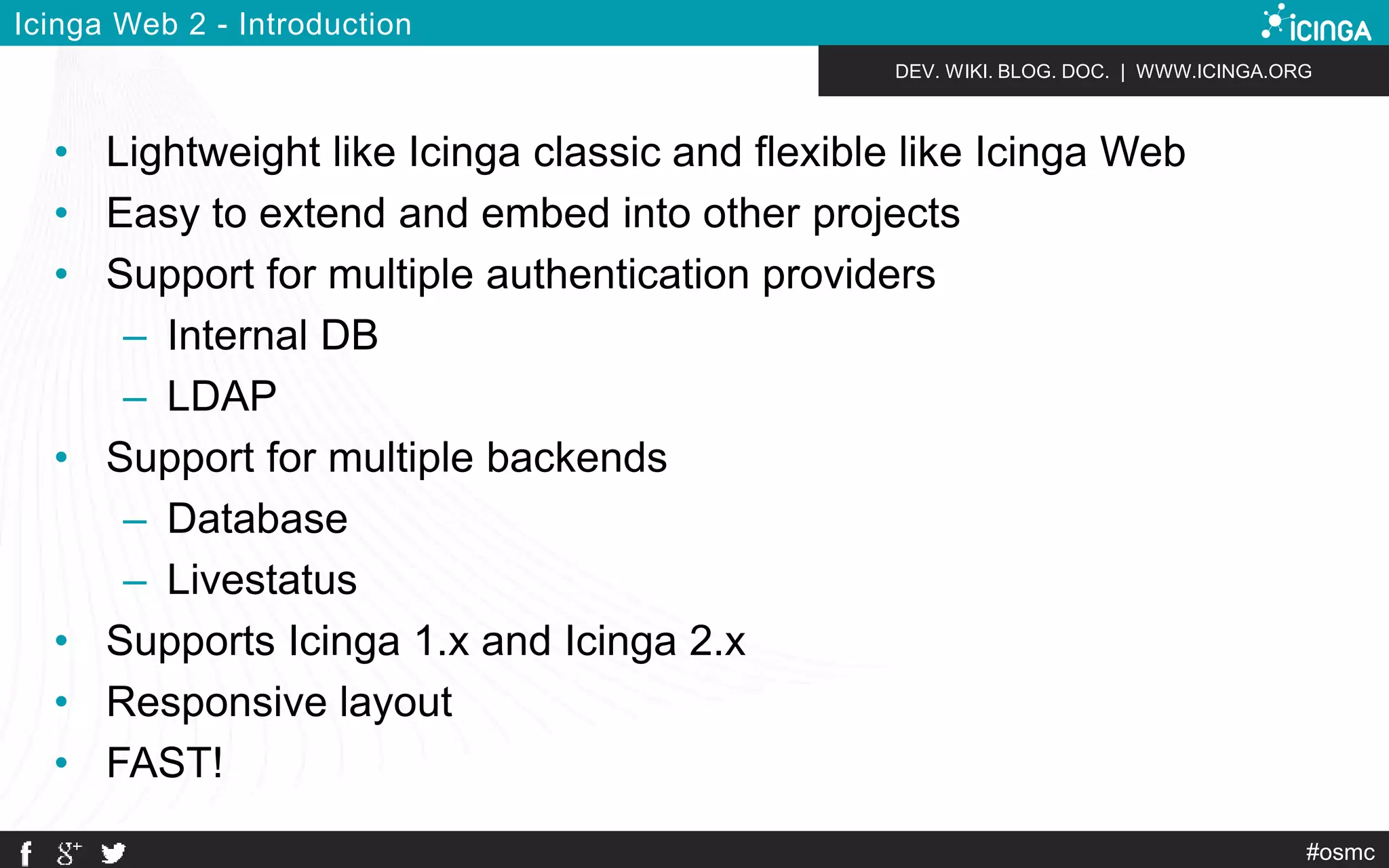

Icinga Web 2 - Introduction
• Lightweight like Icinga classic and flexible like Icinga Web
• Easy to extend and embed into other projects
• Support for multiple authentication providers
– Internal DB
– LDAP
• Support for multiple backends
– Database
– Livestatus
• Supports Icinga 1.x and Icinga 2.x
• Responsive layout
• FAST!

Framework / IcingWa PeHbP 2 Library
Backends Authentication Installer
#osmc

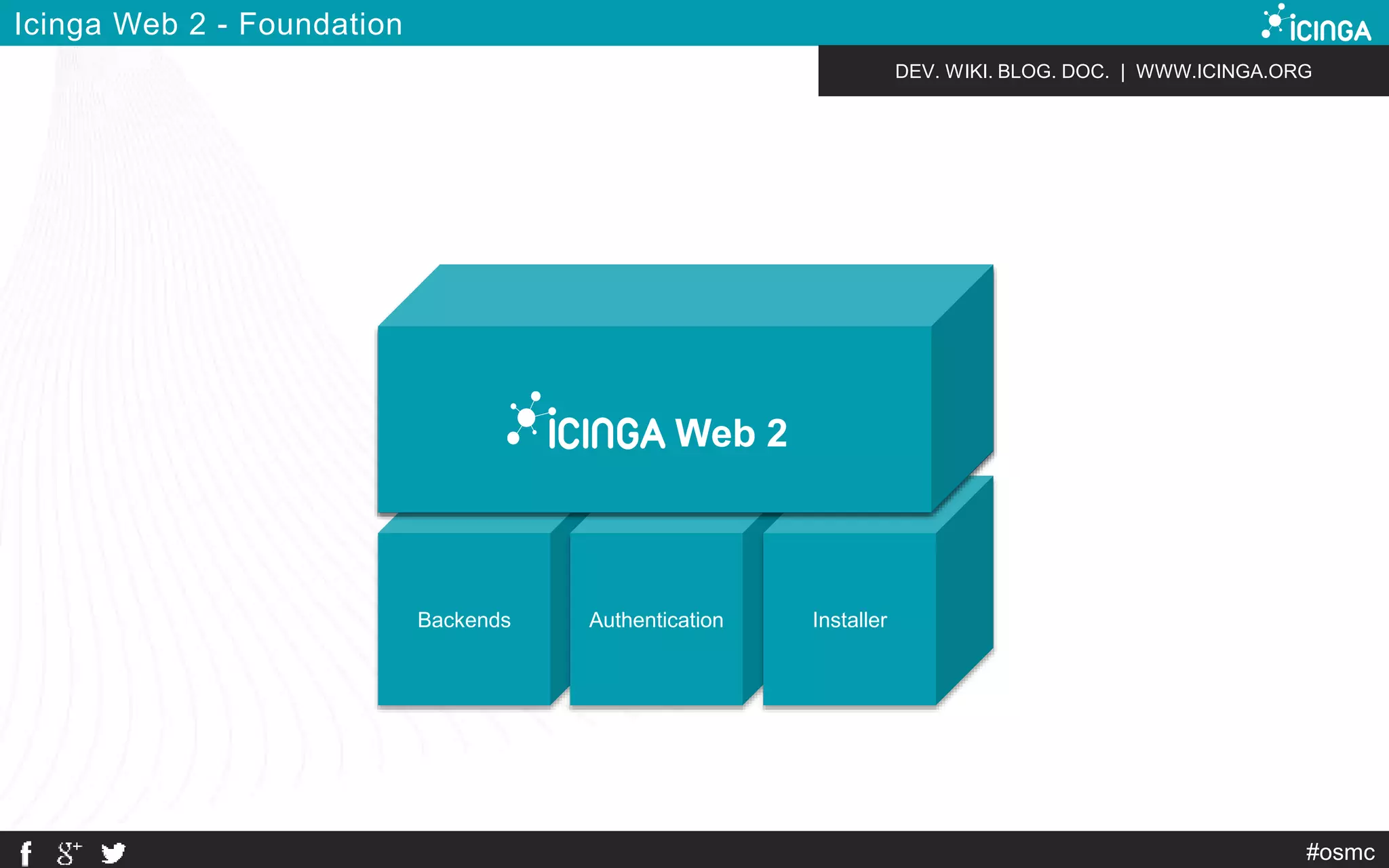

Icinga Web 2 - Foundation

Monitoring Docs
Web 2
#osmc

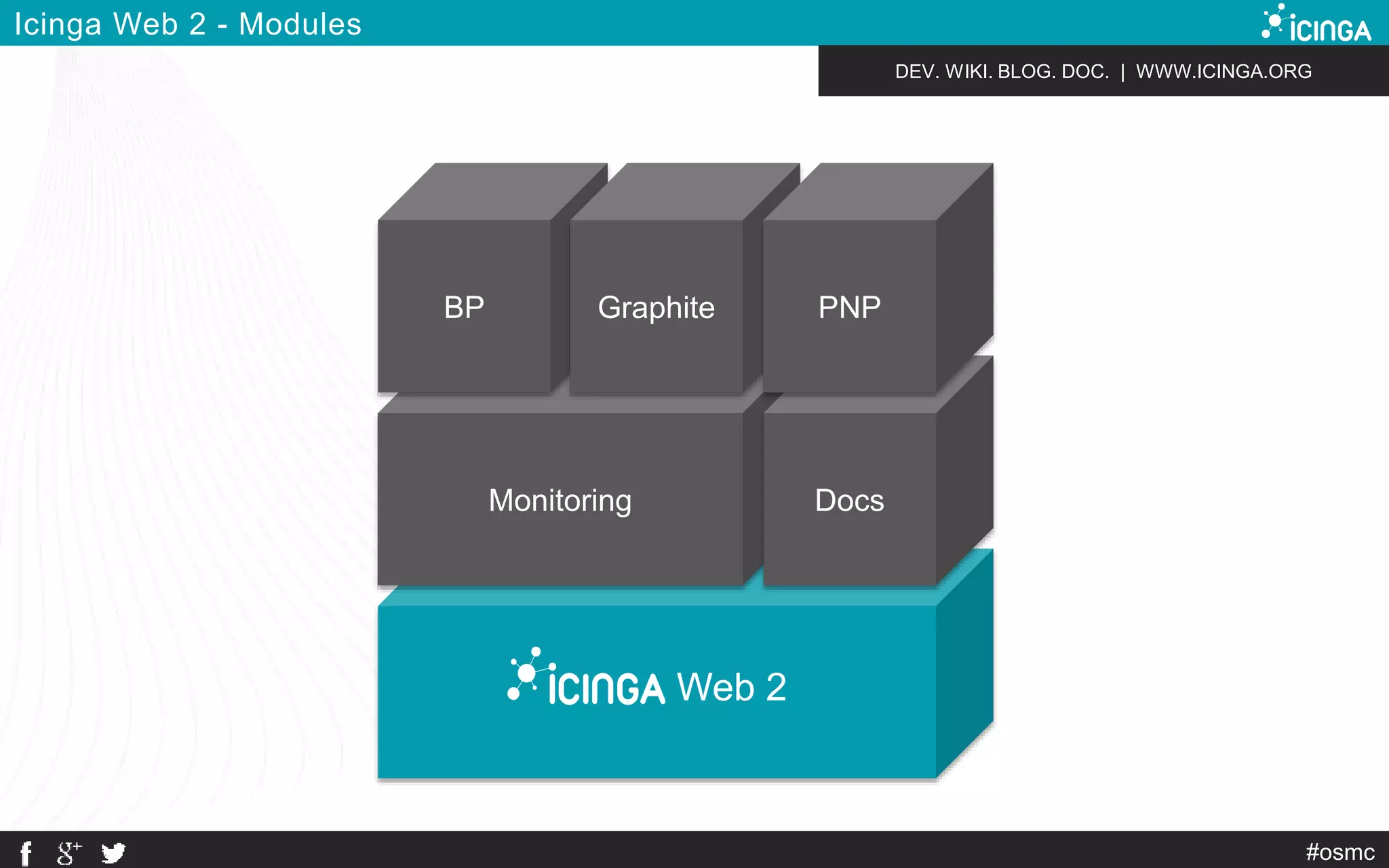

Icinga Web 2 - Modules
BP Graphite PNP

#osmc

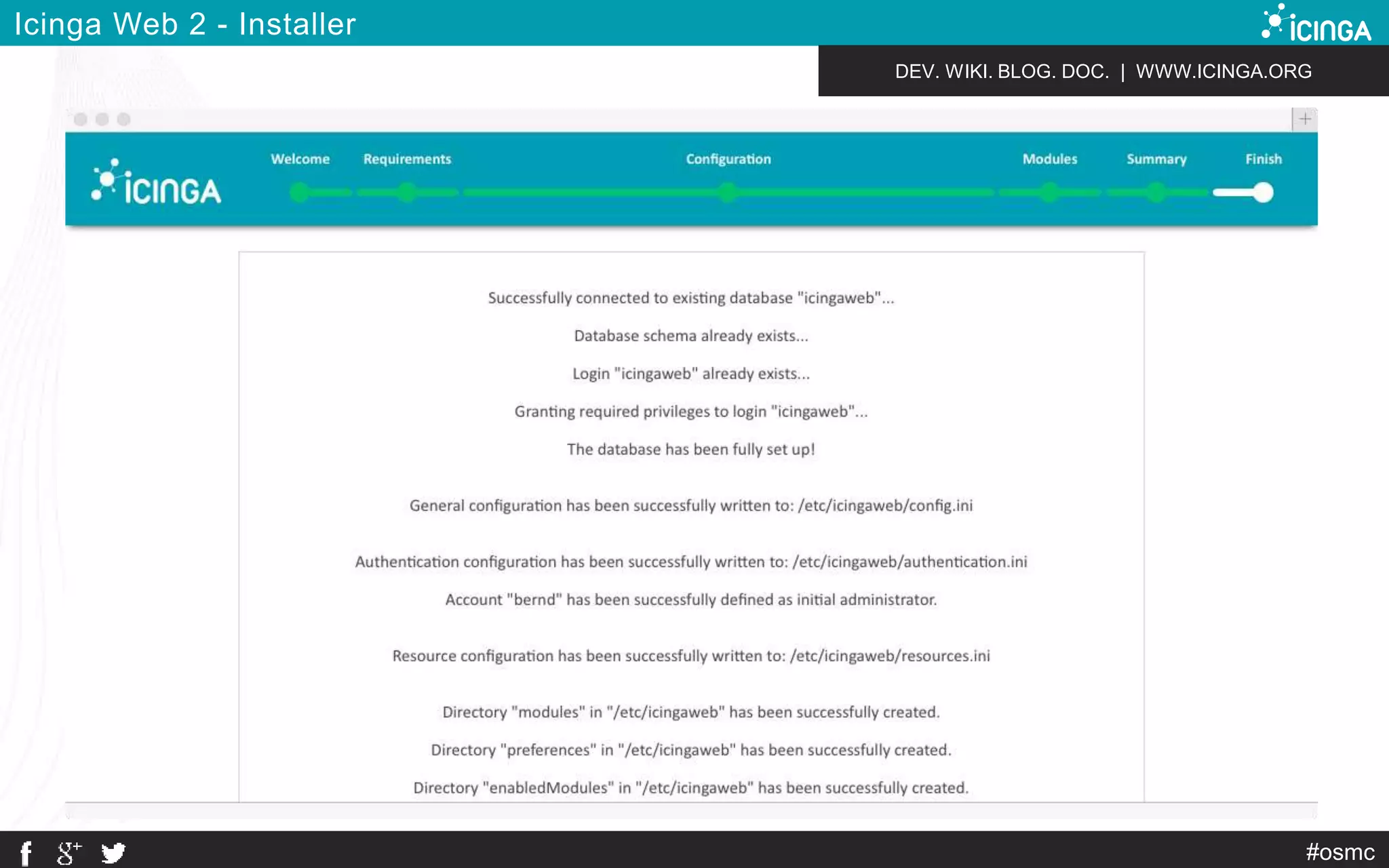

Icinga Web 2 - Installer

Demo
#osmc
Icinga Web 2 - Demo

#osmc

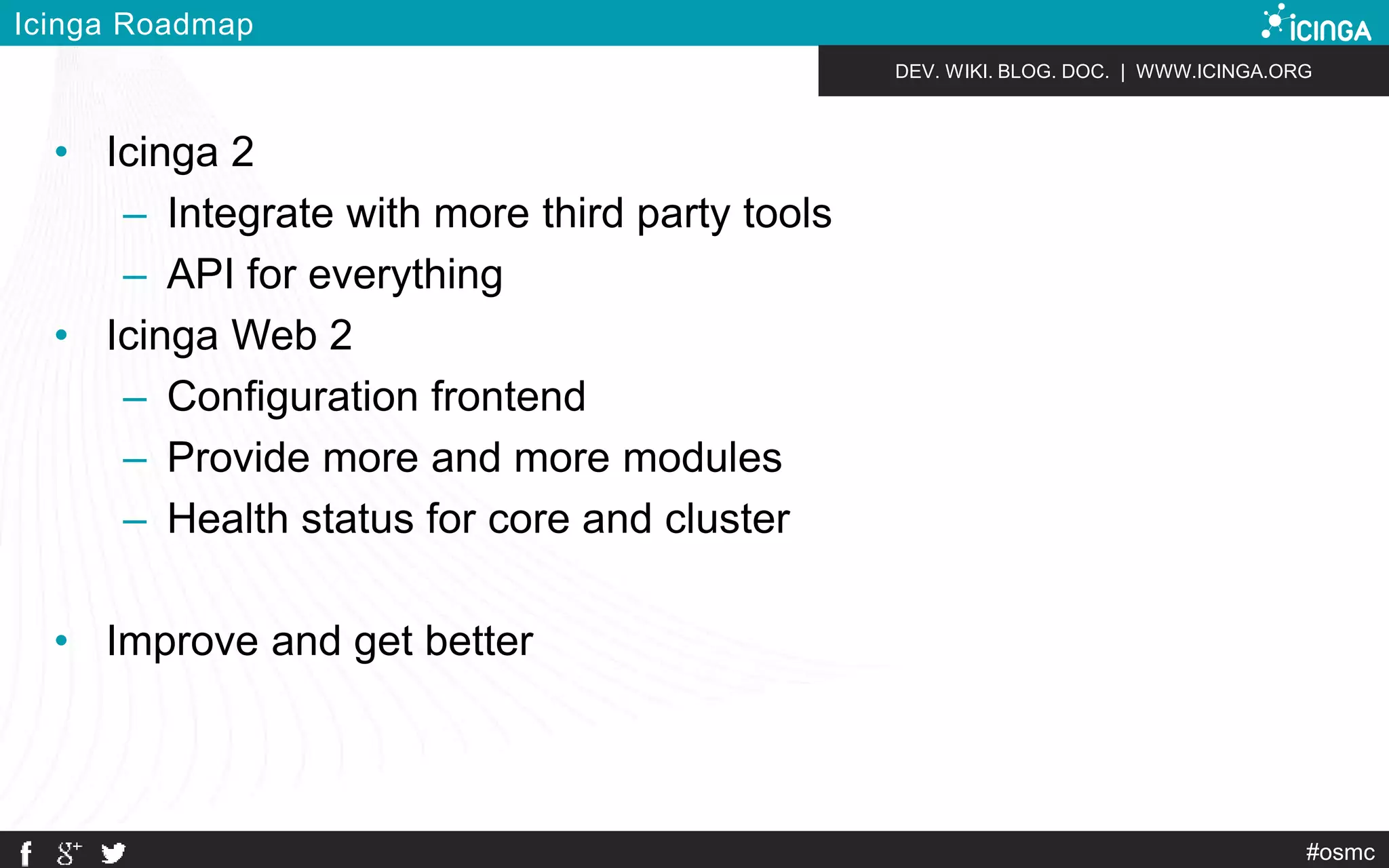

Icinga Roadmap
• Icinga 2
– Integrate with more third party tools
– API for everything
• Icinga Web 2
– Configuration frontend
– Provide more and more modules
– Health status for core and cluster
• Improve and get better

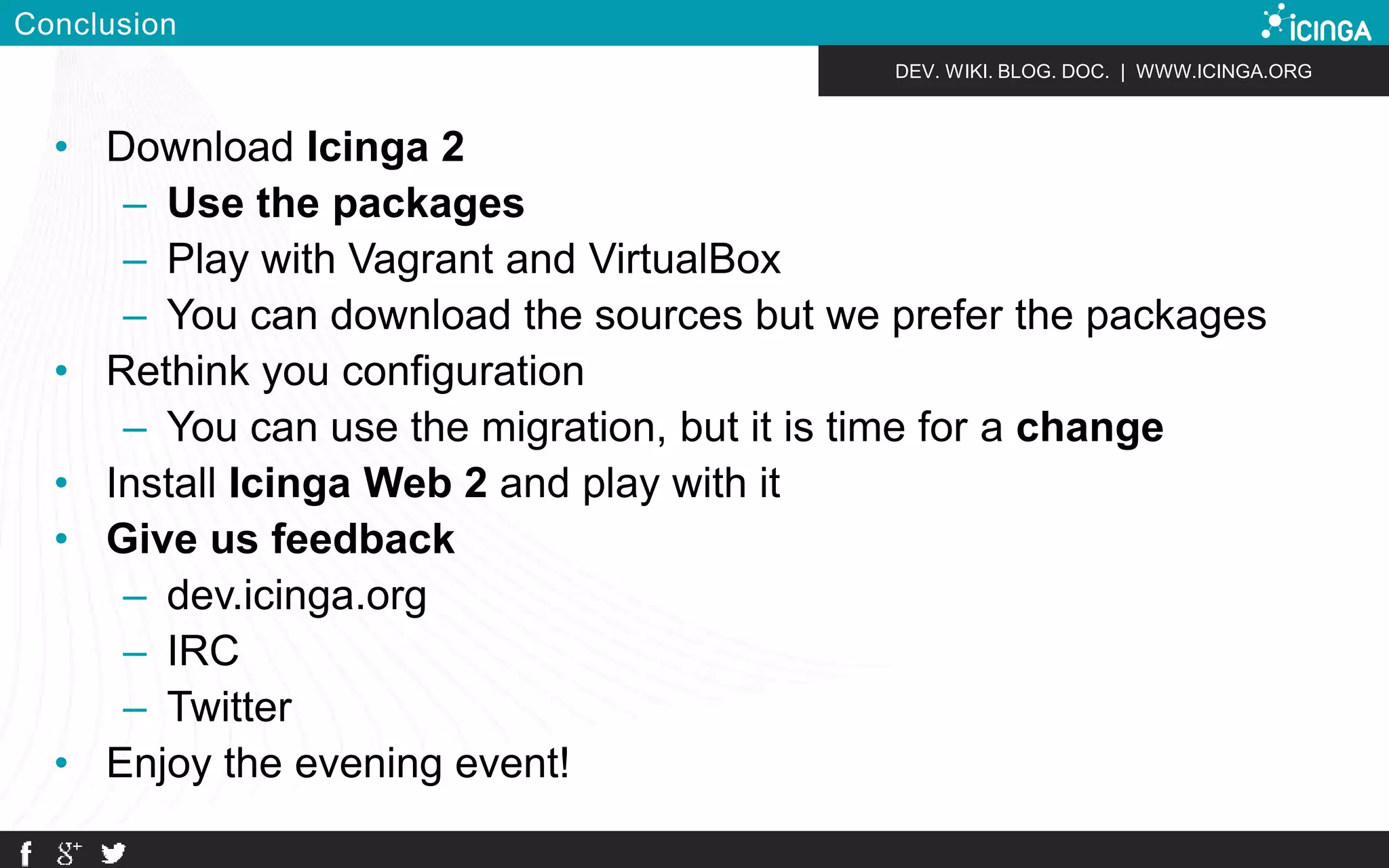

Conclusion
• Download Icinga 2
– Use the packages
– Play with Vagrant and VirtualBox
– You can download the sources but we prefer the packages
• Rethink you configuration
– You can use the migration, but it is time for a change
• Install Icinga Web 2 and play with it
• Give us feedback
– dev.icinga.org
– IRC
– Twitter
• Enjoy the evening event!

#osmc
Questions & Answers
Web www.icinga.org
Git git.icinga.org
Development dev.icinga.org
Wiki wiki.icinga.org
Support support.icinga.org
Twitter twitter.com/icinga
Get heard
Get involved
Facebook facebook.com/icinga Get support
