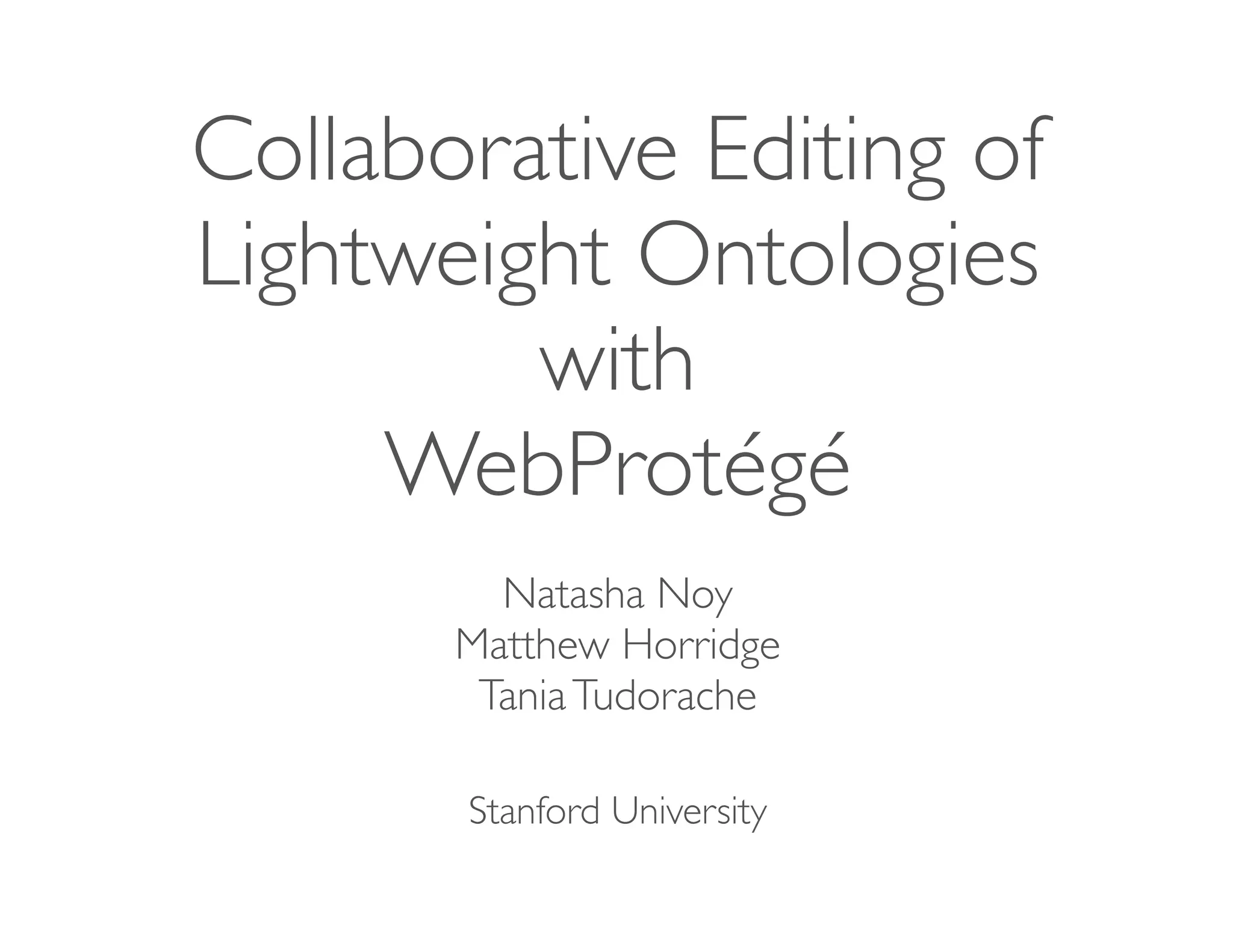

Collaborative Editing of
Lightweight Ontologies
with
WebProtégé
Natasha Noy
Matthew Horridge
TaniaTudorache
Stanford University

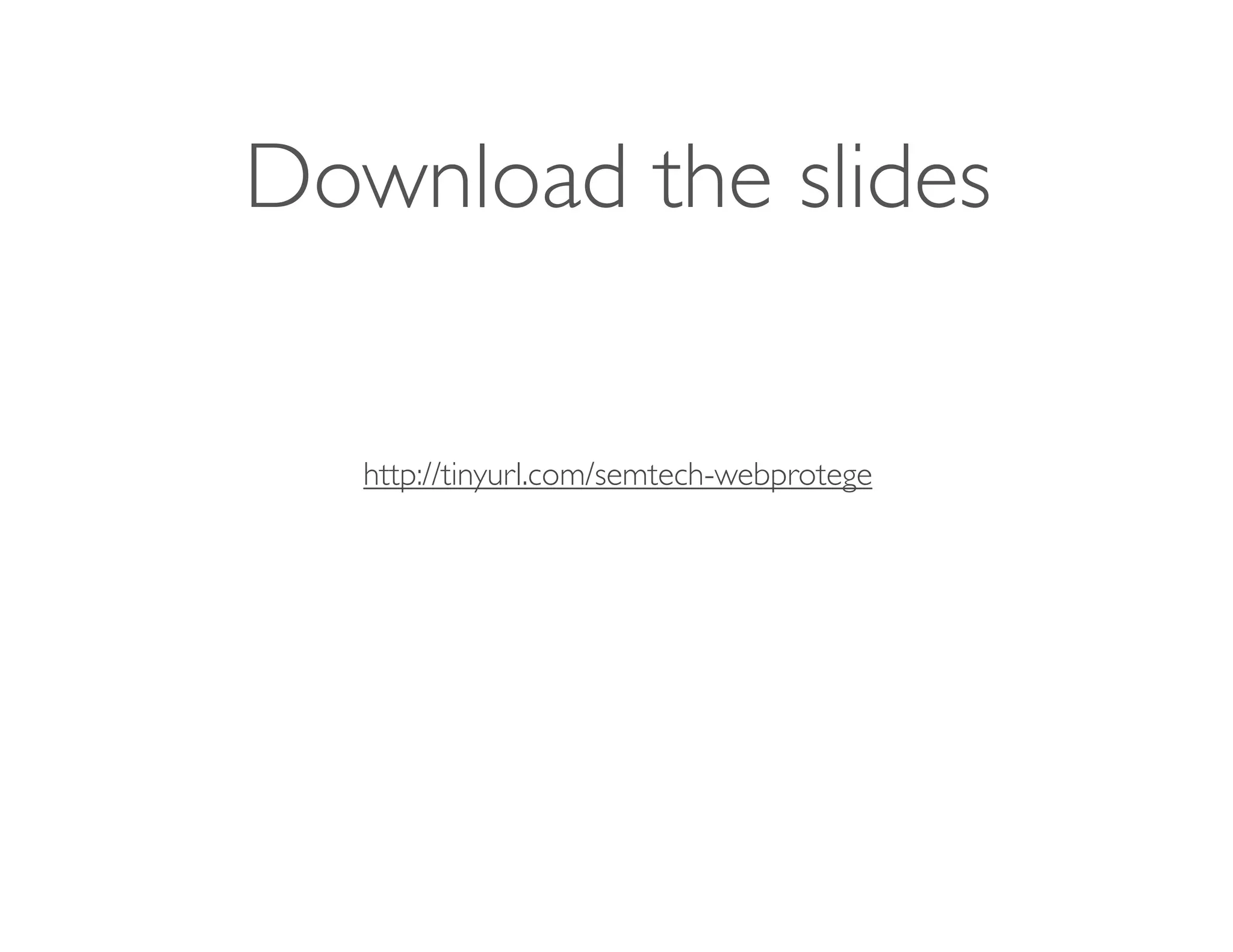

Download the slides
http://tinyurl.com/semtech-webprotege
Plan
•Introduction
•What is collaborative ontology editing?
•A guided tour of WebProtégé
•Hands-on exercise
•Discussion, Roadmap and Wrap up
What is Protégé?
• An open-source ontology editor
• developed at Stanford University
• has more than 200,00 registered users
• has dozens of plugins for
• visualization
• inference
• import and export
• ….
• has an API for developers
A bit of Protégé history
• Started more than 20 years ago
• Has gone through many iterations
• Was the first editor to support OWL 1
• Informed the design of OWL 2
• Has a thriving user community:
• conferences
• mailing list
• short courses
Protégé short course:
Vienna, September 2-4
Text
http://protege.stanford.edu/shortcourse/protege-owl/201309/
The “Classic” Protégé
Not what this tutorial is about!
WebProtégé
•A Web-based application
•edit ontologies in your Web browser
•nothing to install
•Supports distributed editing
•multiple editors can make changes at the
same time
•Includes many collaboration features
•discussion, watches, feeds
Plan
•Introduction
•Collaborative ontology editing
•Hands-on
•WebProtégé in large projects
•Discussion, Roadmap and Wrapup
Collaborative Ontology Development
Collaborative Ontology Development

Collaboration: several users contribute to the
development of one ontology
– Small group → larger community
– Larger ontologies that concern a certain community
– Individual process → social process

Each community does it its own way
Use cases of collaborative development in
biomedical domain
• Gene Ontology (GO)
• NCI Thesaurus
• BiomedGT
• OBI, BIRNLex, RadLex
• Open Biomedical Ontologies (OBO)
• International Classification:
– of Diseases (ICD-11)
– of Traditional Medicine (ICTM)
– of Patient Safety (ICPS)
The NCI Thesaurus collaborative
development process
●
Simultaneous editing in Protégé
clients
●
Custom UI for restricting user
input and enforcing business
rules
●
Development cycle begins after
baseline
●
~20 full-time editors making
changes; 1 “lead editor” who
approves the changes, and
assigns new tasks
●
Released version on NCI
website and BioPortal
Reference ontology for cancer biology, translational science, and clinical
oncology
ICD-11
● 11th Revision of the International
Classification of Diseases
● Over 10.000 categories used for coding,
billing, statistics, policy making all over the
world
● Collaborative and international effort
● Current version: published as books
● Goal for the new version: use a more formal
representation and published in electronical
format; use Web-based collaboration and
social platforms for editing
Construction of ICD-10:
Revision Process in the 20th
Century
● 8 Annual Revision Conferences (1982
- 89)
● 17 – 58 Countries participated
– 1- 5 person delegations
– Mainly Health Statisticians
● Manual curation
– List exchange
– Index was done later
● "Decibel” Method of discussion
● Output: Paper Copy
● Work in English only
● Limited testing in the field
ICD-11 process today
● Over 250 domain experts from around the world
● Organized in groups, which edit different parts of the ontology
ICD-11 process today (cont.)
● Each night a snapshot of the commonly edited ontology is
published in a public platform to encourage feedback from
the larger community
http://apps.who.int/classifications/icd11/browse/f/en
● Editorial workflow
● Centrally overseen by WHO
● Peer-reviewed process for the content and structure
● WebProtégé used as the collaborative ontology
development platform
Other ways of collaborating: Wikis
● Wikis are well known; Wikipedia
● Semantic Wikis – add semantic extensions to the wiki
platforms
● Assign a wiki page to an entity in the ontology (e.g. the
class “Mountain”)
● Export/import RDF
Semantic Wiki: MoKi
Source: https://moki.fbk.eu/website/userfiles/image/entmod.png
The challenge with wikis
Source: Hoehndorf, Robert, et al. "BOWiki: an ontology-based wiki for annotation of data and integration of knowledge in biology."
BMC bioinformatics 10.Suppl 5 (2009): S5.
Using sourceforge to manage change proposals for the Gene Ontology
myexperiment: social platform for sharing scientific workflows
Other collaboration processes
● Use source control repositories – SVN, CVS
– Text based mechanisms
– Hard to merge local copies in the shared copy
● Locking mechanisms (lock parts of an ontology for editing)
● Use specialized (domain dependent) ontology repositories,
e.g., BioPortal
BioPortal
● An open repository of biomedical ontologies developed by NCBO at
Stanford
● Publishing of ontologies, versioning (over 350 ontologies)
● Discussions and structured proposals
● Mappings, views
● Storing metadata
● Search over all ontologies
● Browsing different versions of an ontology
● All content and functionality also available as REST Web services →
mash-up of applications
● Technology is domain independent
● http://bioportal.bioontology.org
BioPortal Statistics
Ontology list in BioPortal
NCI Thesaurus details in BioPortal
Useful features for collaboration
● Tools for discussion and reaching consensus
– Add notes to ontology entities (classes, properties, individuals,
axioms)
– Add reviews and change proposals anywhere in the ontology
– Document the decision process and final decisions
● Complete Change history
– Establish provenance
– Retrieve ontology snapshots at any time
– Implement different conflict resolution mechanisms
● Personalized views of an ontology based on:
– User’s role and tasks
– User’s level of expertise
Useful features for collaboration (cont.)
● User roles and access control
– Fine-grained control for editing and viewing rights
– Sharing of ontologies
● Publishing released versions of an ontology in a central
location,e.g. a repository
● Scalability, reliability and robustness
WebProtégé
A QuickTour of the UI
Creating an Account I
Create a new account
Creating an Account II
Email address - used for notifications such as ontology changes
User name - displayed next to changes you make and notes that you post
The “Home Screen”
Side bar
Project list. Click project
name to open
Create project
Download project
Sign In/Sign Out
Trash projectUpload project
The Side Bar
All public projects plus your projects that are not in the trash
Your projects that are in the trash
Only projects owned by you that are not in the trash
Projects
A project encompasses: A collection of ontologies
Notes & discussions and watches
Some user interface settings
Some sharing settings
A list of revisions and a log of changes
Creating a Project
Create New Project
Project name - does not need to be unique
Project description - appears in the project list
Uploading a Project
Upload Project
Project name - does not need to be unique
Project description - appears in the project list
Local OWL file name
Sharing
Share link (top right corner)
Public Projects
➊ Select public
➋ Assign permissions for anyone including guests
➌ Assign more fine-grained access for specific users
Enter names in list and press “Add”
Private Projects
➊ Select public
Access is restricted to specific users
➋ Assign more permissions for specific users.
Enter names in list and press “Add”
Class tree Editor (similar for properties and individuals) Notes & Discussions
Project feed
Editing Class Descriptions
Adding Subclasses
Create subclasses button
Enter one or more names. Press CTRL+Enter to accept and close
(one class name per line)
Editing Class Descriptions
Display name - corresponds to the value of rdfs:label here
IRI - Internationalized Resource Identifier. Auto-generated, globally unique
“Property values”
(Class expressions under the hood
owl:subClassOf)
Annotation assertions
Values can be class names, datatype names,
individual names, numbers, dates and strings
Language editor for plain literals
Delete row
Auto-Completion
Type in name. Popup shows possible matches.
Dublin Core and SKOS properties “recognised”
On-the-Fly Creation
New property warning
(helps prevent typos!)
Press the tab key and enter value to create property
(property type will be determined from the value)
Editing Individual Descriptions
Class tree Editor Notes & Discussions
Project feed
Display name - corresponds to the value of rdfs:label here
IRI - Internationalized Resource Identifier. Auto-generated, globally unique
“Property values”
(Annotations, property assertions or
class expressions under the hood -
owl:subClassOf)
Type assertions
(rdf:type)
Values can be class names, datatype names,
individual names, numbers, dates and strings
Delete row
Same individuals
(owl:sameAs)
Editing Individual Descriptions
Icon Cheat Sheet
Class
Individual (named)
Datatype (xsd:integer, xsd:double etc.)
Property (object/data property)
Annotation property
Number
Date-Time
Literal
Link (http:)
IRI
Hands On
Online Newspaper
ModellingTask
Build an ontology to describe an online newspaper
or news website e.g. www.nyt.com or www.bbc.com
Goal: Become familiar with WebProtégé
and some aspects of collaborative ontology editing
Content
Articles:
title, author, date published, edited by, keywords/topics,
published in section, media (pictures, video), external links
etc.
Advertisements:
Standard ad, personal ad, Service ad etc.
Model different kinds of articles and their properties. For example,
Structure
Newspaper:
date published, issue, front matter etc.
Sections:
Domestic News,World News, Editorial, Magazine, Letters,
Commentary,Television Listings,Advertisements,
Appointments/Jobs, Sport, Business etc.
Sections and subsections
Model the structure of a news paper - different sections and how they
fit together. For example,
People
Employees:
Columnist, Editor, Section Editor, Reporter, International
Reporter, Manager
name, contact details: email, phone number, role
Other people:
Politician, President,Actor etc. Individual people, e.g.
Barack Obama.
Model the people who contribute to the news paper and people who
are the subject of articles. For example,
Custom entry forms for editing the ontology
content
● Easy to create user interfaces for the domain experts
● Use common entry forms, but still keep the ontology
“intelligence” behind it
● A form widget (e.g., text field) is linked to a property in the
ontology
● Easy to create custom forms with different views for
different users
● Hides complex ontology stuff
Form configuration in WebProtégé
Form-based editing and configuration of the user interface for the development of ICD-11
http://icatdemo.stanford.edu
Examples of form-based editing
Importing BioPortal terms into
WebProtégé
(1) Search term in BioPortal ontologies
(2) Get
search
results
(3) Browse
details of
results
(4) Import into WebProtégé with
single click
WebProtégé – Make Up
Protégé Collaboration
Framework
WebProtégé
WebProtégé Server
GWT RPC
Server side
Client side
Java
Java
Java at
development time
JavaScript at
run- time

2 parts: server and client

Server is completely
implemented in Java and makes
API calls to the OWL-API and
other libraries

Client side is developed in Java,
and later compiled by GWT into
JavaScript

Communication between server
client is done via GWT RPC or
simple HTTP calls
WebProtégé is pluggable
WebProtégé User Interface
(GWT)
Portlets
Event manager Other managers
WebProtégé Server (Java)
Access policies
service
...
Ontology
Service
Notes and
changes Service
pluggable
pluggable
Extending WebProtégé

Plug-in infrastructure very similar to Protégé's: create your
own tabs and portlets

Extend: AbstractTab or AbstractEntityPortlet

Implement your own RPCs, if needed

Reuse existing portlet code

Writing a tab – as easy as creating an empty class that
extends AbstractTab
http://protegewiki.stanford.edu/wiki/WebProtegeImplementationGuide
Resources
●
Online WebProtégé server: http://webprotege.stanford.edu
●
WebProtégé documentation:http://protegewiki.stanford.edu/wiki/WebProtege
●
WebProtégé paper: “WebProtégé: A Collaborative Ontology Editor and Knowledge
Acquisition Tool for the Web”, Tania Tudorache, Csongor Nyulas, Natalya F. Noy,
Mark A. Musen, Semantic Web Journal (SWJ) 4 (Number 1 / 2013), 89 - 99
●
WebProtégé in use: “Will Semantic Web Technologies Work for the Development of
ICD-11?”, T. Tudorache, S. M. Falconer, C. I. Nyulas, N. F. Noy, M. A. Musen. The 9th
International Semantic Web Conference, ISWC 2010 (In-Use track), Shanghai,
China, Springer. Published in 2010.
http://bmir.stanford.edu/file_asset/index.php/1646/BMIR-2010-1427.pdf
●
Other References: http://protegewiki.stanford.edu/wiki/WebProtege#References

More Related Content

What's hot

Querying Linked Data
Querying Linked DataQuerying Linked Data
Querying Linked Data
EUCLID project

DevOps for Databricks
DevOps for DatabricksDevOps for Databricks
DevOps for Databricks
Databricks

Introduction to MongoDB
Introduction to MongoDBIntroduction to MongoDB
Introduction to MongoDB
NodeXperts

Big Data and Machine Learning with FIWARE
Big Data and Machine Learning with FIWAREBig Data and Machine Learning with FIWARE
Big Data and Machine Learning with FIWARE
Fernando Lopez Aguilar

InfluxDB IOx Tech Talks: Query Engine Design and the Rust-Based DataFusion in...
InfluxDB IOx Tech Talks: Query Engine Design and the Rust-Based DataFusion in...InfluxDB IOx Tech Talks: Query Engine Design and the Rust-Based DataFusion in...
InfluxDB IOx Tech Talks: Query Engine Design and the Rust-Based DataFusion in...
InfluxData

New Directions for Apache Arrow
New Directions for Apache ArrowNew Directions for Apache Arrow
New Directions for Apache Arrow
Wes McKinney

Zero-Copy Event-Driven Servers with Netty
Zero-Copy Event-Driven Servers with NettyZero-Copy Event-Driven Servers with Netty
Zero-Copy Event-Driven Servers with Netty
Daniel Bimschas

Achieving Lakehouse Models with Spark 3.0
Achieving Lakehouse Models with Spark 3.0Achieving Lakehouse Models with Spark 3.0
Achieving Lakehouse Models with Spark 3.0
Databricks

Dataflow with Apache NiFi - Apache NiFi Meetup - 2016 Hadoop Summit - San Jose
Dataflow with Apache NiFi - Apache NiFi Meetup - 2016 Hadoop Summit - San JoseDataflow with Apache NiFi - Apache NiFi Meetup - 2016 Hadoop Summit - San Jose
Dataflow with Apache NiFi - Apache NiFi Meetup - 2016 Hadoop Summit - San Jose
Aldrin Piri

ORC Deep Dive 2020
ORC Deep Dive 2020ORC Deep Dive 2020
ORC Deep Dive 2020
Owen O'Malley

Recursive Query Throwdown
Recursive Query ThrowdownRecursive Query Throwdown
Recursive Query Throwdown
Karwin Software Solutions LLC

IoT databases - review and challenges - IoT, Hardware & Robotics meetup - onl...
IoT databases - review and challenges - IoT, Hardware & Robotics meetup - onl...IoT databases - review and challenges - IoT, Hardware & Robotics meetup - onl...
IoT databases - review and challenges - IoT, Hardware & Robotics meetup - onl...
Marcin Bielak

Data Source API in Spark
Data Source API in SparkData Source API in Spark
Data Source API in Spark
Databricks

ORC 2015
ORC 2015ORC 2015
ORC 2015
t3rmin4t0r

MLflow Model Serving
MLflow Model ServingMLflow Model Serving
MLflow Model Serving
Databricks

Using MongoDB as a high performance graph database
Using MongoDB as a high performance graph databaseUsing MongoDB as a high performance graph database
Using MongoDB as a high performance graph database
Chris Clarke

DSpace-CRIS & OpenAIRE
DSpace-CRIS & OpenAIREDSpace-CRIS & OpenAIRE
DSpace-CRIS & OpenAIRE
4Science

Deep Dive into Building Streaming Applications with Apache Pulsar
Deep Dive into Building Streaming Applications with Apache Pulsar Deep Dive into Building Streaming Applications with Apache Pulsar
Deep Dive into Building Streaming Applications with Apache Pulsar
Timothy Spann

O’FAIRe: Ontology FAIRness Evaluator in the AgroPortal semantic resource rep...
O’FAIRe: Ontology FAIRness Evaluator in theAgroPortal semantic resource rep...O’FAIRe: Ontology FAIRness Evaluator in theAgroPortal semantic resource rep...
O’FAIRe: Ontology FAIRness Evaluator in the AgroPortal semantic resource rep...
INRAE (MISTEA) and University of Montpellier (LIRMM)

Photon Technical Deep Dive: How to Think Vectorized
Photon Technical Deep Dive: How to Think VectorizedPhoton Technical Deep Dive: How to Think Vectorized
Photon Technical Deep Dive: How to Think Vectorized
Databricks


What's hot (20)

Querying Linked Data
Querying Linked DataQuerying Linked Data
Querying Linked Data

DevOps for Databricks
DevOps for DatabricksDevOps for Databricks
DevOps for Databricks

Introduction to MongoDB
Introduction to MongoDBIntroduction to MongoDB
Introduction to MongoDB

Big Data and Machine Learning with FIWARE
Big Data and Machine Learning with FIWAREBig Data and Machine Learning with FIWARE
Big Data and Machine Learning with FIWARE

InfluxDB IOx Tech Talks: Query Engine Design and the Rust-Based DataFusion in...
InfluxDB IOx Tech Talks: Query Engine Design and the Rust-Based DataFusion in...InfluxDB IOx Tech Talks: Query Engine Design and the Rust-Based DataFusion in...
InfluxDB IOx Tech Talks: Query Engine Design and the Rust-Based DataFusion in...

New Directions for Apache Arrow
New Directions for Apache ArrowNew Directions for Apache Arrow
New Directions for Apache Arrow

Zero-Copy Event-Driven Servers with Netty
Zero-Copy Event-Driven Servers with NettyZero-Copy Event-Driven Servers with Netty
Zero-Copy Event-Driven Servers with Netty

Achieving Lakehouse Models with Spark 3.0
Achieving Lakehouse Models with Spark 3.0Achieving Lakehouse Models with Spark 3.0
Achieving Lakehouse Models with Spark 3.0

Dataflow with Apache NiFi - Apache NiFi Meetup - 2016 Hadoop Summit - San Jose
Dataflow with Apache NiFi - Apache NiFi Meetup - 2016 Hadoop Summit - San JoseDataflow with Apache NiFi - Apache NiFi Meetup - 2016 Hadoop Summit - San Jose
Dataflow with Apache NiFi - Apache NiFi Meetup - 2016 Hadoop Summit - San Jose

ORC Deep Dive 2020
ORC Deep Dive 2020ORC Deep Dive 2020
ORC Deep Dive 2020

Recursive Query Throwdown
Recursive Query ThrowdownRecursive Query Throwdown
Recursive Query Throwdown

IoT databases - review and challenges - IoT, Hardware & Robotics meetup - onl...
IoT databases - review and challenges - IoT, Hardware & Robotics meetup - onl...IoT databases - review and challenges - IoT, Hardware & Robotics meetup - onl...
IoT databases - review and challenges - IoT, Hardware & Robotics meetup - onl...

Data Source API in Spark
Data Source API in SparkData Source API in Spark
Data Source API in Spark

ORC 2015
ORC 2015ORC 2015
ORC 2015

MLflow Model Serving
MLflow Model ServingMLflow Model Serving
MLflow Model Serving

Using MongoDB as a high performance graph database
Using MongoDB as a high performance graph databaseUsing MongoDB as a high performance graph database
Using MongoDB as a high performance graph database

DSpace-CRIS & OpenAIRE
DSpace-CRIS & OpenAIREDSpace-CRIS & OpenAIRE
DSpace-CRIS & OpenAIRE

Deep Dive into Building Streaming Applications with Apache Pulsar
Deep Dive into Building Streaming Applications with Apache Pulsar Deep Dive into Building Streaming Applications with Apache Pulsar
Deep Dive into Building Streaming Applications with Apache Pulsar

O’FAIRe: Ontology FAIRness Evaluator in the AgroPortal semantic resource rep...
O’FAIRe: Ontology FAIRness Evaluator in theAgroPortal semantic resource rep...O’FAIRe: Ontology FAIRness Evaluator in theAgroPortal semantic resource rep...
O’FAIRe: Ontology FAIRness Evaluator in the AgroPortal semantic resource rep...

Photon Technical Deep Dive: How to Think Vectorized
Photon Technical Deep Dive: How to Think VectorizedPhoton Technical Deep Dive: How to Think Vectorized
Photon Technical Deep Dive: How to Think Vectorized


Viewers also liked

Protege tutorial
Protege tutorialProtege tutorial
Protege tutorial
Comércio de Portugal

Ontology development in protégé-آنتولوژی در پروتوغه
Ontology development in protégé-آنتولوژی در پروتوغهOntology development in protégé-آنتولوژی در پروتوغه
Ontology development in protégé-آنتولوژی در پروتوغه
sadegh salehi

Examples of ontology applications
Examples of ontology applicationsExamples of ontology applications
Examples of ontology applications
AIMS (Agricultural Information Management Standards)

Microsoft Protege Grand Final Pres 6th May
Microsoft Protege Grand Final Pres 6th MayMicrosoft Protege Grand Final Pres 6th May
Microsoft Protege Grand Final Pres 6th May
gthorsley

Properties and Individuals in OWL: Reasoning About Family History
Properties and Individuals in OWL: Reasoning About Family HistoryProperties and Individuals in OWL: Reasoning About Family History
Properties and Individuals in OWL: Reasoning About Family History
robertstevens65

Tutorial 2-Ontology Tools
Tutorial 2-Ontology ToolsTutorial 2-Ontology Tools
An introduction to ontologies
An introduction to ontologiesAn introduction to ontologies
An introduction to ontologies
Anna Mavroudi

Pal gov.tutorial4.session5.lab ontologytools
Pal gov.tutorial4.session5.lab ontologytoolsPal gov.tutorial4.session5.lab ontologytools
Pal gov.tutorial4.session5.lab ontologytools
Mustafa Jarrar

Building and using ontologies (2015)
Building and using ontologies (2015)Building and using ontologies (2015)
Building and using ontologies (2015)
Elena Simperl

Jess Tab Tutorial
Jess Tab TutorialJess Tab Tutorial
Jess Tab Tutorial
Paolo Servillo

Issues and activities in authoring ontologies
Issues and activities in authoring ontologiesIssues and activities in authoring ontologies
Issues and activities in authoring ontologies
robertstevens65

Building and Using Ontologies to do biology
Building and Using Ontologies to do biologyBuilding and Using Ontologies to do biology
Building and Using Ontologies to do biology
robertstevens65

The Quality of Method Reporting in
The Quality of Method Reporting in The Quality of Method Reporting in
The Quality of Method Reporting in
robertstevens65

The Semantics of Genomic Analysis
The Semantics of  Genomic AnalysisThe Semantics of  Genomic Analysis
The Semantics of Genomic Analysis
robertstevens65

OBOPedia: An Encyclopaedia of Biology Using OBO OntologiesObopedia swat4ls-20...
OBOPedia: An Encyclopaedia of Biology Using OBO OntologiesObopedia swat4ls-20...OBOPedia: An Encyclopaedia of Biology Using OBO OntologiesObopedia swat4ls-20...
OBOPedia: An Encyclopaedia of Biology Using OBO OntologiesObopedia swat4ls-20...
robertstevens65

SWRL Overview
SWRL OverviewSWRL Overview
SWRL Overview
Emiliano Reynares

OWL-XML-Summer-School-09
OWL-XML-Summer-School-09OWL-XML-Summer-School-09
OWL-XML-Summer-School-09
Duncan Hull

The Pragmatics and Formality of Authoring OntologiesOdsl 2016
The Pragmatics and Formality of Authoring OntologiesOdsl 2016The Pragmatics and Formality of Authoring OntologiesOdsl 2016
The Pragmatics and Formality of Authoring OntologiesOdsl 2016
robertstevens65

The state of the nation for ontology development
The state of the nation for ontology developmentThe state of the nation for ontology development
The state of the nation for ontology development
robertstevens65

Protégé4US: Harvesting Ontology Authoring Data with Protégé
Protégé4US: Harvesting Ontology Authoring Data with ProtégéProtégé4US: Harvesting Ontology Authoring Data with Protégé
Protégé4US: Harvesting Ontology Authoring Data with Protégé
Markel Vigo


Viewers also liked (20)

Protege tutorial
Protege tutorialProtege tutorial
Protege tutorial

Ontology development in protégé-آنتولوژی در پروتوغه
Ontology development in protégé-آنتولوژی در پروتوغهOntology development in protégé-آنتولوژی در پروتوغه
Ontology development in protégé-آنتولوژی در پروتوغه

Examples of ontology applications
Examples of ontology applicationsExamples of ontology applications
Examples of ontology applications

Microsoft Protege Grand Final Pres 6th May
Microsoft Protege Grand Final Pres 6th MayMicrosoft Protege Grand Final Pres 6th May
Microsoft Protege Grand Final Pres 6th May

Properties and Individuals in OWL: Reasoning About Family History
Properties and Individuals in OWL: Reasoning About Family HistoryProperties and Individuals in OWL: Reasoning About Family History
Properties and Individuals in OWL: Reasoning About Family History

Tutorial 2-Ontology Tools
Tutorial 2-Ontology ToolsTutorial 2-Ontology Tools
Tutorial 2-Ontology Tools

An introduction to ontologies
An introduction to ontologiesAn introduction to ontologies
An introduction to ontologies

Pal gov.tutorial4.session5.lab ontologytools
Pal gov.tutorial4.session5.lab ontologytoolsPal gov.tutorial4.session5.lab ontologytools
Pal gov.tutorial4.session5.lab ontologytools

Building and using ontologies (2015)
Building and using ontologies (2015)Building and using ontologies (2015)
Building and using ontologies (2015)

Jess Tab Tutorial
Jess Tab TutorialJess Tab Tutorial
Jess Tab Tutorial

Issues and activities in authoring ontologies
Issues and activities in authoring ontologiesIssues and activities in authoring ontologies
Issues and activities in authoring ontologies

Building and Using Ontologies to do biology
Building and Using Ontologies to do biologyBuilding and Using Ontologies to do biology
Building and Using Ontologies to do biology

The Quality of Method Reporting in
The Quality of Method Reporting in The Quality of Method Reporting in
The Quality of Method Reporting in

The Semantics of Genomic Analysis
The Semantics of  Genomic AnalysisThe Semantics of  Genomic Analysis
The Semantics of Genomic Analysis

OBOPedia: An Encyclopaedia of Biology Using OBO OntologiesObopedia swat4ls-20...
OBOPedia: An Encyclopaedia of Biology Using OBO OntologiesObopedia swat4ls-20...OBOPedia: An Encyclopaedia of Biology Using OBO OntologiesObopedia swat4ls-20...
OBOPedia: An Encyclopaedia of Biology Using OBO OntologiesObopedia swat4ls-20...

SWRL Overview
SWRL OverviewSWRL Overview
SWRL Overview

OWL-XML-Summer-School-09
OWL-XML-Summer-School-09OWL-XML-Summer-School-09
OWL-XML-Summer-School-09

The Pragmatics and Formality of Authoring OntologiesOdsl 2016
The Pragmatics and Formality of Authoring OntologiesOdsl 2016The Pragmatics and Formality of Authoring OntologiesOdsl 2016
The Pragmatics and Formality of Authoring OntologiesOdsl 2016

The state of the nation for ontology development
The state of the nation for ontology developmentThe state of the nation for ontology development
The state of the nation for ontology development

Protégé4US: Harvesting Ontology Authoring Data with Protégé
Protégé4US: Harvesting Ontology Authoring Data with ProtégéProtégé4US: Harvesting Ontology Authoring Data with Protégé
Protégé4US: Harvesting Ontology Authoring Data with Protégé


Similar to Semtech web-protege-tutorial

Collaborative Development of Ontologies using BioPortal and WebProtégé
Collaborative Development of Ontologies using  BioPortal and WebProtégé  Collaborative Development of Ontologies using  BioPortal and WebProtégé
Collaborative Development of Ontologies using BioPortal and WebProtégé
Trish Whetzel

Collaborative Development of Ontologies using BioPortal and WebProtégé
Collaborative Development of Ontologies using  BioPortal and WebProtégé  Collaborative Development of Ontologies using  BioPortal and WebProtégé
Collaborative Development of Ontologies using BioPortal and WebProtégé
Trish Whetzel

Doc.next - The Future of the Documentation Project
Doc.next - The Future of the Documentation ProjectDoc.next - The Future of the Documentation Project
Doc.next - The Future of the Documentation Project
Alexandro Colorado

KOS Management - The case of the Organic.Edunet Ontology
KOS Management - The case of the Organic.Edunet OntologyKOS Management - The case of the Organic.Edunet Ontology
KOS Management - The case of the Organic.Edunet Ontology
Vassilis Protonotarios

Knowledge Organization Systems (KOS): Management of Classification Systems in...
Knowledge Organization Systems (KOS): Management of Classification Systems in...Knowledge Organization Systems (KOS): Management of Classification Systems in...
Knowledge Organization Systems (KOS): Management of Classification Systems in...
AIMS (Agricultural Information Management Standards)

Openoffice extensions and templates
Openoffice extensions and templatesOpenoffice extensions and templates
Openoffice extensions and templates
Roberto Galoppini

Research Tool - End Note
Research Tool - End NoteResearch Tool - End Note
Research Tool - End Note
ador

Open Access Week 2017: Life Sciences and Open Sciences - worfkflows and tools
Open Access Week 2017: Life Sciences and Open Sciences - worfkflows and toolsOpen Access Week 2017: Life Sciences and Open Sciences - worfkflows and tools
Open Access Week 2017: Life Sciences and Open Sciences - worfkflows and tools
OpenAIRE

WIDOCO: A Wizard for Documenting Ontologies
WIDOCO: A Wizard for Documenting OntologiesWIDOCO: A Wizard for Documenting Ontologies
WIDOCO: A Wizard for Documenting Ontologies
dgarijo

Open Source
Open SourceOpen Source
Open Source
Kartik Subbarao

Socializing and disseminating the academic and intellectual creation: Experie...
Socializing and disseminating the academic and intellectual creation: Experie...Socializing and disseminating the academic and intellectual creation: Experie...
Socializing and disseminating the academic and intellectual creation: Experie...
Servicio de Difusión de la Creación Intelectual (SEDICI)

Wiserpku Lecture@Life Science School Pku
Wiserpku Lecture@Life Science School PkuWiserpku Lecture@Life Science School Pku
Wiserpku Lecture@Life Science School Pku
wiser pku

Wiser Pku Lecture@Life Science School Pku
Wiser Pku Lecture@Life Science School PkuWiser Pku Lecture@Life Science School Pku
Wiser Pku Lecture@Life Science School Pku
guest8ed46d

Ee bdm ws-v1
Ee bdm ws-v1Ee bdm ws-v1
How community software supports language documentation and data analysis
How community software supports language documentation and data analysisHow community software supports language documentation and data analysis
How community software supports language documentation and data analysis
Peter Bouda

Non-software OSS projects
Non-software OSS projectsNon-software OSS projects
Non-software OSS projects
guest214454

DSpace-CRIS: a CRIS enhanced repository platform
DSpace-CRIS: a CRIS enhanced repository platformDSpace-CRIS: a CRIS enhanced repository platform
DSpace-CRIS: a CRIS enhanced repository platform
Andrea Bollini

Web 2.0 Online Collaboration (Public)
Web 2.0 Online Collaboration (Public)Web 2.0 Online Collaboration (Public)
Web 2.0 Online Collaboration (Public)
Daniel Livingstone

Nonsoftwareoss
NonsoftwareossNonsoftwareoss
Nonsoftwareoss
Carlo Daffara

Research Objects for improved sharing and reproducibility
Research Objects for improved sharing and reproducibilityResearch Objects for improved sharing and reproducibility
Research Objects for improved sharing and reproducibility
Oscar Corcho


Similar to Semtech web-protege-tutorial (20)

Collaborative Development of Ontologies using BioPortal and WebProtégé
Collaborative Development of Ontologies using  BioPortal and WebProtégé  Collaborative Development of Ontologies using  BioPortal and WebProtégé
Collaborative Development of Ontologies using BioPortal and WebProtégé

Collaborative Development of Ontologies using BioPortal and WebProtégé
Collaborative Development of Ontologies using  BioPortal and WebProtégé  Collaborative Development of Ontologies using  BioPortal and WebProtégé
Collaborative Development of Ontologies using BioPortal and WebProtégé

Doc.next - The Future of the Documentation Project
Doc.next - The Future of the Documentation ProjectDoc.next - The Future of the Documentation Project
Doc.next - The Future of the Documentation Project

KOS Management - The case of the Organic.Edunet Ontology
KOS Management - The case of the Organic.Edunet OntologyKOS Management - The case of the Organic.Edunet Ontology
KOS Management - The case of the Organic.Edunet Ontology

Knowledge Organization Systems (KOS): Management of Classification Systems in...
Knowledge Organization Systems (KOS): Management of Classification Systems in...Knowledge Organization Systems (KOS): Management of Classification Systems in...
Knowledge Organization Systems (KOS): Management of Classification Systems in...

Openoffice extensions and templates
Openoffice extensions and templatesOpenoffice extensions and templates
Openoffice extensions and templates

Research Tool - End Note
Research Tool - End NoteResearch Tool - End Note
Research Tool - End Note

Open Access Week 2017: Life Sciences and Open Sciences - worfkflows and tools
Open Access Week 2017: Life Sciences and Open Sciences - worfkflows and toolsOpen Access Week 2017: Life Sciences and Open Sciences - worfkflows and tools
Open Access Week 2017: Life Sciences and Open Sciences - worfkflows and tools

WIDOCO: A Wizard for Documenting Ontologies
WIDOCO: A Wizard for Documenting OntologiesWIDOCO: A Wizard for Documenting Ontologies
WIDOCO: A Wizard for Documenting Ontologies

Open Source
Open SourceOpen Source
Open Source

Socializing and disseminating the academic and intellectual creation: Experie...
Socializing and disseminating the academic and intellectual creation: Experie...Socializing and disseminating the academic and intellectual creation: Experie...
Socializing and disseminating the academic and intellectual creation: Experie...

Wiserpku Lecture@Life Science School Pku
Wiserpku Lecture@Life Science School PkuWiserpku Lecture@Life Science School Pku
Wiserpku Lecture@Life Science School Pku

Wiser Pku Lecture@Life Science School Pku
Wiser Pku Lecture@Life Science School PkuWiser Pku Lecture@Life Science School Pku
Wiser Pku Lecture@Life Science School Pku

Ee bdm ws-v1
Ee bdm ws-v1Ee bdm ws-v1
Ee bdm ws-v1

How community software supports language documentation and data analysis
How community software supports language documentation and data analysisHow community software supports language documentation and data analysis
How community software supports language documentation and data analysis

Non-software OSS projects
Non-software OSS projectsNon-software OSS projects
Non-software OSS projects

DSpace-CRIS: a CRIS enhanced repository platform
DSpace-CRIS: a CRIS enhanced repository platformDSpace-CRIS: a CRIS enhanced repository platform
DSpace-CRIS: a CRIS enhanced repository platform

Web 2.0 Online Collaboration (Public)
Web 2.0 Online Collaboration (Public)Web 2.0 Online Collaboration (Public)
Web 2.0 Online Collaboration (Public)

Nonsoftwareoss
NonsoftwareossNonsoftwareoss
Nonsoftwareoss

Research Objects for improved sharing and reproducibility
Research Objects for improved sharing and reproducibilityResearch Objects for improved sharing and reproducibility
Research Objects for improved sharing and reproducibility


Recently uploaded

Lifelines of National Economy chapter for Class 10 STUDY MATERIAL PDF
Lifelines of National Economy chapter for Class 10 STUDY MATERIAL PDFLifelines of National Economy chapter for Class 10 STUDY MATERIAL PDF
Lifelines of National Economy chapter for Class 10 STUDY MATERIAL PDF
Vivekanand Anglo Vedic Academy

How to deliver Powerpoint Presentations.pptx
How to deliver Powerpoint  Presentations.pptxHow to deliver Powerpoint  Presentations.pptx
How to deliver Powerpoint Presentations.pptx
HajraNaeem15

spot a liar (Haiqa 146).pptx Technical writhing and presentation skills
spot a liar (Haiqa 146).pptx Technical writhing and presentation skillsspot a liar (Haiqa 146).pptx Technical writhing and presentation skills
spot a liar (Haiqa 146).pptx Technical writhing and presentation skills
haiqairshad

Walmart Business+ and Spark Good for Nonprofits.pdf
Walmart Business+ and Spark Good for Nonprofits.pdfWalmart Business+ and Spark Good for Nonprofits.pdf
Walmart Business+ and Spark Good for Nonprofits.pdf
TechSoup

Présentationvvvvvvvvvvvvvvvvvvvvvvvvvvvv2.pptx
Présentationvvvvvvvvvvvvvvvvvvvvvvvvvvvv2.pptxPrésentationvvvvvvvvvvvvvvvvvvvvvvvvvvvv2.pptx
Présentationvvvvvvvvvvvvvvvvvvvvvvvvvvvv2.pptx
siemaillard

UGC NET Exam Paper 1- Unit 1:Teaching Aptitude
UGC NET Exam Paper 1- Unit 1:Teaching AptitudeUGC NET Exam Paper 1- Unit 1:Teaching Aptitude
UGC NET Exam Paper 1- Unit 1:Teaching Aptitude
S. Raj Kumar

B. Ed Syllabus for babasaheb ambedkar education university.pdf
B. Ed Syllabus for babasaheb ambedkar education university.pdfB. Ed Syllabus for babasaheb ambedkar education university.pdf
B. Ed Syllabus for babasaheb ambedkar education university.pdf
BoudhayanBhattachari

Leveraging Generative AI to Drive Nonprofit Innovation
Leveraging Generative AI to Drive Nonprofit InnovationLeveraging Generative AI to Drive Nonprofit Innovation
Leveraging Generative AI to Drive Nonprofit Innovation
TechSoup

Pharmaceutics Pharmaceuticals best of brub
Pharmaceutics Pharmaceuticals best of brubPharmaceutics Pharmaceuticals best of brub
Pharmaceutics Pharmaceuticals best of brub
danielkiash986

What is Digital Literacy? A guest blog from Andy McLaughlin, University of Ab...
What is Digital Literacy? A guest blog from Andy McLaughlin, University of Ab...What is Digital Literacy? A guest blog from Andy McLaughlin, University of Ab...
What is Digital Literacy? A guest blog from Andy McLaughlin, University of Ab...
GeorgeMilliken2

Standardized tool for Intelligence test.
Standardized tool for Intelligence test.Standardized tool for Intelligence test.
Standardized tool for Intelligence test.
deepaannamalai16

BÀI TẬP DẠY THÊM TIẾNG ANH LỚP 7 CẢ NĂM FRIENDS PLUS SÁCH CHÂN TRỜI SÁNG TẠO ...
BÀI TẬP DẠY THÊM TIẾNG ANH LỚP 7 CẢ NĂM FRIENDS PLUS SÁCH CHÂN TRỜI SÁNG TẠO ...BÀI TẬP DẠY THÊM TIẾNG ANH LỚP 7 CẢ NĂM FRIENDS PLUS SÁCH CHÂN TRỜI SÁNG TẠO ...
BÀI TẬP DẠY THÊM TIẾNG ANH LỚP 7 CẢ NĂM FRIENDS PLUS SÁCH CHÂN TRỜI SÁNG TẠO ...
Nguyen Thanh Tu Collection

math operations ued in python and all used
math operations ued in python and all usedmath operations ued in python and all used
math operations ued in python and all used
ssuser13ffe4

Temple of Asclepius in Thrace. Excavation results
Temple of Asclepius in Thrace. Excavation resultsTemple of Asclepius in Thrace. Excavation results
Temple of Asclepius in Thrace. Excavation results
Krassimira Luka

Wound healing PPT
Wound healing PPTWound healing PPT
Wound healing PPT
Jyoti Chand

Mule event processing models | MuleSoft Mysore Meetup #47
Mule event processing models | MuleSoft Mysore Meetup #47Mule event processing models | MuleSoft Mysore Meetup #47
Mule event processing models | MuleSoft Mysore Meetup #47
MysoreMuleSoftMeetup

Nutrition Inc FY 2024, 4 - Hour Training
Nutrition Inc FY 2024, 4 - Hour TrainingNutrition Inc FY 2024, 4 - Hour Training
Nutrition Inc FY 2024, 4 - Hour Training
melliereed

RESULTS OF THE EVALUATION QUESTIONNAIRE.pptx
RESULTS OF THE EVALUATION QUESTIONNAIRE.pptxRESULTS OF THE EVALUATION QUESTIONNAIRE.pptx
RESULTS OF THE EVALUATION QUESTIONNAIRE.pptx
zuzanka

A Independência da América Espanhola LAPBOOK.pdf
A Independência da América Espanhola LAPBOOK.pdfA Independência da América Espanhola LAPBOOK.pdf
A Independência da América Espanhola LAPBOOK.pdf
Jean Carlos Nunes Paixão

Film vocab for eal 3 students: Australia the movie
Film vocab for eal 3 students: Australia the movieFilm vocab for eal 3 students: Australia the movie
Film vocab for eal 3 students: Australia the movie
Nicholas Montgomery


Recently uploaded (20)

Lifelines of National Economy chapter for Class 10 STUDY MATERIAL PDF
Lifelines of National Economy chapter for Class 10 STUDY MATERIAL PDFLifelines of National Economy chapter for Class 10 STUDY MATERIAL PDF
Lifelines of National Economy chapter for Class 10 STUDY MATERIAL PDF

How to deliver Powerpoint Presentations.pptx
How to deliver Powerpoint  Presentations.pptxHow to deliver Powerpoint  Presentations.pptx
How to deliver Powerpoint Presentations.pptx

spot a liar (Haiqa 146).pptx Technical writhing and presentation skills
spot a liar (Haiqa 146).pptx Technical writhing and presentation skillsspot a liar (Haiqa 146).pptx Technical writhing and presentation skills
spot a liar (Haiqa 146).pptx Technical writhing and presentation skills

Walmart Business+ and Spark Good for Nonprofits.pdf
Walmart Business+ and Spark Good for Nonprofits.pdfWalmart Business+ and Spark Good for Nonprofits.pdf
Walmart Business+ and Spark Good for Nonprofits.pdf

Présentationvvvvvvvvvvvvvvvvvvvvvvvvvvvv2.pptx
Présentationvvvvvvvvvvvvvvvvvvvvvvvvvvvv2.pptxPrésentationvvvvvvvvvvvvvvvvvvvvvvvvvvvv2.pptx
Présentationvvvvvvvvvvvvvvvvvvvvvvvvvvvv2.pptx

UGC NET Exam Paper 1- Unit 1:Teaching Aptitude
UGC NET Exam Paper 1- Unit 1:Teaching AptitudeUGC NET Exam Paper 1- Unit 1:Teaching Aptitude
UGC NET Exam Paper 1- Unit 1:Teaching Aptitude

B. Ed Syllabus for babasaheb ambedkar education university.pdf
B. Ed Syllabus for babasaheb ambedkar education university.pdfB. Ed Syllabus for babasaheb ambedkar education university.pdf
B. Ed Syllabus for babasaheb ambedkar education university.pdf

Leveraging Generative AI to Drive Nonprofit Innovation
Leveraging Generative AI to Drive Nonprofit InnovationLeveraging Generative AI to Drive Nonprofit Innovation
Leveraging Generative AI to Drive Nonprofit Innovation

Pharmaceutics Pharmaceuticals best of brub
Pharmaceutics Pharmaceuticals best of brubPharmaceutics Pharmaceuticals best of brub
Pharmaceutics Pharmaceuticals best of brub

What is Digital Literacy? A guest blog from Andy McLaughlin, University of Ab...
What is Digital Literacy? A guest blog from Andy McLaughlin, University of Ab...What is Digital Literacy? A guest blog from Andy McLaughlin, University of Ab...
What is Digital Literacy? A guest blog from Andy McLaughlin, University of Ab...

Standardized tool for Intelligence test.
Standardized tool for Intelligence test.Standardized tool for Intelligence test.
Standardized tool for Intelligence test.

BÀI TẬP DẠY THÊM TIẾNG ANH LỚP 7 CẢ NĂM FRIENDS PLUS SÁCH CHÂN TRỜI SÁNG TẠO ...
BÀI TẬP DẠY THÊM TIẾNG ANH LỚP 7 CẢ NĂM FRIENDS PLUS SÁCH CHÂN TRỜI SÁNG TẠO ...BÀI TẬP DẠY THÊM TIẾNG ANH LỚP 7 CẢ NĂM FRIENDS PLUS SÁCH CHÂN TRỜI SÁNG TẠO ...
BÀI TẬP DẠY THÊM TIẾNG ANH LỚP 7 CẢ NĂM FRIENDS PLUS SÁCH CHÂN TRỜI SÁNG TẠO ...

math operations ued in python and all used
math operations ued in python and all usedmath operations ued in python and all used
math operations ued in python and all used

Temple of Asclepius in Thrace. Excavation results
Temple of Asclepius in Thrace. Excavation resultsTemple of Asclepius in Thrace. Excavation results
Temple of Asclepius in Thrace. Excavation results

Wound healing PPT
Wound healing PPTWound healing PPT
Wound healing PPT

Mule event processing models | MuleSoft Mysore Meetup #47
Mule event processing models | MuleSoft Mysore Meetup #47Mule event processing models | MuleSoft Mysore Meetup #47
Mule event processing models | MuleSoft Mysore Meetup #47

Nutrition Inc FY 2024, 4 - Hour Training
Nutrition Inc FY 2024, 4 - Hour TrainingNutrition Inc FY 2024, 4 - Hour Training
Nutrition Inc FY 2024, 4 - Hour Training

RESULTS OF THE EVALUATION QUESTIONNAIRE.pptx
RESULTS OF THE EVALUATION QUESTIONNAIRE.pptxRESULTS OF THE EVALUATION QUESTIONNAIRE.pptx
RESULTS OF THE EVALUATION QUESTIONNAIRE.pptx

A Independência da América Espanhola LAPBOOK.pdf
A Independência da América Espanhola LAPBOOK.pdfA Independência da América Espanhola LAPBOOK.pdf
A Independência da América Espanhola LAPBOOK.pdf

Film vocab for eal 3 students: Australia the movie
Film vocab for eal 3 students: Australia the movieFilm vocab for eal 3 students: Australia the movie
Film vocab for eal 3 students: Australia the movie


Semtech web-protege-tutorial

  • 1. Collaborative Editing of Lightweight Ontologies with WebProtégé Natasha Noy Matthew Horridge TaniaTudorache Stanford University
  • 3. Plan •Introduction •What is collaborative ontology editing? •A guided tour of WebProtégé •Hands-on exercise •Discussion, Roadmap and Wrap up
  • 4. What is Protégé? • An open-source ontology editor • developed at Stanford University • has more than 200,00 registered users • has dozens of plugins for • visualization • inference • import and export • …. • has an API for developers
  • 5. A bit of Protégé history • Started more than 20 years ago • Has gone through many iterations • Was the first editor to support OWL 1 • Informed the design of OWL 2 • Has a thriving user community: • conferences • mailing list • short courses
  • 6. Protégé short course: Vienna, September 2-4 Text http://protege.stanford.edu/shortcourse/protege-owl/201309/
  • 7. The “Classic” Protégé Not what this tutorial is about!
  • 8. WebProtégé •A Web-based application •edit ontologies in your Web browser •nothing to install •Supports distributed editing •multiple editors can make changes at the same time •Includes many collaboration features •discussion, watches, feeds
  • 10.
  • 12. Collaborative Ontology Development  Collaboration: several users contribute to the development of one ontology – Small group → larger community – Larger ontologies that concern a certain community – Individual process → social process  Each community does it its own way
  • 13. Use cases of collaborative development in biomedical domain • Gene Ontology (GO) • NCI Thesaurus • BiomedGT • OBI, BIRNLex, RadLex • Open Biomedical Ontologies (OBO) • International Classification: – of Diseases (ICD-11) – of Traditional Medicine (ICTM) – of Patient Safety (ICPS)
  • 14. The NCI Thesaurus collaborative development process ● Simultaneous editing in Protégé clients ● Custom UI for restricting user input and enforcing business rules ● Development cycle begins after baseline ● ~20 full-time editors making changes; 1 “lead editor” who approves the changes, and assigns new tasks ● Released version on NCI website and BioPortal Reference ontology for cancer biology, translational science, and clinical oncology
  • 15. ICD-11 ● 11th Revision of the International Classification of Diseases ● Over 10.000 categories used for coding, billing, statistics, policy making all over the world ● Collaborative and international effort ● Current version: published as books ● Goal for the new version: use a more formal representation and published in electronical format; use Web-based collaboration and social platforms for editing
  • 16. Construction of ICD-10: Revision Process in the 20th Century ● 8 Annual Revision Conferences (1982 - 89) ● 17 – 58 Countries participated – 1- 5 person delegations – Mainly Health Statisticians ● Manual curation – List exchange – Index was done later ● "Decibel” Method of discussion ● Output: Paper Copy ● Work in English only ● Limited testing in the field
  • 17. ICD-11 process today ● Over 250 domain experts from around the world ● Organized in groups, which edit different parts of the ontology
  • 18. ICD-11 process today (cont.) ● Each night a snapshot of the commonly edited ontology is published in a public platform to encourage feedback from the larger community http://apps.who.int/classifications/icd11/browse/f/en ● Editorial workflow ● Centrally overseen by WHO ● Peer-reviewed process for the content and structure ● WebProtégé used as the collaborative ontology development platform
  • 19. Other ways of collaborating: Wikis ● Wikis are well known; Wikipedia ● Semantic Wikis – add semantic extensions to the wiki platforms ● Assign a wiki page to an entity in the ontology (e.g. the class “Mountain”) ● Export/import RDF
  • 20. Semantic Wiki: MoKi Source: https://moki.fbk.eu/website/userfiles/image/entmod.png
  • 21. The challenge with wikis Source: Hoehndorf, Robert, et al. "BOWiki: an ontology-based wiki for annotation of data and integration of knowledge in biology." BMC bioinformatics 10.Suppl 5 (2009): S5.
  • 22. Using sourceforge to manage change proposals for the Gene Ontology
  • 23. myexperiment: social platform for sharing scientific workflows
  • 24. Other collaboration processes ● Use source control repositories – SVN, CVS – Text based mechanisms – Hard to merge local copies in the shared copy ● Locking mechanisms (lock parts of an ontology for editing) ● Use specialized (domain dependent) ontology repositories, e.g., BioPortal
  • 25. BioPortal ● An open repository of biomedical ontologies developed by NCBO at Stanford ● Publishing of ontologies, versioning (over 350 ontologies) ● Discussions and structured proposals ● Mappings, views ● Storing metadata ● Search over all ontologies ● Browsing different versions of an ontology ● All content and functionality also available as REST Web services → mash-up of applications ● Technology is domain independent ● http://bioportal.bioontology.org
  • 27. Ontology list in BioPortal
  • 28. NCI Thesaurus details in BioPortal
  • 29. Useful features for collaboration ● Tools for discussion and reaching consensus – Add notes to ontology entities (classes, properties, individuals, axioms) – Add reviews and change proposals anywhere in the ontology – Document the decision process and final decisions ● Complete Change history – Establish provenance – Retrieve ontology snapshots at any time – Implement different conflict resolution mechanisms ● Personalized views of an ontology based on: – User’s role and tasks – User’s level of expertise
  • 30. Useful features for collaboration (cont.) ● User roles and access control – Fine-grained control for editing and viewing rights – Sharing of ontologies ● Publishing released versions of an ontology in a central location,e.g. a repository ● Scalability, reliability and robustness
  • 31.
  • 33. Creating an Account I Create a new account
  • 34. Creating an Account II Email address - used for notifications such as ontology changes User name - displayed next to changes you make and notes that you post
  • 35. The “Home Screen” Side bar Project list. Click project name to open Create project Download project Sign In/Sign Out Trash projectUpload project
  • 36. The Side Bar All public projects plus your projects that are not in the trash Your projects that are in the trash Only projects owned by you that are not in the trash
  • 37. Projects A project encompasses: A collection of ontologies Notes & discussions and watches Some user interface settings Some sharing settings A list of revisions and a log of changes
  • 38. Creating a Project Create New Project Project name - does not need to be unique Project description - appears in the project list
  • 39. Uploading a Project Upload Project Project name - does not need to be unique Project description - appears in the project list Local OWL file name
  • 40. Sharing Share link (top right corner)
  • 41. Public Projects ➊ Select public ➋ Assign permissions for anyone including guests ➌ Assign more fine-grained access for specific users Enter names in list and press “Add”
  • 42. Private Projects ➊ Select public Access is restricted to specific users ➋ Assign more permissions for specific users. Enter names in list and press “Add”
  • 43. Class tree Editor (similar for properties and individuals) Notes & Discussions Project feed Editing Class Descriptions
  • 44. Adding Subclasses Create subclasses button Enter one or more names. Press CTRL+Enter to accept and close (one class name per line)
  • 45. Editing Class Descriptions Display name - corresponds to the value of rdfs:label here IRI - Internationalized Resource Identifier. Auto-generated, globally unique “Property values” (Class expressions under the hood owl:subClassOf) Annotation assertions Values can be class names, datatype names, individual names, numbers, dates and strings Language editor for plain literals Delete row
  • 46. Auto-Completion Type in name. Popup shows possible matches. Dublin Core and SKOS properties “recognised”
  • 47. On-the-Fly Creation New property warning (helps prevent typos!) Press the tab key and enter value to create property (property type will be determined from the value)
  • 48. Editing Individual Descriptions Class tree Editor Notes & Discussions Project feed
  • 49. Display name - corresponds to the value of rdfs:label here IRI - Internationalized Resource Identifier. Auto-generated, globally unique “Property values” (Annotations, property assertions or class expressions under the hood - owl:subClassOf) Type assertions (rdf:type) Values can be class names, datatype names, individual names, numbers, dates and strings Delete row Same individuals (owl:sameAs) Editing Individual Descriptions
  • 50. Icon Cheat Sheet Class Individual (named) Datatype (xsd:integer, xsd:double etc.) Property (object/data property) Annotation property Number Date-Time Literal Link (http:) IRI
  • 51.
  • 53. ModellingTask Build an ontology to describe an online newspaper or news website e.g. www.nyt.com or www.bbc.com Goal: Become familiar with WebProtégé and some aspects of collaborative ontology editing
  • 54. Content Articles: title, author, date published, edited by, keywords/topics, published in section, media (pictures, video), external links etc. Advertisements: Standard ad, personal ad, Service ad etc. Model different kinds of articles and their properties. For example,
  • 55. Structure Newspaper: date published, issue, front matter etc. Sections: Domestic News,World News, Editorial, Magazine, Letters, Commentary,Television Listings,Advertisements, Appointments/Jobs, Sport, Business etc. Sections and subsections Model the structure of a news paper - different sections and how they fit together. For example,
  • 56. People Employees: Columnist, Editor, Section Editor, Reporter, International Reporter, Manager name, contact details: email, phone number, role Other people: Politician, President,Actor etc. Individual people, e.g. Barack Obama. Model the people who contribute to the news paper and people who are the subject of articles. For example,
  • 57.
  • 58. Custom entry forms for editing the ontology content ● Easy to create user interfaces for the domain experts ● Use common entry forms, but still keep the ontology “intelligence” behind it ● A form widget (e.g., text field) is linked to a property in the ontology ● Easy to create custom forms with different views for different users ● Hides complex ontology stuff
  • 59. Form configuration in WebProtégé Form-based editing and configuration of the user interface for the development of ICD-11 http://icatdemo.stanford.edu
  • 61. Importing BioPortal terms into WebProtégé (1) Search term in BioPortal ontologies (2) Get search results (3) Browse details of results (4) Import into WebProtégé with single click
  • 62. WebProtégé – Make Up Protégé Collaboration Framework WebProtégé WebProtégé Server GWT RPC Server side Client side Java Java Java at development time JavaScript at run- time  2 parts: server and client  Server is completely implemented in Java and makes API calls to the OWL-API and other libraries  Client side is developed in Java, and later compiled by GWT into JavaScript  Communication between server client is done via GWT RPC or simple HTTP calls
  • 63. WebProtégé is pluggable WebProtégé User Interface (GWT) Portlets Event manager Other managers WebProtégé Server (Java) Access policies service ... Ontology Service Notes and changes Service pluggable pluggable
  • 64. Extending WebProtégé  Plug-in infrastructure very similar to Protégé's: create your own tabs and portlets  Extend: AbstractTab or AbstractEntityPortlet  Implement your own RPCs, if needed  Reuse existing portlet code  Writing a tab – as easy as creating an empty class that extends AbstractTab http://protegewiki.stanford.edu/wiki/WebProtegeImplementationGuide
  • 65. Resources ● Online WebProtégé server: http://webprotege.stanford.edu ● WebProtégé documentation:http://protegewiki.stanford.edu/wiki/WebProtege ● WebProtégé paper: “WebProtégé: A Collaborative Ontology Editor and Knowledge Acquisition Tool for the Web”, Tania Tudorache, Csongor Nyulas, Natalya F. Noy, Mark A. Musen, Semantic Web Journal (SWJ) 4 (Number 1 / 2013), 89 - 99 ● WebProtégé in use: “Will Semantic Web Technologies Work for the Development of ICD-11?”, T. Tudorache, S. M. Falconer, C. I. Nyulas, N. F. Noy, M. A. Musen. The 9th International Semantic Web Conference, ISWC 2010 (In-Use track), Shanghai, China, Springer. Published in 2010. http://bmir.stanford.edu/file_asset/index.php/1646/BMIR-2010-1427.pdf ● Other References: http://protegewiki.stanford.edu/wiki/WebProtege#References
