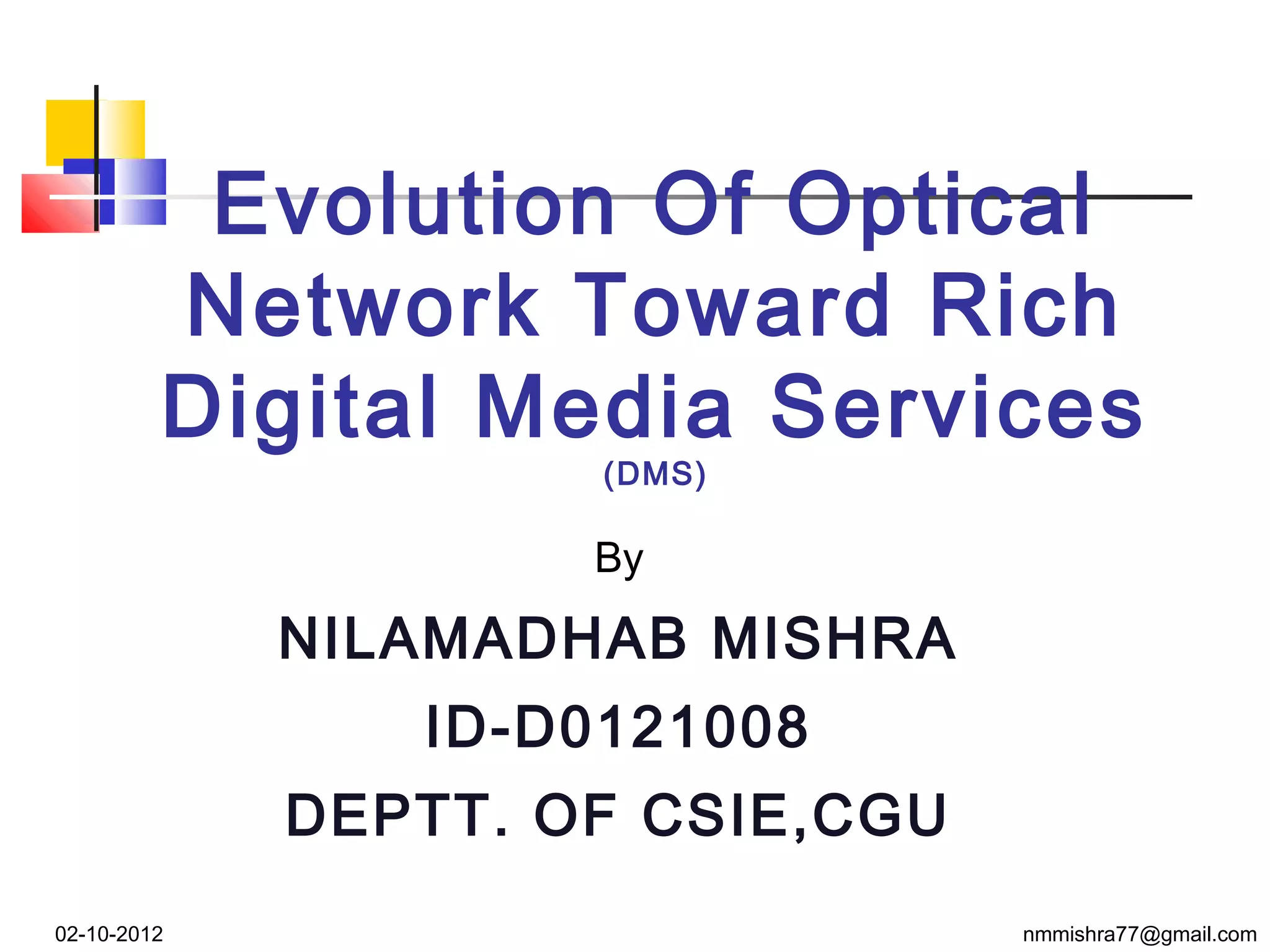

1. Evolution Of Optical
Network Toward Rich
Digital Media Services
(DMS)
By
NILAMADHAB MISHRA
ID-D0121008
DEPTT. OF CSIE,CGU
02-10-2012 nmmishra77@gmail.com

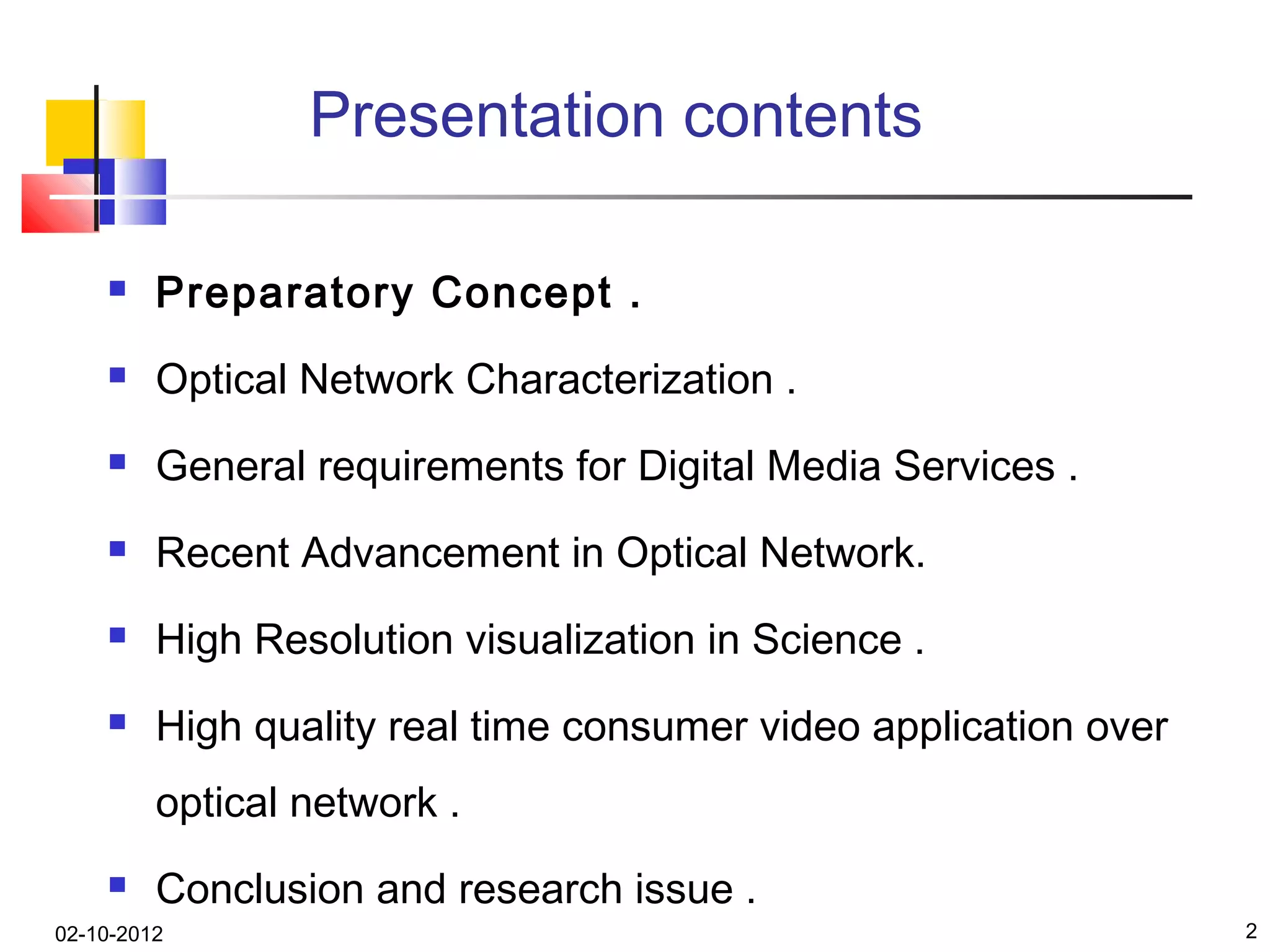

2. Presentation contents
 Preparatory Concept .
 Optical Network Characterization .
 General requirements for Digital Media Services .
 Recent Advancement in Optical Network.
 High Resolution visualization in Science .
 High quality real time consumer video application over
optical network .
 Conclusion and research issue .
02-10-2012 2

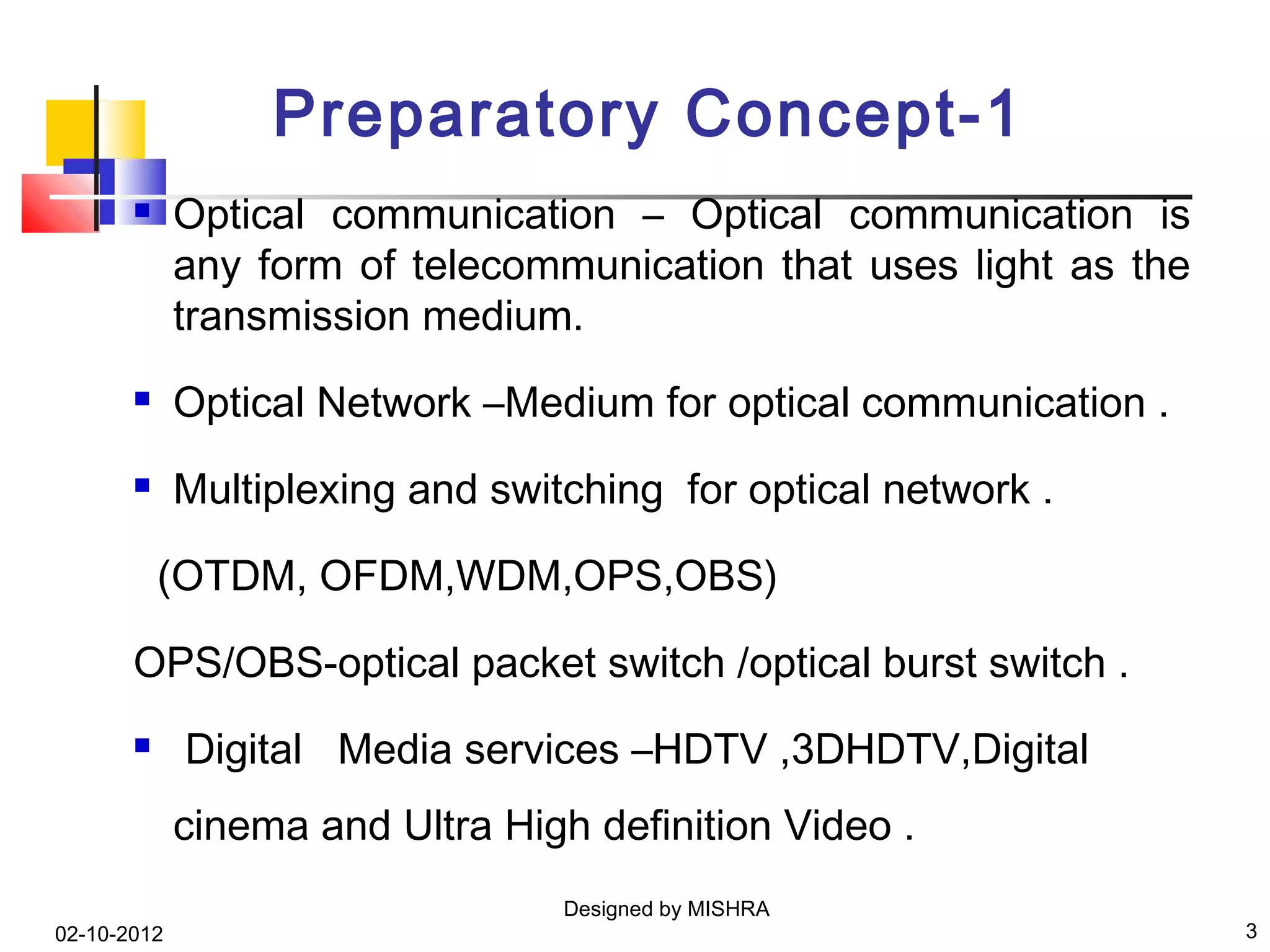

3. Preparatory Concept-1
 Optical communication – Optical communication is
any form of telecommunication that uses light as the
transmission medium.
 Optical Network –Medium for optical communication .
 Multiplexing and switching for optical network .
(OTDM, OFDM,WDM,OPS,OBS)
OPS/OBS-optical packet switch /optical burst switch .
 Digital Media services –HDTV ,3DHDTV,Digital
cinema and Ultra High definition Video .
Designed by MISHRA
02-10-2012 3

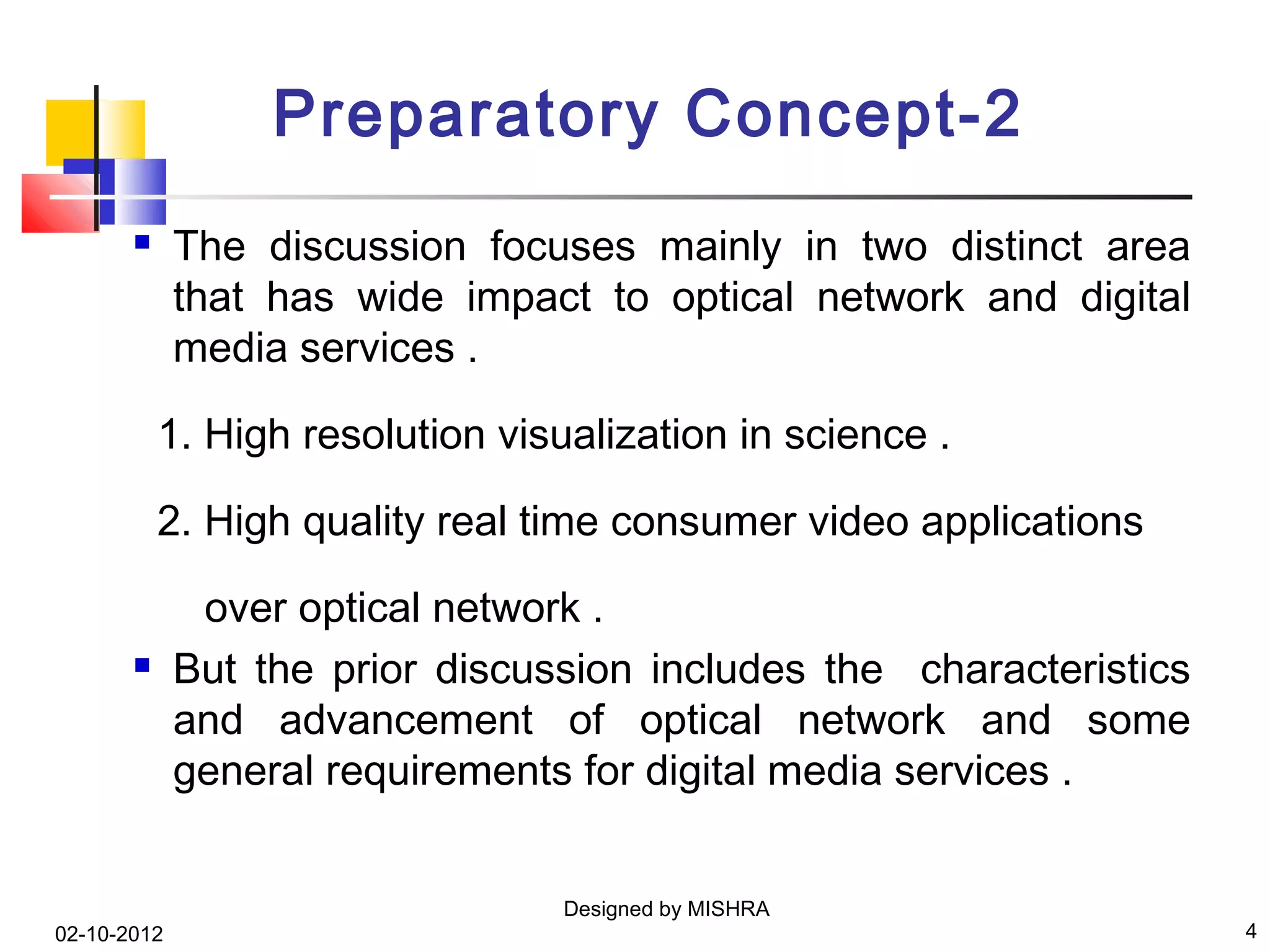

4. Preparatory Concept-2
 The discussion focuses mainly in two distinct area
that has wide impact to optical network and digital
media services .
1. High resolution visualization in science .
2. High quality real time consumer video applications
over optical network .
 But the prior discussion includes the characteristics
and advancement of optical network and some
general requirements for digital media services .
Designed by MISHRA
02-10-2012 4

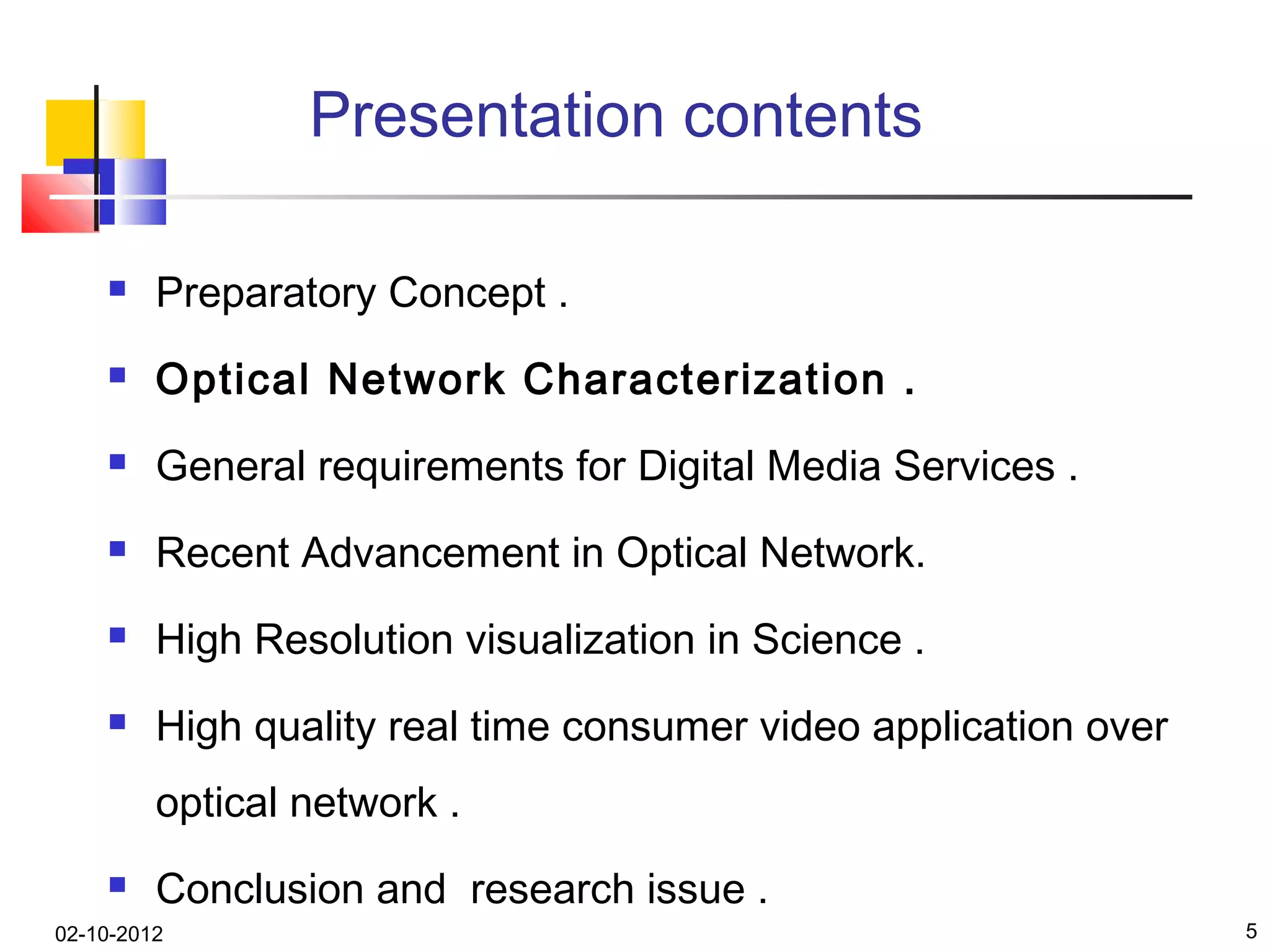

5. Presentation contents
 Preparatory Concept .
 Optical Network Characterization .
 General requirements for Digital Media Services .
 Recent Advancement in Optical Network.
 High Resolution visualization in Science .
 High quality real time consumer video application over
optical network .
 Conclusion and research issue .
02-10-2012 5

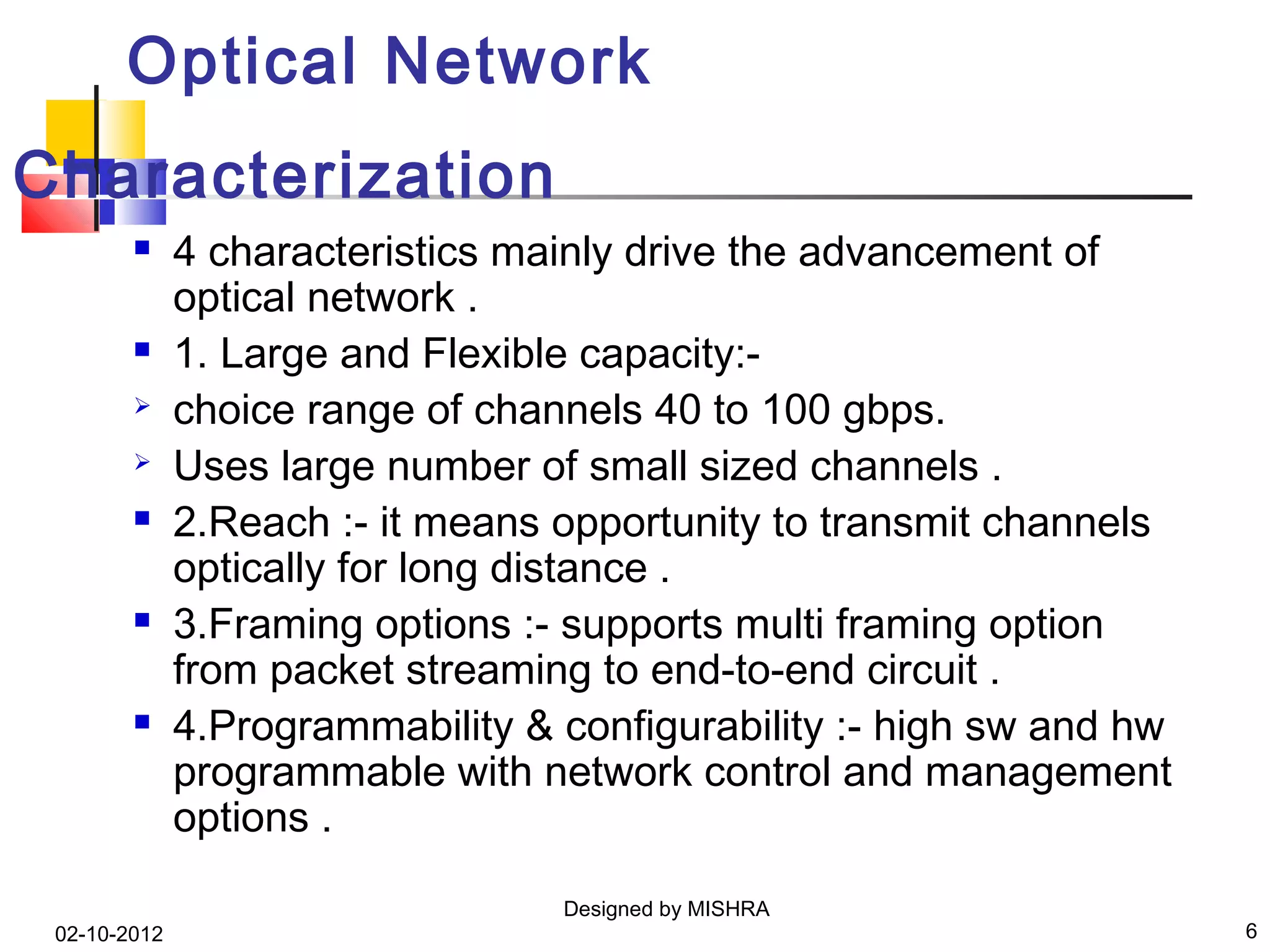

6. Optical Network
Characterization
 4 characteristics mainly drive the advancement of
optical network .
 1. Large and Flexible capacity:-
 choice range of channels 40 to 100 gbps.
 Uses large number of small sized channels .
 2.Reach :- it means opportunity to transmit channels
optically for long distance .
 3.Framing options :- supports multi framing option
from packet streaming to end-to-end circuit .
 4.Programmability & configurability :- high sw and hw
programmable with network control and management
options .
Designed by MISHRA
02-10-2012 6

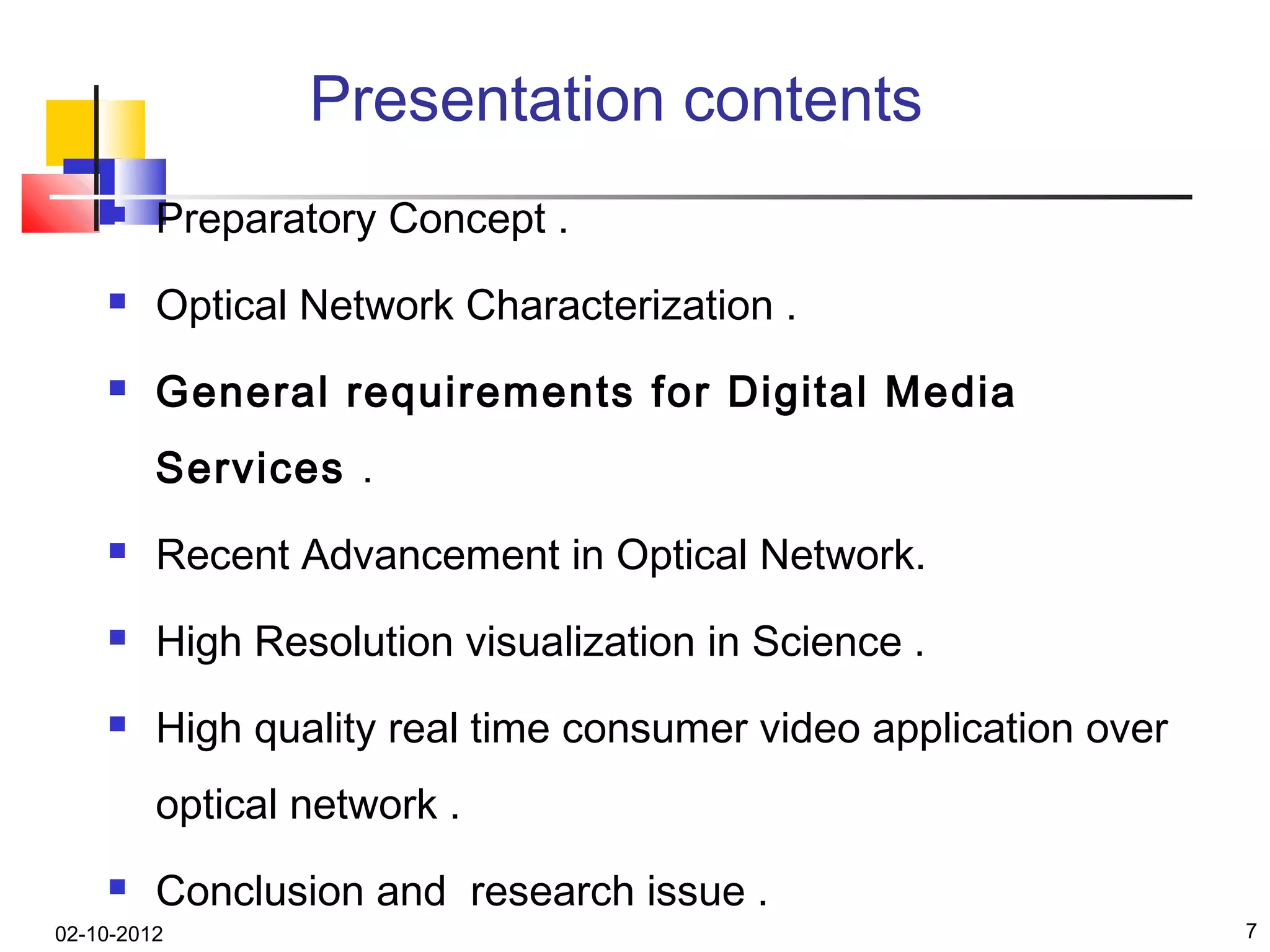

7. Presentation contents
 Preparatory Concept .
 Optical Network Characterization .
 General requirements for Digital Media
Services .
 Recent Advancement in Optical Network.
 High Resolution visualization in Science .
 High quality real time consumer video application over
optical network .
 Conclusion and research issue .
02-10-2012 7

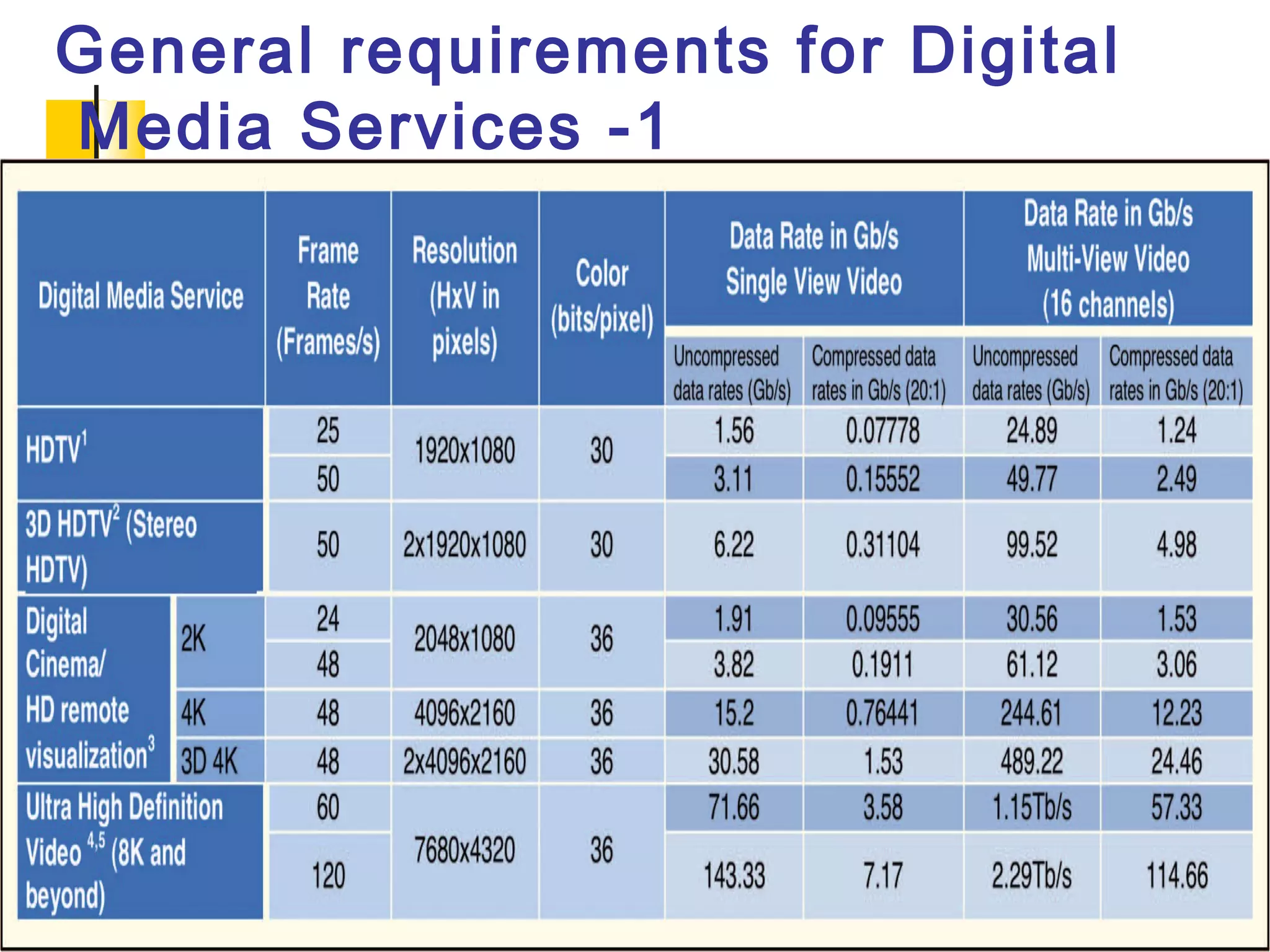

8. General requirements for Digital
Media Services -1
Designed by MISHRA
02-10-2012 8

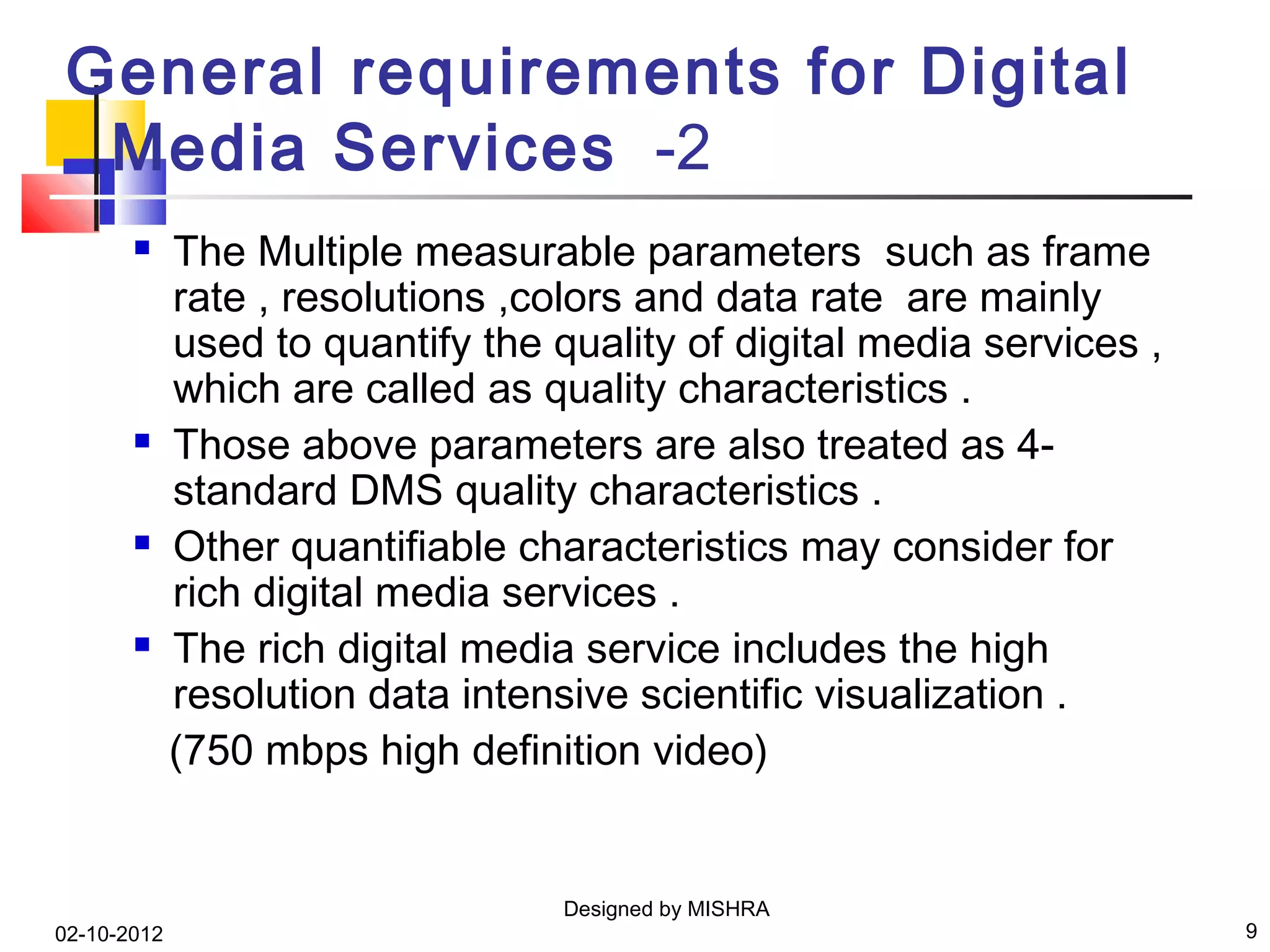

9. General requirements for Digital
Media Services -2
 The Multiple measurable parameters such as frame
rate , resolutions ,colors and data rate are mainly
used to quantify the quality of digital media services ,
which are called as quality characteristics .
 Those above parameters are also treated as 4-
standard DMS quality characteristics .
 Other quantifiable characteristics may consider for
rich digital media services .
 The rich digital media service includes the high
resolution data intensive scientific visualization .
(750 mbps high definition video)
Designed by MISHRA
02-10-2012 9

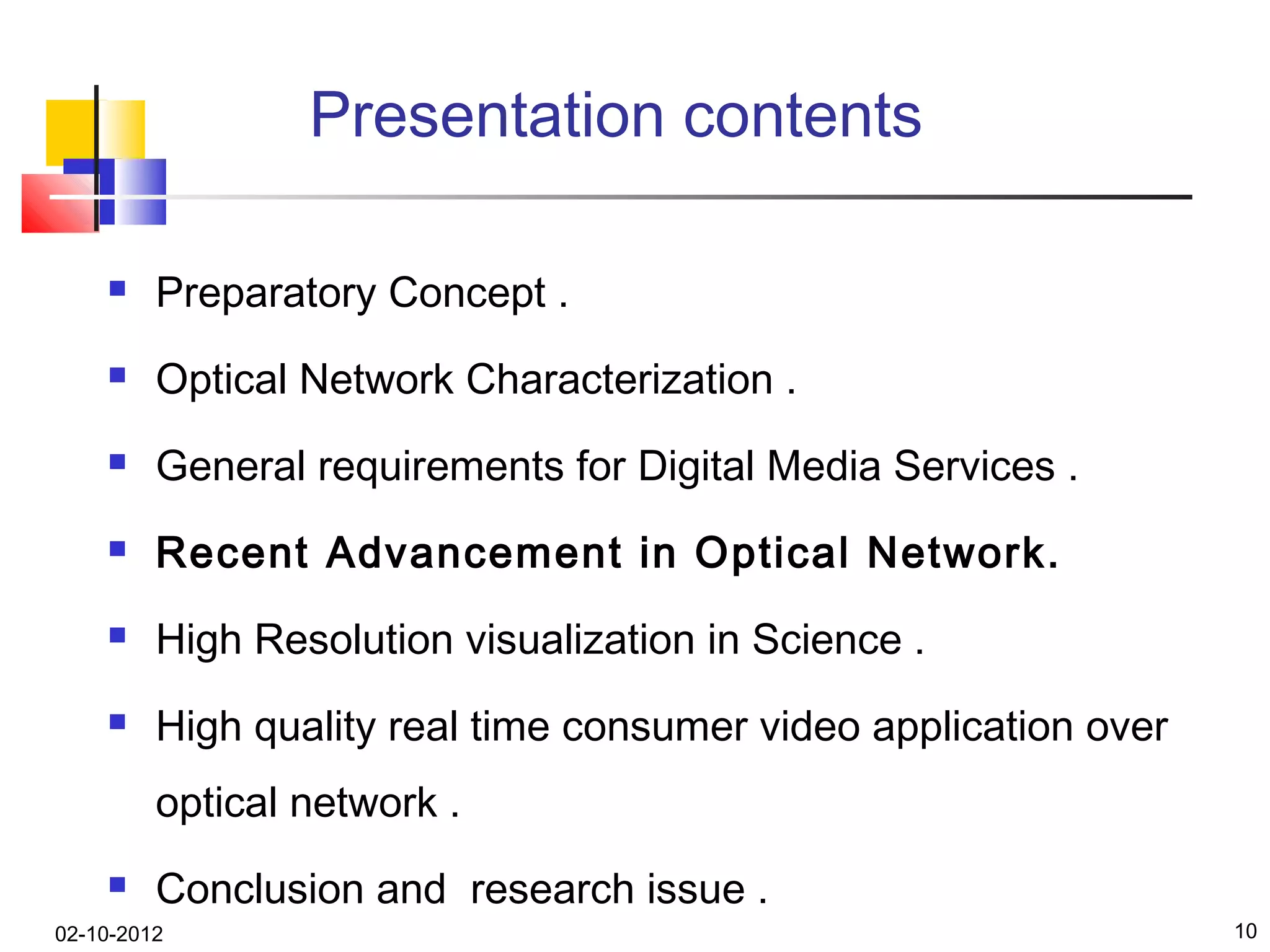

10. Presentation contents
 Preparatory Concept .
 Optical Network Characterization .
 General requirements for Digital Media Services .
 Recent Advancement in Optical Network.
 High Resolution visualization in Science .
 High quality real time consumer video application over
optical network .
 Conclusion and research issue .
02-10-2012 10

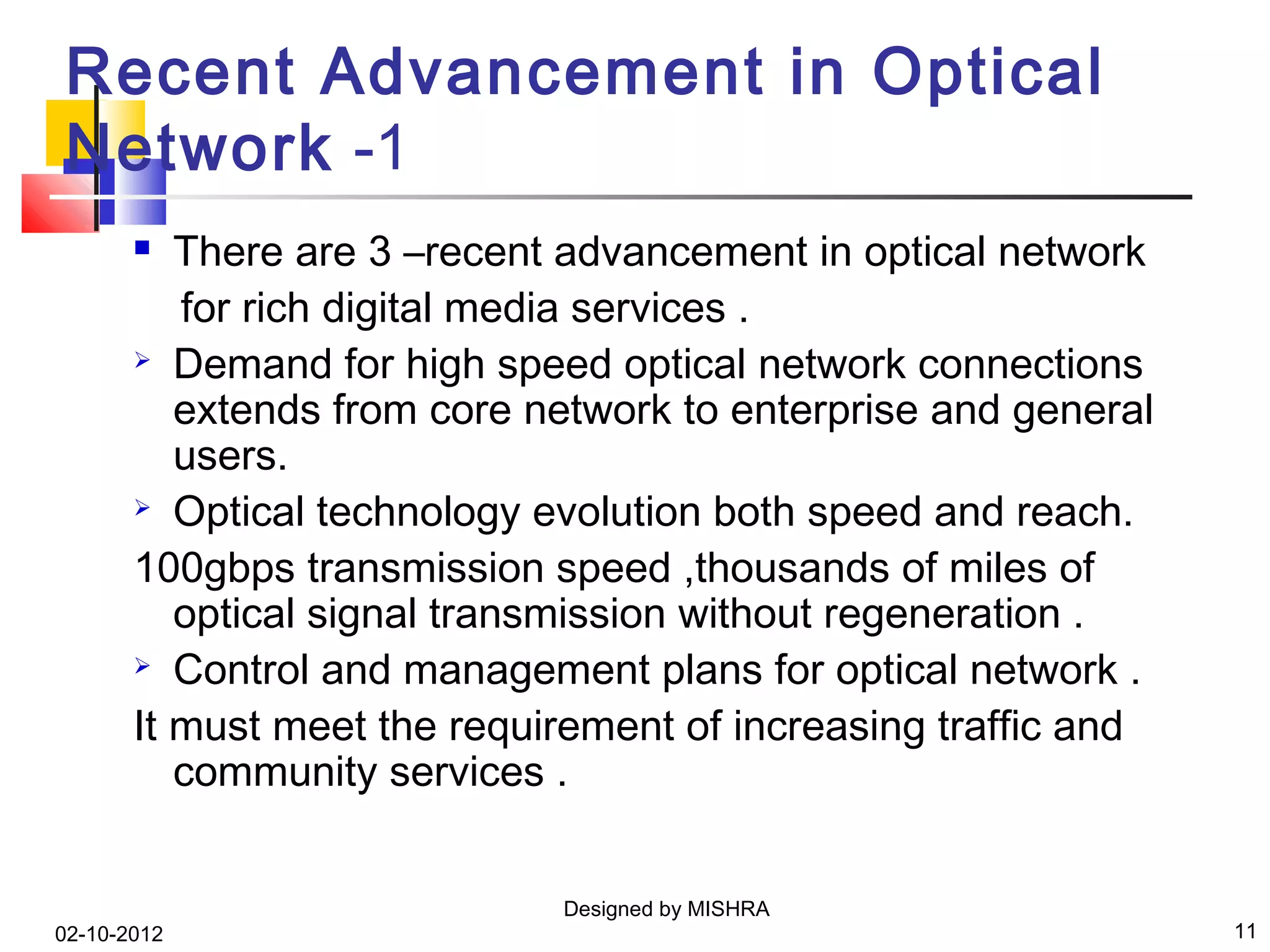

11. Recent Advancement in Optical
Network -1
 There are 3 –recent advancement in optical network
for rich digital media services .
 Demand for high speed optical network connections
extends from core network to enterprise and general
users.
 Optical technology evolution both speed and reach.
100gbps transmission speed ,thousands of miles of
optical signal transmission without regeneration .
 Control and management plans for optical network .
It must meet the requirement of increasing traffic and
community services .
Designed by MISHRA
02-10-2012 11

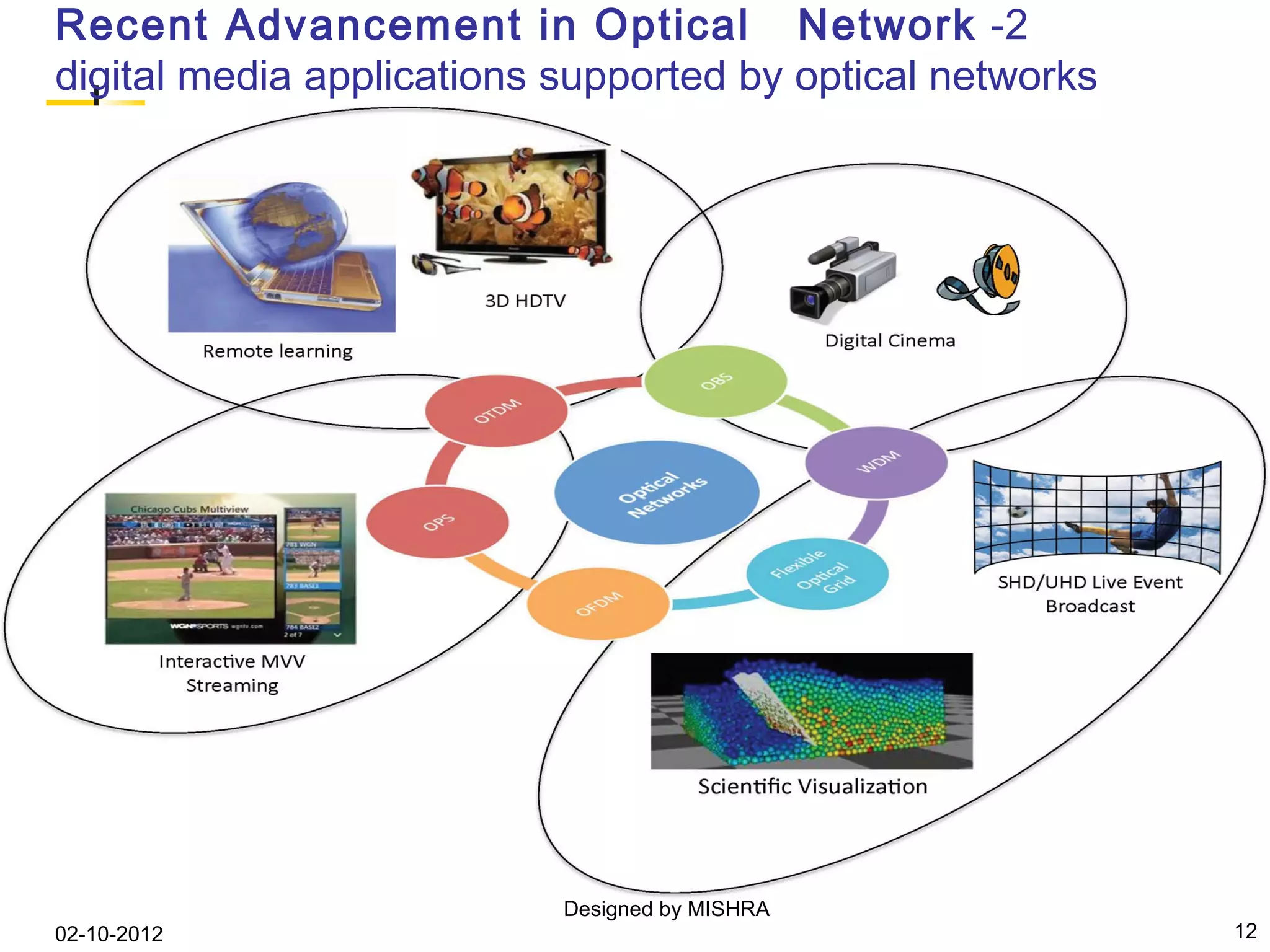

12. Recent Advancement in Optical Network -2
digital media applications supported by optical networks
Designed by MISHRA
02-10-2012 12

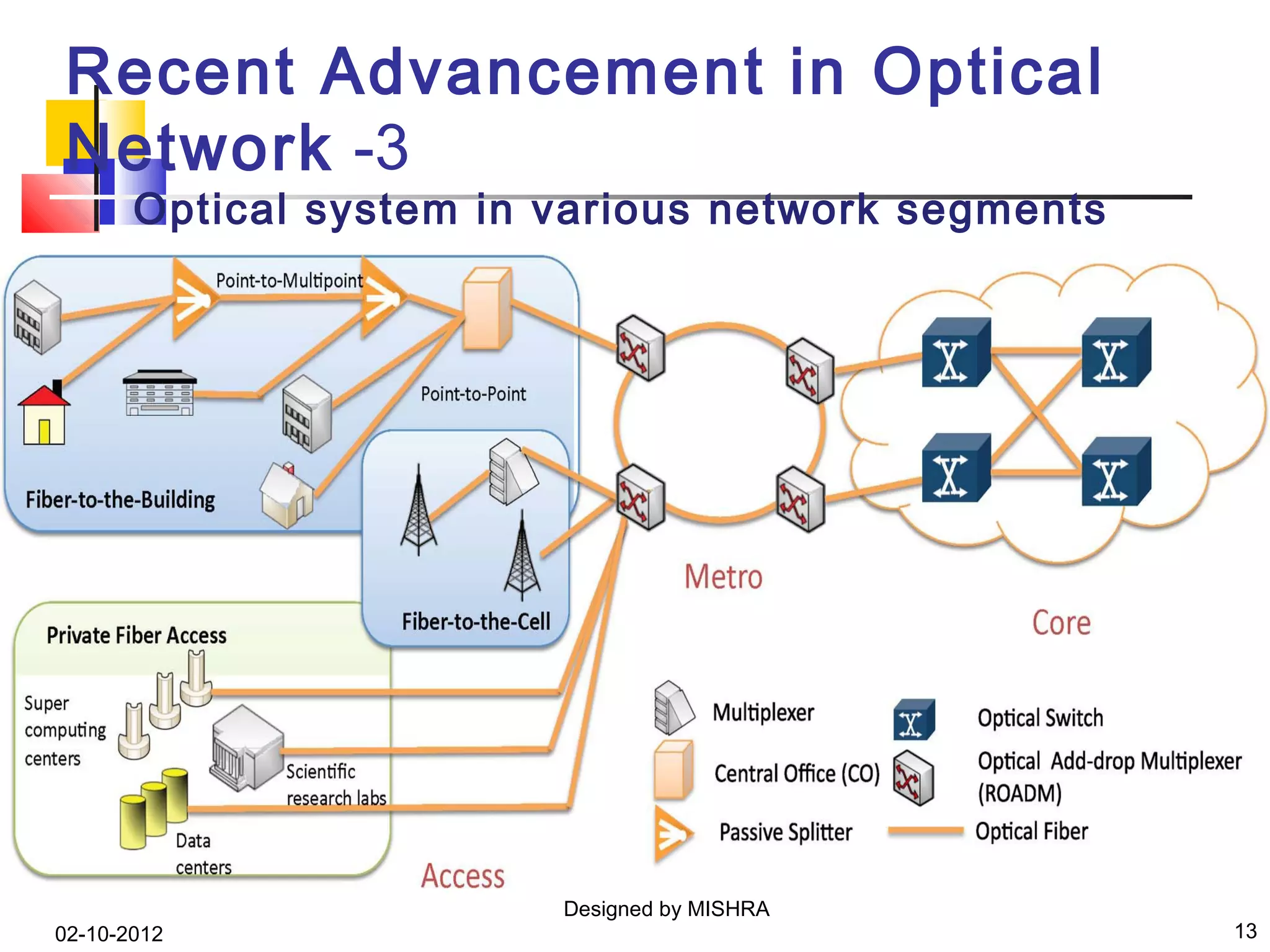

13. Recent Advancement in Optical
Network -3
Optical system in various network segments
Designed by MISHRA
02-10-2012 13

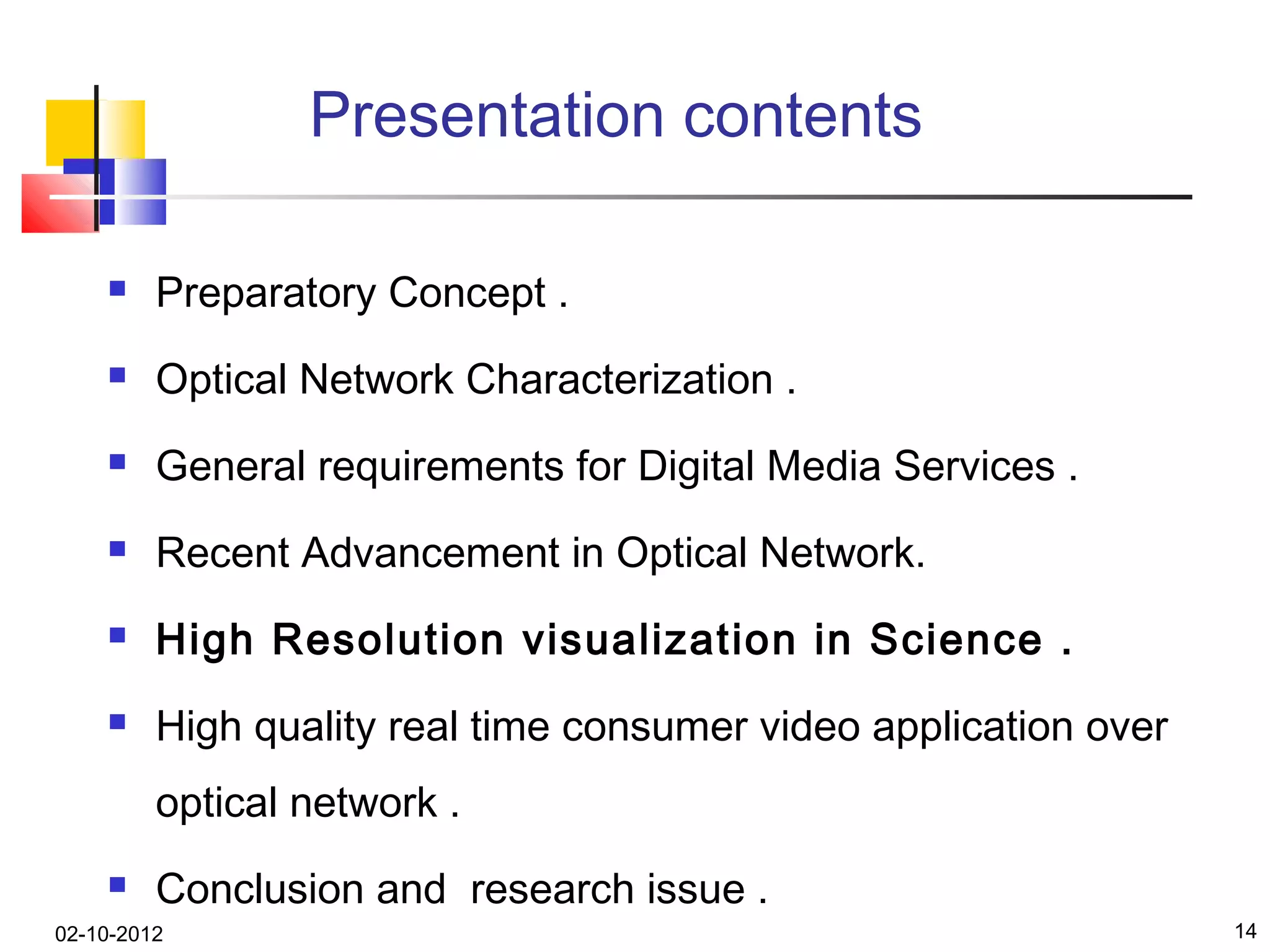

14. Presentation contents
 Preparatory Concept .
 Optical Network Characterization .
 General requirements for Digital Media Services .
 Recent Advancement in Optical Network.
 High Resolution visualization in Science .
 High quality real time consumer video application over
optical network .
 Conclusion and research issue .
02-10-2012 14

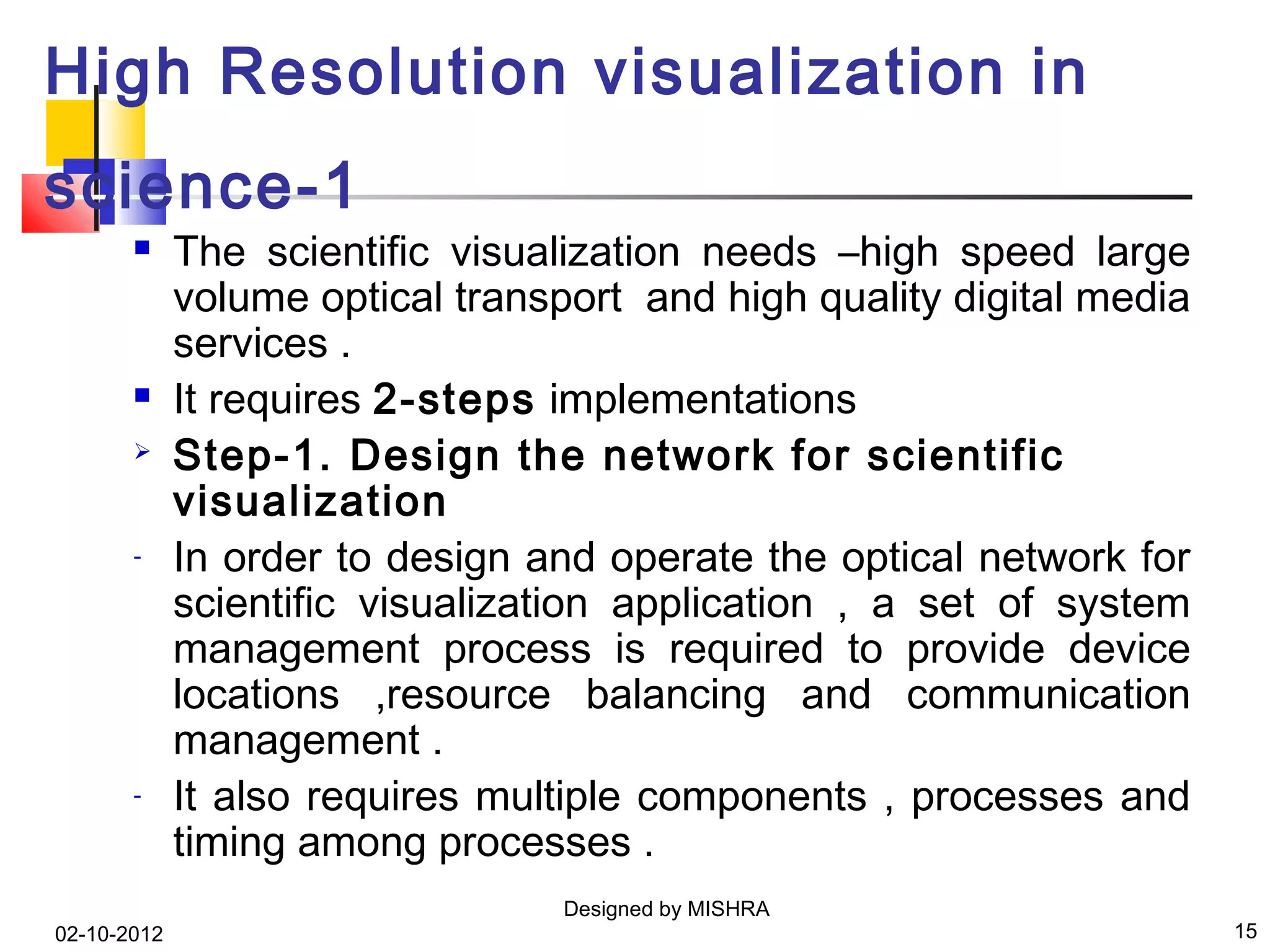

15. High Resolution visualization in
science-1
 The scientific visualization needs –high speed large
volume optical transport and high quality digital media
services .
 It requires 2-steps implementations
 Step-1. Design the network for scientific
visualization
- In order to design and operate the optical network for
scientific visualization application , a set of system
management process is required to provide device
locations ,resource balancing and communication
management .
- It also requires multiple components , processes and
timing among processes .
Designed by MISHRA
02-10-2012 15

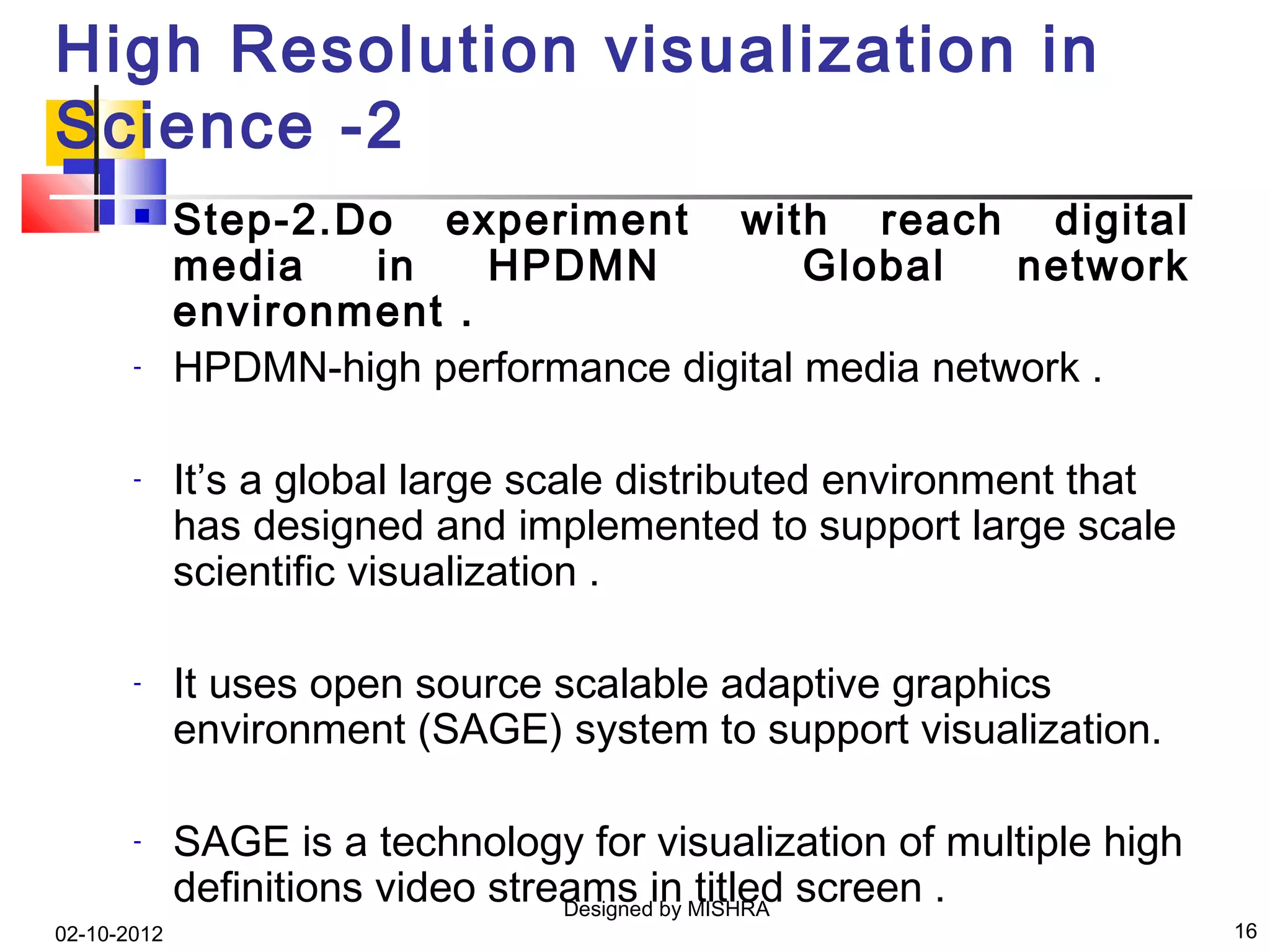

16. High Resolution visualization in
Science -2
 Step-2.Do experiment with reach digital
media in HPDMN Global network
environment .
- HPDMN-high performance digital media network .
- It’s a global large scale distributed environment that
has designed and implemented to support large scale
scientific visualization .
- It uses open source scalable adaptive graphics
environment (SAGE) system to support visualization.
- SAGE is a technology for visualization of multiple high
definitions video streams in MISHRA screen .
Designed by
titled
02-10-2012 16

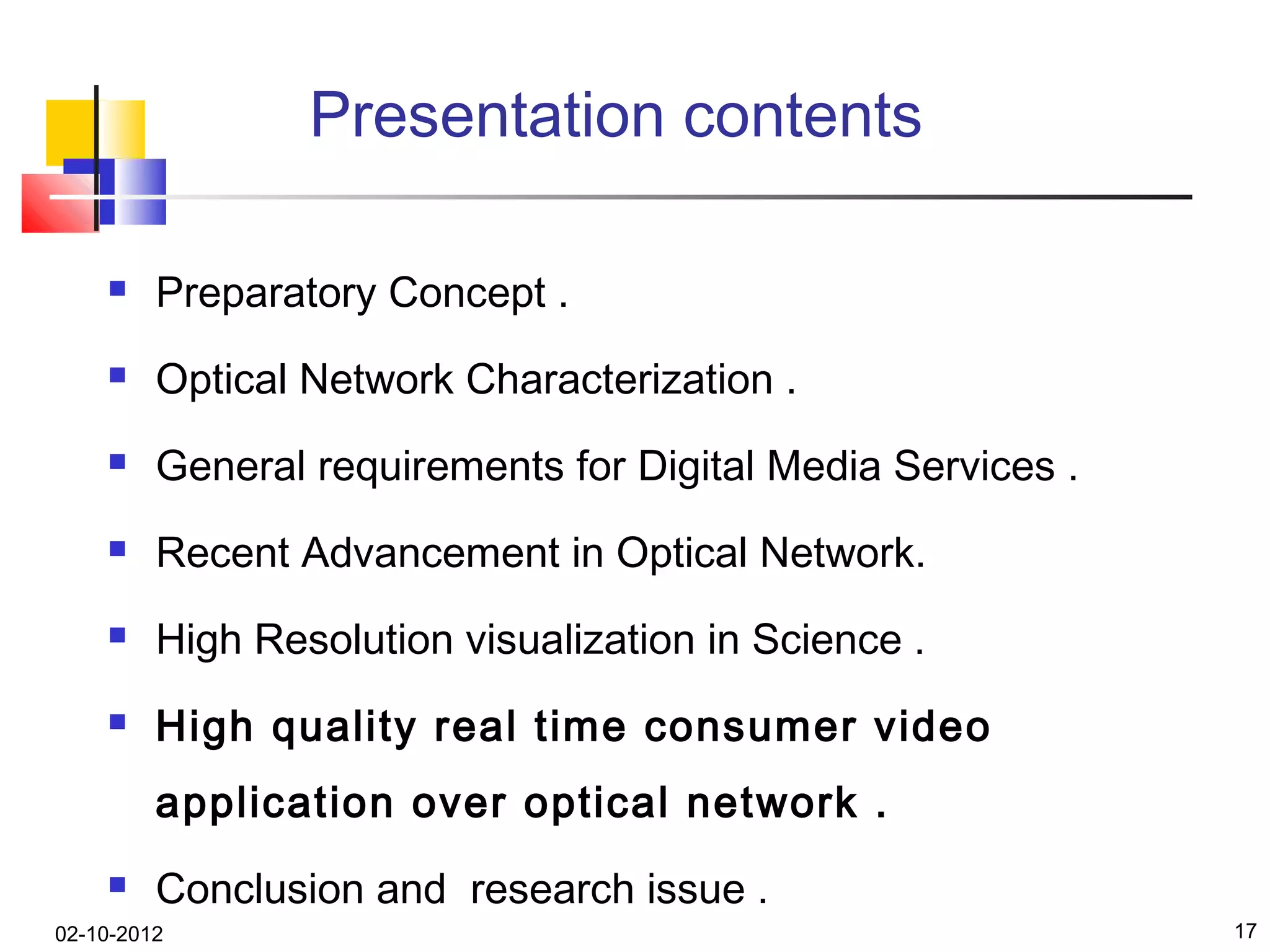

17. Presentation contents
 Preparatory Concept .
 Optical Network Characterization .
 General requirements for Digital Media Services .
 Recent Advancement in Optical Network.
 High Resolution visualization in Science .
 High quality real time consumer video
application over optical network .
 Conclusion and research issue .
02-10-2012 17

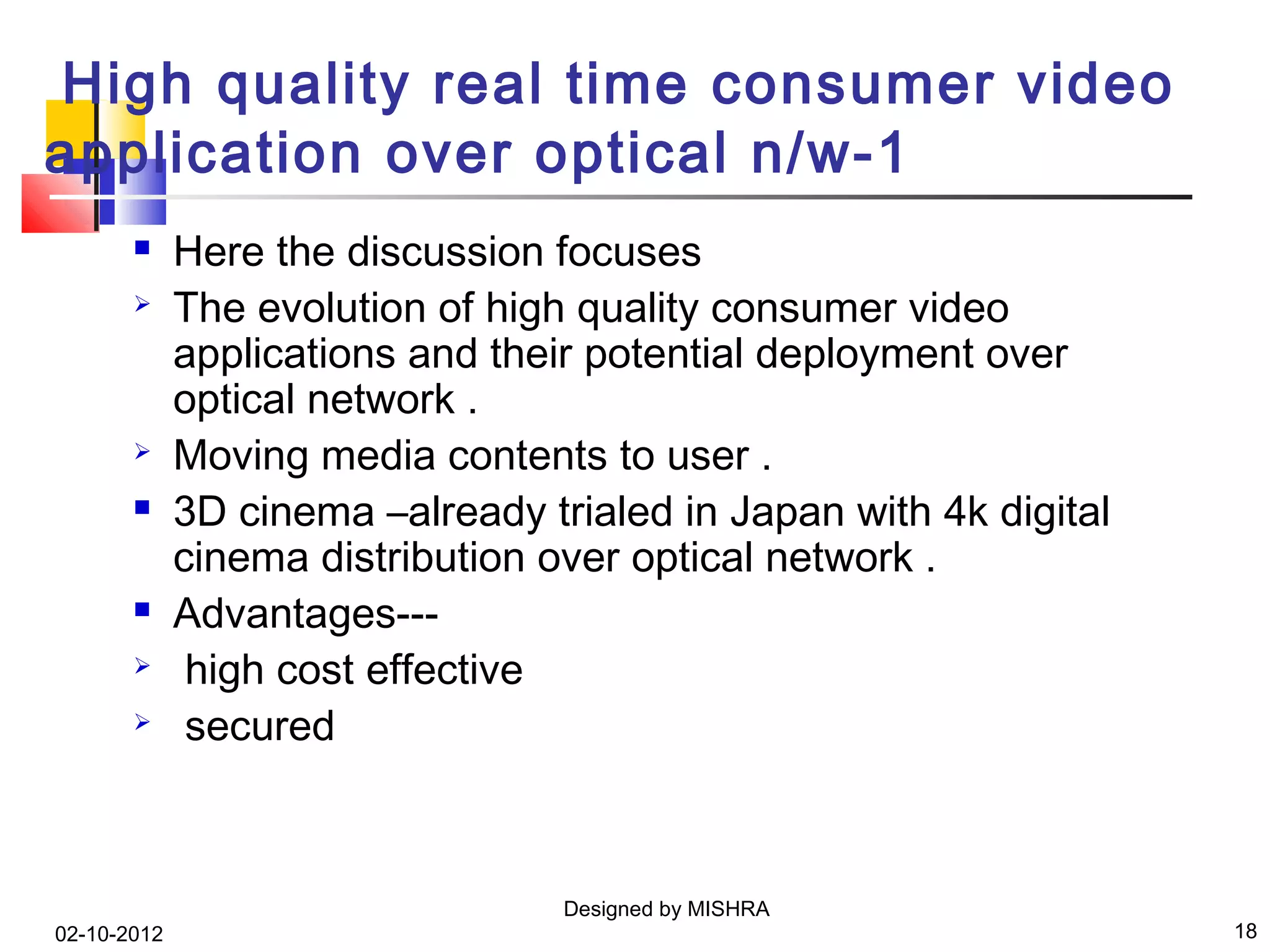

18. High quality real time consumer video
application over optical n/w-1
 Here the discussion focuses
 The evolution of high quality consumer video
applications and their potential deployment over
optical network .
 Moving media contents to user .
 3D cinema –already trialed in Japan with 4k digital
cinema distribution over optical network .
 Advantages---
 high cost effective
 secured
Designed by MISHRA
02-10-2012 18

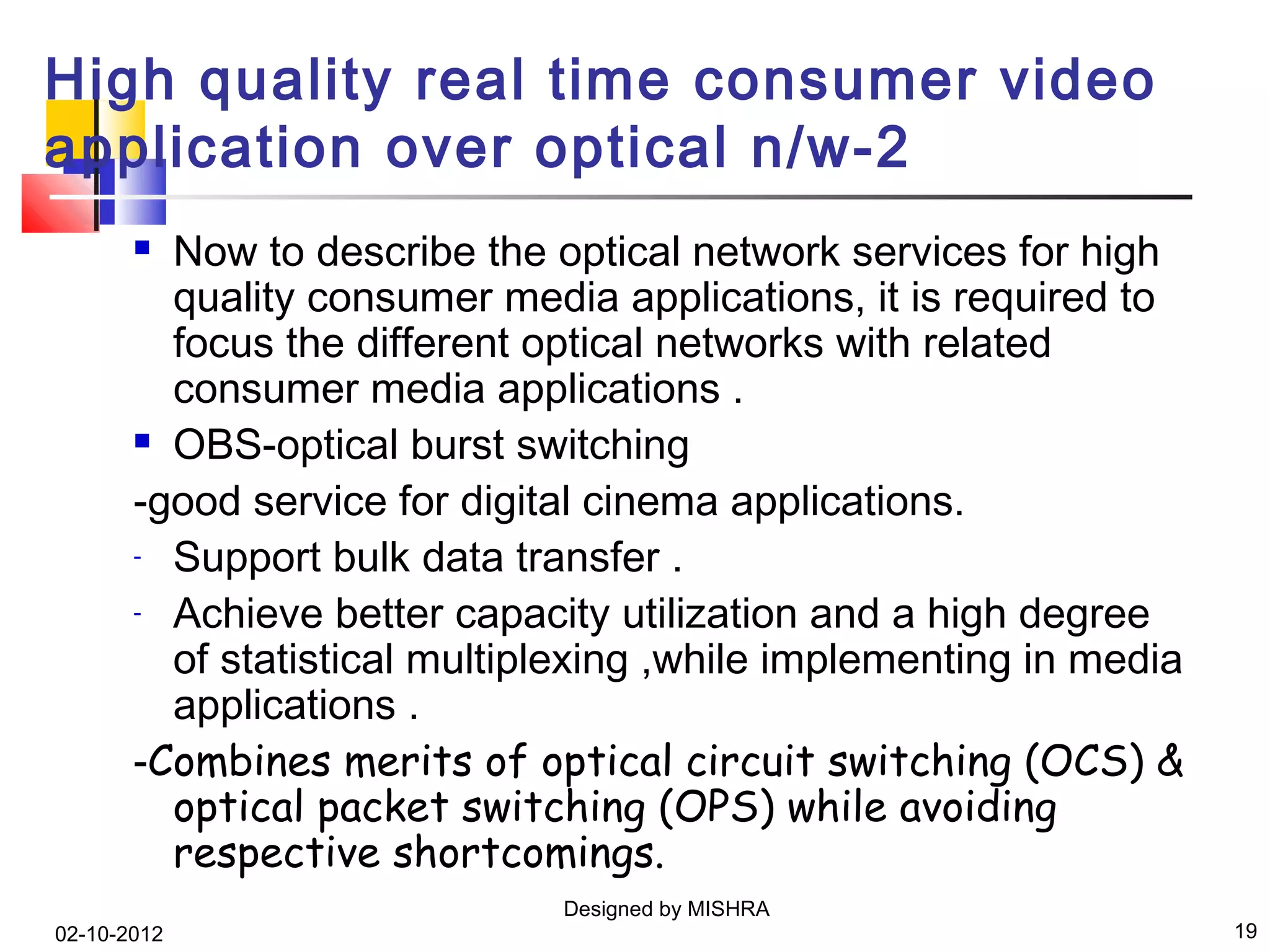

19. High quality real time consumer video
application over optical n/w-2
 Now to describe the optical network services for high
quality consumer media applications, it is required to
focus the different optical networks with related
consumer media applications .
 OBS-optical burst switching
-good service for digital cinema applications.
- Support bulk data transfer .
- Achieve better capacity utilization and a high degree
of statistical multiplexing ,while implementing in media
applications .
-Combines merits of optical circuit switching (OCS) &
optical packet switching (OPS) while avoiding
respective shortcomings.
Designed by MISHRA
02-10-2012 19

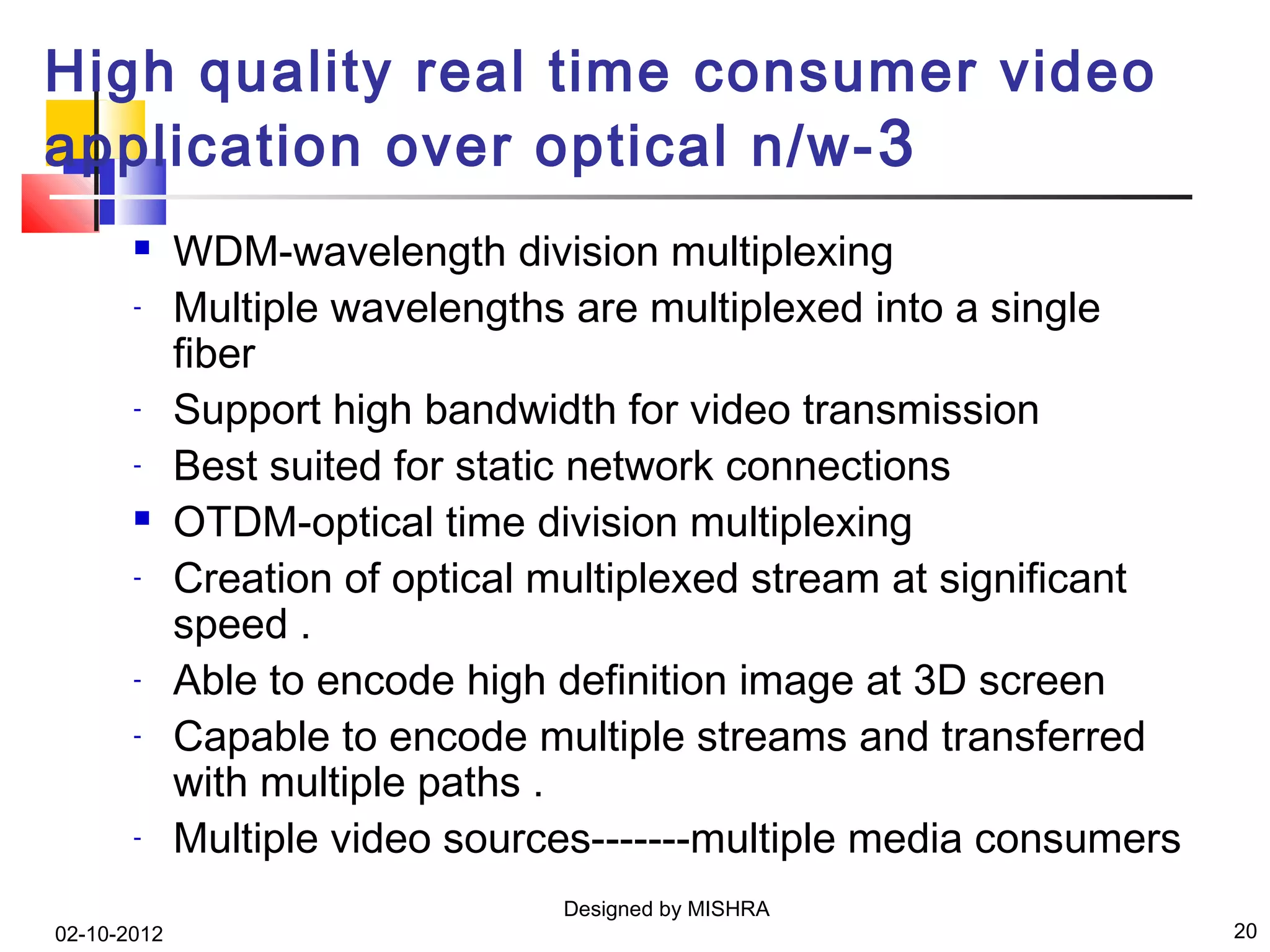

20. High quality real time consumer video
application over optical n/w- 3
 WDM-wavelength division multiplexing
- Multiple wavelengths are multiplexed into a single
fiber
- Support high bandwidth for video transmission
- Best suited for static network connections
 OTDM-optical time division multiplexing
- Creation of optical multiplexed stream at significant
speed .
- Able to encode high definition image at 3D screen
- Capable to encode multiple streams and transferred
with multiple paths .
- Multiple video sources-------multiple media consumers
Designed by MISHRA
02-10-2012 20

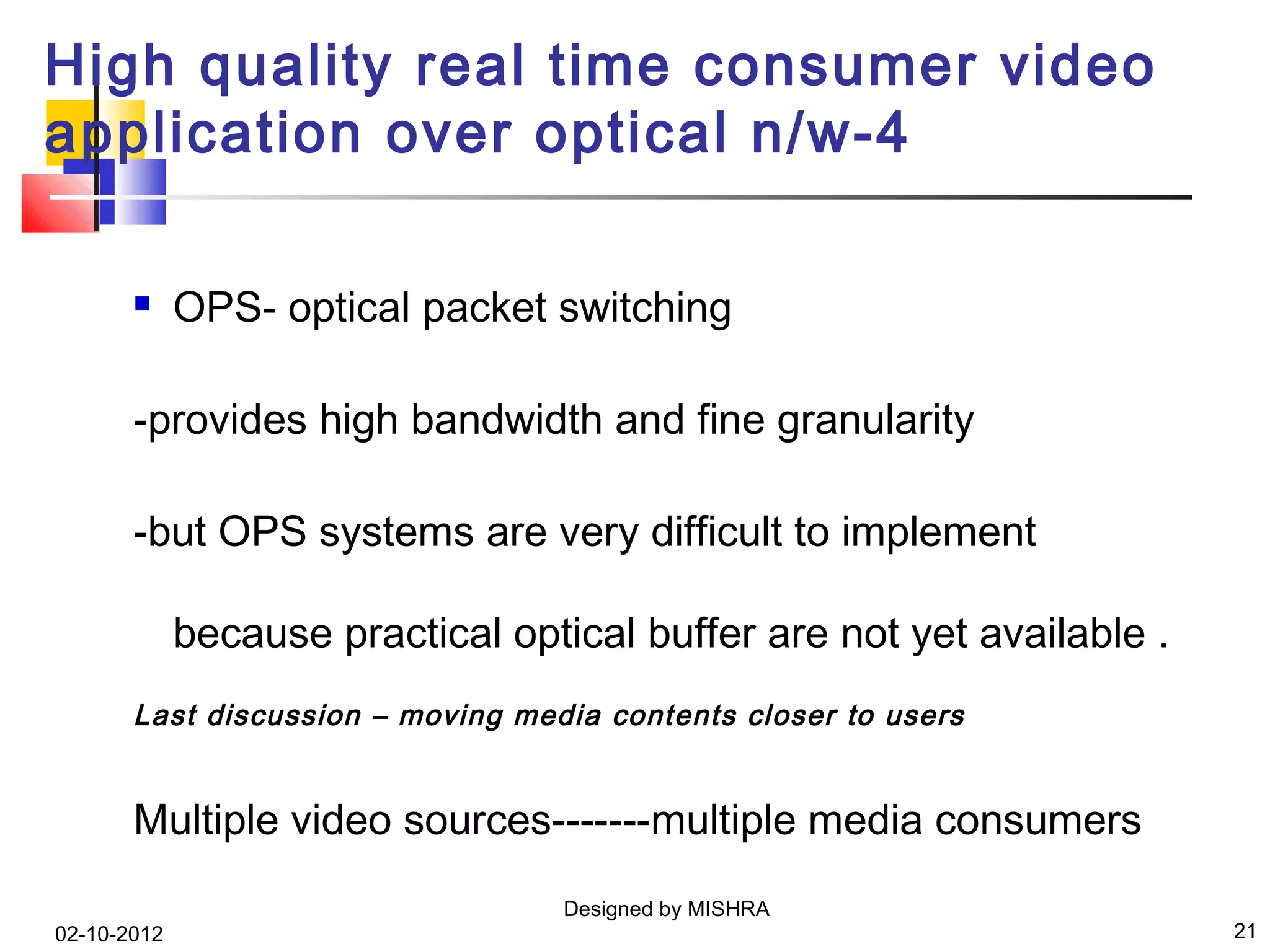

21. High quality real time consumer video
application over optical n/w-4
 OPS- optical packet switching
-provides high bandwidth and fine granularity
-but OPS systems are very difficult to implement
because practical optical buffer are not yet available .
Last discussion – moving media contents closer to users
Multiple video sources-------multiple media consumers
Designed by MISHRA
02-10-2012 21

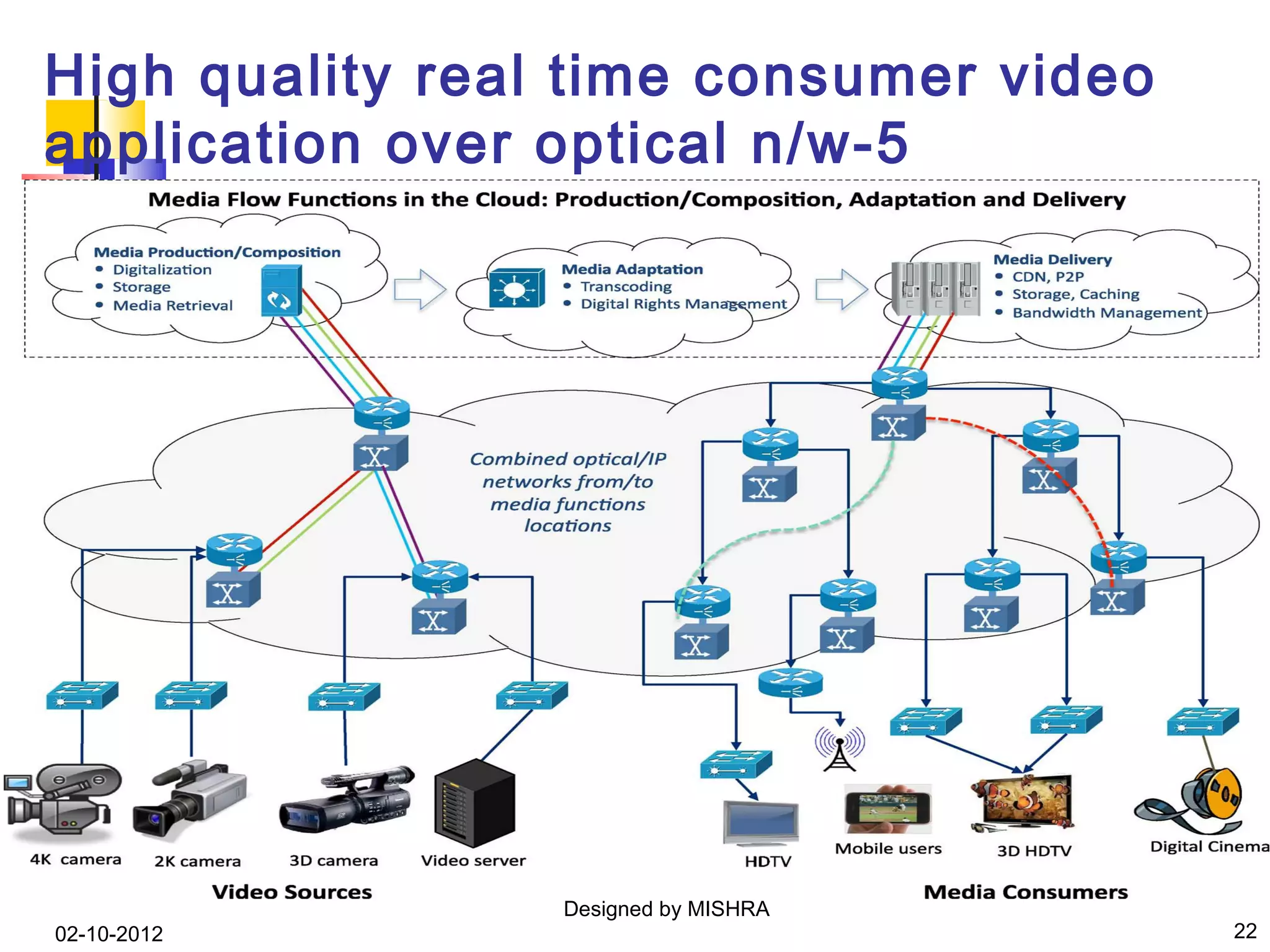

22. High quality real time consumer video
application over optical n/w-5
Designed by MISHRA
02-10-2012 22

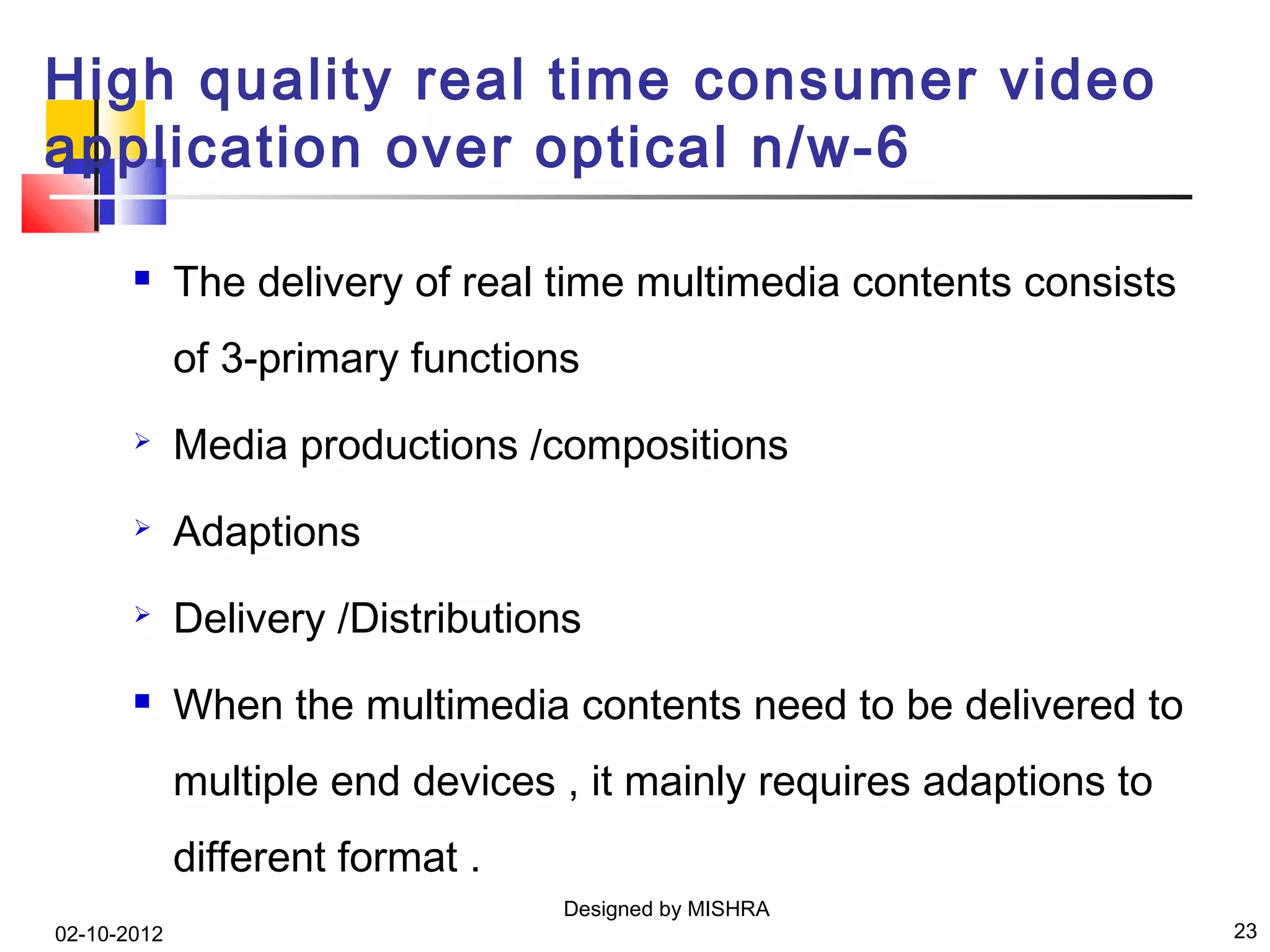

23. High quality real time consumer video
application over optical n/w-6
 The delivery of real time multimedia contents consists
of 3-primary functions
 Media productions /compositions
 Adaptions
 Delivery /Distributions
 When the multimedia contents need to be delivered to
multiple end devices , it mainly requires adaptions to
different format .
Designed by MISHRA
02-10-2012 23

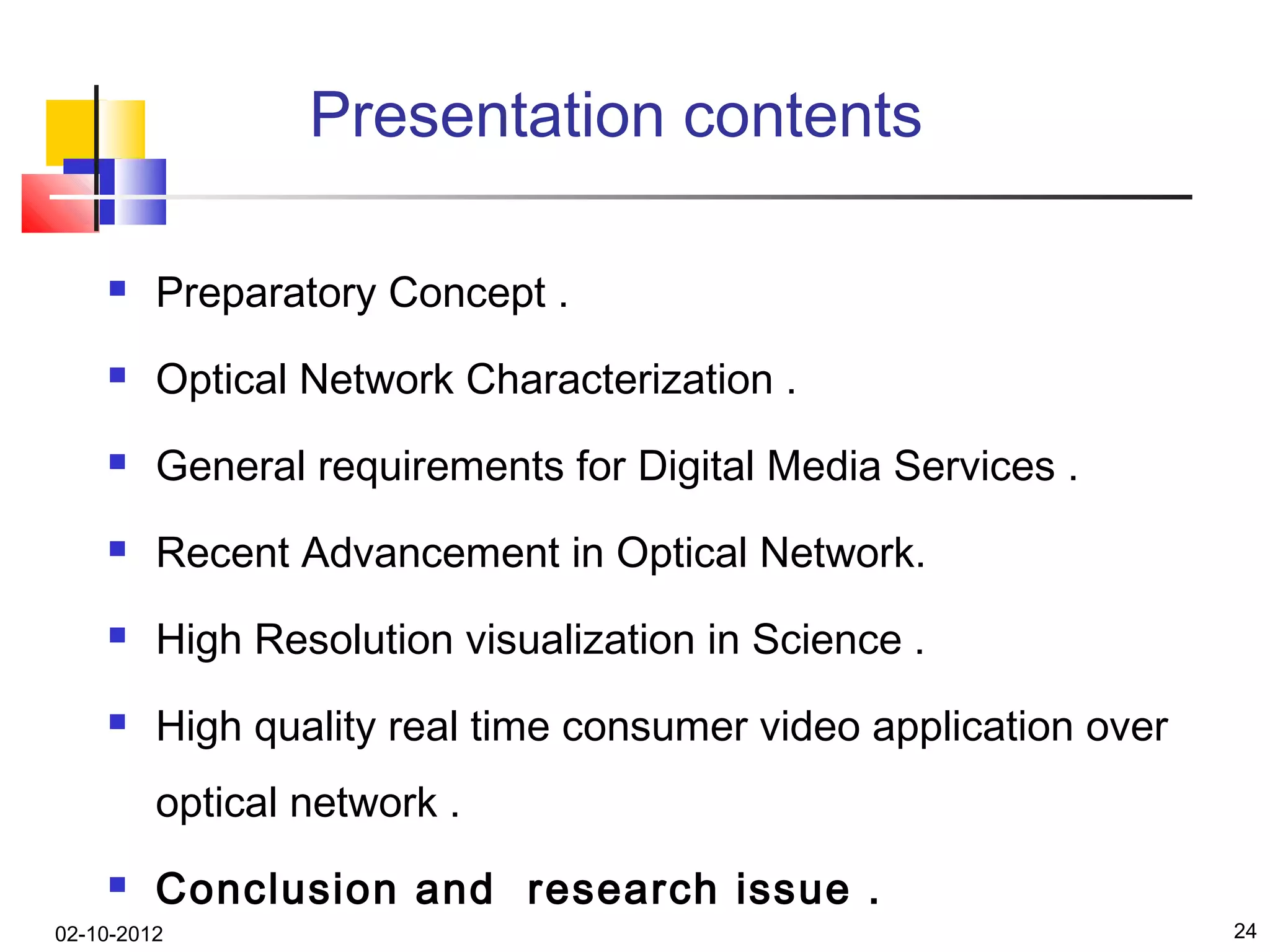

24. Presentation contents
 Preparatory Concept .
 Optical Network Characterization .
 General requirements for Digital Media Services .
 Recent Advancement in Optical Network.
 High Resolution visualization in Science .
 High quality real time consumer video application over
optical network .
 Conclusion and research issue .
02-10-2012 24

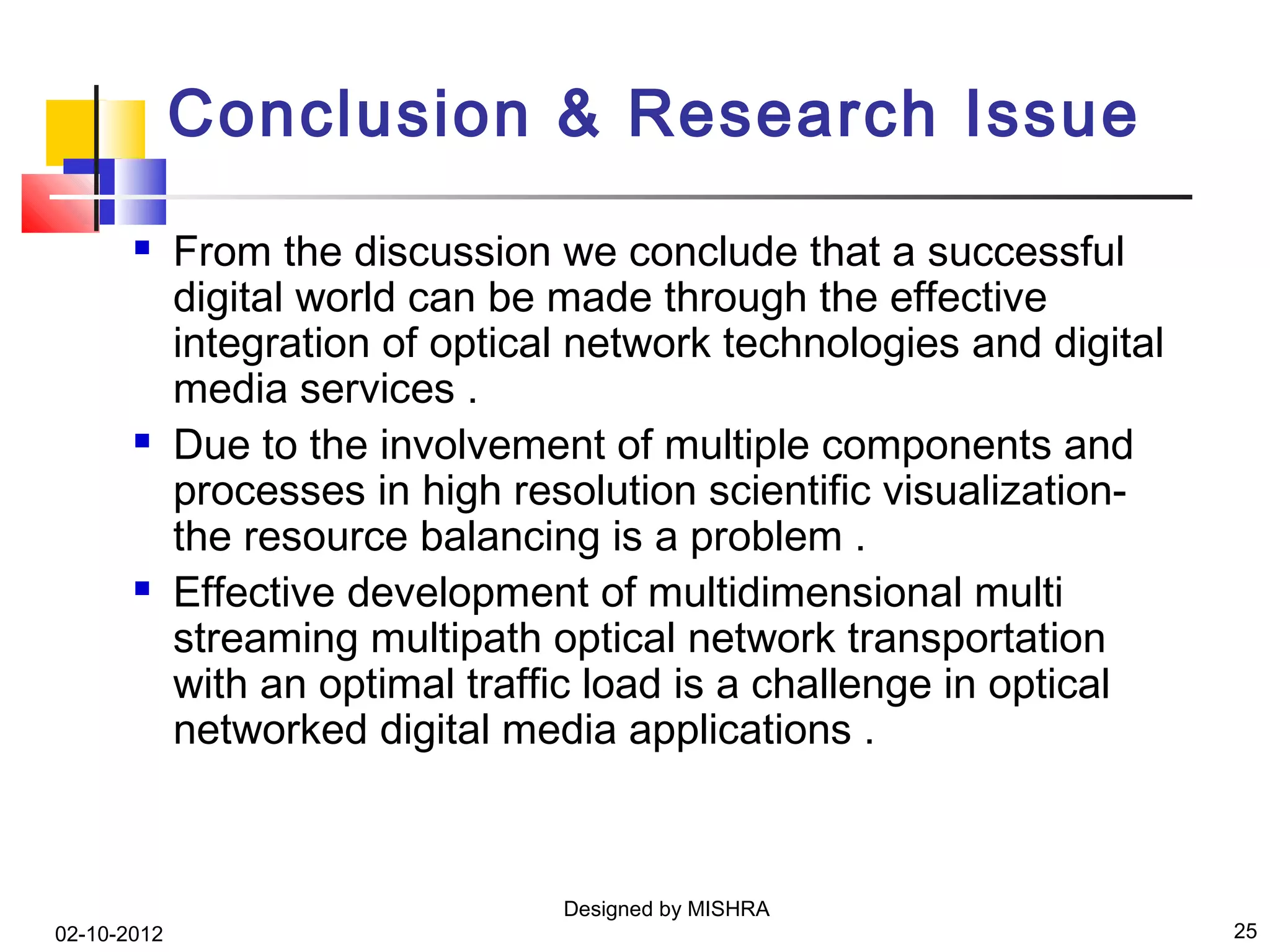

25. Conclusion & Research Issue
 From the discussion we conclude that a successful
digital world can be made through the effective
integration of optical network technologies and digital
media services .
 Due to the involvement of multiple components and
processes in high resolution scientific visualization-
the resource balancing is a problem .
 Effective development of multidimensional multi
streaming multipath optical network transportation
with an optimal traffic load is a challenge in optical
networked digital media applications .
Designed by MISHRA
02-10-2012 25

26. ANY QUERY PLEAZE ?
Thank you !!!
02-10-2012 Designed by MISHRA 26
