1. Automation Testing
Selenium webdriver
Muhammad Bilal

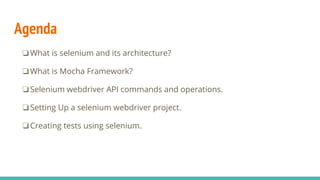

2. Agenda
❏What is selenium and its architecture?
❏What is Mocha Framework?
❏Selenium webdriver API commands and operations.
❏Setting Up a selenium webdriver project.
❏Creating tests using selenium.

3. Selenium
It is for automated testing of web applications.
Browsers Support:
IE, FireFox, Opera and Chrome.
Language Support:
C#, Java, Perl, PHP, Python, Ruby, Javascript.
Components:
Selenium IDE, Selenium RC, Selenium Grid, Selenium Webdriver

4. Architecture

5. Advantages Of Automation Testing
➢Automation saves time and effort to repeating same tests over and over
again.
➢Execute test script at any time often with different data.
➢Automation is also essential for regression testing. (ensure already
implemented features are not broken)

6. Mocha
➢Mocha is a JavaScript test framework running on node.js.
➢Browser support
➢Asynchronous testing
➢Test coverage reports
➢Use of any assertion library (assert, chai)
Why
To make sure our test is passed or failed based on some conditions. Each
test case must have some assertions.

7. Selenium APIs
➢Fetching a page
driver.get('http://192.168.2.101:9092');
➢Locating UI Elements By ID
<div id="coolestWidgetEvah">...</div>
driver.findElement(By.id('coolestWidgetEvah'));
➢By className
<div class="cheese">.......</div>
driver.findElements(By.className("cheese"));
➢By tagName
var frame = driver.findElement(By.tagName('iframe'));
➢By Name
driver.findElement(By.name('cheese'));

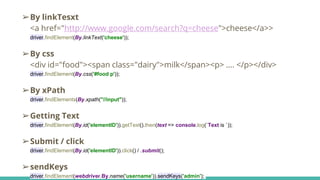

8. ➢By linkTesxt
<a href="http://www.google.com/search?q=cheese">cheese</a>>
driver.findElement(By.linkText('cheese'));
➢By css
<div id="food"><span class="dairy">milk</span><p> …. </p></div>
driver.findElement(By.css('#food p'));
➢By xPath
driver.findElements(By.xpath("//input"));
➢Getting Text
driver.findElement(By.id('elementID')).getText().then(text => console.log(`Text is `));
➢Submit / click
driver.findElement(By.id('elementID')).click() / .submit();
➢sendKeys
driver.findElement(webdriver.By.name('username')).sendKeys('admin');

9. Setting Up Selenium using Javascript
Install javascript bindings with npm, nodejs version > 4.1
➢npm install selenium-webdriver
➢npm install mocha chai -g
Goto directory where selenium-webdriver is installed
➢Make a new javascript file with any name like (selenium.js)
➢Configure selenium-webdriver
var webdriver = require('selenium-webdriver'),
By = require('selenium-webdriver').By,
until = require('selenium-webdriver').until;
var driver = new webdriver.Builder().forBrowser('firefox') .build();

10. Test Case
➢Webdriver should open cbsgui and enter username admin and
password admin and press login button.
dashboard page should open and logout link should appear on
dashboard.
➢Steps:
Open cbsgui (192.168.2.101:9092)
Find element username,password and enter data.
Submit login request.
➢Expected Result:
Moved to dashboard page.

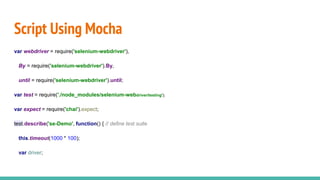

11. Script Using Mocha
var webdriver = require('selenium-webdriver'),
By = require('selenium-webdriver').By,
until = require('selenium-webdriver').until;
var test = require('./node_modules/selenium-webdriver/testing');
var expect = require('chai').expect;
test.describe('se-Demo', function() { // define test suite
this.timeout(1000 * 100);
var driver;

12. test.before(function() {
driver = new webdriver.Builder()
.forBrowser('firefox')
.build();
});
test.after(function() {
driver.quit();
});

13. test.it('Should Login Successfully', function(done) {
driver.get('http://192.168.2.101:9092').then(function () {
driver.findElement(webdriver.By.name('username')).sendKeys('admin');
element = driver.findElement({name: 'password'});
element.sendKeys('admin'); element.submit();
}) .then(function () {
driver.wait(until.elementLocated(By.className('fa-sign-out')), 1000 * 60);
expect(driver.findElement(By.className('fa-sign-out'))).not.to.be.null;
done();
});
});
});

14. References
1. http://www.seleniumhq.org/docs/03_webdriver.jsp
2. http://seleniumhq.github.io/selenium/docs/api/javascript/module/seleniu
m-webdriver/lib/promise.html
3. https://gist.github.com/huangzhichong/3284966
4. https://mochajs.org/
5. http://chaijs.com/api/bdd/

15. Thank You
Any Question ?
