The document provides an overview of security services available on the Cloud Foundry platform including UAA (Universal Authentication and Authorization) and Credhub. UAA provides identity and access management capabilities including single sign-on (SSO), OAuth 2.0/OpenID Connect protocols, and user authentication and authorization. Credhub provides secure credential management through generation, storage, and rotation of credentials. The document discusses how Spring applications can leverage these services through UAA's identity broker and Spring CredHub client to integrate SSO and manage credentials in a Cloud Foundry deployment. Demo sections show examples of UAA for SSO and Credhub for credential management.

1. Version 1.0
October 10, 2018
Security as a Service
How Your Spring Apps Can
Benefit From Cloud Foundry

2. Cover w/ Image
Agenda
■ What does the Cloud Foundry platform
provide for my apps?
■ What is OAuth and OIDC?
■ How can I use it?
■ What is Credhub?
■ How can I use it?

3. Cloud Foundry 💚 Spring
How does the platform benefit my apps?

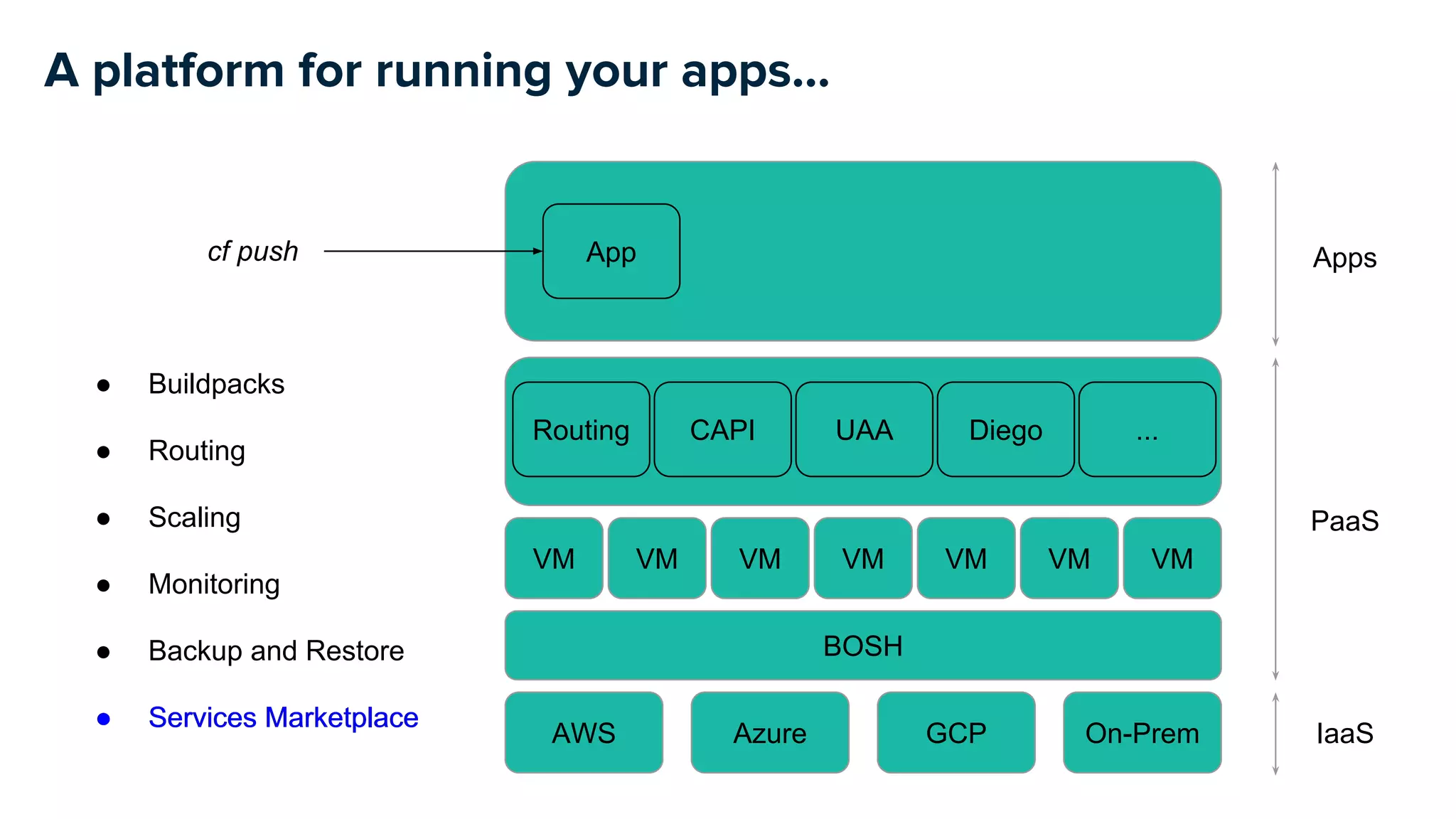

4. A platform for running your apps...
BOSH
AWS Azure GCP On-Prem
VM VM VMVM VM VM VM
IaaS
PaaS
Appscf push
Routing CAPI UAA ...Diego
App
● Buildpacks
● Routing
● Scaling
● Monitoring
● Backup and Restore
● Services Marketplace● Services Marketplace

5. ● Security Services for App
○ UAA (SSO)
Identity as a Service
○ Credhub
Credential
Management
A platform with security services for your apps...
BOSH
AWS Azure GCP On-Prem
VM VM VMVM VM VM VM
IaaS
PaaS
Appscf push
Routing CAPI UAA ...Diego
App

6. Security services to help you build your apps...
cf push
AppsApp
PaaSCredhubUAA
● Identity Proxy
● User AuthN/AuthZ
● Service-to-Service
Authn/AuthZ
● Credential Generation
● Credential Storage
● Credential Rotation

7. Cloud Native Protocols
What is OAuth? I’ll do you one better: Why is OAuth?

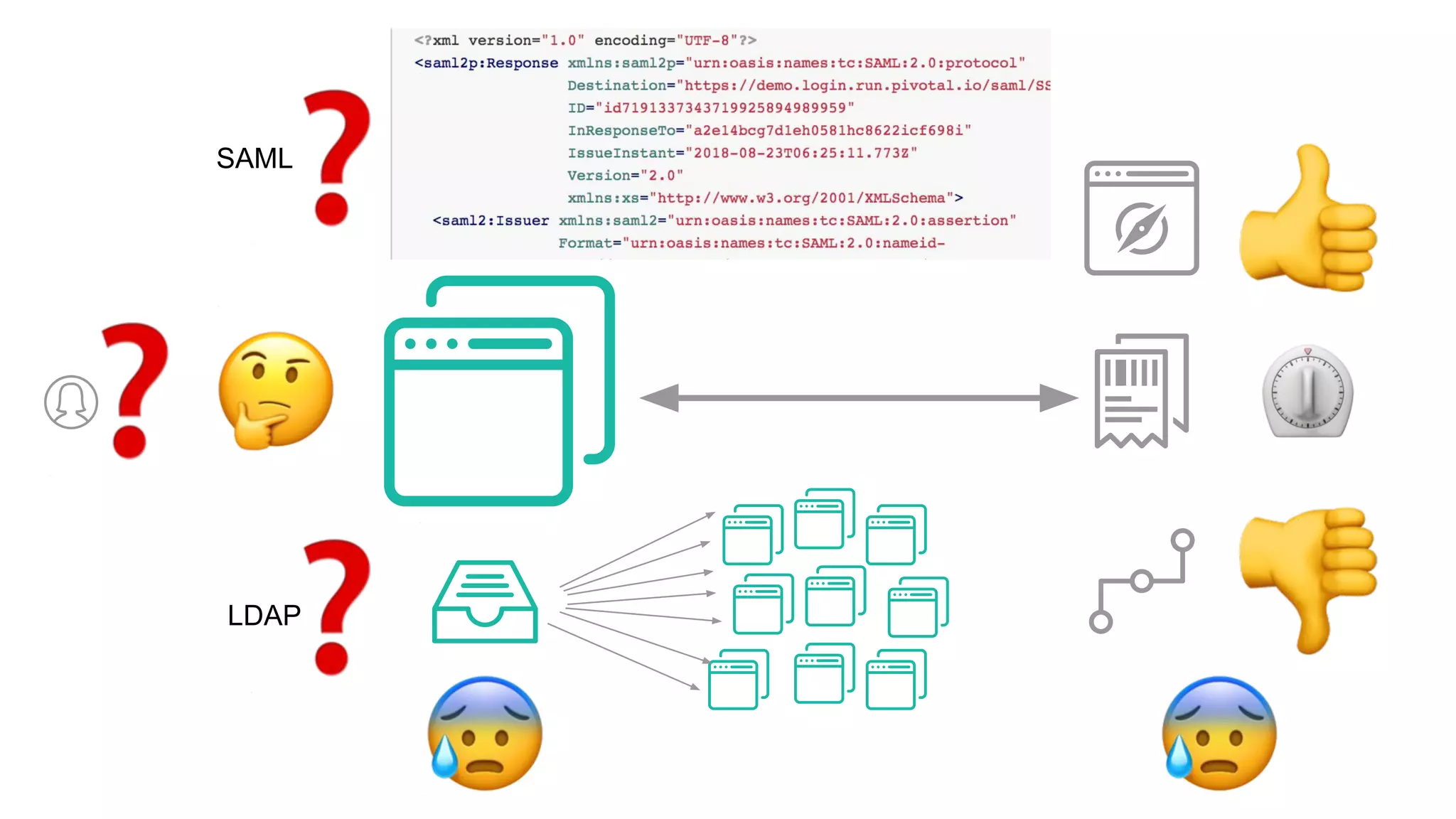

8. SAML
LDAP

9. Authorization
Server
Client Resource
Server
Resource
Server

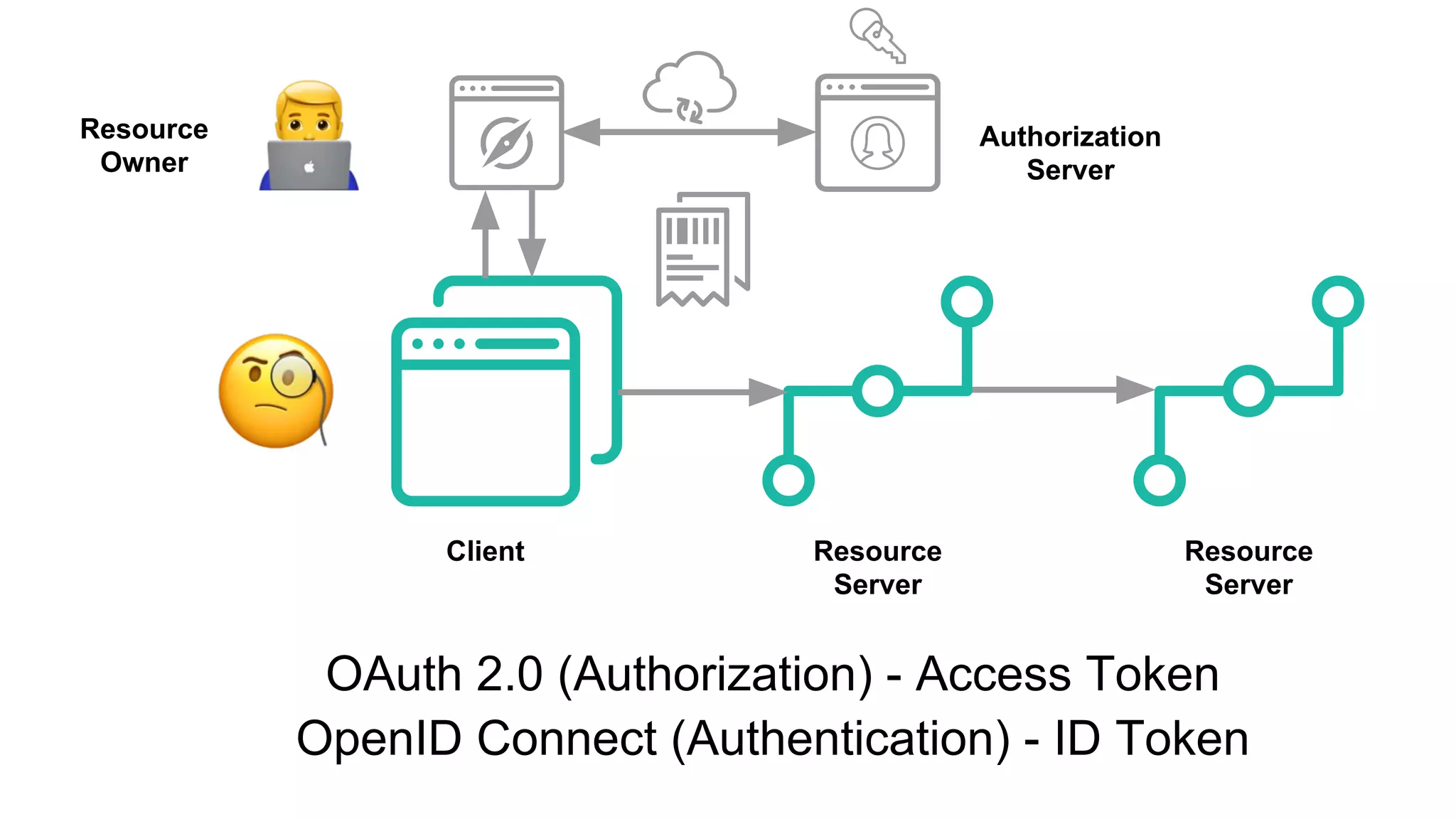

OAuth 2.0 (Authorization) - Access Token
OpenID Connect (Authentication) - ID Token
Resource
Owner

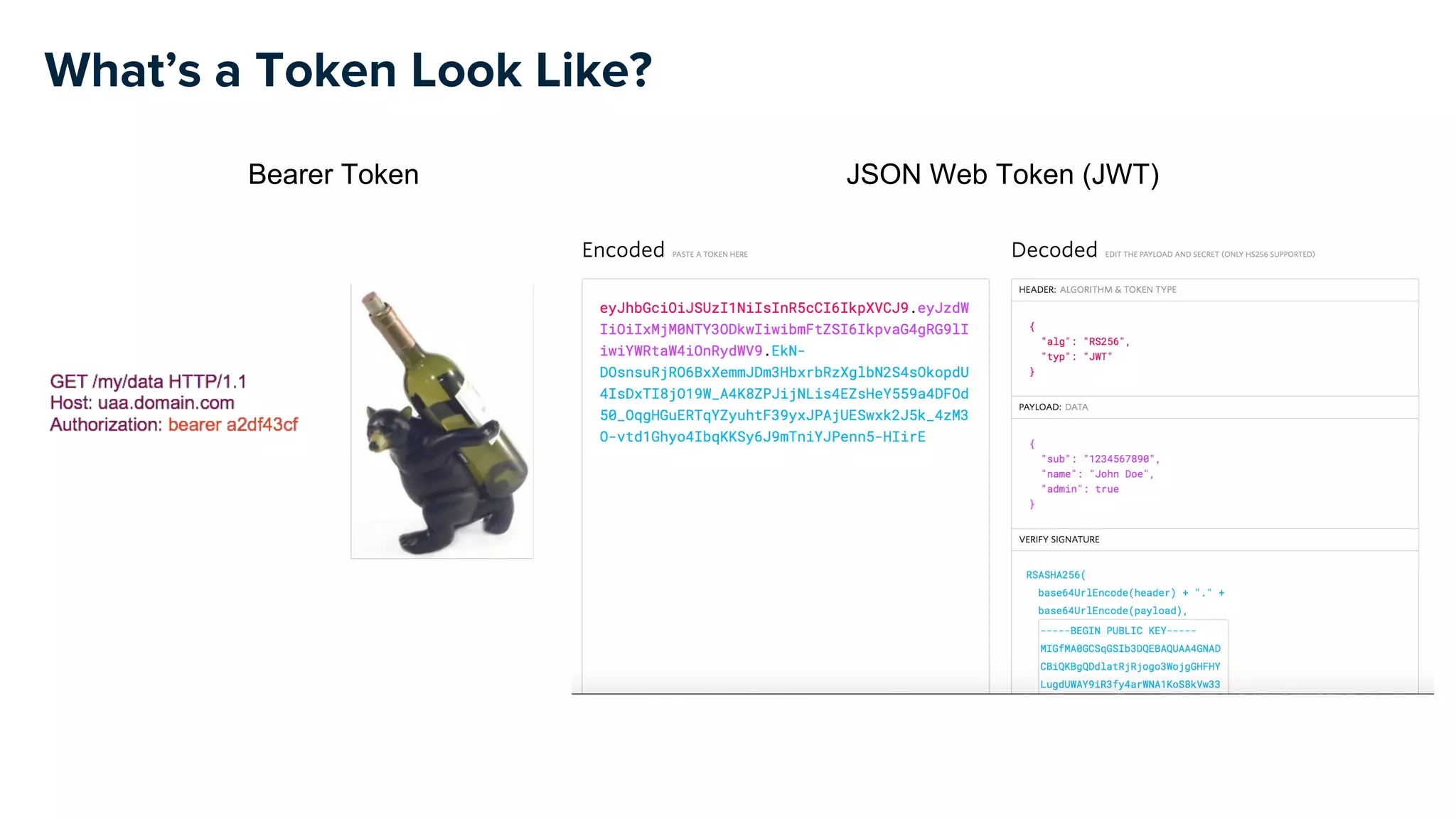

10. What’s a Token Look Like?
JSON Web Token (JWT)Bearer Token

11. What’s a Token Look Like?
Authentication Method (“External”)
External User Attributes
External Groups

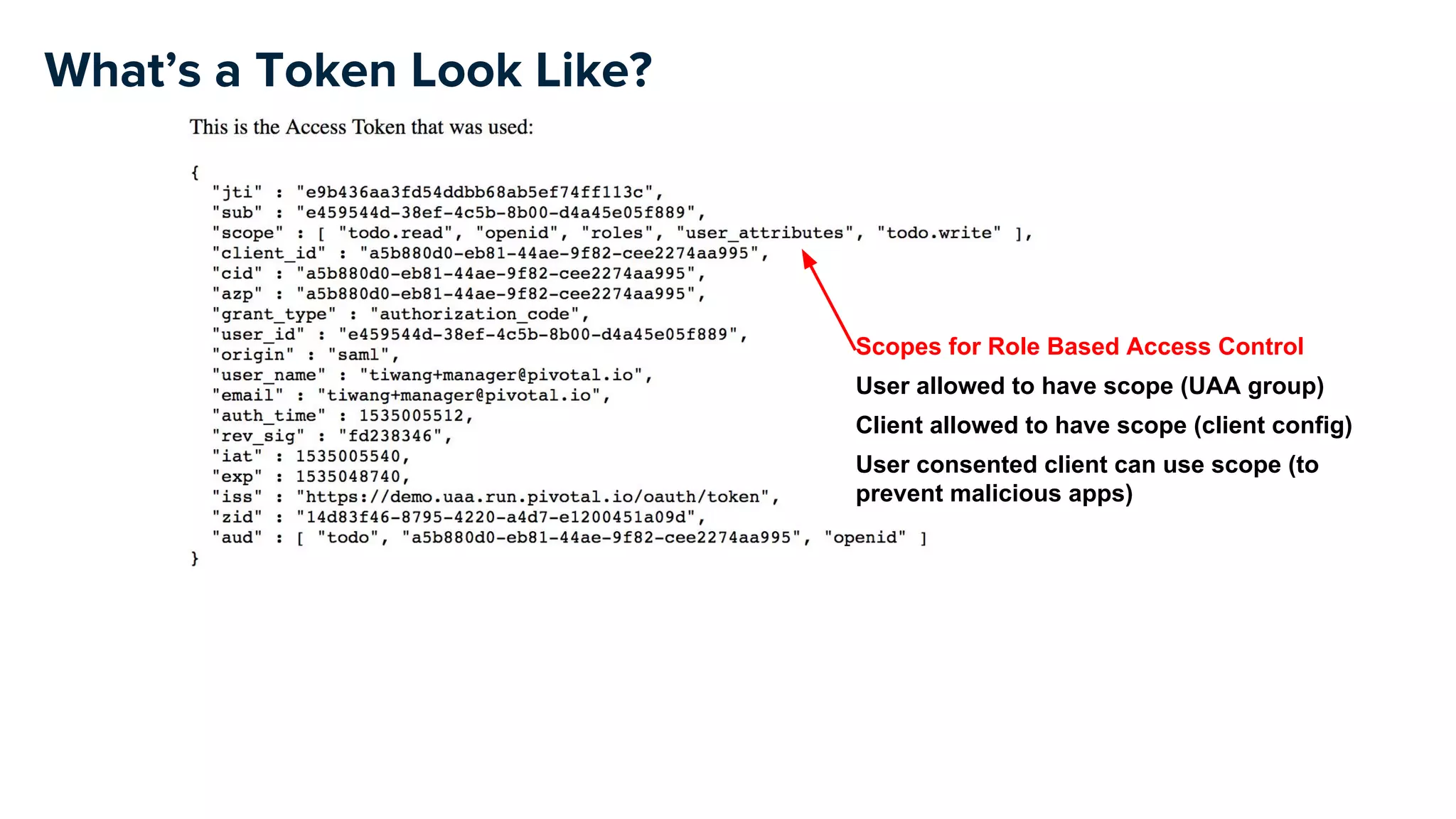

12. What’s a Token Look Like?
Scopes for Role Based Access Control
User allowed to have scope (UAA group)
Client allowed to have scope (client config)
User consented client can use scope (to
prevent malicious apps)

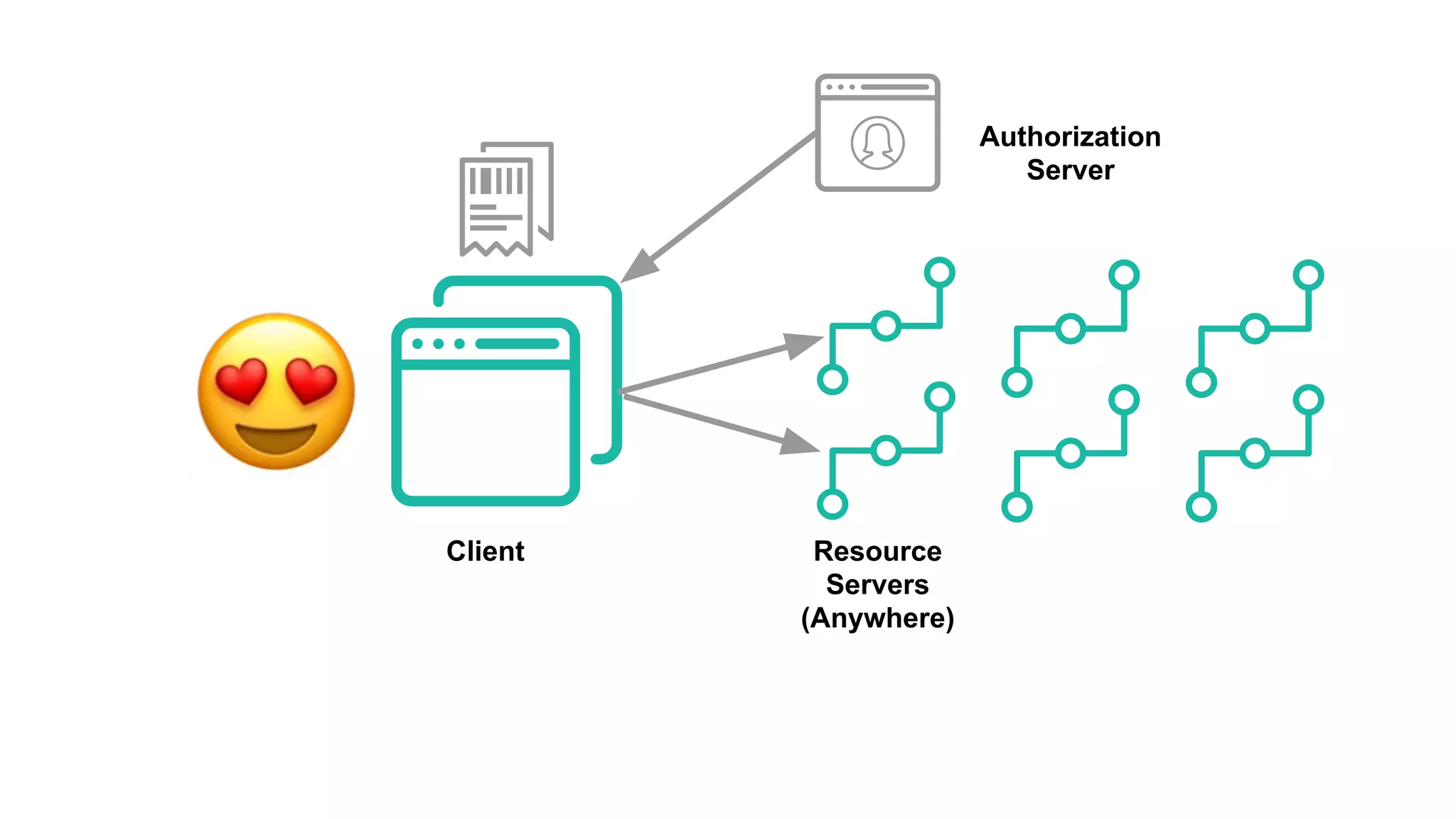

13. Client Resource
Servers
(Anywhere)
Authorization
Server

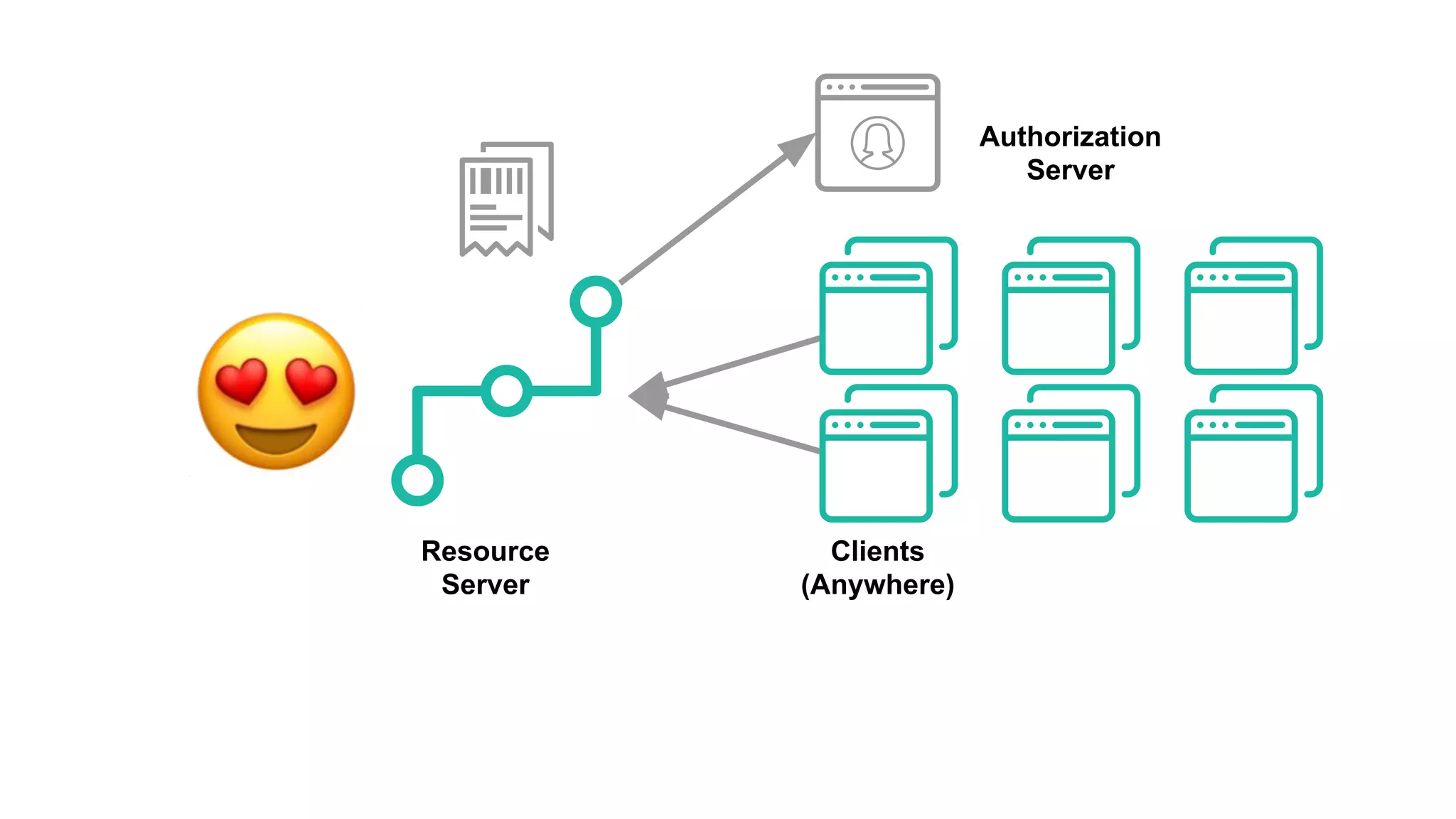

14. Resource
Server
Clients
(Anywhere)
Authorization
Server

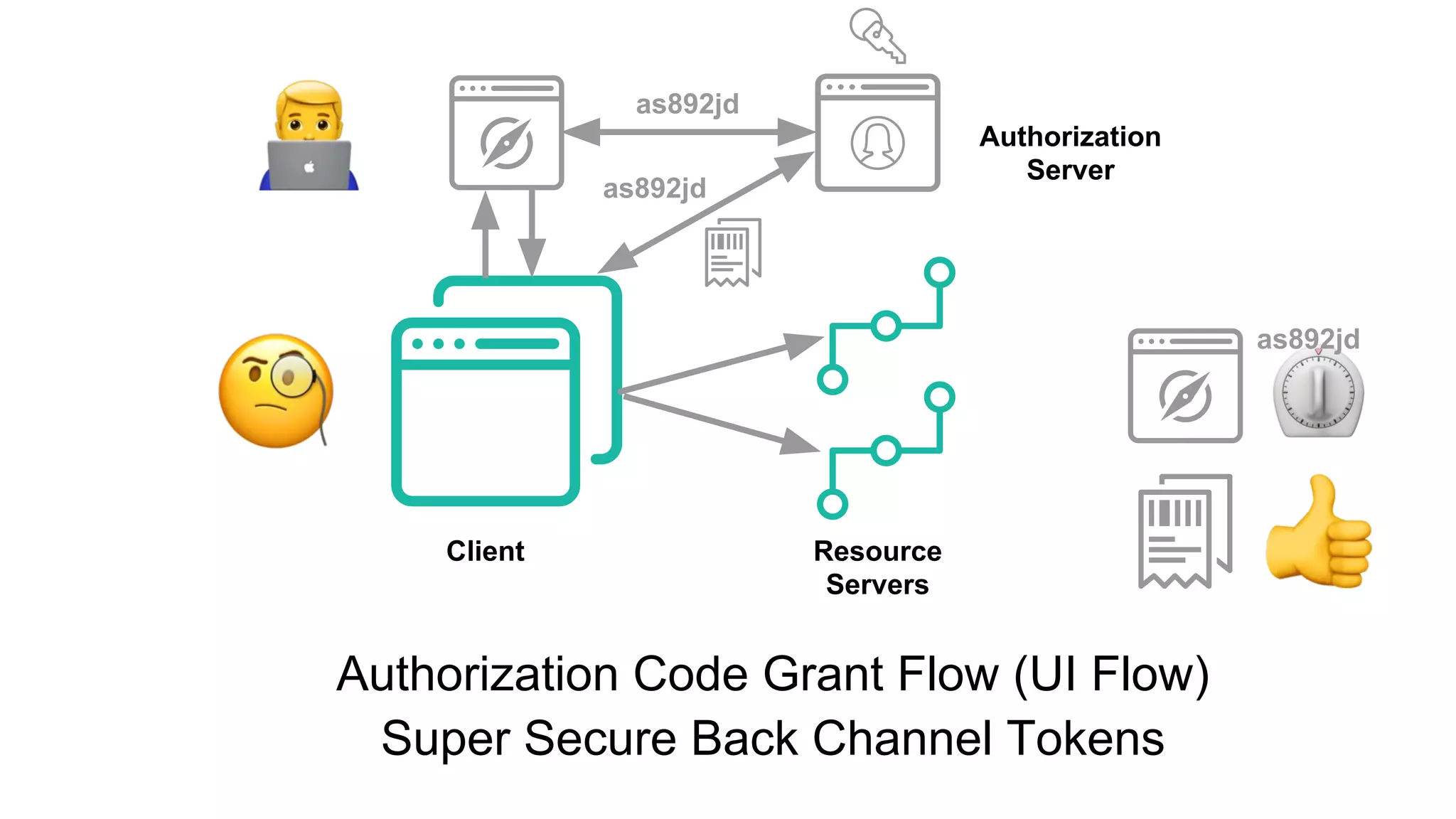

15. Authorization
Server
Client Resource
Servers
as892jd
as892jd
Authorization Code Grant Flow (UI Flow)
Super Secure Back Channel Tokens
as892jd

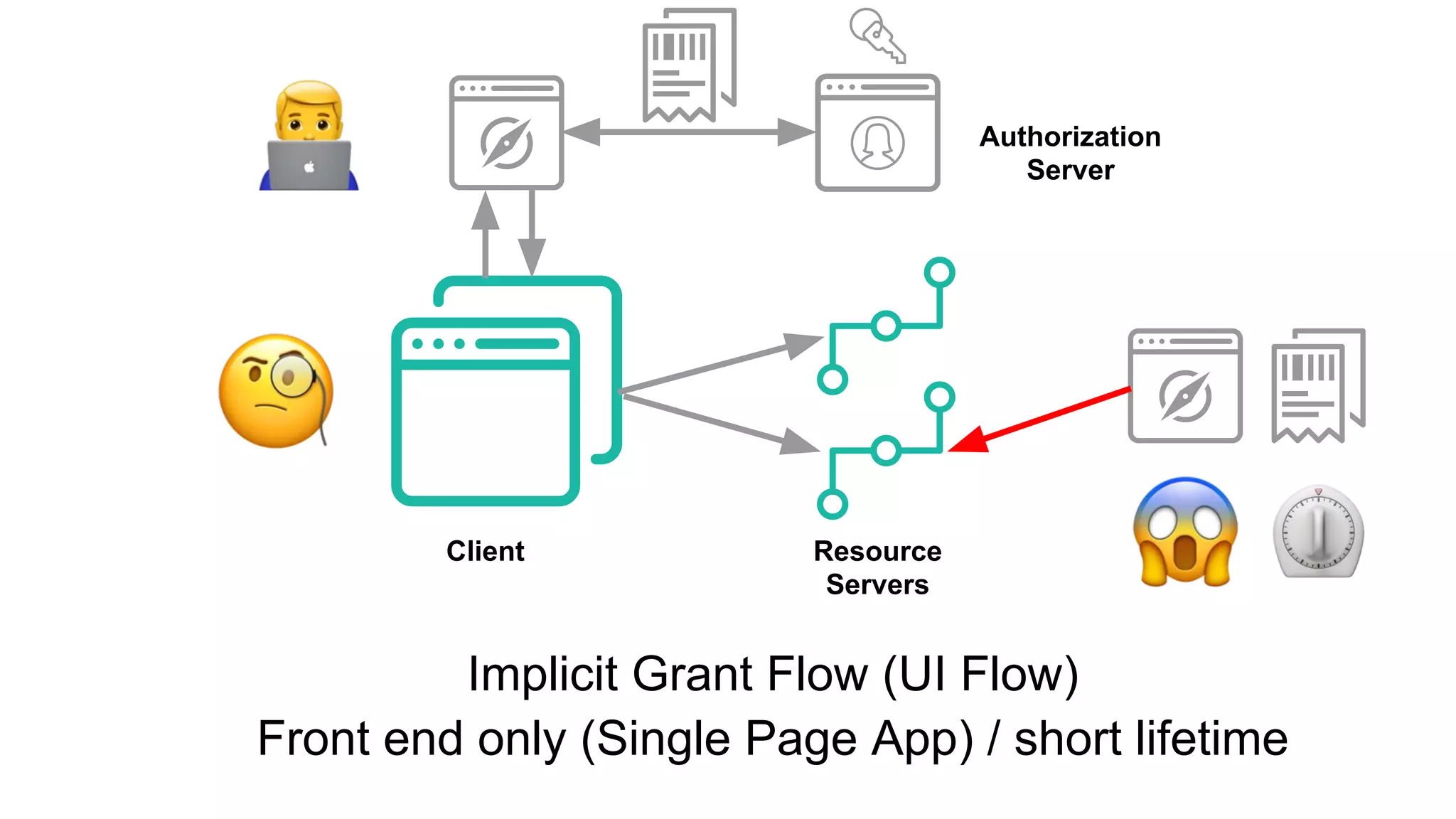

16. Authorization
Server
Client Resource
Servers
Implicit Grant Flow (UI Flow)
Front end only (Single Page App) / short lifetime

17. Authorization
Server
Client Resource
Servers

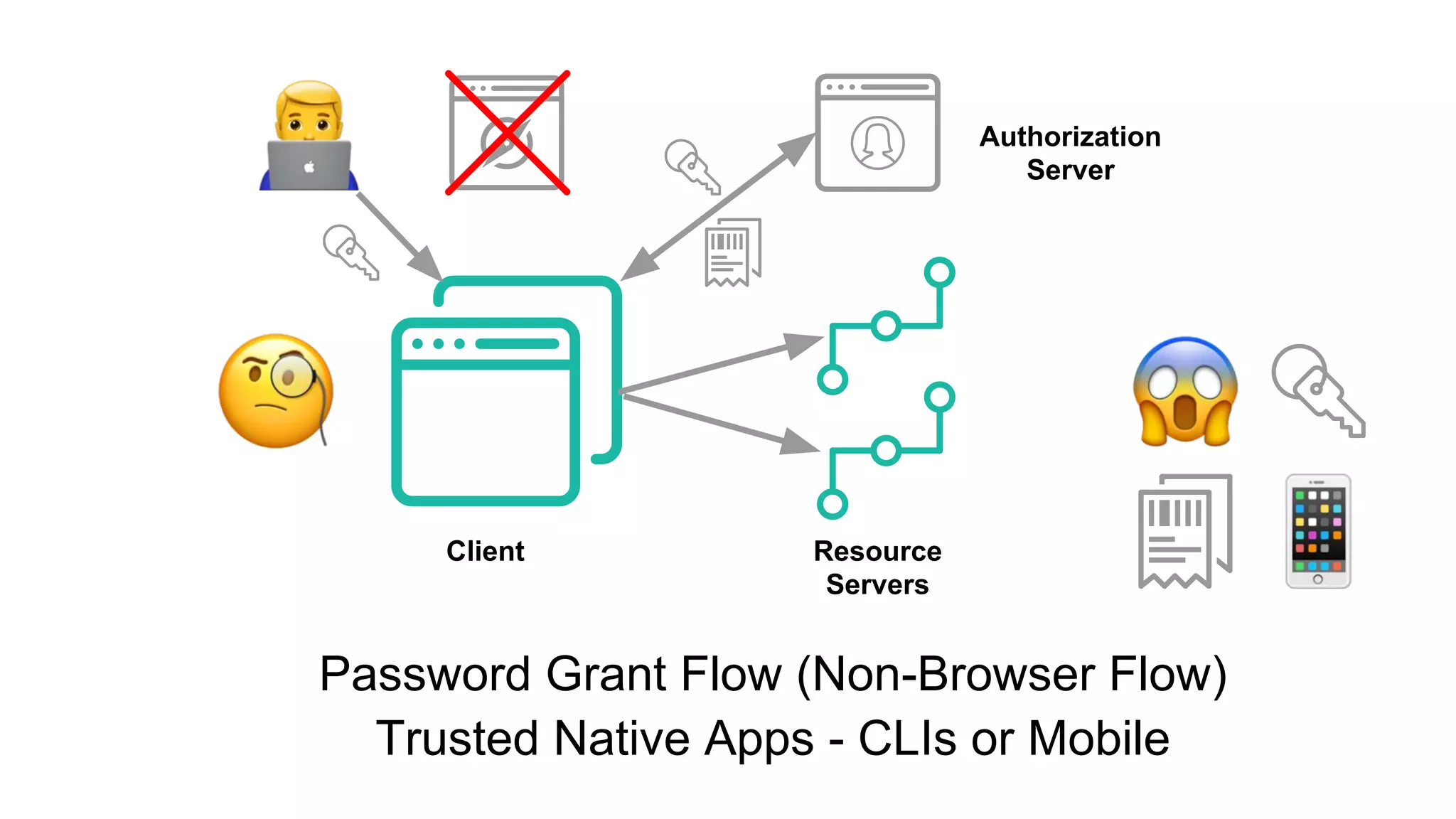

Password Grant Flow (Non-Browser Flow)
Trusted Native Apps - CLIs or Mobile

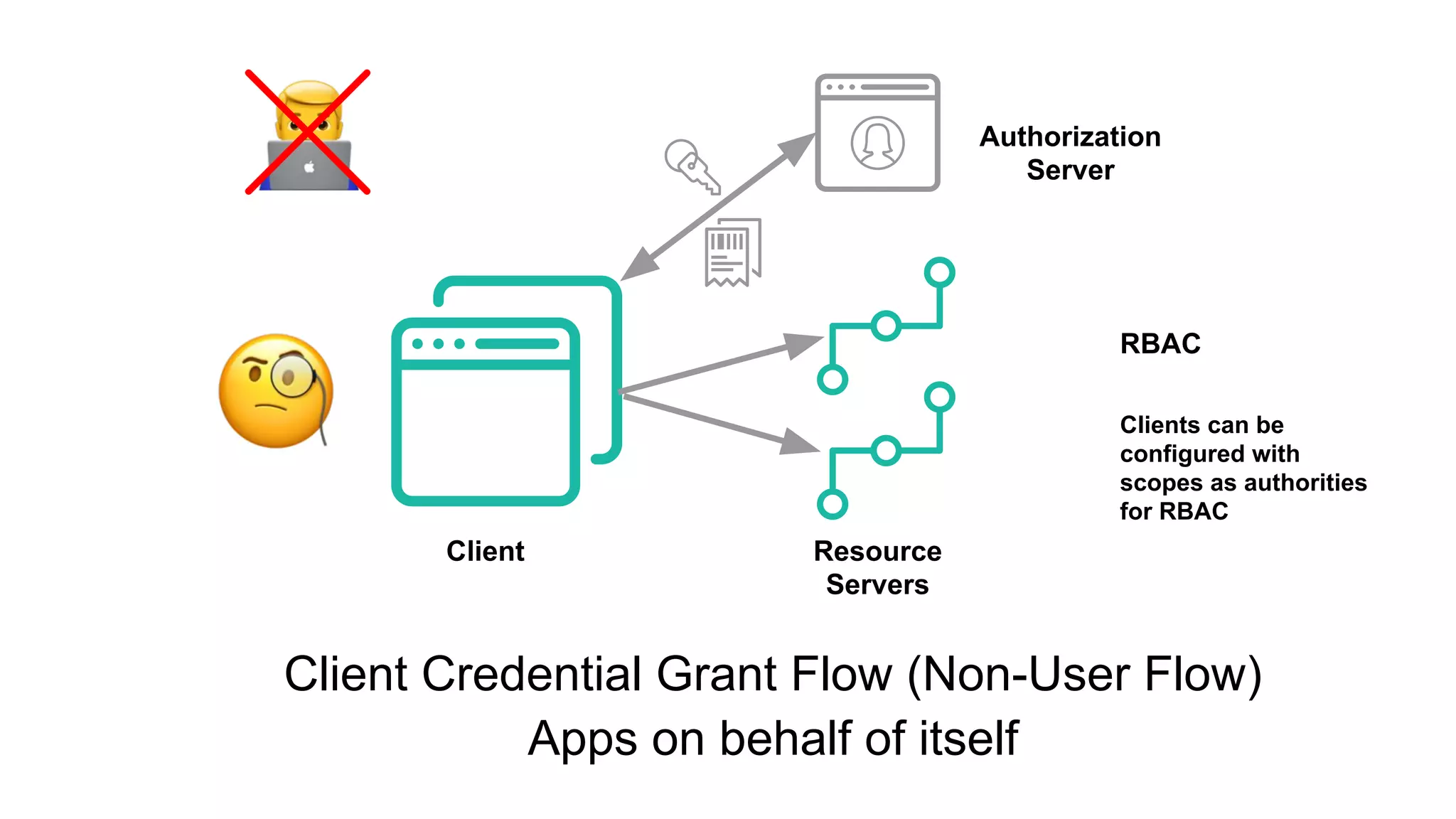

18. Authorization
Server
Client Resource
Servers
Client Credential Grant Flow (Non-User Flow)
Apps on behalf of itself
Clients can be
configured with
scopes as authorities
for RBAC
RBAC

19. Authorization
Server
Client or
Resource
Server
Resource
Servers

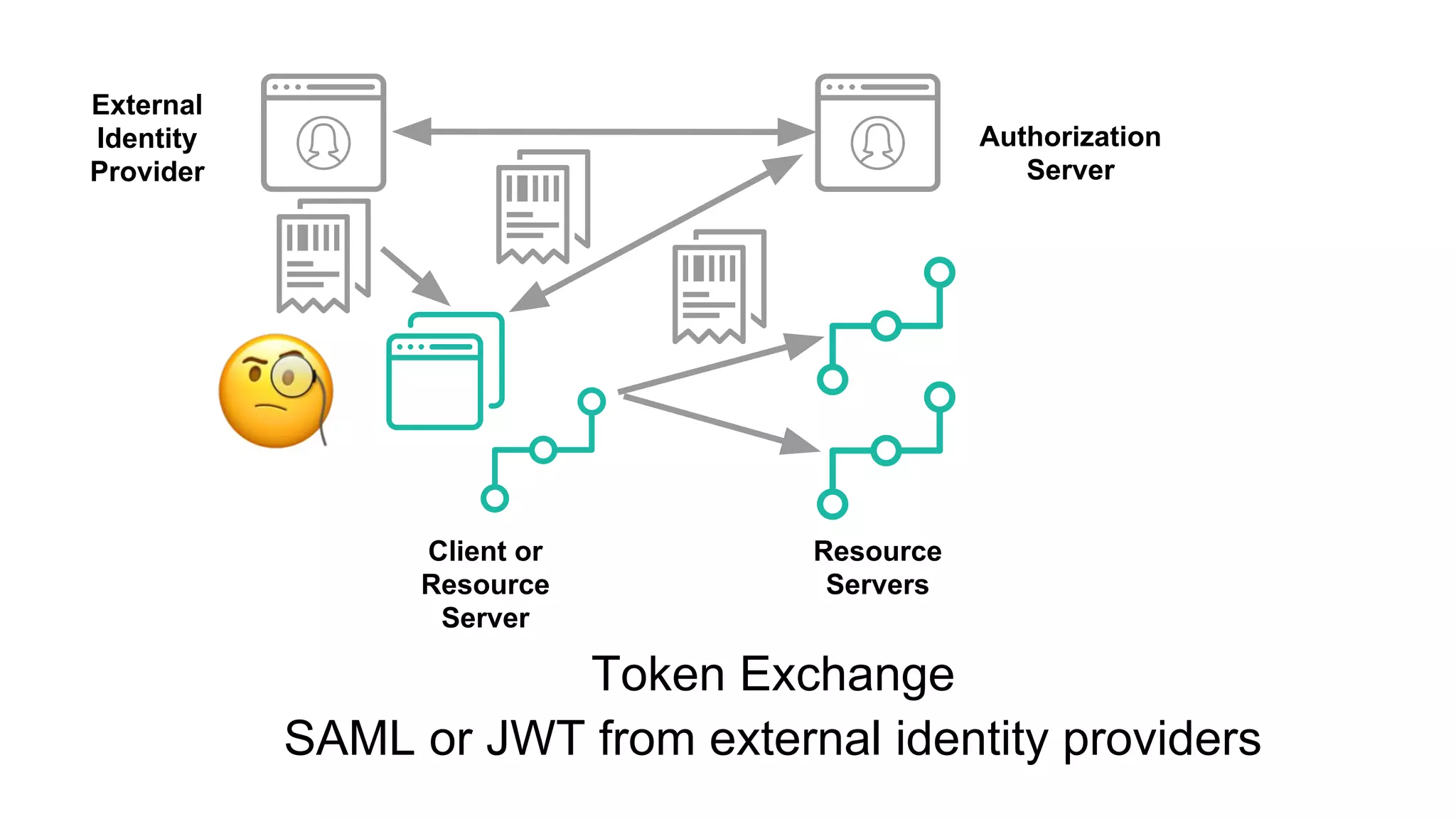

Token Exchange
SAML or JWT from external identity providers
External
Identity
Provider

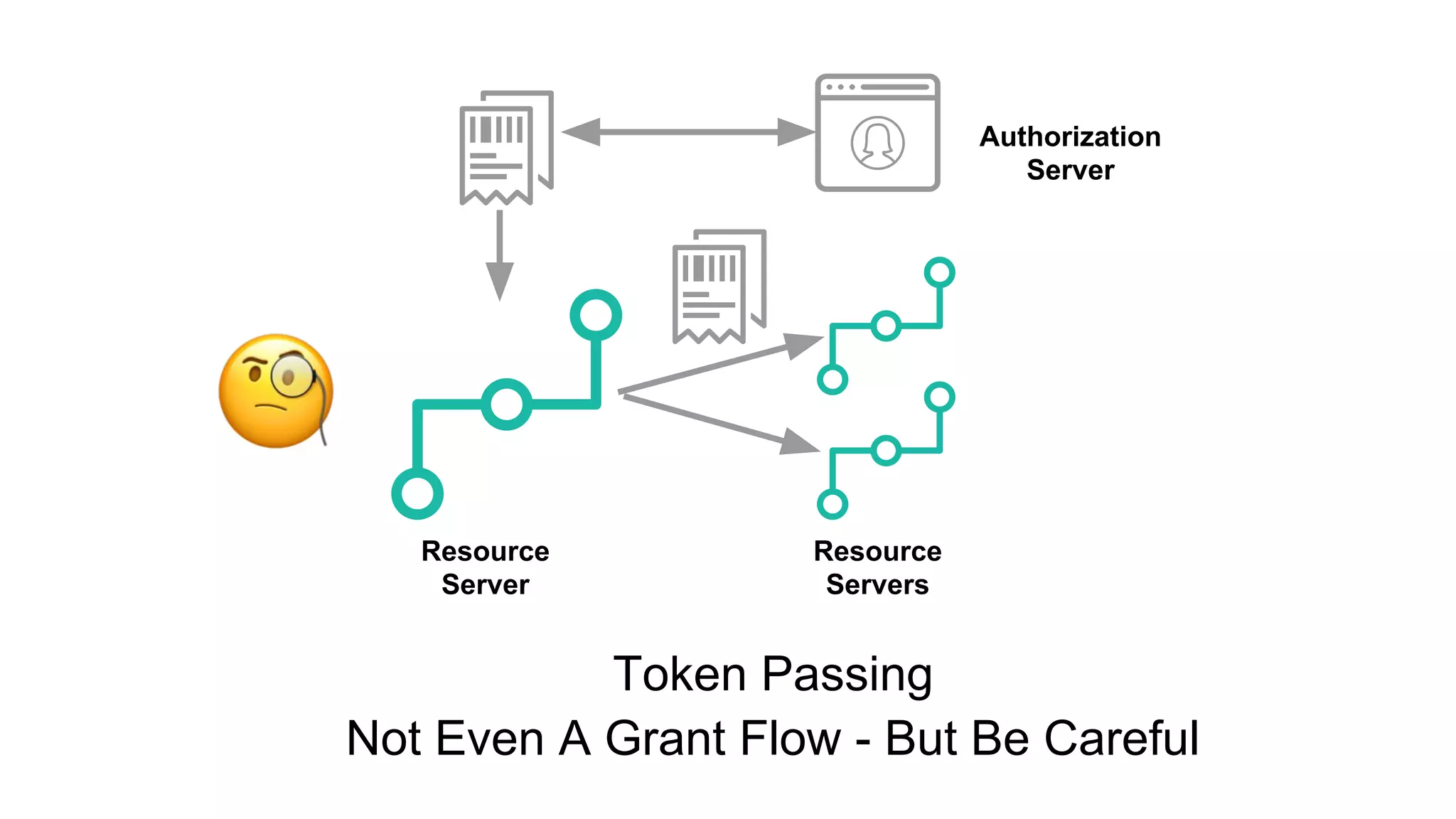

20. Authorization
Server
Resource
Server
Resource
Servers
Token Passing
Not Even A Grant Flow - But Be Careful

21. UAA and PCF SSO
Identity as a Service

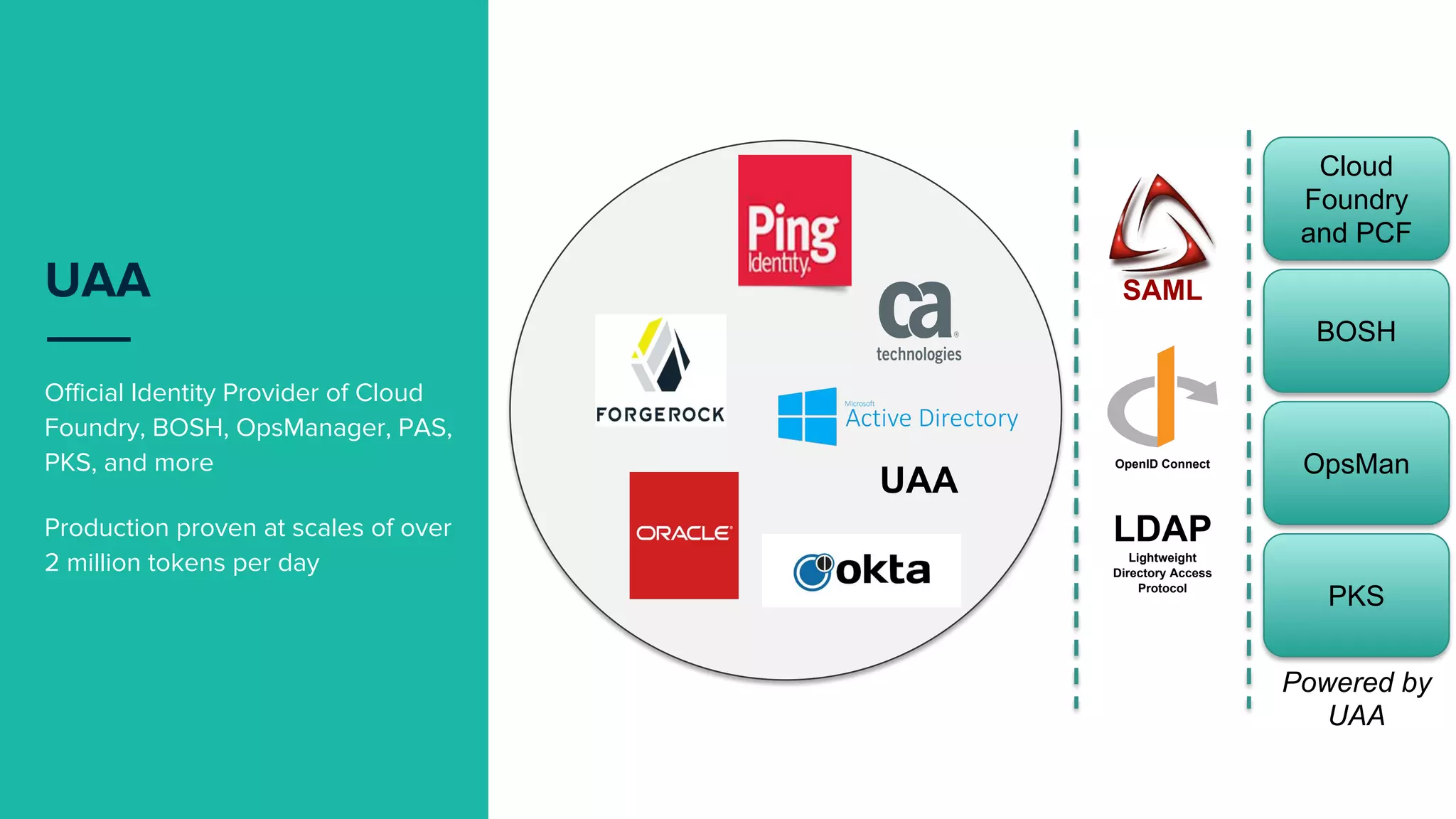

22. Official Identity Provider of Cloud
Foundry, BOSH, OpsManager, PAS,
PKS, and more
Production proven at scales of over
2 million tokens per day
UAA
Cloud
Foundry
and PCF
LDAP
Lightweight
Directory Access
Protocol
OpenID Connect
UAA
SAML
Powered by
UAA
BOSH
OpsMan
PKS

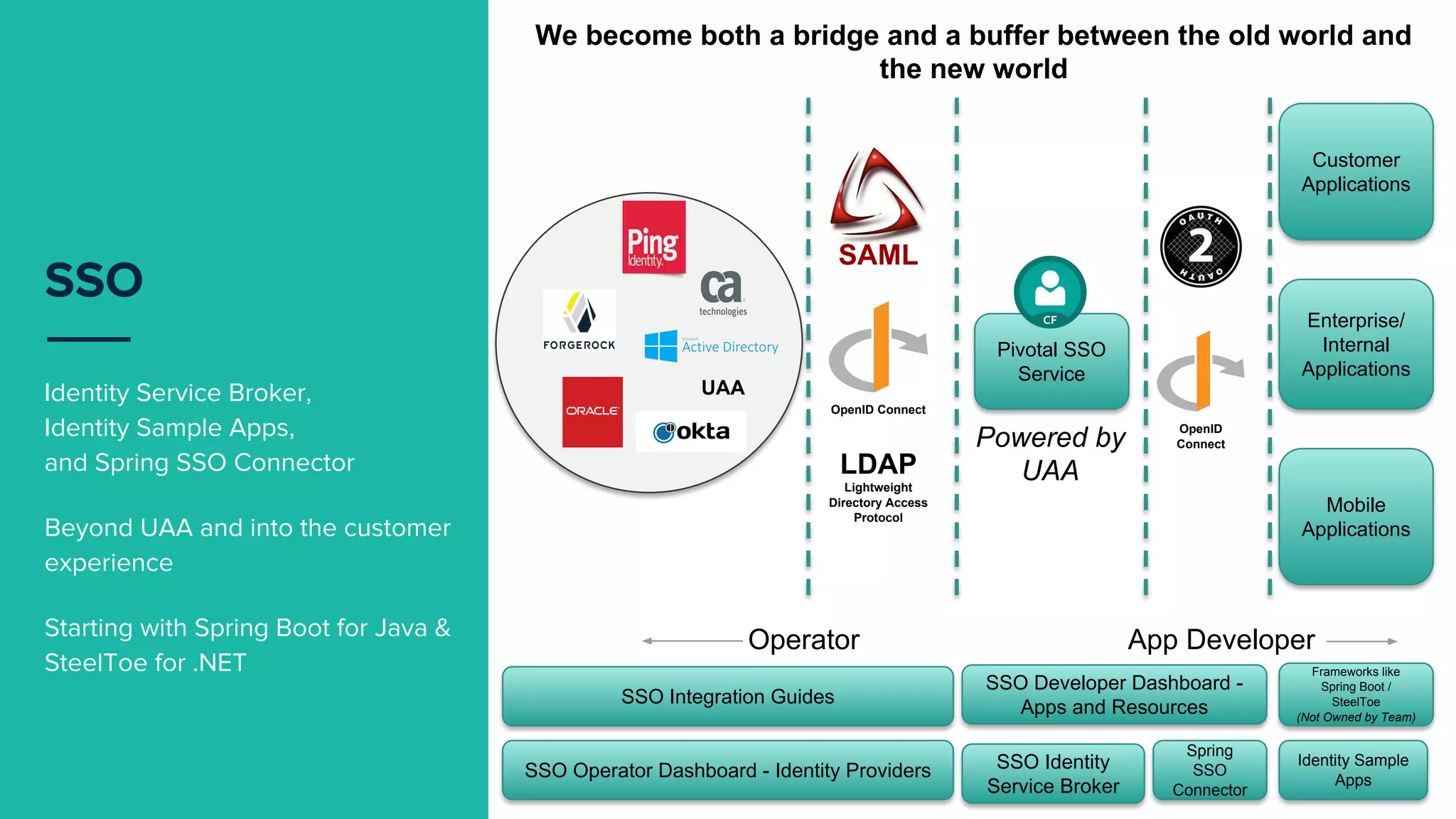

23. Identity Service Broker,
Identity Sample Apps,
and Spring SSO Connector
Beyond UAA and into the customer
experience
Starting with Spring Boot for Java &
SteelToe for .NET
SSO
Pivotal SSO
Service
Customer
Applications
Enterprise/
Internal
Applications
Mobile
Applications
LDAP
Lightweight
Directory Access
Protocol
OpenID
Connect
OpenID Connect
UAA
SAML
SSO Operator Dashboard - Identity Providers
SSO Integration Guides
SSO Identity
Service Broker
Spring
SSO
Connector
Frameworks like
Spring Boot /
SteelToe
(Not Owned by Team)
Identity Sample
Apps
Operator App Developer
We become both a bridge and a buffer between the old world and
the new world
SSO Developer Dashboard -
Apps and Resources
Powered by
UAA

24. Demo
UAA and SSO

25. Credhub
RRR Matey - Rotate, Repave, Repair

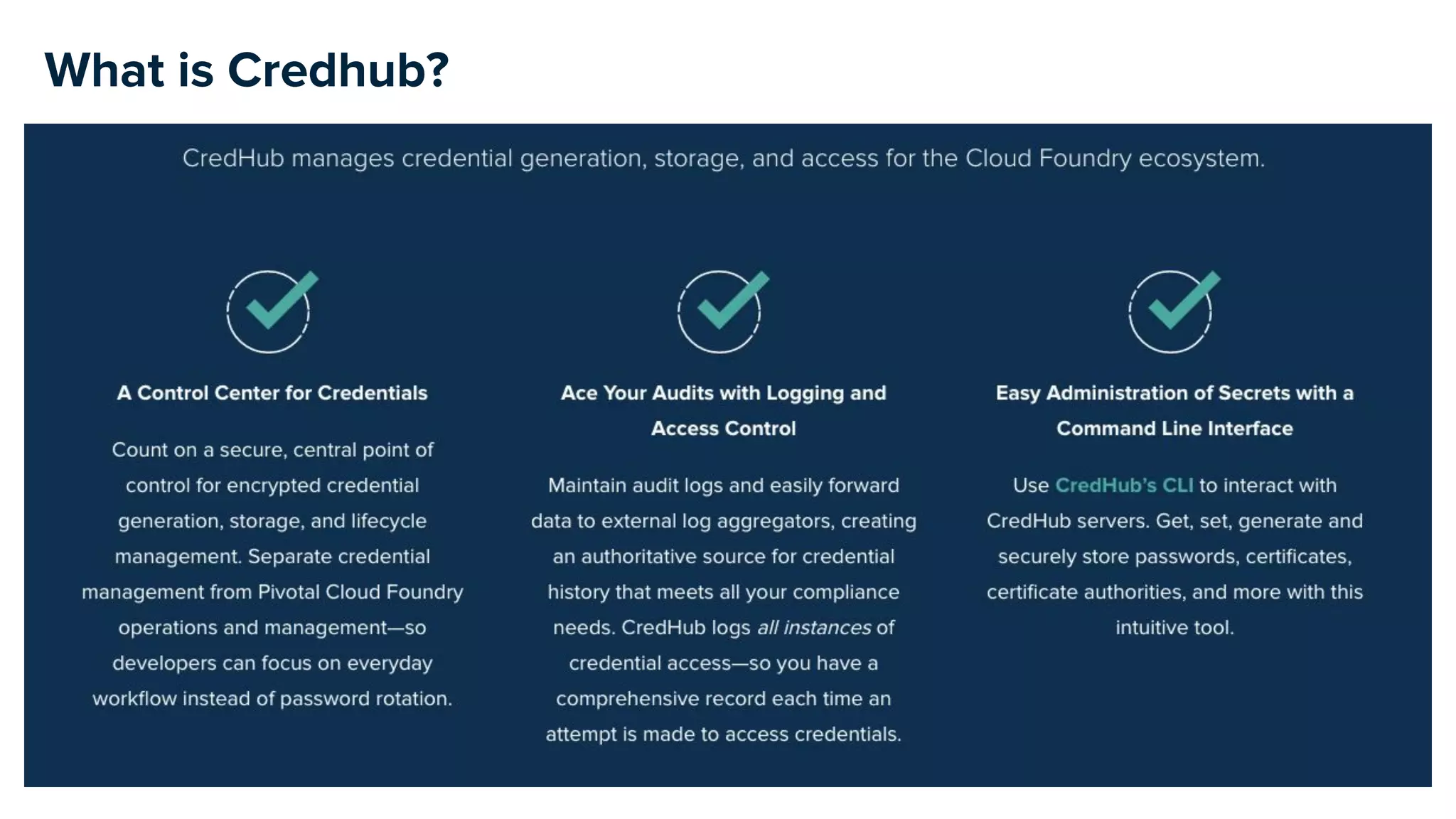

26. What is Credhub?

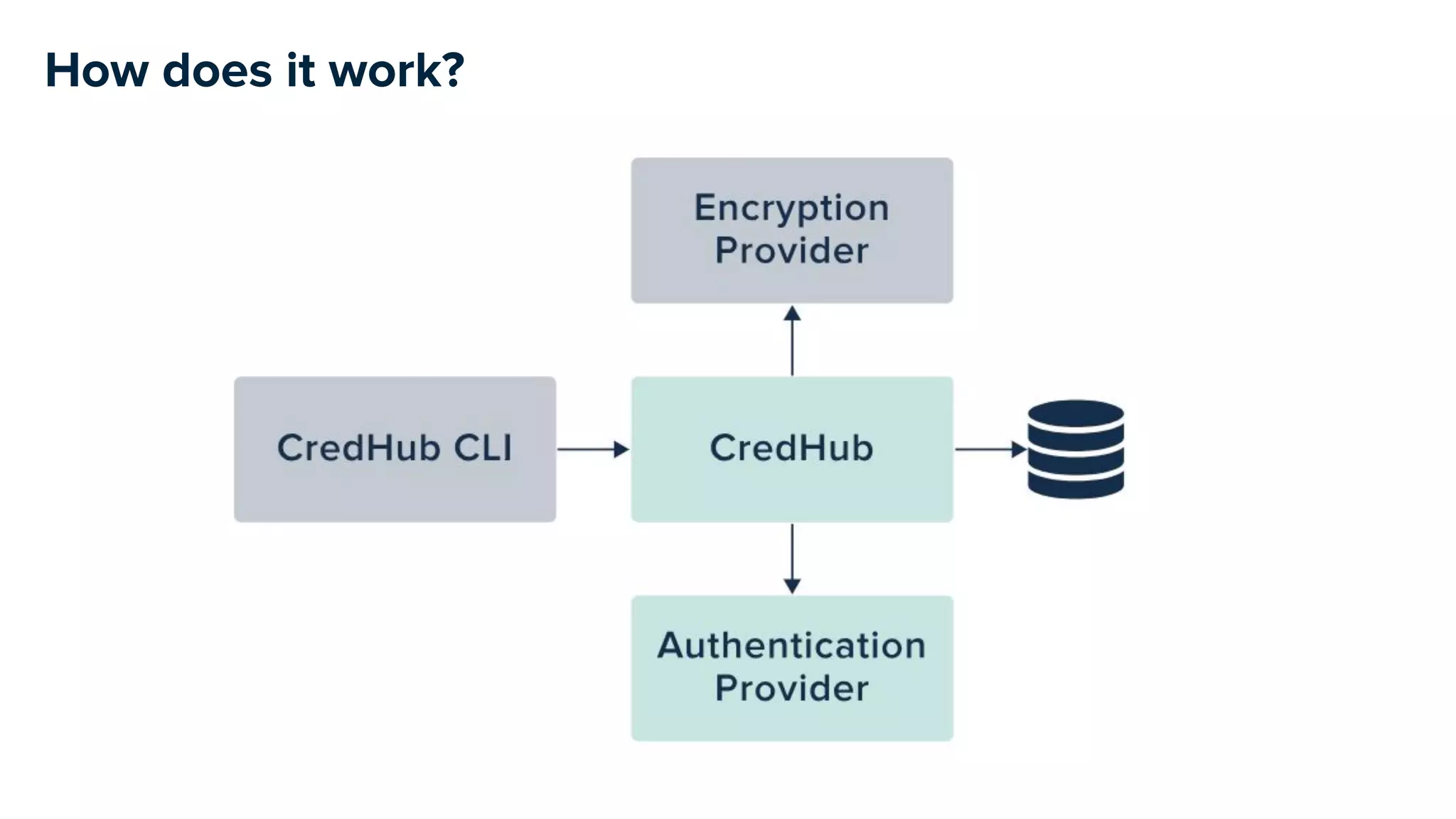

27. How does it work?

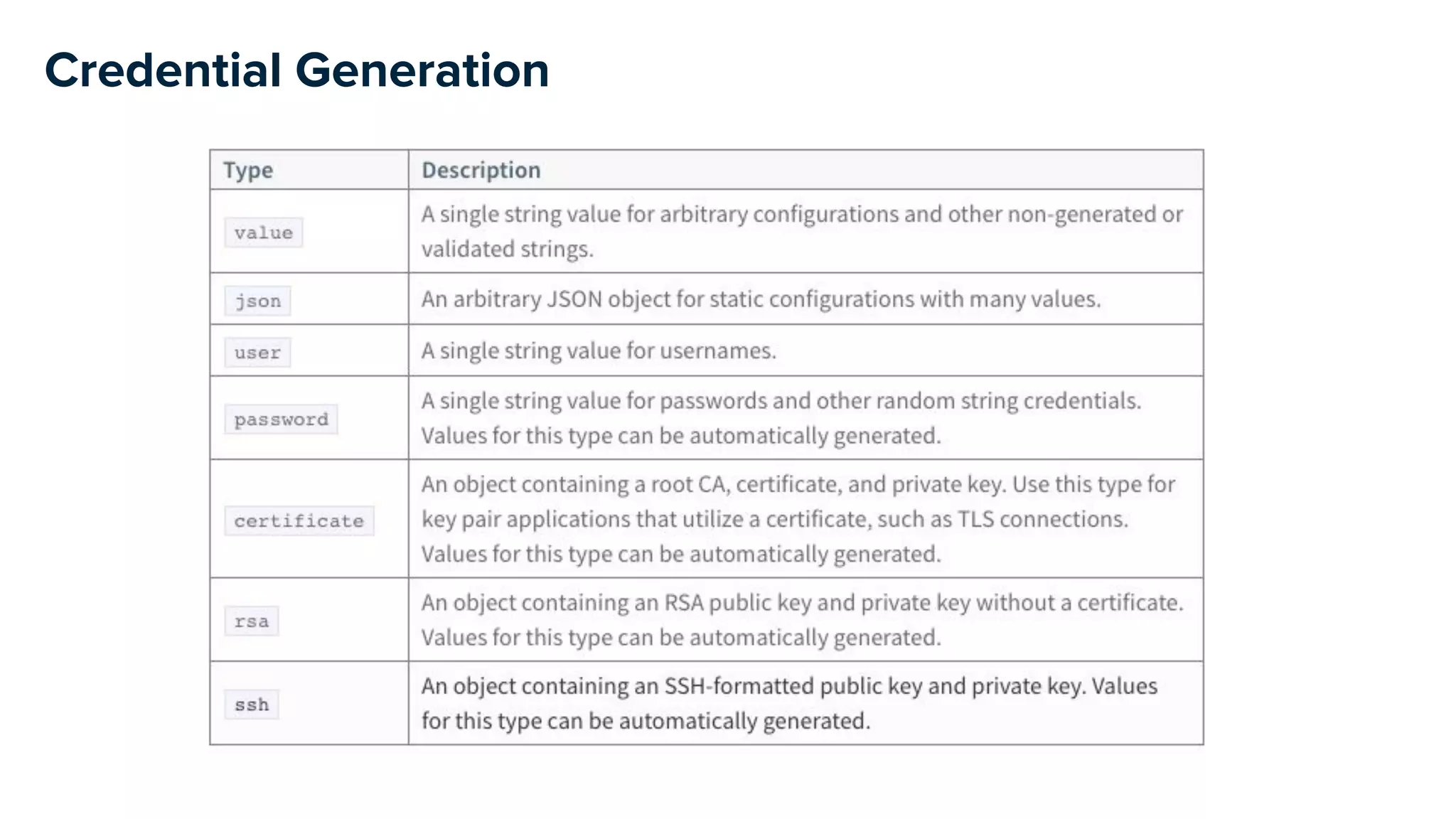

28. Credential Generation

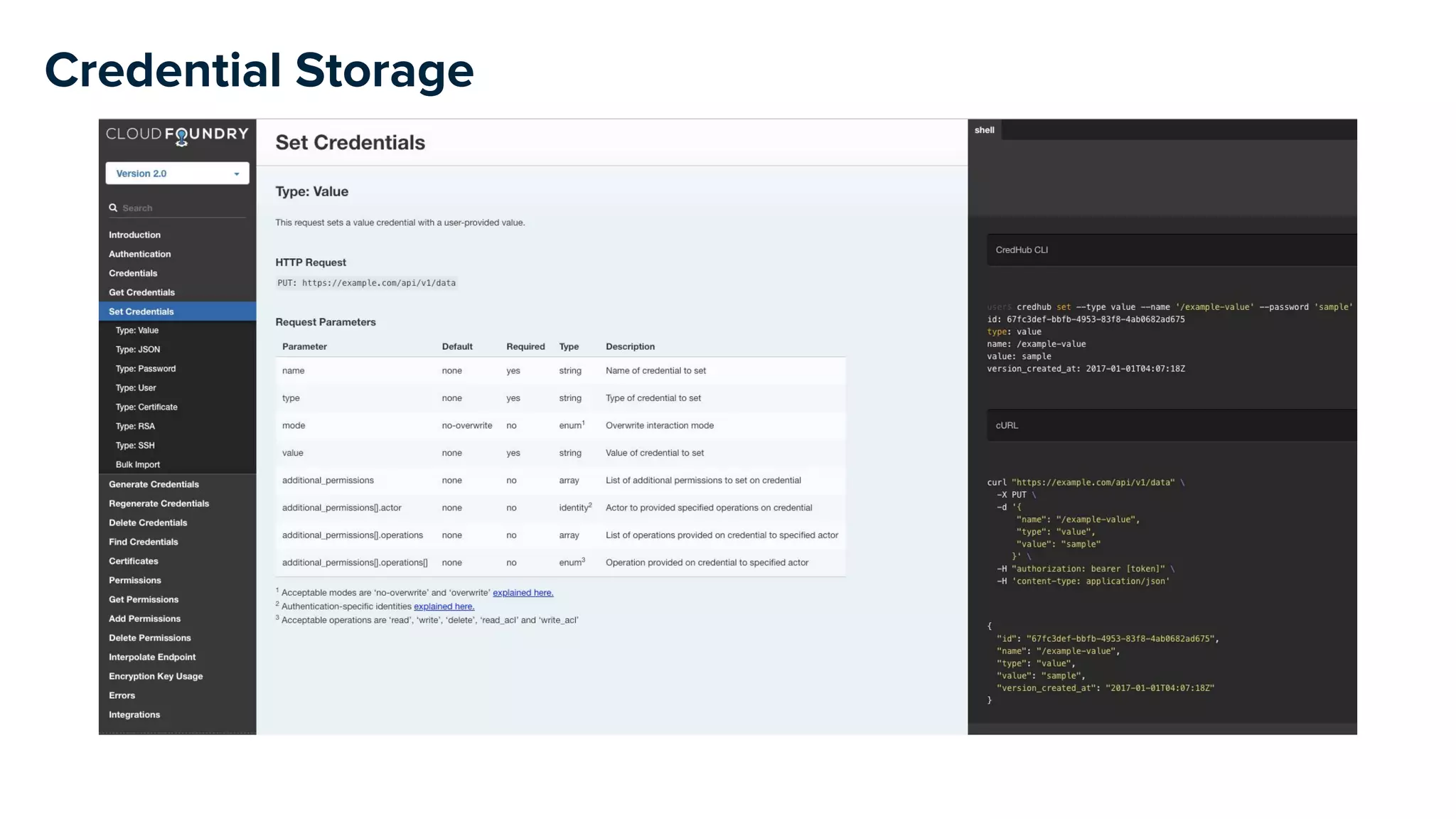

29. Credential Storage

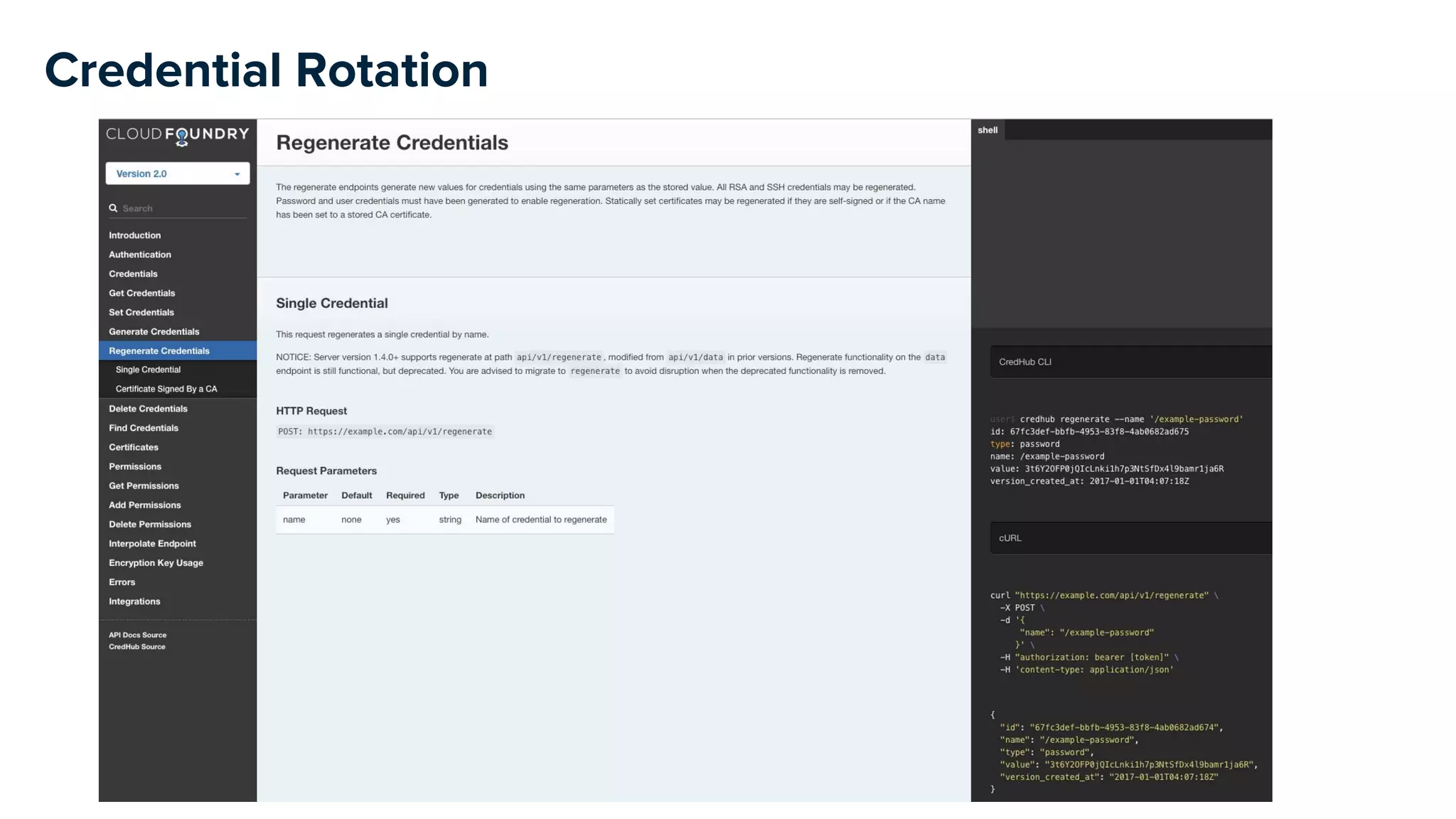

30. Credential Rotation

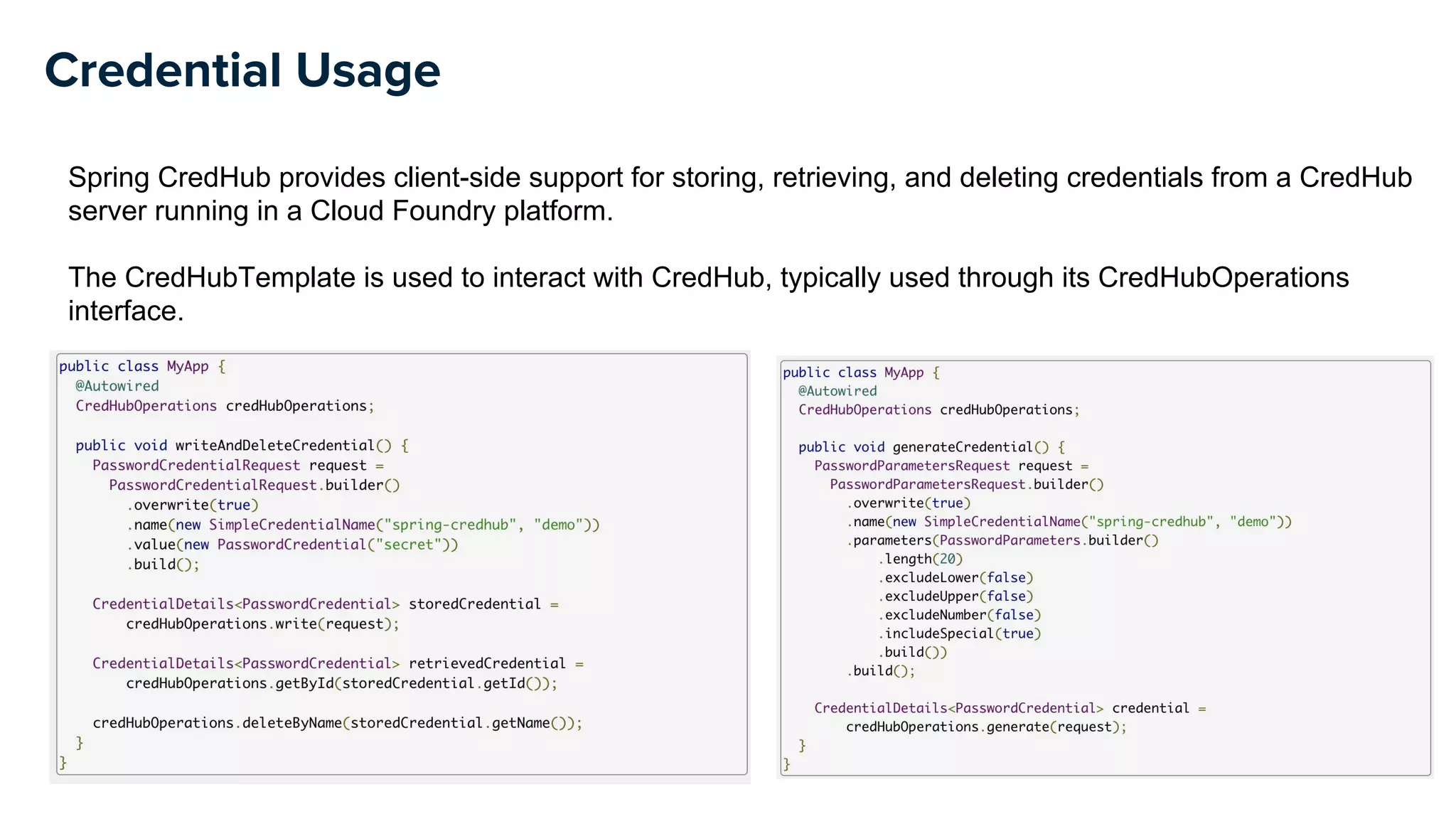

31. Credential Usage
Spring CredHub provides client-side support for storing, retrieving, and deleting credentials from a CredHub
server running in a Cloud Foundry platform.
The CredHubTemplate is used to interact with CredHub, typically used through its CredHubOperations
interface.

32. Demo
Credhub
