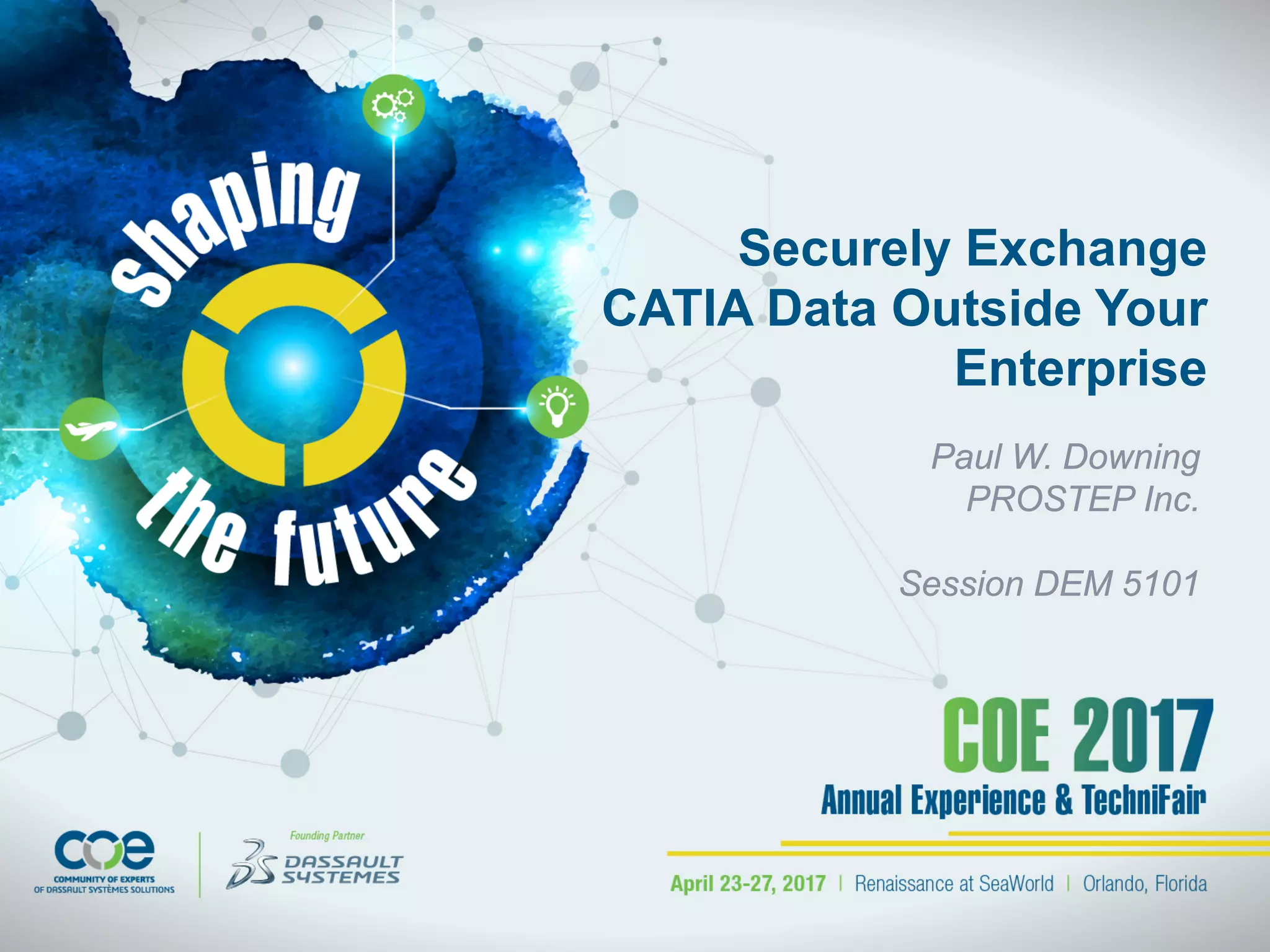

- 1. Securely Exchange CATIA DataOutside Your Enterprise Paul W. Downing PROSTEP Inc. Session DEM 5101

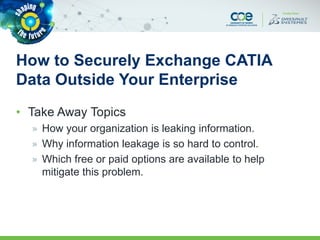

- 2. How to SecurelyExchange CATIA Data Outside Your Enterprise • Take Away Topics » How your organization is leaking information. » Why information leakage is so hard to control. » Which free or paid options are available to help mitigate this problem.

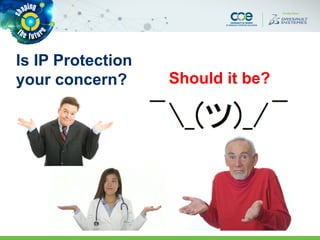

- 3. Is IP Protection yourconcern? Should it be?

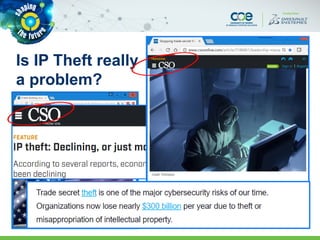

- 4. Is IP Theftreally a problem?

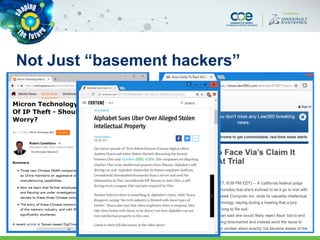

- 5. Not Just “basementhackers”

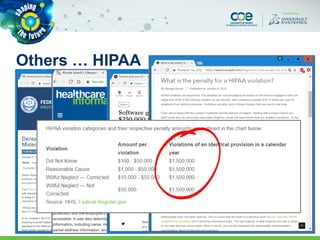

- 6.

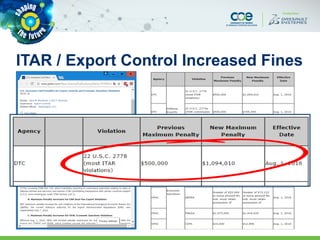

- 7. ITAR / ExportControl Increased Fines

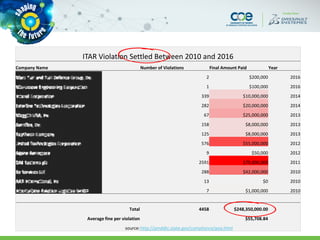

- 8. ITAR Violation SettledBetween 2010 and 2016 Company Name Number of Violations Final Amount Paid Year Marc Turi and Turi Defense Group, Inc. 2 $200,000 2016 Microwave Engineering Corporation 1 $100,000 2016 Intersil Corporation 339 $10,000,000 2014 Esterline Technologies Corporation 282 $20,000,000 2014 Meggitt-USA, Inc. 67 $25,000,000 2013 Aeroflex, Inc. 158 $8,000,000 2013 Raytheon Company 125 $8,000,000 2013 United Technologies Corporation 576 $55,000,000 2012 Alpine Aerospace 9 $50,000 2012 BAE Systems plc 2591 $79,000,000 2011 Xe Services LLC 288 $42,000,000 2010 AAR International, Inc. 13 $0 2010 Interturbine Aviation Logistics GmbH 7 $1,000,000 2010 Total 4458 $248,350,000.00 Average fine per violation $55,708.84 source:http://pmddtc.state.gov/compliance/poa.html
- 9. It’s OK youonly send data securely! Right ?
- 10.
- 11.

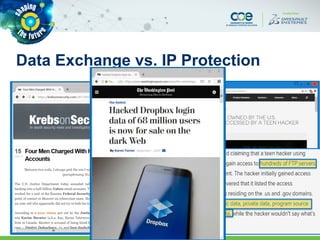

- 12. Data Exchange vs.IP Protection

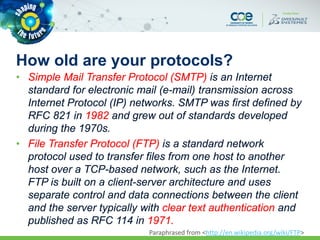

- 13. How old areyour protocols? • Simple Mail Transfer Protocol (SMTP) is an Internet standard for electronic mail (e-mail) transmission across Internet Protocol (IP) networks. SMTP was first defined by RFC 821 in 1982 and grew out of standards developed during the 1970s. • File Transfer Protocol (FTP) is a standard network protocol used to transfer files from one host to another host over a TCP-based network, such as the Internet. FTP is built on a client-server architecture and uses separate control and data connections between the client and the server typically with clear text authentication and published as RFC 114 in 1971. Paraphrased from <http://en.wikipedia.org/wiki/FTP>

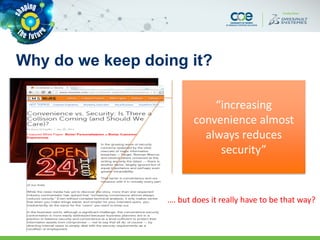

- 14. Why do wekeep doing it? CONVENIENCE! “increasing convenience almost always reduces security” …. but does it really have to be that way?

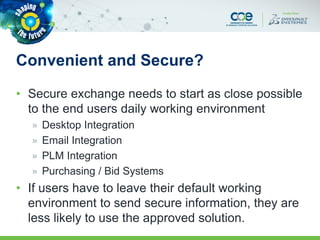

- 15. Convenient and Secure? •Secure exchange needs to start as close possible to the end users daily working environment » Desktop Integration » Email Integration » PLM Integration » Purchasing / Bid Systems • If users have to leave their default working environment to send secure information, they are less likely to use the approved solution.
- 16. Ease of Deploymentvs. Adoption April 2016 BASE MODUL OPTIONS OS Integration Windows "Send to" Web Browser PDM / CAD Integrations Mobile Apps Automated Services Email Integration Alternate Formats (3DPDF, JT,….)

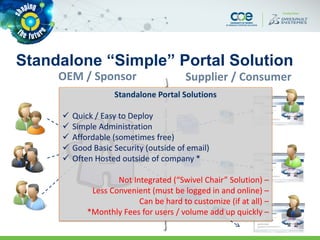

- 17. Standalone “Simple” PortalSolution Supplier / ConsumerOEM / Sponsor Standalone Portal Solutions Quick / Easy to Deploy Simple Administration Affordable (sometimes free) Good Basic Security (outside of email) Often Hosted outside of company * Not Integrated (“Swivel Chair” Solution) – Less Convenient (must be logged in and online) – Can be hard to customize (if at all) – *Monthly Fees for users / volume add up quickly –

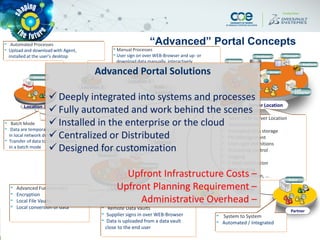

- 18. “Advanced” Portal ConceptsAutomated Processes Upload and download with Agent, installed at the user's desktop Agent Location 2 Database FileVault Server CAD Converter Gateway KeyStore Server Location Main OEM Server Location Authentication Encrypted data storage PKI-Management User right definitions Processing control Logging E-Mail notification Data routing Data conversion, … Gateway Location 3 Batch Mode Data are temporary stored quickly in local network drive Transfer of data to run completely in a batch mode Gateway FileVault CAD Converter Location 4 Advanced Functionality Encryption Local File Vaults Local conversion of data WAN / Internet Manual Processes User sign on over WEB-Browser and up- or download data manually, interactively Location 1 WAN / Internet Robot Partner Internet System to System Automated / Integrated Remote Data Vaults Supplier signs in over WEB-Browser Data is uploaded from a data vault close to the end user Supplier Internet Advanced Portal Solutions Deeply integrated into systems and processes Fully automated and work behind the scenes Installed in the enterprise or the cloud Centralized or Distributed Designed for customization Upfront Infrastructure Costs – Upfront Planning Requirement – Administrative Overhead –

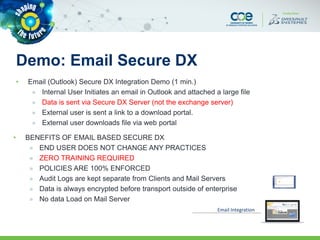

- 19. Demo: Email SecureDX • Email (Outlook) Secure DX Integration Demo (1 min.) » Internal User Initiates an email in Outlook and attached a large file » Data is sent via Secure DX Server (not the exchange server) » External user is sent a link to a download portal. » External user downloads file via web portal Email Integration • BENEFITS OF EMAIL BASED SECURE DX » END USER DOES NOT CHANGE ANY PRACTICES » ZERO TRAINING REQUIRED » POLICIES ARE 100% ENFORCED » Audit Logs are kept separate from Clients and Mail Servers » Data is always encrypted before transport outside of enterprise » No data Load on Mail Server

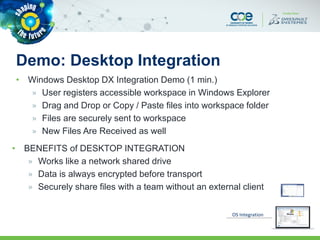

- 20. Demo: Desktop Integration •Windows Desktop DX Integration Demo (1 min.) » User registers accessible workspace in Windows Explorer » Drag and Drop or Copy / Paste files into workspace folder » Files are securely sent to workspace » New Files Are Received as well OS Integration • BENEFITS of DESKTOP INTEGRATION » Works like a network shared drive » Data is always encrypted before transport » Securely share files with a team without an external client
- 21. Demo: Windows “Send-To” •Windows “Send-To” Demo (30 seconds) » User Right Clicks on a File » “Send-To” Secure Portal User • BENEFITS of “Send-To” INTEGRATION » Familiar process for many users » Data is always encrypted before transport » No Extra Apps to Log into (No “Swivel Chair”) Windows "Send to"
- 22. Scaling up Complexitywith back end systems integration and automation • Dealing with Engineering Data (of course) plus » ERP Data » MRP Data » Bids » Financials » More • Centralized Reporting on all confidential Information
- 23.

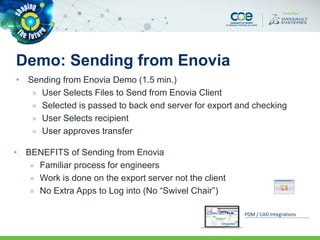

- 24. Demo: Sending fromEnovia • Sending from Enovia Demo (1.5 min.) » User Selects Files to Send from Enovia Client » Selected is passed to back end server for export and checking » User Selects recipient » User approves transfer • BENEFITS of Sending from Enovia » Familiar process for engineers » Work is done on the export server not the client » No Extra Apps to Log into (No “Swivel Chair”) PDM / CAD Integrations

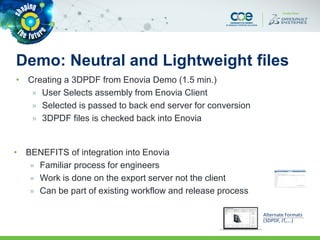

- 25. Demo: Neutral andLightweight files • Creating a 3DPDF from Enovia Demo (1.5 min.) » User Selects assembly from Enovia Client » Selected is passed to back end server for conversion » 3DPDF files is checked back into Enovia • BENEFITS of integration into Enovia » Familiar process for engineers » Work is done on the export server not the client » Can be part of existing workflow and release process Alternate Formats (3DPDF, JT,….)
- 26.
- 27.
- 28.

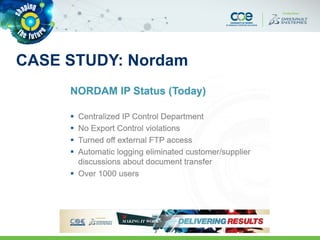

- 29.

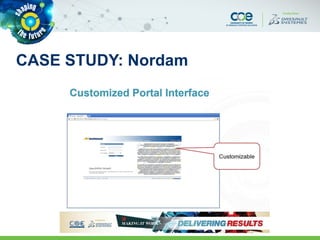

- 30.

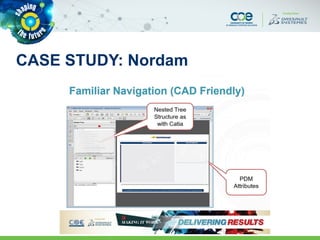

- 31.

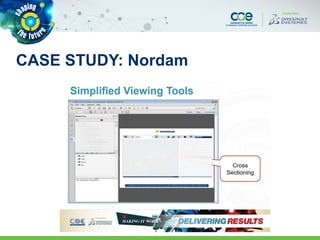

- 32.

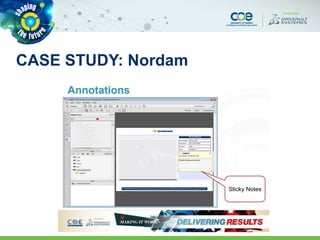

- 33.

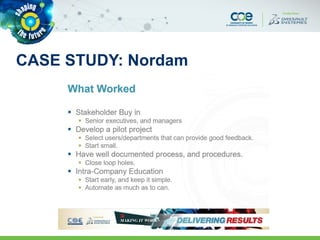

- 34.

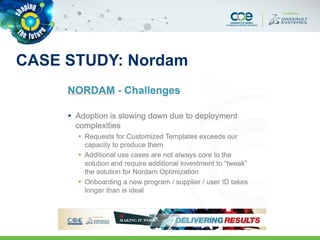

- 35.
- 36. DX Requirements 36 Integration Back-end system integration Communication Statusnotifications for high transparency Data transfer High volume, robust, high performance Security Adjustable security levels Automation Robots and Gateways for transfer automation Flexibility Versatile user interfaces & flexible software Documentation Documentation for users & administrators Processing Process engine for data processing Reports Research, KPI‘s, automated reports Scalability Flexible software & license model

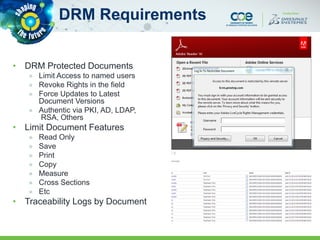

- 37. • DRM ProtectedDocuments » Limit Access to named users » Revoke Rights in the field » Force Updates to Latest Document Versions » Authentic via PKI, AD, LDAP, RSA, Others • Limit Document Features » Read Only » Save » Print » Copy » Measure » Cross Sections » Etc • Traceability Logs by Document DRM Requirements

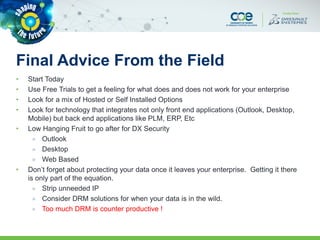

- 38. Final Advice Fromthe Field • Start Today • Use Free Trials to get a feeling for what does and does not work for your enterprise • Look for a mix of Hosted or Self Installed Options • Look for technology that integrates not only front end applications (Outlook, Desktop, Mobile) but back end applications like PLM, ERP, Etc • Low Hanging Fruit to go after for DX Security » Outlook » Desktop » Web Based • Don’t forget about protecting your data once it leaves your enterprise. Getting it there is only part of the equation. » Strip unneeded IP » Consider DRM solutions for when your data is in the wild. » Too much DRM is counter productive !

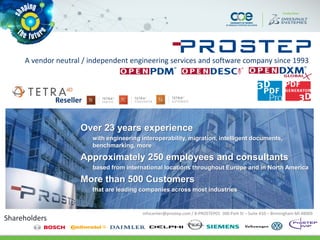

- 39. Shareholders Over 23 yearsexperience with engineering interoperability, migration, intelligent documents, benchmarking, more Approximately 250 employees and consultants based from international locations throughout Europe and in North America More than 500 Customers that are leading companies across most industries A vendor neutral / independent engineering services and software company since 1993 infocenter@prostep.com / 8-PROSTEP01 300 Park St – Suite 410 – Birmingham MI 48009 Reseller
