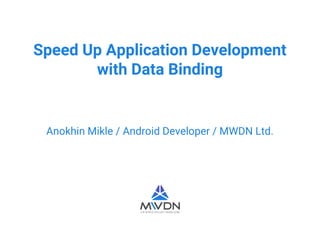

1. Speed Up Application Development
with Data Binding
Anokhin Mikle / Android Developer / MWDN Ltd.

2. First Part: Introduction

3. How to start (Java)
android {
buildToolsVersion "24.0.1"
dataBinding {
enabled = true
}
}
buildscript {
repositories {
jcenter()
}
dependencies {
classpath 'com.android.tools.build:gradle:2.1.2'
}
}
3

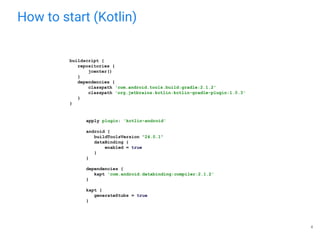

4. How to start (Kotlin)
apply plugin: 'kotlin-android'
android {
buildToolsVersion "24.0.1"
dataBinding {
enabled = true
}
}
dependencies {
kapt 'com.android.databinding:compiler:2.1.2'
}
kapt {
generateStubs = true
}
buildscript {
repositories {
jcenter()
}
dependencies {
classpath 'com.android.tools.build:gradle:2.1.2'
classpath 'org.jetbrains.kotlin:kotlin-gradle-plugin:1.0.3'
}
}
4

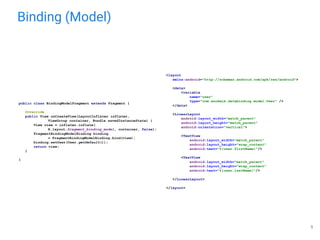

5. Binding (Model)
<layout
xmlns:android="http://schemas.android.com/apk/res/android">
<data>
<variable
name="user"
type="com.anokmik.databinding.model.User" />
</data>
<LinearLayout
android:layout_width="match_parent"
android:layout_height="match_parent"
android:orientation="vertical">
<TextView
android:layout_width="match_parent"
android:layout_height="wrap_content"
android:text="@{user.firstName}"/>
<TextView
android:layout_width="match_parent"
android:layout_height="wrap_content"
android:text="@{user.lastName}"/>
</LinearLayout>
</layout>
public class BindingModelFragment extends Fragment {
@Override
public View onCreateView(LayoutInflater inflater,
ViewGroup container, Bundle savedInstanceState) {
View view = inflater.inflate(
R.layout.fragment_binding_model, container, false);
FragmentBindingModelBinding binding
= FragmentBindingModelBinding.bind(view);
binding.setUser(User.getDefault());
return view;
}
}
5

6. Data Binding doesn’t handle view state
so you should specify id for such views as usual

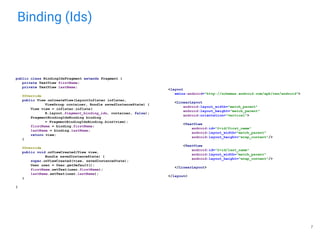

7. Binding (Ids)
public class BindingIdsFragment extends Fragment {
private TextView firstName;
private TextView lastName;
@Override
public View onCreateView(LayoutInflater inflater,
ViewGroup container, Bundle savedInstanceState) {
View view = inflater.inflate(
R.layout.fragment_binding_ids, container, false);
FragmentBindingIdsBinding binding
= FragmentBindingIdsBinding.bind(view);
firstName = binding.firstName;
lastName = binding.lastName;
return view;
}
@Override
public void onViewCreated(View view,
Bundle savedInstanceState) {
super.onViewCreated(view, savedInstanceState);
User user = User.getDefault();
firstName.setText(user.firstName);
lastName.setText(user.lastName);
}
}
<layout
xmlns:android="http://schemas.android.com/apk/res/android">
<LinearLayout
android:layout_width="match_parent"
android:layout_height="match_parent"
android:orientation="vertical">
<TextView
android:id="@+id/first_name"
android:layout_width="match_parent"
android:layout_height="wrap_content"/>
<TextView
android:id="@+id/last_name"
android:layout_width="match_parent"
android:layout_height="wrap_content"/>
</LinearLayout>
</layout>
7

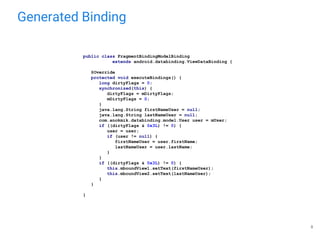

8. Generated Binding
8
public class FragmentBindingModelBinding
extends android.databinding.ViewDataBinding {
@Override
protected void executeBindings() {
long dirtyFlags = 0;
synchronized(this) {
dirtyFlags = mDirtyFlags;
mDirtyFlags = 0;
}
java.lang.String firstNameUser = null;
java.lang.String lastNameUser = null;
com.anokmik.databinding.model.User user = mUser;
if ((dirtyFlags & 0x3L) != 0) {
user = user;
if (user != null) {
firstNameUser = user.firstName;
lastNameUser = user.lastName;
}
}
if ((dirtyFlags & 0x3L) != 0) {
this.mboundView1.setText(firstNameUser);
this.mboundView2.setText(lastNameUser);
}
}
}

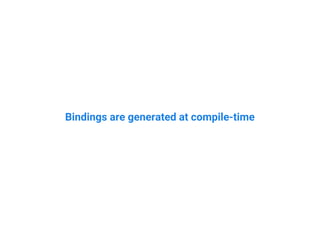

9. Bindings are generated at compile-time

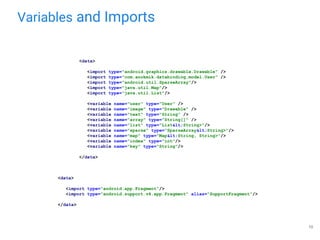

10. Variables and Imports
<data>
<import type="android.graphics.drawable.Drawable" />
<import type="com.anokmik.databinding.model.User" />
<import type="android.util.SparseArray"/>
<import type="java.util.Map"/>
<import type="java.util.List"/>
<variable name="user" type="User" />
<variable name="image" type="Drawable" />
<variable name="text" type="String" />
<variable name="array" type="String[]" />
<variable name="list" type="List&lt;String>"/>
<variable name="sparse" type="SparseArray&lt;String>"/>
<variable name="map" type="Map&lt;String, String>"/>
<variable name="index" type="int"/>
<variable name="key" type="String"/>
</data>
<data>
<import type="android.app.Fragment"/>
<import type="android.support.v4.app.Fragment" alias="SupportFragment"/>
</data>
10

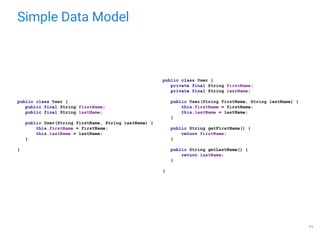

11. Simple Data Model
public class User {
private final String firstName;
private final String lastName;
public User(String firstName, String lastName) {
this.firstName = firstName;
this.lastName = lastName;
}
public String getFirstName() {
return firstName;
}
public String getLastName() {
return lastName;
}
}
public class User {
public final String firstName;
public final String lastName;
public User(String firstName, String lastName) {
this.firstName = firstName;
this.lastName = lastName;
}
}
11

12. Observable Data Model
public class NotifyGreeting extends BaseObservable {
private String name;
@Bindable
public String getName() {
return name;
}
public void setName(String name) {
this.name = name;
notifyPropertyChanged(BR.name);
}
}
public class ObservableGreeting {
public ObservableString name
= new ObservableString();
}
12

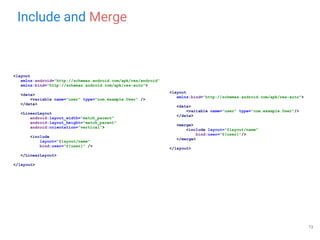

13. Include and Merge
<layout
xmlns:android="http://schemas.android.com/apk/res/android"
xmlns:bind="http://schemas.android.com/apk/res-auto">
<data>
<variable name="user" type="com.example.User" />
</data>
<LinearLayout
android:layout_width="match_parent"
android:layout_height="match_parent"
android:orientation="vertical">
<include
layout="@layout/name"
bind:user="@{user}" />
</LinearLayout>
</layout>
<layout
xmlns:bind="http://schemas.android.com/apk/res-auto">
<data>
<variable name="user" type="com.example.User"/>
</data>
<merge>
<include layout="@layout/name"
bind:user="@{user}"/>
</merge>
</layout>
13

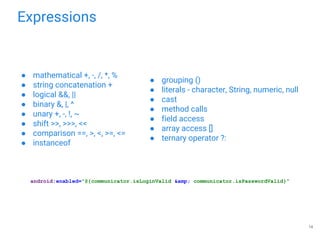

14. Expressions
● mathematical +, -, /, *, %
● string concatenation +
● logical &&, ||
● binary &, |, ^
● unary +, -, !, ~
● shift >>, >>>, <<
● comparison ==, >, <, >=, <=
● instanceof
● grouping ()
● literals - character, String, numeric, null
● cast
● method calls
● field access
● array access []
● ternary operator ?:
android:enabled="@{communicator.isLoginValid &amp; communicator.isPasswordValid}"
14

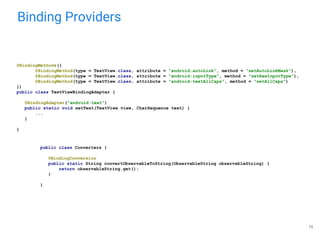

15. Binding Providers
15
@BindingMethods({
@BindingMethod(type = TextView.class, attribute = "android:autoLink", method = "setAutoLinkMask"),
@BindingMethod(type = TextView.class, attribute = "android:inputType", method = "setRawInputType"),
@BindingMethod(type = TextView.class, attribute = "android:textAllCaps", method = "setAllCaps")
})
public class TextViewBindingAdapter {
@BindingAdapter("android:text")
public static void setText(TextView view, CharSequence text) {
...
}
}
public class Converters {
@BindingConversion
public static String convertObservableToString(ObservableString observableString) {
return observableString.get();
}
}

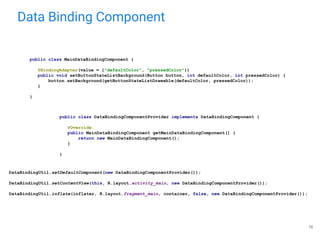

16. Data Binding Component
16
public class MainDataBindingComponent {
@BindingAdapter(value = {"defaultColor", "pressedColor"})
public void setButtonStateListBackground(Button button, int defaultColor, int pressedColor) {
button.setBackground(getButtonStateListDrawable(defaultColor, pressedColor));
}
}
public class DataBindingComponentProvider implements DataBindingComponent {
@Override
public MainDataBindingComponent getMainDataBindingComponent() {
return new MainDataBindingComponent();
}
}
DataBindingUtil.setDefaultComponent(new DataBindingComponentProvider());
DataBindingUtil.setContentView(this, R.layout.activity_main, new DataBindingComponentProvider());
DataBindingUtil.inflate(inflater, R.layout.fragment_main, container, false, new DataBindingComponentProvider());

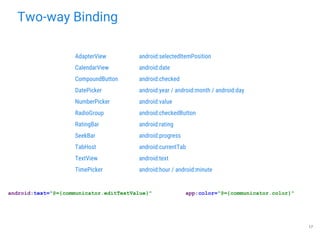

17. Two-way Binding
17
android:text="@={communicator.editTextValue}"
AdapterView android:selectedItemPosition
CalendarView android:date
CompoundButton android:checked
DatePicker android:year / android:month / android:day
NumberPicker android:value
RadioGroup android:checkedButton
RatingBar android:rating
SeekBar android:progress
TabHost android:currentTab
TextView android:text
TimePicker android:hour / android:minute
app:color="@={communicator.color}"

18. Two-way binding requires getters and setters for fields

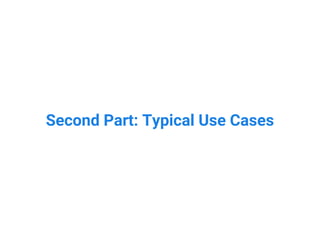

19. Second Part: Typical Use Cases

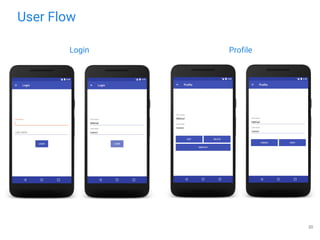

20. User Flow
20
Login Profile

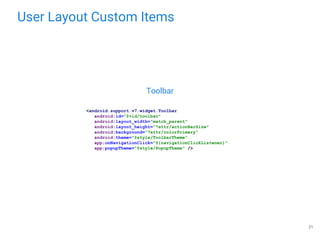

21. User Layout Custom Items
21
Toolbar
<android.support.v7.widget.Toolbar
android:id="@+id/toolbar"
android:layout_width="match_parent"
android:layout_height="?attr/actionBarSize"
android:background="?attr/colorPrimary"
android:theme="@style/ToolbarTheme"
app:onNavigationClick="@{navigationClickListener}"
app:popupTheme="@style/PopupTheme" />

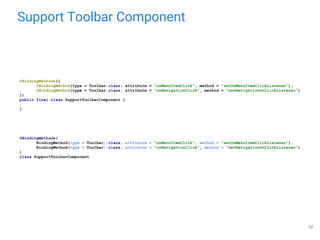

22. Support Toolbar Component
22
@BindingMethods({
@BindingMethod(type = Toolbar.class, attribute = "onMenuItemClick", method = "setOnMenuItemClickListener"),
@BindingMethod(type = Toolbar.class, attribute = "onNavigationClick", method = "setNavigationOnClickListener")
})
public final class SupportToolbarComponent {
}
@BindingMethods(
BindingMethod(type = Toolbar::class, attribute = "onMenuItemClick", method = "setOnMenuItemClickListener"),
BindingMethod(type = Toolbar::class, attribute = "onNavigationClick", method = "setNavigationOnClickListener")
)
class SupportToolbarComponent

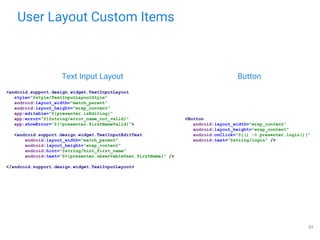

23. User Layout Custom Items
23
Text Input Layout Button
<Button
android:layout_width="wrap_content"
android:layout_height="wrap_content"
android:onClick="@{() -> presenter.login()}"
android:text="@string/login" />
<android.support.design.widget.TextInputLayout
style="@style/TextInputLayoutStyle"
android:layout_width="match_parent"
android:layout_height="wrap_content"
app:editable="@{presenter.isEditing}"
app:error="@{@string/error_name_not_valid}"
app:showError="@{!presenter.firstNameValid}">
<android.support.design.widget.TextInputEditText
android:layout_width="match_parent"
android:layout_height="wrap_content"
android:hint="@string/hint_first_name"
android:text="@={presenter.observableUser.firstName}" />
</android.support.design.widget.TextInputLayout>

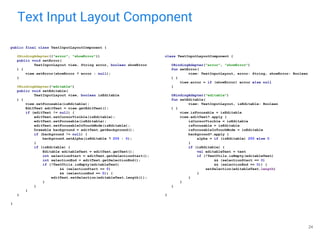

24. Text Input Layout Component
24
public final class TextInputLayoutComponent {
@BindingAdapter({"error", "showError"})
public void setError(
TextInputLayout view, String error, boolean showError
) {
view.setError(showError ? error : null);
}
@BindingAdapter("editable")
public void setEditable(
TextInputLayout view, boolean isEditable
) {
view.setFocusable(isEditable);
EditText editText = view.getEditText();
if (editText != null) {
editText.setCursorVisible(isEditable);
editText.setFocusable(isEditable);
editText.setFocusableInTouchMode(isEditable);
Drawable background = editText.getBackground();
if (background != null) {
background.setAlpha(isEditable ? 255 : 0);
}
if (isEditable) {
Editable editableText = editText.getText();
int selectionStart = editText.getSelectionStart();
int selectionEnd = editText.getSelectionEnd();
if (!TextUtils.isEmpty(editableText)
&& (selectionStart == 0)
&& (selectionEnd == 0)) {
editText.setSelection(editableText.length());
}
}
}
}
}
class TextInputLayoutComponent {
@BindingAdapter("error", "showError")
fun setError(
view: TextInputLayout, error: String, showError: Boolean
) {
view.error = if (showError) error else null
}
@BindingAdapter("editable")
fun setEditable(
view: TextInputLayout, isEditable: Boolean
) {
view.isFocusable = isEditable
view.editText?.apply {
isCursorVisible = isEditable
isFocusable = isEditable
isFocusableInTouchMode = isEditable
background?.apply {
alpha = if (isEditable) 255 else 0
}
if (isEditable) {
val editableText = text
if (!TextUtils.isEmpty(editableText)
&& (selectionStart == 0)
&& (selectionEnd == 0)) {
setSelection(editableText.length)
}
}
}
}
}

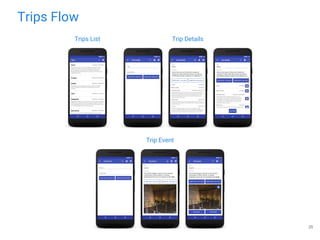

25. Trips Flow
25
Trips List
Trip Event
Trip Details

26. Trips Layout Custom Items
26
Recycler View
<android.support.v7.widget.RecyclerView
android:layout_width="match_parent"
android:layout_height="match_parent"
android:clipToPadding="false"
android:padding="@dimen/fragment_padding"
app:decoration="@{decoration}"
app:items="@{presenter.trips}"
app:layoutManager="@{layoutManager}"
app:viewHolderPresenter="@{presenter.viewHolderPresenter}" />
<TextView
android:layout_width="0dp"
android:layout_height="wrap_content"
android:layout_weight="1"
android:text="@{trip.title}"
android:textColor="@color/material_dark_primary_text_color"
android:textSize="@dimen/title_text_size"
android:textStyle="bold" />
<TextView
android:layout_width="wrap_content"
android:layout_height="wrap_content"
android:text="@{DateUtils.format(trip.startDate, trip.finishDate)}"
android:textColor="@color/material_dark_secondary_text_color"
android:textSize="@dimen/caption_text_size"
android:textStyle="bold" />
TextView (Title) TextView (Dates)

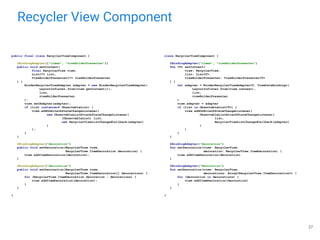

27. Recycler View Component
27
public final class RecyclerViewComponent {
@BindingAdapter({"items", "viewHolderPresenter"})
public void setContent(
final RecyclerView view,
List<?> list,
ViewHolderPresenter<?> viewHolderPresenter
) {
BinderRecyclerViewAdapter adapter = new BinderRecyclerViewAdapter(
LayoutInflater.from(view.getContext()),
list,
viewHolderPresenter
);
view.setAdapter(adapter);
if (list instanceof ObservableList) {
view.addOnAttachStateChangeListener(
new ObservableListAttachStateChangeListener(
(ObservableList) list,
new RecyclerViewListChangedCallback(adapter)
)
);
}
}
@BindingAdapter("decoration")
public void setDecoration(RecyclerView view,
RecyclerView.ItemDecoration decoration) {
view.addItemDecoration(decoration);
}
@BindingAdapter("decoration")
public void setDecoration(RecyclerView view,
RecyclerView.ItemDecoration[] decorations) {
for (RecyclerView.ItemDecoration decoration : decorations) {
view.addItemDecoration(decoration);
}
}
}
class RecyclerViewComponent {
@BindingAdapter("items", "viewHolderPresenter")
fun <T> setContent(
view: RecyclerView,
list: List<T>,
viewHolderPresenter: ViewHolderPresenter<T>
) {
val adapter = BinderRecyclerViewAdapter<T, ViewDataBinding>(
LayoutInflater.from(view.context),
list,
viewHolderPresenter
)
view.adapter = adapter
if (list is ObservableList<T>) {
view.addOnAttachStateChangeListener(
ObservableListAttachStateChangeListener(
list,
RecyclerViewListChangedCallback(adapter)
)
)
}
}
@BindingAdapter("decoration")
fun setDecoration(view: RecyclerView,
decoration: RecyclerView.ItemDecoration) {
view.addItemDecoration(decoration)
}
@BindingAdapter("decoration")
fun setDecoration(view: RecyclerView,
decorations: Array<RecyclerView.ItemDecoration>) {
for (decoration in decorations) {
view.addItemDecoration(decoration)
}
}
}

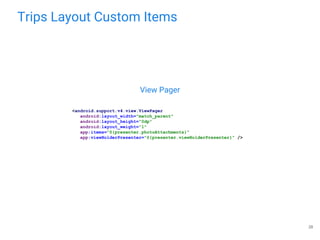

28. Trips Layout Custom Items
28
View Pager
<android.support.v4.view.ViewPager
android:layout_width="match_parent"
android:layout_height="0dp"
android:layout_weight="1"
app:items="@{presenter.photoAttachments}"
app:viewHolderPresenter="@{presenter.viewHolderPresenter}" />

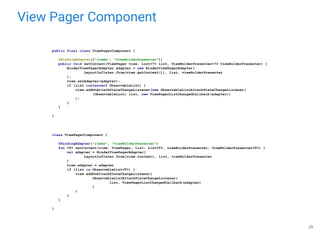

29. View Pager Component
29
class ViewPagerComponent {
@BindingAdapter("items", "viewHolderPresenter")
fun <T> setContent(view: ViewPager, list: List<T>, viewHolderPresenter: ViewHolderPresenter<T>) {
val adapter = BinderViewPagerAdapter(
LayoutInflater.from(view.context), list, viewHolderPresenter
)
view.adapter = adapter
if (list is ObservableList<T>) {
view.addOnAttachStateChangeListener(
ObservableListAttachStateChangeListener(
list, ViewPagerListChangedCallback(adapter)
)
)
}
}
}
public final class ViewPagerComponent {
@BindingAdapter({"items", "viewHolderPresenter"})
public void setContent(ViewPager view, List<?> list, ViewHolderPresenter<?> viewHolderPresenter) {
BinderViewPagerAdapter adapter = new BinderViewPagerAdapter(
LayoutInflater.from(view.getContext()), list, viewHolderPresenter
);
view.setAdapter(adapter);
if (list instanceof ObservableList) {
view.addOnAttachStateChangeListener(new ObservableListAttachStateChangeListener(
(ObservableList) list, new ViewPagerListChangedCallback(adapter))
);
}
}
}

30. Image View Component
30
class ImageViewComponent {
@BindingAdapter("android:src")
fun loadImage(view: ImageView, imageUrl: String) {
Picasso.with(view.context).load(imageUrl).into(view)
}
}
public final class ImageViewComponent {
@BindingAdapter("android:src")
public void loadImage(ImageView view, String imageUrl) {
Picasso.with(view.getContext()).load(imageUrl).into(view);
}
}

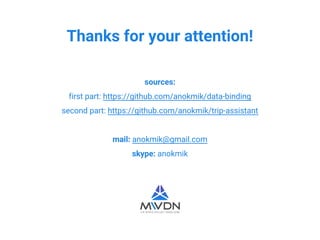

31. Thanks for your attention!
sources:
first part: https://github.com/anokmik/data-binding
second part: https://github.com/anokmik/trip-assistant
mail: anokmik@gmail.com
skype: anokmik

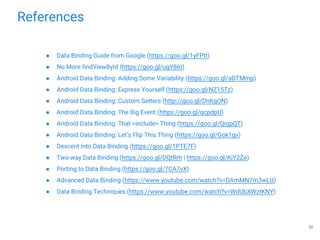

32. References
● Data Binding Guide from Google (https://goo.gl/1yFPtt)
● No More findViewById (https://goo.gl/ugV86t)
● Android Data Binding: Adding Some Variability (https://goo.gl/aDTMmp)
● Android Data Binding: Express Yourself (https://goo.gl/NZ15Tz)
● Android Data Binding: Custom Setters (http://goo.gl/DnKgON)
● Android Data Binding: The Big Event (https://goo.gl/qcpdpU)
● Android Data Binding: That <include> Thing (https://goo.gl/QiqpQT)
● Android Data Binding: Let’s Flip This Thing (https://goo.gl/Gok1gv)
● Descent into Data Binding (https://goo.gl/1PTE7F)
● Two-way Data Binding (https://goo.gl/DQtRrh | https://goo.gl/KjY2Ze)
● Porting to Data Binding (https://goo.gl/7CA7vX)
● Advanced Data Binding (https://www.youtube.com/watch?v=DAmMN7m3wLU)
● Data Binding Techniques (https://www.youtube.com/watch?v=WdUbXWztKNY)
32

33. Q&A
