Data Binding in Action using MVVM pattern

Android Data Binding in action
using MVVM pattern
Fabio Collini

2
Ego slide
@fabioCollini
linkedin.com/in/fabiocollini
github.com/fabioCollini
medium.com/@fabioCollini
codingjam.it

3
Agenda
1. Data Binding basics
2. Custom attributes
3. Components
4. Two Way Data Binding
5. Model View ViewModel

5

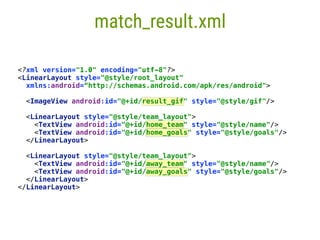

match_result.xml
<?xml version="1.0" encoding="utf-8"?> 
<LinearLayout style="@style/root_layout" 
xmlns:android=“http://schemas.android.com/apk/res/android">
 
<ImageView android:id="@+id/result_gif" style="@style/gif"/> 
 
<LinearLayout style="@style/team_layout"> 
<TextView android:id="@+id/home_team" style="@style/name"/> 
<TextView android:id="@+id/home_goals" style="@style/goals"/> 
</LinearLayout> 
 
<TextView android:id="@+id/away_team" style="@style/name"/> 
<TextView android:id="@+id/away_goals" style="@style/goals"/> 
</LinearLayout> 
</LinearLayout>

6

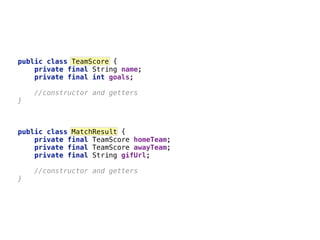

public class TeamScore { 
private final String name; 
private final int goals;
//constructor and getters 
}
public class MatchResult { 
private final TeamScore homeTeam; 
private final TeamScore awayTeam; 
private final String gifUrl;
//constructor and getters 
}

7
Butterknife Activity
@Bind(R.id.result_gif) ImageView resultGif; 
@Bind(R.id.home_team) TextView homeTeam; 
@Bind(R.id.away_team) TextView awayTeam; 
@Bind(R.id.home_goals) TextView homeGoals; 
@Bind(R.id.away_goals) TextView awayGoals; 
 
@Override protected void onCreate(Bundle savedInstanceState) { 
super.onCreate(savedInstanceState); 
setContentView(R.layout.match_result); 
ButterKnife.bind(this); 
updateDetail(getIntent().getParcelableExtra("RESULT")); 
} 
private void updateDetail(MatchResult result) { 
Glide.with(this).load(result.getGifUrl()) 
.placeholder(R.drawable.loading).into(resultGif); 
if (result.getHomeTeam() != null) { 
homeTeam.setText(result.getHomeTeam().getName()); 
homeGoals.setText(Integer.toString(result.getHomeTeam().getGoals())); 
} 
if (result.getAwayTeam() != null) { 
awayTeam.setText(result.getAwayTeam().getName()); 
awayGoals.setText(Integer.toString(result.getAwayTeam().getGoals())); 
} 
}

DroidCon Italy - Torino - April 2016 - @fabioCollini 8
1Data Binding basics

10

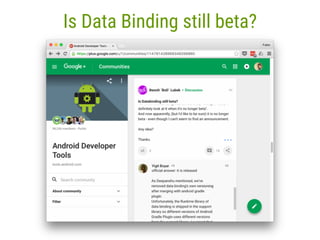

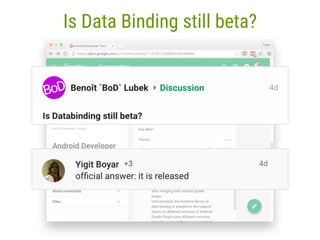

Is Data Binding still beta?

11
Is Data Binding still beta?

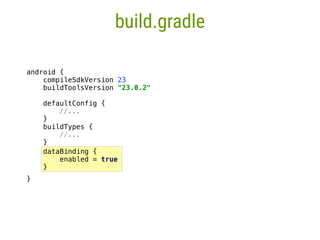

dataBinding { 
enabled = true 
} 
12
build.gradle
android { 
compileSdkVersion 23 
buildToolsVersion "23.0.2" 
 
defaultConfig { 
//... 
____} 
buildTypes { 
//... 
____}
}

<layout> 
<LinearLayout style=“@style/root_layout"
xmlns:android="http://schemas.android.com/apk/res/android"> 
 
 
</LinearLayout> 
 
</LinearLayout> 
</LinearLayout> 
</layout>
13

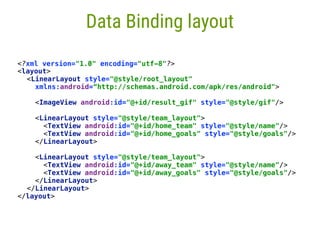

Data Binding layout
 
 
</LinearLayout> 
 
</LinearLayout> 
</LinearLayout>
<?xml version="1.0" encoding="utf-8"?>
<layout>
</layout>

 
 
</LinearLayout> 
 
</LinearLayout> 
</LinearLayout>
14

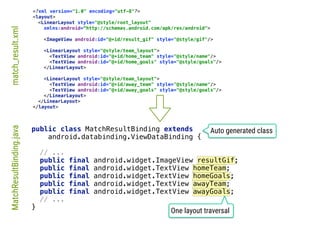

One layout traversal
match_result.xmlMatchResultBinding.java
Auto generated class
<?xml version="1.0" encoding="utf-8"?>
<layout>
</layout>
public class MatchResultBinding extends
android.databinding.ViewDataBinding { 
 
// ... 
public final android.widget.ImageView resultGif; 
public final android.widget.TextView homeTeam; 
public final android.widget.TextView homeGoals; 
public final android.widget.TextView awayTeam; 
public final android.widget.TextView awayGoals; 
// ... 
}

15
Activity
 
binding = DataBindingUtil.setContentView(this, R.layout.match_result);
}____
 
.placeholder(R.drawable.loading).into(binding.resultGif); 
if (result.getHomeTeam() != null) { 
binding.homeTeam.setText(result.getHomeTeam().getName()); 
binding.homeGoals.setText(Integer.toString(result.getHomeTeam().getGoals())); 
}___ 
if (result.getAwayTeam() != null) { 
binding.awayTeam.setText(result.getAwayTeam().getName()); 
binding.awayGoals.setText(Integer.toString(result.getAwayTeam().getGoals())); 
}__ 
}_
private MatchResultBinding binding;__

16

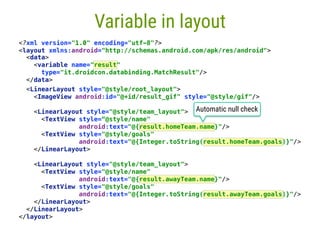

Variable in layout
<layout xmlns:android="http://schemas.android.com/apk/res/android">
Automatic null check
<data> 
<variable name="result"
type="it.droidcon.databinding.MatchResult"/> 
</data>
<LinearLayout style="@style/root_layout"> 
 
<TextView style=“@style/name" 
android:text="@{result.homeTeam.name}"/> 
<TextView style="@style/goals" 
android:text="@{Integer.toString(result.homeTeam.goals)}"/> 
</LinearLayout> 
 
<TextView style="@style/name" 
android:text="@{result.awayTeam.name}"/> 
android:text="@{Integer.toString(result.awayTeam.goals)}"/> 
</LinearLayout> 
</LinearLayout> 
</layout>

17

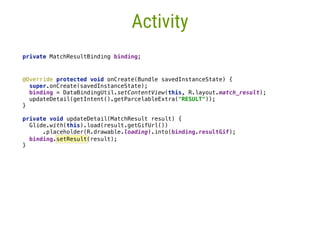

Activity
private MatchResultBinding binding;
 
binding = DataBindingUtil.setContentView(this, R.layout.match_result);
}____
 
binding.setResult(result);
}_

18
Code in XML?
Are you serious?!?

19
Complex code in XML is
NOT
a best practice

2Custom attributes

21

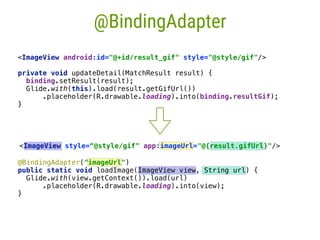

@BindingAdapter
<ImageView android:id="@+id/result_gif" style="@style/gif"/>
binding.setResult(result); 
}
<ImageView style=“@style/gif" app:imageUrl="@{result.gifUrl}"/>
@BindingAdapter("imageUrl") 
public static void loadImage(ImageView view, String url) { 
Glide.with(view.getContext()).load(url) 
.placeholder(R.drawable.loading).into(view); 
}

22

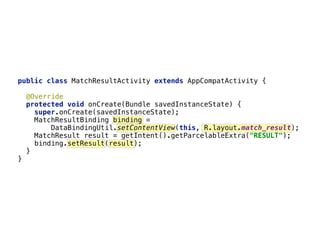

public class MatchResultActivity extends AppCompatActivity { 
 
@Override 
protected void onCreate(Bundle savedInstanceState) { 
MatchResultBinding binding = 
DataBindingUtil.setContentView(this, R.layout.match_result); 
MatchResult result = getIntent().getParcelableExtra("RESULT"); 
binding.setResult(result); 
} 
}

23

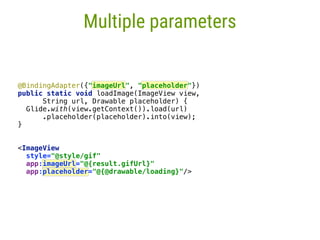

Multiple parameters
@BindingAdapter({"imageUrl", "placeholder"}) 
public static void loadImage(ImageView view,
String url, Drawable placeholder) { 
Glide.with(view.getContext()).load(url) 
.placeholder(placeholder).into(view); 
} 
<ImageView
style="@style/gif" 
app:imageUrl="@{result.gifUrl}"
app:placeholder="@{@drawable/loading}"/>

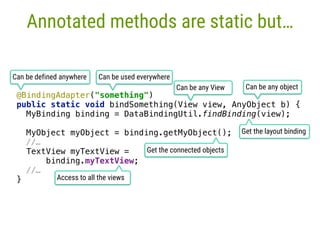

Annotated methods are static but…
@BindingAdapter("something") 
public static void bindSomething(View view, AnyObject b) { 
MyBinding binding = DataBindingUtil.findBinding(view);
 
MyObject myObject = binding.getMyObject(); 
//…
TextView myTextView =  
binding.myTextView;
//…
}
Can be any object
Get the layout binding
Get the connected objects
Access to all the views
Can be defined anywhere Can be used everywhere
Can be any View

25

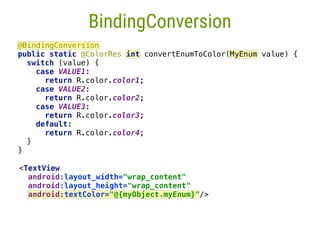

BindingConversion
@BindingConversion 
public static @ColorRes int convertEnumToColor(MyEnum value) { 
switch (value) { 
case VALUE1: 
return R.color.color1; 
case VALUE2: 
case VALUE3: 
default: 
} 
}
<TextView 
android:layout_width="wrap_content" 
android:layout_height="wrap_content" 
android:textColor="@{myObject.myEnum}"/>

public static String convertScoreToString(TeamScore score) { 
return Integer.toString(score.getGoals()); 
}___ 
<TextView style="@style/goals”
android:text="@{result.awayTeam}"/> 
26

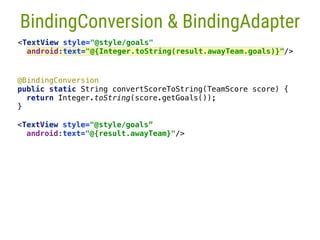

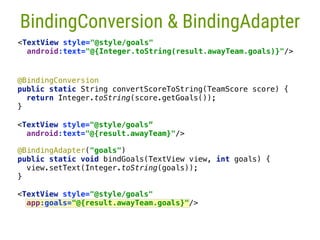

BindingConversion & BindingAdapter
android:text="@{Integer.toString(result.awayTeam.goals)}"/>

<TextView style="@style/goals"
app:goals="@{result.awayTeam.goals}"/>
@BindingAdapter("goals") 
public static void bindGoals(TextView view, int goals) { 
view.setText(Integer.toString(goals)); 
}__ 
}___ 
27
android:text="@{result.awayTeam}"/>

<TextView style="@style/goals"
app:goals="@{result.awayTeam.goals}"/>
@BindingAdapter("goals") 
public static void bindGoals(TextView view, int goals) { 
view.setText(Integer.toString(goals)); 
}__ 
}___ 
android:text="@{result.awayTeam}"/> 
28

3Components

31
<layout xmlns:android="http://schemas.android.com/apk/res/android" 
xmlns:app="http://schemas.android.com/apk/res-auto"> 
<data> 
<variable name="result" 
</data> 
<ImageView style="@style/gif" app:imageUrl="@{result.gifUrl}"/> 
 
 
android:text="@{result.awayTeam.name}"/> 
app:goals="@{result.awayTeam.goals}"/> 
</LinearLayout> 
</LinearLayout> 
</layout>
android:text="@{result.homeTeam.name}"/> 
app:goals="@{result.homeTeam.goals}"/> 
</LinearLayout>

32
<layout
xmlns:android="http://schemas.android.com/apk/res/android" 
</layout>

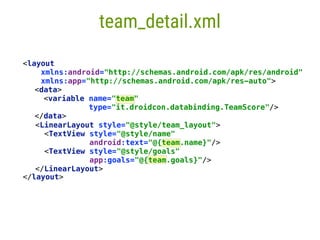

team_detail.xml
<data> 
<variable name="team" 
type="it.droidcon.databinding.TeamScore"/> 
</data> 
android:text="@{team.name}"/> 
app:goals="@{team.goals}"/> 
</LinearLayout>

</data> 
 
 

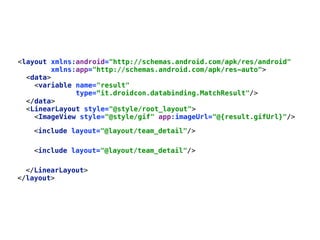

<include layout="@layout/team_detail"/>
<include layout="@layout/team_detail"/>
</LinearLayout> 
</layout>
<data> 
type=“it.droidcon.databinding.MatchResult"/>

</data> 
 
 
xmlns:app="http://schemas.android.com/apk/res-auto"
xmlns:bind="http://schemas.android.com/tools"> 
<data> 
<include layout="@layout/team_detail" 
/>
/>
</LinearLayout> 
</layout>
bind:team="@{result.homeTeam}"
bind:team="@{result.awayTeam}"

</data> 

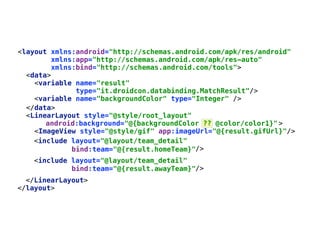

<LinearLayout style="@style/root_layout"
> 
 
 
android:background="@{backgroundColor ?? @color/color1}"
<data> 
/>
/>
</LinearLayout> 
</layout>
bind:team="@{result.homeTeam}"
bind:team="@{result.awayTeam}"
<variable name="backgroundColor" type="Integer" />

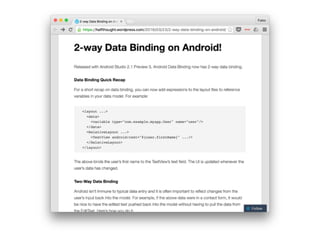

4Two Way Data Binding

38

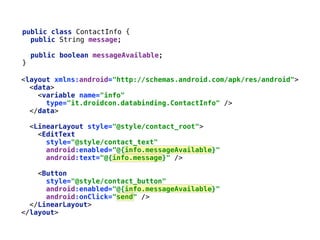

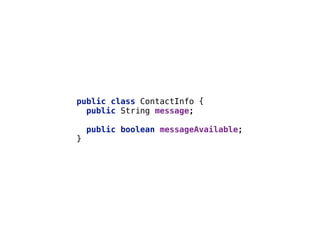

public class ContactInfo { 
public String message; 
 
public boolean messageAvailable; 
}__

39
 
}__
<layout xmlns:android="http://schemas.android.com/apk/res/android"> 
<data> 
<variable name="info" 
type="it.droidcon.databinding.ContactInfo" /> 
</data> 
 
<LinearLayout style="@style/contact_root"> 
<EditText 
style="@style/contact_text" 
android:enabled="@{info.messageAvailable}" 
android:text="@{info.message}" /> 
 
<Button 
style="@style/contact_button" 
android:onClick="send" /> 
</LinearLayout> 
</layout>

40
 
}__

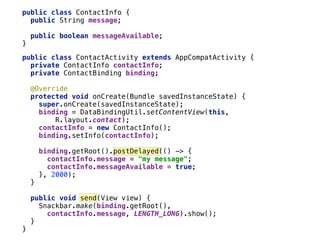

public class ContactActivity extends AppCompatActivity { 
private ContactInfo contactInfo; 
private ContactBinding binding; 
 
@Override 
binding = DataBindingUtil.setContentView(this,
R.layout.contact); 
contactInfo = new ContactInfo(); 
binding.setInfo(contactInfo); 
 
binding.getRoot().postDelayed(() -> { 
contactInfo.message = "my message"; 
contactInfo.messageAvailable = true; 
}, 2000); 
} 
 
public void send(View view) { 
Snackbar.make(binding.getRoot(),
contactInfo.message, LENGTH_LONG).show(); 
} 
}

42

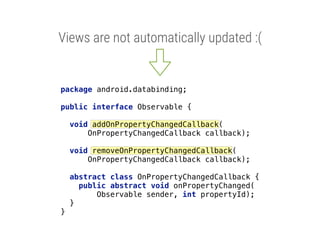

Views are not automatically updated :(

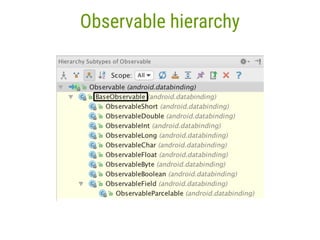

package android.databinding; 
 
public interface Observable { 
 
void addOnPropertyChangedCallback(
OnPropertyChangedCallback callback); 
 
void removeOnPropertyChangedCallback(
OnPropertyChangedCallback callback); 
 
abstract class OnPropertyChangedCallback { 
public abstract void onPropertyChanged(
Observable sender, int propertyId); 
} 
}

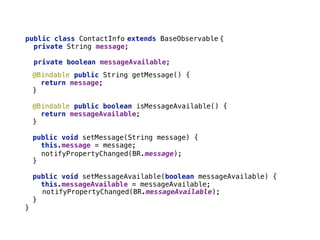

public String getMessage() { 
return message; 
}____ 
 
public boolean isMessageAvailable() { 
return messageAvailable; 
}___ 
 
public void setMessage(String message) { 
this.message = message; 
 
}__ 
 
public void setMessageAvailable(boolean messageAvailable) { 
this.messageAvailable = messageAvailable; 
 
}_ 
public class ContactInfo 
private String message; 
 
private boolean messageAvailable; 
44
extends BaseObservable {
}
notifyPropertyChanged(BR.message);
notifyPropertyChanged(BR.messageAvailable);
@Bindable
@Bindable

45

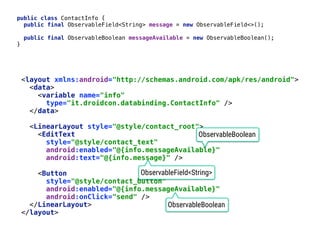

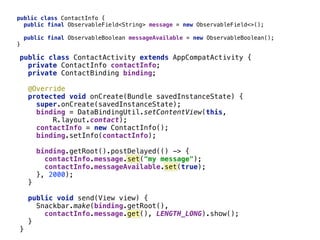

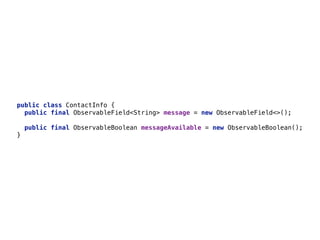

public final ObservableField<String> message = new ObservableField<>();_ 
 
public final ObservableBoolean messageAvailable = new ObservableBoolean();_ 
}__

46
 
}__
public class ContactActivity extends AppCompatActivity { 
private ContactInfo contactInfo; 
private ContactBinding binding; 
 
@Override 
binding = DataBindingUtil.setContentView(this,
R.layout.contact); 
contactInfo = new ContactInfo(); 
binding.setInfo(contactInfo); 
 
binding.getRoot().postDelayed(() -> { 
contactInfo.message.set("my message"); 
contactInfo.messageAvailable.set(true); 
}, 2000);
}___ 
 
public void send(View view) { 
Snackbar.make(binding.getRoot(),
contactInfo.message.get(), LENGTH_LONG).show(); 
}__ 
}_

<data> 
</data> 
 
<EditText 
android:text="@{info.message}" /> 
 
<Button 
</LinearLayout> 
</layout>
47
 
}__
ObservableField<String>
ObservableBoolean
ObservableBoolean

49
Two way Data Binding
@BindingAdapter("binding") 
public static void bindEditText(EditText view,
final ObservableString observable) { 
Pair<ObservableString, TextWatcherAdapter> pair =
(Pair) view.getTag(R.id.bound_observable); 
if (pair == null || pair.first != observable) { 
if (pair != null) 
view.removeTextChangedListener(pair.second); 
TextWatcherAdapter watcher = new TextWatcherAdapter() { 
@Override
public void onTextChanged(CharSequence s, int a, int b, int c) { 
observable.set(s.toString()); 
} 
}; 
view.setTag(R.id.bound_observable, new Pair<>(observable, watcher)); 
view.addTextChangedListener(watcher); 
} 
String newValue = observable.get(); 
if (!view.getText().toString().equals(newValue)) 
view.setText(newValue); 
} 
medium.com/@fabioCollini/android-data-binding-f9f9d3afc761

51

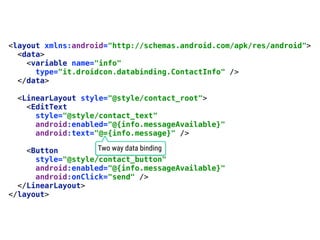

<data> 
</data> 
 
<EditText 
android:text="@={info.message}" /> 
 
<Button 
</LinearLayout> 
</layout>
Two way data binding

54

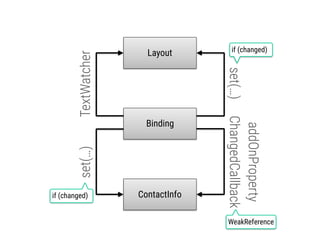

Layout
ContactInfo
Binding
TextWatcherset(…)
addOnProperty
ChangedCallbackset(…)
if (changed)
WeakReference
if (changed)

5MVVM

56

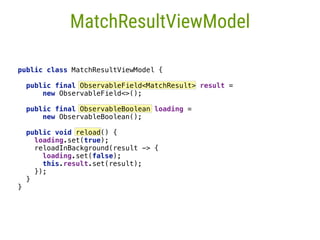

MatchResultViewModel
public class MatchResultViewModel {
 
public final ObservableField<MatchResult> result =
new ObservableField<>(); 
 
public final ObservableBoolean loading =
new ObservableBoolean(); 
 
public void reload() {
loading.set(true); 
reloadInBackground(result -> { 
loading.set(false); 
this.result.set(result); 
}); 
} 
}

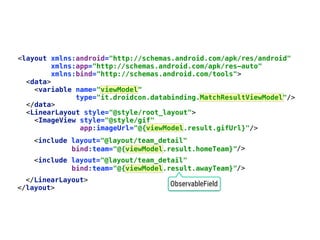

<data> 
<variable name="viewModel" 
type="it.droidcon.databinding.MatchResultViewModel"/> 
</data> 
<ImageView style="@style/gif"
app:imageUrl="@{viewModel.result.gifUrl}"/> 
 
 
/>
/>
</LinearLayout> 
</layout>
bind:team="@{viewModel.result.homeTeam}"
bind:team="@{viewModel.result.awayTeam}"
ObservableField

58

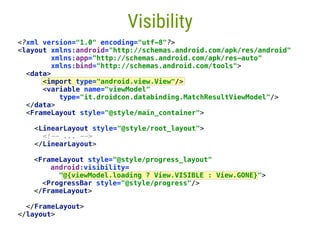

Visibility
<FrameLayout style="@style/progress_layout" 
android:visibility=
"@{viewModel.loading ? View.VISIBLE : View.GONE}"> 
<ProgressBar style="@style/progress"/> 
</FrameLayout>
xmlns:app="http://schemas.android.com/apk/res-auto" 
<data>
<import type="android.view.View"/> 
<variable name="viewModel" 
type="it.droidcon.databinding.MatchResultViewModel"/>
</data> 
<FrameLayout style="@style/main_container">
 
 
</LinearLayout> 
 
 
</FrameLayout> 
</layout>

59

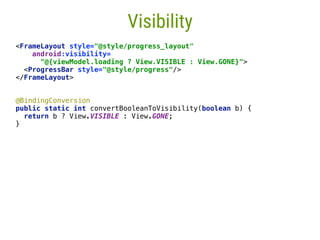

Visibility
android:visibility=
"@{viewModel.loading ? View.VISIBLE : View.GONE}"> 
</FrameLayout>
public static int convertBooleanToVisibility(boolean b) { 
return b ? View.VISIBLE : View.GONE; 
}___

60

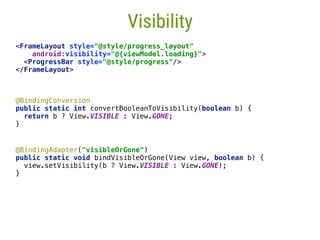

Visibility
android:visibility="@{viewModel.loading}"> 
</FrameLayout>
}___ 
@BindingAdapter("visibleOrGone") 
public static void bindVisibleOrGone(View view, boolean b) { 
view.setVisibility(b ? View.VISIBLE : View.GONE); 
}____

61

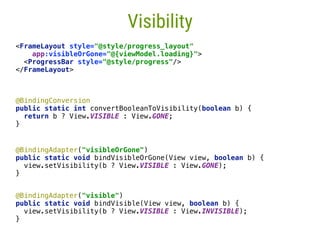

Visibility
app:visibleOrGone="@{viewModel.loading}"> 
</FrameLayout>
}___ 
@BindingAdapter("visibleOrGone") 
public static void bindVisibleOrGone(View view, boolean b) { 
view.setVisibility(b ? View.VISIBLE : View.GONE); 
}____
@BindingAdapter("visible") 
public static void bindVisible(View view, boolean b) { 
view.setVisibility(b ? View.VISIBLE : View.INVISIBLE); 
}

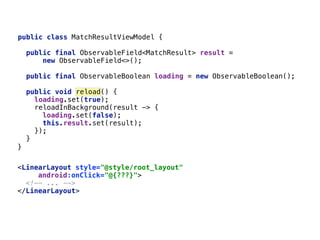

android:onClick="@{???}"> 
 
</LinearLayout> 
62
}___
public final ObservableBoolean loading = new ObservableBoolean(); 
}); 
}__

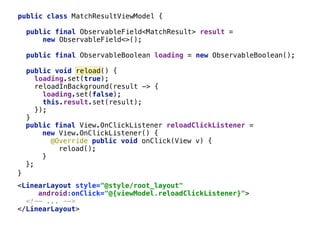

public final_View.OnClickListener reloadClickListener =
new View.OnClickListener() { 
@Override public void onClick(View v) { 
reload(); 
}_ 
}; 
android:onClick="@{viewModel.reloadClickListener}"> 
 
</LinearLayout> 
63
}___
}); 
}__

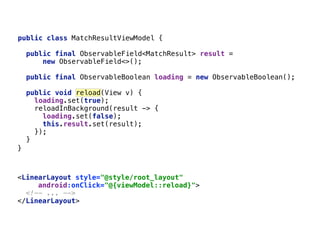

android:onClick="@{viewModel::reload}"> 
 
</LinearLayout> 
64
}___
public void reload(View v) {
}); 
}__

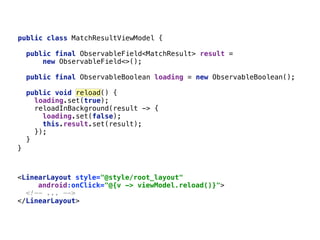

android:onClick="@{v -> viewModel.reload()}"> 
 
</LinearLayout> 
65
}___
}); 
}__

}); 
}__
66
}___
@BindingAdapter("android:onClick") 
public static void bindOnClick(View view, final Runnable listener) { 
view.setOnClickListener(new View.OnClickListener() { 
listener.run(); 
}____ 
}); 
}___
android:onClick="@{v -> viewModel.reload()}"> 
 
</LinearLayout>

}); 
}__
android:onClick="@{viewModel::reload}"> 
 
</LinearLayout> 
67
}___

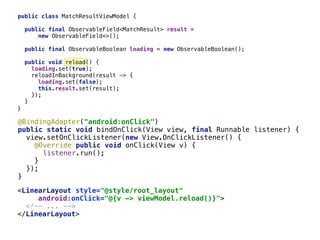

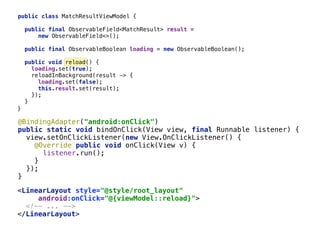

@BindingAdapter("android:onClick") 
public static void bindOnClick(View view, final Runnable listener) { 
view.setOnClickListener(new View.OnClickListener() { 
listener.run(); 
}____ 
}); 
}___

68

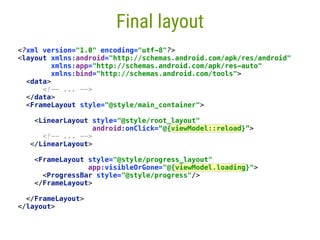

Final layout
xmlns:app="http://schemas.android.com/apk/res-auto" 
<data> 
 
</data> 
<FrameLayout style="@style/main_container">
 
android:onClick=“@{viewModel::reload}”> 
 
</LinearLayout> 
 
app:visibleOrGone="@{viewModel.loading}"> 
</FrameLayout> 
 
</FrameLayout> 
</layout>

69

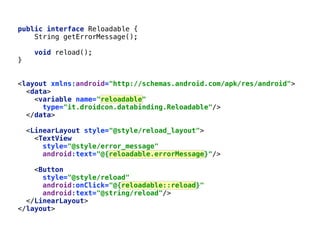

public interface Reloadable { 
String getErrorMessage(); 
 
void reload(); 
} 
<data> 
<variable name="reloadable" 
type="it.droidcon.databinding.Reloadable"/> 
</data> 
 
<LinearLayout style="@style/reload_layout"> 
<TextView 
style="@style/error_message" 
android:text="@{reloadable.errorMessage}"/> 
 
<Button 
style="@style/reload" 
android:onClick="@{reloadable::reload}" 
android:text="@string/reload"/> 
</LinearLayout> 
</layout>

70

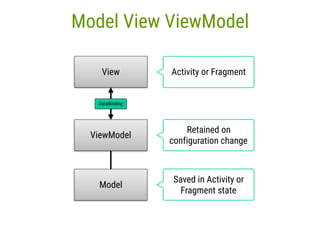

Model View ViewModel
View
ViewModel
Model
DataBinding
Retained on
configuration change
Saved in Activity or
Fragment state
Activity or Fragment

71
github.com/fabioCollini/mv2m
Android MVVM lightweight library based on
Android Data Binding

View ViewModel RetrofitService
reload
update
binding
Model
View ViewModel RetrofitServiceModel
request
response
binding

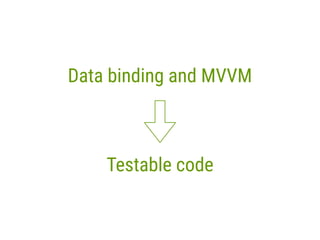

Testable code
Data binding and MVVM

MockService
MockService
RetrofitService
RetrofitServiceViewModel
reload
update
Model
request
response

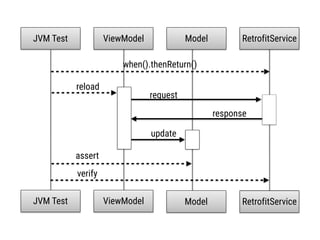

JVM Test
ViewModel ModelJVM Test
assert
when().thenReturn()
verify

MockServiceRetrofitService
MockServiceRetrofitService
View ViewModel
perform(click())
update
binding
Model
request
response
EspressoTest
View ViewModel ModelEspressoTest
onView
verify
when().thenReturn()
reload
binding

76
Data binding
You can write all your business logic
in an huge xml file
————————————————————————
————————————

Custom attributes Reusable UI code
77

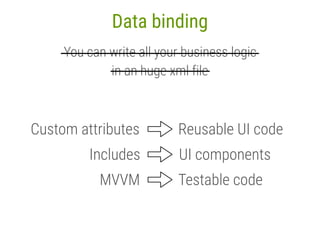

Data binding
You can write all your business logic
in an huge xml file
————————————————————————
————————————
Includes UI components
MVVM Testable code

78
Thanks for your attention!
androidavanzato.it
Questions?

79

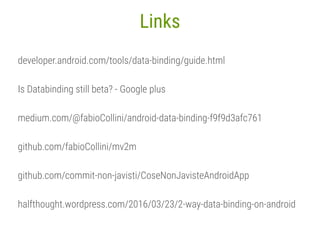

Links
developer.android.com/tools/data-binding/guide.html
Is Databinding still beta? - Google plus
medium.com/@fabioCollini/android-data-binding-f9f9d3afc761
github.com/fabioCollini/mv2m
github.com/commit-non-javisti/CoseNonJavisteAndroidApp
halfthought.wordpress.com/2016/03/23/2-way-data-binding-on-android

Data Binding in Action using MVVM pattern

More Related Content

What's hot

Viewers also liked

Similar to Data Binding in Action using MVVM pattern

More from Fabio Collini

Data Binding in Action using MVVM pattern
