The document discusses the IEEE 1016 standard for software design documentation. It describes software design as the organization of a software system into modular components and the interactions between them. The standard outlines that a software design document should include an introduction, definitions, a decomposition description, dependency description, interface description, and detailed design sections. It provides examples of how to describe modules, processes, data, and interfaces. The detailed design section specifies including class diagrams, data processing pseudocode, and interface flowcharts.

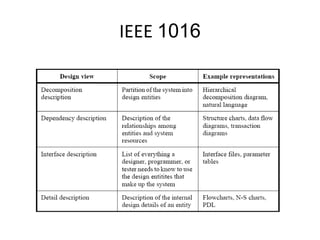

1. COMPE 491 Senior Project I Software Design Documentation IEEE 1016

2. IEEE 1016 Software Design What is software design? Organization of a software system into modules (components / classes or other units) Behavior and responsibilities of units Interactions and collaborations between units From Specification to Code Blueprint Identification of what needs to be coded (component interfaces and properties) and how this is to be done (method for implementing interfaces and properties) without irrelevant coding details

3. IEEE 1016 Software Design OUTLINE Introduction Purpose Scope Definitions, Acronyms and Abbreviations References Decomposition Description Module Description Concurrent Process Description Data Decomposition Dependency Description Intermodule Description Interprocess Description Data dependencies Interface Description Module Interface Process Interface Detailed Design Module detailed design Data Detail Design

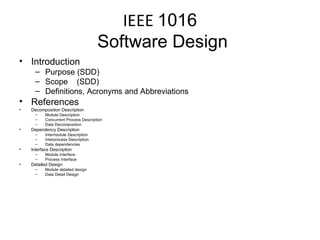

4. IEEE 1016 Software Design Introduction Purpose (SDD) Scope (SDD) Definitions, Acronyms and Abbreviations References Decomposition Description Module Description Concurrent Process Description Data Decomposition Dependency Description Intermodule Description Interprocess Description Data dependencies Interface Description Module Interface Process Interface Detailed Design Module detailed design Data Detail Design

5. IEEE 1016

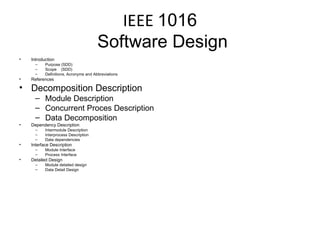

6. IEEE 1016 Software Design Introduction Purpose (SDD) Scope (SDD) Definitions, Acronyms and Abbreviations References Decomposition Description Module Description Concurrent Proces Description Data Decomposition Dependency Description Intermodule Description Interprocess Description Data dependencies Interface Description Module Interface Process Interface Detailed Design Module detailed design Data Detail Design

7. IEEE 1016 Software Design Module Description Module (or component): code and data that can be combined with other modules to form a (sub)system Desirable qualities of modules: Designed for reuse (in particular: named) Explicit specification (statically checked interface, explicit properties of dynamic behavior such as contracts) Information hiding (implementation details are hidden) High cohesion: all the contents together contributes to providing a specific piece of functionality Low coupling: Few dependencies on other modules or particulars of environment (such as operating system or particular technologies) Flexibility: Module structure reflects problem structure

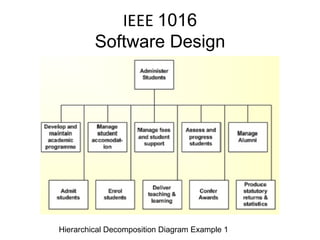

8. IEEE 1016 Software Design Hierarchical Decomposition Diagram Example 1

9. IEEE 1016 Software Design Hierarchical Decomposition Diagram Example 2

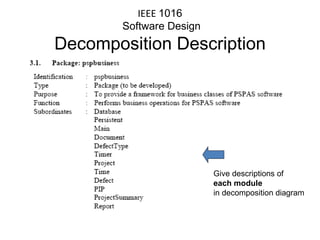

10. IEEE 1016 Software Design Decomposition Description Give descriptions of each module in decomposition diagram

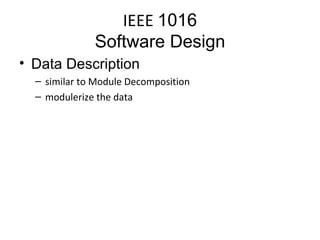

11. IEEE 1016 Software Design Data Description similar to Module Decomposition modulerize the data

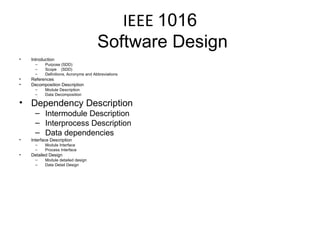

12. IEEE 1016 Software Design Introduction Purpose (SDD) Scope (SDD) Definitions, Acronyms and Abbreviations References Decomposition Description Module Description Data Decomposition Dependency Description Intermodule Description Interprocess Description Data dependencies Interface Description Module Interface Process Interface Detailed Design Module detailed design Data Detail Design

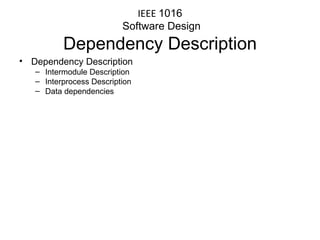

13. Dependency Description Intermodule Description Interprocess Description Data dependencies IEEE 1016 Software Design Dependency Description

14. Example: Package Diagram (It might include classes in packges) IEEE 1016 Software Design Dependency Description

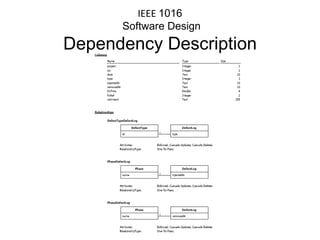

15. IEEE 1016 Software Design Dependency Description

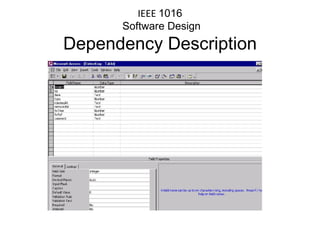

16. IEEE 1016 Software Design Dependency Description

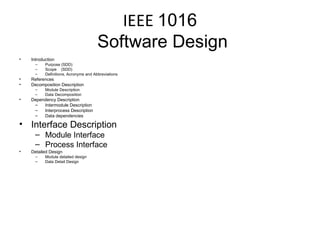

17. IEEE 1016 Software Design Introduction Purpose (SDD) Scope (SDD) Definitions, Acronyms and Abbreviations References Decomposition Description Module Description Data Decomposition Dependency Description Intermodule Description Interprocess Description Data dependencies Interface Description Module Interface Process Interface Detailed Design Module detailed design Data Detail Design

18. Module Interface Process Interface IEEE 1016 Software Design Interface Description Module 1 Module 2 Interface X

19. IEEE 1016 Software Design Introduction Purpose (SDD) Scope (SDD) Definitions, Acronyms and Abbreviations References Decomposition Description Module Description Data Decomposition Dependency Description Intermodule Description Interprocess Description Data dependencies Interface Description Module Interface User Interface (GUI) Detailed Design Module detailed design Data Detail Design

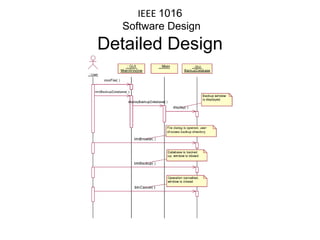

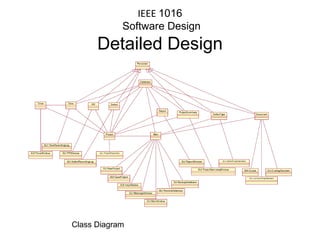

20. Class Diagram IEEE 1016 Software Design Detailed Design

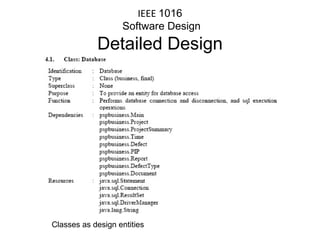

21. Classes as design entities IEEE 1016 Software Design Detailed Design

22. IEEE 1016 Software Design Detailed Design

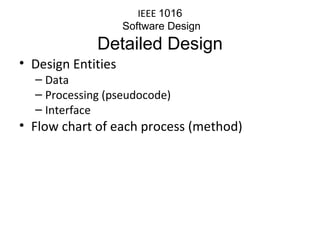

23. Design Entities Data Processing (pseudocode) Interface Flow chart of each process (method) IEEE 1016 Software Design Detailed Design

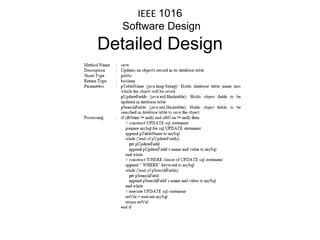

24. IEEE 1016 Software Design Detailed Design

25. IEEE 1016 Software Design Detailed Design
