How to add your own OpenSocial Gadgets to IBM Connections

How To Add Your Own OpenSocial Gadgets To IBM
Connections
Ryan Baxter, Software Engineer, IBM
IBM SBT Webinar 09/11/13

© 2013 IBM Corporation2

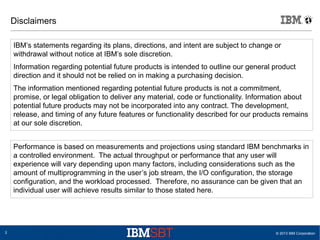

Disclaimers
IBM’s statements regarding its plans, directions, and intent are subject to change or
withdrawal without notice at IBM’s sole discretion.
Information regarding potential future products is intended to outline our general product
direction and it should not be relied on in making a purchasing decision.
The information mentioned regarding potential future products is not a commitment,
promise, or legal obligation to deliver any material, code or functionality. Information about
potential future products may not be incorporated into any contract. The development,
release, and timing of any future features or functionality described for our products remains
at our sole discretion.
Performance is based on measurements and projections using standard IBM benchmarks in
a controlled environment. The actual throughput or performance that any user will
experience will vary depending upon many factors, including considerations such as the
amount of multiprogramming in the user’s job stream, the I/O configuration, the storage
configuration, and the workload processed. Therefore, no assurance can be given that an
individual user will achieve results similar to those stated here.

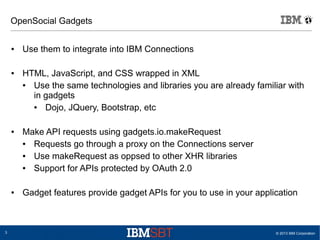

OpenSocial Gadgets
● Use them to integrate into IBM Connections
● HTML, JavaScript, and CSS wrapped in XML
● Use the same technologies and libraries you are already familiar with
in gadgets
● Dojo, JQuery, Bootstrap, etc
● Make API requests using gadgets.io.makeRequest
● Requests go through a proxy on the Connections server
● Use makeRequest as oppsed to other XHR libraries
● Support for APIs protected by OAuth 2.0
● Gadget features provide gadget APIs for you to use in your application

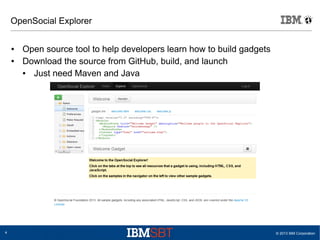

OpenSocial Explorer
● Open source tool to help developers learn how to build gadgets
● Download the source from GitHub, build, and launch
● Just need Maven and Java

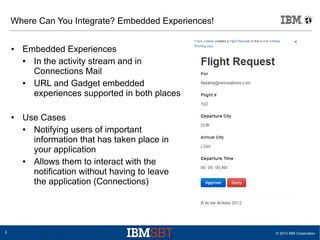

Where Can You Integrate? Embedded Experiences!
● Embedded Experiences
● In the activity stream and in
Connections Mail
● URL and Gadget embedded
experiences supported in both places
● Use Cases
● Notifying users of important
information that has taken place in
your application
● Allows them to interact with the
notification without having to leave
the application (Connections)

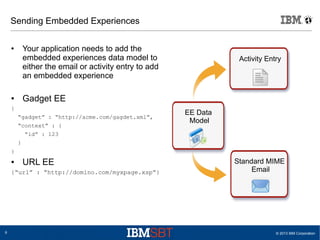

Sending Embedded Experiences
● Your application needs to add the
embedded experiences data model to
either the email or activity entry to add
an embedded experience
● Gadget EE
{
“gadget” : “http://acme.com/gagdet.xml”,
“context” : {
“id” : 123
}
}
● URL EE
{“url” : “http://domino.com/myxpage.xsp”}
Standard MIME
Email
Activity Entry
EE Data
Model

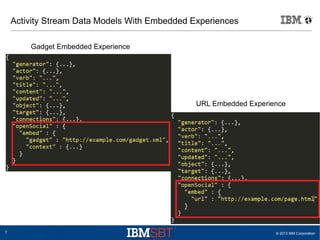

Activity Stream Data Models With Embedded Experiences
Gadget Embedded Experience
URL Embedded Experience

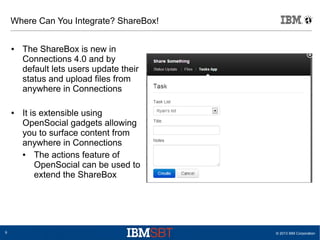

Where Can You Integrate? ShareBox!
● The ShareBox is new in
Connections 4.0 and by
default lets users update their
status and upload files from
anywhere in Connections
● It is extensible using
OpenSocial gadgets allowing
you to surface content from
anywhere in Connections
● The actions feature of
OpenSocial can be used to
extend the ShareBox

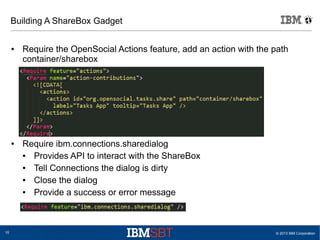

Building A ShareBox Gadget
● Require the OpenSocial Actions feature, add an action with the path
container/sharebox
● Require ibm.connections.sharedialog
● Provides API to interact with the ShareBox
● Tell Connections the dialog is dirty
● Close the dialog
● Provide a success or error message

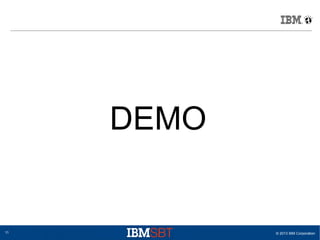

DEMO

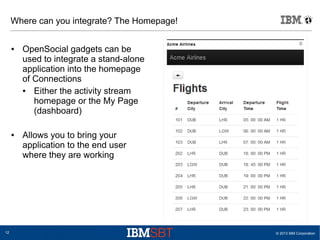

Where can you integrate? The Homepage!
● OpenSocial gadgets can be
used to integrate a stand-alone
application into the homepage
of Connections
● Either the activity stream
homepage or the My Page
(dashboard)
● Allows you to bring your
application to the end user
where they are working

DEMO

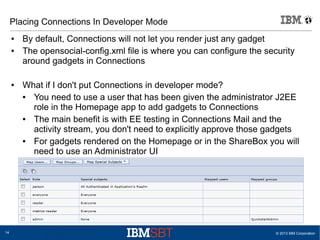

Placing Connections In Developer Mode
● By default, Connections will not let you render just any gadget
● The opensocial-config.xml file is where you can configure the security
around gadgets in Connections
● What if I don't put Connections in developer mode?
● You need to use a user that has been given the administrator J2EE
role in the Homepage app to add gadgets to Connections
● The main benefit is with EE testing in Connections Mail and the
activity stream, you don't need to explicitly approve those gadgets
● For gadgets rendered on the Homepage or in the ShareBox you will
need to use an Administrator UI

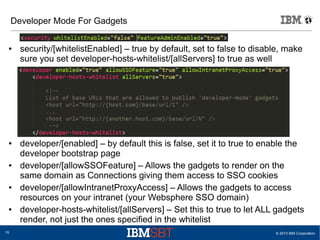

Developer Mode For Gadgets
● security/[whitelistEnabled] – true by default, set to false to disable, make
sure you set developer-hosts-whitelist/[allServers] to true as well
● developer/[enabled] – by default this is false, set it to true to enable the
developer bootstrap page
● developer/[allowSSOFeature] – Allows the gadgets to render on the
same domain as Connections giving them access to SSO cookies
● developer/[allowIntranetProxyAccess] – Allows the gadgets to access
resources on your intranet (your Websphere SSO domain)
● developer-hosts-whitelist/[allServers] – Set this to true to let ALL gadgets
render, not just the ones specified in the whitelist

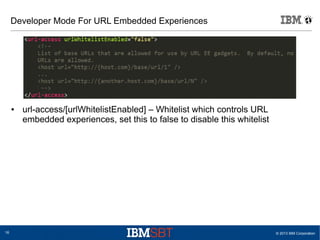

Developer Mode For URL Embedded Experiences
● url-access/[urlWhitelistEnabled] – Whitelist which controls URL
embedded experiences, set this to false to disable this whitelist

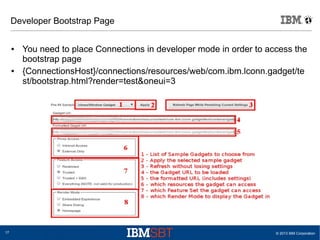

Developer Bootstrap Page
● You need to place Connections in developer mode in order to access the
bootstrap page
● {ConnectionsHost}/connections/resources/web/com.ibm.lconn.gadget/te
st/bootstrap.html?render=test&oneui=3

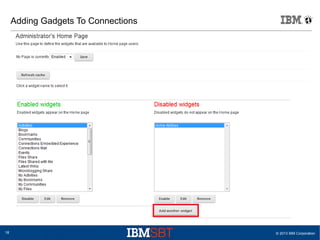

Adding Gadgets To Connections

OpenSocial Gadget Specific Settings
● Select OpenSocial Gadget
● Security – Restricted/Trusted
● Restricts the use of certain
gadget features
● UI Integration – Indicates if the
gadget can integrate into the
ShareBox or be used as an
Embedded Experience
● Proxy – Which domains the
gadgets can access
● Service Mappings – OAuth
servces the gadget can use

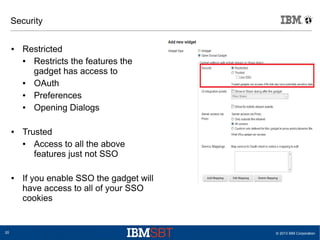

Security
● Restricted
● Restricts the features the
gadget has access to
● OAuth
● Preferences
● Opening Dialogs
● Trusted
● Access to all the above
features just not SSO
● If you enable SSO the gadget will
have access to all of your SSO
cookies

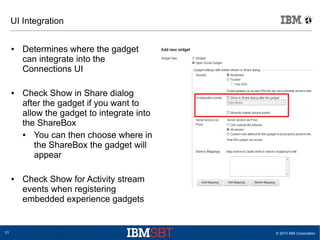

UI Integration
● Determines where the gadget
can integrate into the
Connections UI
● Check Show in Share dialog
after the gadget if you want to
allow the gadget to integrate into
the ShareBox
● You can then choose where in
the ShareBox the gadget will
appear
● Check Show for Activity stream
events when registering
embedded experience gadgets

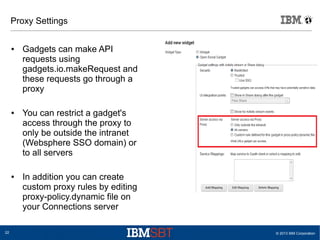

Proxy Settings
● Gadgets can make API
requests using
gadgets.io.makeRequest and
these requests go through a
proxy
● You can restrict a gadget's
access through the proxy to
only be outside the intranet
(Websphere SSO domain) or
to all servers
● In addition you can create
custom proxy rules by editing
proxy-policy.dynamic file on
your Connections server

DEMO

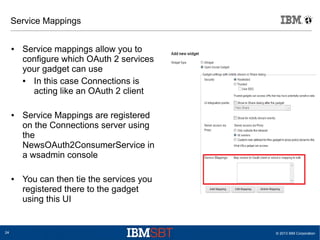

Service Mappings
● Service mappings allow you to
configure which OAuth 2 services
your gadget can use
● In this case Connections is
acting like an OAuth 2 client
● Service Mappings are registered
on the Connections server using
the
NewsOAuth2ConsumerService in
a wsadmin console
● You can then tie the services you
registered there to the gadget
using this UI

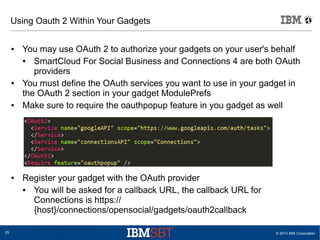

Using Oauth 2 Within Your Gadgets
● You may use OAuth 2 to authorize your gadgets on your user's behalf
● SmartCloud For Social Business and Connections 4 are both OAuth
providers
● You must define the OAuth services you want to use in your gadget in
the OAuth 2 section in your gadget ModulePrefs
● Make sure to require the oauthpopup feature in you gadget as well
● Register your gadget with the OAuth provider
● You will be asked for a callback URL, the callback URL for
Connections is https://
{host}/connections/opensocial/gadgets/oauth2callback

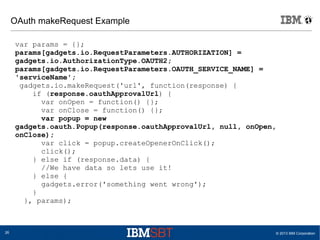

OAuth makeRequest Example
var params = {};
params[gadgets.io.RequestParameters.AUTHORIZATION] =
gadgets.io.AuthorizationType.OAUTH2;
params[gadgets.io.RequestParameters.OAUTH_SERVICE_NAME] =
'serviceName';
gadgets.io.makeRequest('url', function(response) {
if (response.oauthApprovalUrl) {
var onOpen = function() {};
var onClose = function() {};
var popup = new
gadgets.oauth.Popup(response.oauthApprovalUrl, null, onOpen,
onClose);
var click = popup.createOpenerOnClick();
click();
} else if (response.data) {
//We have data so lets use it!
} else {
gadgets.error('something went wrong');
}
}, params);

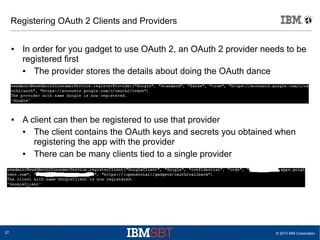

Registering OAuth 2 Clients and Providers
● In order for you gadget to use OAuth 2, an OAuth 2 provider needs to be
registered first
● The provider stores the details about doing the OAuth dance
● A client can then be registered to use that provider
● The client contains the OAuth keys and secrets you obtained when
registering the app with the provider
● There can be many clients tied to a single provider

Using The Service Mapping
● On the widget administration page...
● Click Add Mapping
● Select from the available OAuth Clients, the one you registered in the
wsadmin console should be available
● Enter a service name, this should match the service name in the OAuth
2 section of the gadget XML

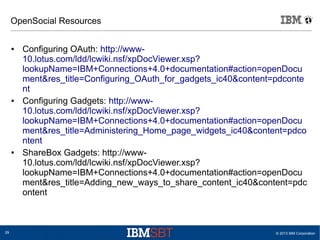

OpenSocial Resources
● Configuring OAuth: http://www-
10.lotus.com/ldd/lcwiki.nsf/xpDocViewer.xsp?
lookupName=IBM+Connections+4.0+documentation#action=openDocu
ment&res_title=Configuring_OAuth_for_gadgets_ic40&content=pdconte
nt
● Configuring Gadgets: http://www-
ment&res_title=Administering_Home_page_widgets_ic40&content=pdco
ntent
● ShareBox Gadgets: http://www-
ment&res_title=Adding_new_ways_to_share_content_ic40&content=pdc
ontent

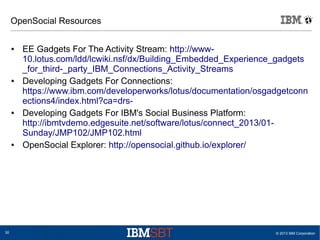

OpenSocial Resources
● EE Gadgets For The Activity Stream: http://www-
10.lotus.com/ldd/lcwiki.nsf/dx/Building_Embedded_Experience_gadgets
_for_third-_party_IBM_Connections_Activity_Streams
● Developing Gadgets For Connections:
https://www.ibm.com/developerworks/lotus/documentation/osgadgetconn
ections4/index.html?ca=drs-
● Developing Gadgets For IBM's Social Business Platform:
http://ibmtvdemo.edgesuite.net/software/lotus/connect_2013/01-
Sunday/JMP102/JMP102.html
● OpenSocial Explorer: http://opensocial.github.io/explorer/

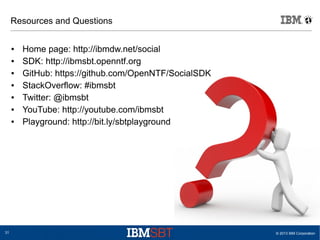

Resources and Questions
● Home page: http://ibmdw.net/social
● SDK: http://ibmsbt.openntf.org
● GitHub: https://github.com/OpenNTF/SocialSDK
● StackOverflow: #ibmsbt
● Twitter: @ibmsbt
● YouTube: http://youtube.com/ibmsbt
● Playground: http://bit.ly/sbtplayground

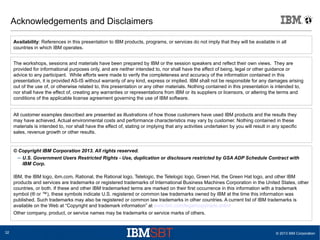

Acknowledgements and Disclaimers
© Copyright IBM Corporation 2013. All rights reserved.
– U.S. Government Users Restricted Rights - Use, duplication or disclosure restricted by GSA ADP Schedule Contract with
IBM Corp.
IBM, the IBM logo, ibm.com, Rational, the Rational logo, Telelogic, the Telelogic logo, Green Hat, the Green Hat logo, and other IBM
products and services are trademarks or registered trademarks of International Business Machines Corporation in the United States, other
countries, or both. If these and other IBM trademarked terms are marked on their first occurrence in this information with a trademark
symbol (® or ™), these symbols indicate U.S. registered or common law trademarks owned by IBM at the time this information was
published. Such trademarks may also be registered or common law trademarks in other countries. A current list of IBM trademarks is
available on the Web at “Copyright and trademark information” at www.ibm.com/legal/copytrade.shtml
Other company, product, or service names may be trademarks or service marks of others.
Availability: References in this presentation to IBM products, programs, or services do not imply that they will be available in all
countries in which IBM operates.
The workshops, sessions and materials have been prepared by IBM or the session speakers and reflect their own views. They are
provided for informational purposes only, and are neither intended to, nor shall have the effect of being, legal or other guidance or
advice to any participant. While efforts were made to verify the completeness and accuracy of the information contained in this
presentation, it is provided AS-IS without warranty of any kind, express or implied. IBM shall not be responsible for any damages arising
out of the use of, or otherwise related to, this presentation or any other materials. Nothing contained in this presentation is intended to,
nor shall have the effect of, creating any warranties or representations from IBM or its suppliers or licensors, or altering the terms and
conditions of the applicable license agreement governing the use of IBM software.
All customer examples described are presented as illustrations of how those customers have used IBM products and the results they
may have achieved. Actual environmental costs and performance characteristics may vary by customer. Nothing contained in these
materials is intended to, nor shall have the effect of, stating or implying that any activities undertaken by you will result in any specific
sales, revenue growth or other results.

How to add your own OpenSocial Gadgets to IBM Connections

More Related Content

What's hot

Viewers also liked

Similar to How to add your own OpenSocial Gadgets to IBM Connections

More from IBM Connections Developers

Recently uploaded

How to add your own OpenSocial Gadgets to IBM Connections
