1. AD204: What's New in the
IBM Domino Objects:
By Example
James Cooper, IBM
Nathan Barry, IBM
© 2014 IBM Corporation

2. Please Note
IBM’s statements regarding its plans, directions, and intent are subject to change or withdrawal without notice at IBM’s sole
discretion.
Information regarding potential future products is intended to outline our general product direction and it should not be
relied on in making a purchasing decision.
The information mentioned regarding potential future products is not a commitment, promise, or legal obligation to deliver
any material, code or functionality. Information about potential future products may not be incorporated into any contract.
The development, release, and timing of any future features or functionality described for our products remains at our sole
discretion
Performance is based on measurements and projections using standard IBM benchmarks in a controlled environment.
The actual throughput or performance that any user will experience will vary depending upon many factors, including
considerations such as the amount of multiprogramming in the user’s job stream, the I/O configuration, the storage
configuration, and the workload processed. Therefore, no assurance can be given that an individual user will achieve
results similar to those stated here.
2

3. Agenda




Introduction
Calendaring & Scheduling Discussion & Examples
Advanced View Navigation Discussion & Examples
Q&A
–





3

4. Calendar and Scheduling APIs

Introduced in Notes and Domino 9.0

Create, read, or modify calendar data
–
Uses the iCalendar data format
–
Encapsulates the complex Domino calendar schema
–
Implicit scheduling takes care of sending out notifications
Perform common calendar workflow actions on calendar entries or notices
–
Accept, decline, cancel, etc


4
Extended in 9.0.1
–
Added switches and methods based on demand – will cover changes within
–
REST calendar service added to Domino out of the box

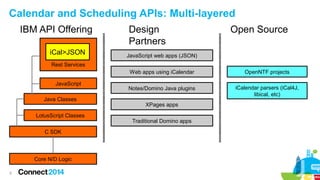

5. Calendar and Scheduling APIs: Multi-layered
IBM API Offering
iCal>JSON
Design
Partners
Open Source
JavaScript web apps (JSON)
Rest Services
Web apps using iCalendar
JavaScript
Java Classes
LotusScript Classes
C SDK
Core N/D Logic
5
OpenNTF projects
Notes/Domino Java plugins
iCalendar parsers (iCal4J,
libical, etc)
XPages apps
Traditional Domino apps

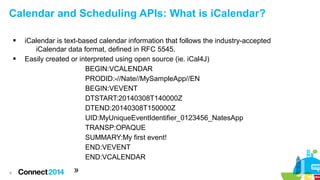

6. Calendar and Scheduling APIs: What is iCalendar?


6
iCalendar is text-based calendar information that follows the industry-accepted
iCalendar data format, defined in RFC 5545.
Easily created or interpreted using open source (ie. iCal4J)
BEGIN:VCALENDAR
PRODID:-//Nate//MySampleApp//EN
BEGIN:VEVENT
DTSTART:20140308T140000Z
DTEND:20140308T150000Z
UID:MyUniqueEventIdentifier_0123456_NatesApp
TRANSP:OPAQUE
SUMMARY:My first event!
END:VEVENT
END:VCALENDAR
»

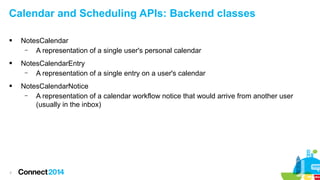

7. Calendar and Scheduling APIs: Backend classes

NotesCalendar
–
A representation of a single user's personal calendar

NotesCalendarEntry
–
A representation of a single entry on a user's calendar

NotesCalendarNotice
–
A representation of a calendar workflow notice that would arrive from another user
(usually in the inbox)
7

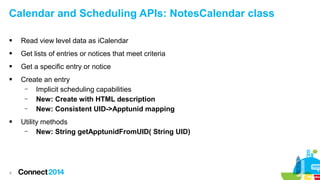

8. Calendar and Scheduling APIs: NotesCalendar class

Read view level data as iCalendar

Get lists of entries or notices that meet criteria

Get a specific entry or notice

Create an entry
–
Implicit scheduling capabilities
–
New: Create with HTML description
–
New: Consistent UID->Apptunid mapping

Utility methods
–
New: String getApptunidFromUID( String UID)
8

9. Create Meeting Demo
9

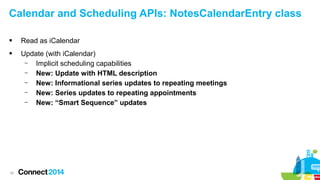

10. Calendar and Scheduling APIs: NotesCalendarEntry class

Read as iCalendar

Update (with iCalendar)
–
Implicit scheduling capabilities
–
New: Update with HTML description
–
New: Informational series updates to repeating meetings
–
New: Series updates to repeating appointments
–
New: “Smart Sequence” updates
10

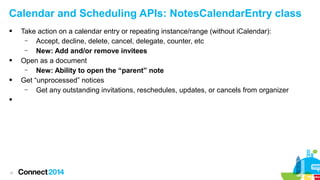

11. Calendar and Scheduling APIs: NotesCalendarEntry class




11
Take action on a calendar entry or repeating instance/range (without iCalendar):
–
Accept, decline, delete, cancel, delegate, counter, etc
–
New: Add and/or remove invitees
Open as a document
–
New: Ability to open the “parent” note
Get “unprocessed” notices
–
Get any outstanding invitations, reschedules, updates, or cancels from organizer

12. Update meeting demo
12

13. Calendar and Scheduling APIs: NotesCalendarNotice class

Read a notice as iCalendar

Take action on a calendar notice:
–
Accept, decline, delete, cancel, delegate, counter, accept counter, etc
Get a notice as a Document
Get all unaccepted invitation(s) that correspond to this meeting



13

14. Process notices demo
14

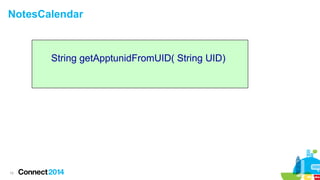

15. NotesCalendar
String getApptunidFromUID( String UID)
15

16. NotesCalendarEntry
String addInvitees( Vector requirednames,
Vector optionalNames,
Vector fyiNames,
String comments,
int flags,
int scope,
String recurID)
16

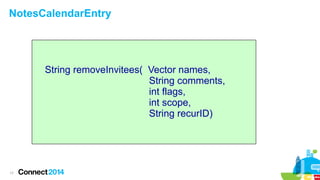

17. NotesCalendarEntry
String removeInvitees( Vector names,
String comments,
int flags,
int scope,
String recurID)
17

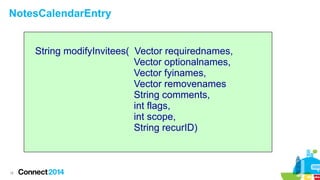

18. NotesCalendarEntry
String modifyInvitees( Vector requirednames,
Vector optionalnames,
Vector fyinames,
Vector removenames
String comments,
int flags,
int scope,
String recurID)
18

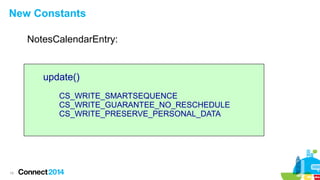

19. New Constants
NotesCalendarEntry:
update()
CS_WRITE_SMARTSEQUENCE
CS_WRITE_GUARANTEE_NO_RESCHEDULE
CS_WRITE_PRESERVE_PERSONAL_DATA
19

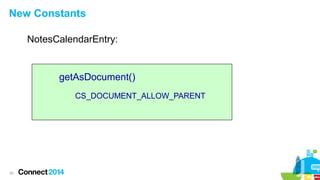

20. New Constants
NotesCalendarEntry:
getAsDocument()
CS_DOCUMENT_ALLOW_PARENT
20

21. Related Methods
21

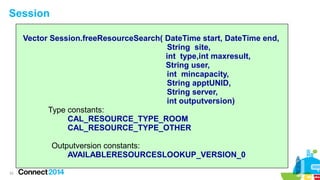

22. Session
Vector Session.freeResourceSearch( DateTime start, DateTime end,
String site,
int type,int maxresult,
String user,
int mincapacity,
String apptUNID,
String server,
int outputversion)
Type constants:
CAL_RESOURCE_TYPE_ROOM
CAL_RESOURCE_TYPE_OTHER
Outputversion constants:
AVAILABLERESOURCESLOOKUP_VERSION_0
22

23. Session
Session.freeResourceSearch
Output format for initial version:
AVAILABLERESOURCESLOOKUP_VERSION_0
Java:
Vector of strings, each entry is composite, separated by semicolon
ResourceName;Capacity;Email;
LS:
Array of strings, same format
ResourceName;Capacity;Email;
23

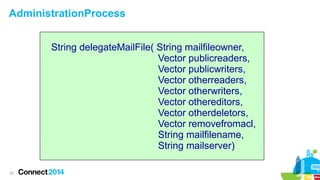

24. AdministrationProcess
String delegateMailFile( String mailfileowner,
Vector publicreaders,
Vector publicwriters,
Vector otherreaders,
Vector otherwriters,
Vector othereditors,
Vector otherdeletors,
Vector removefromacl,
String mailfilename,
String mailserver)
24

25. ViewNavigator
Enhancements
25

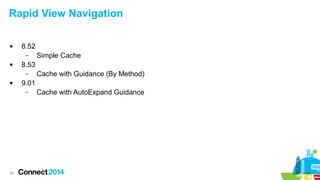

26. Rapid View Navigation

8.52
–

8.53
–

Cache with Guidance (By Method)
9.01
–
26
Simple Cache
Cache with AutoExpand Guidance

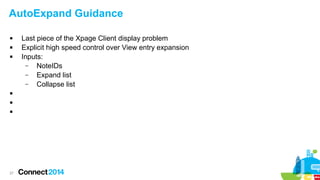

27. AutoExpand Guidance






27
Last piece of the Xpage Client display problem
Explicit high speed control over View entry expansion
Inputs:
–
NoteIDs
–
Expand list
–
Collapse list

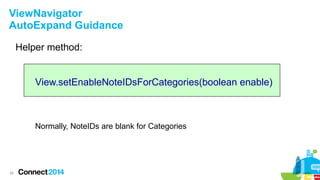

28. ViewNavigator
AutoExpand Guidance
Helper method:
View.setEnableNoteIDsForCategories(boolean enable)
Normally, NoteIDs are blank for Categories
28

29. ViewNavigator
AutoExpand Guidance
Helper method:
View.setEnableNoteIDsForCategories(boolean enable)
false:
NoteID
Cat 1
Child 1.1
Child 1.2
Cat 2
Child 2.1
Child 2.2
29
“”
“8FA”
“8FE”
“”
“8F2”
“8F6”
true:
NoteID
Cat 1
“80000004”
“8FA”
“8FE”
“80000008”
“8F2”
“8F6”
Child 1.1
Child 1.2
Cat 2
Child 2.1
Child 2.2

30. AutoExpand Guidance
Example:
Cat 1
Cat 2
Cat 3
30
Child 1.1
Child 1.2
Child 1.3
Child 1.4
Child 2.1
Child 2.2
Child 2.3
Child 2.4
Child 2.5
Child 3.1

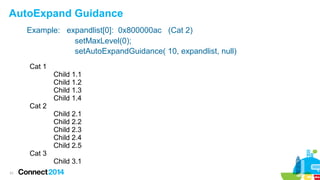

31. AutoExpand Guidance
Example: expandlist[0]: 0x800000ac (Cat 2)
setMaxLevel(0);
setAutoExpandGuidance( 10, expandlist, null)
Cat 1
Cat 2
Cat 3
31
Child 1.1
Child 1.2
Child 1.3
Child 1.4
Child 2.1
Child 2.2
Child 2.3
Child 2.4
Child 2.5
Child 3.1

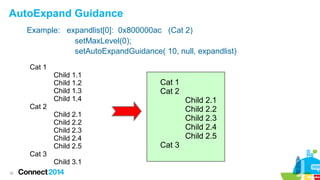

32. AutoExpand Guidance
Example: expandlist[0]: 0x800000ac (Cat 2)
setMaxLevel(0);
setAutoExpandGuidance( 10, null, expandlist)
Cat 1
Cat 2
Cat 3
32
Child 1.1
Child 1.2
Child 1.3
Child 1.4
Child 2.1
Child 2.2
Child 2.3
Child 2.4
Child 2.5
Child 3.1
Cat 1
Cat 2
Child 2.1
Child 2.2
Child 2.3
Child 2.4
Child 2.5
Cat 3

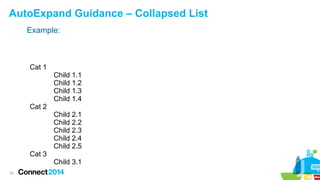

33. AutoExpand Guidance – Collapsed List
Example:
Cat 1
Cat 2
Cat 3
33
Child 1.1
Child 1.2
Child 1.3
Child 1.4
Child 2.1
Child 2.2
Child 2.3
Child 2.4
Child 2.5
Child 3.1

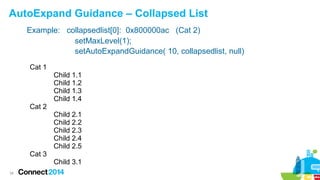

34. AutoExpand Guidance – Collapsed List
Example: collapsedlist[0]: 0x800000ac (Cat 2)
setMaxLevel(1);
setAutoExpandGuidance( 10, collapsedlist, null)
Cat 1
Cat 2
Cat 3
34
Child 1.1
Child 1.2
Child 1.3
Child 1.4
Child 2.1
Child 2.2
Child 2.3
Child 2.4
Child 2.5
Child 3.1

35. AutoExpand Guidance
Example: collapsedlist[0]: 0x800000ac (Cat 2)
setMaxLevel(1);
setAutoExpandGuidance( 10, collapsedlist, null)
Cat 1
Cat 2
Cat 3
35
Child 1.1
Child 1.2
Child 1.3
Child 1.4
Child 2.1
Child 2.2
Child 2.3
Child 2.4
Child 2.5
Child 3.1
Cat 1
Child 1.1
Child 1.2
Child 1.3
Child 1.4
Cat 2
Cat 3
Child 3.1

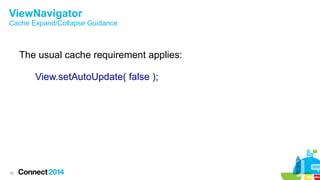

36. ViewNavigator
Cache Expand/Collapse Guidance
The usual cache requirement applies:
View.setAutoUpdate( false );
36

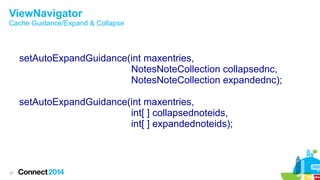

37. ViewNavigator
Cache Guidance/Expand & Collapse
setAutoExpandGuidance(int maxentries,
NotesNoteCollection collapsednc,
NotesNoteCollection expandednc);
setAutoExpandGuidance(int maxentries,
int[ ] collapsednoteids,
int[ ] expandednoteids);
37

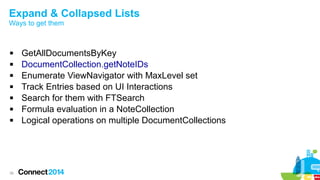

38. Expand & Collapsed Lists
Ways to get them







38
GetAllDocumentsByKey
DocumentCollection.getNoteIDs
Enumerate ViewNavigator with MaxLevel set
Track Entries based on UI Interactions
Search for them with FTSearch
Formula evaluation in a NoteCollection
Logical operations on multiple DocumentCollections

39. Demo: View Navigation using
AutoExpand Guidance
39

40. Demo: AutoExpand Guidance
in XPages
40

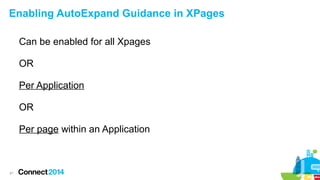

41. Enabling AutoExpand Guidance in XPages
Can be enabled for all Xpages
OR
Per Application
OR
Per page within an Application
41

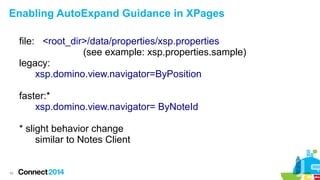

42. Enabling AutoExpand Guidance in XPages
file: <root_dir>/data/properties/xsp.properties
(see example: xsp.properties.sample)
legacy:
xsp.domino.view.navigator=ByPosition
faster:*
xsp.domino.view.navigator= ByNoteId
* slight behavior change
similar to Notes Client
42

43. REST Calendar Service
43

44. Calendar and Scheduling APIs: REST Calendar Service

Included in 9.0.1 (disabled by default)

Exposes calendar functionality over HTTP
–
De-couples from language and OS requirements
–
Allows use without a Notes/Domino install
Offers both iCalendar and JSON data formatting, for easier JavaScript parsing


44

45. REST demo: Calendar feed
45

46. Q&A
46

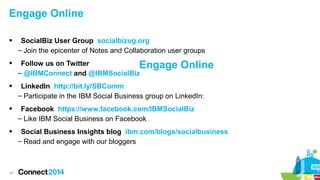

47. Engage Online


SocialBiz User Group socialbizug.org
– Join the epicenter of Notes and Collaboration user groups
Follow us on Twitter
Engage
– @IBMConnect and @IBMSocialBiz
Online

LinkedIn http://bit.ly/SBComm
– Participate in the IBM Social Business group on LinkedIn:

Facebook https://www.facebook.com/IBMSocialBiz
– Like IBM Social Business on Facebook

Social Business Insights blog ibm.com/blogs/socialbusiness
– Read and engage with our bloggers
47

48.  Access Connect Online to complete your session surveys using any:
– Web or mobile browser
– Connect Online kiosk onsite
48

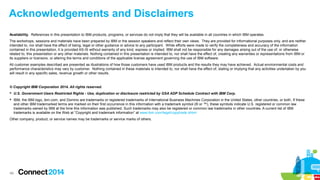

49. Acknowledgements and Disclaimers
Availability. References in this presentation to IBM products, programs, or services do not imply that they will be available in all countries in which IBM operates.
The workshops, sessions and materials have been prepared by IBM or the session speakers and reflect their own views. They are provided for informational purposes only, and are neither
intended to, nor shall have the effect of being, legal or other guidance or advice to any participant. While efforts were made to verify the completeness and accuracy of the information
contained in this presentation, it is provided AS-IS without warranty of any kind, express or implied. IBM shall not be responsible for any damages arising out of the use of, or otherwise
related to, this presentation or any other materials. Nothing contained in this presentation is intended to, nor shall have the effect of, creating any warranties or representations from IBM or
its suppliers or licensors, or altering the terms and conditions of the applicable license agreement governing the use of IBM software.
All customer examples described are presented as illustrations of how those customers have used IBM products and the results they may have achieved. Actual environmental costs and
performance characteristics may vary by customer. Nothing contained in these materials is intended to, nor shall have the effect of, stating or implying that any activities undertaken by you
will result in any specific sales, revenue growth or other results.
© Copyright IBM Corporation 2014. All rights reserved.
 U.S. Government Users Restricted Rights - Use, duplication or disclosure restricted by GSA ADP Schedule Contract with IBM Corp.
 IBM, the IBM logo, ibm.com, and Domino are trademarks or registered trademarks of International Business Machines Corporation in the United States, other countries, or both. If these
and other IBM trademarked terms are marked on their first occurrence in this information with a trademark symbol (® or ™), these symbols indicate U.S. registered or common law
trademarks owned by IBM at the time this information was published. Such trademarks may also be registered or common law trademarks in other countries. A current list of IBM
trademarks is available on the Web at “Copyright and trademark information” at www.ibm.com/legal/copytrade.shtml
Other company, product, or service names may be trademarks or service marks of others.
49
