This document provides a summary of the AD305 session on extending the use of IBM Sametime connections through iWidgets. The session discussed how to create a simple iWidget and add it to an IBM Connections community. It described the widget descriptor, functionality, and steps to modify the widgets configuration file. The document also covered iWidget modes, functions, best practices, and ways to integrate with Sametime including cross-domain requests and single sign-on. The session concluded with a demo of a community chat widget integrating Sametime and a discussion of considerations for Sametime integration such as managing membership events. Additional resources were provided.

1. AD305: IBM Sametime
iWidgets: Extending
Connections' Use of
Sametime
Jason Cheung, IBM
© 2014 IBM Corporation

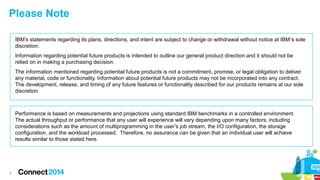

2. Please Note
IBM’s statements regarding its plans, directions, and intent are subject to change or withdrawal without notice at IBM’s sole
discretion.
Information regarding potential future products is intended to outline our general product direction and it should not be
relied on in making a purchasing decision.
The information mentioned regarding potential future products is not a commitment, promise, or legal obligation to deliver
any material, code or functionality. Information about potential future products may not be incorporated into any contract.
The development, release, and timing of any future features or functionality described for our products remains at our sole
discretion
Performance is based on measurements and projections using standard IBM benchmarks in a controlled environment.
The actual throughput or performance that any user will experience will vary depending upon many factors, including
considerations such as the amount of multiprogramming in the user’s job stream, the I/O configuration, the storage
configuration, and the workload processed. Therefore, no assurance can be given that an individual user will achieve
results similar to those stated here.
2

3. Agenda
3

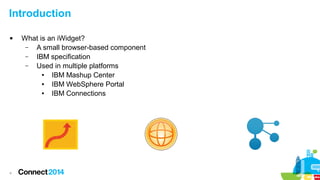

4. Introduction

4
What is an iWidget?
–
A small browser-based component
–
IBM specification
–
Used in multiple platforms
●
IBM Mashup Center
●
IBM WebSphere Portal
●
IBM Connections

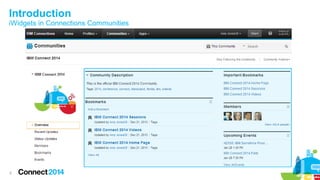

5. Introduction
iWidgets in Connections Communities
5

6. Creating a Simple iWidget
6

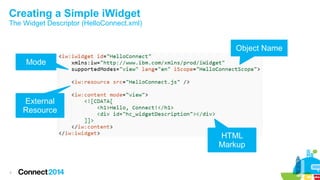

7. Creating a Simple iWidget
The Widget Descriptor (HelloConnect.xml)
Object Name
Mode
External
Resource
HTML
Markup
7

8. Creating a Simple iWidget
The Widget Functionality (HelloConnect.js)
Object Name
8

9. Adding an iWidget to a
Connections Community
9

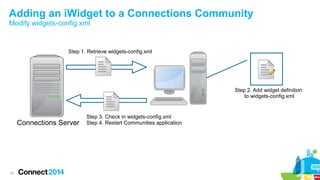

10. Adding an iWidget to a Connections Community
Modify widgets-config.xml
Step 1. Retrieve widgets-config.xml
Step 2. Add widget definition
to widgets-config.xml
Connections Server
10
Step 3. Check in widgets-config.xml
Step 4. Restart Communities application

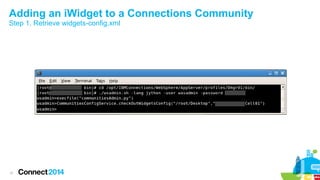

11. Adding an iWidget to a Connections Community
Step 1. Retrieve widgets-config.xml
11

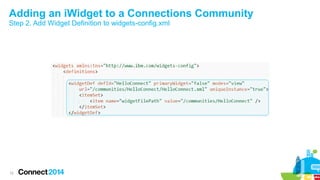

12. Adding an iWidget to a Connections Community
Step 2. Add Widget Definition to widgets-config.xml
12

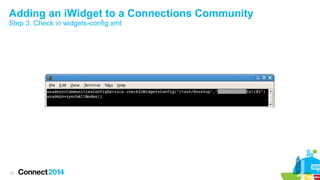

13. Adding an iWidget to a Connections Community
Step 3. Check in widgets-config.xml
13

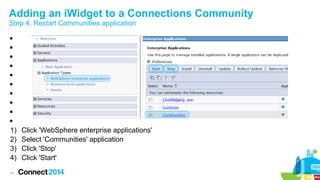

14. Adding an iWidget to a Connections Community
Step 4. Restart Communities application










1)
2)
3)
4)
14
Click 'WebSphere enterprise applications'
Select 'Communities' application
Click 'Stop'
Click 'Start'

15. Adding an iWidget to a Connections Community
The End Result
15

16. iWidgets in Detail
16

17. iWidgets in Detail
Modes
Fullpage
17
Search
View/Edit

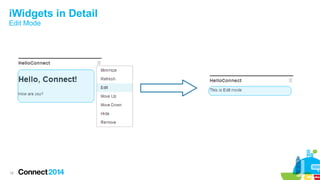

18. iWidgets in Detail
Edit Mode
18

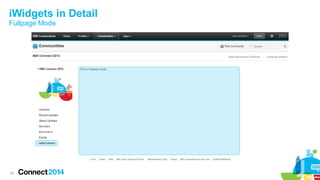

19. iWidgets in Detail
Fullpage Mode
19

20. iWidgets in Detail
Search Mode
20

21. iWidgets in Detail
iWidget Functions (1/4)

iContext
–
Programmatically interact with iWidget


iContext.getItemSet(“itemSetId”)
–
Retrieve a pre-defined itemset from the widget descriptor


HelloConnect.xml


[“itemsPerPage”]
“5”
21

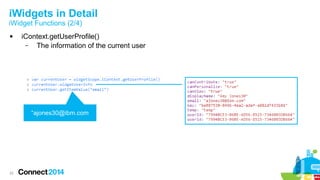

22. iWidgets in Detail
iWidget Functions (2/4)

iContext.getUserProfile()
–
The information of the current user
“ajones30@ibm.com
22

23. iWidgets in Detail
iWidget Functions (3/4)

23
iContext.getiWidgetAttributes()
–
Programmatically interact with the items stored in the itemset

24. iWidgets in Detail
iWidget Functions (4/4)

iContext.io
–
For XMLHttpRequests
●
request(“httpMethod”, “URI”, callbackFunction, “message”, arrayOfHeaders)
●
●
●
●
●
24
rewriteURI(“URI”)

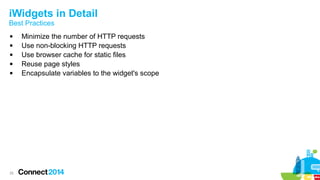

25. iWidgets in Detail
Best Practices





25
Minimize the number of HTTP requests
Use non-blocking HTTP requests
Use browser cache for static files
Reuse page styles
Encapsulate variables to the widget's scope

26. Integrating Sametime
26

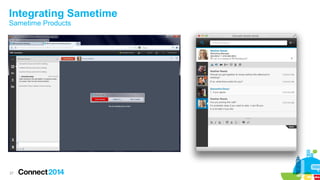

27. Integrating Sametime
Sametime Products
27

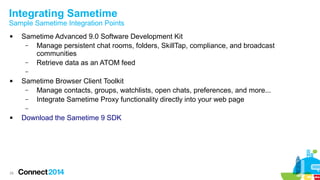

28. Integrating Sametime
Sample Sametime Integration Points

Sametime Advanced 9.0 Software Development Kit
–
Manage persistent chat rooms, folders, SkillTap, compliance, and broadcast
communities
–
Retrieve data as an ATOM feed
–

Sametime Browser Client Toolkit
–
Manage contacts, groups, watchlists, open chats, preferences, and more...
–
Integrate Sametime Proxy functionality directly into your web page
–

28
Download the Sametime 9 SDK

29. Community Chat Widget
Demo
29

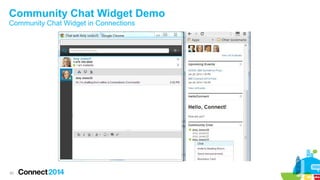

30. Community Chat Widget Demo
Community Chat Widget in Connections
30

31. Community Chat Widget Demo
Steps Involved
1)
2)
3)
4)
31
Enable Sametime Proxy in Connections
Write Community Chat widget XML file
Write Community Chat widget JavaScript file
Add widget definition to the widgets-config.xml file

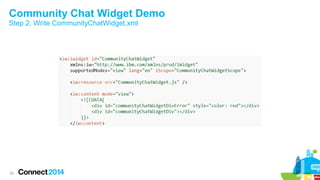

32. Community Chat Widget Demo
Step 2. Write CommunityChatWidget.xml
32

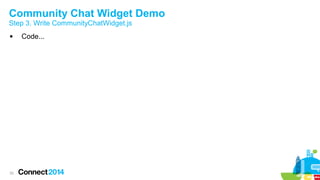

33. Community Chat Widget Demo
Step 3. Write CommunityChatWidget.js

33
Code...

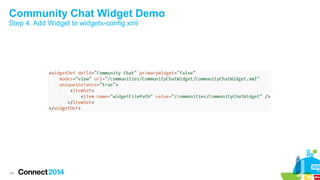

34. Community Chat Widget Demo
Step 4. Add Widget to widgets-config.xml
34

35. Community Chat Widget Demo
Community Chat Widget in Connections
35

36. Considerations when Integrating
with Sametime
36

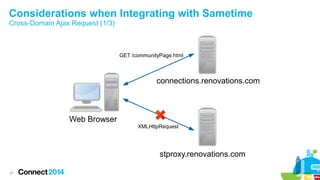

37. Considerations when Integrating with Sametime
Cross-Domain Ajax Request (1/3)
GET /communityPage.html
connections.renovations.com
Web Browser
XMLHttpRequest
stproxy.renovations.com
37

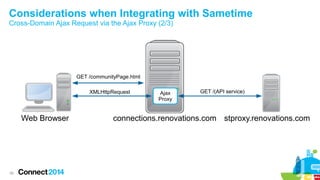

38. Considerations when Integrating with Sametime
Cross-Domain Ajax Request via the Ajax Proxy (2/3)
GET /communityPage.html
XMLHttpRequest
Web Browser
38
Ajax
Proxy
GET /(API service)
connections.renovations.com stproxy.renovations.com

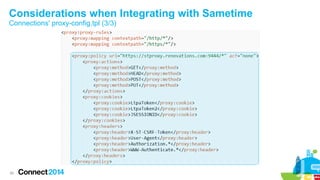

39. Considerations when Integrating with Sametime
Connections' proxy-config.tpl (3/3)
39

40. Considerations when Integrating with Sametime
Single Sign-On (SSO)


40
No need to explicitly log into iWidget's Sametime service
Details for 'Configuring single sign-on...'

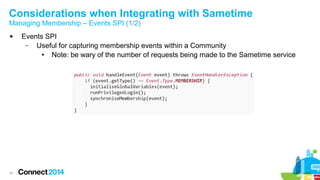

41. Considerations when Integrating with Sametime
Managing Membership – Events SPI (1/2)

41
Events SPI
–
Useful for capturing membership events within a Community
●
Note: be wary of the number of requests being made to the Sametime service

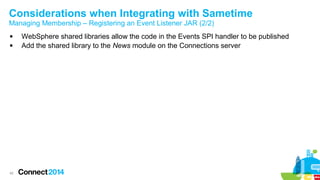

42. Considerations when Integrating with Sametime
Managing Membership – Registering an Event Listener JAR (2/2)


42
WebSphere shared libraries allow the code in the Events SPI handler to be published
Add the shared library to the News module on the Connections server

43. Summary
43

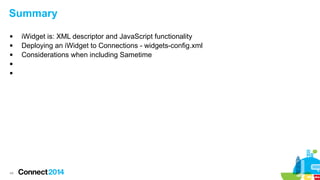

44. Summary





44
iWidget is: XML descriptor and JavaScript functionality
Deploying an iWidget to Connections - widgets-config.xml
Considerations when including Sametime

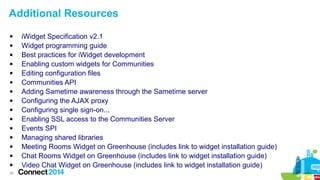

45. Additional Resources















45
iWidget Specification v2.1
Widget programming guide
Best practices for iWidget development
Enabling custom widgets for Communities
Editing configuration files
Communities API
Adding Sametime awareness through the Sametime server
Configuring the AJAX proxy
Configuring single sign-on...
Enabling SSL access to the Communities Server
Events SPI
Managing shared libraries
Meeting Rooms Widget on Greenhouse (includes link to widget installation guide)
Chat Rooms Widget on Greenhouse (includes link to widget installation guide)
Video Chat Widget on Greenhouse (includes link to widget installation guide)

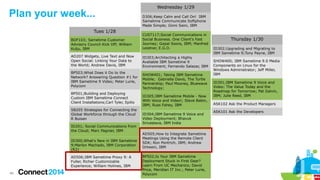

46. Plan your week...
Tues 1/28
Wednesday 1/29
D306;Keep Calm and Call On! IBM
Sametime Communicate Softphone
Made Simple; Ginni Saini, IBM
BOF103; Sametime Customer
Advisory Council Kick Off; William
Kulju, IBM
CUST117;Social Communications in
Social Business. One Client's Fast
Journey; Gopal Soora, IBM; Manfred
Leistner, E.G.O.
AD207 Widgets, Live Text and Now
Open Social: Linking Your Data to
the World; Andrew Davis, IBM
ID303;Architecting a Highly
Avaliable IBM Sametime 9
Environment; Fernando Salazar, IBM
BP503;What Does it Do to the
Network? Answering Question #1 for
IBM Sametime 9 Video; Peter Lurie,
Polycom
BP501;Building and Deploying
Custom IBM Sametime Connect
Client Installations;Carl Tyler, Epilio
SB205 Strategies for Connecting the
Global Workforce through the Cloud
R Buisan
ID201; Social Communications from
the Cloud; Marc Pagnier, IBM
ID300;What's New in IBM Sametime
9;Marlon Machado, IBM Corporation
(R2)
AD506;IBM Sametime Proxy 9: A
Fuller, Richer Customizable
Experience; William Holmes, IBM
46
SHOW401; Taking IBM Sametime
Mobile; Gabriella Davis, The Turtle
Partnership; Paul Mooney, Bluewave
Technology;
ID305;IBM Sametime Mobile - Now
With Voice and Video!; Steve Babin,
IBM; Russ Fahey, IBM
ID304;IBM Sametime 9 Voice and
Video Deployment; Bhavuk
Srivastava, IBM India
AD505;How to Integrate Sametime
Meetings Using the Remote Client
SDK; Ron Pontrich, IBM; Andrew
Ortwein, IBM
BP502;Is Your IBM Sametime
Deployment Stuck in First Gear?
Learn From UC Mechanics; David
Price, Meridian IT Inc.; Peter Lurie,
Polycom
Thursday 1/30
ID302;Upgrading and Migrating to
IBM Sametime 9;Tony Payne, IBM
SHOW400; IBM Sametime 9.0 Media
Components on Linux for the
Windows Administrator; Jeff Miller,
IBM
ID301;IBM Sametime 9 Voice and
Video: The Value Today and the
Roadmap for Tomorrow; Pat Galvin,
IBM; Julie Reed, IBM
ASK102 Ask the Product Managers
ASK101 Ask the Developers

47. Questions
47

48.  Access Connect Online to complete your session surveys using any:
– Web or mobile browser
– Connect Online kiosk onsite
– AD305
48

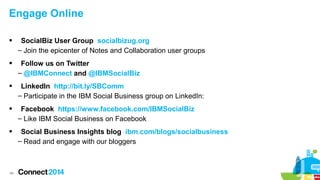

49. Engage Online

SocialBiz User Group socialbizug.org
– Join the epicenter of Notes and Collaboration user groups

Follow us on Twitter
– @IBMConnect and @IBMSocialBiz

LinkedIn http://bit.ly/SBComm
– Participate in the IBM Social Business group on LinkedIn:

Facebook https://www.facebook.com/IBMSocialBiz
– Like IBM Social Business on Facebook

Social Business Insights blog ibm.com/blogs/socialbusiness
– Read and engage with our bloggers
49

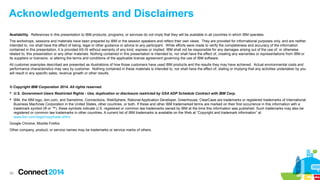

50. Acknowledgements and Disclaimers
