Multiphysics - A New Generation of Simulation

•

3 likes•1,744 views

The application of CAE early in a product’s design cycle can make an important difference in its cost and functionality. However the level of fidelity of the design early in the cycle limits the application of many traditional CAE tools. Fortunately this is where systems modeling can be applied due to the nature of utilizing a more abstract representation of the overall system and its components.

Engineering

2
2015 Houston
ATCx Multiphysics

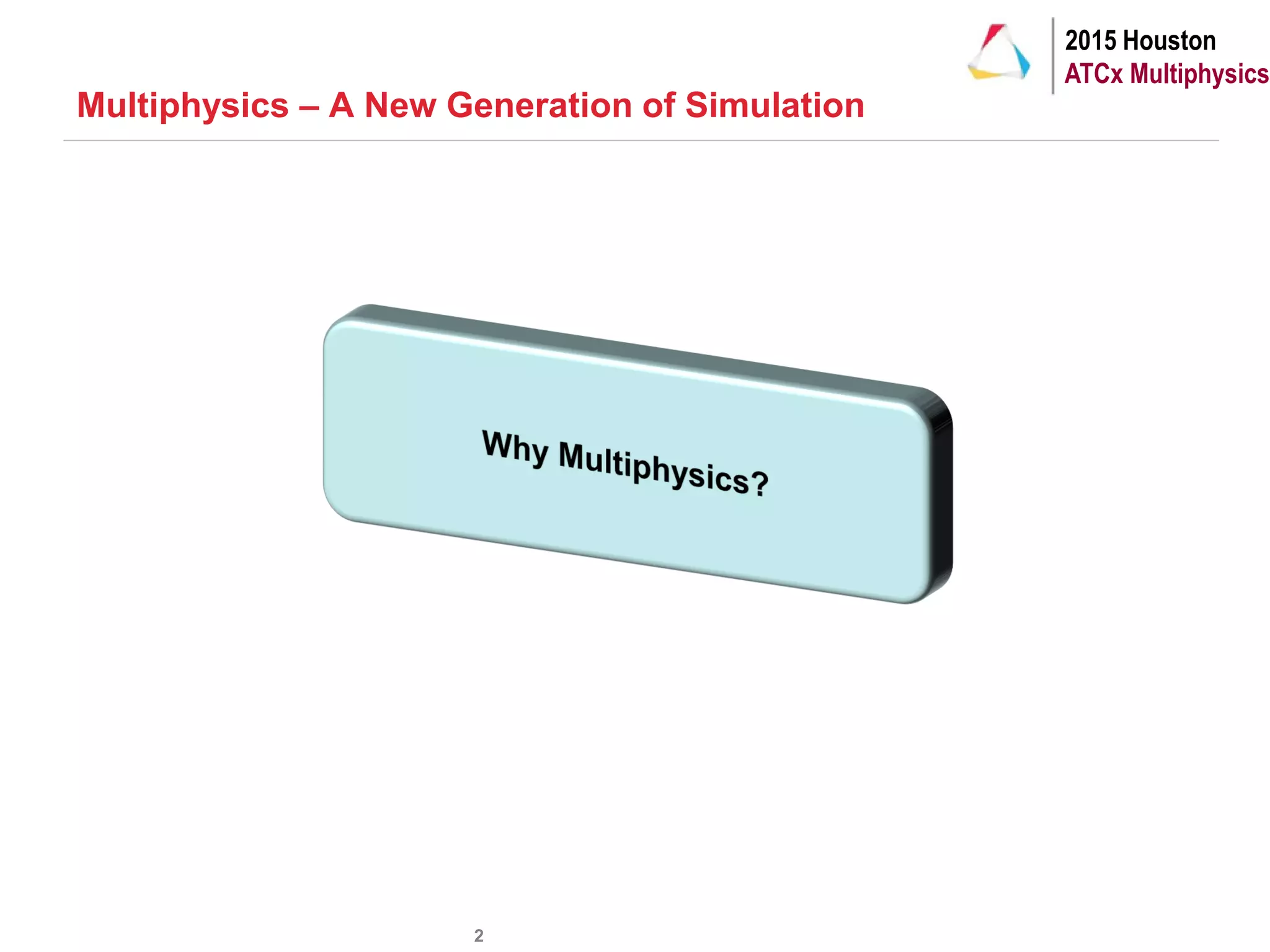

Multiphysics – A New Generation of Simulation

3
2015 Houston
ATCx Multiphysics
Multiphysics – A New Generation of Simulation

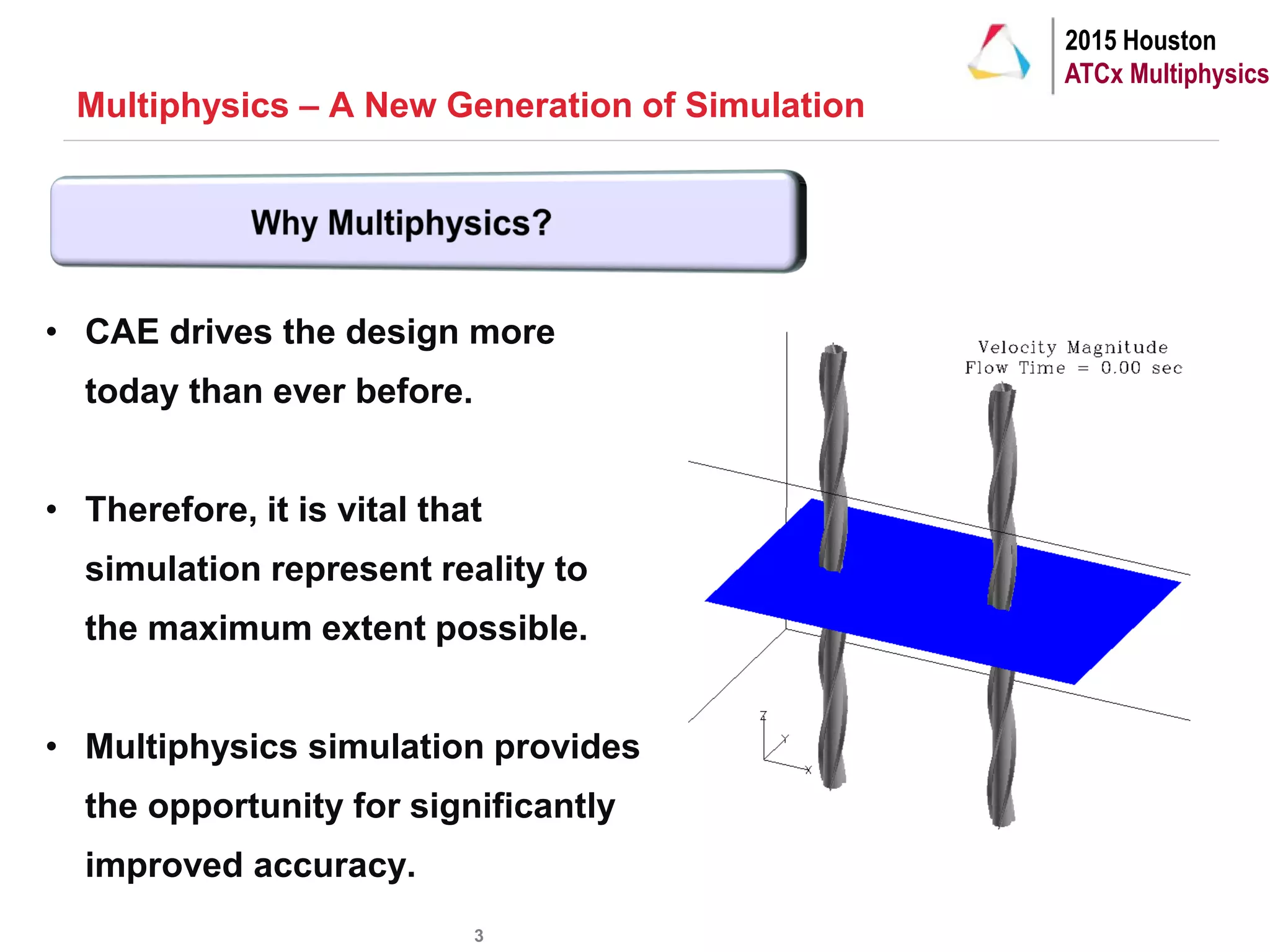

• CAE drives the design more
today than ever before.
• Therefore, it is vital that
simulation represent reality to
the maximum extent possible.
• Multiphysics simulation provides
the opportunity for significantly
improved accuracy.

4
2015 Houston
ATCx Multiphysics
Multiphysics – A New Generation of Simulation

5
2015 Houston
ATCx Multiphysics
Multiphysics – A New Generation of Simulation

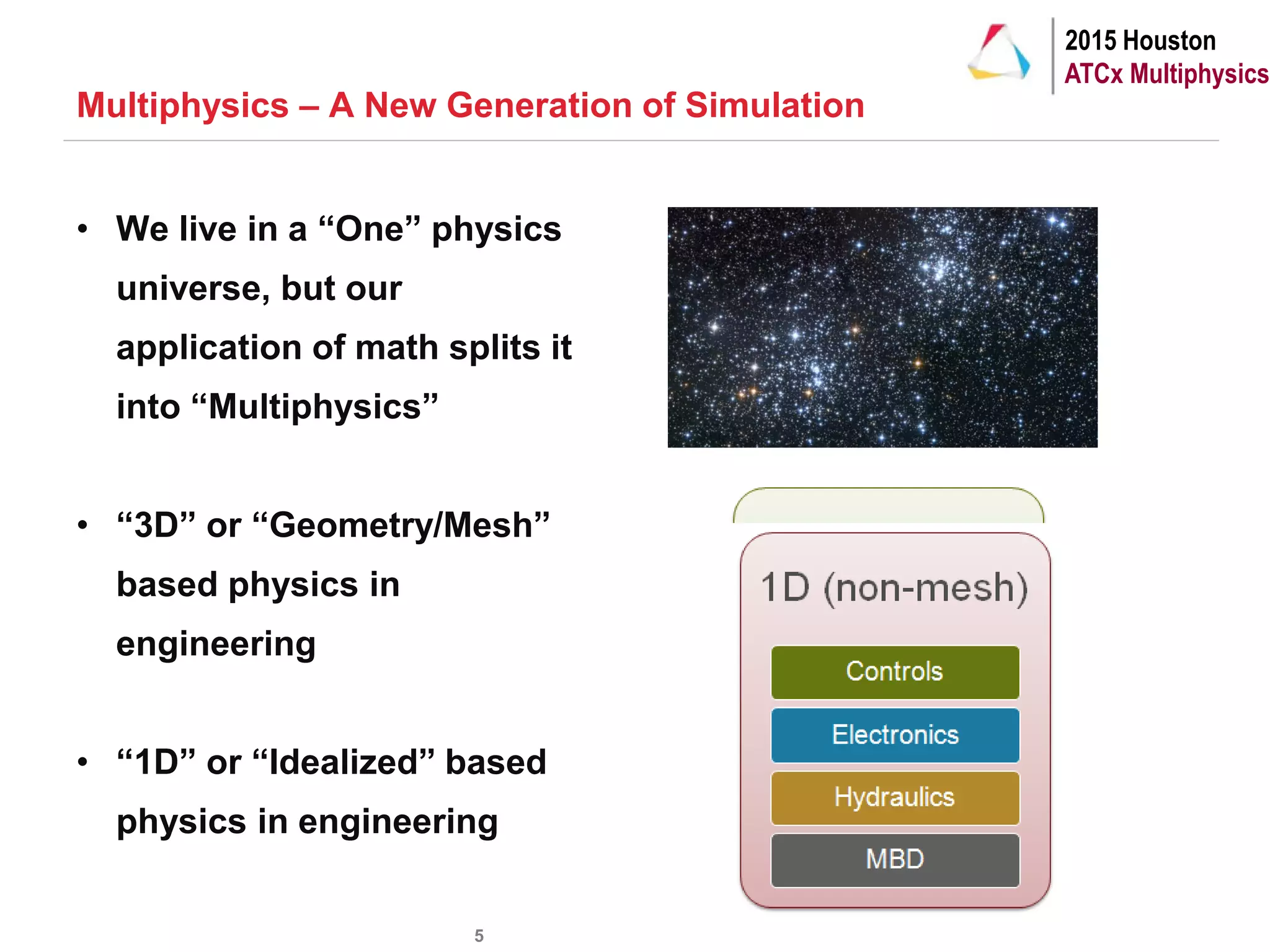

• We live in a “One” physics
universe, but our
application of math splits it
into “Multiphysics”
• “3D” or “Geometry/Mesh”
based physics in
engineering
• “1D” or “Idealized” based
physics in engineering

6
2015 Houston
ATCx Multiphysics
Multiphysics – A New Generation of Simulation

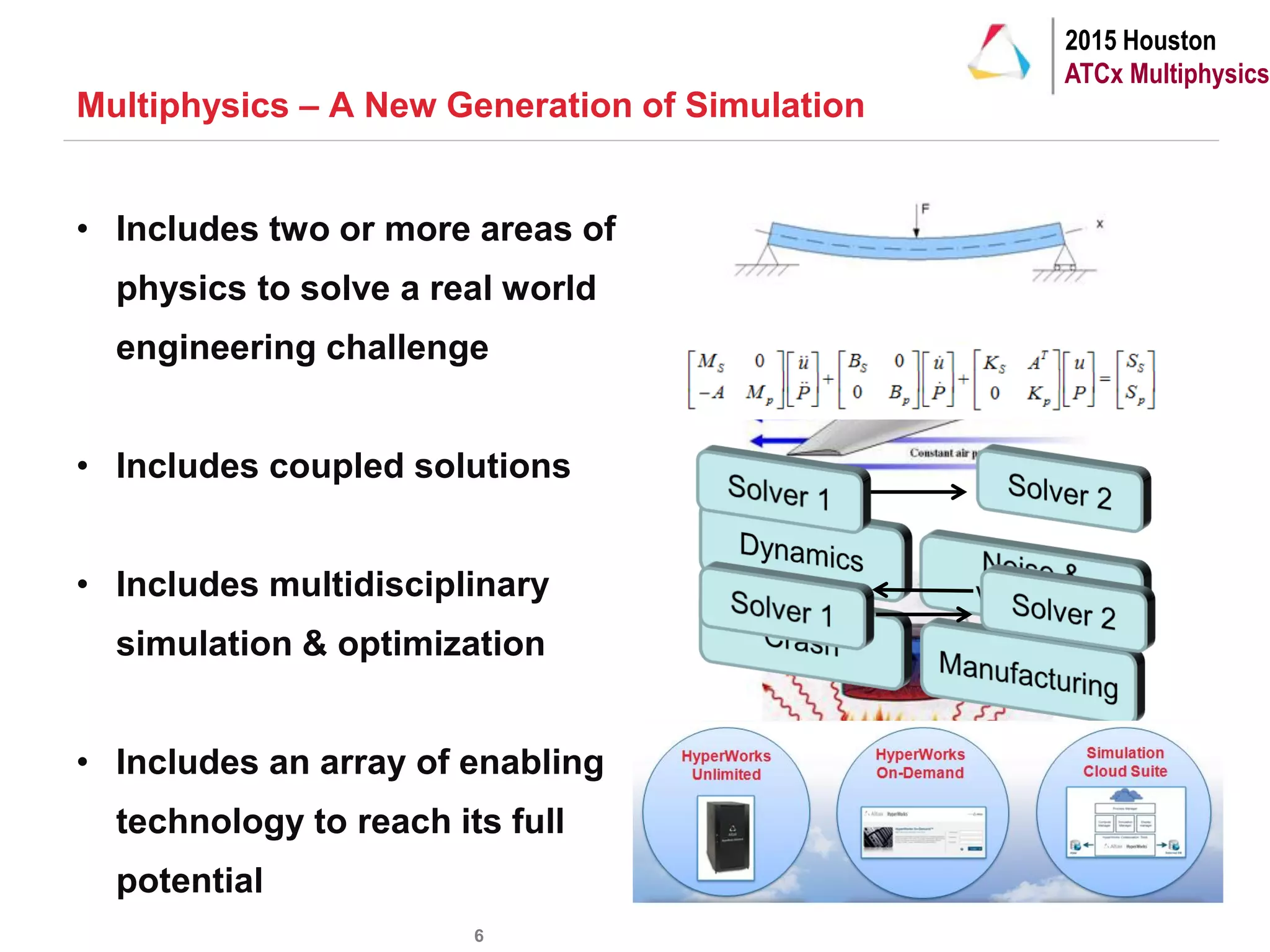

• Includes two or more areas of
physics to solve a real world
engineering challenge
• Includes coupled solutions
• Includes multidisciplinary
simulation & optimization
• Includes an array of enabling
technology to reach its full
potential

7
2015 Houston
ATCx Multiphysics
Multiphysics – A New Generation of Simulation

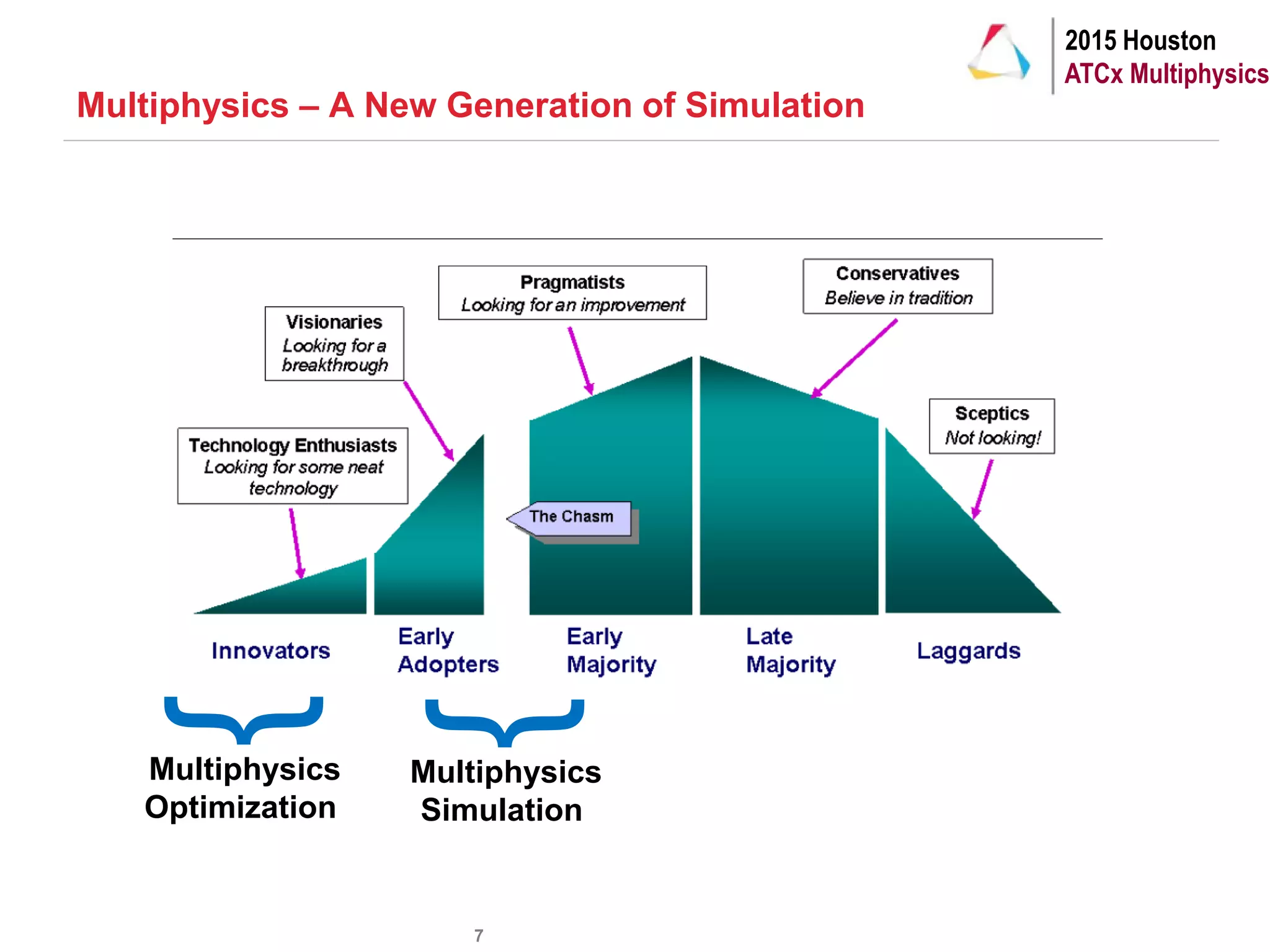

Multiphysics
Simulation
{
Multiphysics
Optimization
{

8
2015 Houston
ATCx Multiphysics
Multiphysics – A New Generation of Simulation

9
2015 Houston
ATCx Multiphysics
Multiphysics – A New Generation of Simulation

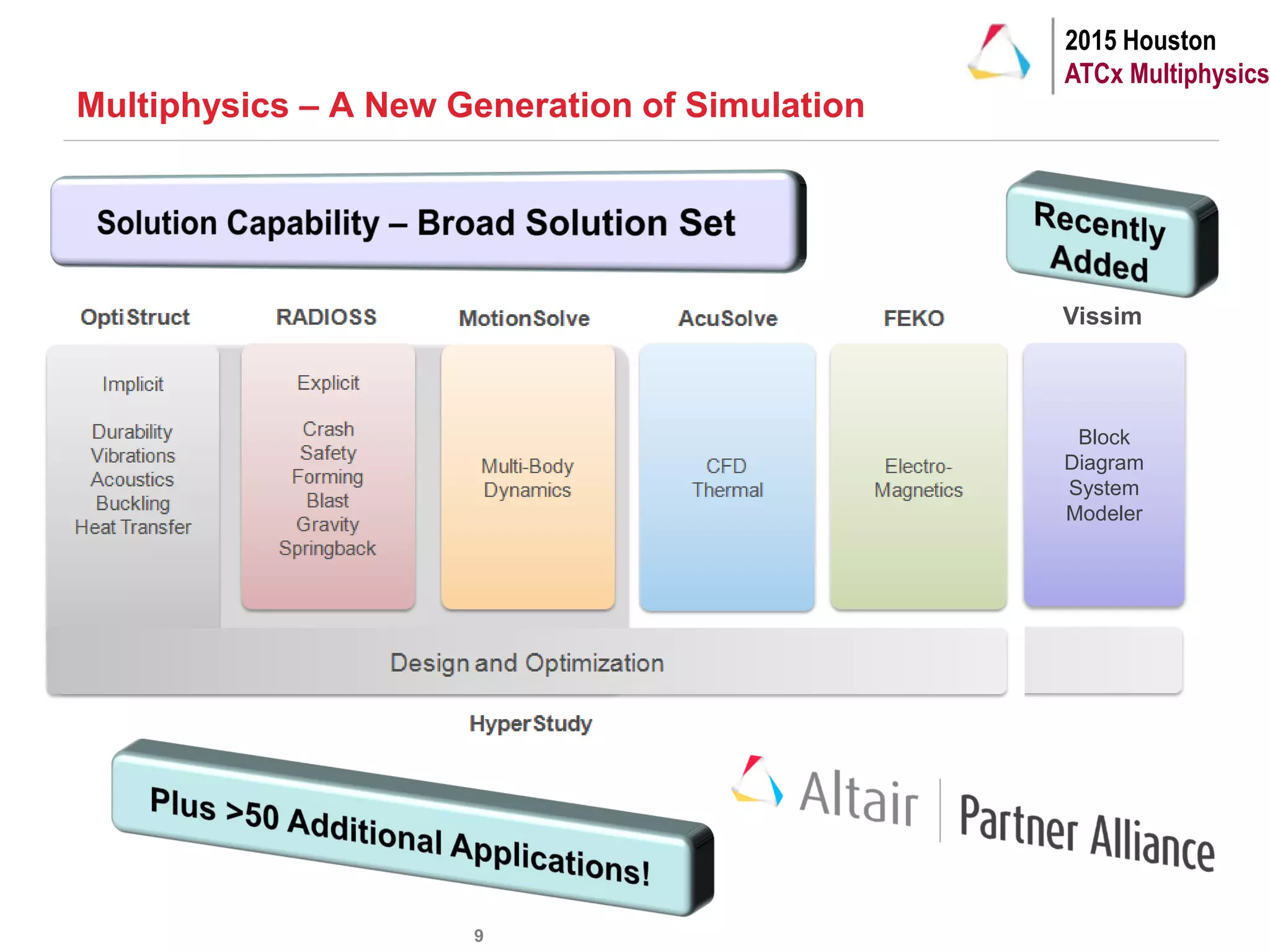

Block
Diagram
System
Modeler
Vissim

10
2015 Houston
ATCx Multiphysics
Multiphysics – A New Generation of Simulation
• Several levels of MP technology
available to the users so you can
select the right level of coupling.
• Coupled ability in a single solver
• Sequential simulation
• Co-Simulation

11
2015 Houston
ATCx Multiphysics
Multiphysics – A New Generation of Simulation

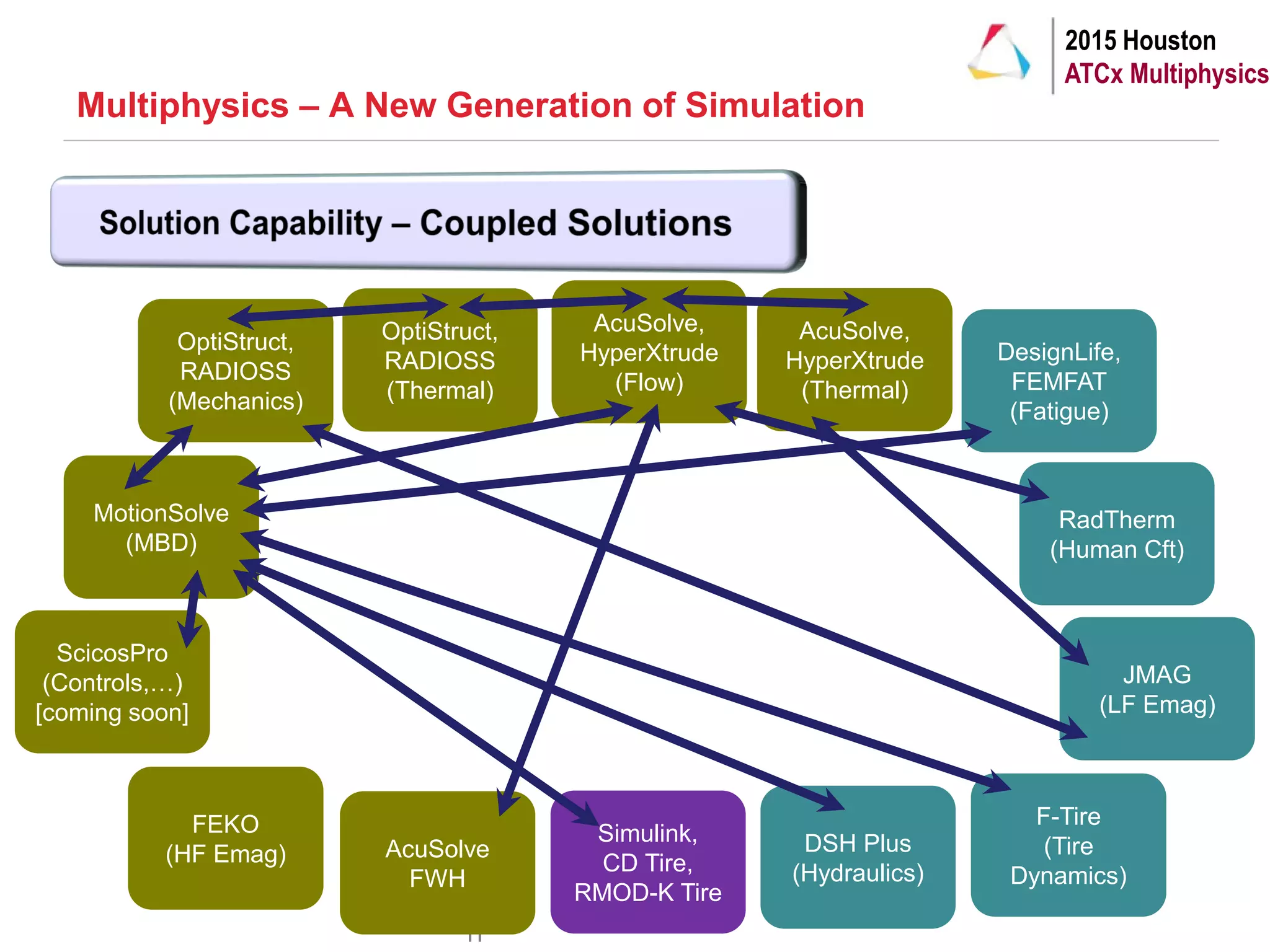

OptiStruct,
RADIOSS
(Mechanics)
OptiStruct,
RADIOSS
(Thermal)
AcuSolve,
HyperXtrude
(Flow)
AcuSolve,
HyperXtrude
(Thermal)
FEKO
(HF Emag)
JMAG
(LF Emag)
ScicosPro
(Controls,…)
[coming soon]
MotionSolve
(MBD)
F-Tire
(Tire
Dynamics)
DesignLife,
FEMFAT
(Fatigue)
DSH Plus
(Hydraulics)
RadTherm
(Human Cft)
AcuSolve
FWH
Simulink,
CD Tire,
RMOD-K Tire

12
2015 Houston
ATCx Multiphysics
Multiphysics – A New Generation of Simulation

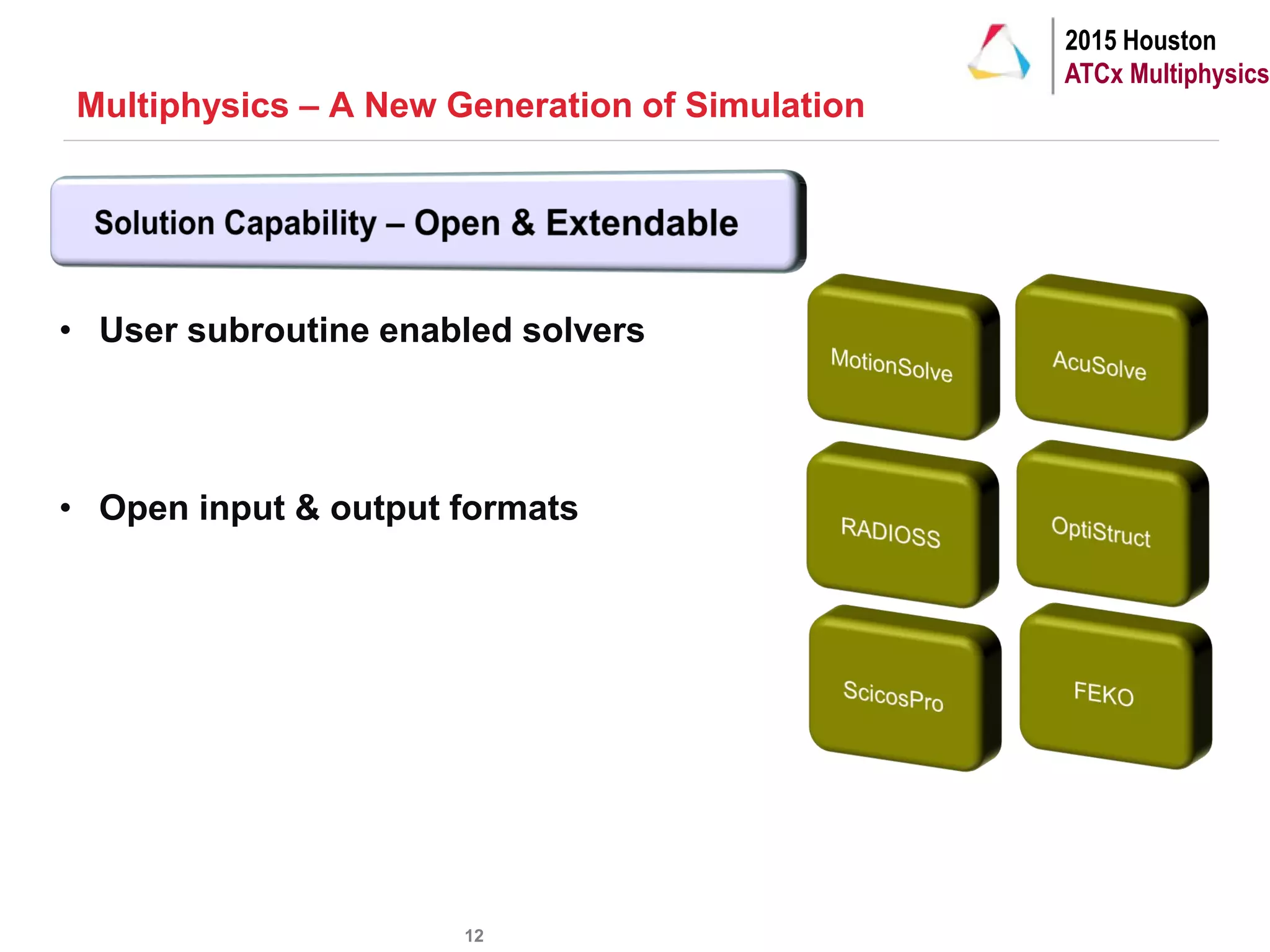

• User subroutine enabled solvers
• Open input & output formats

13
2015 Houston
ATCx Multiphysics
Multiphysics – A New Generation of Simulation

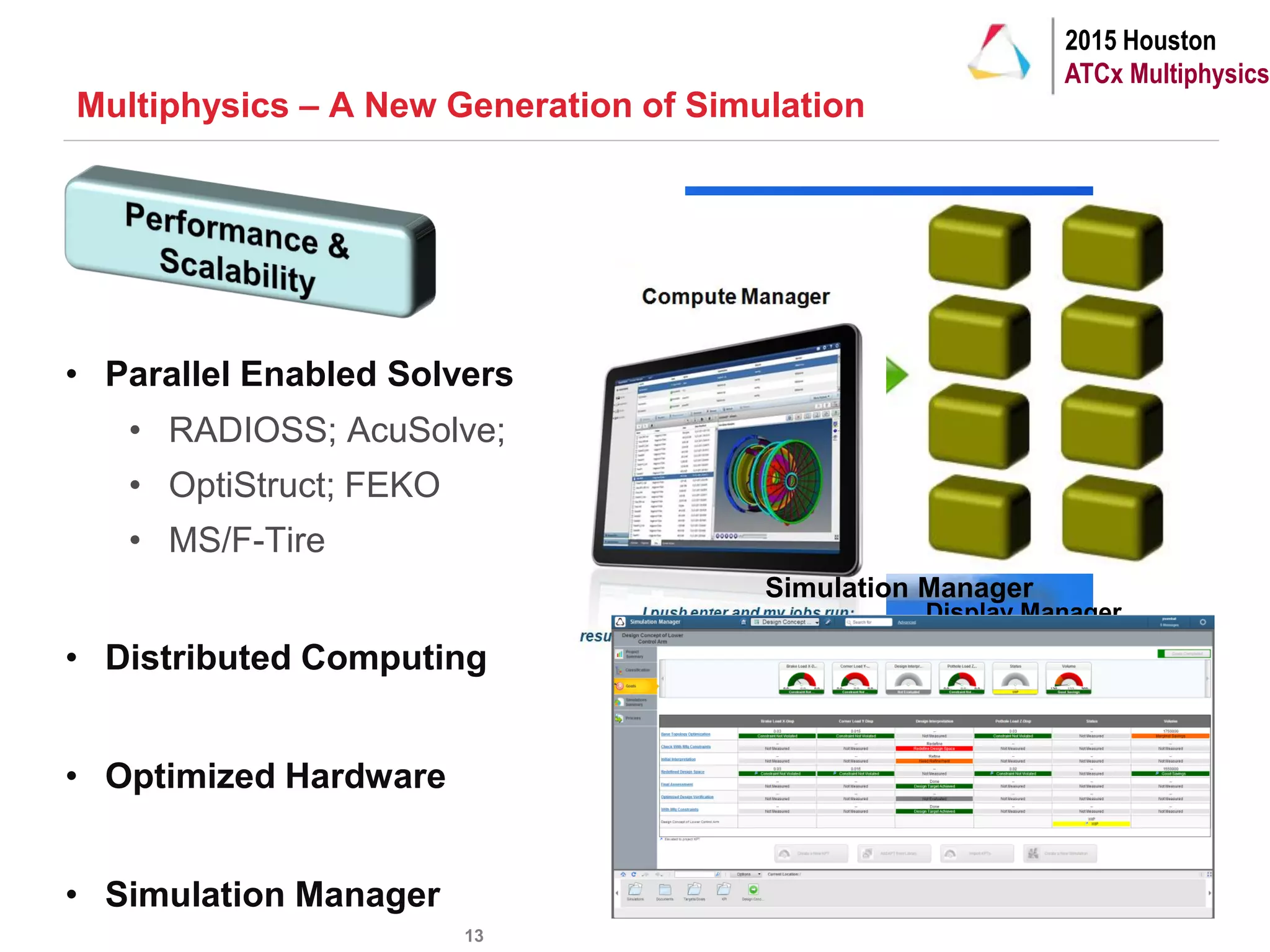

• Parallel Enabled Solvers
• RADIOSS; AcuSolve;
• OptiStruct; FEKO
• MS/F-Tire
• Distributed Computing
• Optimized Hardware
• Simulation Manager
Display Manager
Simulation Manager

14
2015 Houston
ATCx Multiphysics

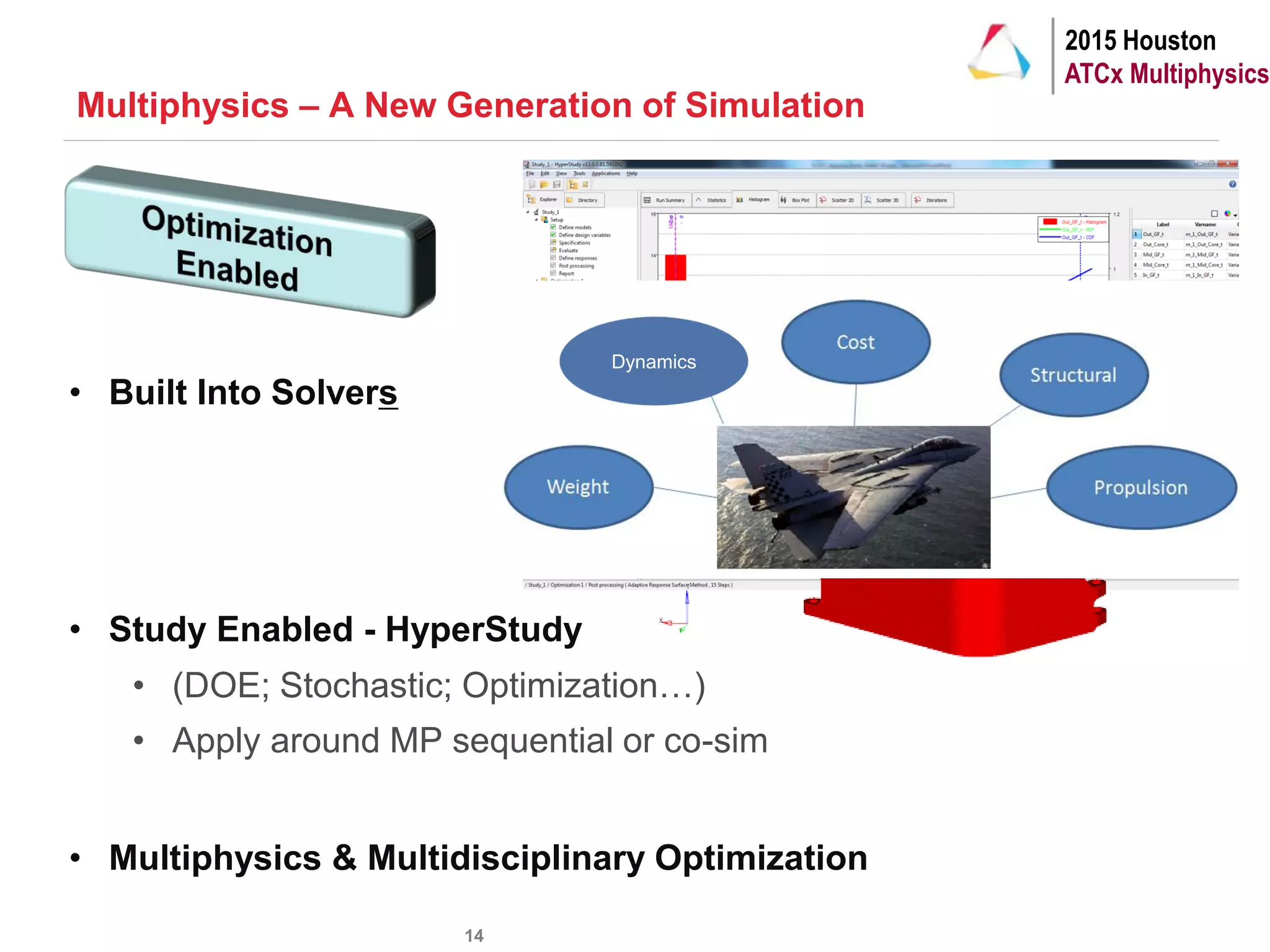

Multiphysics – A New Generation of Simulation
• Built Into Solvers
• Study Enabled - HyperStudy
• (DOE; Stochastic; Optimization…)
• Apply around MP sequential or co-sim
• Multiphysics & Multidisciplinary Optimization
Dynamics

15
2015 Houston
ATCx Multiphysics
Multiphysics – A New Generation of Simulation

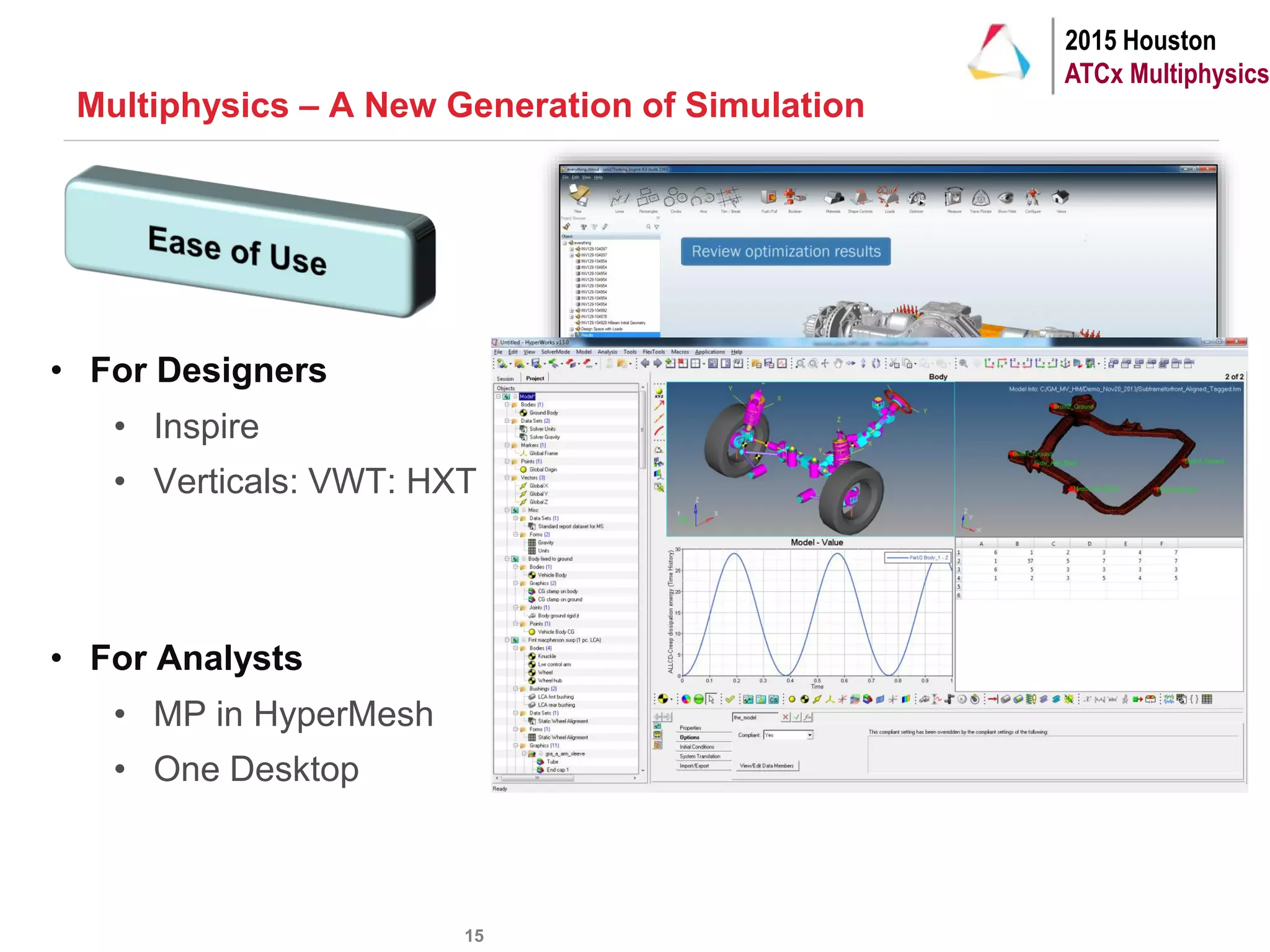

• For Designers
• Inspire
• Verticals: VWT: HXT
• For Analysts
• MP in HyperMesh
• One Desktop

16
2015 Houston
ATCx Multiphysics

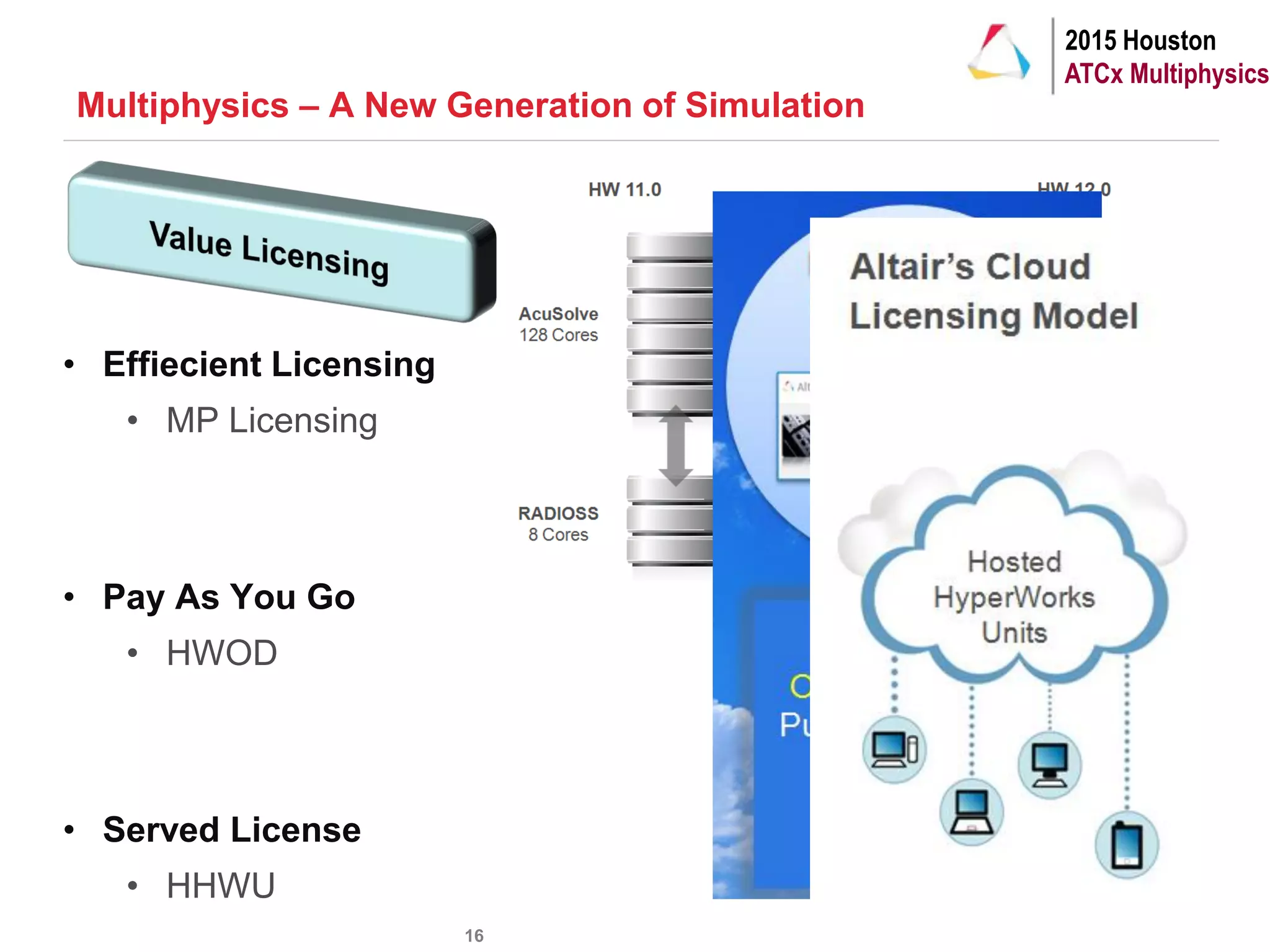

Multiphysics – A New Generation of Simulation
• Effiecient Licensing
• MP Licensing
• Pay As You Go
• HWOD
• Served License
• HHWU

17
2015 Houston
ATCx Multiphysics
Multiphysics – A New Generation of Simulation

18
2015 Houston
ATCx Multiphysics
Multiphysics – A New Generation of Simulation

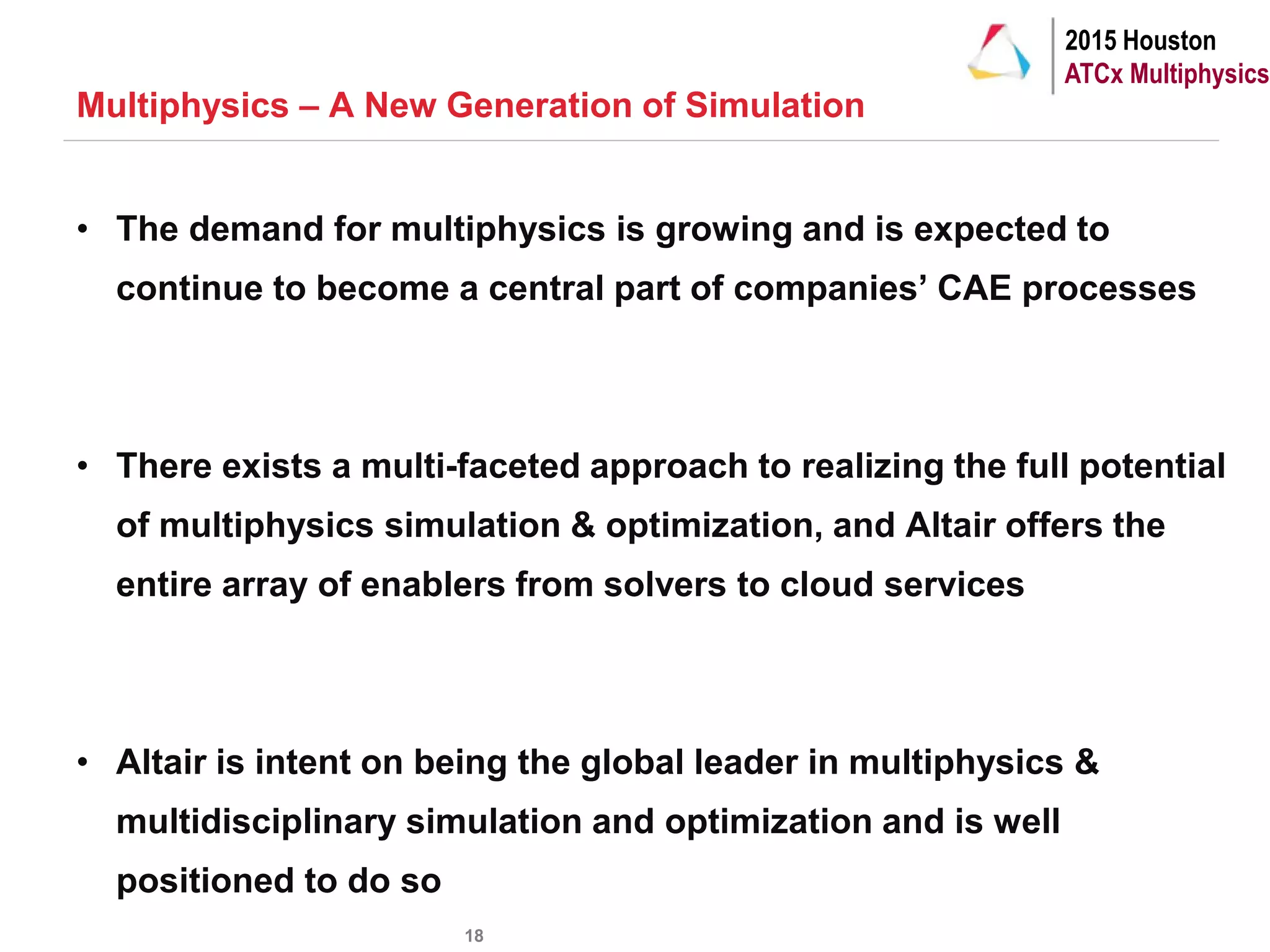

• The demand for multiphysics is growing and is expected to
continue to become a central part of companies’ CAE processes
• There exists a multi-faceted approach to realizing the full potential
of multiphysics simulation & optimization, and Altair offers the
entire array of enablers from solvers to cloud services
• Altair is intent on being the global leader in multiphysics &
multidisciplinary simulation and optimization and is well
positioned to do so

19
2015 Houston
ATCx Multiphysics
Multiphysics – A New Generation of Simulation

What's hot

Design Portfolio

ratnasankeerthanredd

HyperStudy 10 Training Manual

AltairKorea

One of the most important component in mechanical is Gear for the transmission of power with ease and with less friction. Its main aim is to transfer torque from one shaft to other. There are different kinds of gears namely spur gear, helical gears, worm gears etc. Gear drives are used for different kinds of machines like automobiles, metal cutting tools, material handling equipmentÃ¢â‚¬â„¢s, rolling mills, marine power plants etc. The friction and other losses in this type of power transmission equipment is comparatively very low. In this work a software called Ã¢â‚¬Å“MATLABÃ¢â‚¬Â is used to design a Spur Gear. MATLAB is widely used for lot of research purposes for obtaining accurate results and it has got a lot of built in functions which makes it versatile. It is a user friendly one and when executed it ask the inputs and performs the necessary design calculations and gives necessary output values. As computers are used to perform the task of gear design becomes simple, friendly and error free.

Spur Gear Design by Using MATLAB Code

IJSRD

Concepts in engineering design

MITS Gwalior

CATIA Drafting

Cad Cam

Solid works

ranbir_56

Altair constantly develops and enriches its CFD offering. Today with AcuSolve, a Navier-Stokes based solver, and ultraFluidX, utilizing a Lattice Boltzmann approach, Altair is providing a broad CFD solution allowing customers to choose the best approach for their applications. This workshop illustrates the strong capabilities of AcuSolve for external aerodynamics, thermal analysis and multi-physics applications like fluid-structure interaction (FSI) or coupling with a multi-body dynamics (MBD) solver. On the other hand, ultraFluidX allows to perform transient external aerodynamics simulations of production car geometries within a few hours on a single workstation leveraging GPU technology. Low surface mesh requirements and the integrated automatic volume meshing yield fast turnaround times during the development process. Both CFD solvers can be accessed via the Virtual Wind Tunnel, a dedicated software for external aerodynamic analyses.

CFD Analysis with AcuSolve and ultraFluidX

Altair

Lecture 10,11 Basics of FEM

Manipal Institute of Technology

4.2 Offshore platform.pptx

VijayalakshmiR64

How to Import a Sacs Model into GeniE

João Henrique Volpini Mattos

SOLIDworks Report File

NEERAJ KUMAR

SOFTWARES FOR CIVIL ENGINEERS and BIM by SATHISH

SKCT, coimbatore

Solidworks software

sanjeev kumar shah

Brochure de prestación de Servicios como Consultor - Coordinador BIM (2009-2022)- - Implementación BIM 3D/4D/5D/7D. - Integración y Gestión de Modelos Federados BIM. - Acompañamiento BIM en Fases de Estudio Conceptual, Pre Factibilidad, Factibilidad, Ejecución (Ingeniería de Detalle + Fabricación + Construccion + Montaje). - BIM + LEAN (Optimización de Procesos en base al modelo BIM). - Facility Management en etapa de operación y mantenimiento utilizando el modelo BIM

Brochure CASB.BIM 2022 Rev1.pdf

Cristhian A. Solano B.

Artificial Intelligence and BIM

Alex Ferguson

MECHANICAL DESIGN PORTFOLIO

sachin shetty

Catia presentation

Simranjit Singh

Spar Platforms

Andrew Walsh

SolidWorks Design Automation Using the SolidWorks API, Microsoft Excel and VBA

Razorleaf Corporation

Linkedin Resume- CFD engineer

Bharat Bhushan Sharma

What's hot (20)

Design Portfolio

HyperStudy 10 Training Manual

Spur Gear Design by Using MATLAB Code

Concepts in engineering design

CATIA Drafting

Solid works

CFD Analysis with AcuSolve and ultraFluidX

Lecture 10,11 Basics of FEM

4.2 Offshore platform.pptx

How to Import a Sacs Model into GeniE

SOLIDworks Report File

SOFTWARES FOR CIVIL ENGINEERS and BIM by SATHISH

Solidworks software

Brochure CASB.BIM 2022 Rev1.pdf

Artificial Intelligence and BIM

MECHANICAL DESIGN PORTFOLIO

Catia presentation

Spar Platforms

SolidWorks Design Automation Using the SolidWorks API, Microsoft Excel and VBA

Linkedin Resume- CFD engineer

Viewers also liked

Additive manufacturing (AM) technology enables the possibility of realizing highly efficient, optimized structural components with configurations not achievable using conventional manufacturing methods. The Altair and Solid Thinking toolsets provide advanced capabilities to design structural topologies to minimize weight and maximize other performance criteria. However, conventional manufacturing processes require application of design constraints, such as directional access for machining, in the optimization that limit the structural efficiency of the resulting design. AM can remove many of these constraints to allow for more efficient configurations under the applied loading conditions. Case studies show the potential to reduce weight up to 30% for components with applied bending and torsional loads by allowing increased complexity configurations that could only be manufactured additively.

Leveraging Geometric Shape Complexity, in Optimal Design for Additive Manufac...

Altair

The design of a beach cleaning trailer is presented. The basic design principle of a foreign beach cleaning machine was taken into consideration. Apart from the tire and hydraulic hoses, all components of the beach cleaning trailer were made from steel. This study focuses on stress analysis in the ball bearing housing by the finite element method. Actual tests have been carried out in fields. This study aims to report the performance of the beach cleaning trailer. Stresses in the ball bearing housing are calculated by FEM.

Design and Construction of Beach Cleaning Trailer by Finite Element Method

drboon

Fatigue life prediction of structures whose natural frequencies lie near the frequencies of the input loading requires the stress results from dynamic analyses. These analyses can be performed in either the time or the frequency domains depending on the nature or the loading. This presentation will outline the approaches available for fatigue life prediction using Altair OptiStruct and APA product, nCode DesignLife for both time and frequency based dynamic analyses. The strengths, weaknesses and assumptions of each approach will be presented, along with typical applications enabling the user to select the proper technique for their particular use case.

Fatigue Life from Sine-on-Random Excitation

Altair

This Workshop Presentation on Multi-Body Dynamics was conducted by Keshav Sundaresh at the Americas ATC on May 5, 2015. <br><br>In this workshop, learn how MotionSolve is used to design and evaluate new suspension systems, optimize the ride and handling characteristics of vehicles, assess system durability, simulate for low frequency vibration avoidance, design and optimize steering systems, and validate Mechatronics components

Multi-Body Simulation - Americas ATC 2015 Workshop

Altair

CFD Analysis of Gerotor Lubricating Pumps at High Speed: Geometric Features I...

Massimo Rundo

A 20-year experience with LMS Amesim: the simulation of positive displacement...

Massimo Rundo

Bolted connections involve sharp notched components that are therefore sensitive to fatigue loading. In internal combustion engines, the journal bearings of the crankshaft are supported by bearing caps which are bolted to the cylinder block. These threaded connections are a fatigue concern as cracking may be experienced on dynamometer tests of new engines. The critical element of this application however is not the steel studs rather the threaded bolt holes in the cast engine block. While the nominal stress concept is applicable to the fatigue design of studs, a local stress approach has to be adopted to assess the fatigue strength of threaded bolt holes. This paper addresses the fatigue design of this kind of threaded connection. Initially alternate methods of FE modeling and analysis of threaded joints by the local approach are critically examined. The parallel development of a simplified experimental test system involving a threaded hole in cast AlSi7 is described and used to generate baseline fatigue data under known loading conditions. The fatigue behavior of the experimental system is then analyzed on the basis of alternate FE models and post processing approaches. Finally, recommendations for the accurate and computationally efficient FE modeling and durability analysis of threaded connections in cast aluminum cylinder block are outlined. Speakers Marco Bersella, Engineer, TP Engineering srl

Stress and Durability Analysis of Threaded Connections in a Cast Aluminum Cyl...

Altair

Modeling of weight and vibration reduction using high performance LASD

Altair

Design Optimization of Axles using Inspire and OptiStruct

Altair

Design Methodologies for ALM and Lattice parts

Altair

Design Faster and Lighter: Applications of Topology Optimization In Additive ...

Altair

Car makers have to reduce consumption of vehicles and so, are continually looking for solutions to lighten components. For powertrain, components generally mean screwed assembly, contact and fitting interfaces, with different kind of loading to take into account (static and dynamic). Hence, we decided to apply with Altair assistance, a process of topology optimization on an assembly of gearbox housing in order to check its feasibility and efficiency. Several steps had to be solved from exhaustive identification of all mechanical constraints to execution of large models with Optistruct. By the end, the process has been defined and implemented on an existing gearbox and will be soon apply on the next one to design. Speakers Philippe Dausse, Modelization Specialist, PSA Peugeot Citroen Automobiles

A way to reduce mass of gearbox housing

Altair

Viewers also liked (12)

Leveraging Geometric Shape Complexity, in Optimal Design for Additive Manufac...

Design and Construction of Beach Cleaning Trailer by Finite Element Method

Fatigue Life from Sine-on-Random Excitation

Multi-Body Simulation - Americas ATC 2015 Workshop

CFD Analysis of Gerotor Lubricating Pumps at High Speed: Geometric Features I...

A 20-year experience with LMS Amesim: the simulation of positive displacement...

Stress and Durability Analysis of Threaded Connections in a Cast Aluminum Cyl...

Modeling of weight and vibration reduction using high performance LASD

Design Optimization of Axles using Inspire and OptiStruct

Design Methodologies for ALM and Lattice parts

Design Faster and Lighter: Applications of Topology Optimization In Additive ...

A way to reduce mass of gearbox housing

Similar to Multiphysics - A New Generation of Simulation

Energy Harvesting appliqué aux systèmes de surveillance de la pression des pn...

Minnovarc

Scheduling technology either commercial or homegrown in today’s crude-oil refining industries relies on a complex simulation of scenarios where the user is solely responsible for making many different decisions manually in the search for feasible solutions over some limited time-horizon i.e., trial-and-error heuristics. As a normal outcome, schedulers abandon these solutions and then return to their simpler spreadsheet simulators due to: (i) time-consuming efforts to configure and manage numerous scheduling scenarios, and (ii) requirements of updating premises and situations that are constantly changing. Moving to solutions based in optimization rather than simulation, the lecture describes the future steps in the refactoring of the scheduling technology in PETROBRAS considering in separate the graphic user interface (GUI) and data communication developments (non-modeling related), and the modeling and process engineering related in an automated decision-making with built-in problem representation facilities and integrated data handling features among other techniques in a smart scheduling frontline.

Crude-Oil Scheduling Technology: moving from simulation to optimization

Brenno Menezes

This presentation is from the PBS User Group 2013, as presented by Greg Clifford. "Cray scalable solutions are optimized for complex simulations, where parallel and massively concurrent applications need access to data, fast. This presentation will cover recent updates from Cray, showing how Cray continues to deliver the largest production supercomputers leveraging Altair PBS Works and HyperWorks software solutions." Learn more: http://www.altairatc.com/page.aspx?region=na&name=agenda Watch the presentation video: http://insidehpc.com/2013/10/04/cray-hpc-environments-leading-edge-simulation/

Cray HPC Environments for Leading Edge Simulations

inside-BigData.com

Digital twin for ports and terminals schuett slideshare

Holger Schuett

We build AI and HPC solutions. Expertise: highly optimized AI Engines and HPC Apps. • HPC: accelerating time to results and adapting complex algorithms to GPU, FPGA, many-CPU architectures. Leverage byteLAKE expertise in complex algorithms adaptation and optimization for NVIDIA GPUs, Xilinx Alveo FPGAs, Intel, AMD and ARM solutions. From single nodes to clusters. More: www.byteLAKE.com/en/Alveo

byteLAKE's Alveo FPGA Solutions

byteLAKE

Arcelormittal @ Scilab Conference 2018

Scilab

Virtual Plant Design with Arena® Simulation

Rockwell Automation

The main goal of the session is to showcase approaches that greatly simplify the work of a data analyst when performing data analytics, or when employing machine learning algorithms, over Big Data. The session will include presentations on (a) How data analytics workflows can be easily and graphically composed, and then optimized for execution, (b) How raw data with great variety can be easily queried using SQL interfaces, and (c) How complex machine learning operations can be performed efficiently in distributed settings. After these presentations, the speakers will participate in a discussion with the audience, in order to discuss further tools that could make the work of a data analyst more simple.

ExtremeEarth: Hopsworks, a data-intensive AI platform for Deep Learning with ...

Big Data Value Association

Venkat multi physics_slides_altair atc

Altair

Optimization is now the disruptive driving force poised to address today's complex engineering challenges. Reducing Cost and Increasing Safety are two of the most important pillars in modern architectural, engineering and construction industries. ACE OCP fills the gap for practical optimization tools to meet the massive challenges of the professional civil/architectural engineer in the construction industry. For the first time a tool can add real engineering value in all three dimensions of the value proposition, increase revenues, decrease costs, and decrease risk.

Optimization Computing Platform for the Construction Industry

Kostas Dimitriou

Google

DVJ

The easy days of Oil and gas extraction is over, and the ability to extract Oil and Gas from harsh enviornments is very dependent on the ability to overcome technical challenges through the use of advanced numerical analysis and simulation. Technical challalenges currently faced in the industry include High Pressure High Temperature (HPHT), Utra Deep Water (UDW) with water depths greater than 10,000 ft, and the Arctic with potentially 20% untapped hydro carbon reserves. These technical challenges are overcome through more use of advanced analysis and simulation, and this allows cost effective solutions to be obtained. Also the Industry is currently being challenged by a low oil price, and lots of companies are forced to look at cost and schedule. This as a result, allows the opportunity for the use of advanced analysis to help solve Engineering challanges in an efficient manner and save potentially millions of dollars in the Engineering. The ways that this is undertaken is presented and discussed. There are different types of Analysis simulation used in the Offshore Industry, for example FEA, CFD, Coupled Analysis etc. Also computer power is ever increasing in compuational efficiencies, and novel methods, such as the use of Cloud computing, has had a big impact on the way that analysis is undertaken. These different methods of software and hardware are discussed in relation to the Offshore Industry, and an indication is given in to how these methods will affect the Industry in the future.

How Advanced Simulation will Impact the Offshore Industry both Now and in the...

Altair

Derivación y aplicación de un Modelo de Estimación de Costos para la Ingenier...

Academia de Ingeniería de México

You can benefit from Simulink, the software that Engineers love for doing their work Engineers in industries like Aerospace, Automotive, Energy production, Industrial Machinery, Automation, Railway and many others use Model-Based Design with Simulink for an increasing amount of their applications. Simulink allows you to… gain knowledge about the dynamics of your system and have a direct path to implementation use the modeling language that most engineers speak. Math underpins all Systems. Simulink is Math made real. Whatever domain your system incorporates: It is likely that mathematics plays a part of it. For example, Simulink covers domains like: Continuous time, Discrete time, Discrete event State machine, Physical models, Text based algorithms System environment, Digital hardware, Analog/RF hardware Embedded software, Mechanical systems MATLAB & Simulink provide a unified environment for all. Functional testing those systems uses simulation and formal methods. Begin to use Simulink for engineering mechatronic systems now. Find ways to look at the system you could not do before, and save time in your development Simulink is industry standard for engineering controls, signal processing. Ask someone who already uses Simulink Get a deeper insight on mathworks.com/model-based-design/ During conference, reach me at Twitter @schlosi

It‘s Math That Drives Things – Simulink as Simulation and Modeling Environment

Joachim Schlosser

CMSI計算科学技術特論C (2015) ALPS と量子多体問題②

Computational Materials Science Initiative

¿Es posible construir el Airbus de la Supercomputación en Europa?

AMETIC

Ev2015 Model-driven Innovation in EV Design

Paul Goossens

Necesidades de supercomputacion en las empresas españolas

Cein

Tenkiv developed a new kind of solar power system focused on cost-effectiveness and scalability in need of data acquisition system to collect and analyze data from different sensors throughout the cloud. Because the system may have different energy conversion devices (modules), different number of thermal circuits, collectors, etc. the control software has to be very adaptable to match these varying configurations. Therefore the JVM was an ideal choice. The control software "Nexus Brain" is written in Kotlin. It heavily uses Units of Measurement, so Tenkiv created Physikal, a Kotlin extension to the Java 8 implementation of JSR 363. A project also used by others, for example in collaboration with NASA or ETH Zurich. This session will give a brief overview of how Tenkiv and Nexus Brain use Kotlin and Physikal/JSR 363 to calculate the optimal usage of alternate energy sources and control solar power systems for making clean water anywhere from Flint Michigan to Afghanistan or Cape Town.

Physikal - Using Kotlin for Clean Energy - KUG Munich

Werner Keil

Metal Additive Manufacturing - part 5

Marco Preziosa

Similar to Multiphysics - A New Generation of Simulation (20)

Energy Harvesting appliqué aux systèmes de surveillance de la pression des pn...

Crude-Oil Scheduling Technology: moving from simulation to optimization

Cray HPC Environments for Leading Edge Simulations

Digital twin for ports and terminals schuett slideshare

byteLAKE's Alveo FPGA Solutions

Arcelormittal @ Scilab Conference 2018

Virtual Plant Design with Arena® Simulation

ExtremeEarth: Hopsworks, a data-intensive AI platform for Deep Learning with ...

Venkat multi physics_slides_altair atc

Optimization Computing Platform for the Construction Industry

Google

How Advanced Simulation will Impact the Offshore Industry both Now and in the...

Derivación y aplicación de un Modelo de Estimación de Costos para la Ingenier...

It‘s Math That Drives Things – Simulink as Simulation and Modeling Environment

CMSI計算科学技術特論C (2015) ALPS と量子多体問題②

¿Es posible construir el Airbus de la Supercomputación en Europa?

Ev2015 Model-driven Innovation in EV Design

Necesidades de supercomputacion en las empresas españolas

Physikal - Using Kotlin for Clean Energy - KUG Munich

Metal Additive Manufacturing - part 5

More from Altair

Altair for Manufacturing Applications

Altair

Smart Product Development: Scalable Solutions for Your Entire Product Lifecycle

Altair

An engineer working for Northrop Grumman Systems Corporation Marine Systems (NGSC-MS) was given a project to improve their teams’ current NASTRAN results post-processing workflow by writing a script to automate the task. They reached out to Altair for collaboration and Altair engineers were able to quickly determine that Altair’s mathematical modeling environment – “Altair Compose” – would be the ideal solution due to its ability to read, manipulate, and write NASTRAN results. Also, the Open Matrix Language is a scripting language that is familiar to the engineering community. Given sample NASTRAN results and requirements Altair engineers provided a “template” script. The NGSC-MS team was able to quickly understand and modify the script to their goals. The custom results were then viewable in HyperView as a contour plot, which saved a considerable amount of time during post-processing and documentation workflows.

Simplify and Scale FEA Post-Processing

Altair

Bush Bohlman was required to perform the structural analysis and timber design for the British Columbia Institute of Technology, (BCIT), student plaza, a pedestrian and public transport user gateway for the institute. The structure needed to establish a strong campus identity with a biophilic design and demonstrable support for sustainable building practices while ensuring structural safety according to local design codes. The hybrid mass timber structure consists of a Cross-Laminated Timber (CLT) canopy, CLT columns, and steel columns. By using S-TIMBER, the engineers were able to simulate the complex two-way bending behavior of the cantilevering roof panels and asymmetrical column layout. Having the model in S-TIMBER allowed for changes to be analyzed and re-designed, without the need to manually design individual timber and steel elements. S-TIMBER's design reports presented the design calculations concisely, yet transparently, for faster and easier reviews.

Designing for Sustainability: Altair's Customer Story

Altair

Even though digital twin technology isn’t necessarily new, its adoption is sweeping regions and industries at astonishing rates. Organizations are rushing to adopt digital twins, learning how they can use it for different applications and purposes, and foresee even more growth in the coming few years. In this infographic, remember the big story about digital twin adoption and find out what companies worldwide have in store for their digital twin futures.

why digital twin adoption rates are skyrocketing.pdf

Altair

Digital twin technology has the potential to usher in unprecedented sustainability breakthroughs in industries around the world. As the world sprints toward a net zero future, organizations are rushing to adopt solutions that will create a more sustainable planet filled with technology that will enable people to minimize their impact on the people, wildlife, and environments around them. In this infographic, see how companies are flocking to digital twin technology to meet their sustainability objectives and where digital twin can have the greatest impact.

Can digital twins save the planet?

Altair

Altair for Industrial Design Applications

Altair

Altair’s event processing and data visualization tools enable fleet operators to analyze critical data streaming in from sensors and other sources. This real-time visibility into vehicle and driver performance helps reduce operating costs, improve driver safety, and increase fleet productivity. Analysts can display maps showing the current position of all assets, examine route deviations, program alerts on any set of parameters, and compare drivers’ behavior. Analysts can design and modify analytical dashboards as needed without writing a single line of code.

Analyze performance and operations of truck fleets in real time

Altair

Powerful Customer Intelligence | Altair Knowledge Studio

Altair

Altair’s Data Analytics solutions help reduce healthcare IT complexities and add efficiencies in areas like claims/reimbursement processing, revenue cycle management, interoperability, patient adherence and satisfaction analysis, and physician performance analysis. Altair allows healthcare organizations to access, cleanse, and transform data—helping to break down data application silos and building automated workflows into standardized, shareable assets for optimizing strategic planning, streamlining operations, and maximizing resources.

Altair Data analytics for Healthcare.

Altair

AI supported material test automation.

Altair

Altair’s industry-leading HPC tools let you orchestrate, visualize, optimize, and analyze your most demanding workloads, easily migrating to the cloud and eliminating I/O bottlenecks. Top500 systems and small to mid-sized computing environments alike rely on Altair to keep infrastructure running smoothly. With longstanding hardware and cloud provider partnerships, we handle the integrations for you so your team can focus on moving business forward.

Altair High-performance Computing (HPC) and Cloud

Altair

Altair Monarch is the fastest and easiest way to extract data from dark, semi-structured sources like PDFs, spreadsheets, and text files, as well as from Big Data and other structured sources. Monarch cleans, transforms, blends, and enriches data with an easy-to-use interface free of coding and scripting. For 30 years Monarch has helped insurers worldwide save time and money by enabling people of different skill sets to transform data quickly and precisely for efficient analysis around calculating premiums, identifying fraudulent claims, optimizing customer retention strategies, and more.

No Code Data Transformation for Insurance with Altair Monarch

Altair

Altair Data analytics for Banking, Financial Services and Insurance

Altair

Altair enables organisations worldwide to compete more effectively by operationalizing data analytics and AI with secure, governed, and scalable strategies. We deliver world-class, self-service analytics solutions for data preparation, predictive modeling, stream processing, visualization, and more. With a no-code, cloud-ready interface, organisations can harness the full power of analytics and AI throughout their complete data lifecycle, driving next-level business results.

Altair data analytics and artificial intelligence solutions

Altair

Are You Maximising the Potential of Composite Materials?

Altair

For each deliverable FE-Model a FEM description report needs to be generated. Since this document contains always the same type of information, it is an ideal candidate to automate the creation of this report. Based on the Hyper Report Tool from Altair, RUAG Space and Altair developed a tool to automatically generate the FEM Description Report. The tool requires the HyperMesh data base and the output files from FEM checks as inputs. Together with the tool template, guidelines are provided on how the data base needs to be set up, such that the report can be created automatically. The main structure of the FEM Description Report is dependent on the assembly structure of the HM data base.

Lead time reduction in CAE: Automated FEM Description Report

Altair

The Team H2politO is a group of students of the Politecnico di Torino. The student’s background and profiles are very diverse, everyone comes from a different discipline of engineering and together they compose a complete Team. The disciplines range from Automotive and Mechanical to Electronics, Aerospace, Energy, Mathematics, Computer Science, Mechatronics, Management, Cinema and Media and Industrial Design. The Team mission is to shape a new generation of engineers, leaders in their fields, who represent the educational excellence in regard of each of their competencies. The results of Team passion and hard work are three low-energy consumption vehicles completely designed and made by the Team: IDRA - hydrogen powered prototype; XAM – bioethanol powered parallel hybrid urban concept; XAM 2.0 –EREV city vehicle. The main goal is to take part and win in Shell Eco-marathon, a competition that every year involves more than one hundreds of students teams arriving from all over Europe. Especially we would like to spread the Shell Eco-marathon values through ours, combining the sustainable development with a vehicle that uses the least possible amount of energy. H2politO is a different, innovative and somehow unique project, is not just a Team but something more: it is a new type of conceiving educational, professional and personal growth. Team members aim at being perceived as an experimental laboratory where competences, capabilities and potentialities of future’s engineers are fostered. Students strive to become not only solid and advanced technical experts but, equally important, down-to-earth managers having excellent communication, leadership and teamwork skills. Practical and hands-on experiences are doubtlessly a complementary and enriching form of educational path where it is very important the use of simulation software like HyperWorks. Team members have a real opportunity to lead their educational path by building and crafting their own thesis. Final papers are indeed part of a cluster of thesis which combines all the technological and organizational areas of development H2politO has envisioned and embraced. The Team believes in hard work as the basis of future success. Students crave for continuously improving and strive for exceeding expectations by nurturing the team spirit in order to create those synergies able to add value to individual performances and capabilities. As a consequence, passion and team-spirit are really the foundation of H2politO values. Speakers Prof. Massimiliana Carello, Politecnico di Milano

The Team H2politO: vehicles for low consumption competitions using HyperWorks

Altair

Better correlation of measurement data using Motion Solve and FEFMAT LAB virtual iteration Matching of locally measured data calculating excitations (input) based on MBS process (MotinSolve) to reach local measured data Using this process and the output of MotionSolve for a hybrid MBS- fatigue process Speakers Axel Werkhausen, Manager Sales & Support, MAGNA / Engineering Center Steyr GmbH & Co KG

Improving of Assessment Quality of Fatigue Analysis Using: MS, FEMFAT and FEM...

Altair

Rotating machinery can be found in every industry: automotive, aerospace, energy, etc. The generated vibration environment is typically made of harmonic tones superimposed on background noise. Components mounted on rotating machinery must be designed to survive such mechanical environment over their entire service life. This presentation will concentrate on calculating the fatigue life from sine-on-random excitations using Finite Element Analysis (FEA). It is proposed to derive the statistical rainflow cycle histogram from a sine-on-random spectrum of stress or strain data and then use the appropriate material fatigue curve to obtain the estimated life. This new analysis is complementary to existing features such as SineDwell, SineSweep and (uni- or multi-axes) random PSD. It is part of extensive research work that includes the influence of sigma clipping or the effects of a high kurtosis. Speakers Frédéric Kihm, Application Engineer, HBM-nCode

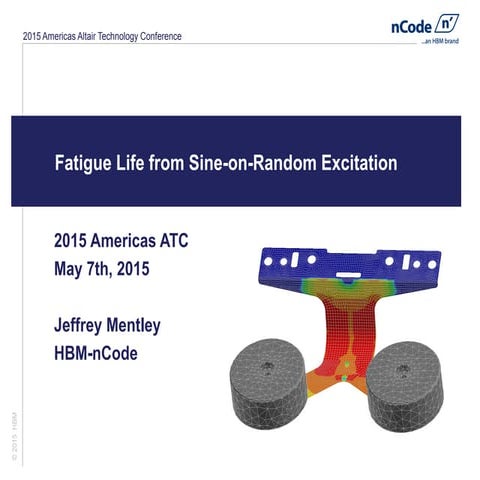

Fatigue Life from Sine-on-Random Excitation

Altair

More from Altair (20)

Altair for Manufacturing Applications

Smart Product Development: Scalable Solutions for Your Entire Product Lifecycle

Simplify and Scale FEA Post-Processing

Designing for Sustainability: Altair's Customer Story

why digital twin adoption rates are skyrocketing.pdf

Can digital twins save the planet?

Altair for Industrial Design Applications

Analyze performance and operations of truck fleets in real time

Powerful Customer Intelligence | Altair Knowledge Studio

Altair Data analytics for Healthcare.

AI supported material test automation.

Altair High-performance Computing (HPC) and Cloud

No Code Data Transformation for Insurance with Altair Monarch

Altair Data analytics for Banking, Financial Services and Insurance

Altair data analytics and artificial intelligence solutions

Are You Maximising the Potential of Composite Materials?

Lead time reduction in CAE: Automated FEM Description Report

The Team H2politO: vehicles for low consumption competitions using HyperWorks

Improving of Assessment Quality of Fatigue Analysis Using: MS, FEMFAT and FEM...

Fatigue Life from Sine-on-Random Excitation

Recently uploaded

Pharmacy management system project report..pdf

Kamal Acharya

2024 DevOps Pro Europe - Growing at the edge

Paco Orozco

Laundry firms currently use a manual system for the management and maintenance of critical information. The current system requires numerous paper forms, with data stores spread throughout the laundry management infrastructure. Often information is incomplete or does not follow management standards. Records are often lost in transit during computation requiring a comprehensive auditing process to ensure that no vital information is lost. Multiple copies of the same information exist in the laundry firm data and may lead to inconsistencies in data in various data stores. A significant part of the operation of any laundry firm involves the acquisition, management and timely retrieval of great volumes of information. This information typically involves; customer personal information and clothing records history, user information, price of delivery and received date, users scheduling as regards customers details and dealings in service rendered, also our products package waiting list. All of this information must be managed in an efficient and cost wise fashion so that the organization resources may be effectively utilized. We present the design and implementation of a laundry database management system (LBMS) used in a laundry establishment. Laundry firms are usually faced with difficulties in keeping detailed records of customers clothing; this little problem as seen to most laundry firms is highly discouraging as customers are filled with disappointments, arising from issues such as customer clothes mix-ups and untimely retrieval of clothes. The aim of this application is to determine the number of clothes collected, in relation to their owners, as this also helps the users fix a date for the collection of their clothes. Also customer’s information is secured, as a specific id is allocated per registration to avoid contrasting information.

Laundry management system project report.pdf

Kamal Acharya

The project developers created a system entitled Resort Management and Reservation System; it will provide better management and monitoring of the services in every resort business, especially D’ Rock Resort. To accommodate those out-of-town guests who want to remain and utilize the resort's services, the proponents planned to automate the business procedures of the resort and implement the system. As a result, it aims to improve business profitability, lower expenses, and speed up the resort's transaction processing. The resort will now be able to serve those potential guests, especially during the high season. Using websites for faster transactions to reserve on your desired time and date is another step toward technological advancement. Customers don’t need to walk in and hold in line for several hours. There is no problem in converting a paper-based transaction online; it's just the system that will be used that will help the resort expand. Moreover, Gerard (2012) stated that “The flexible online information structure was developed as a tool for the reservation theory's two primary applications. Computer use is more efficient, accurate, and faster than a manual or present lifestyle of operation. Using a computer has a vital role in our daily life and the advantages of the devices we use.

RESORT MANAGEMENT AND RESERVATION SYSTEM PROJECT REPORT.pdf

Kamal Acharya

Introduction to Machine Learning Unit-5 Notes for II-II Mechanical Engineering

C Sai Kiran

Construction method of steel structure space frame .pptx

wendy cai

Digital Signal Processing Lecture notes n.pdf

AbrahamGadissa

Explosives Industry manufacturing process.pdf

884710SadaqatAli

fluid mechanics gate notes . gate all pyqs answer

apareshmondalnita

Natalia Rutkowska - BIM School Course in Kraków

bim.edu.pl

Explore the innovative world of trenchless pipe repair with our comprehensive guide, "The Benefits and Techniques of Trenchless Pipe Repair." This document delves into the modern methods of repairing underground pipes without the need for extensive excavation, highlighting the numerous advantages and the latest techniques used in the industry. Learn about the cost savings, reduced environmental impact, and minimal disruption associated with trenchless technology. Discover detailed explanations of popular techniques such as pipe bursting, cured-in-place pipe (CIPP) lining, and directional drilling. Understand how these methods can be applied to various types of infrastructure, from residential plumbing to large-scale municipal systems. Ideal for homeowners, contractors, engineers, and anyone interested in modern plumbing solutions, this guide provides valuable insights into why trenchless pipe repair is becoming the preferred choice for pipe rehabilitation. Stay informed about the latest advancements and best practices in the field.

The Benefits and Techniques of Trenchless Pipe Repair.pdf

Pipe Restoration Solutions

Overview of the fundamental roles in Hydropower generation and the components involved in wider Electrical Engineering. This paper presents the design and construction of hydroelectric dams from the hydrologist’s survey of the valley before construction, all aspects and involved disciplines, fluid dynamics, structural engineering, generation and mains frequency regulation to the very transmission of power through the network in the United Kingdom. Author: Robbie Edward Sayers Collaborators and co editors: Charlie Sims and Connor Healey. (C) 2024 Robbie E. Sayers

HYDROPOWER - Hydroelectric power generation

Robbie Edward Sayers

It is now-a-days very important for the people to send or receive articles like imported furniture, electronic items, gifts, business goods and the like. People depend vastly on different transport systems which mostly use the manual way of receiving and delivering the articles. There is no way to track the articles till they are received and there is no way to let the customer know what happened in transit, once he booked some articles. In such a situation, we need a system which completely computerizes the cargo activities including time to time tracking of the articles sent. This need is fulfilled by Courier Management System software which is online software for the cargo management people that enables them to receive the goods from a source and send them to a required destination and track their status from time to time.

Courier management system project report.pdf

Kamal Acharya

Q.1 A single plate clutch with both sides of the plate effective is required to transmit 25 kW at 1600 r.p.m. The outer diameter of the plate is limited to 300 mm and the intensity of pressure between the plates not to exceed 0.07N / m * m ^ 2 Assuming uniform wear and coefficient of friction 0.3, find the inner diameter of the plates and the axial force necessary to engage the clutch. Q.2 A multiple disc clutch has radial width of the friction material as 1/5th of the maximum radius. The coefficient of friction is 0.25. Find the total number of discs required to transmit 60 kW at 3000 r.p.m. The maximum diameter of the clutch is 250 mm and the axial force is limited to 600 N. Also find the mean unit pressure on each contact surface. Q.3 A cone clutch is to be designed to transmit 7.5 kW at 900 r.p.m. The cone has a face angle of 12°. The width of the face is half of the mean radius and the normal pressure between the contact faces is not to exceed 0.09 N/mm². Assuming uniform wear and the coefficient of friction between the contact faces as 0.2, find the main dimensions of the clutch and the axial force required to engage the clutch. Q.4 A cone clutch is mounted on a shaft which transmits power at 225 r.p.m. The small diameter of the cone is 230 mm, the cone face is 50 mm and the cone face makes an angle of 15 deg with the horizontal. Determine the axial force necessary to engage the clutch to transmit 4.5 kW if the coefficient of friction of the contact surfaces is 0.25. What is the maximum pressure on the contact surfaces assuming uniform wear? Q.5 A soft surface cone clutch transmits a torque of 200 N-m at 1250 r.p.m. The larger diameter of the clutch is 350 mm. The cone pitch angle is 7.5 deg and the face width is 65 mm. If the coefficient of friction is 0.2. find: 1. the axial force required to transmit the torque: 2. the axial force required to engage the clutch; 3. the average normal pressure on the contact surfaces when the maximum torque is being transmitted; and 4. the maximum normal pressure assuming uniform wear. Q.6 A single block brake, as shown in Fig. 1. has the drum diameter 250 mm. The angle of contact is 90° and the coefficient of friction between the drum and the lining is 0.35. If the torque transmitted by the brake is 70 N-m, find the force P required to operate the brake. Q.7 The layout and dimensions of a double shoe brake is shown in Fig. 2. The diameter of the brake drum is 300 mm and the contact angle for each shoe is 90°. If the coefficient of friction for the brake lining and the drum is 0.4, find the spring force necessary to transmit a torque of 30 N-m. Also determine the width of the brake shoes, if the bearing pressure on the lining material is not to exceed 0.28N / m * m ^ 2

RS Khurmi Machine Design Clutch and Brake Exercise Numerical Solutions

Atif Razi

CFD analysis is incredibly effective at solving mysteries and improving the performance of complex systems! Here's a great example: At a large natural gas-fired power plant, where they use waste heat to generate steam and energy, they were puzzled that their boiler wasn't producing as much steam as expected. R&R and Tetra Engineering Group Inc. were asked to solve the issue with reduced steam production. An inspection had shown that a significant amount of hot flue gas was bypassing the boiler tubes, where the heat was supposed to be transferred. R&R Consult conducted a CFD analysis, which revealed that 6.3% of the flue gas was bypassing the boiler tubes without transferring heat. The analysis also showed that the flue gas was instead being directed along the sides of the boiler and between the modules that were supposed to capture the heat. This was the cause of the reduced performance. Based on our results, Tetra Engineering installed covering plates to reduce the bypass flow. This improved the boiler's performance and increased electricity production. It is always satisfying when we can help solve complex challenges like this. Do your systems also need a check-up or optimization? Give us a call! Work done in cooperation with James Malloy and David Moelling from Tetra Engineering. More examples of our work https://www.r-r-consult.dk/en/cases-en/

CFD Simulation of By-pass Flow in a HRSG module by R&R Consult.pptx

R&R Consult

KIT-601 Lecture Notes-UNIT-5.pdf Frame Works and Visualization

Dr. Radhey Shyam

Peek implant persentation - Copy (1).pdf

Ayahmorsy

The Project deals with the development of the computerized system for maintaining the regular records and services that are undertaken in the furniture business. This project titled "Web Based Integrated Furniture Showroom Management System" has been aimed to design and computerized system that can handle various activities are been carried out at the Furniture Showroom. This application has been developed using PHP Programming Language as its front end and the back end is MYSQL Server In the existing system all the activities and record maintenance of the furniture showroom are done manually by the manager. The Project deals with the development of the computerized system for maintaining the regular records and services that are undertaken in this most important and large business oriented furniture business. This Project also enables the users to perform all the day to day business operations in the furniture showroom business most efficiently.

Furniture showroom management system project.pdf

Kamal Acharya

Halogenation process of chemical process industries

MuhammadTufail242431

PHP and MySQL project on Hall Booking System is a web based project and it has been developed in PHP and MySQL and we can manage Payment, Booking, Inventory, Booking Dates, Customers and Hall from this project. The main objective to develop Hall Booking System PHP, MySQL, JAVA SCRIPT and BOOTSRAP Project is to overcome the manual errors and make a computerized system. In this project, there are various type of modules available to manage Customers, Booking, Payment. We can also generate reports for Booking, Payment, Booking Dates, Hall. Here the Payment module manage all the operations of Payment, Booking module can manage Booking, Inventory module is normally developed for managing Inventory, Booking Dates module manages Booking Dates operations, Customers module has been implemented to manage Customers. In this project all the modules like Payment, Booking Dates, Booking are tightly coupled and we can track the information easily. Ifyou are looking for Free Hall Booking System Project in PHP and MySQL then you can visit our free projects section. We can easily get the list of wedding halls & lawns in Nagpur. Also we have detailed contact information for some particular hall. But we cannot get the availability about hall. So background behind this web portal is that it gives the area wise listing of wedding halls & lawns with the detailed information of individual and also display for particular date the hall is available or not. Just dial is the system in which we can only find the name of Hall and Lawns in city. In just dial we cannot find Halls in specific area. This system cannot show all information about any Hall. This system is not able to book the Halls online. The A Web Based Hall Booking Management System is designed to overcome the disadvantage of previous system.We can easily get the list of Wedding Halls. But we cannot get the availability about Hall. So background behind this web portal is that it gives the area wise listing of Wedding Halls with the detailed information of individual and also display for particular date the Hall is available or not. This is a special type of web portal to easily get the information of all Wedding Halls in Nagpur which display separate calendar for separate Hall. For particular date the Hall. We can availability of Hall as well as Lawns detailed information about individuals Hall in our web portal . It provides all facilities to clients with lowest cost and lowest maintenance problems.

Hall booking system project report .pdf

Kamal Acharya

Recently uploaded (20)

Pharmacy management system project report..pdf

2024 DevOps Pro Europe - Growing at the edge

Laundry management system project report.pdf

RESORT MANAGEMENT AND RESERVATION SYSTEM PROJECT REPORT.pdf

Introduction to Machine Learning Unit-5 Notes for II-II Mechanical Engineering

Construction method of steel structure space frame .pptx

Digital Signal Processing Lecture notes n.pdf

Explosives Industry manufacturing process.pdf

fluid mechanics gate notes . gate all pyqs answer

Natalia Rutkowska - BIM School Course in Kraków

The Benefits and Techniques of Trenchless Pipe Repair.pdf

HYDROPOWER - Hydroelectric power generation

Courier management system project report.pdf

RS Khurmi Machine Design Clutch and Brake Exercise Numerical Solutions

CFD Simulation of By-pass Flow in a HRSG module by R&R Consult.pptx

KIT-601 Lecture Notes-UNIT-5.pdf Frame Works and Visualization

Peek implant persentation - Copy (1).pdf

Furniture showroom management system project.pdf

Halogenation process of chemical process industries

Hall booking system project report .pdf

Multiphysics - A New Generation of Simulation

1. Copyright © 2015 Altair Engineering, Inc. All rights reserved.Altair Proprietary and Confidential Information Multiphysics – A New Generation of Simulation Jon Quigley Director, Multiphysics Simulation Houston Altair Technology Conference

2. 2 2015 Houston ATCx Multiphysics Multiphysics – A New Generation of Simulation

3. 3 2015 Houston ATCx Multiphysics Multiphysics – A New Generation of Simulation • CAE drives the design more today than ever before. • Therefore, it is vital that simulation represent reality to the maximum extent possible. • Multiphysics simulation provides the opportunity for significantly improved accuracy.

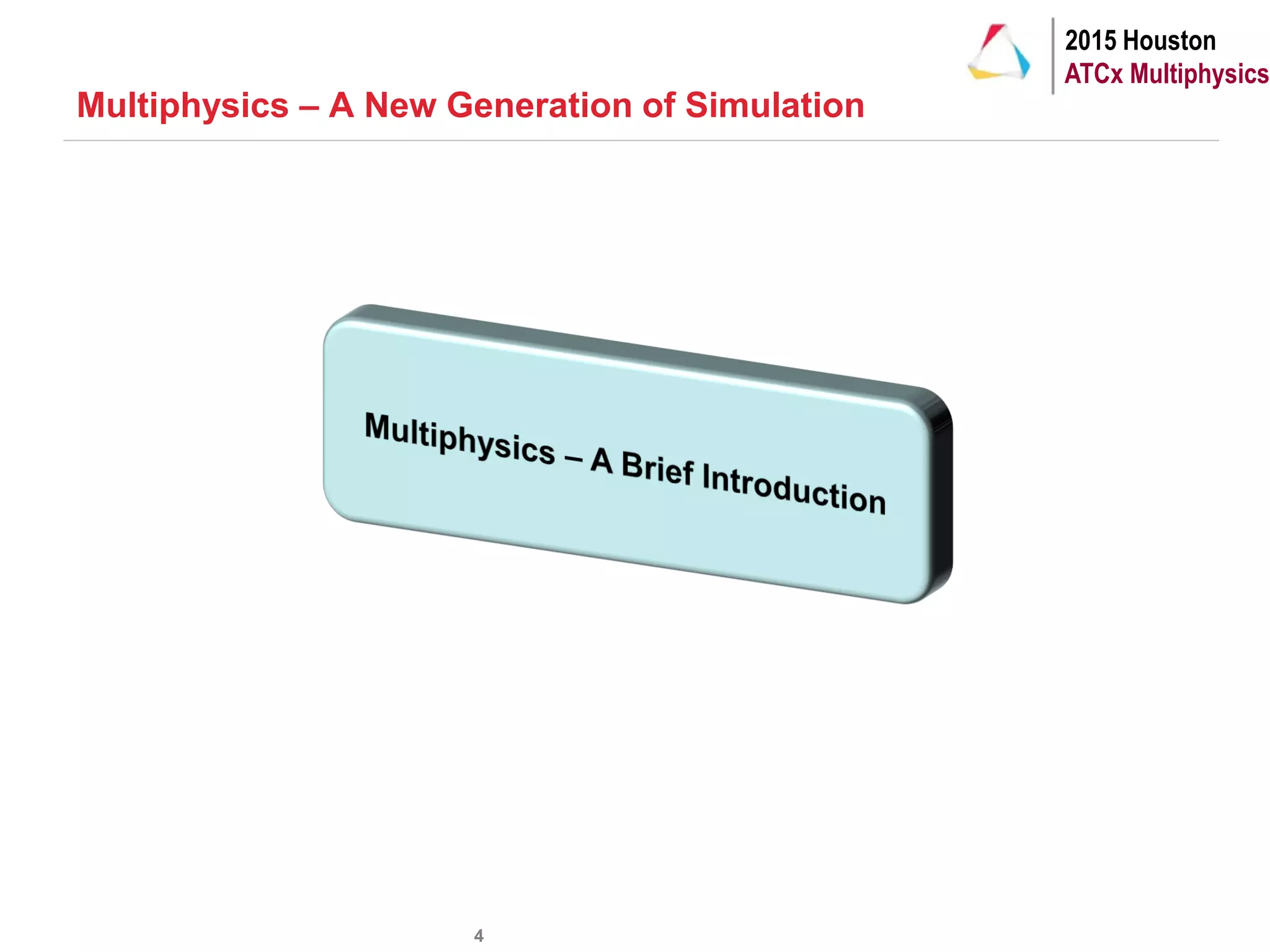

4. 4 2015 Houston ATCx Multiphysics Multiphysics – A New Generation of Simulation

5. 5 2015 Houston ATCx Multiphysics Multiphysics – A New Generation of Simulation • We live in a “One” physics universe, but our application of math splits it into “Multiphysics” • “3D” or “Geometry/Mesh” based physics in engineering • “1D” or “Idealized” based physics in engineering

6. 6 2015 Houston ATCx Multiphysics Multiphysics – A New Generation of Simulation • Includes two or more areas of physics to solve a real world engineering challenge • Includes coupled solutions • Includes multidisciplinary simulation & optimization • Includes an array of enabling technology to reach its full potential

7. 7 2015 Houston ATCx Multiphysics Multiphysics – A New Generation of Simulation Multiphysics Simulation { Multiphysics Optimization {

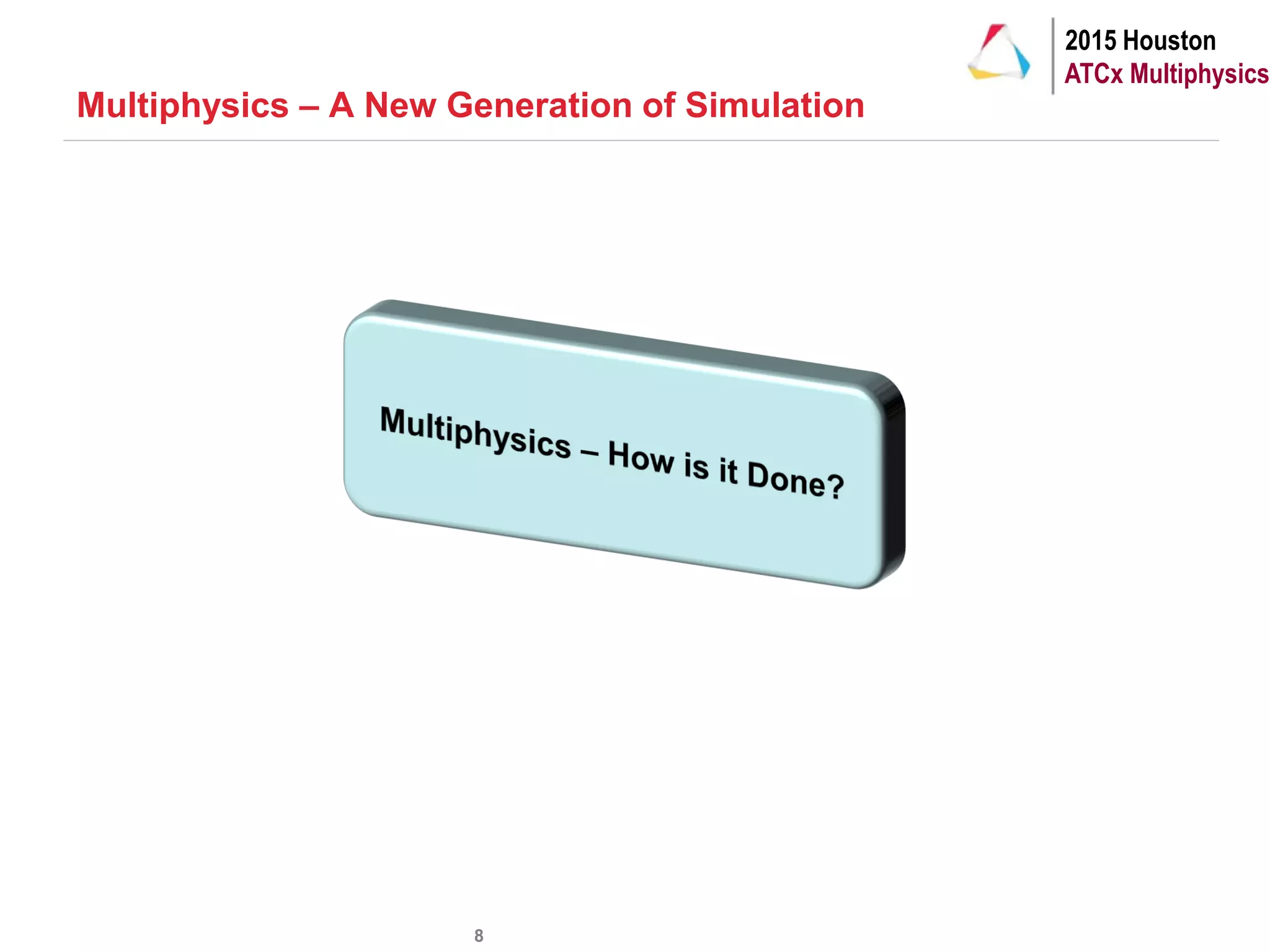

8. 8 2015 Houston ATCx Multiphysics Multiphysics – A New Generation of Simulation

9. 9 2015 Houston ATCx Multiphysics Multiphysics – A New Generation of Simulation Block Diagram System Modeler Vissim

10. 10 2015 Houston ATCx Multiphysics Multiphysics – A New Generation of Simulation • Several levels of MP technology available to the users so you can select the right level of coupling. • Coupled ability in a single solver • Sequential simulation • Co-Simulation

11. 11 2015 Houston ATCx Multiphysics Multiphysics – A New Generation of Simulation OptiStruct, RADIOSS (Mechanics) OptiStruct, RADIOSS (Thermal) AcuSolve, HyperXtrude (Flow) AcuSolve, HyperXtrude (Thermal) FEKO (HF Emag) JMAG (LF Emag) ScicosPro (Controls,…) [coming soon] MotionSolve (MBD) F-Tire (Tire Dynamics) DesignLife, FEMFAT (Fatigue) DSH Plus (Hydraulics) RadTherm (Human Cft) AcuSolve FWH Simulink, CD Tire, RMOD-K Tire

12. 12 2015 Houston ATCx Multiphysics Multiphysics – A New Generation of Simulation • User subroutine enabled solvers • Open input & output formats

13. 13 2015 Houston ATCx Multiphysics Multiphysics – A New Generation of Simulation • Parallel Enabled Solvers • RADIOSS; AcuSolve; • OptiStruct; FEKO • MS/F-Tire • Distributed Computing • Optimized Hardware • Simulation Manager Display Manager Simulation Manager

14. 14 2015 Houston ATCx Multiphysics Multiphysics – A New Generation of Simulation • Built Into Solvers • Study Enabled - HyperStudy • (DOE; Stochastic; Optimization…) • Apply around MP sequential or co-sim • Multiphysics & Multidisciplinary Optimization Dynamics

15. 15 2015 Houston ATCx Multiphysics Multiphysics – A New Generation of Simulation • For Designers • Inspire • Verticals: VWT: HXT • For Analysts • MP in HyperMesh • One Desktop

16. 16 2015 Houston ATCx Multiphysics Multiphysics – A New Generation of Simulation • Effiecient Licensing • MP Licensing • Pay As You Go • HWOD • Served License • HHWU

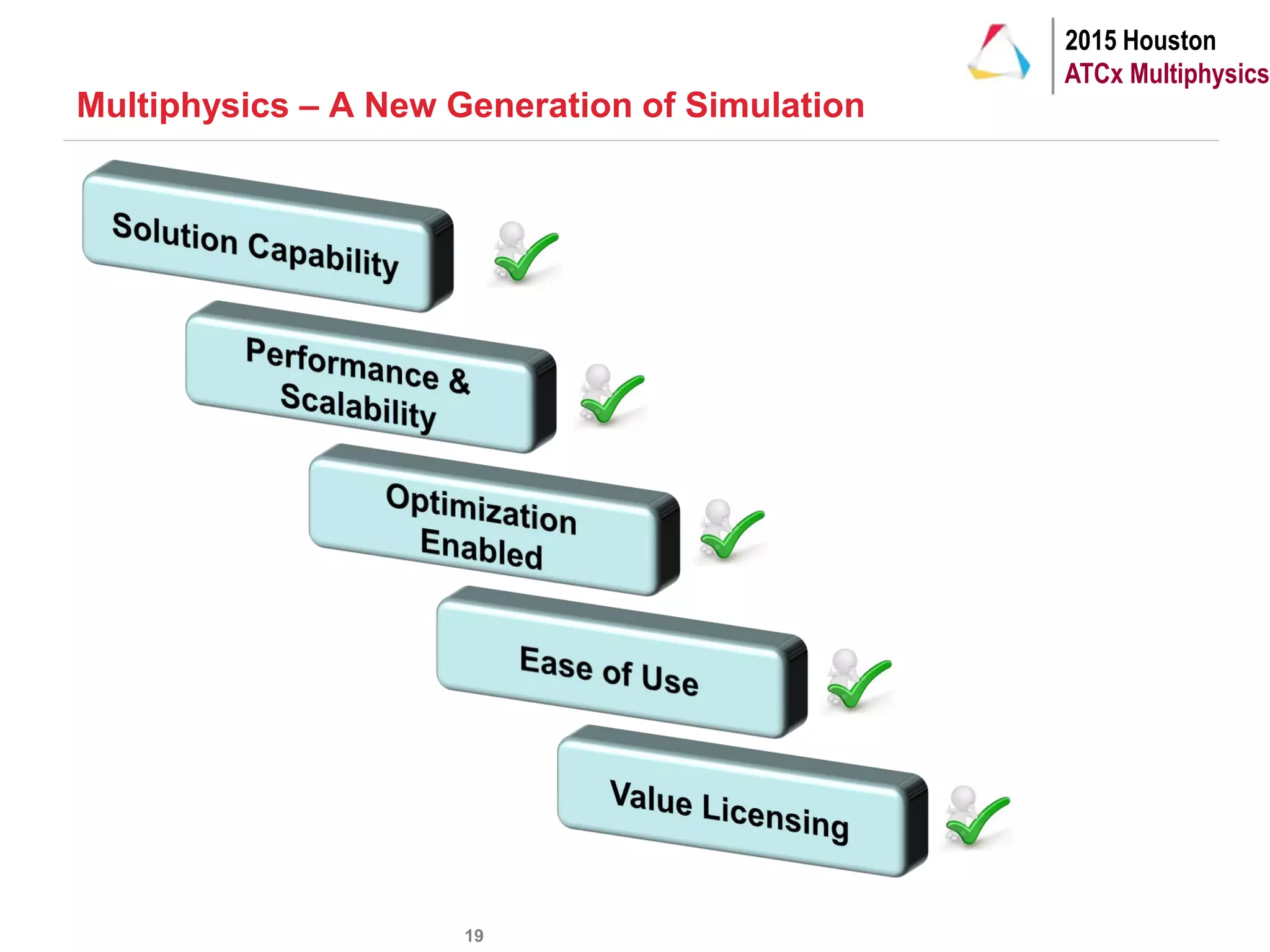

17. 17 2015 Houston ATCx Multiphysics Multiphysics – A New Generation of Simulation

18. 18 2015 Houston ATCx Multiphysics Multiphysics – A New Generation of Simulation • The demand for multiphysics is growing and is expected to continue to become a central part of companies’ CAE processes • There exists a multi-faceted approach to realizing the full potential of multiphysics simulation & optimization, and Altair offers the entire array of enablers from solvers to cloud services • Altair is intent on being the global leader in multiphysics & multidisciplinary simulation and optimization and is well positioned to do so

19. 19 2015 Houston ATCx Multiphysics Multiphysics – A New Generation of Simulation

Multiphysics - A New Generation of Simulation

Recommended

Recommended

More Related Content

What's hot

What's hot (20)

Viewers also liked

Viewers also liked (12)

Similar to Multiphysics - A New Generation of Simulation

Similar to Multiphysics - A New Generation of Simulation (20)

More from Altair

More from Altair (20)

Recently uploaded

Recently uploaded (20)

Multiphysics - A New Generation of Simulation
