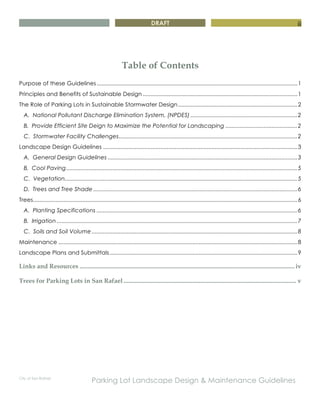

Table of Contents
Purpose of these Guidelines..............................................................................................................................1
Principles and Benefits of Sustainable Design .................................................................................................1
The Role of Parking Lots in Sustainable Stormwater Design...........................................................................2
A. National Pollutant Discharge Elimination System, (NPDES) ...................................................................2
B. Provide Efficient Site Deign to Maximize the Potential for Landscaping .............................................2
C. Stormwater Facility Challenges................................................................................................................2
Landscape Design Guidelines ..........................................................................................................................3
A. General Design Guidelines .......................................................................................................................3
B. Cool Paving.................................................................................................................................................5
C. Vegetation..................................................................................................................................................5
D. Trees and Tree Shade ................................................................................................................................6
Trees......................................................................................................................................................................6
A. Planting Specifications ..............................................................................................................................6
B. Irrigation .......................................................................................................................................................7
C. Soils and Soil Volume .................................................................................................................................8
Maintenance ......................................................................................................................................................8
Landscape Plans and Submittals......................................................................................................................9
Links and Resources ......................................................................................................................................... iv
Trees for Parking Lots in San Rafael .............................................................................................................. v

4. DRAFT
City of San Rafael
Parking Lot Landscape Design & Maintenance Guidelines
1

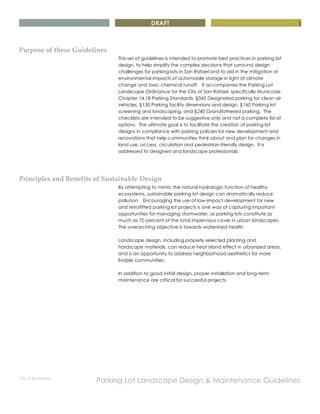

Purpose of these Guidelines
This set of guidelines is intended to promote best practices in parking lot
design, to help simplify the complex decisions that surround design
challenges for parking lots in San Rafael and to aid in the mitigation of
environmental impacts of automobile storage in light of climate
change and toxic chemical runoff. It accompanies the Parking Lot
Landscape Ordinance for the City of San Rafael, specifically Municode
Chapter 14.18 Parking Standards, §045 Designated parking for clean air
vehicles, §130 Parking facility dimensions and design, §160 Parking lot
screening and landscaping, and §240 Grandfathered parking. The
checklists are intended to be suggestive only and not a complete list of
options. The ultimate goal is to facilitate the creation of parking lot
designs in compliance with parking policies for new development and
renovations that help communities think about and plan for changes in
land use, access, circulation and pedestrian-friendly design. It is
addressed to designers and landscape professionals.
Principles and Benefits of Sustainable Design
By attempting to mimic the natural hydrologic function of healthy
ecosystems, sustainable parking lot design can dramatically reduce
pollution. Encouraging the use of low-impact development for new
and retrofitted parking lot projects is one way of capturing important
opportunities for managing stormwater, as parking lots constitute as
much as 70 percent of the total impervious cover in urban landscapes.
The overarching objective is towards watershed health.
Landscape design, including properly selected planting and
hardscape materials, can reduce heat island effect in urbanized areas,
and is an opportunity to address neighborhood aesthetics for more
livable communities.
In addition to good initial design, proper installation and long-term
maintenance are critical for successful projects.

5. DRAFT
City of San Rafael
Parking Lot Landscape Design & Maintenance Guidelines
2
The Role of Parking Lots in Sustainable Stormwater Design
1 www.cement.org
Landscapes for Stormwater
Management:
§ Vegetated swales
§ Infiltration and flow-through
planters
§ Rain gardens
§ Trees
Pervious Paving System Components1
A. National Pollutant Discharge Elimination System, (NPDES)
Parking lots serve as localized collectors of trash and toxic chemicals,
acting as a filter for the physical removal of trash and contaminants
before it hits the drainage system, finding its way into local creeks and
ultimately into San Francisco Bay. The Parking Lot Landscape
Ordinance for the City of San Rafael requires conformance with
Attachment 4 of the Phase II NPDES Permit, which requires developers
to design projects to treat stormwater draining from parking lots.
B. Provide Efficient Site Deign to Maximize the Potential for Landscaping
Balancing the area allotted to parking spaces with areas allotted for
planted landscape begins to achieve multiple objectives towards
green parking lot design. Substantial landscaped areas including a
system of broad canopy trees within parking lots, “green infrastructure”,
capture rainfall even though these design features are not primarily
dedicated stormwater treatment measures. Trees provide shade to
mitigate heat island effect, and aesthetics, which leads to increased
property values.
C. Stormwater Facility Challenges
1. Retention/Infiltration and Treatment
Existing development and impervious area corresponds to soil
conditions that are typically unfavorable for water infiltration and soil
aeration, which represents a special challenge if a project is subject to
current stormwater management requirements. NPDES prescribes on-
site treatment of 85% of the annual rainfall for a region. This is
approximately a one-inch storm in the Bay Area.
2. Pervious Paving
NPDES prescribes a 1:2 ratio of pervious to impervious area. Pervious
paving allows rainwater to either pass through the paving system itself
or though joint openings between the pavers and may aid in the
infiltration of stormwater runoff to reduce volume. However, as such, it
is not considered a treatment measure as effectiveness becomes
limited at slopes approaching 5%. It should not be used in situations
with known soil contamination, high groundwater table or where soil
infiltration rates are below the accepted standard of 0.5”/hr for these
systems. Functionally, pervious paving must also maintain the same
load bearing capacity as conventional paving.

6. DRAFT
City of San Rafael
Parking Lot Landscape Design & Maintenance Guidelines
3

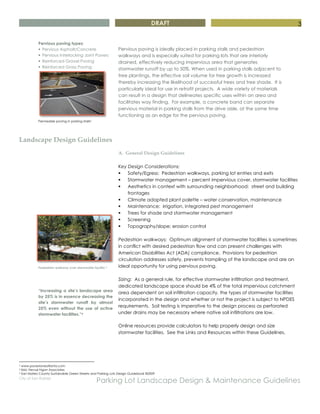

Landscape Design Guidelines
Pedestrian walkway over stormwater facility 3
“Increasing a site’s landscape area
by 25% is in essence decreasing the
site’s stormwater runoff by almost
25% even without the use of active
stormwater facilities.”4
A. General Design Guidelines
Key Design Considerations:
§ Safety/Egress: Pedestrian walkways, parking lot entries and exits
§ Stormwater management – percent impervious cover, stormwater facilities
§ Aesthetics in context with surrounding neighborhood: street and building
frontages
§ Climate adapted plant palette – water conservation, maintenance
§ Maintenance: irrigation, integrated pest management
§ Trees for shade and stormwater management
§ Screening
§ Topography/slope; erosion control
Pedestrian walkways: Optimum alignment of stormwater facilities is sometimes
in conflict with desired pedestrian flow and can present challenges with
American Disabilities Act (ADA) compliance. Provisions for pedestrian
circulation addresses safety, prevents trampling of the landscape and are an
ideal opportunity for using pervious paving.
Sizing: As a general rule, for effective stormwater infiltration and treatment,
dedicated landscape space should be 4% of the total impervious catchment
area dependent on soil infiltration capacity, the types of stormwater facilities
incorporated in the design and whether or not the project is subject to NPDES
requirements. Soil testing is imperative to the design process as perforated
under drains may be necessary where native soil infiltrations are low.
Online resources provide calculators to help properly design and size
stormwater facilities. See the Links and Resources within these Guidelines.
2 www.pavestoneatlanta.com
3 ibid, Nevue Ngan Associates
4 San Mateo County Sustainable Green Streets and Parking Lots Design Guidebook ©2009
Pervious paving types:
§ Pervious Asphalt/Concrete
§ Pervious Interlocking Joint Pavers
§ Reinforced Gravel Paving
§ Reinforced Grass Paving
Permeable paving in parking stalls2
Pervious paving is ideally placed in parking stalls and pedestrian
walkways and is especially suited for parking lots that are interiorly
drained, effectively reducing impervious area that generates
stormwater runoff by up to 50%. When used in parking stalls adjacent to
tree plantings, the effective soil volume for tree growth is increased
thereby increasing the likelihood of successful trees and tree shade. It is
particularly ideal for use in retrofit projects. A wide variety of materials
can result in a design that delineates specific uses within an area and
facilitates way finding. For example, a concrete band can separate
pervious material in parking stalls from the drive aisle, at the same time
functioning as an edge for the pervious paving.

7. DRAFT
City of San Rafael
Parking Lot Landscape Design & Maintenance Guidelines
4
Check dams in bioswale5
Setbacks/Minimum Planting Areas:
Required front, side street, side and rear yard setback areas should be fully
landscaped and irrigated except for permitted paved areas and other
approved encroachments. When landscape setback areas are used for
stormwater treatment, such as a bio-swale, the setback area may be
increased to meet required shade tree planting.
Vegetated Swales: Many parking lots have a long, continuous space to
support a functioning landscape system and can be excellent candidate sites
for vegetated swales. Aside from their function as a widely accepted
stormwater management strategy, they are relatively low-cost, simple to
construct and easily retrofitted. Their value as an aesthetic feature in the
landscape is rapidly gaining popularity. In narrowly constrained situations, in
combination with pervious paving, vegetated swales may be utilized to better
manage stormwater on-site.
Vegetated Swale7

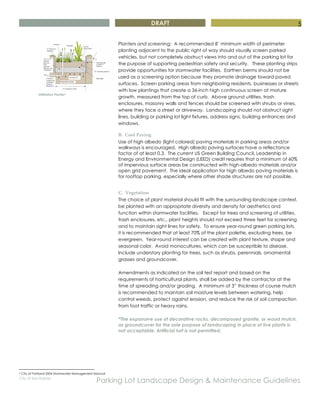

Planting area types include infiltration and flow-through planters, their
distinguishing feature being that the side slopes typically used in swales are
replaced with vertical sidewalls, allowing for more storage volume in less
space. They are easily incorporated into retrofit conditions, can be built to fit
in narrow spaces between utilities, trees and other existing site elements. In
situations where there is underlying soil contamination, unfavorable soil
conditions for infiltration, or a high water table, flow-through planters allow
some infiltration before draining to an underdrain system to help manage
runoff volume.
Topography/Slope: In situations with steep topography, terraced stormwater
planters and closely spaced check dams and weirs are two features that can
be used to decrease the velocity of runoff and enhance infiltration in
stormwater facilities on-site.
5 Nevue Ngan Associates, San Mateo County Sustainable Green Streets and Parking Lots Design Guidebook ©2009
7 Acomb, G. & W. Ren, Landscape Architecture Dept., Univ. of Florida–Program for Resource Efficient Communities ©2008

8. DRAFT
City of San Rafael
Parking Lot Landscape Design & Maintenance Guidelines
5
Infiltration Planter6
Planters and screening: A recommended 8’ minimum width of perimeter
planting adjacent to the public right of way should visually screen parked
vehicles, but not completely obstruct views into and out of the parking lot for
the purpose of supporting pedestrian safety and security. These planting strips
provide opportunities for stormwater facilities. Earthen berms should not be
used as a screening option because they promote drainage toward paved
surfaces. Screen parking areas from neighboring residents, businesses or streets
with low plantings that create a 36-inch high continuous screen at mature
growth, measured from the top of curb. Above ground utilities, trash
enclosures, masonry walls and fences should be screened with shrubs or vines,
where they face a street or driveway. Landscaping should not obstruct sight
lines, building or parking lot light fixtures, address signs, building entrances and
windows.
B. Cool Paving
Use of high albedo (light colored) paving materials in parking areas and/or
walkways is encouraged. High albedo paving surfaces have a reflectance
factor of at least 0.3. The current US Green Building Council, Leadership in
Energy and Environmental Design (LEED) credit requires that a minimum of 60%
of impervious surface areas be constructed with high-albedo materials and/or
open grid pavement. The ideal application for high albedo paving materials is
for rooftop parking, especially where other shade structures are not possible.
C. Vegetation
The choice of plant material should fit with the surrounding landscape context,
be planted with an appropriate diversity and density for aesthetics and
function within stormwater facilities. Except for trees and screening of utilities,
trash enclosures, etc., plant heights should not exceed three feet for screening
and to maintain sight lines for safety. To ensure year-round green parking lots,
it is recommended that at least 70% of the plant palette, excluding trees, be
evergreen. Year-round interest can be created with plant texture, shape and
seasonal color. Avoid monocultures, which can be susceptible to disease.
Include understory planting for trees, such as shrubs, perennials, ornamental
grasses and groundcover.
Amendments as indicated on the soil test report and based on the
requirements of horticultural plants, shall be added by the contractor at the
time of spreading and/or grading. A minimum of 3” thickness of course mulch
is recommended to maintain soil moisture levels between watering, help
control weeds, protect against erosion, and reduce the risk of soil compaction
from foot traffic or heavy rains.
*The expansive use of decorative rocks, decomposed granite, or wood mulch,
as groundcover for the sole purpose of landscaping in place of live plants is
not acceptable. Artificial turf is not permitted.
6 City of Portland 2004 Stormwater Management Manual

9. DRAFT
City of San Rafael
Parking Lot Landscape Design & Maintenance Guidelines
6
Shade8

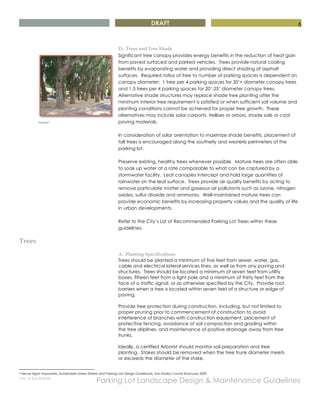

D. Trees and Tree Shade
Significant tree canopy provides energy benefits in the reduction of heat gain
from paved surfaced and parked vehicles. Trees provide natural cooling
benefits by evaporating water and providing direct shading of asphalt
surfaces. Required ratios of tree to number of parking spaces is dependent on
canopy diameter: 1 tree per 4 parking spaces for 30’+ diameter canopy trees
and 1.5 trees per 4 parking spaces for 20’-25’ diameter canopy trees.
Alternative shade structures may replace shade tree planting after the
minimum interior tree requirement is satisfied or when sufficient soil volume and
planting conditions cannot be achieved for proper tree growth. These
alternatives may include solar carports, trellises or arbors, shade sails or cool
paving materials.
In consideration of solar orientation to maximize shade benefits, placement of
tall trees is encouraged along the southerly and westerly perimeters of the
parking lot.
Preserve existing, healthy trees whenever possible. Mature trees are often able
to soak up water at a rate comparable to what can be captured by a
stormwater facility. Leaf canopies intercept and hold large quantities of
rainwater on the leaf surface. Trees provide air quality benefits by acting to
remove particulate matter and gaseous air pollutants such as ozone, nitrogen
oxides, sulfur dioxide and ammonia. Well-maintained mature trees can
provide economic benefits by increasing property values and the quality of life
in urban developments.
Refer to the City’s List of Recommended Parking Lot Trees within these
guidelines.
Trees
A. Planting Specifications
Trees should be planted a minimum of five feet from sewer, water, gas,
cable and electrical lateral services lines, as well as from any paving and
structures. Trees should be located a minimum of seven feet from utility
boxes, fifteen feet from a light pole and a minimum of thirty feet from the
face of a traffic signal, or as otherwise specified by the City. Provide root
barriers when a tree is located within seven feet of a structure or edge of
paving.
Provide tree protection during construction, including, but not limited to
proper pruning prior to commencement of construction to avoid
interference of branches with construction equipment, placement of
protective fencing, avoidance of soil compaction and grading within
the tree driplines, and maintenance of positive drainage away from tree
trunks.
Ideally, a certified Arborist should monitor soil preparation and tree
planting. Stakes should be removed when the tree trunk diameter meets
or exceeds the diameter of the stake.
8 Nevue Ngan Associates, Sustainable Green Streets and Parking Lots Design Guidebook, San Mateo County ©January 2009

10. DRAFT
City of San Rafael
Parking Lot Landscape Design & Maintenance Guidelines
7
B. Irrigation
Irrigation for trees shall be placed on a dedicated valve separate from
irrigation to the general landscape. Tree irrigation should be provided
for two full years after planting.
To ensure the potential for healthy trees, two aeration tubes per each
tree are recommended in addition to irrigation.
Davis Tree Planting Specification9
9 City of Davis Tree Planting and Irrigation Specification

11. DRAFT
City of San Rafael
Parking Lot Landscape Design & Maintenance Guidelines
8

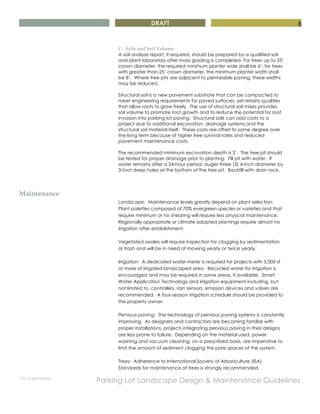

C. Soils and Soil Volume
A soil analysis report, if required, should be prepared by a qualified soil
and plant laboratory after mass grading is completed. For trees up to 25’
crown diameter, the required minimum planter wide shall be 6’; for trees
with greater than 25’ crown diameter, the minimum planter width shall
be 8’. Where tree pits are adjacent to permeable paving, these widths
may be reduced.
Structural soil is a new pavement substrate that can be compacted to
meet engineering requirements for paved surfaces, yet retains qualities
that allow roots to grow freely. The use of structural soil mixes provides
soil volume to promote root growth and to reduce the potential for root
invasion into parking lot paving. Structural soils can add costs to a
project due to additional excavation, drainage systems and the
structural soil material itself. These costs are offset to some degree over
the long term because of higher tree survival rates and reduced
pavement maintenance costs.
The recommended minimum excavation depth is 3’. The tree pit should
be tested for proper drainage prior to planting. Fill pit with water. If
water remains after a 24-hour period, auger three (3) 4-inch diameter by
3-foot deep holes at the bottom of the tree pit. Backfill with drain rock.
Maintenance
Landscape: Maintenance levels greatly depend on plant selection.
Plant palettes composed of 70% evergreen species or varieties and that
require minimum or no shearing will require less physical maintenance.
Regionally appropriate or climate adapted plantings require almost no
irrigation after establishment.
Vegetated swales will require inspection for clogging by sedimentation
or trash and will be in need of mowing yearly or twice yearly.
Irrigation: A dedicated water meter is required for projects with 5,000 sf
or more of irrigated landscaped area. Recycled water for irrigation is
encouraged and may be required in some areas, if available. Smart
Water Application Technology and irrigation equipment including, but
not limited to, controllers, rain sensors, emission devices and valves are
recommended. A four-season irrigation schedule should be provided to
the property owner.
Pervious paving: The technology of pervious paving systems is constantly
improving. As designers and contractors are becoming familiar with
proper installations, projects integrating pervious paving in their designs
are less prone to failure. Depending on the material used, power
washing and vacuum cleaning, on a prescribed basis, are imperative to
limit the amount of sediment clogging the pore spaces of the system.
Trees: Adherence to International Society of Arboriculture (ISA)
Standards for maintenance of trees is strongly recommended.

12. DRAFT
City of San Rafael
Parking Lot Landscape Design & Maintenance Guidelines
9

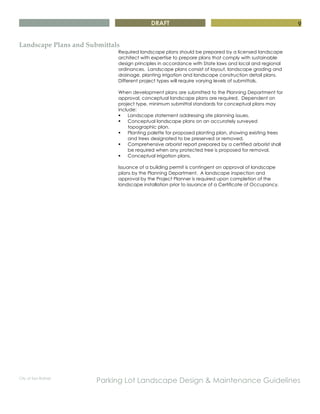

Landscape Plans and Submittals
Required landscape plans should be prepared by a licensed landscape
architect with expertise to prepare plans that comply with sustainable
design principles in accordance with State laws and local and regional
ordinances. Landscape plans consist of layout, landscape grading and
drainage, planting irrigation and landscape construction detail plans.
Different project types will require varying levels of submittals.
When development plans are submitted to the Planning Department for
approval, conceptual landscape plans are required. Dependent on
project type, minimum submittal standards for conceptual plans may
include:
§ Landscape statement addressing site planning issues.
§ Conceptual landscape plans on an accurately surveyed
topographic plan.
§ Planting palette for proposed planting plan, showing existing trees
and trees designated to be preserved or removed.
§ Comprehensive arborist report prepared by a certified arborist shall
be required when any protected tree is proposed for removal.
§ Conceptual irrigation plans.
Issuance of a building permit is contingent on approval of landscape
plans by the Planning Department. A landscape inspection and
approval by the Project Planner is required upon completion of the
landscape installation prior to issuance of a Certificate of Occupancy.

13. DRAFT
City of San Rafael
Parking Lot Landscape Design & Maintenance Guidelines
iv

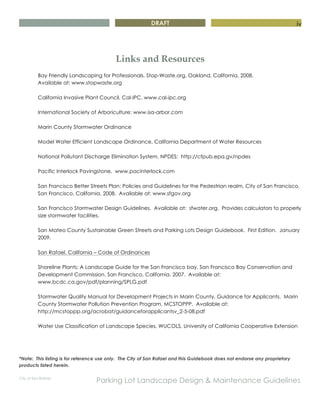

Links and Resources
Bay Friendly Landscaping for Professionals, Stop-Waste.org, Oakland, California, 2008.
Available at: www.stopwaste.org
California Invasive Plant Council, Cal-IPC, www.cal-ipc.org
International Society of Arboriculture: www.isa-arbor.com
Marin County Stormwater Ordinance
Model Water Efficient Landscape Ordinance, California Department of Water Resources
National Pollutant Discharge Elimination System, NPDES: http://cfpub.epa.gv/npdes
Pacific Interlock Pavingstone. www.pacinterlock.com
San Francisco Better Streets Plan: Policies and Guidelines for the Pedestrian realm, City of San Francisco,
San Francisco, California, 2008. Available at: www.sfgov.org
San Francisco Stormwater Design Guidelines. Available at: sfwater.org. Provides calculators to properly
size stormwater facilities.
San Mateo County Sustainable Green Streets and Parking Lots Design Guidebook. First Edition. January
2009.
San Rafael, California – Code of Ordinances
Shoreline Plants: A Landscape Guide for the San Francisco bay, San Francisco Bay Conservation and
Development Commission, San Francisco, California, 2007. Available at:
www.bcdc.ca.gov/pdf/planning/SPLG.pdf
Stormwater Quality Manual for Development Projects in Marin County, Guidance for Applicants. Marin
County Stormwater Pollution Prevention Program, MCSTOPPP. Available at:
http://mcstoppp.org/acrobat/guidanceforapplicantsv_2-5-08.pdf
Water Use Classification of Landscape Species, WUCOLS, University of California Cooperative Extension
*Note: This listing is for reference use only. The City of San Rafael and this Guidebook does not endorse any proprietary
products listed herein.

14. DRAFT
City of San Rafael
Parking Lot Landscape Design & Maintenance Guidelines
v

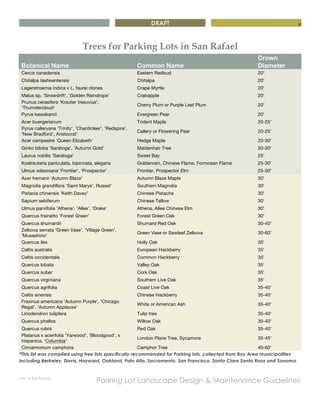

Trees for Parking Lots in San Rafael
Botanical Name Common Name
Crown
Diameter
Cercis canadensis Eastern Redbud 20'
Chitalpa tashkentensis Chitalpa 20'
Lagerstroemia indica x L. faurei clones Crape Myrtle 20'
Malus sp. 'Snowdrift', 'Golden Raindrops' Crabapple 20'
Prunus cerasifera 'Krauter Vesuvius',
'Thurndercloud'
Cherry Plum or Purple Leaf Plum 20'
Pyrus kawakamii Evergreen Pear 20'
Acer buergerianum Trident Maple 20-25'
Pyrus calleryana 'Trinity', 'Chanticleer', 'Redspire',
'New Bradford', Aristocrat'
Callery or Flowering Pear 20-25'
Acer campestre 'Queen Elizabeth' Hedge Maple 20-30'
Ginko biloba 'Saratoga', 'Autumn Gold' Maidenhair Tree 20-30'
Laurus nobilis 'Saratoga' Sweet Bay 25'
Koelreuteria paniculata, bipinnata, elegans Goldenrain, Chinese Flame, Formosan Flame 25-30'
Ulmus wilsoniana 'Frontier', 'Prospector' Frontier, Prospector Elm 25-30'
Acer fremanii 'Autumn Blaze' Autumn Blaze Maple 30'
Magnolia grandiflora 'Saint Marys', Russet' Southern Magnolia 30'
Pistacia chinensis 'Keith Davey' Chinese Pistache 30'
Sapium sebiferum Chinese Tallow 30'
Ulmus parvifolia 'Athena', 'Allee', 'Drake' Athena, Allee Chinese Elm 30'
Quercus frainetto 'Forest Green' Forest Green Oak 30'
Quercus shumardii Shumard Red Oak 30-40'
Zelkova serrata 'Green Vase', 'Village Green',
'Musashino'
Green Vase or Sawleaf Zelkova 30-60'
Quercus ilex Holly Oak 35'
Celtis australis European Hackberry 35'
Celtis occidentalis Common Hackberry 35'
Quercus lobata Valley Oak 35'
Quercus suber Cork Oak 35'
Quercus virginiana Southern Live Oak 35'
Quercus agrifolia Coast Live Oak 35-40'
Celtis sinensis Chinese Hackberry 35-40'
Fraxinus americana 'Autumn Purple', 'Chicago
Regal', 'Autumn Applause'
White or American Ash 35-40'
Liriodendron tulipfera Tulip tree 35-40'
Quercus phellos Willow Oak 35-40'
Quercus rubra Red Oak 35-40'
Platanus x acerifolia 'Yarwood', 'Bloodgood', x
hispanica, 'Columbia'
London Plane Tree, Sycamore 35-45'
Cinnamomum camphora Camphor Tree 40-60'
*This list was compiled using tree lists specifically recommended for Parking lots, collected from Bay Area municipalities
including Berkeley, Davis, Hayward, Oakland, Palo Alto, Sacramento, San Francisco, Santa Clara Santa Rosa and Sonoma.
