1. Radiofrequency Denervation
of Sacroiliac Joint
Mohamed M. Mohi Eldin,
Professor of Neurosurgery,
Faculty of Medicine,
Cairo University
One-Day Spine Clinic 2nd workshop & hands-on
20-21 April 2016

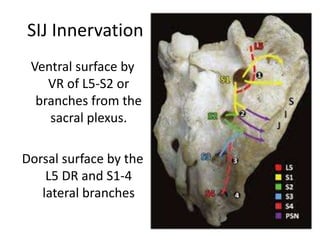

2. SIJ Innervation
Ventral surface by
VR of L5-S2 or
branches from the
sacral plexus.
Dorsal surface by the
L5 DR and S1-4
lateral branches

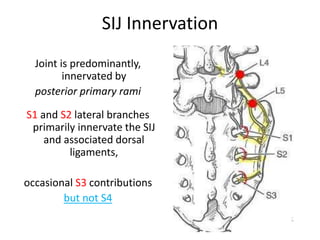

3. SIJ Innervation
Joint is predominantly,
innervated by
posterior primary rami
S1 and S2 lateral branches
primarily innervate the SIJ
and associated dorsal
ligaments,
occasional S3 contributions
but not S4

4. S1-4 Dorsal Rami
and Divisions
Midline
PSIS
S1
S2
S3
S4
Left
LDSI
lig.
Interforaminal
neural arcade
Lateral
branches

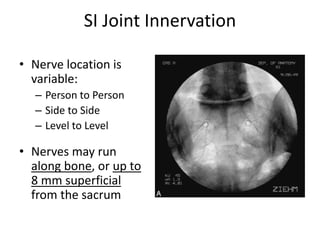

5. SI Joint Innervation
• Nerve location is
variable:
– Person to Person
– Side to Side
– Level to Level
• Nerves may run
along bone, or up to
8 mm superficial
from the sacrum

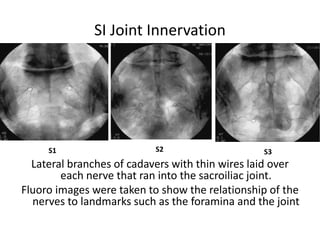

6. SI Joint Innervation
Lateral branches of cadavers with thin wires laid over
each nerve that ran into the sacroiliac joint.
Fluoro images were taken to show the relationship of the
nerves to landmarks such as the foramina and the joint
S1 S3S2

7. Dorsal sacral plexus & lateral branch nerves
supplying sensation
to the dorsal
sacral joint
complex (arrows)
from L5 to S3.
Note the variability
in lateral branch
topography
between right
and left.

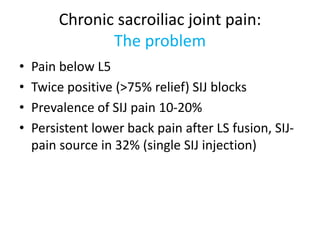

8. Chronic sacroiliac joint pain:
The problem
• Pain below L5
• Twice positive (>75% relief) SIJ blocks
• Prevalence of SIJ pain 10-20%
• Persistent lower back pain after LS fusion, SIJ-
pain source in 32% (single SIJ injection)

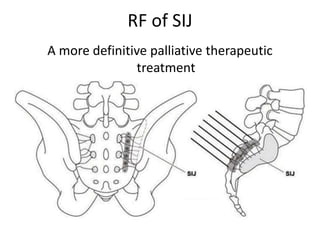

9. RF of SIJ
A more definitive palliative therapeutic
treatment

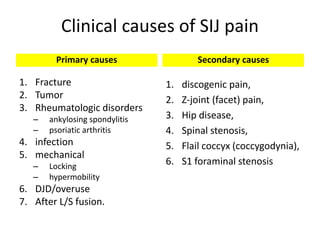

10. Clinical causes of SIJ pain
Primary causes
1. Fracture
2. Tumor
3. Rheumatologic disorders
– ankylosing spondylitis
– psoriatic arthritis
4. infection
5. mechanical
– Locking
– hypermobility
6. DJD/overuse
7. After L/S fusion.
Secondary causes
1. discogenic pain,
2. Z-joint (facet) pain,
3. Hip disease,
4. Spinal stenosis,
5. Flail coccyx (coccygodynia),
6. S1 foraminal stenosis

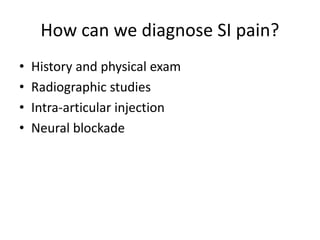

11. How can we diagnose SI pain?
• History and physical exam
• Radiographic studies
• Intra-articular injection
• Neural blockade

12. Diagnosis
• Referral Zones
• Screening Exam:
– Maximum pain below L5 coupled
with pointing to the PSIS or
– local tenderness just medial to the
PSIS has the
– Distraction Tests limited utility
• Imaging: Little value
• Intra articular blocks gold
standard?
• 37-66% False positive
responses from the first
injection (22% FP rate)
Sacral Sulcus Tenderness
Buttocks 94%
Lower lumbar 72%
LE 50%
Groin 14%

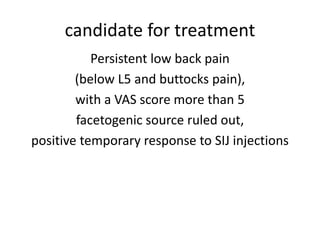

13. candidate for treatment
Persistent low back pain
(below L5 and buttocks pain),
with a VAS score more than 5
facetogenic source ruled out,
positive temporary response to SIJ injections

14. Present Standard for SIJ Diagnosis:
Require
Dual positive (>80% relief) SIJ injections
(+/- steroid)
Strongly consider excluding other anatomic
structures as pain generators
(e.g. MBBs +/- discography if MRI abnormal)
before SIJ RFN

15. Fluoroscopy
AP only versus AP & lateral
Confusing factor
Frequent practice AP view only
Sometimes a small amount of contrast give
misleading “elongated form” producing “false
positive” intraarticular injection
if only viewed from an AP
Confirm IA -lateral view

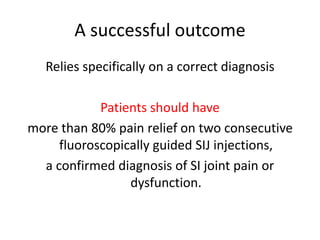

16. A successful outcome
Relies specifically on a correct diagnosis
Patients should have
more than 80% pain relief on two consecutive
fluoroscopically guided SIJ injections,
a confirmed diagnosis of SI joint pain or
dysfunction.

17. Concept of using RF in SIJ pain
Though sound but complicated
because of the difficulty in locating the sacral
nerves and ablating them

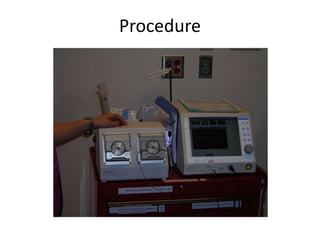

18. Procedure

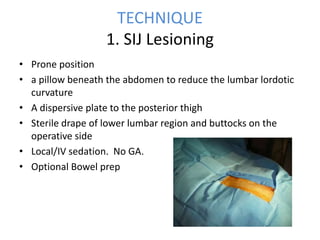

19. TECHNIQUE
1. SIJ Lesioning
• Prone position
• a pillow beneath the abdomen to reduce the lumbar lordotic
curvature
• A dispersive plate to the posterior thigh
• Sterile drape of lower lumbar region and buttocks on the
operative side
• Local/IV sedation. No GA.
• Optional Bowel prep

20. C-arm to visualize AP Sacrum
(adequate cranial tilt to open L5S1)
caudal/cephalad tilt of the C-arm to parallel the
superior endplate of S1

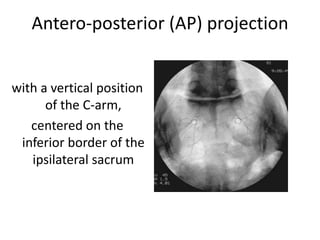

21. Antero-posterior (AP) projection
with a vertical position
of the C-arm,
centered on the
inferior border of the
ipsilateral sacrum

22. Identify the skin entry point
at the ipsilateral,
lateral, inferior
border of the
sacrum, 1 cm lateral
of and below the S4
foramen

23. Spinal needle placement
(from the sacral
target point to the
mid-SIJ) to
anesthetize the
track

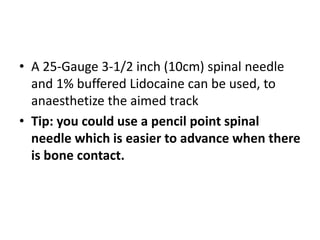

24. • A 25-Gauge 3-1/2 inch (10cm) spinal needle
and 1% buffered Lidocaine can be used, to
anaesthetize the aimed track
• Tip: you could use a pencil point spinal
needle which is easier to advance when there
is bone contact.

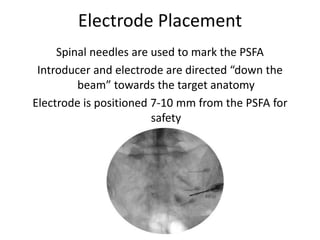

25. Electrode Placement
Spinal needles are used to mark the PSFA
Introducer and electrode are directed “down the
beam” towards the target anatomy
Electrode is positioned 7-10 mm from the PSFA for
safety

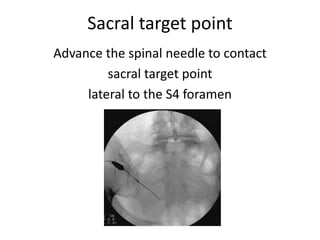

26. Sacral target point
Advance the spinal needle to contact
sacral target point
lateral to the S4 foramen

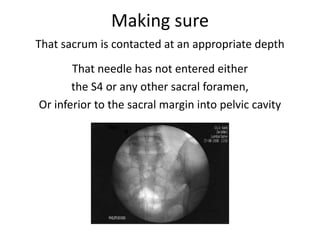

27. Making sure
That sacrum is contacted at an appropriate depth
That needle has not entered either
the S4 or any other sacral foramen,
Or inferior to the sacral margin into pelvic cavity

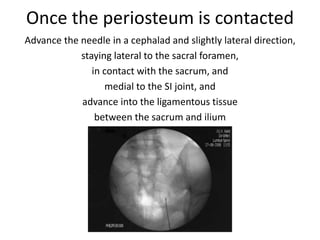

28. Once the periosteum is contacted
Advance the needle in a cephalad and slightly lateral direction,
staying lateral to the sacral foramen,
in contact with the sacrum, and
medial to the SI joint, and
advance into the ligamentous tissue
between the sacrum and ilium

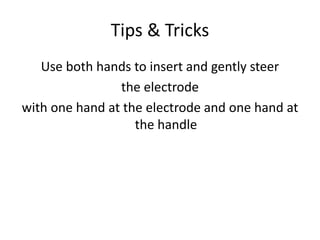

29. Tips & Tricks
Use both hands to insert and gently steer
the electrode
with one hand at the electrode and one hand at
the handle

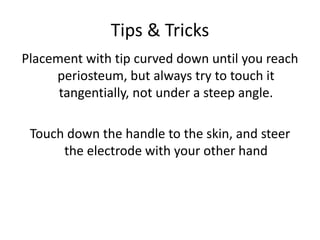

30. Tips & Tricks
Placement with tip curved down until you reach
periosteum, but always try to touch it
tangentially, not under a steep angle.
Touch down the handle to the skin, and steer
the electrode with your other hand

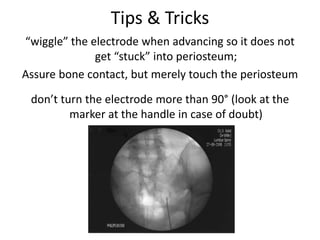

31. Tips & Tricks
“wiggle” the electrode when advancing so it does not
get “stuck” into periosteum;
Assure bone contact, but merely touch the periosteum
don’t turn the electrode more than 90° (look at the
marker at the handle in case of doubt)

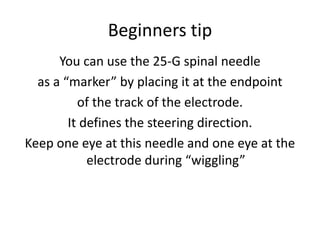

32. Beginners tip
You can use the 25-G spinal needle
as a “marker” by placing it at the endpoint
of the track of the electrode.
It defines the steering direction.
Keep one eye at this needle and one eye at the
electrode during “wiggling”

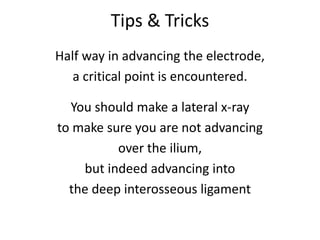

33. Tips & Tricks
Half way in advancing the electrode,
a critical point is encountered.
You should make a lateral x-ray
to make sure you are not advancing
over the ilium,
but indeed advancing into
the deep interosseous ligament

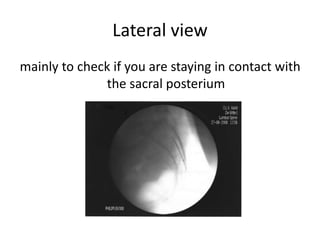

34. Lateral view
mainly to check if you are staying in contact with
the sacral posterium

35. Electrode is then advanced
Maintaining continuous contact with sacrum,
on a cephalad and slightly lateral line,
staying lateral to the sacral foramen,
medial to the sacroiliac joint, and
ventral to the ilium,
until contact with the sacral ala
prevents further advancement

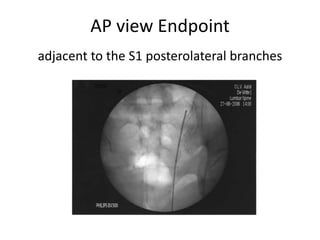

36. AP view Endpoint
adjacent to the S1 posterolateral branches

37. Anesthetize the lesion track
(to optimize patient comfort)
Once advanced along this line to a point where no
further cephalad advancement can occur, remove
the stylette and inject 4 cc of a 2% lidocaine solution
+/- 1 cc of a non-particulate steroid as the needle is
withdrawn, to anesthetize the lesion track

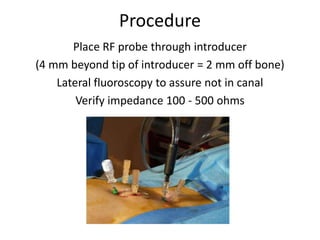

38. Procedure
Place RF probe through introducer
(4 mm beyond tip of introducer = 2 mm off bone)
Lateral fluoroscopy to assure not in canal
Verify impedance 100 - 500 ohms

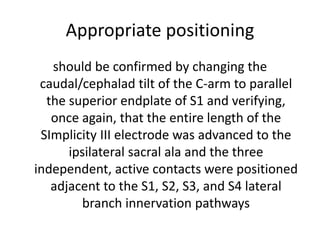

39. Appropriate positioning
should be confirmed by changing the
caudal/cephalad tilt of the C-arm to parallel
the superior endplate of S1 and verifying,
once again, that the entire length of the
SImplicity III electrode was advanced to the
ipsilateral sacral ala and the three
independent, active contacts were positioned
adjacent to the S1, S2, S3, and S4 lateral
branch innervation pathways

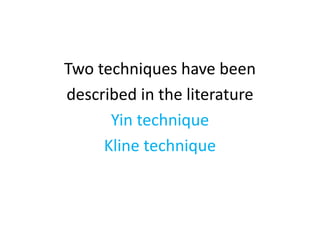

40. Two techniques have been
described in the literature
Yin technique
Kline technique

41. Yin technique
(Sensory Stimulation-Guided)
Locate relevant nerves using
traditional sensory stimulation
• If the SI pain was reproduced, ablated is done 80 C for 60 sec
• If a sensory response was elicited, but did not reproduce the
pain, the level was not ablated
• 64% of patients had > 50% pain relief at six months

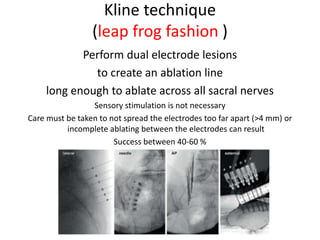

42. Kline technique
(leap frog fashion )
Perform dual electrode lesions
to create an ablation line
long enough to ablate across all sacral nerves
Sensory stimulation is not necessary
Care must be taken to not spread the electrodes too far apart (>4 mm) or
incomplete ablating between the electrodes can result
Success between 40‐60 %

43. “Leapfrog” Technique for SIJ RF
Lesions made in the postero-inferior aspect
of joint by ‘leapfrogging’ RF probe
at < 1cm intervals
mean duration of pain relief 12+/- 1.2 months

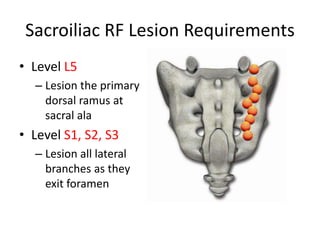

44. Sacroiliac RF Lesion Requirements
• Level L5
– Lesion the primary
dorsal ramus at
sacral ala
• Level S1, S2, S3
– Lesion all lateral
branches as they
exit foramen

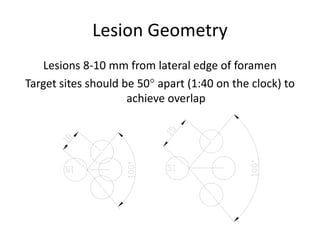

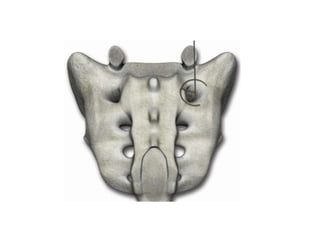

45. Lesion Geometry
Lesions 8-10 mm from lateral edge of foramen
Target sites should be 50° apart (1:40 on the clock) to
achieve overlap

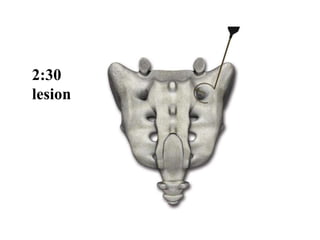

47. 2:30
lesion

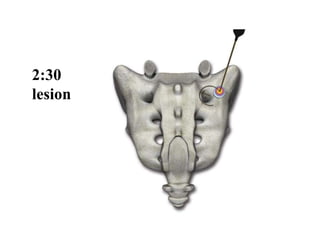

48. 2:30
lesion

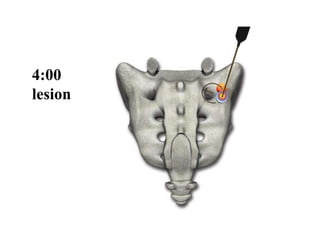

49. 4:00
lesion

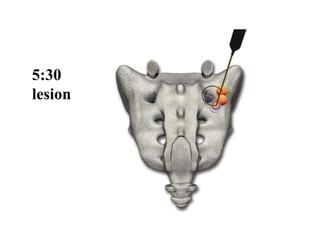

50. 5:30
lesion

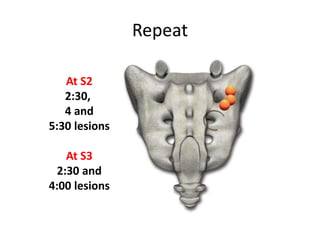

51. At S2
2:30,
4 and
5:30 lesions
At S3
2:30 and
4:00 lesions
Repeat

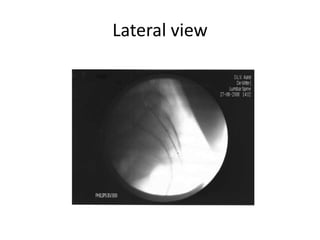

53. Lateral view

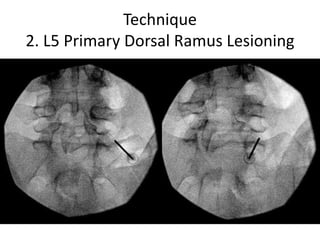

54. Technique
2. L5 Primary Dorsal Ramus Lesioning

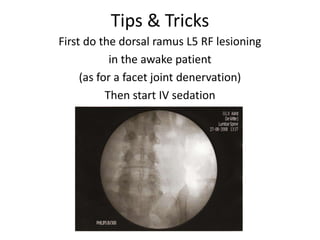

55. Tips & Tricks
First do the dorsal ramus L5 RF lesioning
in the awake patient
(as for a facet joint denervation)
Then start IV sedation

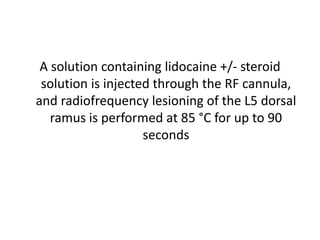

56. A solution containing lidocaine +/‐ steroid
solution is injected through the RF cannula,
and radiofrequency lesioning of the L5 dorsal
ramus is performed at 85 °C for up to 90
seconds

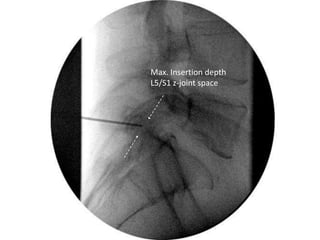

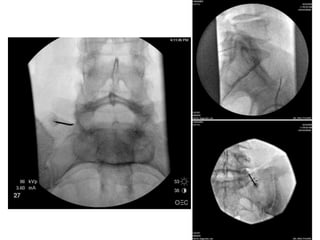

58. Max. Insertion depth
L5/S1 z-joint space

59. Probe is 2mm off bone for distal
lesion projection

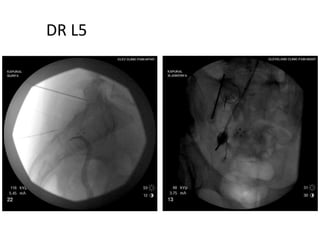

60. DR L5

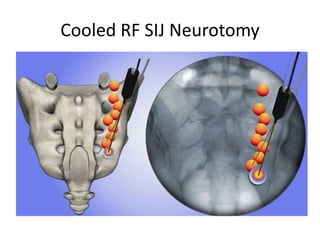

61. Cooled RF SIJ Neurotomy

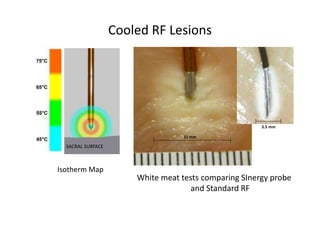

62. Cooled RF Lesions
SACRAL SURFACE
Isotherm Map
White meat tests comparing SInergy probe
and Standard RF
10 mm
3.5 mm

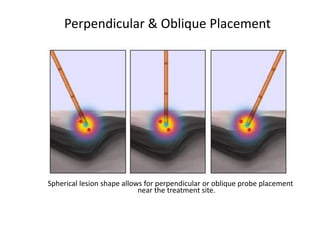

63. Perpendicular & Oblique Placement
Spherical lesion shape allows for perpendicular or oblique probe placement
near the treatment site.

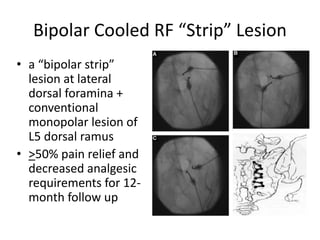

64. Bipolar Cooled RF “Strip” Lesion
• a “bipolar strip”
lesion at lateral
dorsal foramina +
conventional
monopolar lesion of
L5 dorsal ramus
• >50% pain relief and
decreased analgesic
requirements for 12-
month follow up

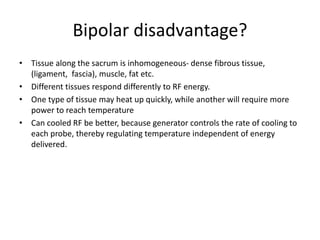

65. Bipolar disadvantage?
• Tissue along the sacrum is inhomogeneous- dense fibrous tissue,
(ligament, fascia), muscle, fat etc.
• Different tissues respond differently to RF energy.
• One type of tissue may heat up quickly, while another will require more
power to reach temperature
• Can cooled RF be better, because generator controls the rate of cooling to
each probe, thereby regulating temperature independent of energy
delivered.

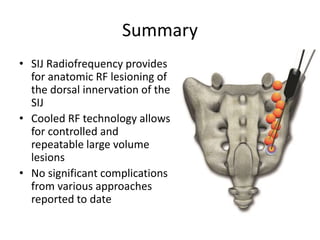

66. Summary
• SIJ Radiofrequency provides
for anatomic RF lesioning of
the dorsal innervation of the
SIJ
• Cooled RF technology allows
for controlled and
repeatable large volume
lesions
• No significant complications
from various approaches
reported to date

67. Thank You
