The document discusses Visualforce, a framework for building component-based applications and pages for Salesforce. It provides an overview of Visualforce tags and capabilities like interacting with Apex controllers, calling remote actions via JavaScript, and using the REST API. It also briefly introduces Remote Objects, a new feature in Spring '14 that allows CRUD operations without Apex code.

1. S1 Publisher – VF Edition
25 April, 2014

2. Peter Chittum
Developer Evangelist
@pchittum

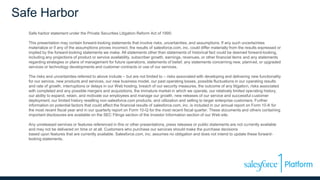

3. Safe Harbor
Safe harbor statement under the Private Securities Litigation Reform Act of 1995:
This presentation may contain forward-looking statements that involve risks, uncertainties, and assumptions. If any such uncertainties
materialize or if any of the assumptions proves incorrect, the results of salesforce.com, inc. could differ materially from the results expressed or
implied by the forward-looking statements we make. All statements other than statements of historical fact could be deemed forward-looking,
including any projections of product or service availability, subscriber growth, earnings, revenues, or other financial items and any statements
regarding strategies or plans of management for future operations, statements of belief, any statements concerning new, planned, or upgraded
services or technology developments and customer contracts or use of our services.
The risks and uncertainties referred to above include – but are not limited to – risks associated with developing and delivering new functionality
for our service, new products and services, our new business model, our past operating losses, possible fluctuations in our operating results
and rate of growth, interruptions or delays in our Web hosting, breach of our security measures, the outcome of any litigation, risks associated
with completed and any possible mergers and acquisitions, the immature market in which we operate, our relatively limited operating history,
our ability to expand, retain, and motivate our employees and manage our growth, new releases of our service and successful customer
deployment, our limited history reselling non-salesforce.com products, and utilization and selling to larger enterprise customers. Further
information on potential factors that could affect the financial results of salesforce.com, inc. is included in our annual report on Form 10-K for
the most recent fiscal year and in our quarterly report on Form 10-Q for the most recent fiscal quarter. These documents and others containing
important disclosures are available on the SEC Filings section of the Investor Information section of our Web site.
Any unreleased services or features referenced in this or other presentations, press releases or public statements are not currently available
and may not be delivered on time or at all. Customers who purchase our services should make the purchase decisions
based upon features that are currently available. Salesforce.com, inc. assumes no obligation and does not intend to update these forward-
looking statements.

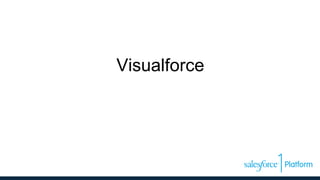

4. Visualforce

5. Framework
 Server-side compiled web pages
– (Think PHP, JSP, etc.)
 Easily create salesforce UI
 Standard-compliant
 Can Interact With Apex for Custom Logic

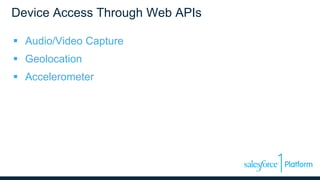

6. Device Access Through Web APIs
 Audio/Video Capture
 Geolocation
 Accelerometer

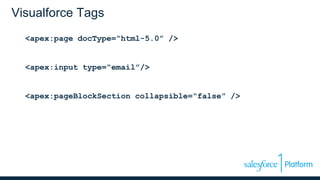

7. Visualforce Tags
<apex:page docType=“html-5.0” />
<apex:input type=“email”/>
<apex:pageBlockSection collapsible=“false” />

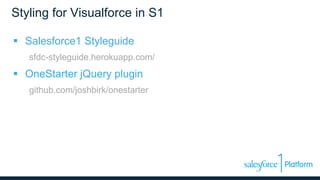

8. Styling for Visualforce in S1
 Salesforce1 Styleguide
sfdc-styleguide.herokuapp.com/
 OneStarter jQuery plugin
github.com/joshbirk/onestarter

9. Hashed information block to track server side transports
Viewstate

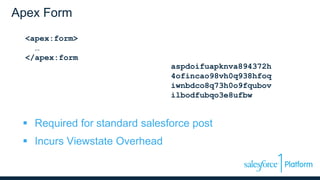

10. Apex Form
 Required for standard salesforce post
 Incurs Viewstate Overhead
<apex:form>
…
</apex:form
aspdoifuapknva894372h
4ofincao98vh0q938hfoq
iwnbdco8q73h0o9fqubov
ilbodfubqo3e8ufbw

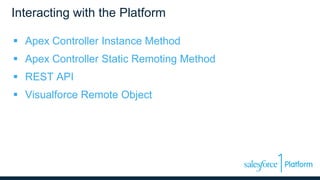

11. Interacting with the Platform
 Apex Controller Instance Method
 Apex Controller Static Remoting Method
 REST API
 Visualforce Remote Object

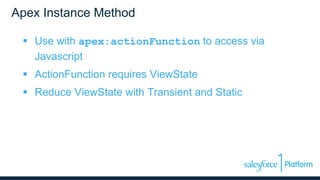

12. Apex Instance Method
 Use with apex:actionFunction to access via
Javascript
 ActionFunction requires ViewState
 Reduce ViewState with Transient and Static

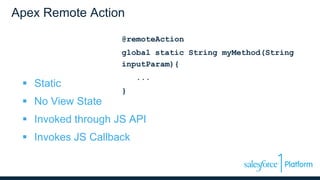

13. Apex Remote Action
 Static
 No View State
 Invoked through JS API
 Invokes JS Callback
@remoteAction
global static String myMethod(String
inputParam){
...
}

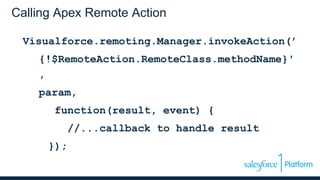

14. Calling Apex Remote Action
Visualforce.remoting.Manager.invokeAction(’
{!$RemoteAction.RemoteClass.methodName}'
,
param,
function(result, event) {
//...callback to handle result
});

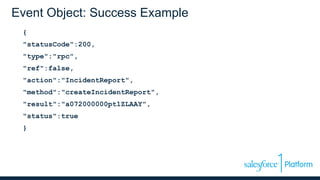

15. Event Object: Success Example
{
"statusCode":200,
"type":"rpc",
"ref":false,
"action":"IncidentReport",
"method":"createIncidentReport",
"result":"a072000000pt1ZLAAY",
"status":true
}

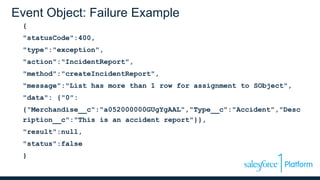

16. Event Object: Failure Example
{
"statusCode":400,
"type":"exception",
"action":"IncidentReport",
"method":"createIncidentReport",
"message":"List has more than 1 row for assignment to SObject",
"data": {"0":
{"Merchandise__c":"a052000000GUgYgAAL","Type__c":"Accident","Desc
ription__c":"This is an accident report"}},
"result":null,
"status":false
}

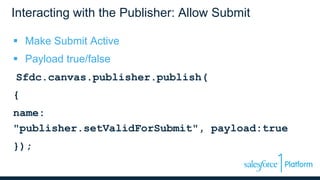

17. Interacting with the Publisher: Allow Submit
 Make Submit Active
 Payload true/false
Sfdc.canvas.publisher.publish(
{
name:
"publisher.setValidForSubmit", payload:true
});

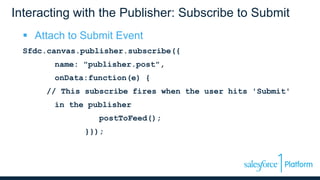

18. Interacting with the Publisher: Subscribe to Submit
 Attach to Submit Event
Sfdc.canvas.publisher.subscribe({
name: "publisher.post",
onData:function(e) {
// This subscribe fires when the user hits 'Submit'
in the publisher
postToFeed();
}});

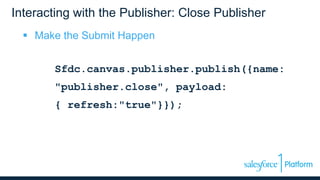

19. Interacting with the Publisher: Close Publisher
 Make the Submit Happen
Sfdc.canvas.publisher.publish({name:
"publisher.close", payload:
{ refresh:"true"}});

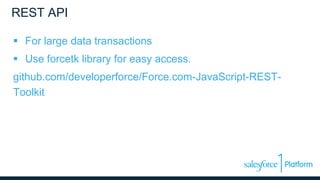

20. REST API
 For large data transactions
 Use forcetk library for easy access.
github.com/developerforce/Force.com-JavaScript-REST-
Toolkit

21. forcetk: Init and Bind To Session
<apex:includeScript value="{!$Resource.forcetk}"/>
...
var restClient = new forcetk.Client();
var contentId;
var merchId;
restClient.setSessionToken('{!$Api.Session_ID}');
//turn off proxy now that we have session
restClient.proxyUrl = null;
restClient.instanceUrl = '';

22. forcetk: Init and Bind To Session
restClient.create('ContentVersion', {
"Origin": "H",
"PathOnClient": file.name,
"VersionData": imageData
}, function(data) {
...
$('#test-display').text('File Create Complete:' + data.id);
...
}, onErrorSfdc);

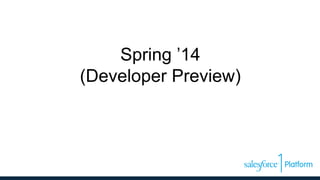

23. Spring ’14
(Developer Preview)

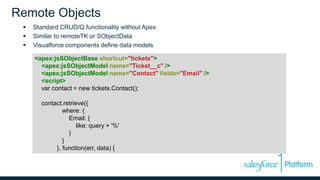

24. Remote Objects
 Standard CRUD/Q functionality without Apex
 Similar to remoteTK or SObjectData
 Visualforce components define data models
<apex:jsSObjectBase shortcut="tickets">
<apex:jsSObjectModel name="Ticket__c" />
<apex:jsSObjectModel name="Contact" fields="Email" />
<script>
var contact = new tickets.Contact();
contact.retrieve({
where: {
Email: {
like: query + '%'
}
}
}, function(err, data) {
