Running Cloudbreak on Kubernetes

1 © Hortonworks Inc. 2011 – 2017. All Rights Reserved
Running Cloudbreak
on Kubernetes
Richard Doktorics
Krisztian Horvath

Who we are?
 Krisztian Horvath
– Staff Engineer at Hortonworks
– Works on Cloudbreak from the beginning
– @keyki
 Richard Doktorics
– Senior Software Engineer
– Works on Cloudbreak from the beginning
– @doktoric

Agenda
 Cloudbreak
 Kubernetes
 Helm
 Cloudbreak Rolling Update
 Log collection
 Monitoring & Alerting
 Questions

Cloudbreak is a tool for provisioning Hadoop clusters on cloud infrastructure
 Simplified Cluster Provisioning
 Automated Cluster Scaling
– AMS (Ambari Metrics System)
– Prometheus based metrics
 Highly Extensible
– Recipes for scripting extensions that run before/after cluster provisioning
– Custom cloud images
 Multiple platforms are supported
– AWS
– GCP
– Azure
– OpenStack
– BYOS (Bring Your Own Stack)
What is Cloudbreak?

 Cloudbreak Deployer (CBD)
– Written in Go and Bash (go-basher)
– Compiled into single binary
 Micro-service architecture
– Each service runs in a Docker
container
– Each container is replaceable
with custom ones
– Services are handled with
docker-compose
Single node deployment
IMAGE NAMES
traefik:v1.3.8-alpine cbreak_traefik_1
hortonworks/cloudbreak:2.1.0 cbreak_cloudbreak_1
postgres:9.6.1-alpine cbreak_commondb_1
hortonworks/cloudbreak-uaa cbreak_identity_1
hortonworks/hdc-auth:2.1.0 cbreak_sultans_1
hortonworks/cloudbreak-autoscale:2.1.0 cbreak_periscope_1
hortonworks/hdc-web:2.1.0 cbreak_uluwatu_1
gliderlabs/consul-server:0.5 cbreak_consul_1

 Run Cloudbreak in HA (High Available) mode
– Ability to recover flows in case of node failure
– Avoid master-slave design / leader election problems
 Scale Cloudbreak as we desire
– Distribute each cluster related flow
– Cannot run 2 flows for the same cluster at the same time (e.g: 2 upscale flows)
– Flow cancellation must be handled
 Scale the Web UI
– Had to introduce a Redis cluster for the session store
 Scale every other service as well
 Find a tool that makes it easy to deploy these services to multiple nodes
 Cloudbreak as a Service that is accessible by everyone and can start clusters anywhere
Our goal was to..

Kubernetes

Kubernetes is an open-source platform designed to automate deploying, scaling and
operating application containers
 Deploy your applications quickly and predictably
 Scale your applications on the fly
 Roll out new features seamlessly
 Limit hardware usage to required resources only
 Portable: public, private, hybrid, multi-cloud
 Extensible: modular, pluggable, hookable, composable
 Self-healing: auto-placement, auto-restart, auto-replication, auto-scaling
What is Kubernetes?

 Not because it’s fancy..
 Evaluated Kubernetes, Swarm, Mesos, Rancher
 Open source / Active community with hands-on experience
 Many cloud providers already supports it
 Lots of tooling behind it / API / CLI / Helm / Ansible / Salt
 Integration with most of the cloud providers
– Provision Load Balancer (GCP, AWS, Azure)
– Use object stores to share data (Ceph, S3, GCP bucket, Azure Storage Account)
– Dynamic volume provisioning / Persistent disk (EBS, Azure Blob)
Why Kubernetes?

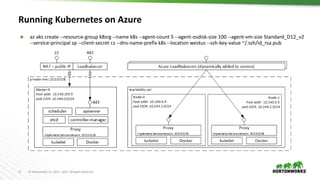

Running Kubernetes on Azure
 az aks create --resource-group k8srg --name k8s --agent-count 5 --agent-osdisk-size 100 --agent-vm-size Standard_D12_v2
--service-principal sp --client-secret cs --dns-name-prefix k8s --location westus --ssh-key-value ~/.ssh/id_rsa.pub

 ACS (Azure Container Service)
– Can run Kubernetes, Swarm, DC/OS
 AKS (Managed Kubernetes)
– No master VMs (at least on your side)
– Multiple agent pools with different VM types
– Scale the agent pools independently
– Automatic upgrades
 ACI (Azure Container Instances)
– No VMs to provision
– “Endless” resource pool
– Pay by seconds
– Can act “as a node” in the Kubernetes cluster
ACS / AKS / ACI

 Pod
– Group of one or more containers with shared storage/network
– Always co-located and co-scheduled and run in a shared context
 Deployment
– Provides declarative updates for Pods
 StatefulSet
– Manages the deployment and scaling of a set of Pods
and provides guarantees about the ordering
and uniqueness of these Pods
– Has a persistent identifier that it maintains across
any rescheduling
 Service
– Abstraction which defines a logical set of Pods and a policy by which to access them
 Declared in yml files
Kubernetes resources

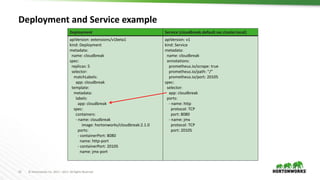

Deployment and Service example
Deployment Service (cloudbreak.default.svc.cluster.local)
apiVersion: extensions/v1beta1
kind: Deployment
metadata:
name: cloudbreak
spec:
replicas: 5
selector:
matchLabels:
app: cloudbreak
template:
metadata:
labels:
app: cloudbreak
spec:
containers:
- name: cloudbreak
image: hortonworks/cloudbreak:2.1.0
ports:
- containerPort: 8080
name: http-port
name: jmx-port
apiVersion: v1
kind: Service
metadata:
name: cloudbreak
annotations:
prometheus.io/scrape: true
prometheus.io/path: "/”
prometheus.io/port: 20105
spec:
selector:
app: cloudbreak
ports:
- name: http
protocol: TCP
port: 8080
- name: jmx
protocol: TCP
port: 20105

Helm

 No real competitor
 Helps you manage Kubernetes applications
 Officially approved by community
 Official Charts
 Rolling upgrade
 Helm is the client, Tiller is the server
 Tiller is a Kubernetes pod
Why Helm?

Running Helm on Kubernetes
 Helm package ~= Chart
– Define
– Install
– Upgrade
 Chart
– values.yml: stores variables for the template files templates directory
– Chart.yml: describes the chart, as in it’s name, description and version
– kubernetes templates.yml: Go template support
 Separated Charts for every component
– Cloudbreak
– Monitoring
– Analytics

Deployment and Service example
Deployment Service Deployment template Helm Service template Helm
kind: Deployment
metadata:
name: cloudbreak
spec:
replicas: 5
selector:
matchLabels:
app: cloudbreak
template:
metadata:
labels:
app: cloudbreak
spec:
containers:
- name: cloudbreak
image:
hortonworks/cloudbreak:2.1.0
ports:
name: http-port
name: jmx-port
apiVersion: v1
kind: Service
metadata:
name: cloudbreak
annotations:
spec:
selector:
app: cloudbreak
ports:
- name: http
protocol: TCP
port: 8080
- name: jmx
protocol: TCP
port: 20105
kind: Deployment
metadata:
name: {{ .Release.Name }}-cloudbreak
spec:
replicas: {{ .Values.replicas }}
selector:
matchLabels:
app: cloudbreak
release: {{ .Release.Name }}
template:
metadata:
labels:
app: cloudbreak
spec:
containers:
- name: cloudbreak
image: {{ .Values.cbImage }}
ports:
name: http-port
name: jmx-port
apiVersion: v1
kind: Service
metadata:
name: {{ .Release.Name }}-cloudbreak
annotations:
spec:
selector:
app: cloudbreak
ports:
- name: http
protocol: TCP
port: 8080
- name: jmx
protocol: TCP
port: 20105

Rolling Update

Rolling Update
 The goal is to have zero downtime update
 Ability to roll back in case something goes wrong
 Rolling Update strategy with Readiness Probe
 Canary releasing
 Prepare for running 2 versions of the application at the same time
Strategy Readiness Probe
strategy:
type: RollingUpdate
rollingUpdate:
maxSurge: 1
maxUnavailable: 0
readinessProbe:
httpGet:
path: /cb/info
port: 8080
initialDelaySeconds: 90
failureThreshold: 5

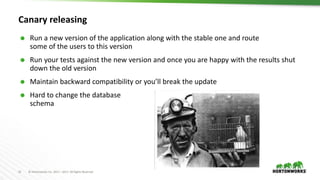

Canary releasing
 Run a new version of the application along with the stable one and route
some of the users to this version
 Run your tests against the new version and once you are happy with the results shut
down the old version
 Maintain backward compatibility or you’ll break the update
 Hard to change the database
schema

Canary releasing

Logging and Monitoring

Logging
 Logspout
– Collecting the logs from Docker socket
 Logstash
– Redirecting logs to file outputs
 Azure File Share
– Storing the Log files in Samba share
 LogSearch
– Owned by Hortonworks
– Using Solr under the hood

Monitoring
 Prometheus
– Java metrics (Custom metrics)
– Provider per cluster
– REST status codes
– Response times
– Active flows per node
– Go metrics
– Consul metrics
– Linux/ Host metrics
– NodeJS metrics

Alerting
ALERT successful_stack_creation_aws
IF sum(changes(org_springframework_metrics_cloudbreak_value{value=~"stack.creation.successful.aws"}[5m])) > 0
ANNOTATIONS {
status="INFO”,
description="A new stack has been created on AWS.”
}
ALERT stack_creation_failed_aws
IF sum(changes(org_springframework_metrics_cloudbreak_value{value=~"stack.creation.failed.aws"}[5m])) > 0
ANNOTATIONS {
status="WARN”,
description="Failed to create a stack on AWS.”
}
ALERT node_down
IF up{job='node_exporter'} == 0
FOR 5m
ANNOTATIONS {
status="ERROR”,
description = "Node {{ $labels.instance }} is down for more than 15 minutes”,
}

Questions?

Thank you!
