Openshift YARN - strata 2014
The document discusses the integration of OpenShift, Docker, and Kubernetes for managing applications in cloud environments. It highlights the benefits of using Docker containers for lightweight application deployment and describes how Kubernetes orchestrates container management. Additionally, it presents a real-world case study involving a truck fleet company that uses streaming data and analytics for real-time driver monitoring.
More Related Content
Similar to Openshift YARN - strata 2014
Openshift YARN - strata 2014
- 1. OpenShift scheduling docker containers in YARN via Kubernetes Page 1 © Hortonworks Inc. 2014

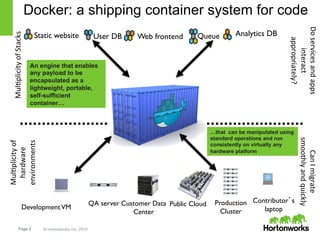

- 2. Docker: a shippingcontainer system for code Static website Mul$plicity of Stacks hardware environments Page 2 © Hortonworks Inc. 2014 User DB Web frontend Queue Analytics DB Development VM QA server Public Cloud appropriately? Contributor’s laptop Mul$plicity of Production Cluster Customer Data Center Do services and apps interact smoothly and quickly Can I migrate …that can be manipulated using standard operations and run consistently on virtually any hardware platform An engine that enables any payload to be encapsulated as a lightweight, portable, self-sufficient container…

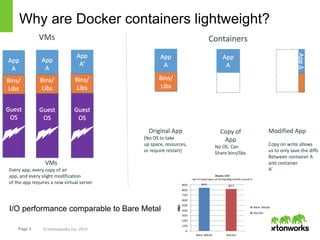

- 3. Why are Dockercontainers lightweight? HDP 2.1 Hortonworks Data Platform I/O performance comparable to Bare Metal Page 3 © Hortonworks Inc. 2014
- 4. Kubernetes – ContainerOrchestrator • Service for container cluster management • Allows deploying and managing applications running on multiple hosts using docker • Open sourced by Google • Supports GCE, CoreOS, Azure, vSphere • Used to manage Docker containers as a default implementation • Master – maintain state of Kubernetes Server runtime • Scheduler, API server, registries, storage • Minions – represent the host were containers created • Kubelet – manage pod and container lifecycle Page 4 © Hortonworks Inc. 2014

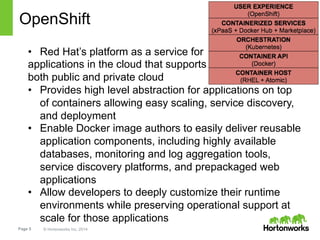

- 5. OpenShift • RedHat’s platform as a service for applications in the cloud that supports both public and private cloud • Provides high level abstraction for applications on top of containers allowing easy scaling, service discovery, and deployment • Enable Docker image authors to easily deliver reusable application components, including highly available databases, monitoring and log aggregation tools, service discovery platforms, and prepackaged web applications • Allow developers to deeply customize their runtime environments while preserving operational support at scale for those applications Page 5 © Hortonworks Inc. 2014
- 6. Kubernetes/YARN/Docker Integration YARNNode Manager YARN Node Manager Kubernetes AppMaster Page 6 © Hortonworks Inc. 2014 6
- 7. Understanding Storm viaa Real-World Use Case A large truck fleet company wants to, in real-time, capture events of drivers in their trucks on the road across the US. Sensor devices on trucks captures all kinds of events varying from vehicle diagnostics to driver infractions. § E.g.: Excessive breaking/acceleration, speeding, start/stop, etc.. Initial Business Requirement: § Stream these events in, filter on violations and do real-time alerting on “lots” of erratic behavior over a short period of time.. Page 7 © Hortonworks Inc. 2014

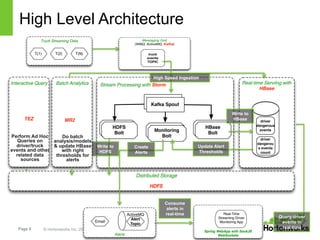

- 8. High Level Architecture Truck Streaming Data T(1) T(2) T(N) Interactive Query TEZ Perform Ad Hoc Queries on driver/truck events and other related data sources Page 8 © Hortonworks Inc. 2014 Messaging Grid (WMQ, ActiveMQ, Kafka) truck events TOPIC Stream Processing with Storm Kafka Spout HBase Bolt Monitoring Bolt HDFS Bolt High Speed Ingestion Create Alerts Distributed Storage HDFS Write to HDFS Email Alerts ActiveMQ Alert Topic Real-time Serviing with HBase driver dangerous events driver dangerou s events count Write to HBase Update Alert Thresholds Real-Time Streaming Driver Monitoring App Spring WebApp with SockJS WebSockets Query driver events in real-time Consume alerts in real-time Batch Analytics MR2 Do batch analysis/models & update HBase with right thresholds for alerts

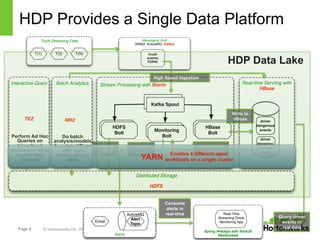

- 9. HDP Provides aSingle Data Platform Truck Streaming Data T(1) T(2) T(N) Interactive Query TEZ Perform Ad Hoc Queries on driver/truck events and other related data sources Page 9 © Hortonworks Inc. 2014 Messaging Grid (WMQ, ActiveMQ, Kafka) truck events TOPIC Stream Processing with Storm Kafka Spout HBase Bolt Monitoring Bolt HDFS Bolt High Speed Ingestion Create Alerts Distributed Storage HDFS Write to HDFS Email Alerts ActiveMQ Alert Topic HDP Data Lake Real-time Serviing with HBase driver dangerous events driver dangerou s events count Write to HBase Update Alert Thresholds Real-Time Streaming Driver Monitoring App Spring WebApp with SockJS WebSockets Query driver events in real-time Consume alerts in real-time Batch Analytics MR2 Do batch analysis/models & update HBase with right thresholds for alerts YARN Enables 4 different apps/ workloads on a single cluster

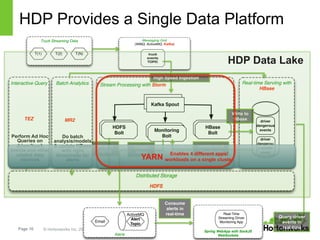

- 10. HDP Provides aSingle Data Platform Truck Streaming Data T(1) T(2) T(N) Interactive Query TEZ Perform Ad Hoc Queries on driver/truck events and other related data sources Page 10 © Hortonworks Inc. 2014 Messaging Grid (WMQ, ActiveMQ, Kafka) truck events TOPIC Stream Processing with Storm Kafka Spout HBase Bolt Monitoring Bolt HDFS Bolt High Speed Ingestion Create Alerts Distributed Storage HDFS Write to HDFS Email Alerts ActiveMQ Alert Topic HDP Data Lake Real-time Serviing with HBase driver dangerous events driver dangerou s events count Write to HBase Update Alert Thresholds Real-Time Streaming Driver Monitoring App Spring WebApp with SockJS WebSockets Query driver events in real-time Consume alerts in real-time Batch Analytics MR2 Do batch analysis/models & update HBase with right thresholds for alerts YARN Enables 4 different apps/ workloads on a single cluster
- 11. Demo: OpenShift schedulingDocker container in YARN Page 11 © Hortonworks Inc. 2014 Running in Docker
