Rule-based Design
Dia 1
Managing complexity!
HU Summer School 2016 - Business Process Management & IT
Rogier van de Wetering, PhD
The Open University of the Netherlands
August 8th 2016, Utrecht
Dia 2

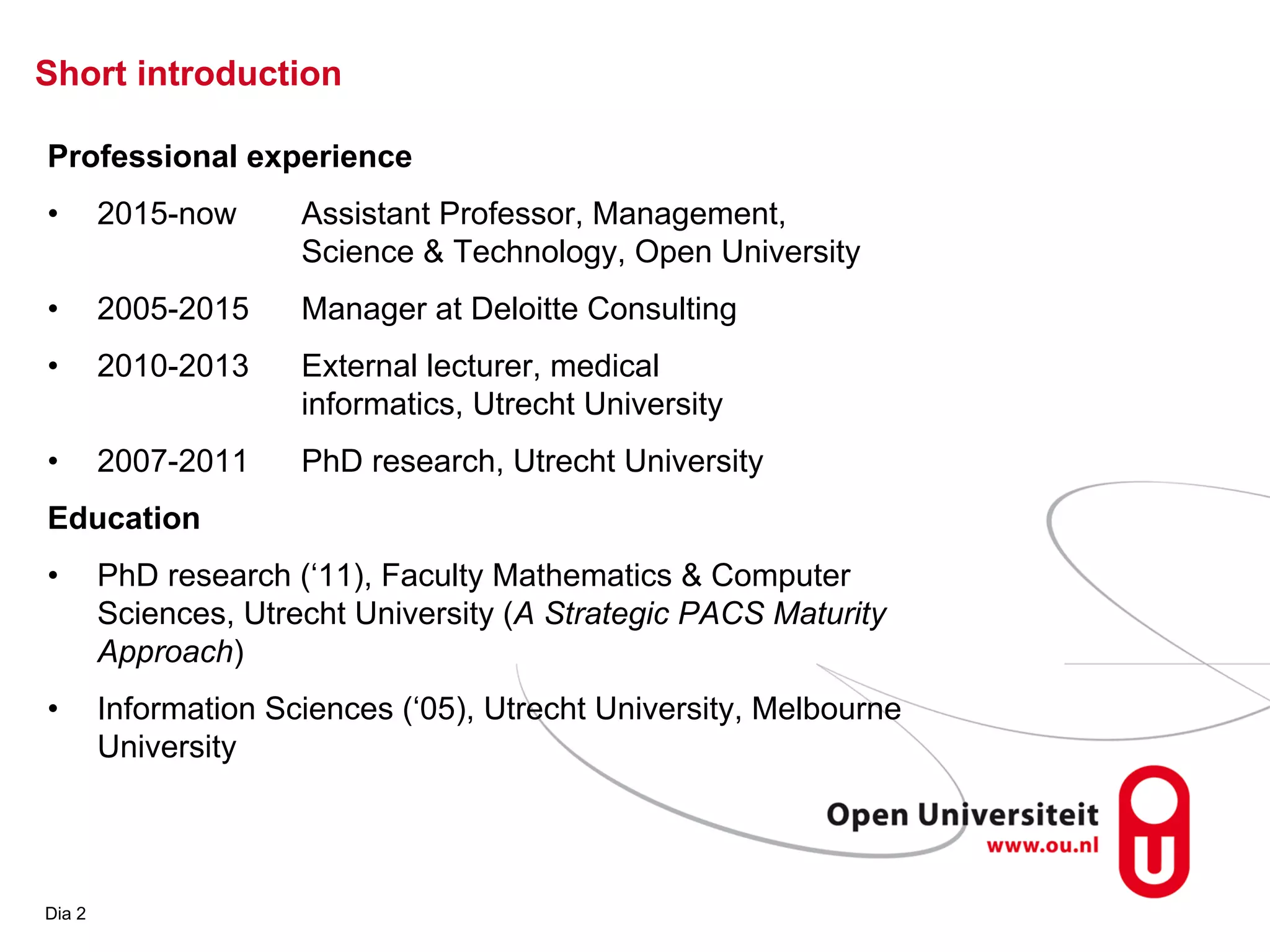

Short introduction
Professional experience
• 2015-now Assistant Professor, Management,
Science & Technology, Open University
• 2005-2015 Manager at Deloitte Consulting
• 2010-2013 External lecturer, medical
informatics, Utrecht University
• 2007-2011 PhD research, Utrecht University
Education
• PhD research (‘11), Faculty Mathematics & Computer
Sciences, Utrecht University (A Strategic PACS Maturity
Approach)
• Information Sciences (‘05), Utrecht University, Melbourne
University
Dia 3
1 Rule-based Design
‘An introduction’
09.00-09.50
BREAK
Formalizing
‘From natural
language to
relation
algebra’
10.00-10.50
BREAK
Practice
‘Do it yourself’
11.00-12.00
2
3
The path we will follow this morning….
Rule-based Design
Dia 4
Dia 5
Organizations can in essence be viewed as complex, adaptive socio-
technical systems
Familiar Complex Adaptive System…
Dia 6
Adls, (2013), Charting the Changes [ONLINE]. Available at: http://s3-ap-southeast-2.amazonaws.com/adls-
media/8725730/financialmarkets.jpg [Accessed 7 July 2016].
Dia 7
Familiar Complex Adaptive System…
Shutterstock, (2013), Biomimicry [ONLINE]. Available at: https://s3-eu-west-
1.amazonaws.com/static.nextnature.net/app/uploads/2013/07/ant-bridge_2302146k-640x400.jpg [Accessed 29
June 2016].
Technologies and practices that enable innovation and deal with
environmental turbulence
Dia 8
Business RulesRobotics
Internet of
Things
Big data Cloud-computing
Social networks
Mobile /
app
Collaborative
networking
Cyber
security
ComplexAdaptiveSytems
Digital strategy &
innovation
Data-driven
business model
Open data ecosystem
IT-enabled Dynamic
Capabilities
Adaptive Enterprise
Architectures
Watson
Business analytics
What do you really need to know about Rule-based Design
Dia 9
Design systems
and processes
Better
communication
Business/IT-
alignment
Rule-based Design
Make IT
manageable
Flexible
organization
Reduce
complexity
Dia 10
Business Rules, some definitions:
1
2
3
Business rules represent the primary means by which an
organization can direct its business, defining the operative way to
reach its objectives and perform its actions (Wikipedia)
Statement that defines or constrains some aspect of the business... [which is]
intended to assert business structure, or to control or influence the behavior of
the business. It cannot be broken down or decomposed further into more
detailed business rules. (Business Rules Group)
Business rules formalize mutual agreements between stakeholders,
commitments of managers, rights and obligations of employees, etc.
into ‘laws’, intended to serve the purpose(s) of an organization
(Joosten)
Dia 11
Business Rules: verifiable statements
Business rule definition:
“A business rule is a verifiable
statement that some stakeholders
intend to obey, within a certain
context.” ………as intended by the
Business Rules Manifesto
Dia 12
Mantra of Business Rules Manifesto
Mantra:
“ Rules build on facts, and facts
build on concepts as expressed by
terms.”
Dia 13
Mantra of Business Rules Manifesto
Mantra:
“ Rules build on facts, and facts
build on concepts as expressed by
terms.”
Client, Bill, Supplier, etc.
Bills are sent to
customers.
Every sent item (to a
customer) must be
billed.
A. Our policies are transparent to the outside world
B. Rogier goes to bed in the evening and gets up in the
morning
C. E = mc2
D. Johan Versendaal went to the club last night
E. Pascal is an expert on BPM
Dia 14
Question: Are these examples of ‘Rules’?
Rule examples
Dia 15
Banking and insurance
Every application gets a decision
IT service desk
Every (customer/client) call
involves at least one hardware- or
software component
Order management
An order contains no other kinds
of plant than the combined pick
orders
Consumer business
Every sent item must be billed
Dia 16
Business Rules Manifesto: Principles of Rule Independence
Articles 1-5
1. Primary Requirements, Not
Secondary
2. Separate From Processes, Not
Contained In Them
3. Deliberate Knowledge, Not A
By-Product
4. Declarative, Not Procedural
5. Well-Formed Expression, Not
Ad Hoc
Articles 6-10
6. Rule-Based Architecture, Not
Indirect Implementation
7. Rule-Guided Processes, Not
Exception-Based Programming
8. For the Sake of the Business,
Not Technology
9. Of, By, and For Business
People, Not IT People
10.Managing Business Logic, Not
Hardware/Software Platforms
• Business rules actually define the business process
• Signal violations (in real time) and act to resolve them
• Business rules are sufficient as an instrument to design
compliant business processes and information systems
• The role of information technology is to help maintain
business rules
• If any rule is violated (perhaps temporarily), a computer can
signal that and prompt people to resolve the issue
Dia 17
Business rules can be used to manage and control business
processes
Dia 18
There are several important categories of business rules:
1
2
43
5
Event-condition-action-rule
Computation / Derivation rule
Invariant rules
Imperative rules
Condition-action-rule
Dia 19
Business Rule Management; dealing with various challenges
Complete and
consistent
Getting
stakeholders
to commit
Communicate
with right
stakeholders
Balance
between
‘Rules’ and
‘People’
Alignment with
business goals
Key
challenges
Some challenges
Dia 20
Rule-based Design draws on research on business rules, software
engineering, relation algebra, and design methodology
• Puts functional requirements at the focal point of the design of business
processes and information systems
• Elicit requirements from various audiences, helping these audiences to make
their wishes concrete
• This requires communicative and advisory skills
• Requirements engineer must interpret requirements to select or write business
rules
• This requires technical insight in information systems that support business
processes
• Requirements engineer must help stakeholders with solutions rather than
endless questions
• Rule-based Design helps requirements engineers with tools that automate large
parts of the design process
• Systems and people together form a system that lives by rules; this leads to
compliance
• Business process management (BPM) is in fact also included: BPM is all about
handling cases
• Cases are governed by a set of rules (e.g. the credit approval procedure)
• When all rules are satisfied (no violations) the case is closed: rule based BPM!
• There is a big difference: workflow based approaches derives actions from
workflow and process models
• We define business rules declarative; invariant rules
Dia 21
Rule-based Design vs workflow based approaches
Dia 22
Within Rule based BPM any violation of a business rule may be used
to trigger actions
• If rules are found to be violated, the
detector signals a process engine
• The process engine distributes work
to people and computers, who take
appropriate actions
• Follows the Plan-Do-Check-Act cycle
• Actions are not specified, but derived!
• Use business rules to define business
processes
• You define the process
• Common basis for data and process side of IS/IT
• Requires formal method
• System boundaries can be articulated
• Functional behavior of the system is defined
• Proof that the system meets specification
Dia 23
The Rule-Based design approach has some important implications
Designer’s perspective for rule based process management
Dia 24
Design artifacts
Rule base
IS development
environment
Dia 25
Rule Maturity: Five Steps to an Agile Enterprise
Dia 26
10 min.
Formalizing Business Rules
Dia 27
Dia 28
A brief recap: what have we learned
Rule-
based
Design
Business Rules are verifiable statements
Rules build on facts, and facts build on concepts as
expressed by terms
There are various types of Rules
Actions are not specified
Systems and people together form a system that
lives by rules; this leads to compliance
Requires formal method
Dia 29
Concepts and relations
concept identifier verb concept identifier
Employer
Shell
HU
OU
Microsoft
Employee
Joris
Pascal
Rogier
Johan
Mark Rutte
works at
works at
works at
works at
works at
Target Source
Dia 30
Concepts and relations: a conceptual model
Concept
Relation
NO RULES
Dia 31
Concepts and relations: an instance diagram
Dia 32
Concepts and relations: : instance diagram of a composition
Actor possesses at
least one of the
Skills required for the
Role
Dia 33
A client name and call identifier is entered. Are there any violations?
Rule 1: Every call must get an
acceptable response.
Rule 2: Every call is entered by
exactly one client.
Rule 3: Every call involves at
least one hardware- or software
component
Rule 4: Every response
describes at least one problem
solution that applies to at least
one component involved in the
call.
The engine will detect various violations
Dia 34
Formalizing rules from Natural language to computer code
From ‘Natural language’
To ‘Semi-formal language’
(e.g. RuleSpeak and other CNLs)
To ‘Formal notation’
(using mathematical principles, e.g. relation algebra, predicate logic,
Boolean algebra, etc.)
To ‘Application’
(Script language)
Normal sentence
For...(concept)...
Must (not)
be...(...)...if
IF..THEN..MUST
Only plants in stock may be
ordered
if an Order is for a Species,
then some Stock exists such
that the
Order affects that Stock and
that Stock is of that Species
is_for  affects ; is_of
Dia 35
Founders of the calculus of relations; relation algebra
Augustus De Morgan Charles Sanders Peirce
Ernst Schröder Alfred Tarski
Rules assertion within relation algebra
Dia 36
Left-expression  Right-expression
consequent
..implies..
consequent
Set theoretic perspective
Rules assertion within relation algebra
Dia 37
R  S
is_for 
affects ; is_of
• IF ..R.. THEN..S..
• R implies S
• If something exist in R, then that
also must exist in S
General caseSpecific case
if an Order is_for a Species,
then some Stock exists such
that the Order affects that
Stock and that Stock is_of that
Species
Dia 38
RuleSpeak®: set of guidelines for expressing business rules in
concise, business-friendly fashion
• Omitting a Rule Keyword is not good
Every Business Rule Statement should include “must” or “only”. (An order must indicate the customer who places it.)
• “Can” is not good
A customer may purchase a pesticide from a supplier only if the supplier sells that pesticide)
• Extra words for emphasis are not good
A shipment must have a status with no exceptions.
• “To have” is often not good
A team must have a manager. => A team must be managed by a manager.
• Starting with ‘if’ is not good
If an employee is retired, then he must not be assigned an employment counselor => A retired employee must not be
assigned an employment counselor.
• Plural subjects are not good
Programmers must work on a system.
• Actor subjects are frequently not good
A customer may make a withdrawal only if their account is active =>
A withdrawal for an account may be made only if the account is active
Dia 39
RuleSpeak®: some guidelines
DEMO using Ampersand method RAP2
Dia 40
http://is.cs.ou.nl/rap2/index.php
Dia 41
10 min.
Practice
Dia 42
Dia 43
A brief recap: what have we learned
Relations
Relation algebra / script language
Rules
Business Rules are verifiable
statements
If something exist in R, then that
also must exist in S
Formalizing
Left-expression  Right-expression
..implies..
consequent
From ‘Natural language’
To ‘Semi-formal language’
To ‘Formal notation’
To ‘Application’
Dia 44
Assignment introduction for teams
1. Select a case (see next sheet)
2. Select a typical (simple) process (or sub-process)
3. Identify a business ‘problem’ (be creative!) – related to this process, or
as a result of executing this process
4. Define 3-4 concepts and their ‘atoms’ (Course: BPN, EA, RBD, IT-
governance, etc.)
5. Draw a conceptual diagram
6. Define some relations
7. Formulate a couple of ‘Rules’ (e.g. in natural language, CNL,
RuleSpeak, etc.) – Cycle chasing
We will work on this in teams of 4. After 30 minutes, the teams shortly
present their outcomes!
Dia 45
Various cases, pick one!
1. Healthcare: patient registration 2. Education: course registration 3. FSI: loan / mortgage approval
A) HR-process: Bonus payment B) Order management: sending bill IND: application decision making
IndustryProcess/case
Q&A
Dia 46
• Van de Wetering, R., & Bos, R. (2016). A meta-framework for Efficacious
Adaptive Enterprise Architectures, in Proceedings of the International
Conference on Business Information Systems. 2016, Springer International
Publishing: Leipzig, Germany. [download] [download]
• Van de Wetering, R. (2016). Modeling Alignment as a Higher Order Nomological
Framework, in Proceedings of the International Conference on Business
Information Systems. 2016, Springer International Publishing: Leipzig, Germany.
[download] [download]
• Mikalef, P., Pateli, A., & Van de Wetering, R. (2016). IT flexibility and competitive
performance: The mediating role of IT-enabled dynamic capabilities, in the
Proceedings of the 24th European Conference on Information Systems (ECIS).
[download] [download]
• Van de Wetering, R., & Batenburg, R. (2014). Towards a Theory of PACS
Deployment: An Integrative PACS Maturity Framework. Journal of Digital
Imaging, 27(3), 337-350. [download] [download]
Dia 47
Further reading on adaptive principles, alignment and dynamic
capabilities
Contact
Dia 48
dr. R. (Rogier) van de Wetering
Assistant Professor
Faculty Management, Science & Technology
nl.linkedin.com/in/rvandewetering
twitter.com/drvandewetering
researchgate.net/profile/Rogier_Van_de_Wetering2
openuniversiteit.academia.edu/RVanDeWetering

More Related Content

What's hot

Policies & Laws in IT industry
Policies & Laws in IT industryPolicies & Laws in IT industry
Policies & Laws in IT industry
Rohana K Amarakoon

Sheila Jeffrey - Well Behaved Data - It's a Matter of Principles
Sheila Jeffrey - Well Behaved Data - It's a Matter of PrinciplesSheila Jeffrey - Well Behaved Data - It's a Matter of Principles
Sheila Jeffrey - Well Behaved Data - It's a Matter of Principles
iasaglobal

IT Governance - COBIT 5 Capability Assessment
IT Governance - COBIT 5 Capability AssessmentIT Governance - COBIT 5 Capability Assessment
IT Governance - COBIT 5 Capability Assessment
Eryk Budi Pratama

Biz Nova It Project Bonus Slides
Biz Nova It Project Bonus SlidesBiz Nova It Project Bonus Slides
Biz Nova It Project Bonus Slides
TyHowardPMP

Business process analysis and optimization: A pragmatic approach to business ...
Business process analysis and optimization: A pragmatic approach to business ...Business process analysis and optimization: A pragmatic approach to business ...
Business process analysis and optimization: A pragmatic approach to business ...
Mozammel Hoque

Managing Deploymemt of ERP Systems in the Publishing Domain
Managing Deploymemt of ERP Systems in the Publishing DomainManaging Deploymemt of ERP Systems in the Publishing Domain
Managing Deploymemt of ERP Systems in the Publishing Domain
Glen Alleman


What's hot (6)

Policies & Laws in IT industry
Policies & Laws in IT industryPolicies & Laws in IT industry
Policies & Laws in IT industry

Sheila Jeffrey - Well Behaved Data - It's a Matter of Principles
Sheila Jeffrey - Well Behaved Data - It's a Matter of PrinciplesSheila Jeffrey - Well Behaved Data - It's a Matter of Principles
Sheila Jeffrey - Well Behaved Data - It's a Matter of Principles

IT Governance - COBIT 5 Capability Assessment
IT Governance - COBIT 5 Capability AssessmentIT Governance - COBIT 5 Capability Assessment
IT Governance - COBIT 5 Capability Assessment

Biz Nova It Project Bonus Slides
Biz Nova It Project Bonus SlidesBiz Nova It Project Bonus Slides
Biz Nova It Project Bonus Slides

Business process analysis and optimization: A pragmatic approach to business ...
Business process analysis and optimization: A pragmatic approach to business ...Business process analysis and optimization: A pragmatic approach to business ...
Business process analysis and optimization: A pragmatic approach to business ...

Managing Deploymemt of ERP Systems in the Publishing Domain
Managing Deploymemt of ERP Systems in the Publishing DomainManaging Deploymemt of ERP Systems in the Publishing Domain
Managing Deploymemt of ERP Systems in the Publishing Domain


Viewers also liked

Sinking of well foundation
Sinking of well foundationSinking of well foundation
Sinking of well foundation
Sourabh Jain

Shoring
ShoringShoring
Civil Engineering-Dewatering
Civil Engineering-DewateringCivil Engineering-Dewatering
Civil Engineering-Dewatering
Moe Abadla

Timber floor
Timber floorTimber floor
Timber floor
Amruta Khairnar

Well Foundation
Well FoundationWell Foundation
Well Foundation
akjain_mkt

Dewatering techniques
Dewatering techniquesDewatering techniques
Dewatering techniques
Groundwater Engineering Ltd

Building Construction 8. formworks and scaffoldings
Building Construction 8. formworks and scaffoldingsBuilding Construction 8. formworks and scaffoldings
Building Construction 8. formworks and scaffoldings
Hamdija Velagic

Drilling and blasting powerpoint 2003
Drilling and blasting powerpoint 2003Drilling and blasting powerpoint 2003
Drilling and blasting powerpoint 2003
Yogesh Ghule

Construction equipments
Construction equipmentsConstruction equipments
Construction equipments
Ashish Parihar

Construction equipments - Introduction and Classification
Construction equipments - Introduction and ClassificationConstruction equipments - Introduction and Classification
Construction equipments - Introduction and Classification
Sagar Radadiya


Viewers also liked (10)

Sinking of well foundation
Sinking of well foundationSinking of well foundation
Sinking of well foundation

Shoring
ShoringShoring
Shoring

Civil Engineering-Dewatering
Civil Engineering-DewateringCivil Engineering-Dewatering
Civil Engineering-Dewatering

Timber floor
Timber floorTimber floor
Timber floor

Well Foundation
Well FoundationWell Foundation
Well Foundation

Dewatering techniques
Dewatering techniquesDewatering techniques
Dewatering techniques

Building Construction 8. formworks and scaffoldings
Building Construction 8. formworks and scaffoldingsBuilding Construction 8. formworks and scaffoldings
Building Construction 8. formworks and scaffoldings

Drilling and blasting powerpoint 2003
Drilling and blasting powerpoint 2003Drilling and blasting powerpoint 2003
Drilling and blasting powerpoint 2003

Construction equipments
Construction equipmentsConstruction equipments
Construction equipments

Construction equipments - Introduction and Classification
Construction equipments - Introduction and ClassificationConstruction equipments - Introduction and Classification
Construction equipments - Introduction and Classification


Similar to Rule-based Design. Managing complexity!

05 REQUIREMENT ENGINEERING for students of
05 REQUIREMENT ENGINEERING for students of05 REQUIREMENT ENGINEERING for students of
05 REQUIREMENT ENGINEERING for students of
AssadLeo1

REQUIREMENT ENGINEERING
REQUIREMENT ENGINEERINGREQUIREMENT ENGINEERING
REQUIREMENT ENGINEERING
Saqib Raza

Bussiness needs
Bussiness needsBussiness needs
Bussiness needs
hunni123

Bridging the Gap Between Business and Development (OOP'07 Keynote)
Bridging the Gap Between Business and Development (OOP'07 Keynote)Bridging the Gap Between Business and Development (OOP'07 Keynote)
Bridging the Gap Between Business and Development (OOP'07 Keynote)
Enthiosys Inc

Week8 Topic1 Translate Business Needs Into Technical Requirements
Week8 Topic1 Translate Business Needs Into Technical RequirementsWeek8 Topic1 Translate Business Needs Into Technical Requirements
Week8 Topic1 Translate Business Needs Into Technical Requirements
hapy

Rethinking business decisions and processes for digital transformation
Rethinking business decisions and processes for digital transformationRethinking business decisions and processes for digital transformation
Rethinking business decisions and processes for digital transformation
Judy Breedlove

Requirementengg
RequirementenggRequirementengg
req engg (1).ppt
req engg (1).pptreq engg (1).ppt
req engg (1).ppt
WaniHBisen

Requirements elicitation
Requirements elicitationRequirements elicitation
Requirements elicitation
Abdul Basit

SRE.pptx
SRE.pptxSRE.pptx
SRE.pptx
KalsoomBajwa

Embrace Complexity (Trends in BPM 2011)
Embrace Complexity (Trends in BPM 2011)Embrace Complexity (Trends in BPM 2011)
Embrace Complexity (Trends in BPM 2011)
Jeroen van Grondelle

Requirements Engineering Process Improvement
Requirements Engineering Process ImprovementRequirements Engineering Process Improvement
Requirements Engineering Process Improvement
Ian Sommerville

Software engg. pressman_ch-6 & 7
Software engg. pressman_ch-6 & 7Software engg. pressman_ch-6 & 7
Software engg. pressman_ch-6 & 7
Dhairya Joshi

PowerPoint presentation
PowerPoint presentationPowerPoint presentation
PowerPoint presentation
webhostingguy

3-Requirements.ppt
3-Requirements.ppt3-Requirements.ppt
3-Requirements.ppt
DuraisamySubramaniam1

ASAS 2014 - Klasien Postma
ASAS 2014 - Klasien PostmaASAS 2014 - Klasien Postma
ASAS 2014 - Klasien Postma
Avisi B.V.

software requirement and architecture.pdf
software requirement and architecture.pdfsoftware requirement and architecture.pdf
software requirement and architecture.pdf
wajoce8790

Ch 2-RE-process.pptx
Ch 2-RE-process.pptxCh 2-RE-process.pptx
Ch 2-RE-process.pptx
balewayalew

software engineering
software engineeringsoftware engineering
software engineering
Snow Queenzz

Using Product Box to Build the Complete Developer
Using Product Box to Build the Complete DeveloperUsing Product Box to Build the Complete Developer
Using Product Box to Build the Complete Developer
Luke Hohmann


Similar to Rule-based Design. Managing complexity! (20)

05 REQUIREMENT ENGINEERING for students of
05 REQUIREMENT ENGINEERING for students of05 REQUIREMENT ENGINEERING for students of
05 REQUIREMENT ENGINEERING for students of

REQUIREMENT ENGINEERING
REQUIREMENT ENGINEERINGREQUIREMENT ENGINEERING
REQUIREMENT ENGINEERING

Bussiness needs
Bussiness needsBussiness needs
Bussiness needs

Bridging the Gap Between Business and Development (OOP'07 Keynote)
Bridging the Gap Between Business and Development (OOP'07 Keynote)Bridging the Gap Between Business and Development (OOP'07 Keynote)
Bridging the Gap Between Business and Development (OOP'07 Keynote)

Week8 Topic1 Translate Business Needs Into Technical Requirements
Week8 Topic1 Translate Business Needs Into Technical RequirementsWeek8 Topic1 Translate Business Needs Into Technical Requirements
Week8 Topic1 Translate Business Needs Into Technical Requirements

Rethinking business decisions and processes for digital transformation
Rethinking business decisions and processes for digital transformationRethinking business decisions and processes for digital transformation
Rethinking business decisions and processes for digital transformation

Requirementengg
RequirementenggRequirementengg
Requirementengg

req engg (1).ppt
req engg (1).pptreq engg (1).ppt
req engg (1).ppt

Requirements elicitation
Requirements elicitationRequirements elicitation
Requirements elicitation

SRE.pptx
SRE.pptxSRE.pptx
SRE.pptx

Embrace Complexity (Trends in BPM 2011)
Embrace Complexity (Trends in BPM 2011)Embrace Complexity (Trends in BPM 2011)
Embrace Complexity (Trends in BPM 2011)

Requirements Engineering Process Improvement
Requirements Engineering Process ImprovementRequirements Engineering Process Improvement
Requirements Engineering Process Improvement

Software engg. pressman_ch-6 & 7
Software engg. pressman_ch-6 & 7Software engg. pressman_ch-6 & 7
Software engg. pressman_ch-6 & 7

PowerPoint presentation
PowerPoint presentationPowerPoint presentation
PowerPoint presentation

3-Requirements.ppt
3-Requirements.ppt3-Requirements.ppt
3-Requirements.ppt

ASAS 2014 - Klasien Postma
ASAS 2014 - Klasien PostmaASAS 2014 - Klasien Postma
ASAS 2014 - Klasien Postma

software requirement and architecture.pdf
software requirement and architecture.pdfsoftware requirement and architecture.pdf
software requirement and architecture.pdf

Ch 2-RE-process.pptx
Ch 2-RE-process.pptxCh 2-RE-process.pptx
Ch 2-RE-process.pptx

software engineering
software engineeringsoftware engineering
software engineering

Using Product Box to Build the Complete Developer
Using Product Box to Build the Complete DeveloperUsing Product Box to Build the Complete Developer
Using Product Box to Build the Complete Developer


More from Rogier Van de Wetering, PhD

Application of Structural Equation Modeling in PACS research
Application of Structural Equation Modeling in PACS researchApplication of Structural Equation Modeling in PACS research
Application of Structural Equation Modeling in PACS research
Rogier Van de Wetering, PhD

Picture Archiving and Communication Systems
Picture Archiving and Communication SystemsPicture Archiving and Communication Systems
Picture Archiving and Communication Systems
Rogier Van de Wetering, PhD

The role of IS/IT in Healthcare
The role of IS/IT in HealthcareThe role of IS/IT in Healthcare
The role of IS/IT in Healthcare
Rogier Van de Wetering, PhD

Health IT & Picture Archiving and Communication Systems
Health IT & Picture Archiving and Communication SystemsHealth IT & Picture Archiving and Communication Systems
Health IT & Picture Archiving and Communication Systems
Rogier Van de Wetering, PhD

From PACS Adoption to PACS Maturity
From PACS Adoption to PACS MaturityFrom PACS Adoption to PACS Maturity
From PACS Adoption to PACS Maturity
Rogier Van de Wetering, PhD

Defining and formalizing radiology and PACS performance
Defining and formalizing radiology and PACS performanceDefining and formalizing radiology and PACS performance
Defining and formalizing radiology and PACS performance
Rogier Van de Wetering, PhD

Rooster analytics
Rooster analytics Rooster analytics
Rooster analytics
Rogier Van de Wetering, PhD

Met je smartphone op jacht naar het eeuwige leven
Met je smartphone op jacht naar het eeuwige levenMet je smartphone op jacht naar het eeuwige leven
Met je smartphone op jacht naar het eeuwige leven
Rogier Van de Wetering, PhD

Met je smartphone op jacht naar het eeuwige leven
Met je smartphone op jacht naar het eeuwige levenMet je smartphone op jacht naar het eeuwige leven
Met je smartphone op jacht naar het eeuwige leven
Rogier Van de Wetering, PhD

The Role of Information Systems in Healthcare
The Role of Information Systems in HealthcareThe Role of Information Systems in Healthcare
The Role of Information Systems in Healthcare
Rogier Van de Wetering, PhD


More from Rogier Van de Wetering, PhD (10)

Application of Structural Equation Modeling in PACS research
Application of Structural Equation Modeling in PACS researchApplication of Structural Equation Modeling in PACS research
Application of Structural Equation Modeling in PACS research

Picture Archiving and Communication Systems
Picture Archiving and Communication SystemsPicture Archiving and Communication Systems
Picture Archiving and Communication Systems

The role of IS/IT in Healthcare
The role of IS/IT in HealthcareThe role of IS/IT in Healthcare
The role of IS/IT in Healthcare

Health IT & Picture Archiving and Communication Systems
Health IT & Picture Archiving and Communication SystemsHealth IT & Picture Archiving and Communication Systems
Health IT & Picture Archiving and Communication Systems

From PACS Adoption to PACS Maturity
From PACS Adoption to PACS MaturityFrom PACS Adoption to PACS Maturity
From PACS Adoption to PACS Maturity

Defining and formalizing radiology and PACS performance
Defining and formalizing radiology and PACS performanceDefining and formalizing radiology and PACS performance
Defining and formalizing radiology and PACS performance

Rooster analytics
Rooster analytics Rooster analytics
Rooster analytics

Met je smartphone op jacht naar het eeuwige leven
Met je smartphone op jacht naar het eeuwige levenMet je smartphone op jacht naar het eeuwige leven
Met je smartphone op jacht naar het eeuwige leven

Met je smartphone op jacht naar het eeuwige leven
Met je smartphone op jacht naar het eeuwige levenMet je smartphone op jacht naar het eeuwige leven
Met je smartphone op jacht naar het eeuwige leven

The Role of Information Systems in Healthcare
The Role of Information Systems in HealthcareThe Role of Information Systems in Healthcare
The Role of Information Systems in Healthcare


Recently uploaded

NuGOweek 2024 Ghent programme overview flyer
NuGOweek 2024 Ghent programme overview flyerNuGOweek 2024 Ghent programme overview flyer
NuGOweek 2024 Ghent programme overview flyer
pablovgd

Bob Reedy - Nitrate in Texas Groundwater.pdf
Bob Reedy - Nitrate in Texas Groundwater.pdfBob Reedy - Nitrate in Texas Groundwater.pdf
Bob Reedy - Nitrate in Texas Groundwater.pdf
Texas Alliance of Groundwater Districts

Shallowest Oil Discovery of Turkiye.pptx
Shallowest Oil Discovery of Turkiye.pptxShallowest Oil Discovery of Turkiye.pptx
Shallowest Oil Discovery of Turkiye.pptx
Gokturk Mehmet Dilci

Thornton ESPP slides UK WW Network 4_6_24.pdf
Thornton ESPP slides UK WW Network 4_6_24.pdfThornton ESPP slides UK WW Network 4_6_24.pdf
Thornton ESPP slides UK WW Network 4_6_24.pdf
European Sustainable Phosphorus Platform

Sharlene Leurig - Enabling Onsite Water Use with Net Zero Water
Sharlene Leurig - Enabling Onsite Water Use with Net Zero WaterSharlene Leurig - Enabling Onsite Water Use with Net Zero Water
Sharlene Leurig - Enabling Onsite Water Use with Net Zero Water
Texas Alliance of Groundwater Districts

Deep Software Variability and Frictionless Reproducibility
Deep Software Variability and Frictionless ReproducibilityDeep Software Variability and Frictionless Reproducibility
Deep Software Variability and Frictionless Reproducibility
University of Rennes, INSA Rennes, Inria/IRISA, CNRS

mô tả các thí nghiệm về đánh giá tác động dòng khí hóa sau đốt
mô tả các thí nghiệm về đánh giá tác động dòng khí hóa sau đốtmô tả các thí nghiệm về đánh giá tác động dòng khí hóa sau đốt
mô tả các thí nghiệm về đánh giá tác động dòng khí hóa sau đốt
HongcNguyn6

Oedema_types_causes_pathophysiology.pptx
Oedema_types_causes_pathophysiology.pptxOedema_types_causes_pathophysiology.pptx
Oedema_types_causes_pathophysiology.pptx
muralinath2

EWOCS-I: The catalog of X-ray sources in Westerlund 1 from the Extended Weste...
EWOCS-I: The catalog of X-ray sources in Westerlund 1 from the Extended Weste...EWOCS-I: The catalog of X-ray sources in Westerlund 1 from the Extended Weste...
EWOCS-I: The catalog of X-ray sources in Westerlund 1 from the Extended Weste...
Sérgio Sacani

Comparing Evolved Extractive Text Summary Scores of Bidirectional Encoder Rep...
Comparing Evolved Extractive Text Summary Scores of Bidirectional Encoder Rep...Comparing Evolved Extractive Text Summary Scores of Bidirectional Encoder Rep...
Comparing Evolved Extractive Text Summary Scores of Bidirectional Encoder Rep...
University of Maribor

Travis Hills' Endeavors in Minnesota: Fostering Environmental and Economic Pr...
Travis Hills' Endeavors in Minnesota: Fostering Environmental and Economic Pr...Travis Hills' Endeavors in Minnesota: Fostering Environmental and Economic Pr...
Travis Hills' Endeavors in Minnesota: Fostering Environmental and Economic Pr...
Travis Hills MN

Cytokines and their role in immune regulation.pptx
Cytokines and their role in immune regulation.pptxCytokines and their role in immune regulation.pptx
Cytokines and their role in immune regulation.pptx
Hitesh Sikarwar

Randomised Optimisation Algorithms in DAPHNE
Randomised Optimisation Algorithms in DAPHNERandomised Optimisation Algorithms in DAPHNE
Randomised Optimisation Algorithms in DAPHNE
University of Maribor

Equivariant neural networks and representation theory
Equivariant neural networks and representation theoryEquivariant neural networks and representation theory
Equivariant neural networks and representation theory
Daniel Tubbenhauer

Applied Science: Thermodynamics, Laws & Methodology.pdf
Applied Science: Thermodynamics, Laws & Methodology.pdfApplied Science: Thermodynamics, Laws & Methodology.pdf
Applied Science: Thermodynamics, Laws & Methodology.pdf
University of Hertfordshire

3D Hybrid PIC simulation of the plasma expansion (ISSS-14)
3D Hybrid PIC simulation of the plasma expansion (ISSS-14)3D Hybrid PIC simulation of the plasma expansion (ISSS-14)
3D Hybrid PIC simulation of the plasma expansion (ISSS-14)
David Osipyan

The debris of the ‘last major merger’ is dynamically young
The debris of the ‘last major merger’ is dynamically youngThe debris of the ‘last major merger’ is dynamically young
The debris of the ‘last major merger’ is dynamically young
Sérgio Sacani

THEMATIC APPERCEPTION TEST(TAT) cognitive abilities, creativity, and critic...
THEMATIC  APPERCEPTION  TEST(TAT) cognitive abilities, creativity, and critic...THEMATIC  APPERCEPTION  TEST(TAT) cognitive abilities, creativity, and critic...
THEMATIC APPERCEPTION TEST(TAT) cognitive abilities, creativity, and critic...
Abdul Wali Khan University Mardan,kP,Pakistan

aziz sancar nobel prize winner: from mardin to nobel
aziz sancar nobel prize winner: from mardin to nobelaziz sancar nobel prize winner: from mardin to nobel
aziz sancar nobel prize winner: from mardin to nobel
İsa Badur

Unlocking the mysteries of reproduction: Exploring fecundity and gonadosomati...
Unlocking the mysteries of reproduction: Exploring fecundity and gonadosomati...Unlocking the mysteries of reproduction: Exploring fecundity and gonadosomati...
Unlocking the mysteries of reproduction: Exploring fecundity and gonadosomati...
AbdullaAlAsif1


Recently uploaded (20)

NuGOweek 2024 Ghent programme overview flyer
NuGOweek 2024 Ghent programme overview flyerNuGOweek 2024 Ghent programme overview flyer
NuGOweek 2024 Ghent programme overview flyer

Bob Reedy - Nitrate in Texas Groundwater.pdf
Bob Reedy - Nitrate in Texas Groundwater.pdfBob Reedy - Nitrate in Texas Groundwater.pdf
Bob Reedy - Nitrate in Texas Groundwater.pdf

Shallowest Oil Discovery of Turkiye.pptx
Shallowest Oil Discovery of Turkiye.pptxShallowest Oil Discovery of Turkiye.pptx
Shallowest Oil Discovery of Turkiye.pptx

Thornton ESPP slides UK WW Network 4_6_24.pdf
Thornton ESPP slides UK WW Network 4_6_24.pdfThornton ESPP slides UK WW Network 4_6_24.pdf
Thornton ESPP slides UK WW Network 4_6_24.pdf

Sharlene Leurig - Enabling Onsite Water Use with Net Zero Water
Sharlene Leurig - Enabling Onsite Water Use with Net Zero WaterSharlene Leurig - Enabling Onsite Water Use with Net Zero Water
Sharlene Leurig - Enabling Onsite Water Use with Net Zero Water

Deep Software Variability and Frictionless Reproducibility
Deep Software Variability and Frictionless ReproducibilityDeep Software Variability and Frictionless Reproducibility
Deep Software Variability and Frictionless Reproducibility

mô tả các thí nghiệm về đánh giá tác động dòng khí hóa sau đốt
mô tả các thí nghiệm về đánh giá tác động dòng khí hóa sau đốtmô tả các thí nghiệm về đánh giá tác động dòng khí hóa sau đốt
mô tả các thí nghiệm về đánh giá tác động dòng khí hóa sau đốt

Oedema_types_causes_pathophysiology.pptx
Oedema_types_causes_pathophysiology.pptxOedema_types_causes_pathophysiology.pptx
Oedema_types_causes_pathophysiology.pptx

EWOCS-I: The catalog of X-ray sources in Westerlund 1 from the Extended Weste...
EWOCS-I: The catalog of X-ray sources in Westerlund 1 from the Extended Weste...EWOCS-I: The catalog of X-ray sources in Westerlund 1 from the Extended Weste...
EWOCS-I: The catalog of X-ray sources in Westerlund 1 from the Extended Weste...

Comparing Evolved Extractive Text Summary Scores of Bidirectional Encoder Rep...
Comparing Evolved Extractive Text Summary Scores of Bidirectional Encoder Rep...Comparing Evolved Extractive Text Summary Scores of Bidirectional Encoder Rep...
Comparing Evolved Extractive Text Summary Scores of Bidirectional Encoder Rep...

Travis Hills' Endeavors in Minnesota: Fostering Environmental and Economic Pr...
Travis Hills' Endeavors in Minnesota: Fostering Environmental and Economic Pr...Travis Hills' Endeavors in Minnesota: Fostering Environmental and Economic Pr...
Travis Hills' Endeavors in Minnesota: Fostering Environmental and Economic Pr...

Cytokines and their role in immune regulation.pptx
Cytokines and their role in immune regulation.pptxCytokines and their role in immune regulation.pptx
Cytokines and their role in immune regulation.pptx

Randomised Optimisation Algorithms in DAPHNE
Randomised Optimisation Algorithms in DAPHNERandomised Optimisation Algorithms in DAPHNE
Randomised Optimisation Algorithms in DAPHNE

Equivariant neural networks and representation theory
Equivariant neural networks and representation theoryEquivariant neural networks and representation theory
Equivariant neural networks and representation theory

Applied Science: Thermodynamics, Laws & Methodology.pdf
Applied Science: Thermodynamics, Laws & Methodology.pdfApplied Science: Thermodynamics, Laws & Methodology.pdf
Applied Science: Thermodynamics, Laws & Methodology.pdf

3D Hybrid PIC simulation of the plasma expansion (ISSS-14)
3D Hybrid PIC simulation of the plasma expansion (ISSS-14)3D Hybrid PIC simulation of the plasma expansion (ISSS-14)
3D Hybrid PIC simulation of the plasma expansion (ISSS-14)

The debris of the ‘last major merger’ is dynamically young
The debris of the ‘last major merger’ is dynamically youngThe debris of the ‘last major merger’ is dynamically young
The debris of the ‘last major merger’ is dynamically young

THEMATIC APPERCEPTION TEST(TAT) cognitive abilities, creativity, and critic...
THEMATIC  APPERCEPTION  TEST(TAT) cognitive abilities, creativity, and critic...THEMATIC  APPERCEPTION  TEST(TAT) cognitive abilities, creativity, and critic...
THEMATIC APPERCEPTION TEST(TAT) cognitive abilities, creativity, and critic...

aziz sancar nobel prize winner: from mardin to nobel
aziz sancar nobel prize winner: from mardin to nobelaziz sancar nobel prize winner: from mardin to nobel
aziz sancar nobel prize winner: from mardin to nobel

Unlocking the mysteries of reproduction: Exploring fecundity and gonadosomati...
Unlocking the mysteries of reproduction: Exploring fecundity and gonadosomati...Unlocking the mysteries of reproduction: Exploring fecundity and gonadosomati...
Unlocking the mysteries of reproduction: Exploring fecundity and gonadosomati...


Rule-based Design. Managing complexity!

  • 1. Rule-based Design Dia 1 Managing complexity! HU Summer School 2016 - Business Process Management & IT Rogier van de Wetering, PhD The Open University of the Netherlands August 8th 2016, Utrecht
  • 2. Dia 2 Short introduction Professional experience • 2015-now Assistant Professor, Management, Science & Technology, Open University • 2005-2015 Manager at Deloitte Consulting • 2010-2013 External lecturer, medical informatics, Utrecht University • 2007-2011 PhD research, Utrecht University Education • PhD research (‘11), Faculty Mathematics & Computer Sciences, Utrecht University (A Strategic PACS Maturity Approach) • Information Sciences (‘05), Utrecht University, Melbourne University
  • 3. Dia 3 1 Rule-based Design ‘An introduction’ 09.00-09.50 BREAK Formalizing ‘From natural language to relation algebra’ 10.00-10.50 BREAK Practice ‘Do it yourself’ 11.00-12.00 2 3 The path we will follow this morning….
  • 5. Dia 5 Organizations can in essence be viewed as complex, adaptive socio- technical systems
  • 6. Familiar Complex Adaptive System… Dia 6 Adls, (2013), Charting the Changes [ONLINE]. Available at: http://s3-ap-southeast-2.amazonaws.com/adls- media/8725730/financialmarkets.jpg [Accessed 7 July 2016].
  • 7. Dia 7 Familiar Complex Adaptive System… Shutterstock, (2013), Biomimicry [ONLINE]. Available at: https://s3-eu-west- 1.amazonaws.com/static.nextnature.net/app/uploads/2013/07/ant-bridge_2302146k-640x400.jpg [Accessed 29 June 2016].
  • 8. Technologies and practices that enable innovation and deal with environmental turbulence Dia 8 Business RulesRobotics Internet of Things Big data Cloud-computing Social networks Mobile / app Collaborative networking Cyber security ComplexAdaptiveSytems Digital strategy & innovation Data-driven business model Open data ecosystem IT-enabled Dynamic Capabilities Adaptive Enterprise Architectures Watson Business analytics
  • 9. What do you really need to know about Rule-based Design Dia 9 Design systems and processes Better communication Business/IT- alignment Rule-based Design Make IT manageable Flexible organization Reduce complexity
  • 10. Dia 10 Business Rules, some definitions: 1 2 3 Business rules represent the primary means by which an organization can direct its business, defining the operative way to reach its objectives and perform its actions (Wikipedia) Statement that defines or constrains some aspect of the business... [which is] intended to assert business structure, or to control or influence the behavior of the business. It cannot be broken down or decomposed further into more detailed business rules. (Business Rules Group) Business rules formalize mutual agreements between stakeholders, commitments of managers, rights and obligations of employees, etc. into ‘laws’, intended to serve the purpose(s) of an organization (Joosten)
  • 11. Dia 11 Business Rules: verifiable statements Business rule definition: “A business rule is a verifiable statement that some stakeholders intend to obey, within a certain context.” ………as intended by the Business Rules Manifesto
  • 12. Dia 12 Mantra of Business Rules Manifesto Mantra: “ Rules build on facts, and facts build on concepts as expressed by terms.”
  • 13. Dia 13 Mantra of Business Rules Manifesto Mantra: “ Rules build on facts, and facts build on concepts as expressed by terms.” Client, Bill, Supplier, etc. Bills are sent to customers. Every sent item (to a customer) must be billed.
  • 14. A. Our policies are transparent to the outside world B. Rogier goes to bed in the evening and gets up in the morning C. E = mc2 D. Johan Versendaal went to the club last night E. Pascal is an expert on BPM Dia 14 Question: Are these examples of ‘Rules’?
  • 15. Rule examples Dia 15 Banking and insurance Every application gets a decision IT service desk Every (customer/client) call involves at least one hardware- or software component Order management An order contains no other kinds of plant than the combined pick orders Consumer business Every sent item must be billed
  • 16. Dia 16 Business Rules Manifesto: Principles of Rule Independence Articles 1-5 1. Primary Requirements, Not Secondary 2. Separate From Processes, Not Contained In Them 3. Deliberate Knowledge, Not A By-Product 4. Declarative, Not Procedural 5. Well-Formed Expression, Not Ad Hoc Articles 6-10 6. Rule-Based Architecture, Not Indirect Implementation 7. Rule-Guided Processes, Not Exception-Based Programming 8. For the Sake of the Business, Not Technology 9. Of, By, and For Business People, Not IT People 10.Managing Business Logic, Not Hardware/Software Platforms
  • 17. • Business rules actually define the business process • Signal violations (in real time) and act to resolve them • Business rules are sufficient as an instrument to design compliant business processes and information systems • The role of information technology is to help maintain business rules • If any rule is violated (perhaps temporarily), a computer can signal that and prompt people to resolve the issue Dia 17 Business rules can be used to manage and control business processes
  • 18. Dia 18 There are several important categories of business rules: 1 2 43 5 Event-condition-action-rule Computation / Derivation rule Invariant rules Imperative rules Condition-action-rule
  • 19. Dia 19 Business Rule Management; dealing with various challenges Complete and consistent Getting stakeholders to commit Communicate with right stakeholders Balance between ‘Rules’ and ‘People’ Alignment with business goals Key challenges Some challenges
  • 20. Dia 20 Rule-based Design draws on research on business rules, software engineering, relation algebra, and design methodology • Puts functional requirements at the focal point of the design of business processes and information systems • Elicit requirements from various audiences, helping these audiences to make their wishes concrete • This requires communicative and advisory skills • Requirements engineer must interpret requirements to select or write business rules • This requires technical insight in information systems that support business processes • Requirements engineer must help stakeholders with solutions rather than endless questions • Rule-based Design helps requirements engineers with tools that automate large parts of the design process
  • 21. • Systems and people together form a system that lives by rules; this leads to compliance • Business process management (BPM) is in fact also included: BPM is all about handling cases • Cases are governed by a set of rules (e.g. the credit approval procedure) • When all rules are satisfied (no violations) the case is closed: rule based BPM! • There is a big difference: workflow based approaches derives actions from workflow and process models • We define business rules declarative; invariant rules Dia 21 Rule-based Design vs workflow based approaches
  • 22. Dia 22 Within Rule based BPM any violation of a business rule may be used to trigger actions • If rules are found to be violated, the detector signals a process engine • The process engine distributes work to people and computers, who take appropriate actions • Follows the Plan-Do-Check-Act cycle • Actions are not specified, but derived! • Use business rules to define business processes
  • 23. • You define the process • Common basis for data and process side of IS/IT • Requires formal method • System boundaries can be articulated • Functional behavior of the system is defined • Proof that the system meets specification Dia 23 The Rule-Based design approach has some important implications
  • 24. Designer’s perspective for rule based process management Dia 24 Design artifacts Rule base IS development environment
  • 25. Dia 25 Rule Maturity: Five Steps to an Agile Enterprise
  • 28. Dia 28 A brief recap: what have we learned Rule- based Design Business Rules are verifiable statements Rules build on facts, and facts build on concepts as expressed by terms There are various types of Rules Actions are not specified Systems and people together form a system that lives by rules; this leads to compliance Requires formal method
  • 29. Dia 29 Concepts and relations concept identifier verb concept identifier Employer Shell HU OU Microsoft Employee Joris Pascal Rogier Johan Mark Rutte works at works at works at works at works at Target Source
  • 30. Dia 30 Concepts and relations: a conceptual model Concept Relation NO RULES
  • 31. Dia 31 Concepts and relations: an instance diagram
  • 32. Dia 32 Concepts and relations: : instance diagram of a composition Actor possesses at least one of the Skills required for the Role
  • 33. Dia 33 A client name and call identifier is entered. Are there any violations? Rule 1: Every call must get an acceptable response. Rule 2: Every call is entered by exactly one client. Rule 3: Every call involves at least one hardware- or software component Rule 4: Every response describes at least one problem solution that applies to at least one component involved in the call. The engine will detect various violations
  • 34. Dia 34 Formalizing rules from Natural language to computer code From ‘Natural language’ To ‘Semi-formal language’ (e.g. RuleSpeak and other CNLs) To ‘Formal notation’ (using mathematical principles, e.g. relation algebra, predicate logic, Boolean algebra, etc.) To ‘Application’ (Script language) Normal sentence For...(concept)... Must (not) be...(...)...if IF..THEN..MUST Only plants in stock may be ordered if an Order is for a Species, then some Stock exists such that the Order affects that Stock and that Stock is of that Species is_for  affects ; is_of
  • 35. Dia 35 Founders of the calculus of relations; relation algebra Augustus De Morgan Charles Sanders Peirce Ernst Schröder Alfred Tarski
  • 36. Rules assertion within relation algebra Dia 36 Left-expression  Right-expression consequent ..implies.. consequent Set theoretic perspective
  • 37. Rules assertion within relation algebra Dia 37 R  S is_for  affects ; is_of • IF ..R.. THEN..S.. • R implies S • If something exist in R, then that also must exist in S General caseSpecific case if an Order is_for a Species, then some Stock exists such that the Order affects that Stock and that Stock is_of that Species
  • 38. Dia 38 RuleSpeak®: set of guidelines for expressing business rules in concise, business-friendly fashion
  • 39. • Omitting a Rule Keyword is not good Every Business Rule Statement should include “must” or “only”. (An order must indicate the customer who places it.) • “Can” is not good A customer may purchase a pesticide from a supplier only if the supplier sells that pesticide) • Extra words for emphasis are not good A shipment must have a status with no exceptions. • “To have” is often not good A team must have a manager. => A team must be managed by a manager. • Starting with ‘if’ is not good If an employee is retired, then he must not be assigned an employment counselor => A retired employee must not be assigned an employment counselor. • Plural subjects are not good Programmers must work on a system. • Actor subjects are frequently not good A customer may make a withdrawal only if their account is active => A withdrawal for an account may be made only if the account is active Dia 39 RuleSpeak®: some guidelines
  • 40. DEMO using Ampersand method RAP2 Dia 40 http://is.cs.ou.nl/rap2/index.php
  • 43. Dia 43 A brief recap: what have we learned Relations Relation algebra / script language Rules Business Rules are verifiable statements If something exist in R, then that also must exist in S Formalizing Left-expression  Right-expression ..implies.. consequent From ‘Natural language’ To ‘Semi-formal language’ To ‘Formal notation’ To ‘Application’
  • 44. Dia 44 Assignment introduction for teams 1. Select a case (see next sheet) 2. Select a typical (simple) process (or sub-process) 3. Identify a business ‘problem’ (be creative!) – related to this process, or as a result of executing this process 4. Define 3-4 concepts and their ‘atoms’ (Course: BPN, EA, RBD, IT- governance, etc.) 5. Draw a conceptual diagram 6. Define some relations 7. Formulate a couple of ‘Rules’ (e.g. in natural language, CNL, RuleSpeak, etc.) – Cycle chasing We will work on this in teams of 4. After 30 minutes, the teams shortly present their outcomes!
  • 45. Dia 45 Various cases, pick one! 1. Healthcare: patient registration 2. Education: course registration 3. FSI: loan / mortgage approval A) HR-process: Bonus payment B) Order management: sending bill IND: application decision making IndustryProcess/case
  • 47. • Van de Wetering, R., & Bos, R. (2016). A meta-framework for Efficacious Adaptive Enterprise Architectures, in Proceedings of the International Conference on Business Information Systems. 2016, Springer International Publishing: Leipzig, Germany. [download] [download] • Van de Wetering, R. (2016). Modeling Alignment as a Higher Order Nomological Framework, in Proceedings of the International Conference on Business Information Systems. 2016, Springer International Publishing: Leipzig, Germany. [download] [download] • Mikalef, P., Pateli, A., & Van de Wetering, R. (2016). IT flexibility and competitive performance: The mediating role of IT-enabled dynamic capabilities, in the Proceedings of the 24th European Conference on Information Systems (ECIS). [download] [download] • Van de Wetering, R., & Batenburg, R. (2014). Towards a Theory of PACS Deployment: An Integrative PACS Maturity Framework. Journal of Digital Imaging, 27(3), 337-350. [download] [download] Dia 47 Further reading on adaptive principles, alignment and dynamic capabilities
  • 48. Contact Dia 48 dr. R. (Rogier) van de Wetering Assistant Professor Faculty Management, Science & Technology nl.linkedin.com/in/rvandewetering twitter.com/drvandewetering researchgate.net/profile/Rogier_Van_de_Wetering2 openuniversiteit.academia.edu/RVanDeWetering
