The RTP nutrunner from Atlas Copco for the bolting and assembly markets offers excellent speed, power, size, and durability.

1. RTP
From Atlas Copco

2. Accessories
Air line
Pumps
Sockets
Aftermarket
Service
Calibration
Rental
FABRICATION & MAINTENANCE
Bolting
Hydraulic
tensioners
Bolting
Hydraulic
torque
wrenches
Assembly
Nuntrunners
Impact
wrenches
Material removal
Chipping
Scaling
Beveling
Material removal
Grinders
Cut off’s
Sanders
Bolting
Nutrunners
Offering a complete solution
2

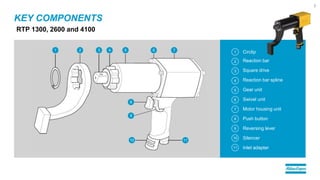

3. KEY COMPONENTS
RTP 1300, 2600 and 4100
1
2
3
4
5
6
7
8
9
10
11
Circlip
Reaction bar
Square drive
Reaction bar spline
Gear unit
Swivel unit
Motor housing unit
Push button
Reversing lever
Silencer
Inlet adapter
1 2 3 4 5 6 7
8
9
10 11
3

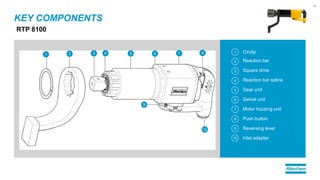

4. KEY COMPONENTS
RTP 8100
1
2
3
4
5
6
7
8
9
10
Circlip
Reaction bar
Square drive
Reaction bar spline
Gear unit
Swivel unit
Motor housing unit
Push button
Reversing lever
Inlet adapter
1 2 3 4 5 6 7 8
9
10
4

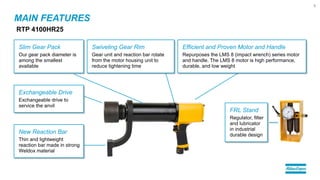

5. MAIN FEATURES
RTP 4100HR25
Slim Gear Pack
Our gear pack diameter is
among the smallest
available
Exchangeable Drive
Exchangeable drive to
service the anvil
New Reaction Bar
Thin and lightweight
reaction bar made in strong
Weldox material
Efficient and Proven Motor and Handle
Repurposes the LMS 8 (impact wrench) series motor
and handle. The LMS 8 motor is high performance,
durable, and low weight
FRL Stand
Regulator, filter
and lubricator
in industrial
durable design
Swiveling Gear Rim
Gear unit and reaction bar rotate
from the motor housing unit to
reduce tightening time
5

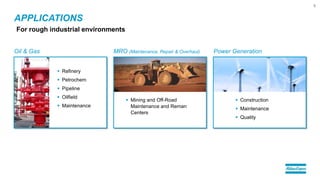

6. Oil & Gas MRO (Maintenance, Repair & Overhaul) Power Generation
APPLICATIONS
6
For rough industrial environments
 Refinery
 Petrochem
 Pipeline
 Oilfield
 Maintenance
 Mining and Off-Road
Maintenance and Reman
Centers
 Construction
 Maintenance
 Quality

7. WHEN ORDERING A KIT
7
What Is Included?
Standard FRL Standard S-bar Nipple
RTP 1300 – 1,000 ft-lbs
RTP 2600 – 2,000 ft-lbs
RTP 4100 – 3,000 ft-lbs
RTP 8100 – 6,000 ft-lbs
Tool

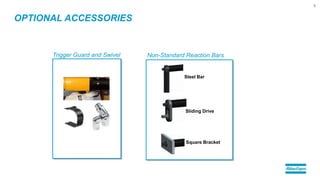

8. OPTIONAL ACCESSORIES
8
Trigger Guard and Swivel Non-Standard Reaction Bars
Steel Bar
Sliding Drive
Square Bracket

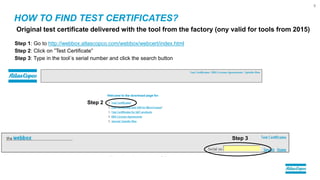

9. HOW TO FIND TEST CERTIFICATES?
9
Original test certificate delivered with the tool from the factory (ony valid for tools from 2015)
Step 1: Go to http://webbox.atlascopco.com/webbox/webcert/index.html
Step 2: Click on ”Test Certificate”
Step 3: Type in the tool´s serial number and click the search button
Step 2
Step 3

10. COMMITTED TO
SUSTAINABLE PRODUCTIVITY.
