The document discusses the rise of network virtualization and software-defined networking (SDN). It describes early research projects on campus networks like Ethane in 2007 that led to the OpenFlow specification in 2008. This allowed experiments with new network protocols. The document outlines the founding of Nicira in 2007 and the company's product launch of the Network Virtualization Platform in 2012, which used SDN to virtualize networks.

1. EEDC
34330
Execution
The Rise of Network
Environments for
Virtualization
Distributed
Computing
Master in Computer Architecture,
Networks and Systems - CANS
EEDC Project
Arinto Murdopo
arinto@otnira.com

2. Virtualization

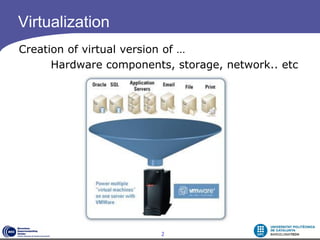

Creation of virtual version of …
Hardware components, storage, network.. etc
2

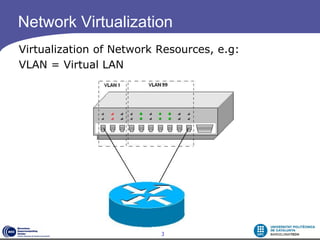

3. Network Virtualization
Virtualization of Network Resources, e.g:
VLAN = Virtual LAN
3

4. Network Virtualization

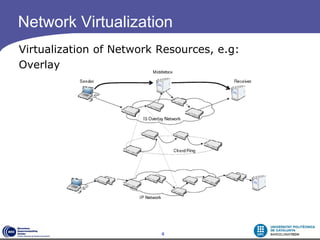

Virtualization of Network Resources, e.g:
Overlay
4

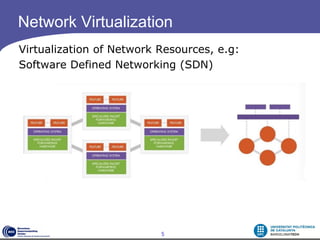

5. Network Virtualization
Virtualization of Network Resources, e.g:
Software Defined Networking (SDN)
5

6. SDN

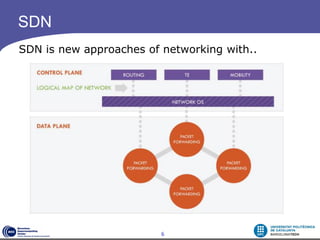

SDN is new approaches of networking with..
6

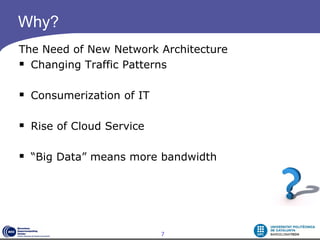

7. Why?
The Need of New Network Architecture
 Changing Traffic Patterns
 Consumerization of IT
 Rise of Cloud Service
 “Big Data” means more bandwidth
7

8. Why?
Limitations of Current Networking Technologies
 Complexity leads to inactivity
 Inconsistent policies
 Inability to scale
 Vendor dependence
8

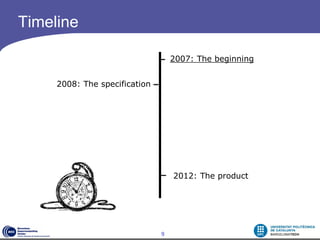

9. Timeline
2007: The beginning
2008: The specification
2012: The product
9

10. The Beginning (2007)
Faster networks but not better networks
Innovation in other areas
 OS: file systems, schedulers, virtualization
 DS: DHTs, CDNs, MapReduce
Networks are largely the same
as years ago
 Ethernet, IP, WiFi
10

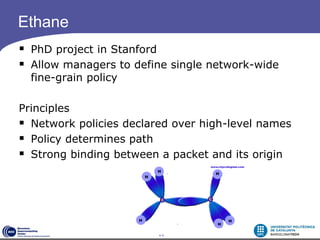

11. Ethane
 PhD project in Stanford
 Allow managers to define single network-wide
fine-grain policy
Principles
 Network policies declared over high-level names
 Policy determines path
 Strong binding between a packet and its origin
11

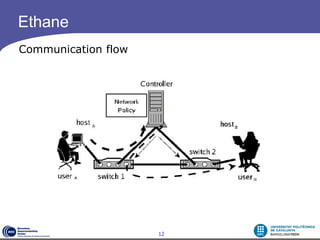

12. Ethane
Communication flow
12

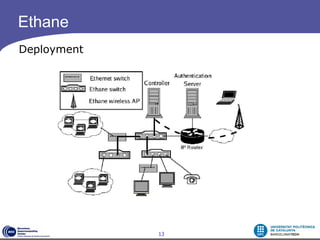

13. Ethane
Deployment
13

14. Ethane

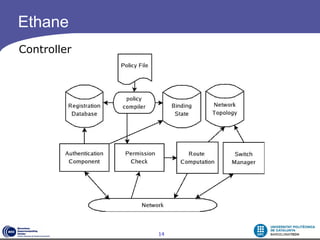

Controller
14

15. Ethane

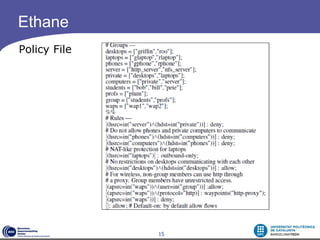

Policy File
15

16. Ethane
Performance and Scalability
Execute Ethane in campus network
Extrapolate result for bigger network
Controller able to handle up to 20k hosts
Latencies ≈ RTT between hosts
in diff. subnets in campus network
16

17. Timeline
2007: Ethane
2008: The specification
2012: The product
17

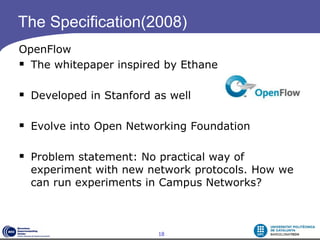

18. The Specification(2008)
OpenFlow
 The whitepaper inspired by Ethane
 Developed in Stanford as well
 Evolve into Open Networking Foundation
 Problem statement: No practical way of
experiment with new network protocols. How we
can run experiments in Campus Networks?
18

19. OpenFlow
Switch feature that can help extend
programmability into wiring closet of college
campuses
19

20. Open Flow
Network of OpenFlow switches
20

21. Open Flow
Open Networking Foundation
 Standardize OpenFlow
 Current Members include
21

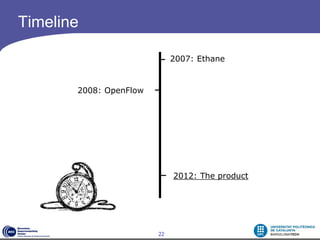

22. Timeline
2007: Ethane
2008: OpenFlow
2012: The product
22

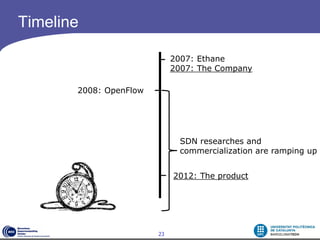

23. Timeline
2007: Ethane
2007: The Company
2008: OpenFlow
SDN researches and
commercialization are ramping up
2012: The product
23

24. The Company
Nicira

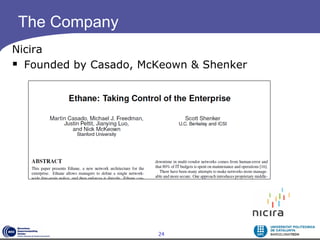

 Founded by Casado, McKeown & Shenker
24

25. Nicira
Establishing itself more quickly than other
25

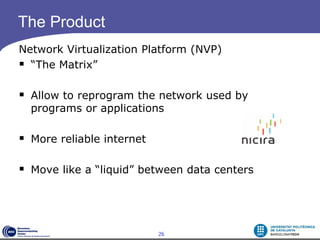

26. The Product
Network Virtualization Platform (NVP)
 “The Matrix”
 Allow to reprogram the network used by
programs or applications
 More reliable internet
 Move like a “liquid” between data centers
26

27. Nicira - NVP

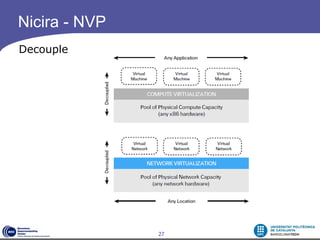

Decouple
27

28. Nicira - NVP

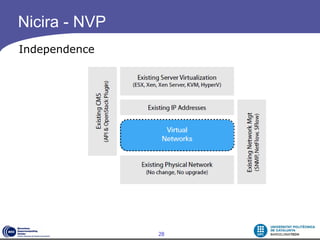

Independence
28

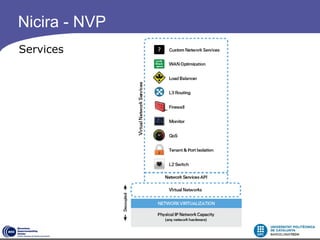

29. Nicira - NVP
Services
29

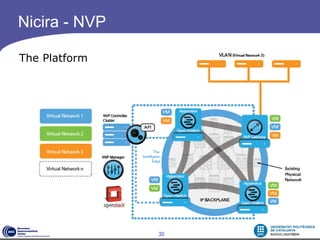

30. Nicira - NVP
The Platform
30

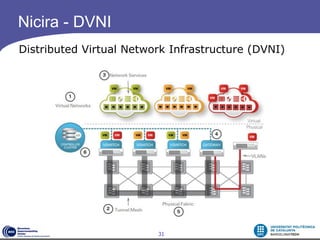

31. Nicira - DVNI
Distributed Virtual Network Infrastructure (DVNI)
31

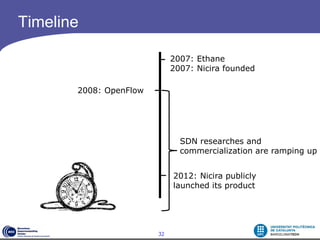

32. Timeline
2007: Ethane
2007: Nicira founded
2008: OpenFlow
SDN researches and
commercialization are ramping up
2012: Nicira publicly
launched its product
32

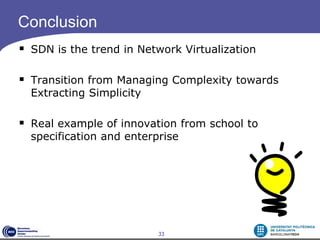

33. Conclusion
 SDN is the trend in Network Virtualization
 Transition from Managing Complexity towards
Extracting Simplicity
 Real example of innovation from school to
specification and enterprise
33

34. Q&A
Question ?
34

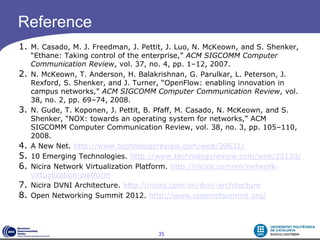

35. Reference
