1. RING MAIN UNIT
BY
MS. SNEHALI SABLE-SHITRE

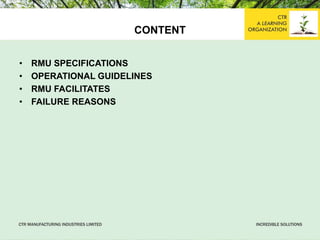

2. CONTENT
• RMU SPECIFICATIONS
• OPERATIONAL GUIDELINES
• RMU FACILITATES
• FAILURE REASONS

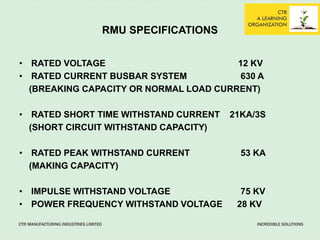

3. RMU SPECIFICATIONS
• RATED VOLTAGE 12 KV
• RATED CURRENT BUSBAR SYSTEM 630 A
(BREAKING CAPACITY OR NORMAL LOAD CURRENT)
• RATED SHORT TIME WITHSTAND CURRENT 21KA/3S
(SHORT CIRCUIT WITHSTAND CAPACITY)
• RATED PEAK WITHSTAND CURRENT 53 KA
(MAKING CAPACITY)
• IMPULSE WITHSTAND VOLTAGE 75 KV
• POWER FREQUENCY WITHSTAND VOLTAGE 28 KV

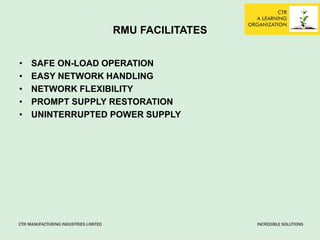

4. RMU FACILITATES
• SAFE ON-LOAD OPERATION
• EASY NETWORK HANDLING
• NETWORK FLEXIBILITY
• PROMPT SUPPLY RESTORATION
• UNINTERRUPTED POWER SUPPLY

5. RMU FACILITATES
• PROVIDES CABLE STATUS INDICATION THROUGH VPIS
• INDICATES FAULTY SECTION THROUGH FPI
• REDUCES FIRE HAZARDS
• MAINTENANCE FREE
• REMOTE OPERATIONS AND STATUS MONITORING

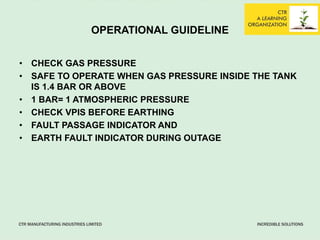

6. OPERATIONAL GUIDELINE
• CHECK GAS PRESSURE
• SAFE TO OPERATE WHEN GAS PRESSURE INSIDE THE TANK
IS 1.4 BAR OR ABOVE
• 1 BAR= 1 ATMOSPHERIC PRESSURE
• CHECK VPIS BEFORE EARTHING
• FAULT PASSAGE INDICATOR AND
• EARTH FAULT INDICATOR DURING OUTAGE

7. FAILURE REASONS
• SF6 GAS LEAKAGE
• CORBONIZATION AT THE CABLE AND TERMINALS
• MOISTURE INGRESS
• SHORT CIRCUIT
