RGS Rebar is a 2D detailing software for rebar that supports multiple country-specific detailing codes and allows users to choose between AutoCAD and ZWCAD. It offers features such as automated intelligent bar markings, easy detailing of spirals, and a library for rebar details. RGS Construction Technologies, established in 1998, has extensive international experience and has handled projects like the Hyderabad Metro Rail and various notable structures in the USA and the UK.

1. THE NEXT GENERATION
2D REBAR DETAILING SOFTWARE
www.rgsrebar.com
A L L R E S P E C T I V E T R A D E M A R K S A C K N O W L E D G E D
S U P P O R T S M U L T I P L E C O U N T R Y D E T A I L I N G C O D E S
RGS Construction Technologies Pvt. Ltd.
Old no 182, New no: 271,
Ankur Manor, P.H Road, Kilpauk,
Chennai - 600010, Tamilnadu , India.

2. Licenses can be subscribed based on a named licensing model
Every user in your company needs an individual license linked to their email id
License fee is paid every year
Established product owned by Autodesk
A stable, functional CAD platform
Sold across the world through its reseller network
Supports dwg formats
Interface looks and feels similar to the market leading CAD software
An experienced CAD user needs a day to migrate to ZWCAD
Low cost one time perpetual licensing
No need for year-on-year subscription
S P
S P
0 4

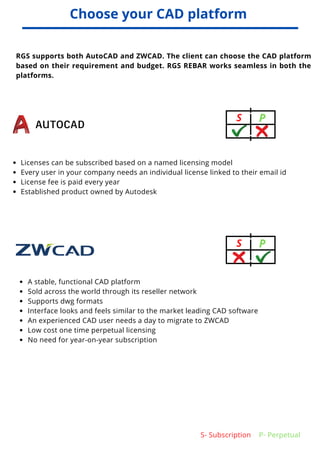

Choose your CAD platform
RGS supports both AutoCAD and ZWCAD. The client can choose the CAD platform
based on their requirement and budget. RGS REBAR works seamless in both the
platforms.
S- Subscription P- Perpetual

3. India

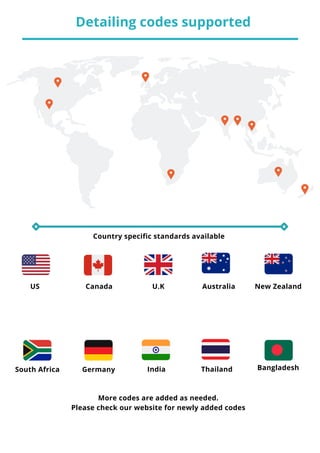

Detailing codes supported
U.K New Zealand
South Africa
Australia
Thailand
US Canada
Germany Bangladesh
More codes are added as needed.
Please check our website for newly added codes
Country specific standards available

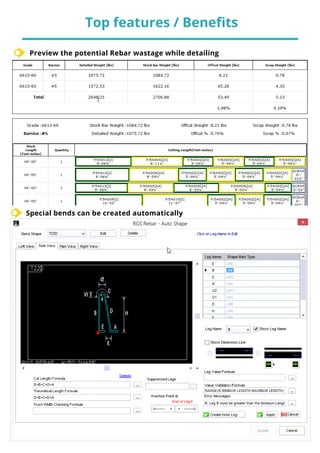

4. Top features / Benefits
Preview the potential Rebar wastage while detailing
Special bends can be created automatically

5. Top features / Benefits
Intelligent bar marks (IBM) are automated
Draw the bend and the shape code can be detected automatically

6. Top features / Benefits

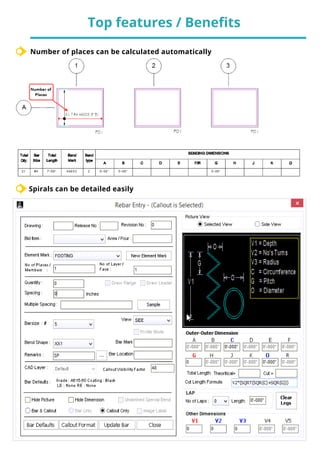

Spirals can be detailed easily
Number of places can be calculated automatically

7. Top features / Benefits
Standee can be detailed easily
Audit drawing

8. Top features / Benefits
0 4
Rebar spread - An advanced area detailer
P-lines can be converted to Rebar

9. 0 4
Top features / Benefits
Create and reuse Rebar details - Details library

10. Top features / Benefits
0 4

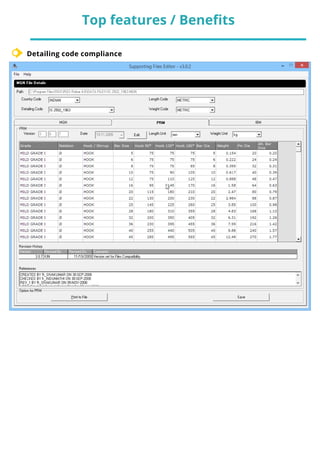

Detailing code compliance

11. 0 4
Top features / Benefits

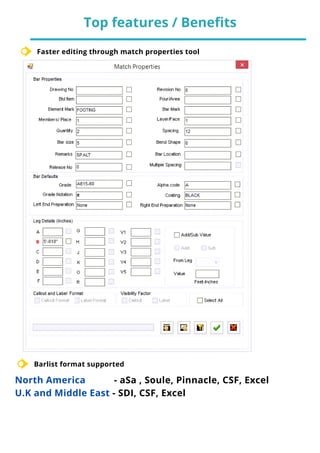

Faster editing through match properties tool
North America - aSa , Soule, Pinnacle, CSF, Excel
U.K and Middle East - SDI, CSF, Excel
Barlist format supported

12. 0 4
RGS Construction Technologies
Established in 1998 as RGS-CAD, we have abundant international experience in
Rebar detailing of infrastructure and commercial projects. The following projects
are detailed in RGS REBAR. These are few random projects from thousands of
projects done Internationally.
HYDERABAD METRO RAIL , INDIA - 26,000 TONS
INTERNATIONAL CONVENTION CENTER,
EDINBURGH,U.K
POTOMAC NORTH & SOUTH ,
WASHINGTON D.C, USA
TUSCON AIRPORT, ARIZONA, USA
AUTOMALL TOWERS, DUBAI KAKRAPAR NUCLEAR POWER
PLANT, INDIA

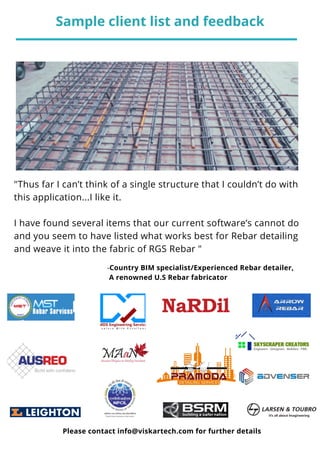

13. "Thus far I can’t think of a single structure that I couldn’t do with
this application...I like it.
I have found several items that our current software’s cannot do
and you seem to have listed what works best for Rebar detailing
and weave it into the fabric of RGS Rebar "
0 4
-Country BIM specialist/Experienced Rebar detailer,
A renowned U.S Rebar fabricator
Sample client list and feedback
Please contact info@viskartech.com for further details
