We can secure REST web services in Mule using OAuth 2.0 authentication. This involves 3 steps: 1) Obtaining a secret code by authorizing with a client ID and credentials, 2) Exchanging the secret code for an access token, and 3) Passing the access token in the header to access the secured web service. The OAuth 2.0 component validates the access token between the HTTP and CXF components in Mule.

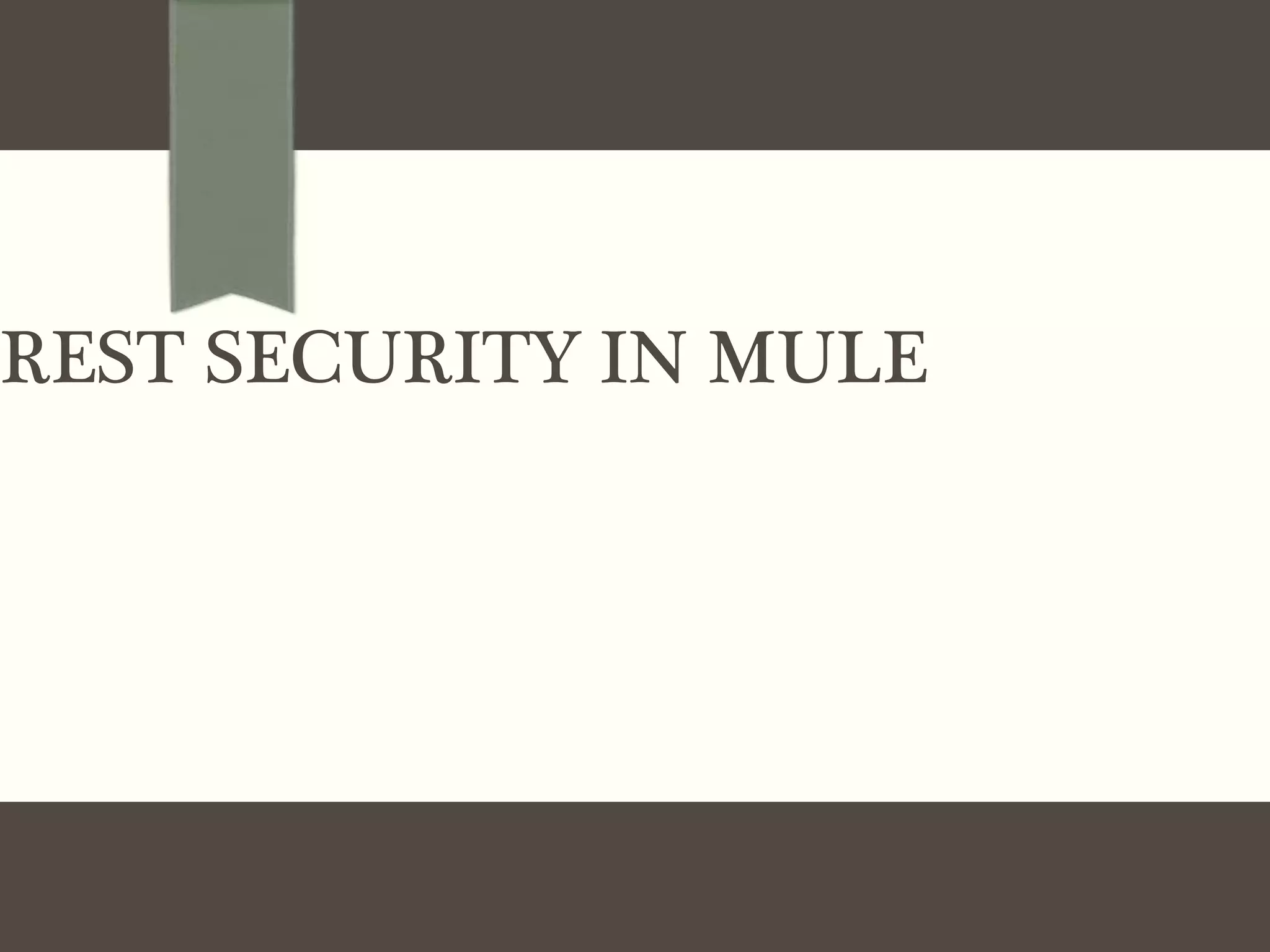

1. REST SECURITY IN MULE

2. We often required to secure our web services specially those are accessed by the
external world.
What about securing a RESTful web services ???

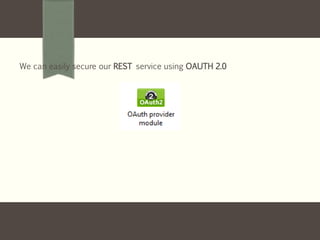

3. We can easily secure our REST service using OAUTH 2.0

4. For implementing OAUTH 2.0 in our REST web service we require 3 steps
:-
• Authorisation to obtain a secret code
• Use that secret code to obtain an access_token
• Use the access_token to validate and access the web service

5. Let us we have following Mule flow:-
Here is our web service which will be secured by using OAUTH 2.0 security. You can see the
OAUTH 2.0 component is placed between HTTP and CXF component which will validate the
access_token and will permit to accesses the web service

6. The corresponding Mule flow will be as follows:-
Here is you can see OAUTH 2.0 is validating the access_token coming from HTTP

7. Here you can see we have configured the Spring security with username and password
to obtain a secret code. Also in oauth2 provider config we configured client id and
client secret

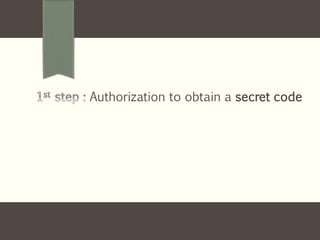

8. Authorization to obtain a secret code

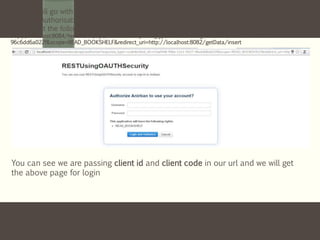

9. Now we will go with first step :
Step 1 :- Authorisation to obtain a secret code
We will put the following url in browser :-
http://localhost:8084/tweetbook/api/authorize?response_type=code&client_id=e7aaf348-f08a-11e1-9237-
96c6dd6a022f&scope=READ_BOOKSHELF&redirect_uri=http://localhost:8082/getData/insert
You can see we are passing client id and client code in our url and we will get
the above page for login

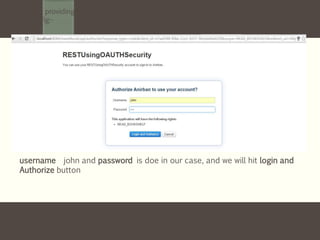

10. We will be providing the username and password configure in our Spring security in
Mule Config:-
username john and password is doe in our case, and we will hit login and
Authorize button

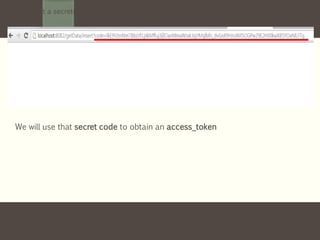

11. We will get a secrete code in browser url as following :-
We will use that secret code to obtain an access_token

12. Use that secret code to obtain an access_token

13. Now we will go with second step :
Step 2 :- Use that secret code to obtain an access_token
We need to include the secret code in our url as follows :-
http://localhost:8084/tweetbook/api/token?grant_type=AUTHORIZATION_CODE&client_id=e7aaf348-f08a-11e1-9237-
96c6dd6a022f&client_secret=ee9acaa2-f08a-11e1-bc20-
96c6dd6a022f&code=lkE9VJmNmTBbzVl1plkMffuj3jlIOavtWeaWsxk3gVMglbfo_dvGnX9HJoXMSOGPw29E2H00kwX85YOxNl
LFTg&redirect_uri=http://localhost:8082/getData/insert
We will use that secret code to obtain an access_token.
And now you can see we got the access_token in the browser.
And this access_token will be using to access our web service

14. Use the access_token to validate and access the web service

15. Now we will go with third step :
Step 3 :- Use the access_token to validate and access the web service
We need the access_token to be pass as a header when accessing web service as follows
You can see we are using REST Client for testing our web service and
passing the access_token in the header

16. Now, you can see that if we hit the web service in the REST Client with the an access_token
in the header, the secured service is providing the response

17. In my next slide I will bring some other techniques in Mule implementation .
Hope you have enjoyed this simpler version.
Keep sharing your knowledge and let our Mule community grow 
