The document summarizes research on thermal comfort conducted in Mayestik Market in Jakarta, Indonesia. It describes the market's renovation in 2012, existing conditions, data collection methods, and results of thermal votes and preferences. Fifty respondents provided data on gender, weight, age, height, air temperature, relative humidity, and air velocity. Thermal comfort models from ASHRAE and Bedford were applied, with comfort temperatures of 31°C and 29°C respectively. While air temperatures reached 30.5-35°C, most respondents felt neutral or comfortable, though 25 preferred cooler conditions and 24 saw no need for temperature change.

1. RESEARCH METHODOLOGY
THERMAL COMFORT IN MAYESTIK MARKET AREA
ELINDA FARIZ
13.053

2. INTRODUCTION
Comfort temperature is defined as the condition of mind of the which expresses satisfaction
with the thermal environment (ISO, 1995) , which is a state of mind which expresses satisfaction with
the thermal environment conditions.
International standard, ISO states that there are six combination variables which are believed to
establish the human comfort condition, i.e. Air temperature, mean radiant temperature, relative
humidity, air velocity, man activity level, and clothing type, and the six factors affecting thermal
comfort are both environmental and personal.

3. INTRODUCTION
Mayestik market is one of the trade center in southern Jakarta, located in in Tebah Street
and connect with Kyai Maja street, Kebayoran Baru, close to the Pertamina Hospital and Taman
Puring . This market provides a variety of needs like groceries, clothing, crafts, glassware, cosmetics,
medicines, shoes and sandals, sunglasses, watches, and others.
In 2010 the Government of Jakarta do cooperation with PT. Metroland Permai to develop
and renovate Mayestik Market, and On June 16th 2012, Mayestik Market inaugurated by the
Governor of Jakarta at the time, Dr.Ing.H.Fauzi Bowo.
Construction / renovation market with an area of 6,905 m2, consists of 7 floors equipped
with 2 basement floors that can accommodate 2,279 places of business which consists of 1,618 stalls,
and has been equipped with an airconditioner (AC), protective equipment and fire safety standards,
escalators, elevators, sound system, CCTV security, alarm system, parking facilities, toilets and places
of worship. Built by PT. Metroland Permai with the cost Rp. 357.7 Billion.

4. LOCATION

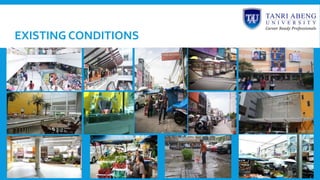

5. EXISTING CONDITIONS

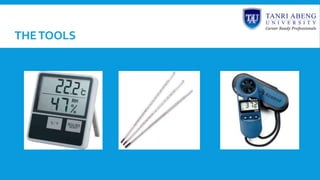

6. THETOOLS

7. COLLECTION OF DATA
Gender
• M = 40
• F = 10
• Total = 50
respondents
Weight (kg)
• Min =40
• Max = 80
• Average =58.3
Age
• Min = 16
• Max =72
• Average=39.3
Height (cm)
• Min =150
• Max =186
• Average =
163.9
Ta ( °c )
• Min = 30.5
• Max =35
• Average =32.2
Rh (%)
• Min =57
• Max =82
• Average =68.2
Va (m/s)
• Min =0.3
• Max =2
• Average = 0.4
Respondents
Area

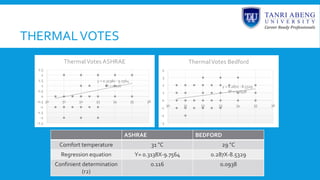

8. THERMALVOTES
y = 0.3138x - 9.7564
R² = 0.116
-2.5
-2
-1.5
-1
-0.5
0
0.5
1
1.5
2
2.5
30 31 32 33 34 35 36
ThermalVotes ASHRAE
y = 0.287x - 8.5329
R² = 0.0938
-3
-2
-1
0
1
2
3
4
30 31 32 33 34 35 36
ThermalVotes Bedford
ASHRAE BEDFORD
Comfort temperature 31 °C 29 °C
Regression equation Y= 0.3138X-9.7564 0.287X-8.5329
Confinient determination
(r2)
0.116 0.0938

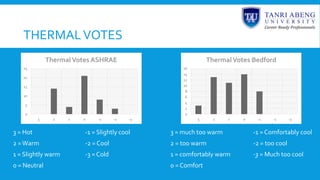

9. THERMALVOTES
3 = Hot -1 = Slightly cool 3 = much to0 warm -1 = Comfortably cool
2 =Warm -2 = Cool 2 = too warm -2 = too cool
1 = Slightly warm -3 = Cold 1 = comfortably warm -3 = Much too cool
0 = Neutral 0 = Comfort
0
5
10
15
20
25
3 2 1 0 -1 -2 -3
ThermalVotes ASHRAE
0
2
4
6
8
10
12
14
16
3 2 1 0 -1 -2 -3
ThermalVotes Bedford

10. THERMAL PREFERENCES
1 = Hotter
0 = No change
-1 = Cooler
0
5
10
15
20
25
30
1 0 -1
Thermal Preferences

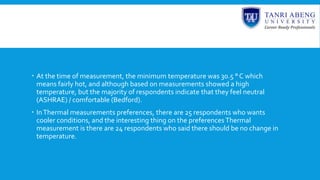

11.  At the time of measurement, the minimum temperature was 30.5 ° C which
means fairly hot, and although based on measurements showed a high
temperature, but the majority of respondents indicate that they feel neutral
(ASHRAE) / comfortable (Bedford).
 InThermal measurements preferences, there are 25 respondents who wants
cooler conditions, and the interesting thing on the preferences Thermal
measurement is there are 24 respondents who said there should be no change in
temperature.

12. THANKYOU
