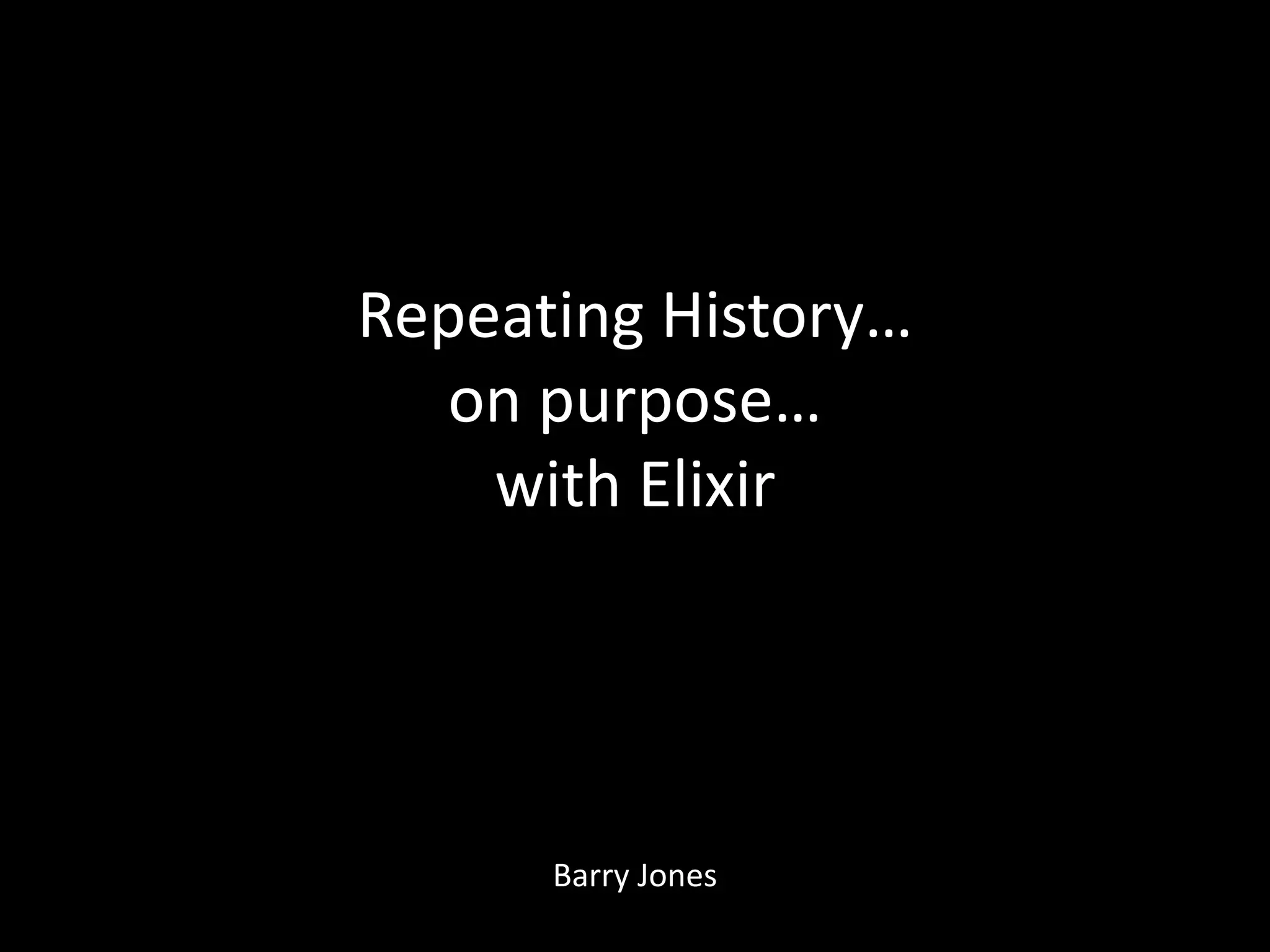

1. Repeating History…
on purpose…
with Elixir
Barry Jones

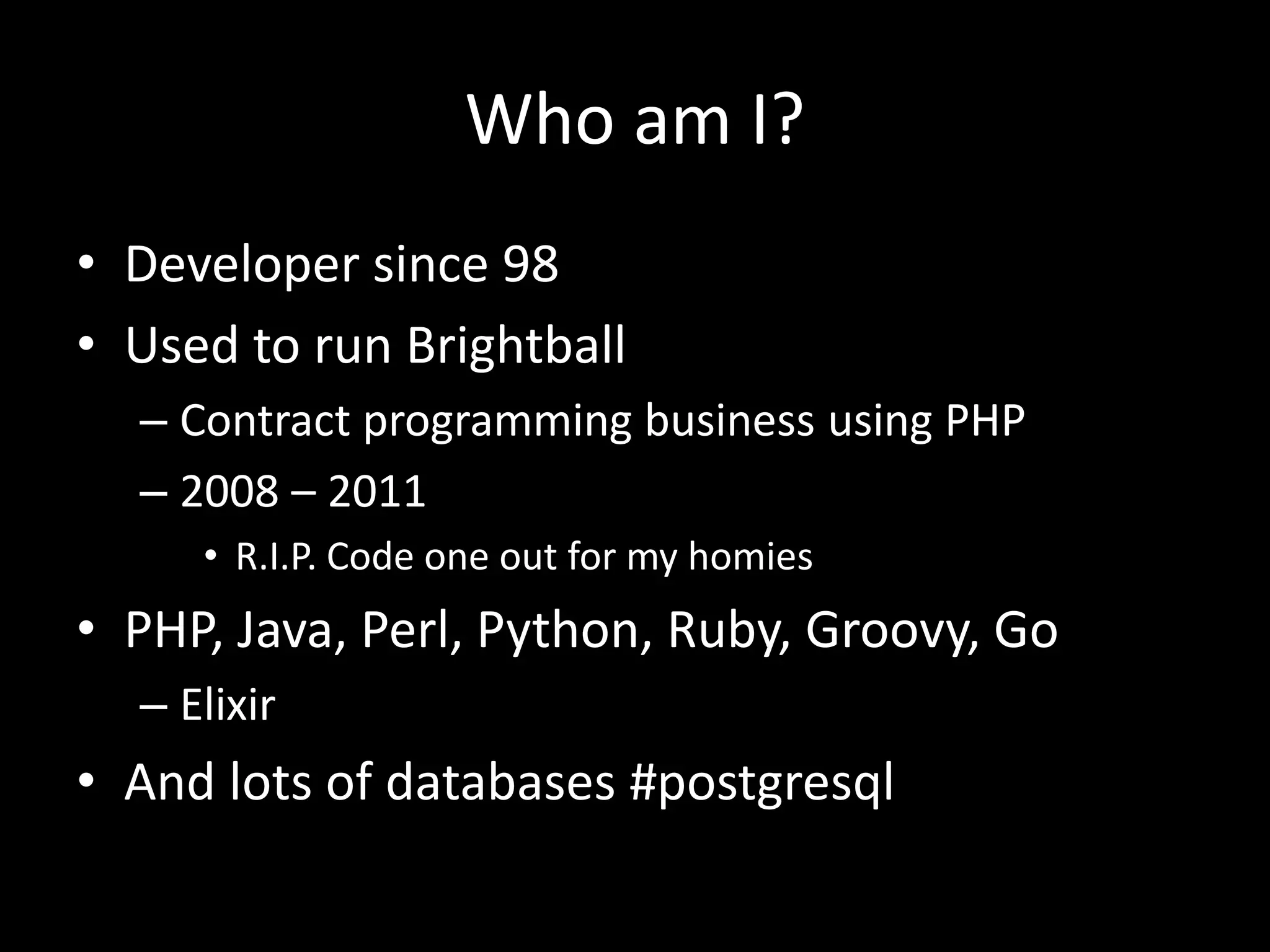

2. Who am I?
• Developer since 98
• Used to run Brightball
– Contract programming business using PHP
– 2008 – 2011
• R.I.P. Code one out for my homies
• PHP, Java, Perl, Python, Ruby, Groovy, Go
– Elixir
• And lots of databases #postgresql

3. So…another language…?
Rules for learning a language
– Must solve a problem
– Problem not addressed by
current stack
– “Fast” is not a purpose
• Lots of things are fast
– Should be the best solution
• If it’s not, I’d rather learn the
one that is…
I hate new languages
Yeah. Surprise. 

4. So why the other languages?
• PHP
– Needed to build a site
– Clemson’s options were PHP / Perl
– Perl was badly supported
• Java
– Clemson CPSC
– Also…jobs are good
• Groovy
– Java environment
– Wanted to be productive
• Go
– Great concurrency
– Relatively simple
– Fast compilation
– Portability
– Solves some bloat problems
• Perl
– Sysadmin work
– Installed on all *nix derivatives
• including very old
– Best at text parsing
• Python
– Employer required it
• Ruby
– Incredible productivity
– Library ecosystem
– Monkey patching
– Rails
– Focus on dev efficiency

5. SO WHY ELIXIR?
I wondered the same thing

6. "Those who cannot remember the past are
condemned to repeat it."
- George Santayana
"What has been is what will be, and what has
been done is what will be done, and there is
nothing new under the sun."
- Solomon

7. Elixir isn’t new
• It’s more productive Erlang
• Compiles down to the BEAM (Erlang VM)
• Erlang was born in 1986 (Linux was 1991)
• Erlang/OTP is on version 19
• Erlang libraries work directly in Elixir
– And vice versa

8. Processor POWER!!!
• Industry focus used to be on Mhz/Ghz
• Growth was steady…but then stalled
• Industry shifted to multicore / concurrency
and trying to put it in their languages
• Lookup “Beowulf Cluster” to see how foreign
“parallel” was at the time

9. Funny thing…
“Any sufficiently complicated concurrent
program in another language contains an ad hoc
informally-specified bug-ridden slow
implementation of half of Erlang.”
- Robert Virding

10. Erlang view of the World
• Everything is a process.
• Processes are strongly isolated.
• Process creation and destruction is a lightweight operation.
• Message passing is the only way for processes to interact.
• Processes have unique names.
• If you know the name of a process you can send it a
message.
• Processes share no resources.
• Error handling is non-local.
• Processes do what they are supposed to do or fail.

11. Message Passing
• Process isolation and message passing
• Passing between threads, cores or machines is
transparent
• Microservice concept…but everywhere and
not terrible

12. “If Java is the right one to run anywhere, then
Erlang is the right one to run forever.”
– Joe Armstrong

13. What’s the big deal with Elixir?
• Ruby-like focus on developer productivity
• Functional programming made simple
• Embedded database
• Compiles down to code to run on the BEAM Virtual Machine
• BEAM/OTP is what Erlang runs on
• Erlang/BEAM is the best existing language for concurrency, consistency
and fault tolerance, hot code swapping
– Single Processor
– Multi Processor
– Distributed Multi Machine Cluster
• Erlang does not focus on developer productivity
– Writing Erlang kinda sucks... 
• #1 Problem in Ruby is concurrency model
– Cannot be fixed. It’s the way the language works.
– Enables great things but also causes limitations

14. So what does that mean?
Standard Web App OTP

15. What’s the big deal?
• Facebook paid $22 billion for WhatsApp
• WhatsApp had $10 million in revenue
• What was the big deal?
– Erlang/OTP
– 2 million users / server
– No central relay point
– Scales horizontally
– Deploys w/o disconnect

16. AND HOW DOES ALL THIS WORK?
Why should you care?

17. Other languages
• Boot up
• Memory is shared
– Where leaks come from
– Changing shared memory requires a mutex lock
• Garbage collector periodically runs
– Pause entire stack
• Requests run in threads in the same process
– Threads are cooperatively scheduled
• Deployment means shutting down current code,
starting new code

18. Erlang/Elixir/OTP
• No memory is shared
• Data structures are immutable
• Each Erlang process (basically a light thread)
has its own HEAP
– Reclaimed on completion
• Code can be hot deployed
– New code runs next time it’s accessed (existing
code keeps running)
• Processes are prescheduled

19. Sound familiar?
• Difference is size of the allocations
– An Erlang process is 0.5 kb
– A Go goroutine is 2 kb (version 1.4)
– A Java thread is 1024 kb on 64 bit VM
– PHP request varies by how much is loaded
• Laravel averages 7-12mb / request

20. Programming Elixir, Chapter 15
Laptop w/ 4 cores and 4gb of RAM counting concurrently
1,000,000 processes =
• 0.48 gb in Elixir
• 1.91 gb in Golang (go routines)
• 977 gb in Java (threads)
• 6,836 gb in PHP (Laravel requests)

21. LET’S GET STARTED
wait.…we haven’t started yet?

22. Quick History
• Linux was created in 1991
• Erlang was created in 1987 by Ericson
– Powers about half of global telecom
– Needed distributed, fault tolerant system
– Deploy updates without interrupting existing calls
– OTP = Open Telecom Protocol
– Erlang/OTP 19.0 release in June 2016
• Elixir was created in 2012 by Jose Valim
– Former Rails Core team member
– Elixir 1.3 released in June 2016

23. The Highlights
It’s huge…we don’t have all night

24. Immutable Data
• There’s no passing pointers
• Add something to a list, get a new list
• Everything is “message passing”
– Avoids mutex locks
– Enables per-process garbage collection
– Makes calling a function locally, in another process
or on another machine transparent

25. 3 Databases Built In
• ETS – Erlang Term Storage
– In memory table storage for a node
• DETS – Disk-based Erlang Term Storage
– Disk table storage for a node
• Mnesia - #awesome
– A relational/object hybrid data model that is suitable for telecommunications applications.
– A DBMS query language, Query List Comprehension (QLC) as an add-on library.
– Persistence. Tables can be coherently kept on disc and in the main memory.
– Replication. Tables can be replicated at several nodes.
– Atomic transactions. A series of table manipulation operations can be grouped into a single
atomic transaction.
– Location transparency. Programs can be written without knowledge of the actual data
location.
– Extremely fast real-time data searches.
– Schema manipulation routines. The DBMS can be reconfigured at runtime without stopping
the system.
https://blog.codeship.com/elixir-ets-vs-redis/

26. Preemptive Scheduling
• Context switching among running tasks and
has the power to preempt (interrupt) tasks
and resume them at a later time without the
cooperation of the preempted tasks.
• Cooperative: Running tasks voluntarily release
control

27. What does that mean?
• Response time consistency
• A tight loop or resource heavy process can’t
cannibalize resources
• Critical for real time systems
• Running a database inside your code would be
unreliable otherwise

28. Pattern Matching
=
iex> list = [1, 2, [ 3, 4, 5 ] ]
[1, 2, [3, 4, 5]]
iex> [a, b, c ] = list
[1, 2, [3, 4, 5]]
iex> a
1
iex> b
2
iex> c
[3, 4, 5]
Examples from
Programming Elixir 1.3
Works if left can be matched to right
iex> list = [1, 2, 3]
[1, 2, 3]
iex> [a, 1, b ] = list
** (MatchError) no match of right hand side
value: [1, 2, 3]

29. Pattern Matching Functions
defmodule Factorial do
def of(0), do: 1
def of(n), do: n * of(n-1)
end
defmodule PrintStuff do
def print({:error, stuff}) do
IO.puts “ERROR! #{stuff}”
end
def print({:ok, stuff}), do: IO.puts stuff
end
PrintStuff.print({:ok, stuff})

30. Loops?
• How do you have a for loop with an
immutable increment?
– Recursion. Lots of recursion.

31. Stack Overflow
Who knows what a stack overflow is?

32. Tail Call Optimization
defmodule TailRecursive do
def factorial(n), do: _fact(n, 1)
defp _fact(0, acc), do: acc
defp _fact(n, acc), do: _fact(n-1, acc*n)
end
# defp is private
If the last function called is itself, the
stack doesn’t grow.

33. Concurrency
pid = spawn(Object, :method, [vars])
# Creates a process
# returns the ID of the process
pid = spawn_link(Object, :method, [vars])
# Creates a process
# returns the ID of the process
# If the process dies, creator should too

34. Quick Example (from book)
defmodule Link2 do
import :timer, only: [ sleep: 1 ]
def sad_function do
sleep 500
exit(:boom)
end
def run do
spawn_link(Link2, :sad_function, [])
receive do
msg ->
IO.puts "MESSAGE RECEIVED: #{inspect msg}"
after 1000 ->
IO.puts "Nothing happened as far as I am concerned"
end
end
End
Link2.run
# The runtime reports the abnormal termination:
$ elixir -r link2.exs
** (EXIT from #PID<0.35.0>) :boom

35. That’s where we start
• Building blocks for best practice patterns
– GenServer
– Task (async/await)
– Agent (async / await + state)
– Supervisor / Worker

36. Fault Tolerance / Supervisors
• Applications operate as a Supervisor tree
• Process is created with another process
dedicated to monitoring it
• Worker process dies, it’s immediately
restarted in original state
– This is how Erlang applications can get
99.9999999% uptime (yes, 9 nines)

37. HANDLING ERRORS IS CODE SMELL
This is just fun to say

38. Error that could kill process?
• If you have an error that could kill a process…
– Make sure the process knows how to restart in a
desirable state
• Very different way of thinking about problems

39. Simple Supervision Example
> Math.Calculate.divide(10,2)
5.0
:ok
> Math.Calculate.divide(34,3)
11.333333333333334
:ok
> Math.Calculate.divide(34,0)
A BIG UGLY ERROR MESSAGE... BUT LITTLE DID YOU KNOW THE PROCESS WAS
RESTARTED AND LIVES!
> Math.Calculate.divide(34,2)
17.0
:OK
https://github.com/kblake/simple-supervision

40. “Where you’d previously think Object you’ll
begin to think Process“
- Confucius

41. Dialyzer
• Operators are not overridden
• + is always math
– What’s on either side of it is always a number
• Allows dynamic typing WITH compiler checks
• Best of both worlds, problems of neither

42. THIS ALL SEEMS REALLY
COMPLICATED
I know right? I’m just here for the web stuff

43. Phoenix Framework
• Significantly lowers barrier to entry
– Familiar Routes / Controllers
– Flexible Middleware
• Plug
– Excellent web sockets
• Channels
– Excellent / flexible / replaceable database layer
• Ecto
– Best view layer ever
– Pretty dang fast

44. About that….

45. Rebuilt brightball.com
• Read about it
http://www.brightball.com/articles/insanity-
with-elixir-phoenix-postgresql
• Summary
– As a dynamic site it’s as fast as my static nginx site
– This is considered normal (and awesome)

46. Phoenix Channels vs Rails ActionCable
• https://dockyard.com/blog/2016/08/09/phoe
nix-channels-vs-rails-action-cable
• Results
– Rails: 50 rooms, 2500 users - .05s avg
– Rails: 75 rooms, 3750 users – 8s avg, degrading
– Phoenix: 1100 rooms, 55,000 users - .25s avg
• (maxed 55,000 client connections)

47. Terraform
• Use in your current environment incrementally
– Put Phoenix in front of your app
– Route specific requests to Phoenix
– Pass the rest through to your current app
– Bundled Cowboy webserver used by Heroku, AWS
Cloudfront, Incapsula, etc…it good
• https://medium.com/@sugarpirate/rise-from-
the-ashes-incremental-apis-with-phoenix-
b08cd66bd142#.e1iojykq9

48. GenStage
• http://elixir-
lang.org/blog/2016/07/14/announcing-
genstage/
• Streaming, auto-scaling data ingestion

49. Nerves
• http://nerves-project.org/
• ElixirConf was about Phoenix and Nerves
• Nerves is for embedded software
• Fault tolerance, reliability, consistency seem
important for something like that…?

50. Functional Programming
• What are the gains?
– Readability / Maintainability
– No side effects code
– Simplified testing
– Simplified personnel turnover
– No object inheritance nightmares
– Clear separation of concerns

51. Objects…so dumb 
• Data tied to Functions
– Breeds repetition
– Weird nesting
– Breeds repetition
– Modify up the tree
– Breeds repetition
• Separate the two
– Data structures
– Functions
– #mindblown
"Object oriented
programs are offered as
alternatives to correct
ones”
- Edsger W. Dijkstra
http://www.yegor256.com/2016/08/15/what-is-wrong-object-oriented-programming.html

52. Why is it the future?
• Nothing with a shared memory model can match it for distribution…ever
– You can’t pass a memory reference to another machine transparently
• Ruby like productivity
– Minus an eventual full rewrite expectation
• Extremely fast, small footprint, embeddable, consistent, reliable
• Low process overhead ideal for holding connections
• You can easily start SMALL, knowing you have all of the tools to grow/get
crazy when you need them
– Refactoring is just rearranging stuff (yes, really)
– Naturally avoids bloat
• Compiler tells you when stuff isn’t used to make cleanup easy
• But isn’t so strict that it forces you to change them
– Stop worrying about development time OR code performance tradeoffs

53. Which makes it ideal for…
• Server applications that talk to a lot of things…
• Like web sockets
• Internet of Things devices
• Real time communications
• Low latency applications
• Geographic distribution
– Cluster across data centers…yes, really.
• Avoiding bottlenecks

54. Resources
• Hack Greenville Slack #elixir-phoenix
• elixir-lang.org
– Books, chat, links, resources, groups
• phoenixframework.org
• Elixir Conf sessions on YouTube
– So much good stuff
– Using Phoenix w/ Riak Core
https://www.youtube.com/watch?v=sYYOLaJ-
VDQ&start=2&autoplay=1

55. More Resources
• Programming Elixir
• Programming Phoenix
• RedFour (fake company training)
• ElixirForums
• Assorted newsletters

56. Elixir Tank Game
http://tanx.verse15.net/
Go there now, fight to the death

57. THANKS!
Questions?
