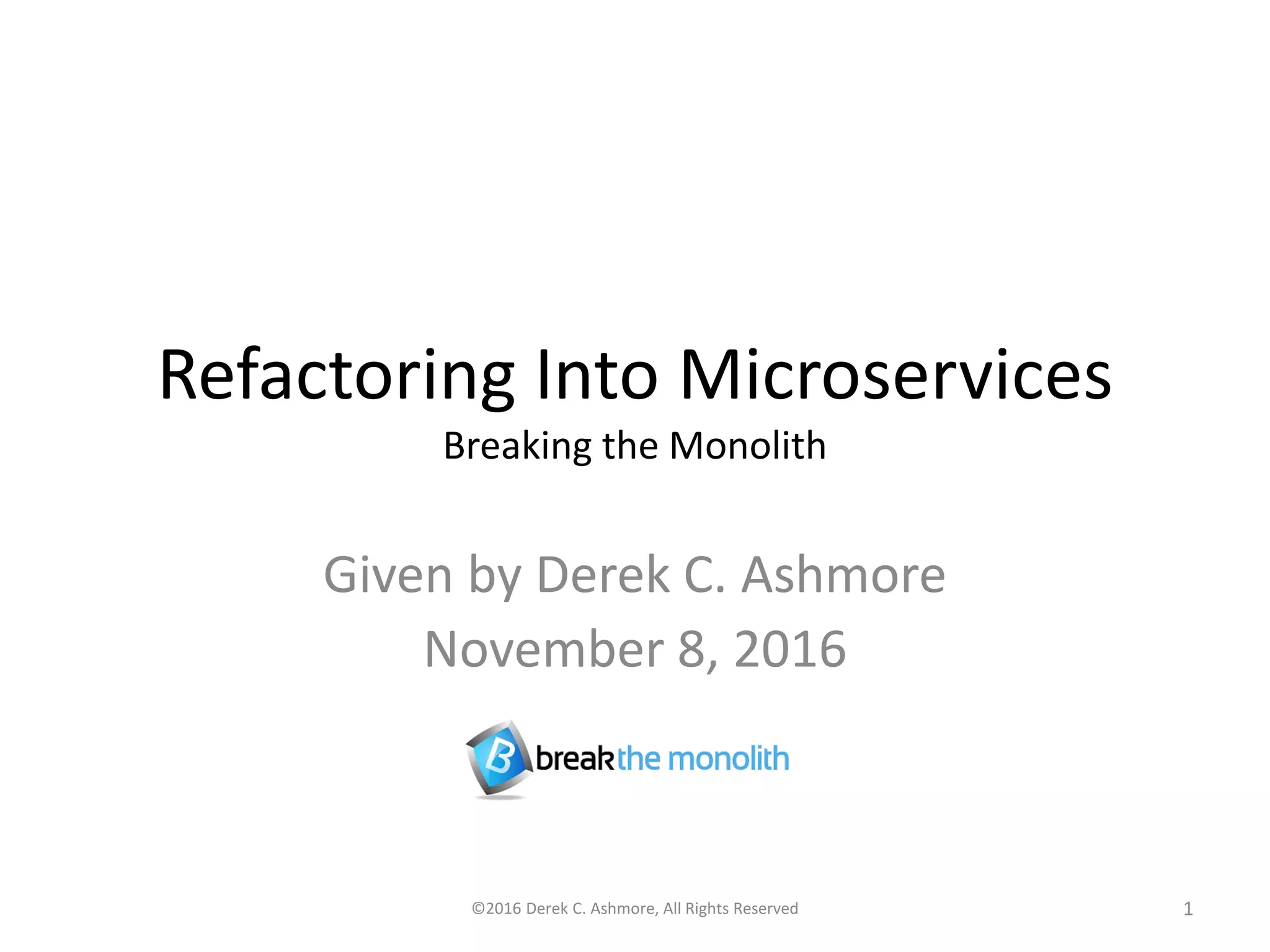

Refactoring Into Microservices 2016-11-08

Refactoring Into Microservices
Breaking the Monolith
Given by Derek C. Ashmore
November 8, 2016
©2016 Derek C. Ashmore, All Rights Reserved 1

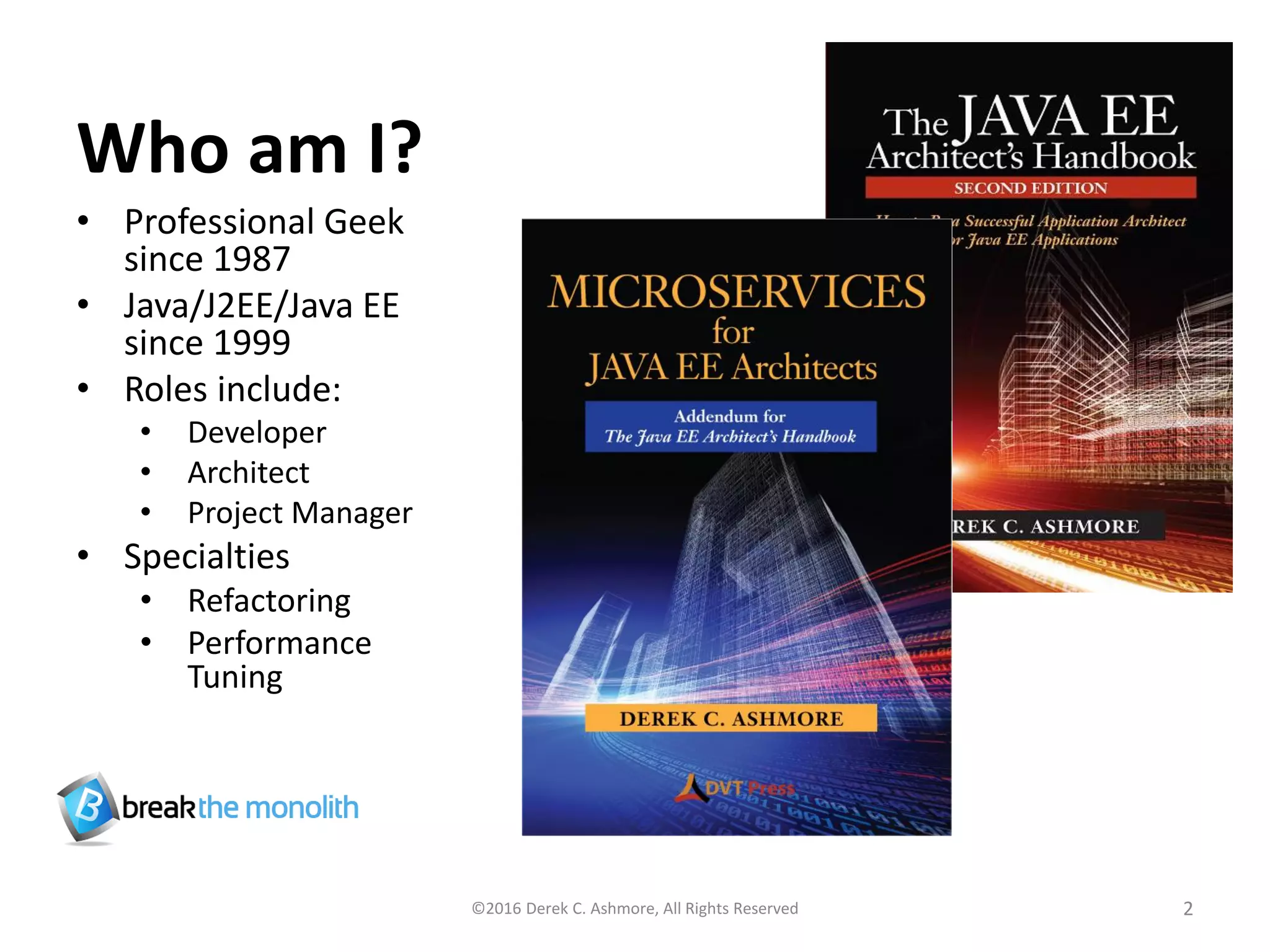

Who am I?
• Professional Geek
since 1987
• Java/J2EE/Java EE
since 1999
• Roles include:
• Developer
• Architect
• Project Manager
• Specialties
• Refactoring
• Performance
Tuning

Discussion Resources
• This slide deck
– http://www.slideshare.net/derekashmore
• This resource page
– http://breakthemonolith.guru/resources.html
• Slide deck has hyper-links!
– Don’t bother writing down URLs

Agenda
Microservices
and
Monoliths
Tactics to
Refactor
Common
Problems
Summary /
Q&A

What is a Monolith?
• Monolith
– Single deployable application
that’s gotten too large and
complex to maintain
• Symptoms
– Hard to change
• QA test cycles are long
• Change causes unintended
consequences
– Hard to onboard new
developers
– Married to your technical
stack
– Harder to diagnose
bottlenecks and memory
issues

What’s the cure?
• Smaller services rather than one very
large application
• Refactoring easier said than done
– Hard to do safely
– It’s a hard design problem
• Existing team members often too close
to the problem
– Developers can’t resist common business
binaries
• Reduces code duplication  Increases
coupling
• Coupling is a greater evil than code
duplication!
• Why not a complete rewrite?
– No benefit until the end
– Nobody knows *all* the business
requirements!
– Risk of negative impact to the business
during the transition is high
• Microservices are the other side of
the spectrum

Why Break a Monolith?
• Increases Speed to Market
– Monolith is slow to change
• Long QA cycles
– Quicker response to business
competition
• New features added quickly
• Makes continuous delivery possible
– Microservices + Continuous
Delivery
• Lowers Business Risk
– Reduces the defect rate
– Reduces Downtime
– Fixes are faster too
7
• Amazon deploys once a
second
• Netflix deploys over
5,500 times a day
Source: newrelic.com

What are Microservices?
• No concrete definition
• Common microservice traits
– Single functional purpose
• Most/all changes only impact one service
• Not dependent on execution context
– “loosely coupled”
– Independent process/jvm
– Stateless
– Standard Interface (typically Web Service/REST)
– Analogy: Stereo system, Linux utilities

Microservices Application Architecture
• Separate Databases
• Eventual
Consistency
• More network
activity

Faster Delivery to Market
• High Deployment Rates
– Amazon = 23,000/day
– Netflix = 5,500 / day
• Business Benefits
– New features delivered
more quickly
– Quicker reaction to
competitors actions
• Combined with
– Continuous Delivery
– DevOps

Microservice Reuse

No Lock-in
• Platform agnostic
• Fewer dependency
conflicts
• Still have cross-cutting
concerns
• “Toll” for first app
• Still have support
concerns
• Others need to be
able to support your
work
12©2016 Derek C. Ashmore, All Rights Reserved

Better Availability and Resiliency
• Fault tolerance built in
– Reaction to failure part of
the design
– Failures designed to be
localized
• Requirements for
Resiliency
– Identify non-essential
features
• Gogo and Twitter
– Context Independent
Design

Easier Management /
Higher Throughput
• Easier to manage large
numbers of developers
– Concentrate on
intelligently drawing
service boundaries
– Manage/enforce service
contracts
• Each service team works
independently
• Team independence leads
to higher development
throughput

Agenda
Microservices
and
Monoliths
Tactics to
Refactor
Common
Problems
Summary /
Q&A

Microservices / Monolith Mixture
• 80 / 20 Rule Applies
• Smaller, less complex, services are easier to support
• Few companies are 100% Microservices
• Traditional architectures do have a place
• They are easier to create and manage while they are small
• Some never grow large enough to refactor

Do NOT attempt a complete rewrite
• It’s too big and complex
– Usually no documentation of all implemented business rules
• Not written down
• Nobody has it in their head
– Will negatively impact your business
• The new won’t ‘identically’ match behavior
– Business won’t benefit until the very end
• It’s a large project  Compelte rewrite will take a long time to realize
– Often has no safeguards beyond manual testing
– It’s a *very* big problem to handle all at once.
• Refactor iteratively
– Yes; this will take a longer time
– It’s safer
– It gives staff a chance to learn how to manage microservice libraries
before they have too many to manage manually
– It gives staff a chance to address non-functionals while not also
being burdened with a complete redesign/rewrite

Stick with the same technical stack for
the refactoring
• Corollary: Do not rewrite and refactor at the
same time.
–Rewrite after automated contract testing is in
place
• New technical stacks have learning curves
–Refactoring is hard enough

Preperation Steps
• Establish a base automated test harness for the
application
–At an integration level, not unit test level
–We want a chance of catching defects refactoring
introduces
–This will *not* be 100% comprehensive
• The monolith is too complex for that
• 80 / 20 rule applies
• Establish Continuous Integration if it doesn’t
exist
–Jenkins CI Builds and Tests
–Run Frequently (at least nightly)
–Fix it immediately when somebody breaks the build

Types of Monoliths
• Monoliths are not created equal
• Types of Monoliths
– Feature-Bloated Web Application
– Data Store Strangle
– Over-engineered Tarball
– Distributed Monolith
• Tactics differ per Monolith type

Feature-Bloated App
• Feature set to large to manage
– Usually a web app, but could be “Thick”
or “Batch” as well
• Symptoms
– Unintended consequence problem
– Long regression test cycles
• Causes
– New Feature Additions
• Add complexity
• Often not envisioned in original design
– Tacked on
– Developer assumptions
• Streamlines code initially
• Are not documented
• Create landmines for new feature
additions
• Removing unused features
– Never happens
– Benefit not clear to the business
– No stats on used vs unused

Tactics: Feature-Bloated Web App
• Chop off it’s head!
– Separate the User Interface
• Separation of concerns
• Leaves consolidated UI
• Forces Monolith to have
REST interface
– Easier to test more
completely
• Makes further refactoring
safer
• Forces you to identify
REST resources within the
monolith

Separated UI
• Monolith now has a
REST resource interface
– Easier for automated
testing
• Safety in further
refactoring
– Functionality categorized
into logical units
• Easier to identify sections
to separate out
• Cosmetic changes occur
on their own schedule

Factor out additional services
• Factor out by related
REST resources
– Separate underlying
database too
• Prioritize resources by
– Code Change Velocity
– Code Complexity
– Enhancement needs

Data Store Strangle
• Data Storage is the Monolith’s
Achilles Heel
• Symptoms
– No flexibility in data access
• Larger memory footprint
– Lots of replicated data
– Complex data access code
– Storage design hardest part of adding
new features
• Causes
– Bad Data Storage Design
• Usually process oriented
– Replicated Data
– Coupled with business process
• Causes code complexity
– Amplifies technical debt
• Storage refactoring difficult
– Never happens
– Benefits not clear to the business
– Carries more risk than refactoring code

Tactics: Data Store Strangle
• Tourniquet Strategy
– Separate storage reads/writes into separate
service
• Separate into service
• All access uses central service
• Spin off a read-only copy asynchronously in
legacy format for reporting if needed
– Wrap automated testing around the
tourniquet service
– Refactor the underlying database
incrementally
• Refactoring databases is a difficult topic
– Book: Refactoring Databases: Evolutionary
Database Design
• Introduce new API to simplify access
– Reduces caller complexity
– More targeted and flexible access
– Usually possible only after refactoring
• Deprecate Tourniquet API

Over-engineered Tarball
• Internal component obstacle
– Component with unnecessary
complexity
• Symptoms
– Nobody understands it
– Everyone fears changing it
– Common impediment for new
feature enhancements
• Causes
– Bored, talented developers
• Good intentioned
• Manufacturing interesting puzzles
• Real problem when the developer
leaves
– Nobody else can change it safely
– Creates complexity in code
surrounding it

Tactics: Over-engineered Tarball
• Tourniquet Strategy
– Separate tarball into separate
service
• Separate into service
• All access uses central service
• Also separate out data storage
– Wrap automated testing
around the tourniquet service
– Refactor the tarball
incrementally or completely
replace
• Automated tests are safety net

Distributed Monolith
• Related services that are tightly coupled /
bound together
• Symptoms
– Always deploy a group of services together
• Independent deployments rarely happen
– New features require changes to the same
service group
• Causes
– High coupling between services
• Short-term developer convenience
• Inappropriate Delegation
– Micro-management for indirect service
calls
– Pass-through arguments to one service to
indirectly control behavior of a subsequent
service
• Shared Business Code Binaries
– Changes in binaries force redeployments
• Higher management overhead without
benefits from smaller independent services

Tactics: Distributed Monolith
• Solving shared business code problem
– Factor into separate service(s)
• Deployed once and commonly called
• Don’t deploy as library
– Reduces forced deployments
– Performance mitigations
• Expiring Cache
• Make asynchronous
– Coupling worse evil than Code Duplication

Tactics: Distributed Monolith (con’t)
• Solving the
Inappropriate
Delegation problem
– Eliminate the middle-
man

Agenda
Microservices
and
Monoliths
Tactics to
Refactor
Common
Problems
Summary /
Q&A

Common code between services?
• Yes, but….
– Version it
• Services make decision as to when to upgrade
– Changes to common code can’t require the
deployment of multiple services

Real-World Problems
• Corporate-Level Reporting
–Reporting for data across the enterprise
–Many read underlying databases for applications
that house the data
–Refactoring will impact this type of reporting
• Database Refactoring
–Much more expensive
–Can’t simply rollback
–Book Recommendation
• Database Factoring: Evolutionary Database Design

When is your refactoring complete?
• You can stop at any point
–If what remains of your monolith is supportable,
you can stop
–80 / 20 rule applies
• That’s why services are prioritized by volatility
• You can resume at any point
–Guided by code volatility and defect rates
–Change produces refactoring needs

Further Reading
• This slide deck
– http://www.slideshare.net/derekashmore
• This resource page
– http://breakthemonolith.guru/resources.html

Questions?
• Derek Ashmore:
– Blog: www.derekashmore.com
– LinkedIn: www.linkedin.com/in/derekashmore
• Connect Invites from attendees welcome
– Twitter: https://twitter.com/Derek_Ashmore
– GitHub: https://github.com/Derek-Ashmore
– Book: http://dvtpress.com/

Refactoring Into Microservices 2016-11-08

Recommended

Recommended

More Related Content

What's hot

What's hot (18)

Similar to Refactoring Into Microservices 2016-11-08

Similar to Refactoring Into Microservices 2016-11-08 (20)

Recently uploaded

Recently uploaded (20)

Refactoring Into Microservices 2016-11-08
