1. From the trenches of opintopolku.fi
Journey towards serverless infrastructure

2. Briefly about me
• Project management and ops-oriented software
engineering at Gofore since 2013
• Amazon Web Services since 2010
• Cloud, server automation, CI/CD build pipelines
• Favorite tool is Ansible
LEAD CONSULTANT, CLOUD SERVICES
Ville Seppänen @Vilsepi

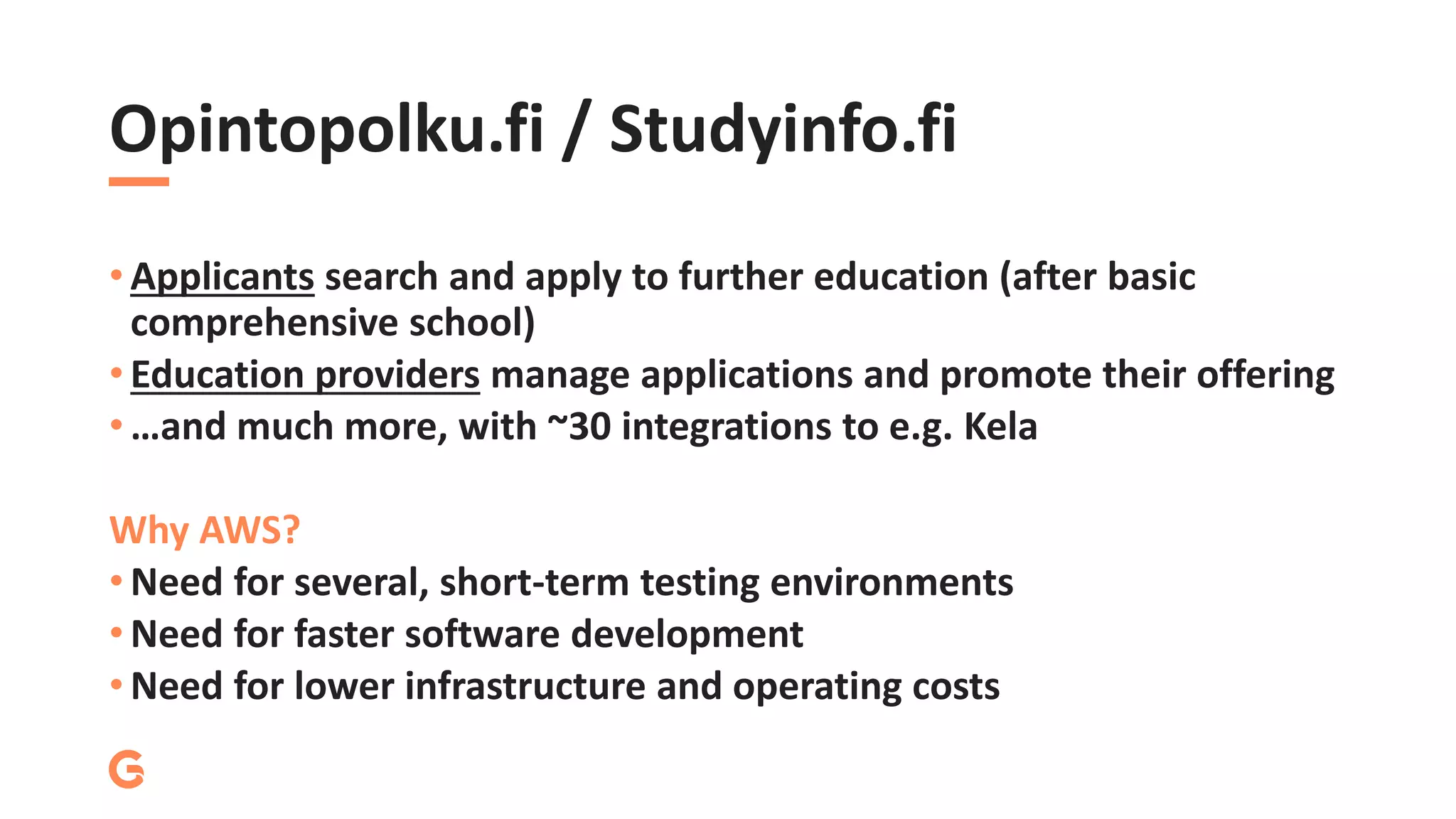

4. Opintopolku.fi / Studyinfo.fi
• Applicants search and apply to further education (after basic
comprehensive school)
• Education providers manage applications and promote their offering
• …and much more, with ~30 integrations to e.g. Kela
Why AWS?
• Need for several, short-term testing environments
• Need for faster software development
• Need for lower infrastructure and operating costs

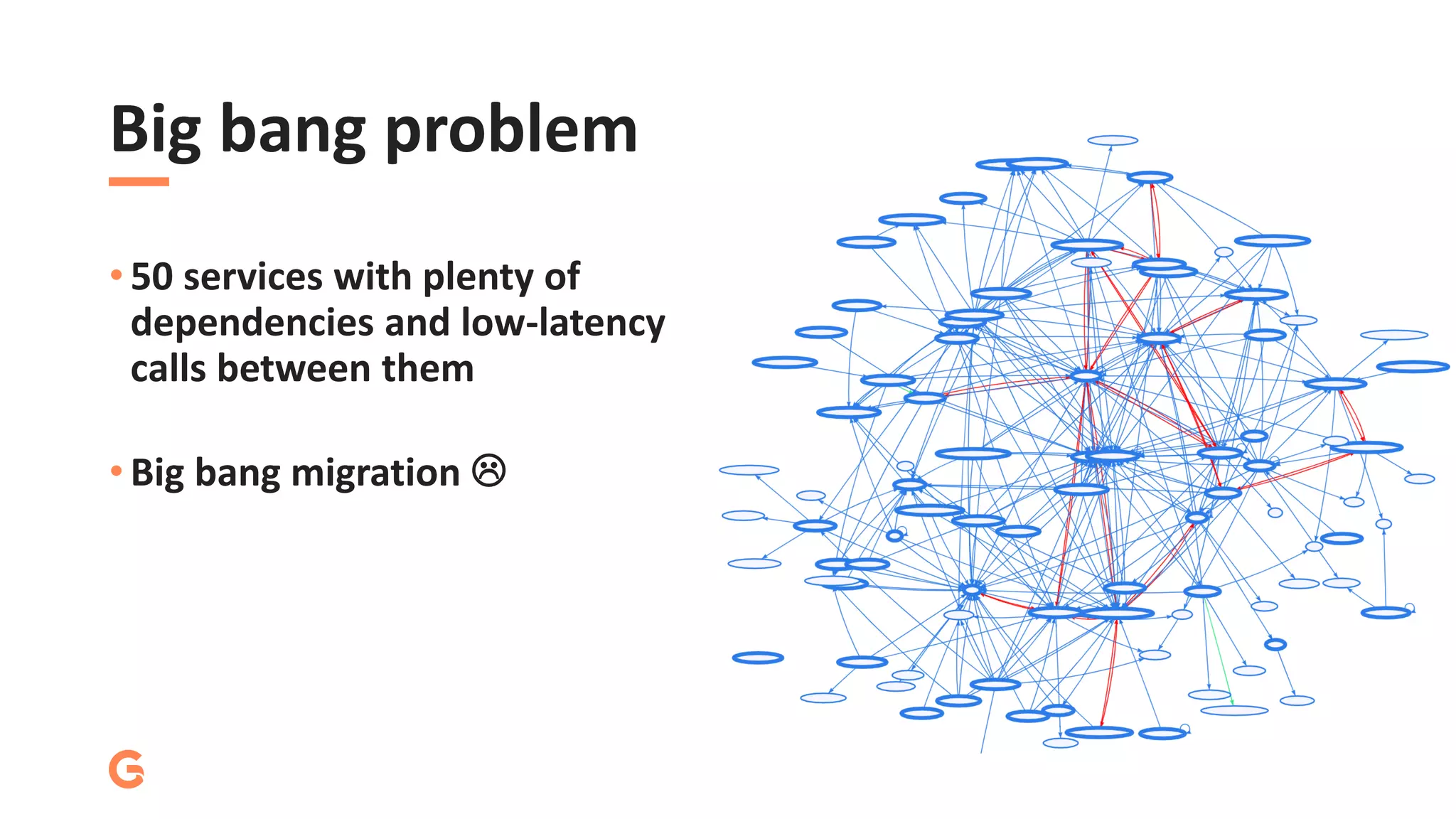

5. Big bang problem
• 50 services with plenty of
dependencies and low-latency
calls between them
• Big bang migration 

6. Big bang problem
• Applications open all year
round, student results are
calculated and institutions plan
future applications
• Never a good moment 

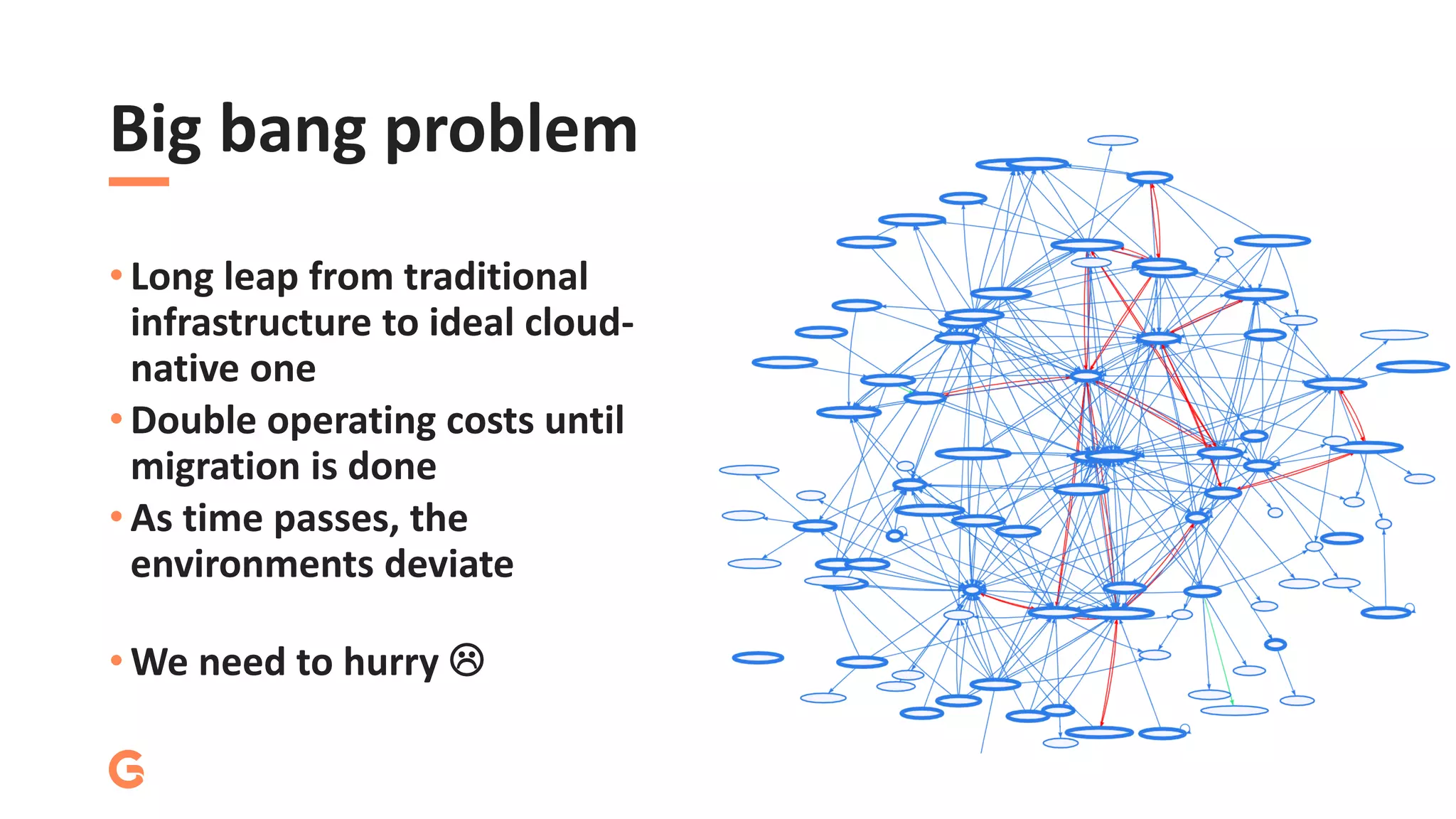

7. Big bang problem
• Long leap from traditional
infrastructure to ideal cloud-
native one
• Double operating costs until
migration is done
• As time passes, the
environments deviate
• We need to hurry 

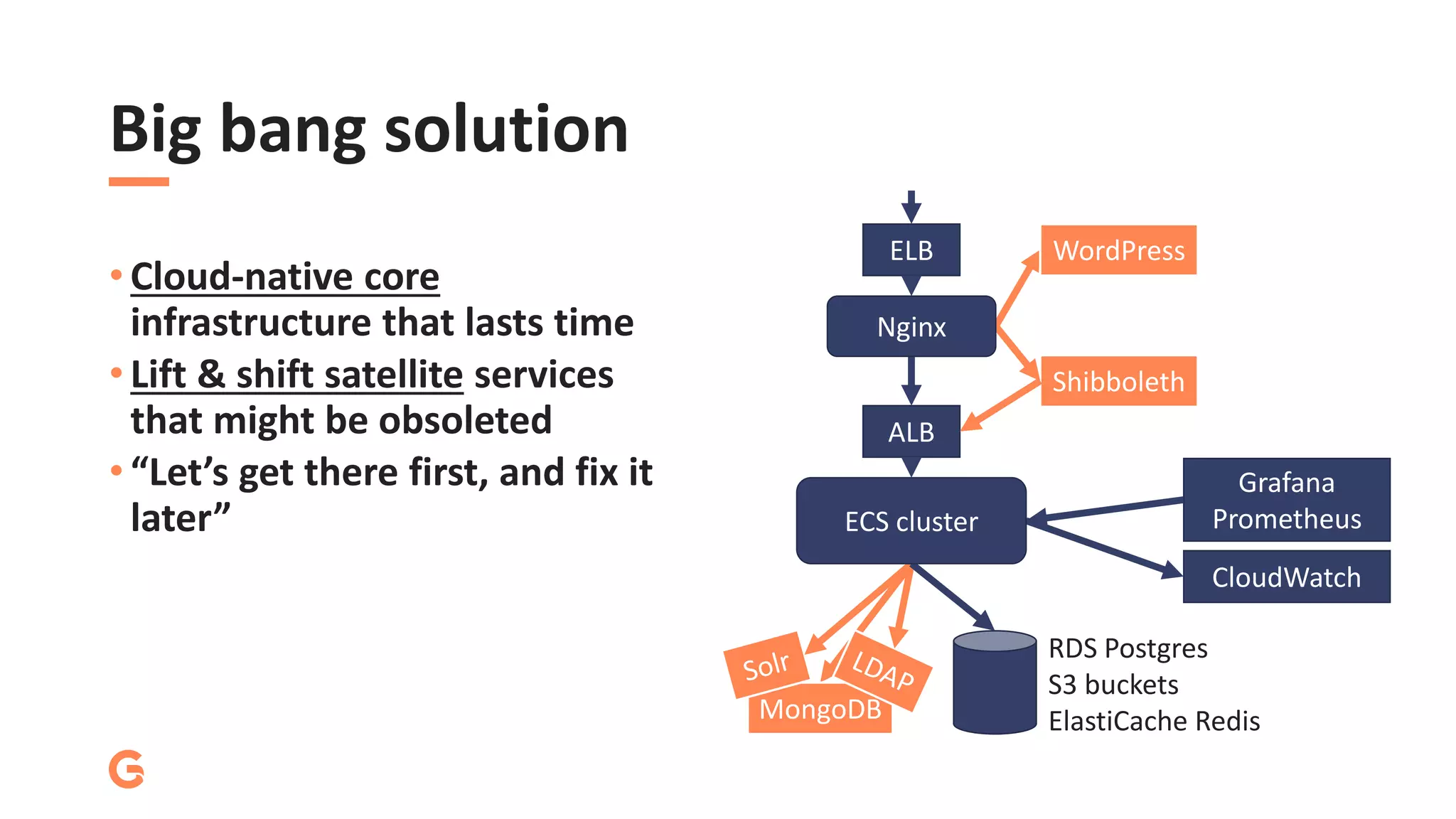

8. Big bang solution
• Cloud-native core
infrastructure that lasts time
• Lift & shift satellite services
that might be obsoleted
• “Let’s get there first, and fix it
later”
ELB
ALB
WordPress
RDS Postgres
S3 buckets
ElastiCache Redis
Grafana
Prometheus
CloudWatch
MongoDB
Shibboleth
ECS cluster
Nginx

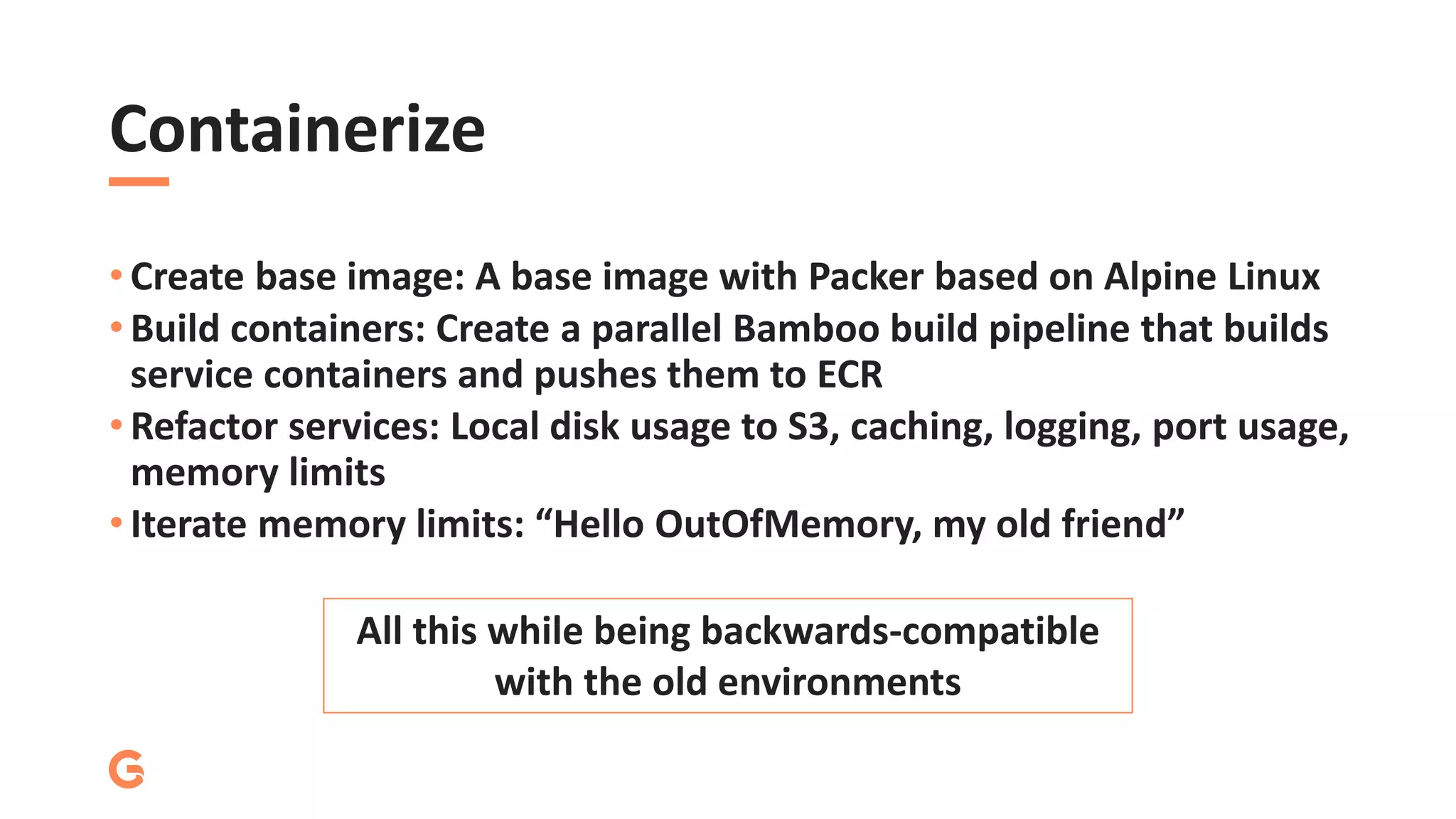

9. Containerize
• Create base image: A base image with Packer based on Alpine Linux
• Build containers: Create a parallel Bamboo build pipeline that builds
service containers and pushes them to ECR
• Refactor services: Local disk usage to S3, caching, logging, port usage,
memory limits
• Iterate memory limits: “Hello OutOfMemory, my old friend”
All this while being backwards-compatible
with the old environments

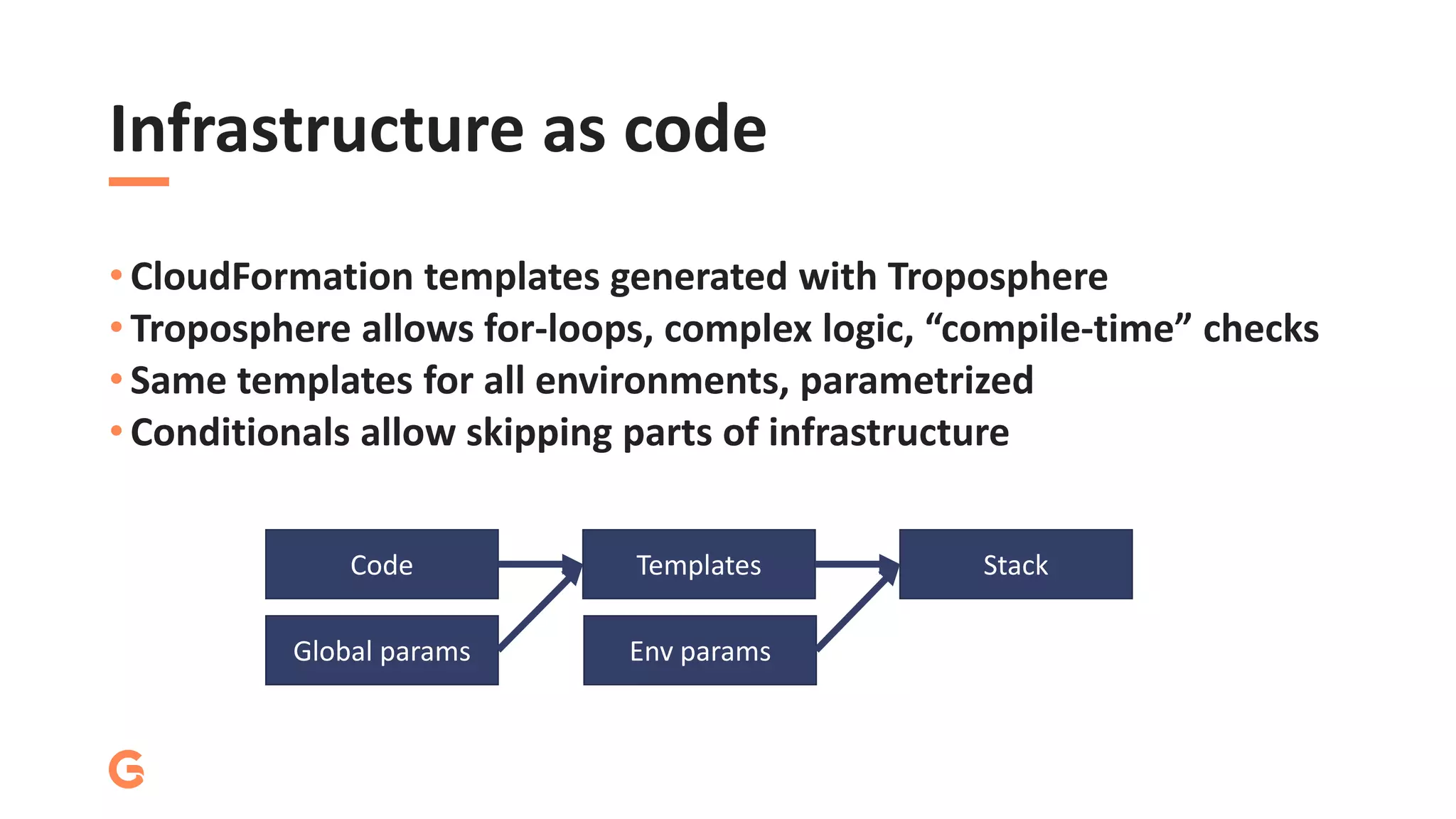

10. Infrastructure as code
• CloudFormation templates generated with Troposphere
• Troposphere allows for-loops, complex logic, “compile-time” checks
• Same templates for all environments, parametrized
• Conditionals allow skipping parts of infrastructure
Code
Global params
Templates
Env params
Stack

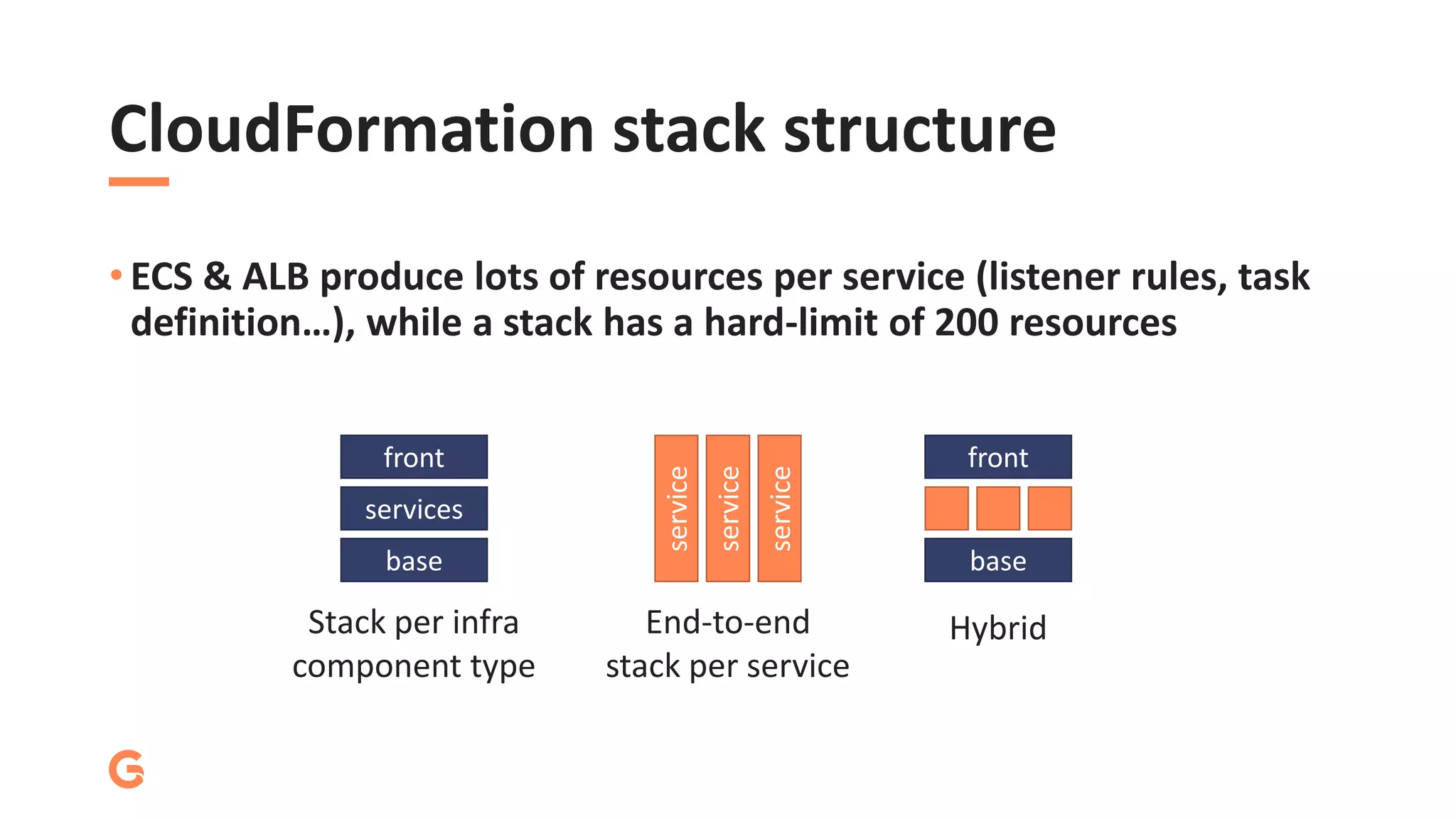

11. CloudFormation stack structure
• ECS & ALB produce lots of resources per service (listener rules, task
definition…), while a stack has a hard-limit of 200 resources
services
base
front
service
service
service
base
front
Stack per infra
component type
End-to-end
stack per service
Hybrid

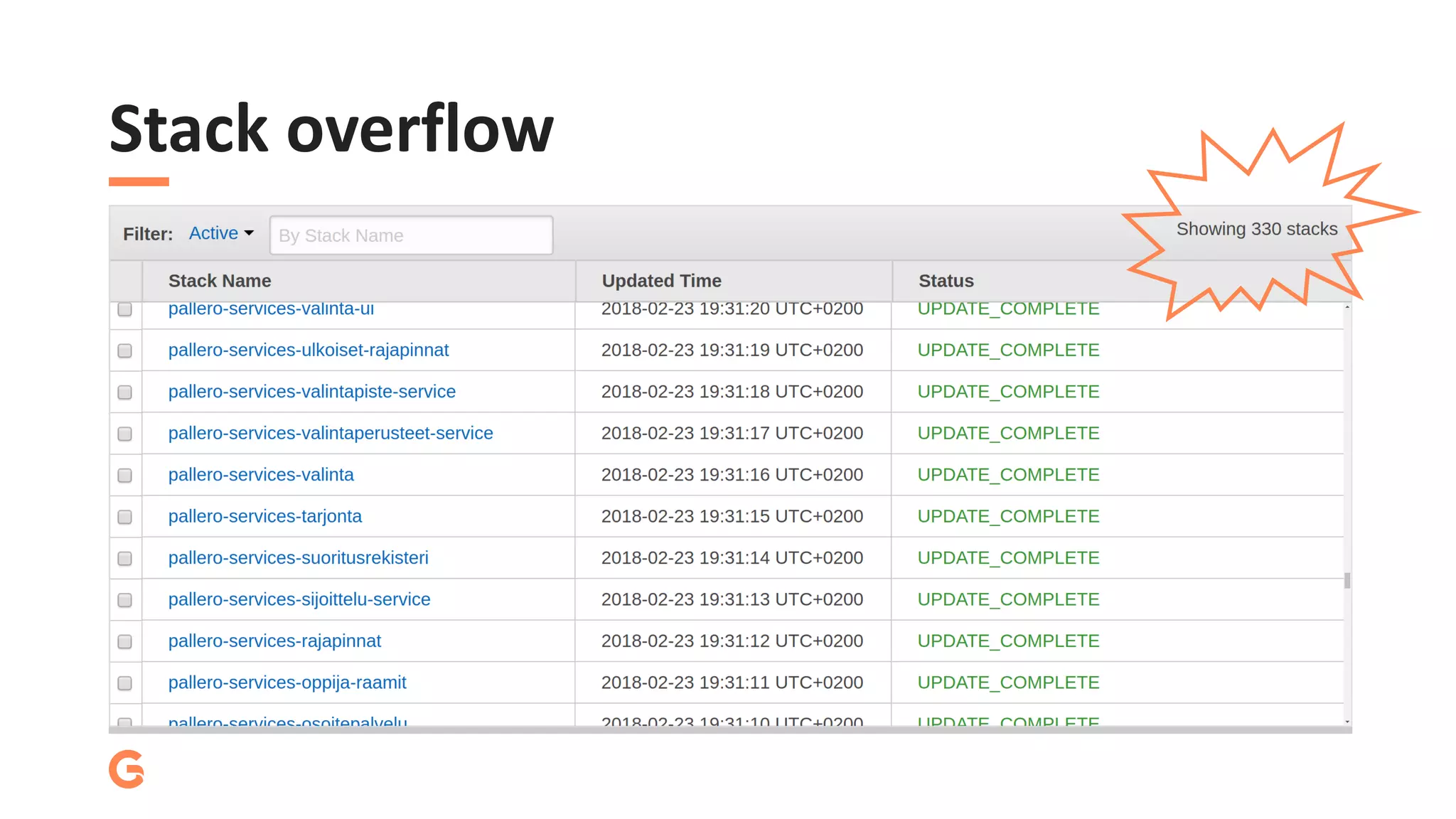

12. Stack overflow

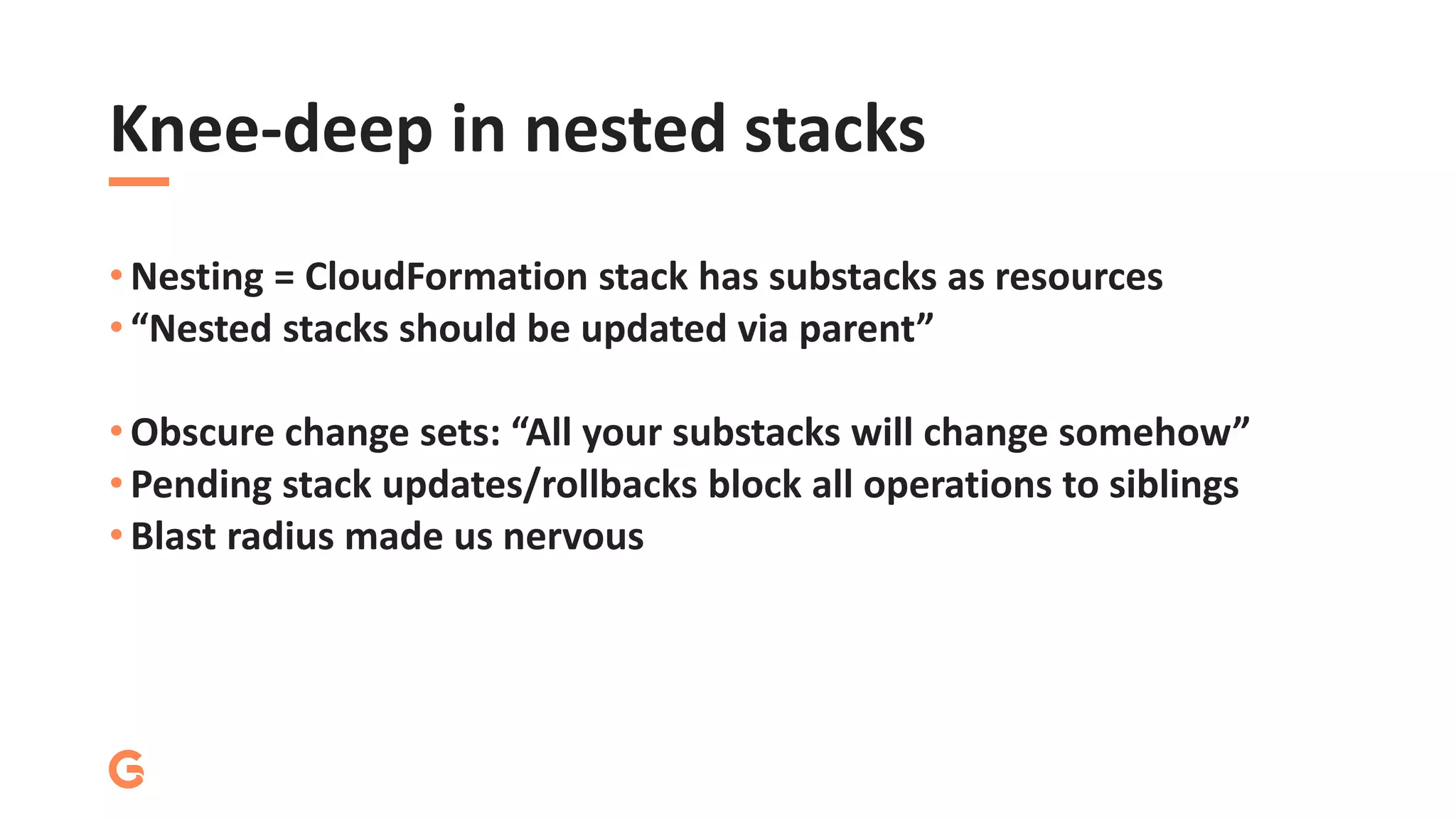

13. Knee-deep in nested stacks
• Nesting = CloudFormation stack has substacks as resources
• “Nested stacks should be updated via parent”
• Obscure change sets: “All your substacks will change somehow”
• Pending stack updates/rollbacks block all operations to siblings
• Blast radius made us nervous

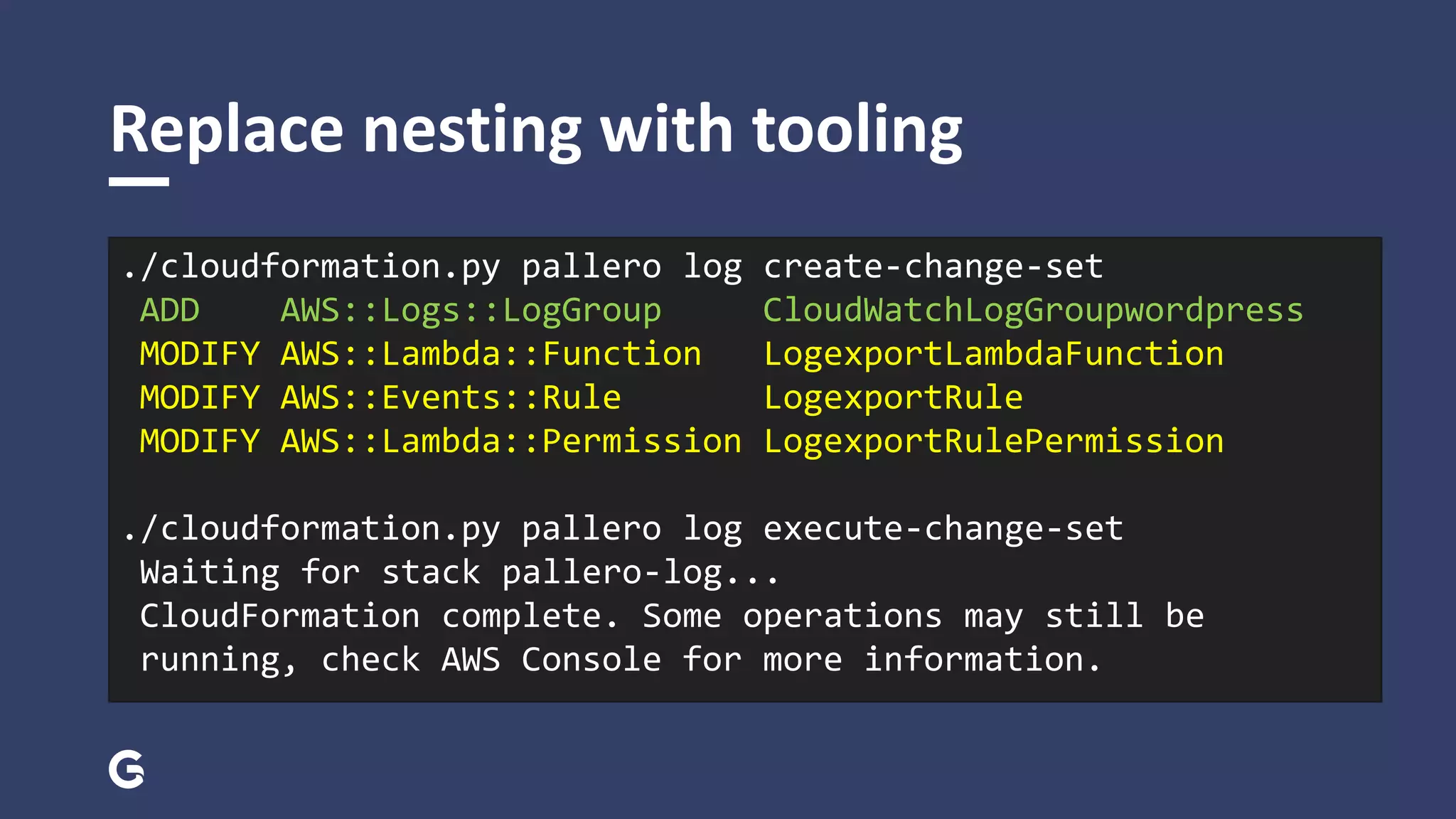

14. Replace nesting with tooling
./cloudformation.py pallero log create-change-set
ADD AWS::Logs::LogGroup CloudWatchLogGroupwordpress
MODIFY AWS::Lambda::Function LogexportLambdaFunction
MODIFY AWS::Events::Rule LogexportRule
MODIFY AWS::Lambda::Permission LogexportRulePermission
./cloudformation.py pallero log execute-change-set
Waiting for stack pallero-log...
CloudFormation complete. Some operations may still be
running, check AWS Console for more information.

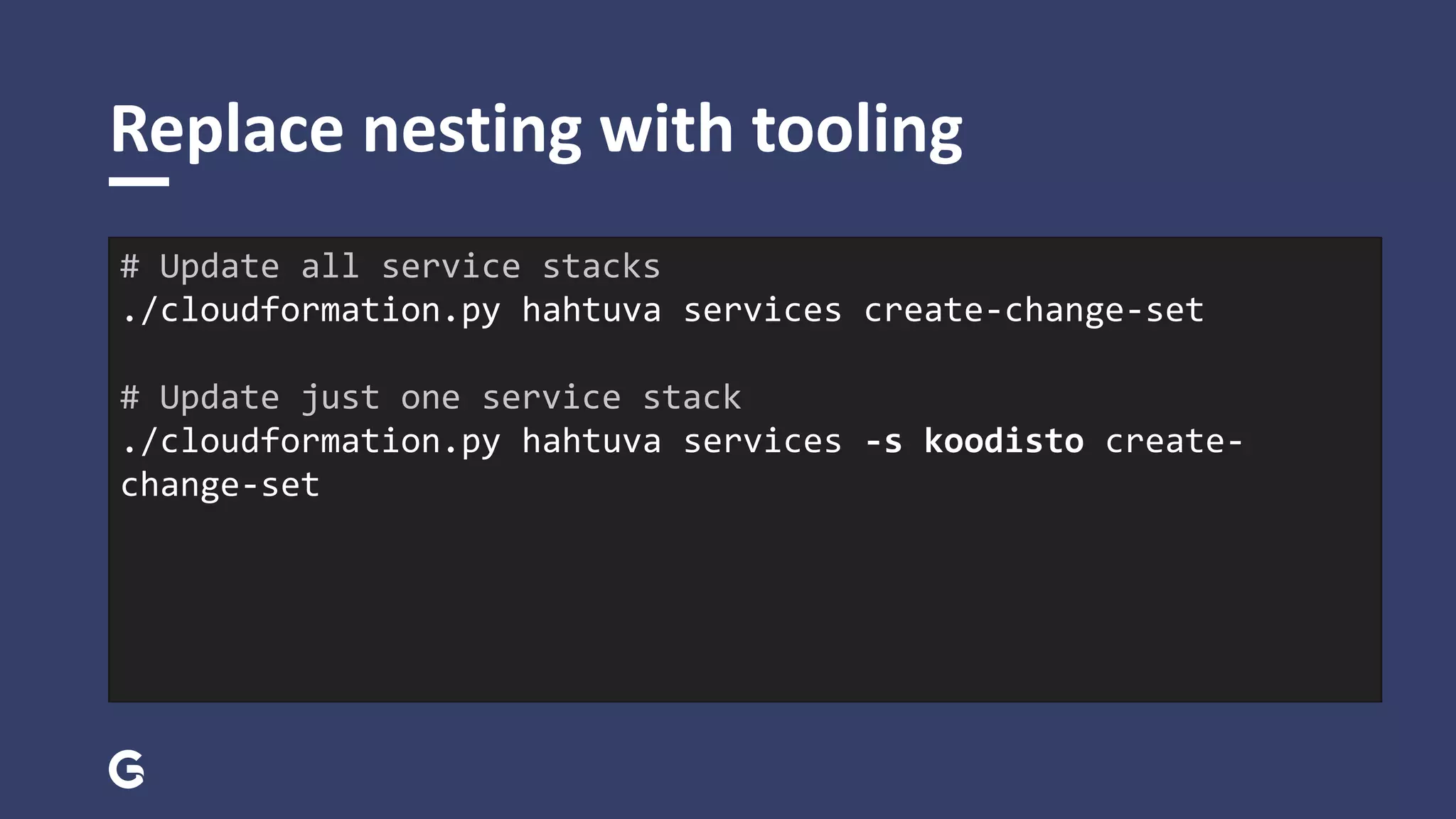

15. Replace nesting with tooling
# Update all service stacks
./cloudformation.py hahtuva services create-change-set
# Update just one service stack
./cloudformation.py hahtuva services -s koodisto create-
change-set

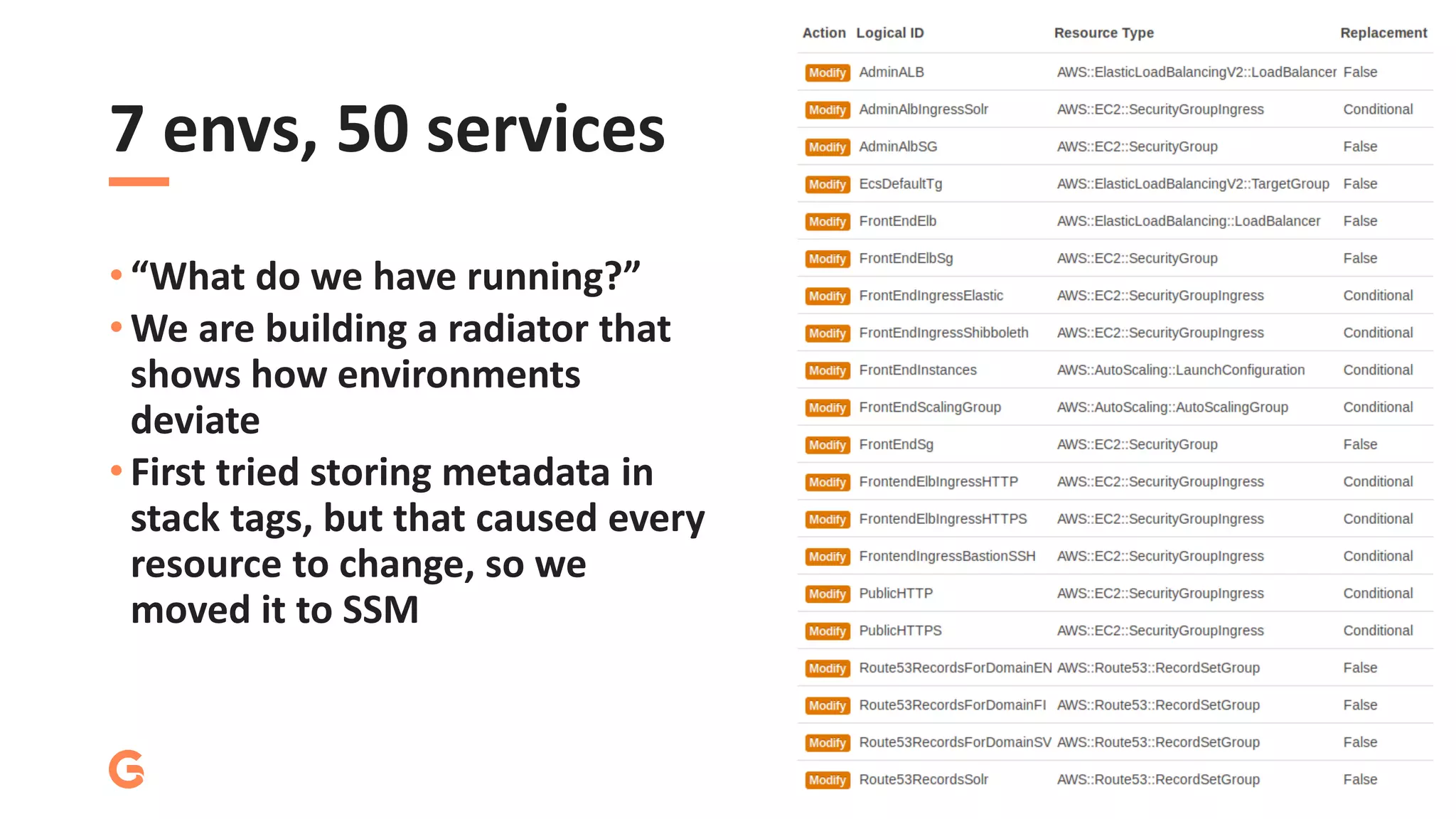

16. 7 envs, 50 services
• “What do we have running?”
• We are building a radiator that
shows how environments
deviate
• First tried storing metadata in
stack tags, but that caused every
resource to change, so we
moved it to SSM

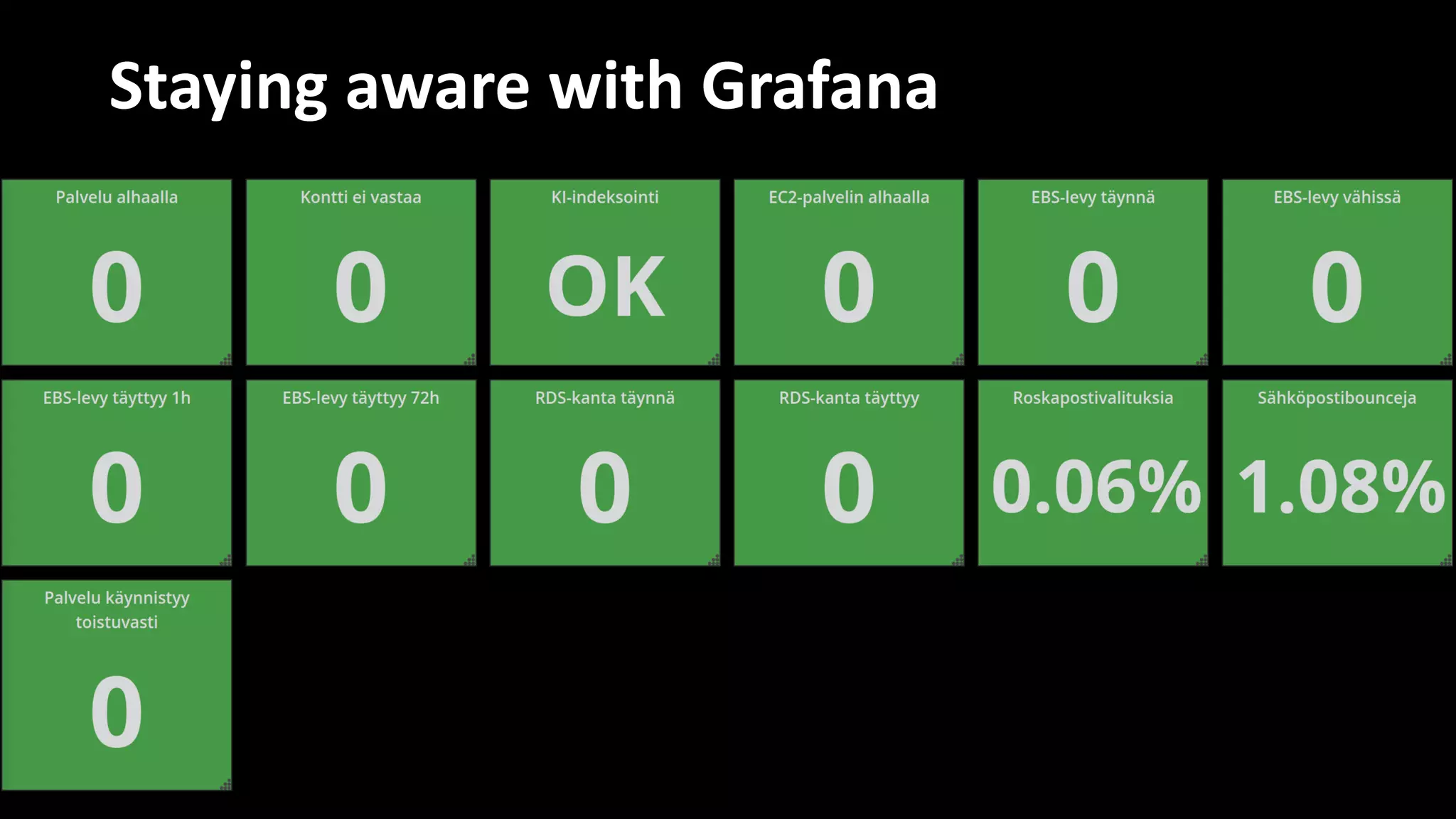

17. Staying aware with Grafana

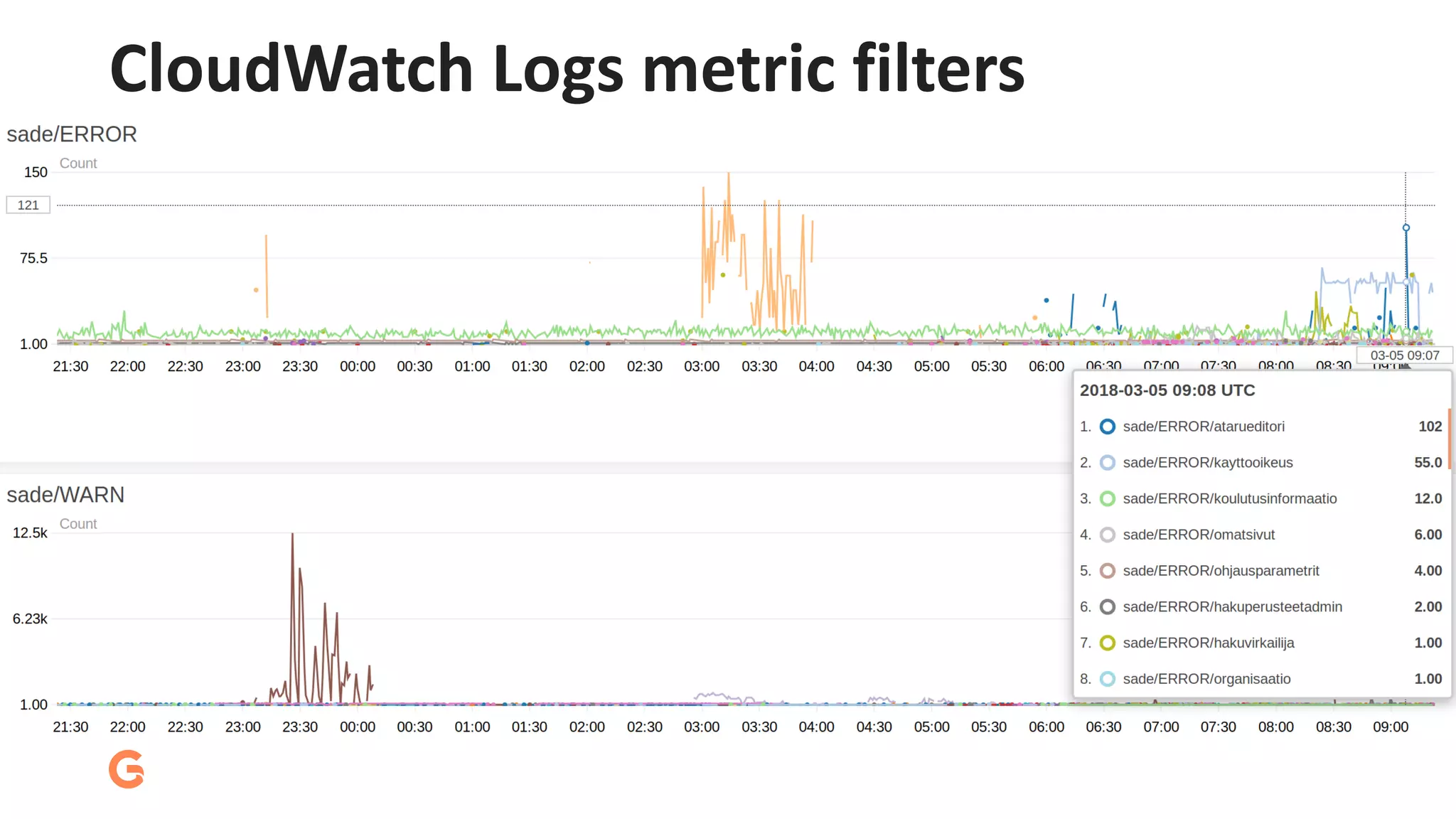

18. CloudWatch Logs metric filters

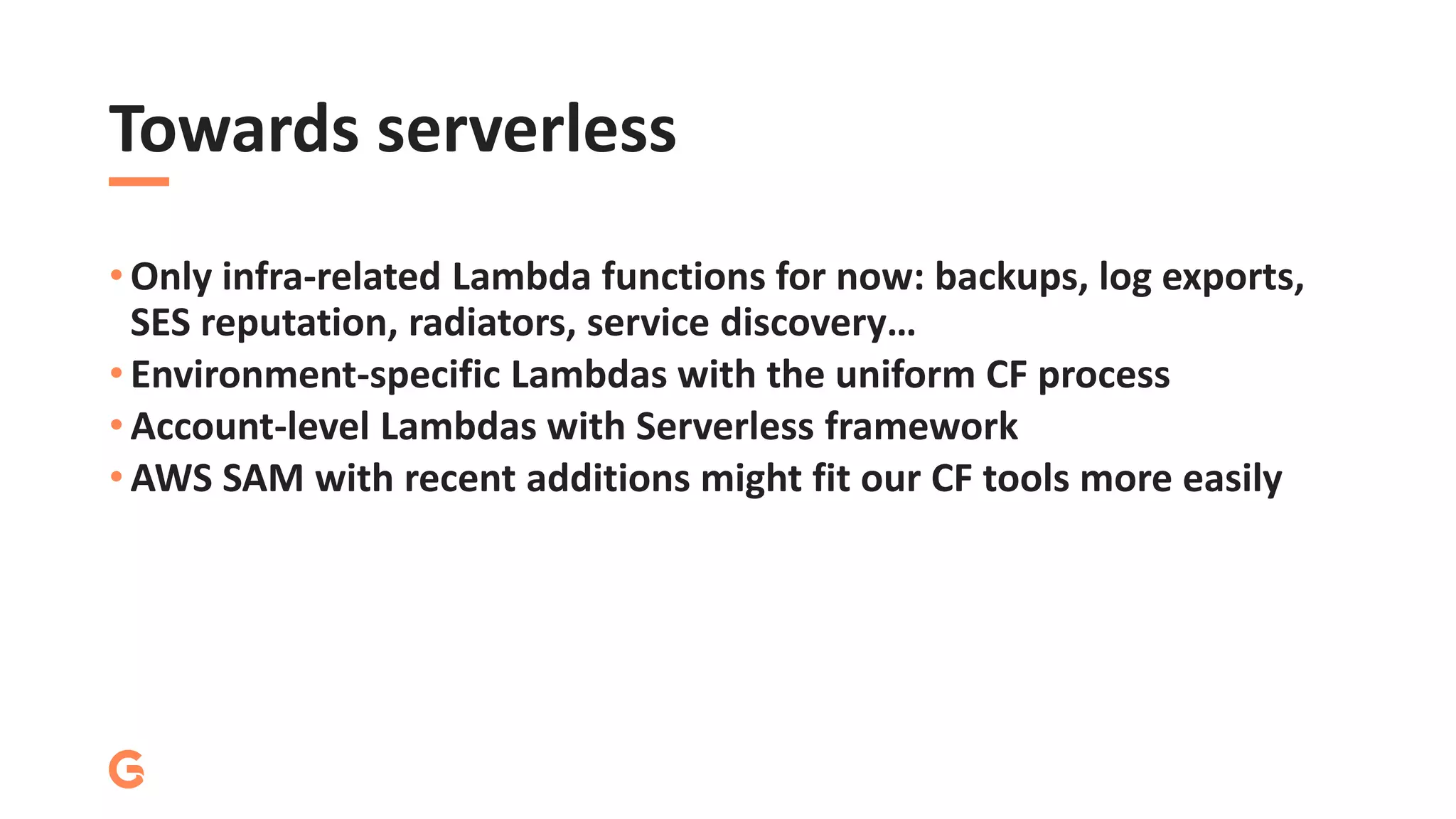

19. Towards serverless
• Only infra-related Lambda functions for now: backups, log exports,
SES reputation, radiators, service discovery…
• Environment-specific Lambdas with the uniform CF process
• Account-level Lambdas with Serverless framework
• AWS SAM with recent additions might fit our CF tools more easily

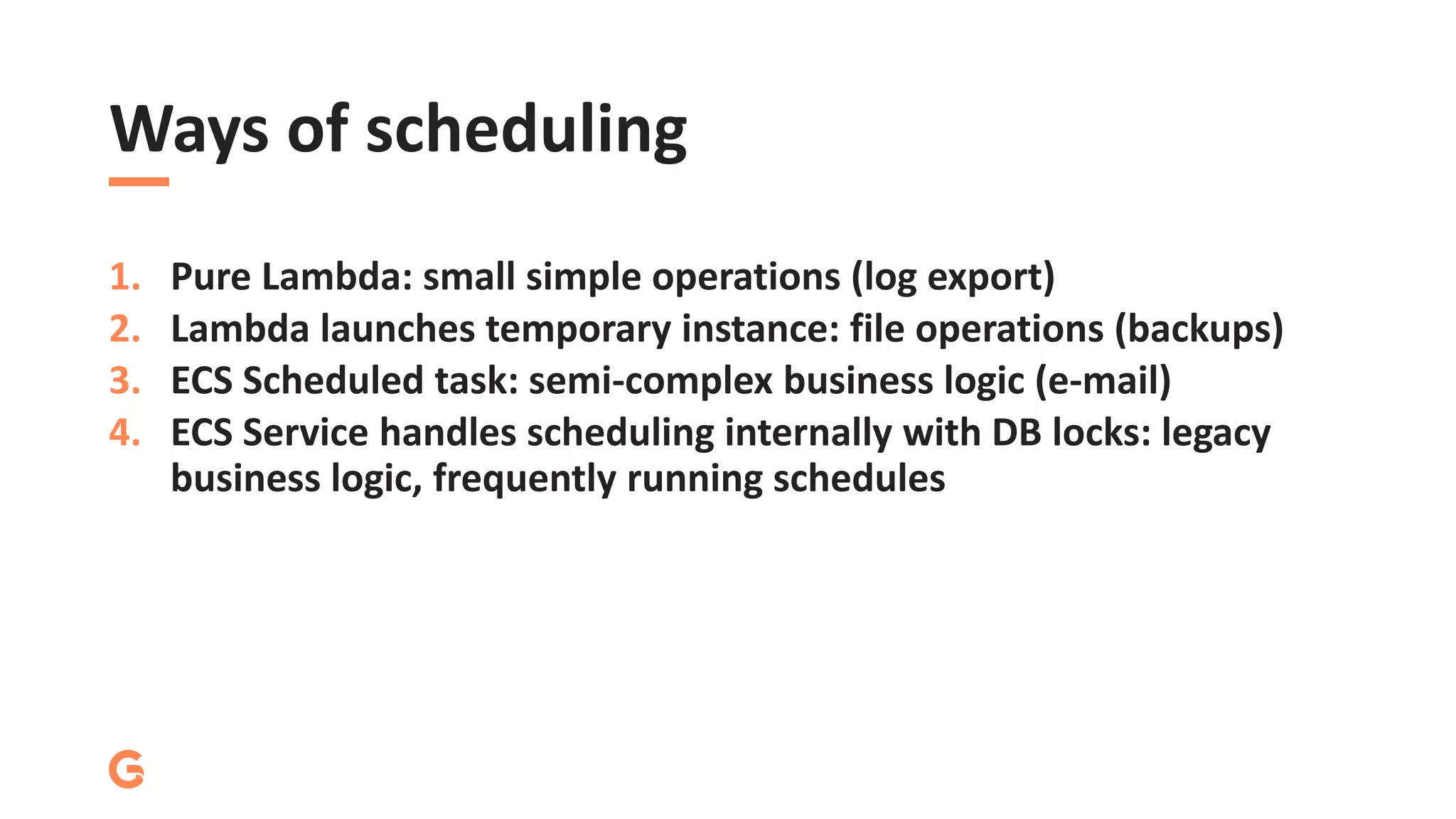

20. Ways of scheduling
1. Pure Lambda: small simple operations (log export)
2. Lambda launches temporary instance: file operations (backups)
3. ECS Scheduled task: semi-complex business logic (e-mail)
4. ECS Service handles scheduling internally with DB locks: legacy
business logic, frequently running schedules

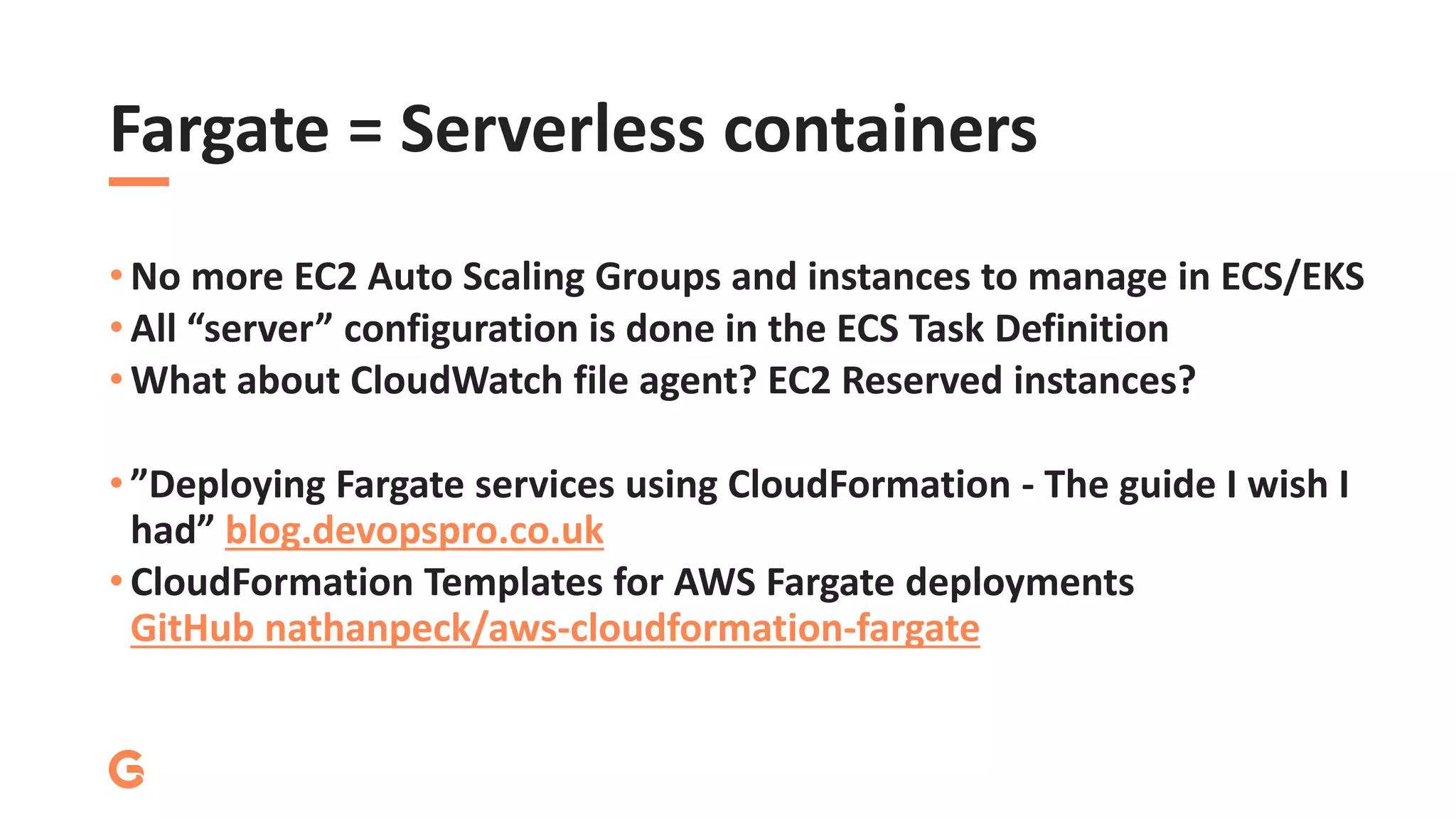

21. Fargate = Serverless containers
• No more EC2 Auto Scaling Groups and instances to manage in ECS/EKS
• All “server” configuration is done in the ECS Task Definition
• What about CloudWatch file agent? EC2 Reserved instances?
• ”Deploying Fargate services using CloudFormation - The guide I wish I
had” blog.devopspro.co.uk
• CloudFormation Templates for AWS Fargate deployments
GitHub nathanpeck/aws-cloudformation-fargate

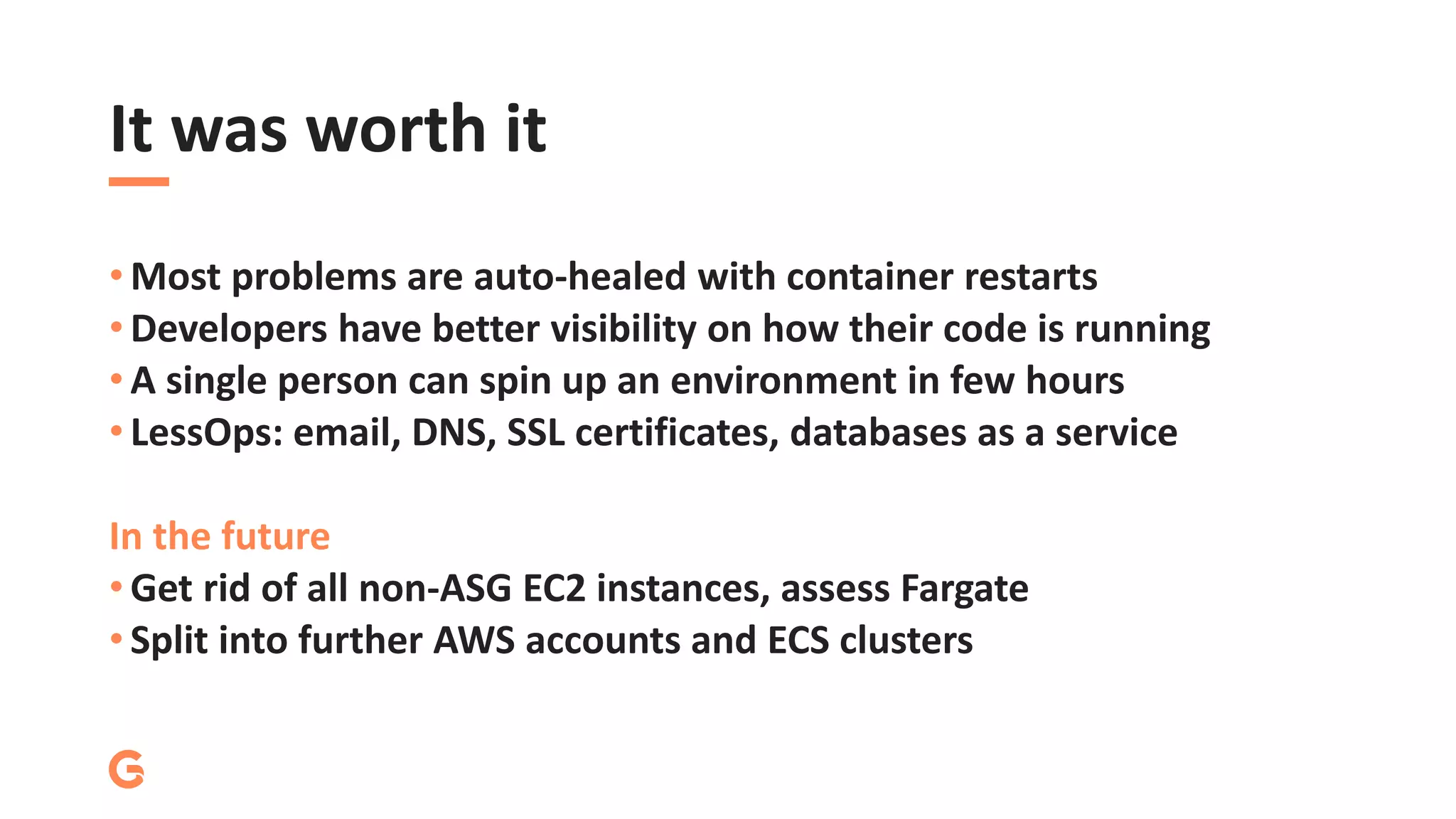

22. It was worth it
• Most problems are auto-healed with container restarts
• Developers have better visibility on how their code is running
• A single person can spin up an environment in few hours
• LessOps: email, DNS, SSL certificates, databases as a service
In the future
• Get rid of all non-ASG EC2 instances, assess Fargate
• Split into further AWS accounts and ECS clusters

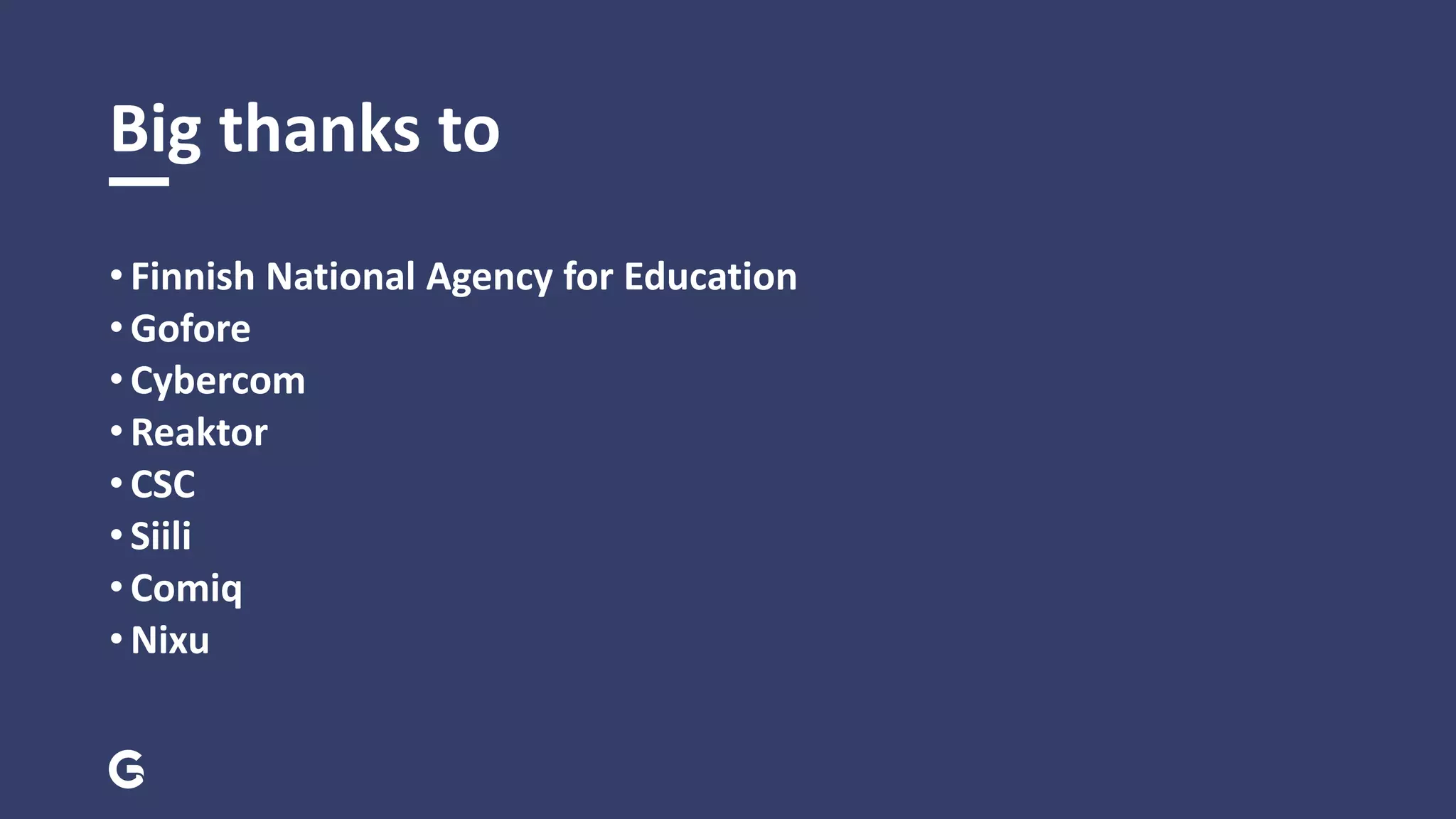

23. Big thanks to
• Finnish National Agency for Education
• Gofore
• Cybercom
• Reaktor
• CSC
• Siili
• Comiq
• Nixu

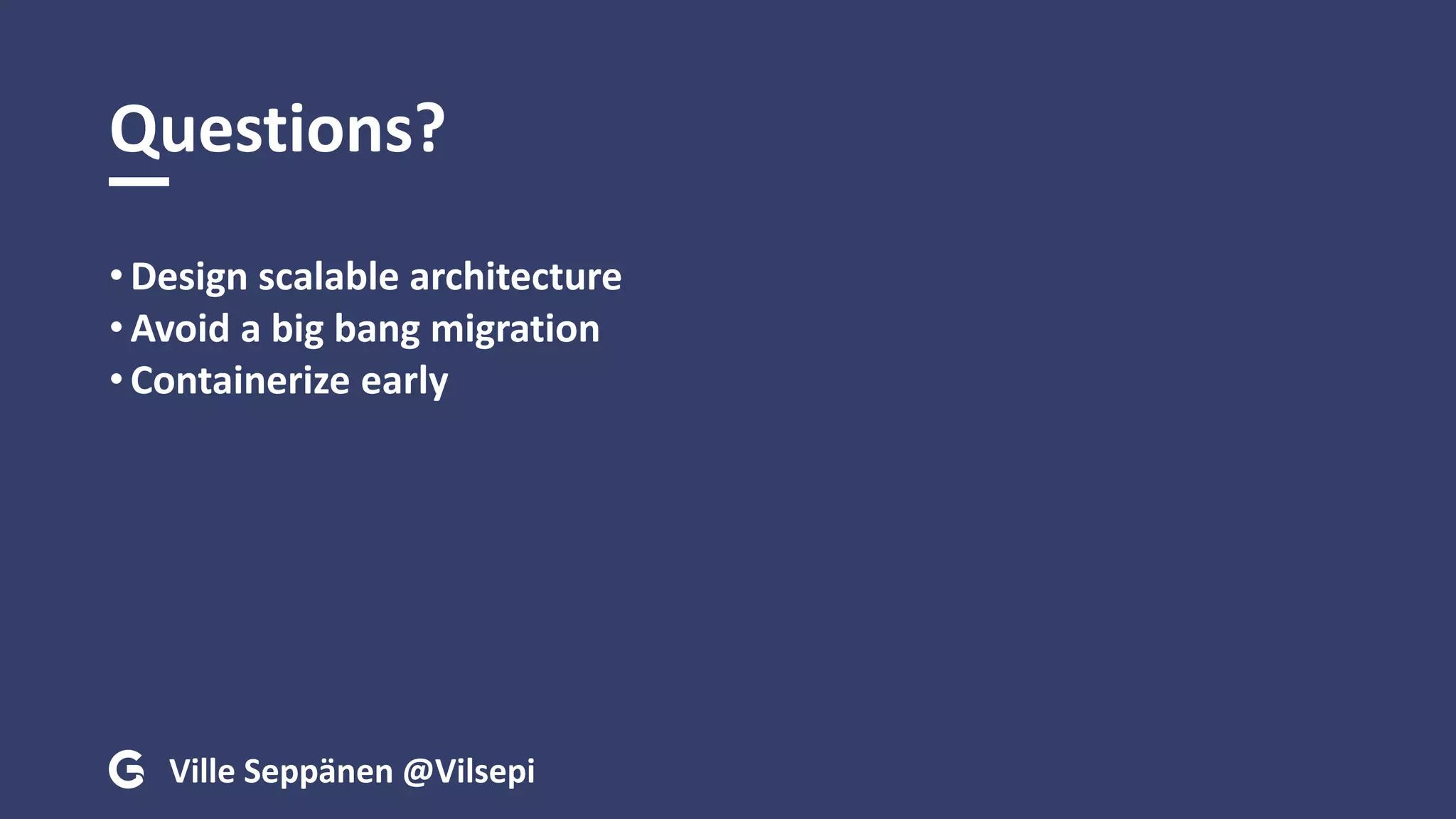

24. Questions?
• Design scalable architecture
• Avoid a big bang migration
• Containerize early
Ville Seppänen @Vilsepi
