1. Web Runtime à la Symbian
sami.j.viita
nen@noki
a.co m
Paris, 17.-
18 .1 1 .0 9
© 2009 Nokia Corporation

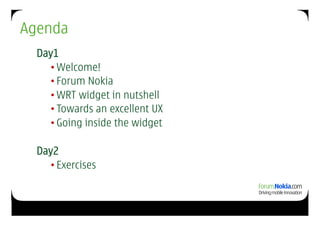

2. Agenda
Day1
• Welcome!
• Forum Nokia
• WRT widget in nutshell
• Towards an excellent UX
• Going inside the widget
Day2
• Exercises

3. Web Runtime
and Nokia

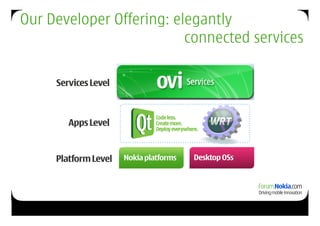

4. Our Developer Offering: elegantly
connected services
Services Level
Apps Level
Platform Level Nokia platforms Desktop OSs

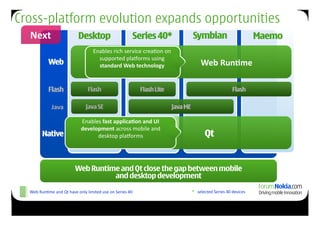

5. Cross-platform evolution expands opportunities
Next
Desktop Series 40* Symbian Maemo
Enables
rich
service
crea9on
on
supported
pla2orms
using
Web
Web
eb
standard
W
technology
Web
Run.me
Flash Flash Flash Lite Flash
Java
Java SE Java ME
Enables
fast
applica.on
and
UI
development
across
mobile
and
Native Web
desktop
pla2orms
Qt
Web Runtime and Qt close the gap between mobile
and desktop development
5
Web
Run9me
and
Qt
have
only
limited
use
on
Series
40
*
selected
Series
40
devices

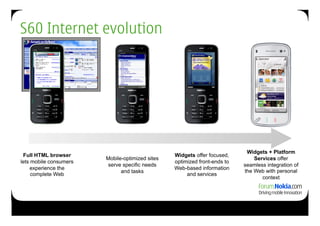

6. S60 Internet evolution
Widgets + Platform
Full HTML browser Widgets offer focused,
Mobile-optimized sites Services offer
lets mobile consumers optimized front-ends to
serve specific needs seamless integration of
experience the Web-based information
and tasks the Web with personal
complete Web and services
context

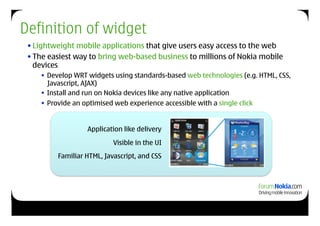

7. Definition of widget
• Lightweight mobile applications that give users easy access to the web
• The easiest way to bring web-based business to millions of Nokia mobile
devices
 Develop WRT widgets using standards-based web technologies (e.g. HTML, CSS,
Javascript, AJAX)
 Install and run on Nokia devices like any native application
 Provide an optimised web experience accessible with a single click
Application like delivery
Visible in the UI
Familiar HTML, Javascript, and CSS

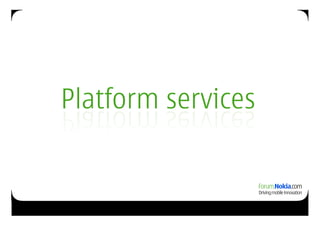

8. Platform services

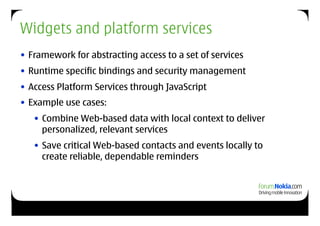

9. Widgets and platform services
• Framework for abstracting access to a set of services
• Runtime specific bindings and security management
• Access Platform Services through JavaScript
• Example use cases:
• Combine Web-based data with local context to deliver
personalized, relevant services
• Save critical Web-based contacts and events locally to
create reliable, dependable reminders

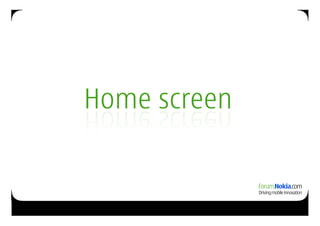

10. Home screen

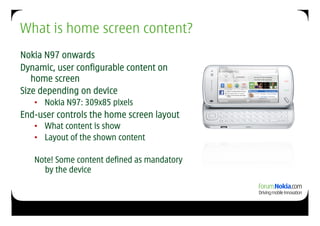

11. What is home screen content?
Nokia N97 onwards
Dynamic, user configurable content on
home screen
Size depending on device
• Nokia N97: 309x85 pixels
End-user controls the home screen layout
• What content is show
• Layout of the shown content
Note! Some content defined as mandatory
by the device

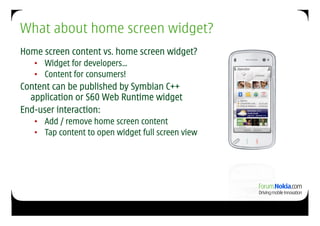

12. What about home screen widget?
Home screen content vs. home screen widget?
• Widget for developers…
• Content for consumers!
Content can be published by Symbian C++
application or S60 Web Runtime widget
End-user interaction:
• Add / remove home screen content
• Tap content to open widget full screen view

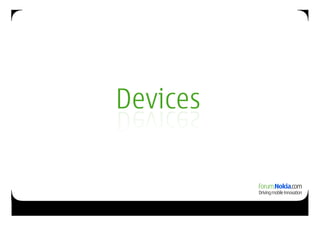

13. Devices

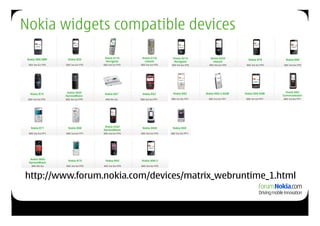

14. Nokia widgets compatible devices
http://www.forum.nokia.com/devices/matrix_webruntime_1.html

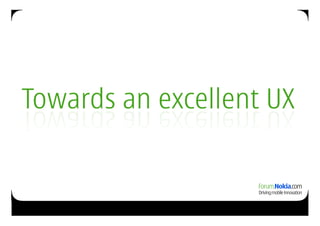

15. Towards an excellent UX

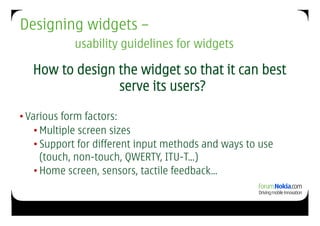

16. Designing widgets –
usability guidelines for widgets
How to design the widget so that it can best
serve its users?
• Various form factors:
• Multiple screen sizes
• Support for different input methods and ways to use
(touch, non-touch, QWERTY, ITU-T…)
• Home screen, sensors, tactile feedback…

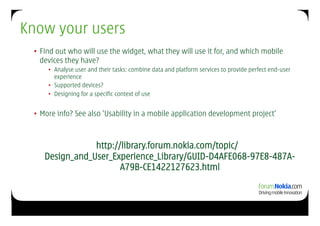

17. Know your users
• Find out who will use the widget, what they will use it for, and which mobile
devices they have?
• Analyse user and their tasks: combine data and platform services to provide perfect end-user
experience
• Supported devices?
• Designing for a specific context of use
• More info? See also ’Usability in a mobile application development project’
http://library.forum.nokia.com/topic/
Design_and_User_Experience_Library/GUID-D4AFE068-97E8-487A-
A79B-CE1422127623.html

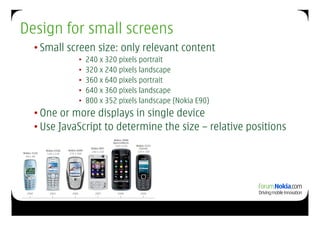

18. Design for small screens
• Small screen size: only relevant content
• 240 x 320 pixels portrait
• 320 x 240 pixels landscape
• 360 x 640 pixels portrait
• 640 x 360 pixels landscape
• 800 x 352 pixels landscape (Nokia E90)
• One or more displays in single device
• Use JavaScript to determine the size – relative positions

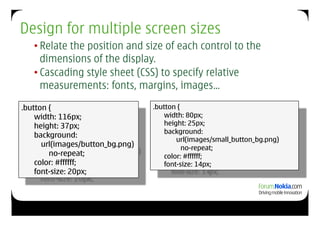

19. Design for multiple screen sizes
• Relate the position and size of each control to the
dimensions of the display.
• Cascading style sheet (CSS) to specify relative
measurements: fonts, margins, images…
.button { .button {
width: 116px; width: 80px;
height: 37px; height: 25px;
background:
background:
url(images/small_button_bg.png)
url(images/button_bg.png) no-repeat;
no-repeat; color: #ffffff;
color: #ffffff; font-size: 14px;
font-size: 20px;

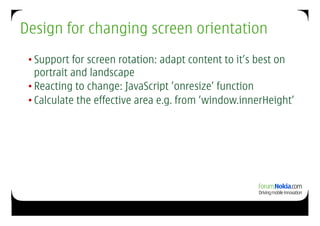

20. Design for changing screen orientation
• Support for screen rotation: adapt content to it’s best on
portrait and landscape
• Reacting to change: JavaScript ’onresize’ function
• Calculate the effective area e.g. from ’window.innerHeight’

21. Intuitive ways of moving
• You can use different navigation
modes on mobile - five way
navigation:
• Cursor navigation
• Tab navigation
• Customized navigation
• Avoid scroll and type
• One hand usage

22. Design for limited input methods
• eypad
K
• Softkeys (platform or custom)
• Navigation on screen (cursor, tab or custom navigation)
• Typing (text or numbers)
• Selecting items in lists (e.g. HTML ’select’)
• ouch
T
• Checking touch support
• Touch areas needs to be big enough: finger usability
• JavaScript ’onClick’ handler (e.g. with image buttons)
• Tactile feedback

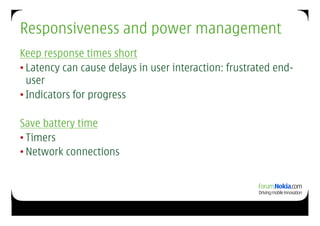

23. Responsiveness and power management
Keep response times short
• Latency can cause delays in user interaction: frustrated end-
user
• Indicators for progress
Save battery time
• Timers
• Network connections

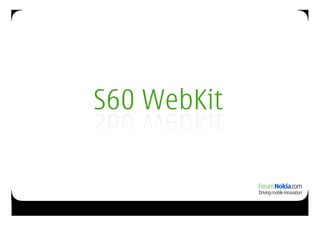

24. S60 WebKit

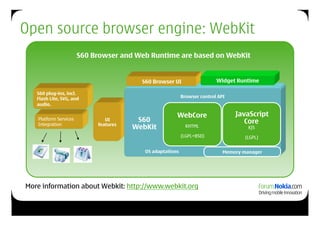

25. Open source browser engine: WebKit
S60 Browser and Web Runtime are based on WebKit
Native C/C++ Web S60 Browser UI Widget Runtime
Widgets
“Web Capable” Browser
S60 plug-ins, incl.
Flash Lite, SVG, and Browser control API
audio.
WebCore JavaScript
Platform Services UI S60 Core
Integration features
WebKit KHTML KJS
(LGPL+BSD) (LGPL)
OS adaptations Memory manager
More information about Webkit: http://www.webkit.org

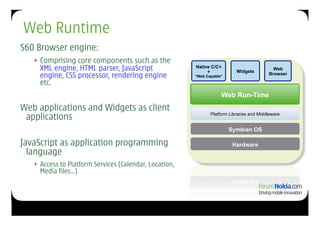

26. Web Runtime
S60 Browser engine:
• Comprising core components such as the
XML engine, HTML parser, JavaScript Native C/C+
+ Widgets
Web
engine, CSS processor, rendering engine “Web Capable”
Browser
etc.
Web Run-Time
Web Tech
Web applications and Widgets as client
applications Platform Libraries and Middleware
Symbian OS
JavaScript as application programming Hardware
language
• Access to Platform Services (Calendar, Location,
Media files…)

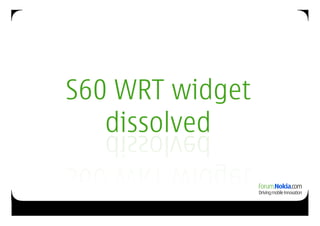

27. S60 WRT widget
dissolved

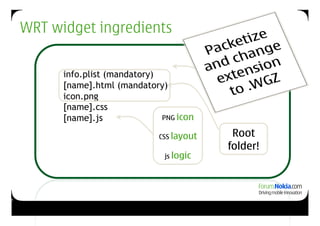

28. WRT widget ingredients
Widget
properties
info.plist (mandatory) +
[name].html (mandatory) HTML
backbone
[name].css
[name].js PNG icon
+
CSS layout Root
+ folder!
js logic
28

29. HTML
<html>
Defines the
<head>
..
</head>
<body id="body">
structure of <div id=‘mainView’>
</div>
<span class=‘title’>Front view</span>
the widget.
<div id=‘subView1’ class=‘subView’>
<p class=‘title’>Back view</p>
</div>
<div id=‘subView2’ class=‘subView’>
<p class=‘title’>Config view</p>
</div>
</body>
</html>
Views can be constructed with static
HTML elements or can be dynamically
created by JavaScript at runtime.

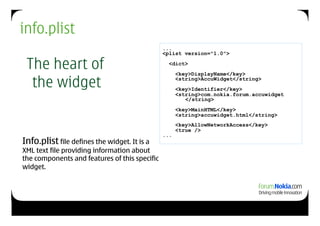

30. info.plist
...
<plist version="1.0">
The heart of <dict>
<key>DisplayName</key>
the widget <string>AccuWidget</string>
<key>Identifier</key>
<string>com.nokia.forum.accuwidget
</string>
<key>MainHTML</key>
<string>accuwidget.html</string>
<key>AllowNetworkAccess</key>
<true />
...
Info.plist file defines the widget. It is a
XML text file providing information about
the components and features of this specific
widget.

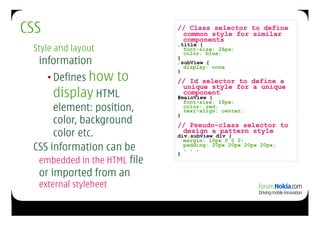

31. CSS // Class selector to define
common style for similar
components
.title {
Style and layout font-size: 26px;
color: blue;
information }
.subView {
display: none
• Defines how to
}
// Id selector to define a
unique style for a unique
display HTML component
#mainView {
font-size: 16px;
element: position, color: red;
text-align: center;
}
color, background // Pseudo-class selector to
color etc. design a pattern style
div.subview div {
margin: 10px 0 0 0;
CSS information can be }
padding: 20px 20px 20px 20px;
. . .
embedded in the HTML file
or imported from an
external styleheet

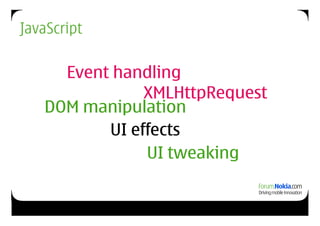

32. JavaScript
Event handling
XMLHttpRequest
DOM manipulation
UI effects
UI tweaking

33. How do I code then?

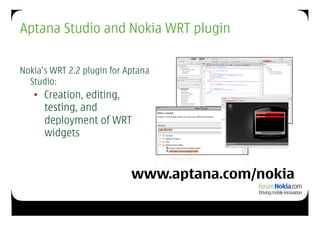

34. Aptana Studio and Nokia WRT plugin
Nokia’s WRT 2.2 plugin for Aptana
Studio:
• Creation, editing,
testing, and
deployment of WRT
widgets
www.aptana.com/nokia

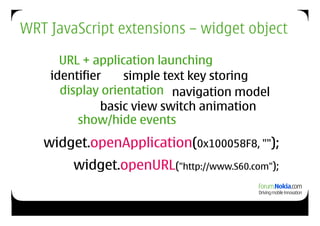

35. WRT JavaScript extensions – widget object
URL + application launching
identifier simple text key storing
display orientation navigation model
basic view switch animation
show/hide events
widget.openApplication(0x100058F8, "");
widget.openURL("http://www.S60.com");

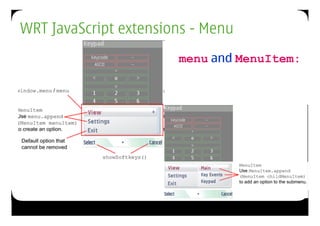

36. WRT JavaScript extensions - Menu
menu and MenuItem:

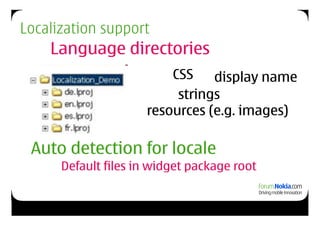

37. Localization support
Language directories
CSS display name
strings
resources (e.g. images)
Auto detection for locale
Default files in widget package root

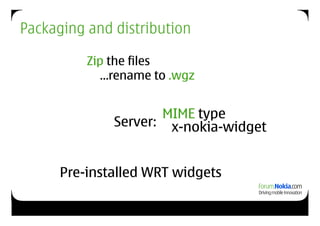

38. Packaging and distribution
Zip the files
…rename to .wgz
MIME type
Server: x-nokia-widget
Pre-installed WRT widgets

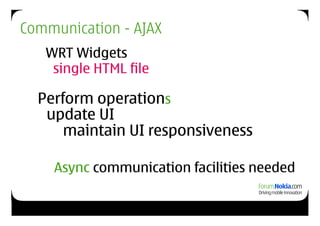

39. Communication - AJAX
WRT Widgets
single HTML file
Perform operations
update UI
maintain UI responsiveness
Async communication facilities needed

40. HTTP request – how to?
XMLHttpRequest
html
XML text
JSON

41. Libraries – easier approach
jQuery
MooTools

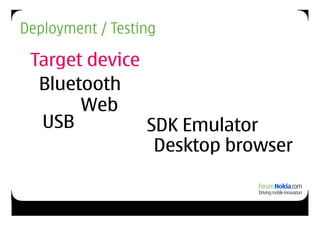

42. Deployment / Testing
Target device
Bluetooth
Web
USB SDK Emulator
Desktop browser

43. Home screen:
the implementation

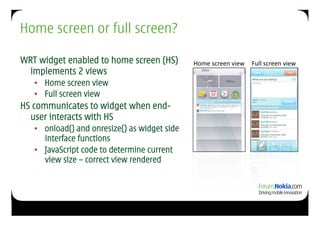

44. Home screen or full screen?
WRT widget enabled to home screen (HS) Home
screen
view
Full
screen
view
implements 2 views
• Home screen view
• Full screen view
HS communicates to widget when end-
user interacts with HS
• onload() and onresize() as widget side
interface functions
• JavaScript code to determine current
view size – correct view rendered

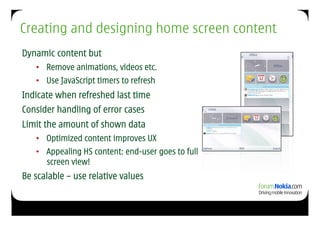

45. Creating and designing home screen content
Dynamic content but
• Remove animations, videos etc.
• Use JavaScript timers to refresh
Indicate when refreshed last time
Consider handling of error cases
Limit the amount of shown data
• Optimized content improves UX
• Appealing HS content: end-user goes to full
screen view!
Be scalable – use relative values

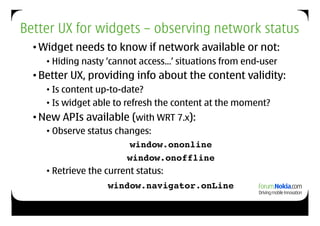

46. Better UX for widgets – observing network status
• Widget needs to know if network available or not:
• Hiding nasty ‘cannot access…’ situations from end-user
• Better UX, providing info about the content validity:
• Is content up-to-date?
• Is widget able to refresh the content at the moment?
• New APIs available (with WRT 7.x):
• Observe status changes:
window.ononline!
window.onoffline
• Retrieve the current status:
window.navigator.onLine

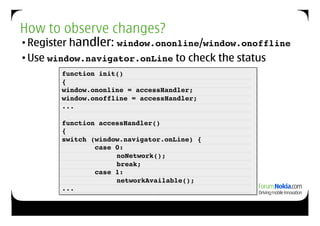

47. How to observe changes?
• Register handler: window.ononline/window.onoffline!
• Use window.navigator.onLine to check the status
function init()!
{!
window.ononline = accessHandler;!
window.onoffline = accessHandler;!
...!
function accessHandler()!
{!
switch (window.navigator.onLine) {!
case 0:!
! ! noNetwork();!
! break;!
case 1:!
! networkAvailable();!
...!

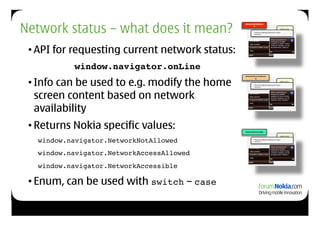

48. Network status – what does it mean?
NetworkNotAllowe
d
info.pli
st!
<key>AllowNetworkAccess</key> !
<false/>!
• API for requesting current network status:
window.navigator.onLine!
• Info can be used to e.g. modify the home
NetworkAccessAllowe
d
info.pli
st!
<key>AllowNetworkAccess</key> !
<false/>!
screen content based on network
availability
• Returns Nokia specific values: NetworkAccessible
info.pli
!window.navigator.NetworkNotAllowed !
st!
<key>AllowNetworkAccess</key> !
<false/>!
!window.navigator.NetworkAccessAllowed !
!window.navigator.NetworkAccessible!
• Enum, can be used with switch – case

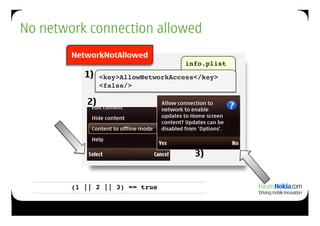

49. No network connection allowed
NetworkNotAllowed
info.plist!
1) <key>AllowNetworkAccess</key> !
<false/>!
2)
3)
(1 || 2 || 3) == true!

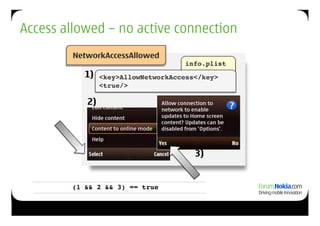

50. Access allowed – no active connection
NetworkAccessAllowed
info.plist!
1) <key>AllowNetworkAccess</key> !
<true/>!
2)
3)
(1 && 2 && 3) == true!

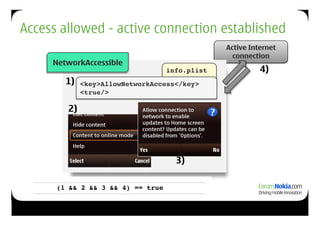

51. Access allowed - active connection established
Active Internet
connection
NetworkAccessible
info.plist! 4)
1) <key>AllowNetworkAccess</key> !
<true/>!
2)
3)
(1 && 2 && 3 && 4) == true!

52. Platform Services

53. WRT 1.0 vs. WRT 1.1
• 1.0 offering limited due to security considerations
• 1.1 available 5th Edition onwards (also for some 3rd. Ed. devices)
• What’s Nokia Platform Services 2.0 then?
• JavaScript API wrapper on top of the WRT 1.1 API: even easier
and extended access to platform services

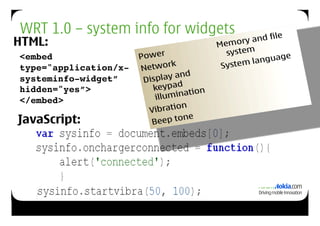

54. WRT 1.0 – system info for widgets
HTML:
<embed
type="application/x-
systeminfo-widget”
hidden="yes”>!
</embed>!
JavaScript:

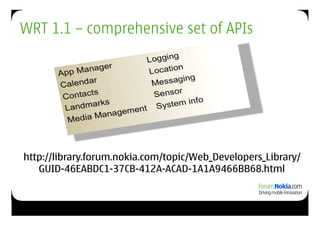

55. WRT 1.1 – comprehensive set of APIs
http://library.forum.nokia.com/topic/Web_Developers_Library/
GUID-46EABDC1-37CB-412A-ACAD-1A1A9466BB68.html

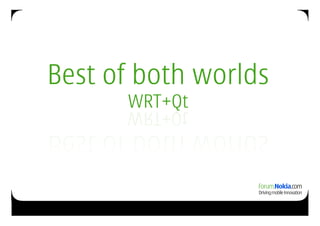

56. Best of both worlds
WRT+Qt

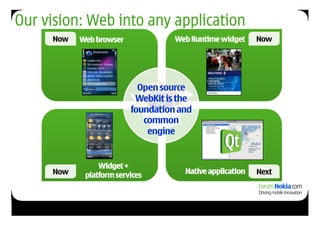

57. Our vision: Web into any application
Now Web browser Web Runtime widget Now
Open source
WebKit is the
foundation and
common
engine
Widget +
Now platform services Native application Next

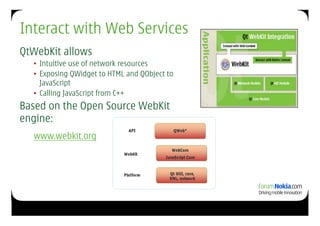

58. Interact with Web Services
QtWebKit allows
• Intuitive use of network resources
• Exposing QWidget to HTML and QObject to
JavaScript
• Calling JavaScript from C++
Based on the Open Source WebKit
engine:
www.webkit.org

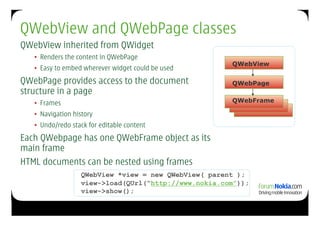

59. QWebView and QWebPage classes
QWebView inherited from QWidget
• Renders the content in QWebPage
QWebView
• Easy to embed wherever widget could be used
QWebPage provides access to the document QWebPage
structure in a page
• Frames QWebFrame
• Navigation history
• Undo/redo stack for editable content
Each QWebpage has one QWebFrame object as its
main frame
HTML documents can be nested using frames
QWebView *view = new QWebView( parent );
view->load(QUrl(“http://www.nokia.com”));
view->show();

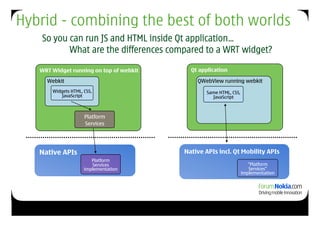

60. Hybrid - combining the best of both worlds
So you can run JS and HTML inside Qt application…
What are the differences compared to a WRT widget?
WRT Widget running on top of webkit Qt application
Webkit QWebView running webkit
Widgets HTML, CSS, Same HTML, CSS,
JavaScript JavaScript
Platform
Services
Native APIs Native APIs incl. Qt Mobility APIs
Platform
Services “Platform
implementation Services”
implementation

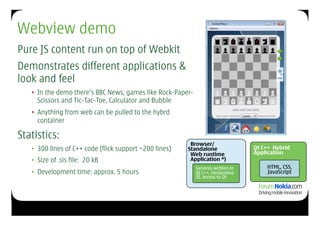

61. Webview demo
Pure JS content run on top of Webkit
Demonstrates different applications &
look and feel
• In the demo there’s BBC News, games like Rock-Paper-
Scissors and Tic-Tac-Toe, Calculator and Bubble
• Anything from web can be pulled to the hybrd
container
Statistics:
Browser/
• 300 lines of C++ code (flick support ~200 lines) Standalone Qt C++ Hybrid
Web runtime Application
• Size of .sis file: 20 kB Application *)
Services written in HTML, CSS,
• Development time: approx. 5 hours Qt C++, Declarative JavaScript
UI, Access to Qt

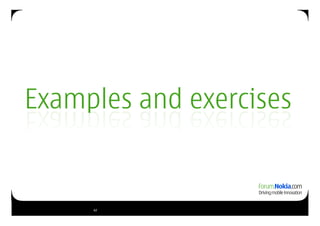

62. Examples and exercises
62
