Contact: https://www.linkedin.com/in/brandonjobrien @hakczar Code examples available at https://github.com/br4nd0n/spark-streaming and https://github.com/br4nd0n/spark-viz A demo and explanation of building a streaming application using Spark Streaming, Node.js and Redis with a real time visualization. Includes discussion of internals of Spark and Spark streaming including RDD partitioning and code and data distribution and cluster resource allocation.

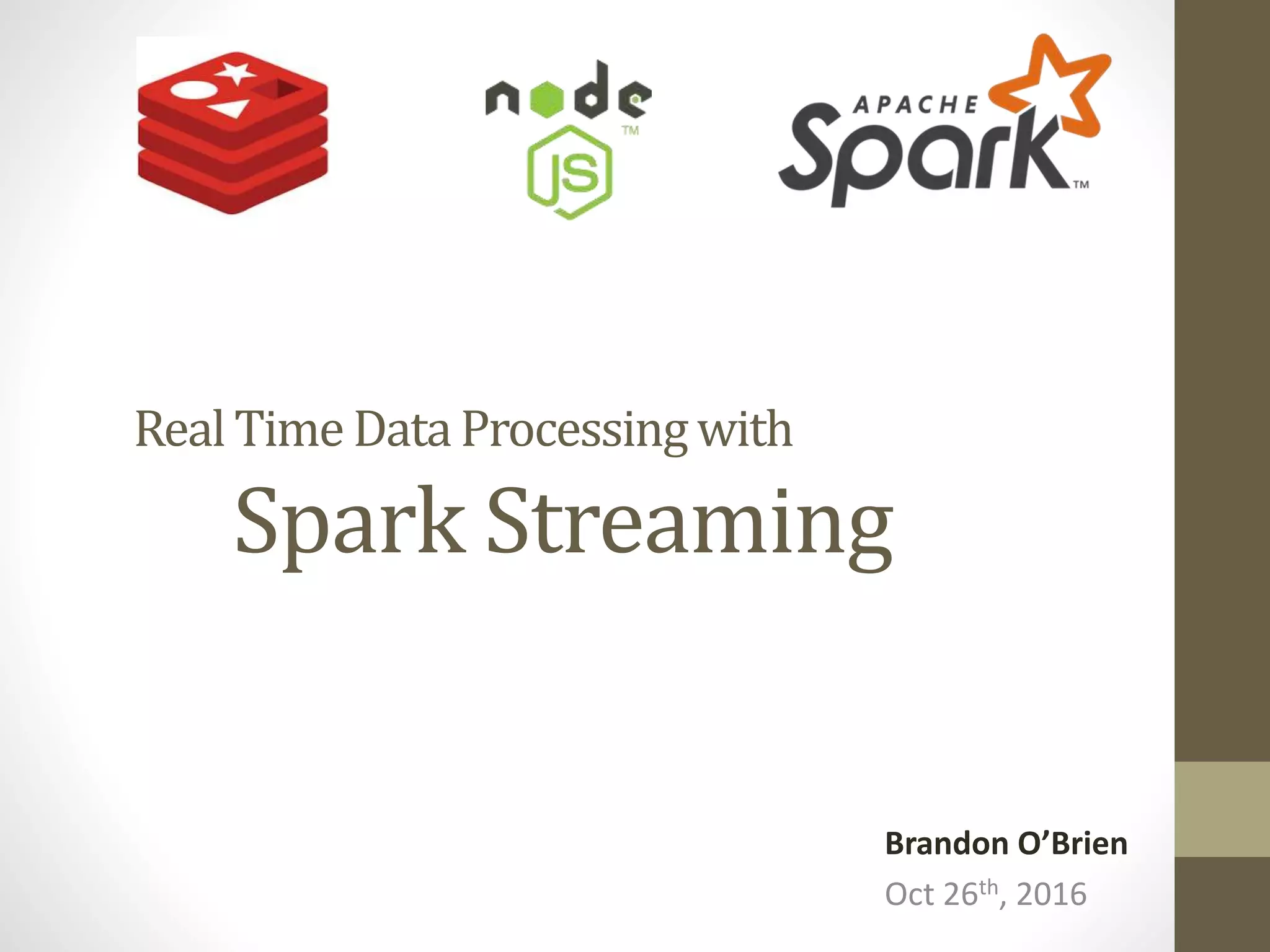

1. RealTime DataProcessing with
Spark Streaming
Brandon O’Brien
Oct 26th, 2016

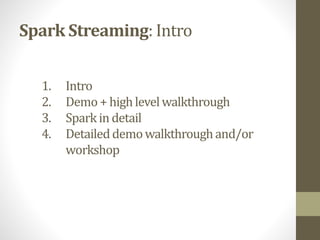

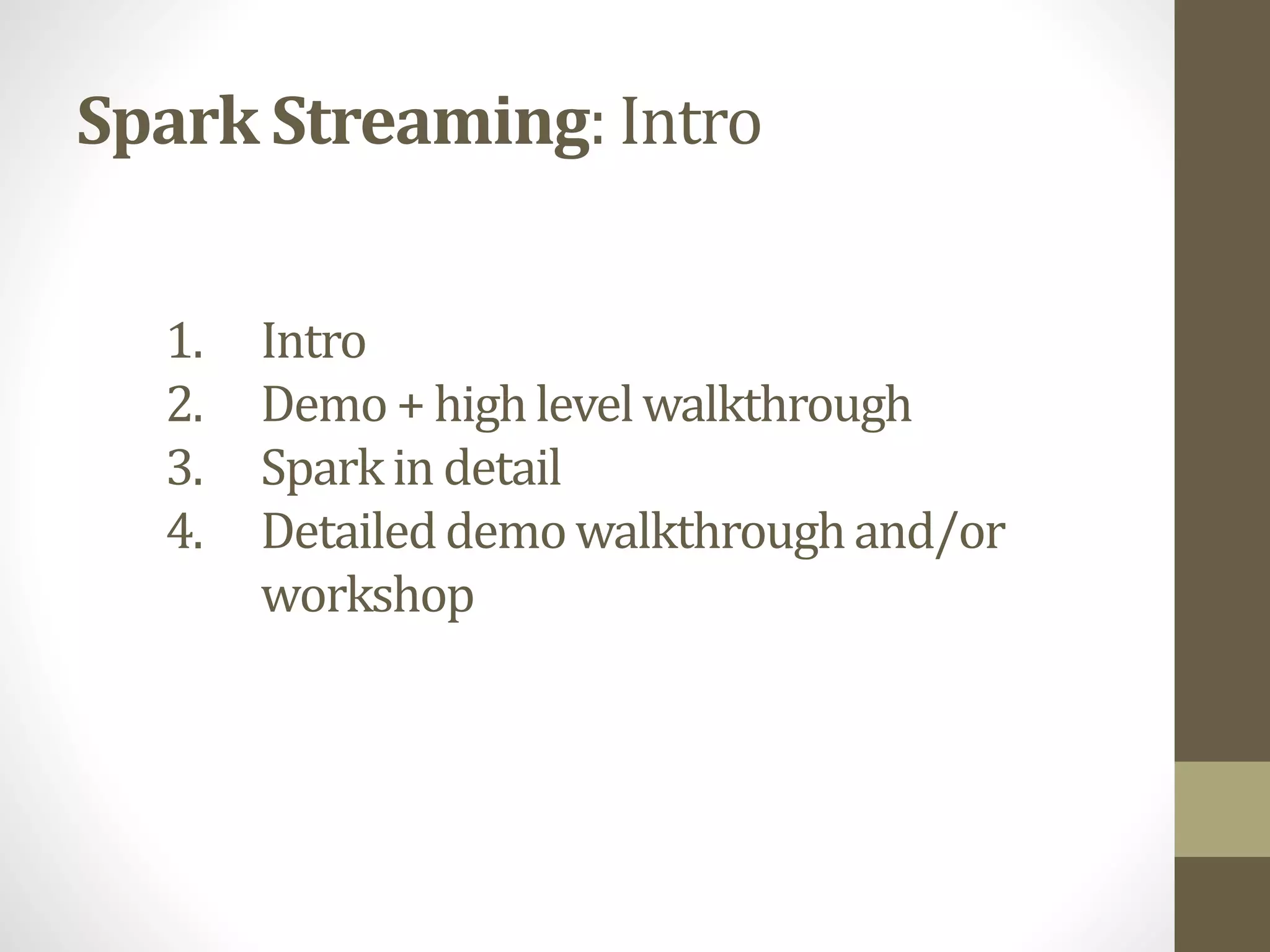

2. Spark Streaming: Intro
1. Intro
2. Demo + highlevelwalkthrough
3. Sparkin detail
4. Detaileddemowalkthroughand/or
workshop

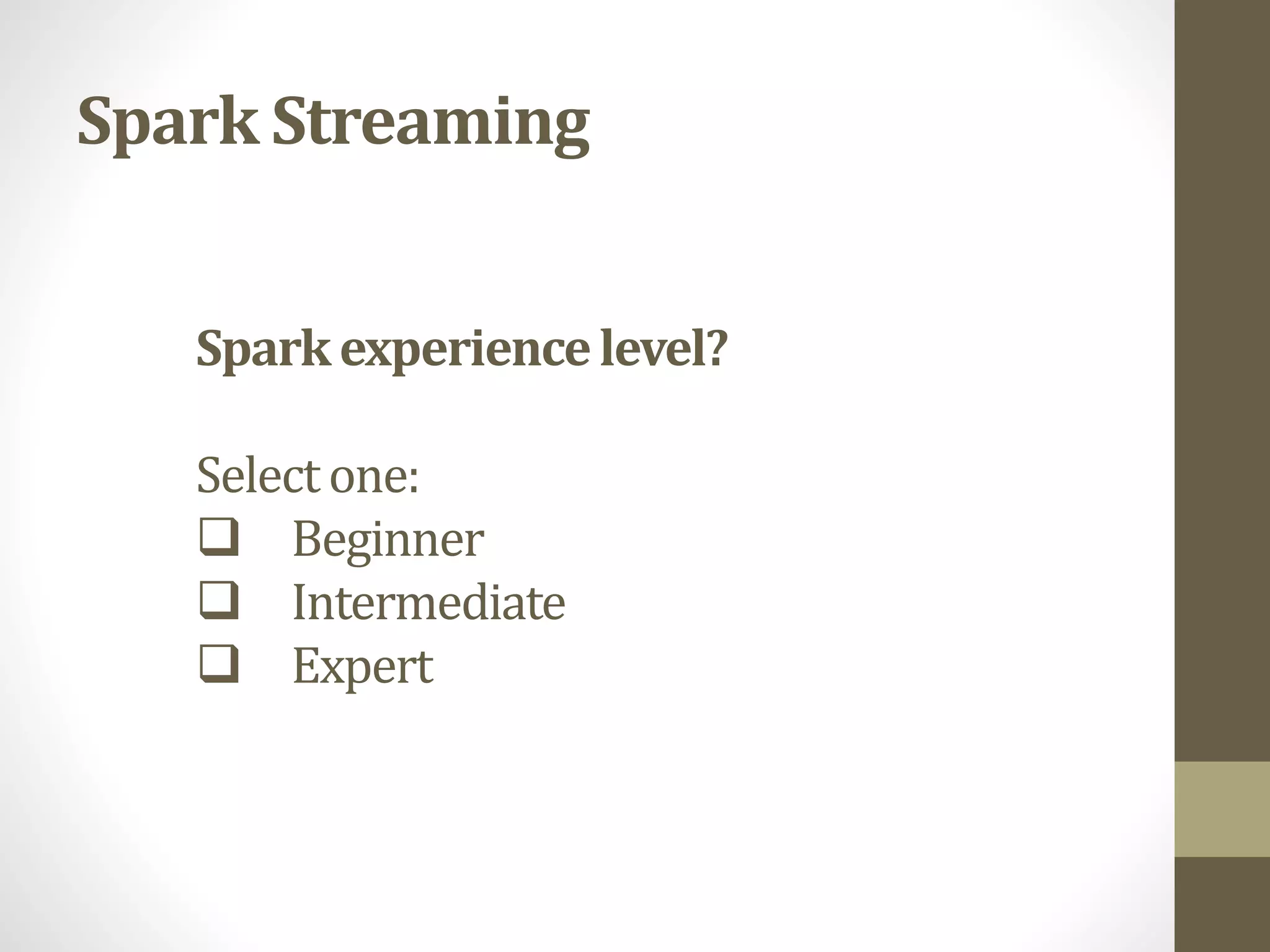

3. Spark Streaming
Sparkexperiencelevel?
Selectone:
 Beginner
 Intermediate
 Expert

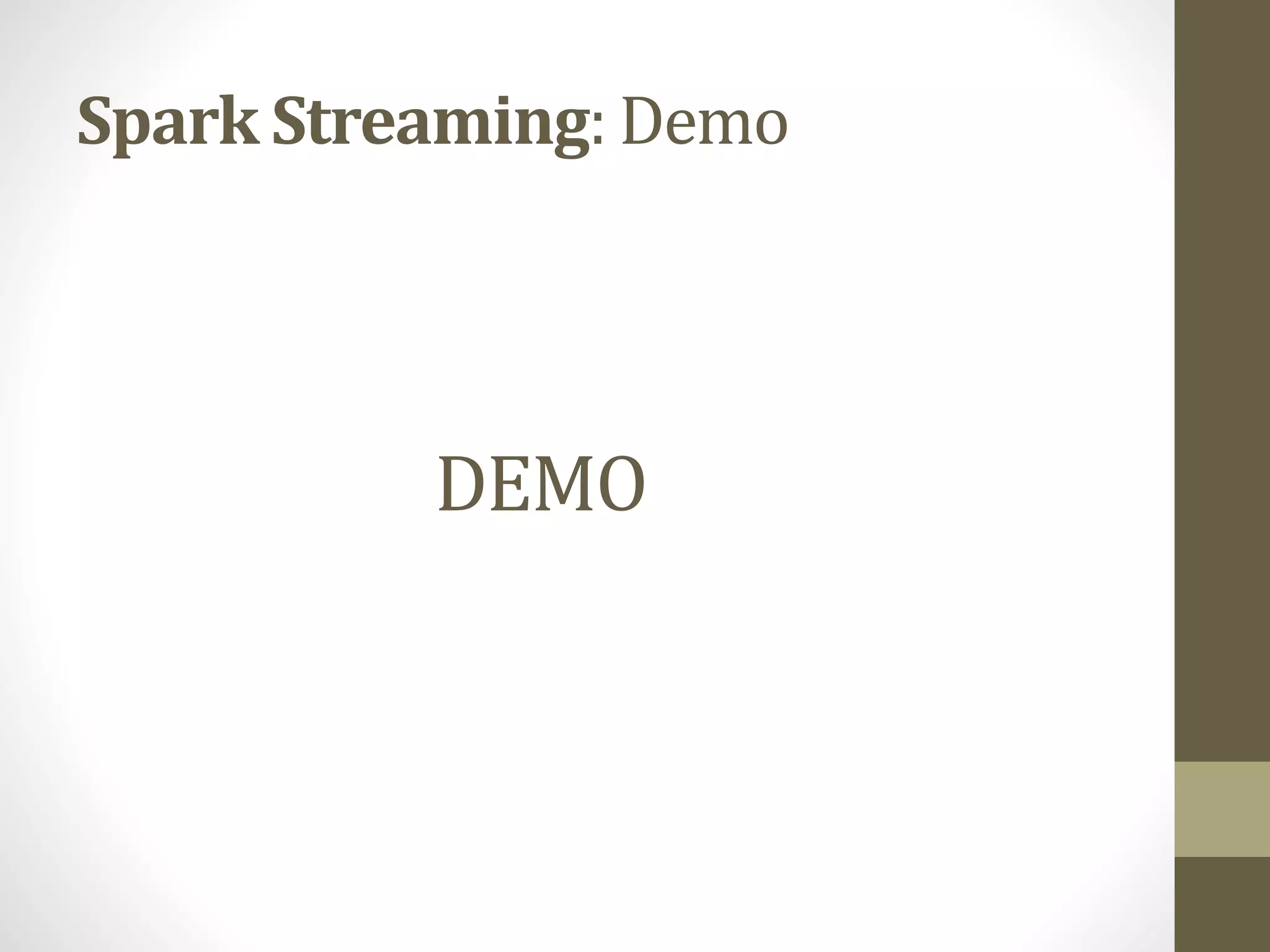

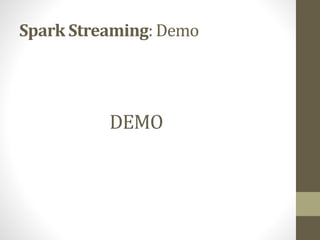

4. Spark Streaming: Demo
DEMO

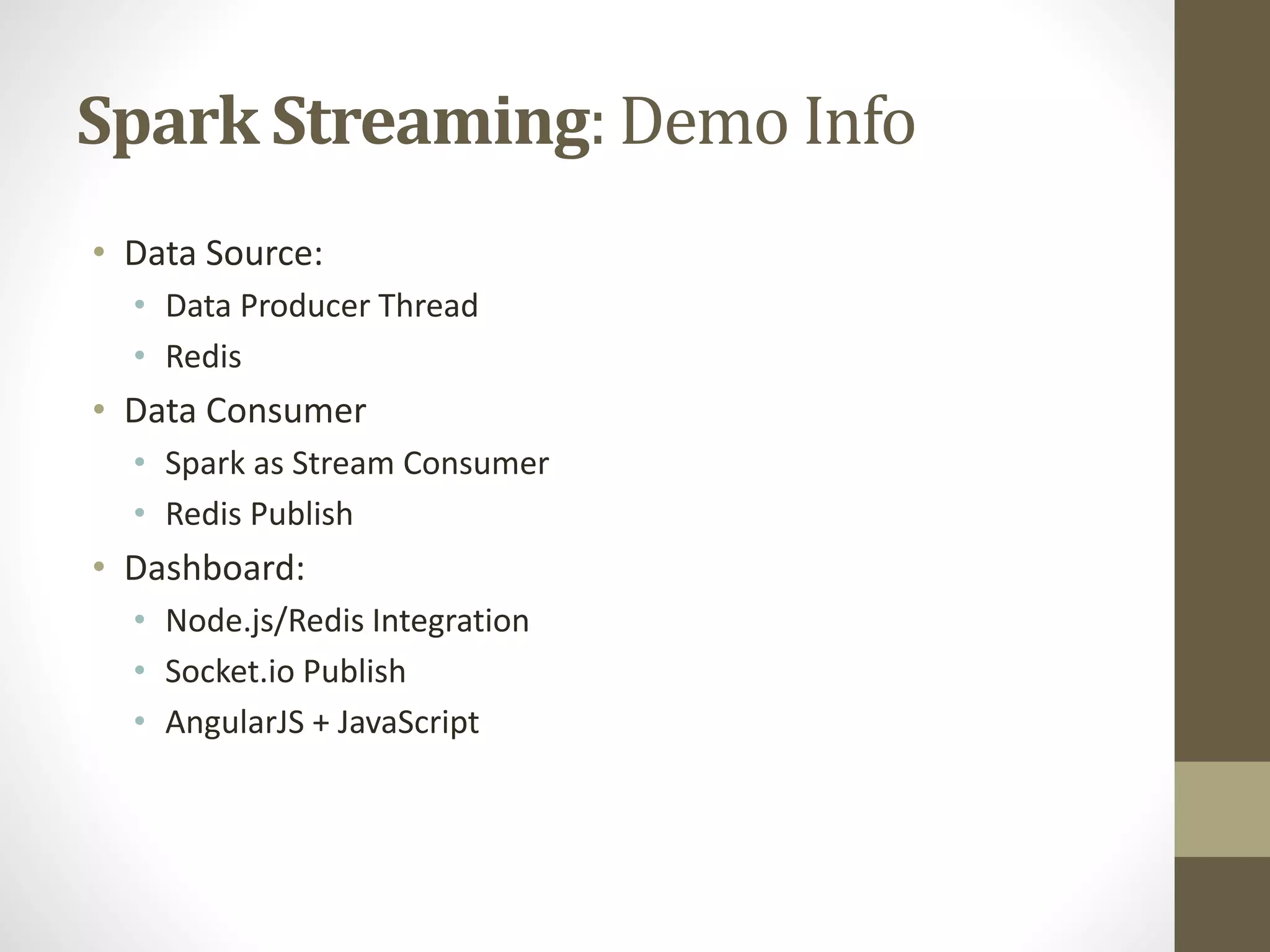

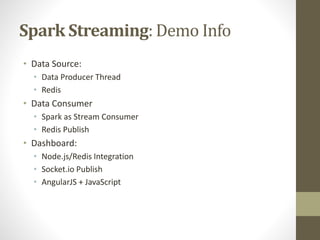

5. Spark Streaming: Demo Info
• Data Source:
• Data Producer Thread
• Redis
• Data Consumer
• Spark as Stream Consumer
• Redis Publish
• Dashboard:
• Node.js/Redis Integration
• Socket.io Publish
• AngularJS + JavaScript

6. Spark Streaming: Spark in detail
SPARK IN DETAIL

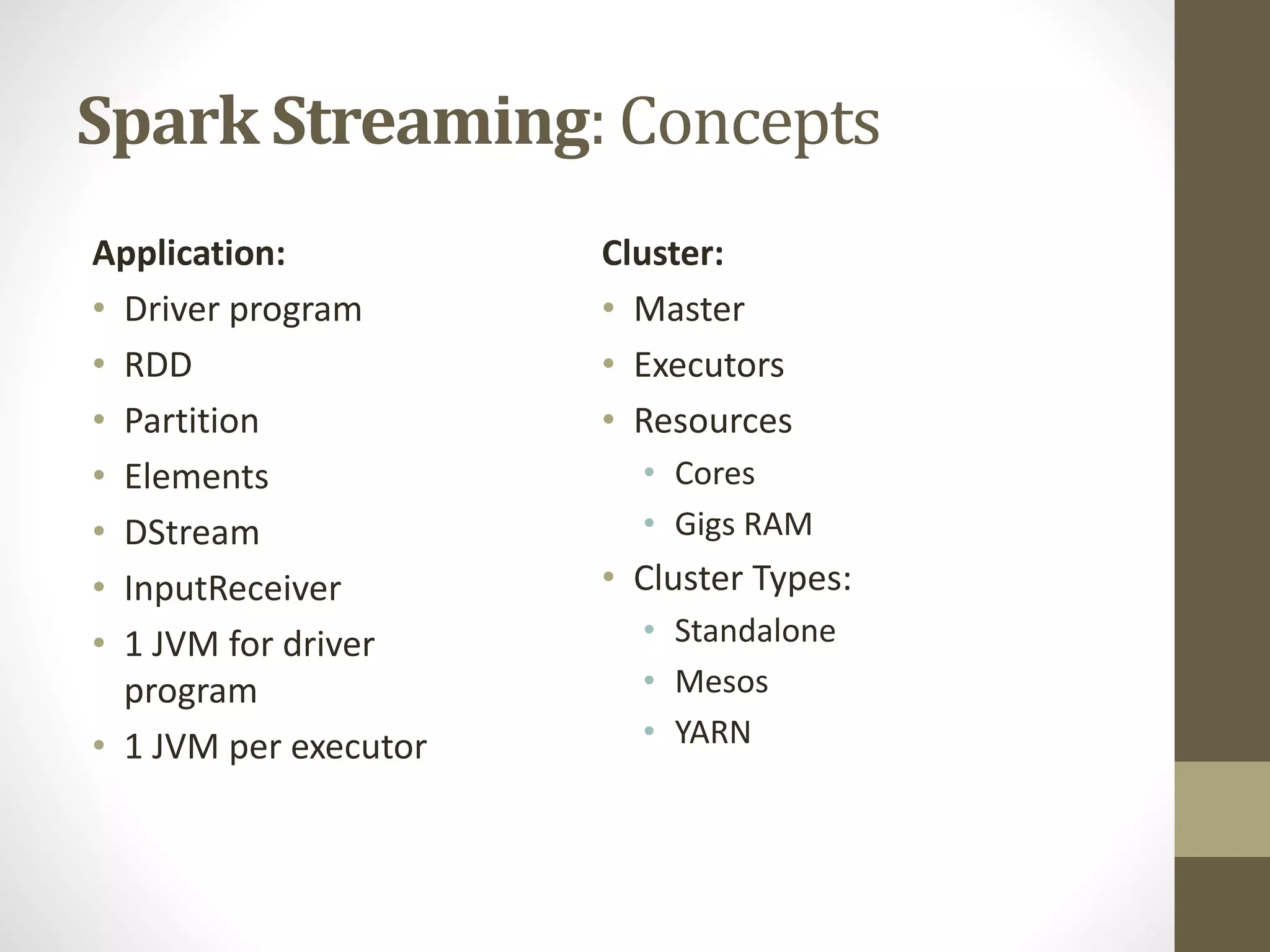

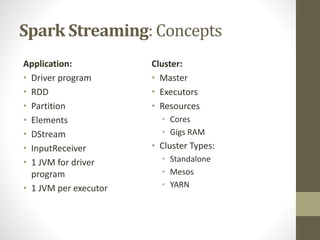

7. Spark Streaming: Concepts
Application:
• Driver program
• RDD
• Partition
• Elements
• DStream
• InputReceiver
• 1 JVM for driver
program
• 1 JVM per executor
Cluster:
• Master
• Executors
• Resources
• Cores
• Gigs RAM
• Cluster Types:
• Standalone
• Mesos
• YARN

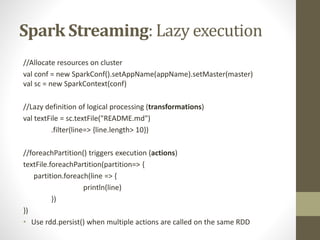

8. Spark Streaming: Lazy execution
//Allocate resources on cluster
val conf = new SparkConf().setAppName(appName).setMaster(master)
val sc = new SparkContext(conf)
//Lazy definition of logical processing (transformations)
val textFile = sc.textFile("README.md")
.filter(line=> {line.length> 10})
//foreachPartition() triggers execution (actions)
textFile.foreachPartition(partition=> {
partition.foreach(line => {
println(line)
})
})
• Use rdd.persist() when multiple actions are called on the same RDD

9. Spark Streaming: Execution Env
• Distributed data, distributed code
• RDD partitions are distributed across executors
• Actions trigger execution and return results to the driver program
• Code is executed on either the driver or executors
• Be careful of function closures!
//Function arguments to transformations executed on executors
val textFile = sc.textFile("README.md")
.filter(line=> {line.length> 10})
//collect() triggers execution (actions)
//executed on driver. foreachPartition executed on executors
textFile.collect().foreach(line => {
println(line)
})

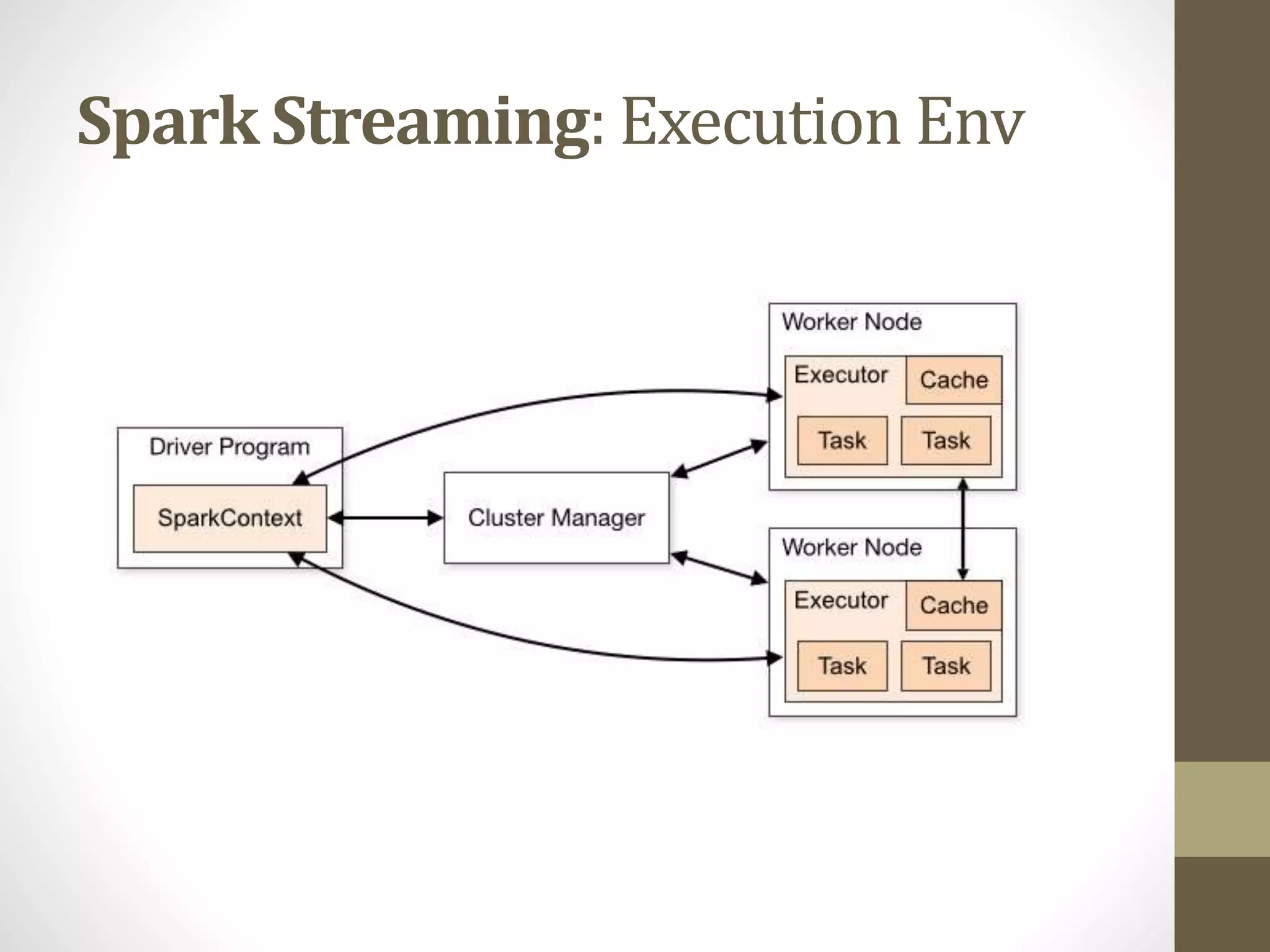

10. Spark Streaming: Execution Env

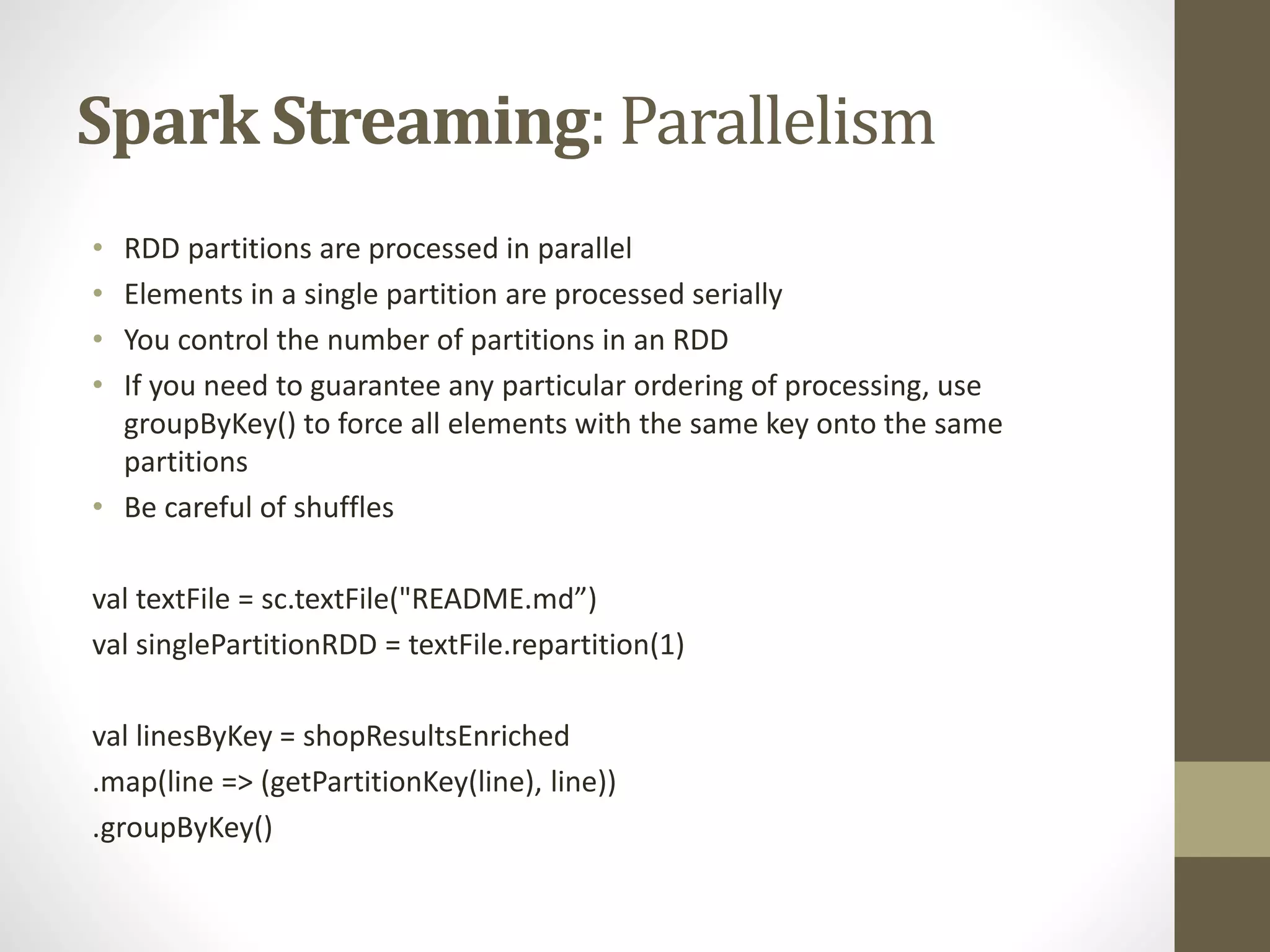

11. Spark Streaming: Parallelism
• RDD partitions are processed in parallel
• Elements in a single partition are processed serially
• You control the number of partitions in an RDD
• If you need to guarantee any particular ordering of processing, use
groupByKey() to force all elements with the same key onto the same
partitions
• Be careful of shuffles
val textFile = sc.textFile("README.md”)
val singlePartitionRDD = textFile.repartition(1)
val linesByKey = shopResultsEnriched
.map(line => (getPartitionKey(line), line))
.groupByKey()

12. Spark Streaming: DStreams
• Receiver Types
• Kafka (Receiver + Direct)
• Flume
• Kinesis
• TCP Socket
• Custom (Ex: redis.receiver.RedisReceiver.scala)
• Note: Kafka receiver will consume an entire core (no context switch)

13. RealTime DataProcessing with
Spark Streaming
Brandon O’Brien
Oct 26th, 2016
