Reading reliefs in toposheets

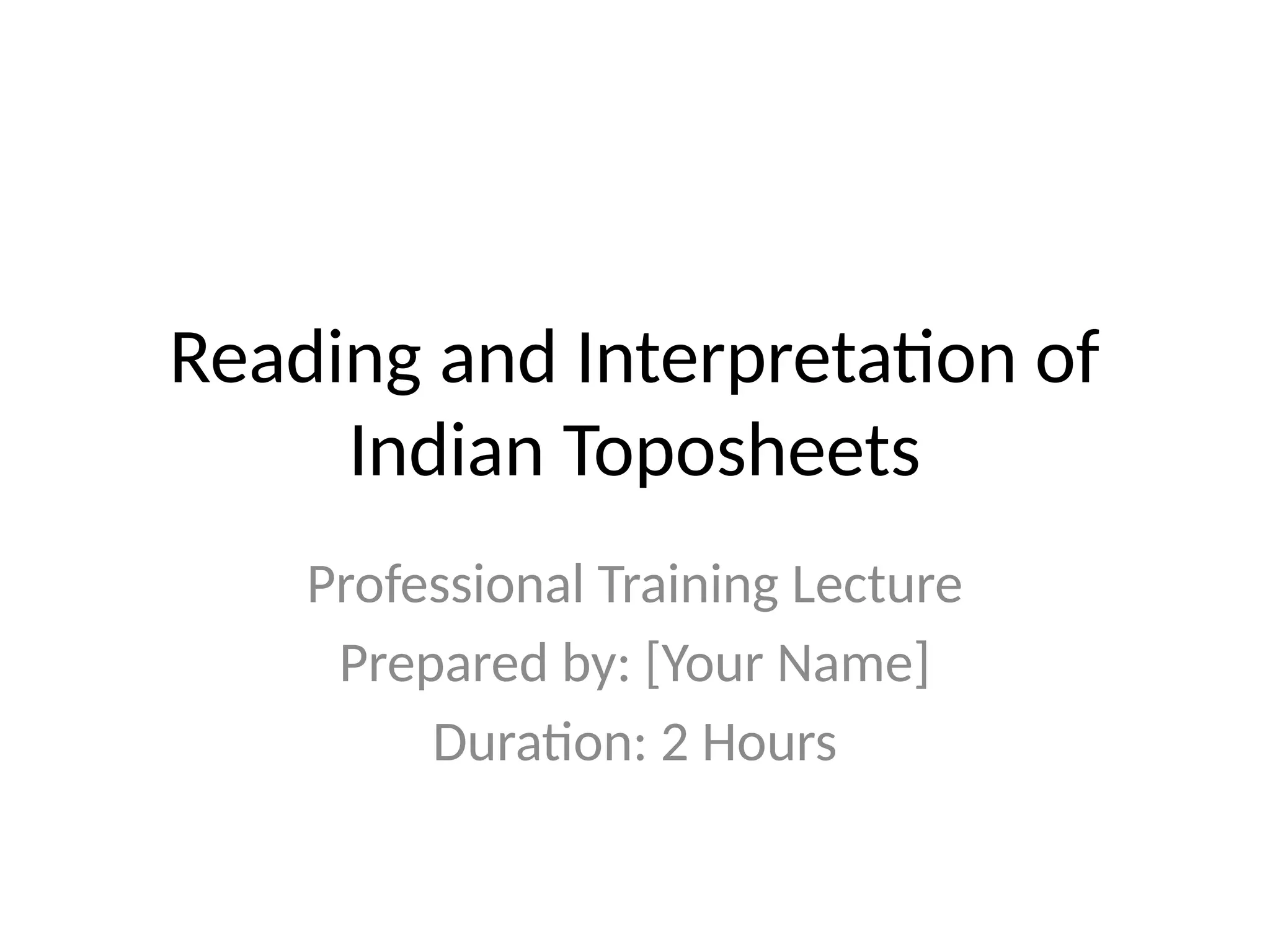

1. Reading and Interpretation of
Indian Toposheets
Professional Training Lecture
Prepared by: [Your Name]
Duration: 2 Hours

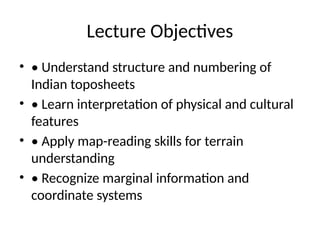

2. Lecture Objectives
• • Understand structure and numbering of
Indian toposheets
• • Learn interpretation of physical and cultural
features
• • Apply map-reading skills for terrain
understanding
• • Recognize marginal information and
coordinate systems

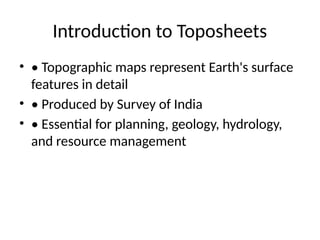

3. Introduction to Toposheets
• • Topographic maps represent Earth's surface
features in detail
• • Produced by Survey of India
• • Essential for planning, geology, hydrology,
and resource management

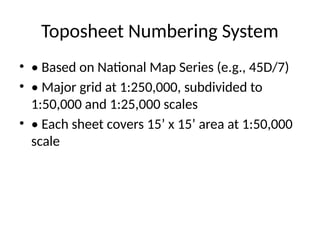

4. Toposheet Numbering System
• • Based on National Map Series (e.g., 45D/7)
• • Major grid at 1:250,000, subdivided to
1:50,000 and 1:25,000 scales
• • Each sheet covers 15’ x 15’ area at 1:50,000
scale

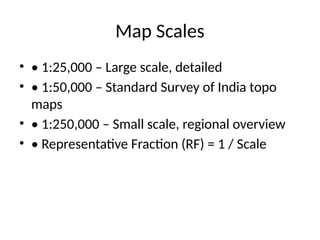

5. Map Scales
• • 1:25,000 – Large scale, detailed
• • 1:50,000 – Standard Survey of India topo
maps
• • 1:250,000 – Small scale, regional overview
• • Representative Fraction (RF) = 1 / Scale

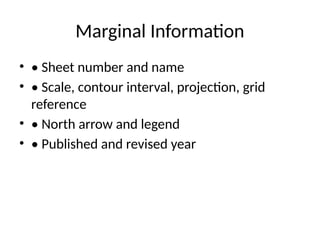

6. Marginal Information
• • Sheet number and name
• • Scale, contour interval, projection, grid
reference
• • North arrow and legend
• • Published and revised year

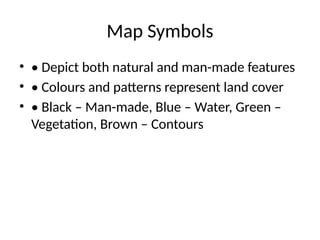

7. Map Symbols
• • Depict both natural and man-made features
• • Colours and patterns represent land cover
• • Black – Man-made, Blue – Water, Green –
Vegetation, Brown – Contours

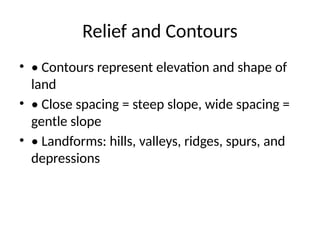

8. Relief and Contours
• • Contours represent elevation and shape of
land
• • Close spacing = steep slope, wide spacing =
gentle slope
• • Landforms: hills, valleys, ridges, spurs, and
depressions

9. Drainage Features
• • Drainage pattern indicates geology and slope
• • Common types: dendritic, trellis, radial,
rectangular
• • Identify rivers, streams, tanks, and wells

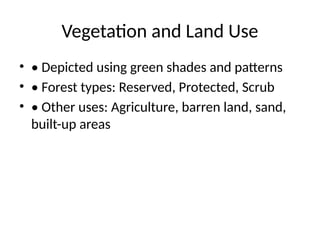

10. Vegetation and Land Use
• • Depicted using green shades and patterns
• • Forest types: Reserved, Protected, Scrub
• • Other uses: Agriculture, barren land, sand,
built-up areas

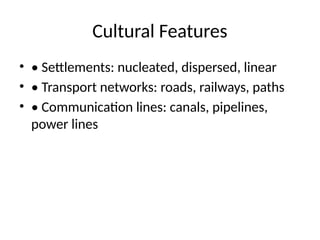

11. Cultural Features
• • Settlements: nucleated, dispersed, linear
• • Transport networks: roads, railways, paths
• • Communication lines: canals, pipelines,
power lines

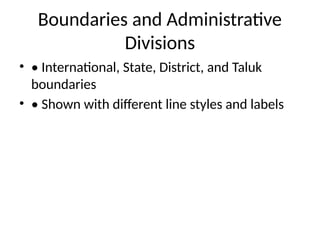

12. Boundaries and Administrative
Divisions
• • International, State, District, and Taluk
boundaries
• • Shown with different line styles and labels

13. Grid and Coordinate Systems
• • Latitude & Longitude – geographic
coordinates
• • Grid reference (e.g., Eastings & Northings)
• • 4-figure and 6-figure grid reference method
for locating points

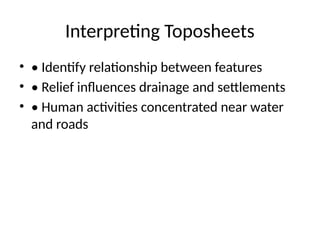

14. Interpreting Toposheets
• • Identify relationship between features
• • Relief influences drainage and settlements
• • Human activities concentrated near water
and roads

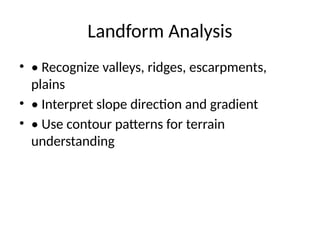

15. Landform Analysis
• • Recognize valleys, ridges, escarpments,
plains
• • Interpret slope direction and gradient
• • Use contour patterns for terrain
understanding

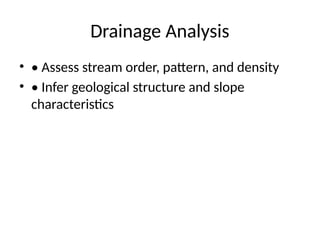

16. Drainage Analysis
• • Assess stream order, pattern, and density
• • Infer geological structure and slope
characteristics

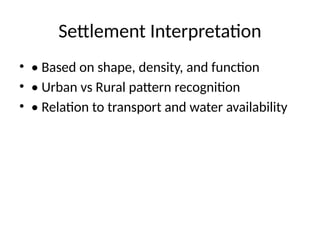

17. Settlement Interpretation
• • Based on shape, density, and function
• • Urban vs Rural pattern recognition
• • Relation to transport and water availability

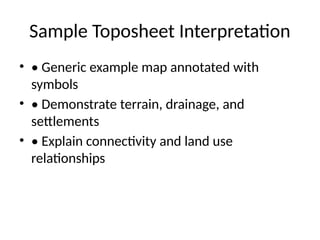

18. Sample Toposheet Interpretation
• • Generic example map annotated with
symbols
• • Demonstrate terrain, drainage, and
settlements
• • Explain connectivity and land use
relationships

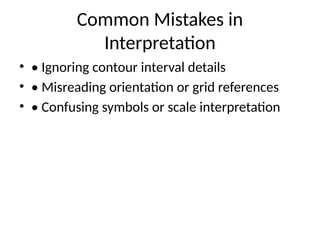

19. Common Mistakes in
Interpretation
• • Ignoring contour interval details
• • Misreading orientation or grid references
• • Confusing symbols or scale interpretation

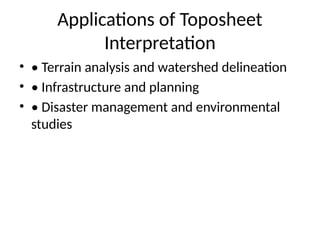

20. Applications of Toposheet
Interpretation
• • Terrain analysis and watershed delineation
• • Infrastructure and planning
• • Disaster management and environmental
studies

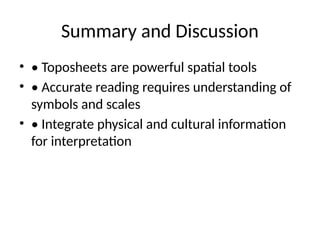

21. Summary and Discussion
• • Toposheets are powerful spatial tools
• • Accurate reading requires understanding of
symbols and scales
• • Integrate physical and cultural information
for interpretation
