The document discusses reactive architectures with microservices. It defines reactive architecture as being asynchronous, non-blocking, loosely coupled, and push-based. It recommends building reactive systems on AWS using services like ECS, Lambda, Kinesis, ElastiCache and DynamoDB. The application architecture described uses Vert.x and microservices like HTTP, caching and Redis Verticles. Global rollout is discussed, noting the options of a master region or distributed processing across regions using CloudFormation for infrastructure as code.

1. © 2017, Amazon Web Services, Inc. or its Affiliates. All rights reserved.
Sascha Möllering, Solutions Architect, @sascha242
07.11.2017
Reactive Architectures with
Microservices

2. © 2017, Amazon Web Services, Inc. or its Affiliates. All rights reserved.
https://secure.flickr.com/photos/mgifford/4525333972
Why are we
here today?

3. © 2017, Amazon Web Services, Inc. or its Affiliates. All rights reserved.
Agenda
• What is Reactive Architecture?
• How to build Reactive Architectures in AWS?
• Application Architecture
• Global Rollout
• Q&A

4. © 2017, Amazon Web Services, Inc. or its Affiliates. All rights reserved.© 2017, Amazon Web Services, Inc. or its Affiliates. All rights reserved.
What is Reactive Architecture?

5. © 2017, Amazon Web Services, Inc. or its Affiliates. All rights reserved.
Front-end
server
Internal
API
Internal
APIAPI
Poll
Poll
Database
Storage
Queries
Synchronous
User waits
for update

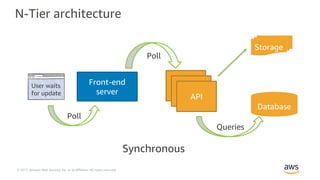

N-Tier architecture

6. © 2017, Amazon Web Services, Inc. or its Affiliates. All rights reserved.
Software moves
faster today

7. © 2017, Amazon Web Services, Inc. or its Affiliates. All rights reserved.
Traditional style of
applications cannot deliver
on these requirements any
longer

8. © 2017, Amazon Web Services, Inc. or its Affiliates. All rights reserved.
Responsive
Elastic Resilient
Message-driven
Reactive Applications

9. © 2017, Amazon Web Services, Inc. or its Affiliates. All rights reserved.
Reactive programming
“A development model focusing
on the observation of data
streams, reacting on changes, and
propagating them”
Reactive Architecture
Reactive system
“An architecture style used to
build responsive and robust
distributed systems based on
asynchronous message-passing.”

10. © 2017, Amazon Web Services, Inc. or its Affiliates. All rights reserved.
Reactive Architecture
• Asynchronous message passing
• Non-blocking
• Higher throughput
• Effective hardware utilization and lower costs
• Loosely coupled
• Location independent
• Easy to extend and maintain
• Push-based

11. © 2017, Amazon Web Services, Inc. or its Affiliates. All rights reserved.© 2017, Amazon Web Services, Inc. or its Affiliates. All rights reserved.
Microservices

12. © 2017, Amazon Web Services, Inc. or its Affiliates. All rights reserved.
Microservices should be stateless.
Keep state in external systems.

13. © 2017, Amazon Web Services, Inc. or its Affiliates. All rights reserved.
Avoid
Host-Affinity.

14. © 2017, Amazon Web Services, Inc. or its Affiliates. All rights reserved.
Use lightweight
protocols for
communication.

15. © 2017, Amazon Web Services, Inc. or its Affiliates. All rights reserved.
Use mechanisms for
registration.

16. © 2017, Amazon Web Services, Inc. or its Affiliates. All rights reserved.© 2017, Amazon Web Services, Inc. or its Affiliates. All rights reserved.
How to build Reactive
Architectures in AWS?

17. © 2017, Amazon Web Services, Inc. or its Affiliates. All rights reserved.
Example use case
Banner
Icon made by Freepik from www.flaticon.com
Customer visits
website
Customer clicks
on a banner
Customer buys
from online-shop

18. © 2017, Amazon Web Services, Inc. or its Affiliates. All rights reserved.© 2017, Amazon Web Services, Inc. or its Affiliates. All rights reserved.
High Level Architecture

19. © 2017, Amazon Web Services, Inc. or its Affiliates. All rights reserved.
Amazon ECSApplication
Load Balancer
Amazon ECR
Kinesis
Stream
Kinesis
Stream
Lambda
function
Lambda
function
ElastiCache
cluster
Data ingestion
Core data
update
Amazon
DynamoDB
Core data updates
Data collection

20. © 2017, Amazon Web Services, Inc. or its Affiliates. All rights reserved.
High Level Architecture
• Amazon ECS and Docker used for the main
application
• Resiliency and Elasticity implemented by
using Auto Scaling

21. © 2017, Amazon Web Services, Inc. or its Affiliates. All rights reserved.

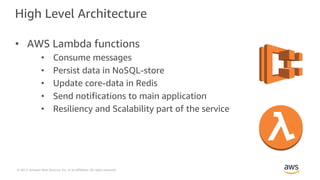

High Level Architecture
• AWS Lambda functions
• Consume messages
• Persist data in NoSQL-store
• Update core-data in Redis
• Send notifications to main application
• Resiliency and Scalability part of the service

22. © 2017, Amazon Web Services, Inc. or its Affiliates. All rights reserved.
High Level Architecture
• Amazon Kinesis Streams used to decouple
components
• Asynchronously push event data to NoSQL-
store
• Update core-data in Redis

23. © 2017, Amazon Web Services, Inc. or its Affiliates. All rights reserved.
High Level Architecture
• Amazon ElastiCache with Redis 3 engine
• Multi-AZ setup with failover and one shard
• Used to store core-data
• Notification channel
• Redis supports pub/sub

24. © 2017, Amazon Web Services, Inc. or its Affiliates. All rights reserved.
High Level Architecture
• Amazon DynamoDB NoSQL-store used to
persist event-data

25. © 2017, Amazon Web Services, Inc. or its Affiliates. All rights reserved.© 2017, Amazon Web Services, Inc. or its Affiliates. All rights reserved.
Application Architecture

26. © 2017, Amazon Web Services, Inc. or its Affiliates. All rights reserved.
Amazon ECSApplication
Load Balancer
Amazon ECR
Kinesis
Stream
Kinesis
Stream
Lambda
function
Lambda
function
ElastiCache
cluster
Data ingestion
Core data
update
Amazon
DynamoDB
Core data updates
Data collection
You are here now!

27. © 2017, Amazon Web Services, Inc. or its Affiliates. All rights reserved.
Application Architecture

28. © 2017, Amazon Web Services, Inc. or its Affiliates. All rights reserved.
Application Architecture
Picture source: http://vertx.io/docs/guide-for-java-devs/

29. © 2017, Amazon Web Services, Inc. or its Affiliates. All rights reserved.
Application Architecture
“Don’t block the event
loop!”
- Vert.x golden rule

30. © 2017, Amazon Web Services, Inc. or its Affiliates. All rights reserved.
Application Architecture
Picture source: http://vertx.io/docs/guide-for-java-devs/

31. © 2017, Amazon Web Services, Inc. or its Affiliates. All rights reserved.
Application Architecture
Picture source: http://vertx.io/docs/guide-for-java-devs/

32. © 2017, Amazon Web Services, Inc. or its Affiliates. All rights reserved.
Application Architecture
• HttpVerticle: exposes HTTP endpoint
• CacheVerticle: implements L1 cache
• RedisVerticle: implements Redis access
• KinesisVerticle: messages to Amazon Kinesis Stream

33. © 2017, Amazon Web Services, Inc. or its Affiliates. All rights reserved.
Subscribe to EB
Send prepared data

34. © 2017, Amazon Web Services, Inc. or its Affiliates. All rights reserved.
Application Architecture
Cache
Rules
Everything
Around
Me

35. © 2017, Amazon Web Services, Inc. or its Affiliates. All rights reserved.
Subscribe to EB
Subscribe to
Redis channel
Consume data
from event bus
Send data to
cache verticle

36. © 2017, Amazon Web Services, Inc. or its Affiliates. All rights reserved.
Amazon ECSApplication
Load Balancer
Amazon ECR
Kinesis
Stream
Kinesis
Stream
Lambda
function
Lambda
function
ElastiCache
cluster
Data ingestion
Core data
update
Amazon
DynamoDB
Core data updates
Data collection You are here now!

37. © 2017, Amazon Web Services, Inc. or its Affiliates. All rights reserved.
Application Architecture
AWS Lambda

38. © 2017, Amazon Web Services, Inc. or its Affiliates. All rights reserved.
Lambda considerations and best practices
AWS Lambda is stateless—architect accordingly
• Assume no affinity with underlying compute
infrastructure
• Local filesystem access and child process may not
extend beyond the lifetime of the Lambda request

39. © 2017, Amazon Web Services, Inc. or its Affiliates. All rights reserved.
Kinesis event
processing
Iterate over
batch of events

40. © 2017, Amazon Web Services, Inc. or its Affiliates. All rights reserved.© 2017, Amazon Web Services, Inc. or its Affiliates. All rights reserved.
Global Rollout

41. © 2017, Amazon Web Services, Inc. or its Affiliates. All rights reserved.
16 Regions
44 Availability Zones
AWS Global Infrastructure

42. © 2017, Amazon Web Services, Inc. or its Affiliates. All rights reserved.
Global Rollout
AWS CloudFormation

43. © 2017, Amazon Web Services, Inc. or its Affiliates. All rights reserved.
Global Rollout
• Infrastructure as Code
• Create and manage resources with CloudFormation
templates
• CloudFormation template is used to deploy stacks

44. © 2017, Amazon Web Services, Inc. or its Affiliates. All rights reserved.
Global Rollout

45. © 2017, Amazon Web Services, Inc. or its Affiliates. All rights reserved.
Master Region
• One stream of data
• One region to process data
• Data has to be transferred
inter region
Global Rollout
Distributed Processing
• Data processing in every
region
• No unified view on data

46. © 2017, Amazon Web Services, Inc. or its Affiliates. All rights reserved.© 2017, Amazon Web Services, Inc. or its Affiliates. All rights reserved.
Summary

47. © 2017, Amazon Web Services, Inc. or its Affiliates. All rights reserved.
Summary
• Reactive Architectures very good fit for AWS Cloud
• Microservices improve isolation
• AWS offers a lot of services for decoupled application
design
• Focus on business requirements, don’t reinvent the
wheel

48. © 2017, Amazon Web Services, Inc. or its Affiliates. All rights reserved.
Thank you!
