1. Microservices and API Gateways
in the AWS Cloud
Jean-Pierre Le Goaller
Senior Manager of Solutions Architecture
Amazon Web Services
Davide Gallo
Enterprise Accounts Director
Amazon Web Services

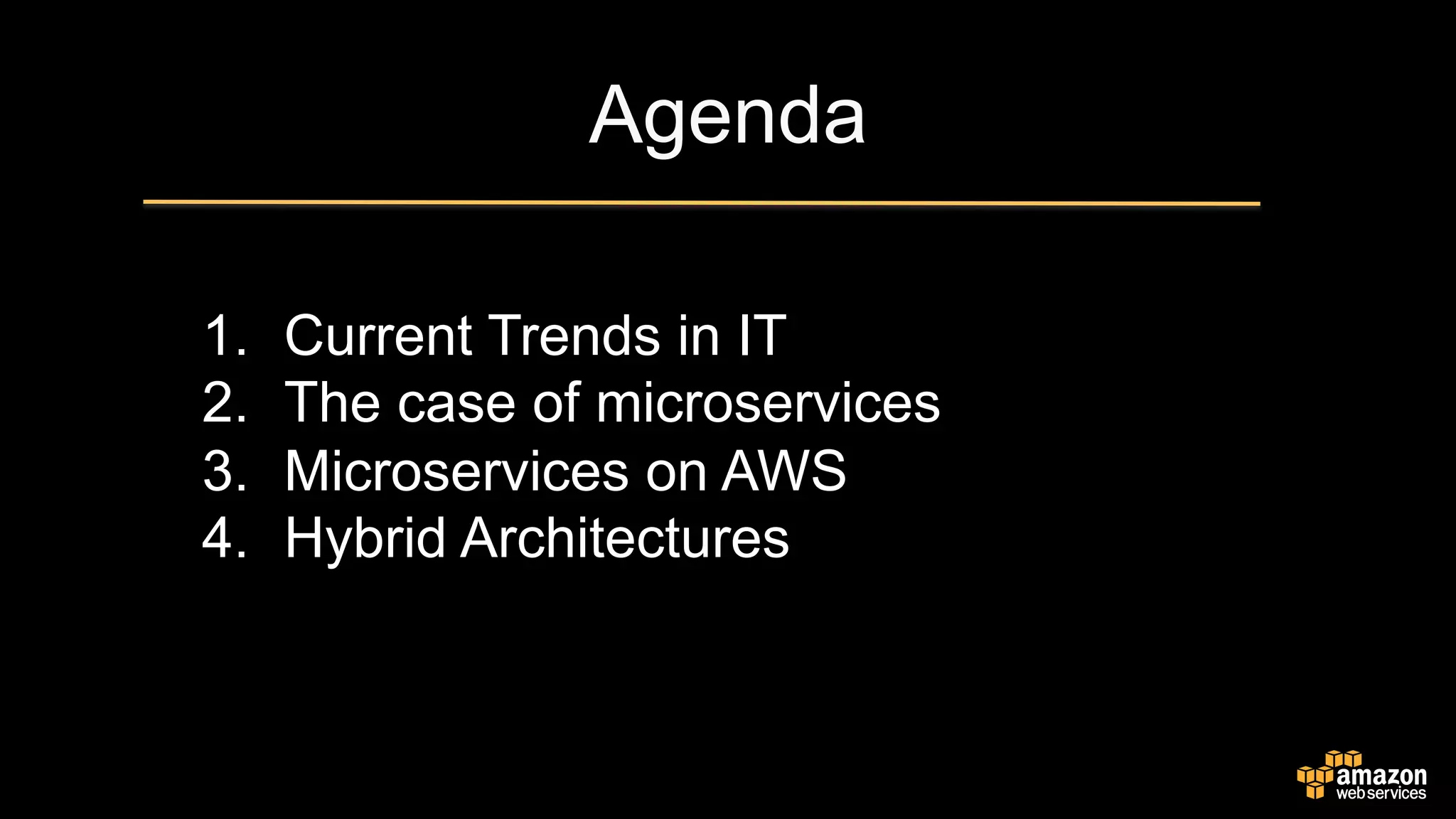

2. Agenda
1. Current Trends in IT
2. The case of microservices
3. Microservices on AWS
4. Hybrid Architectures

3. Software and Internet-enabled disruption

4. Darwinian survival principles
Established and well capitalized businesses are no longer insulated from
the disruptive market forces that technology advances have enabled.
Goliath has never been more vulnerable.
“It is not the strongest of the species
that survives, nor the most intelligent
that survives. It is the one that is
most adaptable to change.”
Charles Darwin (1809 – 1882)

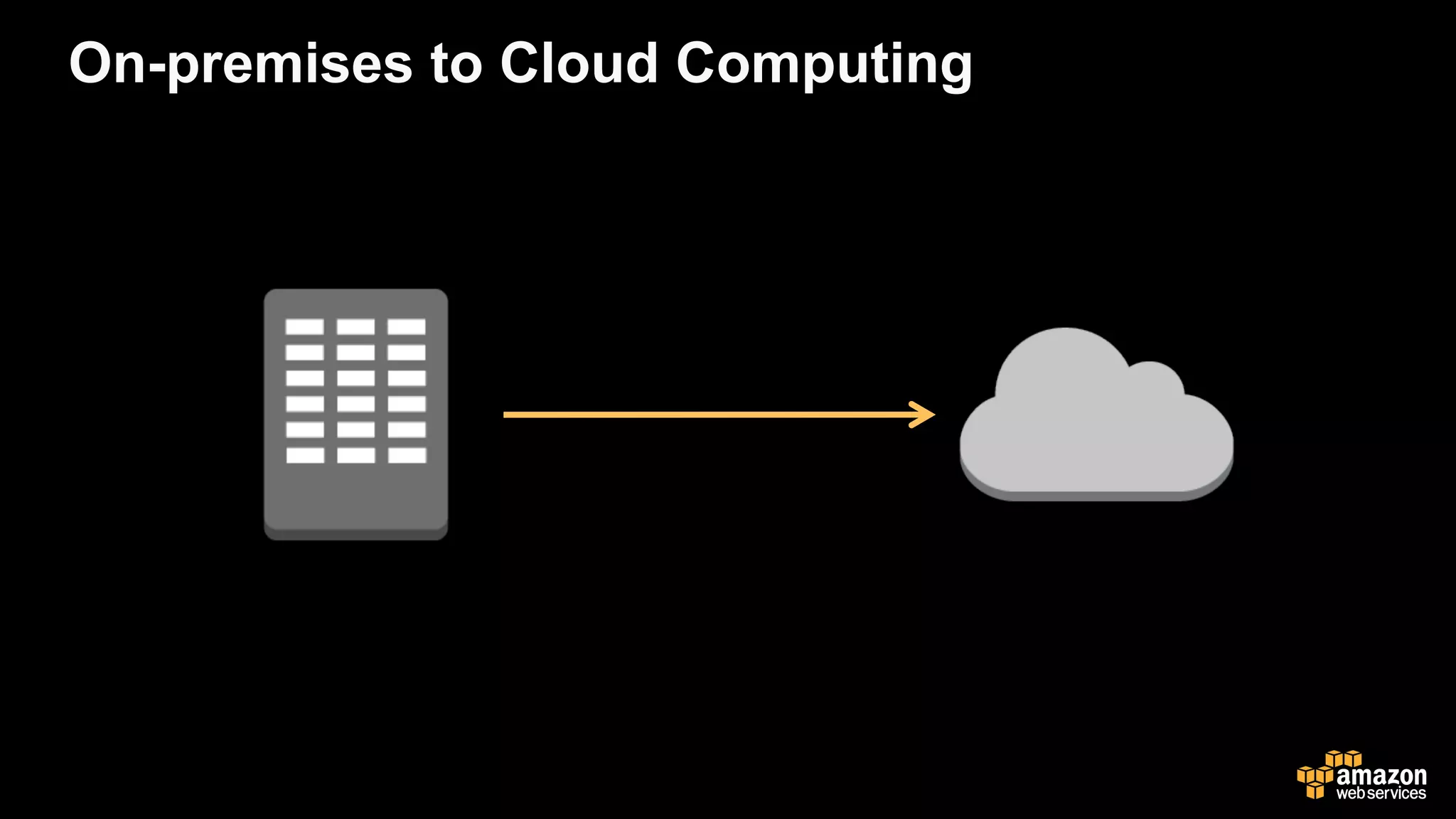

5. On-premises to Cloud Computing

6. Waterfall to Agile Development Process

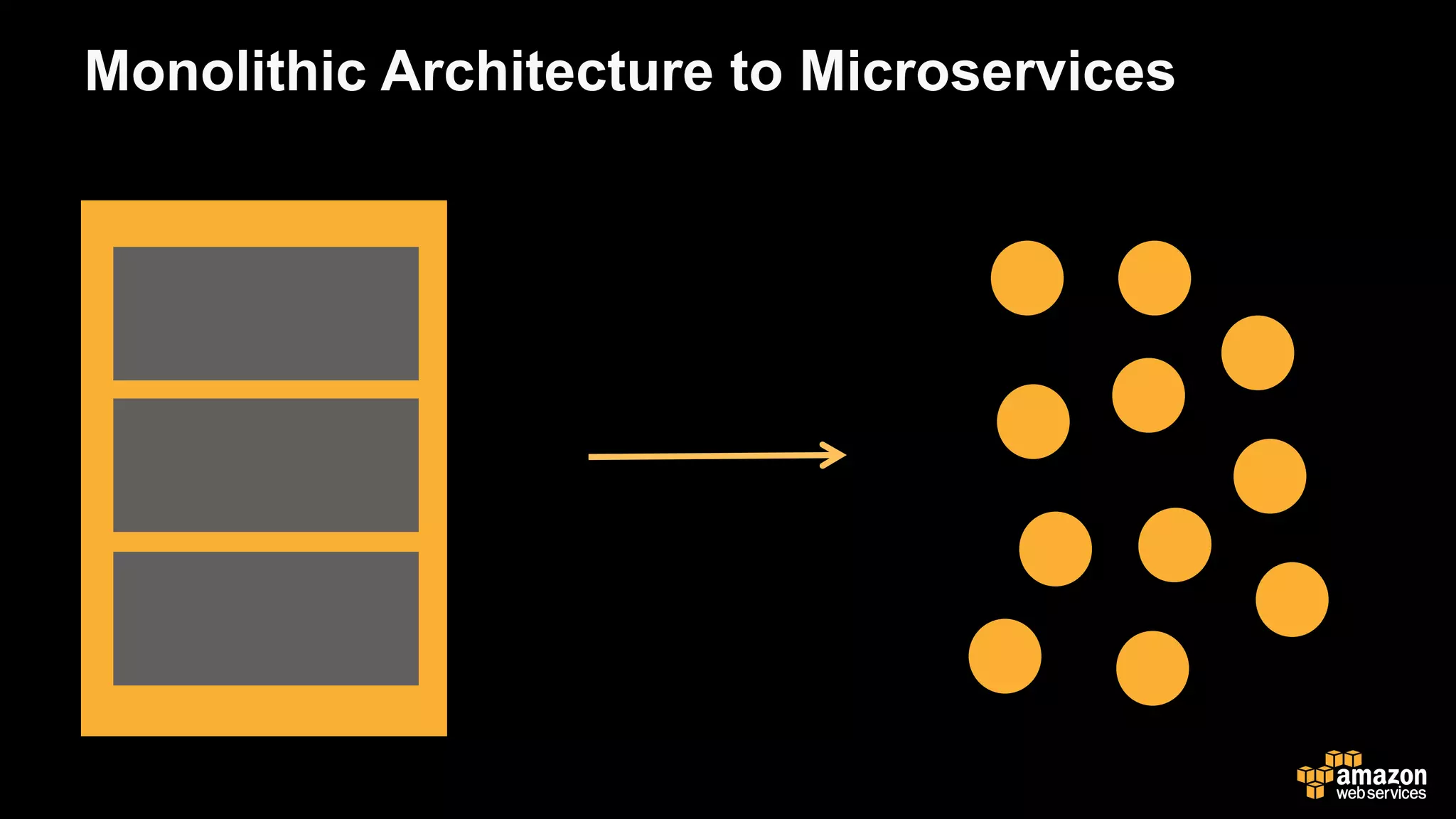

7. Monolithic Architecture to Microservices

8. The case for microservices

9. Monolith
Microservices
Architecture

10. developers customers
releasetestbuild
plan monitor
delivery pipeline
feedback loop

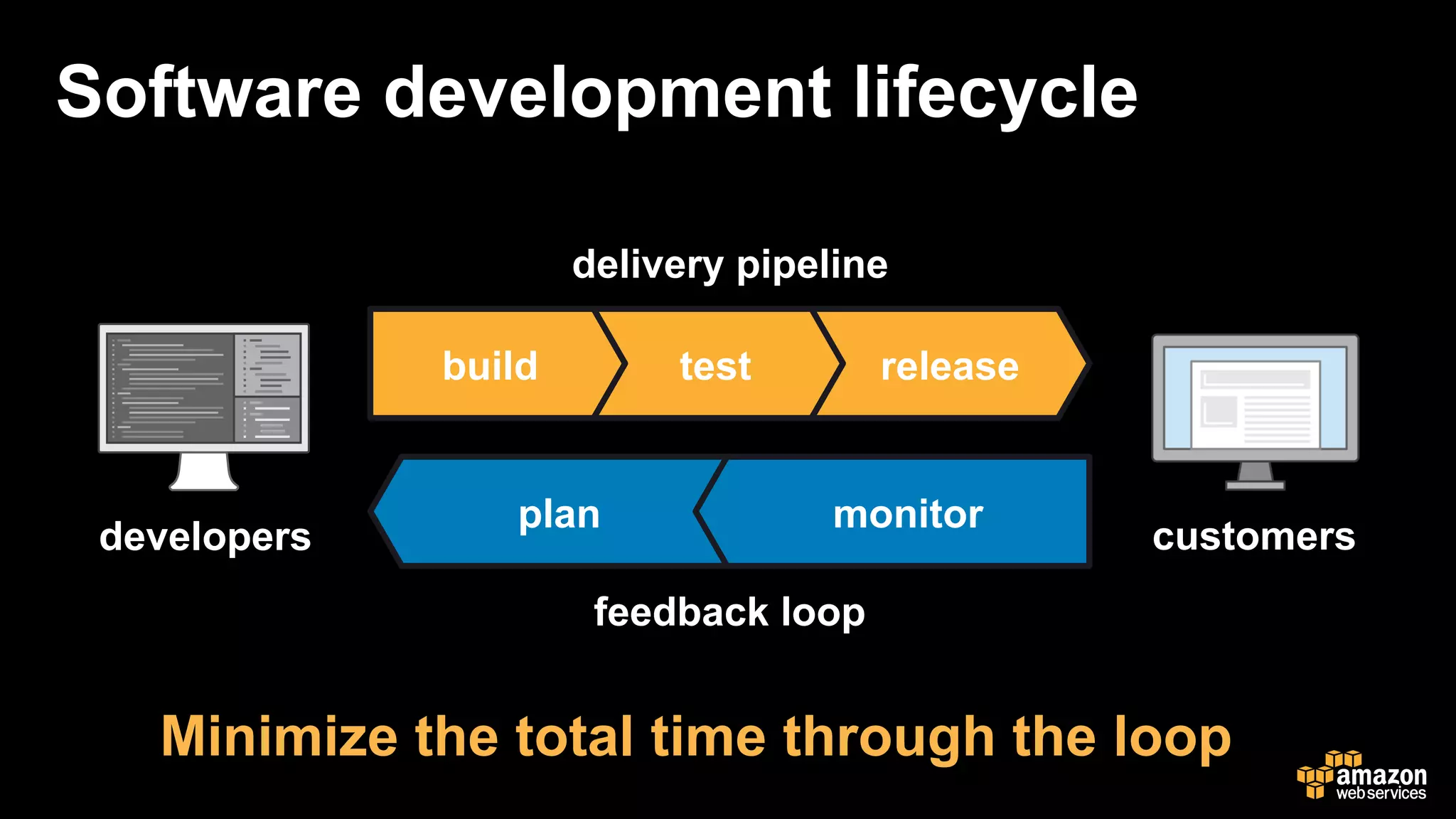

Software development lifecycle
Minimize the total time through the loop

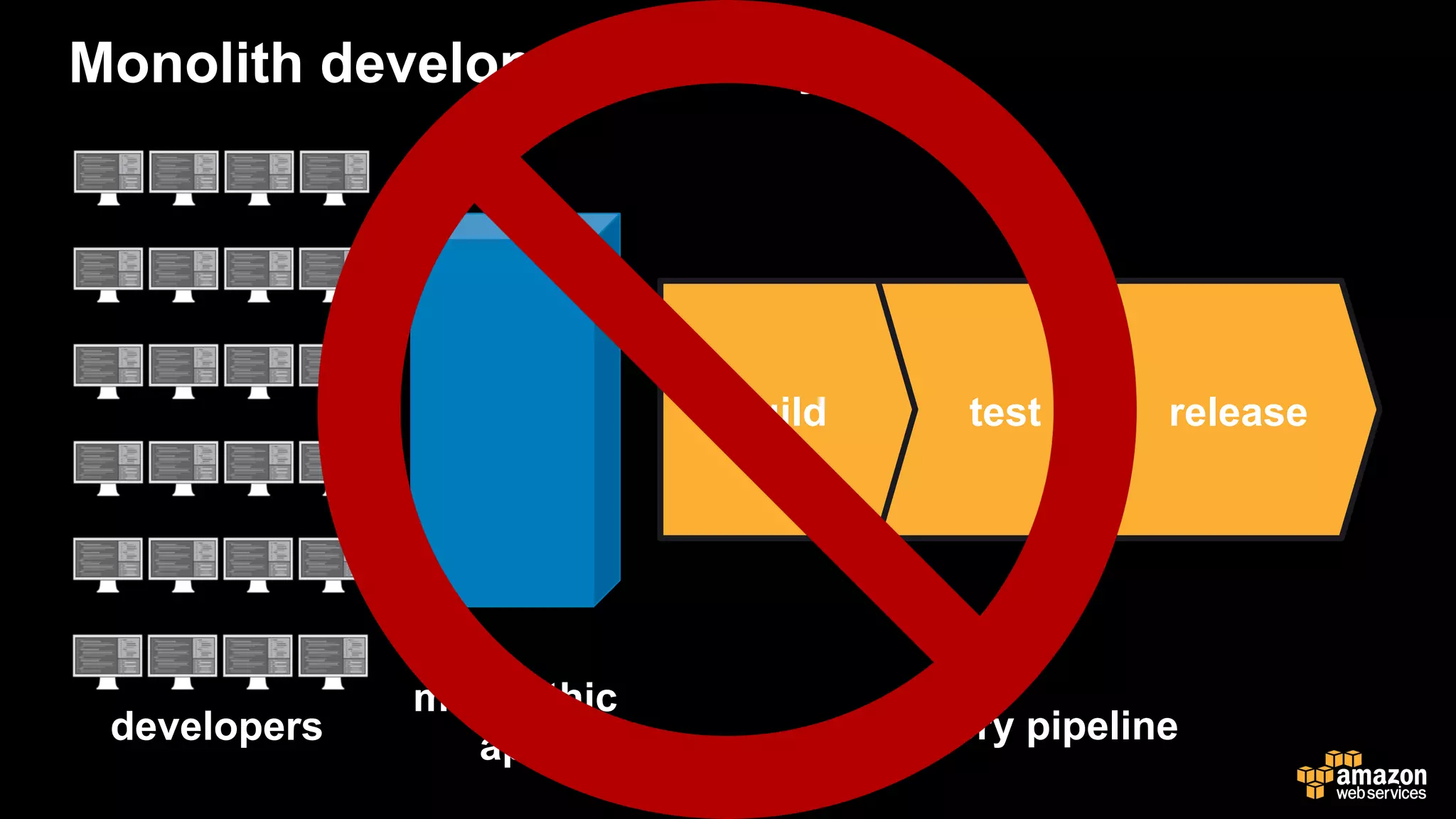

11. Monolith development lifecycle
developers
releasetestbuild
delivery pipeline
monolithic
app

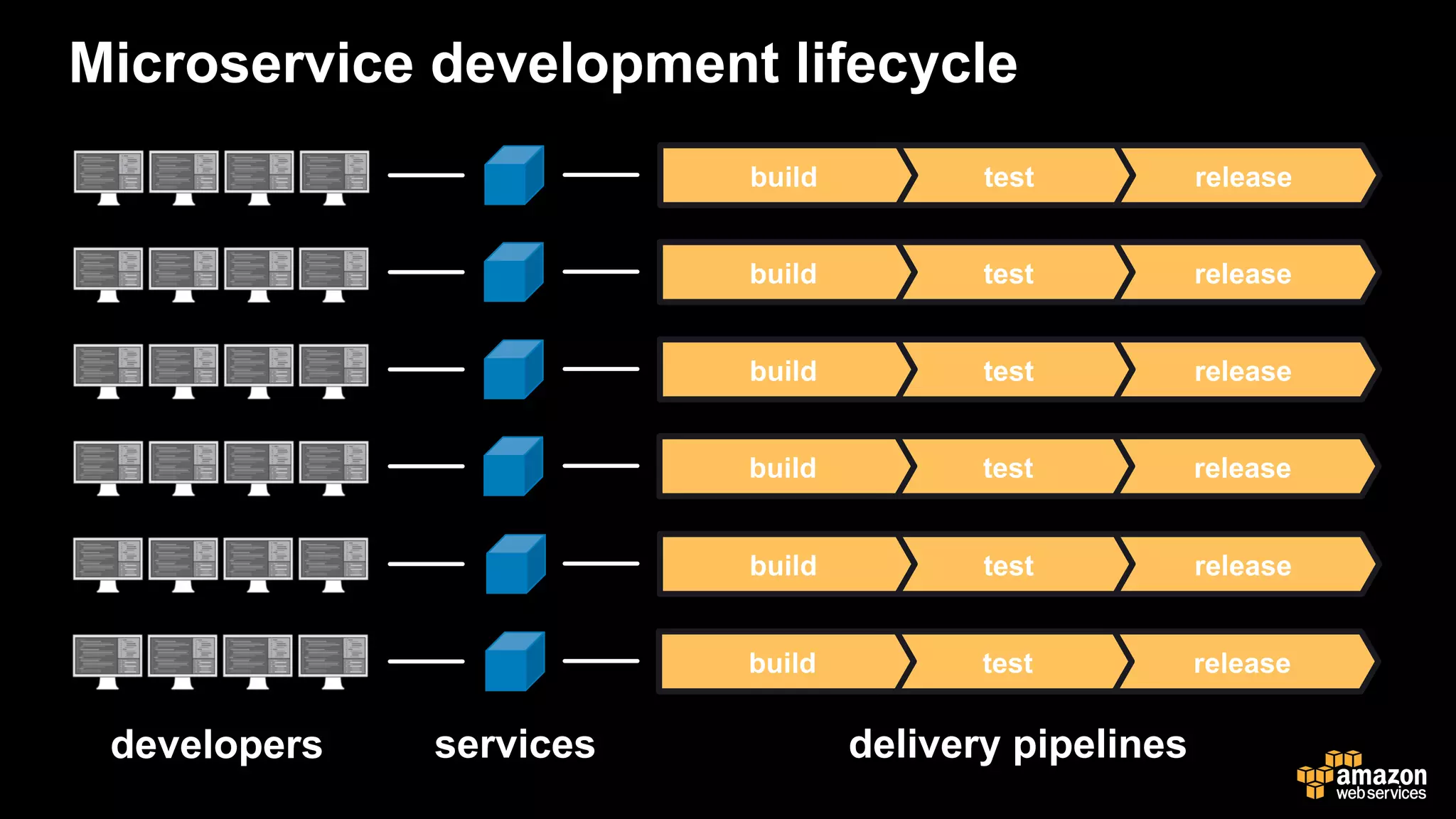

12. Microservice development lifecycle
developers delivery pipelinesservices
releasetestbuild
releasetestbuild
releasetestbuild
releasetestbuild
releasetestbuild
releasetestbuild

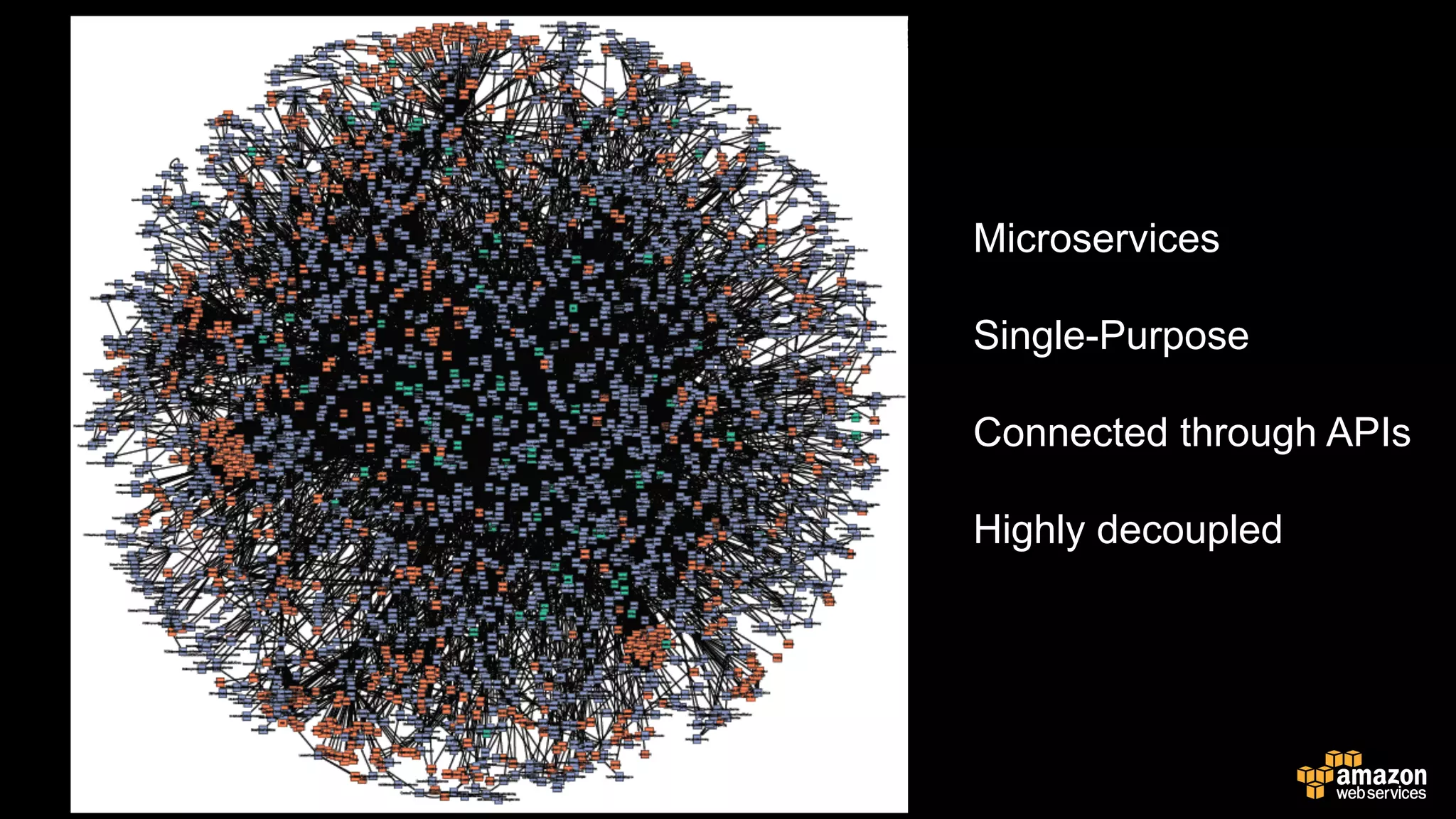

13. Microservices
Single-Purpose
Connected through APIs
Highly decoupled

14. Decouple into small building blocks
The looser they are coupled,
the bigger they scale,
the more fault tolerant they get.
The less dependencies,
the faster you innovate.

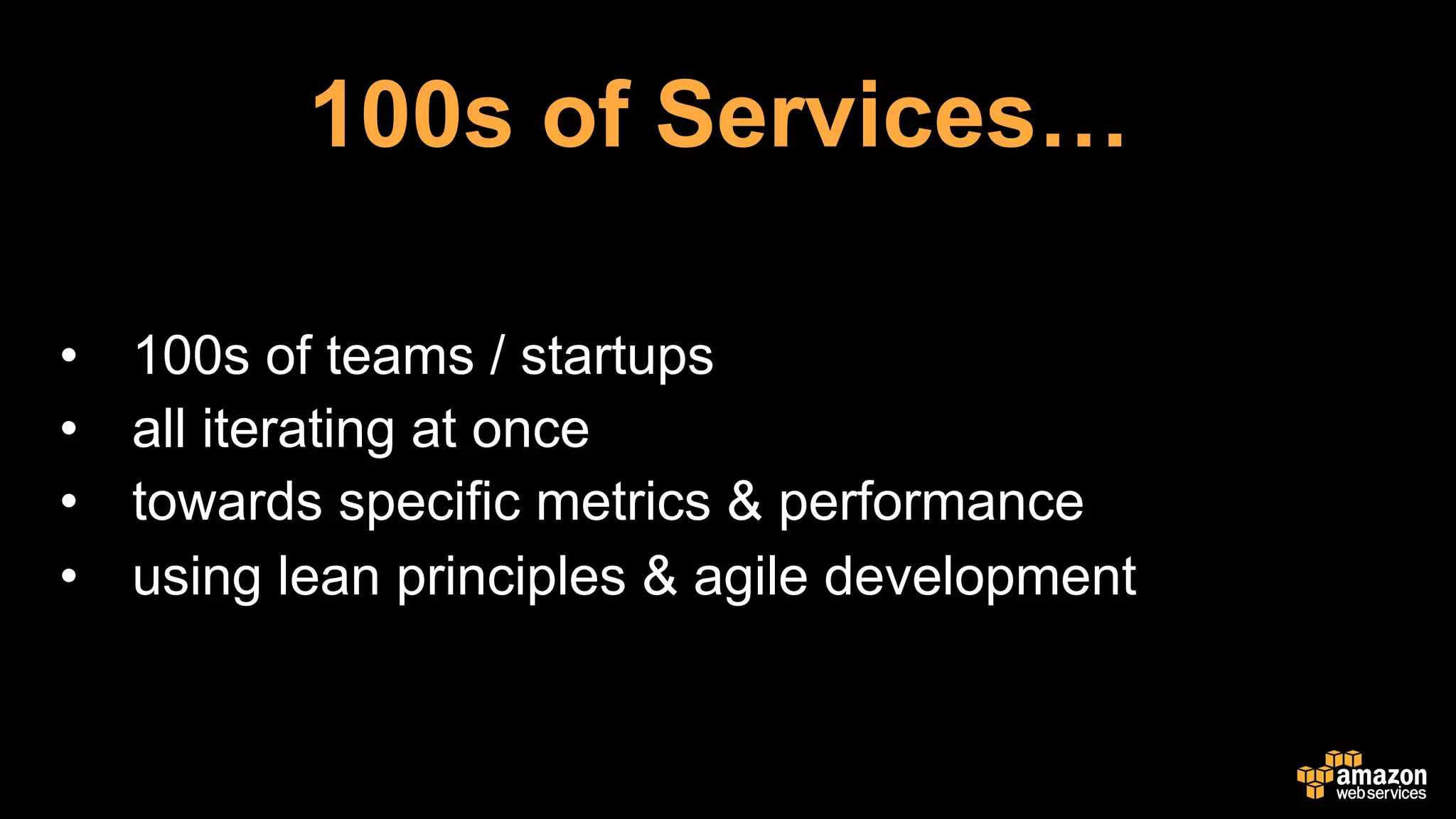

15. • 100s of teams / startups
• all iterating at once
• towards specific metrics & performance
• using lean principles & agile development
100s of Services…

16. LEAN
Experiment
Measure and Learn
Iterate at speed
1
2
3

17. CONTINUOUS
DEPLOYMENT
SMALL, FREQUENT CHANGES
CONSTANTLY INTEGRATING INTO
PRODUCTION.

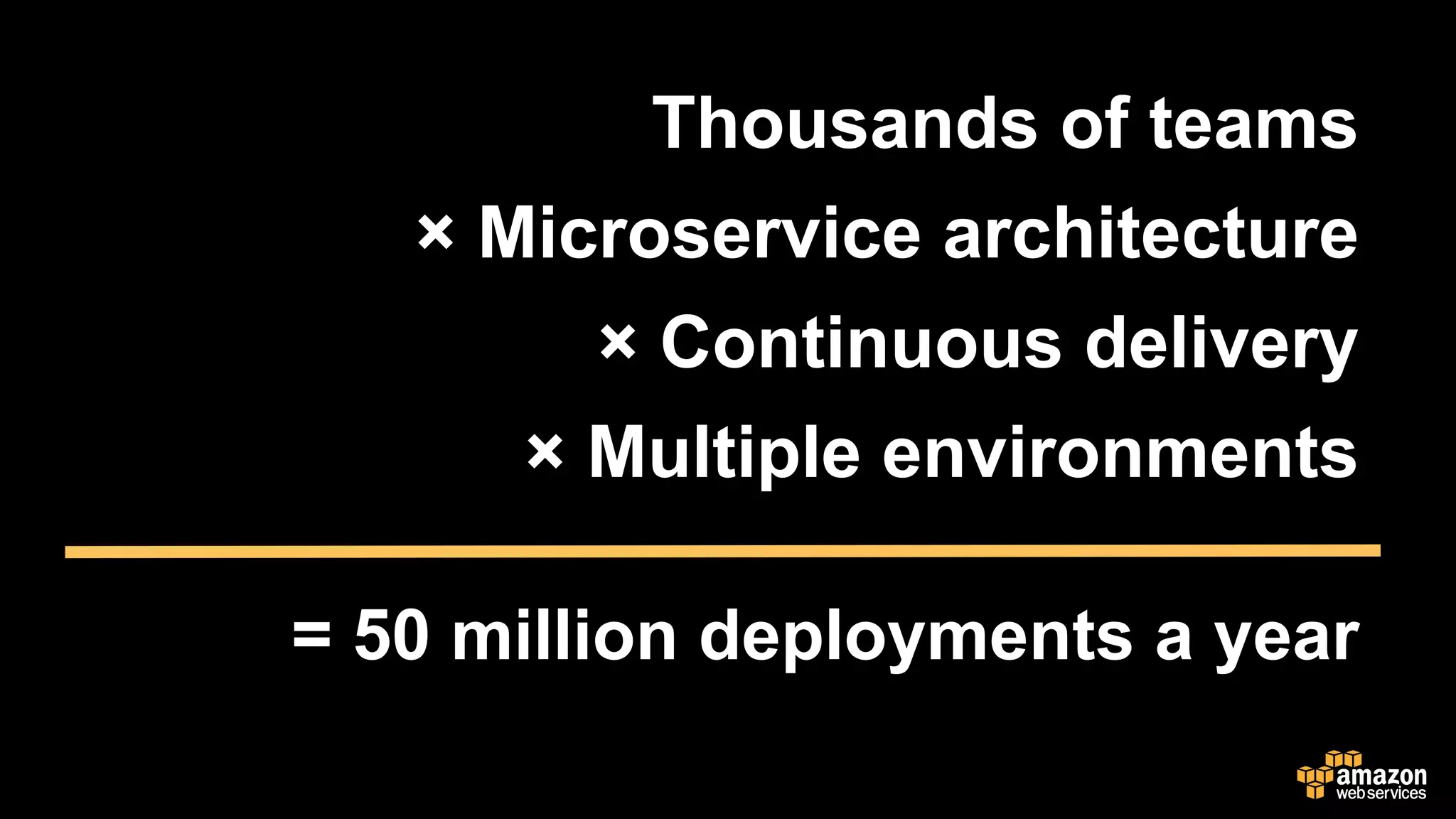

18. = 50 million deployments a year
Thousands of teams
× Microservice architecture
× Continuous delivery
× Multiple environments

19. 11.6s
Average time
between
deployments
(weekday)
1,079
Max number of
deployments in
a single hour
(or approx
every 3
seconds)
30,000
Max number of
instances
simultaneously
receiving a
deployment

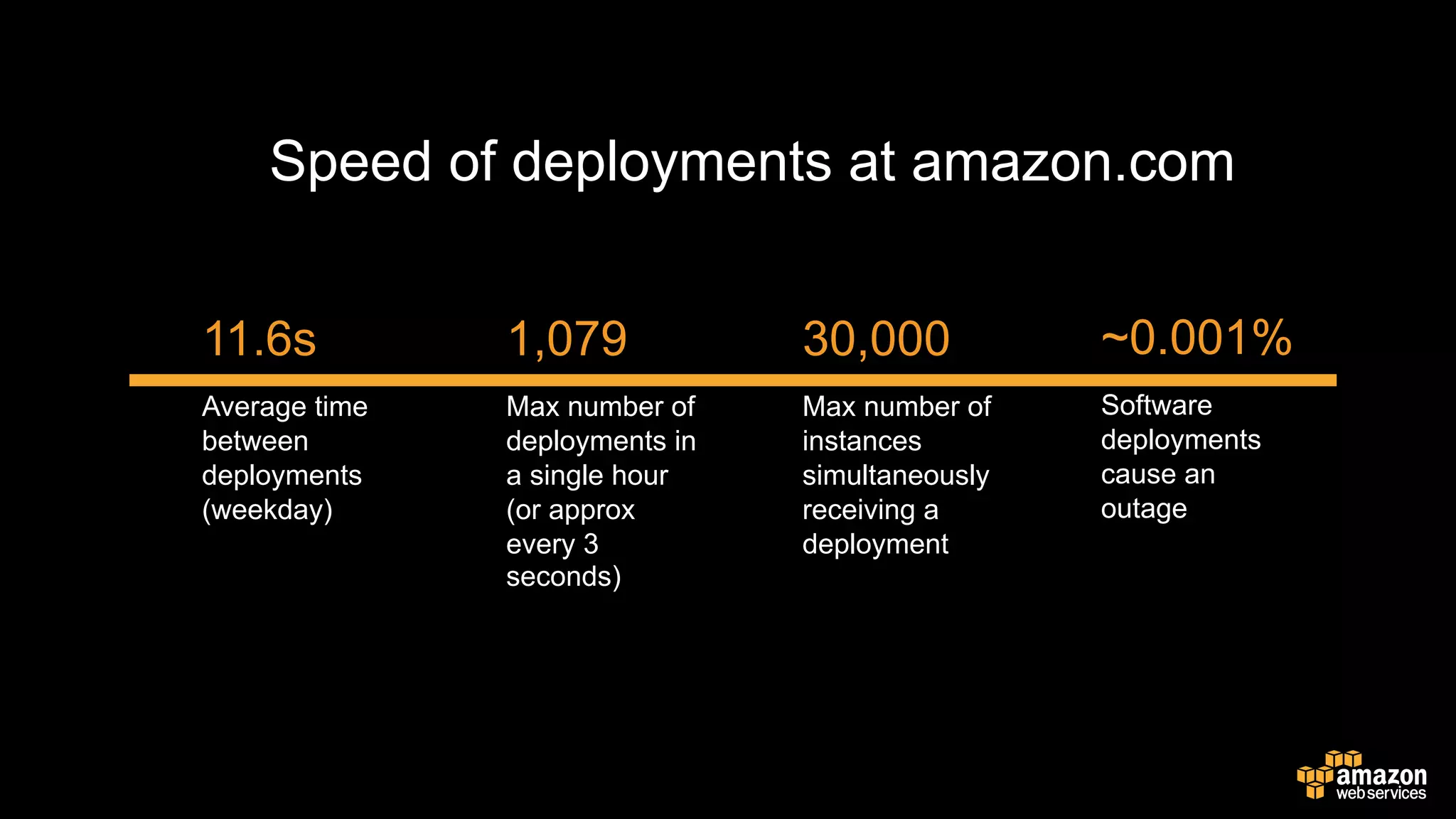

Speed of deployments at amazon.com
~0.001%
Software
deployments
cause an
outage

20. Microservices on AWS

21. AWS Lambda

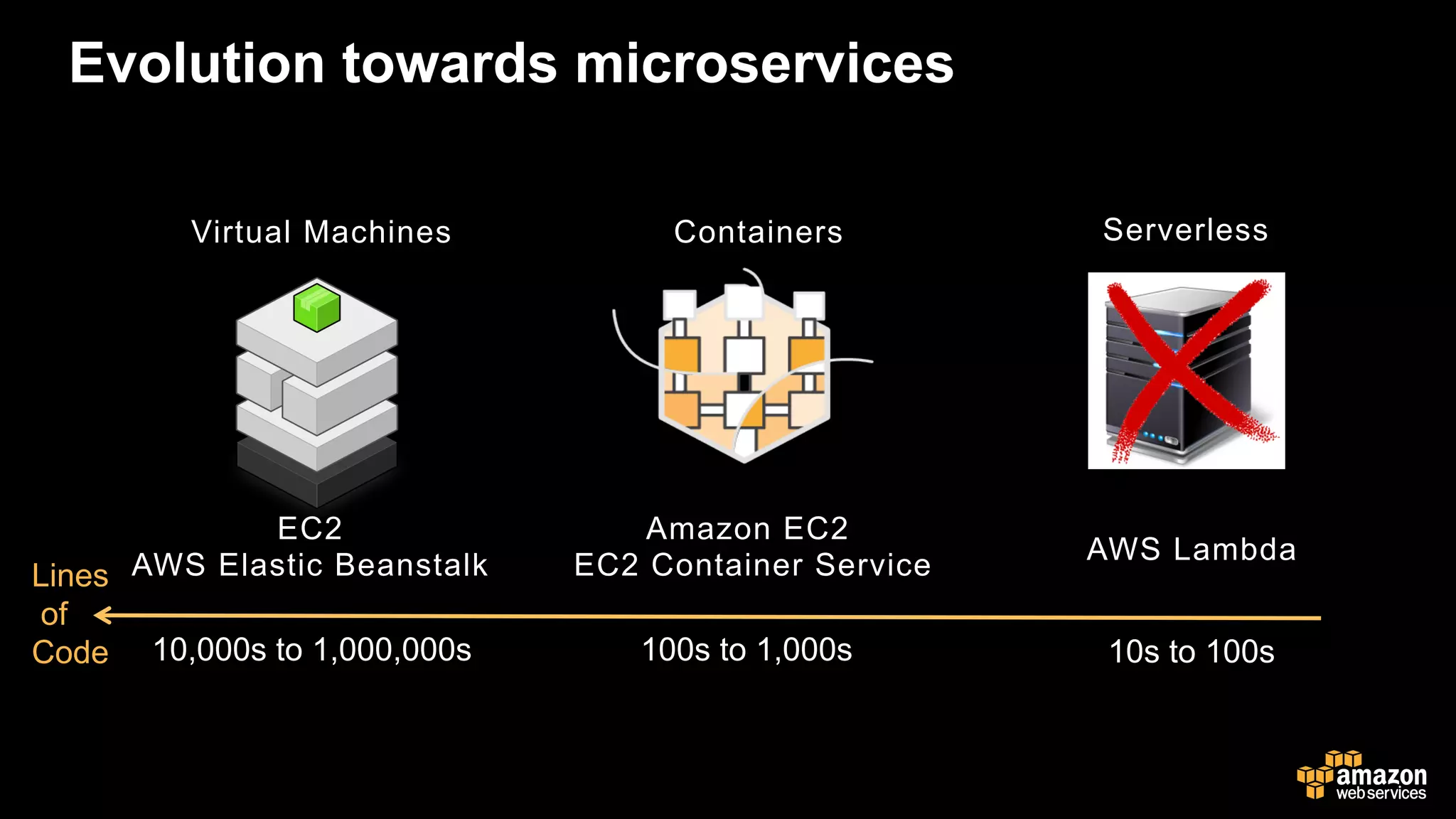

Evolution towards microservices
Lines
of
Code
EC2
AWS Elastic Beanstalk
Amazon EC2
EC2 Container Service
10,000s to 1,000,000s 100s to 1,000s 10s to 100s
Virtual Machines Containers Serverless

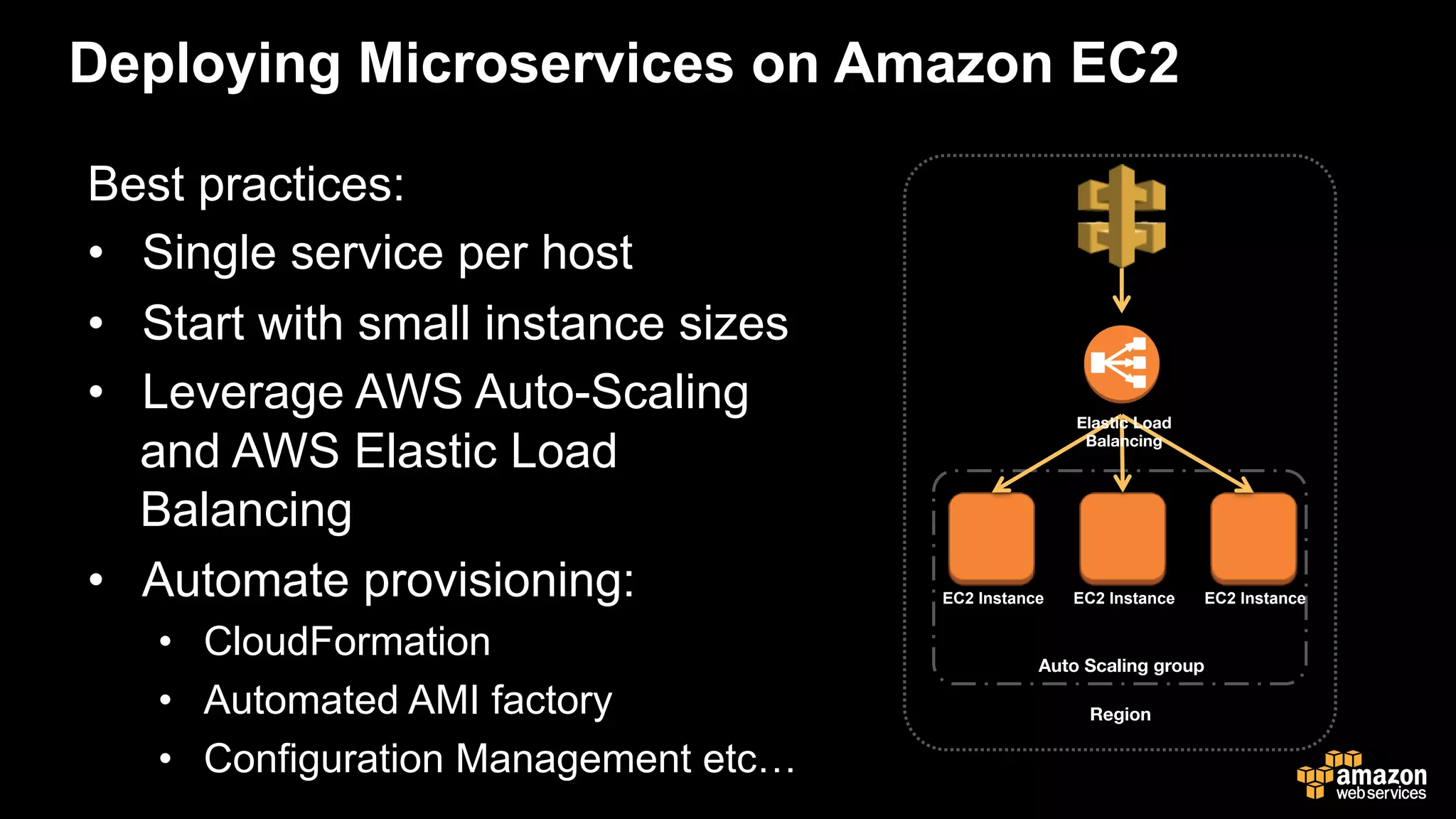

22. Deploying Microservices on Amazon EC2
Best practices:
• Single service per host
• Start with small instance sizes
• Leverage AWS Auto-Scaling
and AWS Elastic Load
Balancing
• Automate provisioning:
• CloudFormation
• Automated AMI factory
• Configuration Management etc…
Auto Scaling group
EC2 Instance EC2 Instance EC2 Instance
Region
Elastic Load
Balancing

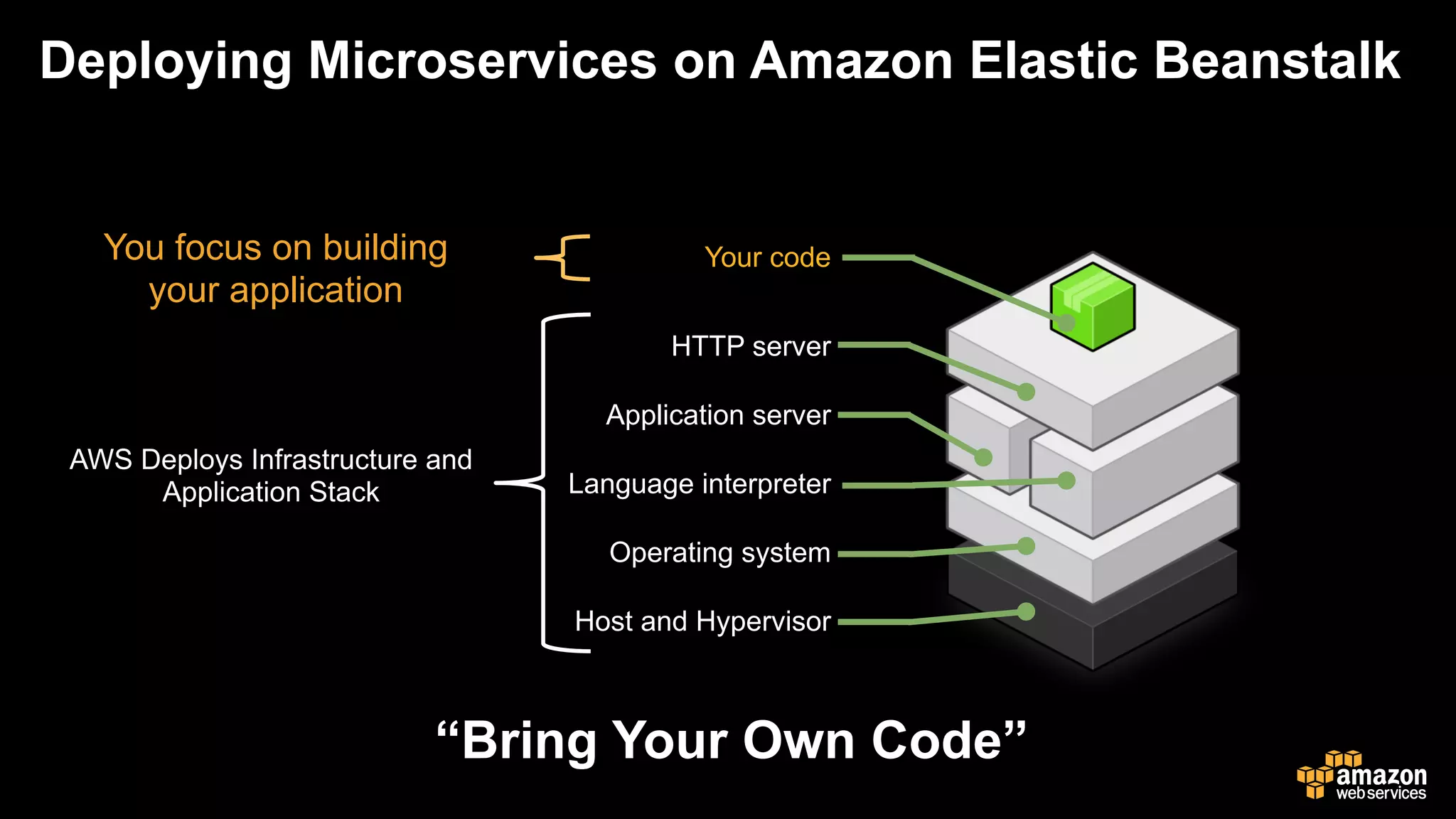

23. “Bring Your Own Code”
Your code
HTTP server
Application server
Language interpreter
Operating system
Host and Hypervisor
You focus on building
your application
Deploying Microservices on Amazon Elastic Beanstalk

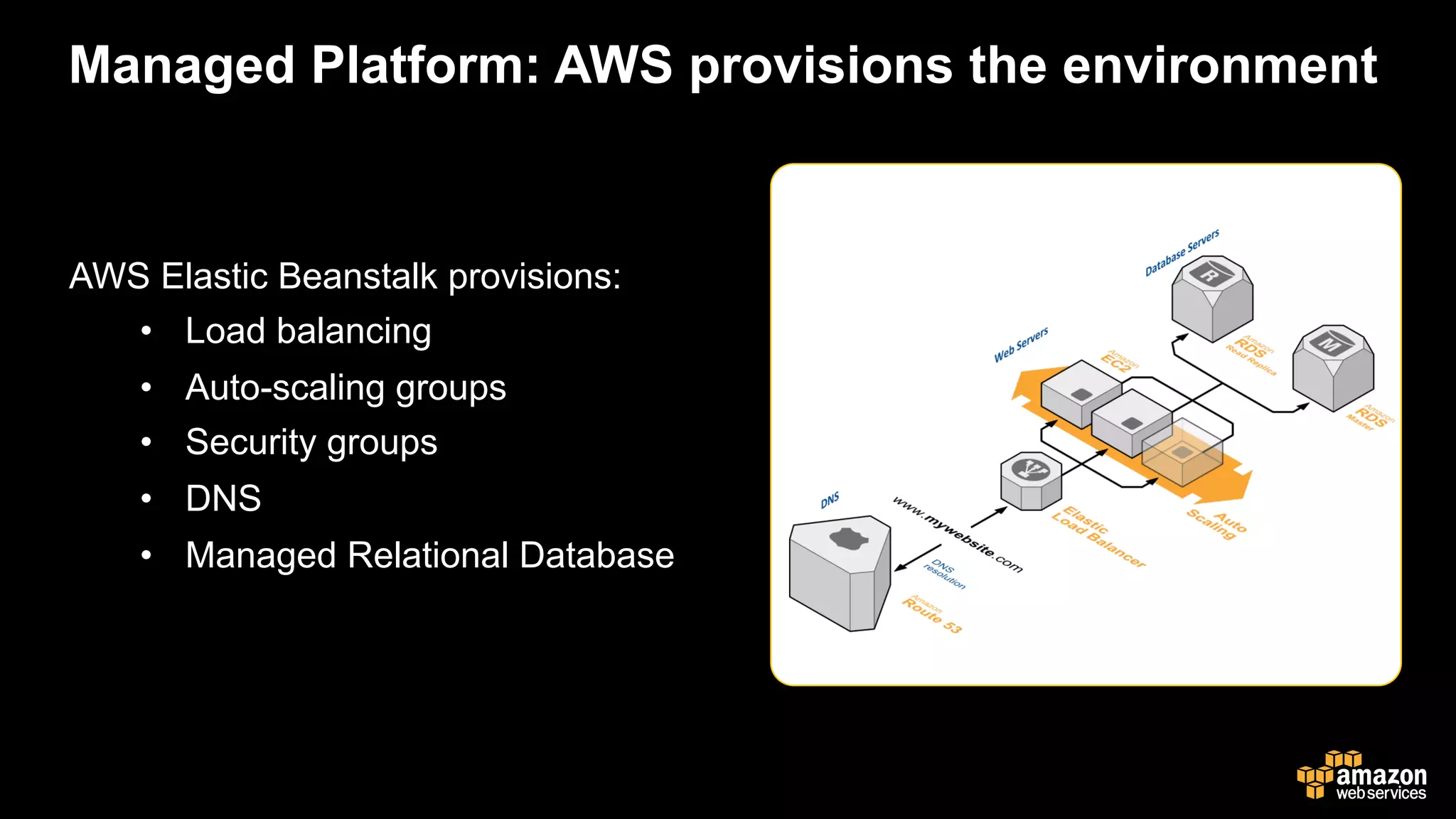

24. AWS Elastic Beanstalk provisions:
• Load balancing
• Auto-scaling groups
• Security groups
• DNS
• Managed Relational Database
Managed Platform: AWS provisions the environment

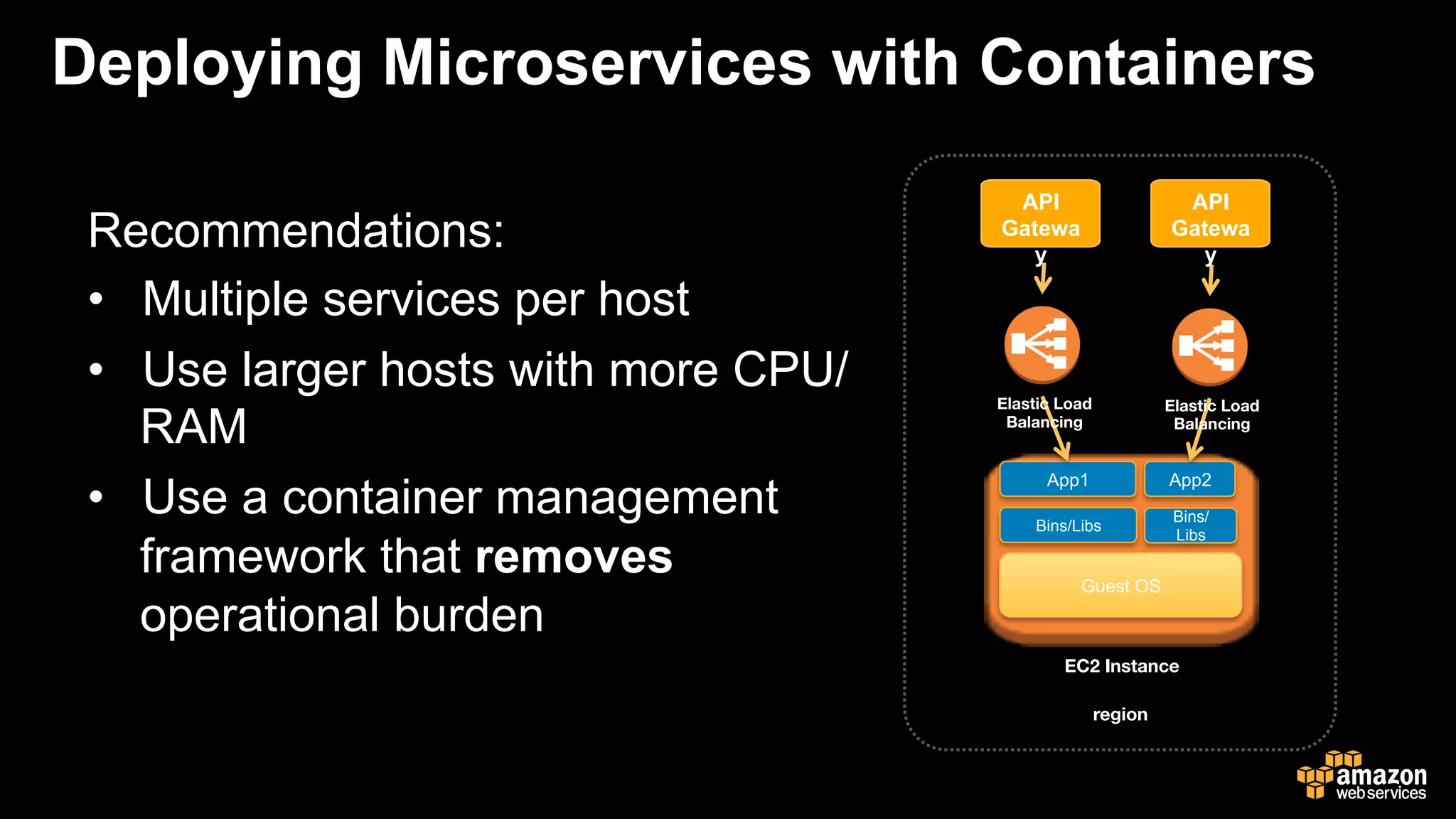

25. Deploying Microservices with Containers
Recommendations:
• Multiple services per host
• Use larger hosts with more CPU/
RAM
• Use a container management
framework that removes
operational burden
region
Guest OS
Bins/Libs
Bins/
Libs
App2App1
EC2 Instance
Elastic Load
Balancing
Elastic Load
Balancing
API
Gatewa
y
API
Gatewa
y

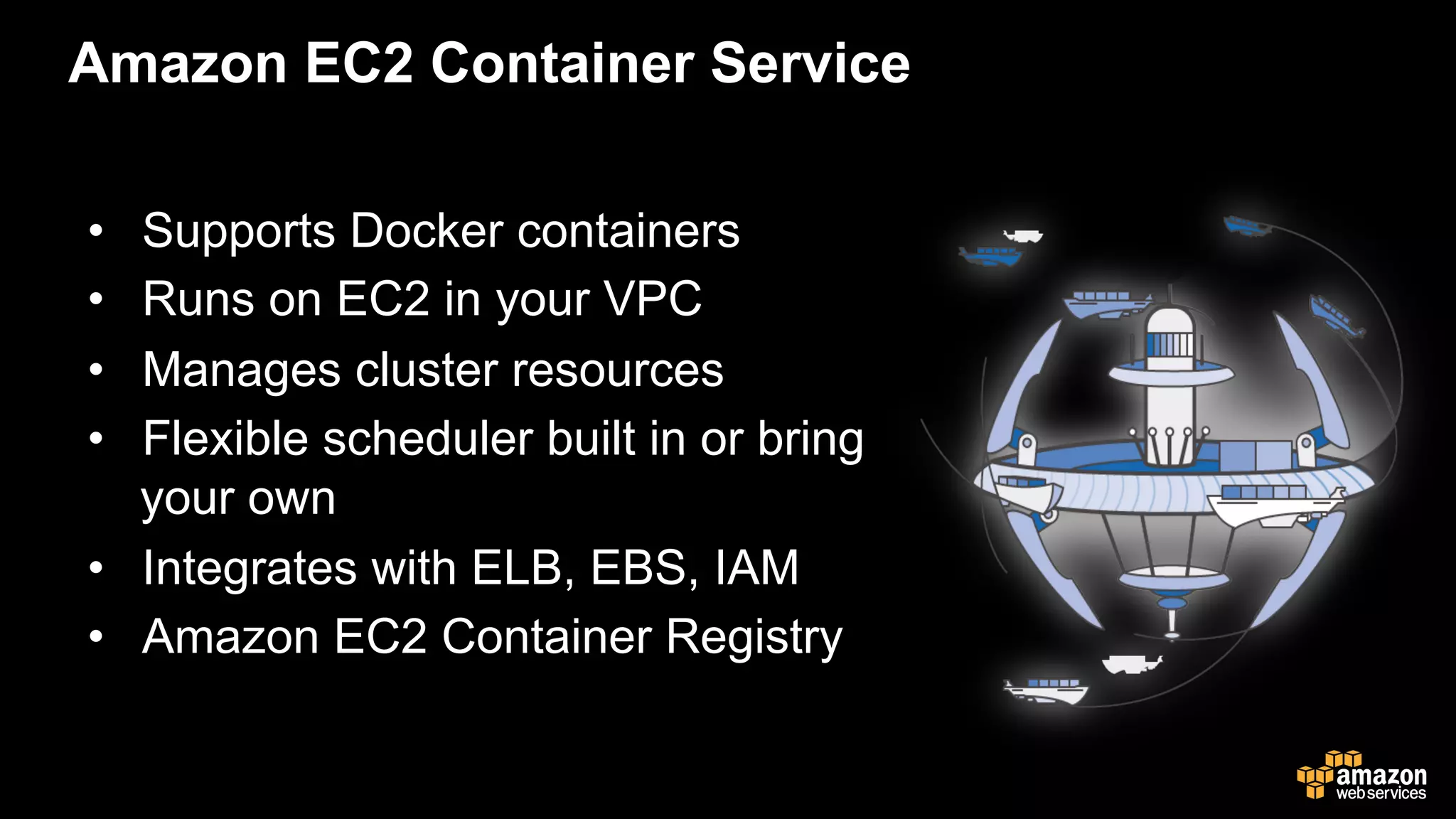

26. Amazon EC2 Container Service
• Supports Docker containers
• Runs on EC2 in your VPC
• Manages cluster resources
• Flexible scheduler built in or bring
your own
• Integrates with ELB, EBS, IAM
• Amazon EC2 Container Registry

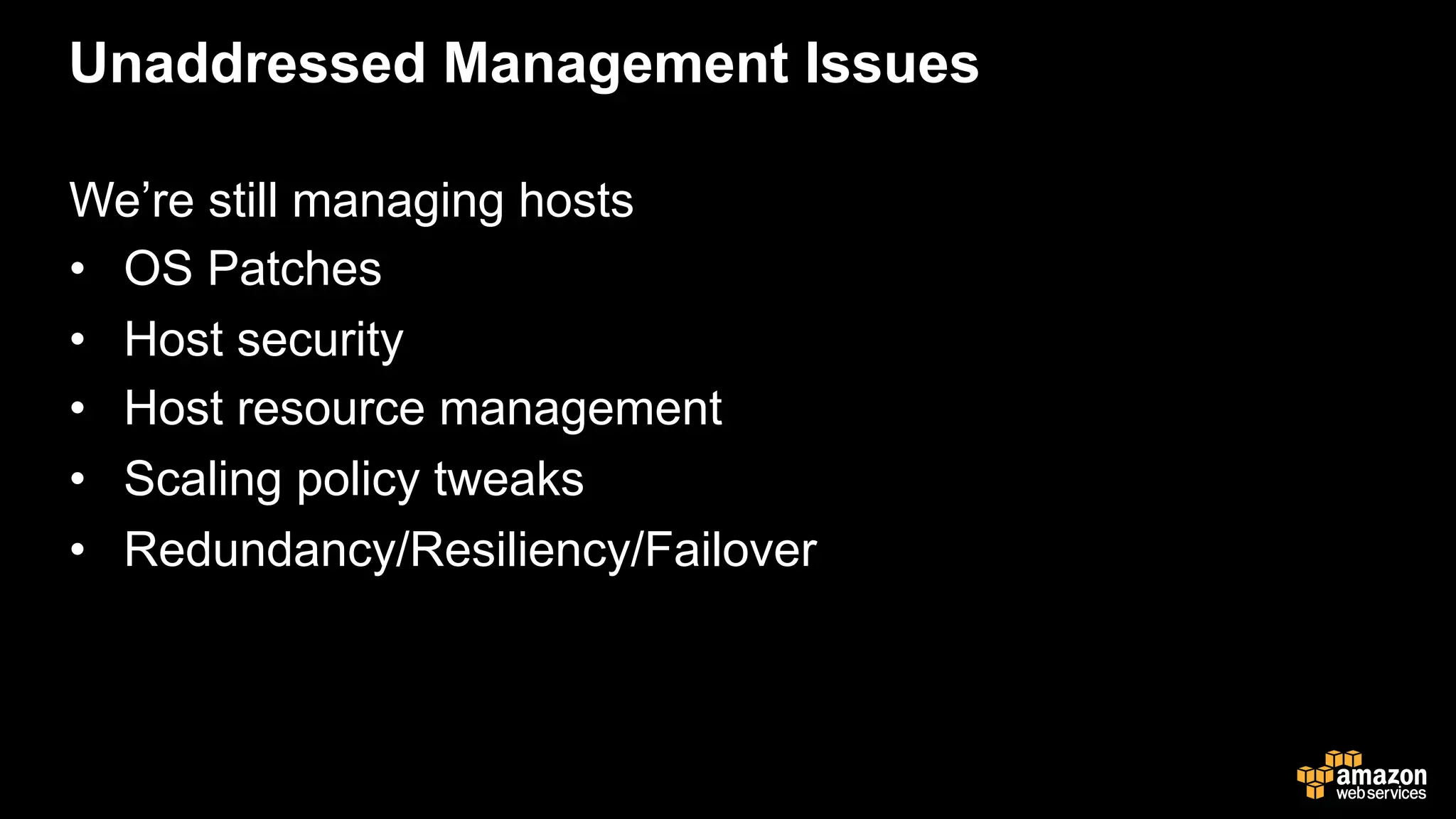

27. Unaddressed Management Issues
We’re still managing hosts
• OS Patches
• Host security
• Host resource management
• Scaling policy tweaks
• Redundancy/Resiliency/Failover

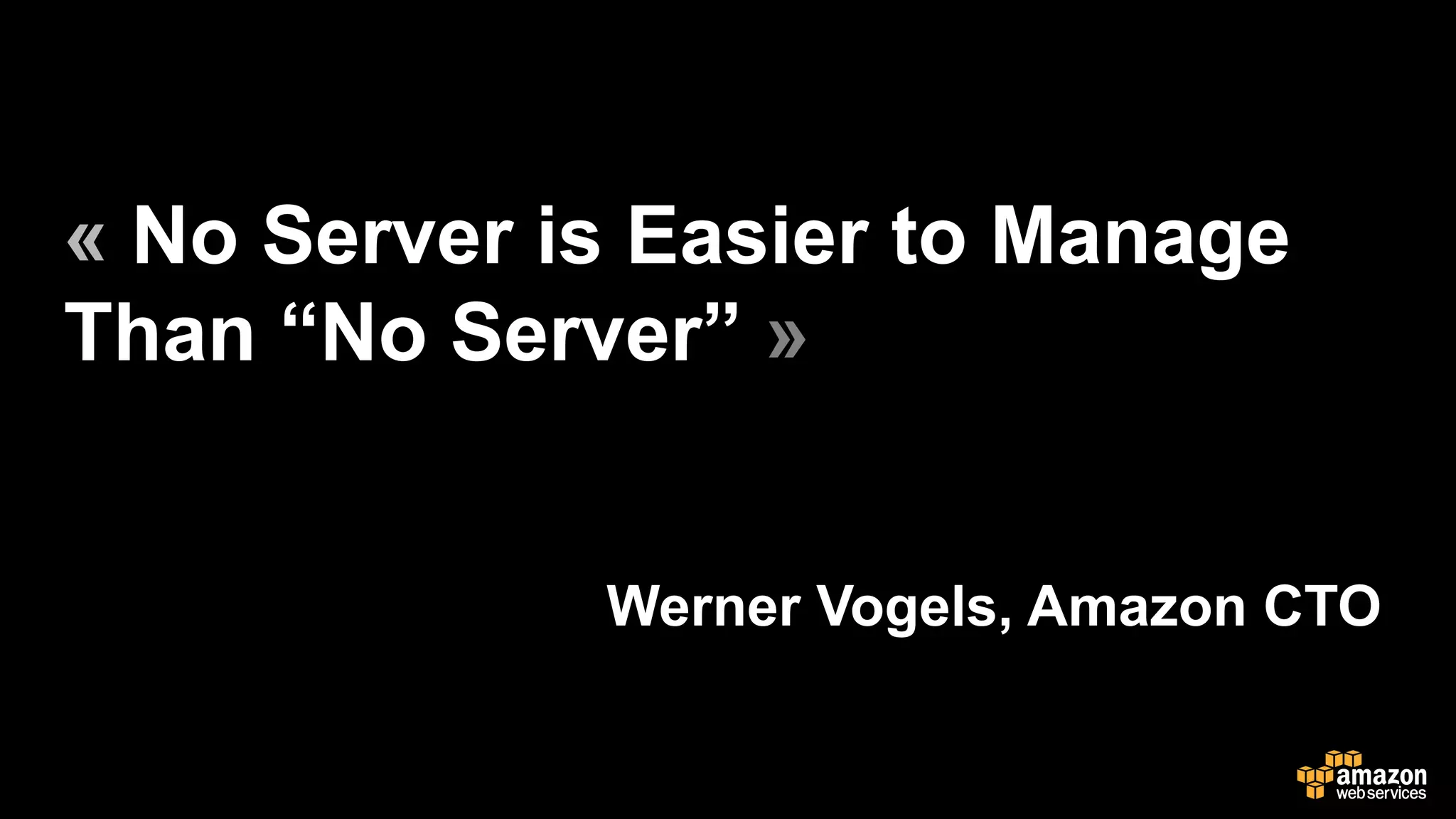

28. « No Server is Easier to Manage
Than “No Server” »
Werner Vogels, Amazon CTO

29. • Servers:
• No visibility of underlying servers, storage and networking
• Operating System
• No need to select, configure, administer or patch the OS
• Capacity
• Elastic and (virtually) unlimited
• Availability
• Service is natively replicated and highly-available across multiple
Availability Zones

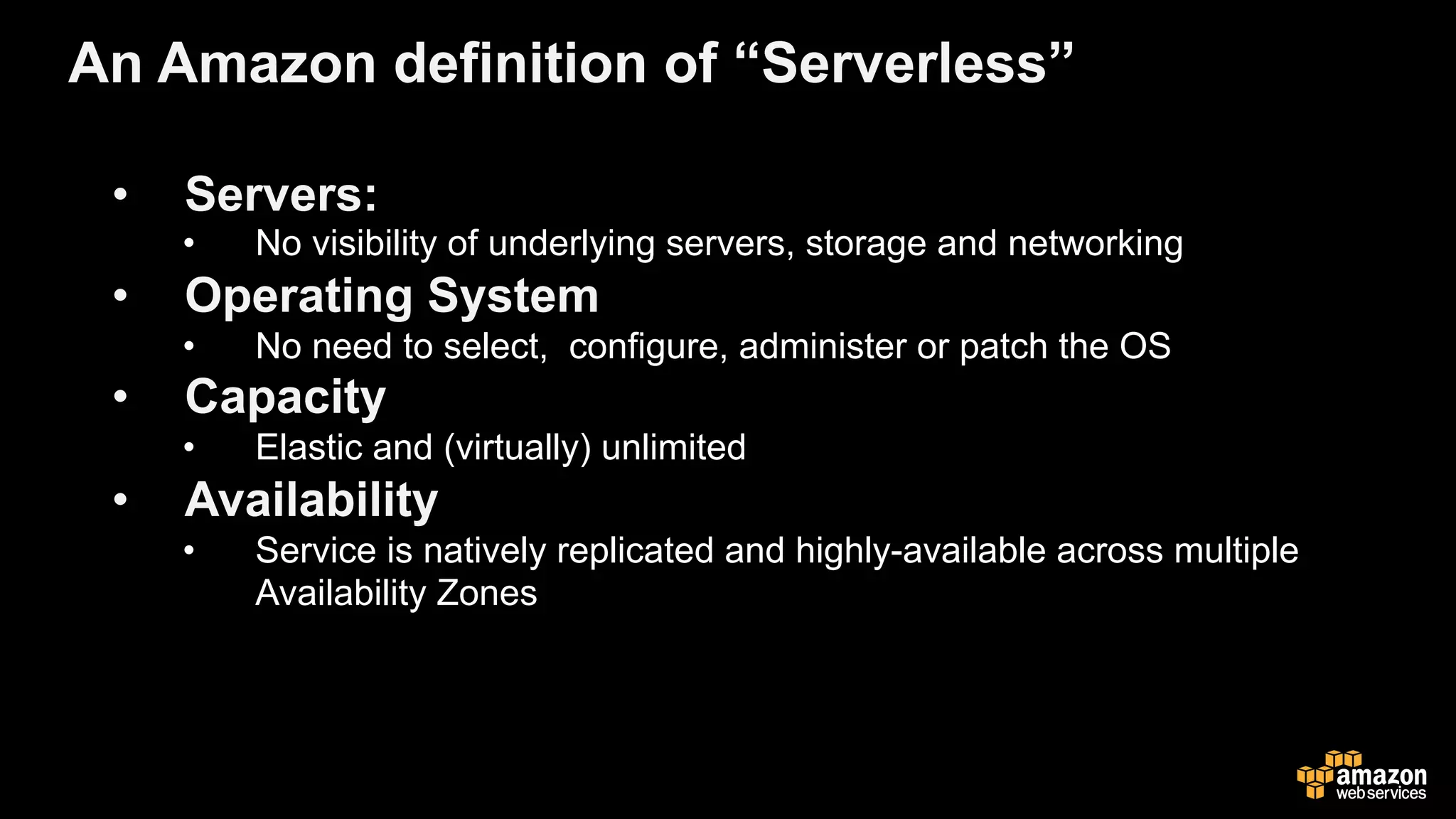

An Amazon definition of “Serverless”

30. Continuous
scaling
No servers to
manage
Never pay for idle
– no cold servers
(only happy
accountants)
Benefits of AWS Lambda

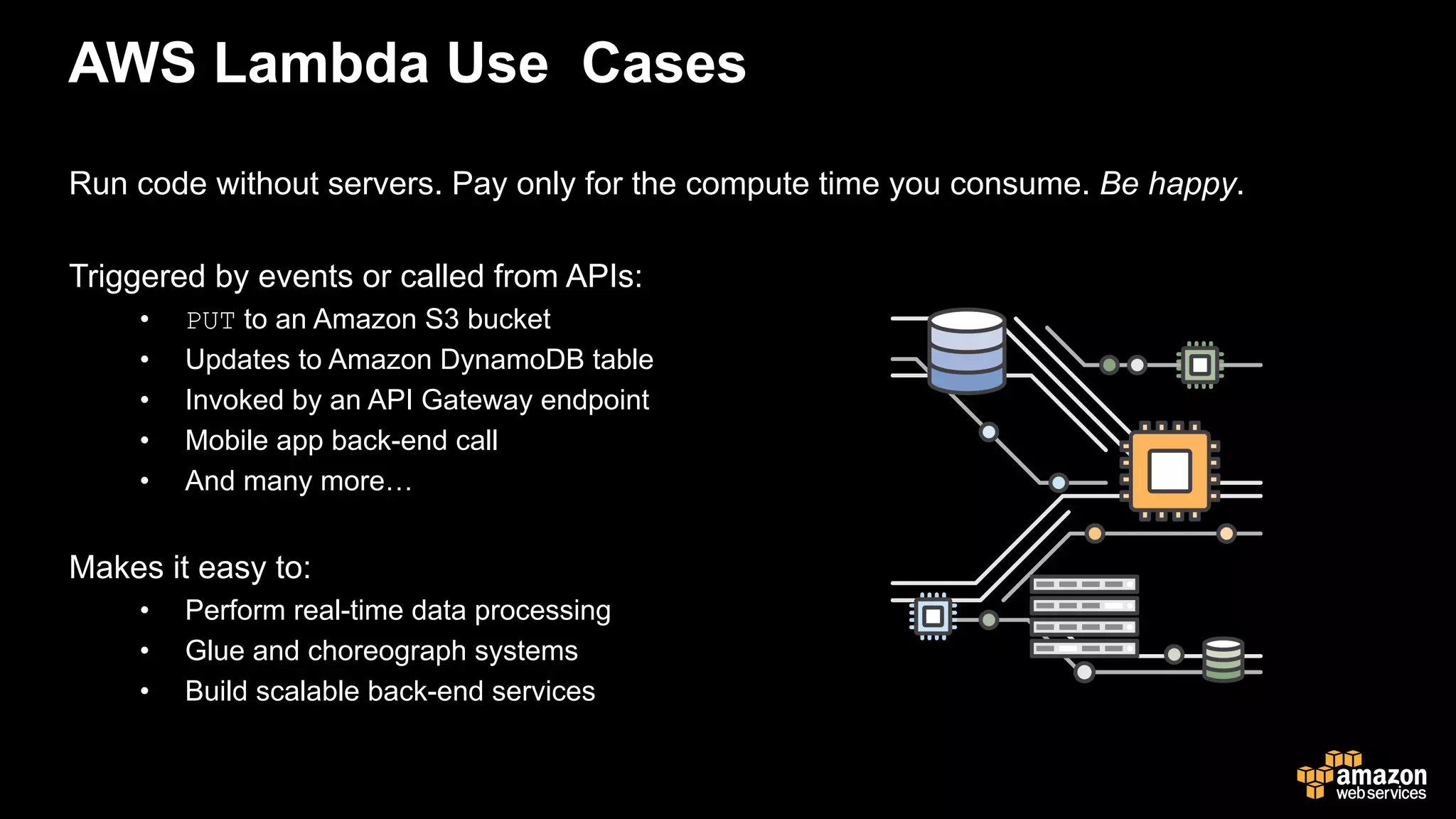

31. AWS Lambda Use Cases
Run code without servers. Pay only for the compute time you consume. Be happy.
Triggered by events or called from APIs:
• PUT to an Amazon S3 bucket
• Updates to Amazon DynamoDB table
• Invoked by an API Gateway endpoint
• Mobile app back-end call
• And many more…
Makes it easy to:
• Perform real-time data processing
• Glue and choreograph systems
• Build scalable back-end services

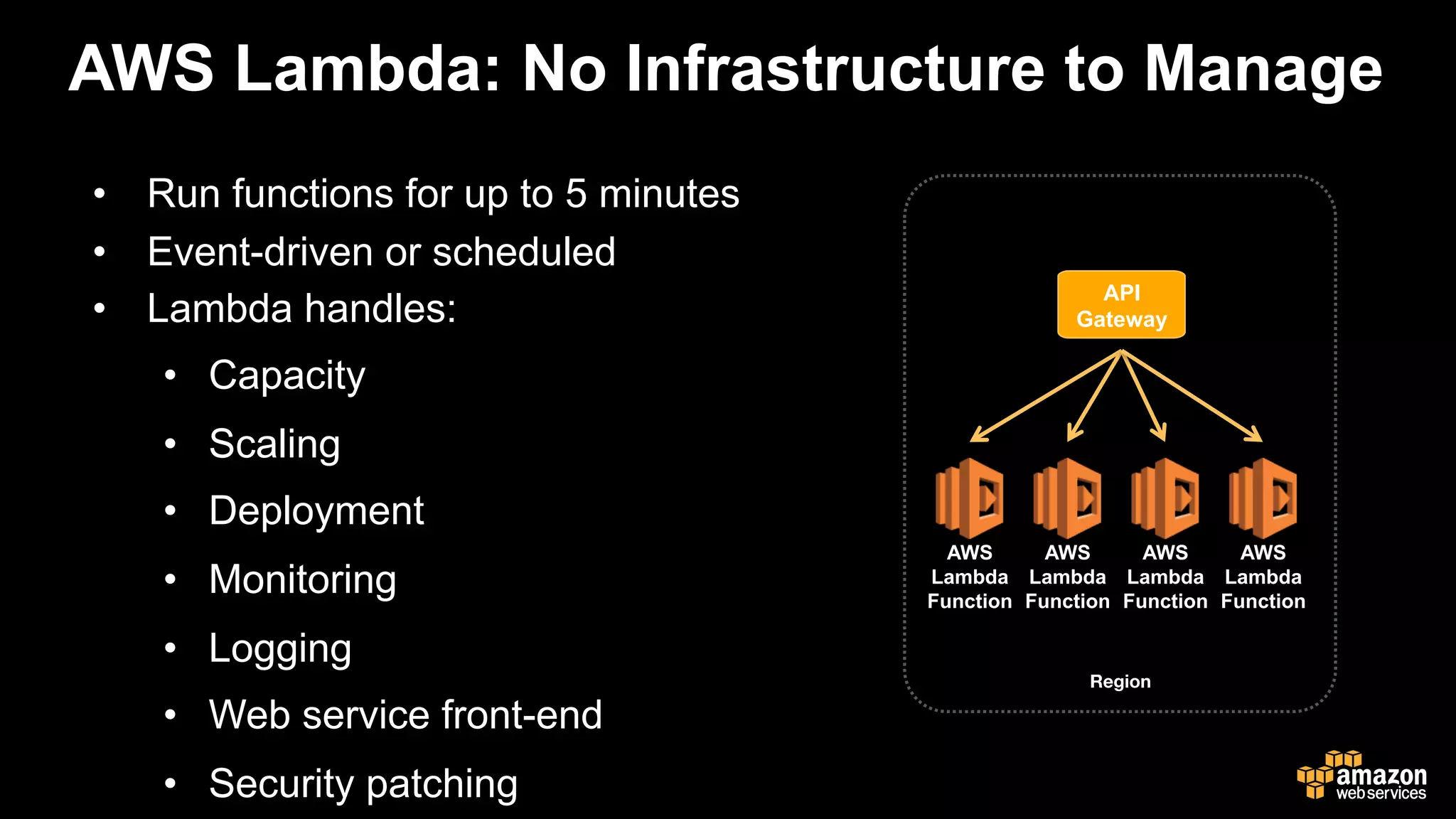

32. AWS Lambda: No Infrastructure to Manage
• Run functions for up to 5 minutes
• Event-driven or scheduled
• Lambda handles:
• Capacity
• Scaling
• Deployment
• Monitoring
• Logging
• Web service front-end
• Security patching
Region
AWS
Lambda
Function
AWS
Lambda
Function
AWS
Lambda
Function
AWS
Lambda
Function
API
Gateway

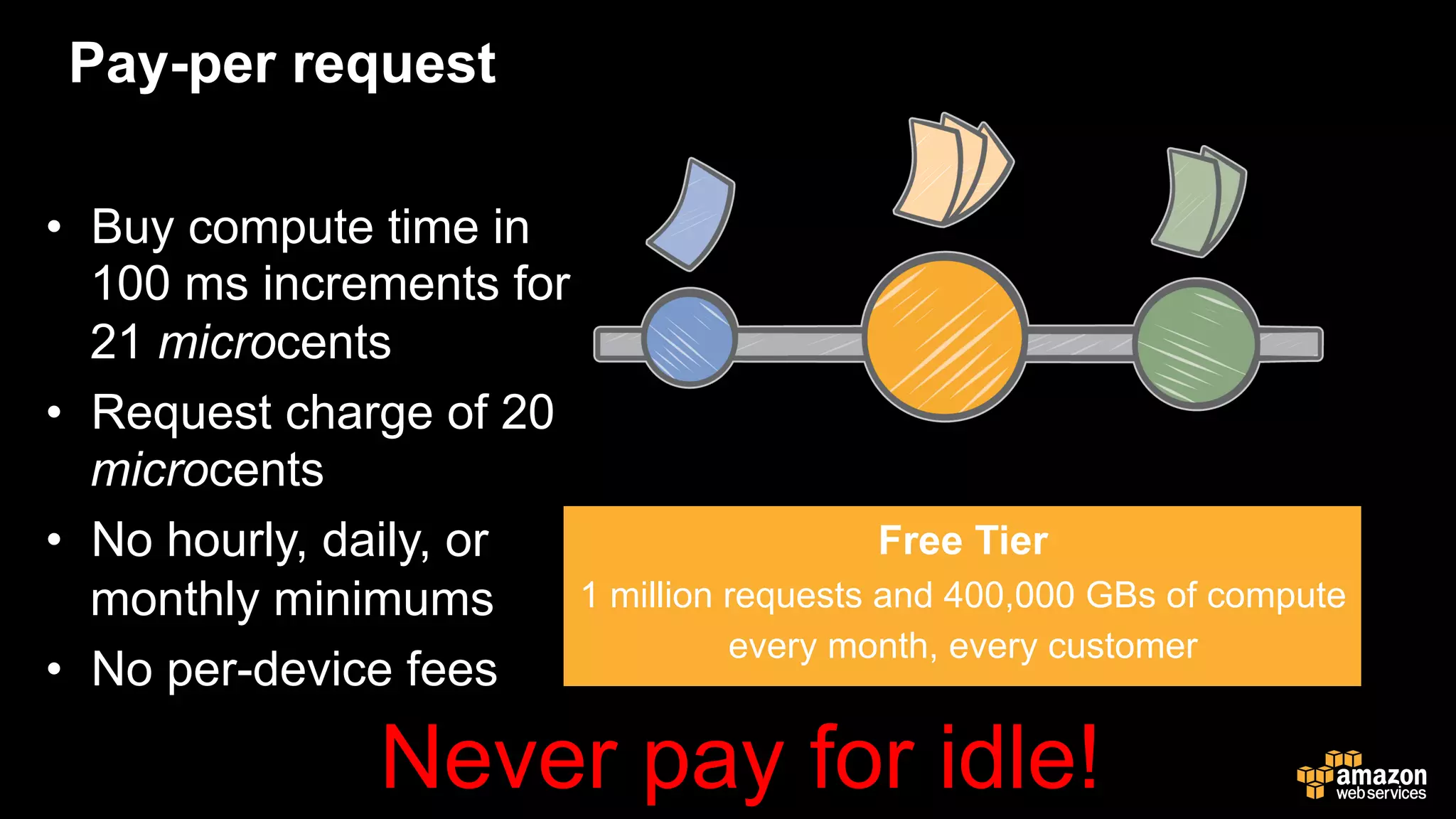

33. Pay-per request
• Buy compute time in
100 ms increments for
21 microcents
• Request charge of 20
microcents
• No hourly, daily, or
monthly minimums
• No per-device fees
Free Tier
1 million requests and 400,000 GBs of compute
every month, every customer
Never pay for idle!

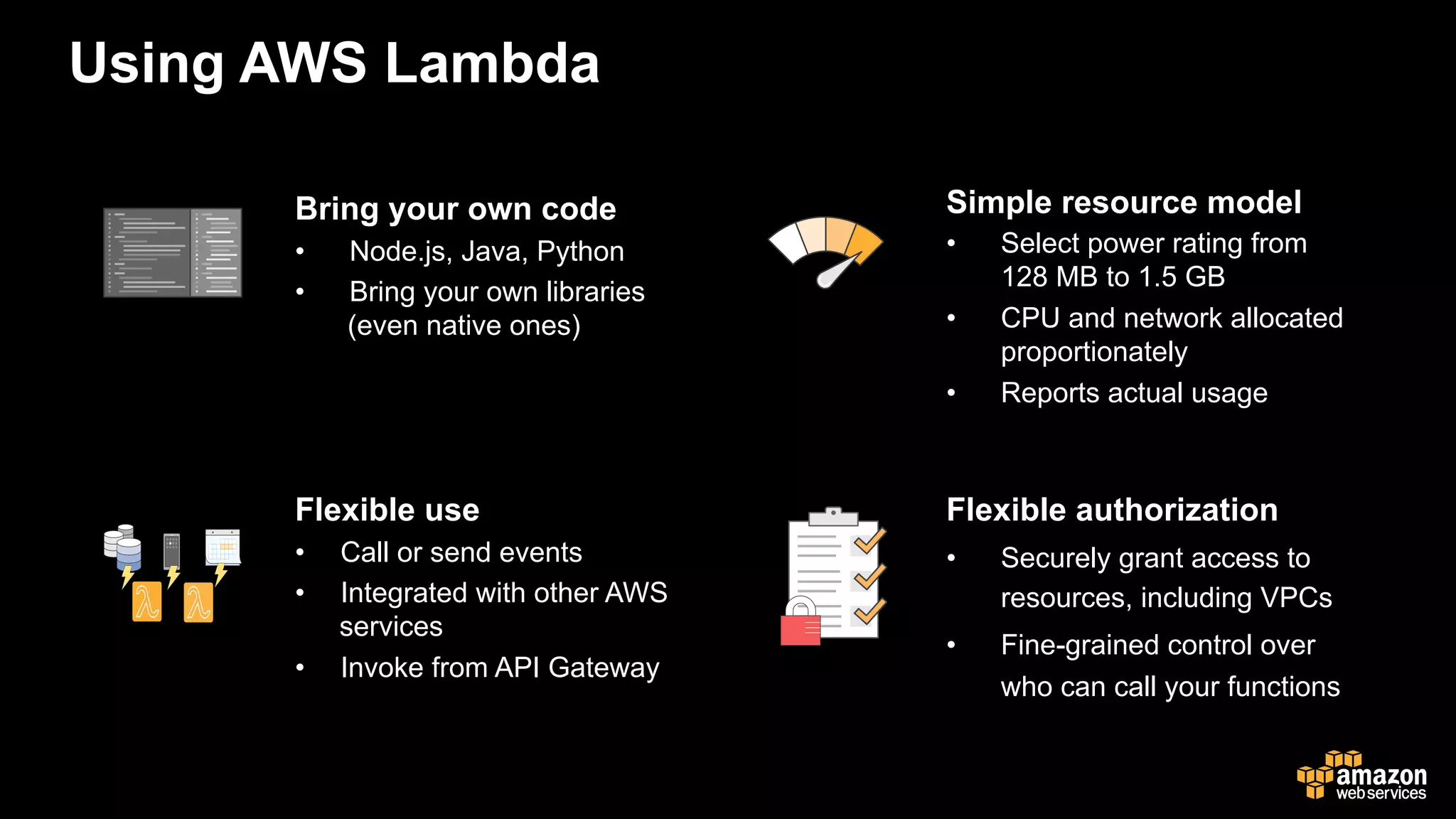

34. Using AWS Lambda
Bring your own code
• Node.js, Java, Python
• Bring your own libraries
(even native ones)
Simple resource model
• Select power rating from
128 MB to 1.5 GB
• CPU and network allocated
proportionately
• Reports actual usage
Flexible authorization
• Securely grant access to
resources, including VPCs
• Fine-grained control over
who can call your functions
Flexible use
• Call or send events
• Integrated with other AWS
services
• Invoke from API Gateway

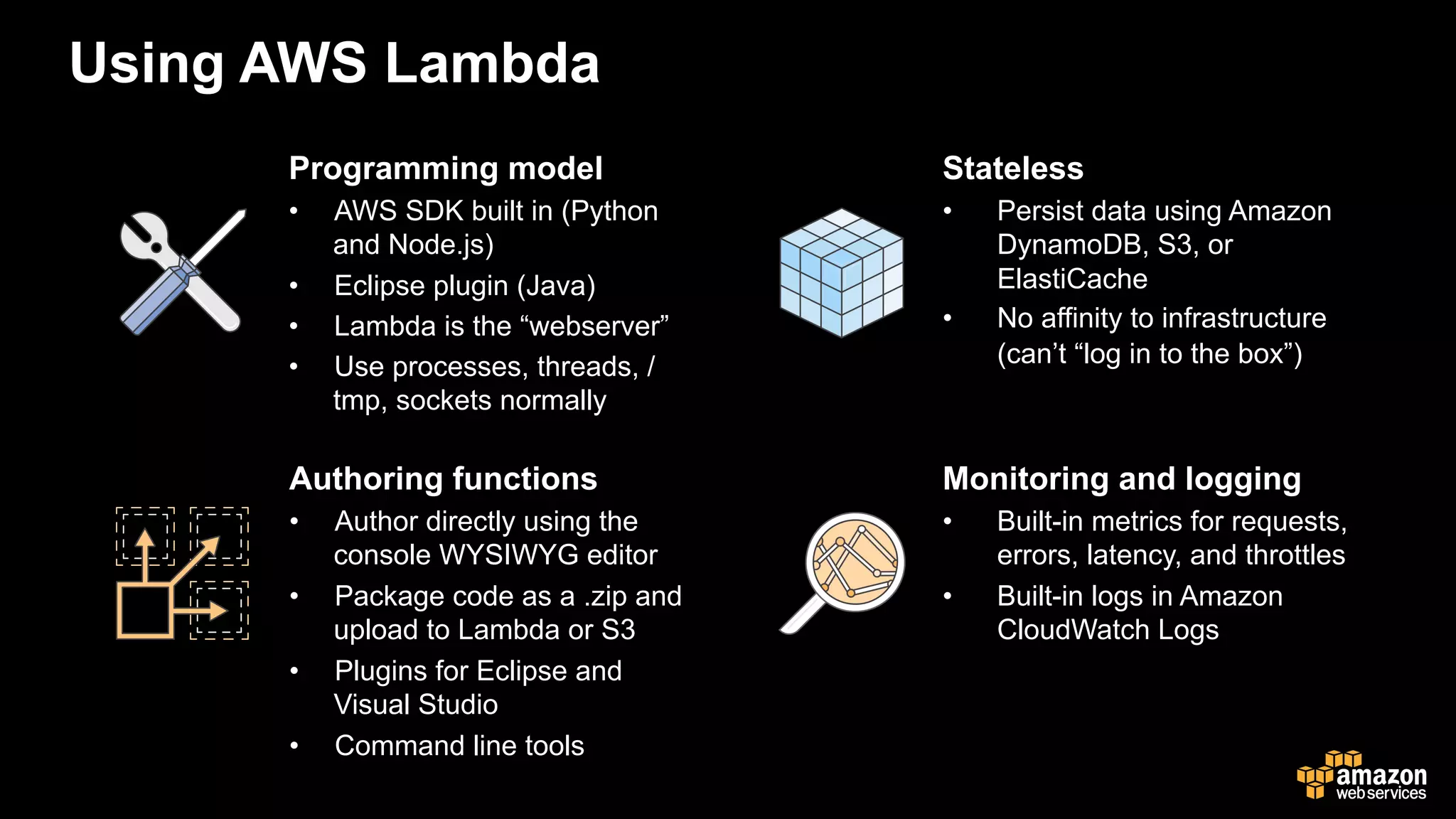

35. Using AWS Lambda
Programming model
• AWS SDK built in (Python
and Node.js)
• Eclipse plugin (Java)
• Lambda is the “webserver”
• Use processes, threads, /
tmp, sockets normally
Stateless
• Persist data using Amazon
DynamoDB, S3, or
ElastiCache
• No affinity to infrastructure
(can’t “log in to the box”)
Authoring functions
• Author directly using the
console WYSIWYG editor
• Package code as a .zip and
upload to Lambda or S3
• Plugins for Eclipse and
Visual Studio
• Command line tools
Monitoring and logging
• Built-in metrics for requests,
errors, latency, and throttles
• Built-in logs in Amazon
CloudWatch Logs

36. AWS Lambda Scaling
• Lambda scales to match
the event rate
• Don’t worry about over or
under provisioning
• Pay only for what you use

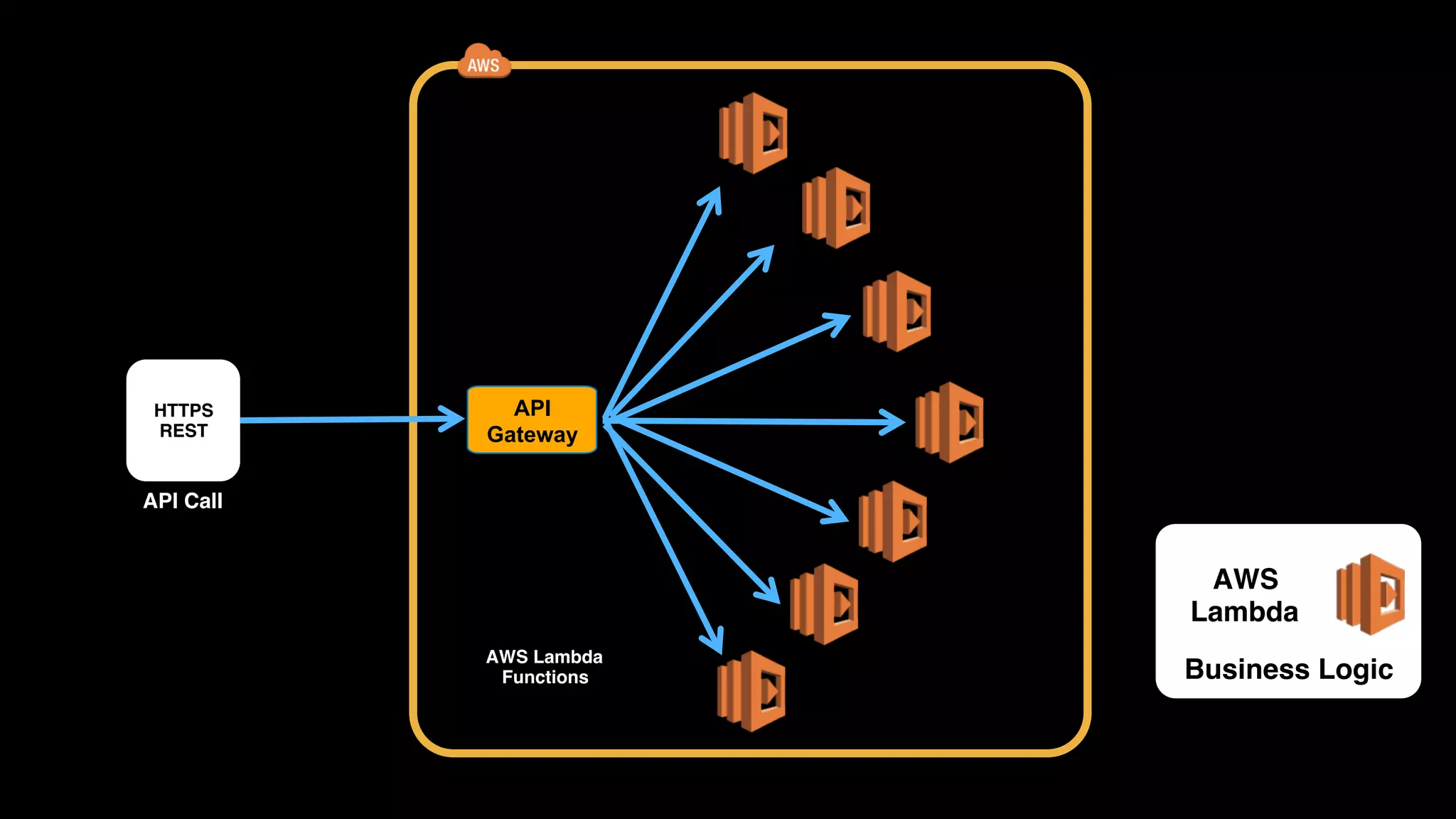

37. Business Logic
AWS
Lambda
AWS Lambda
Functions
HTTPS
REST
API Call
API
Gateway

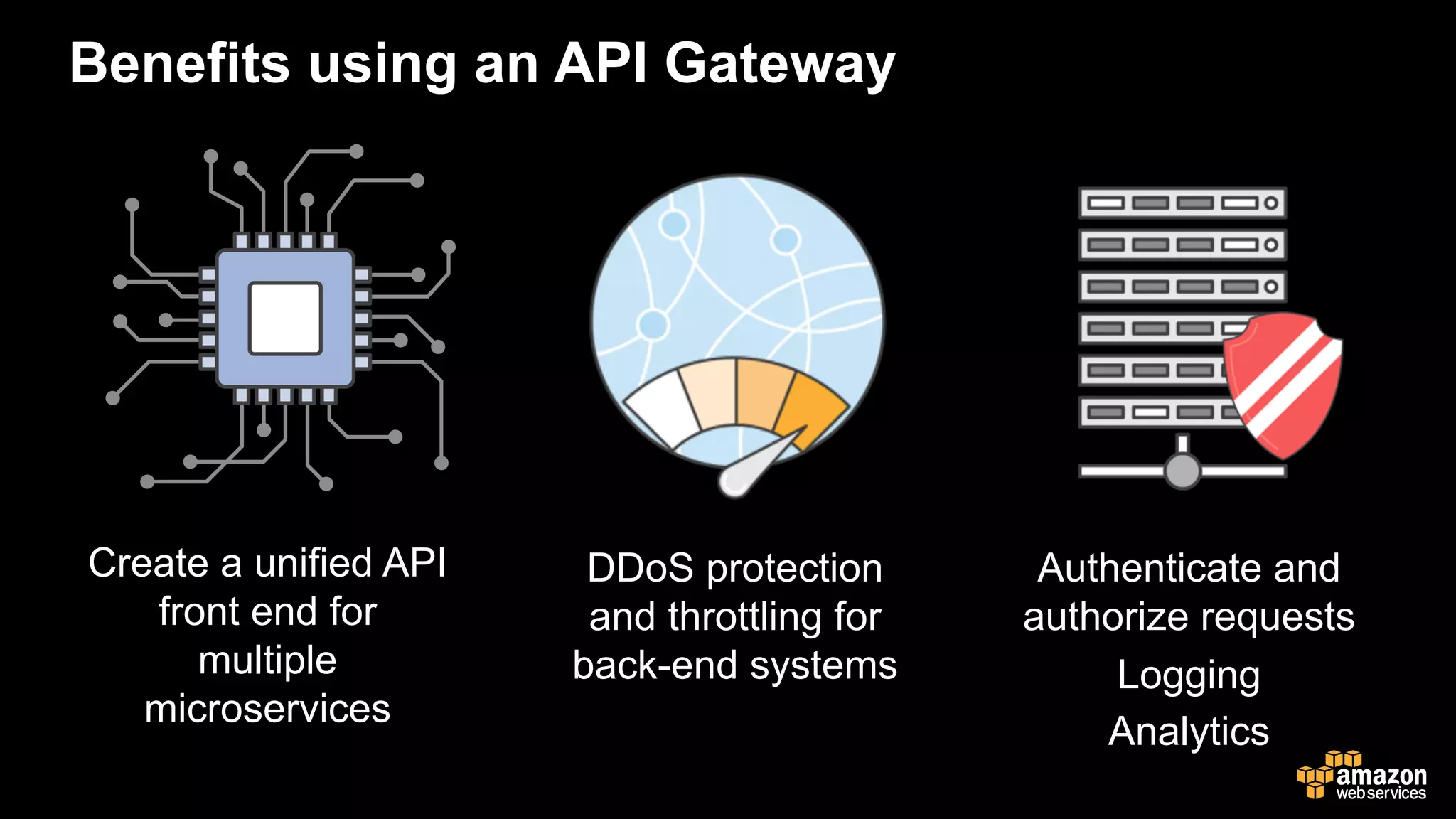

38. Benefits using an API Gateway
Create a unified API
front end for
multiple
microservices
DDoS protection
and throttling for
back-end systems
Authenticate and
authorize requests
Logging
Analytics

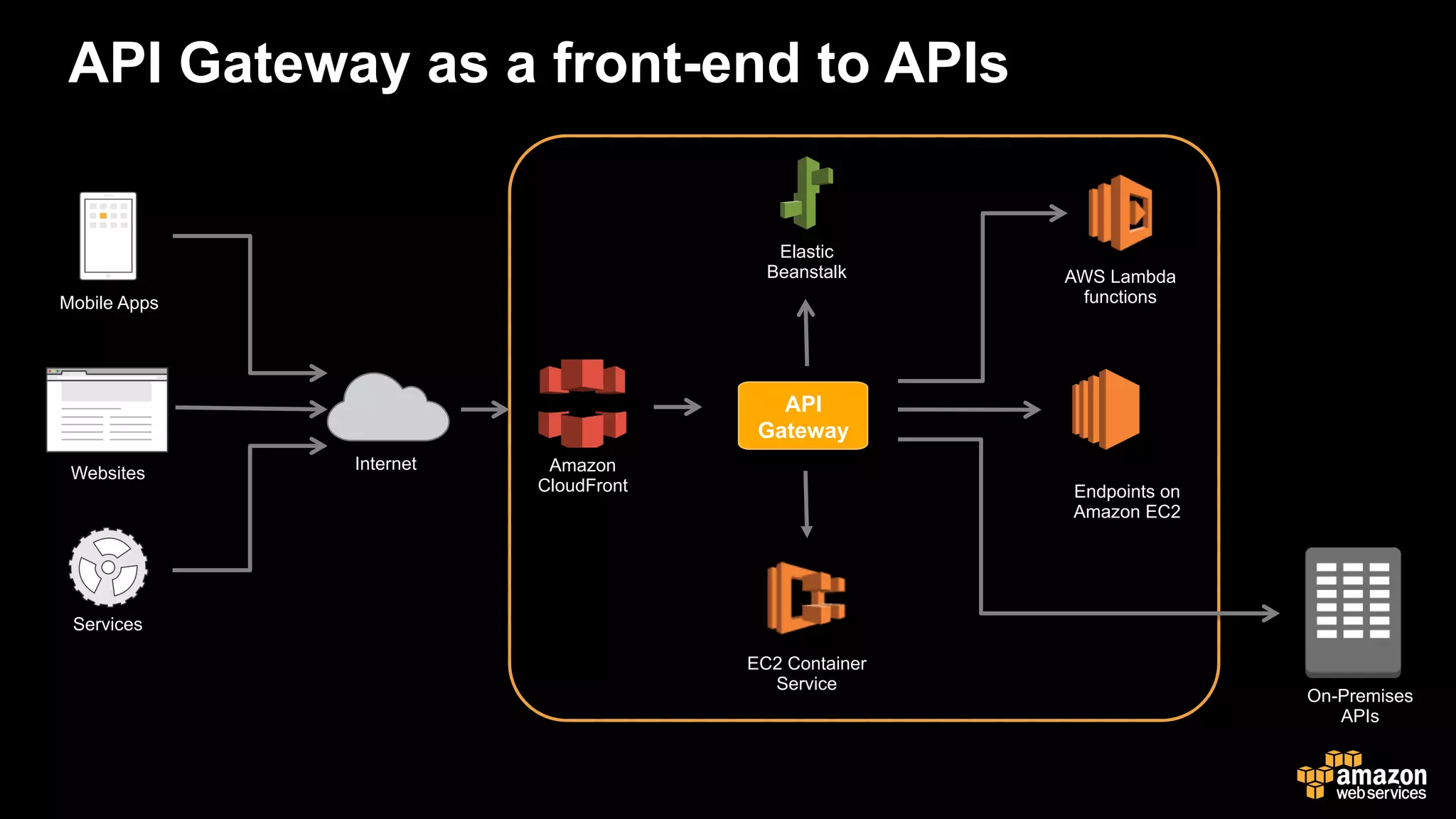

39. API Gateway as a front-end to APIs
Internet
Mobile Apps
Websites
Services
API
Gateway
AWS Lambda
functions
Elastic
Beanstalk
Endpoints on
Amazon EC2
On-Premises
APIs
EC2 Container
Service
Amazon
CloudFront

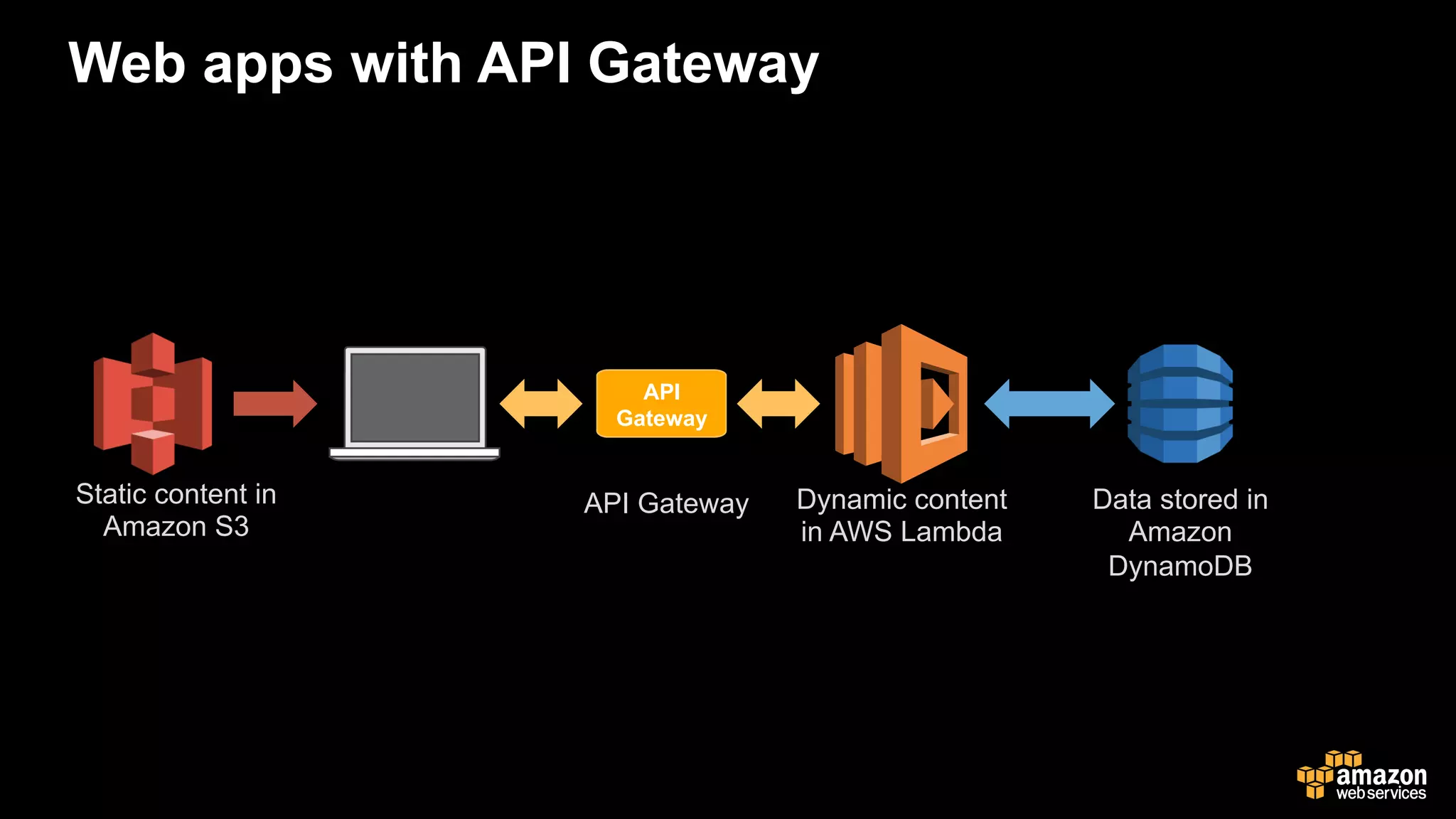

40. Web apps with API Gateway
Dynamic content
in AWS Lambda
Data stored in
Amazon
DynamoDB
API GatewayStatic content in
Amazon S3
API
Gateway

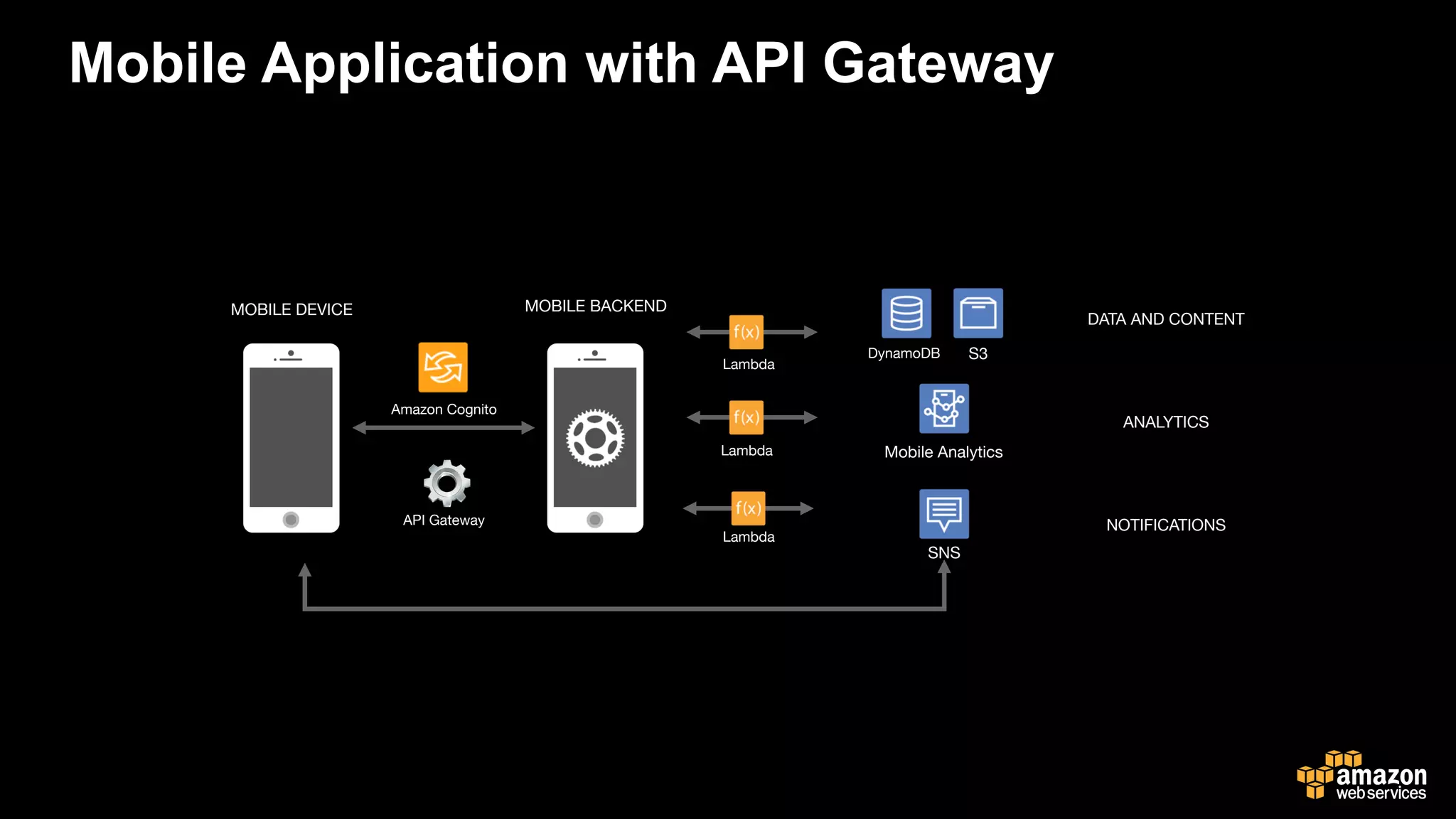

41. Amazon Cognito
API Gateway
Lambda
Lambda
Lambda
MOBILE DEVICE
MOBILE BACKEND
DATA AND CONTENT
ANALYTICS
NOTIFICATIONS
S3
DynamoDB
Mobile Analytics
SNS
Mobile Application with API Gateway

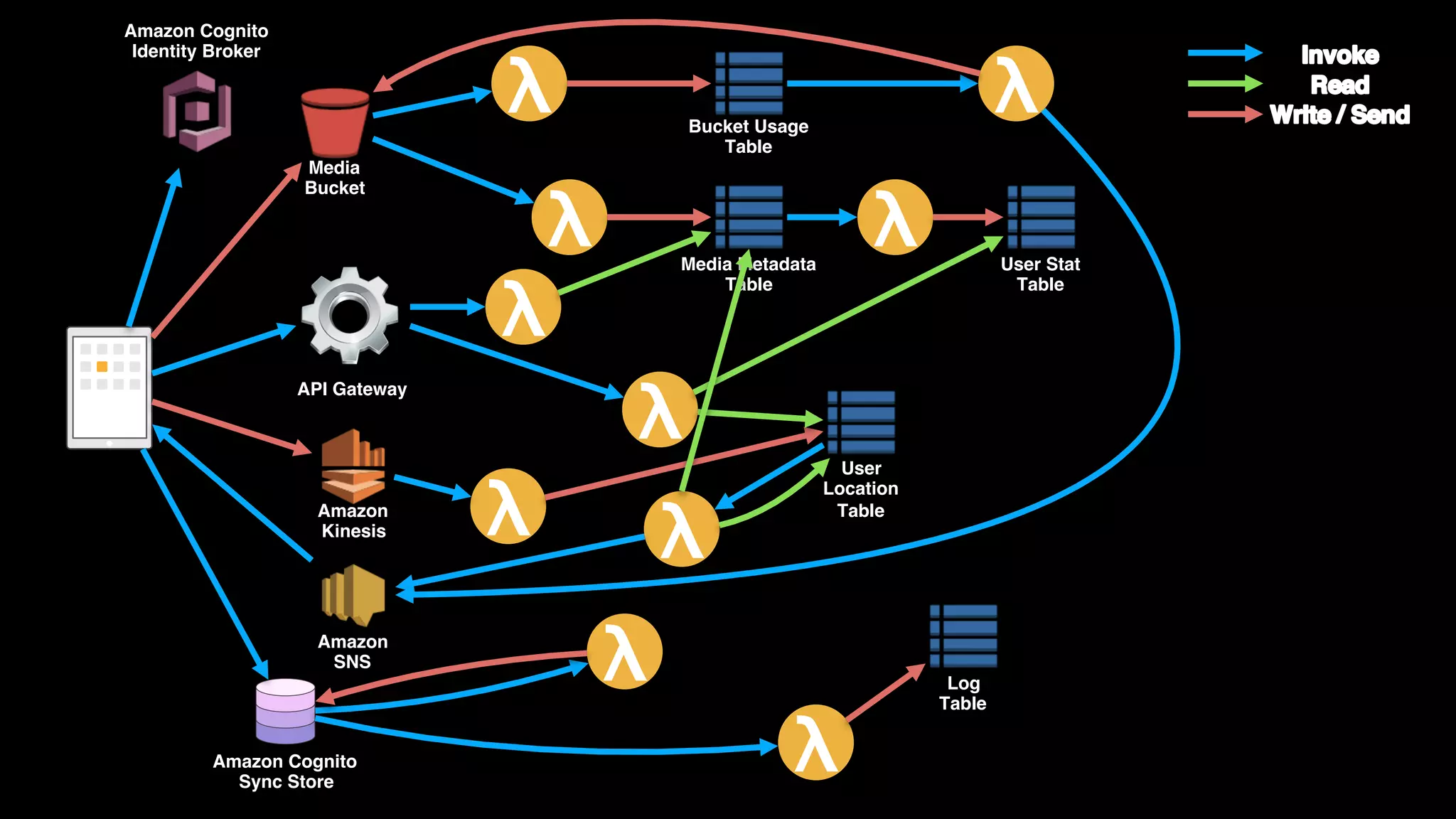

42. λ
λ λ
API Gateway
λ
λ
λ λ
Bucket Usage
Table
Media Metadata
Table
User Stat
Table
User
Location
Table
λ
λ
λ
Amazon Cognito
Identity Broker
Amazon Cognito
Sync Store
Amazon
SNS
Amazon
Kinesis
Media
Bucket
Log
Table

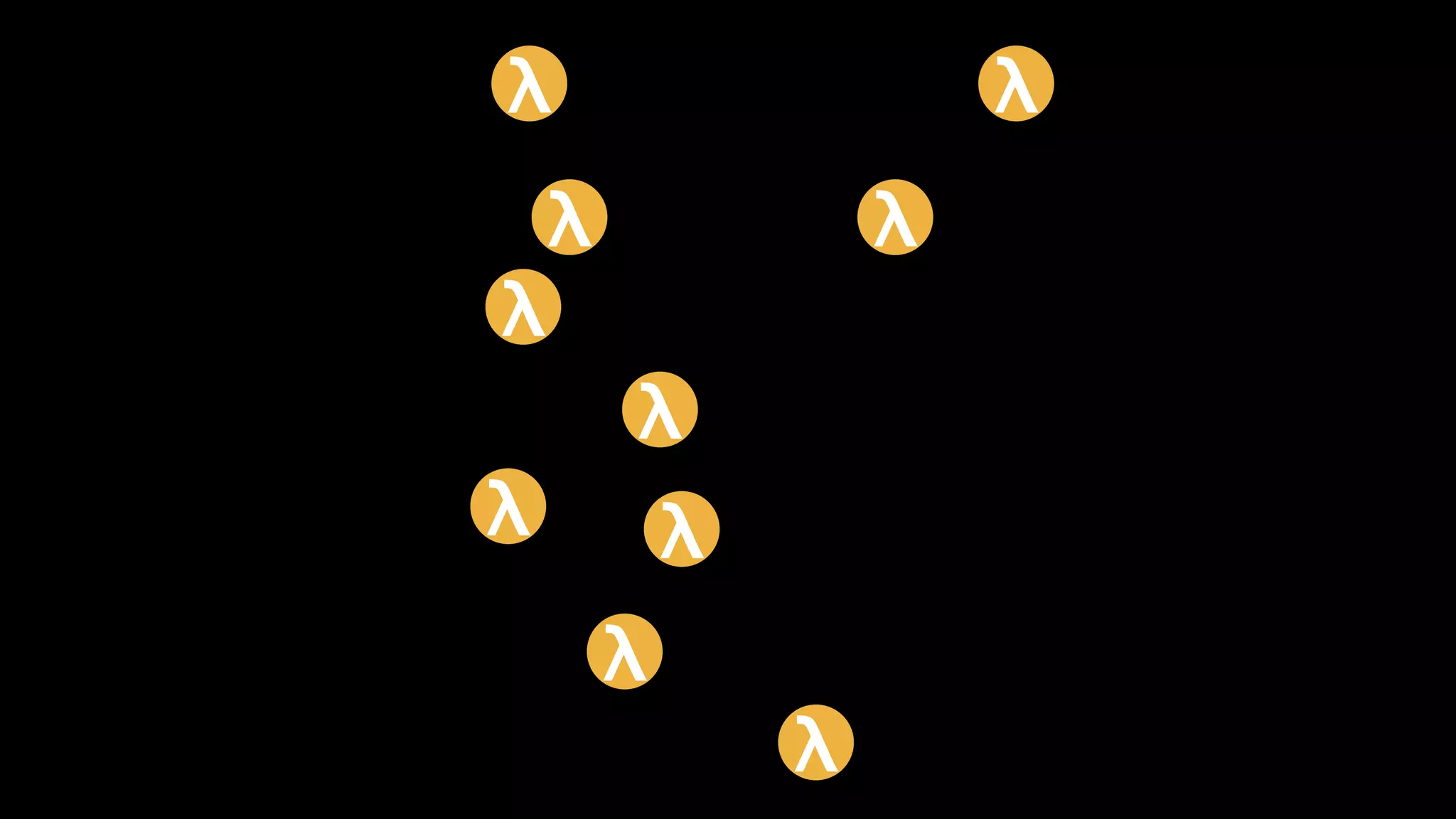

43. λ
λ λ
λ
λ
λ λ
λ
λ
λ

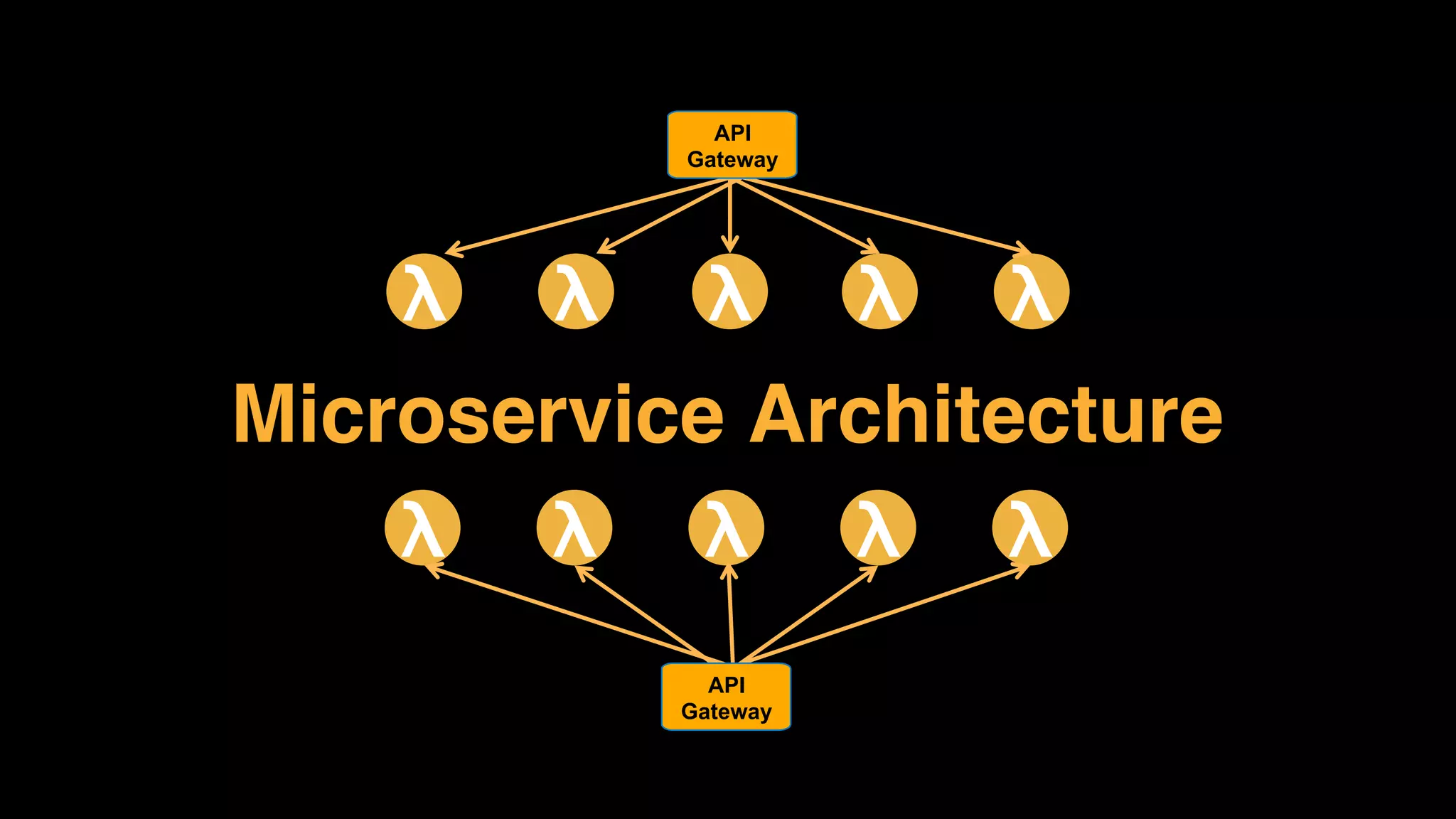

44. Microservice Architecture
λλ λλ
λλ λλ λ
λ
API
Gateway
API
Gateway

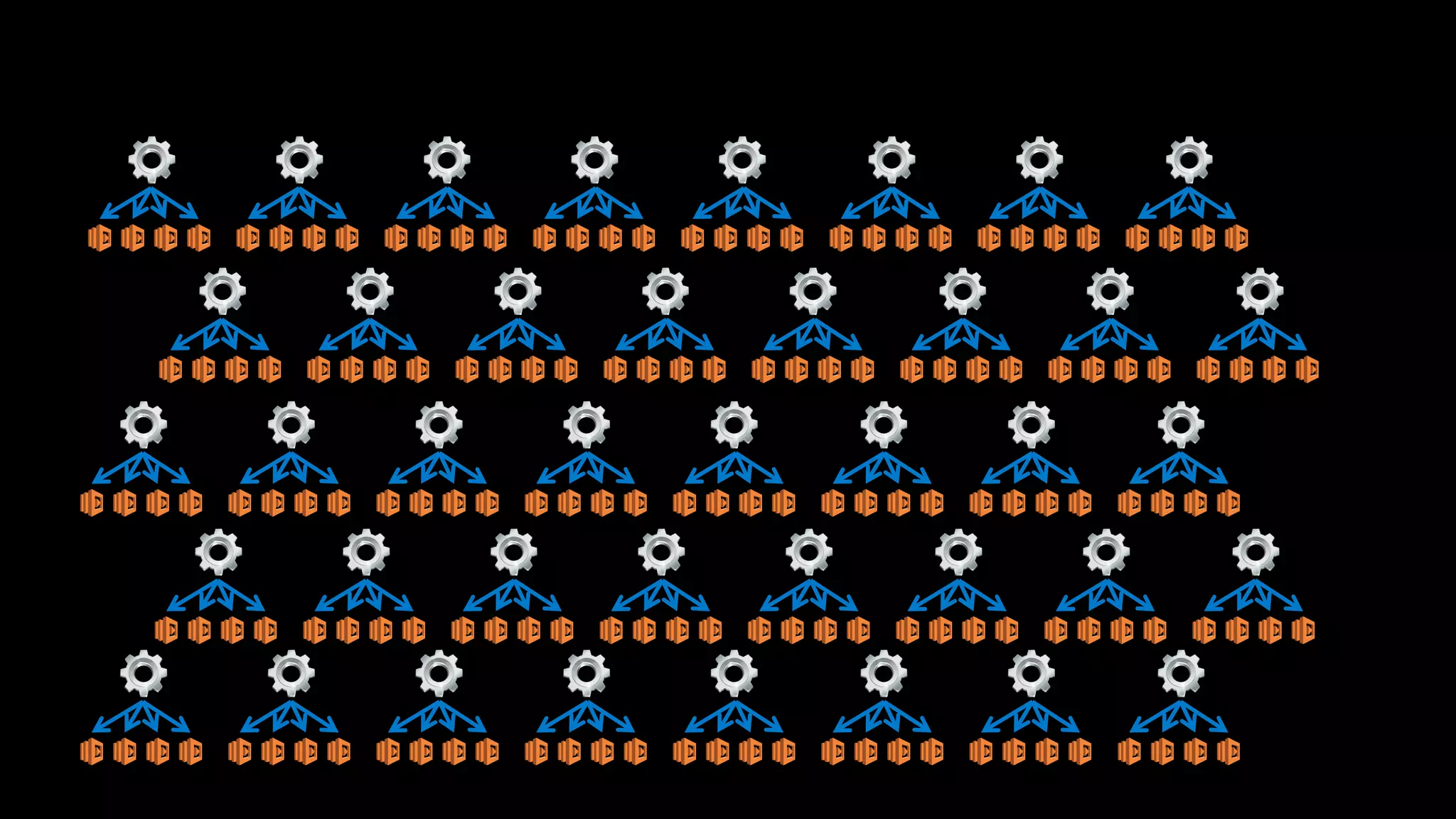

45. region

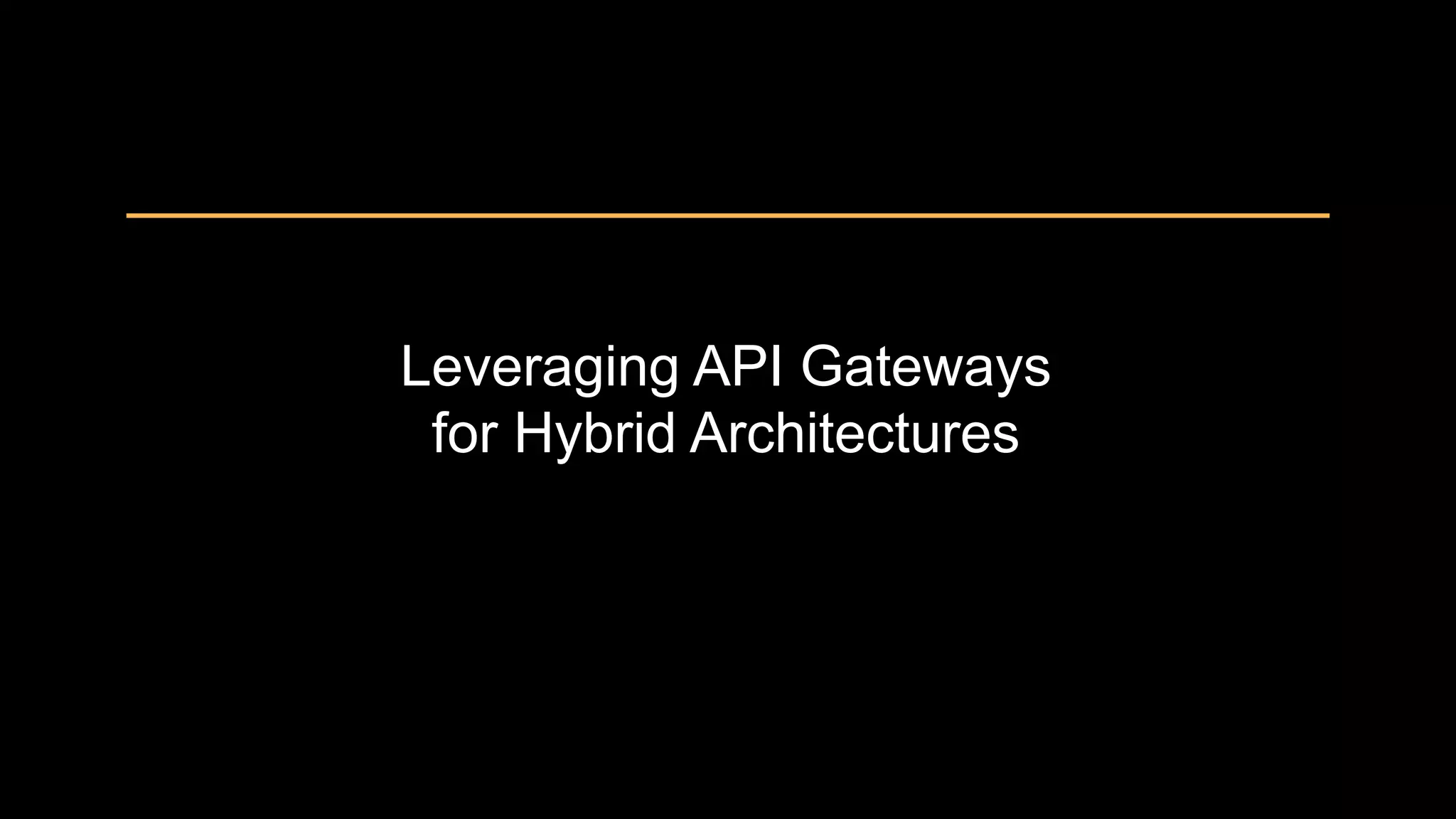

46. Leveraging API Gateways
for Hybrid Architectures

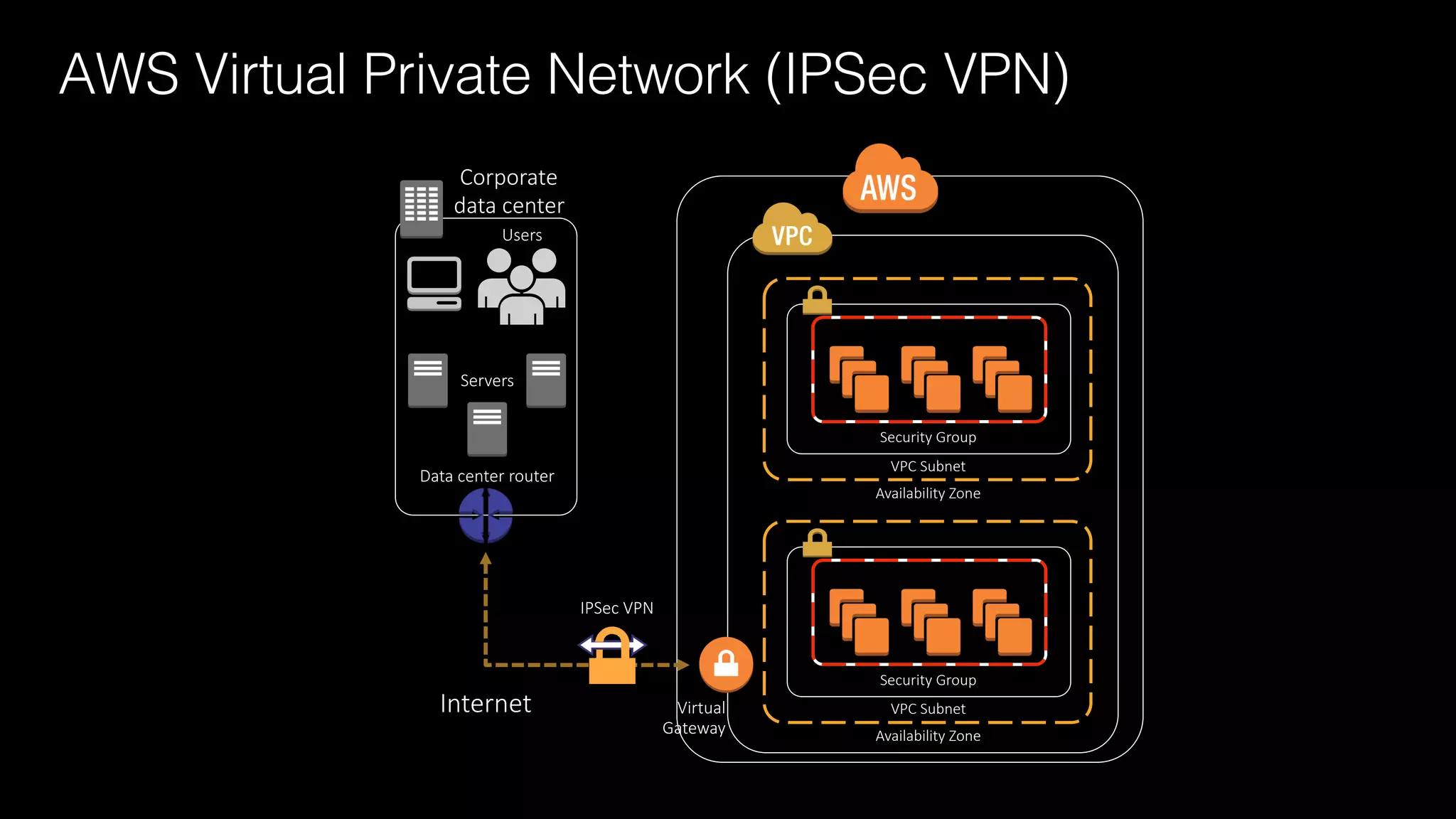

47. AWS Virtual Private Network (IPSec VPN)!
Virtual
Gateway
Corporate
data center
Users
Data center router
Servers
Internet
IPSec VPN
VPC Subnet
Availability Zone
Security Group
VPC Subnet
Availability Zone
Security Group

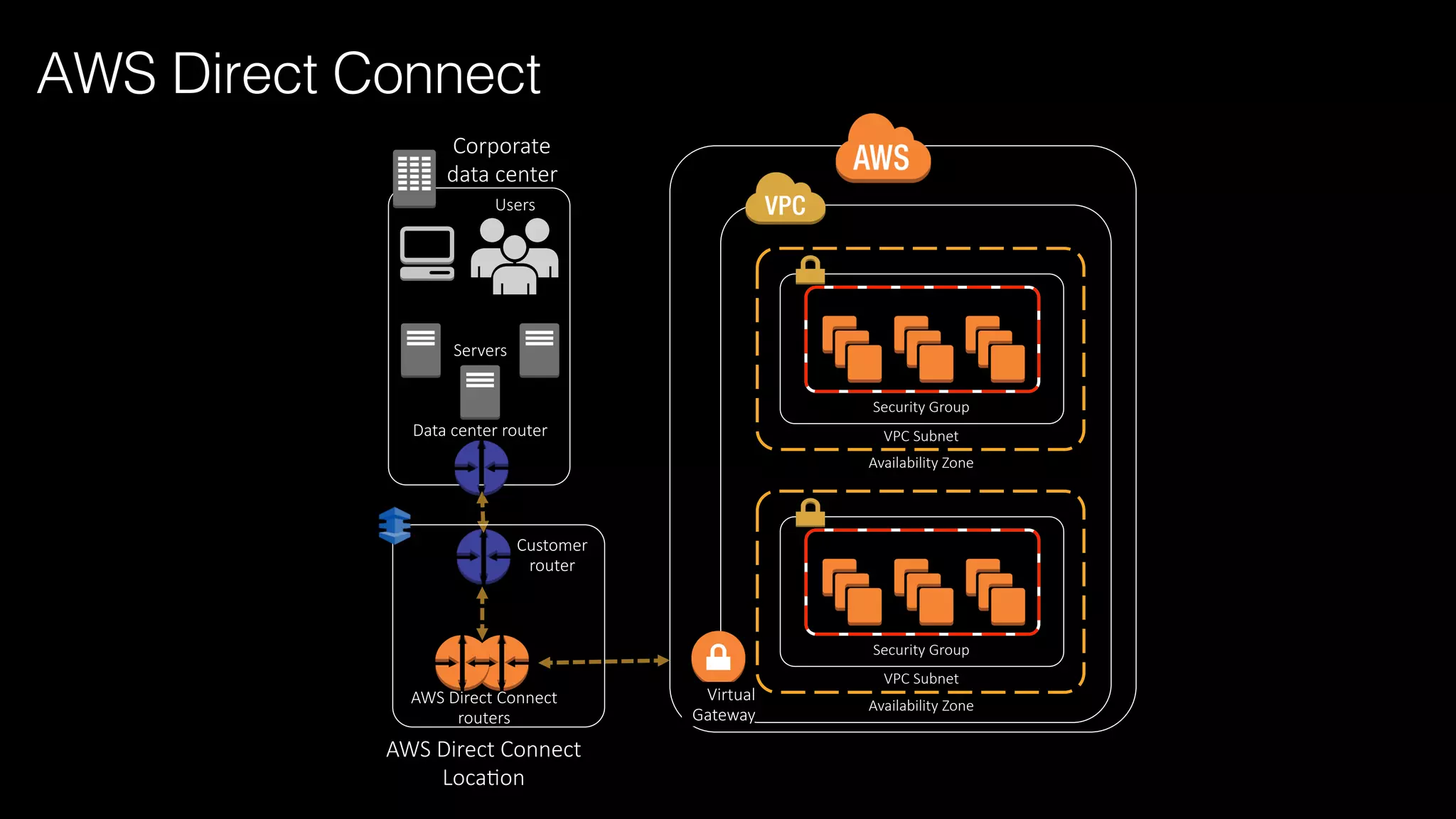

48. AWS Direct Connect!
Virtual
Gateway
Corporate
data center
Users
Data center router
Servers
VPC Subnet
Availability Zone
Security Group
VPC Subnet
Availability Zone
Security Group
Customer
router
AWS Direct Connect
LocaBon
AWS Direct Connect
routers

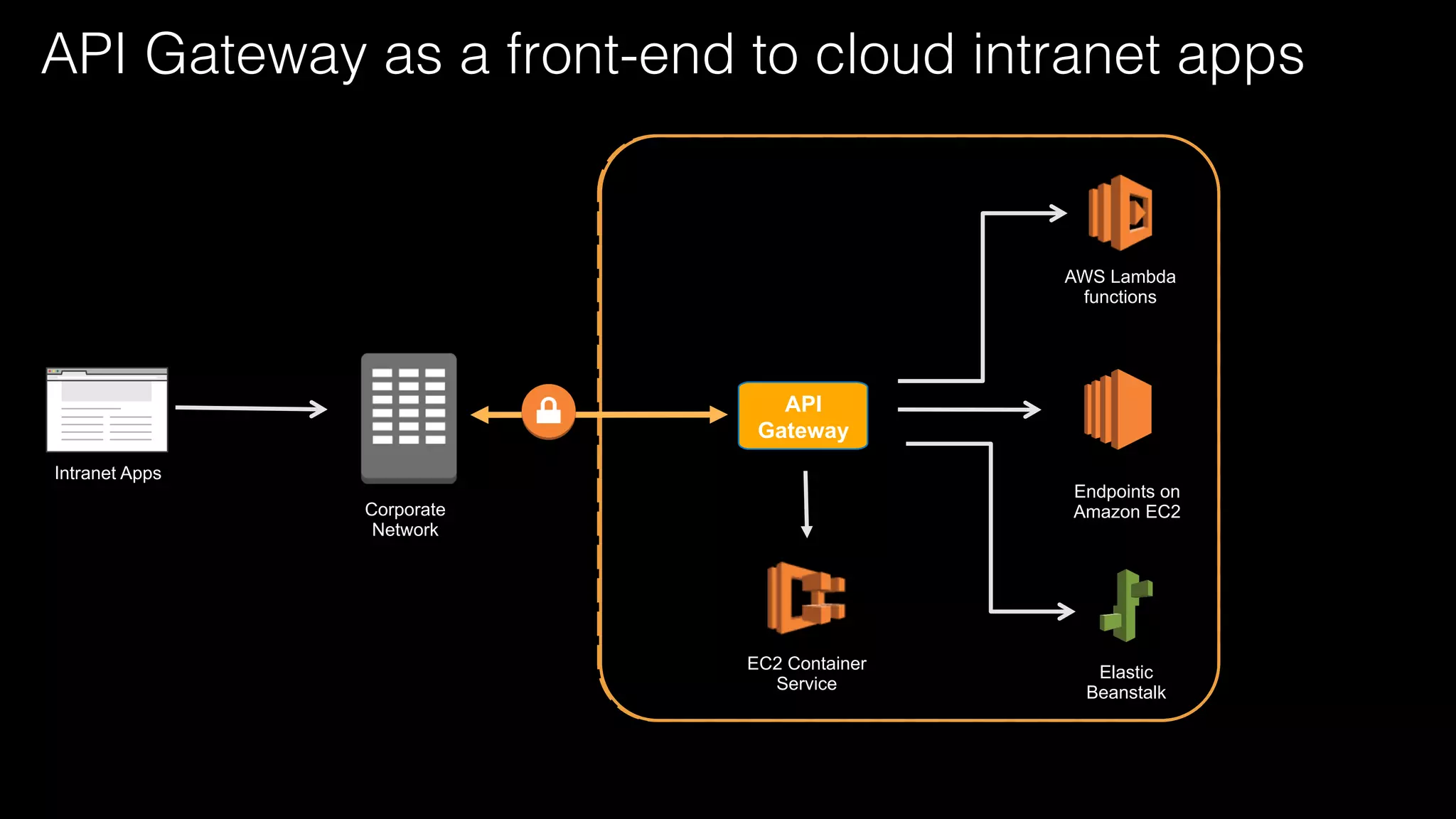

49. API Gateway as a front-end to cloud intranet apps!
Intranet Apps
API
Gateway
AWS Lambda
functions
Elastic
Beanstalk
Endpoints on
Amazon EC2
EC2 Container
Service
Corporate
Network

50. AWS region!
Private!
connection!
Your data center!
Internet!
In-house apps!
API
Gateway
Cloud Apps!
API
Gateway

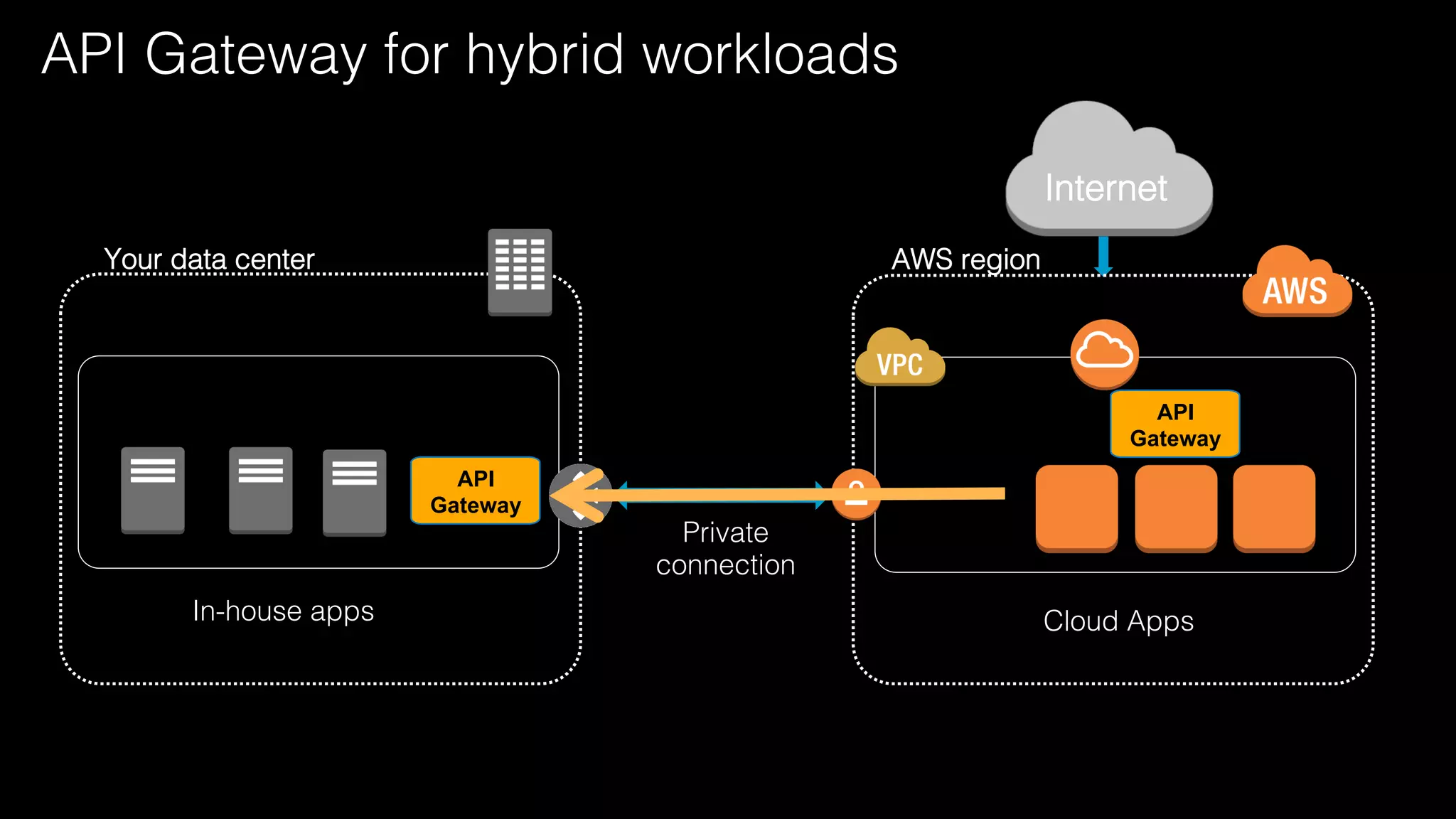

API Gateway for hybrid workloads!

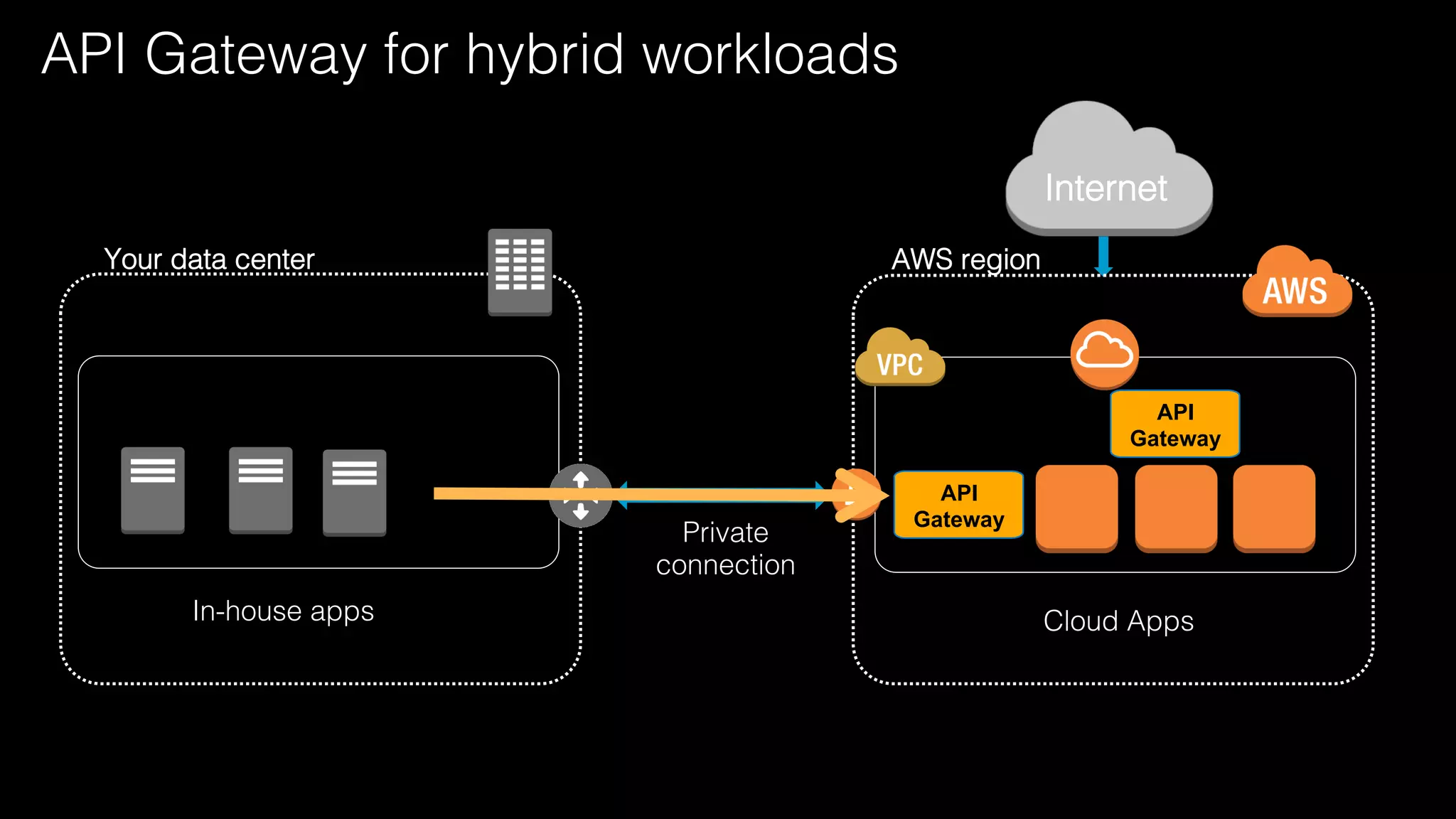

51. AWS region!
Private!
connection!
Your data center!
Internet!
API
Gateway
In-house apps! Cloud Apps!
API
Gateway
API Gateway for hybrid workloads!

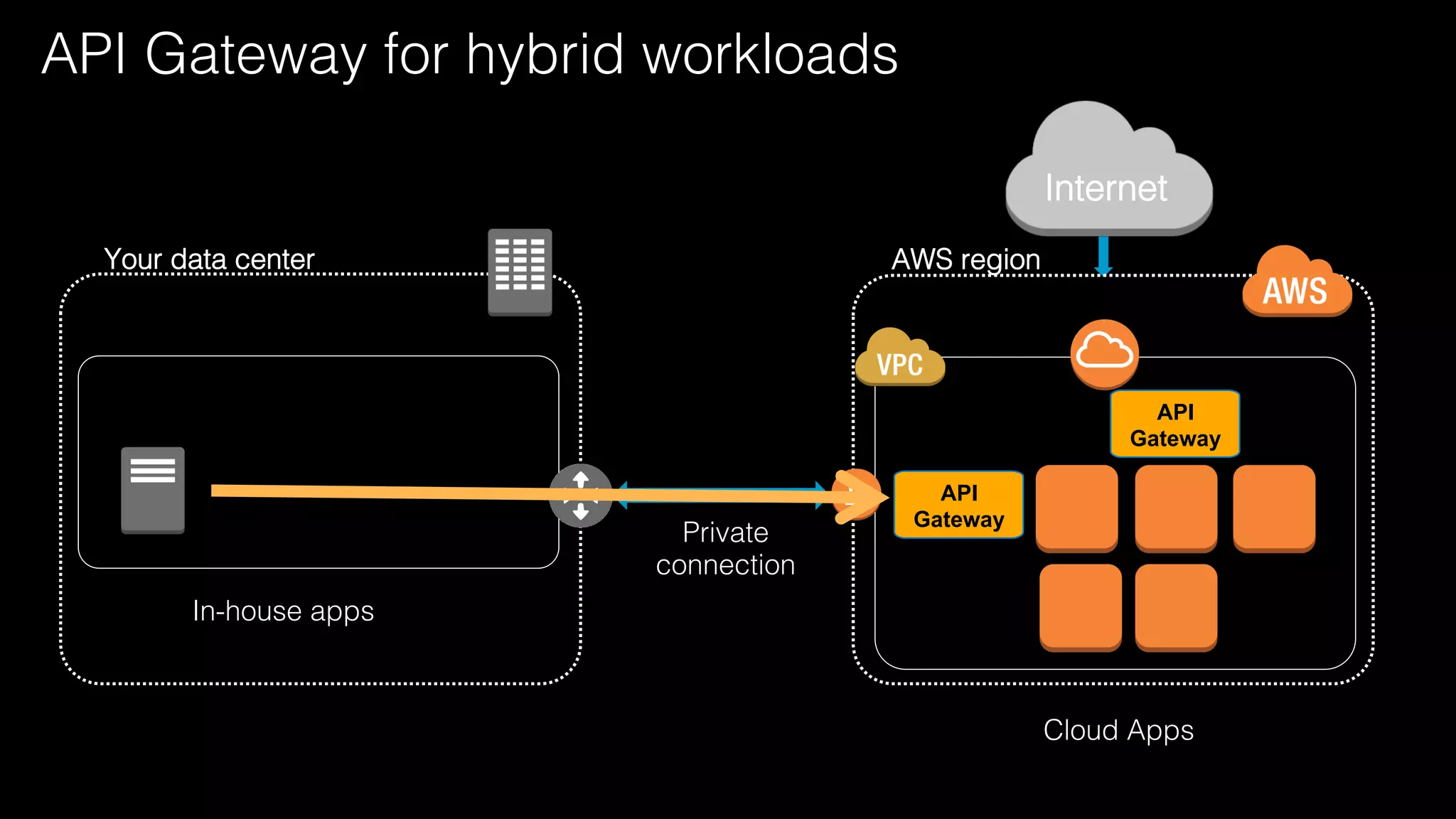

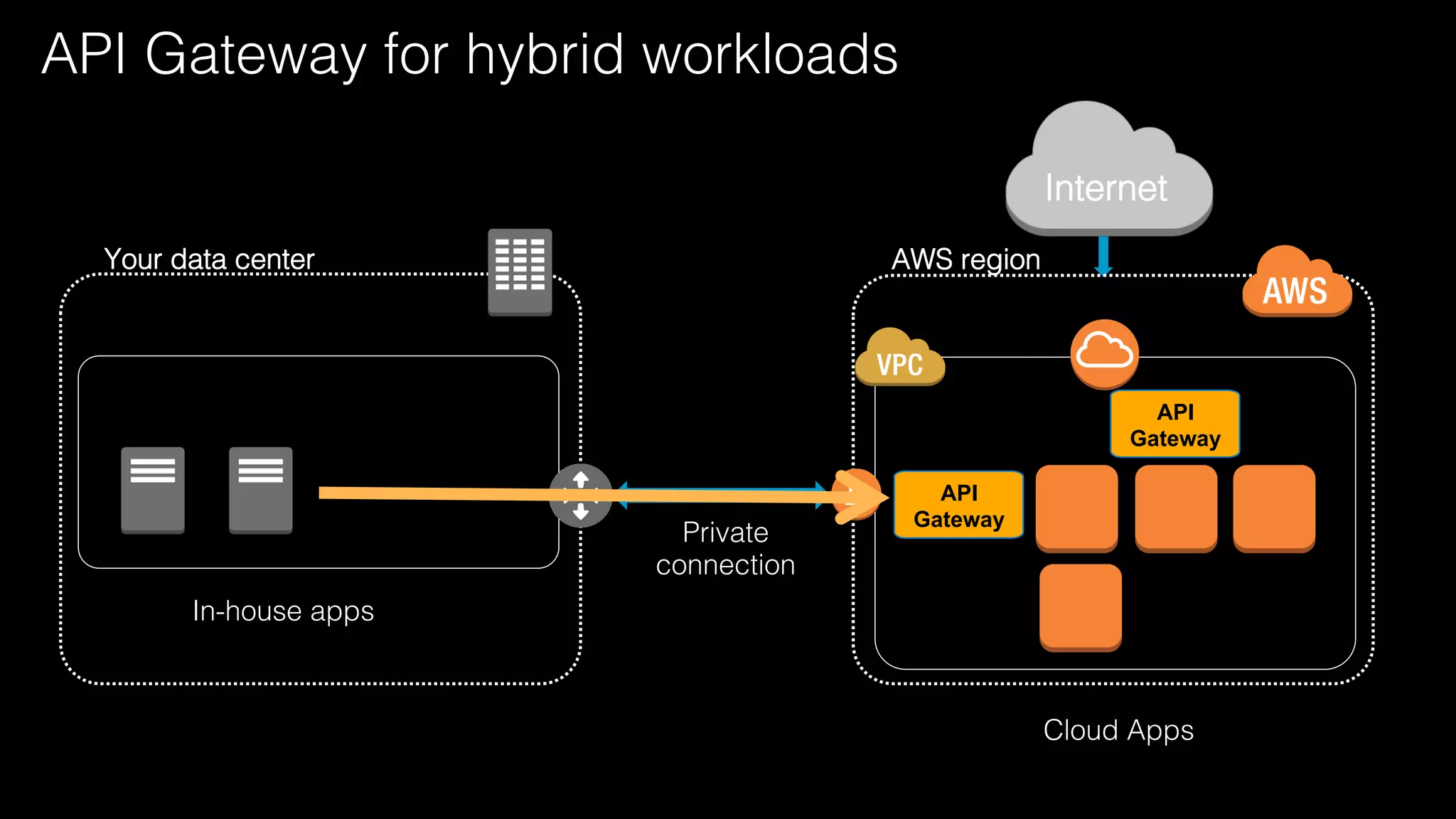

52. AWS region!
Private!
connection!
Your data center!
Internet!
API
Gateway
In-house apps!
Cloud Apps!
API
Gateway
API Gateway for hybrid workloads!

53. AWS region!
Private!
connection!
Your data center!
Internet!
API
Gateway
In-house apps!
Cloud Apps!
API
Gateway
API Gateway for hybrid workloads!

54. Actions
Lambda SNS SQS
Serverless
Services
(Direct Integration)
S3 KinesisDDB

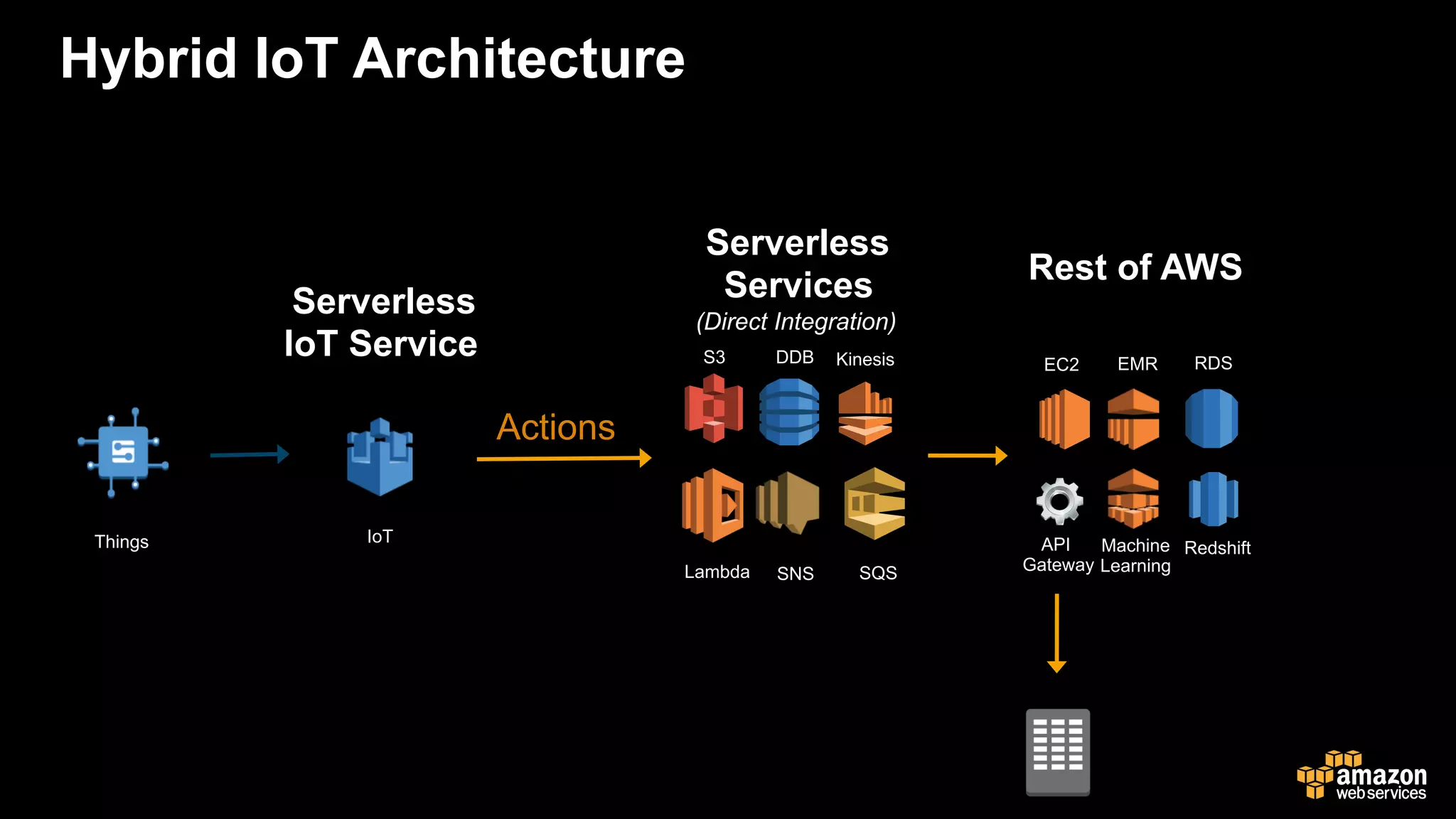

Hybrid IoT Architecture
RDS
Redshift
EC2
Rest of AWS
EMR
Machine
Learning
IoTThings
Serverless
IoT Service
API
Gateway

55. Lambda

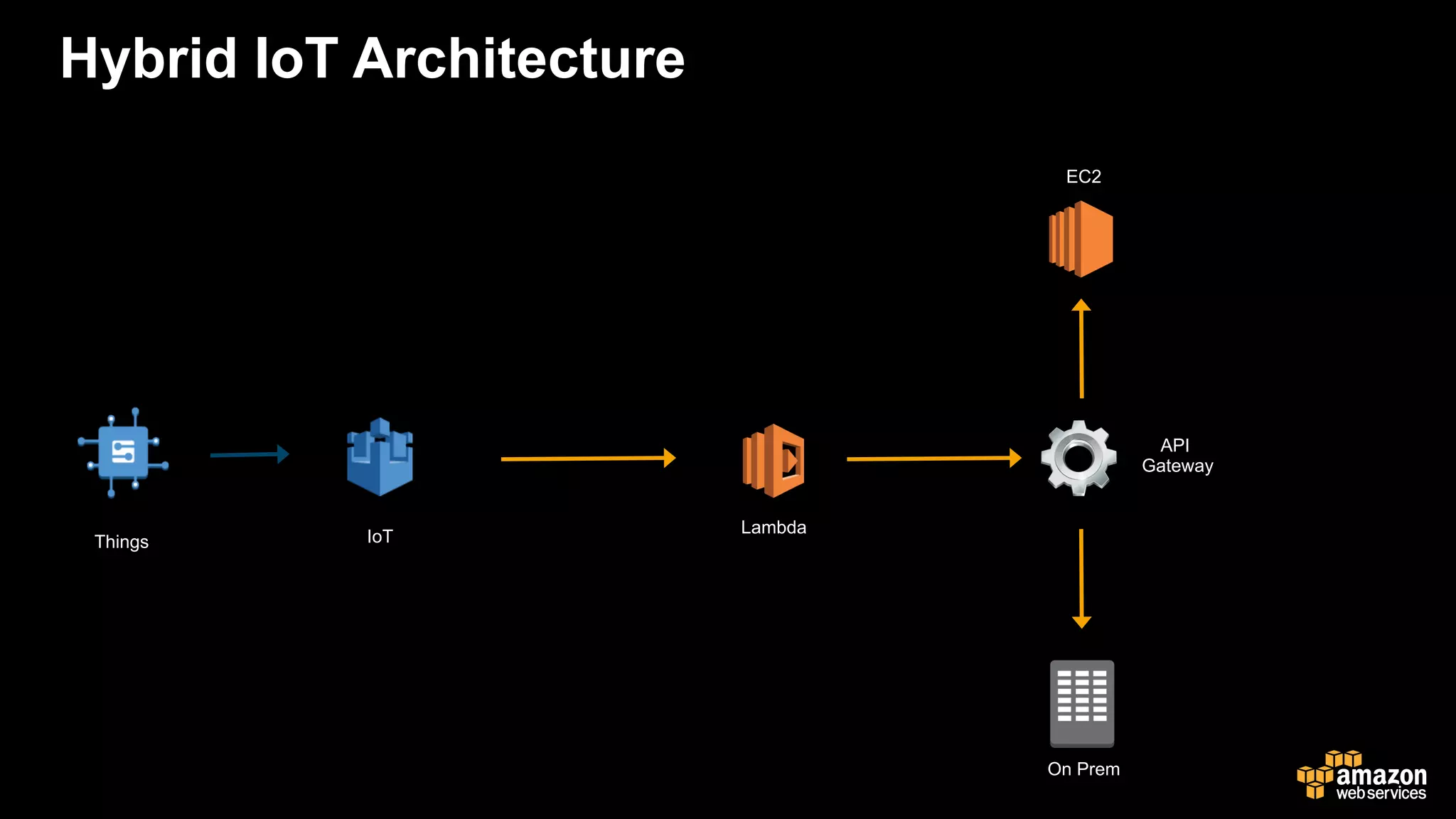

Hybrid IoT Architecture
EC2
API
Gateway
IoTThings
On Prem

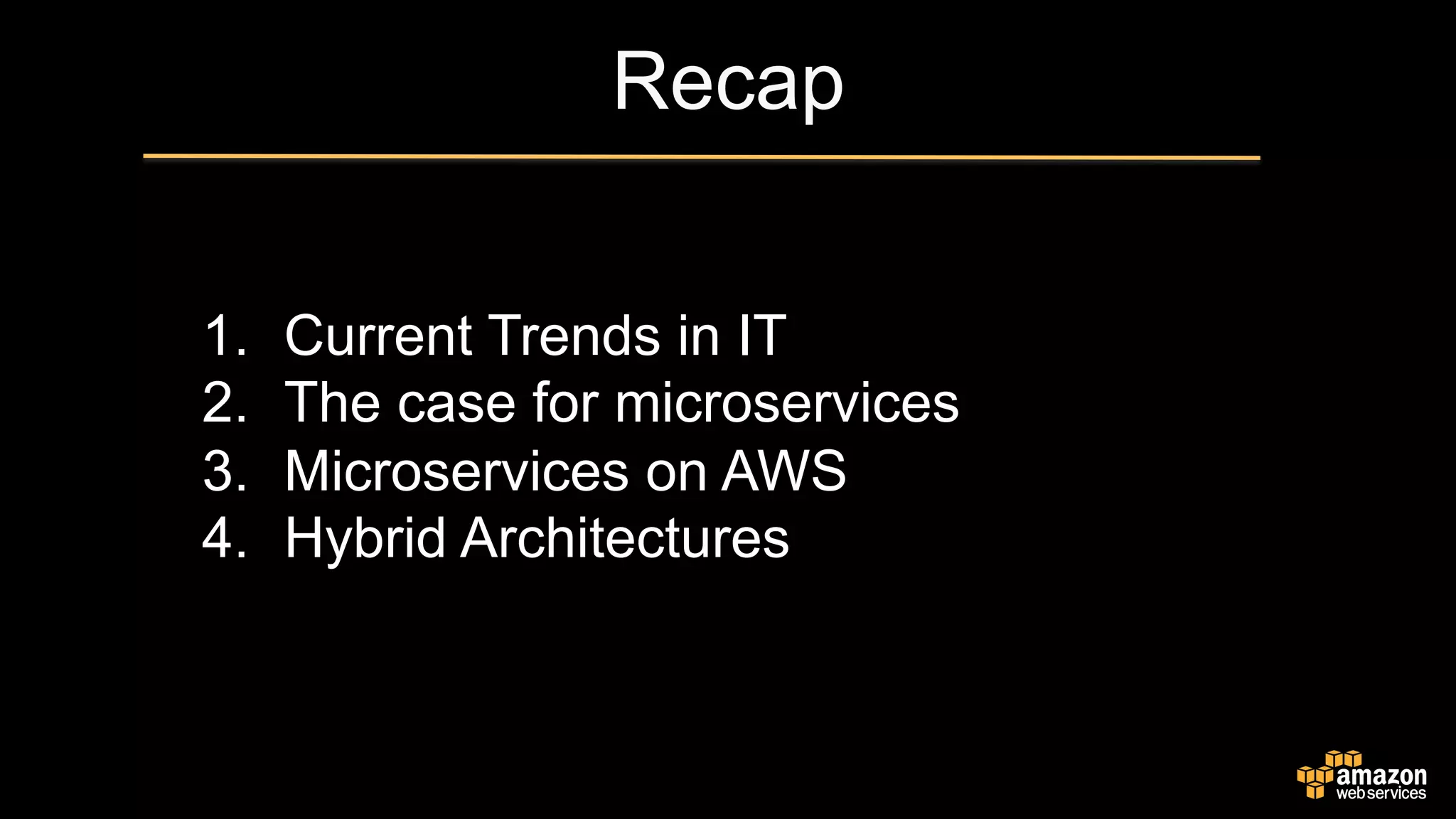

56. Recap
1. Current Trends in IT
2. The case for microservices
3. Microservices on AWS
4. Hybrid Architectures

58. JP Le Goaller
AWS Solutions Architecture
jplg@amazon.com
@jplegoal
