The document discusses RDFa-deployed multimedia metadata (ramm.x), which enhances existing multimedia metadata formats for the semantic web by enabling self-descriptive media asset descriptions. It emphasizes RDFa as a concrete syntax for RDF leveraging HTML attributes, and outlines its application in various multimedia contexts, including the formalization of multimedia vocabularies. Additionally, it clarifies that ramm.x is not a standalone vocabulary but rather requires a host language like XHTML for its implementation.

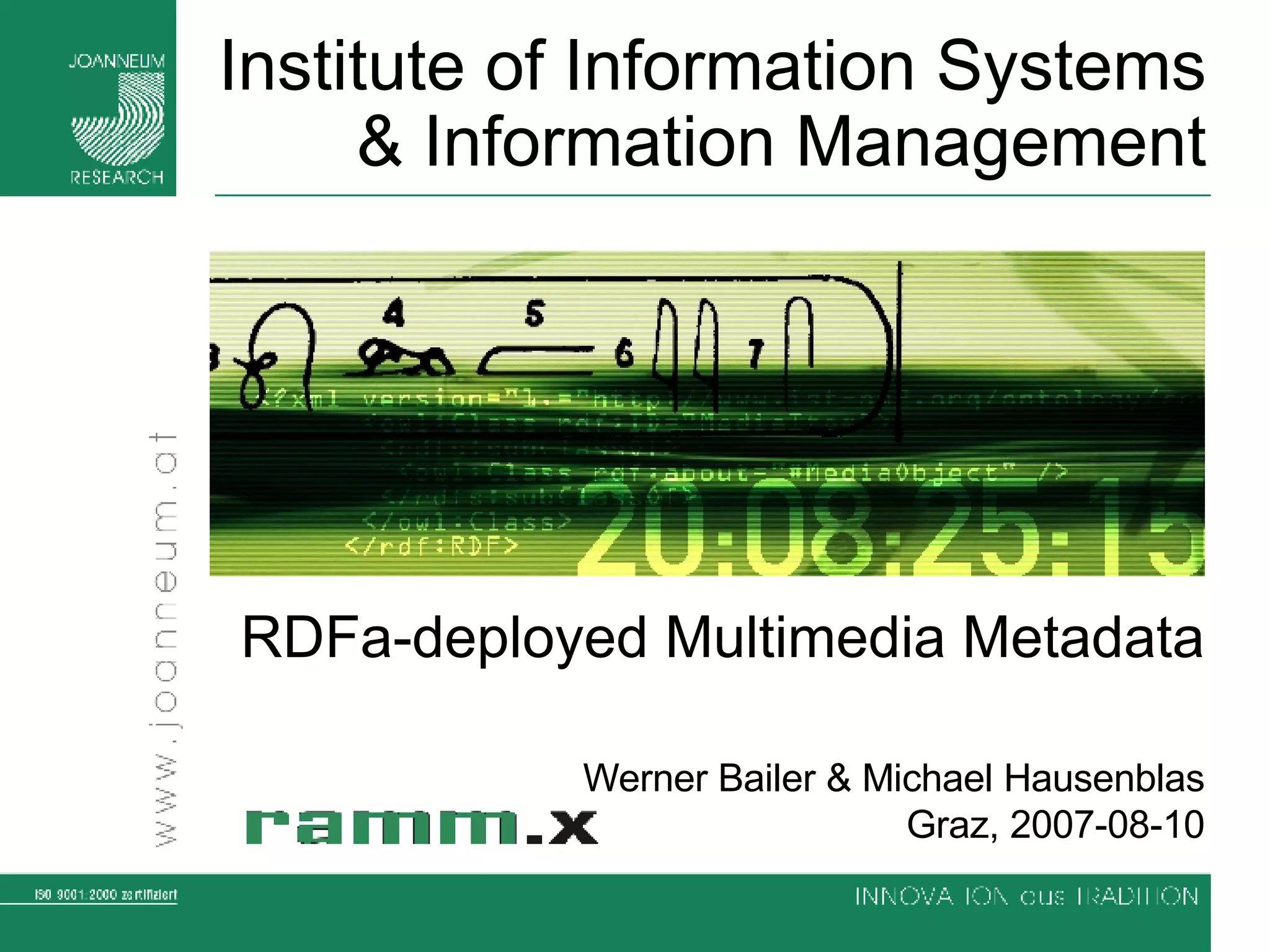

1. Institute of Information Systems & Information Management RDFa-deployed Multimedia Metadata Werner Bailer & Michael Hausenblas Graz, 2007-08-10

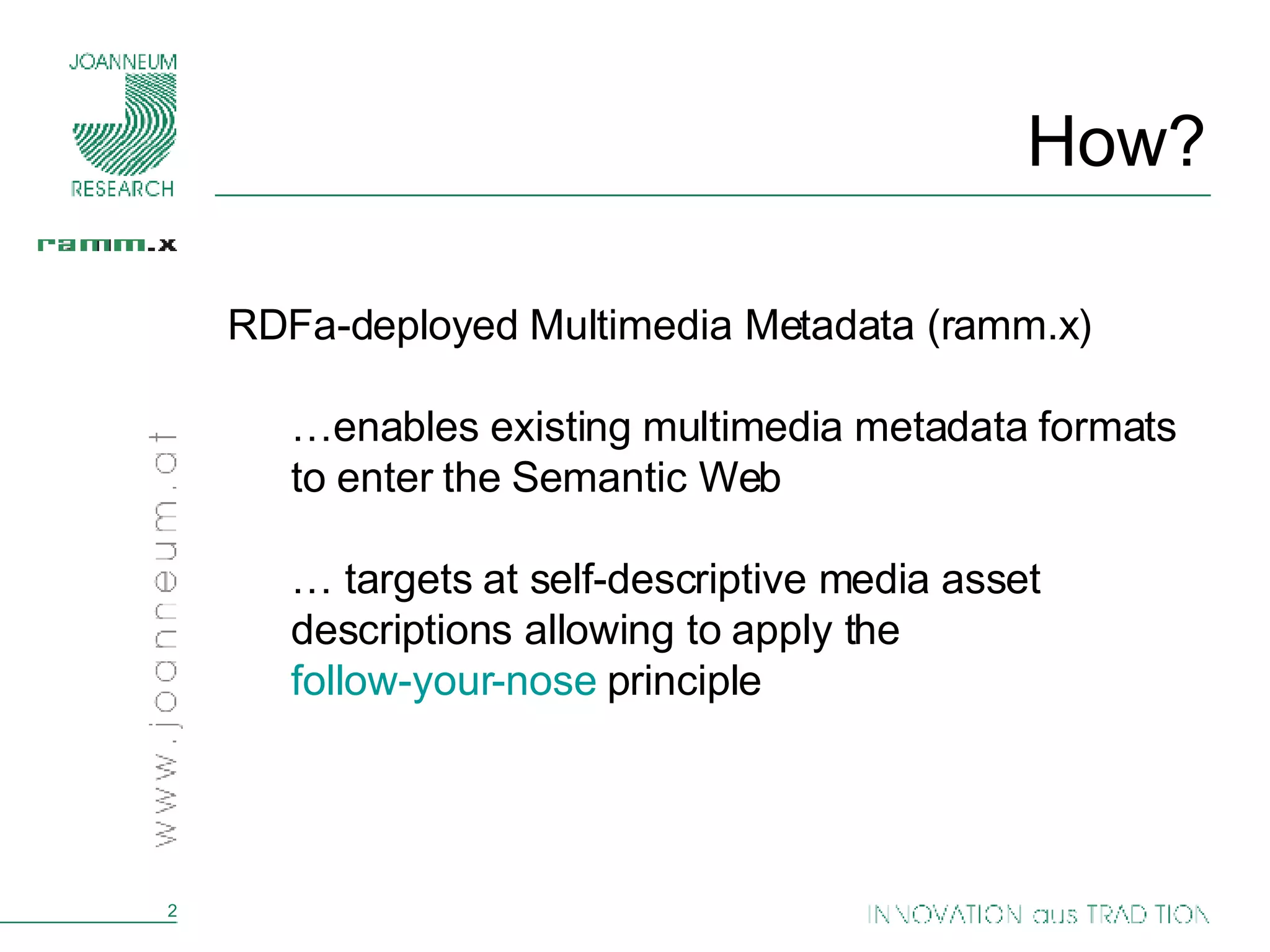

2. How ? RDFa-deployed Multimedia Metadata (r amm.x) … enables existing multimedia metadata formats to enter the Semantic Web … targets at self-descriptive media asset descriptions allowing to apply the follow-your-nose principle

3. How ?

4. How ? The cornerstones of ramm.x are RDFa Formalisations of Multimedia Vocabularies ramm.x vocabulary

5. How ? – RDFa

6. How ? – RDFa RDFa (cf. http://www.w3.org/2006/07/SWD/RDFa/ ) is a concrete syntax (serialisation) for RDF using (HTML) attributes interpreting @href, @resource, @instanceof, @rel, @rev, @property, @about, @content (just as microformats do) but based on and representing the RDF graph model , the Semantic Web core data model

7. How ? – RDFa RDFa example (from Michael’s homepage ) <div href =&quot; foaf:Person &quot; rel =&quot; rdf:type &quot; about =&quot; http://sw-app.org/mic.xhtml#i &quot;> My name is <span property =&quot; foaf:name &quot;>Michael Hausenblas</span> (also known as <span property =&quot; foaf:nick &quot;>mic.</span>) and I work at <a href=&quot;http://www.joanneum.at/iis/&quot; rel =&quot; foaf:workplaceHomepage &quot;>JOANNEUM RESEARCH</a> in the field of media semantics. <div> <img src=&quot;http://sw-app.org/img/mic_2007_01.jpg&quot; rel=&quot; foaf:depiction &quot; alt=&quot;Picture of Michael&quot;/> </div> </div>

8. How ? – RDFa RDFa example (from Michael’s homepage ) – HTML rendering:

9. How ? – RDFa RDFa example (from Michael’s homepage ) – extracted RDF: Graph visualisation <http://sw-app.org/mic.xhtml#i> a foaf:Person; foaf:name &quot;Michael Hausenblas&quot;; foaf:nick &quot;mic.&quot; ; foaf:workplaceHomepage http://www.joanneum.at/iis/ ; foaf:depiction http://sw-app.org/img/mic_2007_01.jpg . N3 notation

10. How ? – Multimedia Vocabularies Formalisations of Multimedia Vocabularies , a Report of the W3C Multimedia Semantics XG contains: Existing Multimedia Metadata Formats Still Images Audio Content Audio-Visual Content Multimedia Presentations Describing Specific Domains Or Workflows Other Multimedia Metadata Related Formats Multimedia Ontologies

11. ramm.x – Vocabulary

12. ramm.x – Example This still image contains embedded Exif metadata. Using the RDFizer service http://www.kanzaki.com/test/exif2rdf , an RDF/XML representation of the Exif metadata ( exif_example.rdf ) can be obtained. Aim : Deploy the Exif metadata with ramm.x in an XHTML document Result : exif_example.html

13. ramm.x – Example <div about=&quot; #exif_formal&quot; href=&quot; ramm:Formalisation &quot; rel=&quot;rdf:type&quot;> <span rel=&quot; ramm:schemaURI &quot; href=&quot;http://www.kanzaki.com/ns/exif&quot; /> <span rel=&quot; ramm:toRDF &quot; href=&quot;http://www.kanzaki.com/test/exif2rdf&quot; /> </div> <div about=&quot; #sample_mad &quot; href=&quot; ramm:MediaAssetDescription &quot; rel=&quot;rdf:type&quot;> <span about=&quot;http://sw.joanneum.at/rammx/spec/example/exif_example.jpg&quot; href=&quot; ramm:MediaAsset &quot; rel=&quot;rdf:type&quot;> <img src=&quot; http :// sw.joanneum.at / rammx / spec / example / exif_example.jpg “ alt=&quot;An example still image.&quot; style=&quot;border: solid black 1px;&quot; /> <span rel=&quot; ramm:hasDescription &quot; href=&quot; #sample_mad &quot; /> <p property=&quot;dc:title&quot; datatype=&quot;xsd:string&quot;>An example still image.</p> </span> <span property=&quot;dcterms:created&quot; content=&quot;2007-07-22T22:23:00Z„ datatype=&quot;xsd:date&quot; /> <span rel=&quot; ramm:nativeDescription “ href=&quot; http :// sw.joanneum.at / rammx / spec / example / exif_example.jpg &quot; /> <span rel=&quot; ramm:using &quot; href=&quot; #exif_formal &quot; /> </div>

14. What is ramm.x NOT? Another RDF-based multimedia description vocabulary, as, e.g., hAudio RDFa ; A declarative vocabulary – just as other standards ( SPARQL , GRDDL , etc.) standardise not only a vocabulary, but also behaviour, or put in other words: operational semantics. Hence, classes and properties are defined along with their procedural impact; A replacement for other technologies, nor can it exist on its own; it always needs a host language, e.g., (X)HTML, SMILE, SVG, etc. due to its dependency on RDFa.

15. Institute of Information Systems & Information Management RDFa-deployed Multimedia Metadata Werner Bailer & Michael Hausenblas Graz, 2007-08-10
