RDF, RDA, and other TLAs

RDF, RDA,
and other TLAs
Dorothea Salo

Monday, January 2, 2012

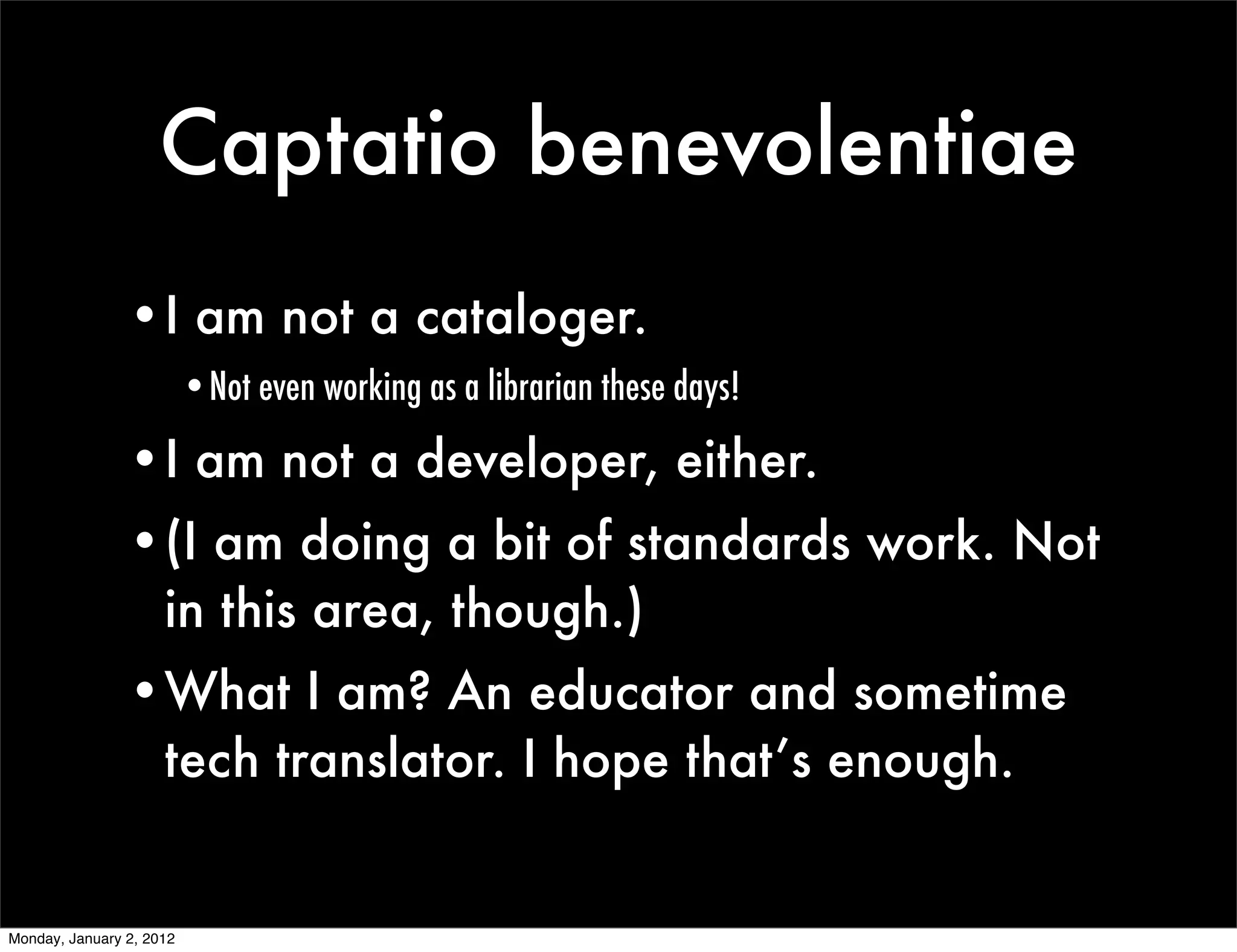

Captatio benevolentiae
•I am not a cataloger.
•Not even working as a librarian these days!

•I am not a developer, either.
•(I am doing a bit of standards work. Not
in this area, though.)
•What I am? An educator and sometime
tech translator. I hope that’s enough.


We built MARC when

stood between us and patron.
Photo: Deborah Fitchett, “Catalogue cards” http://www.ﬂickr.com/photos/deborahﬁtchett/2970373235/ CC-BY

We built MARC when

the world was clearly bounded.
Photo: NASA Goddard Photo and Video, “NASA Blue Marble” http://www.ﬂickr.com/photos/gsfc/4392965590/ CC-BY

These days,

stands between us and patron.
Photo: Declan Jewell, “My Desk” http://www.ﬂickr.com/photos/declanjewell/2743737312 CC-BY

These days,

world’s looking a bit fractal!
Photo: NASA Goddard Photo and Video, “Still centered over the Atlantic” http://www.ﬂickr.com/photos/gsfc/4409800816/ CC-BY

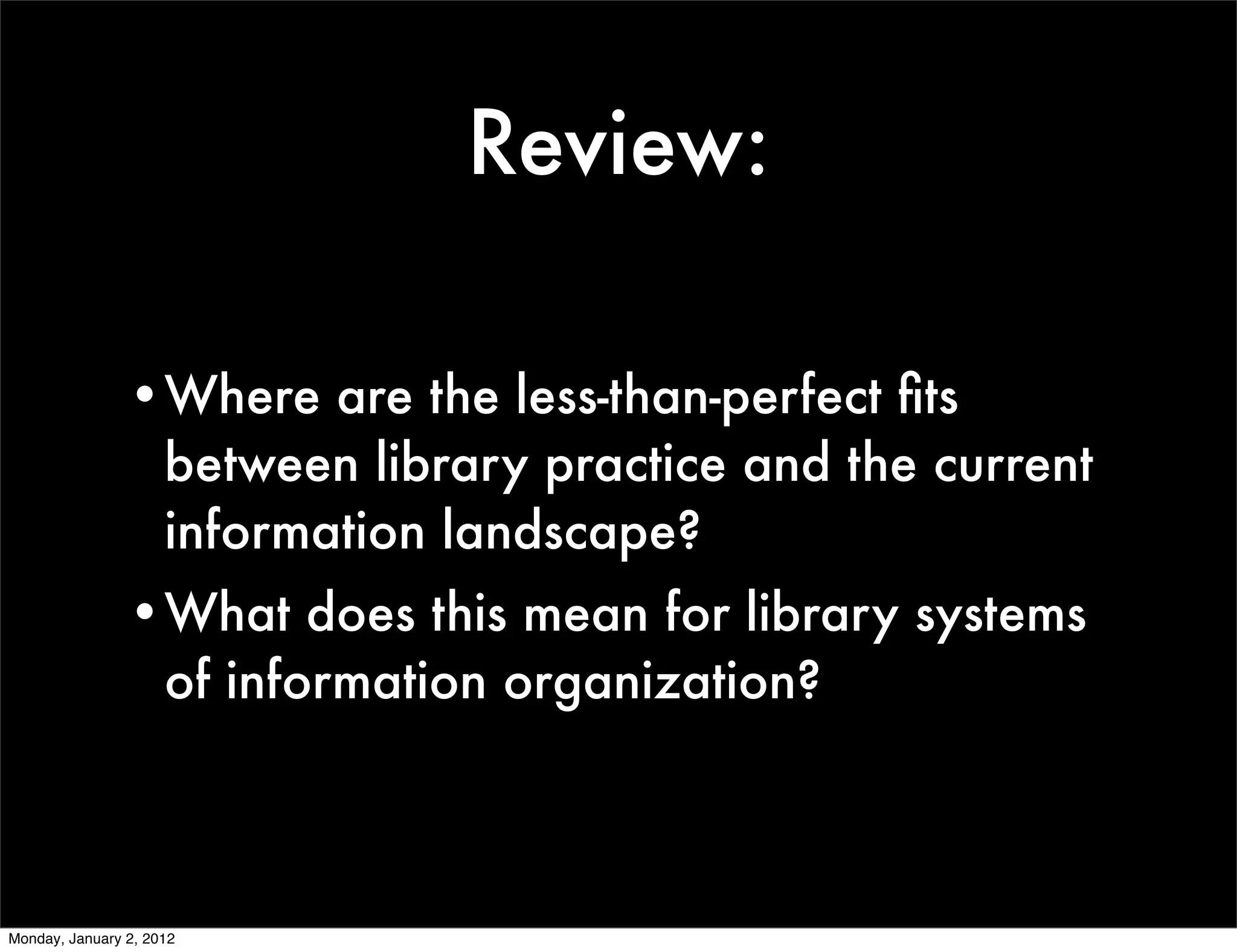

Review:

•Where are the less-than-perfect ﬁts
between library practice and the current
information landscape?
•What does this mean for library systems
of information organization?

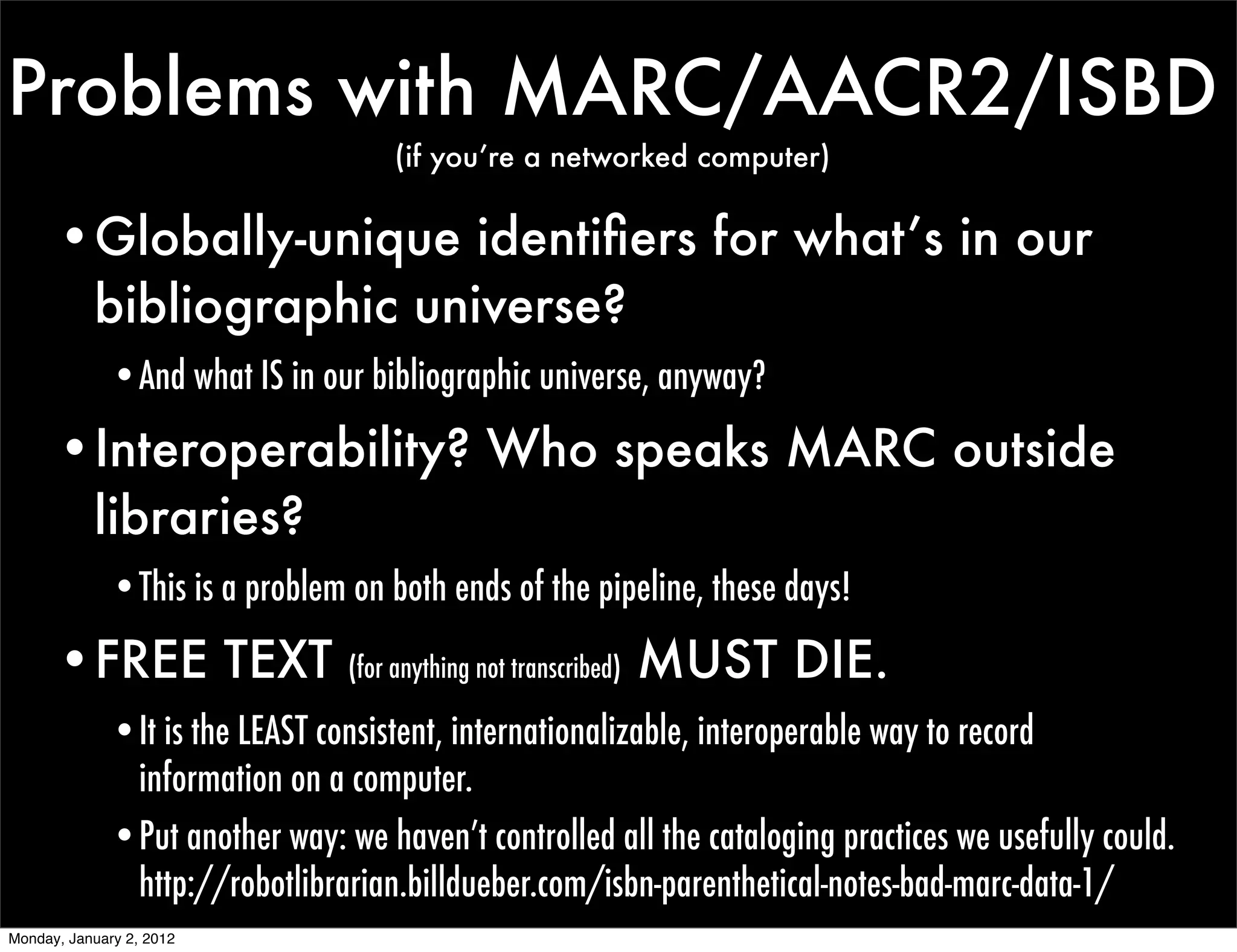

Problems with MARC/AACR2/ISBD
(if you’re a networked computer)

•Globally-unique identiﬁers for what’s in our
bibliographic universe?
•And what IS in our bibliographic universe, anyway?

•Interoperability? Who speaks MARC outside
libraries?
•This is a problem on both ends of the pipeline, these days!

•FREE TEXT (for anything not transcribed) MUST DIE.
•It is the LEAST consistent, internationalizable, interoperable way to record
information on a computer.
•Put another way: we haven’t controlled all the cataloging practices we usefully could.
http://robotlibrarian.billdueber.com/isbn-parenthetical-notes-bad-marc-data-1/

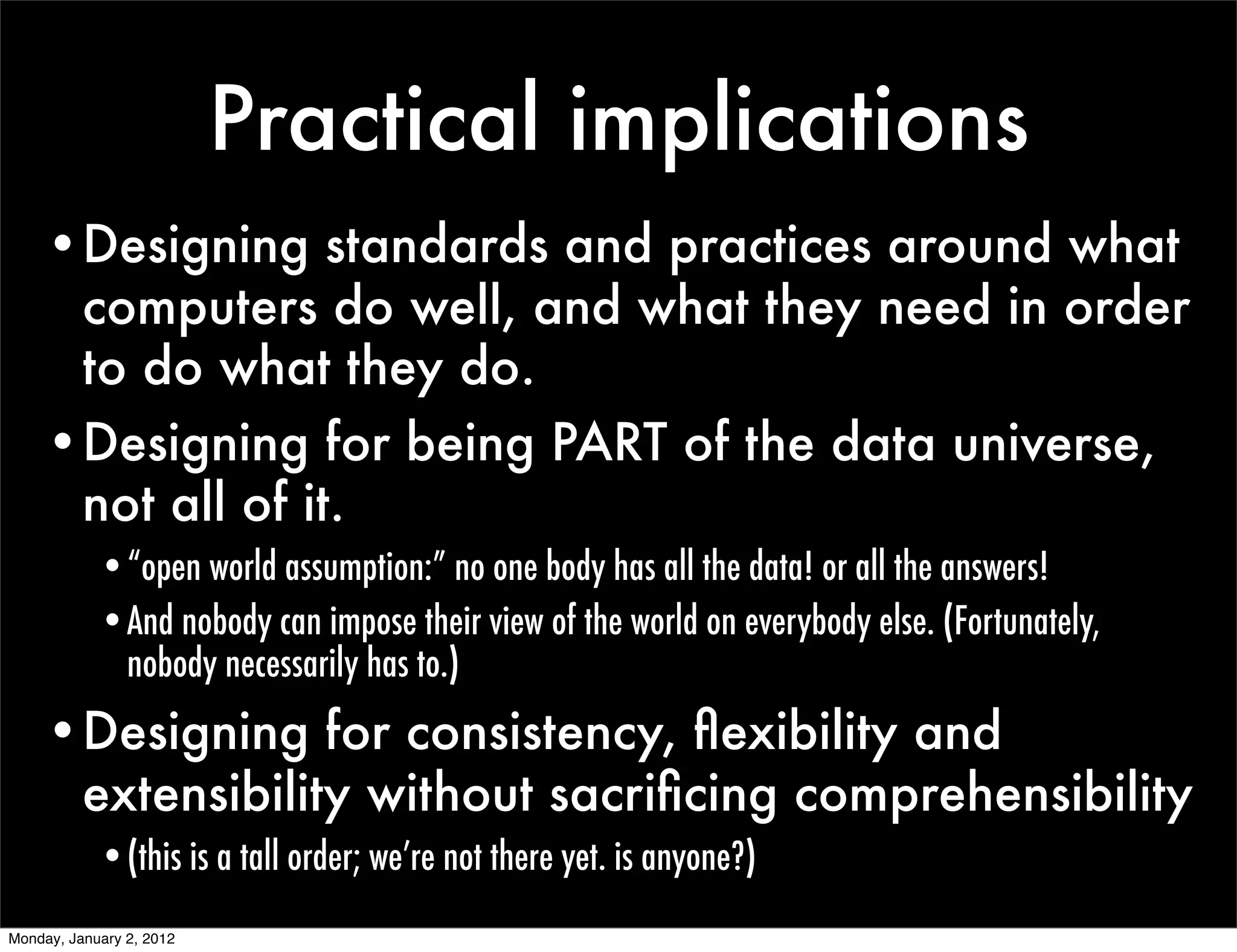

Practical implications
•Designing standards and practices around what
computers do well, and what they need in order
to do what they do.
•Designing for being PART of the data universe,
not all of it.
•“open world assumption:” no one body has all the data! or all the answers!
•And nobody can impose their view of the world on everybody else. (Fortunately,
nobody necessarily has to.)
•Designing for consistency, ﬂexibility and
extensibility without sacriﬁcing comprehensibility
•(this is a tall order; we’re not there yet. is anyone?)

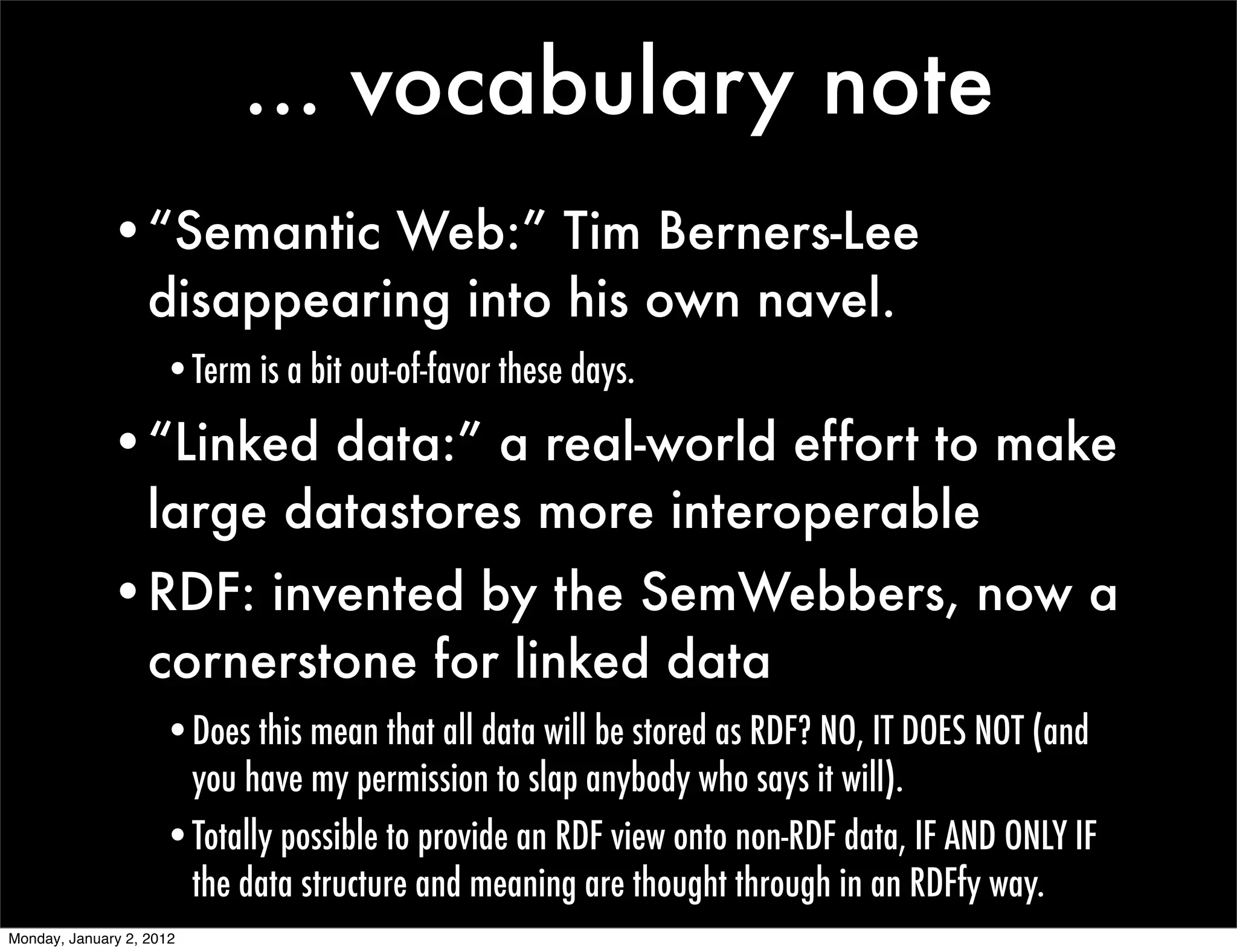

... vocabulary note
•“Semantic Web:” Tim Berners-Lee
disappearing into his own navel.
•Term is a bit out-of-favor these days.

•“Linked data:” a real-world effort to make
large datastores more interoperable
•RDF: invented by the SemWebbers, now a
cornerstone for linked data
•Does this mean that all data will be stored as RDF? NO, IT DOES NOT (and
you have my permission to slap anybody who says it will).
•Totally possible to provide an RDF view onto non-RDF data, IF AND ONLY IF
the data structure and meaning are thought through in an RDFfy way.

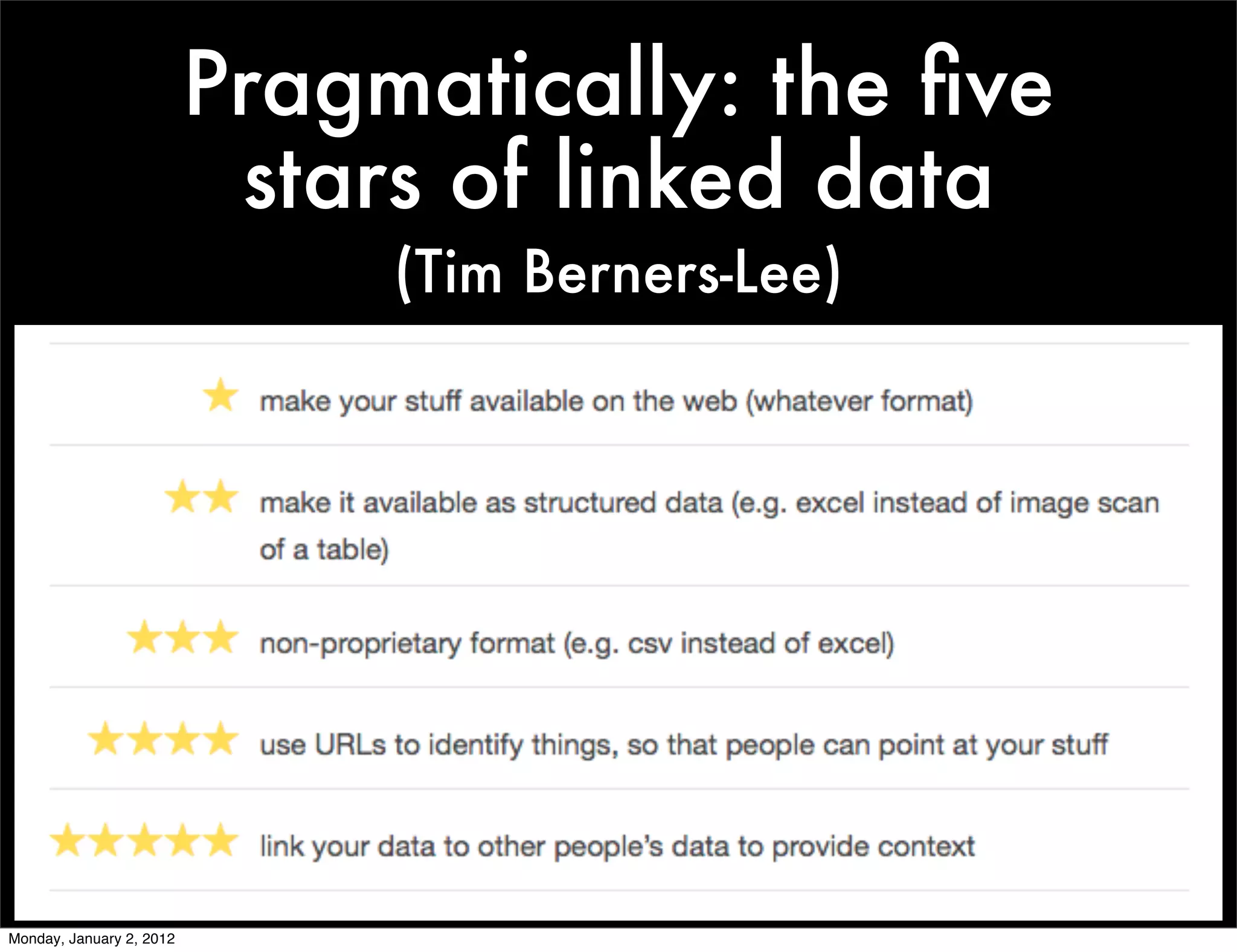

Pragmatically: the ﬁve
stars of linked data
(Tim Berners-Lee)

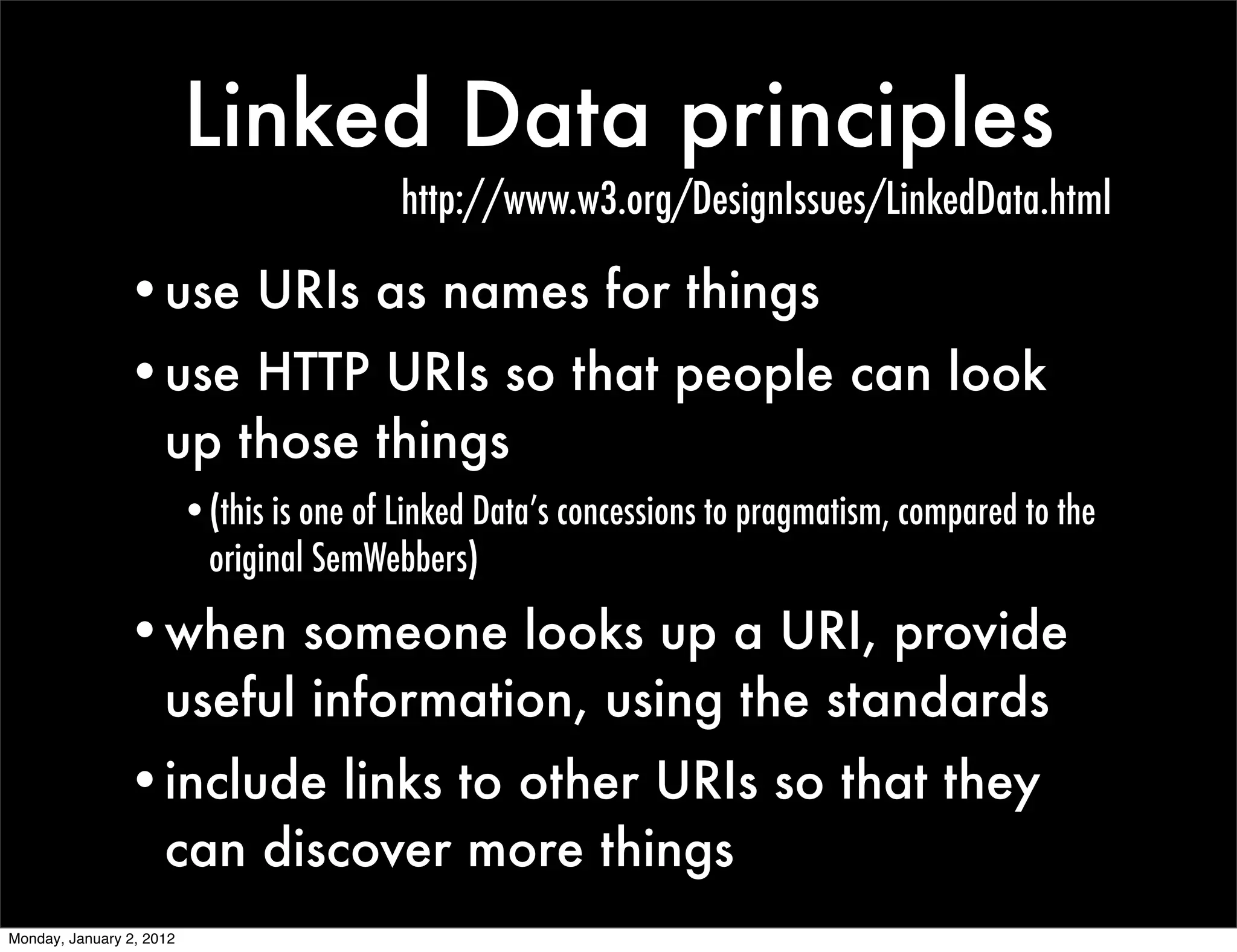

Linked Data principles
http://www.w3.org/DesignIssues/LinkedData.html

•use URIs as names for things
•use HTTP URIs so that people can look
up those things
•(this is one of Linked Data’s concessions to pragmatism, compared to the
original SemWebbers)

•when someone looks up a URI, provide
useful information, using the standards
•include links to other URIs so that they
can discover more things

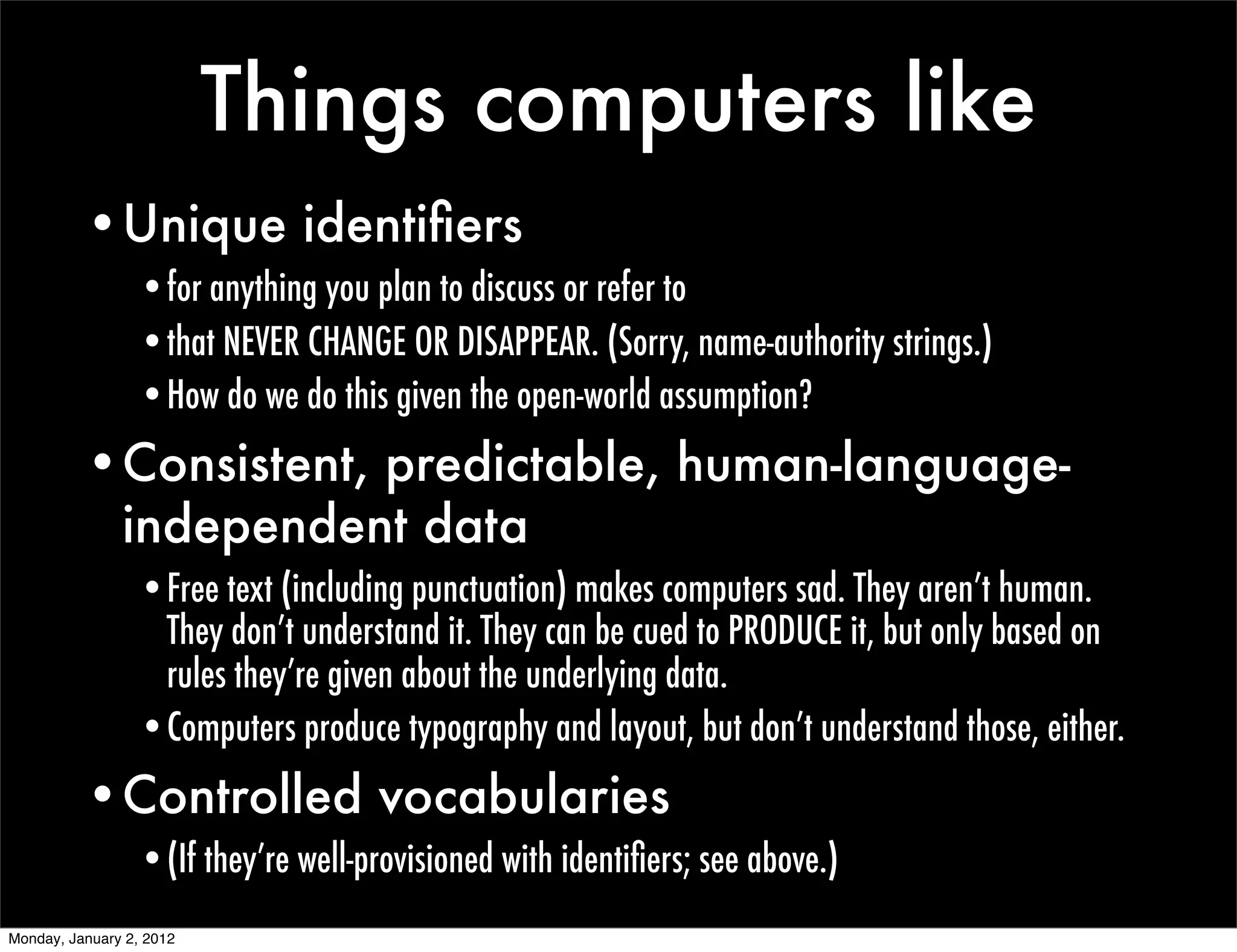

Things computers like
•Unique identiﬁers
•for anything you plan to discuss or refer to
•that NEVER CHANGE OR DISAPPEAR. (Sorry, name-authority strings.)
•How do we do this given the open-world assumption?
•Consistent, predictable, human-language-
independent data
•Free text (including punctuation) makes computers sad. They aren’t human.
They don’t understand it. They can be cued to PRODUCE it, but only based on
rules they’re given about the underlying data.
•Computers produce typography and layout, but don’t understand those, either.
•Controlled vocabularies
•(If they’re well-provisioned with identiﬁers; see above.)

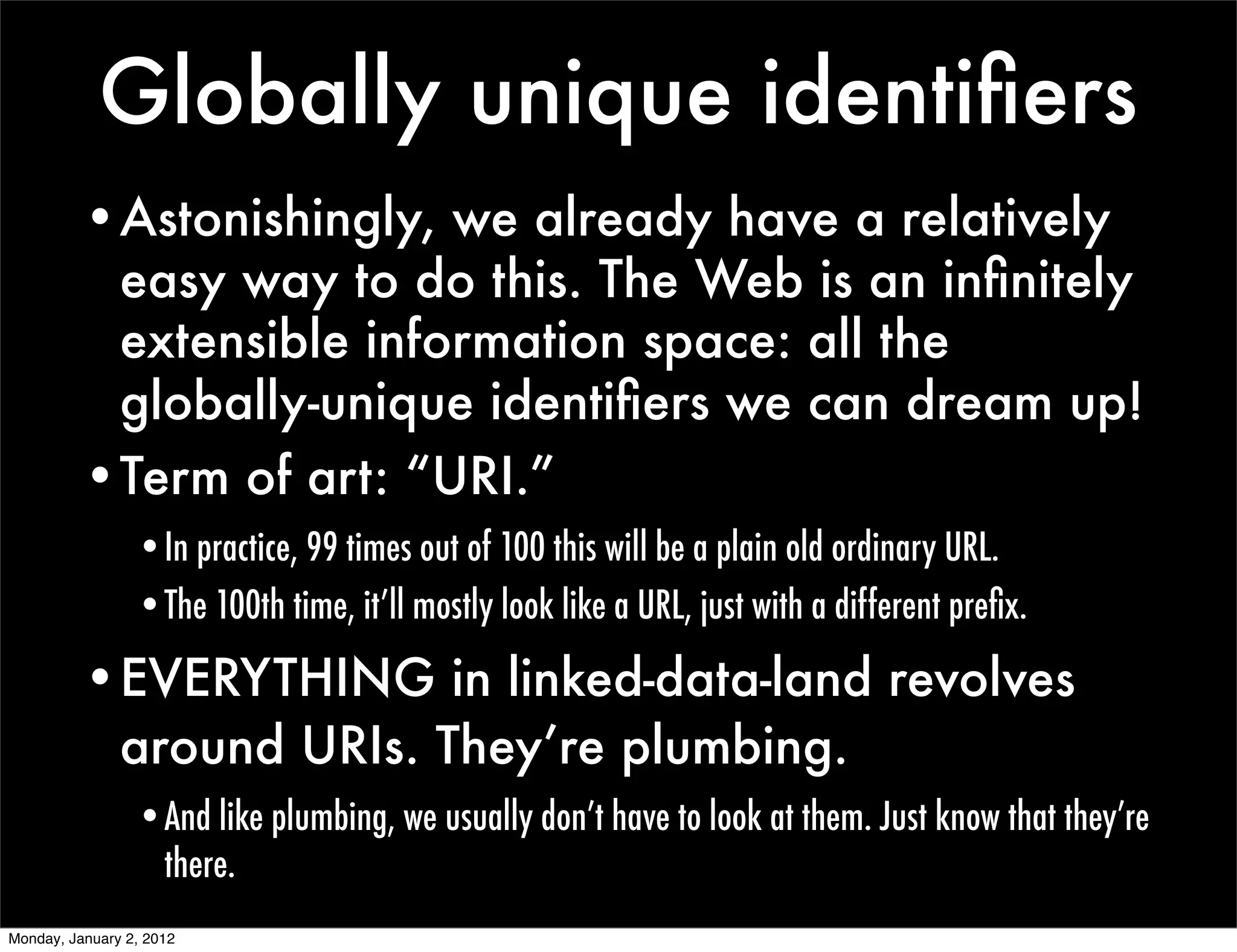

Globally unique identifiers
•Astonishingly, we already have a relatively
easy way to do this. The Web is an infinitely
extensible information space: all the
globally-unique identifiers we can dream up!
•Term of art: “URI.”
•In practice, 99 times out of 100 this will be a plain old ordinary URL.
•The 100th time, it’ll mostly look like a URL, just with a different prefix.

•EVERYTHING in linked-data-land revolves
around URIs. They’re plumbing.
•And like plumbing, we usually don’t have to look at them. Just know that they’re
there.

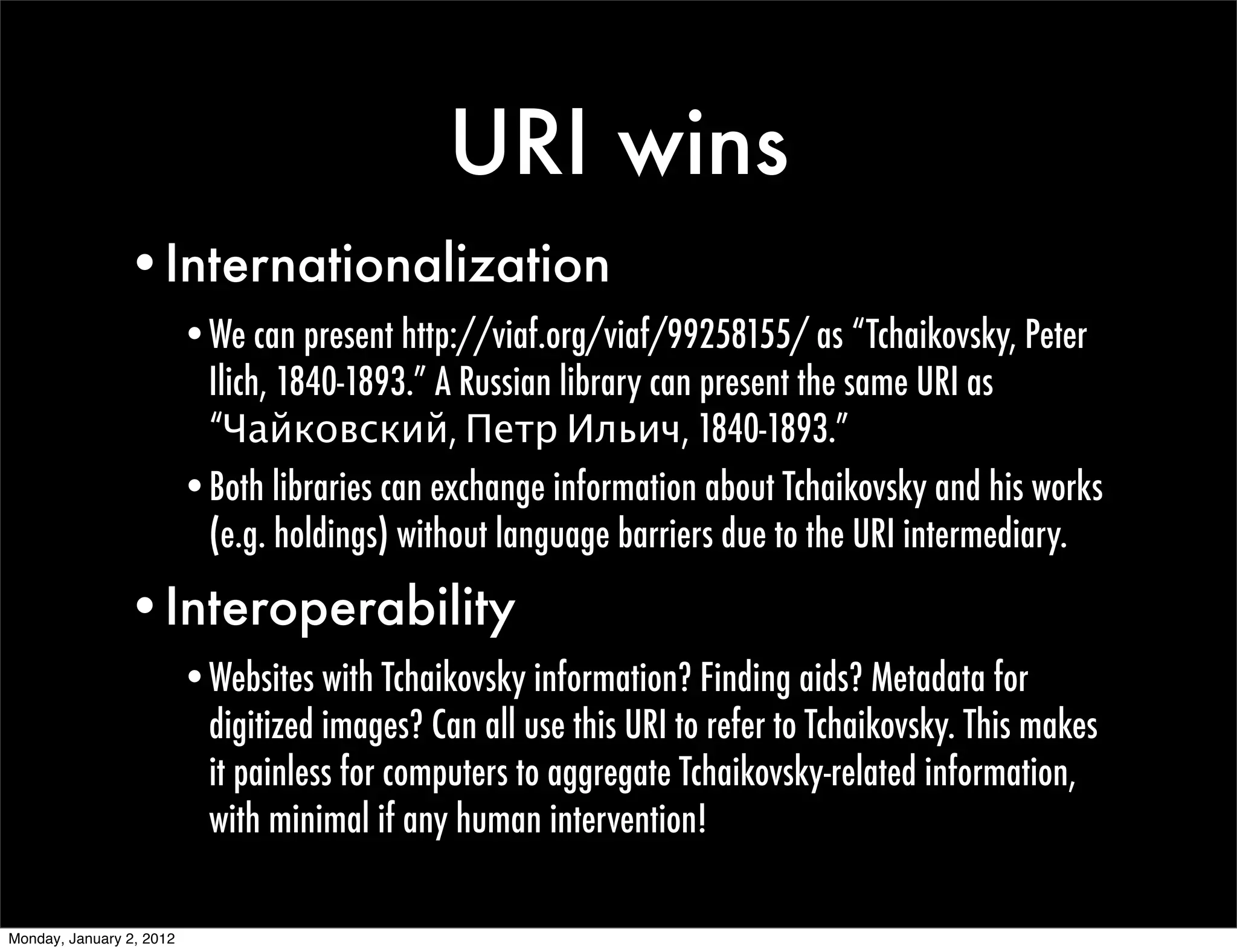

URI wins
•Internationalization
•We can present http://viaf.org/viaf/99258155/ as “Tchaikovsky, Peter
Ilich, 1840-1893.” A Russian library can present the same URI as
“Чайковский, Петр Ильич, 1840-1893.”
•Both libraries can exchange information about Tchaikovsky and his works
(e.g. holdings) without language barriers due to the URI intermediary.

•Interoperability
•Websites with Tchaikovsky information? Finding aids? Metadata for
digitized images? Can all use this URI to refer to Tchaikovsky. This makes
it painless for computers to aggregate Tchaikovsky-related information,
with minimal if any human intervention!

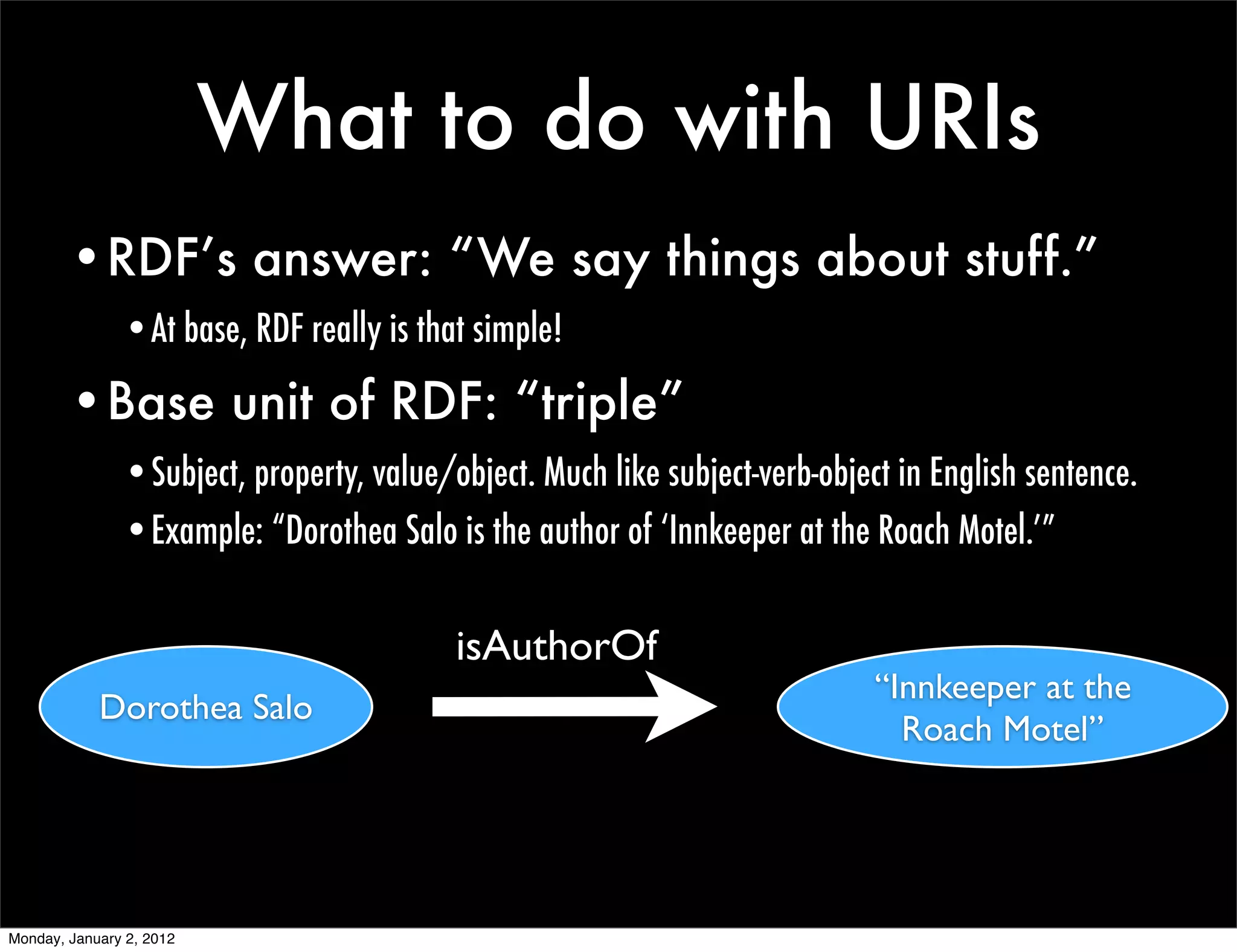

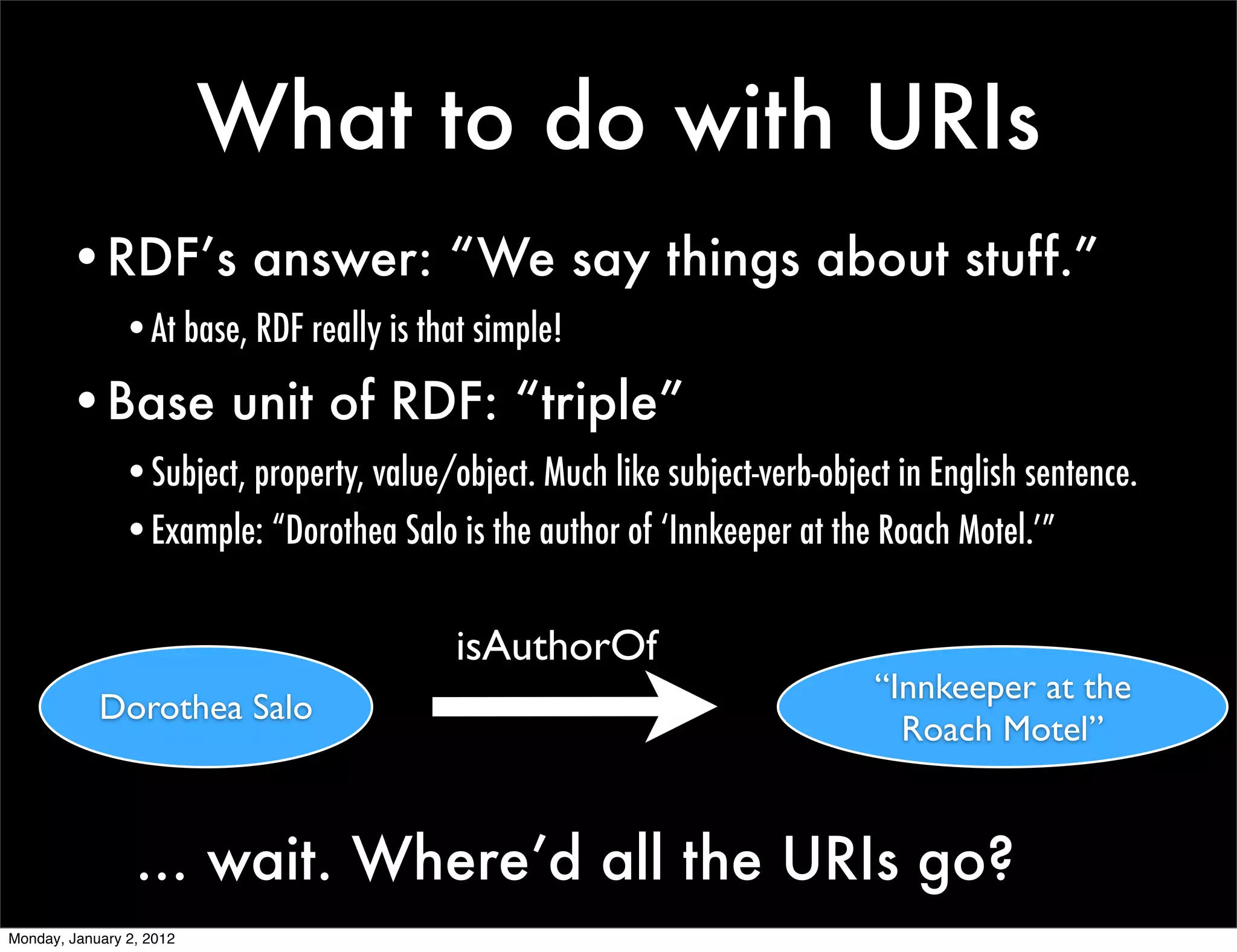

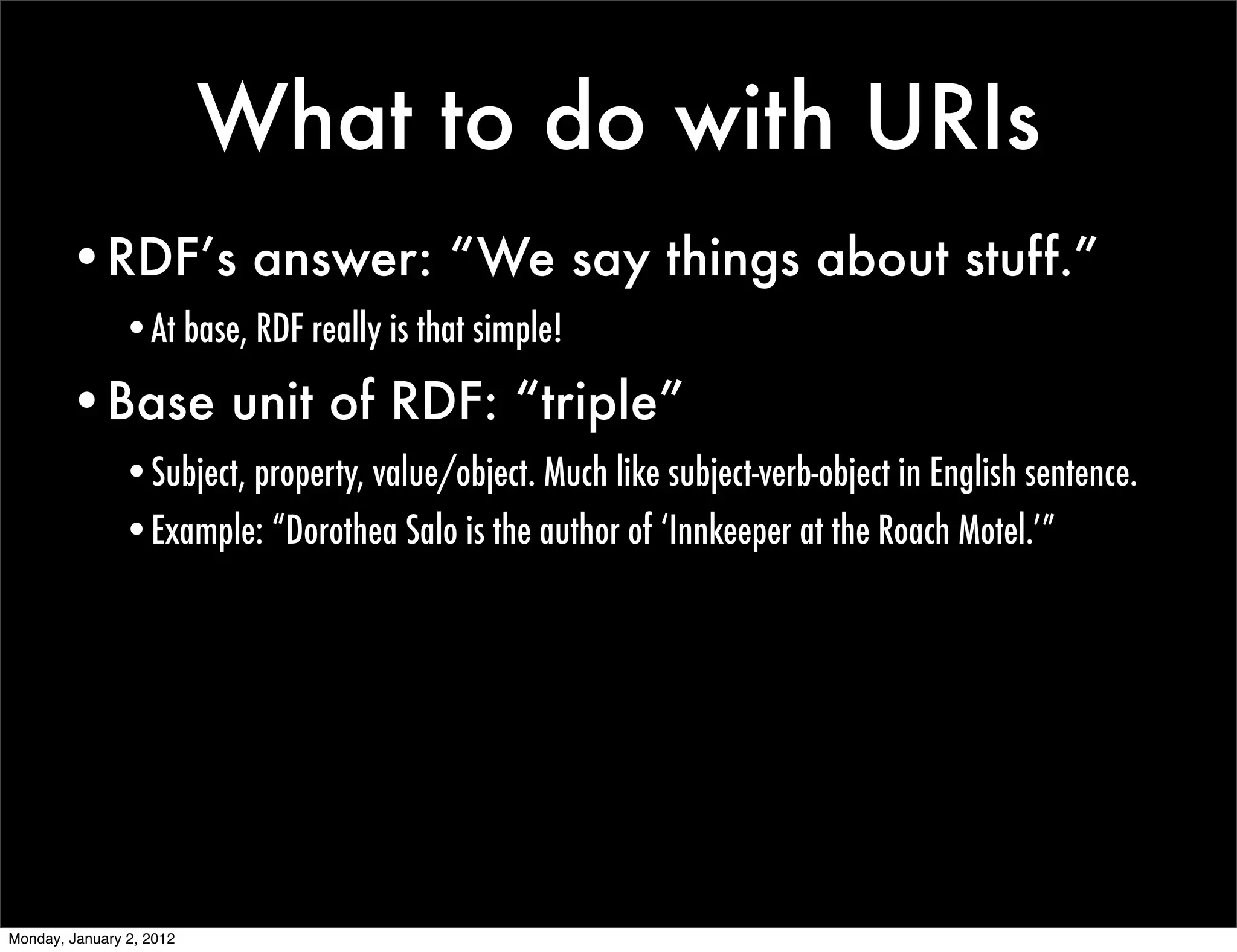

What to do with URIs
•RDF’s answer: “We say things about stuff.”
•At base, RDF really is that simple!

•Base unit of RDF: “triple”
•Subject, property, value/object. Much like subject-verb-object in English sentence.
•Example: “Dorothea Salo is the author of ‘Innkeeper at the Roach Motel.’”




isAuthorOf
“Innkeeper at the
Dorothea Salo
Roach Motel”




isAuthorOf
“Innkeeper at the
Dorothea Salo
Roach Motel”

... wait. Where’d all the URIs go?

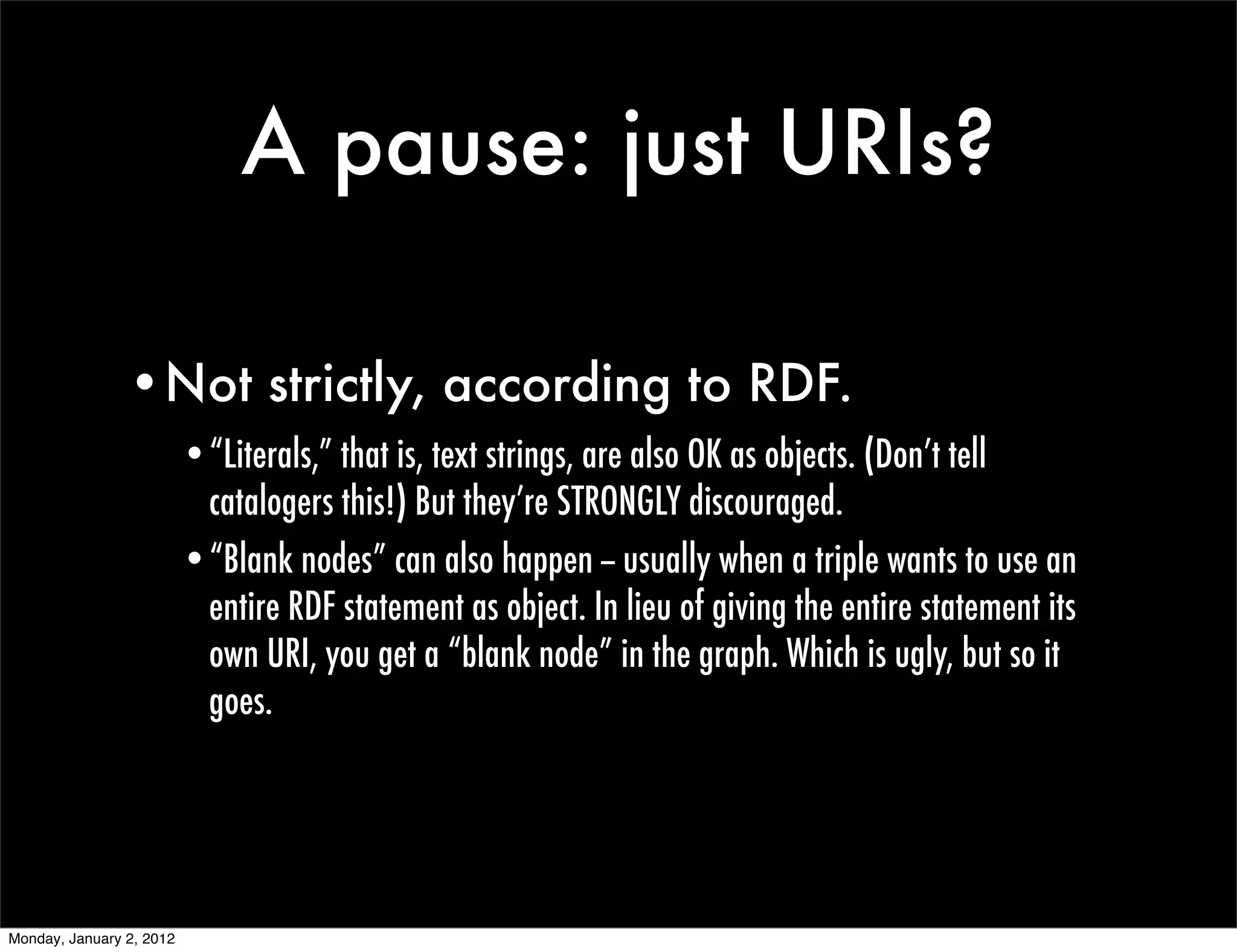

A pause: just URIs?

•Not strictly, according to RDF.
•“Literals,” that is, text strings, are also OK as objects. (Don’t tell
catalogers this!) But they’re STRONGLY discouraged.
•“Blank nodes” can also happen -- usually when a triple wants to use an
entire RDF statement as object. In lieu of giving the entire statement its
own URI, you get a “blank node” in the graph. Which is ugly, but so it
goes.


URI-izing a triple

isAuthorOf “Innkeeper at the
Dorothea Salo
Roach Motel”


URI-izing a triple

http://viaf.org/viaf/ isAuthorOf “Innkeeper at the
21599115/ Roach Motel”

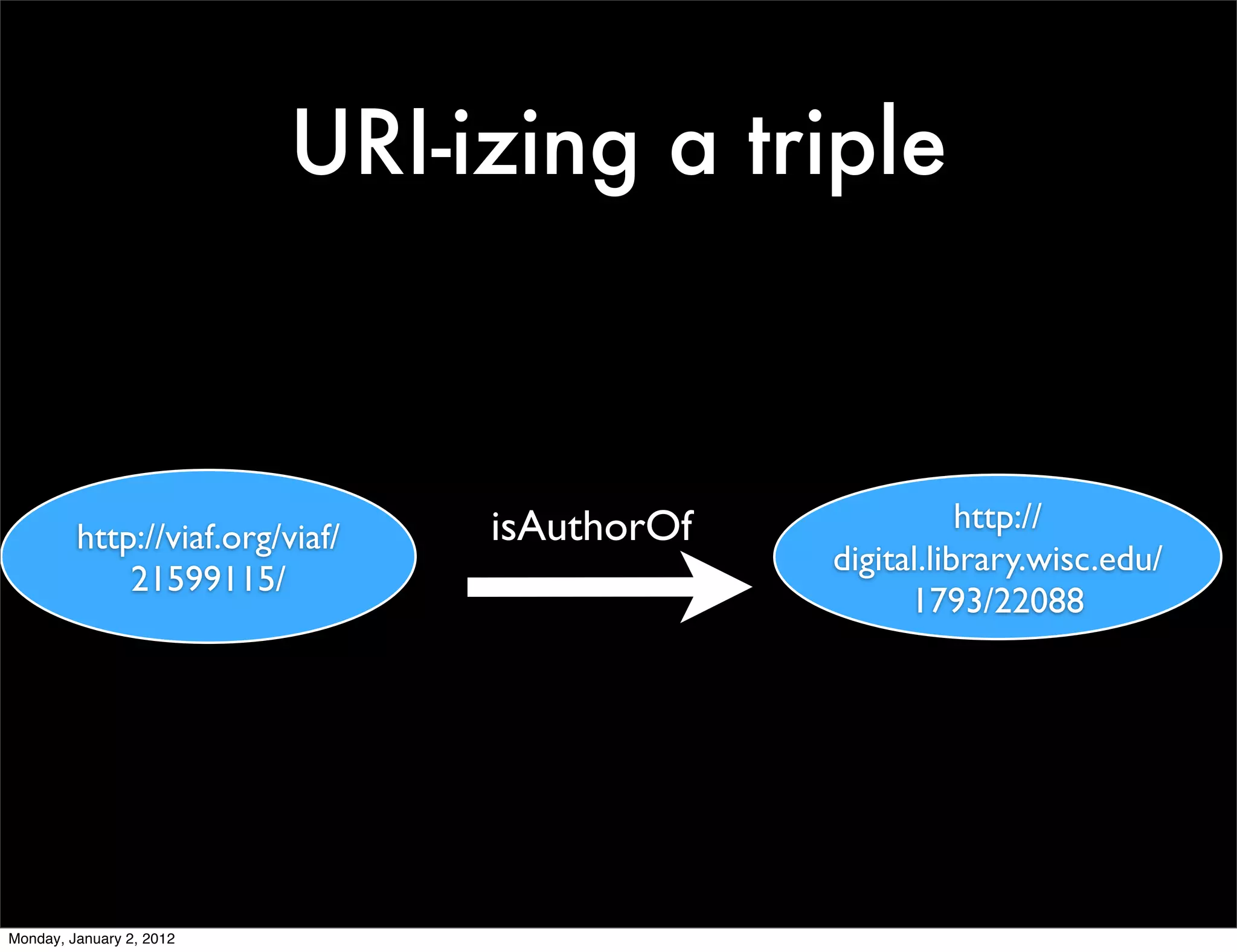

URI-izing a triple

isAuthorOf http://
http://viaf.org/viaf/
digital.library.wisc.edu/
21599115/
1793/22088

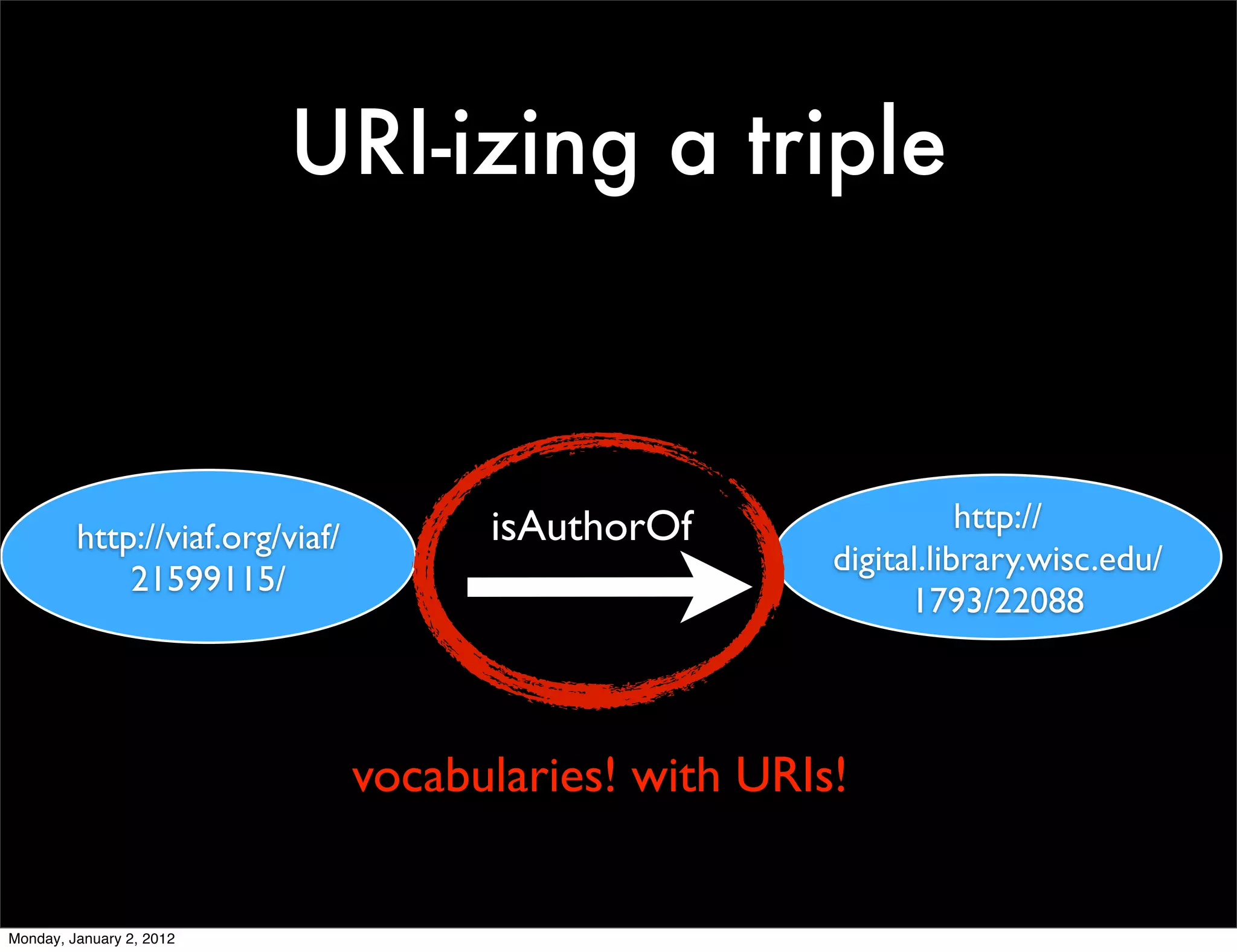

URI-izing a triple

isAuthorOf http://
21599115/
1793/22088

vocabularies! with URIs!


URI-izing a triple

dcterms:creator http://
21599115/
1793/22088

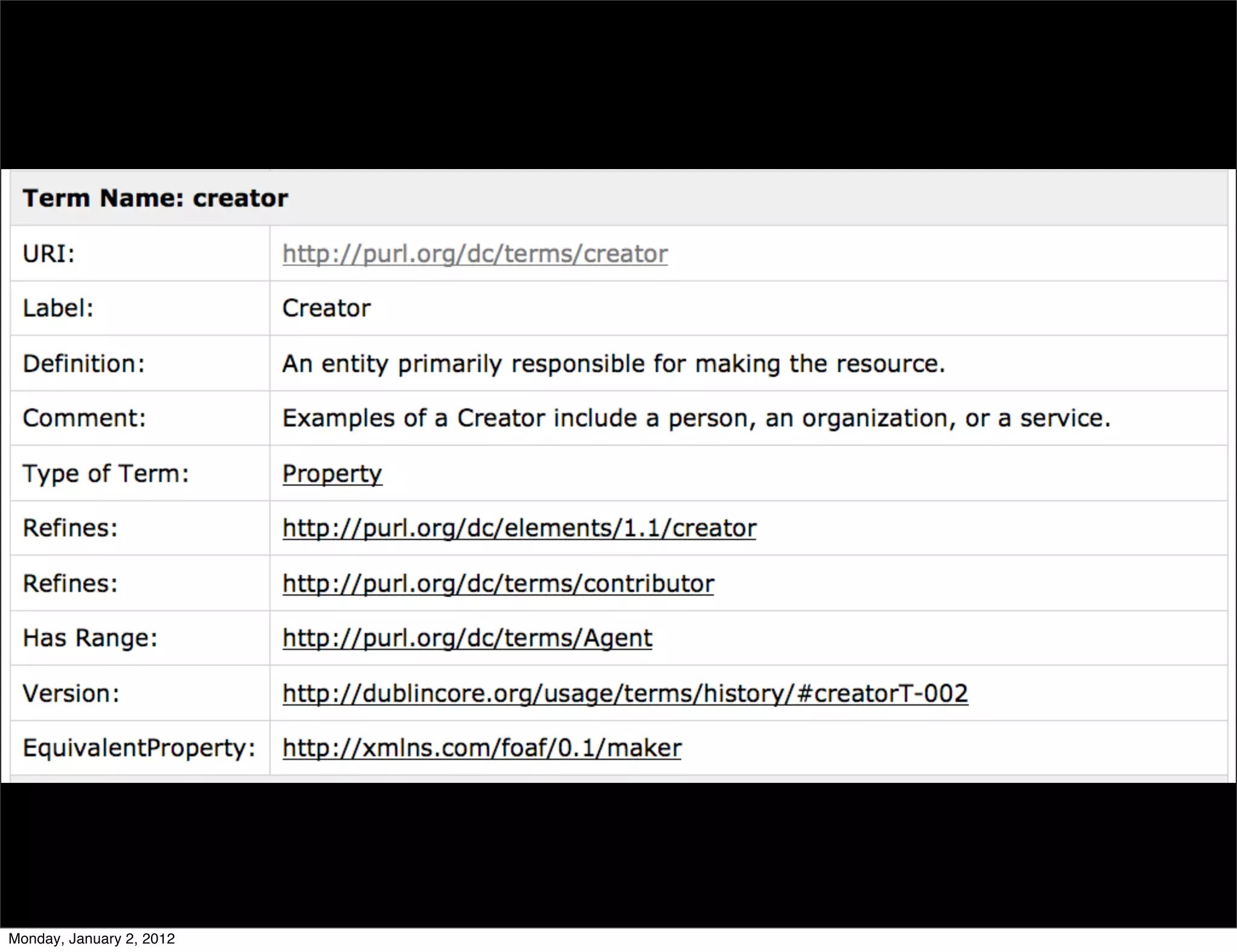

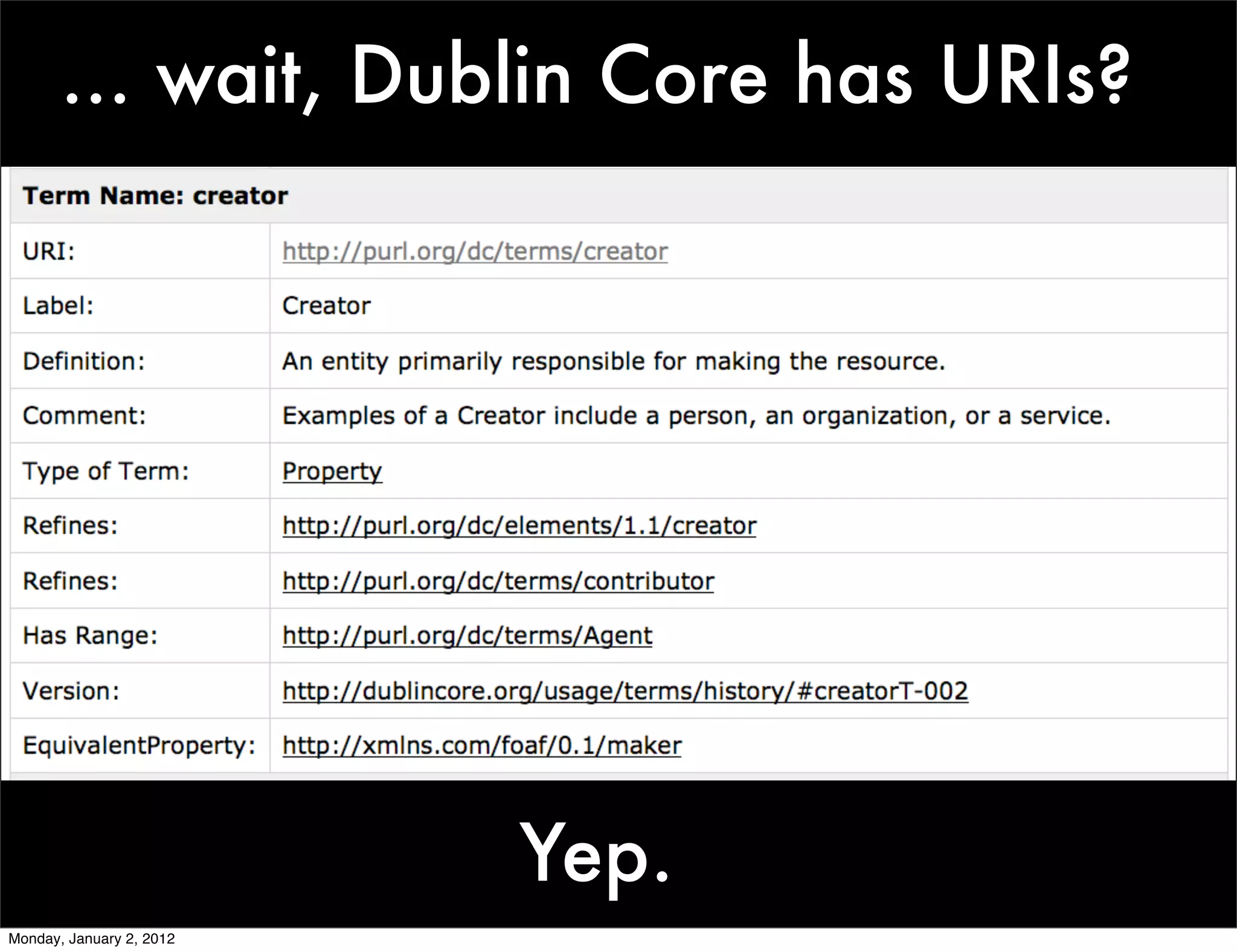

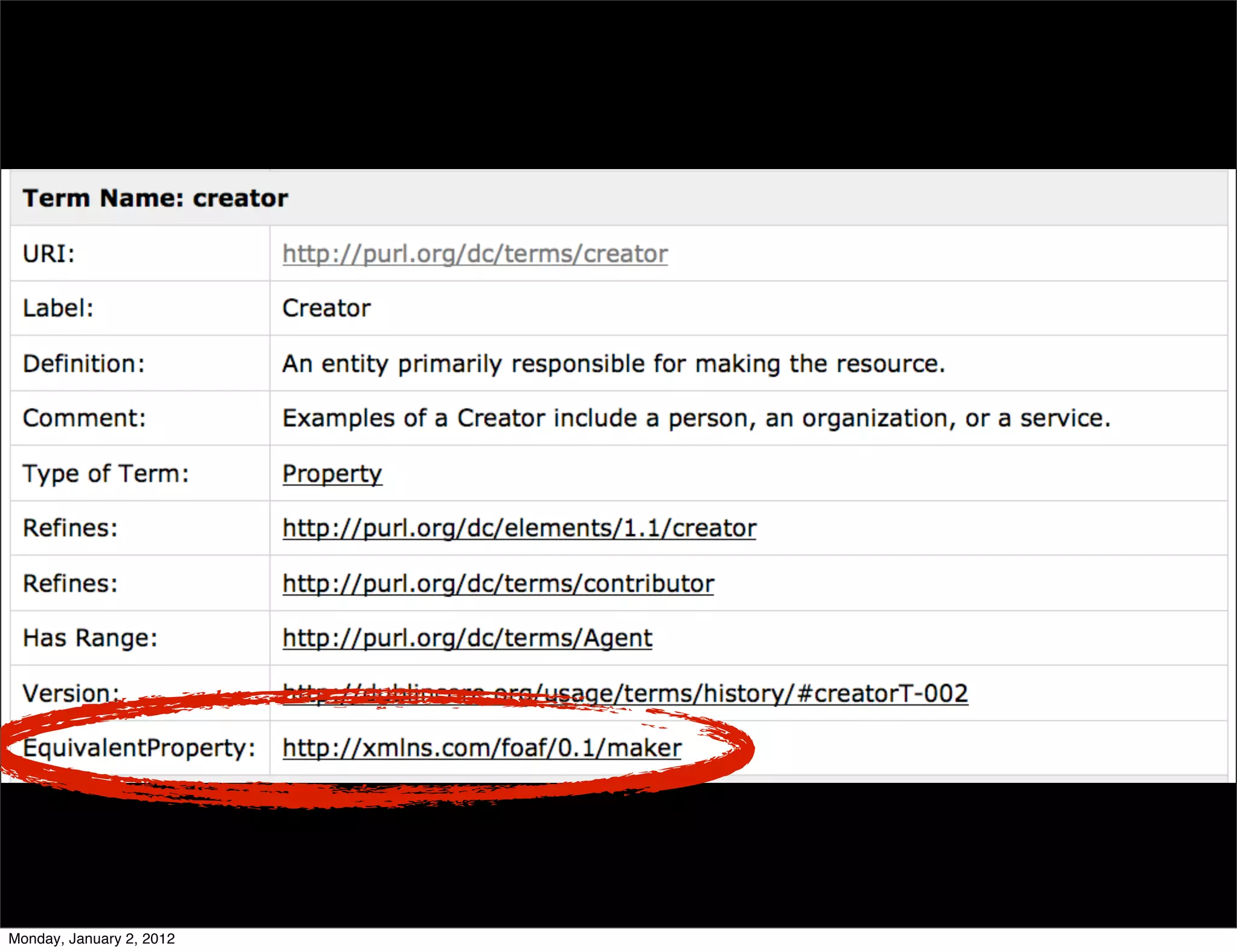

... wait, Dublin Core has URIs?

Yep.

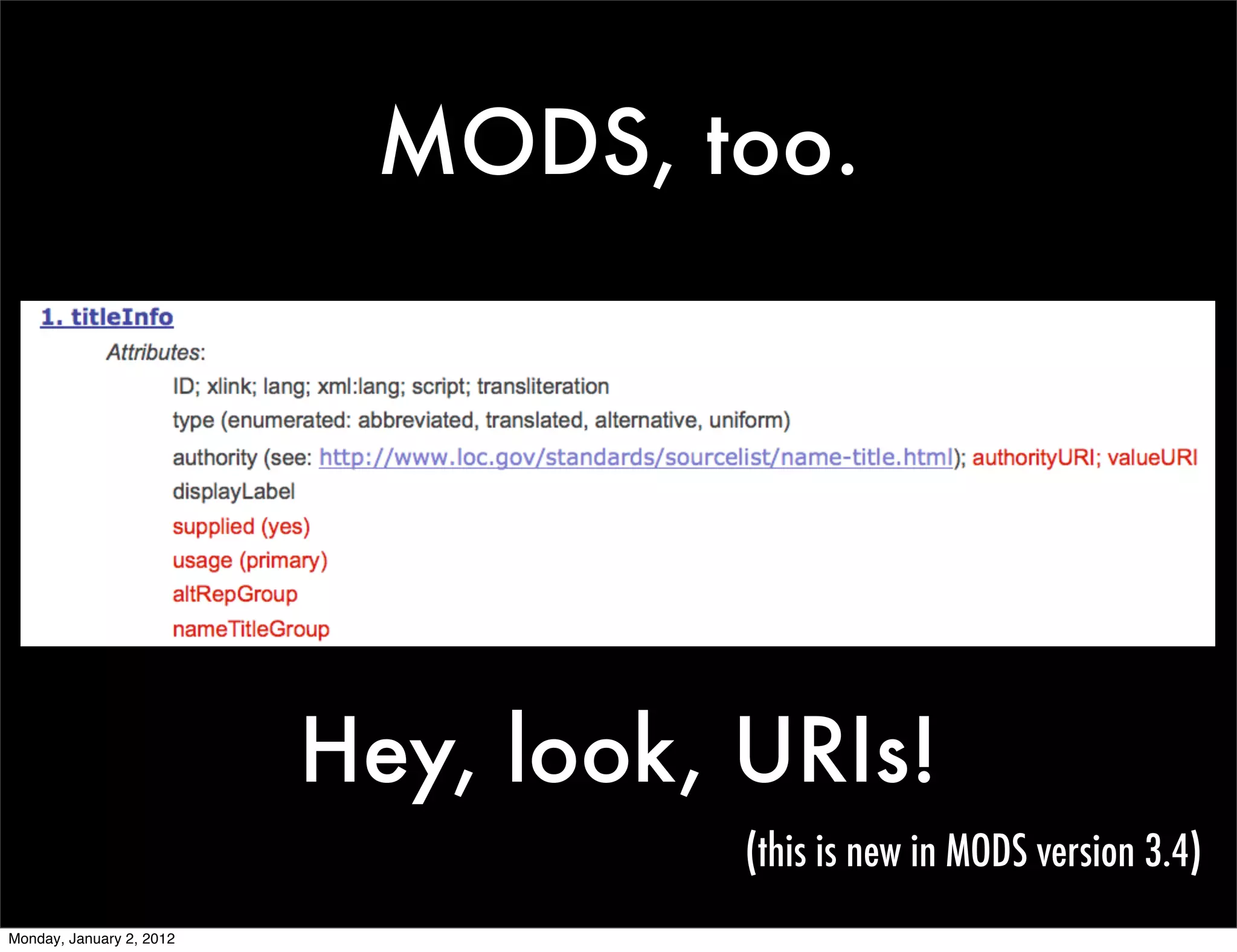

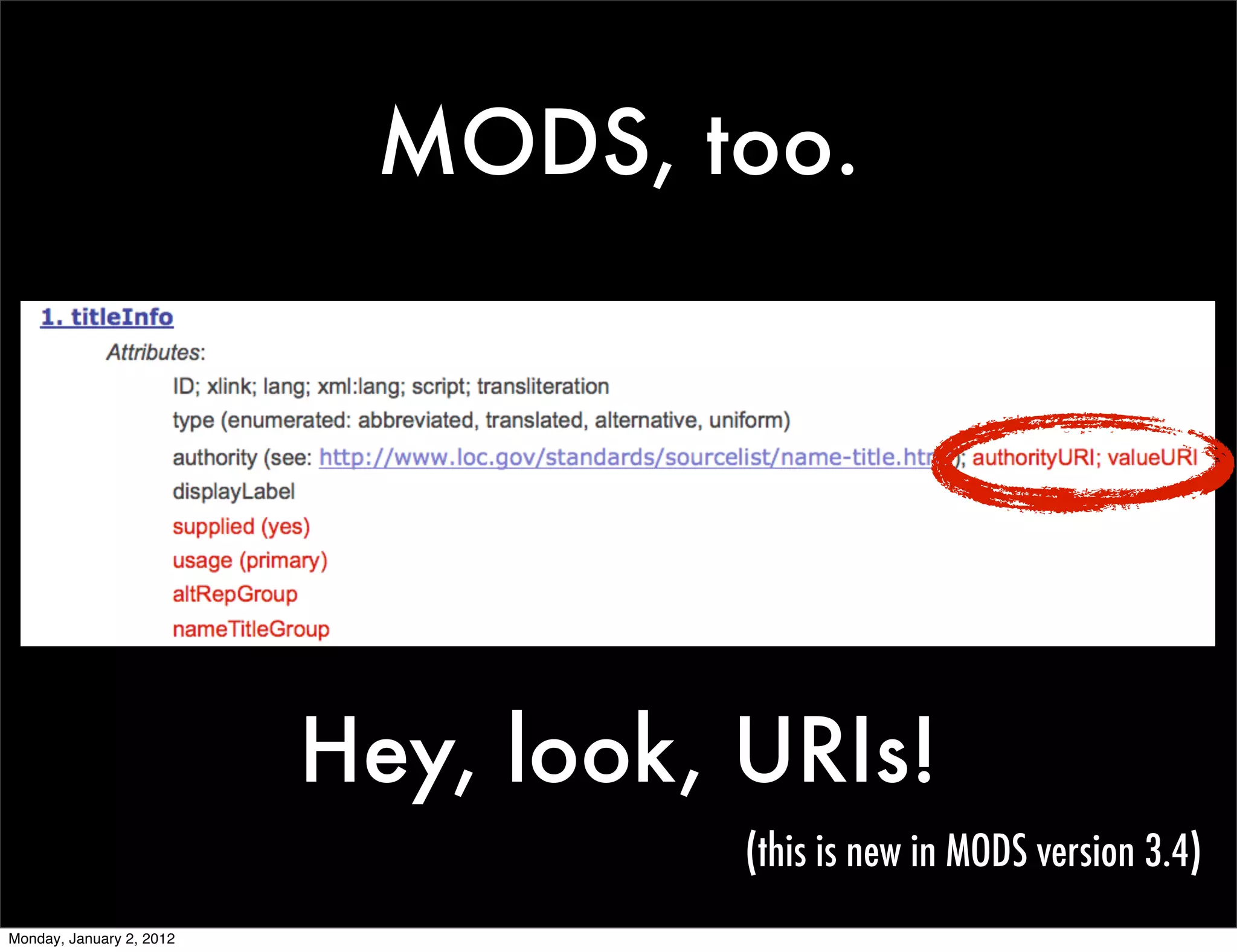

MODS, too.

Hey, look, URIs!
(this is new in MODS version 3.4)

(you should be able to read
these diagrams now)

Diagram: Stephen J. Miller, “Teaching RDA after the National Implementation Decisions”

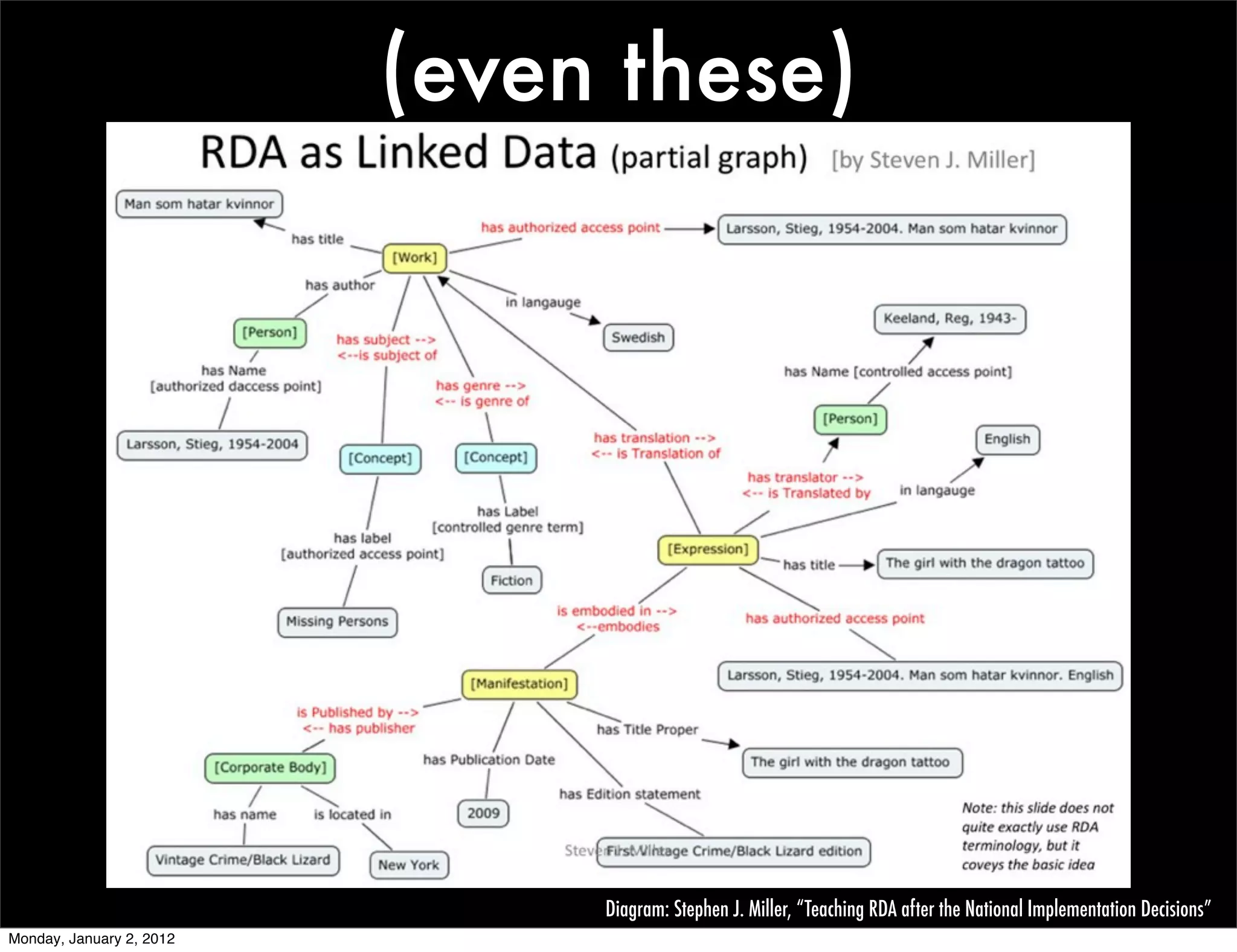

(even these)

Diagram: Stephen J. Miller, “Teaching RDA after the National Implementation Decisions”

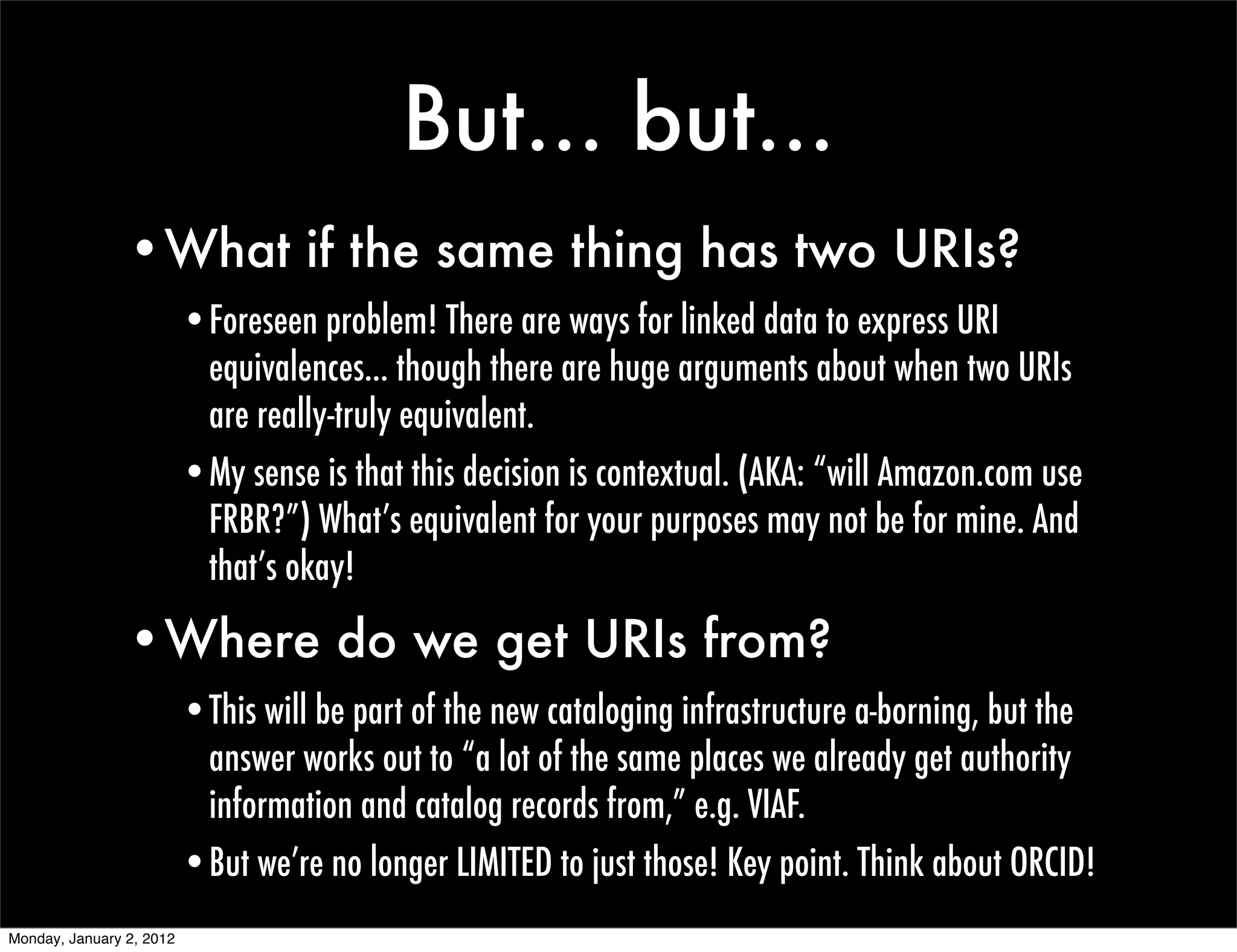

But... but...
•What if the same thing has two URIs?
•Foreseen problem! There are ways for linked data to express URI
equivalences... though there are huge arguments about when two URIs
are really-truly equivalent.
•My sense is that this decision is contextual. (AKA: “will Amazon.com use
FRBR?”) What’s equivalent for your purposes may not be for mine. And
that’s okay!

•Where do we get URIs from?
•This will be part of the new cataloging infrastructure a-borning, but the
answer works out to “a lot of the same places we already get authority
information and catalog records from,” e.g. VIAF.
•But we’re no longer LIMITED to just those! Key point. Think about ORCID!

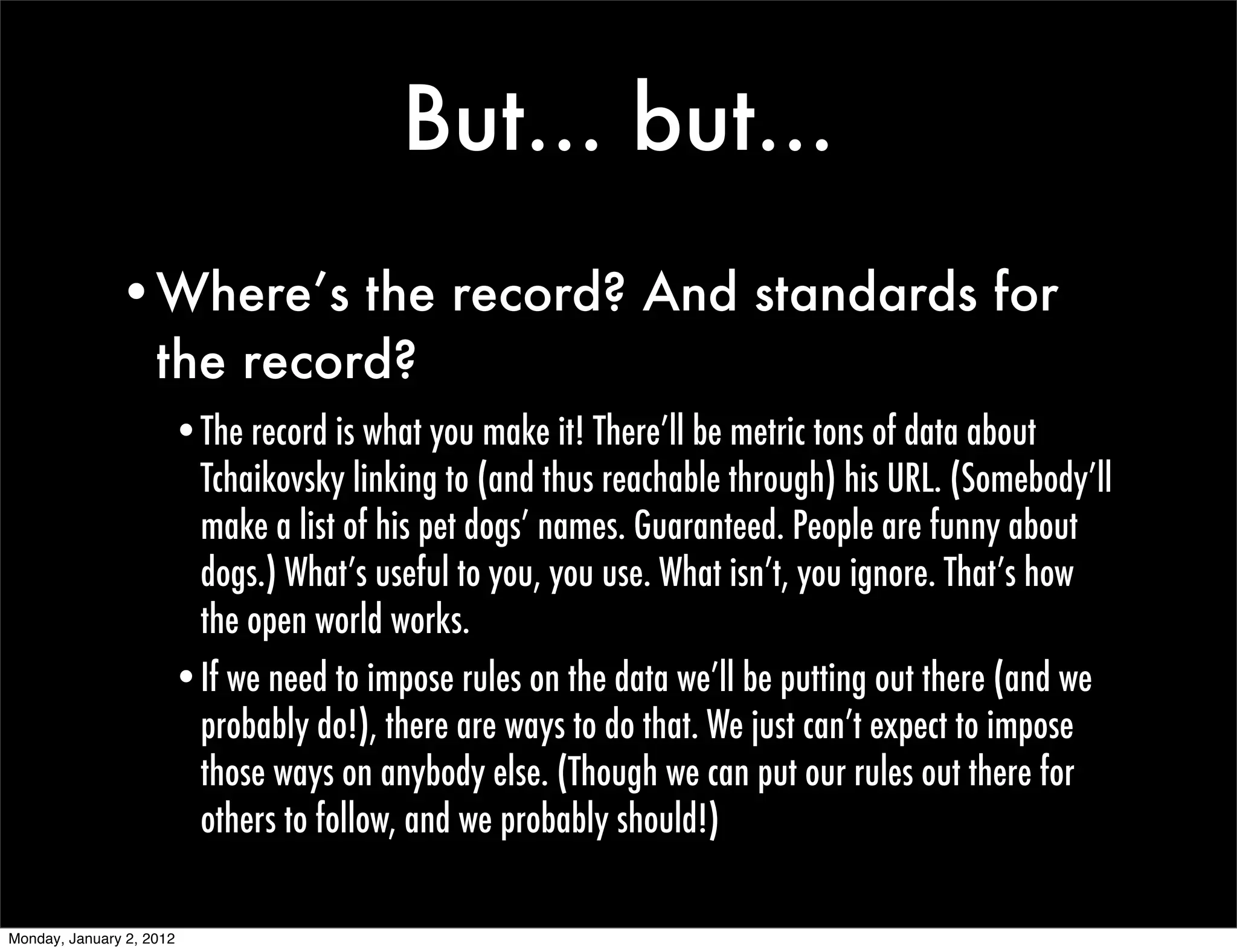

But... but...
•Where’s the record? And standards for
the record?
•The record is what you make it! There’ll be metric tons of data about
Tchaikovsky linking to (and thus reachable through) his URL. (Somebody’ll
make a list of his pet dogs’ names. Guaranteed. People are funny about
dogs.) What’s useful to you, you use. What isn’t, you ignore. That’s how
the open world works.
•If we need to impose rules on the data we’ll be putting out there (and we
probably do!), there are ways to do that. We just can’t expect to impose
those ways on anybody else. (Though we can put our rules out there for
others to follow, and we probably should!)

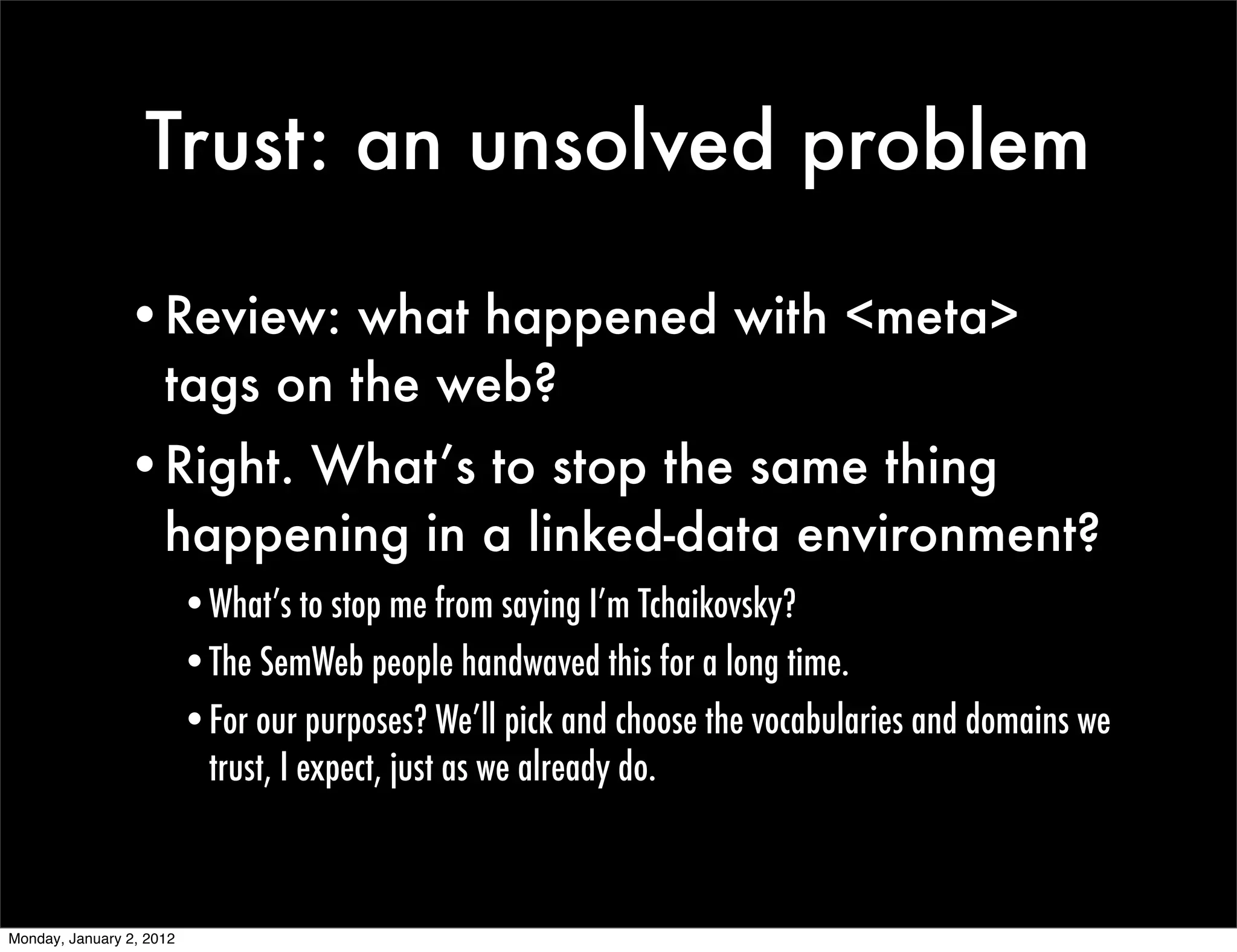

Trust: an unsolved problem

•Review: what happened with <meta>
tags on the web?
•Right. What’s to stop the same thing
happening in a linked-data environment?
•What’s to stop me from saying I’m Tchaikovsky?
•The SemWeb people handwaved this for a long time.
•For our purposes? We’ll pick and choose the vocabularies and domains we
trust, I expect, just as we already do.

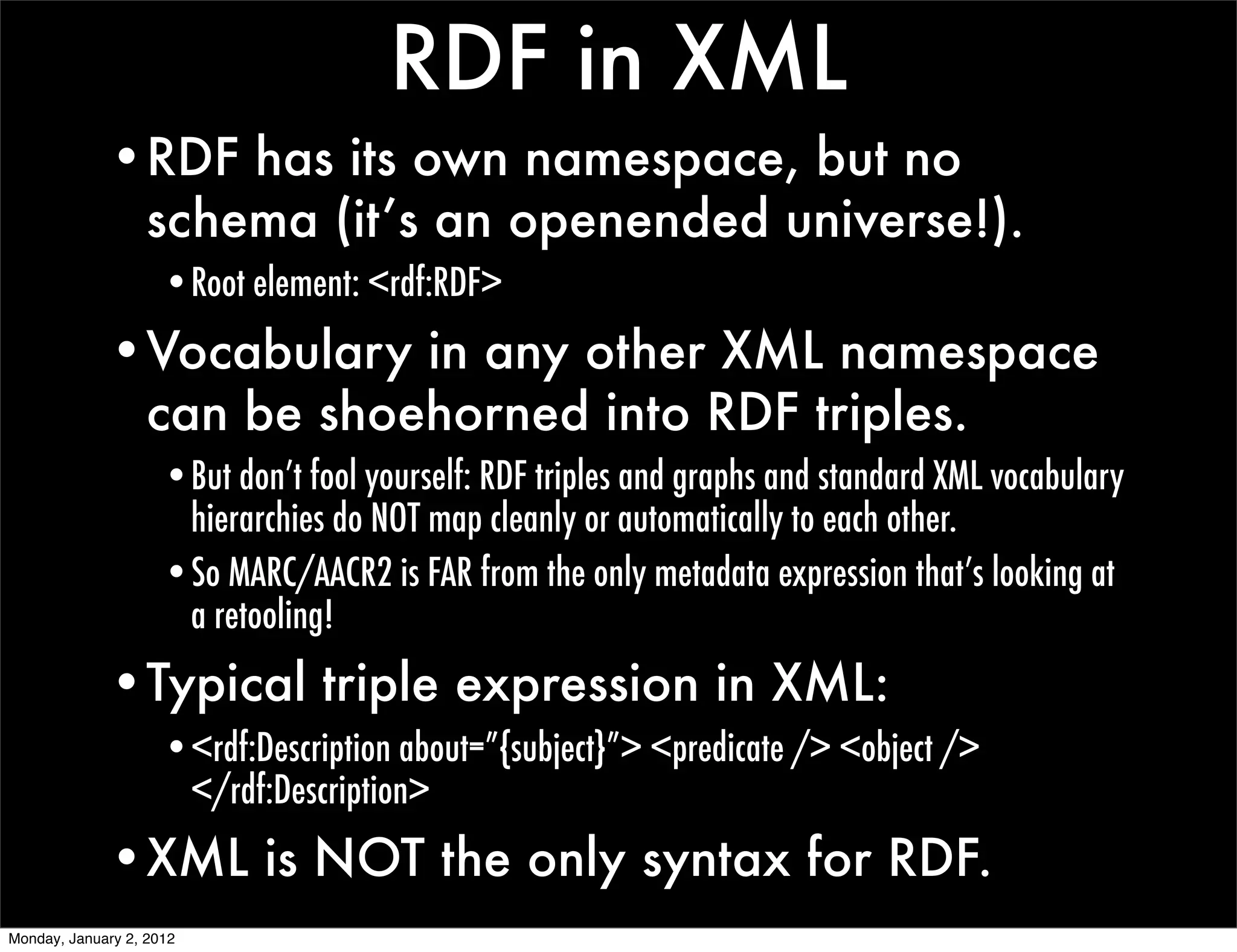

RDF in XML
•RDF has its own namespace, but no
schema (it’s an openended universe!).
•Root element: <rdf:RDF>
•Vocabulary in any other XML namespace
can be shoehorned into RDF triples.
•But don’t fool yourself: RDF triples and graphs and standard XML vocabulary
hierarchies do NOT map cleanly or automatically to each other.
•So MARC/AACR2 is FAR from the only metadata expression that’s looking at
a retooling!
•Typical triple expression in XML:
•<rdf:Description about=”{subject}”> <predicate /> <object />
</rdf:Description>
•XML is NOT the only syntax for RDF.

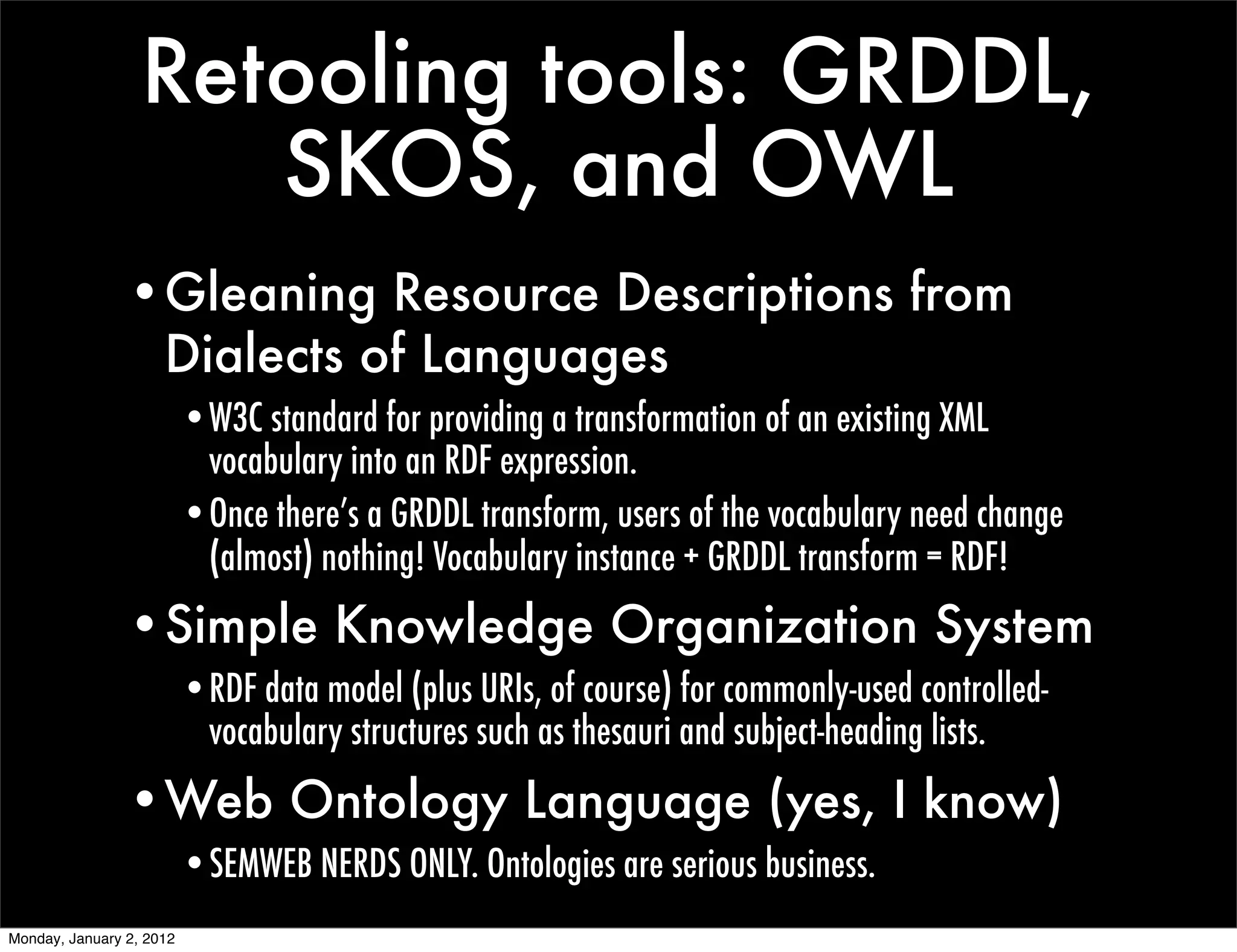

Retooling tools: GRDDL,
SKOS, and OWL
•Gleaning Resource Descriptions from
Dialects of Languages
•W3C standard for providing a transformation of an existing XML
vocabulary into an RDF expression.
•Once there’s a GRDDL transform, users of the vocabulary need change
(almost) nothing! Vocabulary instance + GRDDL transform = RDF!
•Simple Knowledge Organization System
•RDF data model (plus URIs, of course) for commonly-used controlled-
vocabulary structures such as thesauri and subject-heading lists.
•Web Ontology Language (yes, I know)
•SEMWEB NERDS ONLY. Ontologies are serious business.

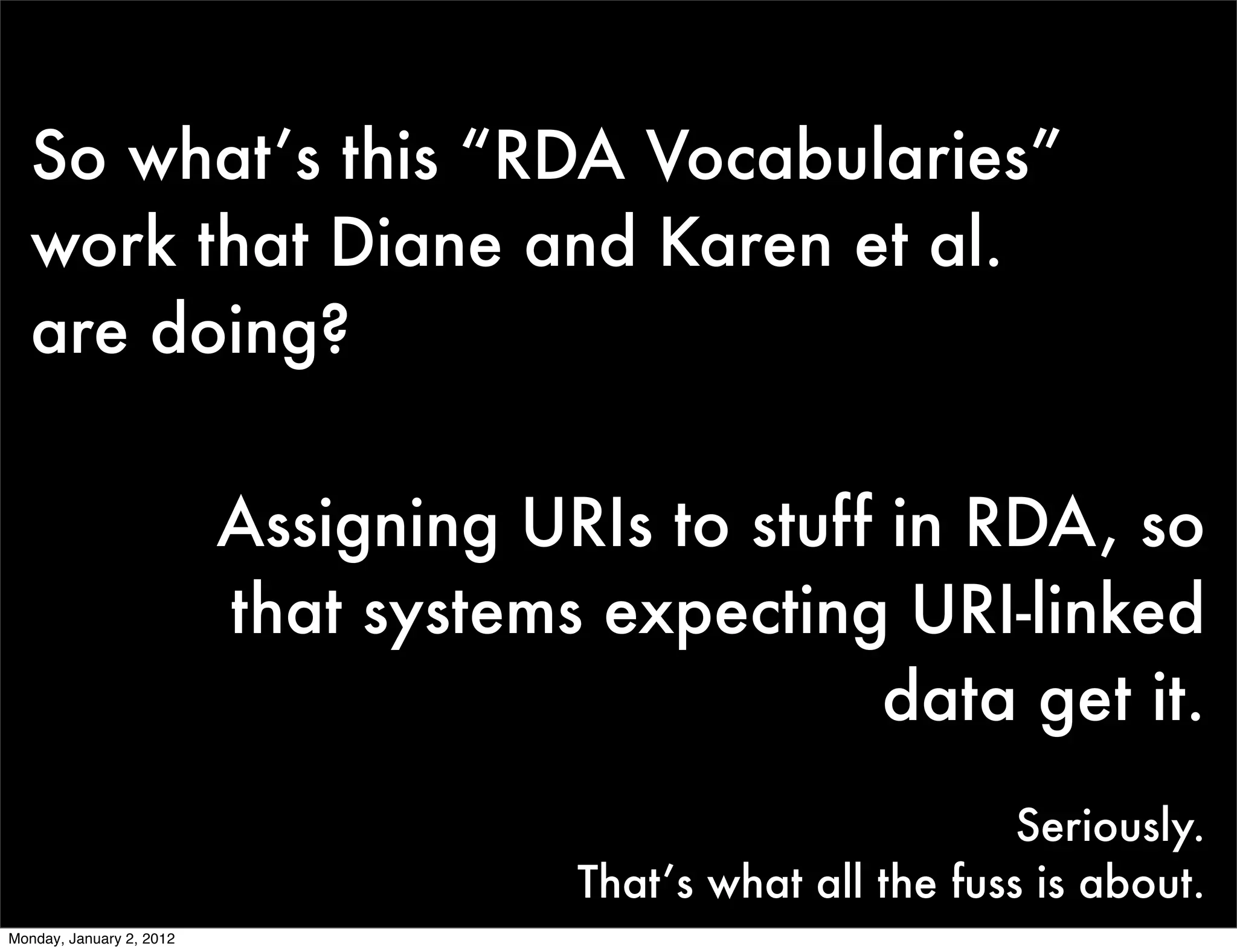

So what’s this “RDA Vocabularies”
work that Diane and Karen et al.
are doing?

Assigning URIs to stuff in RDA, so
that systems expecting URI-linked
data get it.
Seriously.
That’s what all the fuss is about.

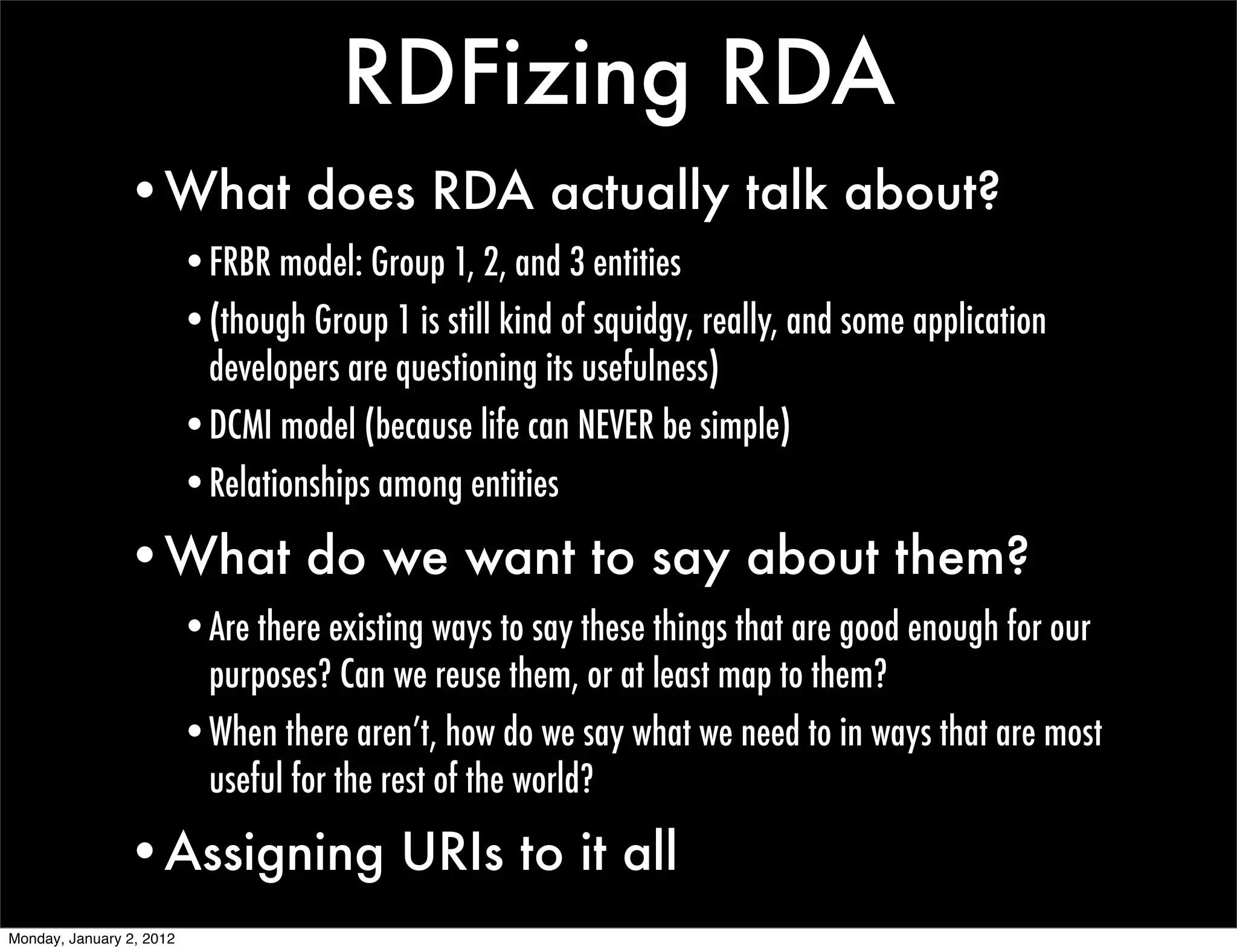

RDFizing RDA
•What does RDA actually talk about?
•FRBR model: Group 1, 2, and 3 entities
•(though Group 1 is still kind of squidgy, really, and some application
developers are questioning its usefulness)
•DCMI model (because life can NEVER be simple)
•Relationships among entities

•What do we want to say about them?
•Are there existing ways to say these things that are good enough for our
purposes? Can we reuse them, or at least map to them?
•When there aren’t, how do we say what we need to in ways that are most
useful for the rest of the world?

•Assigning URIs to it all

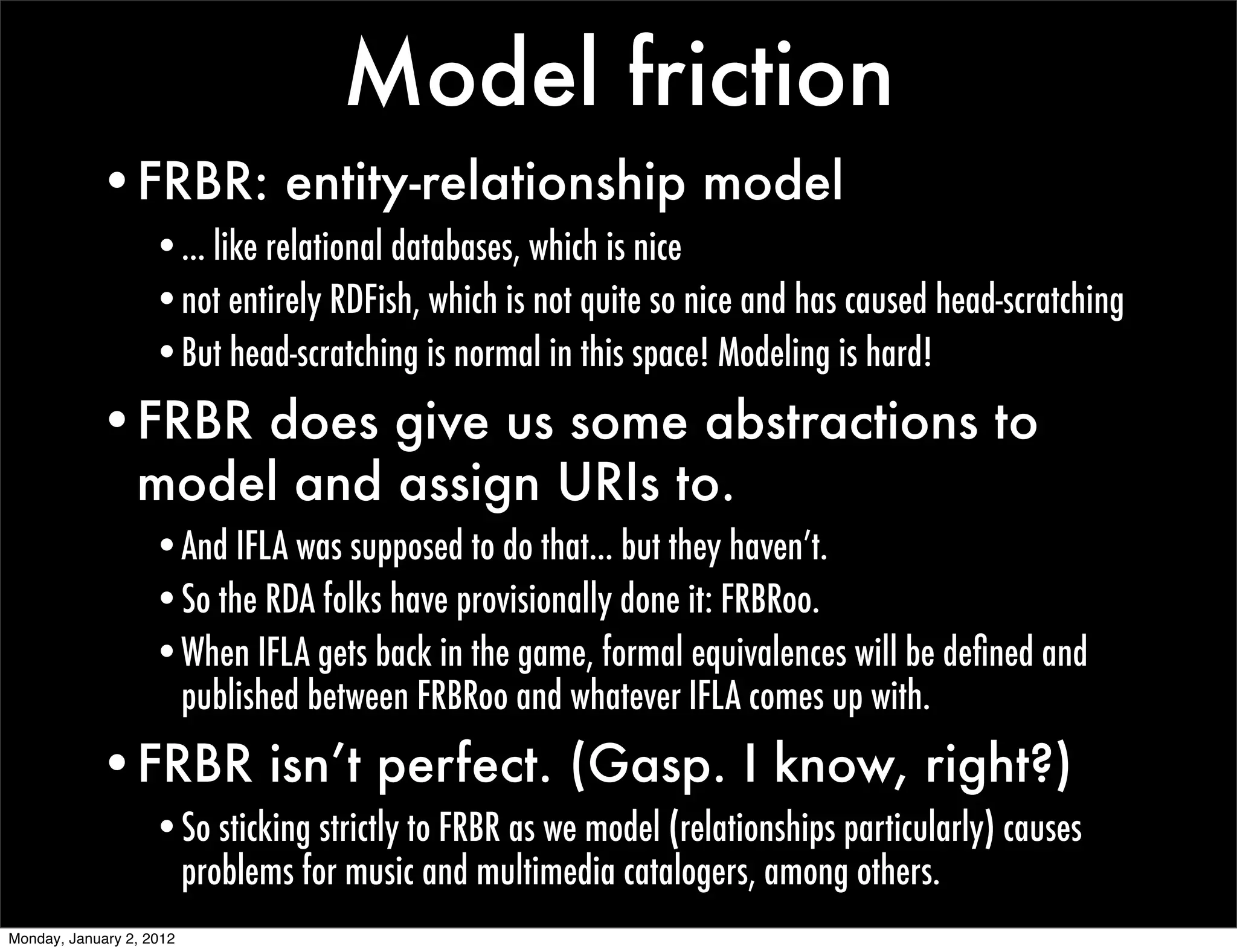

Model friction
•FRBR: entity-relationship model
•... like relational databases, which is nice
•not entirely RDFish, which is not quite so nice and has caused head-scratching
•But head-scratching is normal in this space! Modeling is hard!
•FRBR does give us some abstractions to
model and assign URIs to.
•And IFLA was supposed to do that... but they haven’t.
•So the RDA folks have provisionally done it: FRBRoo.
•When IFLA gets back in the game, formal equivalences will be deﬁned and
published between FRBRoo and whatever IFLA comes up with.
•FRBR isn’t perfect. (Gasp. I know, right?)
•So sticking strictly to FRBR as we model (relationships particularly) causes
problems for music and multimedia catalogers, among others.

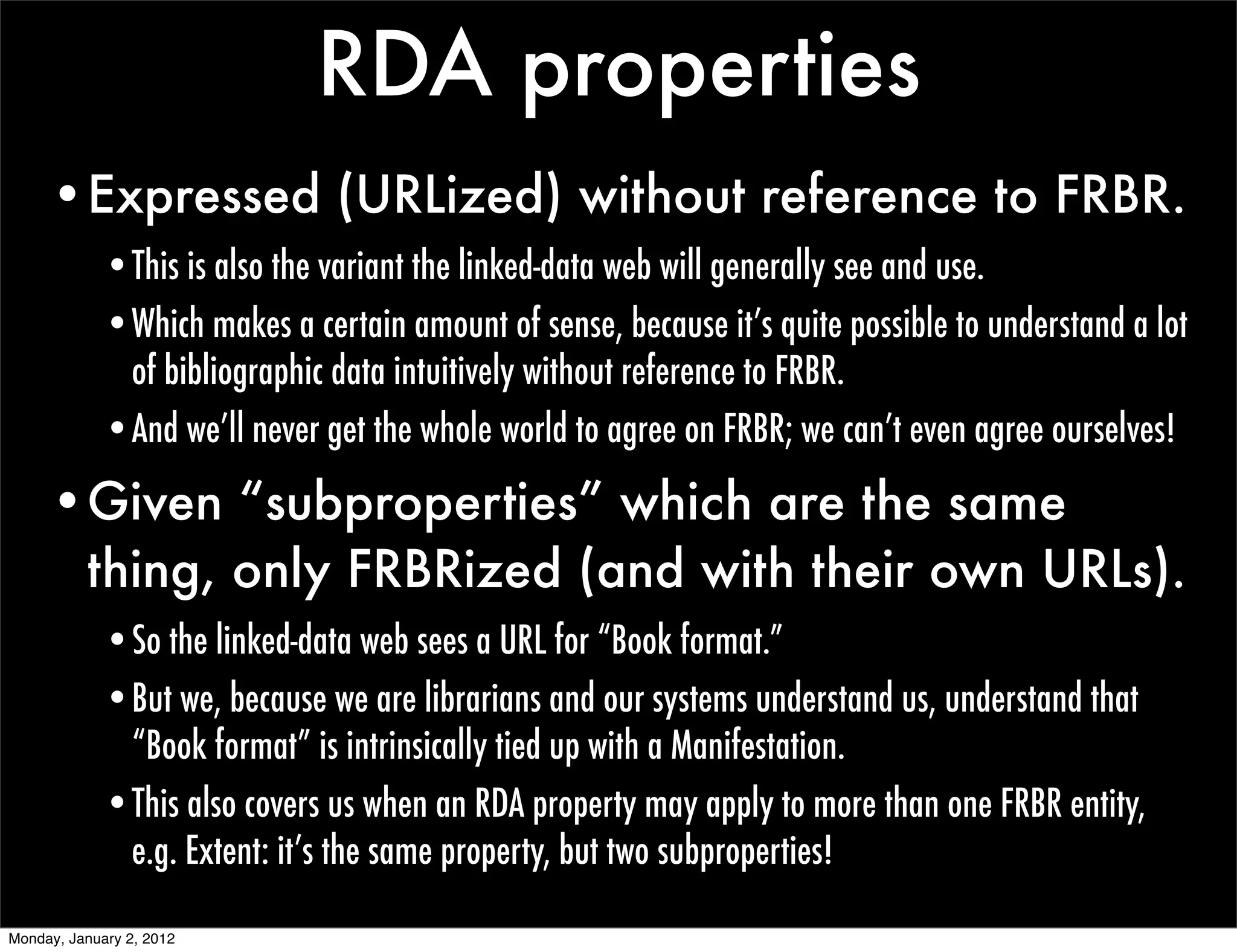

RDA properties
•Expressed (URLized) without reference to FRBR.
•This is also the variant the linked-data web will generally see and use.
•Which makes a certain amount of sense, because it’s quite possible to understand a lot
of bibliographic data intuitively without reference to FRBR.
•And we’ll never get the whole world to agree on FRBR; we can’t even agree ourselves!

•Given “subproperties” which are the same
thing, only FRBRized (and with their own URLs).
•So the linked-data web sees a URL for “Book format.”
•But we, because we are librarians and our systems understand us, understand that
“Book format” is intrinsically tied up with a Manifestation.
•This also covers us when an RDA property may apply to more than one FRBR entity,
e.g. Extent: it’s the same property, but two subproperties!


Diagram: Hillmann et al., “RDA Vocabularies: Process, Outcome, Use” D-Lib Magazine. http://www.dlib.org/dlib/january10/hillmann/01hillmann.html

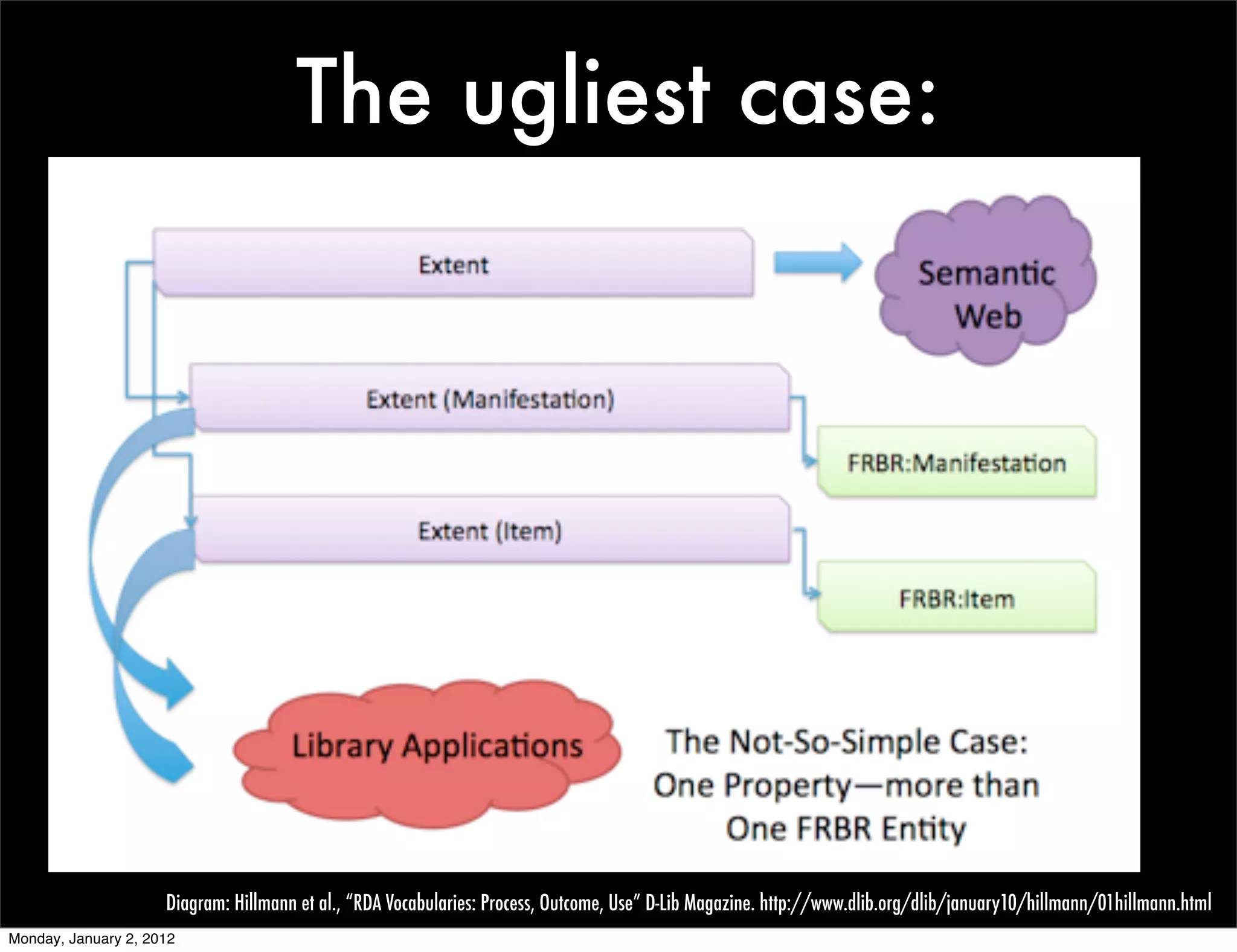

The ugliest case:

Diagram: Hillmann et al., “RDA Vocabularies: Process, Outcome, Use” D-Lib Magazine. http://www.dlib.org/dlib/january10/hillmann/01hillmann.html

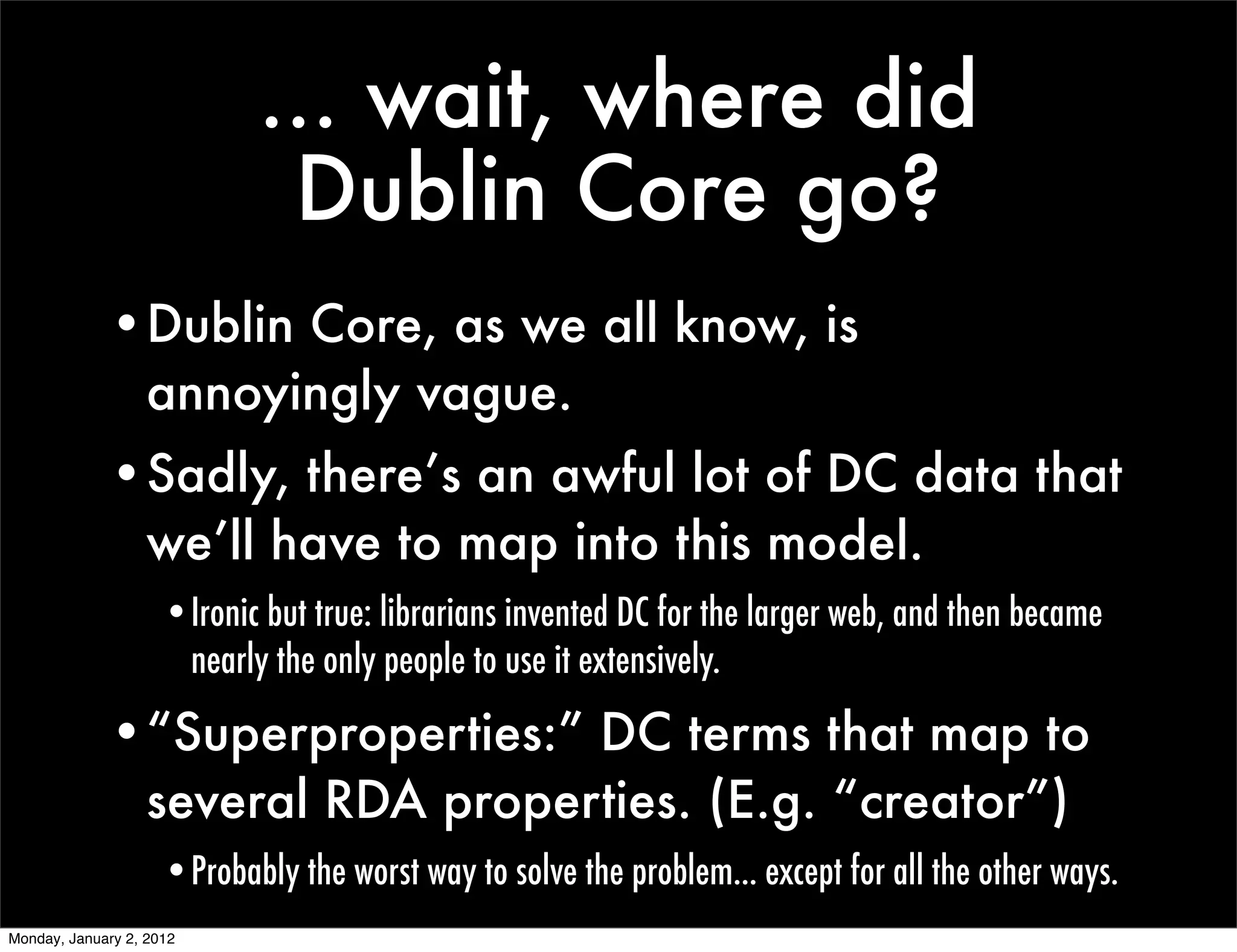

... wait, where did
Dublin Core go?
•Dublin Core, as we all know, is
annoyingly vague.
•Sadly, there’s an awful lot of DC data that
we’ll have to map into this model.
•Ironic but true: librarians invented DC for the larger web, and then became
nearly the only people to use it extensively.

•“Superproperties:” DC terms that map to
several RDA properties. (E.g. “creator”)
•Probably the worst way to solve the problem... except for all the other ways.

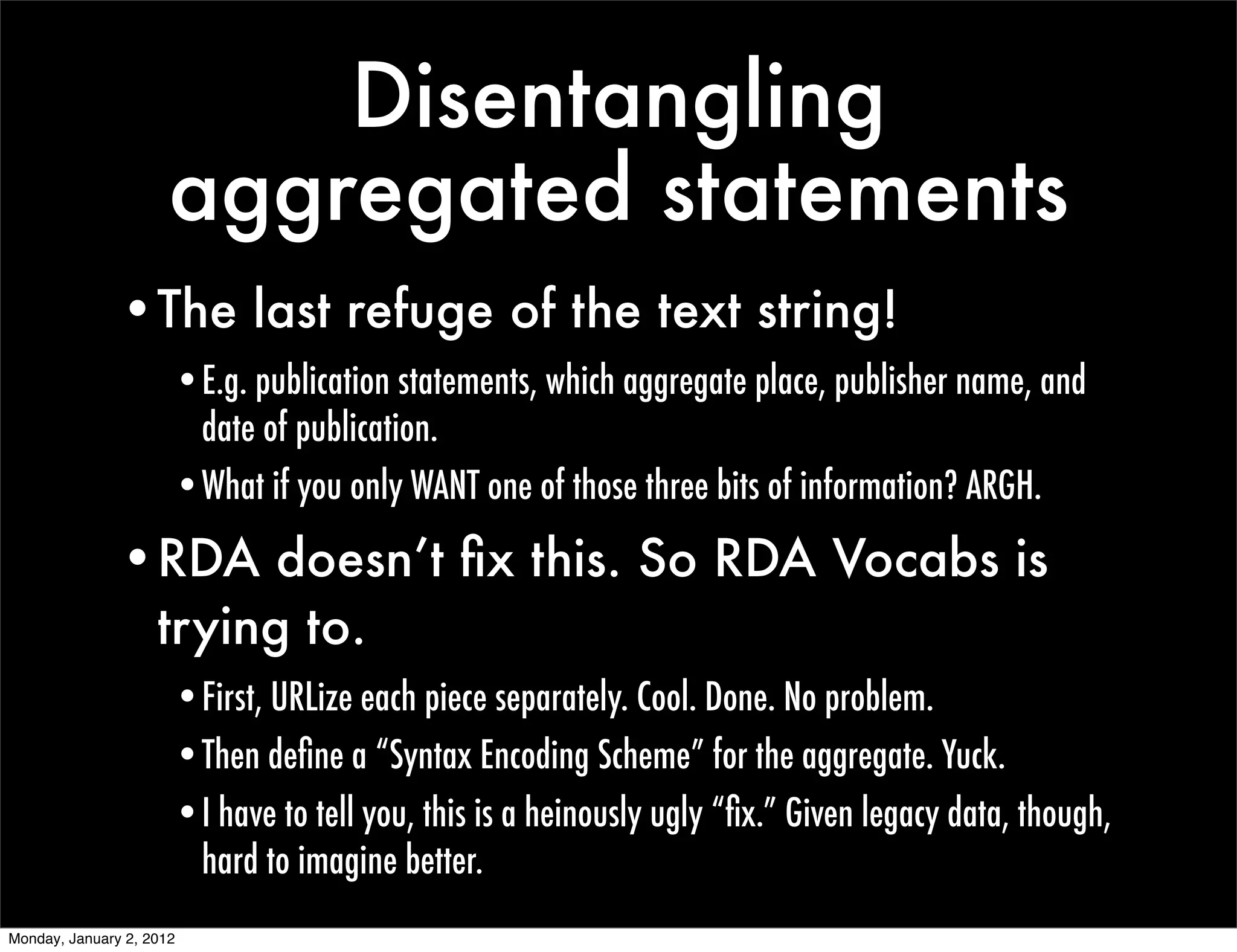

Disentangling
aggregated statements
•The last refuge of the text string!
•E.g. publication statements, which aggregate place, publisher name, and
date of publication.
•What if you only WANT one of those three bits of information? ARGH.

•RDA doesn’t fix this. So RDA Vocabs is
trying to.
•First, URLize each piece separately. Cool. Done. No problem.
•Then define a “Syntax Encoding Scheme” for the aggregate. Yuck.
•I have to tell you, this is a heinously ugly “fix.” Given legacy data, though,
hard to imagine better.

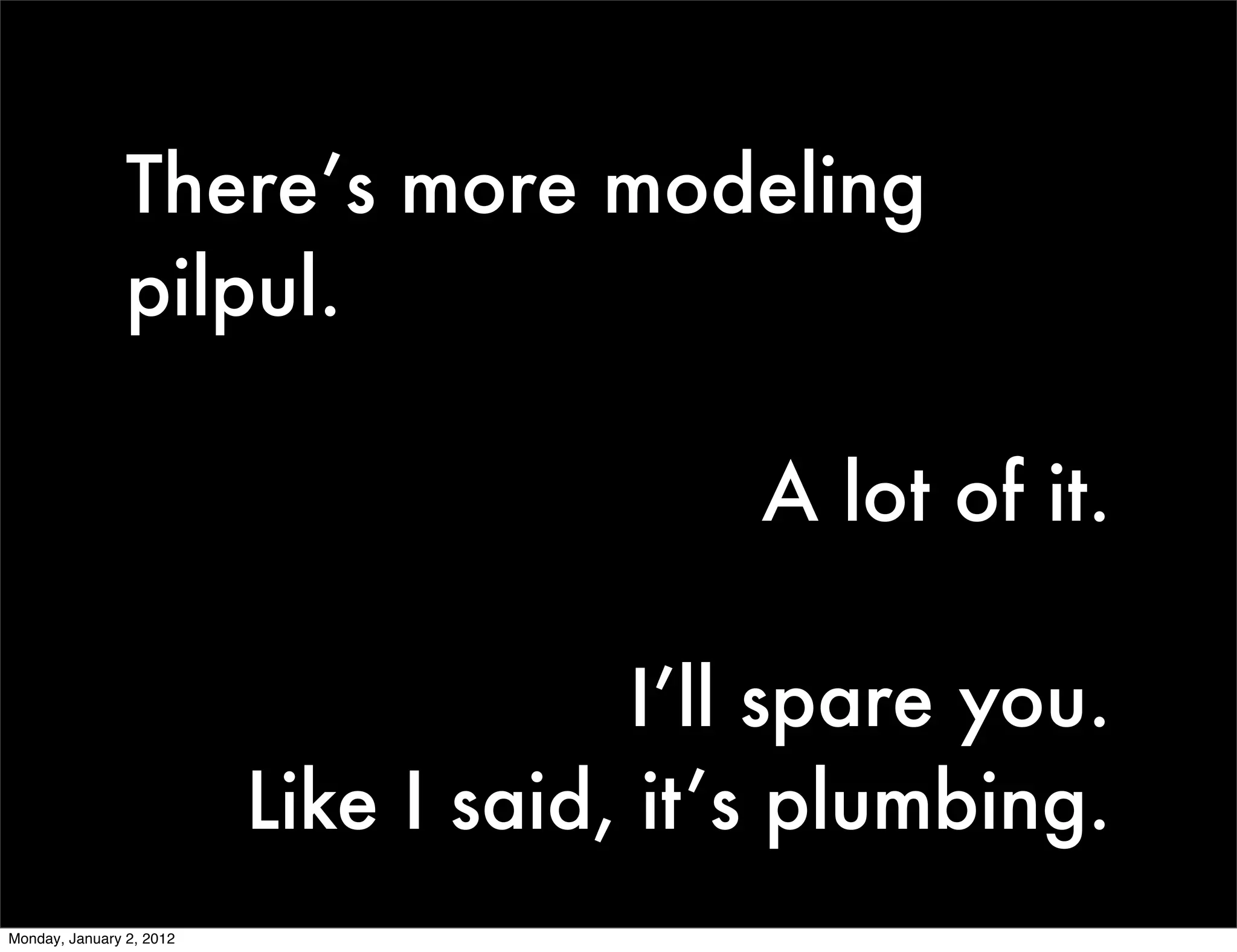

There’s more modeling
pilpul.

A lot of it.

I’ll spare you.
Like I said, it’s plumbing.

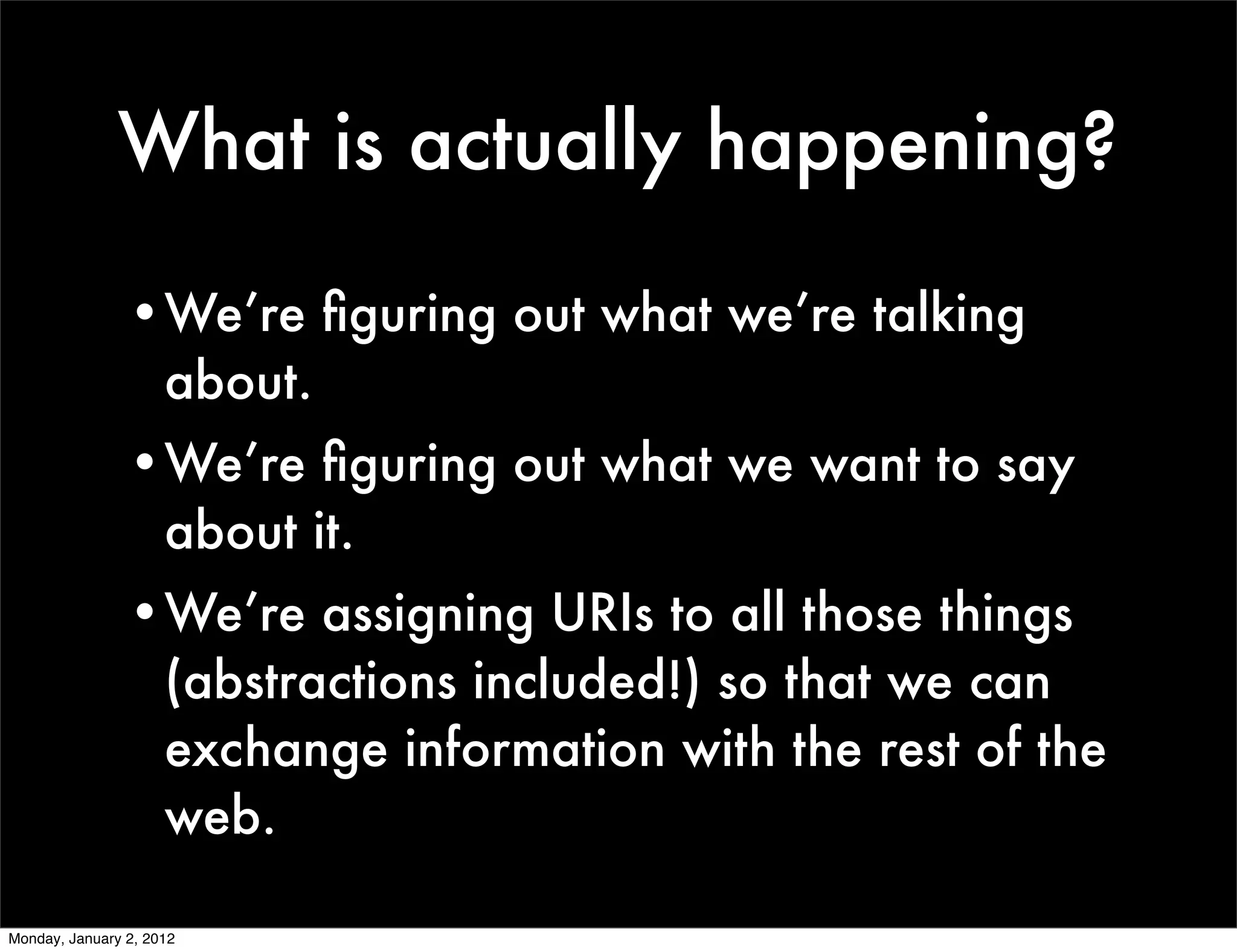

What is actually happening?

•We’re ﬁguring out what we’re talking
about.
•We’re ﬁguring out what we want to say
about it.
•We’re assigning URIs to all those things
(abstractions included!) so that we can
exchange information with the rest of the
web.

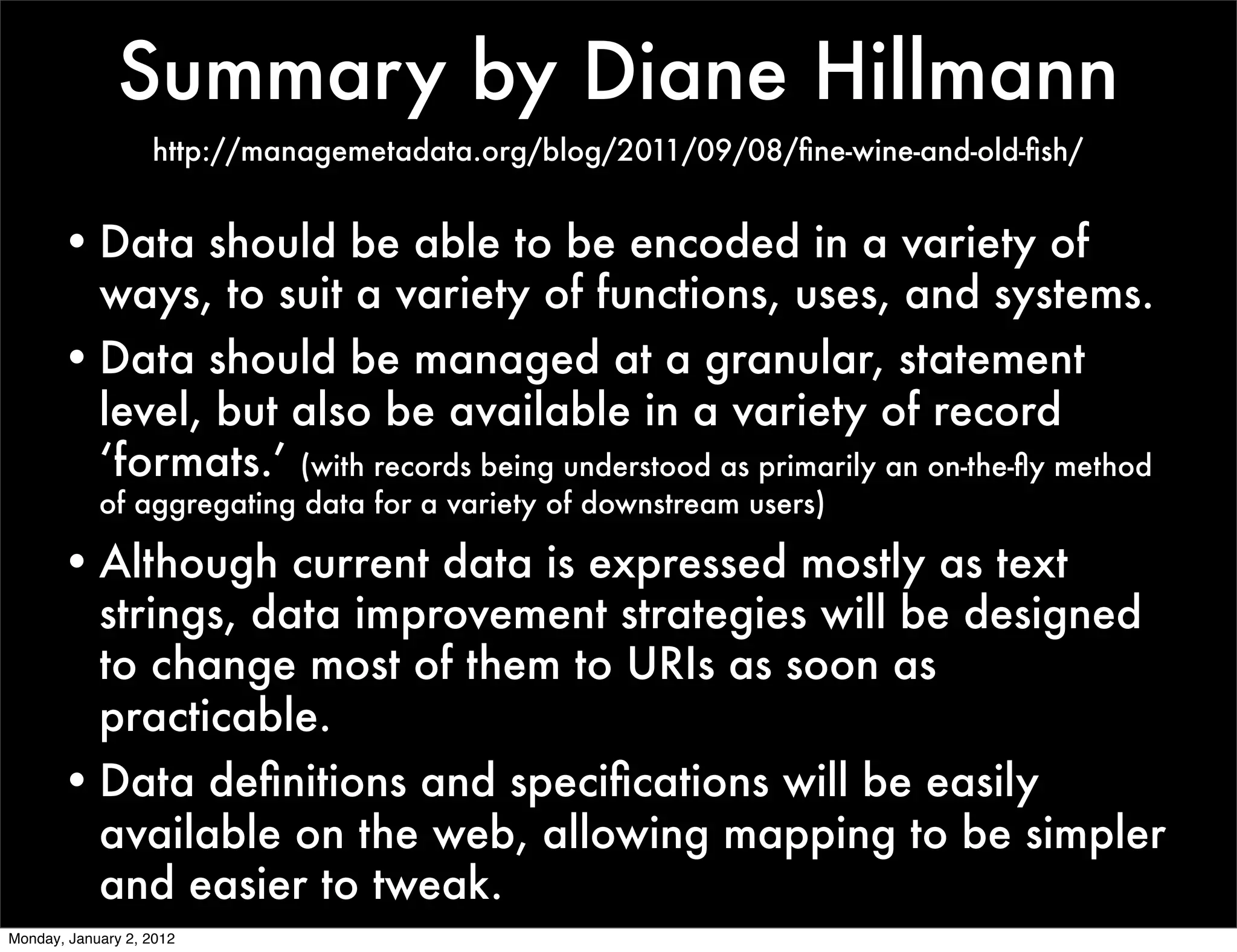

Summary by Diane Hillmann
http://managemetadata.org/blog/2011/09/08/fine-wine-and-old-fish/

• Data should be able to be encoded in a variety of
ways, to suit a variety of functions, uses, and systems.
• Data should be managed at a granular, statement
level, but also be available in a variety of record
‘formats.’ (with records being understood as primarily an on-the-fly method
of aggregating data for a variety of downstream users)

• Although current data is expressed mostly as text
strings, data improvement strategies will be designed
to change most of them to URIs as soon as
practicable.
• Data definitions and specifications will be easily
available on the web, allowing mapping to be simpler
and easier to tweak.

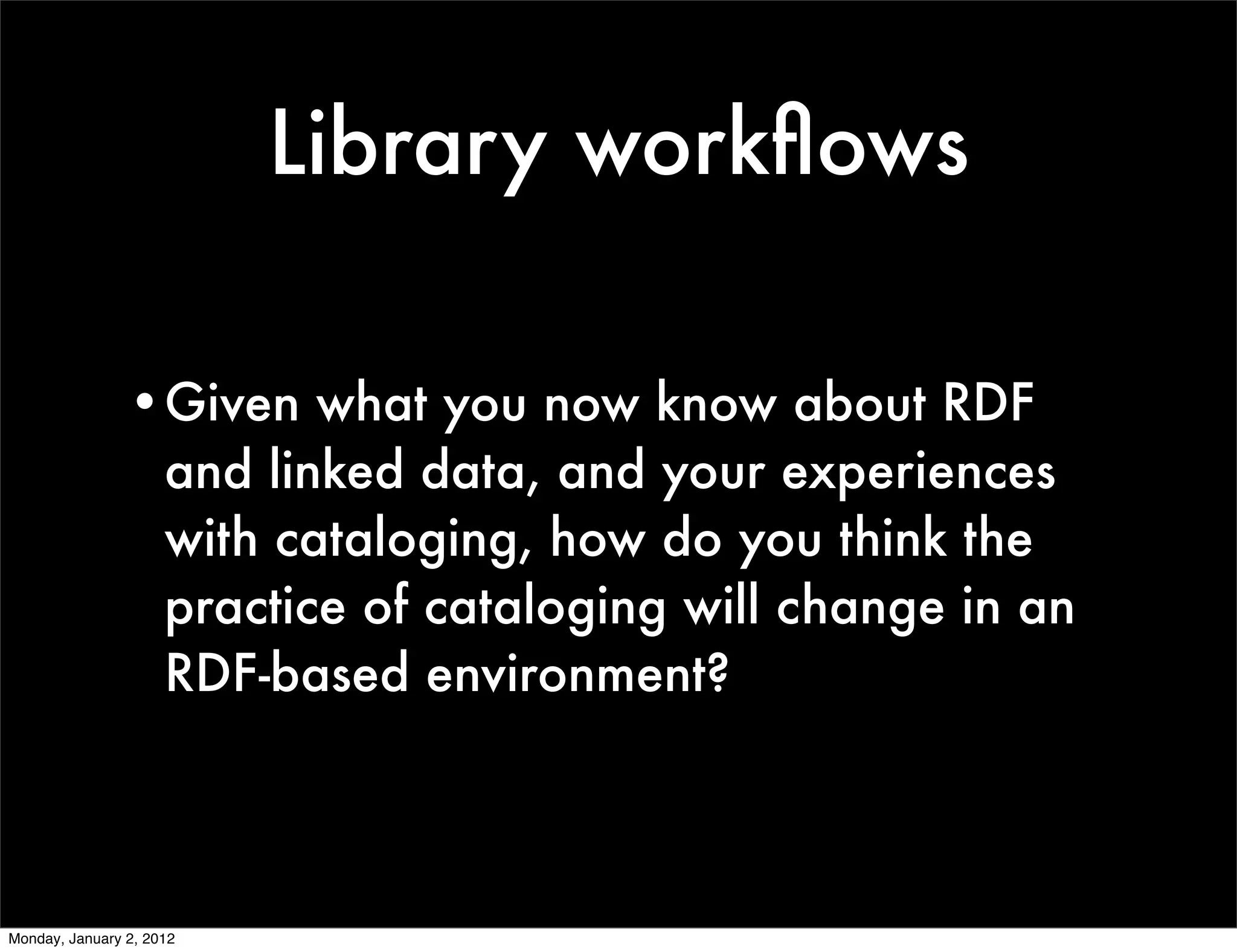

Library workﬂows

•Given what you now know about RDF
and linked data, and your experiences
with cataloging, how do you think the
practice of cataloging will change in an
RDF-based environment?

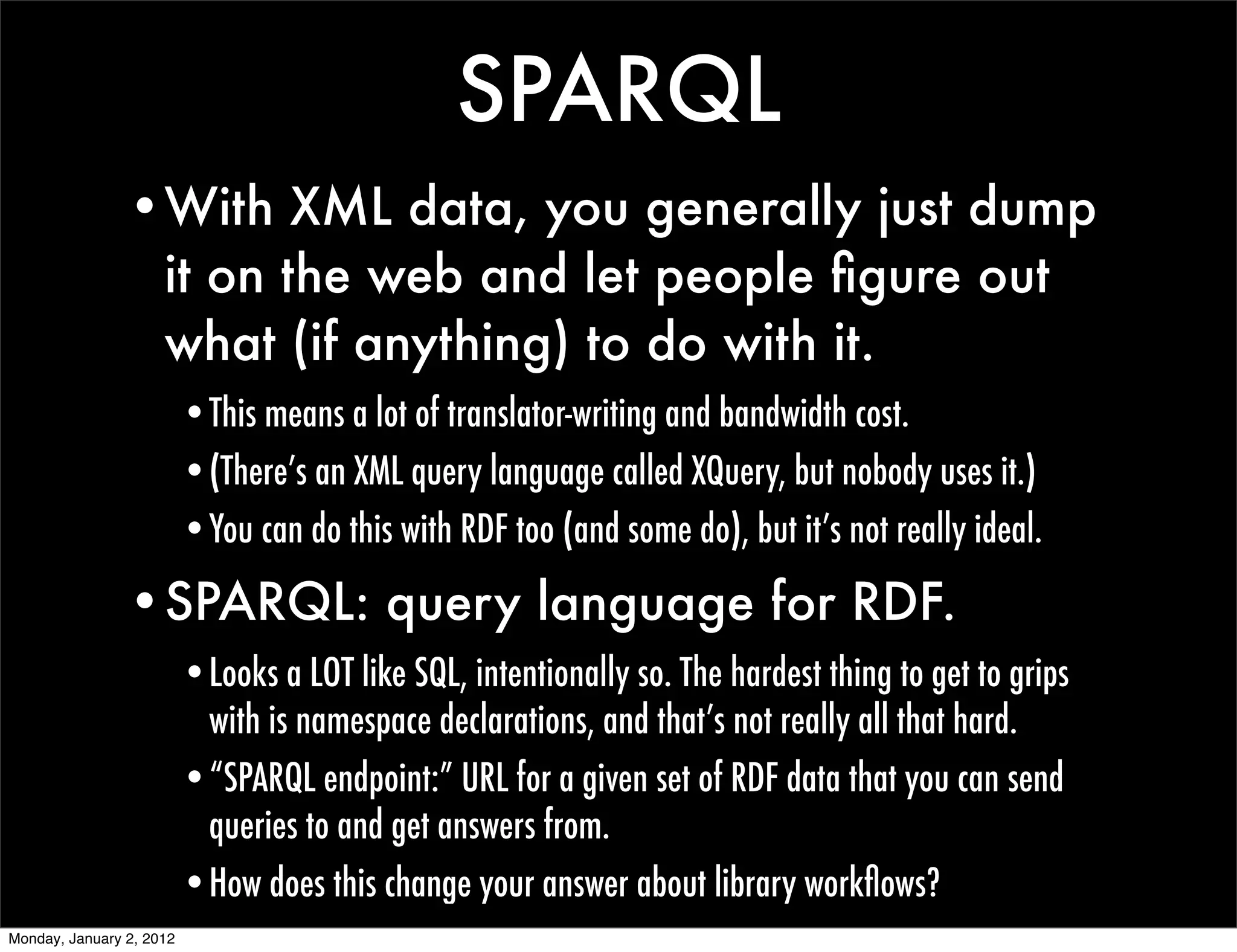

SPARQL
•With XML data, you generally just dump
it on the web and let people ﬁgure out
what (if anything) to do with it.
•This means a lot of translator-writing and bandwidth cost.
•(There’s an XML query language called XQuery, but nobody uses it.)
•You can do this with RDF too (and some do), but it’s not really ideal.

•SPARQL: query language for RDF.
•Looks a LOT like SQL, intentionally so. The hardest thing to get to grips
with is namespace declarations, and that’s not really all that hard.
•“SPARQL endpoint:” URL for a given set of RDF data that you can send
queries to and get answers from.
•How does this change your answer about library workﬂows?

Why it’s worth doing


Your data ages like

Photo: Matthew, “red wine bottle 1” http://www.ﬂickr.com/photos/falcon1961/3408961521/ CC-BY

Your software
applications age like

Photo: amanda mandy, “peixe pelo todo.” http://www.ﬂickr.com/photos/polaina/3128038858/ CC-BY

... did that help?

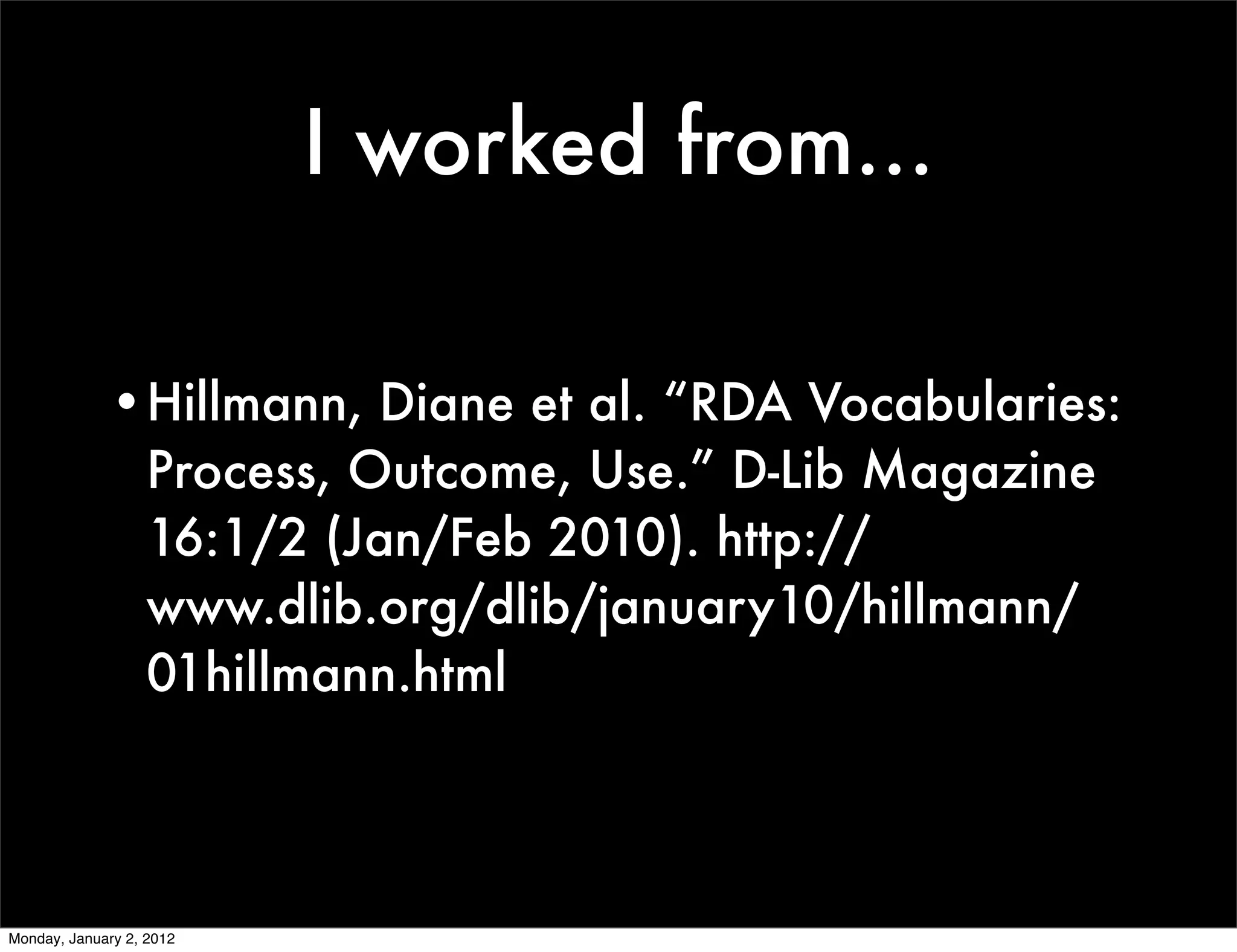

I worked from...

•Hillmann, Diane et al. “RDA Vocabularies:
Process, Outcome, Use.” D-Lib Magazine
16:1/2 (Jan/Feb 2010). http://
www.dlib.org/dlib/january10/hillmann/
01hillmann.html


RDF, RDA, and other TLAs

More Related Content

Similar to RDF, RDA, and other TLAs

More from removed_74989d00700bfae9d2b3aaa2e59b82a1

Recently uploaded

RDF, RDA, and other TLAs
