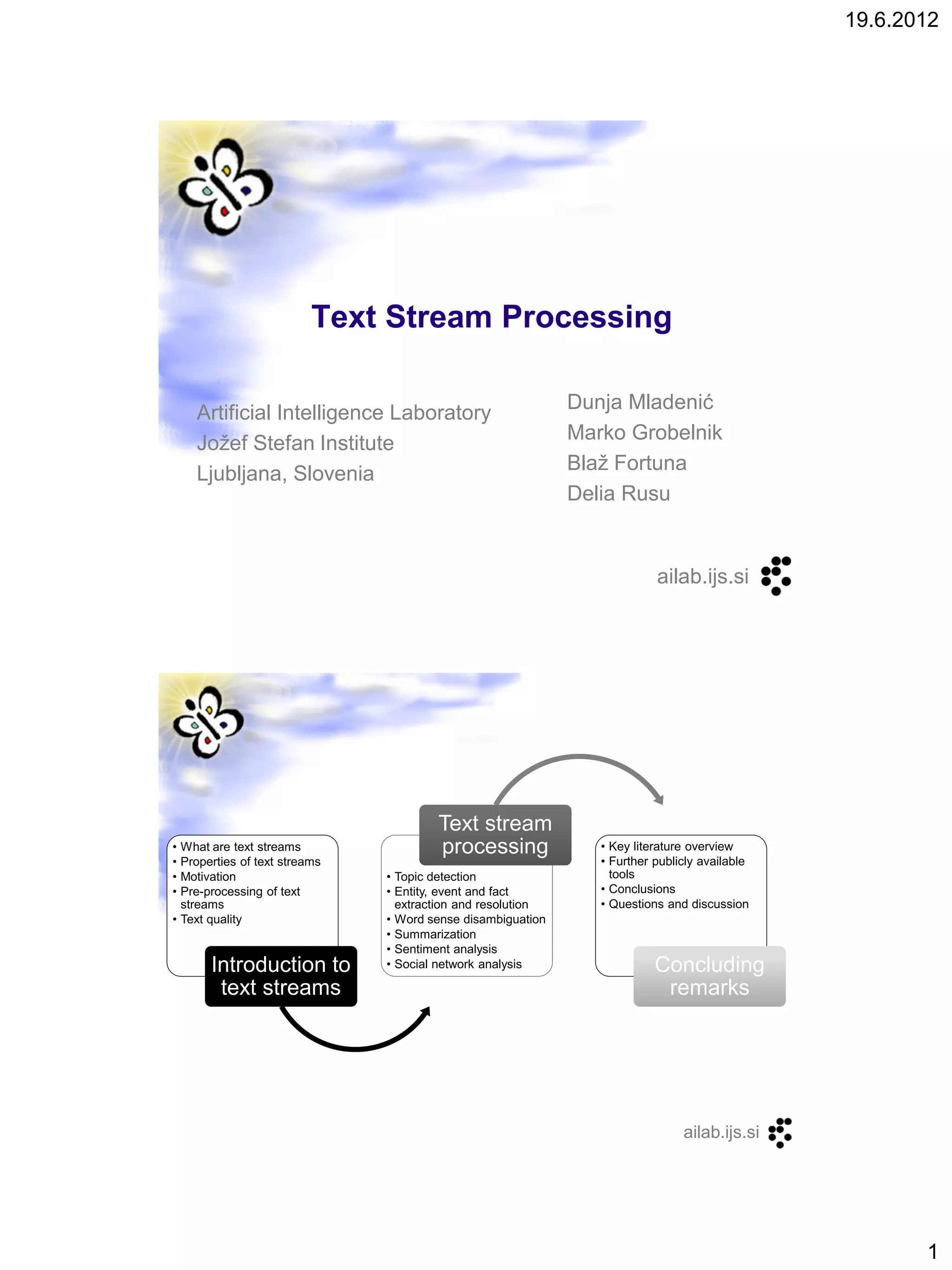

1. 19.6.2012
Text Stream Processing
Dunja Mladenić
Artificial Intelligence Laboratory
Marko Grobelnik
Jožef Stefan Institute
Blaž Fortuna
Ljubljana, Slovenia
Delia Rusu
ailab.ijs.si
Text stream
• What are text streams processing • Key literature overview
• Properties of text streams • Further publicly available
• Motivation • Topic detection tools
• Pre-processing of text • Entity, event and fact • Conclusions
streams extraction and resolution • Questions and discussion
• Text quality • Word sense disambiguation
• Summarization
• Sentiment analysis
Introduction to • Social network analysis Concluding
text streams remarks
ailab.ijs.si
1

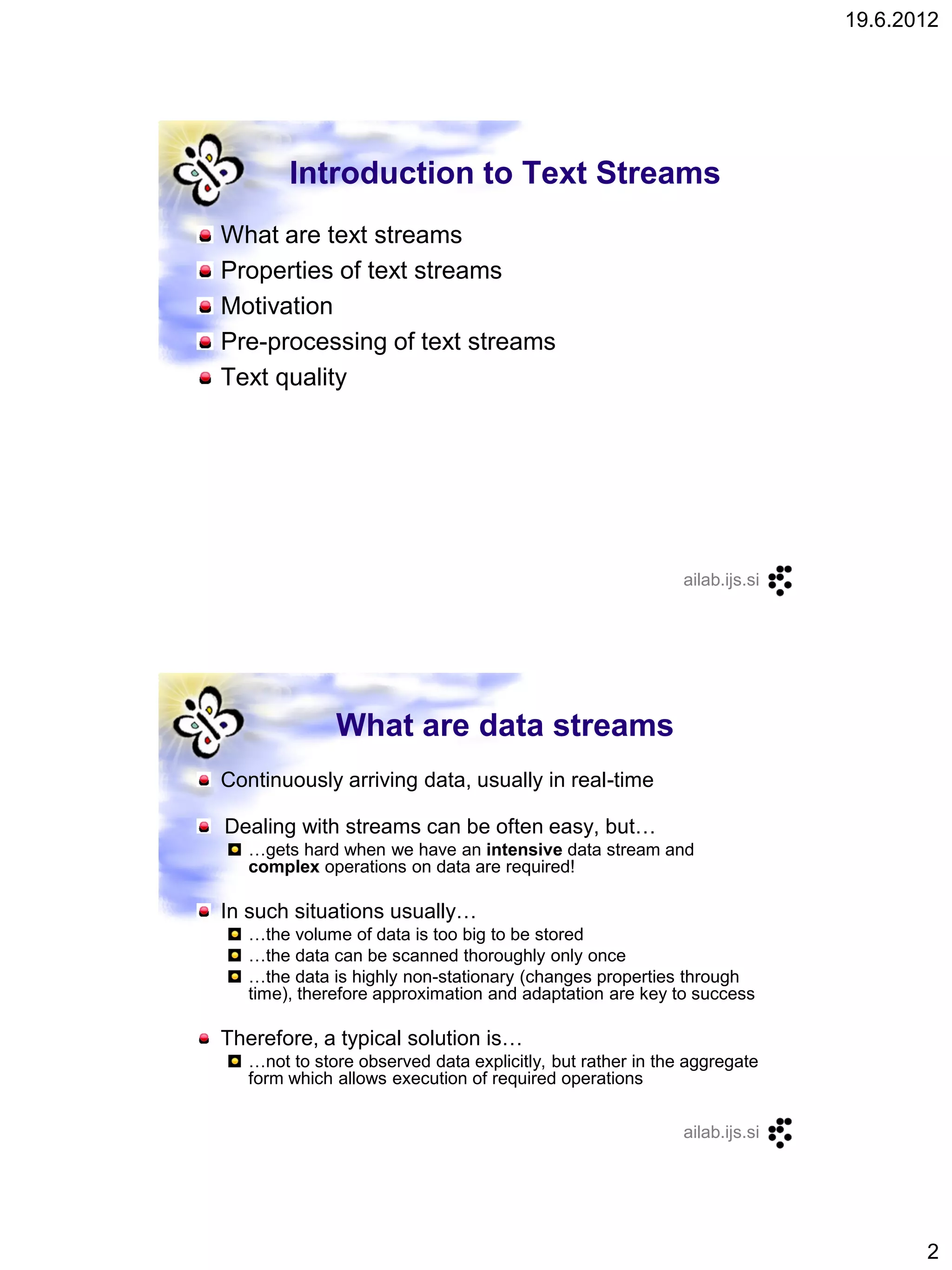

2. 19.6.2012
Introduction to Text Streams
What are text streams
Properties of text streams
Motivation
Pre-processing of text streams
Text quality
ailab.ijs.si
What are data streams
Continuously arriving data, usually in real-time
Dealing with streams can be often easy, but…
…gets hard when we have an intensive data stream and
complex operations on data are required!
In such situations usually…
…the volume of data is too big to be stored
…the data can be scanned thoroughly only once
…the data is highly non-stationary (changes properties through
time), therefore approximation and adaptation are key to success
Therefore, a typical solution is…
…not to store observed data explicitly, but rather in the aggregate
form which allows execution of required operations
ailab.ijs.si
2
3. 19.6.2012
Stream processing
Who works with real time data processing?
“Stream Mining” (subfield of “Data Mining”) dealing
with mining data streams in different scenarios in
relation with machine learning and data bases
http://en.wikipedia.org/wiki/Data_stream_mining
“Complex Event Processing” is a research area
discovering complex events from simple ones by
inference, statistics etc.
http://en.wikipedia.org/wiki/Complex_Event_Processing
ailab.ijs.si
Motivation for stream processing
Why one would need (near) real-time information
processing?
…because Time and Reaction Speed correlate with
many target quantities – e.g.:
…on stock exchange with Earnings
…in controlling with Quality of Service
…in fraud detection with Safety, etc.
Generally, we can say: Reaction Speed == Value
…if our systems react fast, we create new value!
ailab.ijs.si
3
4. 19.6.2012
What are text streams
Continuous, often rapid, ordered sequence of texts
Text information arriving continuously over time in
the form of a data stream
News and similar regular report
News articles, online comments on news, online traffic
reports, internal company reports, web searches,
scientific papers, patents
Social media
discussion forums (eg., Twitter, Facebook), short
messages on phones or computer, chat, transcripts of
phone conversations, blogs, e-mails
Demo http://newsfeed.ijs.si ailab.ijs.si
NewsFeed
ailab.ijs.si
4
5. 19.6.2012
Properties of text streams
Produced with a high rate over time
Can be read only once or a small number of times
(due to the rate and/or overall volume)
Challenging for computing and storage
capabilities – efficiency and scalability of the
approaches
Strong temporal dimension
Modularity over time and sources (topic,
sentiment,…)
ailab.ijs.si
Example task: evolution of research
topics and communities over time
Based on time stamped research publication titles and
authors
Observe which topics/communities shrunk, which
emerged, which split, over time, when in time were the
turning points,…
TimeFall – monitoring dynamic, temporally evolving
graphs and streams based on Minimum Description
Length
find good cut-points in time, and stitch together the communities:
good cut-point leads to shorter description length.
fast and efficient incremental algorithm, scales to large datasets,
easily parallelizable
ailab.ijs.si
5
6. 19.6.2012
Example task: evolution of research
topics and communities over time
Given: n time-stamped events (eg., papers), each related to
several of m items (eg., title-words, and/or author-names)
Find cluster patterns and summarize their evolution in time
Time Papers Words Time Words Time Words
1990 1990 1990
1992 1992
1991 V 1991
Papers
1990 1 1990 2 1991
1992 1992
1991 1991
1990 1990 1992
1991 1991
3
Time Word Clusters Time Word Clusters Time Word Clusters
1990 1990 1990
5 4
1991 1991
1992 1992 1992
ailab.ijs.si
TimeFall on 12 million
medical publications
from PubMed
MEDLINE over 40
years
scales linearly with the
product of the initial
time point blocks and
the number of non-
zeros in the matrix
J. Ferlez, C. Faloutsos, J. Leskovec, D. Mladenic, M. Grobelnik. Monitoring Network Evolution
using MDL. International Conference on Data Engineering (ICDE 2008). ailab.ijs.si
6
7. 19.6.2012
Pre-processing text stream
Basic text pre-processing
including removing stop-words, applying stemming
Representing text for internal processing
Splitting into units (eg., sentences or words)
Mapping to internal representation (eg., feature
vectors of words, vectors of ontology concepts)
Pre-processing for aligning/merging text streams
Time wise alignment of multiple text streams -
coordinated text streams (appearing over the same
time window, eg. news)
Content alignment possibly over different languages
ailab.ijs.si
Example
The city hosts a great number of religious
buildings, many of them dating back to
medieval times.
Stop Words
ailab.ijs.si
7
8. 19.6.2012
Example
city hosts great number religious buildings,
host religi build
many them dating back medieval times.
date mediev time
Stemming
ailab.ijs.si
Example
city host great number religi build, many
them date back mediev time.
Splitting into units of words
(city, host, great, number, religi, build,
many, them, date, back, mediev, time)
Feature vector of words
ailab.ijs.si
8
9. 19.6.2012
Text Quality
Factors:
Vocabulary use
Grammatical and fluent sentences
Structure and coherence
Non-redundant information
Referential clarity – e.g. proper usage of pronouns
Models of text quality
Global coherence - overall document organization
Local coherence - Adjacent sentences
Language model based approaches
ailab.ijs.si
Text stream
• What are text streams processing • Key literature overview
• Properties of text streams • Further publicly available
• Motivation • Topic detection tools
• Pre-processing of text • Entity, event and fact • Conclusions
streams extraction and resolution • Questions and discussion
• Text quality • Word sense disambiguation
• Summarization
• Sentiment analysis
Introduction to • Social network analysis Concluding
text streams remarks
ailab.ijs.si
9
10. 19.6.2012
Text Stream Processing
WEB
Topic Summarization
Detection
Sentiment
Web Text Pre-
Analysis
Crawler Processing Information
Extraction
Social
Word Network
Sense Analysis
Disambiguation
Text Stream
Processing Results
ailab.ijs.si
Topic Detection
Religion
Art
ailab.ijs.si
10
11. 19.6.2012
Topic Detection
Supervised techniques
The data is labeled with predefined topics
Machine learning algorithms are used to predict
unseen data labels
Unsupervised techniques
Identify patterns and structure within the dataset
Clustering: grouping data sharing similar topics
Statistical methods: probabilistic topic modeling
ailab.ijs.si
Probabilistic Topic Modeling
Topic: a probability distribution over words in a
fixed vocabulary
Given an input corpus containing a number of
documents, each having a sequence of words,
the goal is to find useful sets of topics
ailab.ijs.si
11
12. 19.6.2012
Latent Dirichlet Allocation
Documents
can have
multiple topics
Religion
Art
D. Blei, A. Ng, and M. Jordan. Latent Dirichlet allocation. Journal of
Machine Learning Research, 3:993–1022, January 2003 ailab.ijs.si
LDA Generative Process
A topic is a distribution over words
A document is a mixture of topics (at the level of
the corpus)
Each word is drawn from one of the corpus-level
topics
For each document generate the words:
1. Randomly choose a distribution over the topics
2. For each word in the document
a) Randomly choose a topic from the distribution over topics in
(step 1)
b) Randomly choose a word from the corresponding distribution
over the vocabulary
ailab.ijs.si
12
13. 19.6.2012
LDA Generative Process
Assume a number of Choose a distribution For each word:
topics for the over the topics • Choose a topic
document collection assignment
(Craiova guide) • Choose the word
from the topic
religious 0.03
monastery 0.01
church 0.01
art 0.02
painter 0.02
sculpture 0.01
park 0.01
garden 0.01
ailab.ijs.si
Topic Models - Extensions
Hierarchical Topic Models
D. Blei, T. Griffiths, and M. Jordan. The nested
Chinese restaurant process and Bayesian
nonparametric inference of topic hierarchies. Journal
of the ACM, 57:2 1–30, 2010.
Q. Ho, J. Eisenstein, E. P. Xing. Document
Hierarchies from Text and Links. WWW 2012
Dynamic Topic Models
D. Blei and J. Lafferty. Dynamic topic models. In
Proceedings of the 23rd International Conference on
Machine Learning, 2006.
ailab.ijs.si
13
14. 19.6.2012
Topic Detection in Streams
Unsupervised methods
Simpler approaches – e.g. Clustering
Probabilistic topic models
Challenging because of the amount and dynamics of
the data
E.g. Online inference for LDA – fits a topic model to
random Wikipedia articles
ailab.ijs.si
Topic Detection Tools
Available implementations
LDA, HLDA, …
http://www.cs.princeton.edu/~blei/topicmodeling.html
Mallet
Toolkit for statistical NLP
http://mallet.cs.umass.edu/
ailab.ijs.si
14
15. 19.6.2012
Clustering on text streams
Grouping similar documents
– adjusting to changes in
the topics over time
Clusters generated as the data
arrives and stored in a tree
Adding examples by adjusting
the whole path from the root to
the leaf node with the new
example – adding, removing,
splitting and merging clusters
ailab.ijs.si
Clustering on Reuters V1 news
(colors showing predefined topics)
B. Novak, Algorithm for identifying topics in text streams, 2008 ailab.ijs.si
15
16. 19.6.2012
Topic Detection - DEMOS
A 100-topic browser of the dynamic topic model
fit to Science (1882-2001)
http://topics.cs.princeton.edu/Science/
Browsing search results
http://searchpoint.ijs.si/
ailab.ijs.si
100-topic browser
Science (1882-2001)
1890 1940 2000
ailab.ijs.si
16
17. 19.6.2012
Search Point
ailab.ijs.si
Entity Extraction
Subtask of information extraction
Identifying elements in text which belong to a
predefined group of things:
Names of people, locations, organizations (most
common)
Time expressions, quantities, money amounts,
percentages
Gene and protein names
Etc.
ailab.ijs.si
17
18. 19.6.2012
Entity Extraction
ailab.ijs.si
Entity Extraction Approaches
Lists of entities (gazetteers) and grammar rules
e.g. GATE – General Architecture for Text
Engineering
H. Cunningham, et al. Text Processing with GATE (Version
6). University of Sheffield Department of Computer Science.
15 April 2011
Statistical models
e.g. Stanford NER - linear chain Conditional Random
Field (CRF) sequence models
J. R. Finkel, T. Grenager, and C. Manning. Incorporating Non-
local Information into Information Extraction Systems by
Gibbs Sampling. In ACL 2005, pp. 363-370.
ailab.ijs.si
18
19. 19.6.2012
Collective Entity Resolution
Entity resolution: discover and map entities to
corresponding references (e.g from a database,
knowledge base, etc.).
Approaches:
Pairwise similarity with attributes of references
Relational clustering using both attribute and relational
information
I. Bhattacharya, L. Getoor. Collective entity resolution in
relational data. ACM Transactions on Knowledge Discovery from
Data (TKDD), 2007.
Topic models for the context of every word in a knowledge
base
P. Sen. Collective Context-Aware Topic Models for Entity
Disambiguation. WWW 2012
ailab.ijs.si
Entity Resolution to Linked Data
Enhance named entity classification using Linked Data
features
Y. Ni, L. Zhang, Z. Qiu, C. Wang. Enhancing the Open-Domain
Classification of Named Entity using Linked Open Data. ISWC,
2010.
Type knowledge base from LOD
(name string, type)
E.g. from the triplet (dbpedia:Craiova, rdf:type, Place) ->
(Craiova, Place)
Uses WordNet as an intermediate taxonomy to compute
the similarity between the LOD type and the target type
ailab.ijs.si
19
20. 19.6.2012
Entity Resolution to Linked Data
Finding all possible forms under which an entity
can occur in text
Resource descriptions - most useful rdfs:label and
foaf:name
Redirect relationship
(entity1, type1)
(entity2, ?)
entity1 has URI1
entity2 has URI2
URI1 owl:sameAs URI2
Conclude: (entity2, type1)
ailab.ijs.si
Relation Extraction
Identifying relationships between entities (and more
generally phrases)
Traditional relation extraction
The target relation is given, together with corresponding
extraction patterns for the relation
A specific corpus
Open relation extraction (and more general Open
information extraction)
Diverse relations, not previously fixed
Corpus: the Web
M. Banko, O. Etzioni. The Tradeoffs Between Open
and Traditional Relation Extraction. ACL, 2008.
ailab.ijs.si
20
21. 19.6.2012
Identifying Relations for Open IE
3-step method:
Label – automatically label sentences with extractions
(arg1, relation phrase, arg2)
Learn – learn a relation phrase extractor (e.g using CRF)
Extract – given a sentence, identify (arg1, arg2) and the
relation phrase (based on the learned relation extractor)
Examples
TextRunner – M. Banko, M. Cafarella, S. Soderland, M.
Broadhead, O. Etzioni. Open Information Extraction from
the Web. IJCAI 2007.
WOE – F. Wu, D.S. Weld. Open Information Extraction
using Wikipedia. ACL 2010.
ailab.ijs.si
Identifying Relations for Open IE
REVERB
Input: POS-tagged and NP-chunked sentence
Identify relation phrases
syntactic and lexical constraints
Find a pair of NP arguments for each relation
phrase – assign confidence score (logistic
regression classifier)
Output: (x,y,z) extraction triplets
A. Fader, S. Soderland O. Etzioni. Identifying Relations for Open
Information Extraction. EMNLP 2011. ailab.ijs.si
21
22. 19.6.2012
Identifying Relations for Open IE
Key points:
Relation phrases are identified holistically as
opposed to word-by-word
Potential phrases are filtered based on statistics
(lexical constraints)
relation first opposed to arguments first
relation phrase not confused for arguments (e.g. “made a deal
with”)
DEMO
http://openie.cs.washington.edu/#
ailab.ijs.si
REVERB
ailab.ijs.si
22
23. 19.6.2012
Never Ending Language
Learning
NELL – Never Ending Language Learning
Addressed tasks
Reading task: read the Web and extract a knowledge base of
structured facts and knowledge.
Learning task: improved (and updated) reading – extract
past information more accurately
A. Carlson, J. Betteridge, B. Kisiel, B. Settles, E.R. Hruschka Jr. and T.M. Mitchell.
Toward an Architecture for Never-Ending Language Learning. AAAI, 2010.
ailab.ijs.si
Never Ending Language
Learning
A. Carlson et al. 2010
ailab.ijs.si
23
24. 19.6.2012
Never Ending Language
Learning
Coupled Pattern Learner (CPL)
Extracts instances of categories and relations (using
contextual patterns)
Coupled SEAL (CSEAL)
Queries the Web with beliefs from each category or
relation, mines lists and tables to extract new instances
Coupled Morphological Classifier (CMC)
One regression model per category – classifies noun
phrases
Rule Learner (RL)
Infer new relation instances
DEMO
http://rtw.ml.cmu.edu/rtw/
ailab.ijs.si
NELL
ailab.ijs.si
24
25. 19.6.2012
Domain and Summary Templates
Domain templates
Event-centric: the focus is on events described with
verbs
E. Filatova, V. Hatzivassiloglou, K. McKeown.
Automatic creation of domain templates. In
Proceedings of COLING/ACL 2006
Summary templates
Entity-centric: the focus is on summarizing entity
categories
P. Li, J. Jiang, Y. Wang. Generating templates of
entity summaries with an entity-aspect model and
pattern mining. ACL 2010.
ailab.ijs.si
Domain Templates
Domain is a set of events of a particular type
E.g. presidential elections, football championships
Domains can be instantiated – instances of
events of a particular type
E.g. Euro Championship 2012
Different levels of granularity
Hierarchical structure for domains
Template – a set of attribute-value pairs
The attributes specify functional roles characteristic
for the domain events
ailab.ijs.si
25
26. 19.6.2012
Domain Templates
Use a corpus describing instances of events within a
domain and learn the domain templates (general
characteristics of the domain)
The verbs are used as a starting point – estimate of
the verb importance given the domain
The sentences containing the top X verbs are parsed
The most frequent subtrees (FREQuent Tree miner)
are kept
The named entities are substituted with more generic
constructs – e.g. POS tags
The frequent sub-trees are merged together
ailab.ijs.si
Domain Templates
E.g. terrorist attack domain
• Important verbs
Killed, told, found, injured, reported,
Happened, blamed, arrested, died, linked
• Frequent subtrees
(VP(ADVP(NP))(VBD killed)(NP(CD 34)(NNS people)))
(VP(ADVP)(VBD killed)(NP(CD 34)(NNS people)))
• Merging subtrees
(VBD killed)(NP(NUMBER)(NNS people))
ailab.ijs.si
26
27. 19.6.2012
Summary Templates
Starting point: a collection of entity summaries for
a given entity category
Goal: to obtain a summary template for the entity
category
E.g. The physicist category
ENTITY received his phd from ? university
ENTITY studied ? under ?
ENTITY earned his ? in physics from university of ?
ENTITY was awarded the medal in ?
ENTITY won the ? award
ENTITY received the Nobel prize in physics in ?
ailab.ijs.si
Summary Templates
Identify subtopics (aspects) of the summary
collection
Using LDA (see Topic Detection)
Each word:
a stop word,
a background word,
a document word,
an aspect word
ailab.ijs.si
27
28. 19.6.2012
Summary Templates
Sentence patterns are generated for each aspect
frequent subtree pattern mining
Fixed structure of a sentence pattern
Aspect words, background words, stop words
Template slots – vary between documents
Document words
ailab.ijs.si
Summary Templates
Sentence pattern generation
Locate subject entities (using heuristics) – e.g.
pronouns in a biography
Generate parse trees (using Stanford Parser) – label
stop, background, aspect, document, entity words
given by the topic model
Mine frequent subtree patterns (using FREQT)
Prune patterns without entities or aspect words
Convert subtree patterns to sentence patterns (find
the sentences that generated the pattern)
ailab.ijs.si
28
29. 19.6.2012
Word sense disambiguation
Identifying the meaning of words in context
Supervised WSD
Words labeled with their senses are required
Classification task
Unsupervised WSD
Known as word sense induction
Clustering task
Knowledge-based WSD
Relies on knowledge resources: WordNet, Wikipedia,
OpenCyc, etc.
R. Navigli. Word sense disambiguation: A survey.
ACM Computational Surveys, 41(2), 2009. ailab.ijs.si
Word Sense Disambiguation
Ponzetto, S.P. and Navigli, R. Knowledge-rich
Word Sense Disambiguation Rivaling Supervised
Systems. ACL 2010.
Extend WordNet with Wikipedia relations
Apply simple knowledge-based approaches
Performance was similar with state-of-the-art
supervised approaches
ailab.ijs.si
29
30. 19.6.2012
WSD Evaluation
Evaluation workshops SenseEval, SemEval, …
WSD evaluation topics (SemEval 2010)
Cross-lingual WSD
WSD on a specific domain
Word sense induction
Disambiguating Sentiment Ambiguous Adjectives
Evaluation topics related to WSD (SemEval
2012)
Semantic textual similarity – similarity between two
sentences
Relational similarity – between pairs of words
ailab.ijs.si
Summarization
Extractive
Identifying relevant sentences that belong to the
summary
Abstractive
Identifying/paraphrasing sections of the document to
be summarized
E.g. Summarization as phrase extraction - K.
Woodsend, M. Lapata. Automatic Generation of Story
Highlights. ACL, 2010.
joint content selection and compression model
ILP model to determine phrases that form the highlights
ailab.ijs.si
30
31. 19.6.2012
Summarization Evaluation
Several evaluation workshops
Document Understanding Conferences (DUC), Text
Analysis Conferences (TAC)
Metrics: ROUGE (n-gram based)
Linguistic quality
Grammaticality, non-redundancy, referential clarity,
focus, structure and coherence
E. Pitler, A. Louis, A. Nenkova. Automatic Evaluation
of Linguistic Quality in Multi-Document
Summarization. ACL 2010.
ailab.ijs.si
Sentiment analysis
Broad sense: sentiment analysis ~ opinion mining
“computational treatment of opinion, sentiment, and
subjectivity in text” (B. Pang, L. Lee, 2008)
Surveys, book chapters:
B. Pang, L. Lee. Opinion mining and sentiment analysis.
Foundations and Trends in Information Retrieval 2(1-2), pp.
1–135, 2008
B. Liu. Sentiment Analysis and Subjectivity. Handbook of
Natural Language Processing, Second Edition, (editors: N.
Indurkhya and F. J. Damerau), 2010.
B. Liu. Web Data Mining - Exploring Hyperlinks, Contents
and Usage Data, Ch. 11: Opinion Mining, Second Edition,
Springer, 2011.
ailab.ijs.si
31
32. 19.6.2012
Interactive Approach to
Sentiment Analysis
http://aidemo.ijs.si/render/index.html Model and task
selection
Query
Model-based filters
Examples retrieved by
uncertainty or class-margin
sampling
Query result, grouped by
predicted label
T. Stajner and I. Novalija. Managing Diversity through Social Media, ESWC
2012 Workshop on Common value management. ailab.ijs.si
Architecture
Indexed documents
Active learning for
modeling topic,
sentiment (diversity
analysis)
Interactive user
interface
Example: stream of social
media posts relevant to
brand management ailab.ijs.si
32
33. 19.6.2012
Social Network Analysis
Modeling social
relationships
Network theory
concepts
Nodes – individuals
within the network
Edges – relationships
between individuals
Mario Karlovčec, Dunja Mladenić, Marko Grobelnik, Mitja Jermol. Visualizations of
Business and Research Collaboration in Slovenia, Proc. Of the Information
Technology Interfaces 2012. ailab.ijs.si
Influence and Passivity in Social
Media
Majority of Twitter users are passive information
consumers – do not forward the content to the network
Influence and passivity based on information
forwarding activity
Passivity
User retweeting rate and audience retweeting rate
how difficult it is for other users to influence him
Algorithm ~ HITS
Passivity score ~ authority score
Most passive: robot users – follow many users, but retweet a small
percentage
Influence score ~ hub score
Most influential: news services – post many links forwarded by other
users
D.M. Romero, W. Galuba, S. Asur, and B.A. Huberman. Influence and
Passivity in Social Media. ECML PKDD, 2011. ailab.ijs.si
33
34. 19.6.2012
Text stream
• What are text streams processing • Key literature overview
• Properties of text streams • Further publicly available
• Motivation • Topic detection tools
• Pre-processing of text • Entity, event and fact • Conclusions
streams extraction and resolution • Questions and discussion
• Text quality • Word sense disambiguation
• Summarization
• Sentiment analysis
Introduction to • Social network analysis Concluding
text streams remarks
ailab.ijs.si
Key literature
ailab.ijs.si
34
35. 19.6.2012
Further publicly available tools
Topic detection
David Blei’s homepage:
http://www.cs.princeton.edu/~blei/topicmodeling.html
Mallet: http://mallet.cs.umass.edu/
Natural language toolkits
GATE: http://gate.ac.uk/
OpenNLP: http://opennlp.apache.org/
Nltk: http://nltk.org/
Entity Extraction
Stanford NER: http://nlp.stanford.edu/ner/index.shtml
Relation Extraction
NELL: http://rtw.ml.cmu.edu/rtw/
REVERB: http://openie.cs.washington.edu/
WSD
WordNet::SenseRelate: http://senserelate.sourceforge.net/
ailab.ijs.si
Conclusions
Dealing with streams can be often easy, but…
…gets hard when we have an intensive data stream and
complex operations on data are required!
Topic detection
Currently online inference (e.g. for LDA) is a new direction
Entity, relationship and template extraction,
sentiment analysis and social network analysis
Are already applied on streams
Word Sense Disambiguation
Complex knowledge bases (e.g. WordNet + Wikipedia)
coupled with simple disambiguation algorithms work well
Summarization
Abstraction summaries are more suited for text streams
ailab.ijs.si
35
