PTZOptics - 2023 Presentation.pdf
- 1.

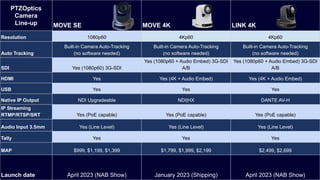

- 3. PTZOptics Camera Line-up MOVE SEMOVE 4K LINK 4K Resolution 1080p60 4Kp60 4Kp60 Auto Tracking Built-in Camera Auto-Tracking (no software needed) Built-in Camera Auto-Tracking (no software needed) Built-in Camera Auto-Tracking (no software needed) SDI Yes (1080p60) 3G-SDI Yes (1080p60 + Audio Embed) 3G-SDI A/B Yes (1080p60 + Audio Embed) 3G-SDI A/B HDMI Yes Yes (4K + Audio Embed) Yes (4K + Audio Embed) USB Yes Yes Yes Native IP Output NDI Upgradeable NDI|HX DANTE AV-H IP Streaming RTMP/RTSP/SRT Yes (PoE capable) Yes (PoE capable) Yes (PoE capable) Audio Input 3.5mm Yes (Line Level) Yes (Line Level) Yes (Line Level) Tally Yes Yes Yes MAP $999, $1,199, $1,399 $1,799, $1,999, $2,199 $2,499, $2,699 Launch date April 2023 (NAB Show) January 2023 (Shipping) April 2023 (NAB Show)

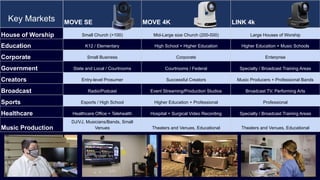

- 4. Key Markets MOVESE MOVE 4K LINK 4k House of Worship Small Church (>100) Mid-Large size Church (200-500) Large Houses of Worship Education K12 / Elementary High School + Higher Education Higher Education + Music Schools Corporate Small Business Corporate Enterprise Government State and Local / Courtrooms Courtrooms / Federal Specialty / Broadcast Training Areas Creators Entry-level Prosumer Successful Creators Music Producers + Professional Bands Broadcast Radio/Podcast Event Streaming/Production Studios Broadcast TV, Performing Arts Sports Esports / High School Higher Education + Professional Professional Healthcare Healthcare Office + Telehealth Hospital + Surgical Video Recording Specialty / Broadcast Training Areas Music Production DJ/VJ, Musicians/Bands, Small Venues Theaters and Venues, Educational Theaters and Venues, Educational
- 5. PTZOptics Joystick Line-up HC-JOY-G4 PT-JOY-G4SUPERJOY Connection Type Serial Serial OR IP Serial & IP Simultaneous w/ NDI support Cabling Options RS-232, RS-485, RS-422 Ethernet, RS-232, RS-485, RS-422 Ethernet, RS-232, RS-485, RS-422 Maximum Cable Distance 3,937’ (1,200 Meters) *24 gauge twisted pair with RS-485 3,937’ (1,200 Meters) *24 gauge twisted pair with RS-485 3,937’ (1,200 Meters) *24 gauge twisted pair with RS-485 Power DC12V PoE or DC12V PoE or DC12V Control Protocols VISCA or PELCO VISCA Over IP (PTZOptics or SONY) Serial (VISCA or PELCO) VISCA Over IP (PTZOptics or SONY), NDI, Serial (VISCA or PELCO) Design Notes Compatible with most serial PTZ cameras Compatible with most serial and IP connected PTZ cameras Compatible with most serial and IP connected PTZ cameras + all NDI cameras HDMI Output No No Yes (1080p video output) SuperPreset No No Yes MAP $299 $649 $899
- 6.
- 7. Video Connections HDMI (4K60) NDI(4K60) USB (4K30) SDI (1080p60)
- 8. Product SKUs PT12X-4K-xx-G3 PT12X-4K-xx-G3 PT12X-4K-xx-G3 xx =color (GY or WH) Gray or White

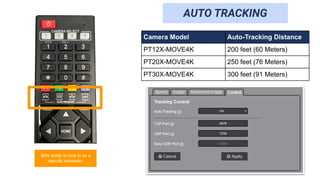

- 9. AUTO TRACKING With abilityto lock in on a specific presenter Camera Model Auto-Tracking Distance PT12X-MOVE4K 200 feet (60 Meters) PT20X-MOVE4K 250 feet (76 Meters) PT30X-MOVE4K 300 feet (91 Meters)
- 10. Auto-Tracking Top Uses ● Classroom Presentations(Lecture Capture) ● Worship Services ● Corporate (Presentations) ● Events (Entertainment)
- 11.
- 12. Stream directly fromthe camera. New On/Off buttons. RTMP NDI & SRT Streaming is also supported LIVE STREAMING
- 13. New .local web-serverconnection. Faster and easier setup. New one-click firmware updates. SETUP & UPDATE Reach your camera at: http://ptzoptics.local
- 14. CUSTOM PROFILES Quickly Change Profiles CreateProfiles to Save: ● Image Settings ● Audio Settings ● Video Settings ● Device name Upload Saved Profiles from Your Computer Download and Set up to 3 Quick Profiles
- 15. A new levelof quality
- 16. STUDIO PRO Video Connections HDMI NDI USB-C RTMP Stream Directlyto YouTube & Facebook Great for Creators!
- 17. LINK 4K Video Connections HDMI(4K60) Dante AV-H (1080p60) USB (4K30) SDI (1080p60)
- 18.
- 19. ZCAM LINE Video Connections SDI NDI (selectmodels) RTSP/RTMP POE
- 20. CAMERA MOUNTS Wall Mount HCM-1-xx CeilingMount PT-CM-1-xx Pole Mount HCM-1C-xx xx = color either WH or GY
- 21. PTZ Camera Joystick PoE HDMIOutput Custom Buttons NDI Support SUPERJOY
- 23. Camera 1 Camera4 Camera 2 Camera 3 Stage Left Stage Center Stage Right SUPERJOY STAGE SETUP Setup Details: Cameras: 3-4 Cameras Custom Buttons: Four Custom buttons using the “SuperPreset” feature to align all cameras based on where the players are located. Custom Button 1 (Example) Camera 1: Stage Left Wide Camera 2: Stage Left Zoomed-in Camera 3: Wide Stage Camera 4: Center/Left Wide

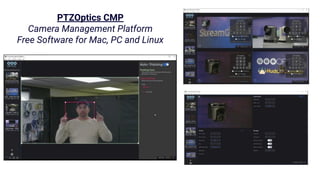

- 24. PTZOptics CMP Camera ManagementPlatform Free Software for Mac, PC and Linux

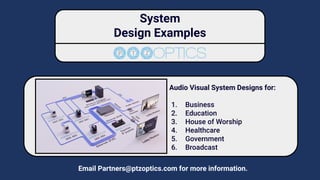

- 25. System Design Examples Audio VisualSystem Designs for: 1. Business 2. Education 3. House of Worship 4. Healthcare 5. Government 6. Broadcast Email Partners@ptzoptics.com for more information.
- 26. House of Worship VideoStreaming
- 27. Good House of Worship VideoStreaming
- 28. Better House of Worship VideoStreaming

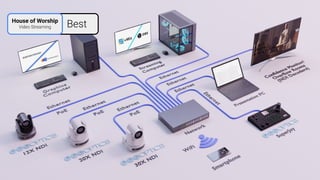

- 29. Best House of Worship VideoStreaming
- 31.
- 32.
- 33.
- 34.
- 35.
- 36.
- 37.
- 38.
- 39.
- 40.
- 41.
- 42.
- 43.
- 44.
- 45.
- 46.
- 47.
- 48.
- 49.
- 50.
- 51.
- 52. Thank you! If forany reason you have questions, comments or concerns please reach out to partners@ptzoptics.com for more information or help.
