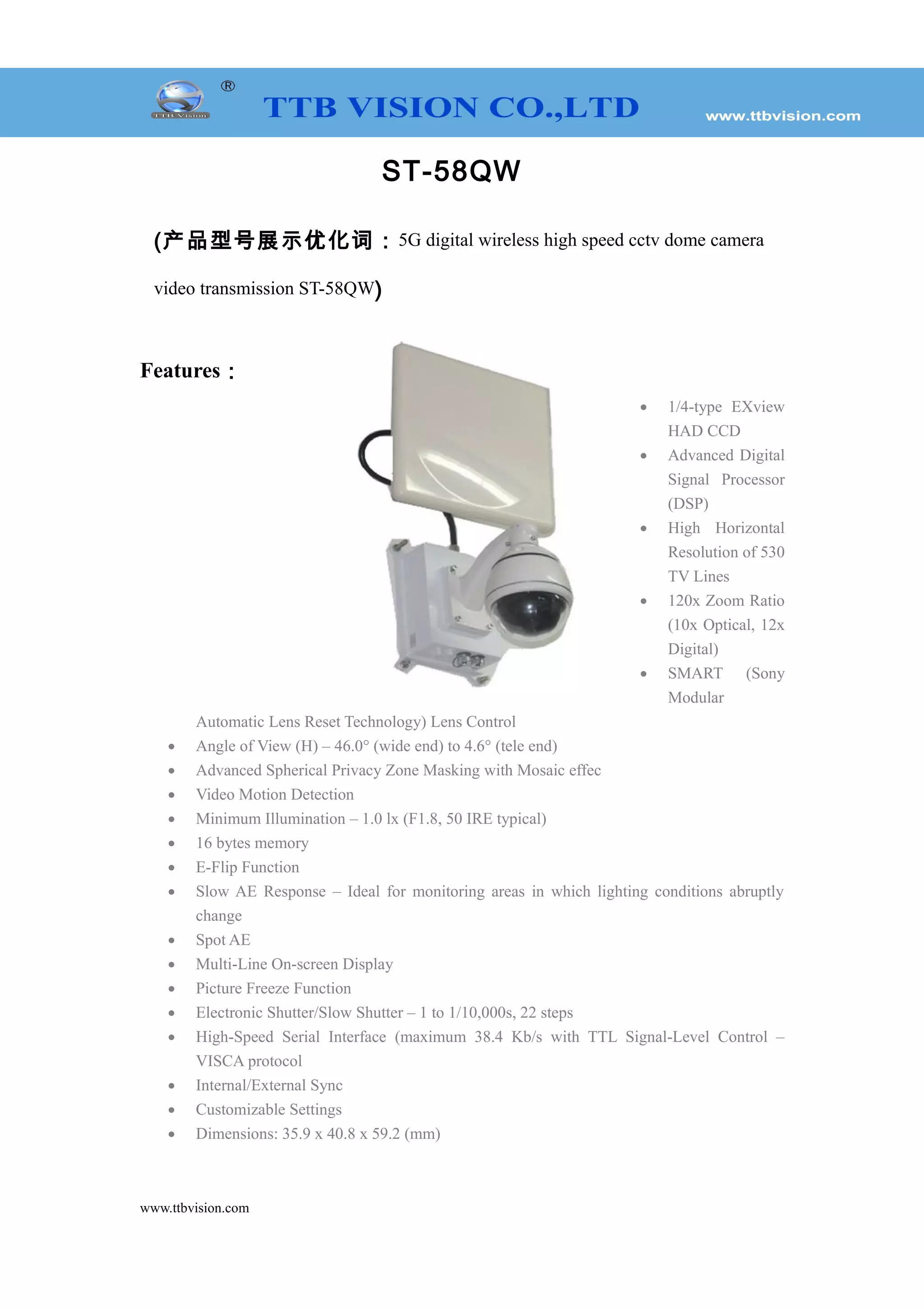

1. ST-58QW
(产品型号展示优化词：5G digital wireless high speed cctv dome camera
video transmission ST-58QW)
Features：
• 1/4-type EXview
HAD CCD
• Advanced Digital
Signal Processor
(DSP)
• High Horizontal
Resolution of 530
TV Lines
• 120x Zoom Ratio
(10x Optical, 12x
Digital)
• SMART (Sony
Modular
Automatic Lens Reset Technology) Lens Control
• Angle of View (H) – 46.0° (wide end) to 4.6° (tele end)
• Advanced Spherical Privacy Zone Masking with Mosaic effec
• Video Motion Detection
• Minimum Illumination – 1.0 lx (F1.8, 50 IRE typical)
• 16 bytes memory
• E-Flip Function
• Slow AE Response – Ideal for monitoring areas in which lighting conditions abruptly
change
• Spot AE
• Multi-Line On-screen Display
• Picture Freeze Function
• Electronic Shutter/Slow Shutter – 1 to 1/10,000s, 22 steps
• High-Speed Serial Interface (maximum 38.4 Kb/s with TTL Signal-Level Control –
VISCA protocol
• Internal/External Sync
• Customizable Settings
• Dimensions: 35.9 x 40.8 x 59.2 (mm)
www.ttbvision.com

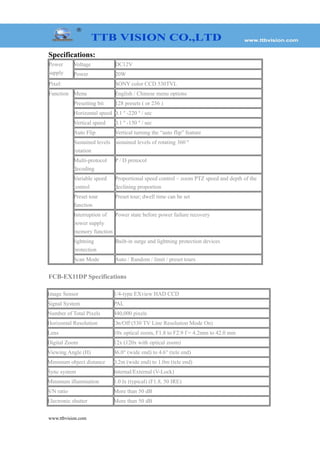

2. Specifications:
Power
supply
Voltage DC12V
Power 20W
Pixel: SONY color CCD 530TVL
Function Menu English / Chinese menu options
Presetting bit 128 presets ( or 256 )
Horizontal speed 0.1 º -220 º / sec
Vertical speed 0.1 º -150 º / sec
Auto Flip Vertical turning the “auto flip” feature
Sustained levels
rotation
sustained levels of rotating 360 º
Multi-protocol
decoding
P / D protocol
Variable speed
control
Proportional speed control – zoom PTZ speed and depth of the
declining proportion
Preset tour
function
Preset tour; dwell time can be set
Interruption of
power supply
memory function
Power state before power failure recovery
lightning
protection
Built-in surge and lightning protection devices
Scan Mode Auto / Random / limit / preset tours
FCB-EX11DP Specifications
Image Sensor 1/4-type EXview HAD CCD
Signal System PAL
Number of Total Pixels 440,000 pixels
Horizontal Resolution On/Off (530 TV Line Resolution Mode On)
Lens 10x optical zoom, F1.8 to F2.9 f = 4.2mm to 42.0 mm
Digital Zoom 12x (120x with optical zoom)
Viewing Angle (H) 46.0° (wide end) to 4.6° (tele end)
Minimum object distance 0.2m (wide end) to 1.0m (tele end)
Sync system Internal/External (V-Lock)
Minimum illumination 1.0 lx (typical) (F1.8, 50 IRE)
S/N ratio More than 50 dB
Electronic shutter More than 50 dB
www.ttbvision.com

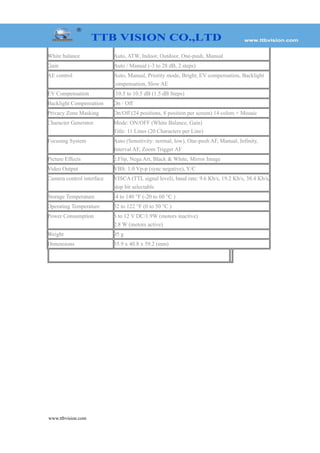

3. White balance Auto, ATW, Indoor, Outdoor, One-push, Manual
Gain Auto / Manual (-3 to 28 dB, 2 steps)
AE control Auto, Manual, Priority mode, Bright, EV compensation, Backlight
compensation, Slow AE
EV Compensation -10.5 to 10.5 dB (1.5 dB Steps)
Backlight Compensation On / Off
Privacy Zone Masking On/Off (24 positions, 8 position per screen) 14 colors + Mosaic
Character Generator Mode: ON/OFF (White Balance, Gain)
Title: 11 Lines (20 Characters per Line)
Focusing System Auto (Sensitivity: normal, low), One-push AF, Manual, Infinity,
Interval AF, Zoom Trigger AF
Picture Effects e:Flip, Nega Art, Black & White, Mirror Image
Video Output VBS: 1.0 Vp-p (sync negative), Y/C
Camera control interface VISCA (TTL signal level), baud rate: 9.6 Kb/s, 19.2 Kb/s, 38.4 Kb/s,
stop bit selectable
Storage Temperature -4 to 140 °F (-20 to 60 °C )
Operating Temperature 32 to 122 °F (0 to 50 °C )
Power Consumption 6 to 12 V DC/1.9W (motors inactive)
2.8 W (motors active)
Weight 95 g
Dimensions 35.9 x 40.8 x 59.2 (mm)
www.ttbvision.com

4. www.ttbvision.com

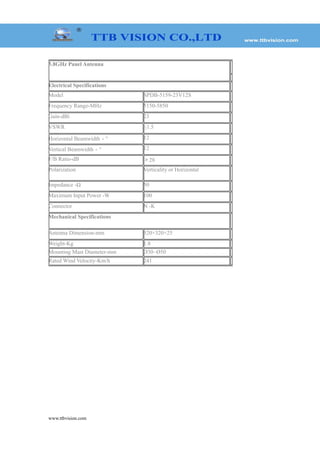

5.8GHz Panel Antenna
Electrical Specifications
Model SPDB-5159-23V12S
Frequency Range-MHz 5150-5850
Gain-dBi 23
VSWR ≤1.5
Horizontal Beamwidth－° 12
Vertical Beamwidth－° 12
F/B Ratio-dB ＞28
Polarization Verticality or Horizontal
Impedance -Ω 50
Maximum Input Power -W 100
Connector N -K
Mechanical Specifications
Antenna Dimension-mm 320×320×25
Weight-Kg 1.8
Mounting Mast Diameter-mm Ø30~Ø50
Rated Wind Velocity-Km/h 241

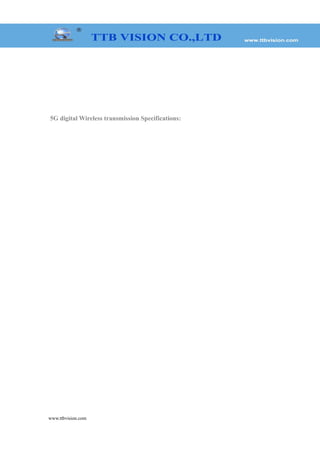

5. 5G digital Wireless transmission Specifications:
www.ttbvision.com

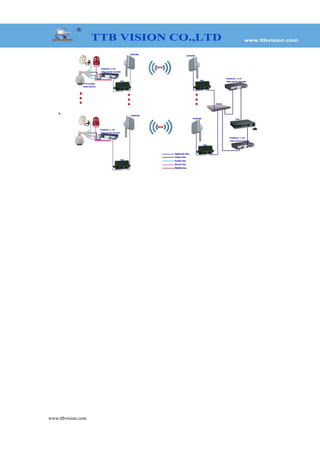

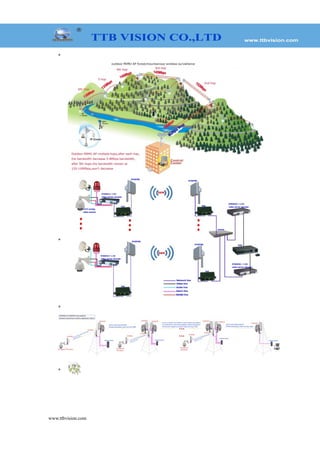

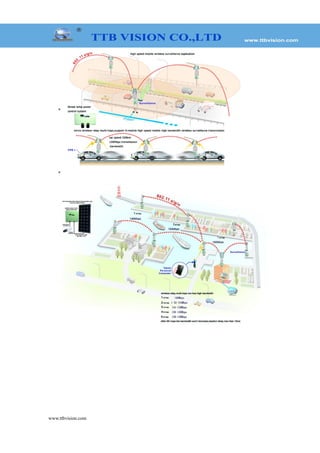

6. www.ttbvision.com

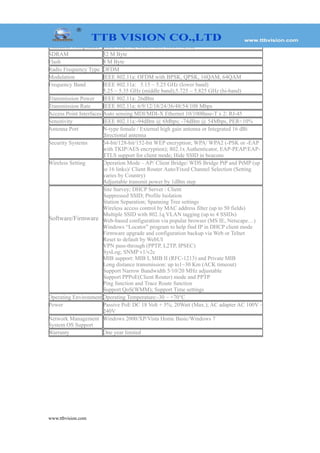

Standards Compliance IEEE 802.11a; IEEE802.3; IEEE802.3u;
SDRAM 32 M Byte
Flash 8 M Byte
Radio Frequency Type OFDM
Modulation IEEE 802.11a: OFDM with BPSK, QPSK, 16QAM, 64QAM
Frequency Band IEEE 802.11a: 5.15 ~ 5.25 GHz (lower band)
5.25 ~ 5.35 GHz (middle band);5.725 ~ 5.825 GHz (hi-band)
Transmission Power IEEE 802.11a: 26dBm
Transmission Rate IEEE 802.11a: 6/9/12/18/24/36/48/54/108 Mbps
Access Point Interfaces Auto sensing MDI/MDI-X Ethernet 10/100Base-T x 2: RJ-45
Sensitivity IEEE 802.11a:-94dBm @ 6Mbps; -74dBm @ 54Mbps, PER<10%
Antenna Port N-type female / External high gain antenna or Integrated 16 dBi
directional antenna
Security Systems 64-bit/128-bit/152-bit WEP encryption; WPA/ WPA2 (-PSK or -EAP
with TKIP/AES encryption); 802.1x Authenticator, EAP-PEAP/EAP-
TTLS support for client mode; Hide SSID in beacons
Wireless Setting Operation Mode – AP/ Client Bridge/ WDS Bridge PtP and PtMP (up
to 16 links)/ Client Router Auto/Fixed Channel Selection (Setting
varies by Country)
Adjustable transmit power by 1dBm step
Software/Firmware
Site Survey; DHCP Server / Client
Suppressed SSID; Profile Isolation
Station Separation; Spanning Tree settings
Wireless access control by MAC address filter (up to 50 fields)
Multiple SSID with 802.1q VLAN tagging (up to 4 SSIDs)
Web-based configuration via popular browser (MS IE, Netscape…)
Windows “Locator” program to help find IP in DHCP client mode
Firmware upgrade and configuration backup via Web or Telnet
Reset to default by WebUI
VPN pass-through (PPTP, L2TP, IPSEC)
SysLog; SNMP v1/v2c
MIB support: MIB I, MIB II (RFC-1213) and Private MIB
Long distance transmission: up to1~30 Km (ACK timeout)
Support Narrow Bandwidth 5/10/20 MHz adjustable
Support PPPoE(Client Router) mode and PPTP
Ping function and Trace Route function
Support QoS(WMM); Support Time settings
Operating Environment Operating Temperature:-30 ~ +70°C
Power Passive PoE DC 18 Volt + 5%; 20Watt (Max.); AC adapter AC 100V ~
240V
Network Management
System OS Support
Windows 2000/XP/Vista Home Basic/Windows 7
Warranty One year limited
