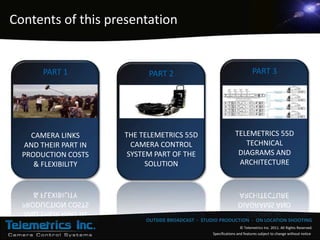

2. Contents of this presentation
PART 1 PART 2 PART 3
CAMERA LINKS THE TELEMETRICS 55D TELEMETRICS 55D
AND THEIR PART IN CAMERA CONTROL TECHNICAL
PRODUCTION COSTS SYSTEM PART OF THE DIAGRAMS AND
& FLEXIBILITY SOLUTION ARCHITECTURE
OUTSIDE BROADCAST - STUDIO PRODUCTION - ON LOCATION SHOOTING
© Telemetrics Inc. 2011. All Rights Reserved.
Specifications and features subject to change without notice

3. Contents of this presentation
PART 1 PART 2 PART 3
CAMERA LINKS THE TELEMETRICS 55D TELEMETRICS 55D
AND THEIR PART IN CAMERA CONTROL TECHNICAL
PRODUCTION COSTS SYSTEM PART OF THE DIAGRAMS AND
& FLEXIBILITY SOLUTION ARCHITECTURE
OUTSIDE BROADCAST - STUDIO PRODUCTION - ON LOCATION SHOOTING
© Telemetrics Inc. 2011. All Rights Reserved.
Specifications and features subject to change without notice

4. Pressure on television production costs
Studio cameras are expensive
For multi-camera productions studio cameras
with full camera control are expensive investments.
Triax links are expensive
Triax links are expensive, with high cable costs per foot
Transport cost are expensive
The heavy weight of studio cameras with triax makes transport
costs high, or require larger OB vehicle (more investment).
Alternative systems have high indirect costs
Alternative equipment usually means additional investment in
video equalizers, frame synchronizers, intercom adaptors,
microphone phantom power and batteries at the camera.
OUTSIDE BROADCAST - STUDIO PRODUCTION - ON LOCATION SHOOTING
© Telemetrics Inc. 2011. All Rights Reserved.
Specifications and features subject to change without notice

5. Pressure on television production creativity
Limited to one camera manufacturer
Most camera links are built for one specific camera manufacturer
– only fitting and working with their camera and control panels.
Complex system operation
Most alternatives require a complex system around them to
operate – video equalizers, frame synchronizers, intercom
adaptors, mic phantom power and batteries at the camera.
OUTSIDE BROADCAST - STUDIO PRODUCTION - ON LOCATION SHOOTING
© Telemetrics Inc. 2011. All Rights Reserved.
Specifications and features subject to change without notice

6. Contents of this presentation
PART 1 PART 2 PART 3
CAMERA LINKS THE TELEMETRICS 55D TELEMETRICS 55D
AND THEIR PART IN CAMERA CONTROL TECHNICAL
PRODUCTION COSTS SYSTEM PART OF THE DIAGRAMS AND
& FLEXIBILITY SOLUTION ARCHITECTURE
OUTSIDE BROADCAST - STUDIO PRODUCTION - ON LOCATION SHOOTING
© Telemetrics Inc. 2011. All Rights Reserved.
Specifications and features subject to change without notice

7. Telemetrics provides a lower cost of ownership
Reduced additional equipment
With Telemetrics the whole solution is simple. No
need for video equalizers, frame synchronizers,
intercom adaptors, microphone phantom power
or batteries at the camera.
All you need is the Telemetrics camera adaptor at
the camera, the coax / fiber cable, and the
Telemetric base station connected to the
manufacturer’s camera control unit.
1,000’ of SMPTE Hybrid Cable - $2,800
1,000’ of Belden 8233 RG11 - $2,045
1,000’ of RG-59U + OpticalCon Fiber - $1,457
OUTSIDE BROADCAST - STUDIO PRODUCTION - ON LOCATION SHOOTING
© Telemetrics Inc. 2011. All Rights Reserved.
Specifications and features subject to change without notice

8. Telemetrics provides a lower cost of ownership
Reduced additional equipment
Reduced cable cost
The Telemetrics 55D camera control system uses
low cost coaxial cable as standard or fiber optic
cable for longer lengths. These are lower price
per meter than traditional triax or the multi-core
cables typically used in other systems.
OUTSIDE BROADCAST - STUDIO PRODUCTION - ON LOCATION SHOOTING
© Telemetrics Inc. 2011. All Rights Reserved.
Specifications and features subject to change without notice

9. Telemetrics provides a lower cost of ownership
Reduced additional equipment
Reduced cable cost
Reduced camera link cost
The Telemetrics 55D camera control system is
significantly lower cost than triax solutions and is
highly competitive with other camera link
systems. Indeed, for like-for-like functionality we
will typically not be beaten on price.
OUTSIDE BROADCAST - STUDIO PRODUCTION - ON LOCATION SHOOTING
© Telemetrics Inc. 2011. All Rights Reserved.
Specifications and features subject to change without notice

10. Telemetrics provides a lower cost of ownership
Reduced additional equipment
Reduced cable cost
Reduced camera link cost
Reduced transport and support costs
More cameras can be fitted into OB vans, or
smaller OB vans can be used for the same
number of OB vans, as the Telemetric 55D is
significantly lighter.
OUTSIDE BROADCAST - STUDIO PRODUCTION - ON LOCATION SHOOTING
© Telemetrics Inc. 2011. All Rights Reserved.
Specifications and features subject to change without notice

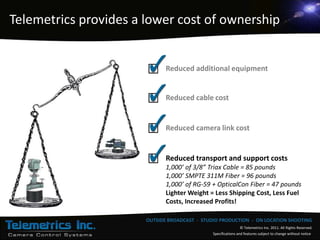

11. Telemetrics provides a lower cost of ownership
Reduced additional equipment
Reduced cable cost
Reduced camera link cost
Reduced transport and support costs
1,000’ of 3/8” Triax Cable = 85 pounds
1,000’ SMPTE 311M Fiber = 96 pounds
1,000’ of RG-59 + OpticalCon Fiber = 47 pounds
Lighter Weight = Less Shipping Cost, Less Fuel
Costs, Increased Profits!
OUTSIDE BROADCAST - STUDIO PRODUCTION - ON LOCATION SHOOTING
© Telemetrics Inc. 2011. All Rights Reserved.
Specifications and features subject to change without notice

12. Telemetrics enables more creative flexibility
Freedom of camera manufacturer
The Telemetrics 55D camera control system can
be configured to work with almost any JVC,
Panasonic and Sony ENG camera and remote
control panel (ROP), giving you the freedom to
use the cameras of your choice.
OUTSIDE BROADCAST - STUDIO PRODUCTION - ON LOCATION SHOOTING
© Telemetrics Inc. 2011. All Rights Reserved.
Specifications and features subject to change without notice

13. Telemetrics enables more creative flexibility
Freedom of camera manufacturer
More functionality in one system
The Telemetrics 55D camera control system
provides a high quality camera video to the base
station, return video, camera control, tally / GPI,
program audio, return audio, intercom and
camera power all in one system.
OUTSIDE BROADCAST - STUDIO PRODUCTION - ON LOCATION SHOOTING
© Telemetrics Inc. 2011. All Rights Reserved.
Specifications and features subject to change without notice

14. Telemetrics enables more creative flexibility
Freedom of camera manufacturer
More functionality in one system
Longer distance capability
The Telemetrics 55D camera control system can
be adapted to coax or fibre optic cable
depending on the distance required, enabling SD
SDI transmission up to 2041 feet with low cost
coax cable or HD SDI to 3000 with fiber optic
cable.
OUTSIDE BROADCAST - STUDIO PRODUCTION - ON LOCATION SHOOTING
© Telemetrics Inc. 2011. All Rights Reserved.
Specifications and features subject to change without notice

15. Summary of the benefits of the Telemetrics 55D
Reduction in Production Cost Increase in Production Flexibility
Reduced additional equipment Freedom of camera manufacturer
Reduced cable cost More functionality in one system
Reduced camera link cost Longer distance capability
Reduced transport and support costs
OUTSIDE BROADCAST - STUDIO PRODUCTION - ON LOCATION SHOOTING
© Telemetrics Inc. 2011. All Rights Reserved.
Specifications and features subject to change without notice

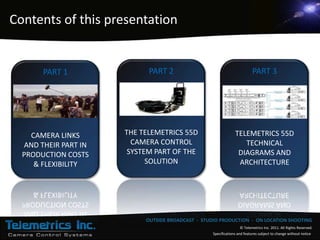

16. Contents of this presentation
PART 1 PART 2 PART 3
CAMERA LINKS THE TELEMETRICS 55D TELEMETRICS 55D
AND THEIR PART IN CAMERA CONTROL TECHNICAL
PRODUCTION COSTS SYSTEM PART OF THE DIAGRAMS AND
& FLEXIBILITY SOLUTION ARCHITECTURE
OUTSIDE BROADCAST - STUDIO PRODUCTION - ON LOCATION SHOOTING
© Telemetrics Inc. 2011. All Rights Reserved.
Specifications and features subject to change without notice

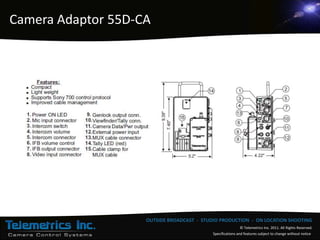

17. Camera Adaptor 55D-CA
OUTSIDE BROADCAST - STUDIO PRODUCTION - ON LOCATION SHOOTING
© Telemetrics Inc. 2011. All Rights Reserved.
Specifications and features subject to change without notice

18. Camera Control Unit 55D-BS
OUTSIDE BROADCAST - STUDIO PRODUCTION - ON LOCATION SHOOTING
© Telemetrics Inc. 2011. All Rights Reserved.
Specifications and features subject to change without notice

19. HD Fibre Link Base Station HDFL-BS
OUTSIDE BROADCAST - STUDIO PRODUCTION - ON LOCATION SHOOTING
© Telemetrics Inc. 2011. All Rights Reserved.
Specifications and features subject to change without notice

20. Composite Standard Definition – Single Coaxial Cable
OUTSIDE BROADCAST - STUDIO PRODUCTION - ON LOCATION SHOOTING
1/5/2012 © Telemetrics Inc. 2011. All Rights20
Reserved.
Specifications and features subject to change without notice

21. Powering 2 cameras up to 45 watts each
OUTSIDE BROADCAST - STUDIO PRODUCTION - ON LOCATION SHOOTING
© Telemetrics Inc. 2011. All Rights Reserved.
Specifications and features subject to change without notice

22. HD-SDI – Dual Coaxial Cable
OUTSIDE BROADCAST - STUDIO PRODUCTION - ON LOCATION SHOOTING
1/5/2012 © Telemetrics Inc. 2011. All Rights22
Reserved.
Specifications and features subject to change without notice

23. Single-camera SD/HD SDI over fibre system
HD Fibre Link Base Station
for video over fibre links
(can take up to 4 cards, each capable of 1 fibre
in and 2 SD/HD SDI out)
Coax Link Base Station
for camera control and communications
OUTSIDE BROADCAST - STUDIO PRODUCTION - ON LOCATION SHOOTING
© Telemetrics Inc. 2011. All Rights Reserved.
Specifications and features subject to change without notice

24. Multi-camera SD/HD SDI over fibre operation
OUTSIDE BROADCAST - STUDIO PRODUCTION - ON LOCATION SHOOTING
© Telemetrics Inc. 2011. All Rights Reserved.
Specifications and features subject to change without notice

25. Fiber System
OUTSIDE BROADCAST - STUDIO PRODUCTION - ON LOCATION SHOOTING
© Telemetrics Inc. 2011. All Rights Reserved.
Specifications and features subject to change without notice

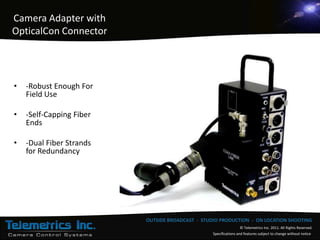

26. Camera Adapter with
OpticalCon Connector
• -Robust Enough For
Field Use
• -Self-Capping Fiber
Ends
• -Dual Fiber Strands
for Redundancy
OUTSIDE BROADCAST - STUDIO PRODUCTION - ON LOCATION SHOOTING
© Telemetrics Inc. 2011. All Rights Reserved.
Specifications and features subject to change without notice

27. Camera Adapter with OpticalCon Connector on the
Panasonic HPX-370
• Can power the
HPX-370 3,000’
over RG-11U
Cable
OUTSIDE BROADCAST - STUDIO PRODUCTION - ON LOCATION SHOOTING
© Telemetrics Inc. 2011. All Rights Reserved.
Specifications and features subject to change without notice

28. HD Fiber Link Base Station
for video over fiber links
(can take up to 4 cards, each capable of 1 fiber in and 2 SD/HD SDI out)
OUTSIDE BROADCAST - STUDIO PRODUCTION - ON LOCATION SHOOTING
© Telemetrics Inc. 2011. All Rights Reserved.
Specifications and features subject to change without notice

29. HD Fiber Link Base Station
for video over fiber links
(can take up to 4 cards, each capable of 1 fiber in and 2 SD/HD SDI out)
OUTSIDE BROADCAST - STUDIO PRODUCTION - ON LOCATION SHOOTING
© Telemetrics Inc. 2011. All Rights Reserved.
Specifications and features subject to change without notice

30. HD Fiber Link Base Station
with PC-Telesoft Camera Control Software Replacing Control Panels
OUTSIDE BROADCAST - STUDIO PRODUCTION - ON LOCATION SHOOTING
© Telemetrics Inc. 2011. All Rights Reserved.
Specifications and features subject to change without notice

31. OUTSIDE BROADCAST - STUDIO PRODUCTION - ON LOCATION SHOOTING
OUTSIDE BROADCAST - STUDIO PRODUCTION - ON LOCATION SHOOTING
© Telemetrics Inc. 2011. All Rights Reserved. © Telemetrics Inc. 2011. All Rights31
Reserved.
Specifications and features subject to change without notice Specifications and features subject to change without notice
