1. PTCL Corporate
Services
Mohammad Farooq
Key Account Executive
( Corporate Sales North)

2. Who are we !
 Most reliable and largest Telecom service provider
 The largest Etislalat Subsidiary
 Extensive infrastructure stretched in every corner of
Pakistan
 Over 50 IP PoPs backbone — Country wide
 More than 3000 Digital Exchange Network
interconnected through Fiber optics and
Microwave
 One of the largest Human Capital in Pakistan
approx. 25000 +skilled and trained people
onboard

3. What you should know
 The only Largest country wide IP-MPLS based data network (Powered by Cisco)
 Largest redundant Optical Fiber Network covering over 840 cities of Pakistan
 Only Network supporting 3 levels international redundant connectivity
 Optical Fiber extending over 25000 Km
 Multiple Last Mile Options like DSL, DXX, Radio, VSAT, SDH, ONU, MSAGs, and CE
Routers etc.
 Largest Metro DWDM network supporting high capacity bandwidth applications
requirements
 MSAN: Multi Services Access Network based on FTTC network
 Grand NOC: Network Operations Center for Country wide Network Elements Visibility
 Largest Country wide CDMA WLL based network
 Only Largest Transit and NGN C4 & CS based
 Largest provider for IP Bandwidth with 13G Capacity
 Tier 3+ Data Center to meet the Hosting IP services demand
 Providing services from basic telephony to data, MPLS internet, broadband to
businesses all over the country

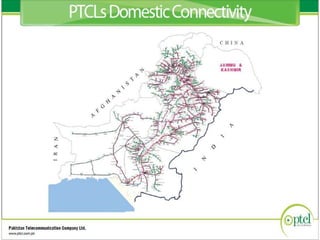

4. Our Domestic Network

5. SMW - 3

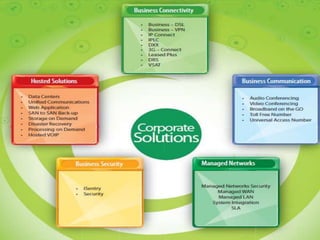

6. Corporate Products

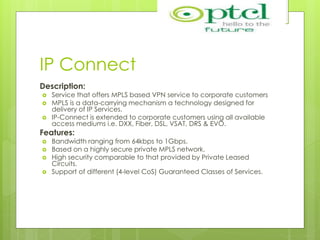

7. IP Connect
Description:
 Service that offers MPLS based VPN service to corporate customers
 MPLS is a data-carrying mechanism a technology designed for
delivery of IP Services.
 IP-Connect is extended to corporate customers using all available
access mediums i.e. DXX, Fiber, DSL, VSAT, DRS & EVO.
Features:
 Bandwidth ranging from 64kbps to 1Gbps.
 Based on a highly secure private MPLS network.
 High security comparable to that provided by Private Leased
Circuits.
 Support of different (4-level CoS) Guaranteed Classes of Services.

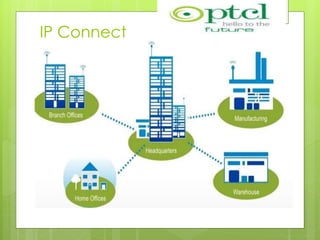

8. IP Connect

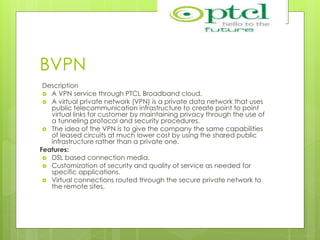

9. BVPN
Description
 A VPN service through PTCL Broadband cloud.
 A virtual private network (VPN) is a private data network that uses
public telecommunication infrastructure to create point to point
virtual links for customer by maintaining privacy through the use of
a tunneling protocol and security procedures.
 The idea of the VPN is to give the company the same capabilities
of leased circuits at much lower cost by using the shared public
infrastructure rather than a private one.
Features:
 DSL based connection media.
 Customization of security and quality of service as needed for
specific applications.
 Virtual connections routed through the secure private network to
the remote sites.

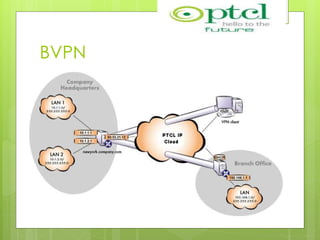

10. BVPN

11. BDSL
 Always on , reliable connection
 Guaranteed CIR
 Fast and easy installation
 Easily scalable
 Flexible package
 Cost-effective

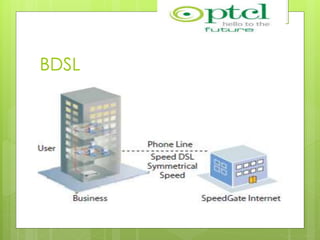

12. BDSL

13. Digital Cross Connect ( DXX)
 Flexible and reliable data service solutions
 Dependable media for WAN connectivity
 Local , nationwide as well as global
coverage
 Reliability and high security

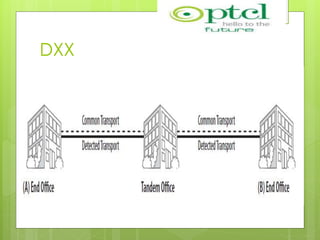

14. DXX

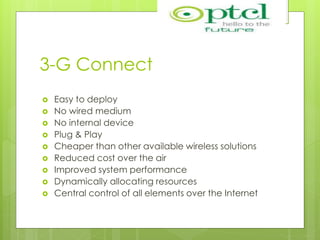

15. 3-G Connect
 Easy to deploy
 No wired medium
 No internal device
 Plug & Play
 Cheaper than other available wireless solutions
 Reduced cost over the air
 Improved system performance
 Dynamically allocating resources
 Central control of all elements over the Internet

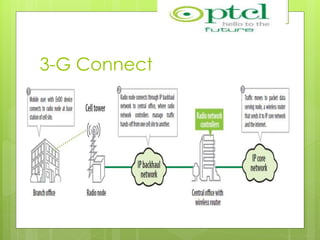

16. 3-G Connect

17. DPLC
Features:
 High quality transmission.
 Optical fiber equipped with high-capacity DWDM
equipment.
 DWDM equipment deployed in fully redundant, self-healing
rings.
Benefits:
 Send and receive large volumes of data simultaneously
 Compatibility with existing applications at no additional
cost to change equipment
 Dedicated links; no congestion.
 Redundancy options

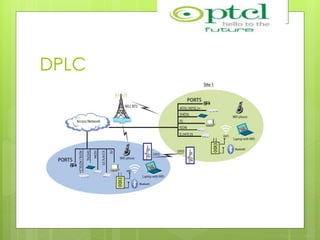

18. DPLC

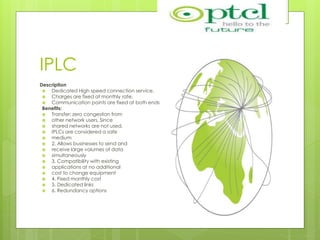

19. IPLC
Description
 Dedicated High speed connection service.
 Charges are fixed at monthly rate.
 Communication points are fixed at both ends
Benefits:
 Transfer: zero congestion from
 other network users. Since
 shared networks are not used,
 IPLCs are considered a safe
 medium
 2. Allows businesses to send and
 receive large volumes of data
 simultaneously
 3. Compatibility with existing
 applications at no additional
 cost to change equipment
 4. Fixed monthly cost
 5. Dedicated links
 6. Redundancy options

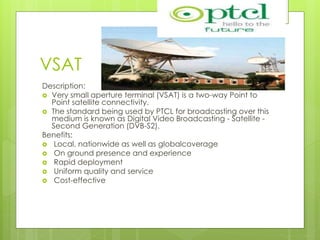

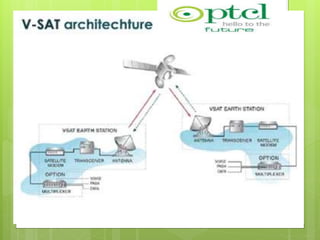

20. VSAT
Description:
 Very small aperture terminal (VSAT) is a two-way Point to
Point satellite connectivity.
 The standard being used by PTCL for broadcasting over this
medium is known as Digital Video Broadcasting - Satellite -
Second Generation (DVB-S2).
Benefits:
 Local, nationwide as well as globalcoverage
 On ground presence and experience
 Rapid deployment
 Uniform quality and service
 Cost-effective

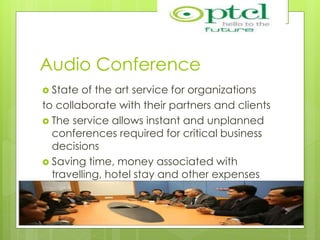

22. Audio Conference
 State of the art service for organizations
to collaborate with their partners and clients
 The service allows instant and unplanned
conferences required for critical business
decisions
 Saving time, money associated with
travelling, hotel stay and other expenses
related

23. Smart Video
 Host or join meetings anywhere at any time.
 No video infrastructure to manage or own.
 HD quality just @512 Kbps.
 Seamless integration with H.323, SIP & TIP based systems.
 Highly available solution hosted in PTCL Tier 3 Data Centers.
 Reservation less Virtual Meeting Rooms.
 Pay as you grow model with attractive pricing packages.
 Highly secure real time meetings over MPLS network.
 Fully managed services with 24×7×365 support.
 Go green by reducing electricity consumption and carbon
emissions.

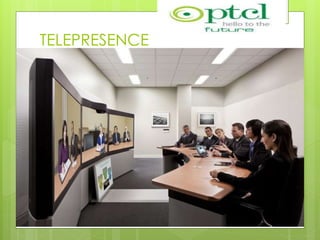

24. TELEPRESENCE

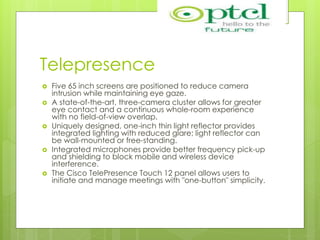

25. Telepresence
 Five 65 inch screens are positioned to reduce camera
intrusion while maintaining eye gaze.
 A state-of-the-art, three-camera cluster allows for greater
eye contact and a continuous whole-room experience
with no field-of-view overlap.
 Uniquely designed, one-inch thin light reflector provides
integrated lighting with reduced glare; light reflector can
be wall-mounted or free-standing.
 Integrated microphones provide better frequency pick-up
and shielding to block mobile and wireless device
interference.
 The Cisco TelePresence Touch 12 panel allows users to
initiate and manage meetings with "one-button" simplicity.

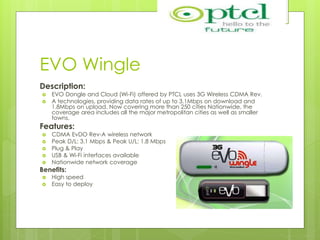

26. EVO Wingle
Description:
 EVO Dongle and Cloud (Wi-Fi) offered by PTCL uses 3G Wireless CDMA Rev.
 A technologies, providing data rates of up to 3.1Mbps on download and
1.8Mbps on upload. Now covering more than 250 cities Nationwide, the
coverage area includes all the major metropolitan cities as well as smaller
towns.
Features:
 CDMA EvDO Rev-A wireless network
 Peak D/L: 3.1 Mbps & Peak U/L: 1.8 Mbps
 Plug & Play
 USB & Wi-Fi interfaces available
 Nationwide network coverage
Benefits:
 High speed
 Easy to deploy

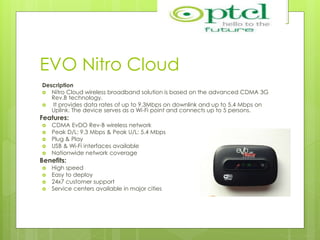

27. EVO Nitro Cloud
Description
 Nitro Cloud wireless broadband solution is based on the advanced CDMA 3G
Rev.B technology.
 It provides data rates of up to 9.3Mbps on downlink and up to 5.4 Mbps on
Uplink. The device serves as a Wi-Fi point and connects up to 5 persons.
Features:
 CDMA EvDO Rev-B wireless network
 Peak D/L: 9.3 Mbps & Peak U/L: 5.4 Mbps
 Plug & Play
 USB & Wi-Fi interfaces available
 Nationwide network coverage
Benefits:
 High speed
 Easy to deploy
 24x7 customer support
 Service centers available in major cities

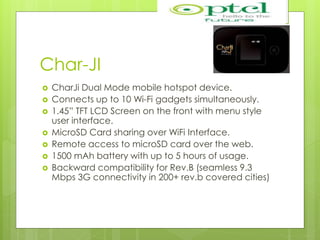

28. Char-JI
 CharJi Dual Mode mobile hotspot device.
 Connects up to 10 Wi-Fi gadgets simultaneously.
 1.45” TFT LCD Screen on the front with menu style
user interface.
 MicroSD Card sharing over WiFi Interface.
 Remote access to microSD card over the web.
 1500 mAh battery with up to 5 hours of usage.
 Backward compatibility for Rev.B (seamless 9.3
Mbps 3G connectivity in 200+ rev.b covered cities)

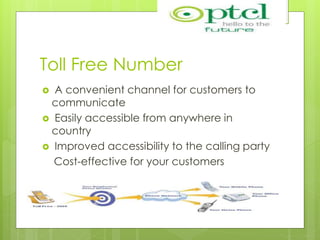

29. Toll Free Number
 A convenient channel for customers to
communicate
 Easily accessible from anywhere in
country
 Improved accessibility to the calling party
Cost-effective for your customers

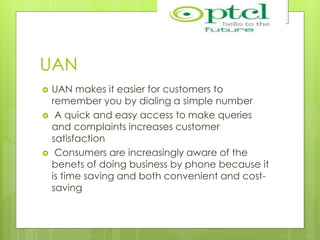

30. UAN
 UAN makes it easier for customers to
remember you by dialing a simple number
 A quick and easy access to make queries
and complaints increases customer
satisfaction
 Consumers are increasingly aware of the
benets of doing business by phone because it
is time saving and both convenient and cost-
saving

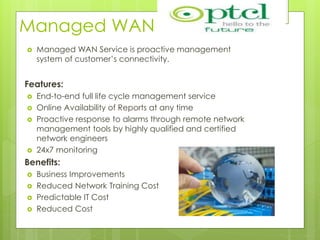

31. Managed WAN
 Managed WAN Service is proactive management
system of customer’s connectivity.
Features:
 End-to-end full life cycle management service
 Online Availability of Reports at any time
 Proactive response to alarms through remote network
management tools by highly qualified and certified
network engineers
 24x7 monitoring
Benefits:
 Business Improvements
 Reduced Network Training Cost
 Predictable IT Cost
 Reduced Cost

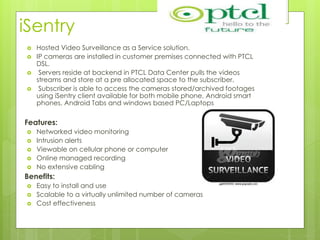

32. iSentry
 Hosted Video Surveillance as a Service solution.
 IP cameras are installed in customer premises connected with PTCL
DSL.
 Servers reside at backend in PTCL Data Center pulls the videos
streams and store at a pre allocated space to the subscriber.
 Subscriber is able to access the cameras stored/archived footages
using iSentry client available for both mobile phone, Android smart
phones, Android Tabs and windows based PC/Laptops
Features:
 Networked video monitoring
 Intrusion alerts
 Viewable on cellular phone or computer
 Online managed recording
 No extensive cabling
Benefits:
 Easy to install and use
 Scalable to a virtually unlimited number of cameras
 Cost effectiveness

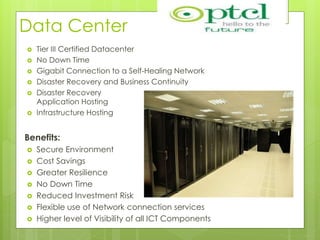

33. Data Center
 Tier III Certified Datacenter
 No Down Time
 Gigabit Connection to a Self-Healing Network
 Disaster Recovery and Business Continuity
 Disaster Recovery
Application Hosting
 Infrastructure Hosting
Benefits:
 Secure Environment
 Cost Savings
 Greater Resilience
 No Down Time
 Reduced Investment Risk
 Flexible use of Network connection services
 Higher level of Visibility of all ICT Components

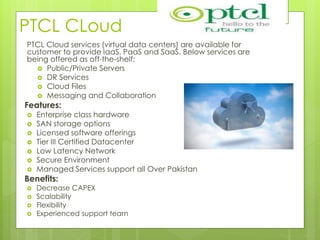

34. PTCL CLoud
PTCL Cloud services (virtual data centers) are available for
customer to provide IaaS, PaaS and SaaS. Below services are
being offered as off-the-shelf:
 Public/Private Servers
 DR Services
 Cloud Files
 Messaging and Collaboration
Features:
 Enterprise class hardware
 SAN storage options
 Licensed software offerings
 Tier III Certified Datacenter
 Low Latency Network
 Secure Environment
 Managed Services support all Over Pakistan
Benefits:
 Decrease CAPEX
 Scalability
 Flexibility
 Experienced support team

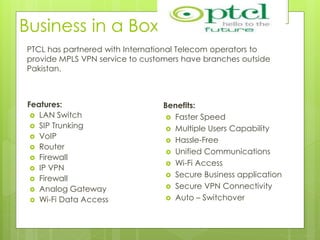

35. Business in a Box
Features:
 LAN Switch
 SIP Trunking
 VoIP
 Router
 Firewall
 IP VPN
 Firewall
 Analog Gateway
 Wi-Fi Data Access
Benefits:
 Faster Speed
 Multiple Users Capability
 Hassle-Free
 Unified Communications
 Wi-Fi Access
 Secure Business application
 Secure VPN Connectivity
 Auto – Switchover
PTCL has partnered with International Telecom operators to
provide MPLS VPN service to customers have branches outside
Pakistan.

36. THANK YOU
