Сергей Больщиков "Protractor Tips & Tricks"

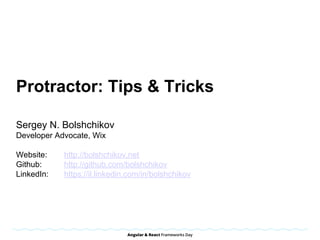

Sergey N. Bolshchikov
Developer Advocate, Wix
Website: http://bolshchikov.net
Github: http://github.com/bolshchikov
LinkedIn: https://il.linkedin.com/in/bolshchikov
Protractor: Tips & Tricks

Let’s test the s!#t
out of the code

Sharing best practices and tricks
Saving you several hours of pain

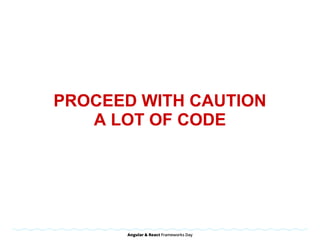

PROCEED WITH CAUTION
A LOT OF CODE

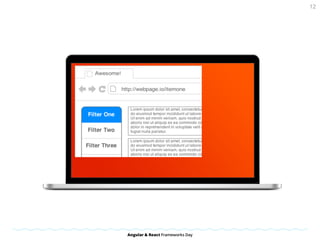

Problem 1
Unknown window size when
a browser is opened
10

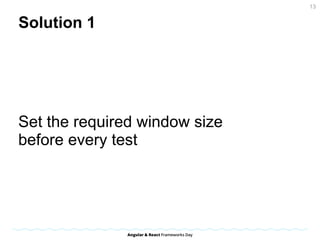

Solution 1
Set the required window size
before every test
13

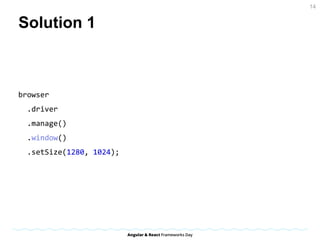

Solution 1
browser
.driver
.manage()
.window()
.setSize(1280, 1024);
14

Problem 2
Changing html structure (tags/classes)
will break tests
15

Solution 2
<button
class="button load-more"
ng-click="showMore()"
data-hook="load-items">Show More
</button>
16

Solution 2
it('should display load more, () => {
expect(element(by.dataHook('load-items'))
.isDisplayed())
.toBe(true);
});
17

Solution 2
// define new locator
by.addLocator('dataHook', (hook) => {
return document.querySelector('[data-hook=''
+ hook
+ '']');
});
18

Solution 2
<a
class="show-more"
ng-click="showMore()"
data-hook="load-items">Show More
</a>
19

Problem 3
Small change in html can cause
many changes in tests
20

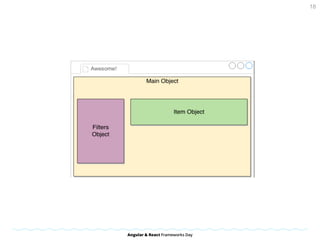

Solution 3
Page Object and Page Fragments
that introduce additional level of
abstraction
21

Solution 3
class FiltersFragment {
constructor () {
this.container = $('#filters');
this.label = this.container.$('header');
this.items = this.container.$$('.item');
}
chooseItem(value) {
// ... logic goes here
}
}
24

Solution 3
// how to use
var Filters = require('../pages/filters');
describe('Filters Page', () => {
var filters;
beforeEach(() => {
browser.get('/');
filters = new Filters();
});
it('should have 8 filters', () => {
expect(filters.items.count()).toEqual(8);
});
});
25

Solution 3
// how to use
var filters;
beforeEach(() => {
browser.get('/');
});
});
});
26

Solution 3
// how to use
var filters;
beforeEach(() => {
browser.get('/');
});
});
});
27

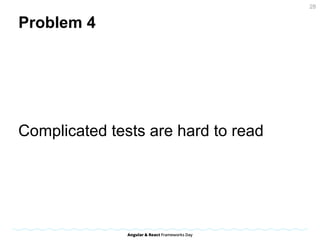

Problem 4
Complicated tests are hard to read
28

Problem 4
expect($('#readMore'))
.getAttribute('class'))
.toContain('collapse');
29

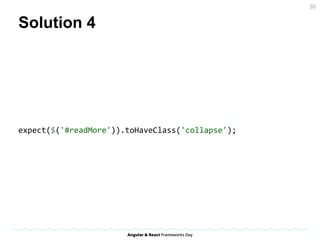

Solution 4
expect($('#readMore')).toHaveClass('collapse');
30

Solution 4
this.addMatchers({
toHaveClass: (className) => {
return this.actual
.getAttribute('class')
.then((classes) => {
return classes
.split(' ')
.indexOf(className) !== -1;
});
}
});
31

Solution 4
this.addMatchers({
return this.actual
return classes
.split(' ')
});
}
});
32

Solution 4
this.addMatchers({
return this.actual
return classes
.split(' ')
});
}
});
33

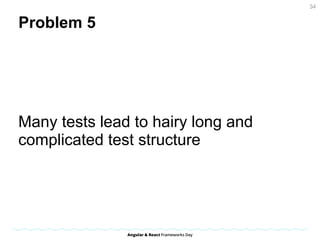

Problem 5
Many tests lead to hairy long and
complicated test structure
34

Problem 1
Sharing values between tests
37

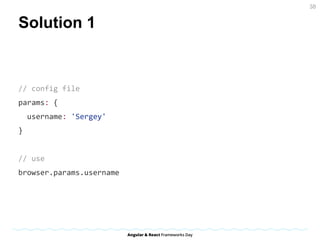

Solution 1
// config file
params: {
username: 'Sergey'
}
// use
browser.params.username
38

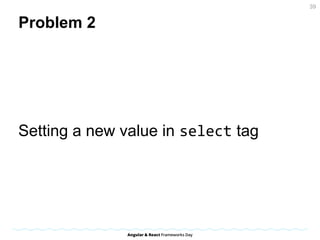

Problem 2
Setting a new value in select tag
39

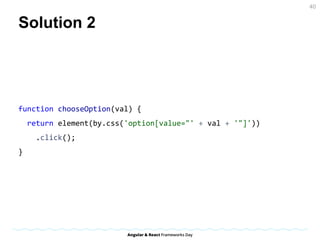

Solution 2
function chooseOption(val) {
return element(by.css('option[value="' + val + '"]'))
.click();
}
40

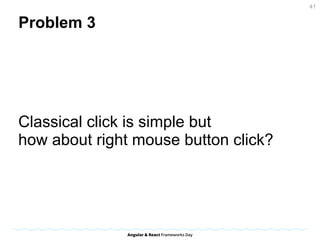

Problem 3
Classical click is simple but
how about right mouse button click?
41

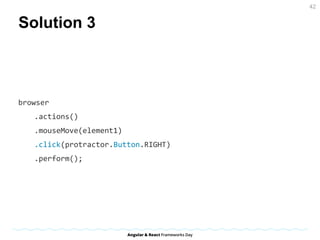

Solution 3
browser
.actions()
.mouseMove(element1)
.click(protractor.Button.RIGHT)
.perform();
42

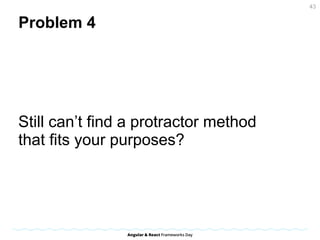

Problem 4
Still can’t find a protractor method
that fits your purposes?
43

Solution 4
browser
.executeAsyncScript();
44

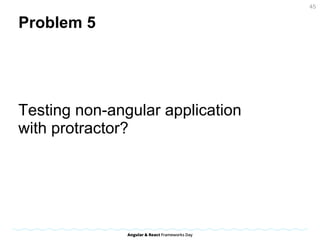

Problem 5
Testing non-angular application
with protractor?
45

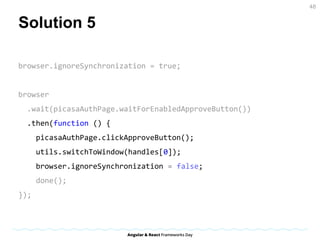

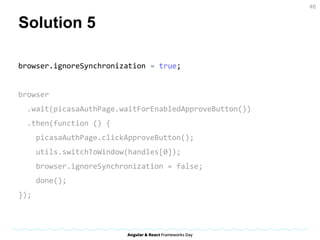

Solution 5
browser.ignoreSynchronization = true;
browser
.wait(picasaAuthPage.waitForEnabledApproveButton())
.then(function () {
picasaAuthPage.clickApproveButton();
utils.switchToWindow(handles[0]);
browser.ignoreSynchronization = false;
done();
});
46

Solution 5
browser
.then(function () {
done();
});
47

Solution 5
browser
.then(function () {
done();
});
48

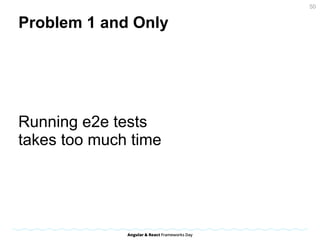

Problem 1 and Only
Running e2e tests
takes too much time
50

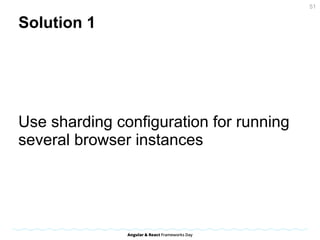

Solution 1
Use sharding configuration for running
several browser instances
51

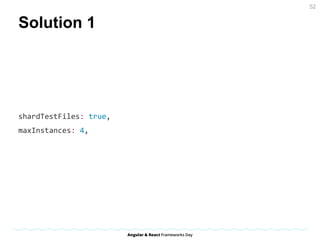

Solution 1
shardTestFiles: true,
maxInstances: 4,
52

Solution 1
Note: sharding is per file so create
several testing files
53

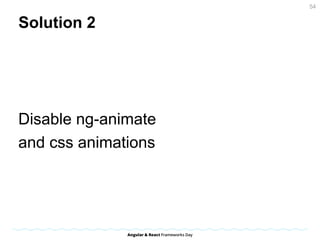

Solution 2
Disable ng-animate
and css animations
54

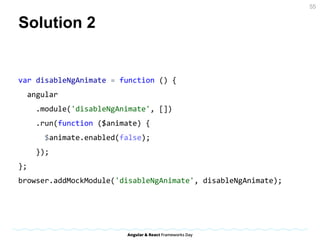

Solution 2
var disableNgAnimate = function () {
angular
.module('disableNgAnimate', [])
.run(function ($animate) {
$animate.enabled(false);
});
};
browser.addMockModule('disableNgAnimate', disableNgAnimate);
55

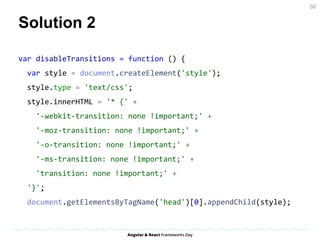

Solution 2
var disableTransitions = function () {
var style = document.createElement('style');
style.type = 'text/css';
style.innerHTML = '* {' +
'-webkit-transition: none !important;' +
'-moz-transition: none !important;' +
'-o-transition: none !important;' +
'-ms-transition: none !important;' +
'transition: none !important;' +
'}';
document.getElementsByTagName('head')[0].appendChild(style);
56

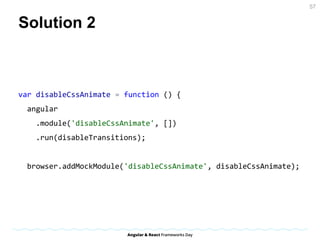

Solution 2
var disableCssAnimate = function () {
angular
.module('disableCssAnimate', [])
.run(disableTransitions);
browser.addMockModule('disableCssAnimate', disableCssAnimate);
57

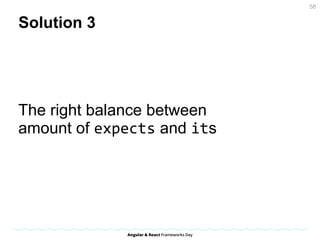

Solution 3
The right balance between
amount of expects and its
58

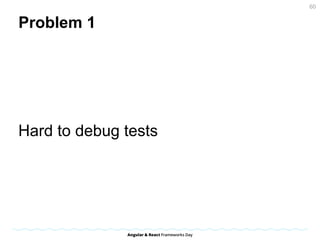

Problem 1
Hard to debug tests
60

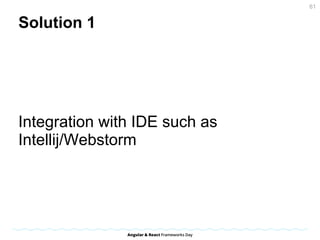

Solution 1
Integration with IDE such as
Intellij/Webstorm
61

Problem 2
Something is wrong and
you have no idea why
64

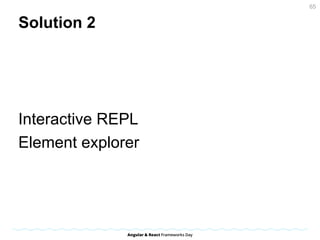

Solution 2
Interactive REPL
Element explorer
65

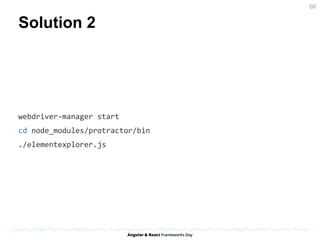

Solution 2
webdriver-manager start
cd node_modules/protractor/bin
./elementexplorer.js
66

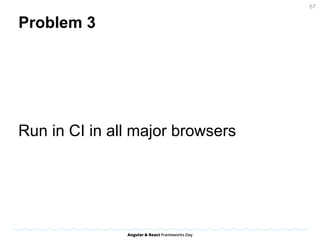

Problem 3
Run in CI in all major browsers
67

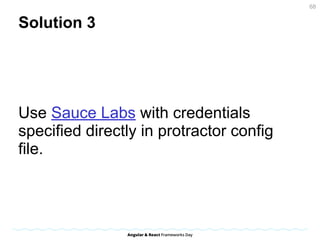

Solution 3
Use Sauce Labs with credentials
specified directly in protractor config
file.
68

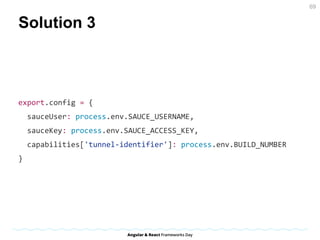

Solution 3
export.config = {
sauceUser: process.env.SAUCE_USERNAME,
sauceKey: process.env.SAUCE_ACCESS_KEY,
capabilities['tunnel-identifier']: process.env.BUILD_NUMBER
}
69

Helper Functions
// Navigate to a url, maximizing the window
helpers.safeGet('./SomeUrl');
// hover over the element
helpers.displayHover($('.some-element'));
helpers.waitForElementToDisappear($('.some-element'), timeout);
helpers.selectOptionByIndex($('select'), 0);
if (helpers.isIE()) {
// Do FF stuff here . . .
}
helpers.clearAndSetValue(inputField, 'text to populate');
72

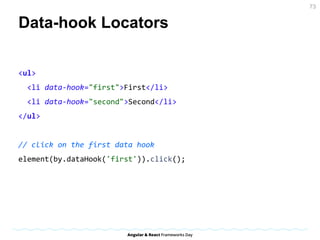

Data-hook Locators
<ul>
<li data-hook="first">First</li>
<li data-hook="second">Second</li>
</ul>
// click on the first data hook
element(by.dataHook('first')).click();
73

Custom Matchers
expect($('.some-element')).toBeDisplayed();
expect($('.some-element')).toHaveValue(expectedValue);
expect($('.some-element')).toHaveClass(className);
expect($('.some-element')).toBeDisabled();
expect($('.some-element')).toBeInvalidRequired();
74

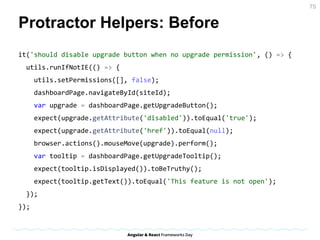

Protractor Helpers: Before
it('should disable upgrade button when no upgrade permission', () => {
utils.runIfNotIE(() => {
utils.setPermissions([], false);
dashboardPage.navigateById(siteId);
var upgrade = dashboardPage.getUpgradeButton();
expect(upgrade.getAttribute('disabled')).toEqual('true');
expect(upgrade.getAttribute('href')).toEqual(null);
browser.actions().mouseMove(upgrade).perform();
var tooltip = dashboardPage.getUpgradeTooltip();
expect(tooltip.isDisplayed()).toBeTruthy();
expect(tooltip.getText()).toEqual('This feature is not open');
});
});
75

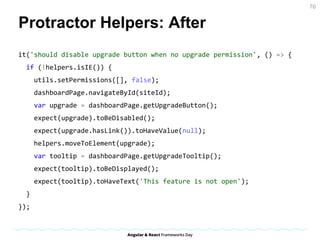

Protractor Helpers: After
it('should disable upgrade button when no upgrade permission', () => {
if (!helpers.isIE()) {
utils.setPermissions([], false);
dashboardPage.navigateById(siteId);
var upgrade = dashboardPage.getUpgradeButton();
expect(upgrade).toBeDisabled();
expect(upgrade.hasLink()).toHaveValue(null);
helpers.moveToElement(upgrade);
var tooltip = dashboardPage.getUpgradeTooltip();
expect(tooltip).toBeDisplayed();
expect(tooltip).toHaveText('This feature is not open');
}
});
76

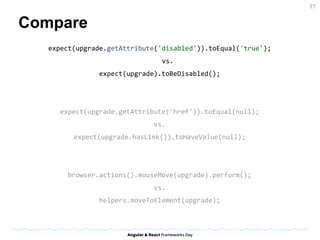

Compare
vs.
vs.
vs.
77

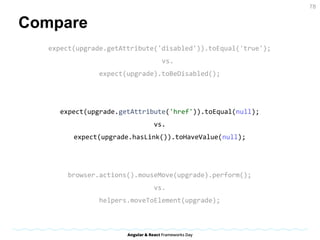

Compare
vs.
vs.
vs.
78

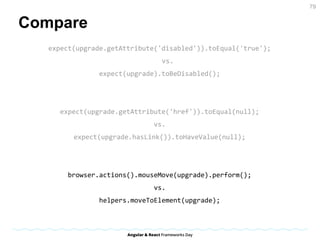

Compare
vs.
vs.
vs.
79

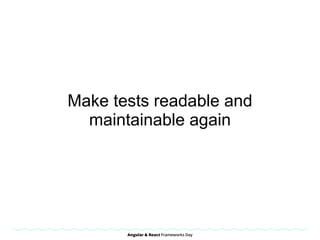

Make tests readable and
maintainable again
