1. 3 WAYS TO TEST YOUR
COLDFUSION API
Gavin Pickin
CFSummit() 2017

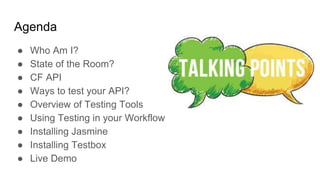

2. Agenda
● Who Am I?
● State of the Room?
● CF API
● Ways to test your API?
● Overview of Testing Tools
● Using Testing in your Workflow
● Installing Jasmine
● Installing Testbox
● Live Demo

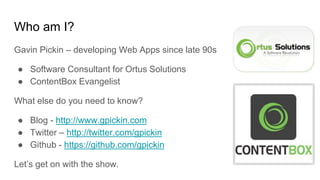

3. Who am I?
Gavin Pickin – developing Web Apps since late 90s
● Software Consultant for Ortus Solutions
● ContentBox Evangelist
What else do you need to know?
● Blog - http://www.gpickin.com
● Twitter – http://twitter.com/gpickin
● Github - https://github.com/gpickin
Let’s get on with the show.

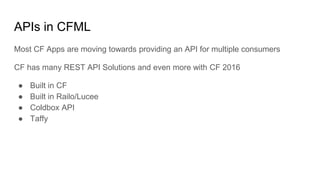

4. APIs in CFML
Most CF Apps are moving towards providing an API for multiple consumers
CF has many REST API Solutions and even more with CF 2016
● Built in CF
● Built in Railo/Lucee
● Coldbox API
● Taffy

5. Ways to Test your Code
● Click around in the browser yourself
● Setup Selenium / Web Driver to
click around for you
● Structured Programmatic Tests

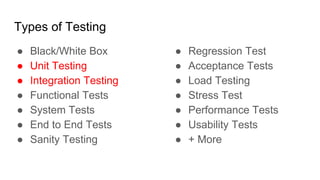

6. Types of Testing
● Black/White Box
● Unit Testing
● Integration Testing
● Functional Tests
● System Tests
● End to End Tests
● Sanity Testing
● Regression Test
● Acceptance Tests
● Load Testing
● Stress Test
● Performance Tests
● Usability Tests
● + More

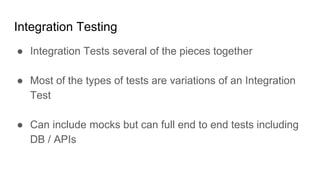

8. Integration Testing
● Integration Tests several of the pieces together
● Most of the types of tests are variations of an Integration
Test
● Can include mocks but can full end to end tests including
DB / APIs

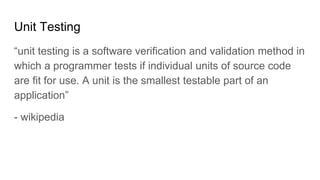

9. Unit Testing
“unit testing is a software verification and validation method in
which a programmer tests if individual units of source code
are fit for use. A unit is the smallest testable part of an
application”
- wikipedia

10. Unit Testing can...
● Can improve code quality -> quick error discovery
● Code confidence via immediate verification
● Can expose high coupling
● Will encourage refactoring to produce > testable code
● Remember: Testing is all about behavior and expectations

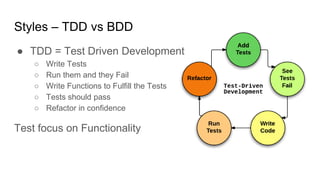

11. Styles – TDD vs BDD
● TDD = Test Driven Development
○ Write Tests
○ Run them and they Fail
○ Write Functions to Fulfill the Tests
○ Tests should pass
○ Refactor in confidence
Test focus on Functionality

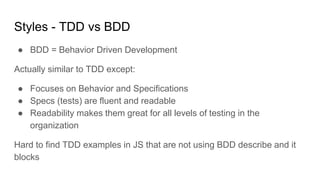

12. Styles - TDD vs BDD
● BDD = Behavior Driven Development
Actually similar to TDD except:
● Focuses on Behavior and Specifications
● Specs (tests) are fluent and readable
● Readability makes them great for all levels of testing in the
organization
Hard to find TDD examples in JS that are not using BDD describe and it
blocks

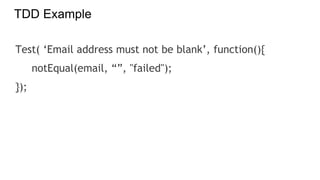

13. TDD Example
Test( ‘Email address must not be blank’, function(){
notEqual(email, “”, "failed");
});

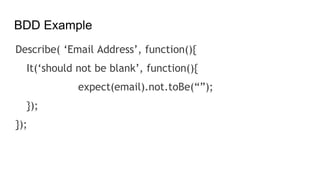

14. BDD Example
Describe( ‘Email Address’, function(){
It(‘should not be blank’, function(){
expect(email).not.toBe(“”);
});
});

15. Matchers
expect(true).toBe(true);
expect(true).toBe(true);
expect(true).toBe(true);
expect(true).toBe(true);

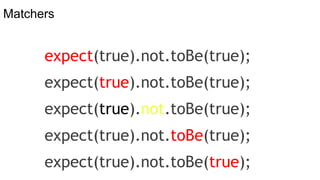

16. Matchers
expect(true).not.toBe(true);
expect(true).not.toBe(true);
expect(true).not.toBe(true);
expect(true).not.toBe(true);
expect(true).not.toBe(true);

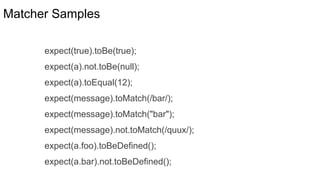

17. Matcher Samples
expect(true).toBe(true);
expect(a).not.toBe(null);
expect(a).toEqual(12);
expect(message).toMatch(/bar/);
expect(message).toMatch("bar");
expect(message).not.toMatch(/quux/);
expect(a.foo).toBeDefined();
expect(a.bar).not.toBeDefined();

18. Different Testing
Environments?
NodeJS - CLI In the Browser

19. CF Testing Tools
* MxUnit was the standard
* TestBox is the new standard
Other options

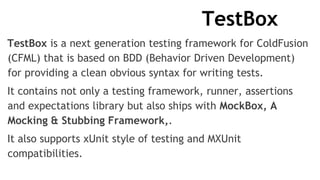

20. TestBox
TestBox is a next generation testing framework for ColdFusion
(CFML) that is based on BDD (Behavior Driven Development)
for providing a clean obvious syntax for writing tests.
It contains not only a testing framework, runner, assertions
and expectations library but also ships with MockBox, A
Mocking & Stubbing Framework,.
It also supports xUnit style of testing and MXUnit
compatibilities.

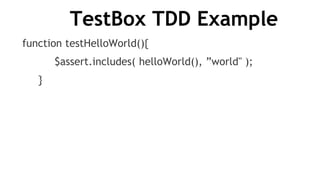

21. TestBox TDD Example
function testHelloWorld(){
$assert.includes( helloWorld(), ”world" );
}

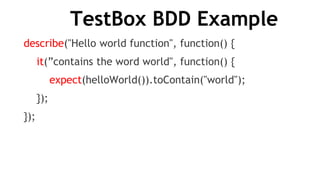

22. TestBox BDD Example
describe("Hello world function", function() {
it(”contains the word world", function() {
expect(helloWorld()).toContain("world");
});
});

23. TestBox New BDD Example
feature( "Box Size", function(){
describe( "In order to know what size box I need
As a distribution manager
I want to know the volume of the box", function(){
scenario( "Get box volume", function(){
given( "I have entered a width of 20
And a height of 30
And a depth of 40", function(){
when( "I run the calculation", function(){
then( "the result should be 24000", function(){

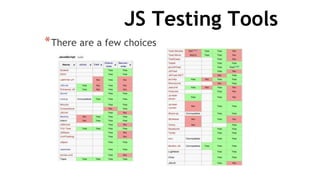

24. JS Testing Tools
*There are a few choices

25. Main JS Testing Players
Jasmine, Mocha and QUnit

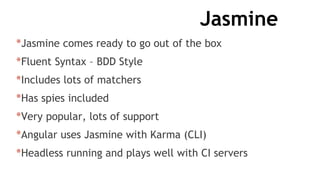

26. Jasmine
*Jasmine comes ready to go out of the box
*Fluent Syntax – BDD Style
*Includes lots of matchers
*Has spies included
*Very popular, lots of support
*Angular uses Jasmine with Karma (CLI)
*Headless running and plays well with CI servers

27. Jasmine - Cons
Async testing in 1.3 can be a headache
*Async testing in 2.0 is hard to find
blog posts on (I need to write one)
*Expects *spec.js suffix for test files
*This can be modified depending on
how you are running the tests

28. Jasmine – Sample Test
describe("Hello world function", function() {
it(”contains the word world", function() {
expect(helloWorld()).toContain("world");
});
});

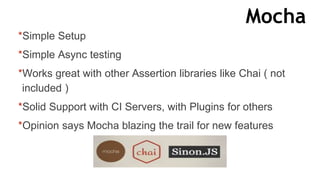

29. Mocha
*Simple Setup
*Simple Async testing
*Works great with other Assertion libraries like Chai ( not
included )
*Solid Support with CI Servers, with Plugins for others
*Opinion says Mocha blazing the trail for new features

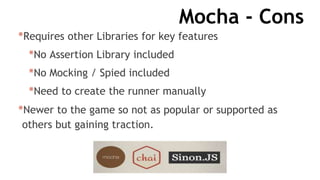

30. Mocha - Cons
*Requires other Libraries for key features
*No Assertion Library included
*No Mocking / Spied included
*Need to create the runner manually
*Newer to the game so not as popular or supported as
others but gaining traction.

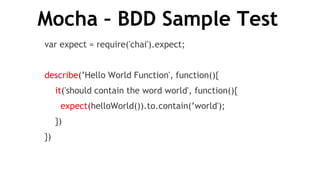

31. Mocha – BDD Sample Test
var expect = require('chai').expect;
describe(’Hello World Function', function(){
it('should contain the word world', function(){
expect(helloWorld()).to.contain(’world');
})
})

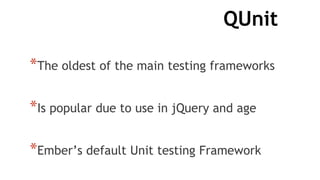

32. QUnit
*The oldest of the main testing frameworks
*Is popular due to use in jQuery and age
*Ember’s default Unit testing Framework

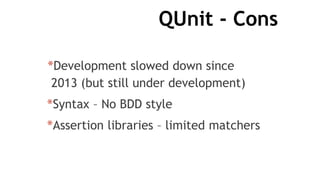

33. QUnit - Cons
*Development slowed down since
2013 (but still under development)
*Syntax – No BDD style
*Assertion libraries – limited matchers

34. QUnit – Sample Test
QUnit.test( "ok test", function( assert ) {
assert.ok( true, "true succeeds" );
assert.ok( "non-empty", "non-empty string succeeds"
);
assert.ok( false, "false fails" );
assert.ok( 0, "0 fails" );
assert.ok( NaN, "NaN fails" );
assert.ok( "", "empty string fails" );
assert.ok( null, "null fails" );

35. Using Testing in your Workflow
*Using HTML Test Runners
*Keep a Browser open
*F5 refresh tests

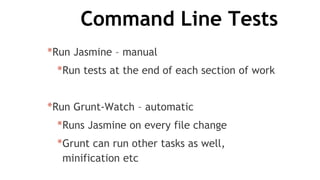

36. Command Line Tests
*Run Jasmine – manual
*Run tests at the end of each section of work
*Run Grunt-Watch – automatic
*Runs Jasmine on every file change
*Grunt can run other tasks as well,
minification etc

37. Testing in your IDE
*Browser Views
*Eclipse allows you to open files in web view
– uses HTML Runner
*Run Jasmine / Grunt / Karma in IDE Console
*Fairly Easy to setup
*See Demo– Sublime Text 2 (if we have time)

38. Live Demo and Examples
*Install / Run Jasmine Standalone for Browser
*Install / Run Jasmine with NodeJs
*Install / Run Jasmine with Grunt Watch
*Install / Run Testbox in Browser
*Install / Run Testbox with Grunt Watch

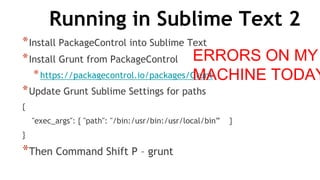

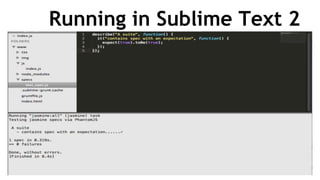

*Install / Run Grunt Watch inside Sublime Text 2

39. Install / Run Jasmine for In-Browser Testing
Download standalone package from Github (I have 2.1.3)
https://github.com/jasmine/jasmine/tree/master/dist
Unzip into your /tests folder
Run /tests/SpecRunner.html to see example tests

40. Standalone Jasmine

41. Installing Jasmine for in Browser Testing
http://www.testableapi.local.com:8504/tests/SpecRunner.html

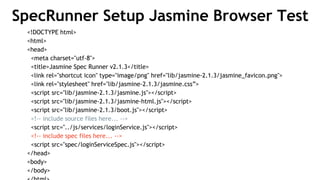

42. SpecRunner Setup Jasmine Browser Test
<!DOCTYPE html>
<html>
<head>
<meta charset="utf-8">
<title>Jasmine Spec Runner v2.1.3</title>
<link rel="shortcut icon" type="image/png" href="lib/jasmine-2.1.3/jasmine_favicon.png">
<link rel="stylesheet" href="lib/jasmine-2.1.3/jasmine.css”>
<script src="lib/jasmine-2.1.3/jasmine.js"></script>
<script src="lib/jasmine-2.1.3/jasmine-html.js"></script>
<script src="lib/jasmine-2.1.3/boot.js"></script>
<!-- include source files here... -->
<script src="../js/services/loginService.js"></script>
<!-- include spec files here... -->
<script src="spec/loginServiceSpec.js"></script>
</head>
<body>
</body>

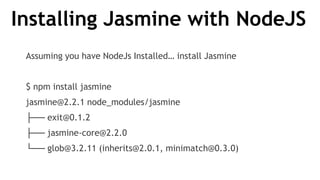

43. Installing Jasmine with NodeJS
Assuming you have NodeJs Installed… install Jasmine
$ npm install jasmine
jasmine@2.2.1 node_modules/jasmine
├── exit@0.1.2
├── jasmine-core@2.2.0
└── glob@3.2.11 (inherits@2.0.1, minimatch@0.3.0)

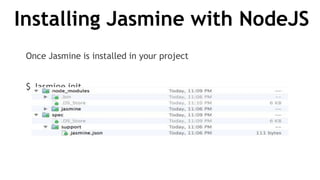

44. Installing Jasmine with NodeJS
Once Jasmine is installed in your project
$ Jasmine init

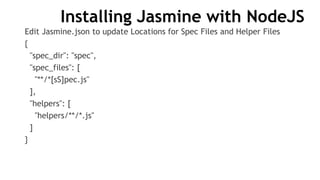

45. Installing Jasmine with NodeJS
Edit Jasmine.json to update Locations for Spec Files and Helper Files
{
"spec_dir": "spec",
"spec_files": [
"**/*[sS]pec.js"
],
"helpers": [
"helpers/**/*.js"
]
}

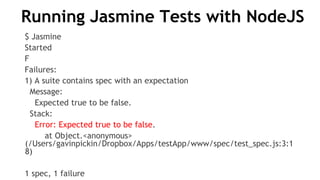

46. Running Jasmine Tests with NodeJS
$ Jasmine
Started
F
Failures:
1) A suite contains spec with an expectation
Message:
Expected true to be false.
Stack:
Error: Expected true to be false.
at Object.<anonymous>
(/Users/gavinpickin/Dropbox/Apps/testApp/www/spec/test_spec.js:3:1
8)
1 spec, 1 failure

47. Running Jasmine Tests with NodeJS
*Jasmine-Node is great for Node
*Jasmine Node doesn’t have a headless browser
*Hard to test Browser code
*So what should I use?

48. Installing Jasmine with Grunt Watcher
*Install Grunt
npm install grunt
*Install Grunt – Jasmine
npm install grunt-contrib-jasmine
*Install Grunt – Watch
npm install grunt-contrib-watch

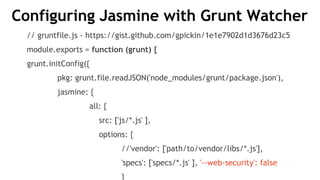

49. Configuring Jasmine with Grunt Watcher
// gruntfile.js - https://gist.github.com/gpickin/1e1e7902d1d3676d23c5
module.exports = function (grunt) {
grunt.initConfig({
pkg: grunt.file.readJSON('node_modules/grunt/package.json'),
jasmine: {
all: {
src: ['js/*.js' ],
options: {
//'vendor': ['path/to/vendor/libs/*.js'],
'specs': ['specs/*.js' ], '--web-security': false
}

50. Configuring Jasmine with Grunt Watcher
// gruntfile.js part 2
watch: {
js: {
files: [
'js/*.js',
'specs/*.js',
],
tasks: ['jasmine:all']
}
}

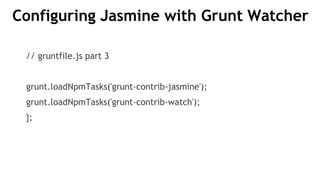

51. Configuring Jasmine with Grunt Watcher
// gruntfile.js part 3
grunt.loadNpmTasks('grunt-contrib-jasmine');
grunt.loadNpmTasks('grunt-contrib-watch');
};

52. Example Jasmine Spec with Grunt Watcher
describe("Forgotten Password Form", function() {
it("should warn you if the email is invalid before making Ajax Call", function() {
expect( isEmailInputInvalid('') ).toBe(true);
expect( isEmailInputInvalid('dddddddddd') ).toBe(true);
expect( isEmailInputInvalid('dddddd@') ).toBe(true);
expect( isEmailInputInvalid('dddddd@ddddd') ).toBe(true);
expect( isEmailInputInvalid('dddddd@ddddddd.') ).toBe(true);
expect( isEmailInputInvalid('dddddd@ddddddd.com') ).toBe(false);
});
});

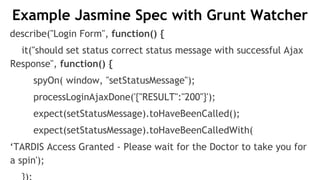

53. Example Jasmine Spec with Grunt Watcher
describe("Login Form", function() {
it("should set status correct status message with successful Ajax
Response", function() {
spyOn( window, "setStatusMessage");
processLoginAjaxDone('{"RESULT":"200"}');
expect(setStatusMessage).toHaveBeenCalled();
expect(setStatusMessage).toHaveBeenCalledWith(
‘TARDIS Access Granted - Please wait for the Doctor to take you for
a spin');

54. Example Jasmine Spec with Grunt Watcher
describe("Login API", function() {
it("should return a failing Ajax Response", function() {
spyOn( window, "processLoginAjaxDone");
loginButtonEventHandlerProcess( 'gavin@gavin.co.nz', 'password');
expect(processLoginAjaxDone).toHaveBeenCalled();
expect(processLoginAjaxDone).toHaveBeenCalledWith(
‘{"RESULT":400}');
expect(processLoginAjaxFail).not.toHaveBeenCalled();
});
});

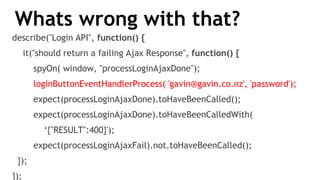

55. Whats wrong with that?
describe("Login API", function() {
it("should return a failing Ajax Response", function() {
spyOn( window, "processLoginAjaxDone");
loginButtonEventHandlerProcess( 'gavin@gavin.co.nz', 'password');
expect(processLoginAjaxDone).toHaveBeenCalled();
expect(processLoginAjaxDone).toHaveBeenCalledWith(
‘{"RESULT":400}');
expect(processLoginAjaxFail).not.toHaveBeenCalled();
});
});

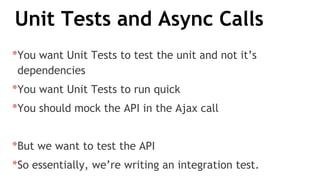

56. Unit Tests and Async Calls
*You want Unit Tests to test the unit and not it’s
dependencies
*You want Unit Tests to run quick
*You should mock the API in the Ajax call
*But we want to test the API
*So essentially, we’re writing an integration test.

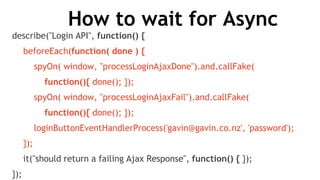

57. How to wait for Async
describe("Login API", function() {
beforeEach(function( done ) {
spyOn( window, "processLoginAjaxDone").and.callFake(
function(){ done(); });
spyOn( window, "processLoginAjaxFail").and.callFake(
function(){ done(); });
loginButtonEventHandlerProcess('gavin@gavin.co.nz', 'password');
});
it("should return a failing Ajax Response", function() { });
});

58. How to wait for Async
describe("Login API", function() {
beforeEach(function( done ) {
…
});
it("should return a failing Ajax Response", function() {
expect(processLoginAjaxDone).toHaveBeenCalled();
expect(processLoginAjaxDone).toHaveBeenCalledWith(
'{"RESULT":400}');
expect(processLoginAjaxFail).not.toHaveBeenCalled();
});

59. Running Jasmine with Grunt Watcher

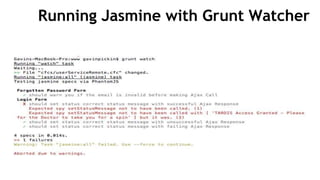

60. Running Jasmine with Grunt Watcher

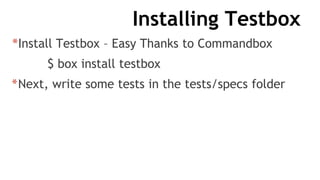

61. Installing Testbox
*Install Testbox – Easy Thanks to Commandbox
$ box install testbox
*Next, write some tests in the tests/specs folder

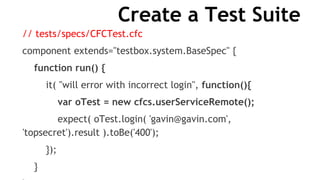

62. Create a Test Suite
// tests/specs/CFCTest.cfc
component extends="testbox.system.BaseSpec" {
function run() {
it( "will error with incorrect login", function(){
var oTest = new cfcs.userServiceRemote();
expect( oTest.login( 'gavin@gavin.com',
'topsecret').result ).toBe('400');
});
}

63. Create a 2nd Test Suite// tests/specs/APITest.cfc
component extends="testbox.system.BaseSpec" {
function run() {
describe("userService API Login", function(){
it( "will error with incorrect login", function(){
var email = "gavin@gavin.com";
var password = "topsecret”;
var result = "";
http
url="http://www.testableapi.local.com:8504/cfcs/userServiceRemote.cfc?method=log
in&email=#email#&password=#password#" result="result”;
expect( DeserializeJSON(result.filecontent).result ).toBe('400');
});
});

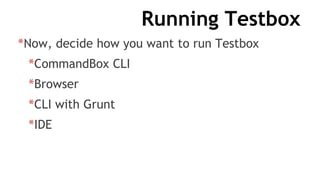

64. Running Testbox
*Now, decide how you want to run Testbox
*CommandBox CLI
*Browser
*CLI with Grunt
*IDE

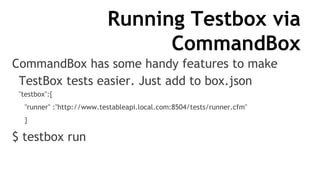

65. Running Testbox via
CommandBox
CommandBox has some handy features to make
TestBox tests easier. Just add to box.json
"testbox":{
"runner" :"http://www.testableapi.local.com:8504/tests/runner.cfm"
}
$ testbox run

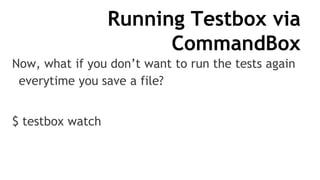

66. Running Testbox via
CommandBox
Now, what if you don’t want to run the tests again
everytime you save a file?
$ testbox watch

67. Browser -Create a runner.cfm
*<cfsetting showDebugOutput="false">
*<!--- Executes all tests in the 'specs' folder with simple reporter
by default --->
*<cfparam name="url.reporter" default="simple">
*<cfparam name="url.directory"
default="tests.specs">
*<cfparam name="url.recurse" default="true"
type="boolean">
*<cfparam name="url.bundles" default="">
*<cfparam name="url.labels" default="">
*<!--- Include the TestBox HTML Runner --->

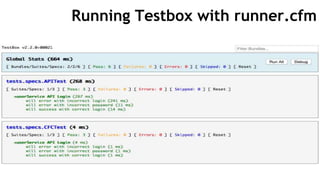

68. Running Testbox with runner.cfm

69. Running Testbox with Grunt Watch
*Install Testbox Runner – Thanks Sean Coyne
*npm install testbox-runner
*Install Grunt Shell
*npm install grunt-shell
*Add Grunt Configuration

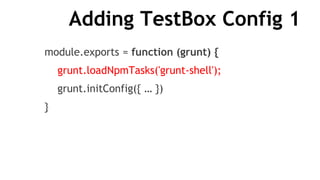

70. Adding TestBox Config 1
module.exports = function (grunt) {
grunt.loadNpmTasks('grunt-shell');
grunt.initConfig({ … })
}

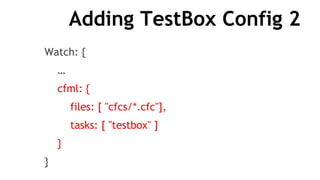

71. Adding TestBox Config 2
Watch: {
…
cfml: {
files: [ "cfcs/*.cfc"],
tasks: [ "testbox" ]
}
}

72. Adding TestBox Config 3
shell: {
testbox: {
command: "./node_modules/testbox-
runner/index.js --colors --runner
http://www.testableapi.local.com:8504/tests/r
unner.cfm --directory /tests/specs --recurse
true”
}

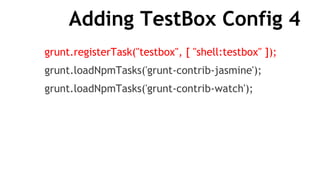

73. Adding TestBox Config 4
grunt.registerTask("testbox", [ "shell:testbox" ]);
grunt.loadNpmTasks('grunt-contrib-jasmine');
grunt.loadNpmTasks('grunt-contrib-watch');

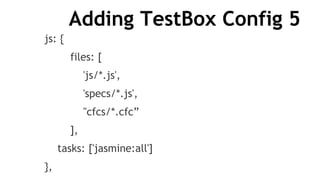

74. Adding TestBox Config 5
js: {
files: [
'js/*.js',
'specs/*.js',
"cfcs/*.cfc”
],
tasks: ['jasmine:all']
},

75. GruntFile.js Gists
Jasmine
https://gist.github.com/gpickin/1e1e7902d1d3
676d23c5
Jasmine + Testbox
https://gist.github.com/gpickin/9fc82df3667ee
b63c7e7

76. Testbox output with Grunt

77. Testbox Runner JSON
*Testbox has several runners, you have seen the HTML one, this
Runner uses the JSON runner and then formats it.
*http://www.testableapi.local.com:8504/tests/runner.cfm?rep
orter=JSON&directory=%2Ftests%2Fspecs&recurse=true

78. Running in Sublime Text 2
*Install PackageControl into Sublime Text
*Install Grunt from PackageControl
*https://packagecontrol.io/packages/Grunt
*Update Grunt Sublime Settings for paths
{
"exec_args": { "path": "/bin:/usr/bin:/usr/local/bin” }
}
*Then Command Shift P – grunt
ERRORS ON MY
MACHINE TODAY

79. Running in Sublime Text 2

81. ColdBox REST API
*It’s easy to get started with ColdBox Rest with
CommandBox’s scaffolding.
## create app
coldbox create app name=MyRestAPP skeleton=rest
## Start up a server with rewrites on port 8505
server start port=8505

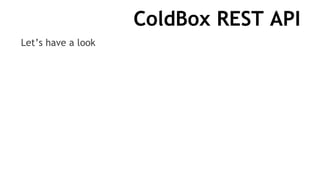

82. ColdBox REST API
Let’s have a look

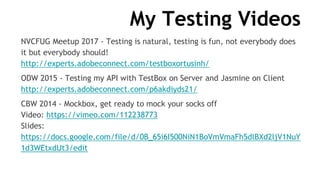

83. My Testing Videos
NVCFUG Meetup 2017 - Testing is natural, testing is fun, not everybody does
it but everybody should!
http://experts.adobeconnect.com/testboxortusinh/
ODW 2015 - Testing my API with TestBox on Server and Jasmine on Client
http://experts.adobeconnect.com/p6akdiyds21/
CBW 2014 - Mockbox, get ready to mock your socks off
Video: https://vimeo.com/112238773
Slides:
https://docs.google.com/file/d/0B_65i6I500NiN1BoVmVmaFh5dlBXd2ljV1NuY
1d3WEtxdUt3/edit

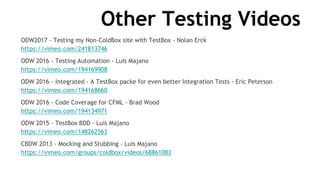

84. Other Testing Videos
ODW2017 - Testing my Non-ColdBox site with TestBox - Nolan Erck
https://vimeo.com/241813746
ODW 2016 - Testing Automation - Luis Majano
https://vimeo.com/194169908
ODW 2016 - Integrated - A TestBox packe for even better Integration Tests - Eric Peterson
https://vimeo.com/194168660
ODW 2016 - Code Coverage for CFML - Brad Wood
https://vimeo.com/194134971
ODW 2015 - TestBox BDD - Luis Majano
https://vimeo.com/148262563
CBDW 2013 - Mocking and Stubbing - Luis Majano
https://vimeo.com/groups/coldbox/videos/68861083

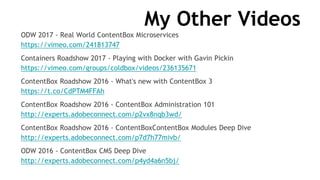

85. My Other Videos
ODW 2017 - Real World ContentBox Microservices
https://vimeo.com/241813747
Containers Roadshow 2017 - Playing with Docker with Gavin Pickin
https://vimeo.com/groups/coldbox/videos/236135671
ContentBox Roadshow 2016 - What's new with ContentBox 3
https://t.co/CdPTM4FFAh
ContentBox Roadshow 2016 - ContentBox Administration 101
http://experts.adobeconnect.com/p2vx8nqb3wd/
ContentBox Roadshow 2016 - ContentBoxContentBox Modules Deep Dive
http://experts.adobeconnect.com/p7d7h77mivb/
ODW 2016 - ContentBox CMS Deep Dive
http://experts.adobeconnect.com/p4yd4a6n5bj/

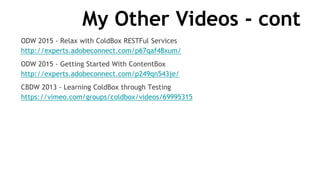

86. My Other Videos - cont
ODW 2015 - Relax with ColdBox RESTFul Services
http://experts.adobeconnect.com/p67qaf48xum/
ODW 2015 - Getting Started With ContentBox
http://experts.adobeconnect.com/p249qn543je/
CBDW 2013 - Learning ColdBox through Testing
https://vimeo.com/groups/coldbox/videos/69995315
