Presentation for "Meet for IT: Learning to test. Testing to learn" by Oleksandr Khotemskyi (QA Team Lead at Lohika) video: https://youtu.be/VC0q1VXv9ZQ?t=13

1. Selenium WebDriverJS based framework for automated
testing of Angular 1.x/2.x applications
OLEKSANDR KHOTEMSKYI
https://xotabu4.github.io/website

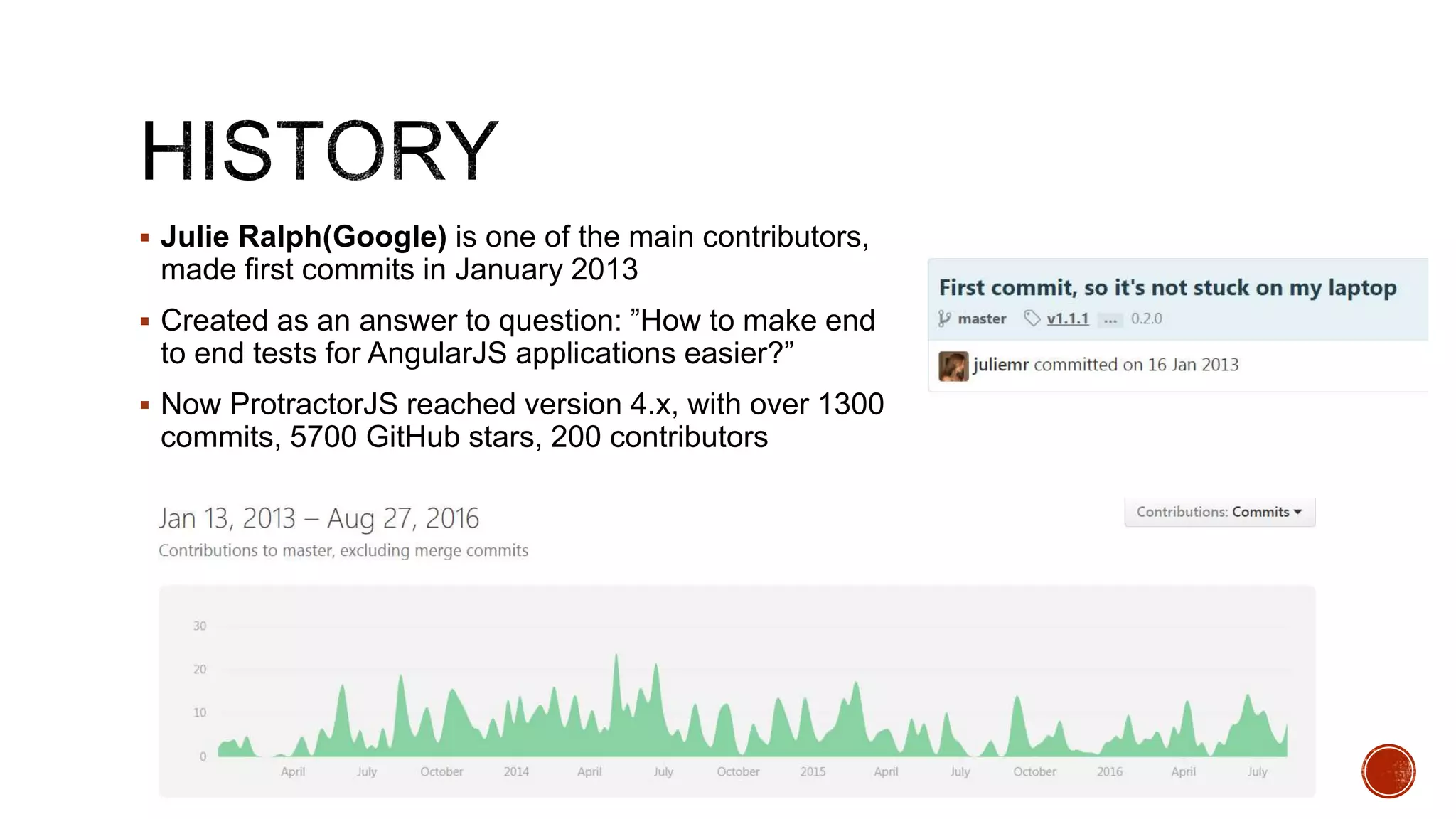

2.  Julie Ralph(Google) is one of the main contributors,
made first commits in January 2013
 Created as an answer to question: ”How to make end
to end tests for AngularJS applications easier?”
 Now ProtractorJS reached version 4.x, with over 1300
commits, 5700 GitHub stars, 200 contributors

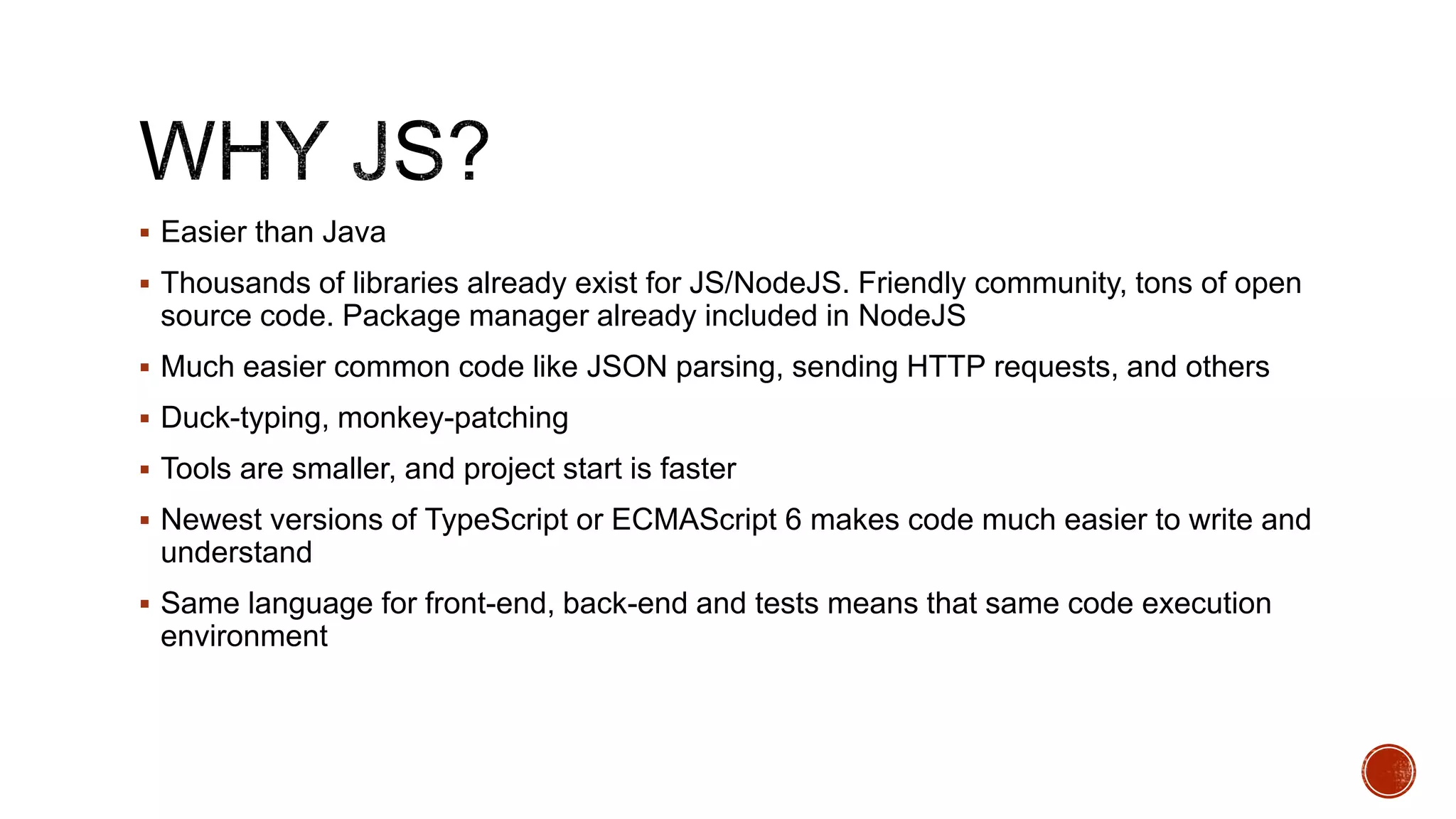

4.  Easier than Java
 Thousands of libraries already exist for JS/NodeJS. Friendly community, tons of open
source code. Package manager already included in NodeJS
 Much easier common code like JSON parsing, sending HTTP requests, and others
 Duck-typing, monkey-patching
 Tools are smaller, and project start is faster
 Newest versions of TypeScript or ECMAScript 6 makes code much easier to write and
understand
 Same language for front-end, back-end and tests means that same code execution
environment

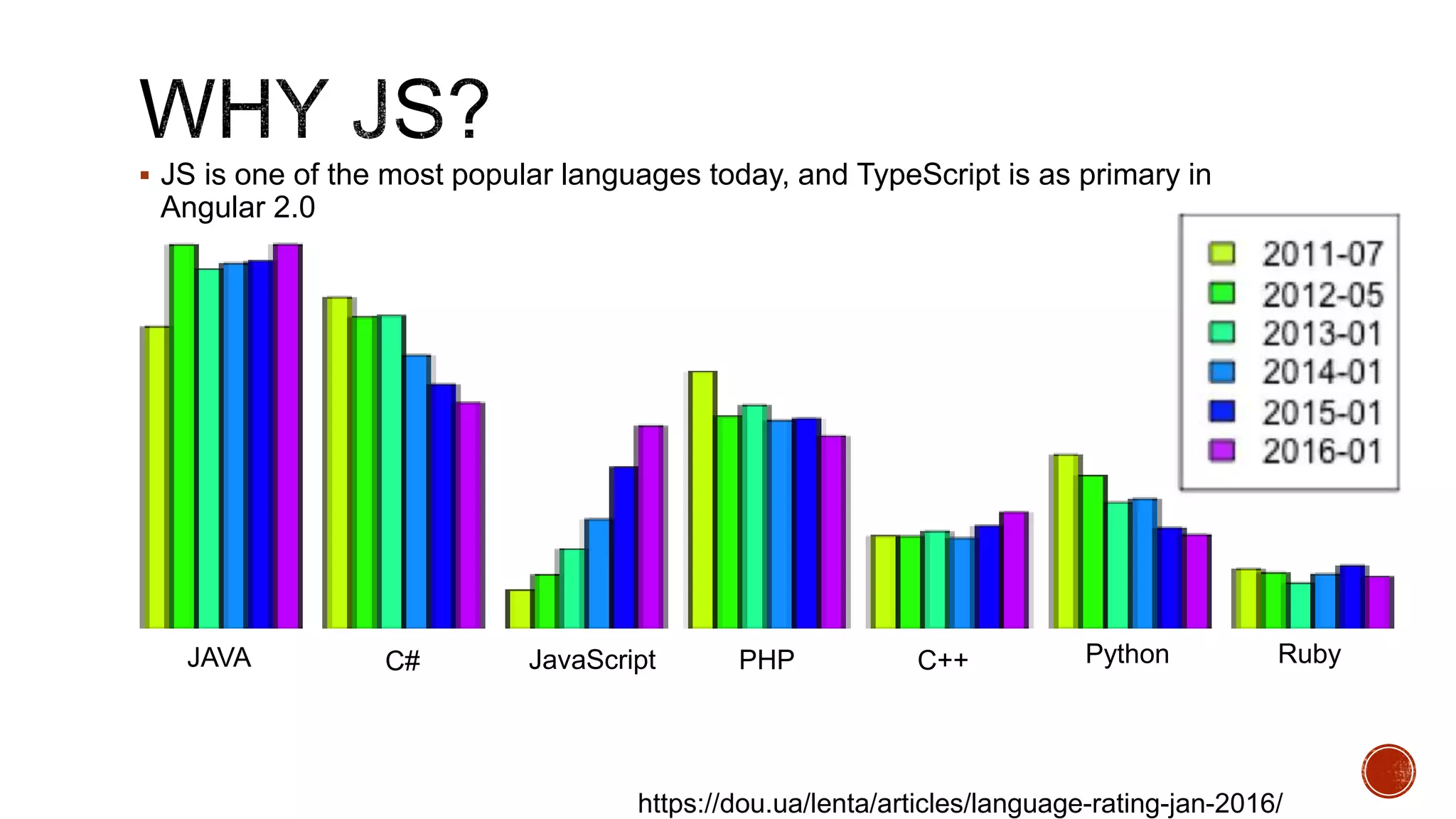

5.  JS is one of the most popular languages today, and TypeScript is as primary in
Angular 2.0
https://dou.ua/lenta/articles/language-rating-jan-2016/
JAVA C# JavaScript PHP PythonC++ Ruby

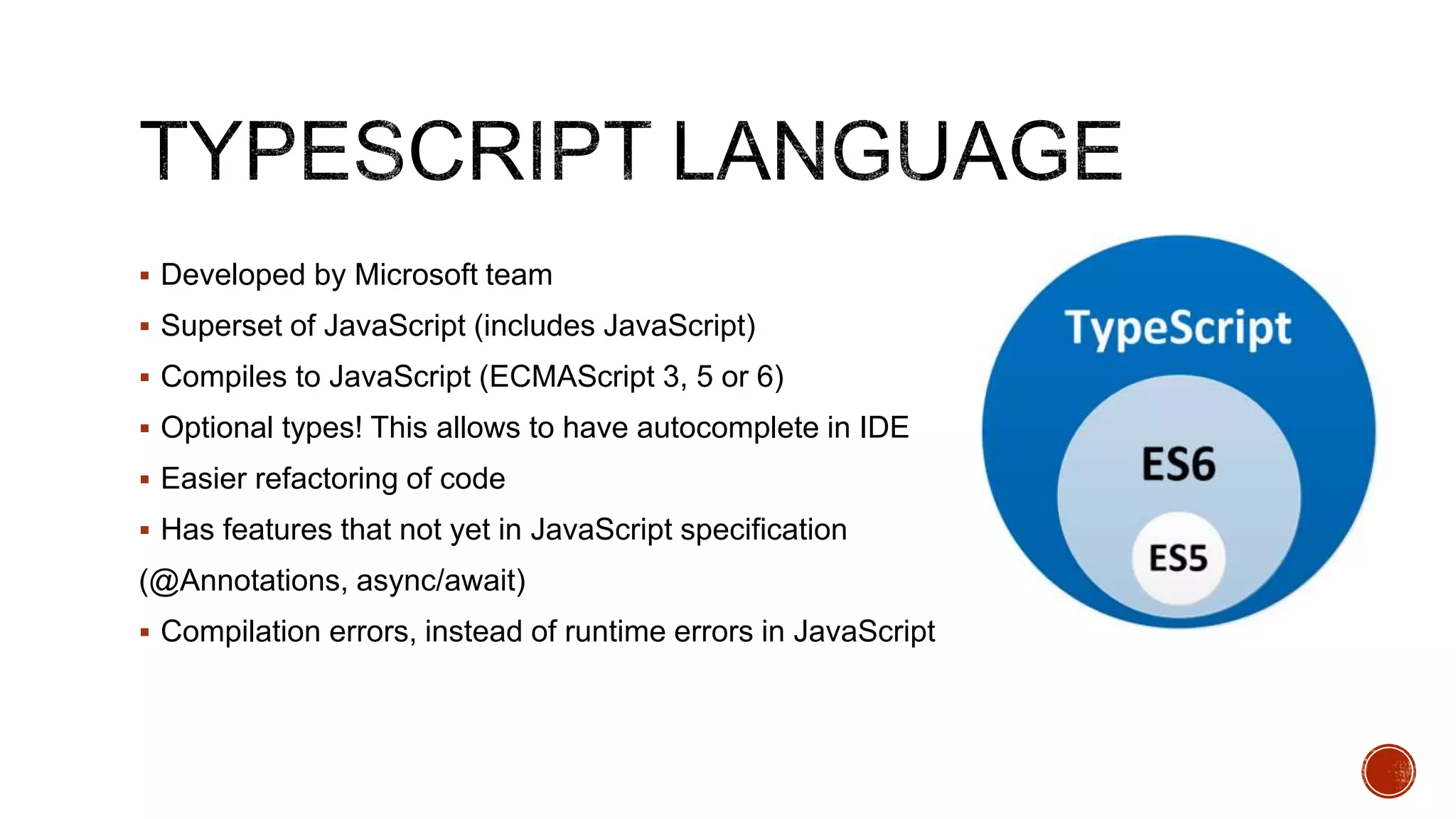

6.  Developed by Microsoft team
 Superset of JavaScript (includes JavaScript)
 Compiles to JavaScript (ECMAScript 3, 5 or 6)
 Optional types! This allows to have autocomplete in IDE
 Easier refactoring of code
 Has features that not yet in JavaScript specification
(@Annotations, async/await)
 Compilation errors, instead of runtime errors in JavaScript

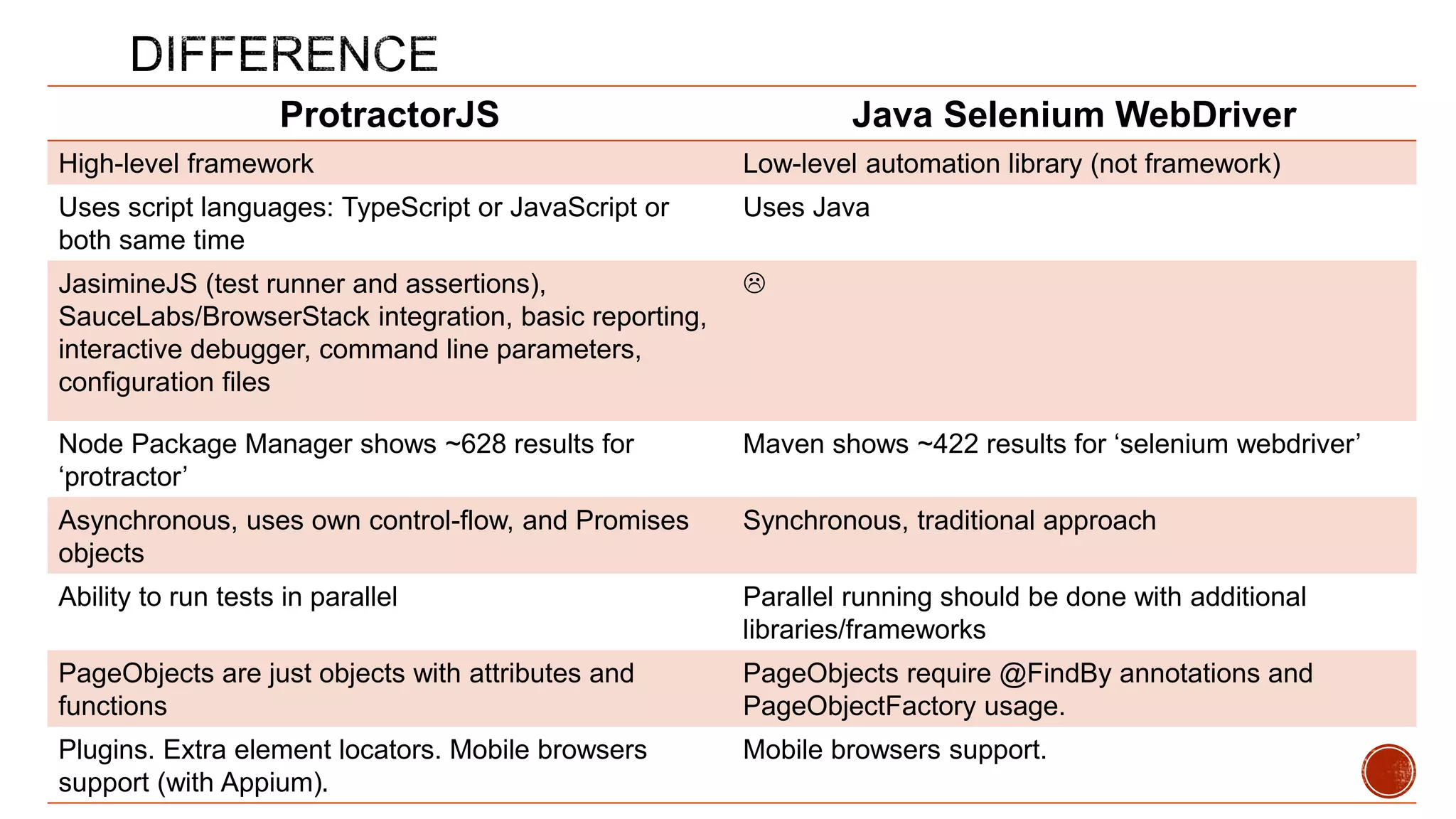

7. ProtractorJS Java Selenium WebDriver
High-level framework Low-level automation library (not framework)
Uses script languages: TypeScript or JavaScript or
both same time
Uses Java
JasimineJS (test runner and assertions),
SauceLabs/BrowserStack integration, basic reporting,
interactive debugger, command line parameters,
configuration files

Node Package Manager shows ~628 results for
‘protractor’
Maven shows ~422 results for ‘selenium webdriver’
Asynchronous, uses own control-flow, and Promises
objects
Synchronous, traditional approach
Ability to run tests in parallel Parallel running should be done with additional
libraries/frameworks
PageObjects are just objects with attributes and
functions
PageObjects require @FindBy annotations and
PageObjectFactory usage.
Plugins. Extra element locators. Mobile browsers
support (with Appium).
Mobile browsers support.

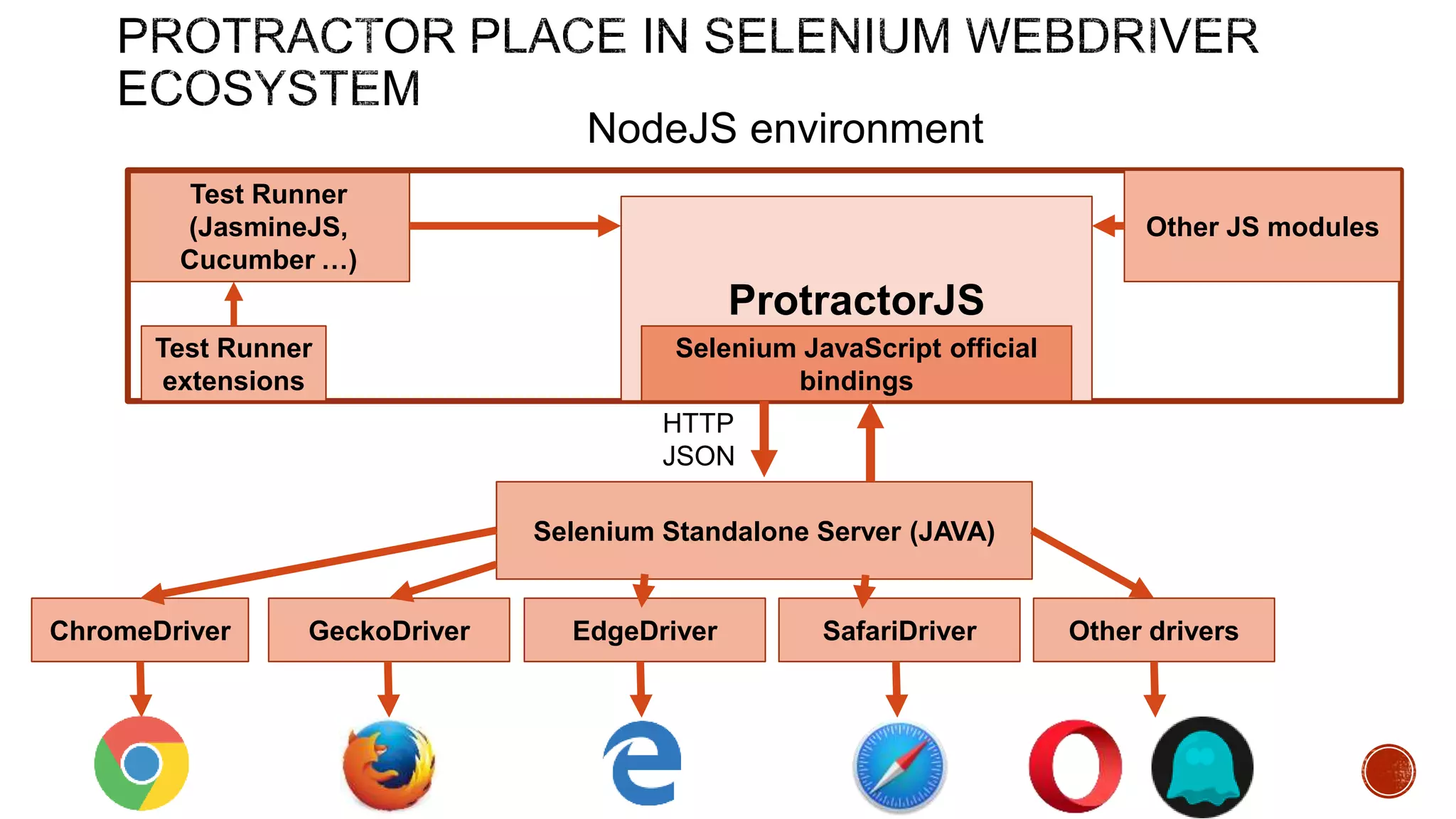

8. Test Runner
(JasmineJS,
Cucumber …)
ProtractorJS
Selenium JavaScript official
bindings
NodeJS environment
Test Runner
extensions
Selenium Standalone Server (JAVA)
Other JS modules
HTTP
JSON
ChromeDriver GeckoDriver EdgeDriver SafariDriver Other drivers

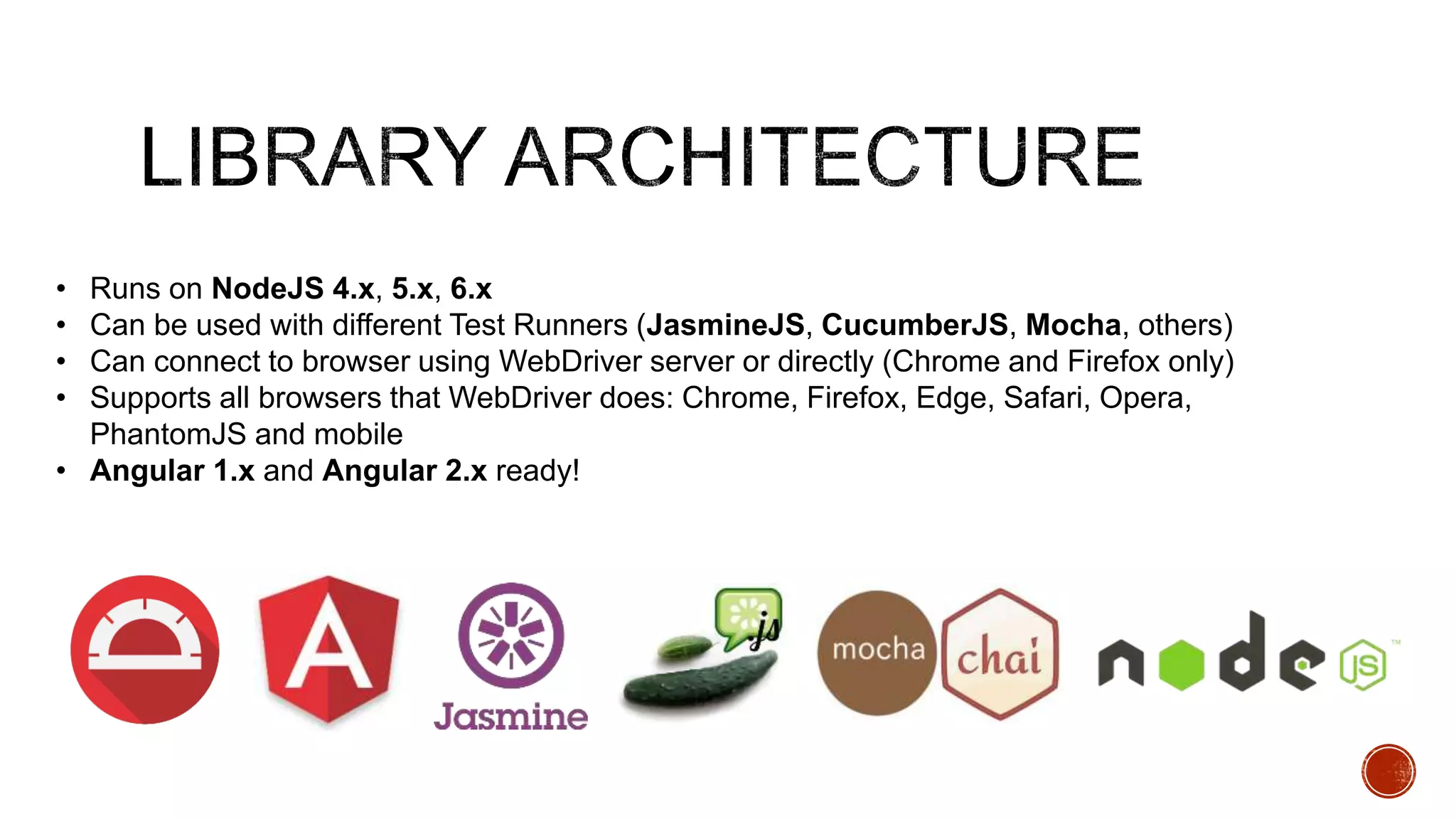

9. • Runs on NodeJS 4.x, 5.x, 6.x
• Can be used with different Test Runners (JasmineJS, CucumberJS, Mocha, others)
• Can connect to browser using WebDriver server or directly (Chrome and Firefox only)
• Supports all browsers that WebDriver does: Chrome, Firefox, Edge, Safari, Opera,
PhantomJS and mobile
• Angular 1.x and Angular 2.x ready!

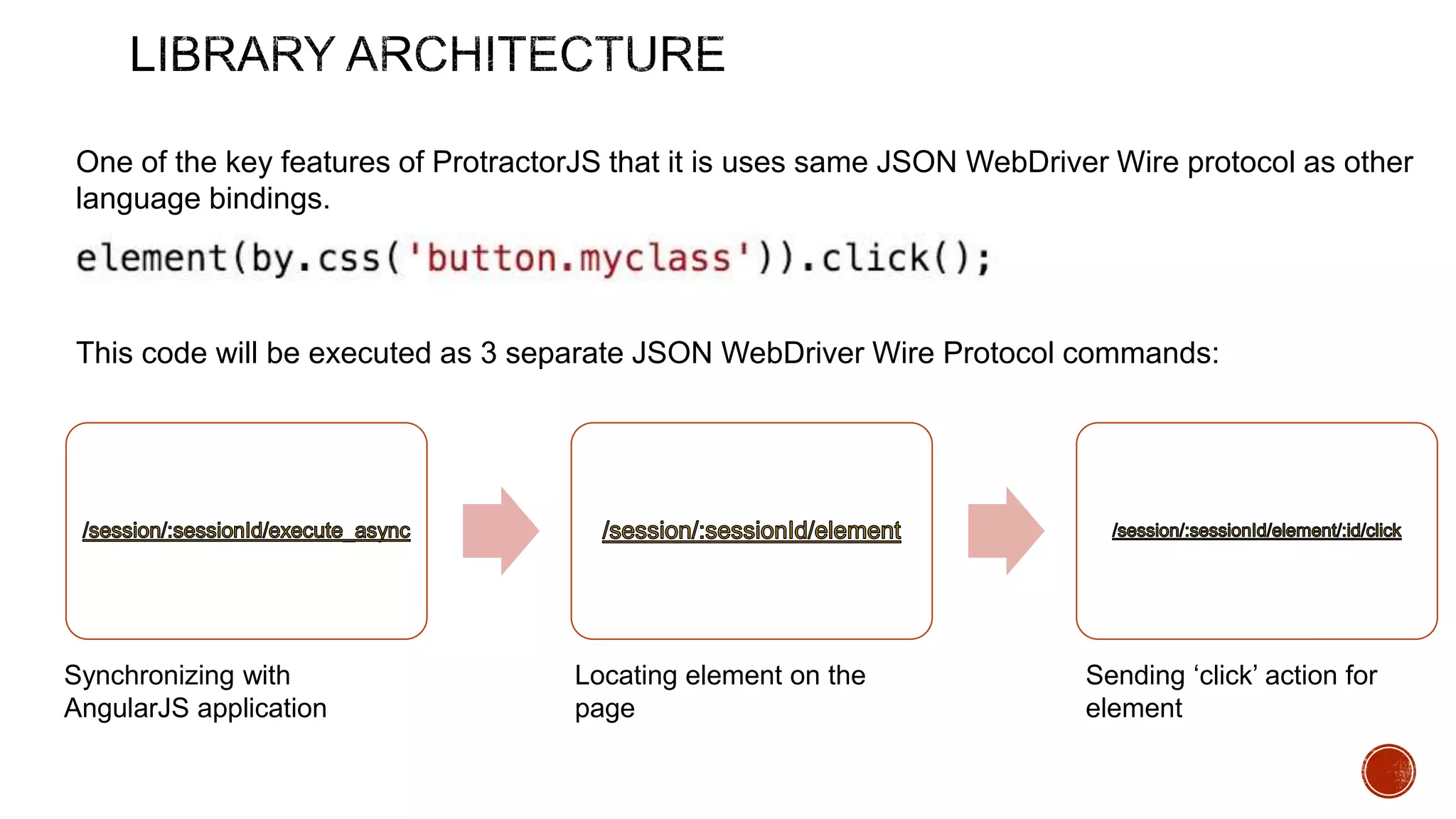

10. One of the key features of ProtractorJS that it is uses same JSON WebDriver Wire protocol as other
language bindings.
This code will be executed as 3 separate JSON WebDriver Wire Protocol commands:
Synchronizing with
AngularJS application
Locating element on the
page
Sending ‘click’ action for
element

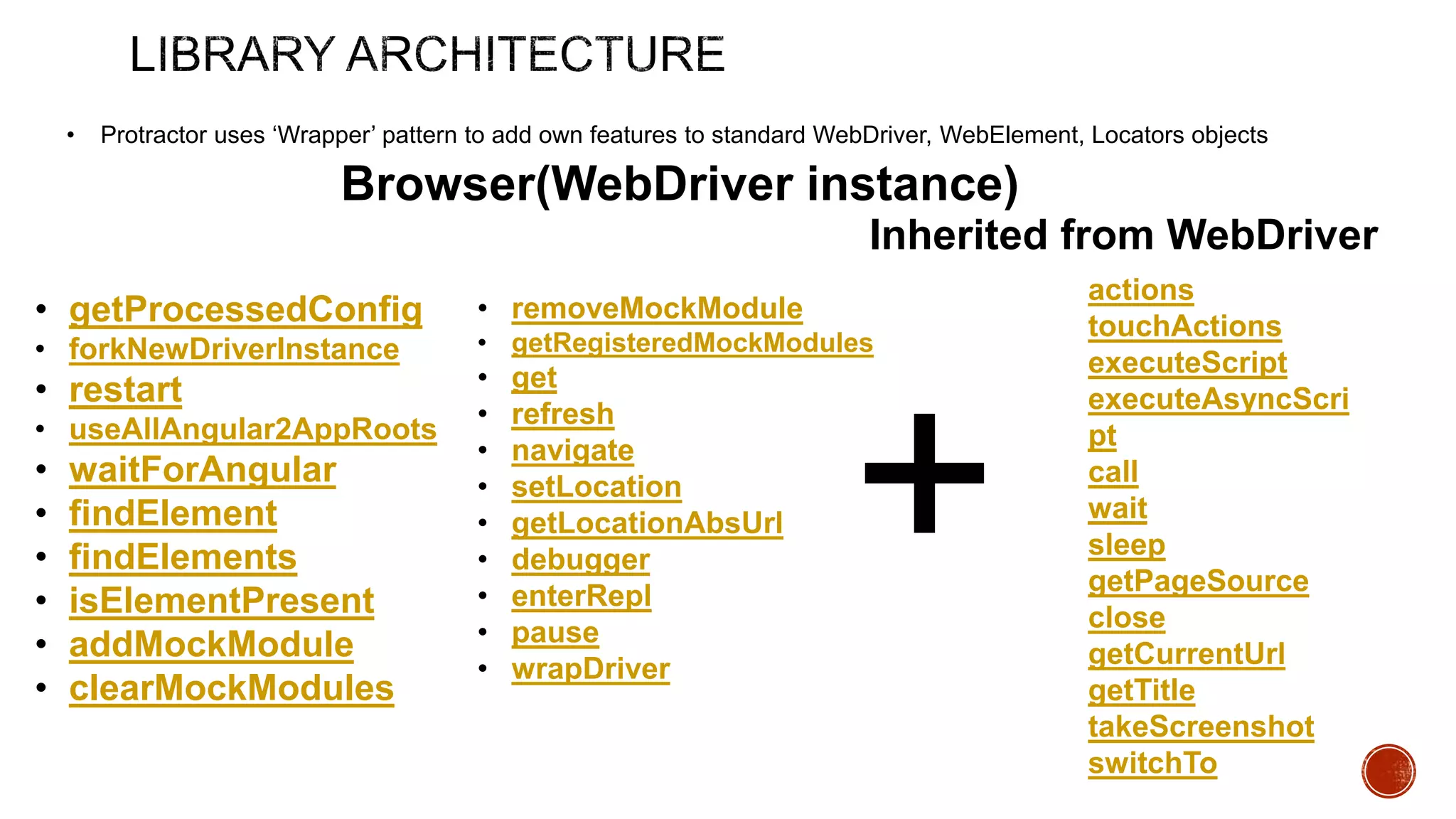

11. • Protractor uses ‘Wrapper’ pattern to add own features to standard WebDriver, WebElement, Locators objects
Browser(WebDriver instance)
+
Inherited from WebDriver
• getProcessedConfig
• forkNewDriverInstance
• restart
• useAllAngular2AppRoots
• waitForAngular
• findElement
• findElements
• isElementPresent
• addMockModule
• clearMockModules
• removeMockModule
• getRegisteredMockModules
• get
• refresh
• navigate
• setLocation
• getLocationAbsUrl
• debugger
• enterRepl
• pause
• wrapDriver
actions
touchActions
executeScript
executeAsyncScri
pt
call
wait
sleep
getPageSource
close
getCurrentUrl
getTitle
takeScreenshot
switchTo

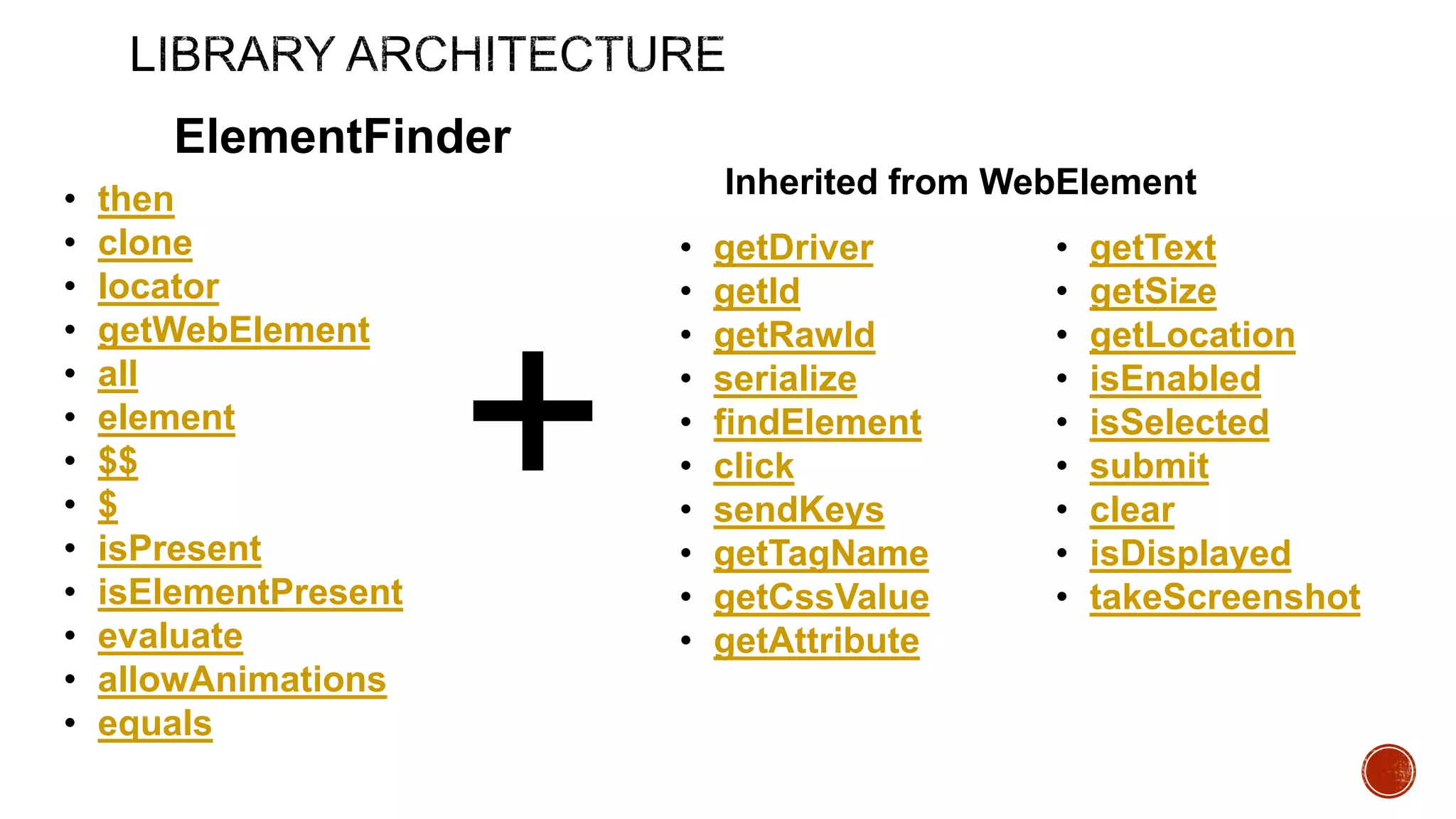

12. ElementFinder
+
Inherited from WebElement• then
• clone
• locator
• getWebElement
• all
• element
• $$
• $
• isPresent
• isElementPresent
• evaluate
• allowAnimations
• equals
• getDriver
• getId
• getRawId
• serialize
• findElement
• click
• sendKeys
• getTagName
• getCssValue
• getAttribute
• getText
• getSize
• getLocation
• isEnabled
• isSelected
• submit
• clear
• isDisplayed
• takeScreenshot

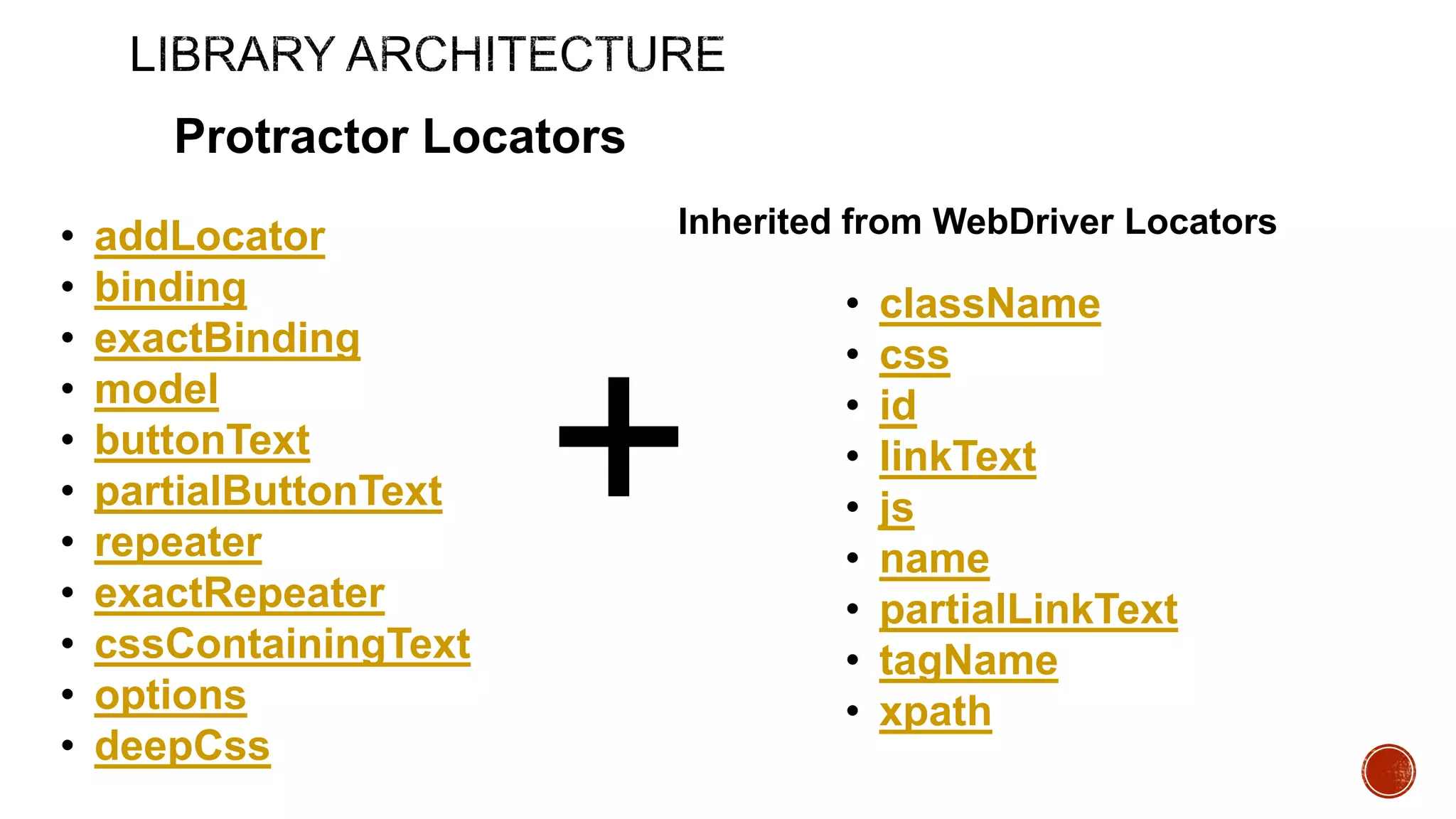

13. Protractor Locators
+
Inherited from WebDriver Locators• addLocator
• binding
• exactBinding
• model
• buttonText
• partialButtonText
• repeater
• exactRepeater
• cssContainingText
• options
• deepCss
• className
• css
• id
• linkText
• js
• name
• partialLinkText
• tagName
• xpath

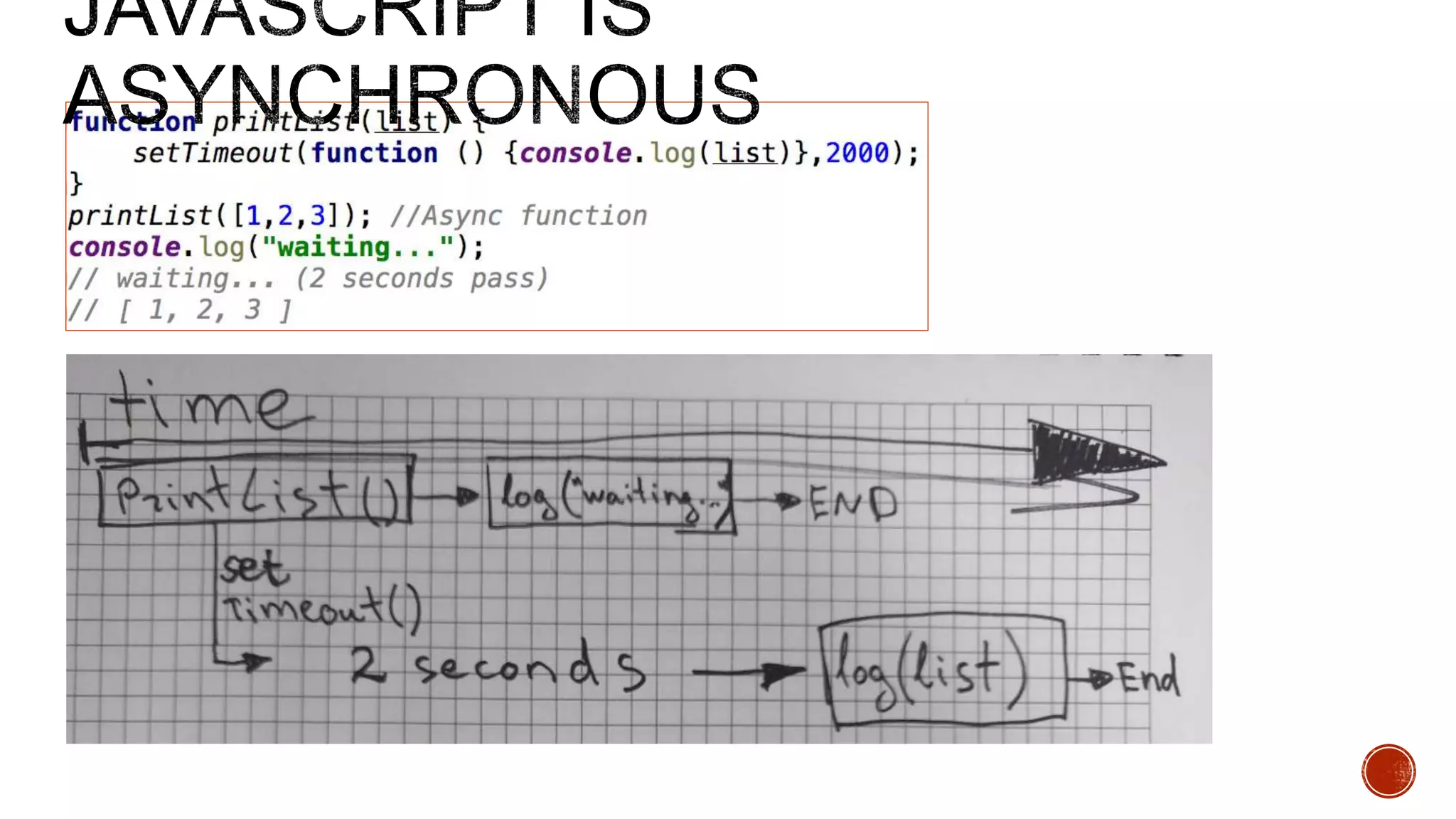

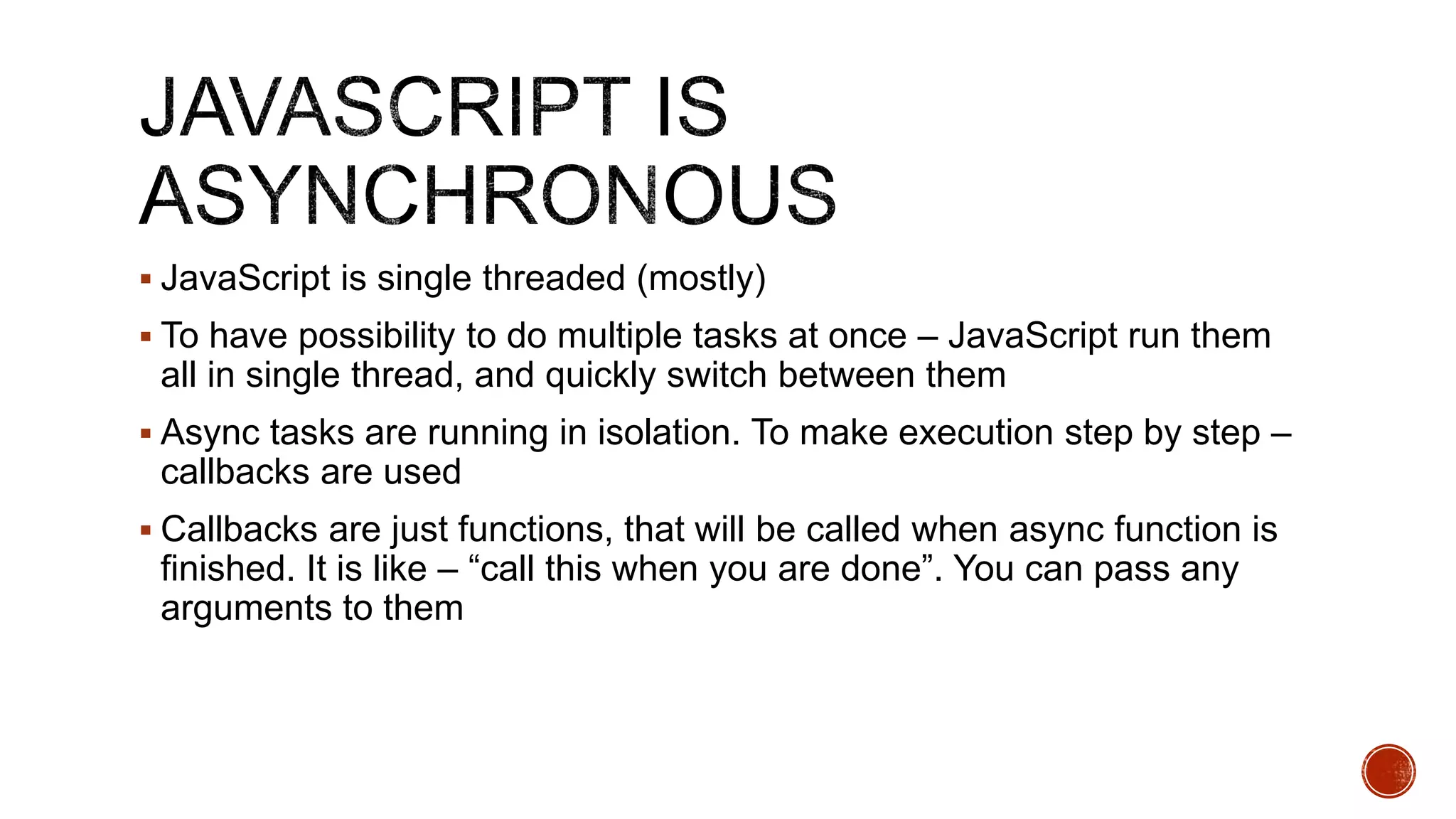

15.  JavaScript is single threaded (mostly)
 To have possibility to do multiple tasks at once – JavaScript run them
all in single thread, and quickly switch between them
 Async tasks are running in isolation. To make execution step by step –
callbacks are used
 Callbacks are just functions, that will be called when async function is
finished. It is like – “call this when you are done”. You can pass any
arguments to them

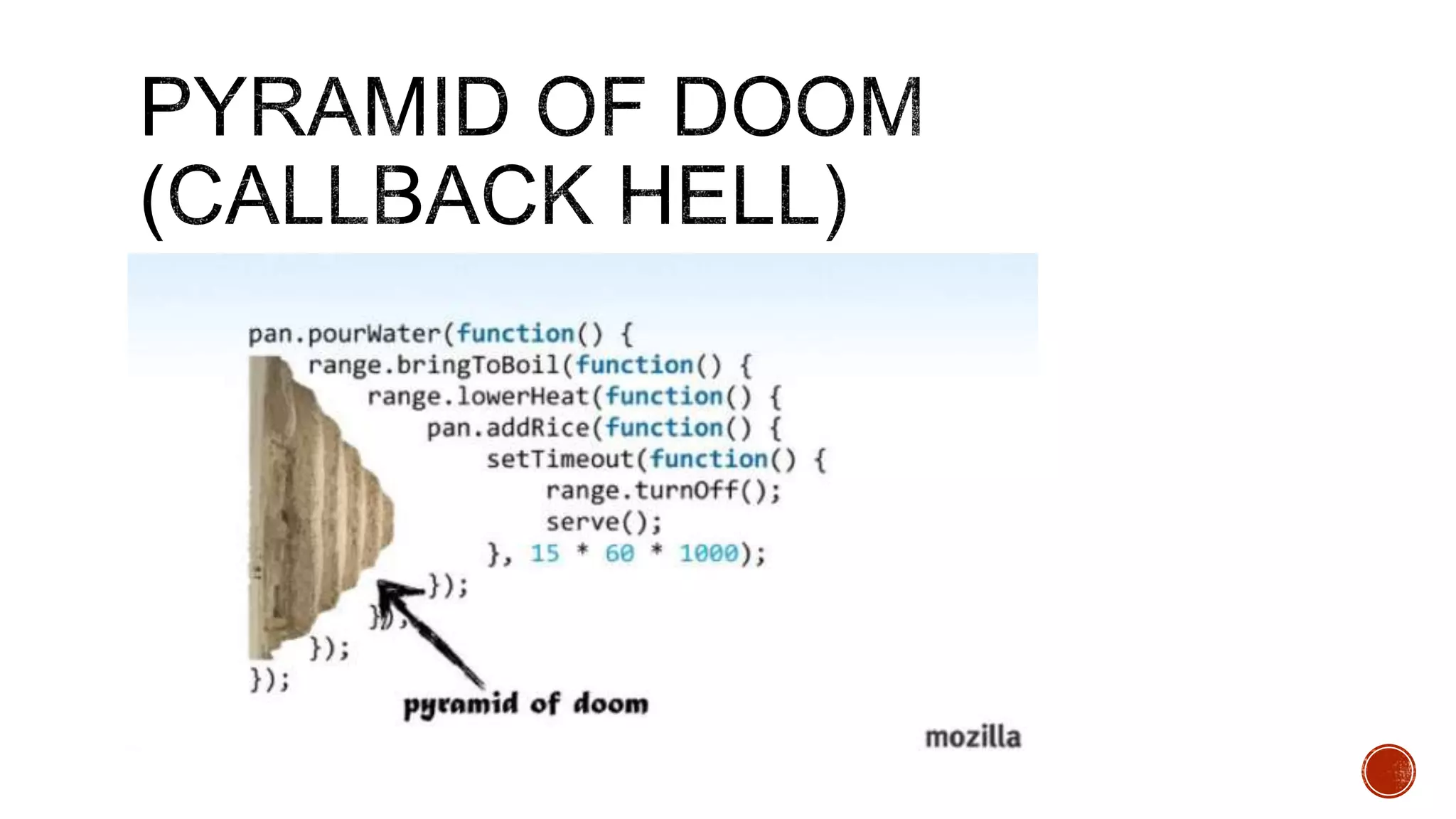

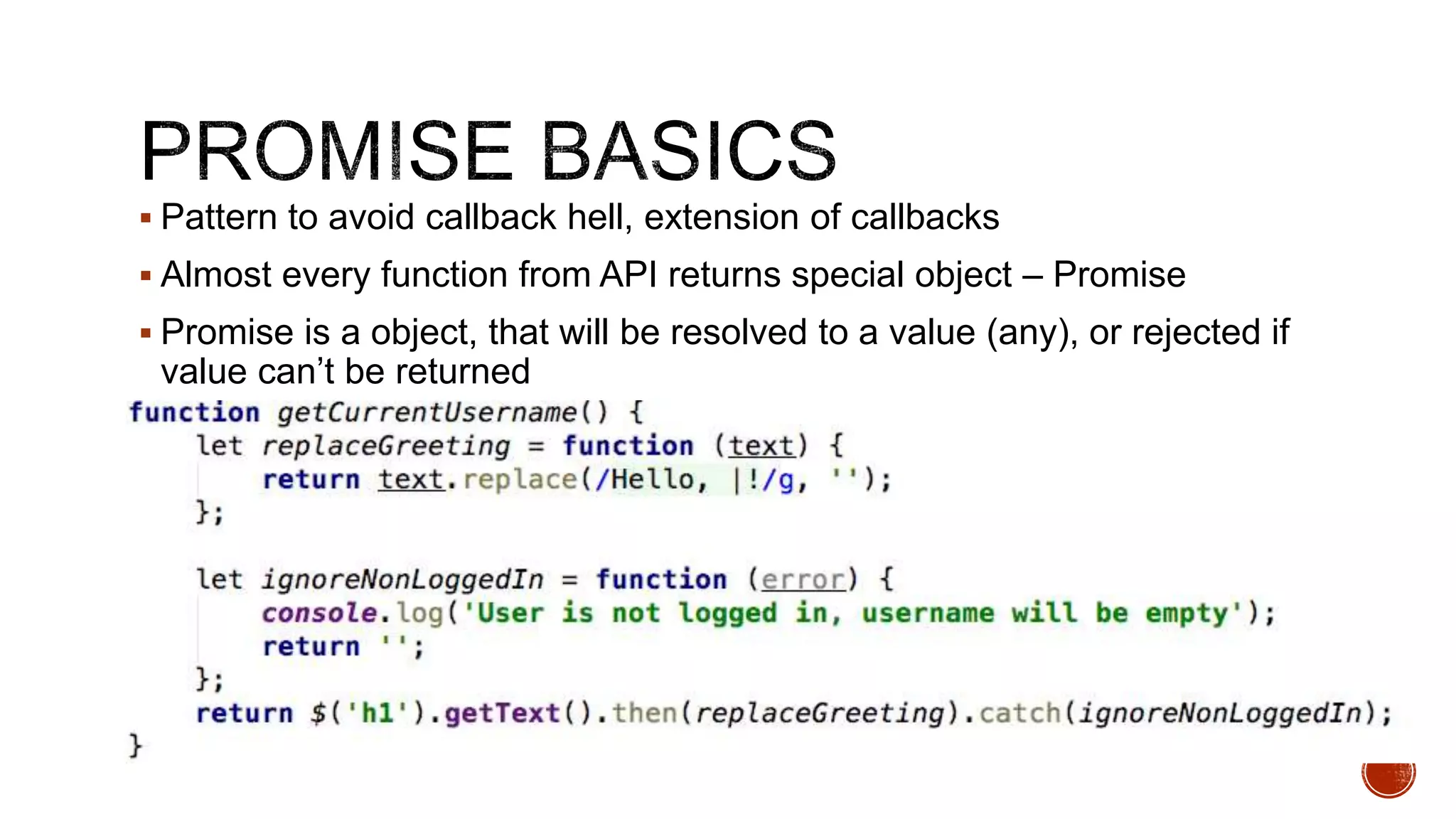

18.  Pattern to avoid callback hell, extension of callbacks
 Almost every function from API returns special object – Promise
 Promise is a object, that will be resolved to a value (any), or rejected if
value can’t be returned

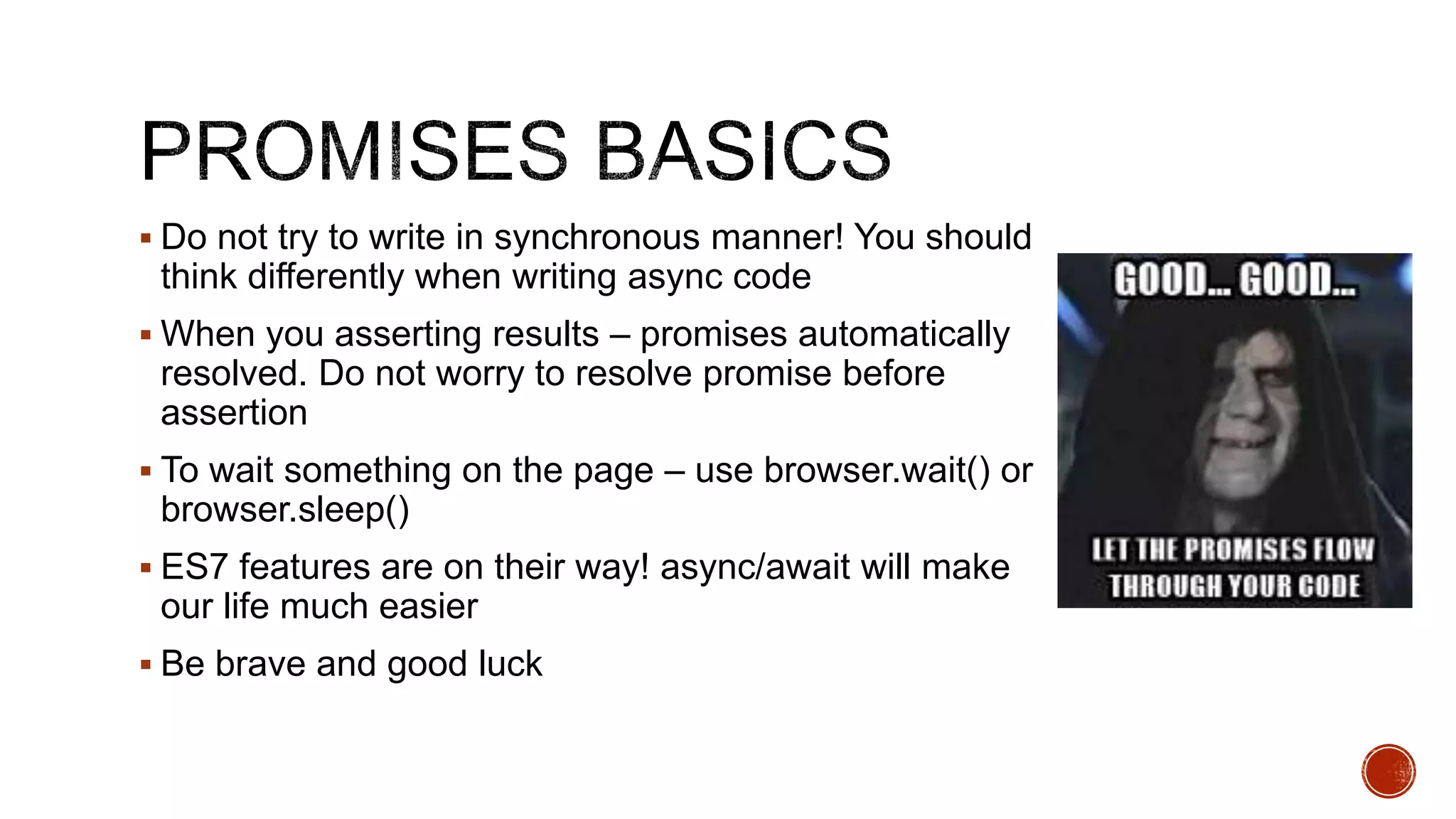

20.  Do not try to write in synchronous manner! You should
think differently when writing async code
 When you asserting results – promises automatically
resolved. Do not worry to resolve promise before
assertion
 To wait something on the page – use browser.wait() or
browser.sleep()
 ES7 features are on their way! async/await will make
our life much easier
 Be brave and good luck

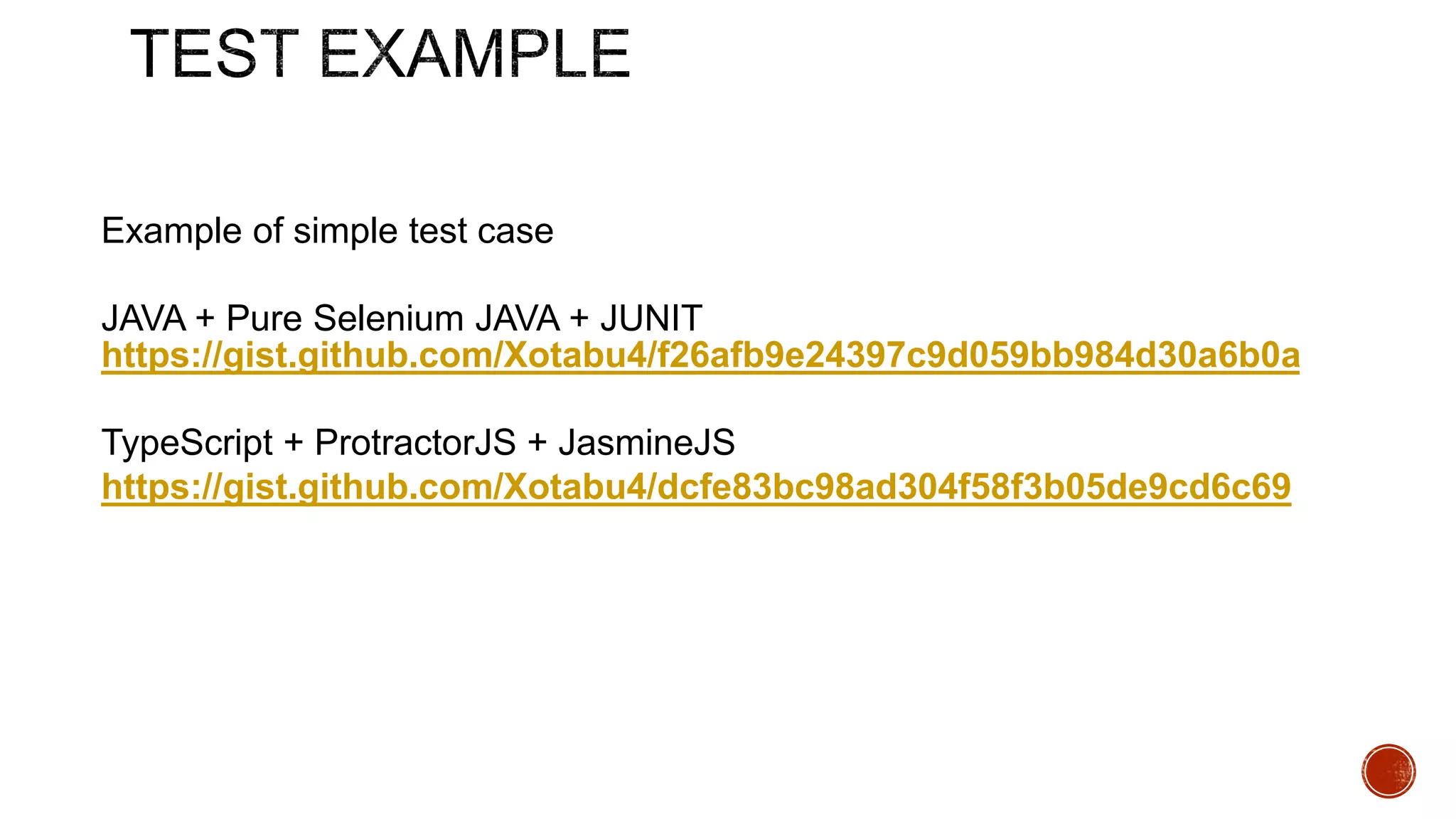

22. https://gist.github.com/Xotabu4/f26afb9e24397c9d059bb984d30a6b0a
Example of simple test case
JAVA + Pure Selenium JAVA + JUNIT
TypeScript + ProtractorJS + JasmineJS
https://gist.github.com/Xotabu4/dcfe83bc98ad304f58f3b05de9cd6c69

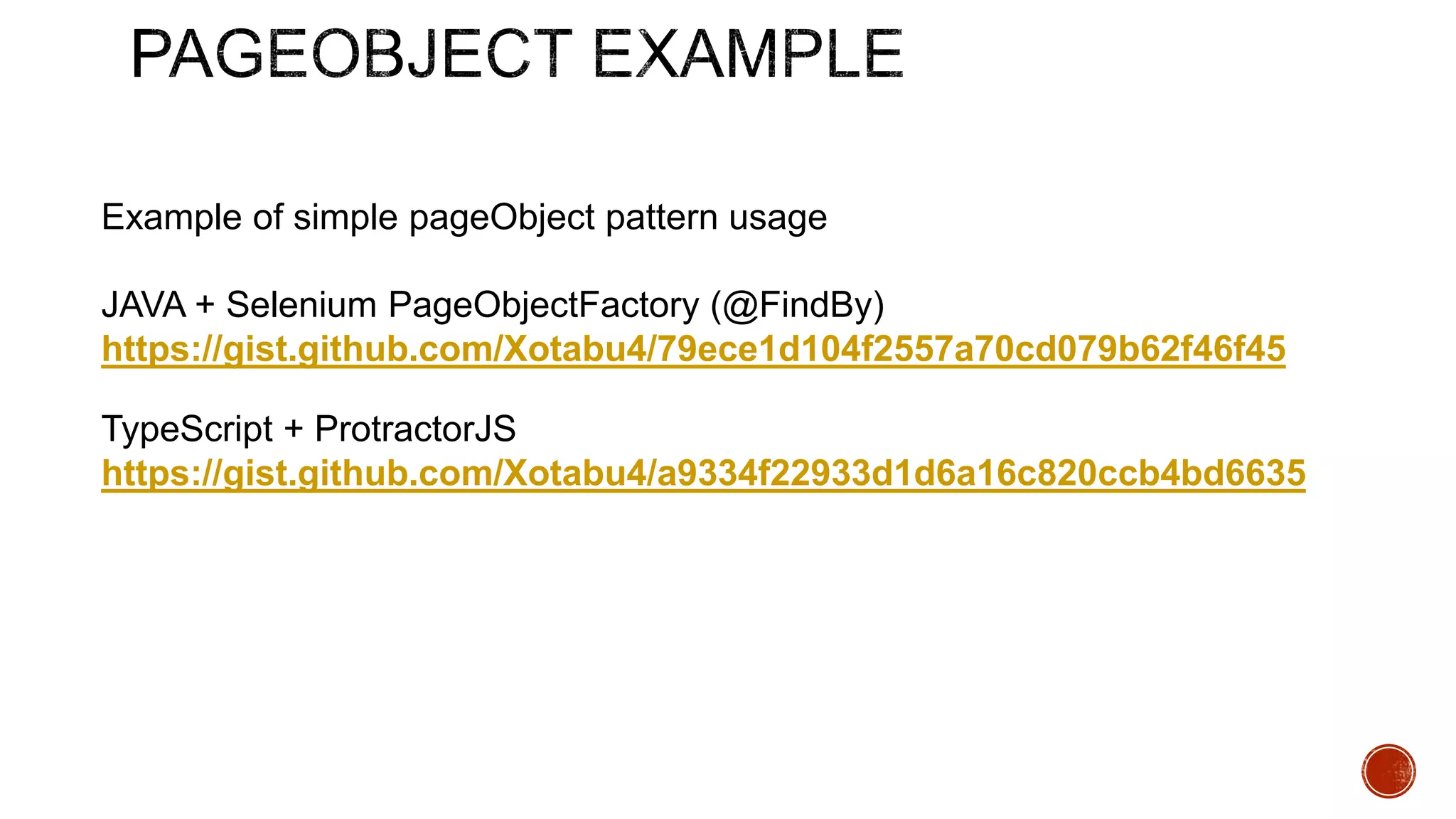

23. https://gist.github.com/Xotabu4/79ece1d104f2557a70cd079b62f46f45
Example of simple pageObject pattern usage
JAVA + Selenium PageObjectFactory (@FindBy)
TypeScript + ProtractorJS
https://gist.github.com/Xotabu4/a9334f22933d1d6a16c820ccb4bd6635

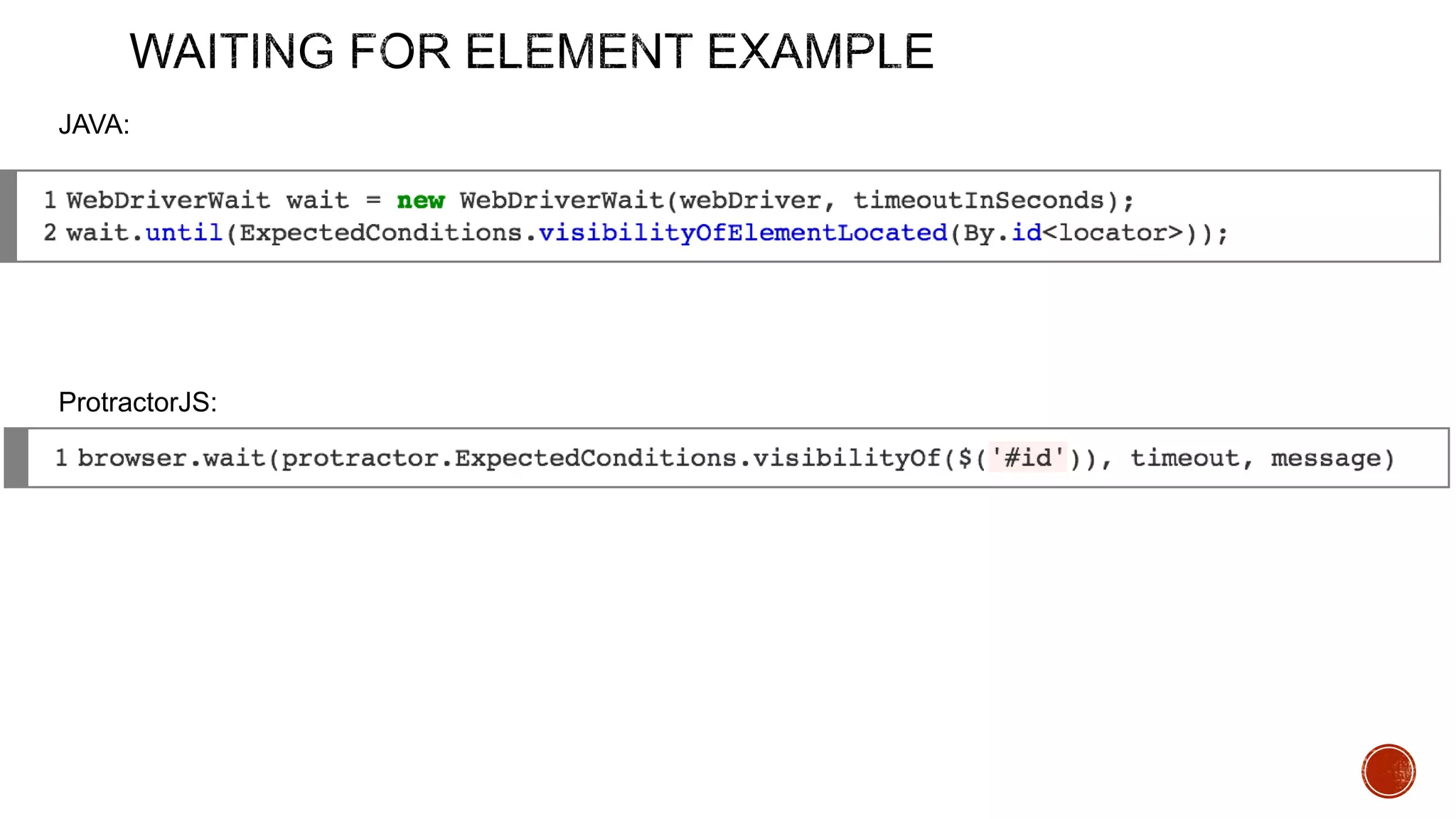

24. JAVA:
ProtractorJS:

25. And useful links:
 Protractor site: http://www.protractortest.org
 Promises, WebDriver Control Flow documentation: http://seleniumhq.github.io/selenium/docs/api/javascript/module/selenium-
webdriver/lib/promise.html
 Gitter chat: https://gitter.im/angular/protractor
 StackOverflow(top questions): http://stackoverflow.com/questions/tagged/protractor?sort=votes&pageSize=20
 GitHub: https://github.com/angular/protractor
 TypeScript documentation: https://www.typescriptlang.org/docs/tutorial.html
 ES6 features: http://es6-features.org/
 Protractor TypeScript example: https://github.com/angular/protractor/tree/master/exampleTypescript
OLEKSANDR KHOTEMSKYI
https://xotabu4.github.io/website 2016
