Project Reactor Now and Tomorrow
- 1. © Copyright 2017Pivotal Software, Inc. All rights Reserved. Version 1.0 Stéphane MALDINI Simon BASLÉ Project Reactor Now & Tomorrow SpringOne Platform 2017
- 2. Stéphane Maldini Senior ProductManager & Lead Engineer Project Reactor, Pivotal & @smaldini Simon Baslé @simonbasle Staff Software Engineer Project Reactor, Pivotal
- 3.
- 4. Is this abig deal ? Spoiler: yes

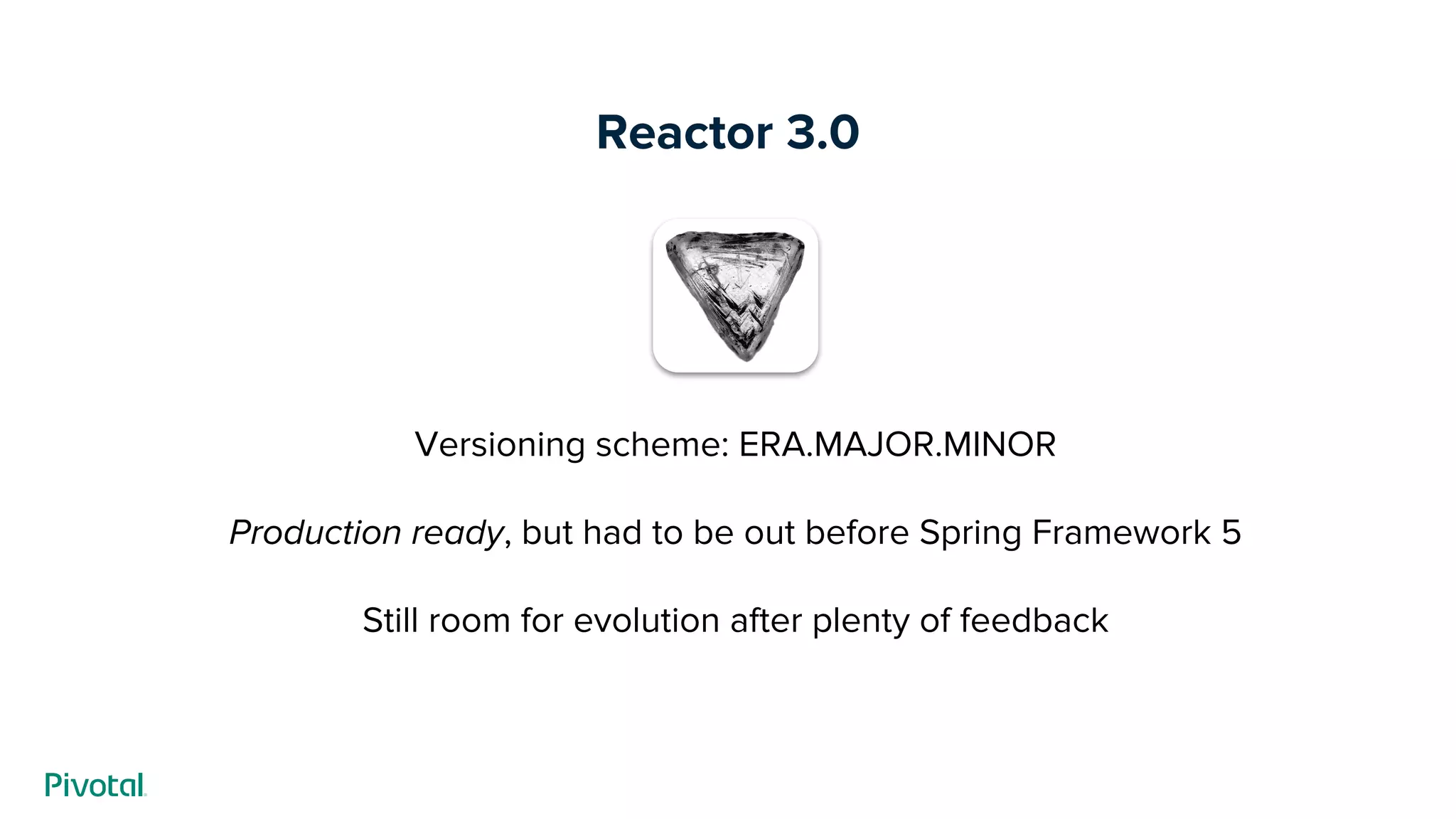

- 5. Reactor 3.0 Versioning scheme:ERA.MAJOR.MINOR Production ready, but had to be out before Spring Framework 5 Still room for evolution after plenty of feedback

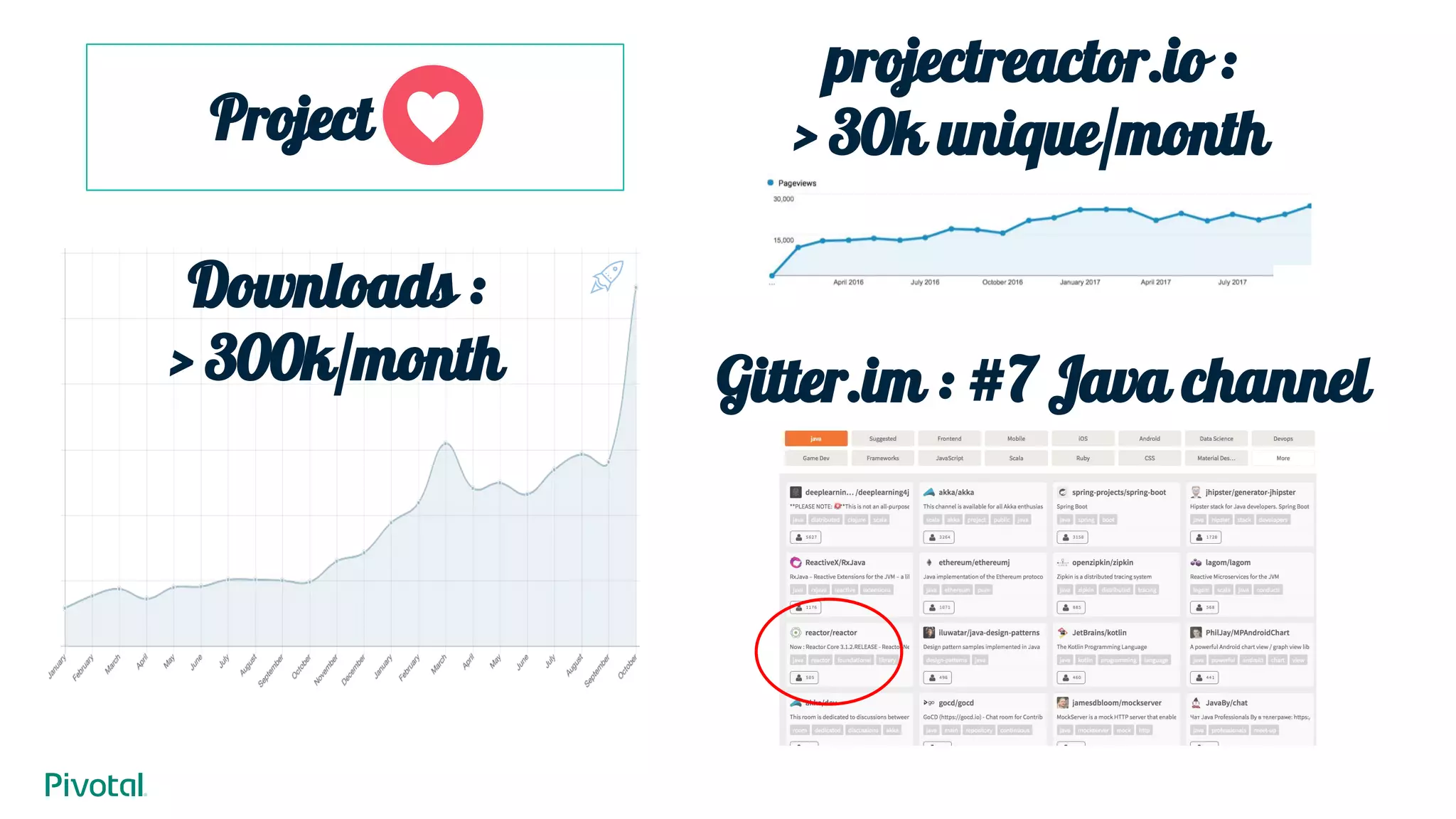

- 6. Project ____ Downloads : >300k/month projectreactor.io : > 30k unique/month Gitter.im : #7 Java channel
- 7. Project ____ 452 ClosedPull Requests 487 Closed Issues 11 Releases 53 Contributors 4 (+2) Core Committers
- 8. Shoutout to ourContributors
- 9. Why users wantReactor ?
- 10. Why users wantReactor ? Reactive Streams sample extract reactive-streams.org
- 11. Why users wantReactor ? Flux.range(from, count)
- 12. Do you speak ReactiveStreams ?
- 13. Reactor and ReactiveStreams
- 14.
- 15.
- 16.
- 17.

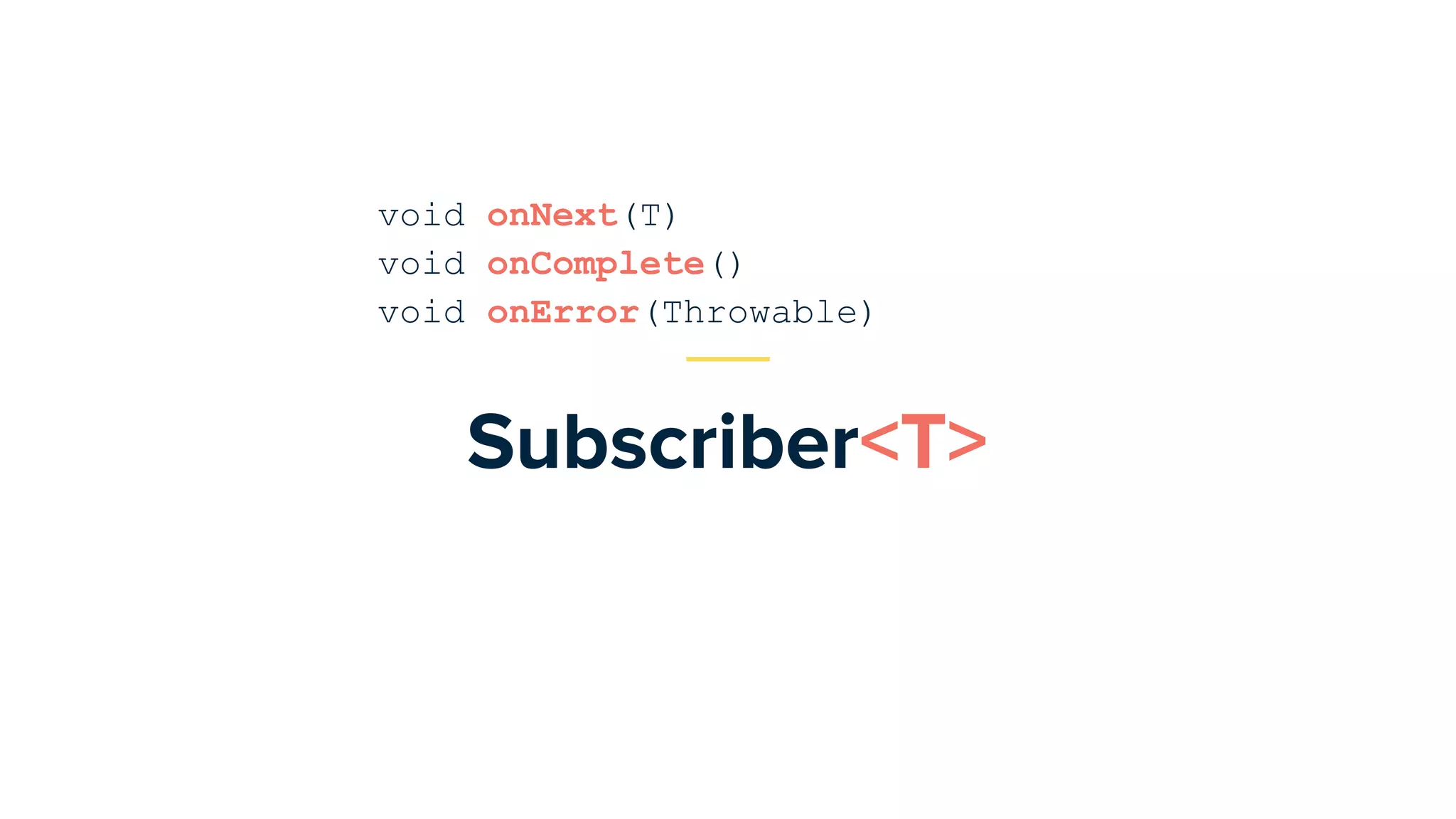

- 18. Subscriber<T> void onNext(T) void onComplete() voidonError(Throwable)
- 19.
- 20.

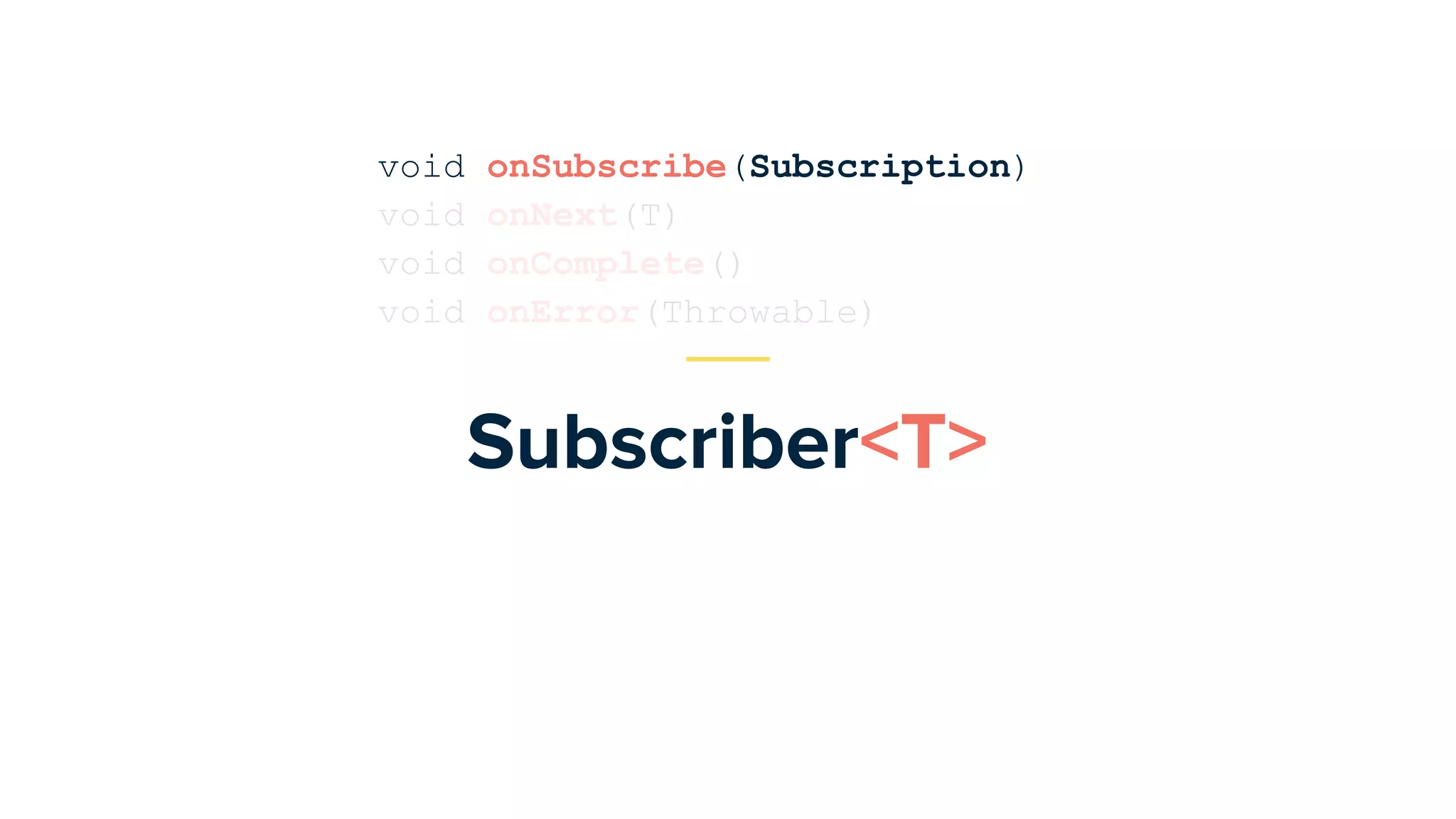

- 21. Subscriber<T> void onSubscribe(Subscription) void onNext(T) voidonComplete() void onError(Throwable)
- 22.
- 23.
- 25.

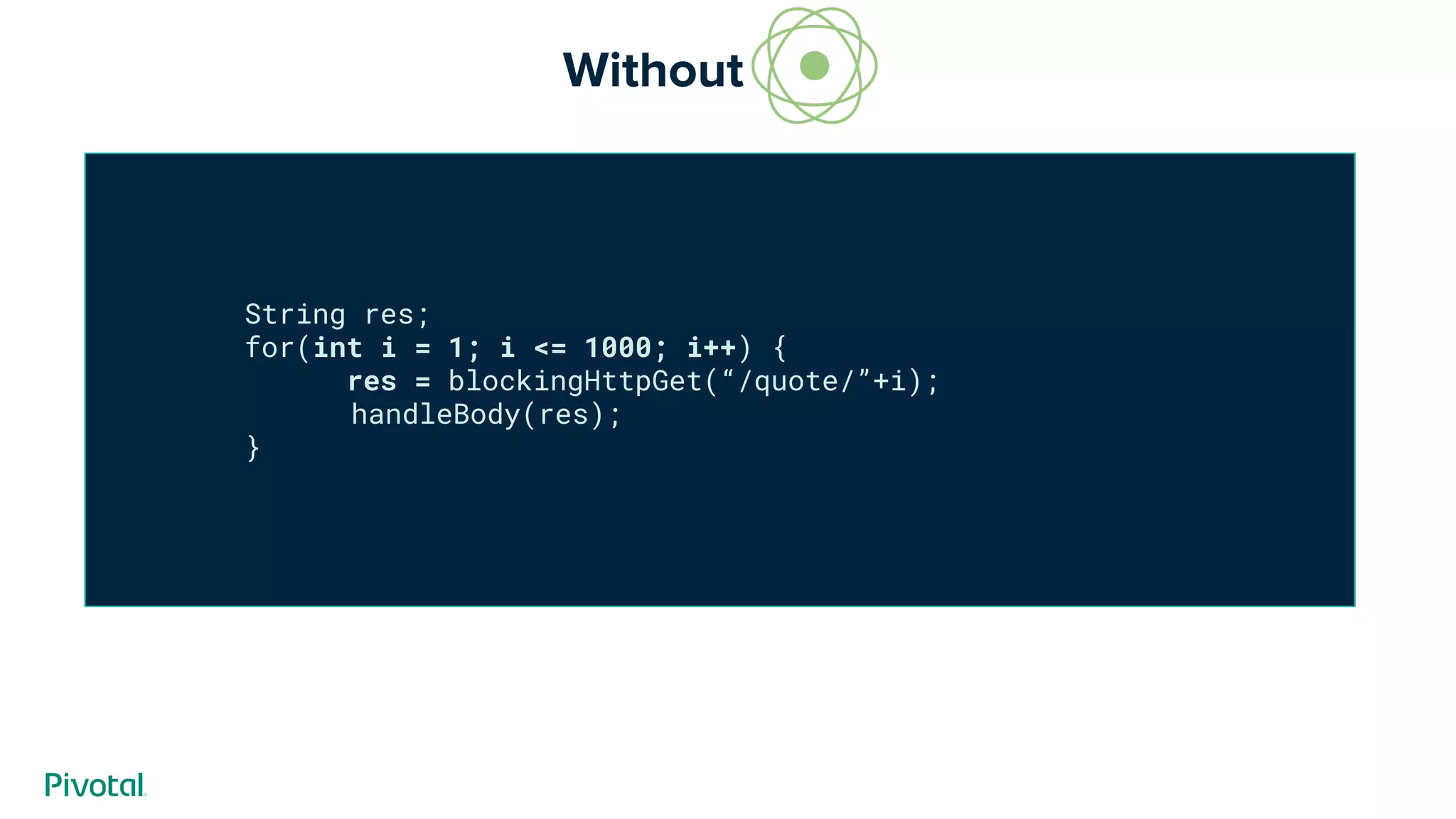

- 27. String res; for(int i= 1; i <= 1000; i++) { res = blockingHttpGet(“/quote/”+i); handleBody(res); } Without --------

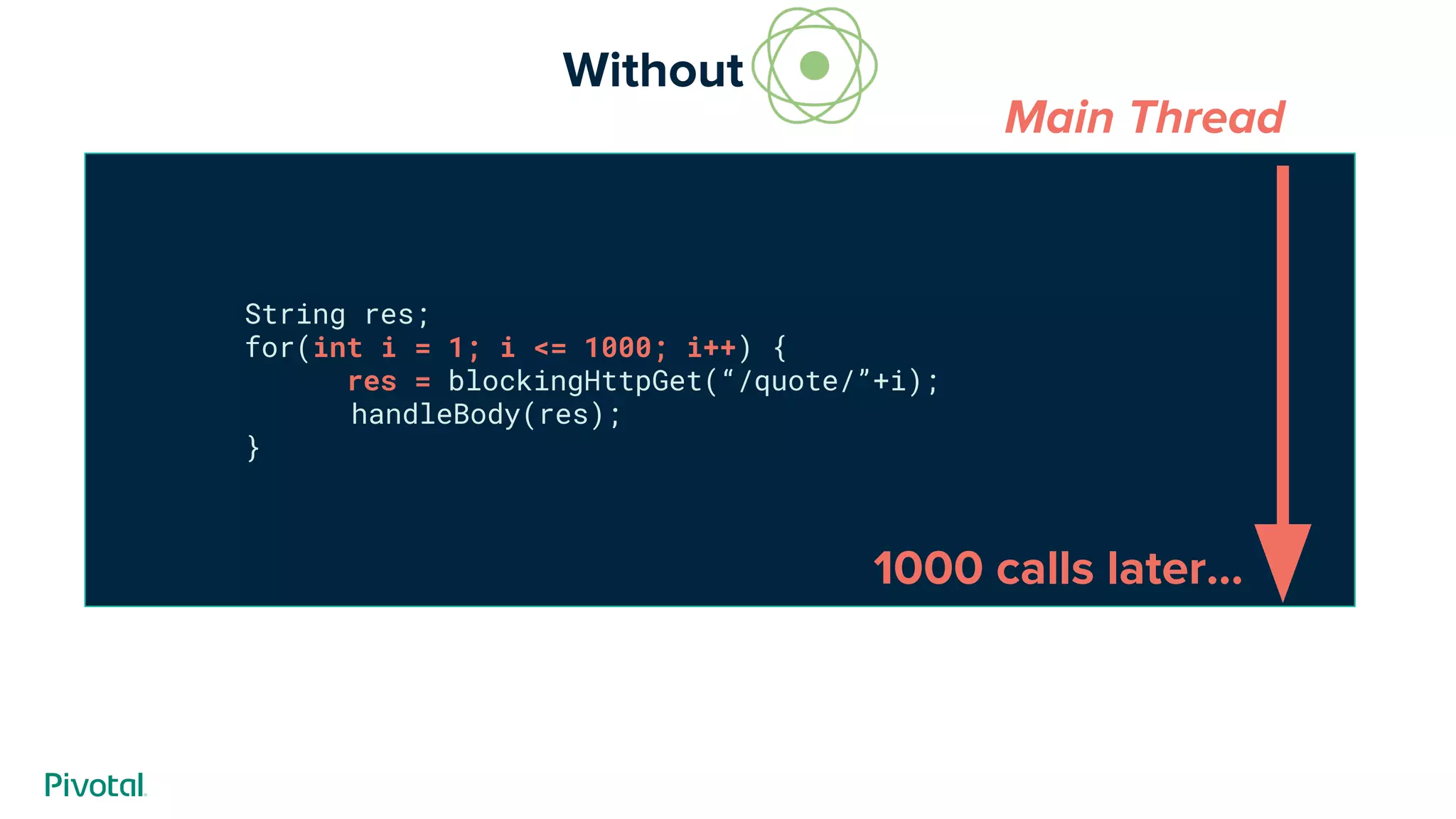

- 28. String res; for(int i= 1; i <= 1000; i++) { res = blockingHttpGet(“/quote/”+i); handleBody(res); } 1000 calls later... Main Thread Without --------

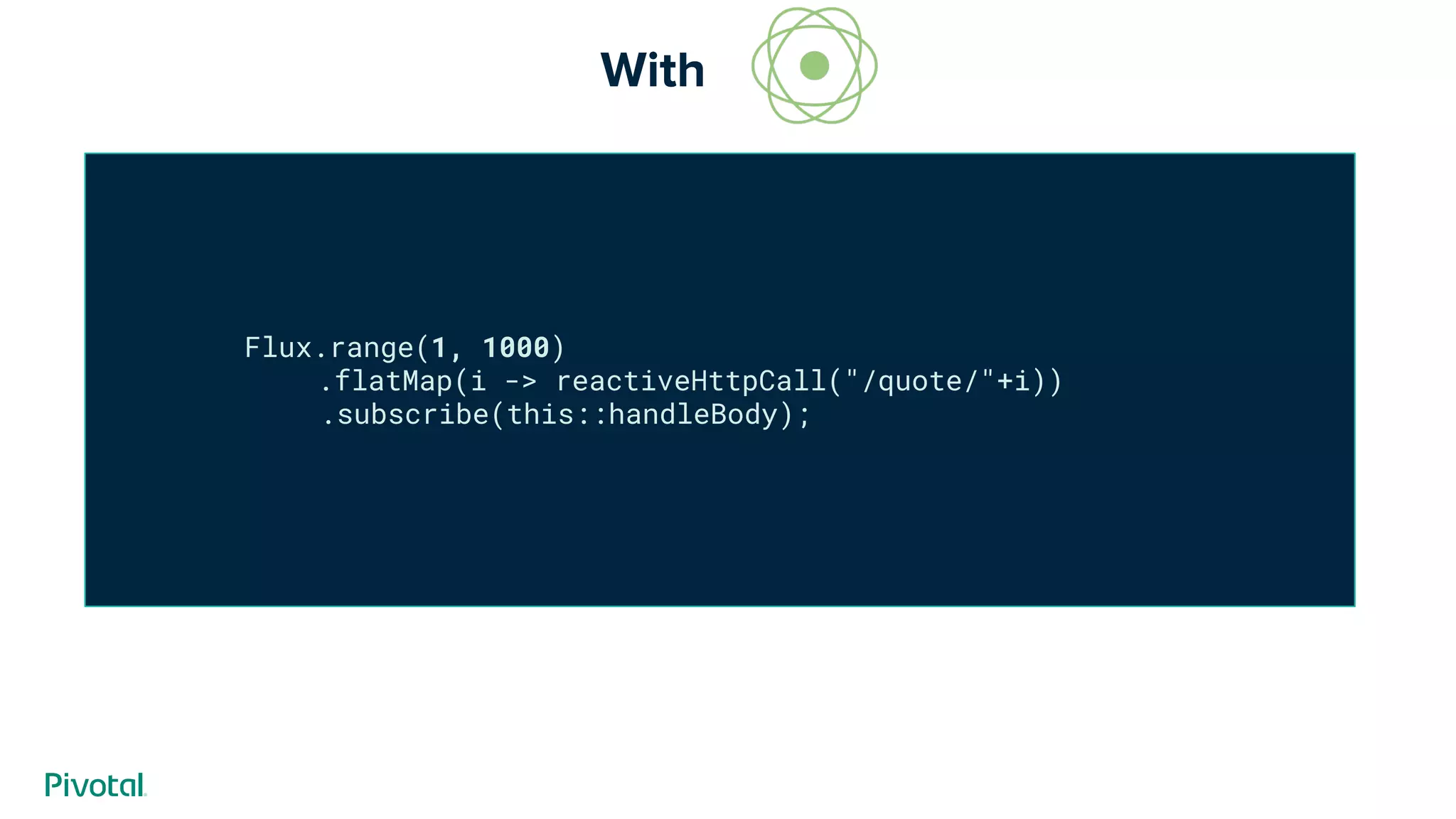

- 29. Flux.range(1, 1000) .flatMap(i ->reactiveHttpCall("/quote/"+i)) .subscribe(this::handleBody); With --------

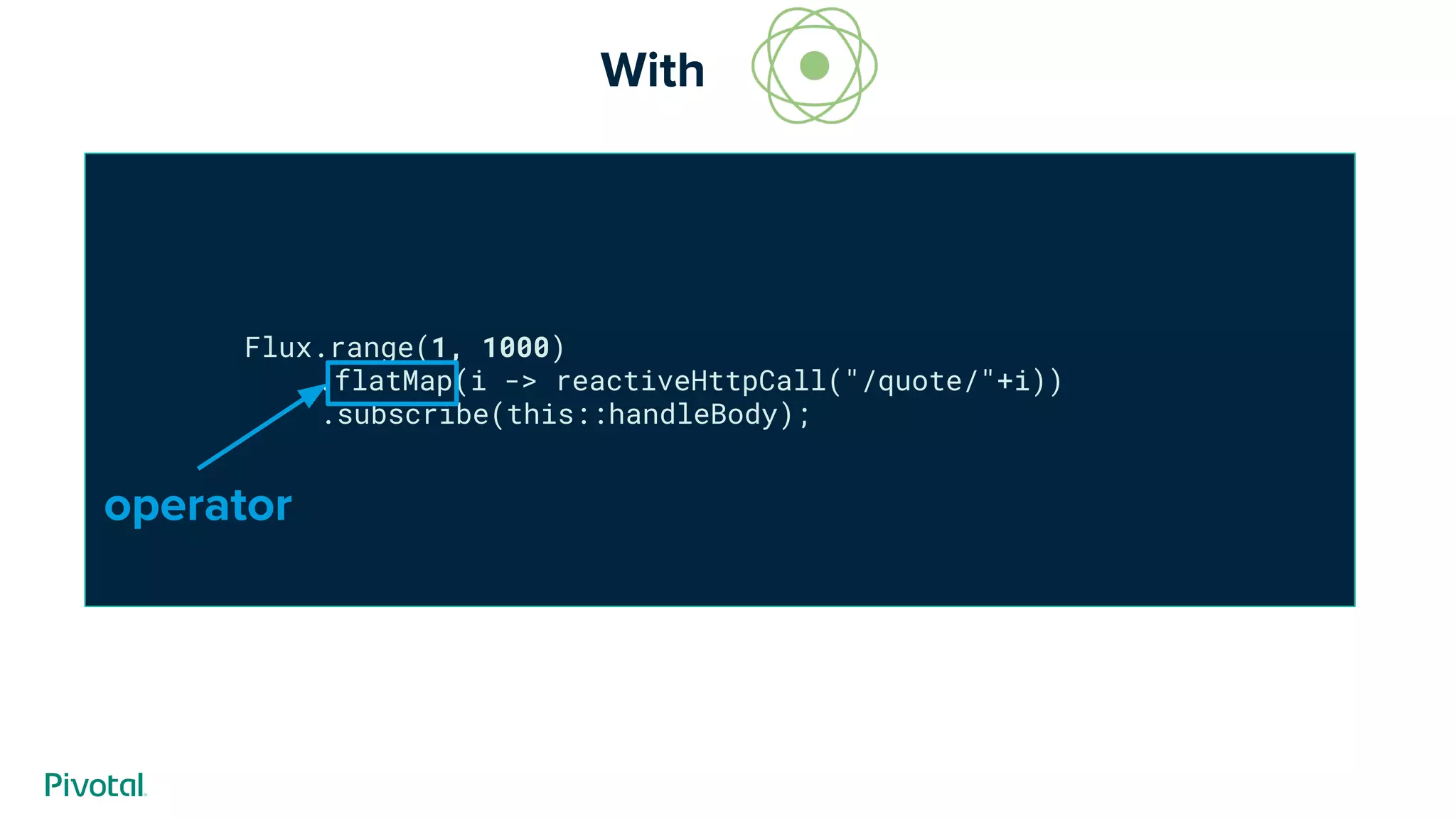

- 30. Flux.range(1, 1000) .flatMap(i ->reactiveHttpCall("/quote/"+i)) .subscribe(this::handleBody); operator With --------

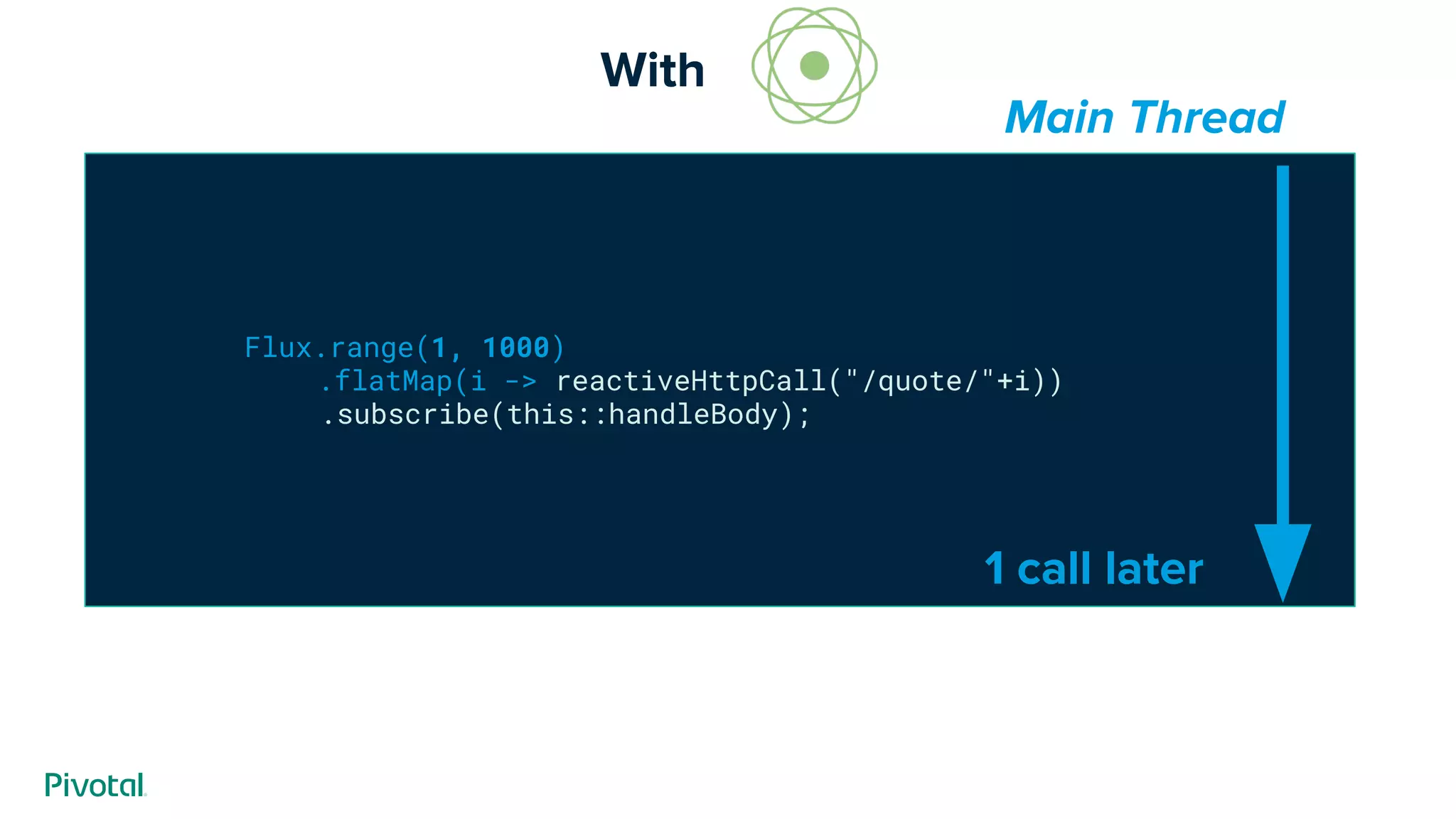

- 31. Flux.range(1, 1000) .flatMap(i ->reactiveHttpCall("/quote/"+i)) .subscribe(this::handleBody); 1 call later Main Thread With --------

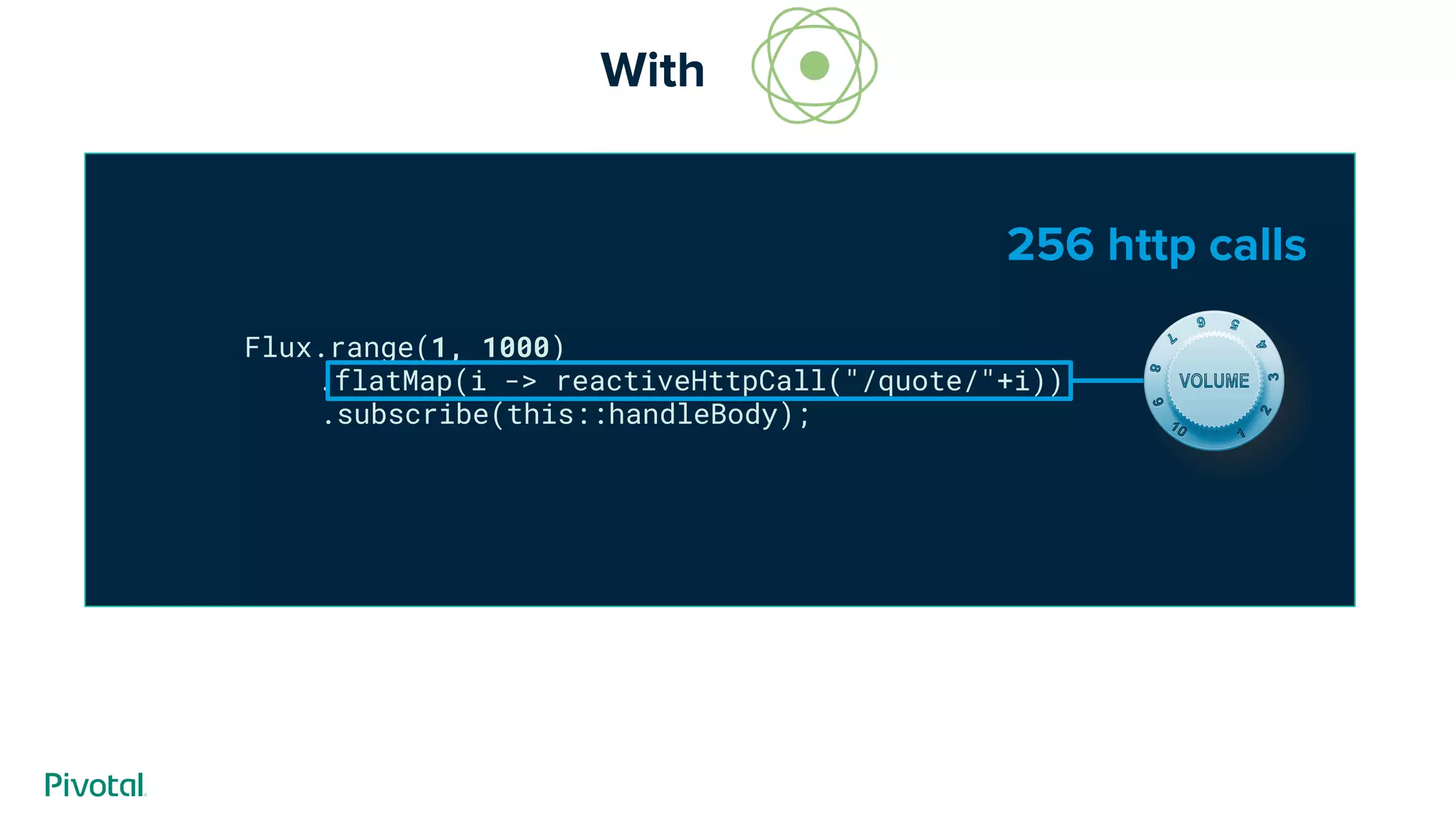

- 32. Flux.range(1, 1000) .flatMap(i ->reactiveHttpCall("/quote/"+i)) .subscribe(this::handleBody); 256 http calls With --------

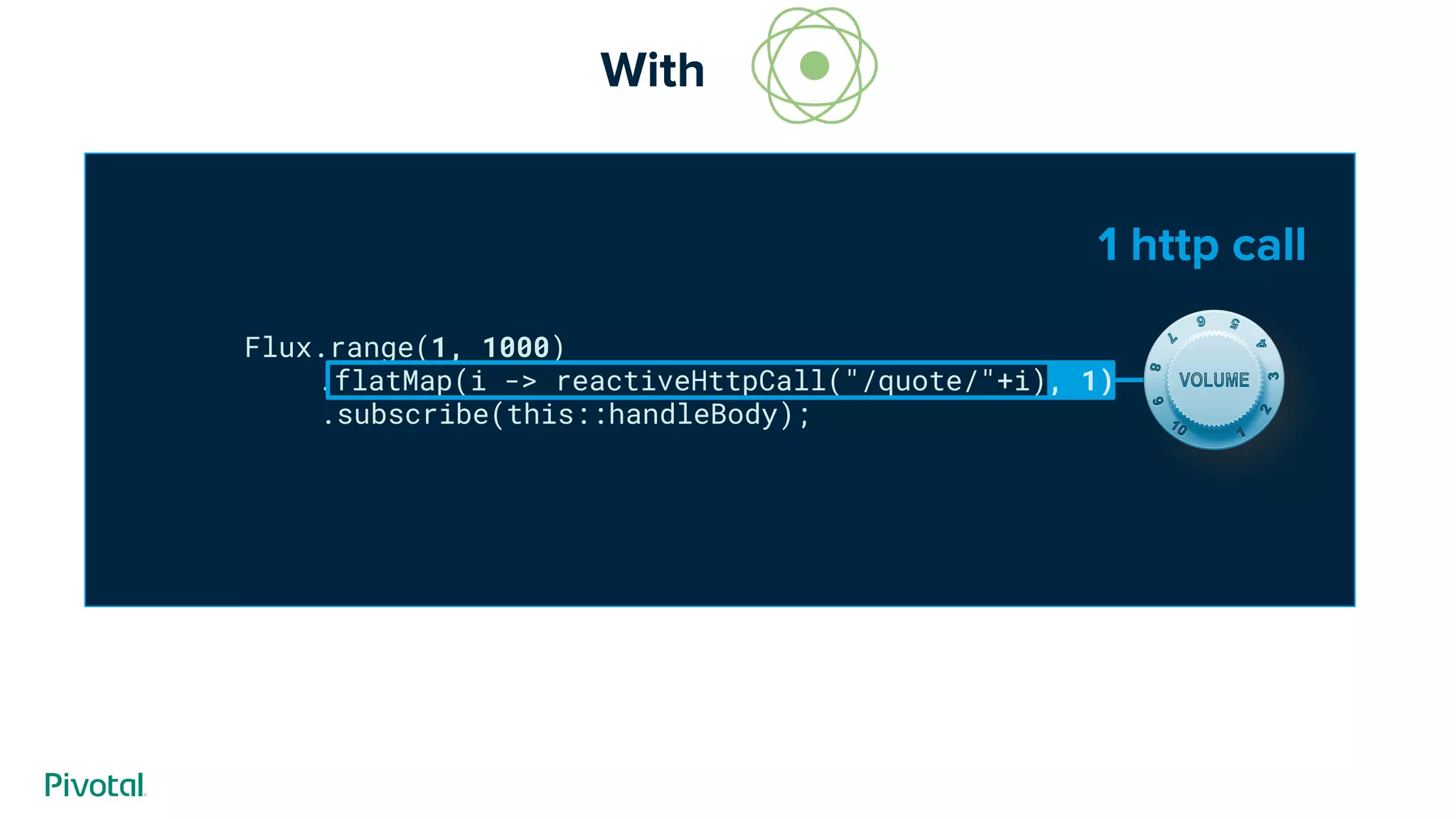

- 33. Flux.range(1, 1000) .flatMap(i ->reactiveHttpCall("/quote/"+i), 1) .subscribe(this::handleBody); With -------- 1 http call

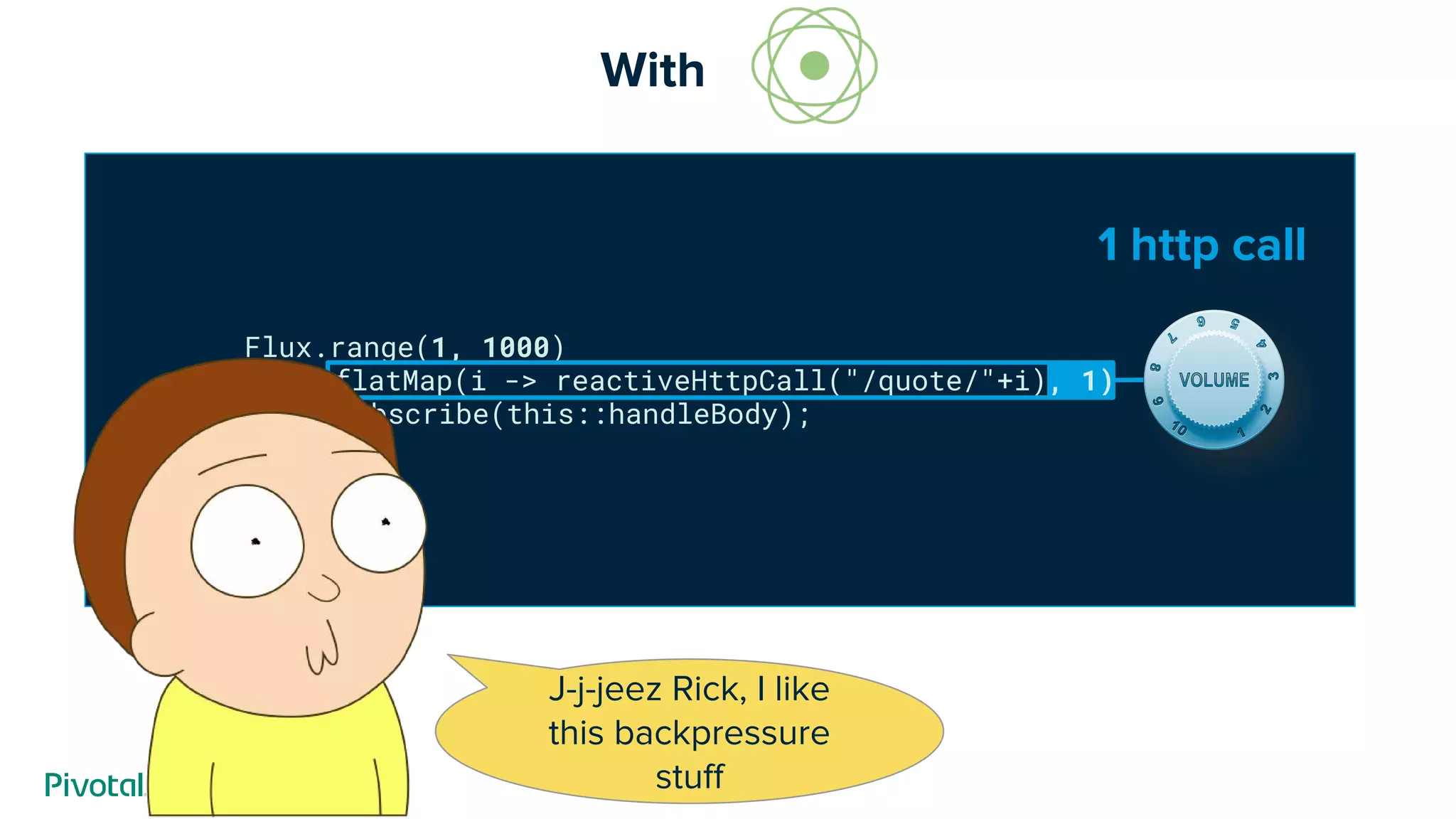

- 34. Flux.range(1, 1000) .flatMap(i ->reactiveHttpCall("/quote/"+i), 1) .subscribe(this::handleBody); With -------- J-j-jeez Rick, I like this backpressure stuff 1 http call
- 35. At every stage, Fluxand Mono are Publisher

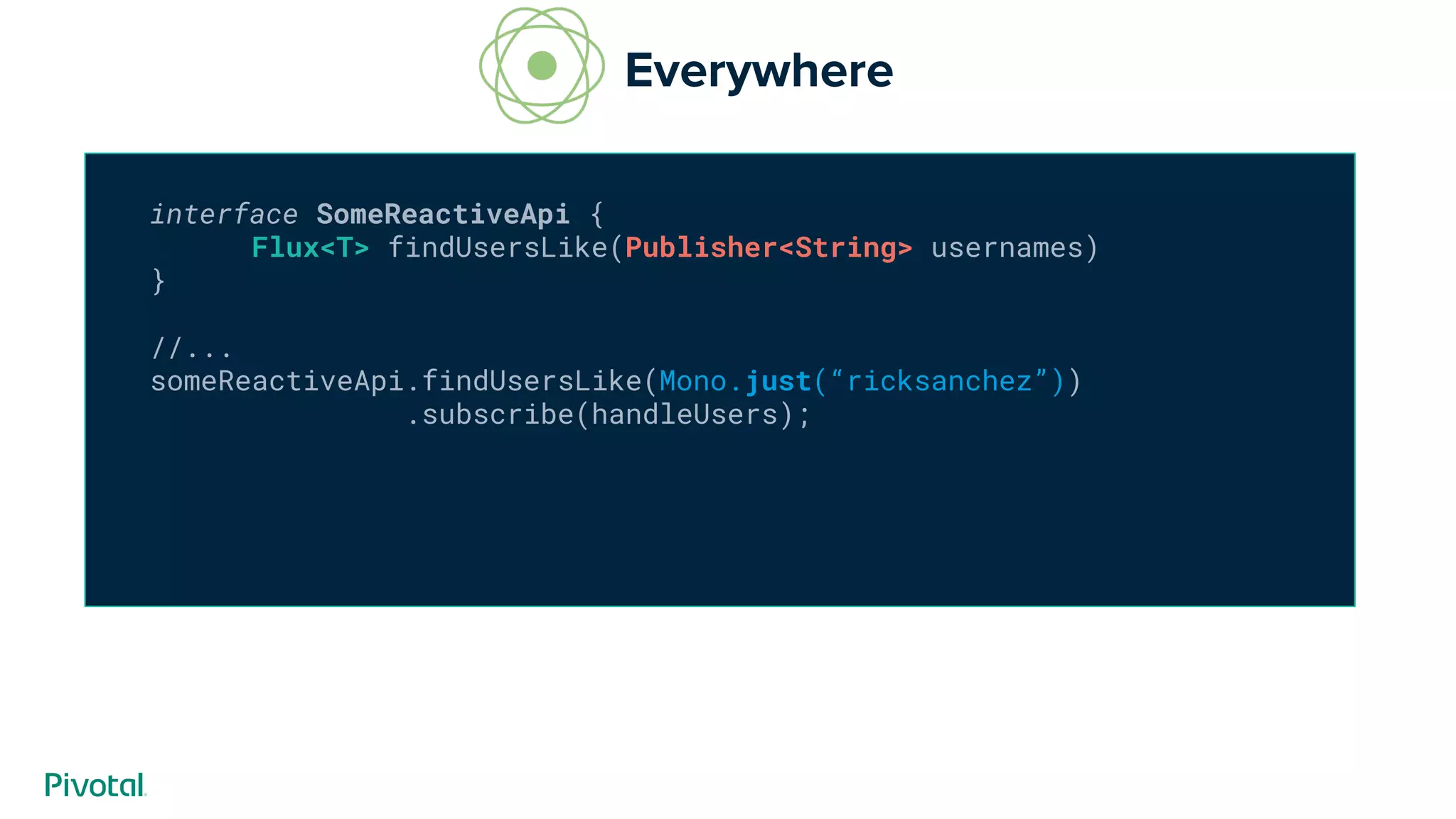

- 36. interface SomeReactiveApi { Flux<T>findUsersLike(Publisher<String> usernames) } //... someReactiveApi.findUsersLike(Mono.just(“ricksanchez”)) .subscribe(handleUsers); Everywhere

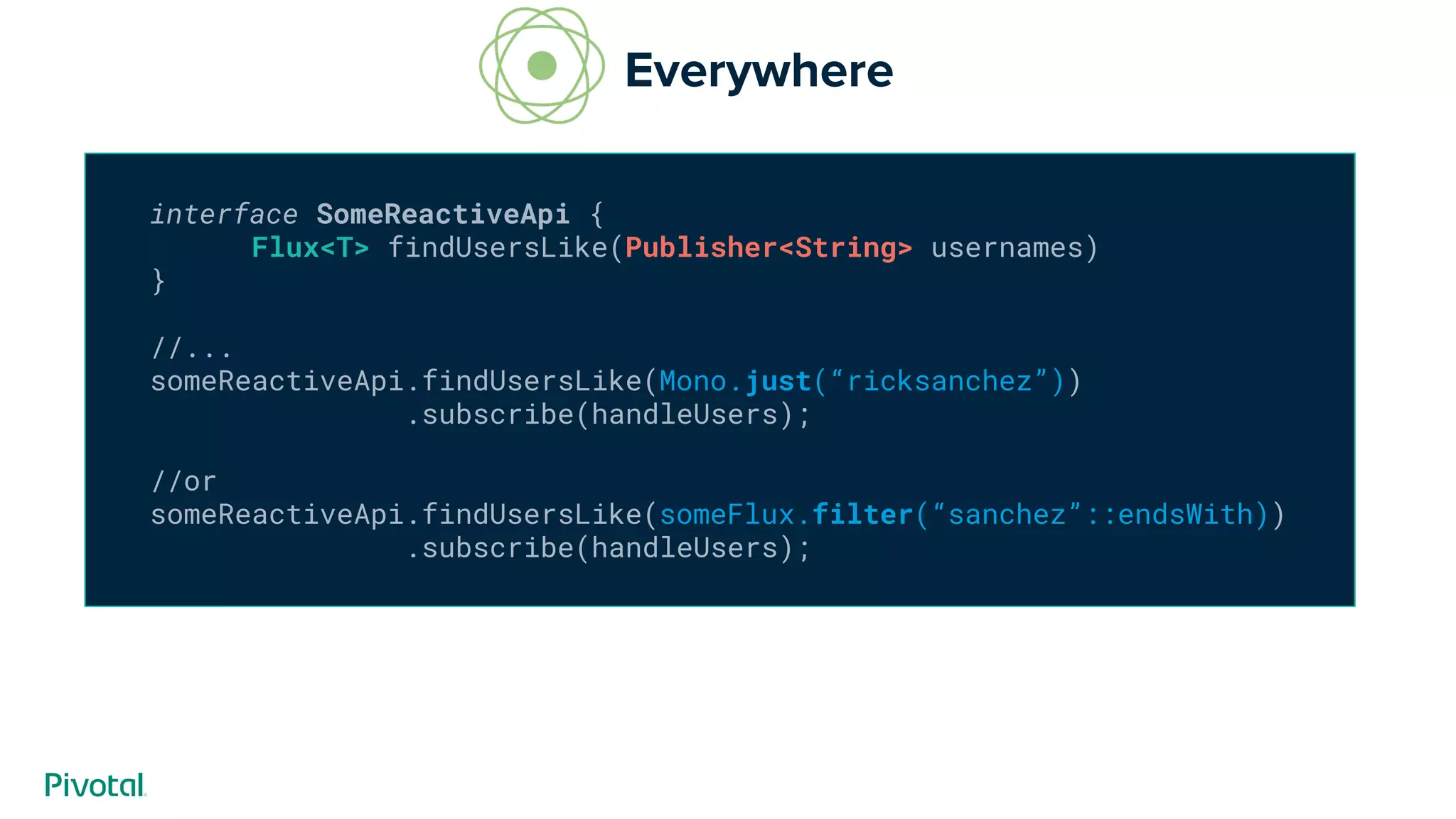

- 37. interface SomeReactiveApi { Flux<T>findUsersLike(Publisher<String> usernames) } //... someReactiveApi.findUsersLike(Mono.just(“ricksanchez”)) .subscribe(handleUsers); //or someReactiveApi.findUsersLike(someFlux.filter(“sanchez”::endsWith)) .subscribe(handleUsers); Everywhere

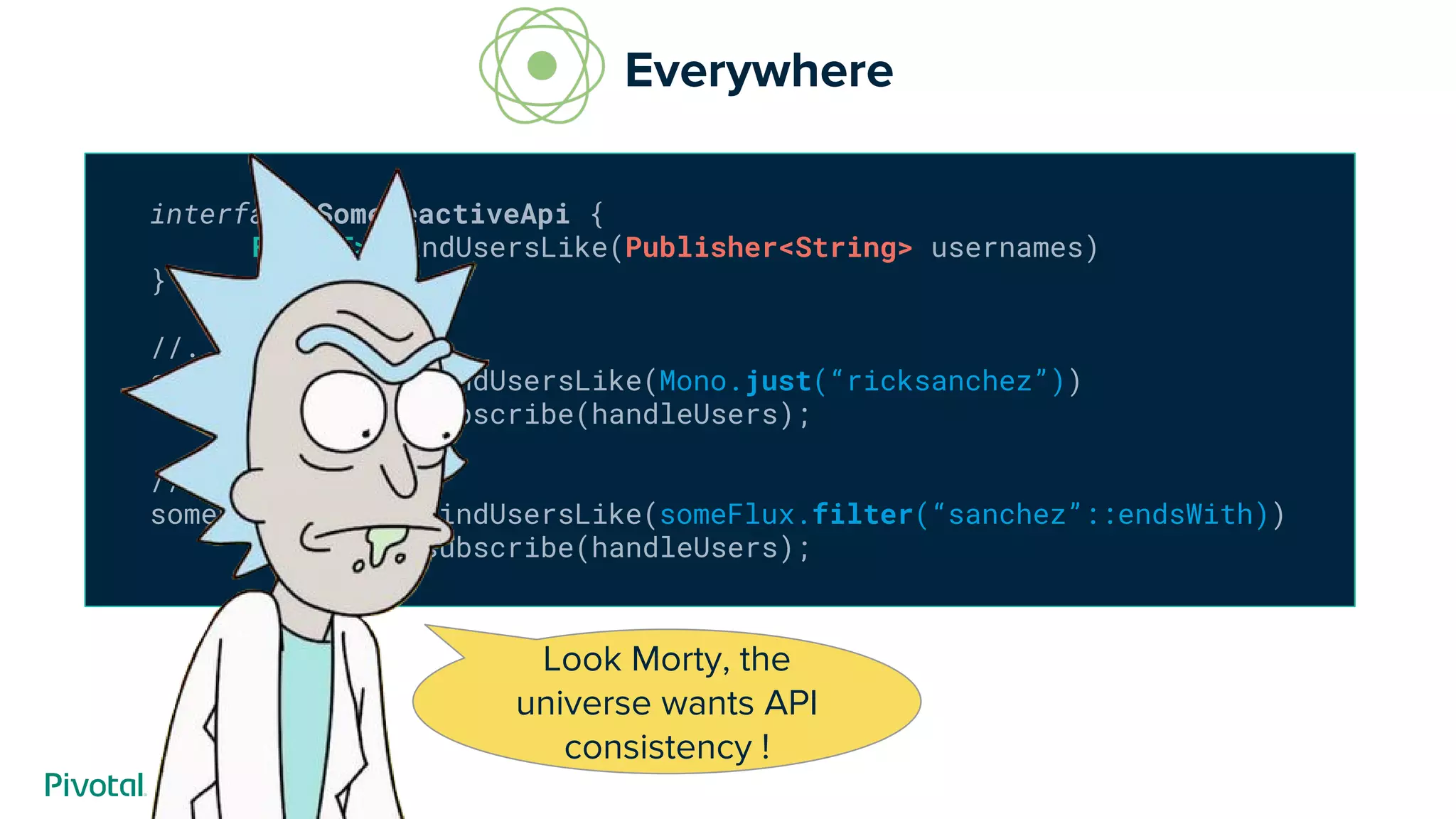

- 38. interface SomeReactiveApi { Flux<T>findUsersLike(Publisher<String> usernames) } //... someReactiveApi.findUsersLike(Mono.just(“ricksanchez”)) .subscribe(handleUsers); //or someReactiveApi.findUsersLike(someFlux.filter(“sanchez”::endsWith)) .subscribe(handleUsers); Everywhere Look Morty, the universe wants API consistency !
- 39. Reactor Core 3.1 Hot fromthe oven
- 40.
- 41. 3.1 is apolished programming experience
- 42. Flux Mono Aligning APIsbetween Flux and Mono
- 43.
- 44.
- 45.
- 47.
- 48. “Reactor has matured, layingout the foundations for frameworks and users to integrate their context into the Core .” Enterprise Ready: Hooks & Customization, Matured API
- 49.

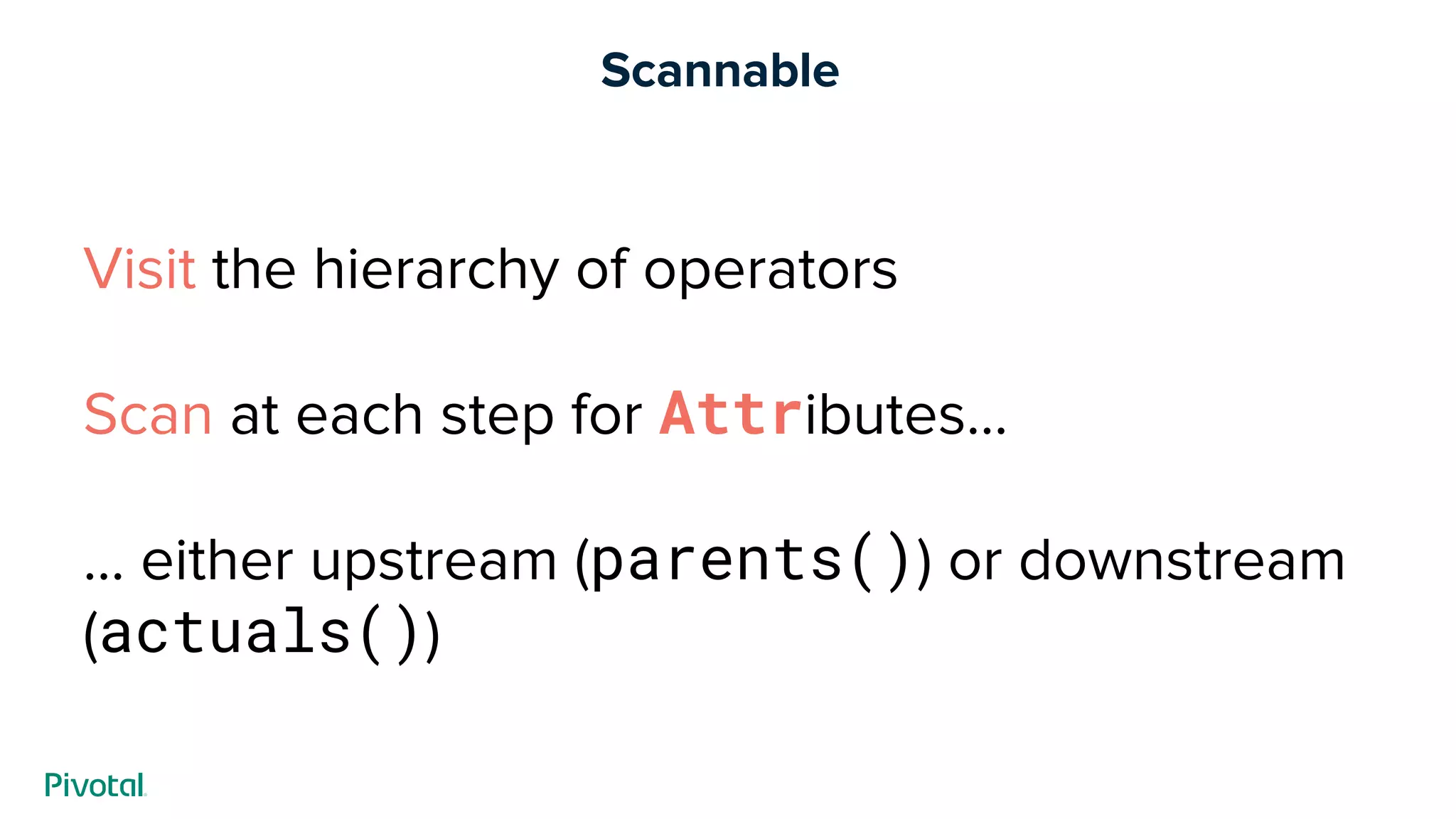

- 50. Scannable Visit the hierarchyof operators Scan at each step for Attributes... … either upstream (parents()) or downstream (actuals())

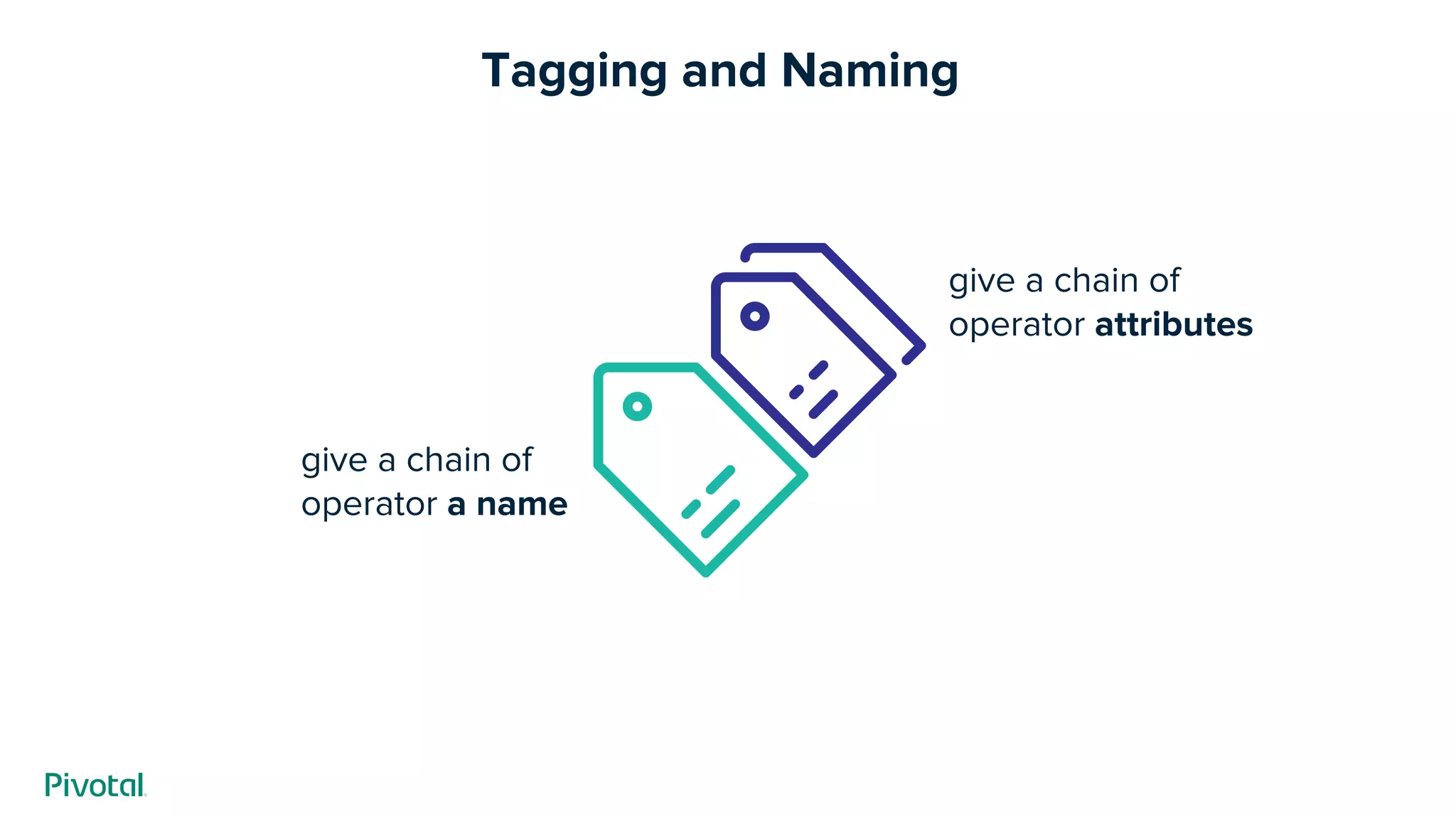

- 51. Tagging and Naming givea chain of operator a name give a chain of operator attributes

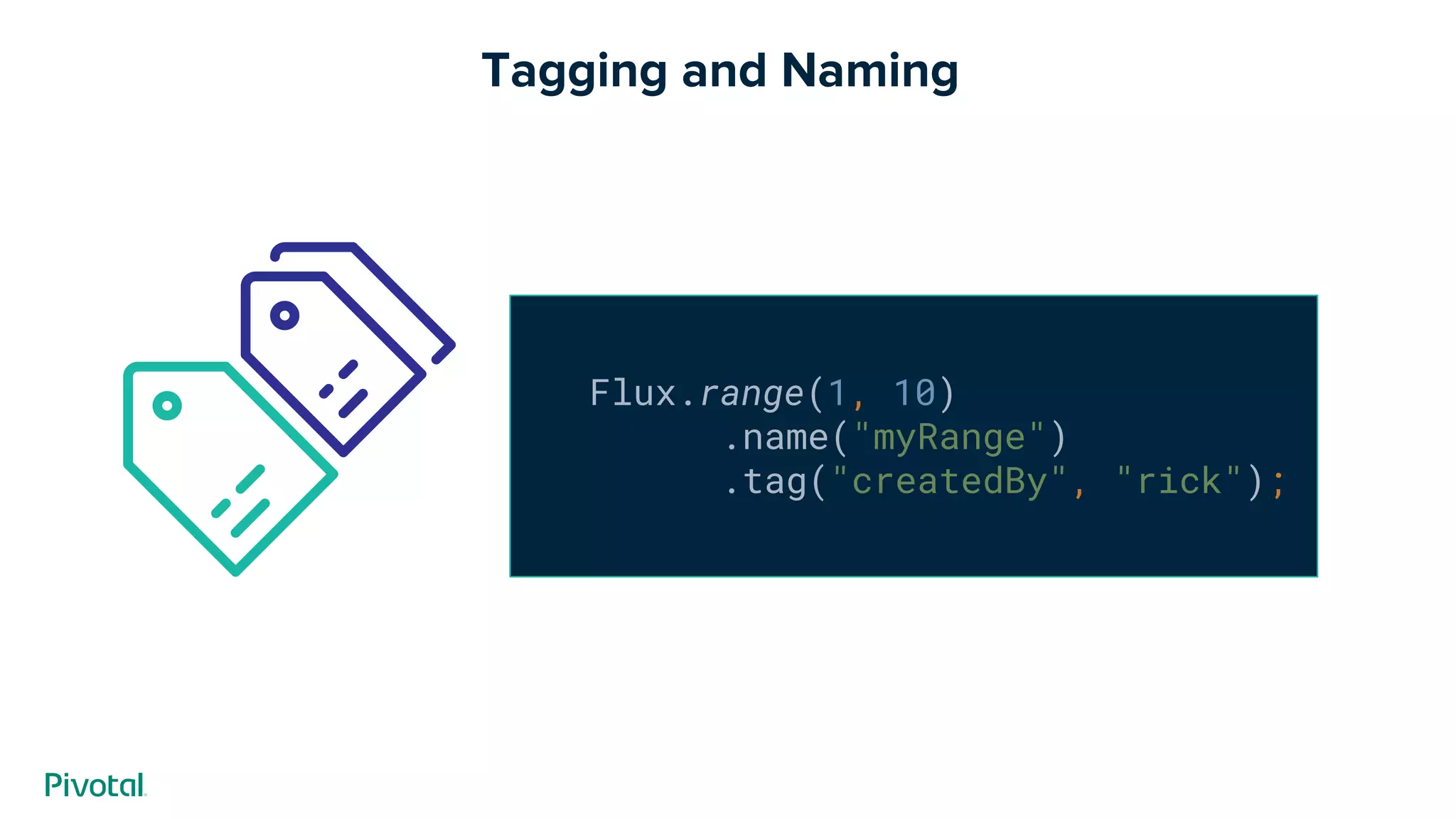

- 52. Tagging and Naming Flux.range(1,10) .name("myRange") .tag("createdBy", "rick");
- 53. Hooks On last operator instantiationbefore subscribe On every operator instantiation

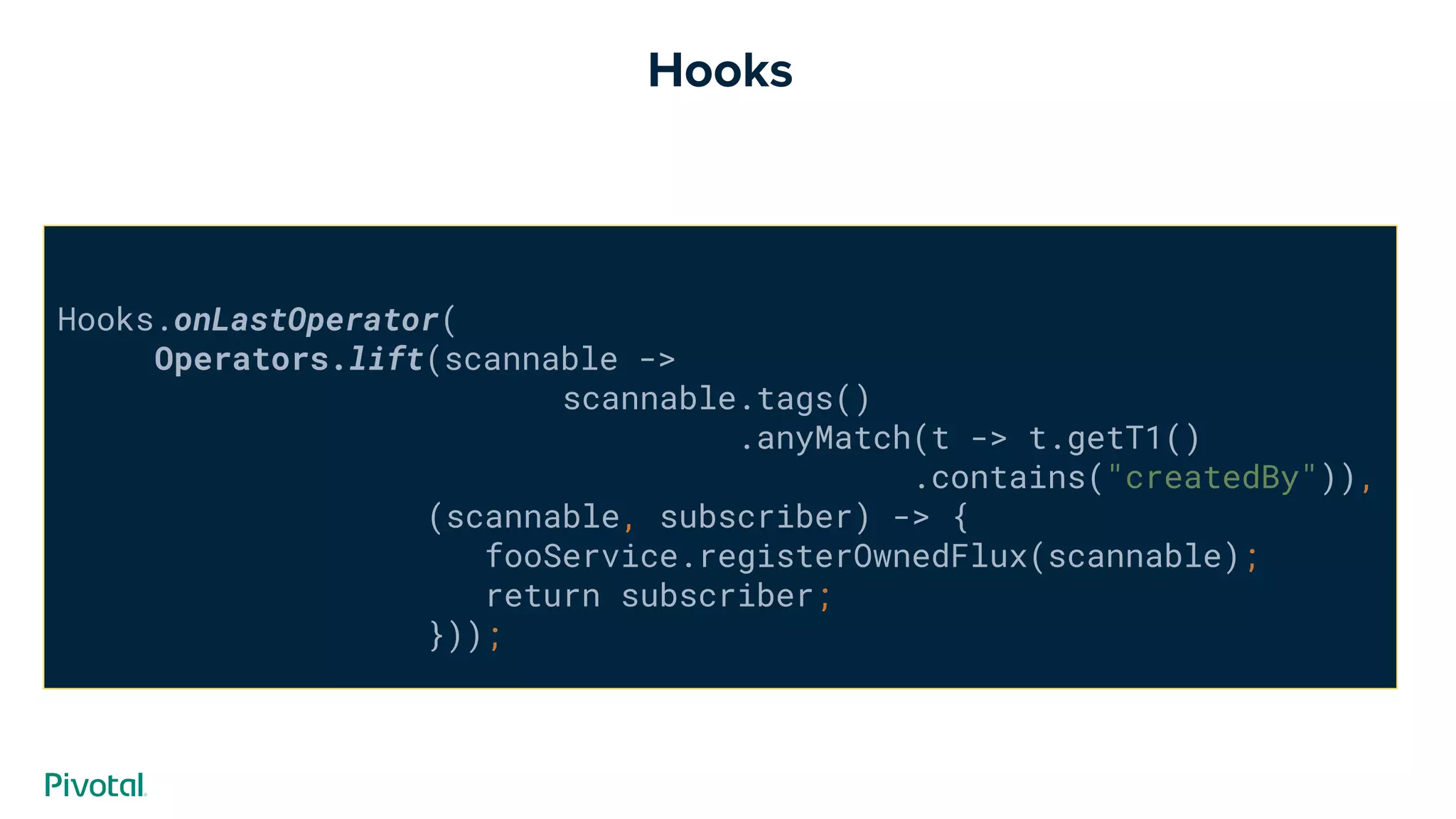

- 54. Hooks.onLastOperator( Operators.lift(scannable -> scannable.tags() .anyMatch(t ->t.getT1() .contains("createdBy")), (scannable, subscriber) -> { fooService.registerOwnedFlux(scannable); return subscriber; })); Hooks

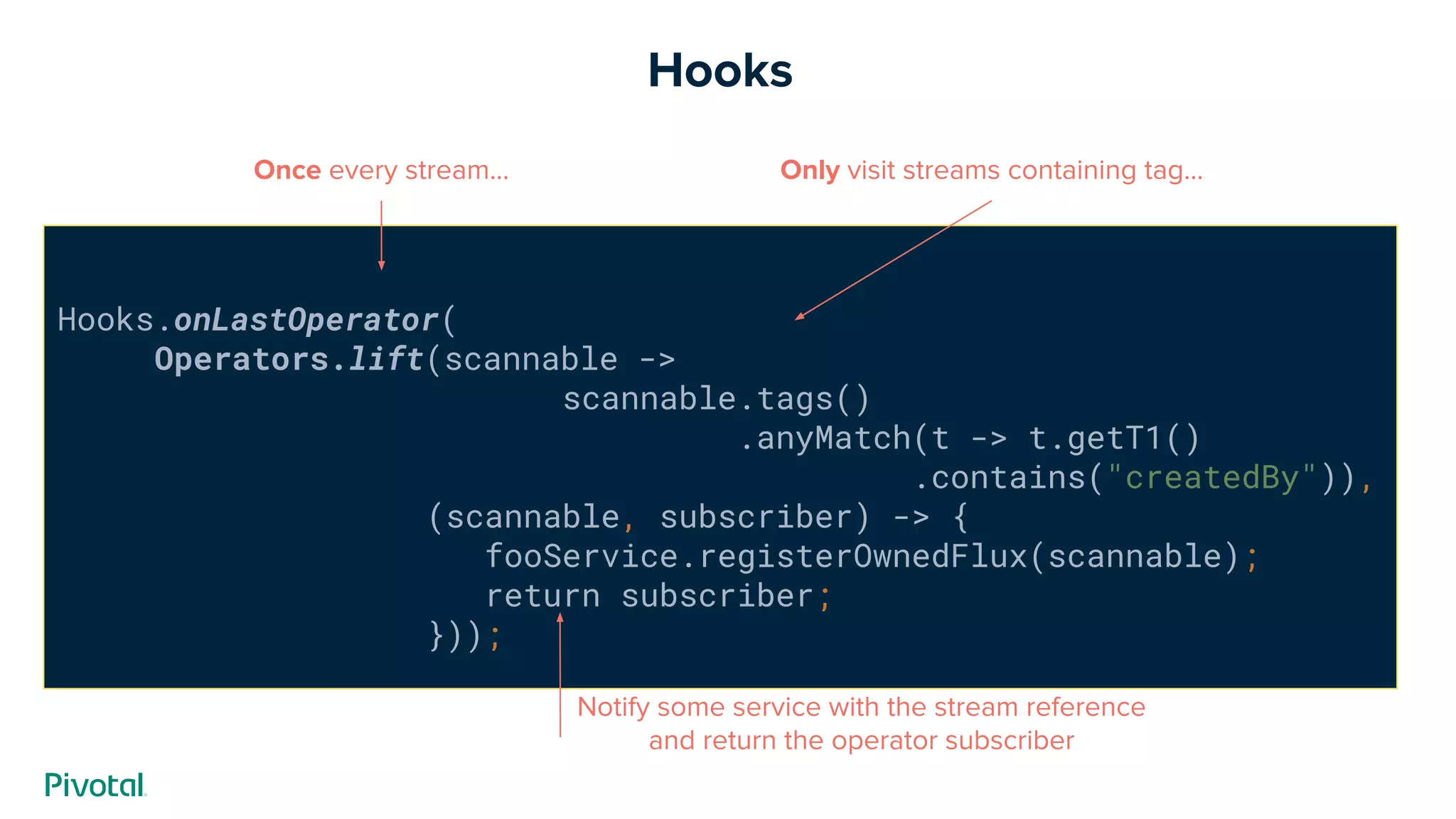

- 55. Hooks.onLastOperator( Operators.lift(scannable -> scannable.tags() .anyMatch(t ->t.getT1() .contains("createdBy")), (scannable, subscriber) -> { fooService.registerOwnedFlux(scannable); return subscriber; })); Hooks Once every stream... Only visit streams containing tag... Notify some service with the stream reference and return the operator subscriber

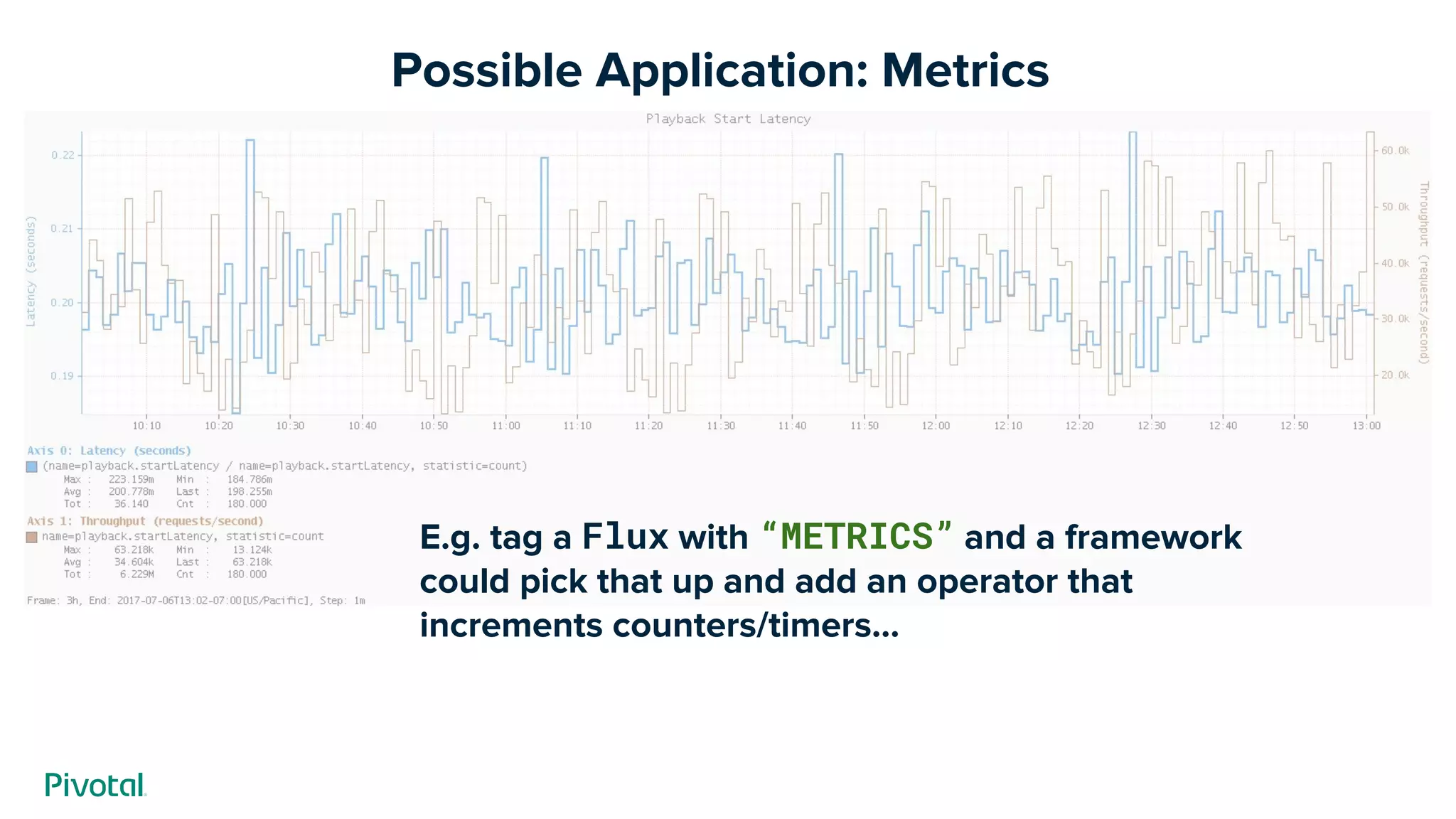

- 56. Possible Application: Metrics E.g.tag a Flux with “METRICS” and a framework could pick that up and add an operator that increments counters/timers...
- 57.

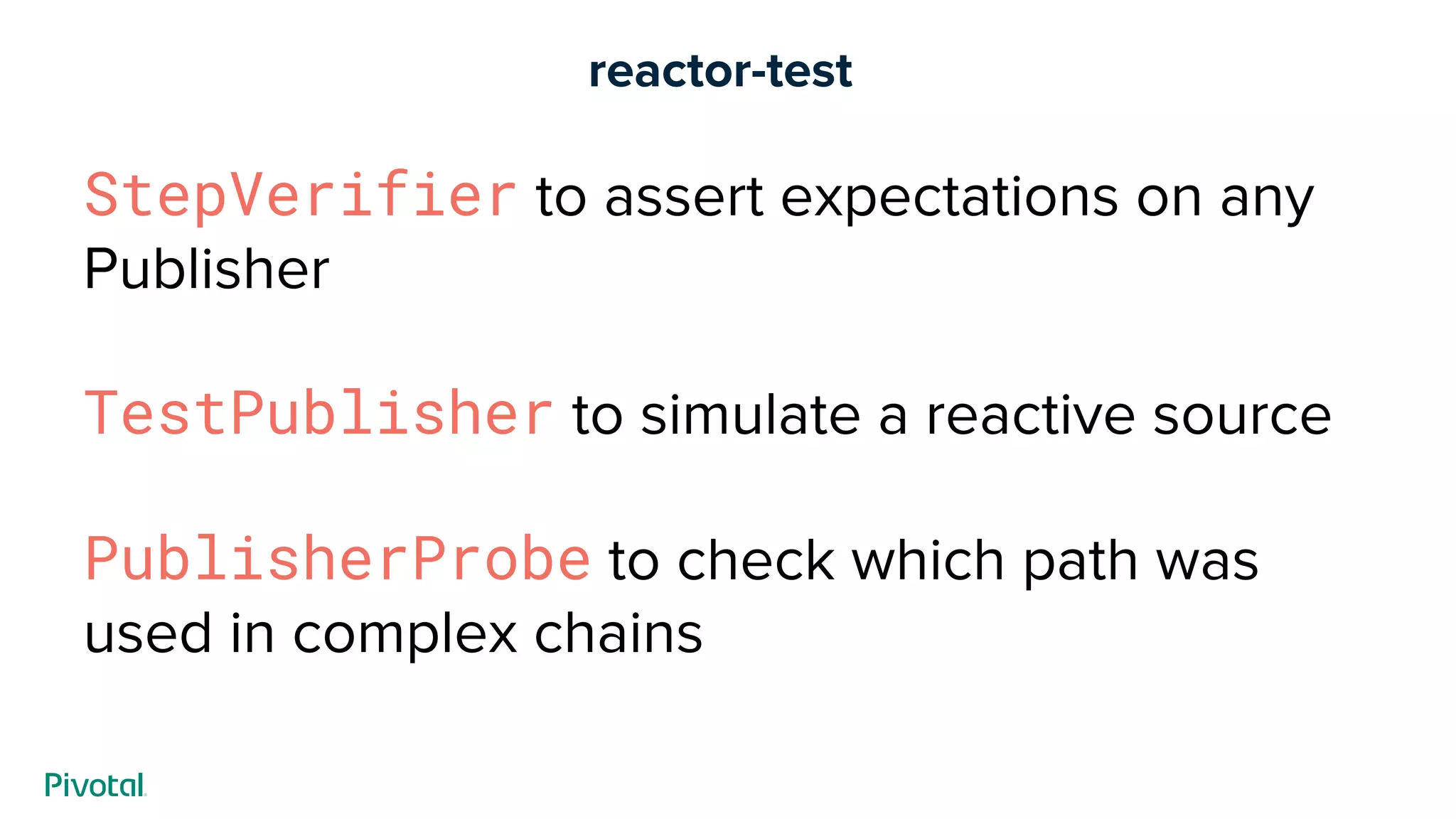

- 58. reactor-test StepVerifier to assertexpectations on any Publisher TestPublisher to simulate a reactive source PublisherProbe to check which path was used in complex chains

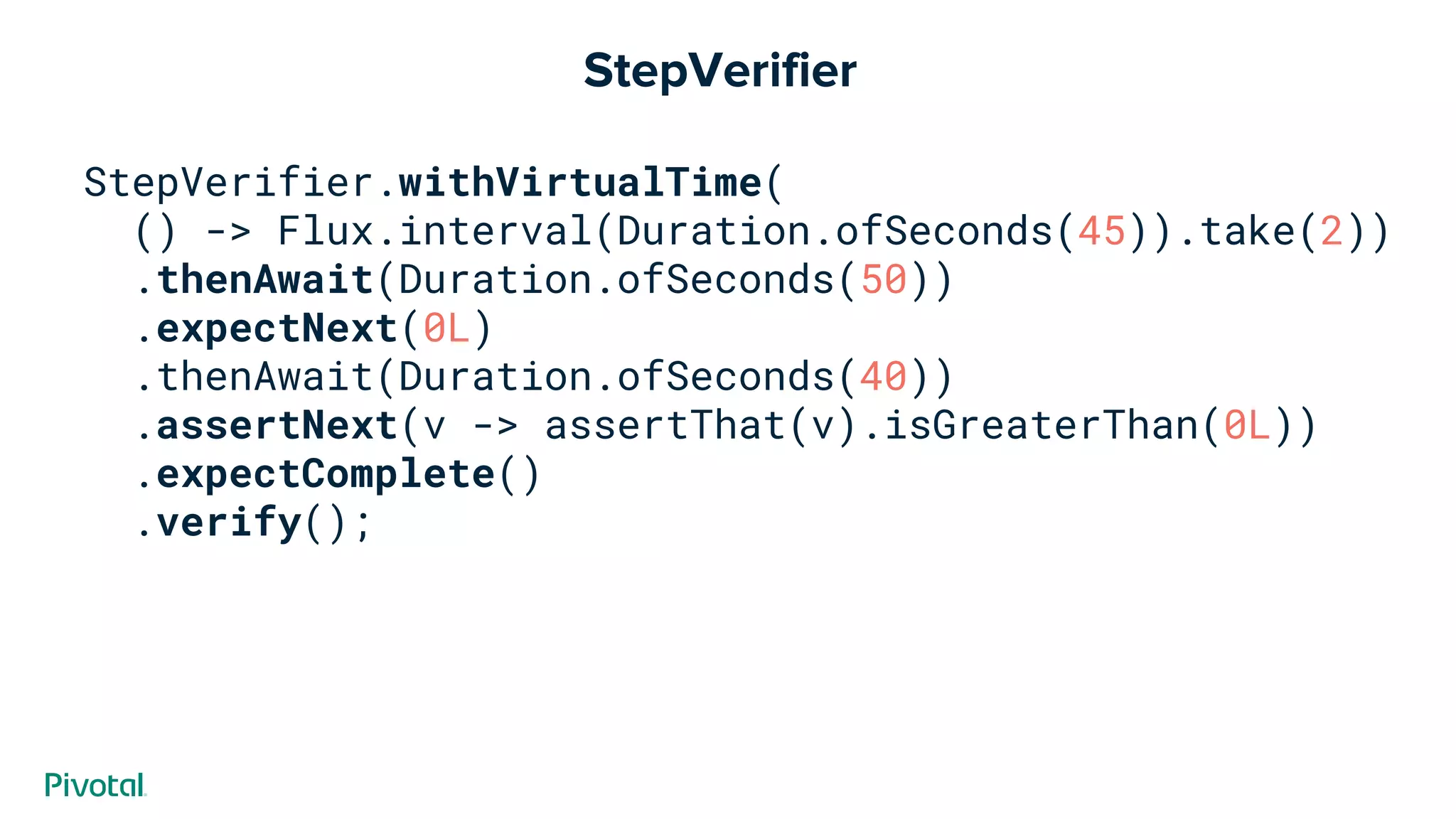

- 59. StepVerifier StepVerifier.withVirtualTime( () -> Flux.interval(Duration.ofSeconds(45)).take(2)) .thenAwait(Duration.ofSeconds(50)) .expectNext(0L) .thenAwait(Duration.ofSeconds(40)) .assertNext(v-> assertThat(v).isGreaterThan(0L)) .expectComplete() .verify();

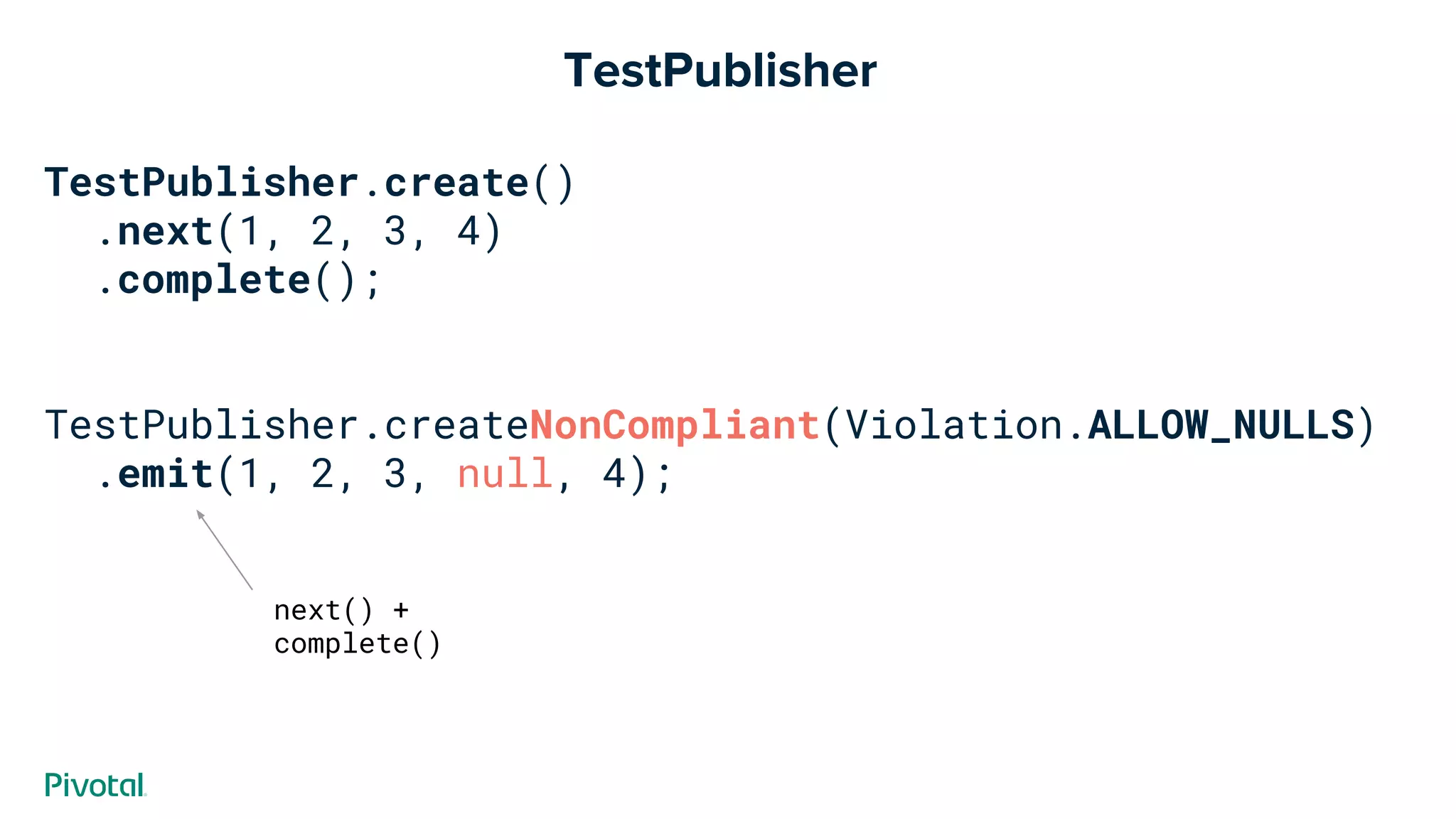

- 60. TestPublisher TestPublisher.create() .next(1, 2, 3,4) .complete(); TestPublisher.createNonCompliant(Violation.ALLOW_NULLS) .emit(1, 2, 3, null, 4); next() + complete()

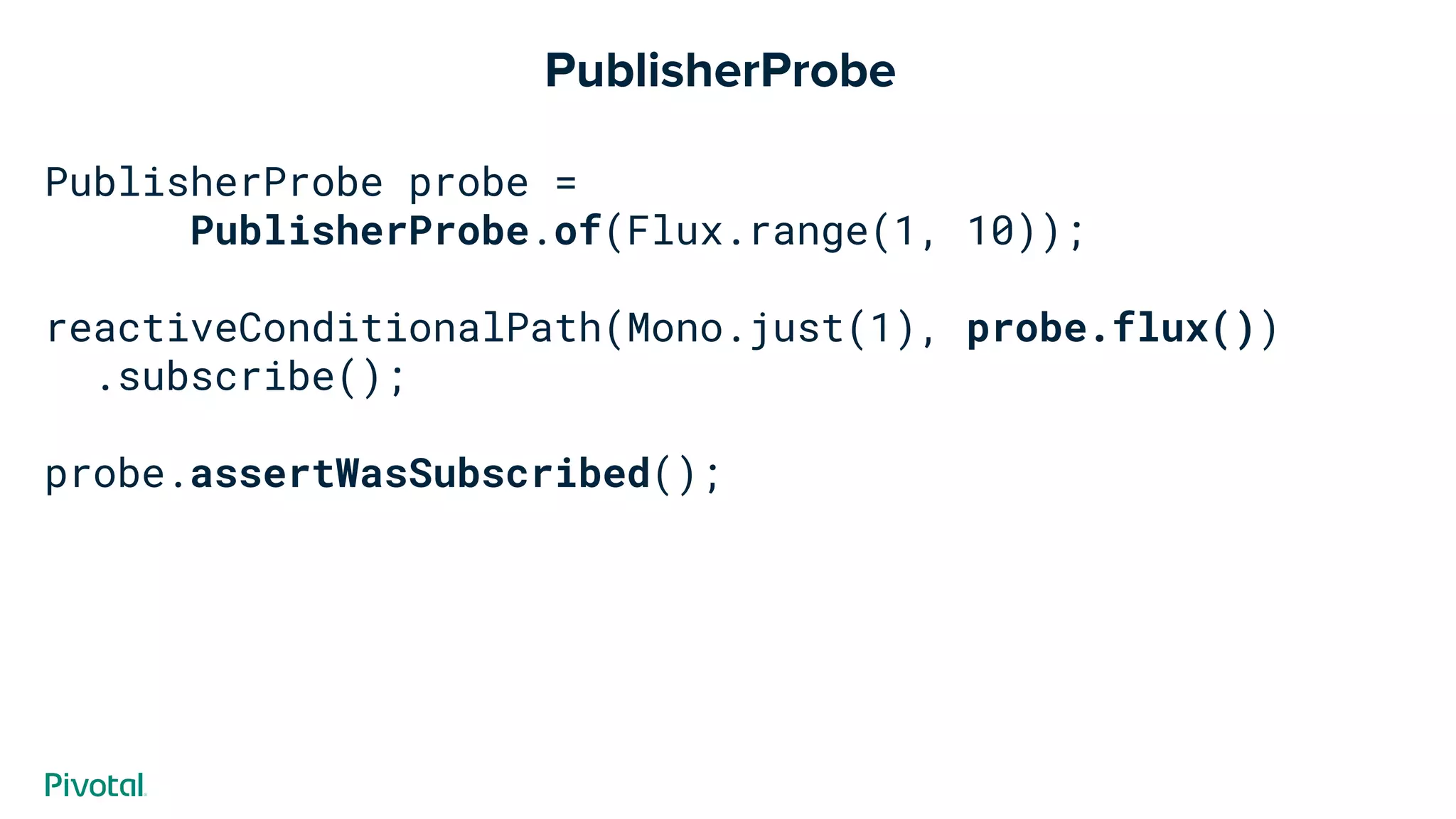

- 61. PublisherProbe probe = PublisherProbe.of(Flux.range(1,10)); reactiveConditionalPath(Mono.just(1), probe.flux()) .subscribe(); probe.assertWasSubscribed(); PublisherProbe

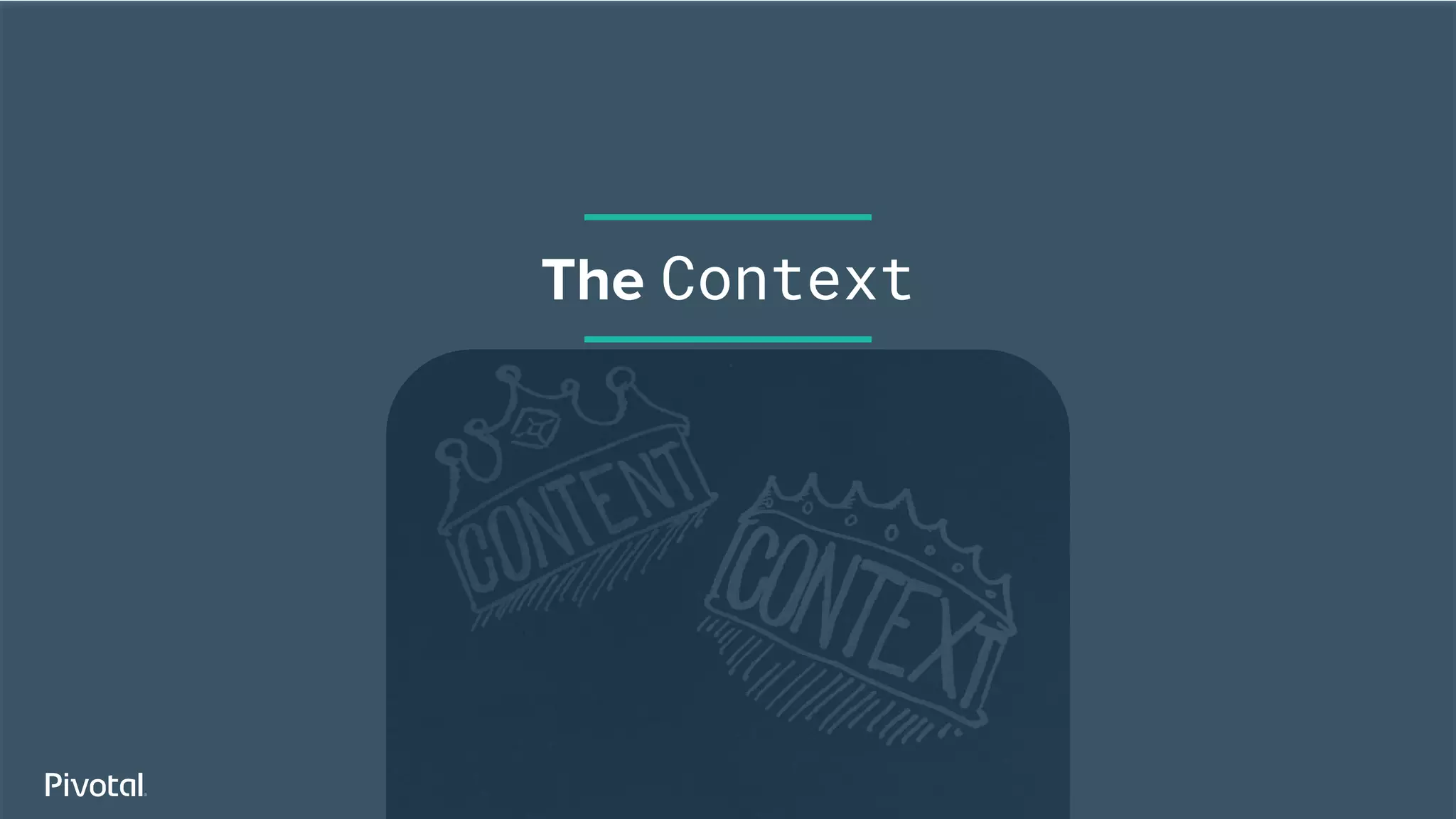

- 62.

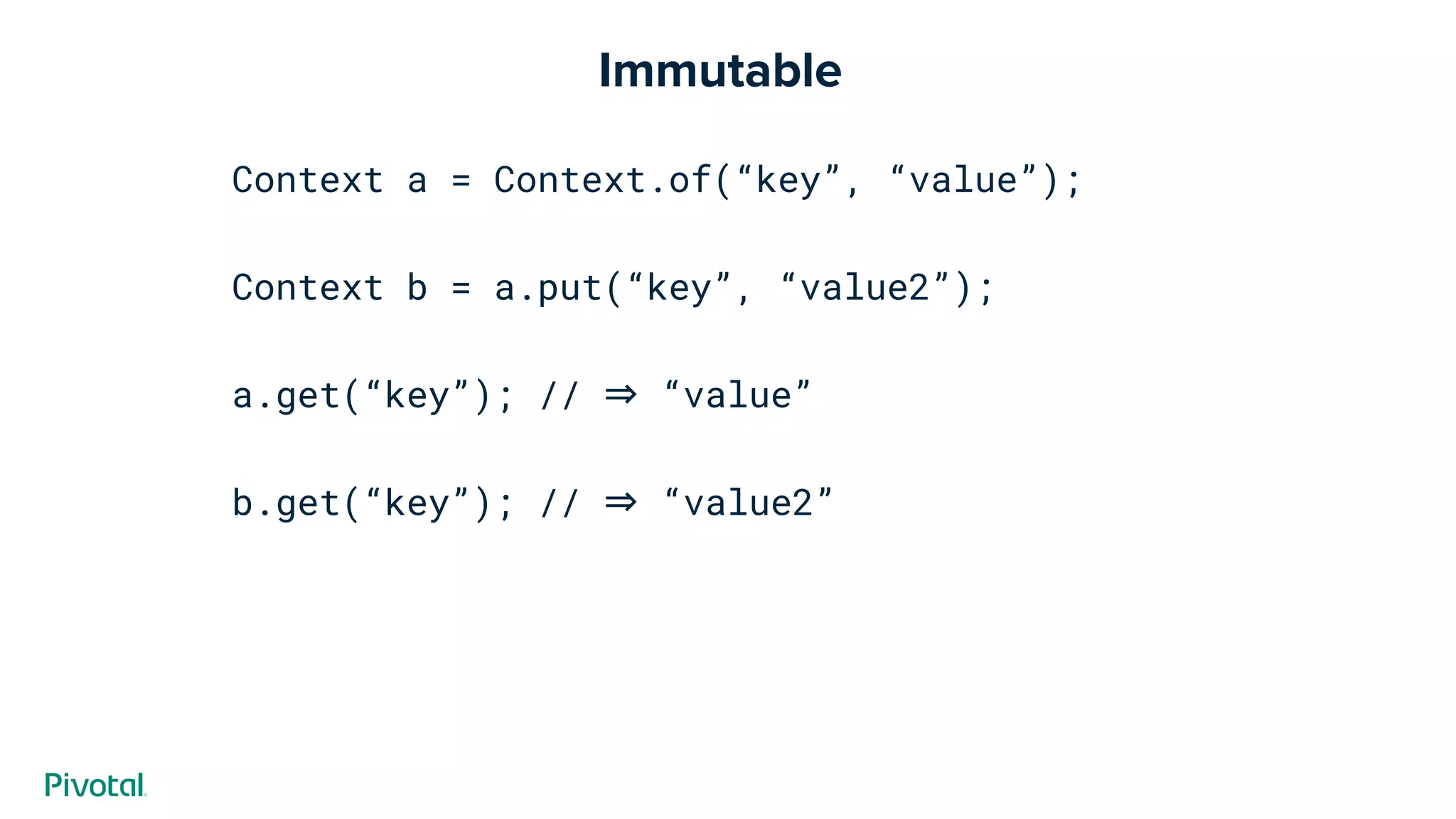

- 63. Immutable Context a =Context.of(“key”, “value”); Context b = a.put(“key”, “value2”); a.get(“key”); // ⇒ “value” b.get(“key”); // ⇒ “value2”

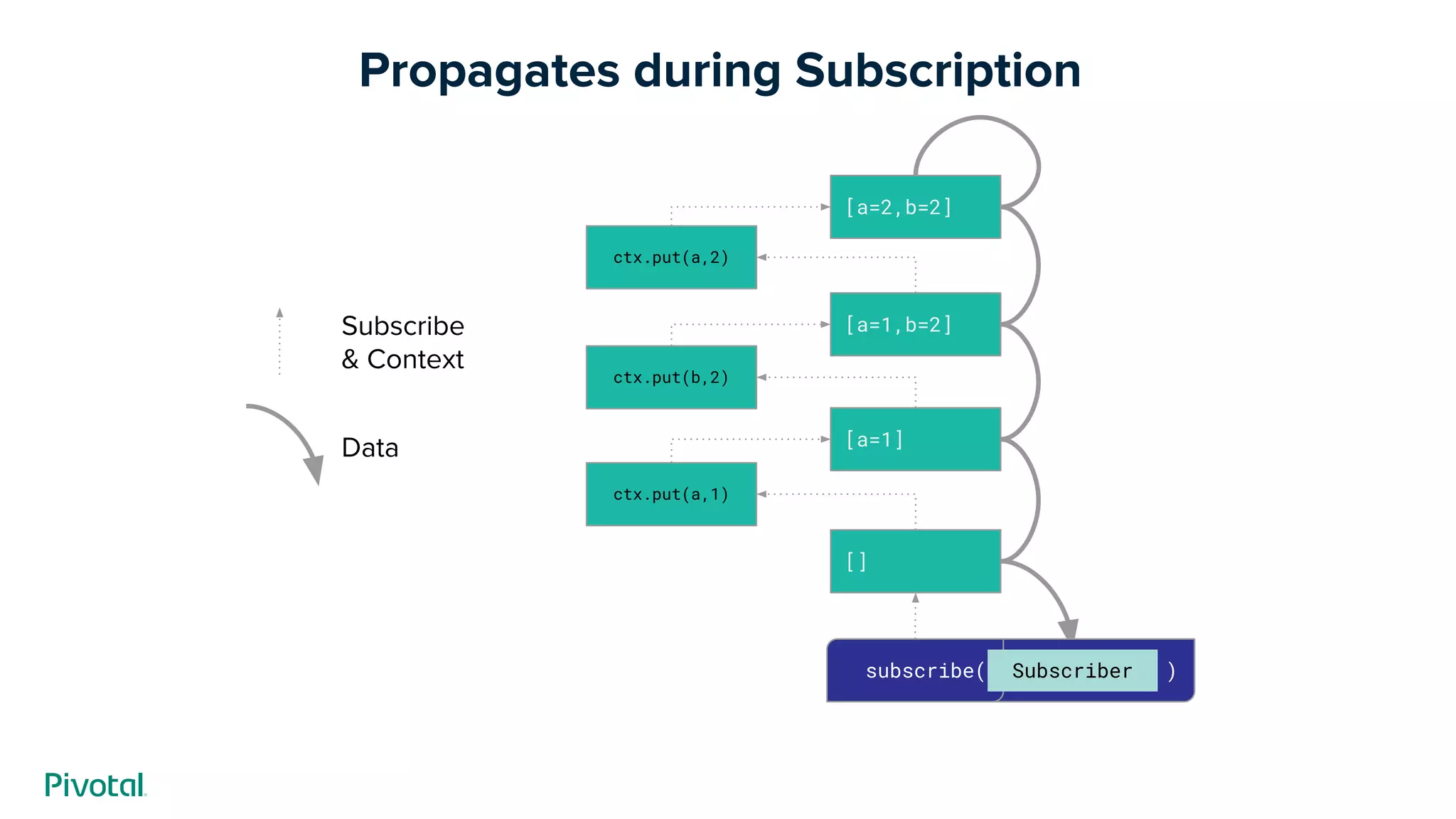

- 64. Propagates during Subscription [a=2,b=2] [a=1,b=2] [] ctx.put(b,2) [a=1] ctx.put(a,1) )subscribe(Subscriber Subscribe & Context Data ctx.put(a,2)

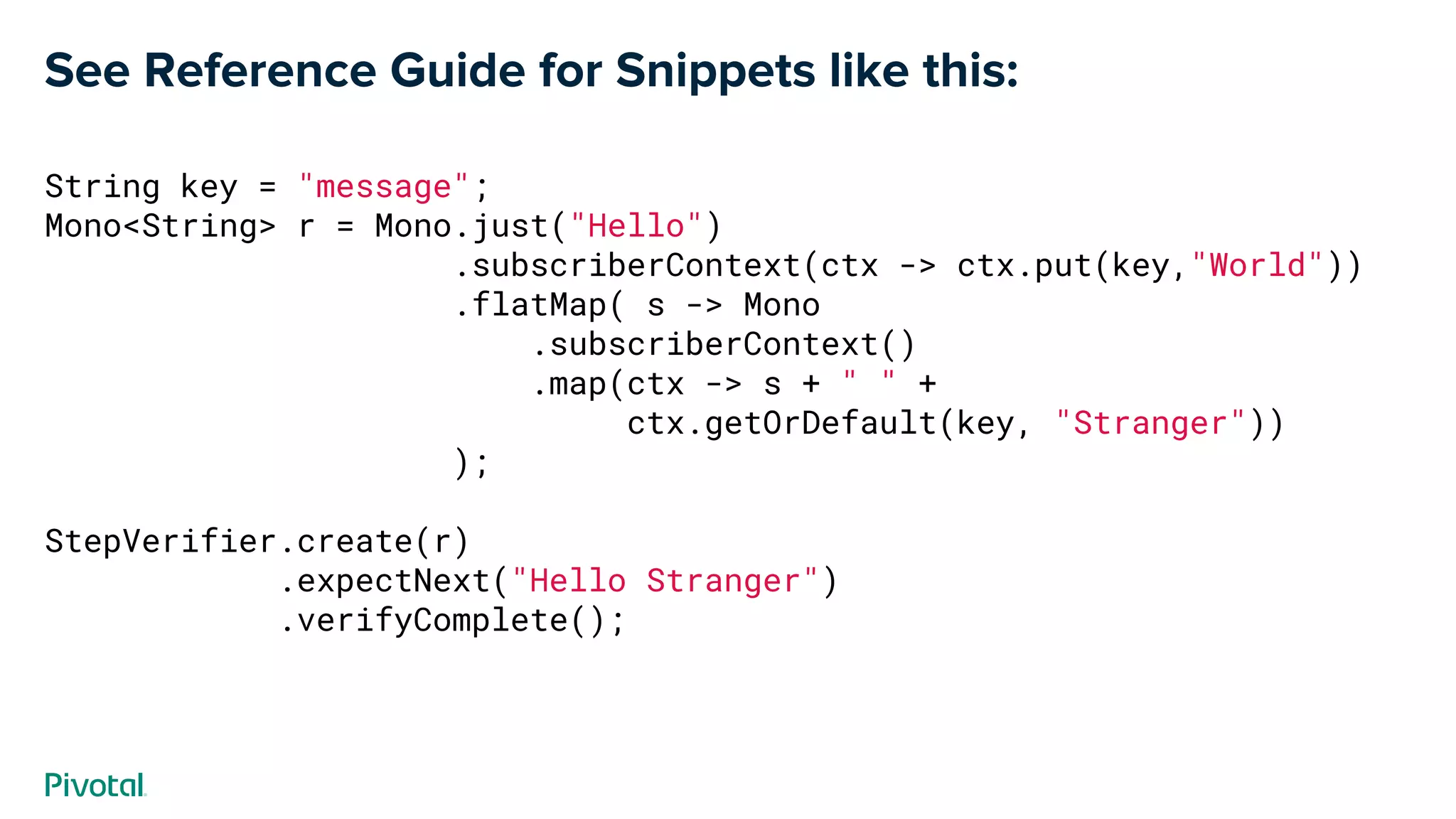

- 65. See Reference Guidefor Snippets like this: String key = "message"; Mono<String> r = Mono.just("Hello") .subscriberContext(ctx -> ctx.put(key,"World")) .flatMap( s -> Mono .subscriberContext() .map(ctx -> s + " " + ctx.getOrDefault(key, "Stranger")) ); StepVerifier.create(r) .expectNext("Hello Stranger") .verifyComplete();
- 66. More about BismuthRelease https://spring.io/blog/2017/09/28/reactor-bismuth-is-out Executive summary of latest 3.1 additions

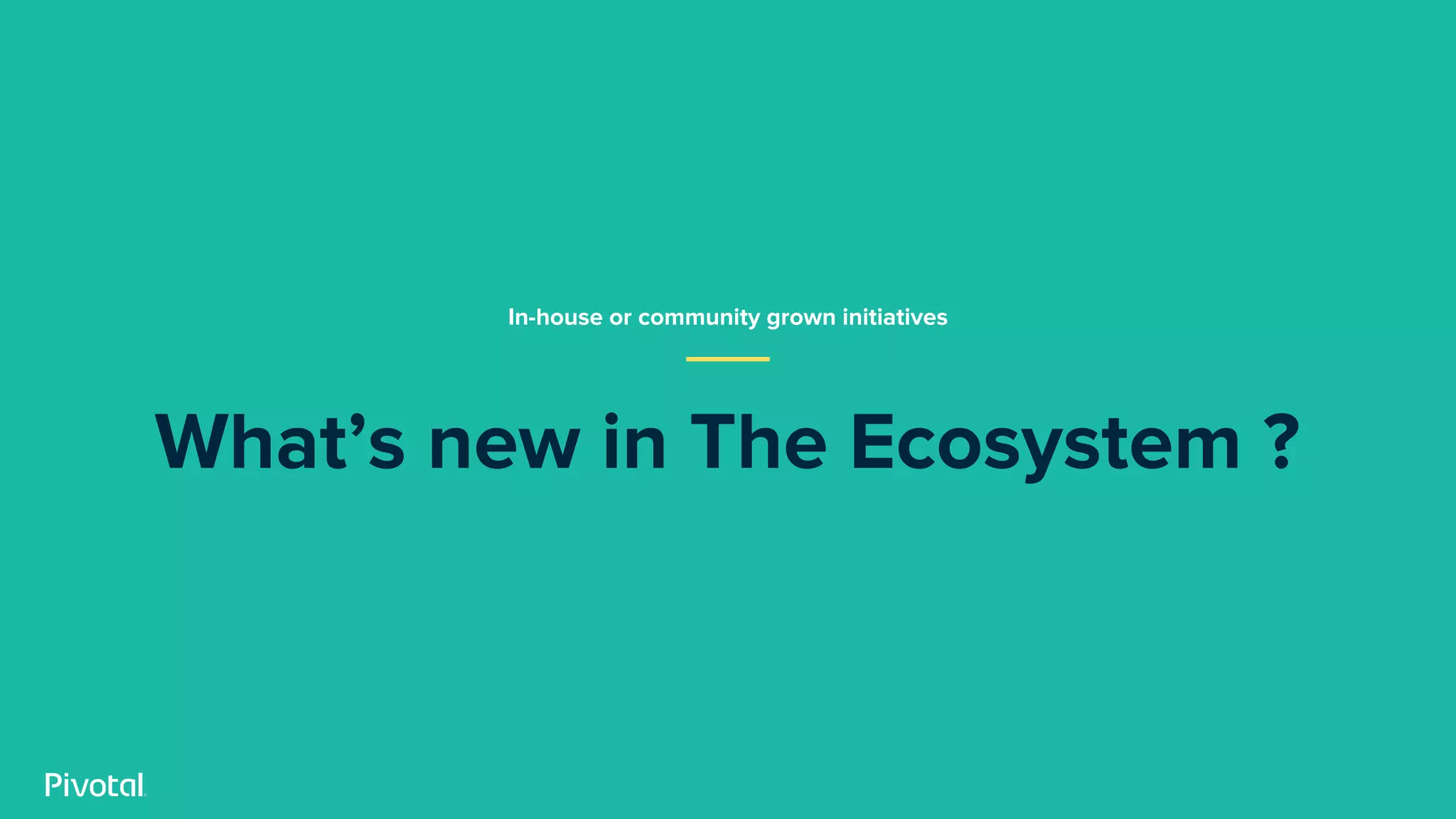

- 67. What’s new inThe Ecosystem ? In-house or community grown initiatives
- 68.
- 69. Reactor Netty onlyturns Netty into a Reactive Streams ready bridge

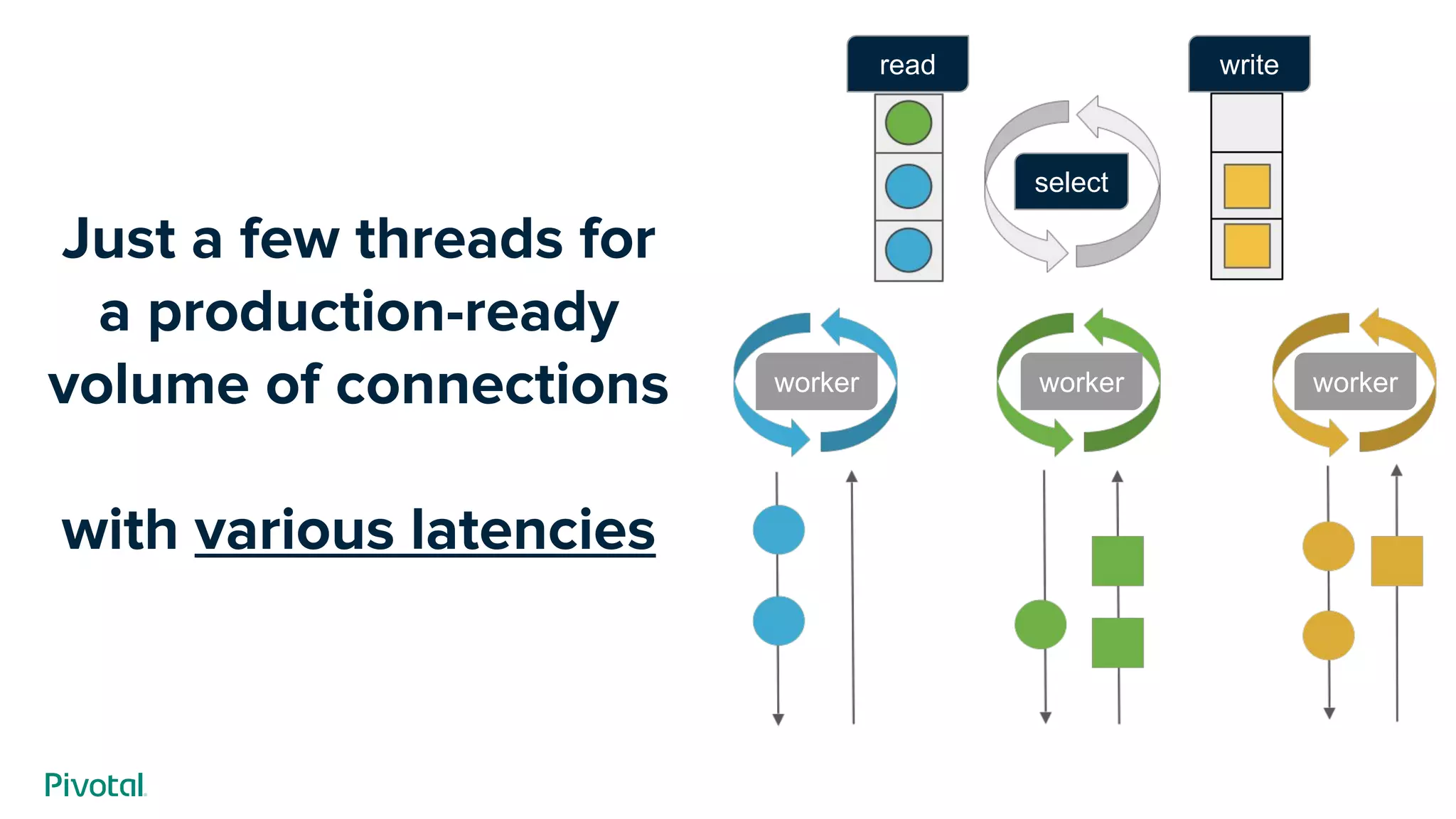

- 70. Just a fewthreads for a production-ready volume of connections with various latencies writeread select worker worker worker

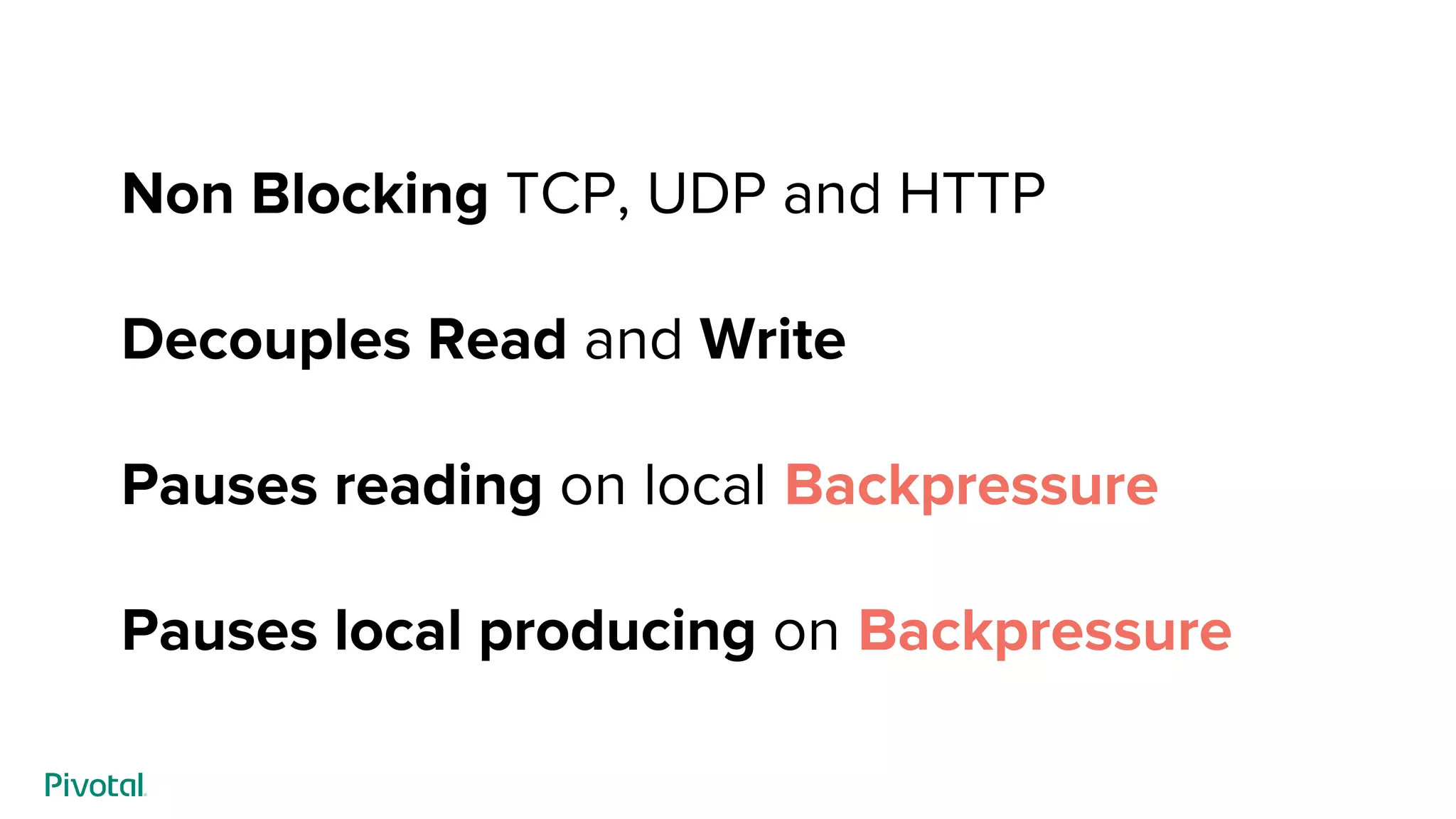

- 71. Non Blocking TCP,UDP and HTTP Decouples Read and Write Pauses reading on local Backpressure Pauses local producing on Backpressure

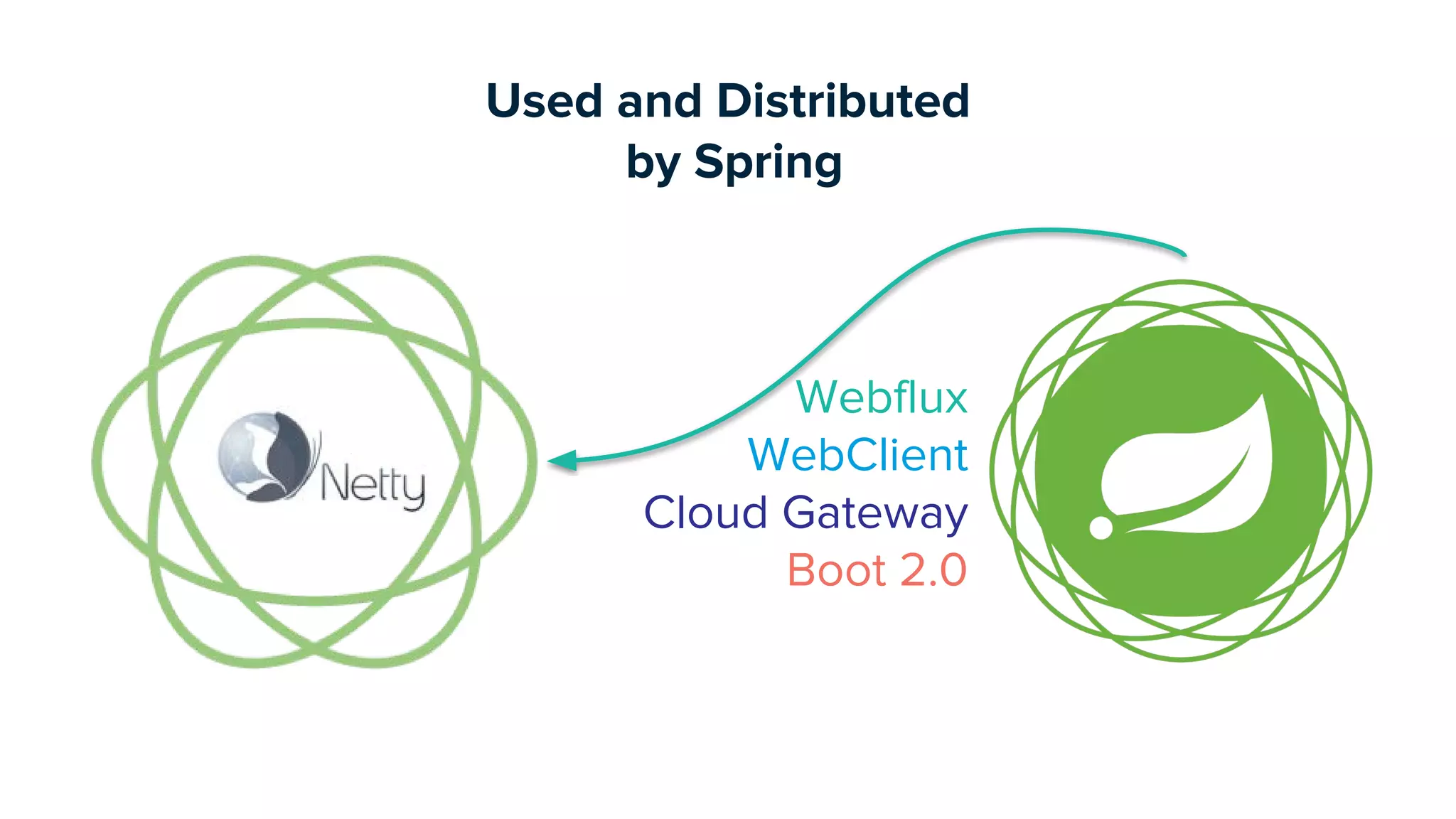

- 72. Webflux WebClient Cloud Gateway Boot 2.0 Usedand Distributed by Spring
- 73.
- 74.
- 75.

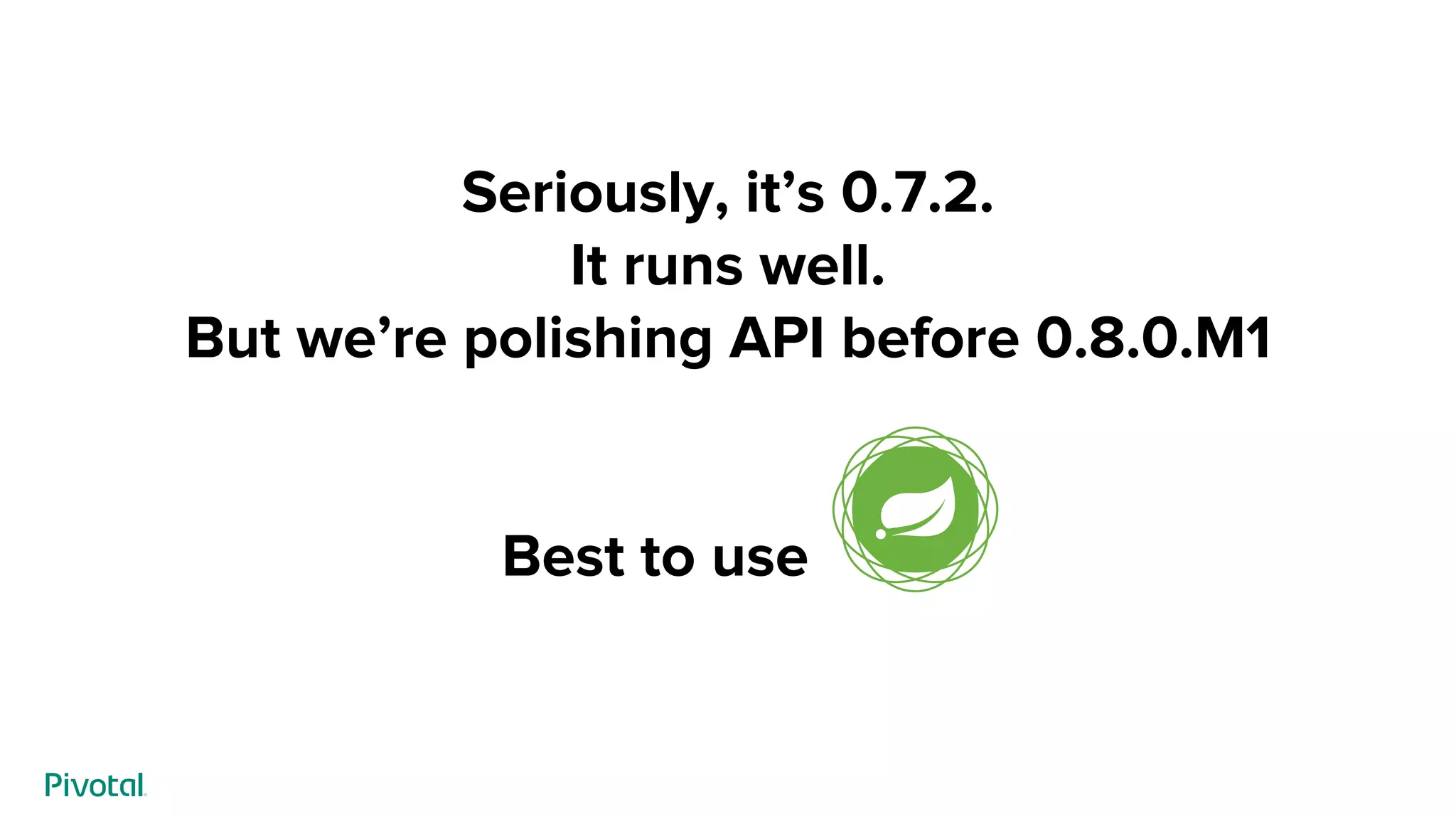

- 76. Seriously, it’s 0.7.2. Itruns well. But we’re polishing API before 0.8.0.M1 Best to use--------
- 77.

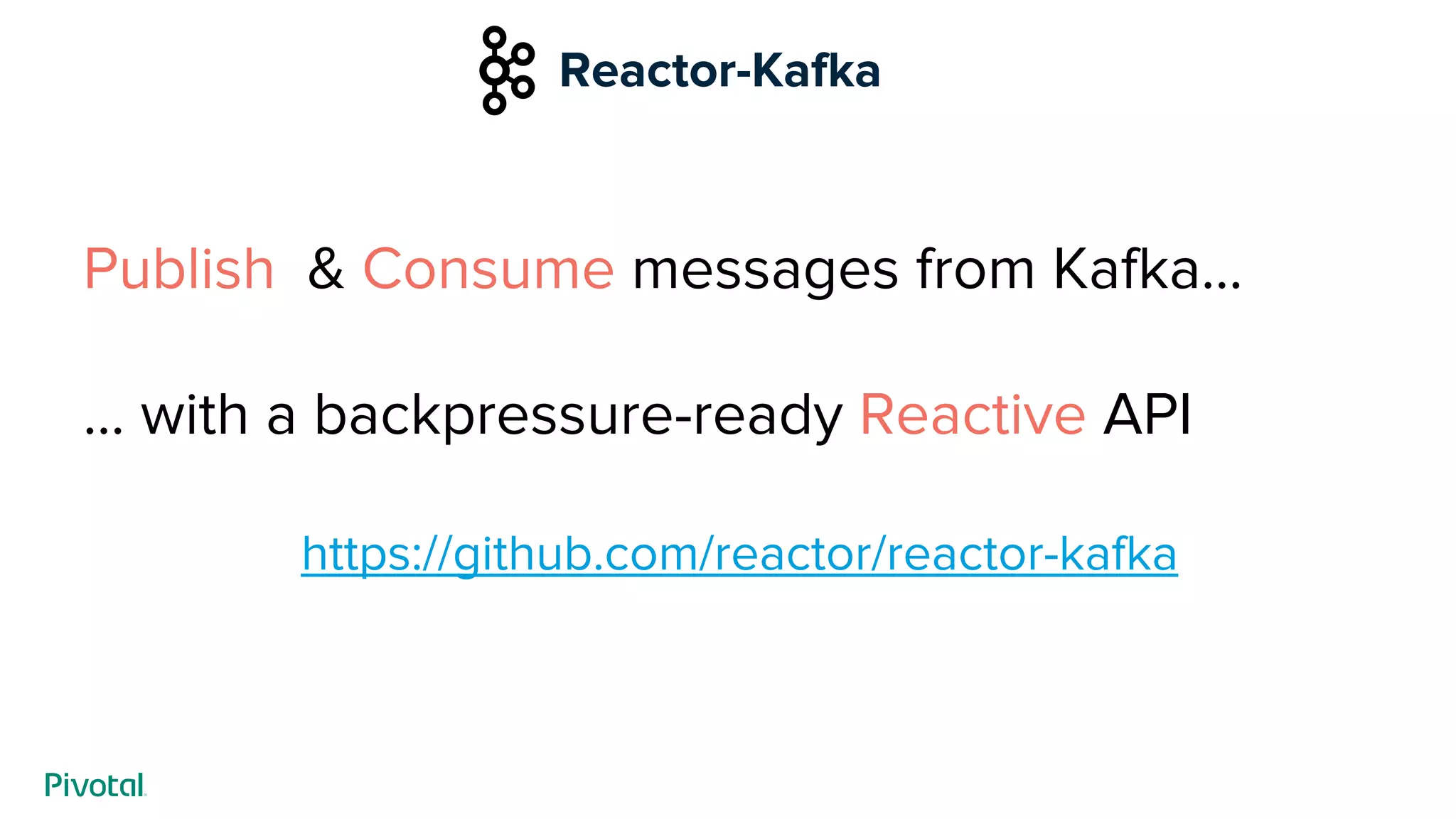

- 78. Publish & Consumemessages from Kafka... … with a backpressure-ready Reactive API https://github.com/reactor/reactor-kafka Reactor-Kafka

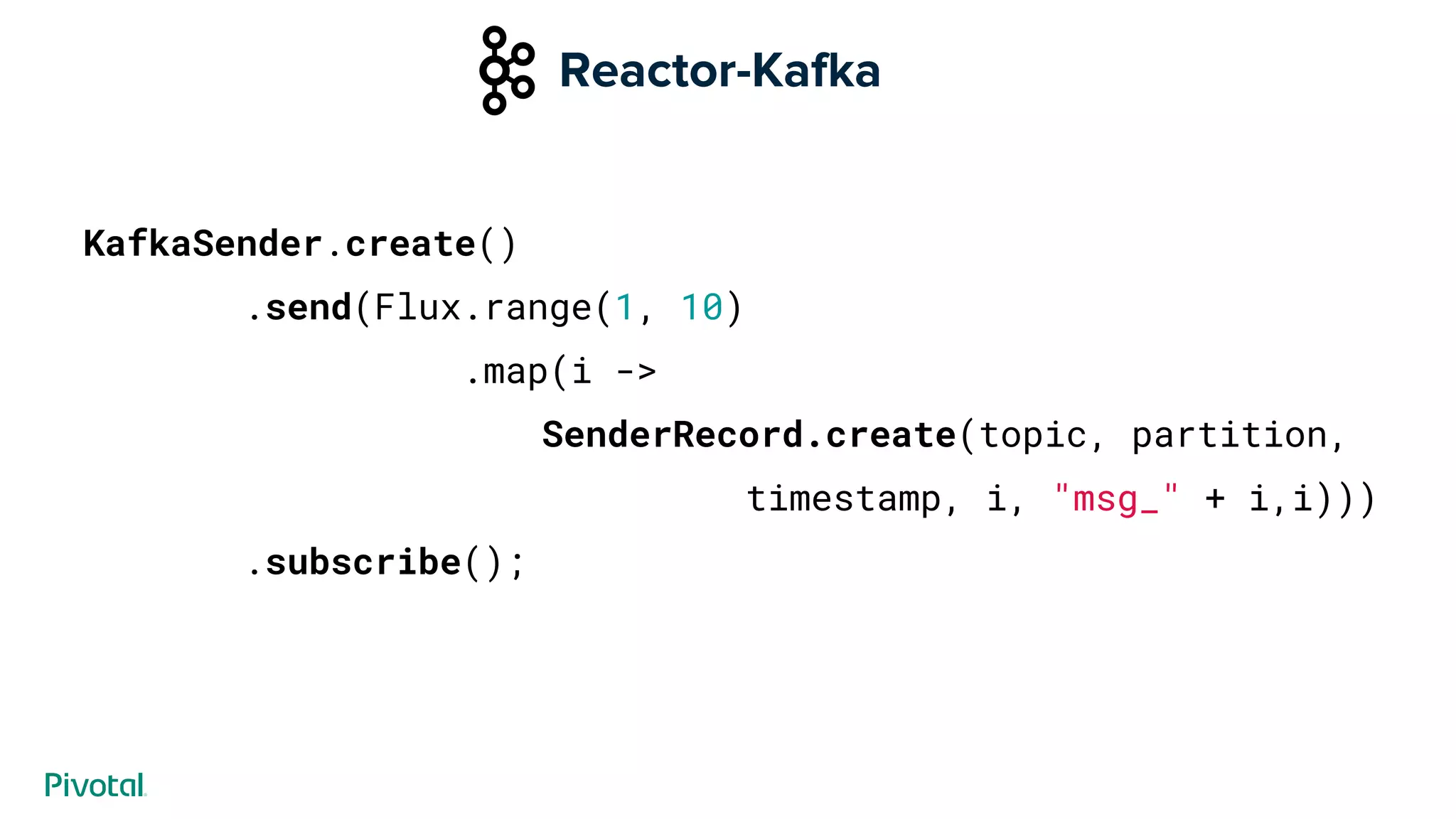

- 79. Reactor-Kafka KafkaSender.create() .send(Flux.range(1, 10) .map(i -> SenderRecord.create(topic,partition, timestamp, i, "msg_" + i,i))) .subscribe();
- 80.

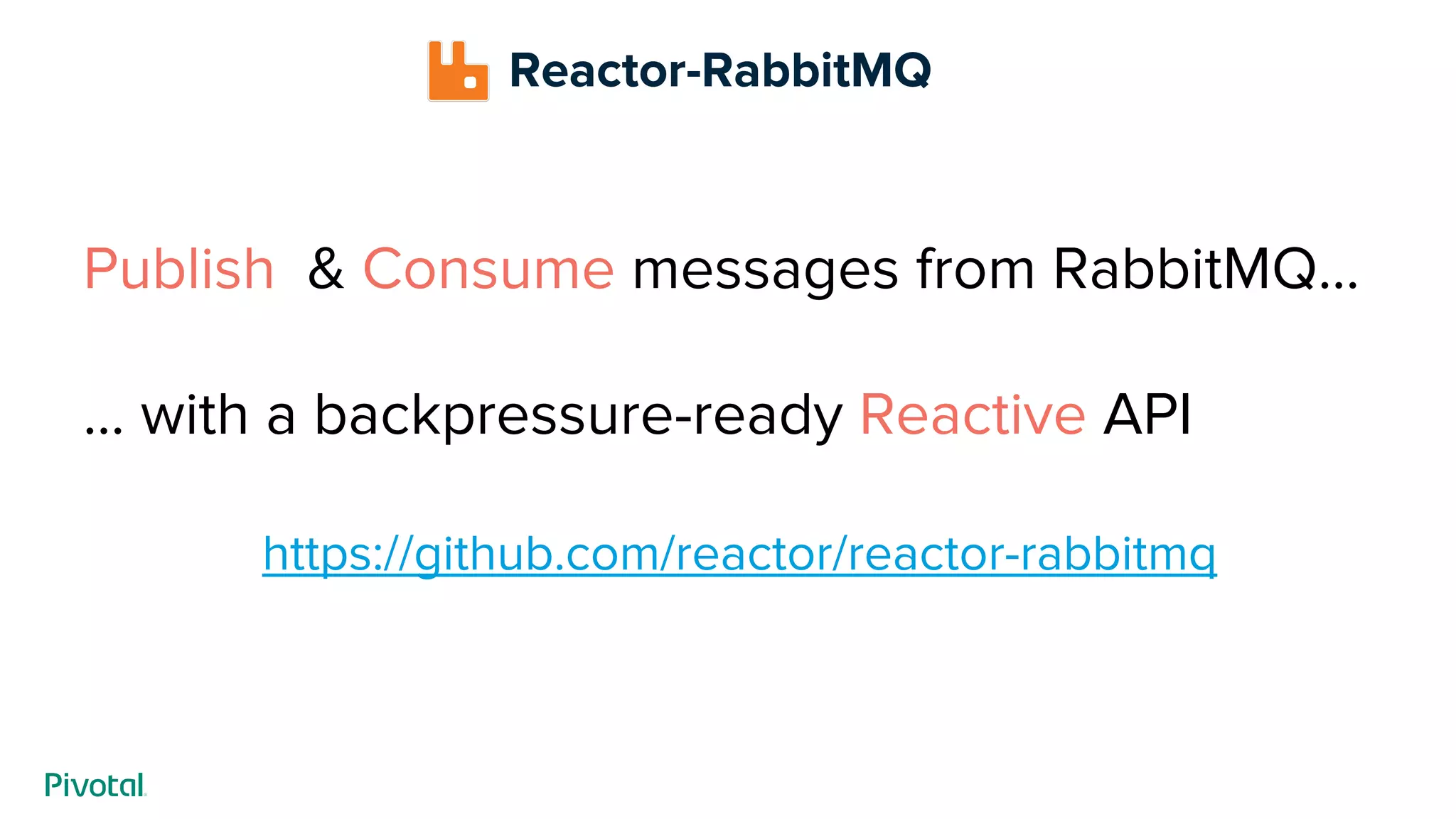

- 81. Reactor-RabbitMQ Publish & Consumemessages from RabbitMQ... … with a backpressure-ready Reactive API https://github.com/reactor/reactor-rabbitmq
- 82.
- 83.

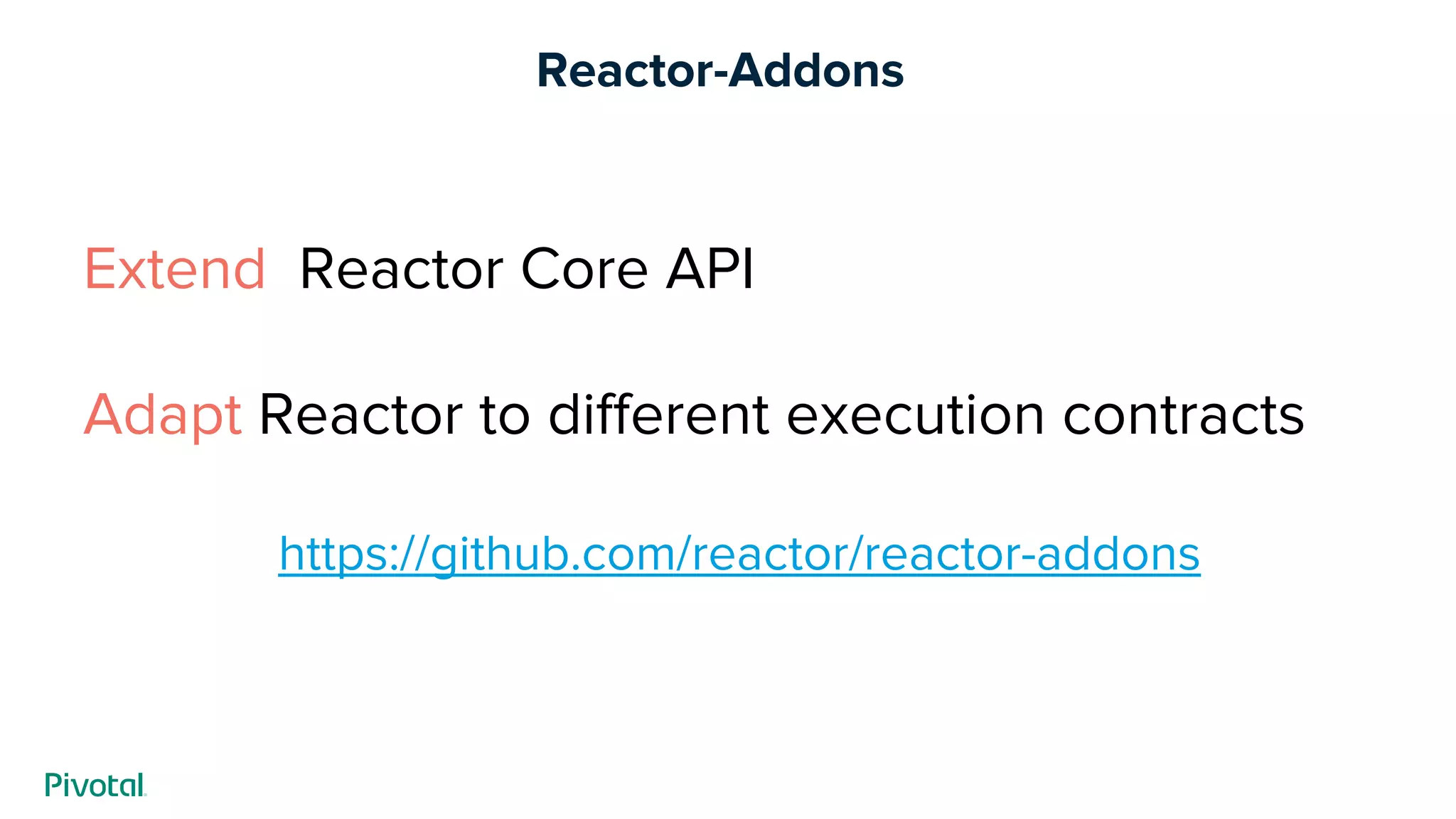

- 84. Reactor-Addons Extend Reactor CoreAPI Adapt Reactor to different execution contracts https://github.com/reactor/reactor-addons

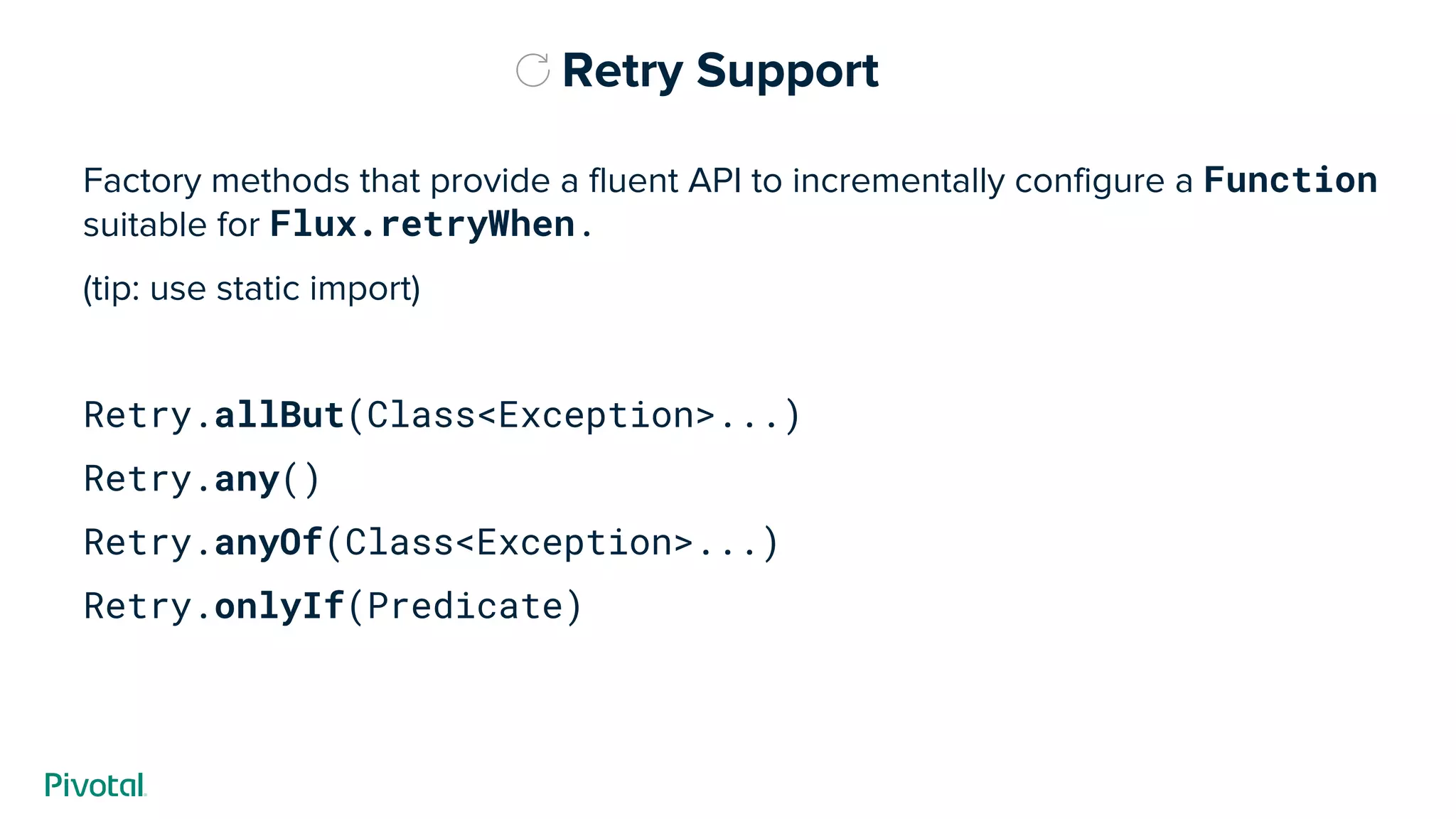

- 85. Retry Support Factory methodsthat provide a fluent API to incrementally configure a Function suitable for Flux.retryWhen. (tip: use static import) Retry.allBut(Class<Exception>...) Retry.any() Retry.anyOf(Class<Exception>...) Retry.onlyIf(Predicate)
- 86.

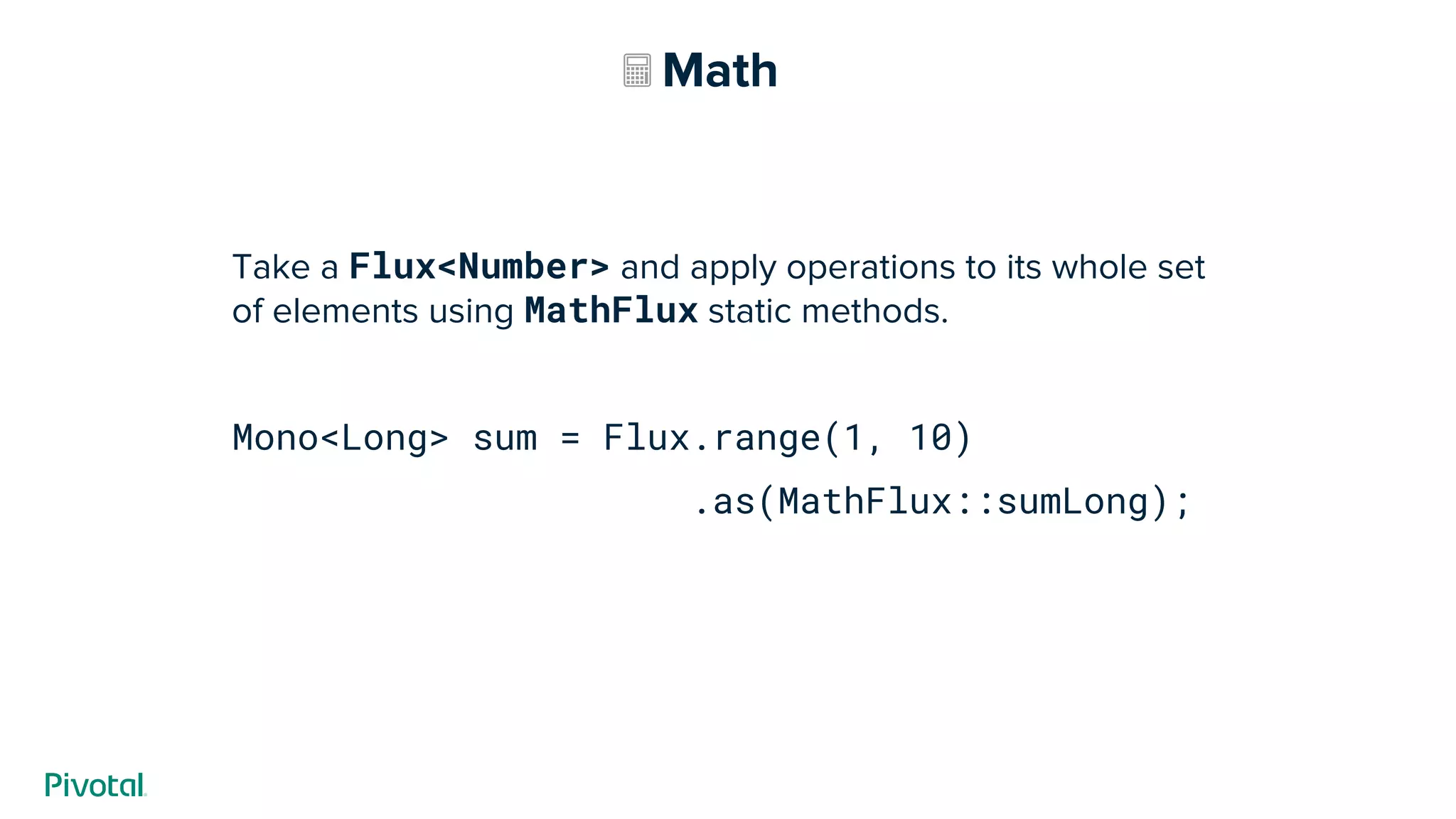

- 87. Math Take a Flux<Number>and apply operations to its whole set of elements using MathFlux static methods. Mono<Long> sum = Flux.range(1, 10) .as(MathFlux::sumLong);

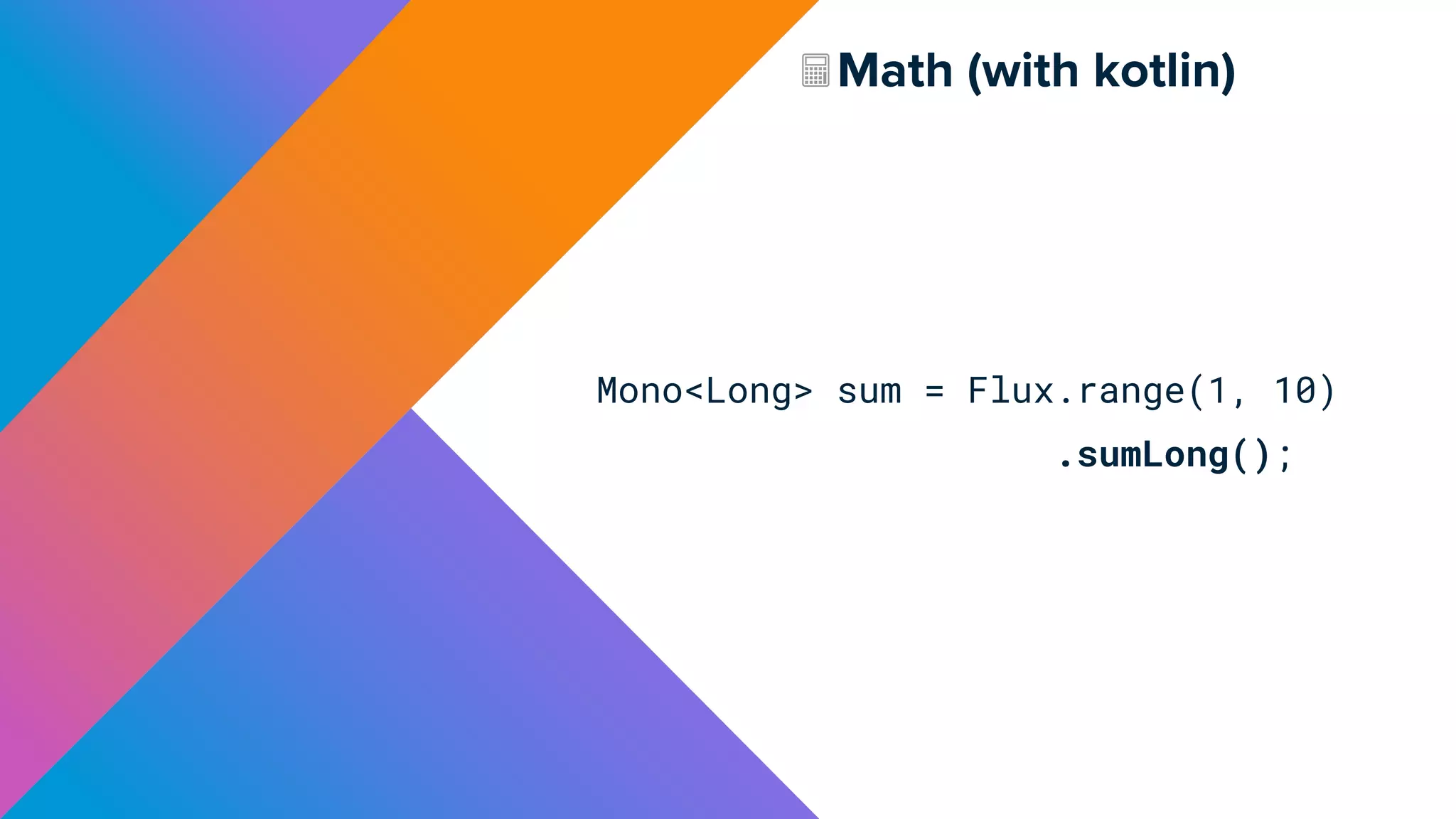

- 88. Math (with kotlin) Mono<Long>sum = Flux.range(1, 10) .sumLong();

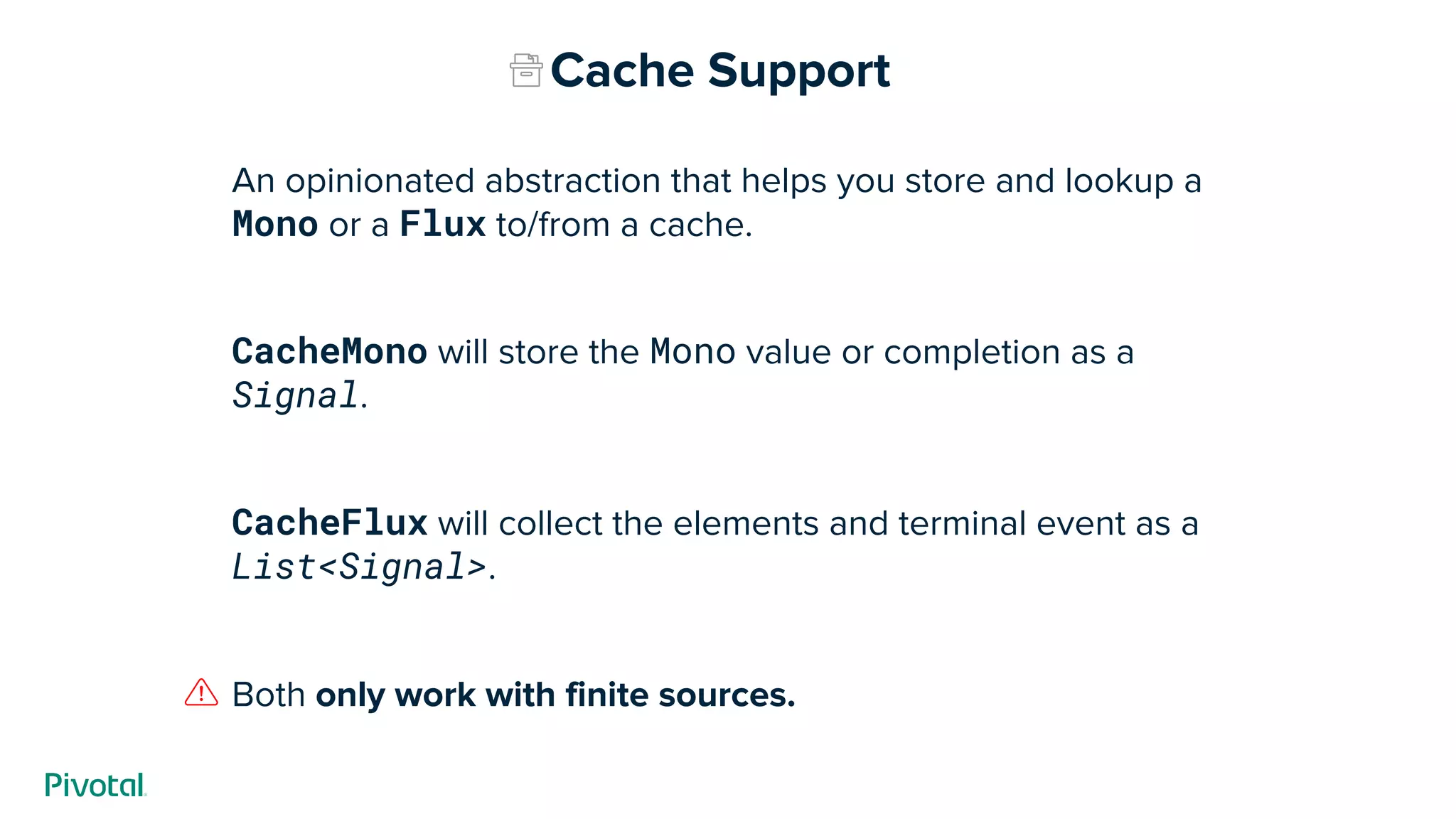

- 89. An opinionated abstractionthat helps you store and lookup a Mono or a Flux to/from a cache. CacheMono will store the Mono value or completion as a Signal. CacheFlux will collect the elements and terminal event as a List<Signal>. Both only work with finite sources. Cache Support

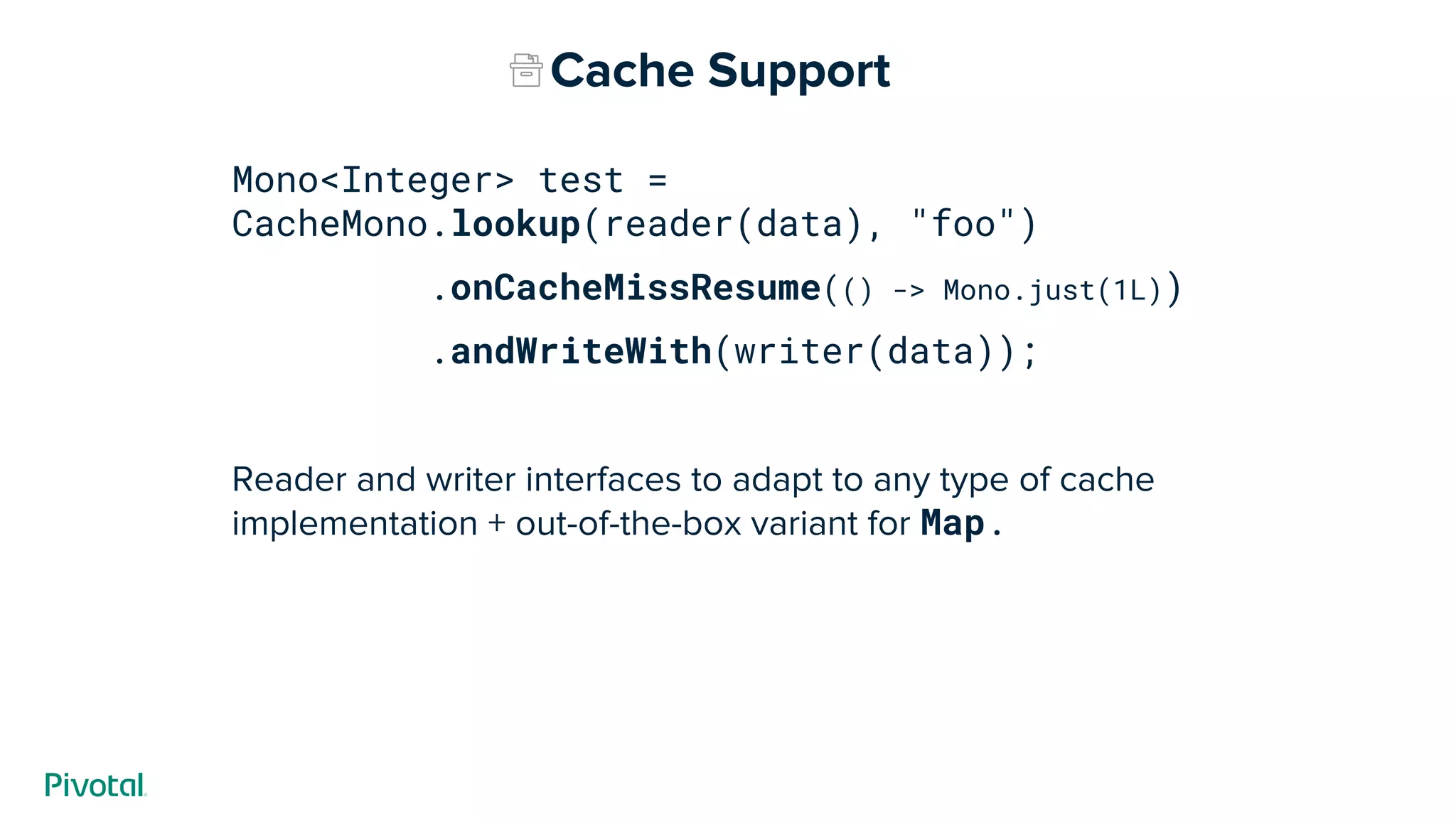

- 90. Mono<Integer> test = CacheMono.lookup(reader(data),"foo") .onCacheMissResume(() -> Mono.just(1L)) .andWriteWith(writer(data)); Reader and writer interfaces to adapt to any type of cache implementation + out-of-the-box variant for Map. Cache Support
- 91.
- 92. Spring Ecosystem #1 userand source of feedback
- 95.
- 97.
- 98. Lettuce http://lettuce.io A Reactor-based reactivedriver for Redis
- 99.

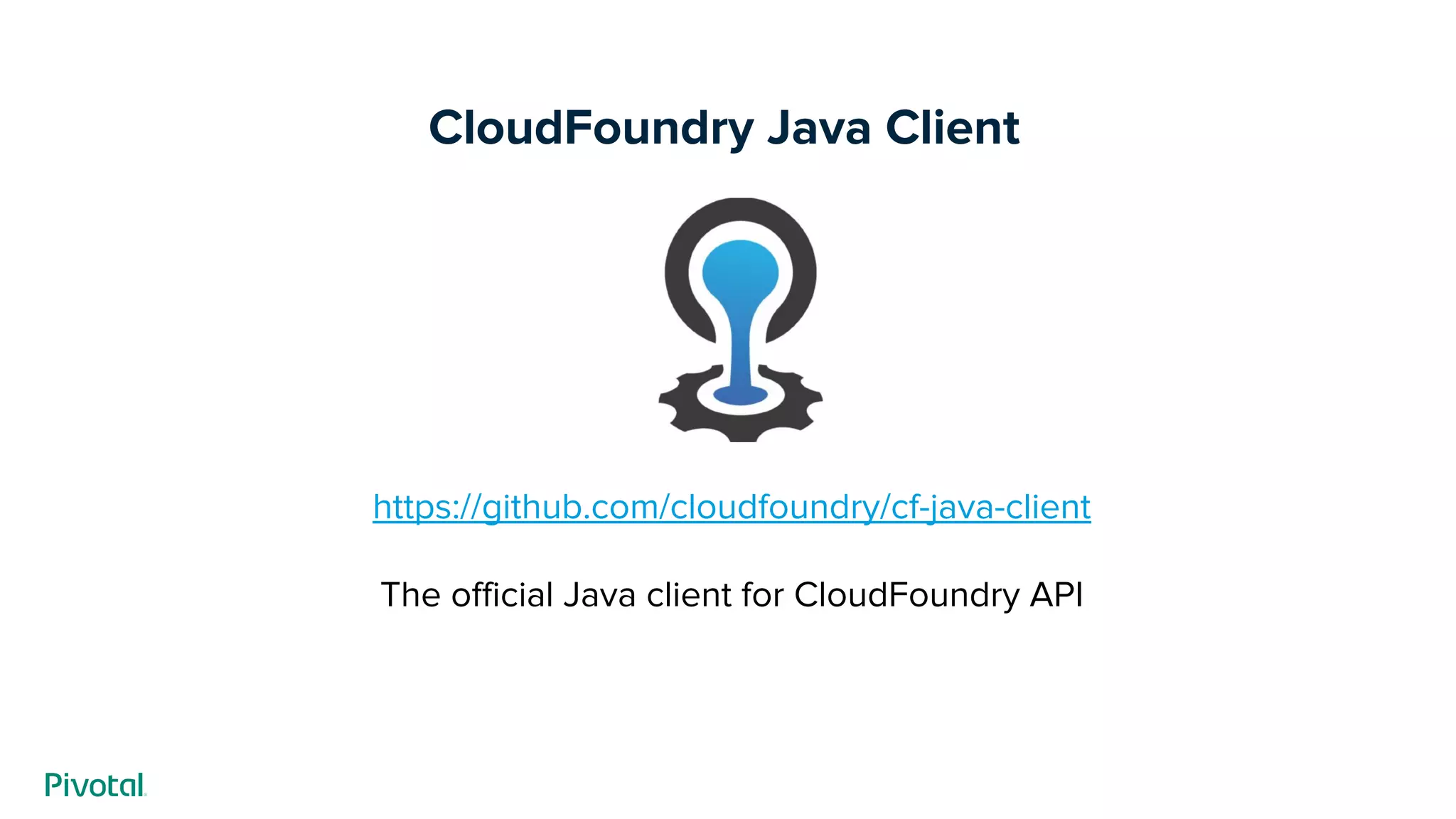

- 100. CloudFoundry Java Client https://github.com/cloudfoundry/cf-java-client Theofficial Java client for CloudFoundry API

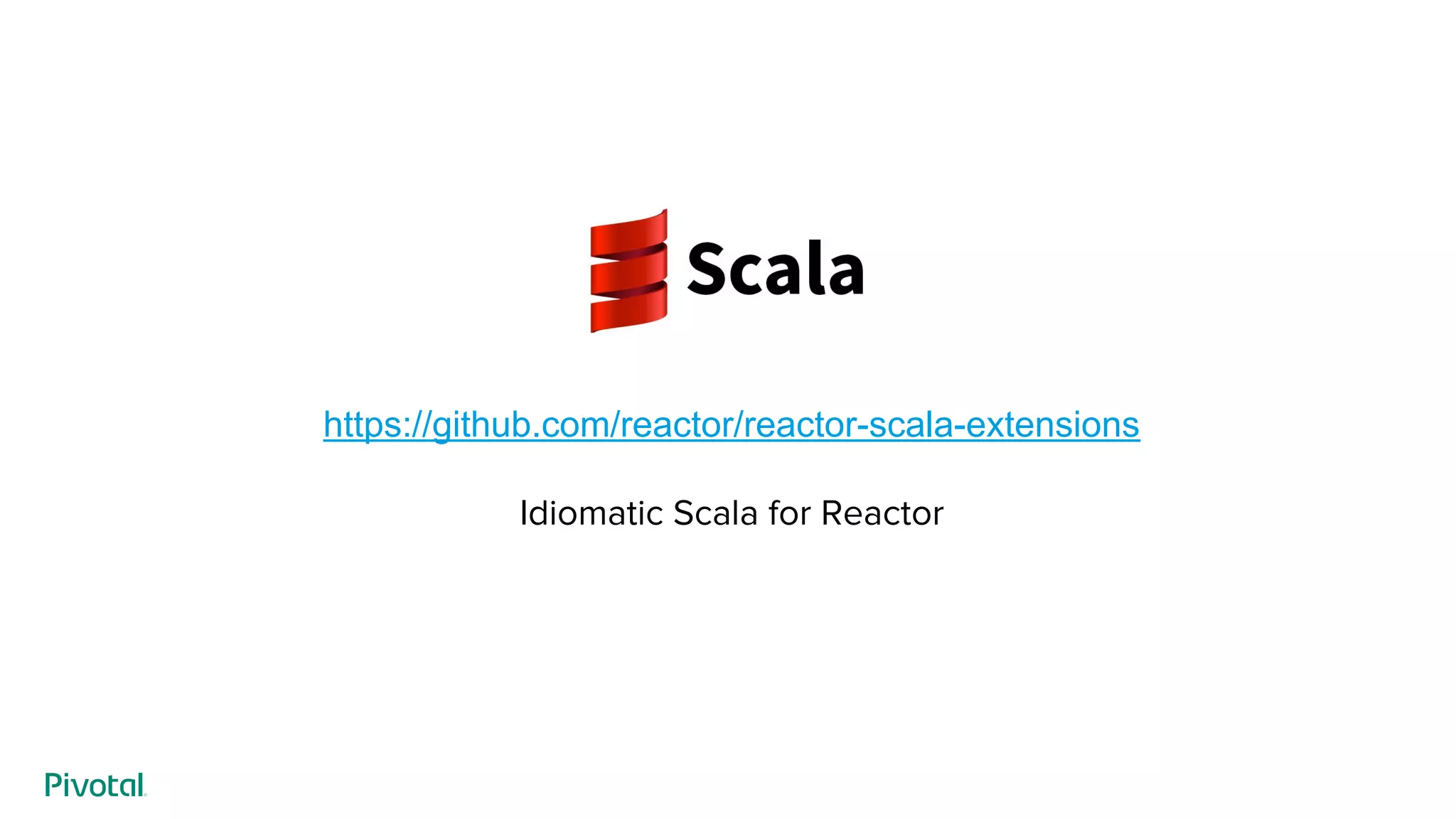

- 101.
- 102.
- 103.
- 104.
- 105.
- 106.
- 107.
- 108.

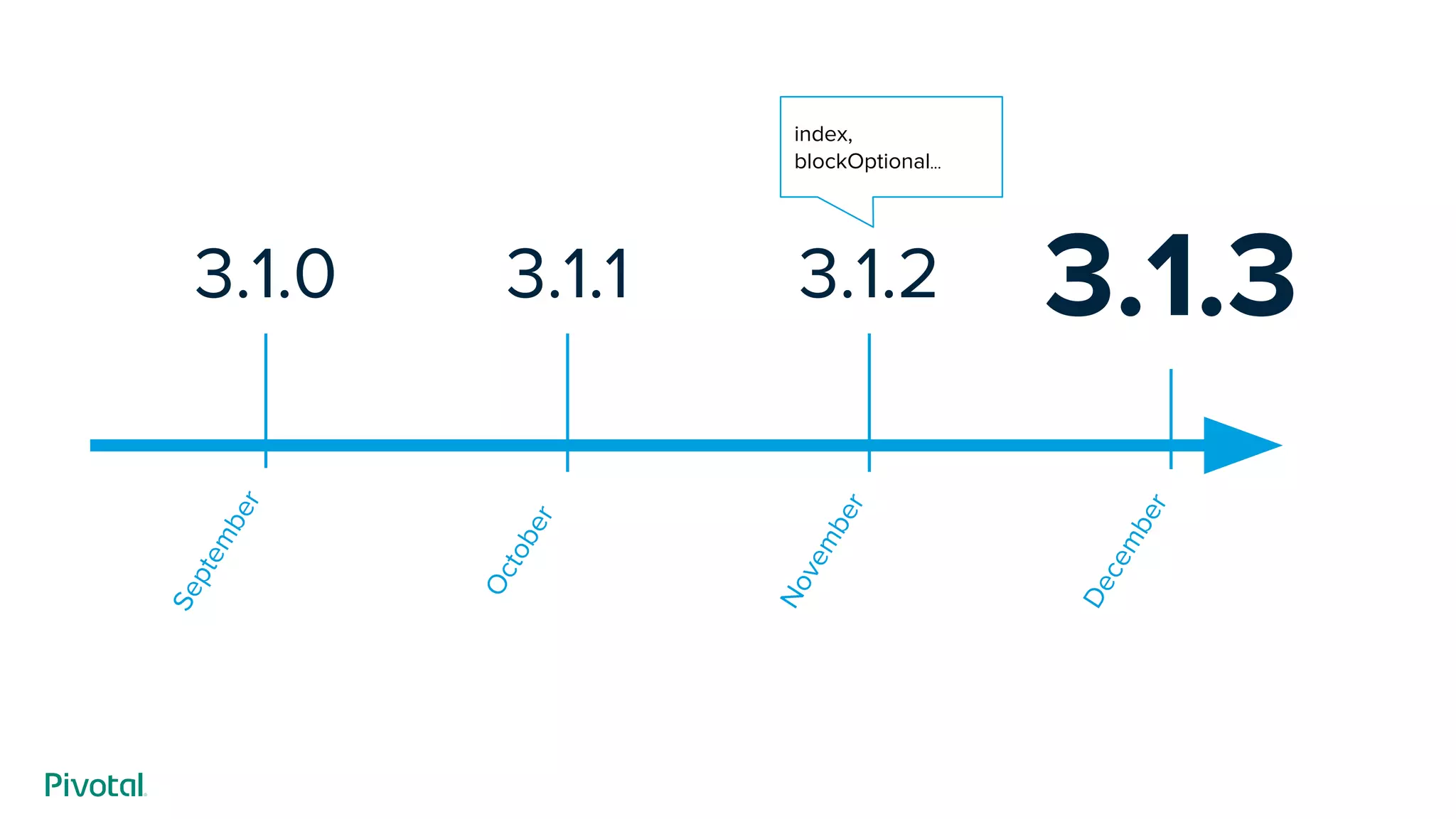

- 109.
- 110.
- 111.
- 112.
- 113.
- 114.

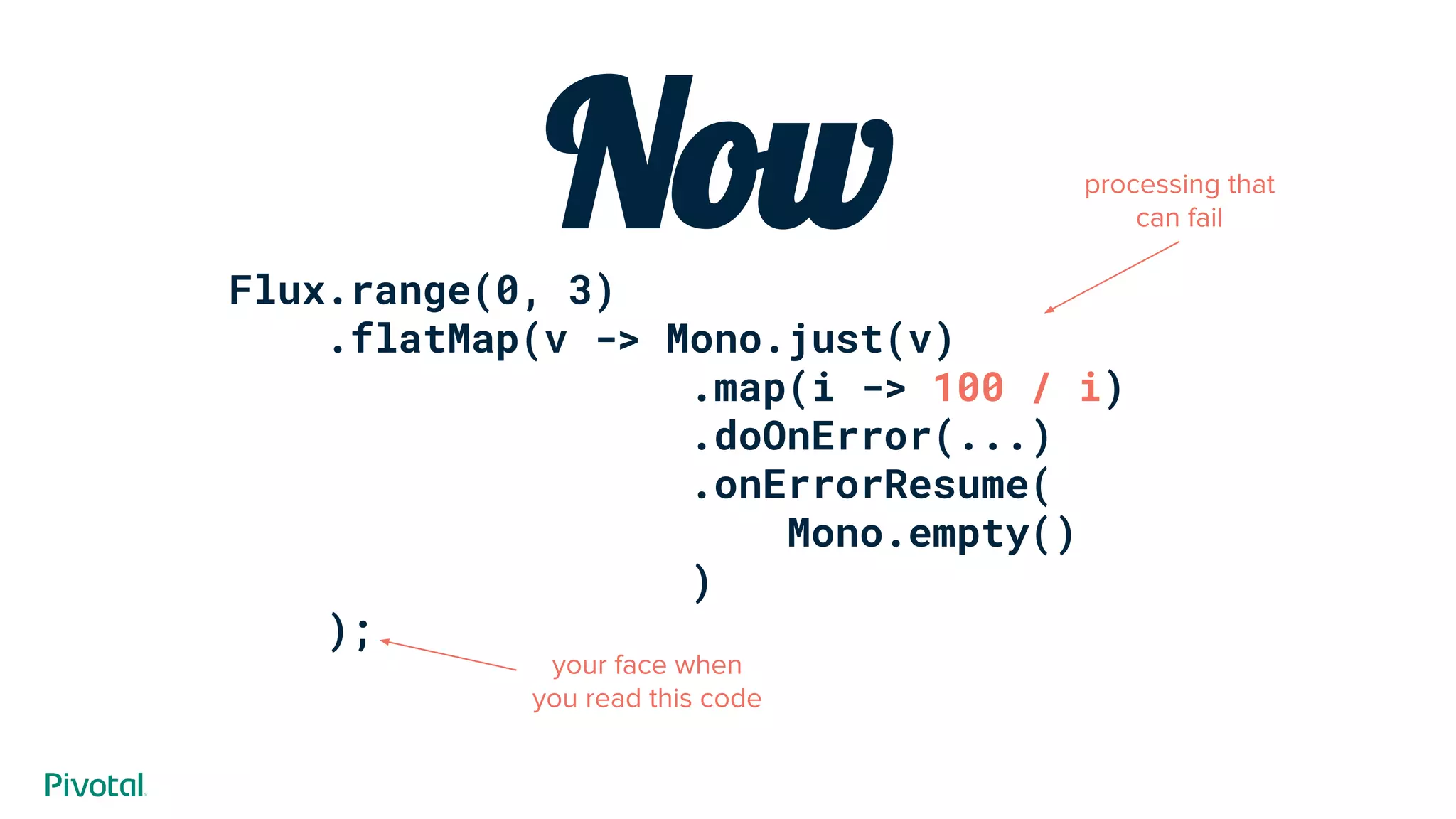

- 115. NowFlux.range(0, 3) .flatMap(v ->Mono.just(v) .map(i -> 100 / i) .doOnError(...) .onErrorResume( Mono.empty() ) ); processing that can fail your face when you read this code

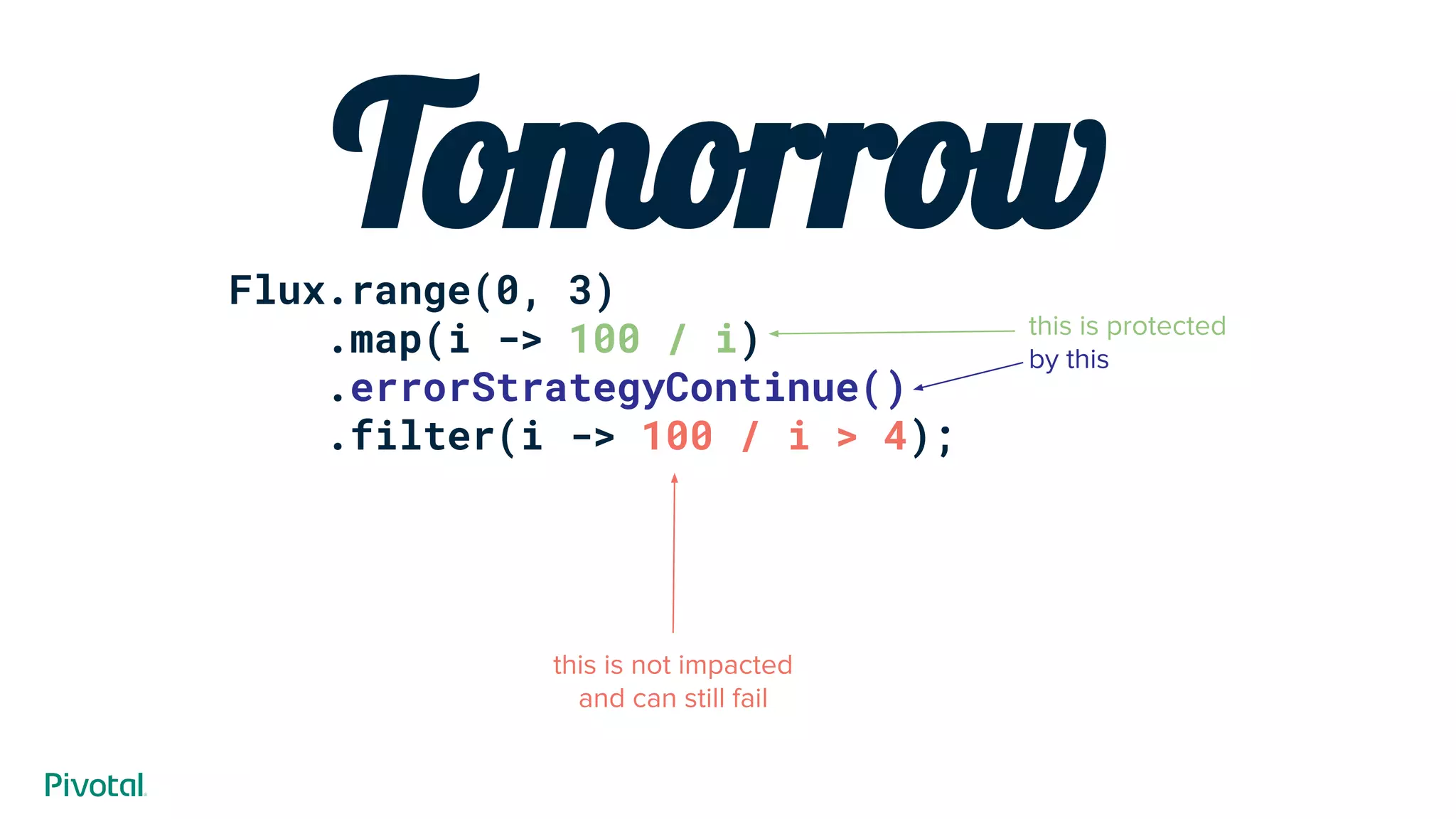

- 116. TomorrowFlux.range(0, 3) .map(i ->100 / i) .errorStrategyContinue() .filter(i -> 100 / i > 4); this is not impacted and can still fail this is protected by this
- 117.
- 118.

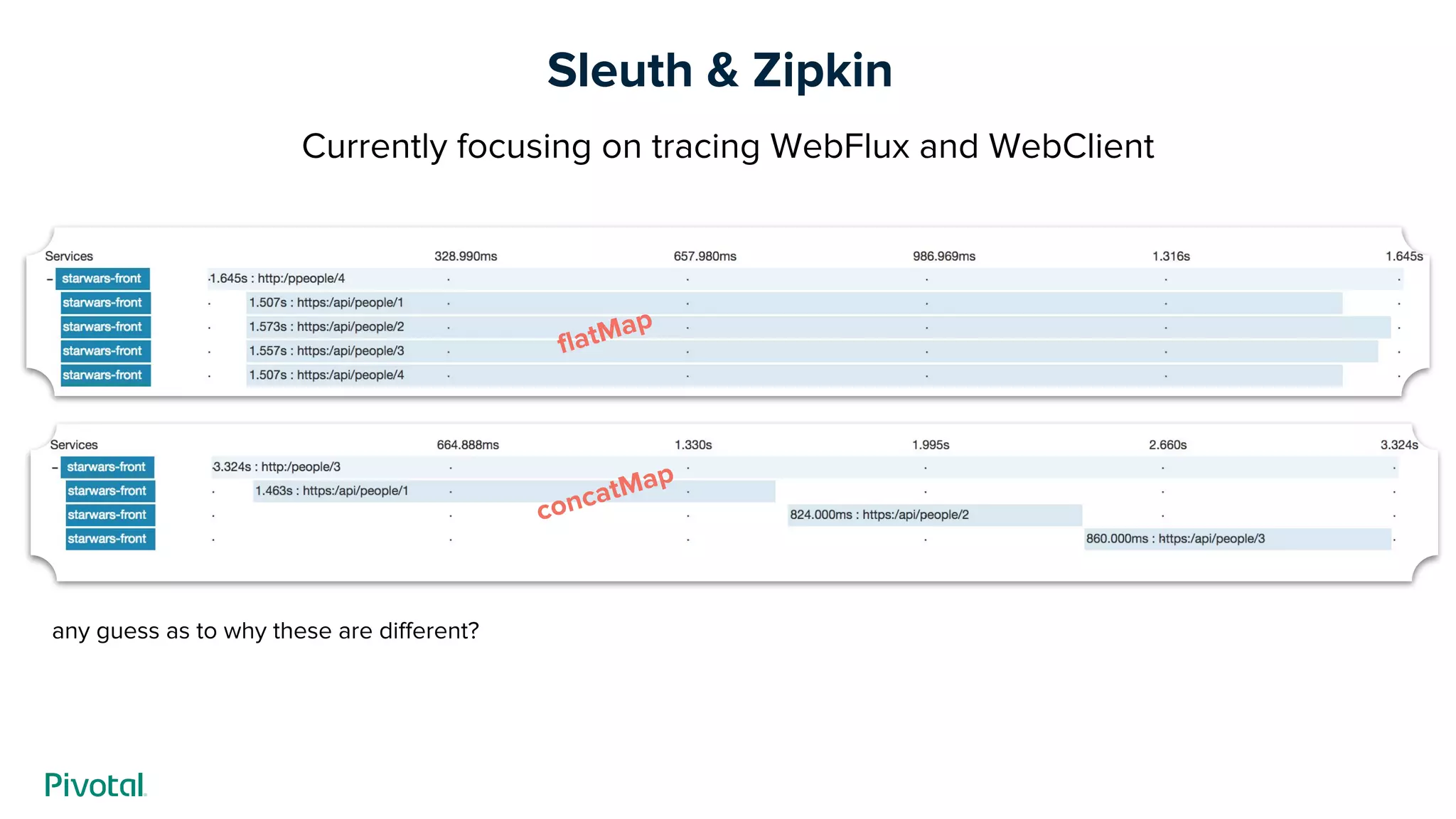

- 119. Sleuth & Zipkin Currentlyfocusing on tracing WebFlux and WebClient any guess as to why these are different? flatMap concatMap
- 120.

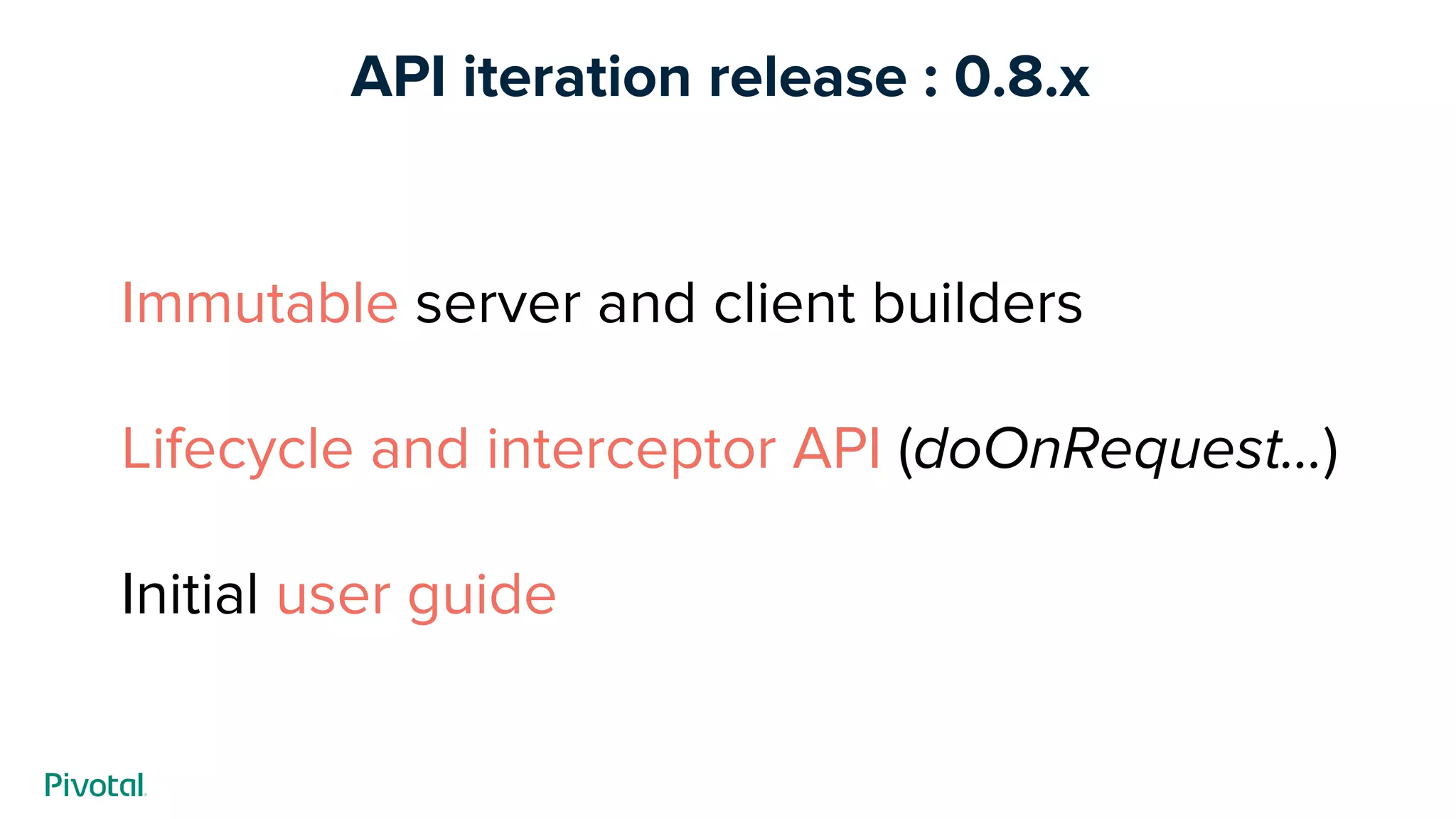

- 121. API iteration release: 0.8.x Immutable server and client builders Lifecycle and interceptor API (doOnRequest...) Initial user guide

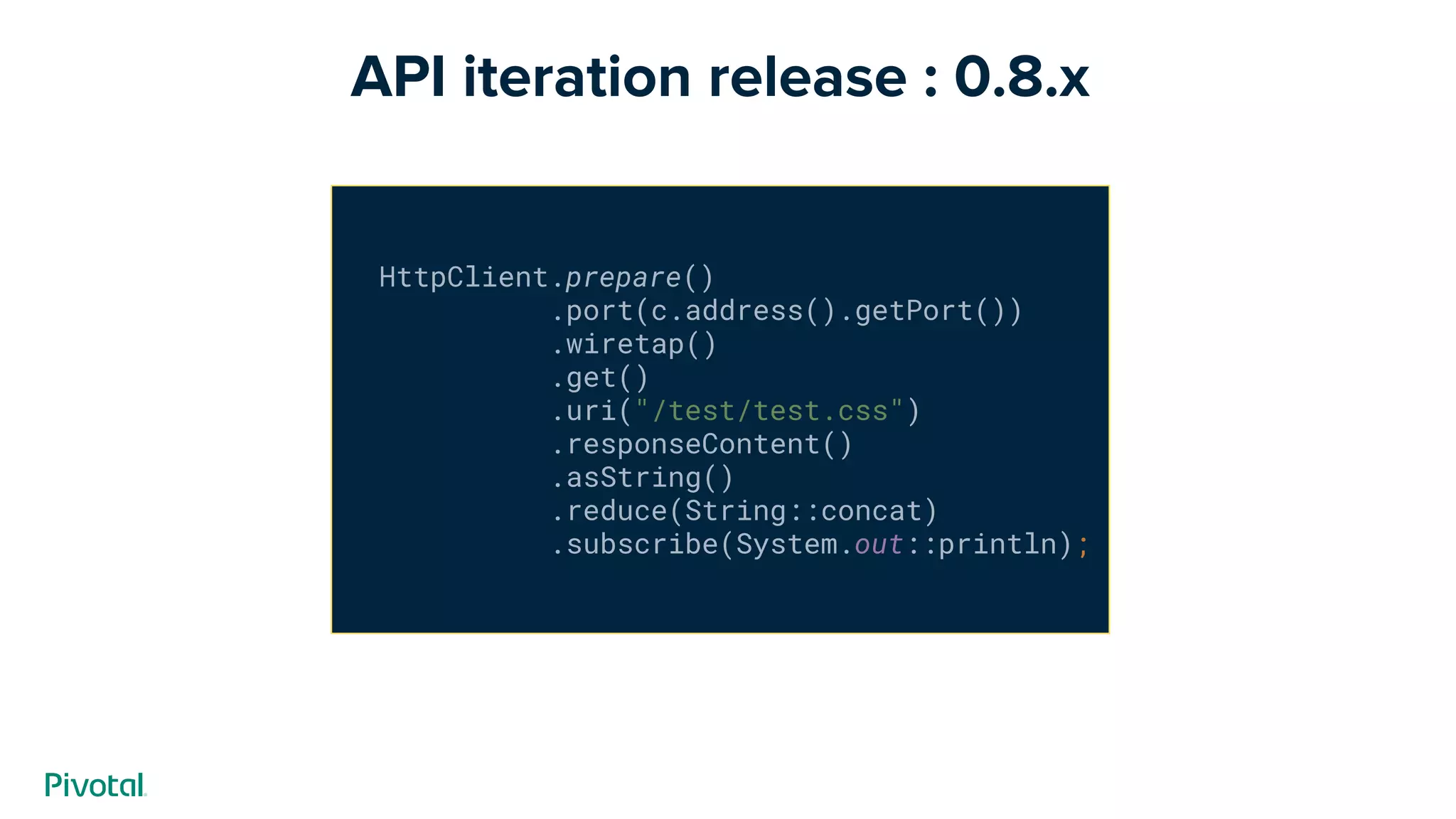

- 122. API iteration release: 0.8.x HttpClient.prepare() .port(c.address().getPort()) .wiretap() .get() .uri("/test/test.css") .responseContent() .asString() .reduce(String::concat) .subscribe(System.out::println);

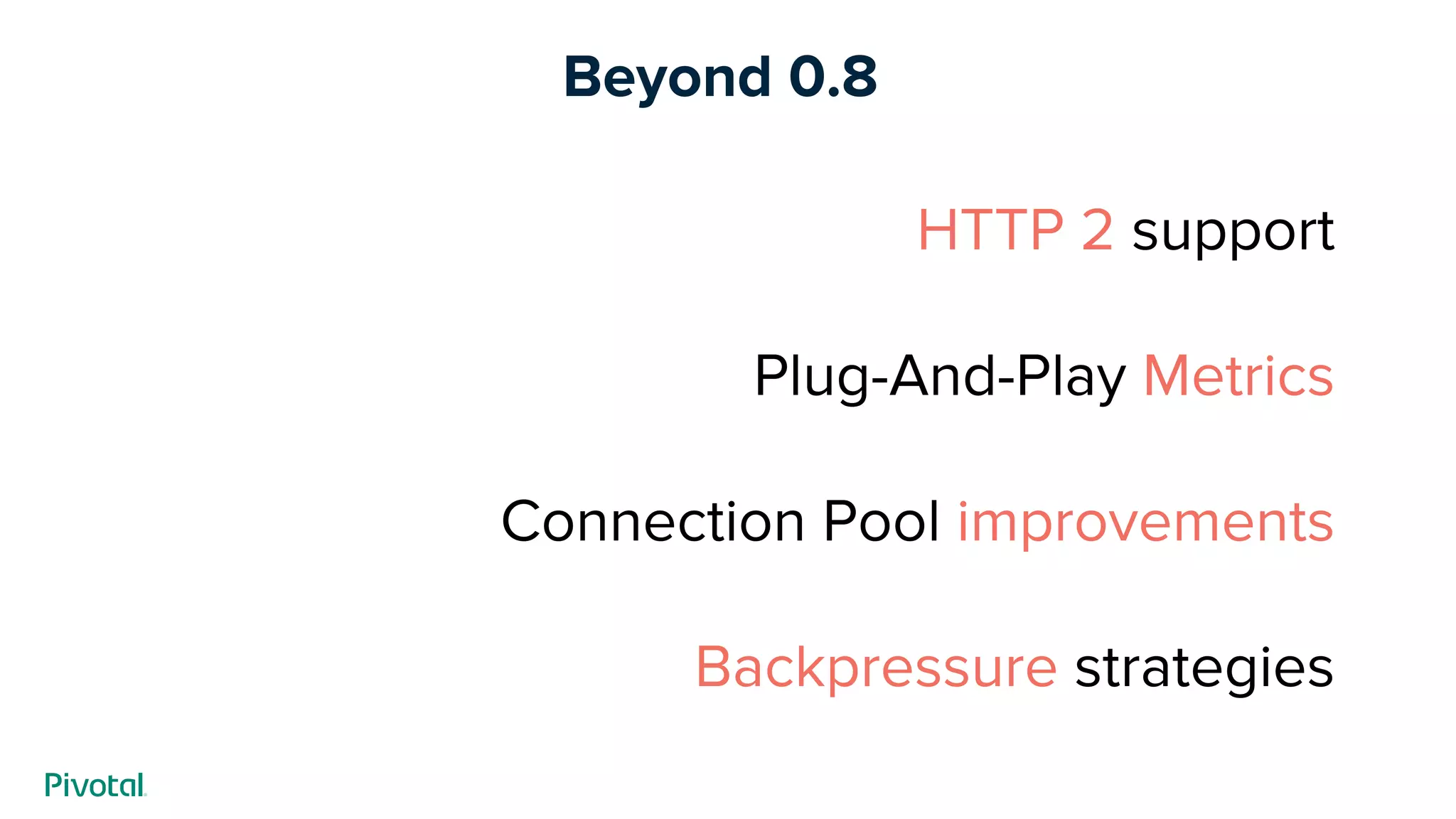

- 123. Beyond 0.8 HTTP 2support Plug-And-Play Metrics Connection Pool improvements Backpressure strategies
- 124.
- 125. Java 9 continuously improvesupport

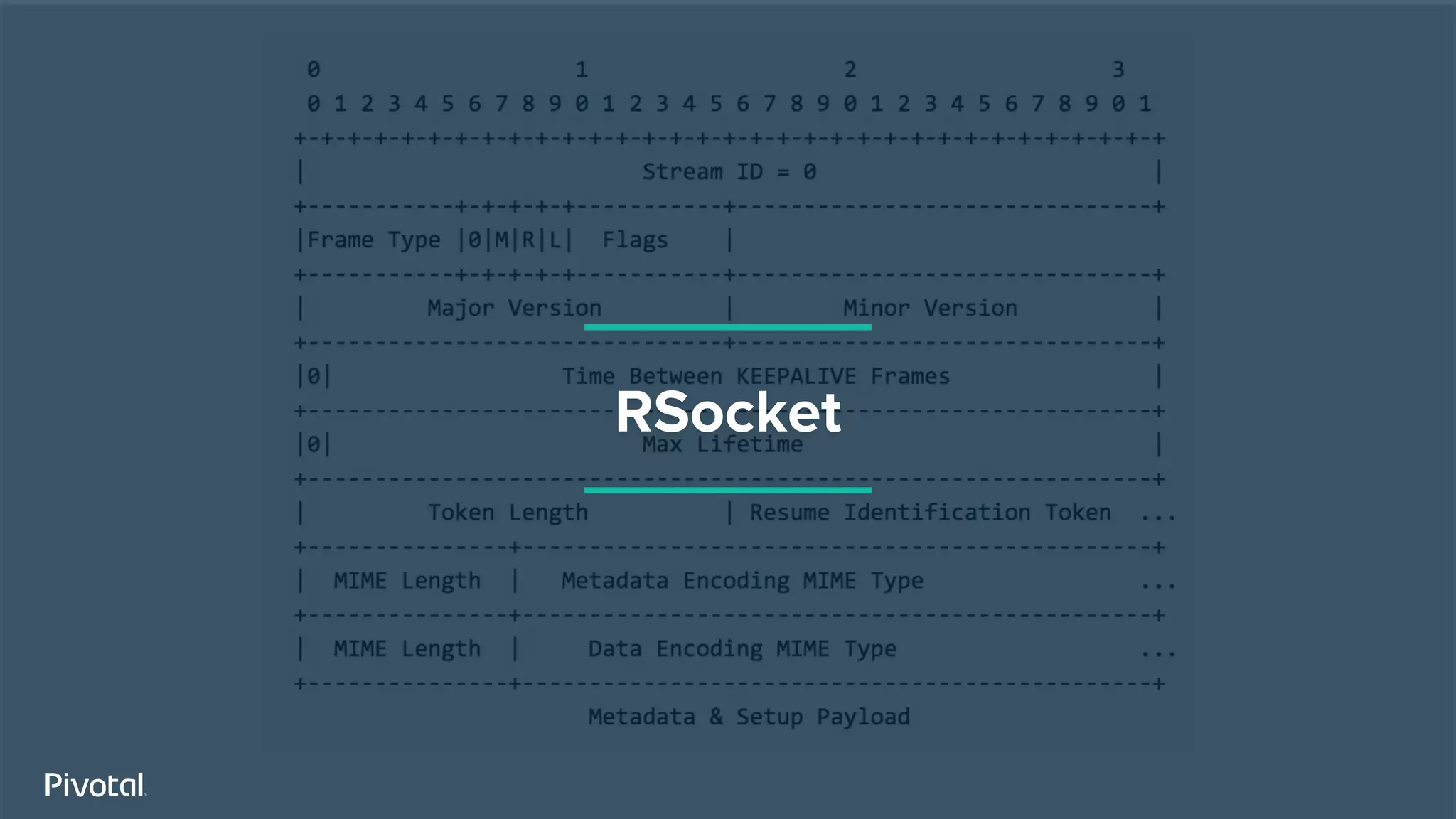

- 126. Java 9 continuously improvesupport RSocket

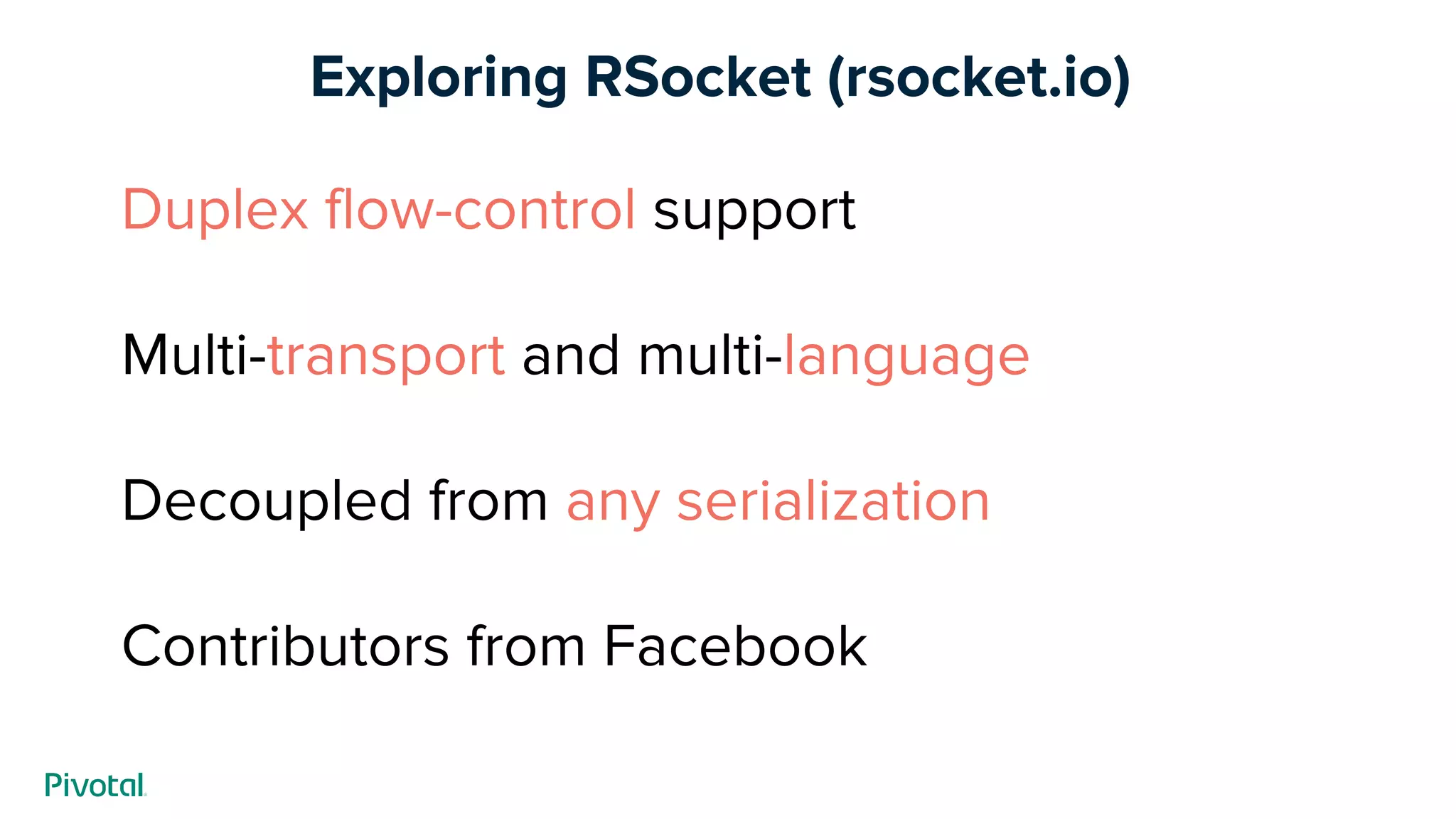

- 127. Exploring RSocket (rsocket.io) Duplexflow-control support Multi-transport and multi-language Decoupled from any serialization Contributors from Facebook
- 128.
- 129.
- 130.
- 131.

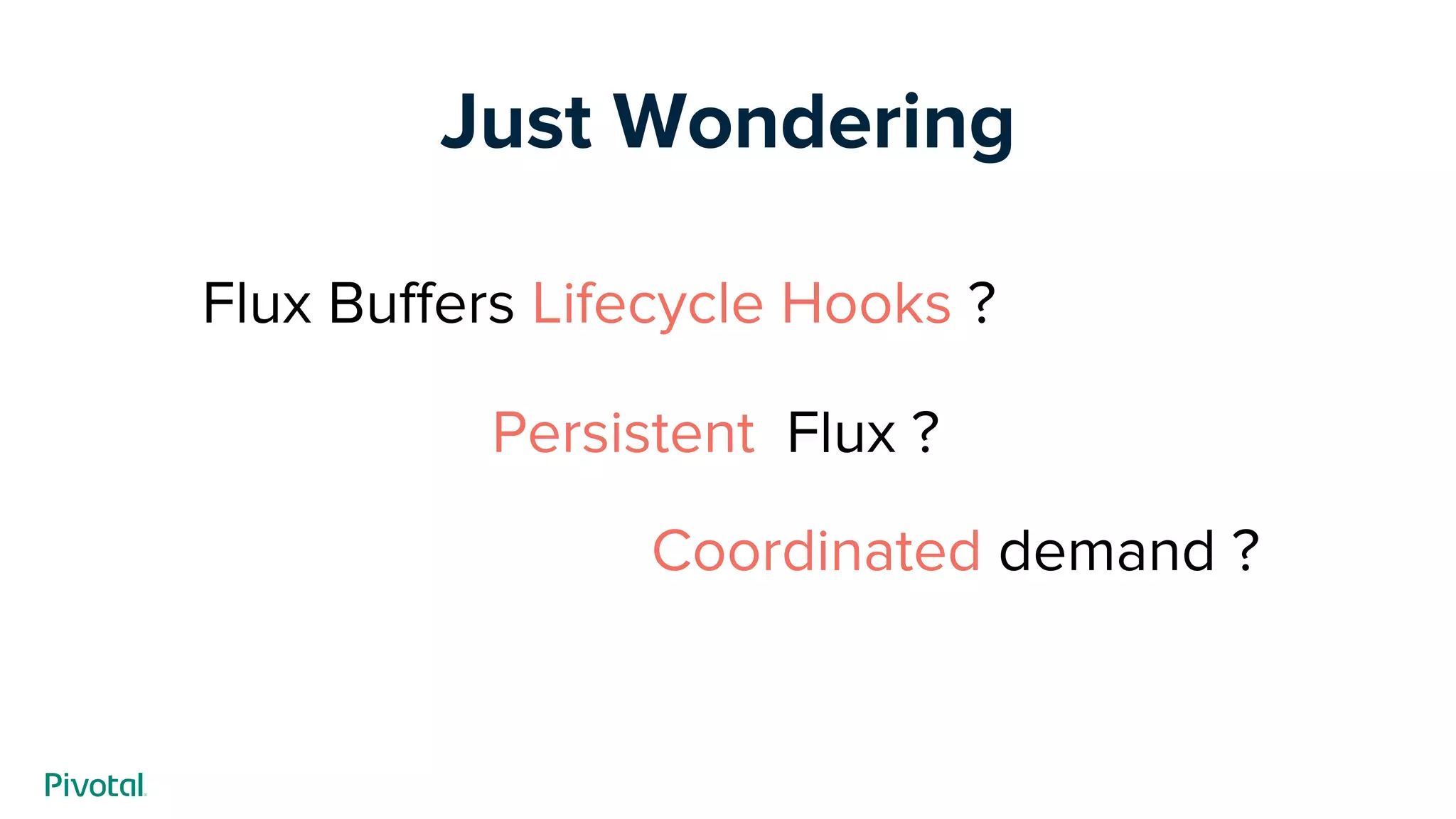

- 132. Just Wondering Flux BuffersLifecycle Hooks ? Persistent Flux ? Coordinated demand ?
- 134. What do youneed ?
