1. PROJECT MANAGEMENT
(MGT 60403/ ARC 3612/ ARC 3614)
5 JULY 2017
NAME OF STUDENT: KIMBERLY WONG JIN SIEW
STUDENT ID: 0315145
TUTOR : Ms. SATEERAH HASSAN
Marks for 3 component : 1.__/10 2.__/10 3.__/10
TOTAL: __/30

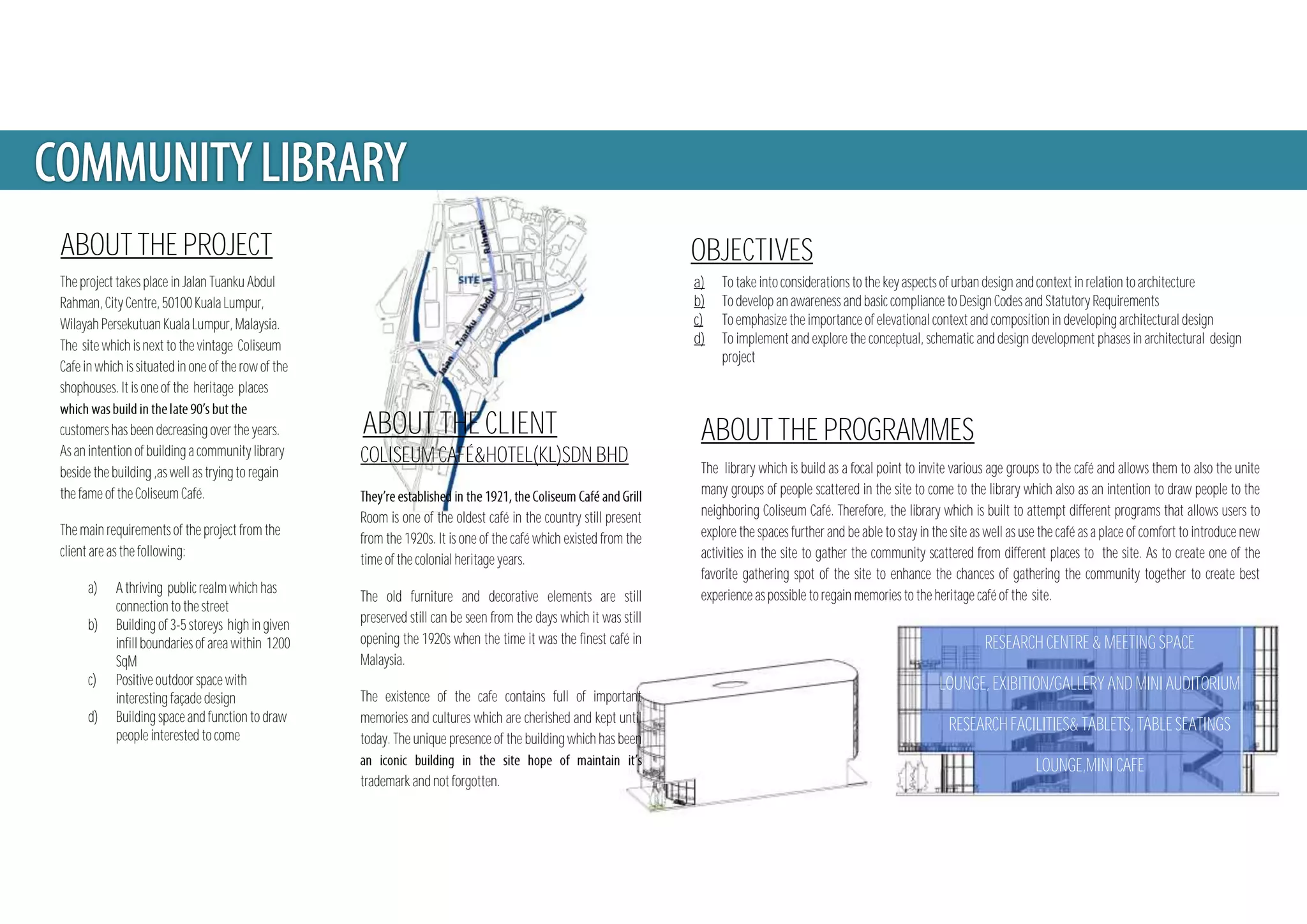

2. ABOUT THE PROJECT
ABOUT THE CLIENT
a) To take into considerations to the key aspects of urban design and context in relation to architecture
b) To develop an awareness and basic compliance to Design Codes and Statutory Requirements
c) To emphasize the importance of elevational context and composition in developing architectural design
d) To implement and explore the conceptual, schematic and design development phases in architectural design
project
ABOUT THE PROGRAMMES
The project takes place in Jalan Tuanku Abdul
Rahman, City Centre, 50100 Kuala Lumpur,
Wilayah Persekutuan Kuala Lumpur, Malaysia.
The site which is next to the vintage Coliseum
Cafe in which is situated in one of the row of the
shophouses. It is one of the heritage places
customers has been decreasing over the years.
As an intention of building a community library
beside the building ,as well as trying to regain
the fame of the Coliseum Café.
The main requirements of the project from the
client are as the following:
a) A thriving public realm which has
connection to the street
b) Building of 3-5 storeys high in given
infill boundaries of area within 1200
SqM
c) Positive outdoor space with
interesting façade design
d) Building space and function to draw
people interested to come
COLISEUM CAFÉ&HOTEL(KL)SDN BHD
Room is one of the oldest café in the country still present
from the 1920s. It is one of the café which existed from the
time of the colonial heritage years.
The old furniture and decorative elements are still
preserved still can be seen from the days which it was still
opening the 1920s when the time it was the finest café in
Malaysia.
The existence of the cafe contains full of important
memories and cultures which are cherished and kept until
today. The unique presence of the building which has been
trademark and not forgotten.
OBJECTIVES
The library which is build as a focal point to invite various age groups to the café and allows them to also the unite
many groups of people scattered in the site to come to the library which also as an intention to draw people to the
neighboring Coliseum Café. Therefore, the library which is built to attempt different programs that allows users to
explore the spaces further and be able to stay in the site as well as use the café as a place of comfort to introduce new
activities in the site to gather the community scattered from different places to the site. As to create one of the
favorite gathering spot of the site to enhance the chances of gathering the community together to create best
experience as possible to regain memories to the heritage café of the site.
RESEARCH CENTRE & MEETING SPACE
LOUNGE, EXIBITION/GALLERY AND MINI AUDITORIUM
RESEARCH FACILITIES& TABLETS, TABLE SEATINGS
LOUNGE,MINI CAFE

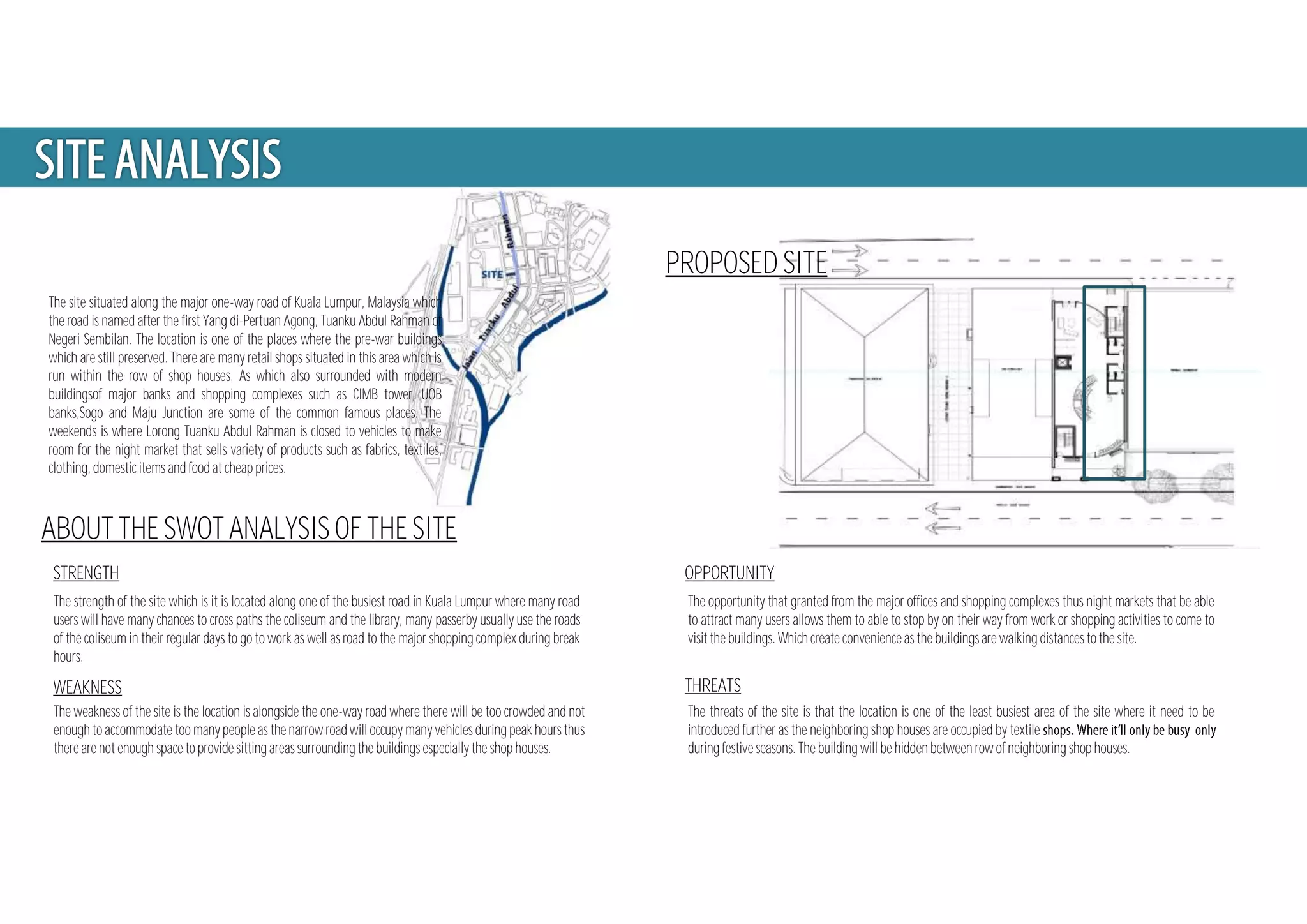

3. PROPOSED SITE
The site situated along the major one-way road of Kuala Lumpur, Malaysia which
the road is named after the first Yang di-Pertuan Agong, Tuanku Abdul Rahman of
Negeri Sembilan. The location is one of the places where the pre-war buildings
which are still preserved. There are many retail shops situated in this area which is
run within the row of shop houses. As which also surrounded with modern
buildingsof major banks and shopping complexes such as CIMB tower, UOB
banks,Sogo and Maju Junction are some of the common famous places. The
weekends is where Lorong Tuanku Abdul Rahman is closed to vehicles to make
room for the night market that sells variety of products such as fabrics, textiles,
clothing, domestic items and food at cheap prices.
ABOUT THE SWOT ANALYSIS OF THE SITE
STRENGTH
WEAKNESS
OPPORTUNITY
THREATS
The strength of the site which is it is located along one of the busiest road in Kuala Lumpur where many road
users will have many chances to cross paths the coliseum and the library, many passerby usually use the roads
of the coliseum in their regular days to go to work as well as road to the major shopping complex during break
hours.
The threats of the site is that the location is one of the least busiest area of the site where it need to be
introduced further as the neighboring shop houses are occupied by textile
during festive seasons. The building will be hidden between row of neighboring shop houses.
The weakness of the site is the location is alongside the one-way road where there will be too crowded and not
enough to accommodate too many people as the narrow road will occupy many vehicles during peak hours thus
there are not enough space to provide sitting areas surrounding the buildings especially the shop houses.
The opportunity that granted from the major offices and shopping complexes thus night markets that be able
to attract many users allows them to able to stop by on their way from work or shopping activities to come to
visit the buildings. Which create convenience as the buildings are walking distances to the site.

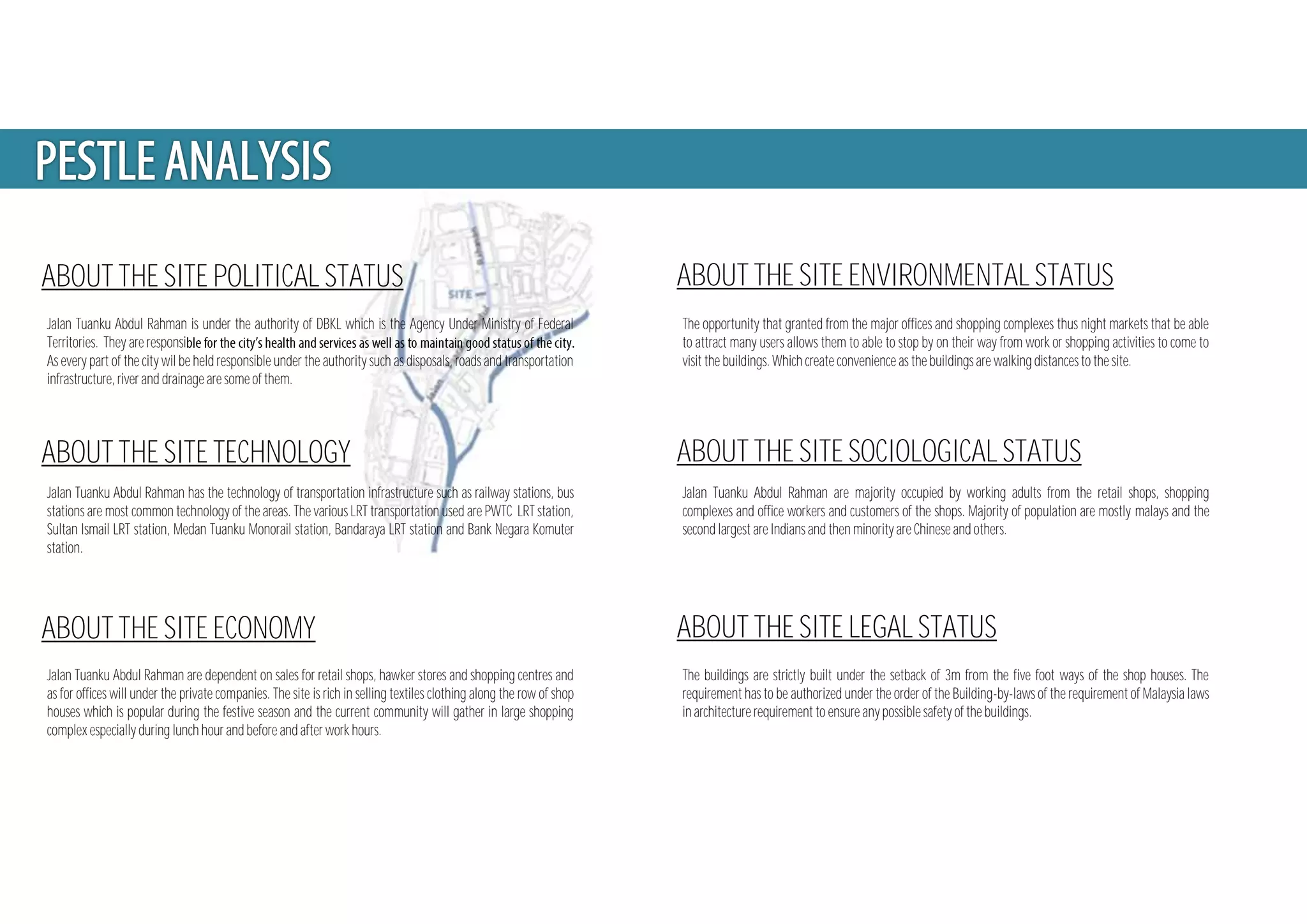

4. ABOUT THE SITE POLITICAL STATUS
ABOUT THE SITE TECHNOLOGY
ABOUT THE SITE ECONOMY
ABOUT THE SITE ENVIRONMENTAL STATUS
ABOUT THE SITE SOCIOLOGICAL STATUS
ABOUT THE SITE LEGAL STATUS
The opportunity that granted from the major offices and shopping complexes thus night markets that be able
to attract many users allows them to able to stop by on their way from work or shopping activities to come to
visit the buildings. Which create convenience as the buildings are walking distances to the site.
Jalan Tuanku Abdul Rahman is under the authority of DBKL which is the Agency Under Ministry of Federal
Territories. They are responsi
As every part of the city wil be held responsible under the authority such as disposals, roads and transportation
infrastructure, river and drainage are some of them.
Jalan Tuanku Abdul Rahman has the technology of transportation infrastructure such as railway stations, bus
stations are most common technology of the areas. The various LRT transportation used are PWTC LRT station,
Sultan Ismail LRT station, Medan Tuanku Monorail station, Bandaraya LRT station and Bank Negara Komuter
station.
Jalan Tuanku Abdul Rahman are dependent on sales for retail shops, hawker stores and shopping centres and
as for offices will under the private companies. The site is rich in selling textiles clothing along the row of shop
houses which is popular during the festive season and the current community will gather in large shopping
complex especially during lunch hour and before and after work hours.
The buildings are strictly built under the setback of 3m from the five foot ways of the shop houses. The
requirement has to be authorized under the order of the Building-by-laws of the requirement of Malaysia laws
in architecture requirement to ensure any possible safety of the buildings.
Jalan Tuanku Abdul Rahman are majority occupied by working adults from the retail shops, shopping
complexes and office workers and customers of the shops. Majority of population are mostly malays and the
second largest are Indians and then minority are Chinese and others.

5. ABOUT THE PROJECT OBJECTIVES
The aims of this project are:-
e) To fulfill all client requirements to their satisfaction and accept every ideas and wishes into the
project.
f) dateline, with good quality job within the required budget.
g) To avoid any problems within the stage of the construction works to speed up and provide any
possible delays of the project.
ABOUT THE PROJECT GOALS
SHORT TERM
MEDIUM TERM
LONG TERM
To provide a good impression and for a space as a greater use for many years to come thus influence and establish more creative
minds to have the space for comfort and relaxation.
To form an enthusiastic and creative of skilled of people that work well together for the project.
To have consistency in healthy amount of users to be interested in using the space that will always be upgraded and useful for
years to come.
ABOUT THE PROJECT SUCCESS CRITERIA
The project success is determined as whether how many numbers of people uses the facilities of the library and
interested to keep the site alive after the project is finished and at which also fulfill the client wishes to revive the
Coliseum Café . To include the three stages of basic measurement of the project success and its performances. As to
accomplish the goals to meet the client wishes which is important as also to determine the success of the business of
the Coliseum Café is under the influence of the project. The project needs to meet its expectation within the desired
time frame and budget which falls as an important part of the scope of the project.
QUALITY
TIME
COSTS
This determined from the work performances to produce a good outcome within the given timeframe with better space
experiences within the building such as acoustics, lighting, visual, technical performances and the proposed programs. Thus
provide suitable materials to the buildings, suitable circulation within the spaces, fire escape requirements, proper and suitable
temperature and follow the requirements of the GBI standards.
Effective time management of the project is important to meet the project dateline on time. The teamwork of the project should
be smooth in order to accomplish the task on the date given which is important to ensure success of the project thus prevent
anymore extension to the costs of the project
This determined from the work performances and wise estimation of prices during the construction period. If work progress
goes smoothly the cost will be maintained thus wiser estimation of materials should be calculated regularly to ensure no more
than the calculated quantity will be brought it.

6. MPH Distributors is one of the best market leader in the supplying books and magazines in Malaysia as well as
Singapore. The company is representing both local and international book publishers. Examples of major
publishers under their wings are HarperCollins (US and UK), Random House (US), Transworld (UK), Simon &
Schuster (US), Hachette Book Group (US), Usborne Publishing, Lonely Planet (Australia) and many more.
The company is known for its wide supplier range of distributing over 100 bestselling magazines published by
more than 50 publishers both locally as well as overseas. MPH Distributors has good connection an excellent
amongst the Malaysia and Singapore network in the book distribution field. Its well-managed warehouses
and distribution centres in both countries enables it to fulfill orders in a timely and efficient manner to more
than 4,000 customers, comprising of booksellers and newsstands.
ABOUT MPH DISTRIBUTORS
Established in year 2004 that provides one of the most innovative, highly developed and cost effective total
KIOSK facilities for the library. They are equipped with the utmost knowledge on the latest KIOSK technology,
which enables us to offer excellent solutions to fulfil the requirements of our customers. They strive to
provide the best services and products via the integration of our knowledge, strength and network.
ABOUT XYREON TECHNOLOGY SDN BHD
Established in 1998 Gerakbudaya is a publisher and distributor of books that are critical with alternative
perspectives, and the hidden histories of Malaysia, Southeast Asia & worldwide. Gerakbudaya is dedicated to
breaking down grounds of artificial barriers between writers and thinkers and between institutions and the
outside world, and generating informed discussions on important issues in Malaysian life by providing
different views and which includes fresh insights of books distributed.
ABOUT GERAKBUDAYA SDN BHD

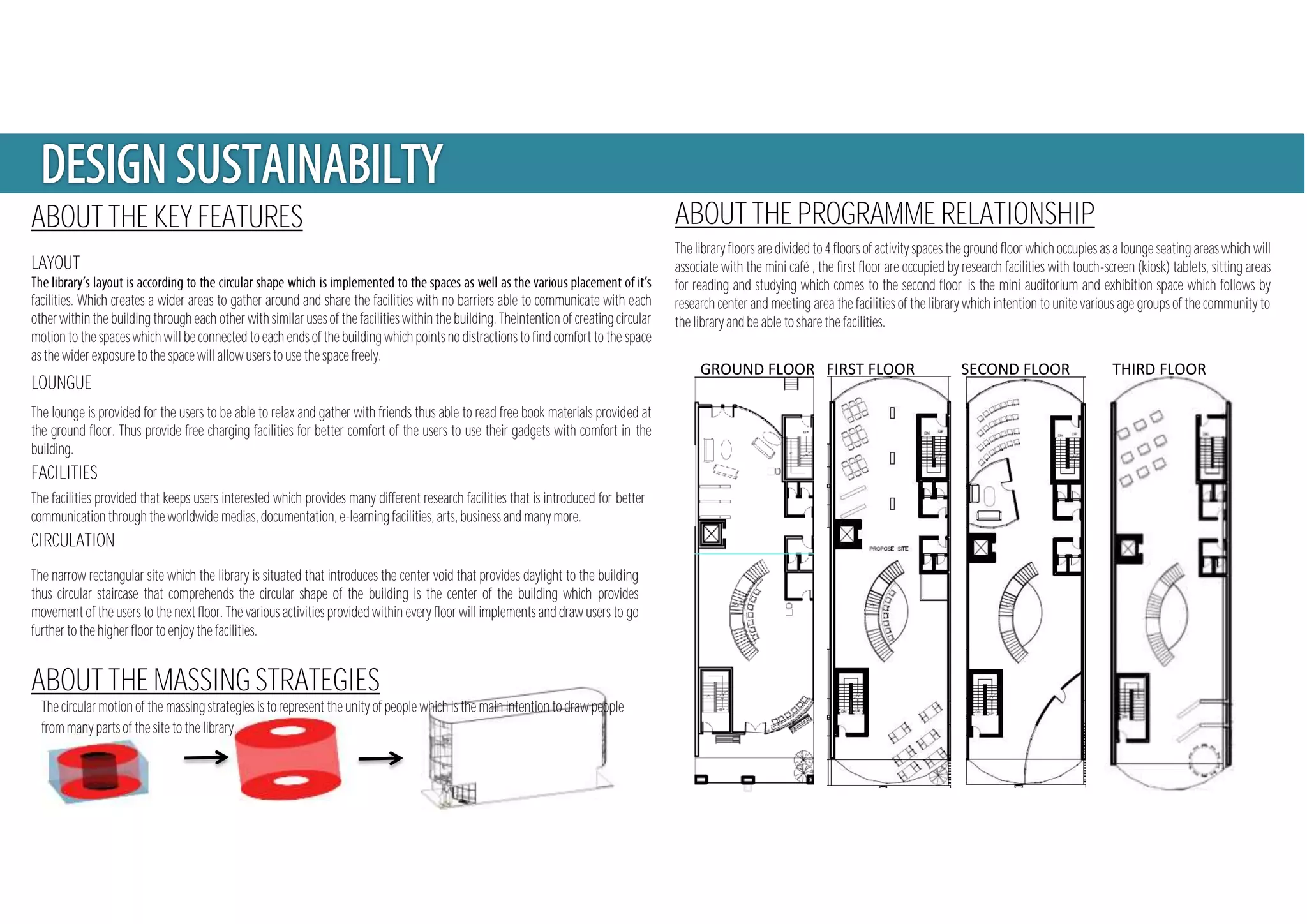

7. The library floors are divided to 4 floors of activity spaces the ground floor which occupies as a lounge seating areas which will
associate with the mini café , the first floor are occupied by research facilities with touch-screen (kiosk) tablets, sitting areas
for reading and studying which comes to the second floor is the mini auditorium and exhibition space which follows by
research center and meeting area the facilities of the library which intention to unite various age groups of the community to
the library and be able to share the facilities.
ABOUT THE PROGRAMME RELATIONSHIP
GROUND FLOOR FIRST FLOOR SECOND FLOOR THIRD FLOOR
ABOUT THE KEY FEATURES
LAYOUT
LOUNGUE
FACILITIES
CIRCULATION
ABOUT THE MASSING STRATEGIES
The narrow rectangular site which the library is situated that introduces the center void that provides daylight to the building
thus circular staircase that comprehends the circular shape of the building is the center of the building which provides
movement of the users to the next floor. The various activities provided within every floor will implements and draw users to go
further to the higher floor to enjoy the facilities.
facilities. Which creates a wider areas to gather around and share the facilities with no barriers able to communicate with each
other within the building through each other with similar uses of the facilities within the building. Theintention of creating circular
motion to the spaces which will be connected to each ends of the building which points no distractions to find comfort to the space
as the wider exposure to the space will allow users to use the space freely.
The lounge is provided for the users to be able to relax and gather with friends thus able to read free book materials provided at
the ground floor. Thus provide free charging facilities for better comfort of the users to use their gadgets with comfort in the
building.
The facilities provided that keeps users interested which provides many different research facilities that is introduced for better
communication through the worldwide medias, documentation, e-learning facilities, arts, business and many more.
The circular motion of the massing strategies is to represent the unity of people which is the main intention to draw people
from many parts of the site to the library.

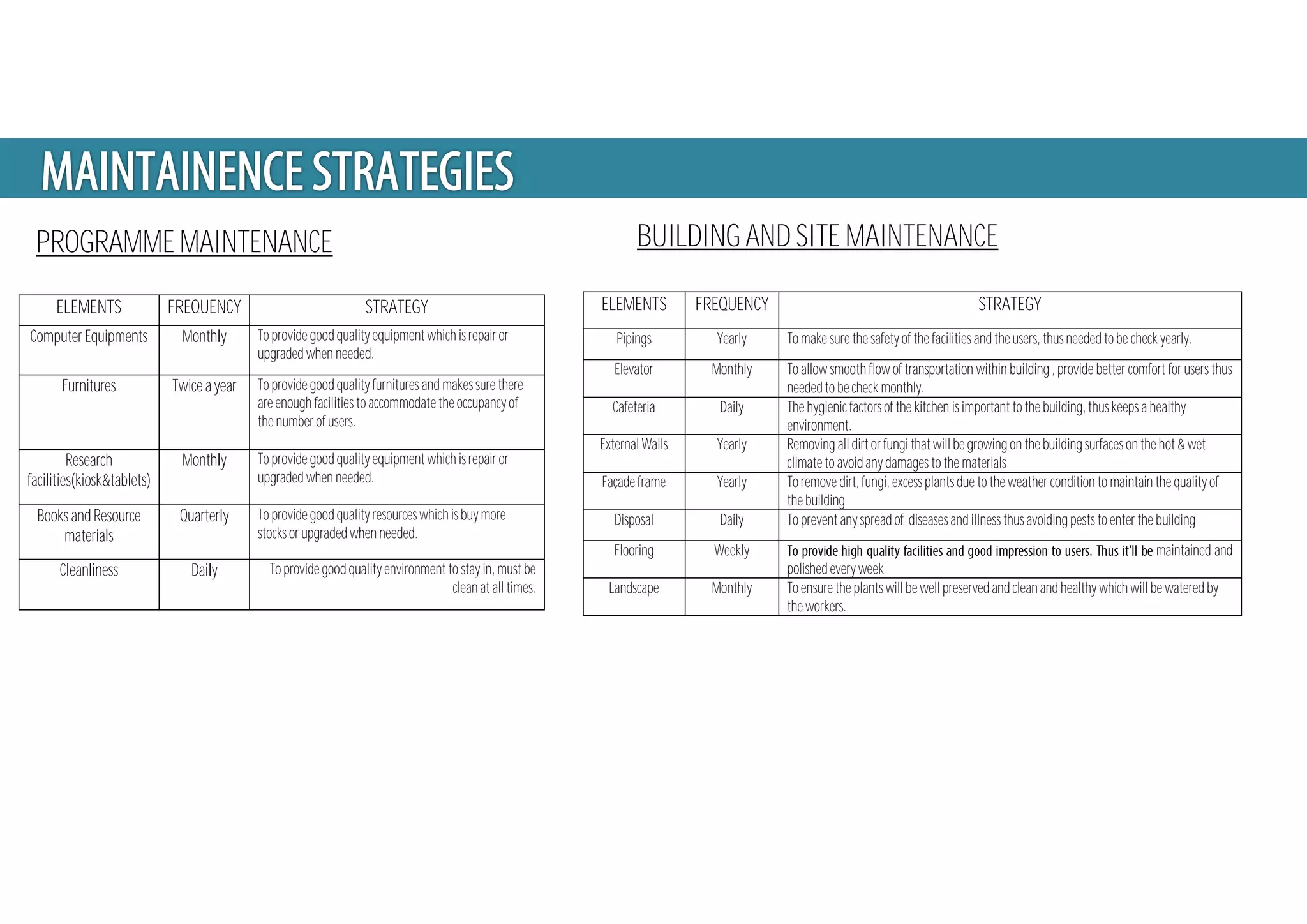

8. ELEMENTS FREQUENCY STRATEGY
Computer Equipments Monthly To provide good quality equipment which is repair or
upgraded when needed.
Furnitures Twiceayear To provide good quality furnitures and makes sure there
are enough facilities to accommodate the occupancy of
the number of users.
Research
facilities(kiosk&tablets)
Monthly To provide good quality equipment which is repair or
upgraded when needed.
Books and Resource
materials
Quarterly To provide good quality resources which is buy more
stocks or upgraded when needed.
Cleanliness Daily To provide good quality environment to stay in, must be
clean at all times.
ELEMENTS FREQUENCY STRATEGY
Pipings Yearly To make sure the safety of the facilities and the users, thus needed to be check yearly.
Elevator Monthly To allow smooth flow of transportation within building , provide better comfort for users thus
needed to be check monthly.
Cafeteria Daily The hygienic factors of the kitchen is important to the building, thus keeps a healthy
environment.
External Walls Yearly Removing all dirt or fungi that will be growing on the building surfaces on the hot & wet
climate to avoid any damages to the materials
Façade frame Yearly To remove dirt, fungi, excess plants due to the weather condition to maintain the quality of
the building
Disposal Daily To prevent any spread of diseases and illness thus avoiding pests to enter the building
Flooring Weekly maintained and
polished every week
Landscape Monthly To ensure the plants will be well preserved and clean and healthy which will be watered by
the workers.
PROGRAMME MAINTENANCE BUILDING AND SITE MAINTENANCE

9. No. RISK LIKEHOOD SEVERITY IMPACT MITICATION STRATERGY CONTINGENCY PLAN
1. PRECONSTRUCTION PHASE
1.1 Miscommunicationbetweenclients and
consultant
low low Project delays and extensions
that causes bad relationships
withconsultants and client
Discussions and meeting will betaken
place to reach to anagreement
Refer to requirements and contracts for
any changes during discussion
2. CONSTRUCTION PHASE
2.1 needs and
expectation
low high Projectdelays and extensions
that causes bad relationships
withconsultants and client
Discussions and meeting will betaken
place to change thedesignstrategies to
meet their expectation
Need to produce abrand new design
2.2 Thedesigncodes and safety facilities approved
by authorities
moderate Very high Theprojectwill befurther
delayed by theauthority
Check carefully and makeany changes
to any mistakes in drawings and discuss
amongstthe teams beforesubmitting
Thearchitect will have to re-design
according to theBuilding-by-law
providedby theBoard of Architects
Malaysia
2.3 Theconstructioncosts
estimated , under budget
low moderate Will haveconflictwiththe
clients as thecostwill notbe
as discussed
Makesure thecostof materials and
constructionwill becarefully calculated
whenboughtand prevent any further
delays to reduce labour costs
To consultwiththe experienced and
skilled Quantity Surveyor of each
transactionplaced
2.4 Unexpected modificationofdesignby client moderate high Constructionwork need to
demolished and restart
Ensure clear communicationwith
clients ontheir ideas and further
discussionto what to suggestbefore
starttheproject
Project Manager is responsibleto provide
aclear Gantt Chart and tasks affected
3. BUILDING CONSTRUCTION AND MAINTAINENCEPHASE
3.1 Thefacilities fail toattractusers tocome
anymore
low Very high Possibility tobuilding tobe
closed downand efforttobe
Introduced various activities and events
in the buildings such as book exhibition,
Ensure theprogrammes works well and
createinteresting spaces for user to rely
RISK ANALYSIS

10. wasted causes hugeloss inviteimportantspeakers onthe facilities and enjoy their time
there.

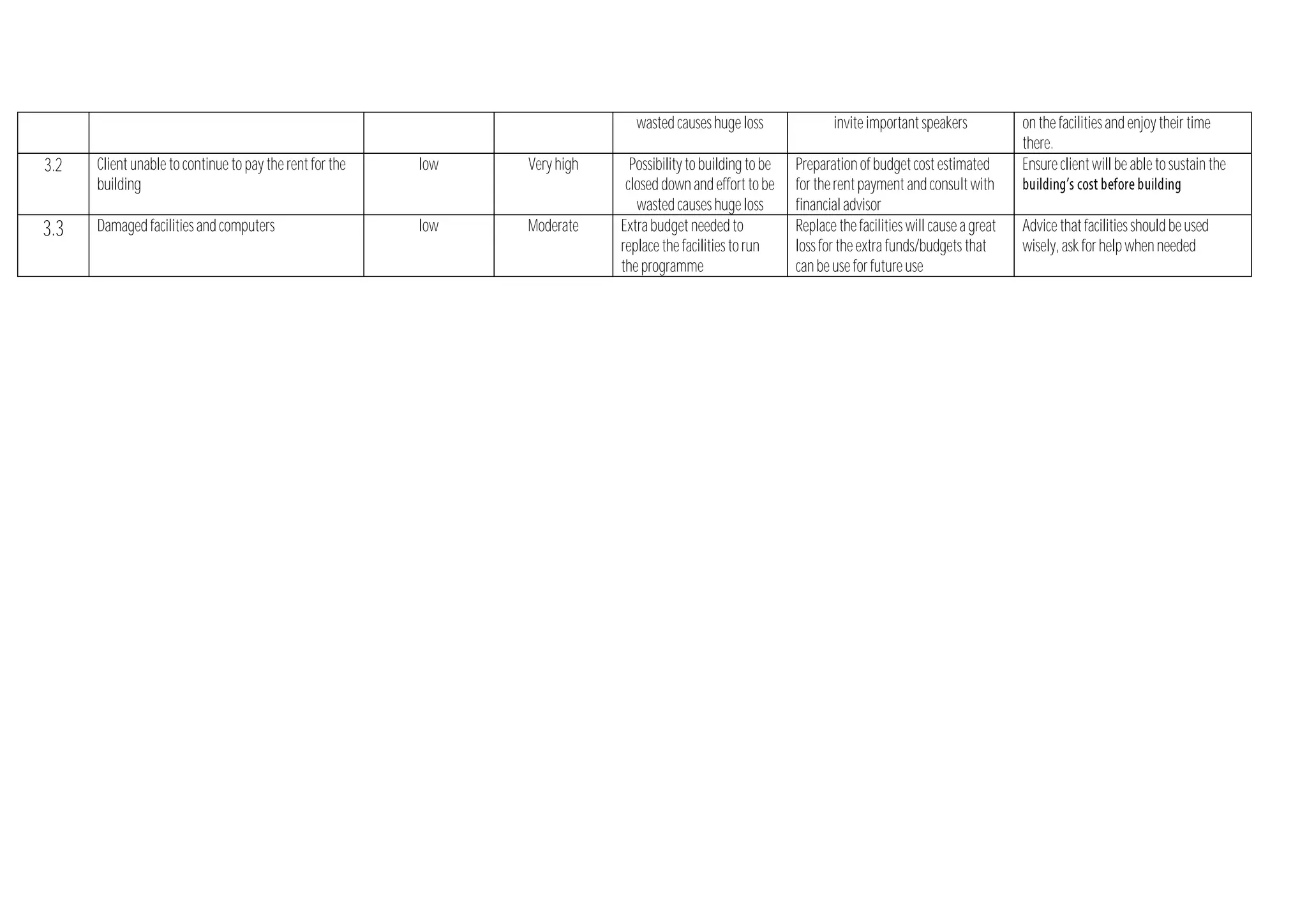

3.2 Clientunableto continueto pay the rentfor the
building
low Very high Possibility tobuilding tobe
closed downand efforttobe
wasted causes hugeloss
Preparationof budgetcostestimated
for therentpayment and consultwith
financial advisor
Ensure clientwill be ableto sustain the
3.3 Damaged facilities and computers low Moderate Extrabudgetneeded to
replacethefacilities torun
theprogramme
Replace thefacilities will causeagreat
loss for theextra funds/budgets that
canbeusefor future use
Advicethatfacilities should beused
wisely, ask for help whenneeded

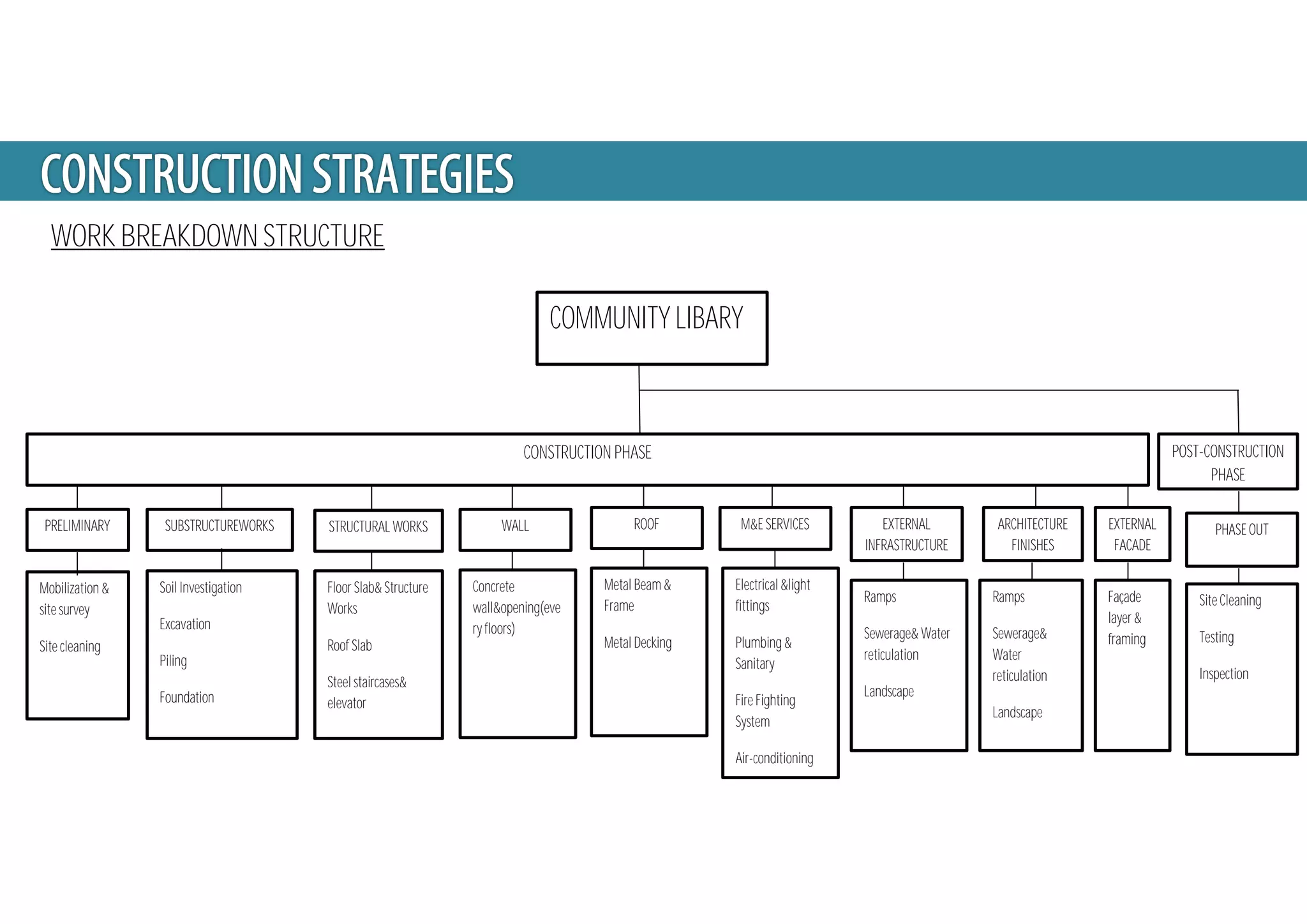

11. WORK BREAKDOWN STRUCTURE
COMMUNITY LIBARY
CONSTRUCTION PHASE POST-CONSTRUCTION
PHASE
PRELIMINARY SUBSTRUCTUREWORKS STRUCTURAL WORKS WALL ROOF M&E SERVICES EXTERNAL
INFRASTRUCTURE
EXTERNAL
FACADE
PHASE OUT
Mobilization &
site survey
Site cleaning
Soil Investigation
Excavation
Piling
Foundation
Floor Slab& Structure
Works
Roof Slab
Steel staircases&
elevator
Concrete
wall&opening(eve
ry floors)
Metal Beam &
Frame
Metal Decking
Electrical &light
fittings
Plumbing &
Sanitary
Fire Fighting
System
Air-conditioning
ARCHITECTURE
FINISHES
Ramps
Sewerage& Water
reticulation
Landscape
Ramps
Sewerage&
Water
reticulation
Landscape
Façade
layer &
framing
Site Cleaning
Testing
Inspection
